SAFETY PRECAUTIONS
● Before using the appliance, read these “SAFETY PRECAUTIONS” thoroughly and operate in the correct way.
● The instructions in this section all relate to safety; be sure to maintain safe operating conditions.
WARNING
This mark indicates procedures which, if improperly performed, might lead to the death or serious
injury of the user.
• If a problem (burning smell, etc.) occurs, turn off the electrical breaker immediately to stop operation, and then consult
authorized service personnel.
CAUTION
This mark indicates procedures which, if improperly performed, might possibly result in personal
harm to the user, or damage to property.
• Do not expose the controller directly to water.
• Do not operate the controller with wet hands.
• Do not touch the switches with sharp objects.
• Always turn off the electrical breaker whenever cleaning
the controller, the air conditioner or the air fi lter.
• Ensure that any electronic equipment is at least 1m
away from the controller.
• Avoid installing the controller near a fi replace or other
heating apparatus.
• Do not use infl ammable gases near the controller.
CONTENTS
SAFETY PRECAUTIONS ................................................ 1
FEATURES AND FUNCTIONS ....................................... 2
NAME OF PARTS ........................................................... 3
PREPARATION ............................................................... 4
OPERATION .................................................................... 5
TIMER OPERATION ....................................................... 7
SLEEP TIMER OPERATION ........................................... 8
ADJUSTING THE DIRECTION OF
AIR CIRCULATION ......................................................... 9
SWING OPERATION .................................................... 10
ECONOMY OPERATION .............................................. 10
MINIMUM HEAT OPERATION .......................................11
SELECTING THE REMOTE CONTROLLER
SIGNAL CODE .............................................................. 12
TROUBLESHOOTING .................................................. 13
OPERATING TIPS ......................................................... 14
En-2
FEATURES AND FUNCTIONS
ECONOMY OPERATION
Limits the maximum operation current, and performs operation
with the power consumption suppressed. When economy operation mode is operated, the room temperature will be little higher
than the set-temp under cooling mode and lower than set-temp
under heating mode. Therefore, the economy mode is able to
save more energy than other normal mode.
AUTO CHANGEOVER
The operation mode (cooling, dry, heating) is switched automatically to maintain the set temperature, and the temperature is kept
constant at all times.
MINIMUM HEAT OPERATION
The room temperature can be set to go no longer than 50°F,
thus ensuring that the room does not get too cold when no occupied.
PROGRAM TIMER
The program timer allows you to integrate OFF timer and ON
timer operations in a single sequence. The sequence can involve
1 transition from OFF timer to ON timer, or from ON timer to OFF
timer, within 24 hour period.
SLEEP TIMER
When the “SLEEP” button is pressed during Heating mode, the
air conditioner’s temperature setting is gradually lowered during
the period of operation; during cooling mode, the temperature
setting is gradually raised during the period of operation. When
the set time is reached, the unit automatically turns off.
WIRELESS REMOTE CONTROLLER
The Wireless Remote Controller allows convenient control of air
conditioner operation.
HORIZONTAL AIRFLOW: COOLING/
DOWNWARD AIRFLOW: HEATING
For cooling, use horizontal airfl ow so the cool air does not blow
directly on the occupants in the room. For heating, use downward airfl ow to send powerful, warm air to the fl oor and create
a comfortable environment.
OMNI-DIRECTIONAL AIR FLOW
(SWING OPERATION)
3-dimensional control over air direction swing is possible through
dual use of both an UP/DOWN air direction swing and RIGHT/
LEFT air direction swing. Since UP/DOWN air direction fl aps
operate automatically according to the operating mode of the unit,
it is possible to set air direction based on the operating mode.
IMPORTANCE
You can use both wired and wireless remote controller simultaneously. But function is limited.
[The restricted functions for wireless remote controller ones]
• SLEEP TIMER
• TIMER
• MINIMUM HEAT OPERATION
En-3
NAME OF PARTS
Display panel
To facilitate explanation, the accompanying illustration has
been drawn to show all possible indicators; in actual operation, however, the display will only show those indicators
appropriate to the current operation.
1 “MODE” button
2 “SET TEMP. ( / )” button
3 “MIN.HEAT” button
4 “ECONOMY” button
5 “SLEEP” button
6 “FAN” button
7 “START/STOP” button
8 “ SET” button (Vertical)
9 “ SET” button (Horizontal)
0 “ SWING” button
A “TIMER MODE” button
B “TIMER SET ( / )” button
C “CLOCK ADJUST” button
D “RESET” button
E “TEST RUN” button
F Signal Transmitter
G Temperature SET Display
H Operation Mode Display
I SLEEP Display
J Transmit Indicator
K Fan Speed Display
L SWING Display
M T imer Mode Display
N Clock Display
Some indoor units may not be equipped with the functions
corresponding to all of the buttons on this remote controller. The indoor unit will beep and the OPERATION, TIMER
and FILTER lamp fl ash when a remote controller button is
pressed if the function is not available.
21
22
23
24
20
17
18
19
Display
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
● This button is used when installing the conditioner, and should not be used under normal
conditions, as it will cause the air conditioner’s
temperature function to operate incorrectly.
● If this button is pressed during normal operation,
the unit will switch to test operation mode, and
the Indoor Unit’s OPERATION Indicator Lamp
and TIMER Indicator Lamp will begin to fl ash
simultaneously.
● To stop the test operation mode, press the
“START/STOP” button to stop the air conditioner.
En-4
PREPARATION
Never mix new and used batteries, or batteries of different types.
Batteries should last about 1 year under
normal use. If the Remote Controller’s
operating range becomes appreciably reduced, replace the batteries and press the
“RESET” button with the tip of a ballpoint
pen or other small object.
Load Batteries (R03/LR03 × 2)
1
Press and slide the battery compartment lid on the
reverse side to open it.
Slide in the direction of the arrow while pressing the mark.
2
Insert batteries.
Be sure to align the battery polarities ( ) correctly.
3
Close the battery compartment lid.
Set the Current time
1
Press the “CLOCK ADJUST” button.
Use the tip of a ball-point pen or other small object to press the button.
2
Use the “TIMER SET ( / )” buttons to adjust the
clock to the current time.
button: Press to advance the time.
button: Press to reverse the time.
(Each time the buttons are pressed, the time will be advanced/reversed in
1-minute increments; hold the buttons depressed to change the time quickly
in 10-minutes increments.)
3
Press the “CLOCK ADJUST” button again.
This completes the time setting and starts the clock.
To Use the Remote Controller
● The Remote Controller must be pointed at signal receiver to operate correctly.
● Operating Range: About 5 m.
● When a signal is properly received by the air conditioner, a beeping sound will be
heard.
● If no beep is heard, press the Remote Controller button again.
Remote Controller Holder
3 To remove the Remote Con-
troller (when use at hand).
1 Mount the Holder. 2 Set the Remote Controller.
Screws
Insert
Press in
Slide up
Pull out
CAUTION
• Take care to prevent infants from accidentally swallowing batteries.
• When not using the Remote Controller for an extended period, remove the batteries to
avoid possible leakage and damage to the unit.
• If leaking battery fl uid comes in contact with your skin, eyes, or mouth, immediately wash
with copious amounts of water, and consult your physician.
• Dead batteries should be removed immediately and disposed of properly, either in a battery
collection receptacle or to the appropriate authority.
• Do not attempt to recharge dry batteries.
En-5

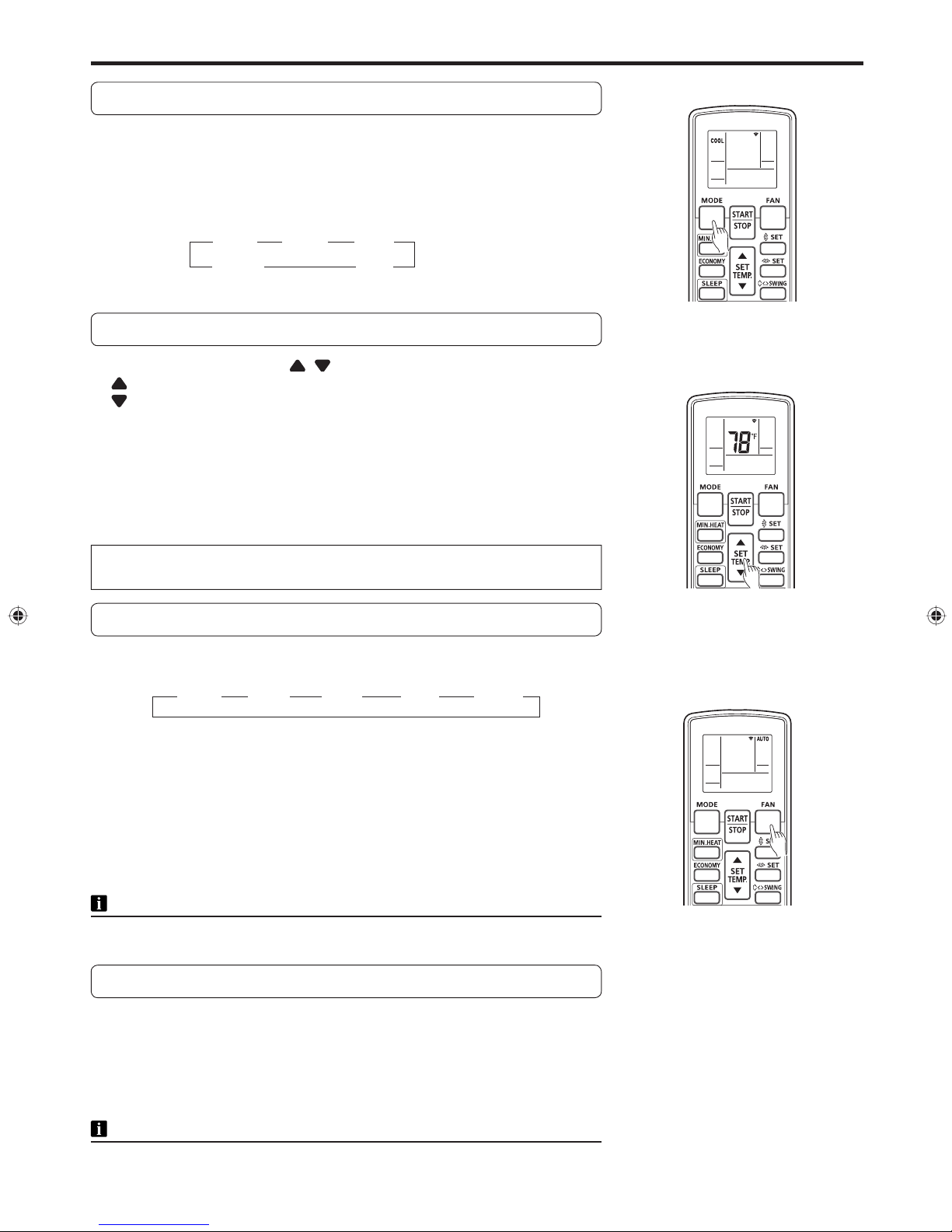

To Select Mode Operation
1
Press the “START/STOP” button.
The indoor unit’s OPERATION Indicator Lamp (green) will light.
The air conditioner will start operating.
2
Press the “MODE” button to select the desired mode.
Each time the button is pressed, the mode will change in the following order.
AUTO COOL DRY
About 3 seconds later, the entire display will reappear.
HEAT FAN
▲
▲
▲
▼
▼
To Set the Room temperature
Press the “SET TEMP. ( / )” button.
button: Press to raise the temperature setting.
button: Press to lower the temperature setting.
● Temperature setting range:
AUTO ....................................64 to 88°F
Heating ..................................60 to 88°F
Cooling/Dry ...........................64 to 88°F
The temperature cannot be used to set room temperature during the FAN mode (the
temperature will not appear on the Remote Controller’s Display).
About 3 seconds later, the entire display will reappear.
The temperature setting should be considered a standard value, and may differ
somewhat from the actual room temperature.
To Set the Fan Speed
Press the “FAN” button.
Each time the button is pressed, the fan speed changes in the following order:
AUTO HIGH MED LOW QUIET
▲
▲
▲
▲
▲
About 3 seconds later, the entire display will reappear.
When set to AUTO:
Heating : Fan operates so as to optimally circulate warmed air.
However, the fan will operate at very low speed when the temperature of
the air issued from the indoor unit is low.
Cooling : As the room temperature approaches that of the temperature setting, the
fan speed becomes slower.
Fan : The fan runs at the low fan speed.
The fan will operate at a very low setting during Monitor operation and at the
start of the Heating mode.
NOTES
• The QUIET is not available depending on the model. Please refer to the operating
manual for the indoor unit.
QUIET Operation
When set to Quiet:
QUIET Operation begins. The indoor unit’s airfl ow will be reduced for quieter operation.
● QUIET Operation cannot be used during Dry mode. (The same is true when dry mode
is selected during AUTO mode operation.)
● During Quiet operation, Heating and Cooling performance will be reduced somewhat.
If the room does not warm up/ cool down when using QUIET Operation, please adjust
the air conditioner’s Fan Speed.
NOTES
• The QUIET operation is not available depending on the model. Please refer to the
operating manual for the indoor unit.
OPERATION
Example: When set to COOL.
Example: When set to 78°F.
Example: When set to AUTO.
En-6
To Stop Operation
Press the “START/STOP” button.
The OPERATION Indicator Lamp (green) will go out.
About AUTO CHANGEOVER Operation
AUTO: ● When AUTO CHANGEOVER operation fi rst selected, the fan will operate
at very low speed for about 1 minute, during which time the unit detects the
room conditions and selects the proper operating mode.
If the difference between temperature setting and actual room temperature
is more than +4 °F
→ Cooling or dry operation
(Monitor operation may be selected if the outdoor temperature is low.)
If the difference between temperature setting and actual room temperature
is within ±4 °F
→ Monitor operation
If the difference between temperature setting and actual room temperature
is more than –4 °F
→ Heating operation
(Monitor operation may be selected if the outdoor temperature is high.)
● When the air conditioner has adjusted your room’s temperature to near the
temperature setting, it will begin monitor operation. In the monitor operation
mode, the fan will operate at low speed. If the room temperature subse-
quently changes, the air conditioner will once again select the appropriate
operation (Heating, Cooling) to adjust the temperature to the value set in
the temperature.
(The monitor operation range is ±4 °F relative to the temperature setting.)
● If the mode automatically selected by the unit is not what you wish, select
one of the mode operation (HEAT, COOL, DRY, FAN).
About Mode Operation
Heating: ● Use to warm your room.
● When Heating mode is selected, the air conditioner will operate at very low
fan speed for about 3 to 5 minutes, after which it will switch to the selected
fan setting. This period of time is provided to allow the indoor unit to warm
up before beginning full operation.
● When the room temperature is very low, frost may form on the outside unit,
and its performance may be reduced. In order to remove such frost, the unit
will automatically enter the defrost cycle from time to time. During Automatic
Defrosting operation, the OPERATION Indicator Lamp will fl ash, and the
heat operation will be interrupted.
● After the start of heating operation, it takes some time before the room gets
warmer.
Cooling: ● Use to cool your room.
Dry: ● Use for gently cooling while dehumidifying your room.
● You cannot heat the room during Dry mode.
● During Dry mode, the unit will operate at low speed; in order to adjust room
humidity, the indoor unit’s fan may stop from time to time. Also, the fan may
operate at very low speed when adjusting room humidity.
● The fan speed cannot be changed manually when Dry mode has been
selected.
Fan: ● Use to circulate the air throughout your room.
During Heating mode:
Set the temperature to a temperature setting
that is higher than the current room temperature. The Heating mode will not operate if
the temperature is set lower than the actual
room temperature.
During Cooling/Dry mode:
Set the temperature to a temperature setting
that is lower than the current room temperature. The Cooling and Dry modes will not
operate if the temperature is set higher than
the actual room temperature, the fan alone
will operate.
During Fan mode:
You can not use the unit to heat and cool
your room.
OPERATION
En-7
TIMER OPERATION
To Cancel the Timer
Use the “TIMER MODE” button to select
“CANCEL”.
The air conditioner will return to normal operation.
To Change the Timer Settings
Perform steps 2 and 3.
To Stop Air Conditioner Operation while
the Timer is Operating
Press the “START/STOP” button.
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Temperature Setting,
QUIET mode), after making the timer setting
wait until the entire display reappears, then
press the appropriate buttons to change the
operating condition desired.
To Cancel the Timer
Use the “TIMER MODE” button to select
“CANCEL”.
The air conditioner will return to normal operation.
To Change the Timer Settings
1.
Follow the instructions given in the section “To
Use the ON Timer or OFF Timer” to select the
timer setting you wish to change.
2. Press the “TIMER MODE” button to select
either OFF ON or OFF ON.
To Stop Air Conditioner Operation while
the Timer is Operating
Press the “START/STOP” button.
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Temperature Setting,
QUIET mode), after making the timer setting
wait until the entire display reappears, then
press the appropriate buttons to change the
operating condition desired.
To Use the ON timer or OFF timer
1
Press the “START/STOP” button.
(if the unit is already operating, proceed to step 2).
The indoor unit’s OPERATION Indicator Lamp (green) will light.
2
Press the “TIMER MODE” button to select the OFF timer
or ON timer operation.
Each time the button is pressed the timer function changes in the following
order:
▲
▲
▲
▲
CANCEL
PROGRAM (OFF → ON, OFF ← ON)
OFF ON
The indoor unit’s TIMER Indicator Lamp (orange) will light.
3
Use the “TIMER SET ( / )” buttons to adjust the
desired OFF time or ON time.
Set the time while the time display is fl ashing (the fl ashing will continue for
about 5 seconds).
button: Press to advance the time.
button: Press to reverse the time.
About 5 seconds later, the entire display will reappear.
To Use the Program timer
1
Press the “START/STOP” button.
(if the unit is already operating, proceed to step 2).
The indoor unit’s OPERATION Indicator Lamp (green) will light.
2
Set the desired times for OFF timer and ON timer.
See the section “To Use the ON timer or OFF timer” to set the desired mode
and times.
About 3 seconds later, the entire display will reappear.
The indoor unit’s TIMER Indicator Lamp (orange) will light.
3
Press the “TIMER MODE” button to select the PROGRAM
timer operation (OFF ON or OFF ON will display).
The display will alternately show “OFF timer” and “ON timer”, then change to
show the time setting for the operation to occur fi rst.
● The program timer will begin operation. (If the ON timer has been selected
to operate fi rst, the unit will stop operating at this point.)
About 5 seconds later, the entire display will reappear.
About the Program timer
● The program timer allows you to integrate OFF timer and ON timer operations in a
single sequence. The sequence can involve 1 transition from OFF timer to ON timer,
or from ON timer to OFF timer, within 24 hour period.
● The fi rst timer function to operate will be the 1 set nearest to the current time. The order
of operation is indicated by the arrow in the Remote Controller’s Display (OFF → ON,
or OFF ← ON).
● One example of Program timer use might be to have the air conditioner automatically
stop (OFF timer) after you go to sleep, then start (ON timer) automatically in the morning before you arise.
Before using the timer function, be sure that the Remote Controller is set to the correct current time (☞ P. 4).
If the indoor unit is connected to a wired remote controller, the wireless remote controller cannot be used to set the timer.
En-8
Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped.
If the indoor unit is connected to a wired remote controller, the wireless remote controller cannot be used to set the sleep timer.
To Use the SLEEP Timer
While the air conditioner is operating or stopped, press the
“SLEEP” button.
The indoor unit’s OPERATION Indicator Lamp (green) lights and the TIMER Indicator
Lamp (orange) light.
To Change the Timer Settings
Press the “SLEEP” button once again and set the time using
the “TIMER SET ( / )” buttons.
button: Press to advance the time.
button: Press to reverse the time.
About 5 seconds later, the entire display will reappear.
4 °F
6 °F
8 °F
30
minutes
2 °F
1 hour
1 hour
30 minutes
Set time
Set time
1 hour
2 °F
4 °F
To Cancel the Timer:
Use the “TIMER MODE” button to select
“CANCEL”.
The air conditioner will return to normal operation.
To Stop the Air Conditioner During
Timer Operation:
Press the “START/STOP” button.

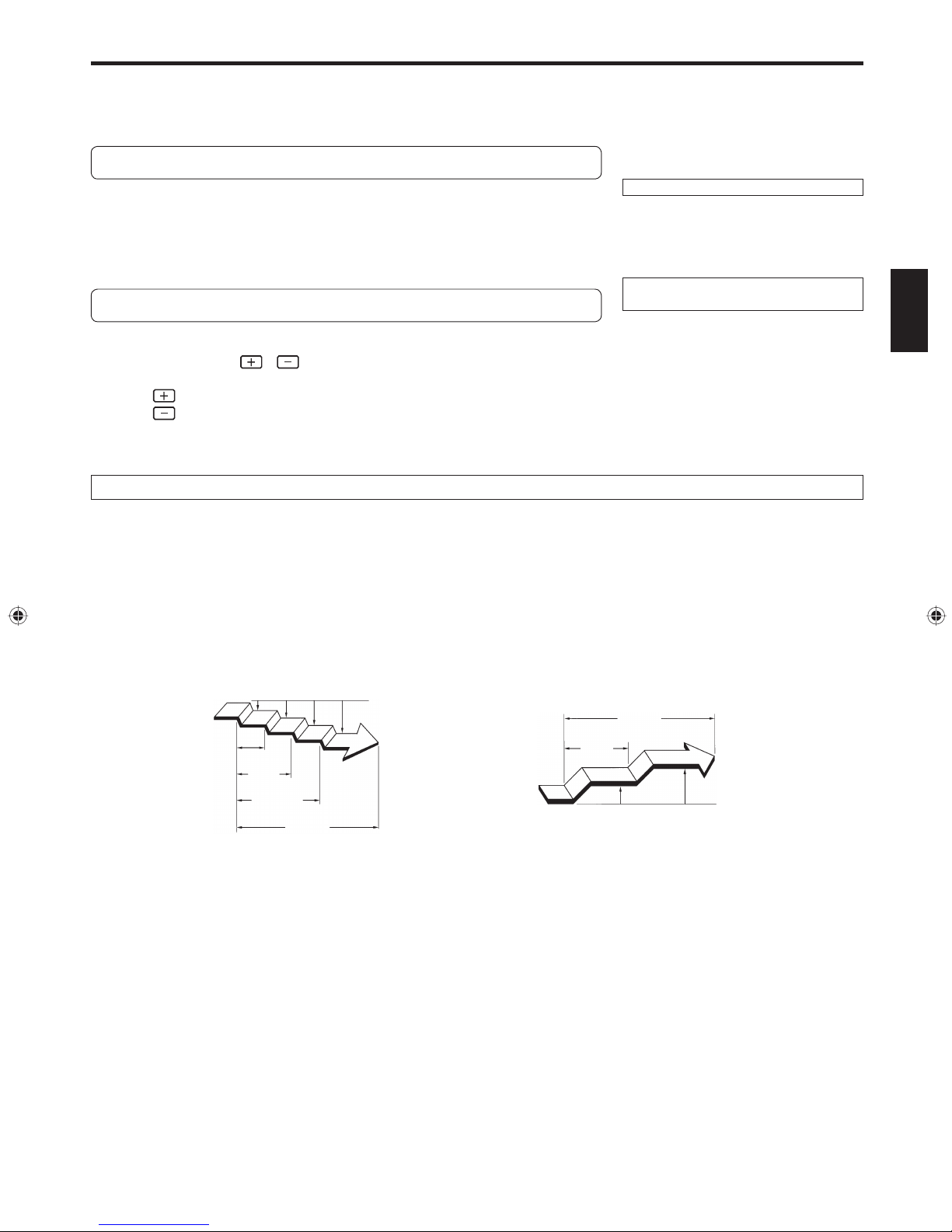

About the SLEEP Timer
To prevent excessive warming or cooling during sleep, the SLEEP timer function automatically modifi es the temperature setting in ac-
cordance with the set time setting. When the set time has elapsed, the air conditioner completely stops.
During Cooling/Dry operation:
When the SLEEP timer is set, the temperature setting is automatically raised 2 °F every 1 hour. When the temperature has
been raised a total of 4 °F, the temperature setting at that time is
maintained until the set time has elapsed, at which time the air
conditioner automatically turns off.
SLEEP timer setting
During Heating operation:
When the SLEEP timer is set, the temperature setting is
automatically lowered 2 °F every thirty minutes. When the temperature has been lowered a total of 8 °F, the temperature setting
at that time is maintained until the set time has elapsed, at which
time the air conditioner automatically turns off.
SLEEP timer setting
SLEEP TIMER OPERATION
En-9
ADJUSTING THE DIRECTION OF AIR CIRCULATION
● Adjust the up, down, left, and right AIR directions with the “ and SET” buttons on the Remote Controller.
● Use the “
and SET” buttons after the Indoor Unit has started operating and the airfl ow-direction louvers have stopped moving.
Vertical Air Direction Adjustment
Vertical airfl ow louver control may not be available depending on the model.
Press the “ SET” button (Vertical).
(The Remote Controller’s display does not change.)
Each time the button is pressed, the air direction range will change as shown in MANUAL
(OPERATION) which is included in INDOOR UNIT.
● Use the air direction adjustments within the ranges as shown in MANUAL (OPERATION) which is included in INDOOR UNIT.
● The vertical airfl ow direction is set automatically as shown in MANUAL (OPERA-
TION) which is included in INDOOR UNIT, in accordance with the type of operation
selected.
● During AUTO mode operation, for the fi rst minute after beginning operation, airfl ow will
be horizontal position; the air direction cannot be adjusted during this period.
● The vertical air direction adjustment operation is not available depending on the
model.
Please refer to the MANUAL (OPERATING) which is included in INDOOR UNIT.
NOTES
● Always use the Remote Controller’s “SET” button to adjust the vertical airfl ow louvers.
Attempting to move them manually could result in improper operation; in this case, stop
operation and restart. The louvers should begin to operate properly again.
● During use of the Cooling and Dry modes, do not set the Air Flow Direction Louvers
in the downward position for long periods of time, since water vapor may condense
near the outlet louvers and drops of water may drip from the air conditioner. During
the Cooling and Dry modes, if the Air Flow Direction Louvers are left in the heating
rang for more than 30 minutes, they will automatically return to Cooling and Dry mode
position.
● When used in a room with infants, children, elderly or sick persons, the air direction
and room temperature should be considered carefully when making settings.
Horizontal Air Direction Adjustment
Horizontal airfl ow louver control may not be available depending on the model.
Press the “ SET” button (Horizontal).
(The remote controller’s display does not change.)
Each time the button is pressed, the air direction range will change as shown in MANUAL
(OPERATION) which is included in INDOOR UNIT.
● The horizontal air direction adjustment operation is not available depending on the
model. Please refer to the MANUAL (OPERATING) which is included in INDOOR
UNIT.
En-10
SWING OPERATION
Left/right and up/down/left/right swing operation cannot be performed on models that are not equipped with horizontal airfl ow lou-
vers.
Begin air conditioner operation before performing this procedure.
About Swing Operation
● Left/right swing: The airfl ow-direction louvers move (swing) in the left/right airfl ow direction.
● Up/down/left/right swing: The airfl ow-direction louvers move (swing) in both the up/down and left/right airfl ow directions.
● The SWING operation may stop temporarily when the air conditioner’s fan is not operating, or when operating at very low
speeds.
● If the “
SET” button (Vertical) is pressed during the up/down swing operation, the up/down swing operation will stop and if the
“
SET” button (Horizontal) is pressed during the left/right swing operation, the left/right swing operation will stop.
● The swing operation is not available depending on the model. Please refer to the MANUAL (OPERATING) which is included in
INDOOR UNIT.
To select SWING Operation
Press the “ SWING” button.
Each time the “ SWING” button is pressed, the swing operation will change in the
following order.
Up/down swing operatio Left/right swing operation
Swing operation stops Up/down/left/right swing operation
To stop SWING Operation
Press the “ SWING” button and select STOP.
Airfl ow direction will return to the setting before swing was begun.
ECONOMY OPERATION
Begin Air Conditioner operation before performing this procedure.
To Use the ECONOMY Operation
Press the “ECONOMY” button.
The ECONOMY Indicator Lamp (green) will light.
Economy operation begins.
To Stop the ECONOMY Operation
Press the “ECONOMY” button again.
The ECONOMY Indicator Lamp (green) will go out.
Normal operation begins.
About ECONOMY Operation
• At the maximum output, ECONOMY Operation is approximately 70% of normal air conditioner operation for cooling and
heating. (Single-Type)
•
At the maximum output, ECONOMY Operation (All indoor unit) is approximately 70% of normal air conditioner operation for cooling and
heating. (Multi-Type)
● During ECONOMY Operation, the temperature setting automatically changes according to the temperature to avoid
Unnecessary cooling and heating for the most economical operation.
● If the room is not cooled (or heated) well during economy operation, select normal operation.
● During the monitor period in the AUTO mode, the air conditioner operation will not change to ECONOMY Operation even
if ECONOMY Operation is selected by pressing the “ECONOMY” button.
OPERATION or
Indicator Lamp
: Lighting : OFF
TIMER or
ECONOMY or
En-11

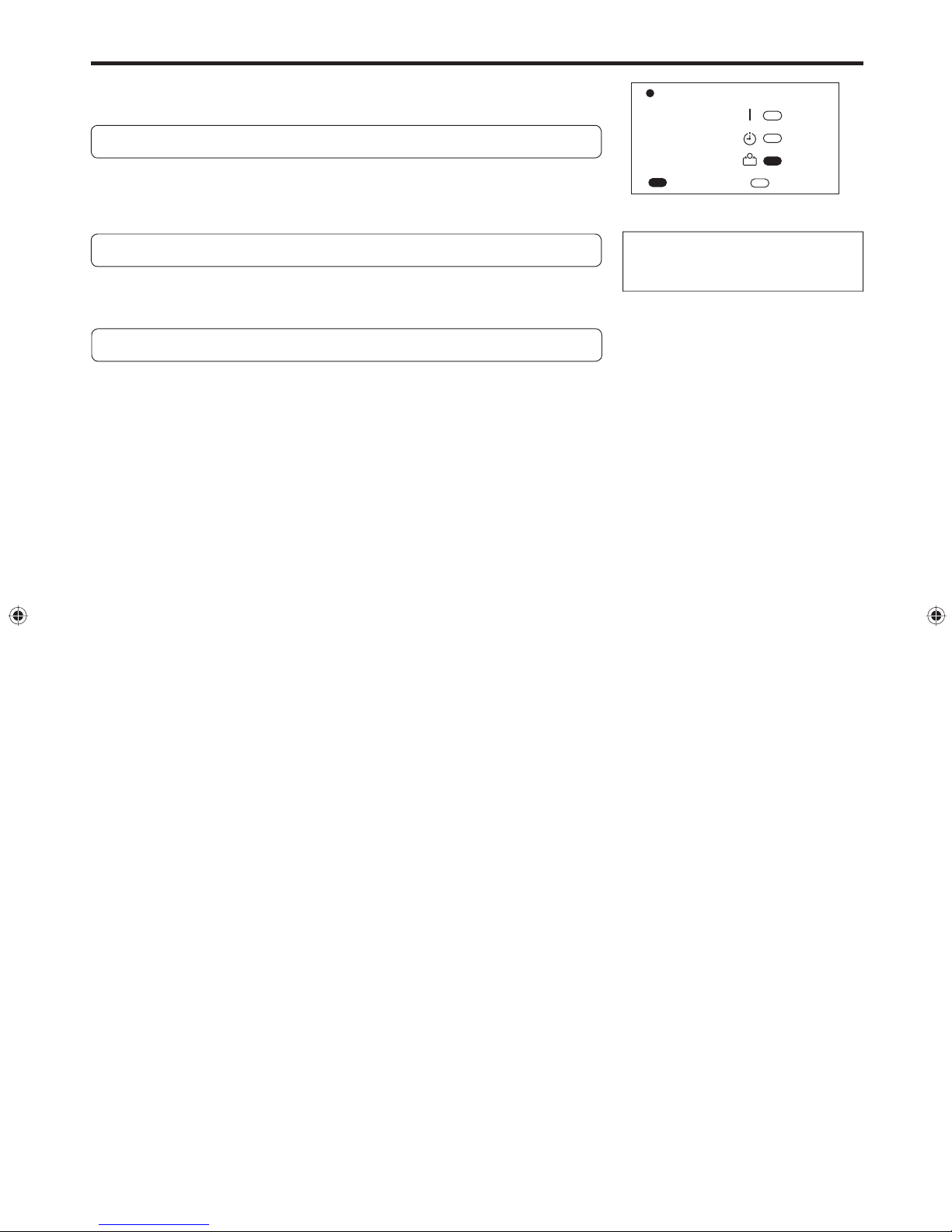

MINIMUM HEAT OPERATION
•
The room temperature can be maintained at 50°F by pressing the “MIN. HEAT” button
so as to prevent the room temperature from falling too far.
To use MINIMUM HEAT Operation
Press the “MIN. HEAT” button.
The OPERATION Indicator Lamp (green) will go out, and the ECONOMY
Indicator Lamp (green) will light.
To stop MINIMUM HEAT Operation
Press the “START/STOP” button.
Then the OPERATION stops and the ECONOMY Indicator Lamp (green) will go out.
About the MINIMUM HEAT Operation
•
The MINIMUM HEAT Operation will not operate if the room temperature is high enough.
While MINIMUM HEAT Operation is in
progress, only Airfl ow Direction Set can
be used.
OPERATION or
Indicator Lamp
: Lighting : OFF
TIMER or
ECONOMY or
En-12
When two or more air conditioners are installed in a room and the remote controller is operating an air conditioner other than the one you
wish to set, change the signal code of the remote controller to operate only the air conditioner you wish to set (4 selections possible).
When two or more air conditioners are installed in a room, please contact your retailer to set the individual air conditioner signal
codes.

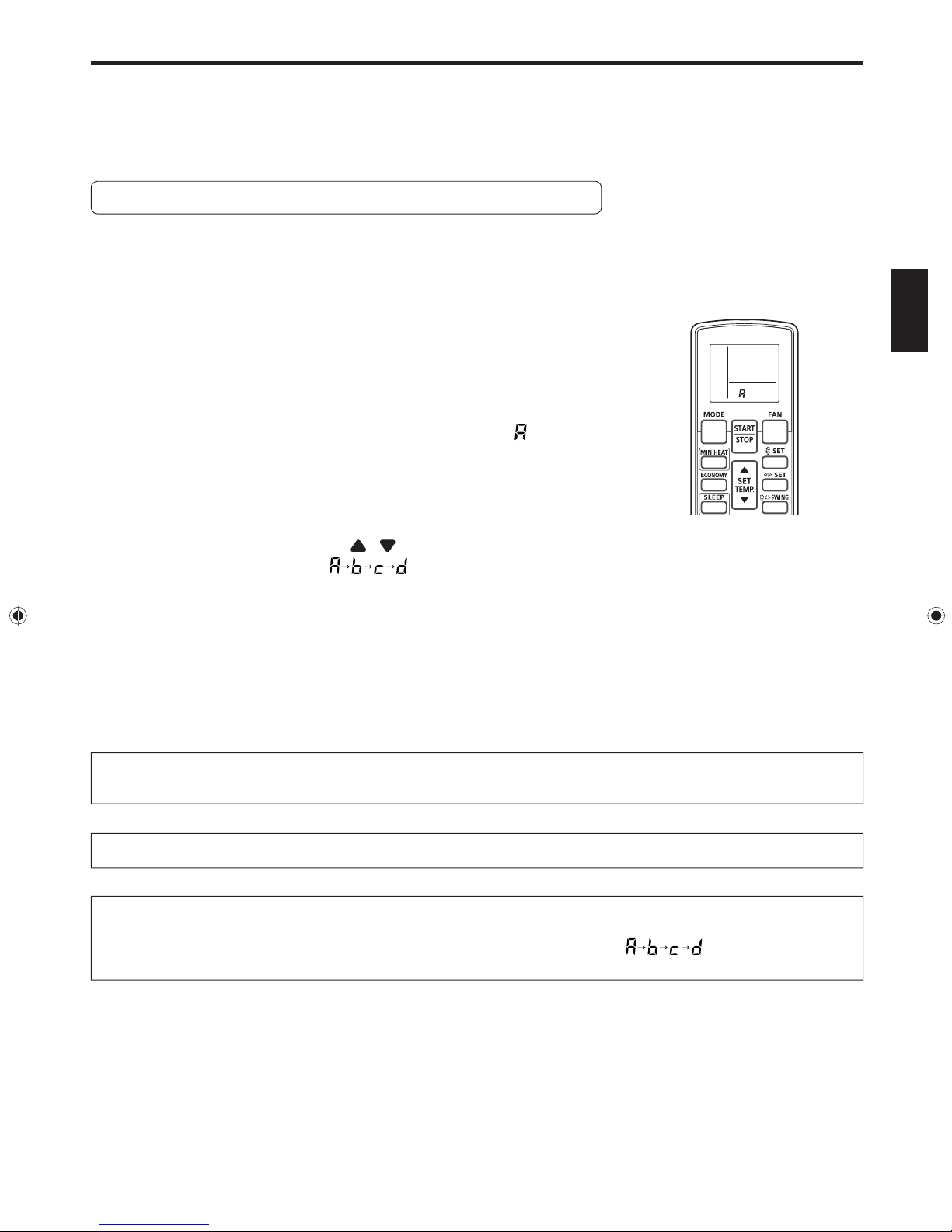

SELECTING THE REMOTE CONTROLLER SIGNAL CODE
If no buttons are pressed within 30 seconds after the signal code is displayed, the system returns to the original clock display.
In this case, start again from step 1.
The air conditioner signal code is set to A prior to shipment. Contact your retailer to change the signal code.
The remote controller resets to signal code A when the batteries in the remote controller are replaced. If you use a signal code
other than signal code A, reset the signal code after replacing the batteries.
If you do not know the air conditioner signal code setting, try each of the signal codes (
) until you fi nd the code
which operates the air conditioner.
Selecting the Remote Controller Signal Code
Use the following steps to select the signal code of the remote controller. (Note that the
air conditioner cannot receive a signal code if the air conditioner has not been set for the
signal code.)
1
Press the “START/STOP” button until only the clock is
displayed on the remote controller display.
2
Press the “MODE” button for at least 5 seconds to dis-
play the current signal code (initially set to ).
3
Press the “SET TEMP. ( / )” buttons to change the
signal code between . Match the code on the
display to the air conditioner signal code.
4
Press the “MODE” button again to return to the clock
display. The signal code will be changed.
En-13
TROUBLESHOOTING
WARNING
• In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical breaker and consult authorized service
personnel.
• Merely turning off the unit’s power switch will not completely disconnect the unit from the power source.
• Always be sure to turn off the electrical breaker to ensure that power is completely off.
Before requesting service, perform the following checks:
Symptom Problem
See Page
NORMAL
FUNCTION
Doesn’t operate immediately:
● If the indoor unit is stopped and then immediately started again, the
compressor will not operate for about 3 minutes, in order to prevent
fuse blowouts.
●
Whenever the electrical breaker is turned off then on again the protection circuit will operate for about 3 minutes, preventing unit operation
during that period.
—
Noise is heard:
● During operation or immediately after stopping the unit, the sound
of water fl owing in the air conditioner’s piping may be heard. Also,
noise may be particularly noticeable for about 2 to 3 minutes after
starting operation (sound of refrigerant fl owing).
● During operation, a slight squeaking sound may be heard. This is
the result of minute expansion and contraction of the front panel due
to temperature changes.
—
●
During Heating operation, a sizzling sound may be heard occasional.
This sound is produced by the Automatic Defrosting operation.
14
Smells:
● Some smell may be emitted from the indoor unit. This smell is the
result of room smells (furniture, tobacco, etc.) which have been taken
into the indoor unit.
—
Mist or steam is
emitted:
● During Cooling or Dry operation, a thin mist may be seen emitted
from the indoor unit. This results from the sudden Cooling of room air
by the cool air emitted from the indoor unit, resulting in condensation
and misting.
—
● During Heating operation, the outdoor unit’s fan may stop, and steam
may be seen rising from the unit. This is due to Automatic Defrosting
operation.
14
Airfl ow is weak or stops:
● When Heating operation is started, fan speed is temporarily very
low, to allow internal parts to warm up.
● During Heating operation, if the room temperature rises above the
temperature setting, the outdoor unit will stop, and the indoor unit will
operate at very low fan speed. If you wish to warm the room further,
set the temperature for a higher setting.
—
● During Heating operation, the indoor unit will temporarily stop operation (between 7 and 15 minutes) as the Automatic Defrosting mode
operates. During Automatic Defrosting operation, the OPERATION
Indicator Lamp will fl ash.
14
● During Dry mode, the indoor unit will operate at low speed; in order
to adjust room humidity, the indoor unit’s fan may stop from time to
time. Also, the fan may operate at very low speed when adjusting
room humidity.
6
●
During SUPER QUIET operation, the fan will operate at very low
speed.
5
● In the monitor of AUTO operation, the fan will operate at very low
speed.
6
●
In case of Multi-type unit, if multiple units are operated in different
operation modes as shown below, the units operated afterward will
stop and the OPERATION Indicator Lamp (green) will fl ash.
Heating mode and cooling mode (or dry mode)
Heating mode and fan mode
15
Water is produced from
the outdoor unit:
● During Heating operation, water may be produced from the outdoor
unit due to Automatic Defrosting operation.
14
En-14
OPERATING TIPS
Operation and Performance
Heating Performance
● This air conditioner operates on the heat-pump principle,
absorbing heat from outdoor air and transferring that heat to
indoor unit. As a result, the operating performance is reduced
as outdoor air temperature drops. If you feel that insuffi cient
heating performance is being produced, we recommend you
use this air conditioner in conjunction with another kind of
heating appliance.
● Heat-pump air conditioners heat your entire room by recirculating air throughout the room, with the result that some time
may be required after fi rst starting the air conditioner until the
room is heated.
Microcomputer-controlled Automatic Defrosting
● When using the Heating mode under conditions of low outdoor
temperature and high humidity, frost may form on the outdoor
unit, resulting in reduced operating performance.
In order to prevent this kind of reduced performance,
this air conditioner is equipped with a Microcomputercontrolled Automatic Defrosting function. If frost forms, the air
conditioner will temporarily stop, and the defrosting circuit will
operate briefl y (for about 7-15 minutes).
During Automatic Defrosting operation, the OPERATION
Indicator Lamp (green) will fl ash.
● After heating operation stops, if frost forms on the outdoor
unit, the unit will start Automatic Defrosting operation. At this
time, the outdoor unit will automatically stop after operating
for a few minutes.
(However, some type of multi-type air conditioner doesn’t
provide this function.)
TROUBLESHOOTING
Symptom Problem
See Page
CHECK ONCE
MORE
Doesn’t operate at all:
● Has the circuit breaker been turn off?
● Has there been a power failure?
● Has a fuse blown out, or a circuit breaker been tripped?
—
● Is the timer operating?
7-8
Poor Cooling (or Heating)
performance:
● Is the Air Filter dirty?
● Are the air conditioner’s intake grille or outlet port blocked?
● Did you adjust the room temperature settings (temperature) cor-
rectly?
● Is there a window or door open?
● In the case of Cooling operation, is a window allowing bright sunlight
to enter? (Close the curtains.)
● In the case of Cooling operation, are there heating apparatus and
computers inside the room, or are there too many people in the
room?
—
● Is the unit set for SUPER QUIET operation?
5
The unit operates
differently from the Remote
Controller’s setting:
● Are the Remote Controller’s batteries dead?
● Are the Remote Controller’s batteries loaded properly?
4
If the problem persists after performing these checks, or if you notice burning smells, or the OPERATION Indicator Lamp and the
TIMER Indicator Lamp fl ashes, immediately stop operation, turn off the electrical breaker and consult authorized service personnel.
En-15
OPERATING TIPS
● Operation can be done in the following different operating
modes.
Cooling mode and dry mode
Cooling mode and fan mode
Dry mode and fan mode
● The operating mode (heating mode or cooling (dry) mode)
of the outdoor unit will be determined by the operating mode
of the indoor unit that was operated fi rst. If the indoor unit
was started in fan mode, the operating mode of the outdoor
unit will not be determined.
For example, if indoor unit (A) was started in fan mode and
then indoor unit (B) was then operated in heating mode,
indoor unit (A) would temporarily start operation in fan mode
but when indoor unit (B) started operating in heating mode,
the OPERATION Indicator Lamp (green) for indoor unit
(A) would begin to fl ash (1 second on, 1 second off) and it
would go into standby mode. Indoor unit (B) would continue
to operate in heating mode.
NOTES
Simultaneous Use of Multiple Units
● When using a multi-type air conditioner, the multiple indoor
units can be operated simultaneously, but when two or more
indoor units of the same group are operated simultaneously,
the heating and cooling effi ciency will be less than when
a single indoor unit is used alone. Accordingly, when you
wish to use more than one indoor unit for cooling at the
same time, the use should be concentrated at night and
other times when less output is required. In the same way,
when multiple units are used simultaneously for heating, it
is recommended that they be used in conjunction with other
auxiliary space heaters, as required.
● Seasonal and outdoor temperature conditions, the structure
of the rooms and the number of persons present may also
result in differences of operating effi ciency. We recommend
that you try various operating patterns in order to confi rm the
level of heating and cooling output provided by your units,
and use the units in the way that best matches your family’s
lifestyle.
● If you discover that one or more units delivers a low level of
cooling or heating during simultaneous operation, we recommend that you stop simultaneous operation of the multiple
units.
● Operation cannot be done in the following different operating
modes.
If the indoor unit is instructed to do an operating mode that
it cannot perform, the OPERATION Indicator Lamp (green)
on the indoor unit will fl ash (1 second on, 1 second off) and
the unit will go into the standby mode.
Heating mode and cooling mode (or dry mode)
Heating mode and fan mode
• During use of the heating mode, the outdoor unit will occasionally commence the defrost operation for brief periods. During the
defrosting operation, if the user sets the indoor unit for heating again, the defrosting mode will continue, and the heating operation
will begin after completion of defrosting, with the result that some time may be required before warm air is emitted.
• During use of the heating mode, the top of the indoor unit may become warm, but this is due to the fact that coolant is circulated
through the indoor unit even when it is stopped; it is not a malfunction.
AUTO Restart
In Event of Power Interruption
● The power supply to the air conditioner is stopped by a power
interruption. The air conditioner will then restart automatically
in its previous mode when the power is restored.
●
If a power interruption occurs during TIMER operation, the timer
will be reset and the indoor unit will begin (or stop) operation at
the new time setting. In the event that this kind of timer fault occurs, the TIMER Indicator Lamp will fl ash.
● Use of other electrical appliances (electric shaver, etc.) or
nearby use of a wireless radio transmitter may cause the air
conditioner to malfunction. In this event, temporarily turn off the
circuit breaker, turn it on and then use the Remote Controller
to resume operation.
Loading...
