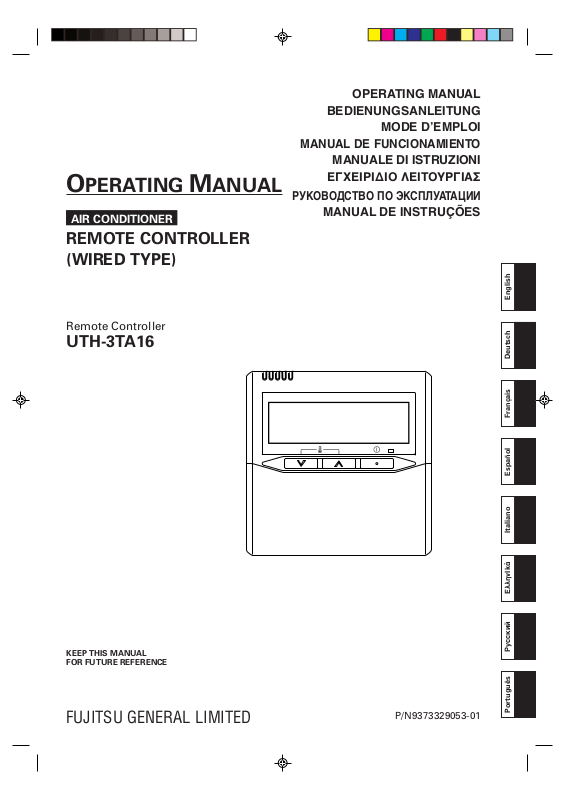

Fujitsu UTH-3TA16 Operating Manual
OPERATING MANUAL
OPERATING MANUAL
BEDIENUNGSANLEITUNG
MODE D’EMPLOI
MANUAL DE FUNCIONAMIENTO
MANUALE DI ISTRUZIONI
ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
AIR CONDITIONER
REMOTE CONTROLLER
(WIRED TYPE)
Remote Controller
UTH-3TA16
MANUAL DE INSTRUÇÕES
SUMOTUWETH FR
AM
PM
369
12 15 18 21
English
Deutsch
SA
Français
Español
KEEP THIS MANUAL
FOR FUTURE REFERENCE
FUJITSU GENERAL LIMITED
P/N9373329053-01
Italiano
EλληvIkά
Русский
Português
CONTENTS
SAFETY PRECAUTIONS................................................ 1
NAME OF PARTS ........................................................... 1
FUNCTION INFORMATION ........................................... 2
PREPARATORY OPERATION......................................... 3
OPERATION ................................................................... 3
ON/OFF TIMER............................................................... 5

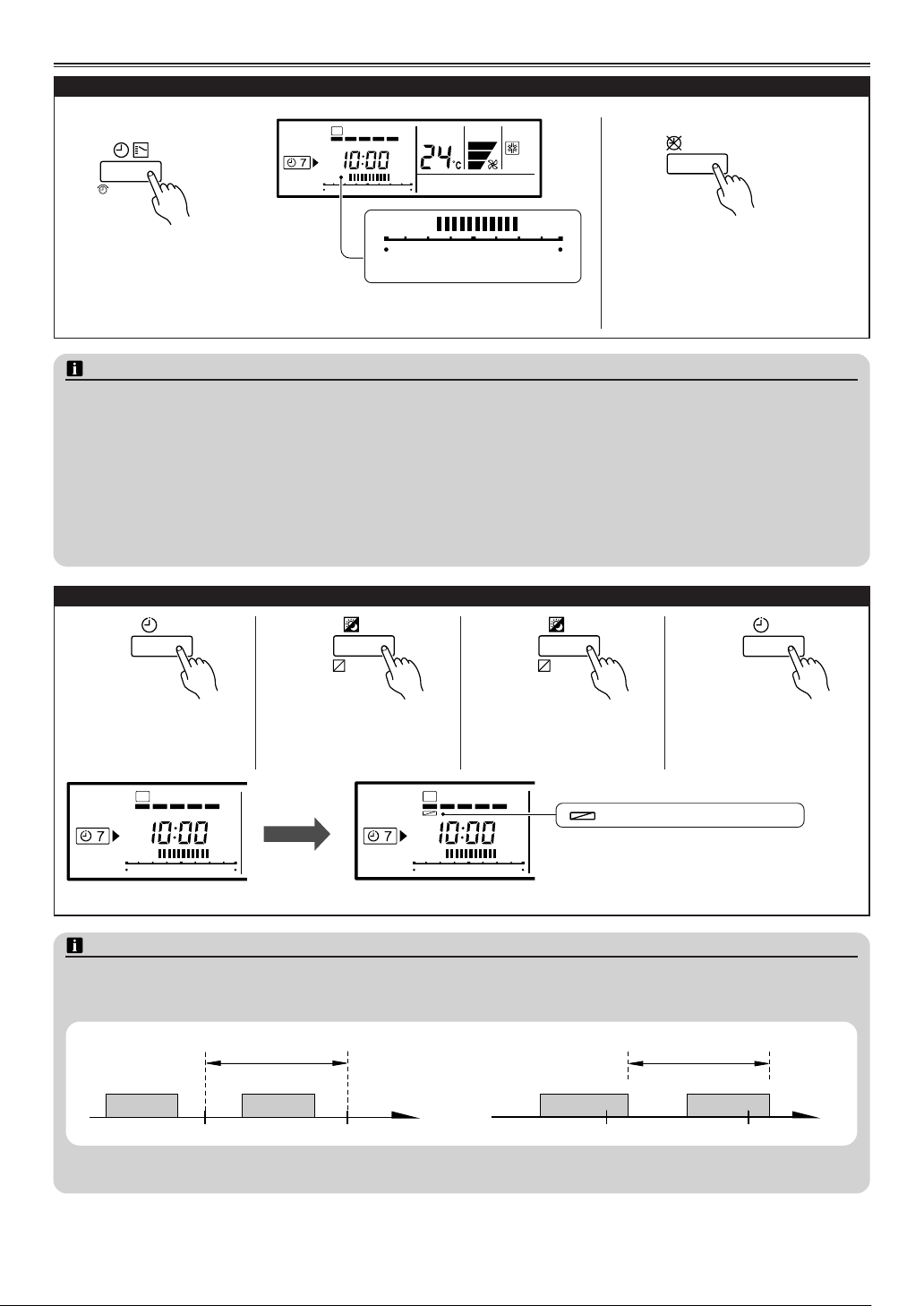

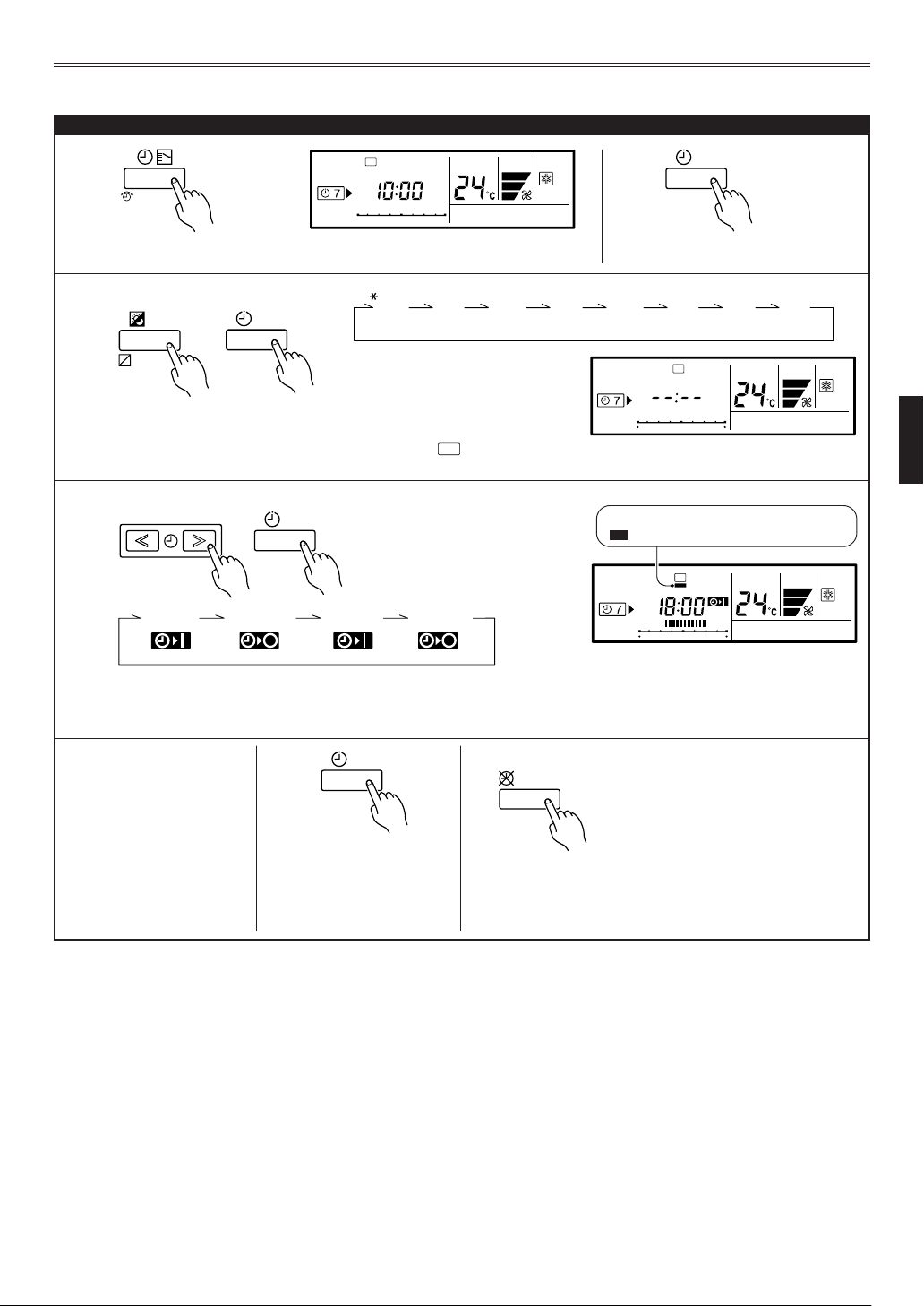

WEEKLY TIMER ............................................................. 6

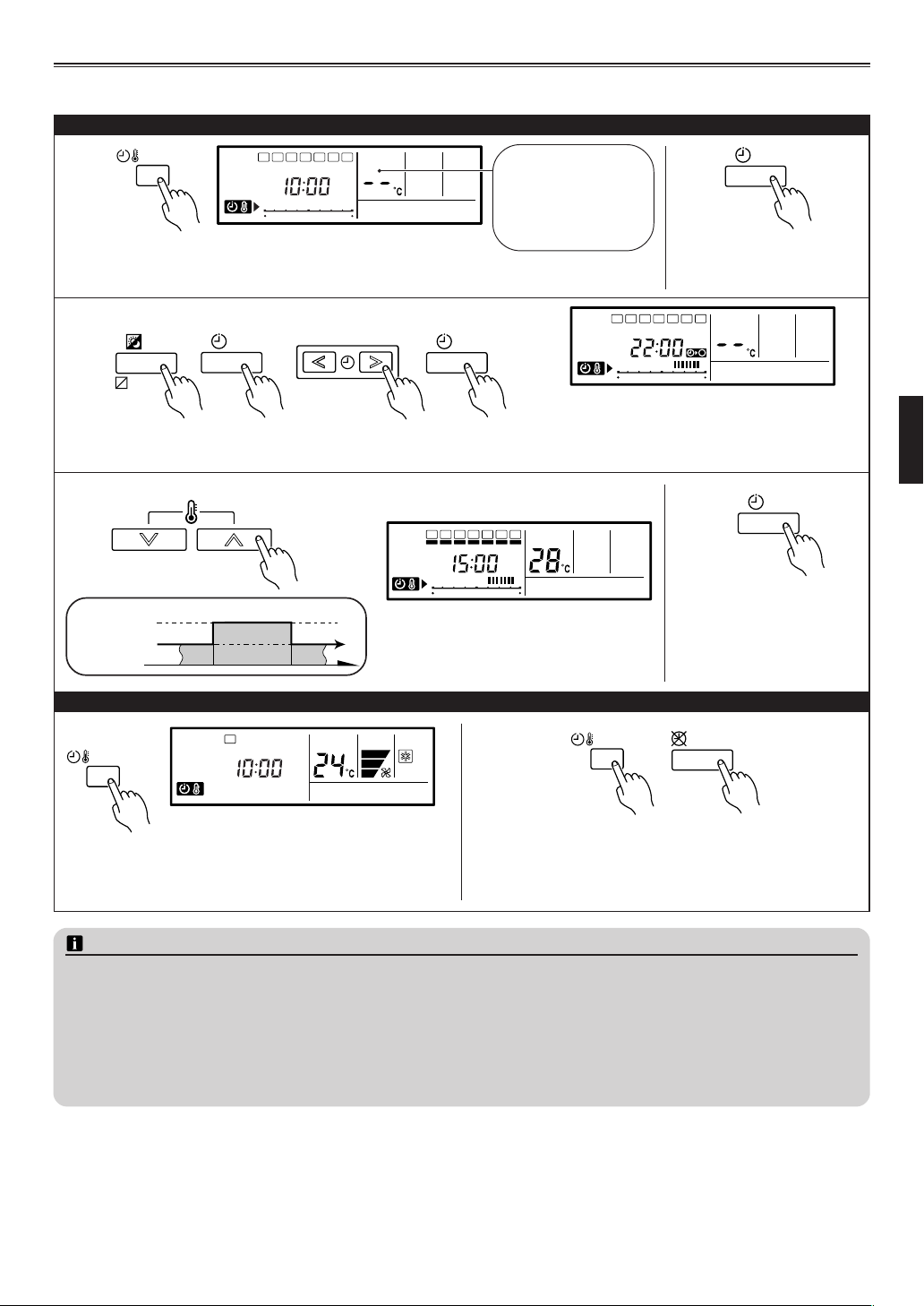

TEMPERATURE SET BACK TIMER ............................... 8

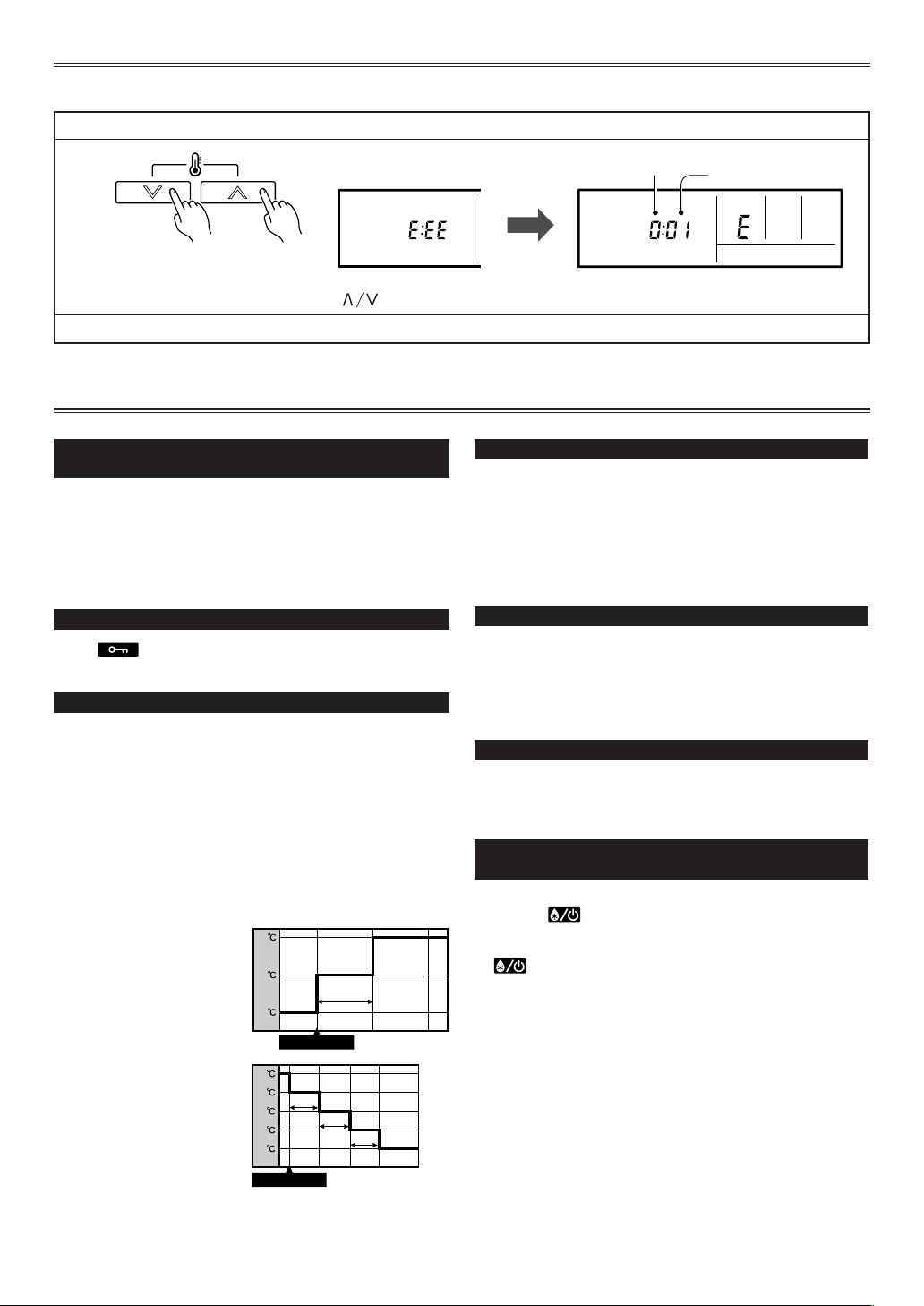

SELF-DIAGNOSIS .......................................................... 9
OPERATING TIPS........................................................... 9
TROUBLESHOOTING .................................................. 10
SPECIFICATIONS ......................................................... 10
SAFETY PRECAUTIONS
● Before using the appliance, read these “PRECAUTIONS” thoroughly and operate in the correct way.
● The instructions in this section all relate to safety; be sure to maintain safe operating conditions.
DANGER!
This mark indicates procedures which, if improperly performed, are most likely to result in the death of
or serious injury to the user or service personnel.
• Do not attempt to install this controller by yourself.
• This controller contains no user-serviceable parts. Always consult authorized service personnel for repairs.
• When moving, consult authorized service personnel for
disconnection and installation of the controller.
WARNING!
CAUTION!
This mark indicates procedures which, if improperly performed, might lead to the death or serious
injury of the user.
This mark indicates procedures which, if improperly performed, might possibly result in personal harm
to the user, or damage to property.
• Do not expose the controller directly to water.
• Do not operate the controller with wet hands.
• Do not touch the switches with sharp objects.
• Always turn off the electrical breaker whenever cleaning the controller, the air conditioner or the air filter.
• Check the condition of the installation stand for damage.
NAME OF PARTS
Display
SUMOTUWETH FR
SA
369
2
7
8
9
0
A
B
Display panel
12 15 18 21
DAY
CLOCK ADJUST
DAY OFF
ENERGY
SET BACK
DELETE SET
SAVE
THERMO
SENSOR
FJ
SUMOTUWETH FR
369
12 15 18 21
SA
O
N
L
E
1
3
4
5
6
C
D
HIG
K
M
• If a problem (burning smell, etc.) occurs, turn off the
electrical breaker immediately to stop operation, and
then consult authorized service personnel.
• Ensure that any electronic equipment is at least one
metre away from the controller.
• Avoid installing the controller near a fireplace or other
heating apparatus.
• When installing the controller, take precautions to prevent access by infants.
• Do not use inflammable gases near the controller.
1 Start/Stop Button
2 Set Temperature Button
3 Master Control Button
4 Fan Control Button

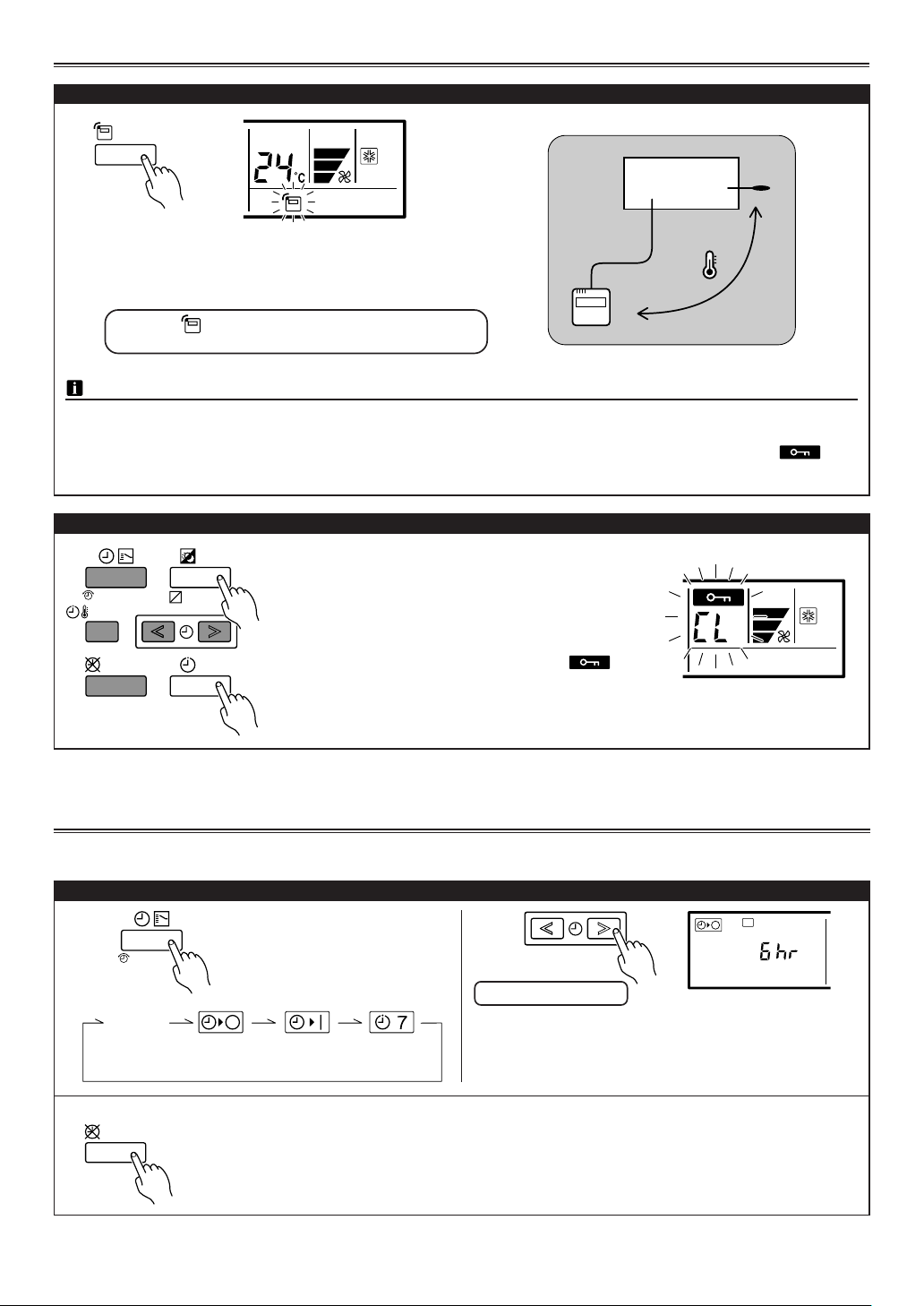

5 THERMO SENSOR Button
6 ENERGY SAVE Button
7 Timer Mode (CLOCK ADJUST) Button
8 DAY (DAY OFF) Button
9 SET BACK Button
0 Set Time Button
A DELETE Button
B SET Button

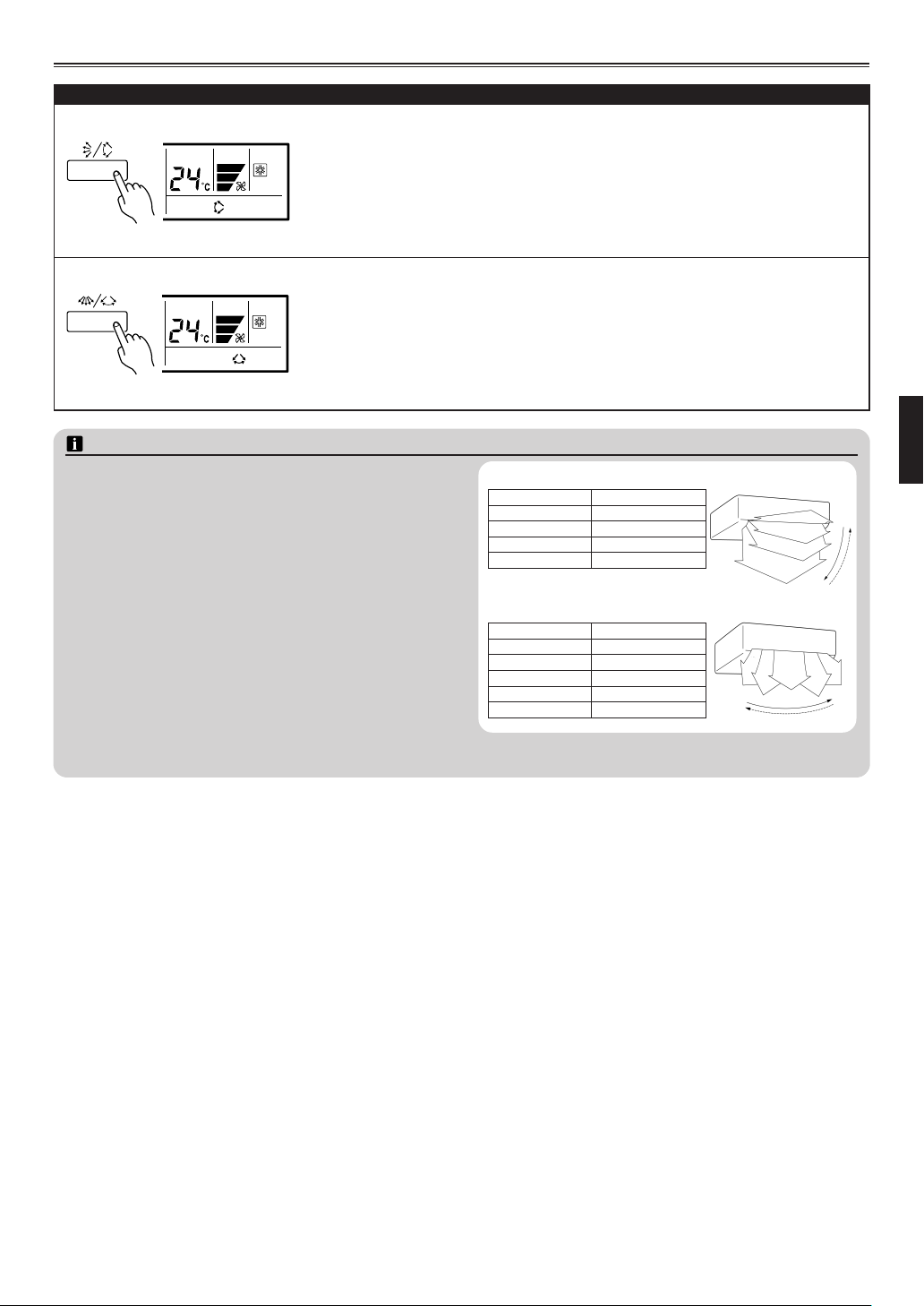

C Horizontal airflow direction and swing Button
D Vertical airflow direction and swing Button
E Operation Lamp
F Timer and Clock Display
G Operation Mode Display
H Fan Speed Display
I Operation Lock Display
J Temperature Display
K Defrost Display
L Vertical Swing Display
M Horizontal Swing Display
N Thermo Sensor Display
O Energy Save Display
En-1
FUNCTION INFORMATION
Depending on the indoor unit model, some buttons on this remote controller cannot be used and some functions are restricted.
Refer to the following table for the buttons that can be used for each model.
: Button can be operated
: Button cannot be operated
Model
*1
Wall Mounted Type
*2
Duct type
Cassette Type
Floor/Ceiling
Universal Type
Ceiling Wall Type
If a button indicated with “
respond.
*1: If the wired remote controller is connected to the indoor unit, a wireless remote controller cannot be used.
*2: Before connecting the remote controller, the remote controller cord must be modified.
*3: The fan speed cannot be changed for some large, duct-type indoor units.
*4: This button cannot be operated for the AIRSTAGE S-series remote controllers.
*5: This button cannot be operated for the AIRSTAGE J-series and V-series remote controllers.
1234567890ABCD
*3 *4 *5
” is pressed, the operation lock display (I on page 1) flashes, but the air conditioner will not
Button numbers (refer to page 1)
*4 *5
*4 *5
*4 *5
En-2
PREPARATORY OPERATION
To set the current day and time
DAY
1
Press the TIMER MODE button for 2
seconds or more. The time display on
the remote controller will flash.
CLOCK ADJUST
2
SUMOTUWETH FR
DAY OFF
SU MO TU WE TH FR SA
SA
3
Press the SET TIME buttons to set the current time.
Press repeatedly to adjust the current time in 1-minute increments. Press and
hold to adjust the current time in 10-minute increments.
ex. Monday 10:00
Press the DAY button and select the current day.
A
appears around the selected day.
4
CLOCK ADJUST
Press again to end.
OPERATION
Instructions related to heating are applicable to “HEAT PUMP MODELS” and “HEAT RECOVERY MODELS” only.
To start/stop operation
Press the START/STOP button.
Operation lamp
Air conditioner ON: Lit brightly
Air conditioner OFF: Not lit
To set the operation mode
● Operation mode setting
● Room temperature setting
Lower Raise
● Fan speed setting
● Energy save setting
ENERGY
SAVE
Press the MASTER CONTROL button to set the operation mode.
If DRY is selected, the fan speed will be set to AUTO.
AUTO COOL DRY FAN HEAT
* AUTO and FAN cannot be selected for “HEAT PUMP MODELS.”
Press the SET TEMPERATURE buttons to set the room temperature.
Temperature setting range
AUTO ............................................................ 18 to 30 °C
COOL/DRY .................................................... 18 to 30 °C
HEAT ............................................................. 10, 12, 14, or 16 to 30 °C*
* Room temperatures as low as 10, 12, and 14 °C cannot be set depending on the
model.
Press the FAN CONTROL button to set the fan speed.
AUTO HIGH MED LOW
Press the ENERGY SAVE button to start or stop the energysaving air conditioner operation.
* The energy save air conditioner operation is not available
depending on the model.
En-3
