Learn how to use your Fujitsu

User’s Guide

LIFEBOOK T732 Tablet PC

Découvrez comment utiliser



Guide d’utilisation

votre PC Tablette LIFEBOOK Fujitsu T732

User’s

Guide

Learn how to use your

Fujitsu LIFEBOOK T732 Tablet PC

Fujitsu America has made every effort to ensure the accuracy and completeness of this document; however, as ongoing efforts are continually improving the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.

Fujitsu, the Fujitsu logo, and LIFEBOOK are registered trademarks of Fujitsu Limited. Intel, Intel Core, and Centrino are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. The ExpressCard word mark and logo are owned by the Personal Computer Memory Card International Association (PCMCIA) and any use of such marks by Fujitsu

America is under license. Roxio is a trademark of Roxio, a division of Sonic Solutions. Omnipass is a trademark of Softex Inc. PowerDVD, PowerDirector, and YouCam are trademarks of CyberLink Corp. Adobe, Acrobat, and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Energy Star and the Energy Star mark are registered U.S. marks. Skype is a trademark of Skype Limited. Norton and Norton Internet Security are trademarks or registered trademarks of Symantec Corp. in the United States and other countries. The optical player found in some models of the LIFEBOOK notebook incorporates copyright protection technology that is protected by method claims of certain U.S.

patents and other intellectual property rights owned by Macrovision Corporation and other rights users. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Manufactured under license from DTS Licensing Limited. DTS, the Symbol, and DTS and the Symbol together are registered trademarks, and DTS Boost is a trademark of DTS (BVI) Limited (in Hong Kong and China) and DTS, Inc. (outside of Hong Kong and China). © DTS, Inc. All Rights Reserved.

No part of this publication may be copied, reproduced, or translated, without prior written consent of Fujitsu. No part of this publication may be stored or transmitted in any electronic form without the written consent of Fujitsu.

B6FJ-8771-01ENZ0-00

WARNING

HANDLING THE CORD ON THIS PRODUCT WILL EXPOSE YOU TO LEAD, A CHEMICAL KNOWN TO THE STATE OF CALIFORNIA TO CAUSE BIRTH DEFECTS OR

OTHER REPRODUCTIVE HARM.

ASH HANDS AFTER HANDLING.

SER GUIDE FOR WIRELESS BROADBAND CONNECTION

IF YOU HAVE THE OPTIONAL WIRELESS WAN (WWAN) DEVICE INSTALLED IN YOUR TABLET PC, THE WWAN USER’S GUIDE IS LOCATED AT:

http://solutions.us.fujitsu.com/www/content/support/mobile/support_notices

LEASE CLICK “3G MINI-CARD GOBI3000 REGULATORY AND SAFETY INFORMATION” TO OPEN THE FULL USER GUIDE CONTAINING WARNINGS AND

PRECAUTIONS ASSOCIATED WITH RF SAFETY WHEN USING THE WWAN DEVICE.

DECLARATION OF CONFORMITY

according to FCC Part 15

Responsible Party Name: Fujitsu America, Inc.

Address: 1250 E. Arques Avenue

Sunnyvale, CA 94085

Telephone: (408) 746-6000

Declares that product: Base Model Configuration: LIFEBOOK T732 Tablet PC

Complies with Part 15 of the FCC Rules.

This device complies with Part 15 of the FCC rules. Operations are subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT SAFETY INSTRUCTIONS

AC adapter output polarity:

This unit requires an AC adapter to operate. Use only UL Listed I.T.E. Adapters with an output rating of 19 VDC, with a current of 4.22 A (80 W).

When using your Tablet PC equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• CAUTION - HOT SURFACE: The bottom of this Tablet PC computer can become hot when used for long periods of time. When using this Tablet PC, take

caution to limit long term or continuous use while resting it on exposed skin, such as the lap.

• CAUTION - REPLACEABLE BATTERIES: Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries in accordance with

manufacturer’s instructions.

• Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible

special disposal instructions.

SAVE THESE INSTRUCTIONS

For Authorized Repair Technicians Only

DANGER OF EXPLOSION IF LITHIUM (CLOCK) BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE

RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTION.

OR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH THE SAME TYPE AND RATING FUSE.

Recycling your battery

Over time, the batteries that run your mobile computer will begin to hold a charge for a shorter amount of time; this is a natural occurrence for all batteries. When this occurs, you may want to replace the battery with a fresh one*. If you replace it, it is important that you dispose of the old battery properly because batteries contain materials that could cause environmental damage if disposed of improperly.

Fujitsu is very concerned with environmental protection, and has enlisted the services of the Rechargeable Battery Recycling Corporation (RBRC)**, a non-profit public service organization dedicated to protecting our environment by recycling old batteries at no cost to you.

RBRC has drop-off points at tens of thousands of locations throughout the United States and Canada. To find the location nearest you, go to www.RBRC.org or call 1-800-822-8837.

If there are no convenient RBRC locations near you, you can also go to the EIA Consumer Education Initiative website (http://EIAE.org/)

and search for a convenient disposal location.

Remember – protecting the environment is a cooperative effort, and you should make every effort to protect it for current and future generations.

* To order a new battery for your Fujitsu mobile computer, go to the Fujitsu shopping site at www.shopfujitsu.com in the US or

www.fujitsu.ca/products/notebooks in Canada.

** RBRC is an independent third party to which Fujitsu provides funding for battery recycling; RBRC is in no way affiliated with Fujitsu.

Contents

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Conventions Used in the Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Fujitsu Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Chapter 1 Getting to Know Your LIFEBOOK

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Locating the Controls and Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Top Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Left-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Right-Side Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Back Panel Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Bottom Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Status Indicator Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Power Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Battery Charging Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Battery Level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

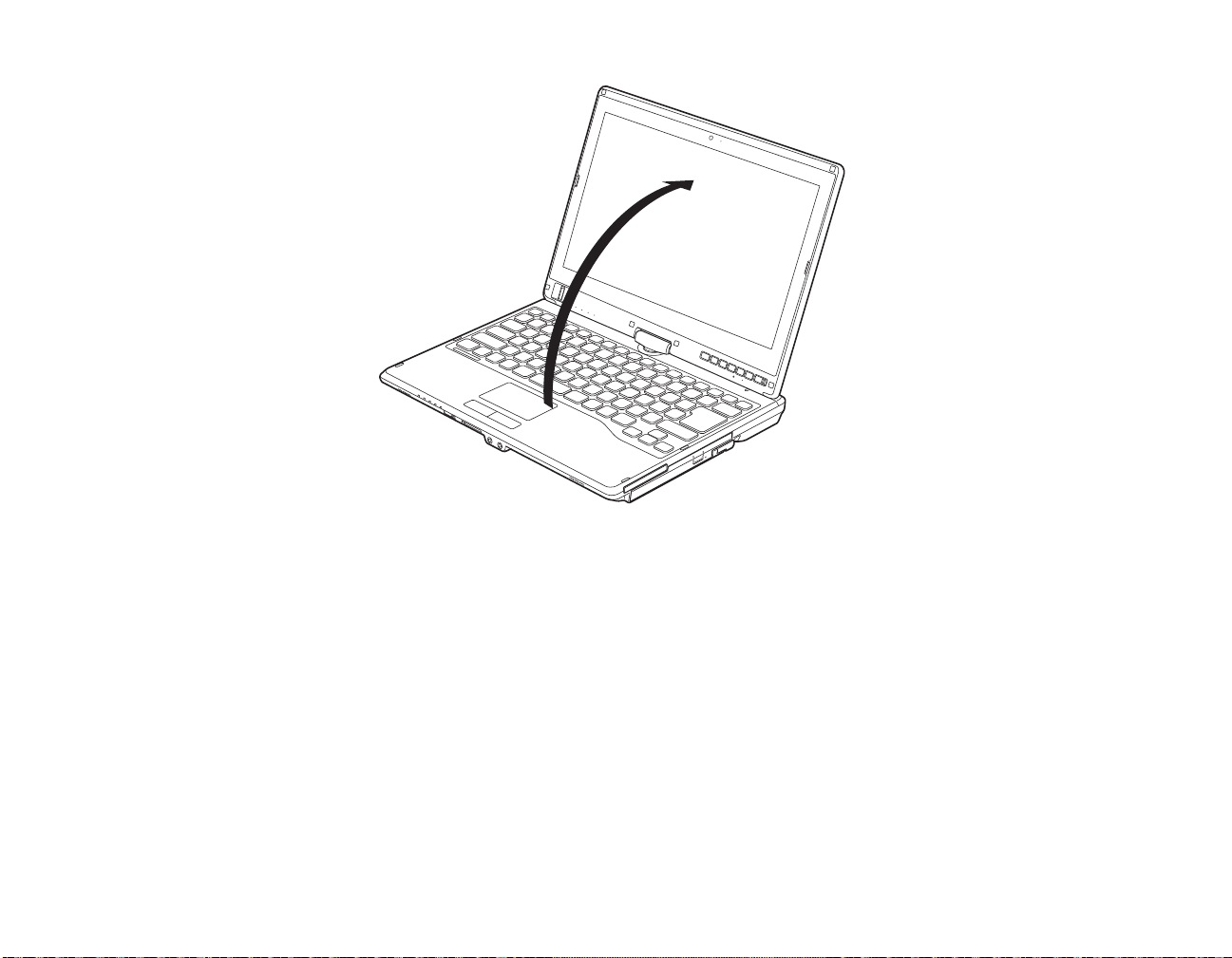

Opening the Display Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using the System as a Tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Adjusting Display Panel Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Enabling/Disabling Ambient Light Sensor. . . . . . . . . . . . . . . . . . . . . . . . 36

Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Using the Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Touchpad/Active Digitizer/Touchscreen. . . . . . . . . . . . . . . . . . . . . . . . . . . 41

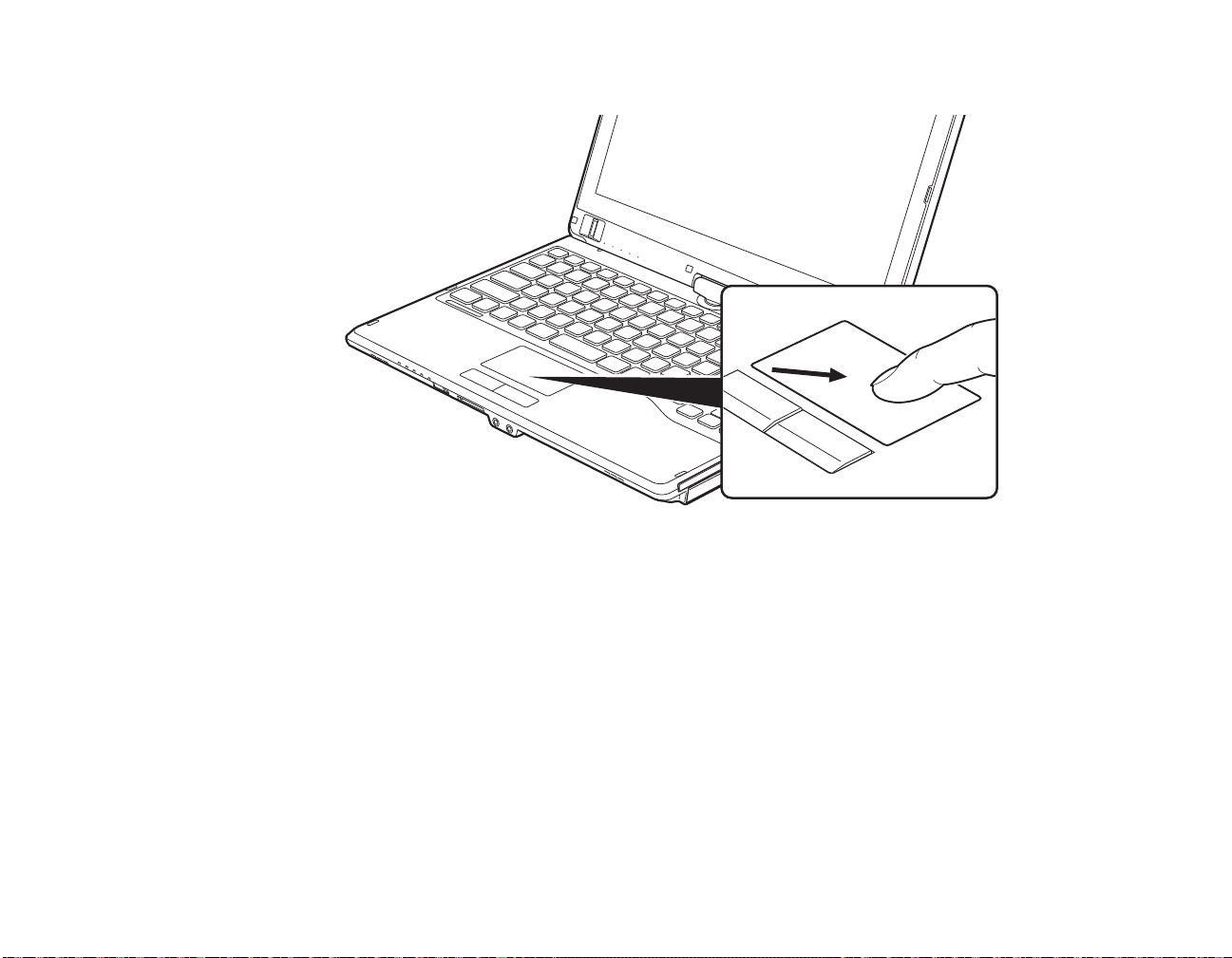

Using the Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Active Digitizer Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Using the Optional Capacitive Touchscreen . . . . . . . . . . . . . . . . . . . . . . . 47

Installing a Pen Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Volume Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Controlling the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Modular Bay Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Removing and Installing Modular Devices . . . . . . . . . . . . . . . . . . . . . . . 52

LIFEBOOK Tablet PC Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Changing Tablet PC Button Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Chapter 2 Getting Started with Your LIFEBOOK

Power Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Connecting the Power Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Starting Your LIFEBOOK Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Hard Disk Drive Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Booting the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Starting Windows the First Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Power/Suspend/Resume Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Sleep Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Hibernation (Save-to-Disk) Feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Windows Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Restarting the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Powering Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

ENERGY STAR® Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Chapter 3 User-Installable Features

Lithium ion Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Recharging the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Battery Charge Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Secure Digital Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

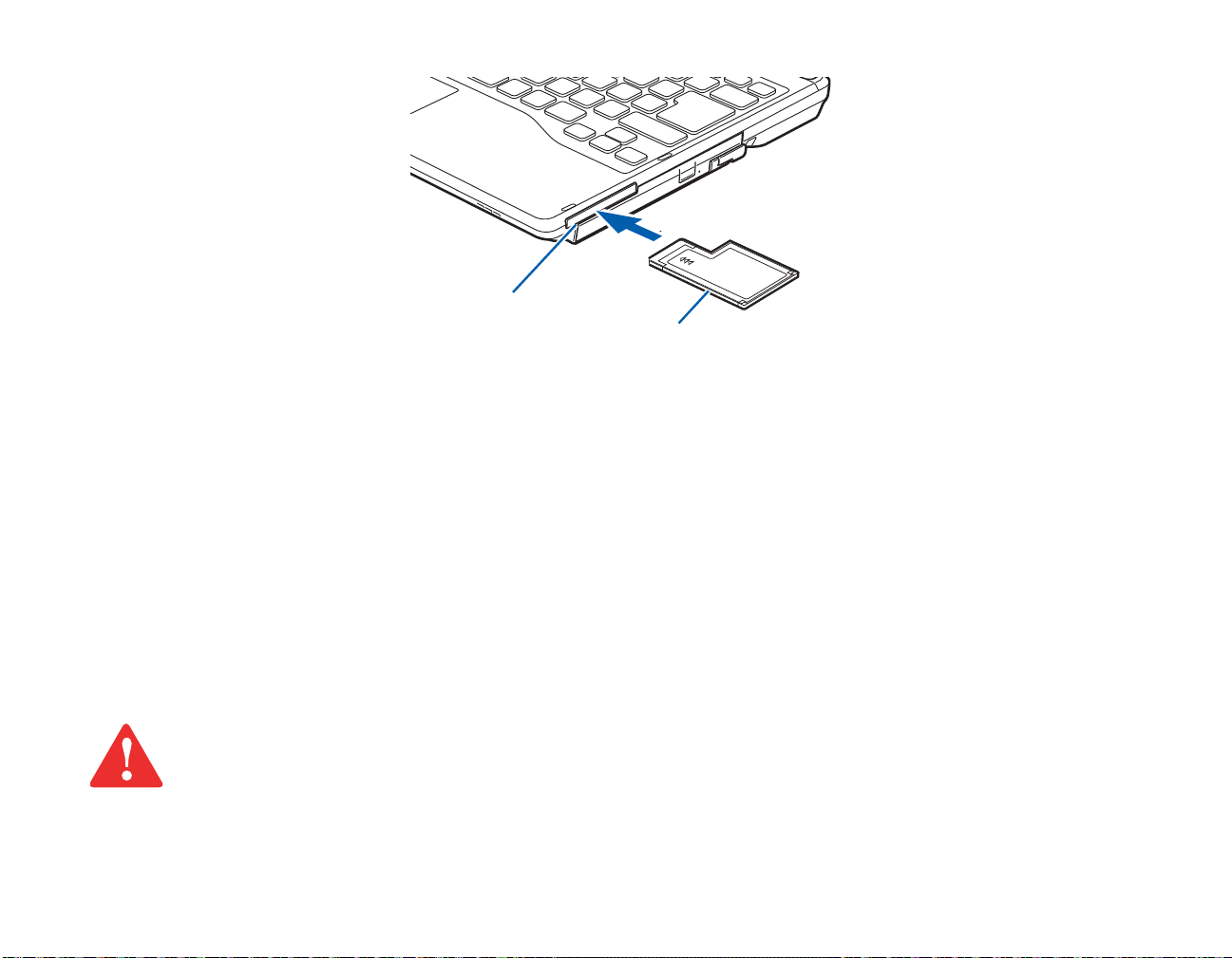

Installing SD Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Removing an SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

ExpressCards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Installing ExpressCards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Removing ExpressCards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Installing Memory Upgrade Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Removing a Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Checking the Memory Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Optical Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Media Player Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Loading Media on Your Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Removing Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Emergency Optical Drive Tray Release . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Using the Media Player Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Using Media Player on Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Internal LAN (RJ-45) Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Port Replicator Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Universal Serial Bus Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

HDMI Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

External Video Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Chapter 4 Troubleshooting Your LIFEBOOK

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Identifying the Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Power On Self Test Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Restoring Your System Image and Software (Windows 7) . . . . . . . . . . . 103

Saving and Recovering Your Factory and System Images . . . . . . . . . . . . 103

Backing Up a System Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Recovery and Utility tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Recovering your Factory Image using Recovery and Utility . . . . . . . . . . 110

Downloading Driver Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Restoring Your System Image and Software (Windows 8) . . . . . . . . . . . 112

Saving and Recovering Your Factory and System Images . . . . . . . . . . . . 112

Backing Up a System Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Recovery and Utility tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Recovering your Factory Image using Recovery and Utility . . . . . . . . . . 120

Downloading Driver Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Chapter 5 Care and Maintenance

Caring for your LIFEBOOK Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Cleaning your LIFEBOOK Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Cleaning the dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Storing your LIFEBOOK Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Traveling with your LIFEBOOK Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . 126

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Media Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Express Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Chapter 6 System Specifications

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Chipset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Digitizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Mass Storage Device Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Modular Bay Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Device Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Environmental Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Popular Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Pre-Installed Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Learning About Your Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Glossary/Regulatory

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Appendix A: WLAN User’s Guide

Before Using the Optional Wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . 157

Wireless LAN Device Covered by this Document . . . . . . . . . . . . . . . . . . . 157

Characteristics of the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Wireless LAN Modes Using this Device. . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Deactivating/Disconnecting the WLAN Device. . . . . . . . . . . . . . . . . . . . . 160

Deactivation Using the Wireless On/Off Switch . . . . . . . . . . . . . . . . . . . . 161

Disconnection Using the Icon in the Taskbar. . . . . . . . . . . . . . . . . . . . . . 161

Activating the WLAN Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Configuring the Wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Configuring the WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Connection to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Troubleshooting the WLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

WLAN Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Using the Bluetooth Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

What is Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Where to Find Information About Bluetooth . . . . . . . . . . . . . . . . . . . . . . 168

Appendix B: Fingerprint Sensor Device

Introducing the Fingerprint Sensor Device . . . . . . . . . . . . . . . . . . . . . . . . 170

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Installing OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

User Enrollment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Using OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Configuring OmniPass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

OmniPass Control Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Preface

About This Guide

The LIFEBOOK T732 Tablet PC from Fujitsu America is a powerful convertible computer. It can be used either as a standard notebook using keyboard input, or in tablet configuration using pen input. It is powered by the new 3rd Generation Intel® Core™ Processor, has a built-in color display with either an active digitizer or optional dual digitizer, and brings the computing power of desktop personal computers to a portable and versatile environment.

This manual explains how to operate your LIFEBOOK T732 Tablet PC’s hardware and pre-installed system software.

Conventions Used in the Guide

Keyboard and on-screen keys appear in brackets. Example: [Fn], [F1], [ESC], [ENTER] and [CTRL]. Pages with additional information about a specific topic are cross-referenced within the text. For example: (“See

Installation Procedure on page 43”.) Note that all cross-references are linked to the referenced items, so by clicking the link, you will automatically go to the referenced item or page.

On-screen menu items appear in bold. Example: “Click Fujitsu Menu, and select your choice”.

THE INFORMATION ICON HIGHLIGHTS INFORMATION THAT WILL ENHANCE YOUR UNDERSTANDING OF THE SUBJECT MATERIAL.

THE CAUTION ICON HIGHLIGHTS INFORMATION THAT IS IMPORTANT TO THE SAFE OPERATION OF YOUR COMPUTER, OR TO THE INTEGRITY OF YOUR

FILES. PLEASE READ ALL CAUTION INFORMATION CAREFULLY.

HE WARNING ICON HIGHLIGHTS INFORMATION THAT CAN BE HAZARDOUS TO EITHER YOU, YOUR LIFEBOOK TABLET PC, OR YOUR FILES. PLEASE

READ ALL WARNING INFORMATION CAREFULLY.

Fujitsu Contact Information

Service and Support

You can contact Fujitsu Service and Support in the following ways:

• Toll free: 1-800-8FUJITSU (1-800-838-5487)

• Website:

U.S.A. - us.fujitsu.com/solutions

Canada - www.fujitsu.ca Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Product name

• Product configuration number

• Product serial number

• Purchase date

• Conditions under which the problem occurred

• Any error messages that have occurred

• Type of device connected, if any

Fujitsu Shopping Online

You can go directly to the online by going to the website at: www.shopfujitsu.com.

- About This Guide

Maintaining Latest Configuration

To ensure that you always have the most current driver updates related to your system, you should occasionally access the Fujitsu Software Download Manager (FSDM) utility. The FSDM utility is available to allow you to download the latest drivers, utilities, and applications from the Fujitsu Support site. If you have a Windows 7 operating system, you will need to go to the Support Site (http://support.fujitsupc.com/CS/Portal/support.do?srch=DOWNLOADS).

Limited Warranty

Your LIFEBOOK Tablet PC is backed by a Fujitsu International Limited Warranty. Check the service kit that came with your Tablet PC for the Limited Warranty period and terms and conditions.

- About This Guide

Chapter 1

Getting to Know Your LIFEBOOK

Overview

This section describes the components of your Fujitsu LIFEBOOK T732 Tablet PC. We strongly recommend that you read it before using your Tablet PC – even if you are already familiar with Tablet PC computers.

Figure 1. Fujitsu LIFEBOOK T732 Tablet PC

Locating the Controls and Connectors

Connectors and peripheral interfaces on the LIFEBOOK T732 Tablet PC and the optional port replicator allow you to connect a variety of devices. Specific locations are illustrated in Figures 2 through 6. The table below provides a short description of each icon on the LIFEBOOK T732 Tablet PC and/or optional port replicator. Each of the icons is either molded into or printed on the Tablet PC or port replicator chassis.

Connection Tablet PC

Purpose

Icon

DC in connector Connect an external power source such as the AC adapter or auto/airline adapter.

Security lock slot The security slot allows you to secure the Tablet PC using compatible locking

devices.

USB 2.0 Ports Connect Universal Serial Bus 2.0 or 1.1 compliant devices to the USB 2.0 ports. For location of the

specific ports, see the left-side and back panel illustrations later in this chapter.

USB 3.0 / Anytime USB Charge Port

HDMI

Microphone/Line In Jack

Headphone/Line Out Jack

Connect Universal Serial Bus 3.0, 2.0 or 1.1 compliant devices to the USB 3.0 port. The USB 3.0 port also has Anytime USB Charge capability, meaning that even when your system is shut down, this port can still be used to provide power to an external device. Note that the USB 3.0 port can also be recognized by the blue “tongue” in the port.

The HDMI port allows you to connect compatible digital devices with your computer (such as a high-definition television or AV receiver).

Connect an external microphone. The internal microphone is disabled when you plug in an external microphone.

Connect stereo headphones or powered external speakers. The internal speaker is disabled when you plug in external headphones or powered speakers.

SD Card Slot The Secure Digital (SD) card slot allows you to insert a flash memory card for data storage. Flash

memory cards allow you to transfer data to and from a variety of different digital devices.

- Locating the Controls and Connectors

Connection Tablet PC

Purpose

Icon

Dock port Connect the Tablet PC port replicator or other approved docking device. Refer to documentation

accompanying the dock for more information.

Suspend/ Resume button

The Suspend/Resume button allows you to suspend Tablet PC activity without powering off, resume your Tablet PC from suspend mode, and power on the system when it has been shut down from Windows.

Local Area Network (LAN)

Wireless Device OnOff Switch

The LAN (RJ-45) jack is used to connect the internal 10/100/1000* Base-T/Tx Ethernet to a Local Area Network (LAN) in your office or home, or broadband devices such as a cable modem, DSL, or satellite Internet.

*1000 Mbps, commonly referred to as Gigabit Ethernet.

The Wireless Device On-Off switch allows you to turn power to the optional wireless devices on and off.

External Video port The external video port allows you to connect an external monitor or LCD projector to your

computer.

Digital Video Interface

The DVI-D port on the optional port replicator allows you to connect a flat-panel LCD monitor or television that is equipped with a DVI-D port for ultra-crisp digital images and graphics.

- Locating the Controls and Connectors

Touchpad

Touchpad Buttons

Keyboard

Fingerprint Sensor

Microphone

Speaker

Status Indicators

Web Camera

Web Camera LED

Status Indicators

Display

Windows Button

Tablet Buttons

Power/Suspend/Resume Switch

Ambient Light Sensor

Microphone Jack

Headphone Jack

SD Card Slot

Wireless Device On/Off Switch

Figure 2. LIFEBOOK Tablet PC with display open

- Locating the Controls and Connectors

Status IndicatorsStatus Indicators

Top Components

The following is a brief description of your LIFEBOOK Tablet PC’s top components.

Web Camera

The optional 2.0 megapixel web cam can be used to take pictures of yourself to send over the internet.

Web Cam Access LED

The web cam access LED indicates when the web camera is activated.

Display Panel

The display panel is a color LED panel with backlighting for the display of text and graphics. There are two different displays available: an active digitizer that is used with a stylus, and a dual digitizer that can be used with either a stylus or your fingers.

Windows Button

After you log on, the Windows button can be used to perform two functions. When pressed alone, it opens up the Start menu. When pressed at the same time as the power button, it acts the same as if pressing [Ctl] + [Alt] + [Del].

LIFEBOOK Tablet PC Buttons

The LIFEBOOK Tablet PC Buttons provide one-touch application launch capability. See “LIFEBOOK Tablet PC Buttons” on page 53.

Power/Suspend/Resume Switch

The Power/Suspend/Resume switch allows you to suspend Tablet PC activity without powering off, resume your LIFEBOOK Tablet PC from sleep mode, and power on your Tablet PC when it has been shut down from Windows. See “Power/Suspend/Resume Switch” on page 58.

Dual Built-in Microphones

The built-in microphones allow you to record voice and annotations.

- Locating the Controls and Connectors

Ambient Light Sensor

The ambient light sensor measures the light in which the computer is operating and automatically adjusts the brightness of the display to suit the lighting conditions. See “Enabling/Disabling Ambient Light Sensor” on page 36.

Dual Stereo Speakers

The built-in dual speakers provide stereo sound.

Microphone Jack

The microphone jack allows you to connect an external mono microphone. See “Microphone Jack” on page 89.

Headphone Jack

The headphone jack allows you to connect headphones. See “Headphone Jack” on page 88.

SD Card Slot

The SD card slot allows you to install a Secure Digital (SD) card for data storage. This architecture allows you to transfer data from a variety of different digital devices. See “Installing SD Cards” on page 75.

Wireless Device On/Off Switch

The wireless device On/Off switch is used to turn on and off the optional wireless devices. Switching the device off when not in use will help to extend battery life. See “Activating the WLAN Device” on page 161.

Status Indicator Panels

The Status Indicator Panels display symbols that correspond to specific components of your Tablet PC. Status indicators are located in two locations: on the left front edge of the system (system status indicators) and below the application buttons (button status indicators). See “Status Indicator Panel” on page 29.

Touchpad Pointing Device

The Touchpad pointing device is a mouse-like cursor control with a left and right button. See “Touchpad/Active Digitizer/Touchscreen” on page 41.

Keyboard

- Locating the Controls and Connectors

A full-size keyboard with dedicated Windows keys. See “Keyboard” on page 38.

Fingerprint Sensor

The fingerprint sensor device allows you to log onto your system and password-protected websites and applications by swiping your finger over the sensor. See “Introducing the Fingerprint Sensor Device” on page 170.

- Locating the Controls and Connectors

Figure 3. LIFEBOOK Tablet PC left-side panel

Air Vents

DC Power Jack

USB 3.0 Port (with Anytime USB Charge functionality)

HDMI Port

Left-Side Panel Components

The following is a brief description of your LIFEBOOK Tablet PC’s left-side components.

DC Power Jack

The DC power jack allows you to plug in the AC adapter to power your LIFEBOOK Tablet PC and charge the internal Lithium ion battery.

HDMI Port

The HDMI port is used to connect compatible digital devices with your computer (such as a high-definition television or AV receiver).

See “HDMI Port” on page 89.

Air Vents

The air vents are used to cool the system to prevent overheating.

TO PROTECT YOUR TABLET PC FROM DAMAGE AND TO OPTIMIZE PERFORMANCE, BE SURE TO KEEP ALL AIR VENTS UNOBSTRUCTED, CLEAN, AND

CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

O NOT OPERATE THE TABLET PC IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE

A BED OR CUSHION.

- Locating the Controls and Connectors

USB 3.0 Port

The USB 3.0 port (on the left side of the system) allows you to connect Universal Serial Bus (USB) 3.0 devices. USB

3.0 transfers data at up to 5Gbps and is backward-compatible with USB 1.1 and 2.0 devices, which transfer data at up to 12 Mbps and 480 Mbps, respectively. Note that the USB 3.0 port has Anytime Charge capability, meaning you can charge an external device from this port, even when the system is powered down.See “Universal Serial Bus Ports.” on page 88.

- Locating the Controls and Connectors

Figure 4. LIFEBOOK Tablet PC right-side panel

Modular Bay

Modular Bay Release LatchPen Garage ExpressCard Slot

Right-Side Panel Components

The following is a brief description of your LIFEBOOK Tablet PC’s right-side components.

Pen Garage

The pen garage is used to store the pen (also called a “stylus”) when not in use.The pen is used as the interface with the active digitizer display.

ExpressCard Slot

The ExpressCard Slot allows you to install an ExpressCard. See “ExpressCards” on page 76.

ExpressCard Eject Button

The ExpressCard eject button is used for removing an ExpressCard from the slot.

Modular Bay

The modular bay can accommodate one of the following devices. See “Modular Bay Devices” on page 51.

• Modular Dual-Layer Multi-Format DVD Writer

• Modular Blu-ray Triple Writer

• Modular bay battery

• Modular 2nd hard disk drive

• Weight Saver

Modular Bay Release Latch

The modular bay release latch is used to release the modular bay device from the modular bay.

- Locating the Controls and Connectors

Figure 5. LIFEBOOK Tablet PC back panel

Gigabit LAN

USB 2.0 Ports

External

Anti-Theft Lock Slot

(RJ-45) Jack

Video Port

Back Panel Components

Following is a brief description of your LIFEBOOK Tablet PC’s back panel components.

Anti-theft Lock Slot

The anti-theft lock slot allows you to attach an optional physical lock down device.

External Video Port

The external monitor port allows you to connect an external monitor or LCD projector. See “External Video Port” on page 89.

USB 2.0 Ports

The USB 2.0 ports allow you to connect Universal Serial Bus devices. USB 2.0 transfers data at up to 480Mbps and is backward-compatible with USB 1.1 devices, which transfer data at up to 12Mbps. See “Universal Serial Bus Ports.” on page 88.

Gigabit LAN (RJ-45) Jack

The internal LAN (RJ-45) jack is used for an internal Gigabit (10Base-T/100Base-Tx/1000Base-T) Ethernet LAN connection.

See “Internal LAN (RJ-45) Jack” on page 87.

- Locating the Controls and Connectors

Memory Upgrade Compartment

Lithium ion Battery Bay

Port Replicator Connector

Air Vents (several locations)

Battery Latch

Dust Filter

Pen Tether Attachment Point

Hard Disk Drive

ompartment

Battery Charge Status Indicator

Figure 6. LIFEBOOK Tablet PC bottom panel

Bottom Components

The following is a brief description of your LIFEBOOK Tablet PC’s bottom panel components.

Air Vents

The air vents allow air to circulate through the system to cool down the components.

- Locating the Controls and Connectors

TO PROTECT YOUR TABLET PC FROM DAMAGE AND TO OPTIMIZE SYSTEM PERFORMANCE, BE SURE TO KEEP ALL AIR VENTS UNOBSTRUCTED, CLEAN,

AND CLEAR OF DEBRIS. THIS MAY REQUIRE PERIODIC CLEANING, DEPENDING UPON THE ENVIRONMENT IN WHICH THE SYSTEM IS USED.

O NOT OPERATE THE TABLET PC IN AREAS WHERE THE AIR VENTS CAN BE OBSTRUCTED, SUCH AS IN TIGHT ENCLOSURES OR ON SOFT SURFACES LIKE A

BED OR CUSHION.

Battery Latches

The battery latches are used to secure the Lithium ion battery in the battery bay.

Lithium ion Battery Bay

The battery bay contains the internal Lithium ion battery. It can be opened for the removal of the battery when stored over a long period of time or for swapping a discharged battery with a charged Lithium ion battery. See “Lithium ion Battery” on page 68.

Battery Charge Status Indicator

The battery charge status indicator allows you to check the battery charge status directly on the battery.

Port Replicator Connector

This connector allows you to connect the optional Port Replicator to your Tablet PC.

Dust Filter

The dust filter is used to help remove dust and dirt from your system. See “Cleaning the dust filter” on page 124.

Memory Upgrade Compartment

Your Tablet PC comes with high speed Double Data Rate 3 Synchronous Dynamic RAM (DDR3 1600 MHz SDRAM). The memory upgrade compartment allows you to expand the system memory capacity of your Tablet PC, thus improving overall performance. See “Memory Upgrade Module” on page 78. Under normal circumstances, it should not be necessary to open this compartment.

Pen Tether Attachment Point The pen tether attachment point is used to attach your pen to the system to prevent its loss.

- Locating the Controls and Connectors

Figure 7. Status Indicator Panel

Optical/Hard Drive Access

Batt Charging

Batt 1 Level

Batt 2 Level

Security

NumLk

CapsLk

ScrLk

Power

Status Indicator Panel

The Status Indicator Panel displays symbols and associated LEDs that correspond to specific components of your Tablet PC. These symbols tell you how each of those components is operating.(Figure 7)

The Power indicator symbol shows whether your system is operational. It has several different states, each of which

Power Indicator

tells you what mode your Tablet PC is in at that time.

• Steady On: This means that there is power to your Tablet PC and that it is ready for use.

• Flashing: This means that your Tablet PC is in Sleep mode.

- Status Indicator Panel

• Steady Off: This means that your system is either in Hibernate mode, or that your Tablet PC has been turned

off.

If you are charging your batter y, the Power indicator symbol will remain on even if your LIFEBOOK Tablet PC is shut off.

Battery Charging Indicator

The Battery Charging indicator states whether a battery is installed and charging.

THERE IS ALSO A BATTERY CHARGE INDICATOR ON THE BOTTOM OF THE SYSTEM AS PART OF THE BATTERY. FOR MORE INFORMATION, REFER TO “B

ATTERY CHARGE STATUS INDICATOR” ON PAGE 71.

Battery Level Indicator

The Battery Level indicators display the charge level of the indicated battery pack, as follows:

• Green, solid: Battery is between 51% and 100% charged.

• Orange, solid: Battery is between 13% and 50% charged.

• Red, solid: Battery is between 0% and 12% charged.

• Orange, blinking: Blinks during battery status measurement (Four seconds after the battery is installed).

• Red, blinking: There is a problem with the battery.

• Off: There is no battery installed.

• BATTERIES SUBJECTED TO SHOCKS, VIBRATION OR EXTREME TEMPERATURES CAN BE PERMANENTLY DAMAGED.

• A SHORTED BATTERY IS DAMAGED AND MUST BE REPLACED.

- Status Indicator Panel

• IF THE BATTERY PACK IS INSTALLED WHILE THE POWER IS TURNED OFF, THE BATTERY LEVEL INDICATOR WILL DISPLAY THE CHARGE LEVEL FOR

FIVE SECONDS AFTER IT BLINKS ORANGE.

• IF THE AC ADAPTER IS NOT CONNECTED OR THE BATTERY PACK IS NOT FULLY CHARGED WHEN THE COMPUTER IS SWITCHED TO SLEEP MODE, THE

INDICATOR WILL BLINK. THE LED BLINKS AT THE RATE OF ONE SECOND ON/FIVE SECONDS OFF.

Hard Drive/Optical Drive Access Indicator

The Hard Drive Optical Drive Access indicator shows whether your internal hard drive or optical drive is being accessed.

Security Indicator

The Security Indicator flashes (if a password was set) when the system resumes from Off or Sleep modes. You must enter the password that was set in the Security Panel before your system will resume operation.

NumLk Indicator

The NumLk indicator glows green when the integrated keyboard is set in ten-key numeric keypad mode.

CapsLock Indicator

The CapsLock indicator glows green when your keyboard is set to type in all capital letters.

ScrLk Indicator

The ScrLk indicator glows green when your scroll lock is active.

- Status Indicator Panel

Figure 8. Opening the Display Panel

Display Panel

Your LIFEBOOK T732 Tablet PC contains an LED display panel that is backlit for easier viewing in bright environments. The convertible design of your Tablet PC allows you to open the display fully, rotate it in either direction 180 degrees, and lay it face up on the keyboard. This allows you to use the system as a tablet, much as you would a pad of paper.

Opening the Display Panel

Lift the display backwards, being careful not to touch the screen with your fingers, until it is at a comfortable viewing angle. (Figure 8)

- Display Panel

Using the System as a Tablet

If you would like to use the system as a tablet, perform the following steps.

• THE DISPLAY CAN BE ROTATED IN EITHER DIRECTION, BUT WHEN RETURNING THE SYSTEM TO NOTEBOOK MODE, BE SURE TO TURN IT BACK TO ITS

ORIGINAL POSITION (I.E., THE REVERSE OF HOW YOU TURNED IT WHEN YOU OPENED IT. TURNING THE DISPLAY IN THE INCORRECT DIRECTION COULD CAUSE HINGE DAMAGE. THE SCREEN SHOULD ROTATE EASILY; IF IT DOES NOT ROTATE EASILY, YOU ARE PROBABLY ATTEMPTING TO TURN IT IN THE WRONG DIRECTION.

• IN THE FOLLOWING STEP, BE SURE TO POSITION THE DISPLAY PERPENDICULAR TO THE KEYBOARD, OTHERWISE THE KEYBOARD OR DISPLAY COVER

COULD GET SCRATCHED.

• IT IS IMPORTANT TO NOTE THAT NO MATTER WHICH MODE YOUR TABLET IS IN, THE LATCH SHOULD ALWAYS BE ENGAGED TO PREVENT DAMAGE

TO IT.

1 Lift the display until it is perpendicular to the keyboard. (Figure 9). 2 When the display is perpendicular to the keyboard, rotate it 180 degrees in either direction (Figure 10) so that it

is facing backwards.

3 Holding the top edge of the display panel, pull it forward until it is lying atop the keyboard.

To return the system to notebook configuration:

1 Lift the display until it is perpendicular to the keyboard. 2 When the display is perpendicular to the keyboard, rotate it 180 degrees in either direction so that it is facing

forward.

- Display Panel

Figure 9. Fully Open Display Figure 10. Rotating Display Figure 11. Tablet Mode

Holding the Tablet PC

Your LIFEBOOK T732 Tablet PC can be held in any of four orientations, depending upon how you would like to use it. There are primary and secondary landscape orientations and primary and secondary portrait orientations. When you rotate the system using the Rotation button, the order in which it rotates is illustrated below.

Primary Landscape Orientation Primary Portrait Orientation Secondary Landscape

Orientation

Figure 12. Orientations for Tablet PC in Tablet Mode

Secondary Portrait Orientation

Adjusting Display Panel Brightness

Once you have turned on your Tablet PC, you may want to adjust the brightness level of the screen to a more comfortable viewing level. There are four ways to adjust the brightness: keyboard, power management utility, PC Settings (Windows 8), and Fujitsu Menu.

Using Keyboard to Adjust Brightness

Adjusting the brightness using the keyboard changes the system setting (i.e., the settings you make via the function keys automatically changes the brightness settings in the system’s Pen and Tablet Settings).

• [Fn+F6]: Pressing repeatedly will lower the brightness of your display.

• [Fn+F7]: Pressing repeatedly will increase the brightness of the display.

Note that changing the brightness with the [Fn] key is temporary. When you resume or restart, you will need to reset them if you used this method.

Using Power Management to Adjust Brightness

Click Start -> Control Panel. In View by:, select one of the icon views. Select Display, then click Adjust brightness in the left pane. Under Select a power plan, select the plan settings you want to use. Drag Screen brightness: bar to the left or right, depending on your preference.

Using the PC Settings Window (Windows 8) To change the brightness using the PC Settings window, click at the bottom right corner of the screen so that vertical menu appears, then click the Settings icon. Click the Brightness icon and drag the brightness bar up to increase the brightness, or down to decrease it.

Using the Fujitsu Menu to Adjust Brightness

To adjust brightness using the Fujitsu menu, click on the Fujitsu Menu icon in the system tray in the lower right corner of the screen. Double-click Windows Mobility Center, then double-click the icon adjacent to Display brightness. Set the screen brightness sliders for On battery and Plugged in scenarios.

IF USING AC POWER, YOUR BRIGHTNESS SETTING IS SET TO ITS HIGHEST LEVEL BY DEFAULT. IF USING BATTERY POWER, YOUR

BRIGHTNESS SETTING IS SET TO APPROXIMATELY MID-LEVEL BY DEFAULT.

HE HIGHER THE BRIGHTNESS, THE MORE POWER THE SYSTEM WILL CONSUME AND THE FASTER YOUR BATTERIES WILL

DISCHARGE. FOR MAXIMUM BATTERY LIFE, SET THE BRIGHTNESS AS LOW AS POSSIBLE.

Enabling/Disabling Ambient Light Sensor

The system has an ambient light sensor (just below the Power/Suspend/Resume switch) that automatically senses the light conditions in which the computer is operating. If the lighting is very bright, the brightness of the LCD will increase to make it easier to see the display. Conversely, if it is used in a darkened room, the display will automatically dim.

OTE THAT WHEN YOU FIRST START YOUR SYSTEM, THE AMBIENT LIGHT SENSOR IS DISABLED. YOU WILL INITIALLY NEED TO ENABLE IT USING THE

FOLLOWING STEPS.

The light sensor can be enabled or disabled from the Control Panel as follows:

1 Open the system Control Panel and click in the View by: field, select either large or small icons.

2 Click on the Location and Other Sensors icon. 3 To enable or disable the Light Sensor utility, check or uncheck the box in the Enabled column. 4 For more information about the light sensor, click on Light Sensor icon in the Sensor column to the right of the

light sensor icon to open the Sensor Properties window.

5 From the Sensor Properties window, you can change the sensor’s description, uninstall the sensor, or enable or

disable selected users.

• To change the sensor’s description, click the [Change description] button, enter the new description, and click

the [OK] button.

• To limit who can access the sensors, click Change who can access sensors, then check or uncheck the box

adjacent to the individual you would like to grant or prohibit access.

• To uninstall the sensor, click Uninstall this sensor.

Keyboard

Fn Key

Start Key

Function Keys

Numeric Keypad

Application Key

Cursor Keys

(surrounded by heavy line)

456

Figure 13. Keyboard

Using the Keyboard

Your Fujitsu LIFEBOOK Tablet PC has an integral anti-microbial 84-key keyboard. The keys perform all the standard functions of a 101-key keyboard, including the Windows keys and other special function keys.

THE ANTI-MICROBIAL KEYBOARD USED IN SELECT MODELS OF THE FUJITSU LIFEBOOK CONTAINS AN INORGANIC SILVER ION AGENT THAT IS HIGHLY

EFFECTIVE IN ATTACKING MICROBES AND BACTERIA AND INHIBITING THEIR GROWTH. THIS AGENT HAS PROVEN TO HAVE A HIGH ANTIMICROBIAL EFFECT AGAINST A WIDE SPECTRUM OF HARMFUL MICROBES, BACTERIA, AND FUNGI.

- Keyboard

This section describes the following keys (Figure 13):

• Numeric keypad: Your Tablet PC allows certain keys to serve dual purposes, both as standard characters and as

numeric and mathematical keys. The ability to toggle between the standard character and numerical keys is

controlled through the [NumLk] key.

• Cursor keys: Your keyboard contains four arrow keys for moving the cursor or insertion point to the right, left,

up, or down within windows, applications and documents.

• Function keys: The keys labeled [F1] through [F12], are used in conjunction with the [Fn] key to produce

special actions that vary depending on what program is running.

• Windows keys: These keys work with your Windows operating system. These keys switch between desktop and

Modern Start screen modes and open the Application bar on the bottom of the screen.

Numeric Keypad

Certain keys on the keyboard perform dual functions as both standard character keys and numeric keypad keys. NumLk can be activated by pressing the [NumLk] keys. Turning off the NumLk feature is done the same way. Once this feature is activated you can enter numerals 0 through 9, perform addition ( + ), subtraction ( - ), multiplication ( * ), or division ( / ), and enter decimal points ( . ) using the keys designated as ten-key function keys. The keys in the numeric keypad are marked on the front edge of the key to indicate their secondary functions.

Windows Keys

Your LIFEBOOK Tablet PC has two Windows keys, consisting of a Windows key and an Application key. The Windows key switches between the Modern Start screen and desktop. This button functions the same as your onscreen Start menu button. The Application key opens the Application bar located at the bottom of the screen. (Please refer to your Windows documentation for additional information regarding the Windows keys.)

Cursor Keys

The cursor keys are the four arrow keys on the keyboard which allow you to move the cursor up, down, left and right in applications. In programs such as Windows Explorer, it moves the “focus” (selects the next item up, down, left, or right).

- Keyboard

Function Keys

Your LIFEBOOK Tablet PC has 12 function keys, F1 through F12. Functions assigned to these keys differ for each application. You should refer to your software documentation to find out how these keys are used.

• The [Fn] key provides extended functions for the Tablet PC and is always used in conjunction with another key.

• [Fn+F3]: Pressing [F3] while holding [Fn] will toggle the Audio Mute on and off.

• [Fn+F4]: Pressing [F4] while holding [Fn] will toggle the Quick Point feature on and off. Note that the [Fn+F4]

combination only works if Manual Setting is selected in the BIOS. (See “BIOS Setup Utility” on page 60)

• [Fn+F6]: Pressing [F6] repeatedly while holding [Fn] will lower the brightness of your display.

• [Fn+F7]: Pressing [F7] repeatedly while holding [Fn] will increase the brightness of the display.

• [Fn+F8]: Pressing [F8] repeatedly while holding [Fn] will decrease the volume of your Tablet PC.

• [Fn+F9]: Pressing [F9] repeatedly while holding [Fn] will increase the volume of your Tablet PC.

• [Fn+F10]: Pressing [F10] while holding [Fn] allows you to change your selection of where to send your display

video. The order is determined by which type of external video device(s) is connected. Each time you press the

key combination, you will step to the next choice.

• If you only have an external CRT connected, the order is: internal display -> external CRT -> simultaneous

display -> internal display.

• If you only have an HDMI device connected, the order is: internal display -> HDMI display -> simultaneous

display -> internal display.

• If you have external CRT and HDMI devices connected, the order is: internal display -> external CRT ->

simultaneous internal and external CRT -> HDMI display - simultaneous internal and HDMI display -> internal display.

• If you have an external CRT and DVI devices connected to the port replicator, the order is: internal display

-> external CRT -> simultaneous internal and external CRT -> DVI display -> simultaneous internal and DVI display. -> internal display.

- Keyboard

Touchpad/Active Digitizer/Touchscreen

Figure 14. Touchpad pointing device

Using the Touchpad

The touchpad is built into your LIFEBOOK Tablet PC. It is used to control the movement of the cursor to select items on your display panel. The touchpad is composed of a cursor control below the center of the keyboard, two buttons below it, and a scroll sensor on the right edge of the cursor control. The left button functions the same as a left mouse button while the right button has the same function as a right mouse button. When used with the cursor control, the scroll sensor allows you to scroll up and down a screen. The actual functionality of the buttons may vary depending on the application that is being used.

- Touchpad/Active Digitizer/Touchscreen

Clicking

Clicking means pushing and releasing a button. To left-click, move the cursor to the item you wish to select, press the left button once, and then immediately release it. To right-click, move the mouse cursor to the item you wish to select, press the right button once, and then immediately release it. You also have the option to perform the clicking operation by tapping lightly on the touchpad once.

Figure 15. Clicking with button Figure 16. Clicking with Touchpad Figure 17. Right-clicking with button

Double-Clicking

Double-clicking means pushing and releasing the left button twice in rapid succession. This does not function with the right button. To double-click, move the cursor to the item you wish to select, press the left button twice, and immediately release it. You can also perform a double-click operation by tapping lightly on the touchpad twice.

Figure 18. Double-clicking with button Figure 19. Double-cicking with Touchpad

- Touchpad/Active Digitizer/Touchscreen

Dragging

Dragging means pressing and holding the left button, while moving the cursor. To drag, move the cursor to the item you wish to move. Press and hold the left button while moving the item to its new location and then release it. Dragging can also be done using the Touchpad. First, tap the Touchpad twice over the item you wish to move making sure to leave your finger on the pad after the final tap. Next, move the object to its new location by moving your finger across the Touchpad, and then release your finger.

Figure 20. Dragging with button Figure 21. Dragging with Touchpad

Scrolling

Using the scrolling strip allows you to navigate through a document quickly without using the window’s scroll bars. This is particularly useful when you are navigating through on-line pages. To scroll, slide your finger up and down the scroll strip on the right side of the cursor control pad.

- Touchpad/Active Digitizer/Touchscreen

Figure 22. Scrolling with the Scroll Strip

Touchpad Control Adjustment

The Windows Control Panel allows you to customize your touchpad with selections made from within the Mouse Properties dialog box. There are three aspects of operation which you can adjust:

• Buttons: This tab lets you set up the buttons for right or left handed operation, in addition to setting up the

time interval allowed between clicks in double-clicking.

• Pointers: This tab lets you set up the scheme for the cursor depending on its functionality.

• Pointer Options: This tab lets you set up a relation between the speed of your finger motion and the speed of

the cursor. It also allows you to enable a Pointer Trail for the cursor arrow.

Active Digitizer Display

NOTE: Depending upon your system configuration, in addition to the active digitizer, you may also have a capacitive touch panel that responds to finger touch and touch gestures. (This configuration is called a “Dual Digitizer”.) For more information about the touchscreen, refer to “Using the Optional Capacitive Touchscreen” on page 47.

The integrated active digitizer allows you to use the included stylus as a pointing device. You can use the stylus to click, double-click, drag items and icons, write text, or to draw like a pen or pencil in applications that support this behavior, such as drawing or painting programs. See the documentation that came with your application for details.

Figure 23. Using the Active Digitizer Display

• DO NOT USE EXCESSIVE FORCE WHEN TAPPING OR WRITING ON THE SCREEN WITH THE STYLUS. EXCESSIVE FORCE COULD RESULT IN DAMAGE TO

THE LED AND/OR ACTIVE DIGITIZER.

• TO PURCHASE ADDITIONAL OR REPLACEMENT STYLUSES, VISIT FUJITSU’S ACCESSORIES WEBSITE AT: WWW.SHOPFUJITSU.COM.

- Touchpad/Active Digitizer/Touchscreen

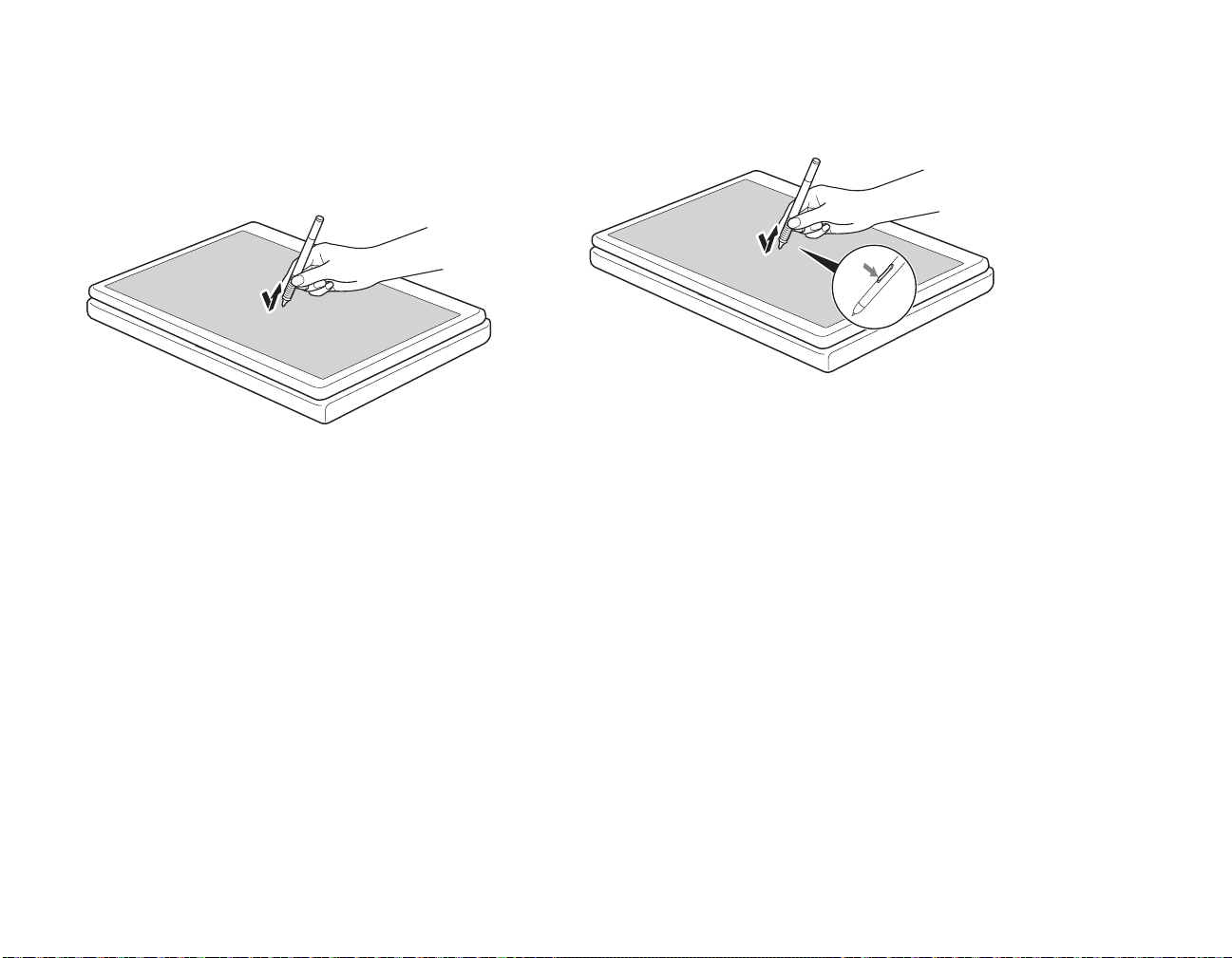

Clicking on Active Digitizer Display

To left-click, touch the object you wish to select and then lift the stylus tip immediately.

Figure 24. Clicking on the Active Digitizer Display

Figure 25. Right-clicking Active Digitizer

Right-Clicking on Active Digitizer

Right-click can be accomplished by holding the front of the toggle button down while tapping on the screen. To change the settings for the right-click feature, go to Start -> Control Panel

-> Pen and Touch. In the Pen Options tab, select “Press and Hold” then click the [Settings] button.

- Touchpad/Active Digitizer/Touchscreen

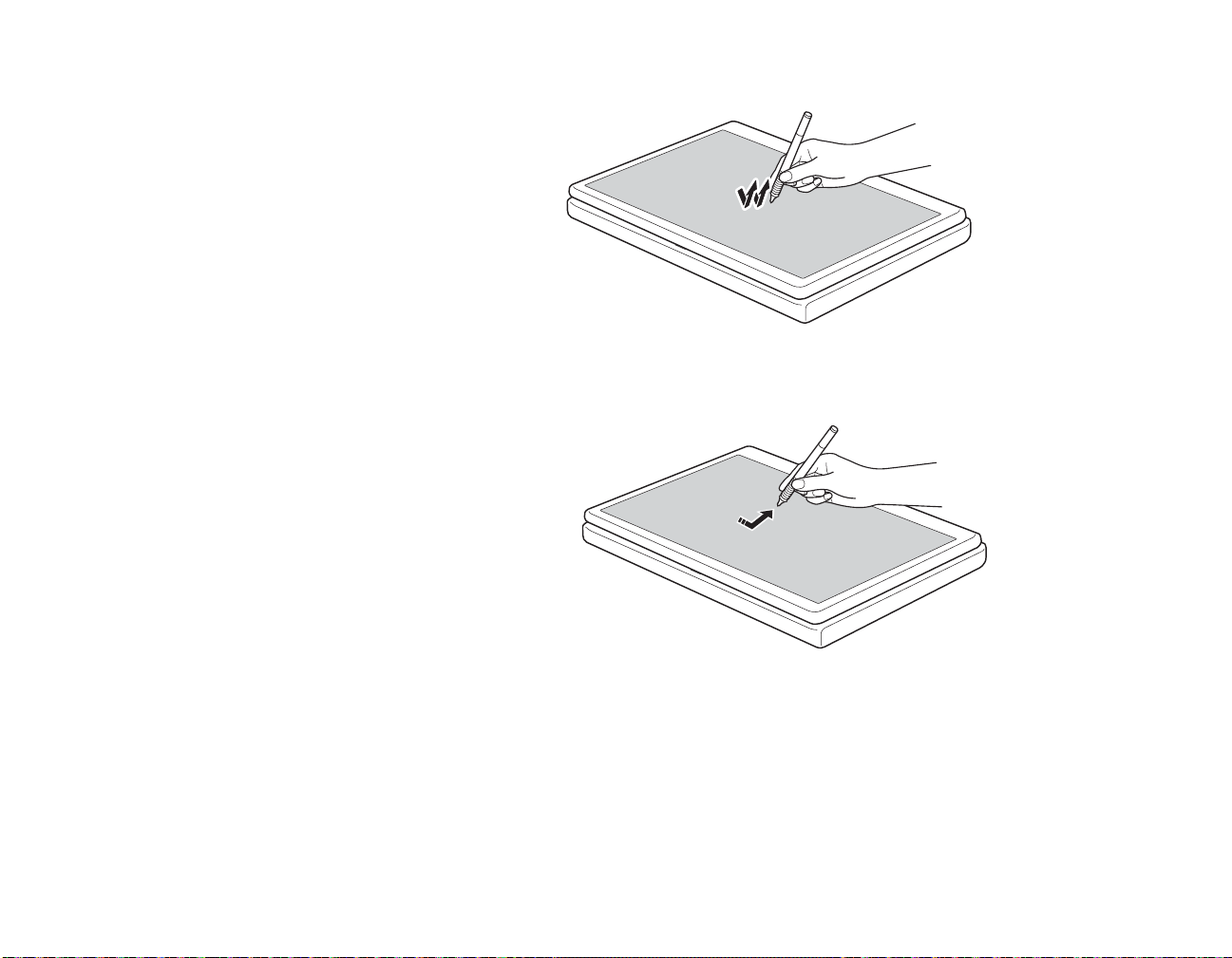

Double-Clicking

To double-click, touch the item twice, and then immediately remove the stylus tip.

Dragging

Dragging means moving an item with the stylus by touching the screen, moving and then lifting the stylus. To drag, touch the Active Digitizer Display with your stylus on the item you wish to move. While continuing to touch the screen with the stylus, drag the item to its new location by moving the stylus across the screen, and then lifting the stylus to release it.

Figure 26. Double-clicking the Display

Figure 27. Dragging on the Display

Calibrating the Active Digitizer Display

In order to ensure accurate tracking between the stylus and cursor, you must run the Calibration Utility before you use the system for the first time, or after you change the display resolution.

To run the calibration utility in Windows 7:

- Touchpad/Active Digitizer/Touchscreen

1 Go to Start -> Control Panel. 2 Double-click the Tablet PC Settings icon and select the Display tab 3 Click the [Calibrate] button. 4 Adjust the display of your Tablet PC to a comfortable angle and find the (+) symbol in the upper-left corner of the

display.

DO NOT USE EXCESSIVE FORCE WHEN TAPPING ON THE SCREEN DURING CALIBRATION. USE OF EXCESSIVE FORCE COULD RESULT IN DAMAGE TO THE LED

AND/OR TOUCH PANEL.

5 Using the stylus, firmly touch the screen directly on the (+) symbol. Lift the stylus from the screen and the target

will move to a different location on the screen.

6 Repeat step 5 until you have selected all of the (+) symbols. 7 Once you have selected all the symbols, press the [OK] button. 8 Touch the stylus to various points on the screen to verify that the screen is correctly calibrated. If you are not

satisfied with the screen’s calibration, press the [Calibrate]) button to begin again.

Using the Optional Capacitive Touchscreen

Certain configurations of this Tablet PC have an optional dual digitizer that allows you to use either the stylus or your finger(s) as a pointing device. This type of display also allows you to use “gestures” to perform such actions as scroll, zoom, and rotate.

• GESTURE SUPPORT IS DETERMINED BY THE APPLICATION IN USE.

• THE STYLUS TAKES PRECEDENCE OVER FINGER TOUCH. IF THE STYLUS IS WITHIN ACTIVE RANGE OF THE SCREEN, FINGER TOUCH WILL BE DISABLED.

• WHEN ONE FINGER IS USED ON THE TOUCHSCREEN, IT BEHAVES IN THE SAME MANNER AS A STYLUS.

- Touchpad/Active Digitizer/Touchscreen

Right-clicking the touchscreen

To perform a right-click action using two fingers, press the first finger at the location you want to perform a right-click, then quickly tap and release the second finger on the screen.

Gesture Mode

To initiate gesture mode, two fingers must touch the screen within one 10th of a second of each other. If the second finger touches the screen after one 10th of a second has elapsed, the second finger is ignored. Gesture mode ends when both fingers are removed from the screen. Note that if a gesture can’t be recognized, no action is taken. In that case, remove both fingers from the screen and try again.

Scrolling Gesture

To scroll through long documents or on a web page, place both fingers on the screen and move them in parallel in the same direction; if only one finger moves, no scrolling will occur. You can scroll vertically or horizontally, depending upon the direction of the gesture.

Rotate Gesture

To change the orientation of an object on the screen, place two fingers on the image you want to rotate, then move them in opposite directions (as if you were turning a knob). The direction the item turns is dependant upon the direction you move your fingers.

- Touchpad/Active Digitizer/Touchscreen

Figure 28. Scrolling Gesture

Figure 29. Rotate Gesture

Zoom Gesture

The zoom gesture is especially helpful when viewing pictures. To zoom in, place two fingers on the item you want to enlarge, then sprea d them away from each othe r. To zoom out, place two fingers on the item you want to reduce, then move them towards each other.

Installing a Pen Tether

To prevent dropping or losing your pen, you should attach it to your system using the pen tether that is included with the system. The pen tether attachment point is located under the front edge of the system (Figure 31).

To attach the pen tether to your Tablet PC, perform the following steps:

1 Attach the end of the pen tether with the smaller loop to

your pen. To do so, push the end of the tether through the hole in the pen, then thread the opposite end of the tether through the loop.

Figure 30. Zoom Gesture

2 Attach the end of the pen tether with the larger loop to the

attachment point on your tablet. To do so, insert the end of the pen tether through the attachment point, then feed the pen through the large loop in the tether.

- Touchpad/Active Digitizer/Touchscreen

Figure 31. Installing a Pen Tether

Volume Control

Your Fujitsu LIFEBOOK Tablet PC has multiple volume controls which interact with each other.

ANY SOFTWARE THAT CONTAINS AUDIO FILES WILL ALSO CONTAIN A VOLUME CONTROL OF ITS OWN. IF YOU INSTALL AN EXTERNAL AUDIO DEVICE

THAT HAS AN INDEPENDENT VOLUME CONTROL, THE HARDWARE VOLUME CONTROL AND THE SOFTWARE VOLUME CONTROL WILL INTERACT WITH EACH OTHER. IT SHOULD BE NOTED THAT IF YOU SET YOUR SOFTWARE VOLUME TO OFF, YOU WILL OVERRIDE THE EXTERNAL VOLUME CONTROL SETTING.

Controlling the Volume

The volume can be controlled in several different ways:

• Volume can be changed or muted from within the Volume Control in the system tray.

• Volume can be controlled with the F8 and F9 functions keys. Pressing [F8] repeatedly while holding [Fn] will

decrease the volume of your Tablet PC. Pressing [F9] repeatedly while holding [Fn] will increase the volume of

your Tablet PC.

• Volume can be muted by pressing the [F3] key while holding down the [Fn] key. To restore audio, repeat the

[Fn+F3] procedure.

• Volume can be controlled by many volume controls that are set within individual applications.

• Certain external audio devices you might connect to your system may have hardware volume controls.

Each source discussed above puts an upper limit on the volume level that must then be followed by the other sources. We recommend that you experiment with the various volume controls to discover the optimal sound level.

- Volume Control

Figure 32. Modular Bay

Modular Bay

Modular Bay Release Latch

Modular Bay Devices

Your Fujitsu LIFEBOOK Tablet PC contains a Modular Bay. The Modular Bay can house an optical drive, a Lithium ion battery, a modular second hard disk drive and a weight saver.

Your Modular Bay may have one of the following devices installed.

• Modular Dual-Layer Multi-Format DVD Writer: This allows you to access movies, software, and audio DVD/CDs

and record to DVD, CD, and DVD-RAM discs

• Blu-ray Triple Writer: The Blu-ray Triple Writer allows you to read and write to CDs, DVDs and Blu-ray discs™. The

Triple Writer can store up to 25 GB of data on a single-layer Blu-ray disc. That’s the equivalent of 2.5 hours of

high-definition or 12 hours of standard definition video.

• Modular Lithium ion battery: This is a rechargeable battery that can be used to power your LIFEBOOK Tablet PC

when an adapter is not connected.

• Modular hard drive: This allows you to increase the storage capacity of your Tablet PC.

• Weight Saver: This is used to fill the bay when no device is needed.

YOU SHOULD NEVER LEAVE YOUR MODULAR BAY EMPTY WHEN THE TABLET PC IS IN OPERATION. IF LEFT EMPTY, DUST OR FOREIGN MATTER MAY

ACCUMULATE INSIDE THE TABLET PC.

- Modular Bay Devices

Removing and Installing Modular Devices

There are two ways to remove and install modular devices in the Modular Bay:

• Cold-swapping: swapping devices while your LIFEBOOK Tablet PC is powered off.

• Hot-swapping: swapping devices while your system is active using the Safely Remove Hardware icon from your

system tray.

Cold-swapping

To cold-swap modular devices in your Modular Bay follow these easy steps:

1 Close any open files. 2 Shut down your LIFEBOOK Tablet PC. 3 Press the Modular Bay release latch in the direction

shown in Figure 33.

4 While holding the latch, slide your device out until it is

clear of the bay. This will require light force.

5 Slide the device you are installing into your Tablet PC

until it clicks into place.

6 It is now safe to turn your Tablet PC back on. 7 You can now access and use the device.

Figure 33. Removing/Installing Modular Bay Device

Your Tablet PC will automatically detect the device and activate it within your system. The drive letters associated with the device will be created and listed under My Computer and Windows Explorer.

Hot-swapping

Hot-swapping is provided through the Safely Remove Hardware utility. The icon for the utility appears in the system tray. Click on the icon and follow the on-screen instructions.

- Modular Bay Devices

Figure 34. LIFEBOOK T732 Tablet PC Tablet PC Buttons

Windows Button

Volume Down Button

Volume Up Button

Rotation Lock Button

Button A

Button B

LIFEBOOK Tablet PC Buttons

A unique feature of your LIFEBOOK T732 Tablet PC is the array of Tablet PC buttons. These buttons allow you to launch specific applications and functions with the touch of a button.

Windows Button

When you press the [Windows] button when the system is operating, it performs the same as if you had pressed the Windows Start key on the keyboard. If you press it at the same time as the Power On/Off button, it acts the same as if you had performed the [Ctl]+[Alt]+[Del] operation.

Volume Down Button

Pressing the Volume Down button decreases the volume of the built-in speakers.

Volume Up Button

Pressing the Volume Up button increases the volume of the built-in speakers.

- LIFEBOOK Tablet PC Buttons

Rotation Lock Button

The screen rotation feature would normally be used when the system is configured as a tablet. When you would like to use the tablet as an eBook, for example, you would use the portrait orientation; when accessing spreadsheets or using the system as a notebook, you would more typically use landscape orientation.

When the system is changed to tablet configuration, the orientation automatically changes to portrait mode by default.

Windows 7:

This button locks and unlocks the automatic rotation of the display.

THE SCREEN ORIENTATION DEFAULT CAN BE CHANGED BY GOING TO THE CONTROL PANEL AND DOUBLE-CLICKING ON TABLET PC SETTINGS AND THEN

CLICKING ON THE GO TO ORIENTATION ICON AND SELECTING THE DESIRED SETTINGS IN THE DISPLAY PROPERTIES. AFTER CHANGING THE SETTINGS, SAVE THEM IN FUJITSU TABLET CONTROLS.

Application Button A

This button starts the Fujitsu Menu. You can use this application to change a variety of system settings.

The button is freely programmable, as explained later.

Application Button B

Use this button to start the Windows Journal. The button is freely programmable, as explained later.

Changing Tablet PC Button Functions

The Application A and B buttons can be changed to launch a program or perform an action you select. By default, the Application A button launches the Fujitsu Menu, and the Application B button launches Windows Journal.

To launch different applications or cause the Application A or B buttons to perform a specific action:

1 Click on the Tablet PC Settings icon in the Control Panel. 2 Select the Buttons tab and select the button you would like to change from the list.

- LIFEBOOK Tablet PC Buttons

3 Click [Change] and open the drop down list in the Press: field. 4 Select the action you would like the button to perform. If you want to launch a program, click on Launch an

Application then browse to the location of the program.

5 Click [OK], then click [OK] again. The buttons will now perform the actions you have assigned to them.

- LIFEBOOK Tablet PC Buttons

Chapter 2

Getting Started with Your LIFEBOOK

Power Sources

Your Fujitsu LIFEBOOK Tablet PC has three possible power sources: a primary Lithium ion battery, an AC adapter or an optional Auto/Airline adapter.

Connecting the Power Adapters

The AC adapter or optional Auto/Airline adapter provides power for operating your Tablet PC and charging the batteries.

Connecting the AC Adapter

1 Plug the DC output cable into the DC power jack of your LIFEBOOK Tablet PC. 2 Plug the AC adapter into an AC electrical outlet.

Connecting the Optional Auto/Airline Adapter

1 Plug the DC output cable into the DC power jack on your Tablet PC. 2 Plug the Auto/Airline adapter into the cigarette lighter of an automobile, or, 3 Plug the Auto/Airline adapter into the DC power jack on an airplane seat.

Figure 35. Connecting the AC Adapter

DC Power Jack

AC Adapter

Switching from AC Adapter Power or the Auto/Airline Adapter to Battery Power

1 Be sure that you have at least one charged battery installed. 2 Remove the AC adapter or the Auto/Airline adapter.

THE LITHIUM ION BATTERY IS NOT CHARGED UPON PURCHASE. INITIALLY, YOU WILL NEED TO CONNECT EITHER THE AC ADAPTER OR THE A

UTO/AIRLINE ADAPTER TO USE YOUR TABLET PC.

- Power Sources

Starting Your LIFEBOOK Tablet PC

Power/Suspend/Resume switch

Power On

Power/Suspend/Resume Switch

The Power/Suspend/Resume switch is used to turn on your LIFEBOOK Tablet PC from its off state. Once you have connected your AC adapter or charged the internal Lithium ion battery, you can power on your LIFEBOOK Tablet PC.

HEN YOU TURN ON YOUR LIFEBOOK TABLET PC BE SURE YOU HAVE A POWER SOURCE. THIS MEANS THAT AT LEAST ONE BATTERY IS INSTALLED

AND CHARGED, OR THAT THE AC OR AUTO/AIRLINE ADAPTER IS CONNECTED AND HAS POWER.

To turn on your LIFEBOOK Tablet PC from its off state, slide the Power/Suspend/Resume switch, located above the keyboard to the right. When you are done working you can either leave your Tablet PC in Suspend mode or you can turn it off. See “Sleep Mode” on page 63 and “Powering Off” on page 65

Figure 36. Power/Suspend/Resume Switch

- Starting Your LIFEBOOK Tablet PC

DO NOT CARRY YOUR TABLET PC AROUND WITH THE POWER ON OR SUBJECT IT TO SHOCKS OR VIBRATION, AS YOU RISK DAMAGING YOUR TABLET PC.

When you power on your LIFEBOOK, it will perform a Power On Self Test (POST) to check the internal parts and configuration for correct functionality. If a fault is found, your LIFEBOOK Tablet PC will emit an audio warning and/or an error message will be displayed. See “Power On Self Test Messages” on page 102. Depending on the nature of the problem, you may be able to continue by starting the operating system or by entering the BIOS setup utility and revising the settings.

After satisfactory completion of the POST, your Tablet PC will load your operating system.

EVER TURN OFF YOUR LIFEBOOK TABLET PC DURING THE POWER ON SELF TEST (POST) OR IT WILL CAUSE AN ERROR MESSAGE TO BE

DISPLAYED WHEN YOU TURN YOUR LIFEBOOK TABLET PC ON THE NEXT TIME.

See “Power On Self Test Messages” on page 102.

Boot Sequence

The procedure for starting-up your Tablet PC is termed the Bootup sequence and involves your Tablet PC’s BIOS. When your LIFEBOOK Tablet PC is first turned on, the main system memory is empty, and it needs to find instructions to start up your Tablet PC. This information is in the BIOS program. Each time you power up or restart your Tablet PC, it goes through a boot sequence which displays a Fujitsu logo until your operating system is loaded. During booting, your Tablet PC is performing a standard boot sequence including a Power On Self Test (POST). When the boot sequence is completed without a failure and without a request for the BIOS Setup Utility, the system displays the operating system’s opening screen.

- Starting Your LIFEBOOK Tablet PC

The boot sequence is executed when:

• You turn on the power to your LIFEBOOK Tablet PC.

• You restart your Tablet PC from the Windows Shut Down dialog box.

• The software initiates a system restart. Example: When you install a new application.

Hard Disk Drive Passwords

To provide additional security for your data, you can assign passwords to your hard disk drive(s). This feature is managed in the system BIOS Setup Utility. See

REMEMBER YOUR PASSWORDS. IF YOU SET AND FORGET YOUR USER AND MASTER HARD DISK PASSWORDS, FUJITSU WILL NOT BE ABLE TO RESET IT. Y

OU MAY LOSE DATA AND HAVE TO REPLACE YOUR SYSTEM BOARD OR HARD DISK DRIVE.

BIOS Setup Utility

below for information about accessing the utility.

BIOS Setup Utility

The BIOS Setup Utility is a program that sets up the operating environment for your LIFEBOOK Tablet PC. Your BIOS is set at the factory for normal operating conditions, therefore there is no need to set or change the BIOS’ environment to operate your Tablet PC.

The BIOS Setup Utility configures:

• Device control feature parameters, such as changing I/O addresses and boot devices.

• System Data Security feature parameters, such as passwords.

Entering the BIOS Setup Utility

To enter the setup utility, do the following:

1 Turn on or restart your LIFEBOOK Tablet PC. 2 To enter the BIOS Setup Utility, press the [F2] key once the Fujitsu logo appears on the screen. This will open the

main menu of the BIOS Setup Utility with the current settings displayed.

3 Press the [RIGHT ARROW] or [LEFT ARROW] key to scroll through the other setup menus to review or alter the

current settings.

- Starting Your LIFEBOOK Tablet PC

The Boot Menu can also be invoked by pressing the [F12] key when the Fujitsu logo appears on the screen.

BIOS Guide

A guide to your Tablet PC’s BIOS is available online. Please visit our service and support website at http://www.computers.us.fujitsu.com/support, then select User’s Guides under Online Support. Select your Product, Series, and Model, then click [Go]. Under the Manuals tab, select the BIOS Guide.

Booting the System

We strongly recommend that you not attach any external devices until you have gone through the initial power on sequence.

When you turn on your Tablet PC for the first time, it will display a Fujitsu logo on the screen. If you do nothing the system will load the operating system, and then the Windows Welcome will begin.

Starting Windows the First Time

After you boot up the system the first time and follow the instructions on the screen, you will eventually come to the Sign-In screen which prompts you for your user name. After sign-in, it takes less than a minute for the computer to boot to Windows and during that time a progress bar and interactive messages are displayed on the screen.

During the course of the first start up, you will need to read and accept the End User License Agreements (EULAs) for Microsoft and Fujitsu.

YOU CANNOT USE YOUR TABLET PC UNTIL YOU HAVE ACCEPTED THE LICENSE AGREEMENT. IF YOU STOP THE PROCESS YOUR TABLET PC WILL RETURN

TO THE BEGINNING OF THE WINDOWS WELCOME PROCESS, EVEN IF YOU SHUT YOUR TABLET PC DOWN AND START IT UP AGAIN.

Following first boot, you will arrive at the Modern start screen. Some useful shortcuts for your reference: Press the Windows + D key to go to traditional Windows desktop. Press Windows + M key to load the traditional Windows desktop and minimize all applications.

- Starting Your LIFEBOOK Tablet PC

Installing Bonus Apps

After you have started your system the first time, you will see a Bonus Apps icon on your desktop. Click on the icon to see which additional applications are available for you to install. Applications that are already

installed appear in grey; those that are available for installation appear in blue. Select the applications you wish to install by selecting the checkbox adjacent to your selection, or click [Select All] if

you would like to install all available applications. Once you have made your selections, click [Install]. Note that in some cases (depending upon which application was selected for installation) after installation

completes, the system will prompt you to reboot. There are also cases in which if multiple applications are selected to install but one of them needs a reboot, the system will reboot and continue installing the rest of the selected applications.

Registering your LIFEBOOK with Fujitsu

You can register your Tablet PC by going to our website at: http://www.us.fujitsu.com/computers. You will need to be set up with an Internet Service Provider (ISP) to register online.

- Starting Your LIFEBOOK Tablet PC

Power Management

Your Fujitsu LIFEBOOK Tablet PC has many options and features for conserving battery power. Some of these features are automatic and need no user intervention. However, others depend on the parameters you set to best suit your operating conditions, such as those for the display brightness. Internal power management for your Tablet PC may be controlled from settings made in your operating system, pre-bundled power management application, or from settings made in BIOS setup utility.

Besides the options available for conserving battery power, there are also some things that you can do to prevent your battery from running down as quickly. For example, you can create an appropriate power saving profile, put your Tablet PC into Sleep mode when it is not performing an operation, and you can limit the use of high power devices. As with all mobile, battery powered computers, there is a trade-off between performance and power savings.

Power/Suspend/Resume Switch

When your Tablet PC is active, the Power/Suspend/Resume switch can be used to manually put the Tablet PC into Sleep mode. Push the Power/Suspend/Resume switch when the Tablet PC is active, but not actively accessing anything, and immediately release the button.

If your Tablet PC is suspended, pushing the Power/Suspend/Resume switch returns it to active operation. You can tell whether the system is Suspended by looking at the Power indicator. If the indicator is visible and not flashing, your Tablet PC is fully operational. If the indicator is visible not visible, the power is off or your Tablet PC is in Hibernation mode.

Sleep Mode

Sleep mode in Windows saves the contents of your system memory during periods of inactivity by maintaining power to critical parts. This mode turns off the CPU, display, hard drive, and all other internal components except those necessary to maintain system memory and for restarting.

and

flashing, the Tablet PC is in Sleep mode. If the indicator is

Your Tablet PC can be put in sleep mode by:

• Pressing the Power/Suspend/Resume switch when your system is turned on.

• Selecting “Sleep” after clicking [Start] then clicking the small arrow at the bottom right of the window.

• Timing out from lack of activity.

• Allowing the battery to reach the Dead Battery Warning condition.

- Power Management

Your Tablet PC’s system memory typically stores the file on which you are working, open application information, and any other data required to support operations in progress. When you resume operation from Sleep mode, your Tablet PC will return to the point where it left off. You must use the Power/Suspend/Resume switch to resume operation, and there must be an adequate power source available, or your Tablet PC will not resume.

• IF RUNNING YOUR TABLET PC ON BATTERY POWER, BE AWARE THAT THE BATTERY CONTINUES TO DISCHARGE WHILE YOUR TABLET PC IS IN SLEEP

MODE, THOUGH NOT AS QUICKLY AS WHEN FULLY OPERATIONAL.

• DISABLING THE POWER/SUSPEND/RESUME SWITCH PREVENTS IT FROM BEING USED TO PUT THE TABLET PC INTO SLEEP OR HIBERNATION (SAVE-

TO-DISK) MODE. THE BUTTON RESUME FUNCTION CANNOT BE DISABLED.

• THE SLEEP OR HIBERNATION MODE SHOULD NOT BE USED WITH CERTAIN EXPRESSCARDS. CHECK YOUR EXPRESSCARD DOCUMENTATION FOR MORE

INFORMATION. WHEN EXPRESSCARDS OR EXTERNAL DEVICES ARE IN USE, HIBERNATION MODE CANNOT RETURN TO THE EXACT STATE PRIOR TO SUSPENSION, BECAUSE ALL OF THE PERIPHERAL DEVICES WILL BE RE-INITIALIZED WHEN THE SYSTEM RESTARTS.

• IF YOUR TABLET PC IS ACTIVELY ACCESSING INFORMATION WHEN YOU ENTER THE SLEEP OR HIBERNATION MODE, CHANGES TO OPEN FILES ARE

NOT LOST. THE FILES ARE LEFT OPEN AND MEMORY IS KEPT ACTIVE DURING SLEEP MODE OR THE MEMORY IS TRANSFERRED TO THE INTERNAL HARD DRIVE DURING HIBERNATION MODE.

• THE MAIN ADVANTAGE OF USING HIBERNATION IS THAT POWER IS NOT REQUIRED TO MAINTAIN YOUR DATA. THIS IS PARTICULARLY IMPORTANT IF

YOU WILL BE LEAVING YOUR TABLET PC IN A SUSPENDED STATE FOR A PROLONGED PERIOD OF TIME. THE DRAWBACK OF USING HIBERNATION MODE IS THAT IT LENGTHENS THE POWER DOWN AND POWER UP SEQUENCES AND RESETS PERIPHERAL DEVICES.

Hibernation (Save-to-Disk) Feature

The Hibernation feature saves the contents of your Tablet PC’s system memory to the hard drive as a part of the Suspend/Resume mode. You can enable or disable this feature.

Enable or Disable the Hibernation Feature

The default settings are not enabled. To enable or disable the Hibernation feature follow these steps:

1 Windows 7: From the Start menu, select Control Panel, then select the Power Options icon.

Windows 8: From the Modern Start screen, press [Windows]+[X]. Select Control Panel from the menu, then select Power Options.

2 Select “Choose what the power button does” or “Choose what closing the lid does”, then make your selections (Do

Nothing, Sleep, Hibernate, or Shut Down).

- Power Management

Windows Power Management

The Power Options icon located in the Windows Control Panel allows you to configure some of the power management settings. For example, you can use the Power Options to set the timeout values for turning off the display and hard disks whether you are running the Tablet PC on battery power or one of the adapters.

Restarting the System

If your system is on and you need to restart it, be sure that you use the following procedure.

1 Windows 7: Click the [Start] button, and then move the mouse over the small arrow at the bottom right of the

right-hand pane. Windows 8: From the Modern Start screen, open Charms ([Windows]+C) or mouse over [-] in the bottom right corner of the screen). Click [Settings]->[Power].

2 Select Restart from the list.

TURNING OFF YOUR LIFEBOOK TABLET PC WITHOUT EXITING WINDOWS OR TURNING ON YOUR TABLET PC WITHIN 10 SECONDS OF THE SYSTEM

BEING SHUT OFF MAY CAUSE AN ERROR WHEN YOU START THE NEXT TIME.

Powering Off

Before turning off the power, check that the hard drive/optical drive access indicator is off. If you turn off the power while accessing a disk there is a risk of data loss. To ensure that your Tablet PC shuts down without error, use the Windows shut down procedure.

E SURE TO CLOSE ALL FILES, EXIT ALL APPLICATIONS, AND SHUT DOWN YOUR OPERATING SYSTEM PRIOR TO TURNING OFF THE POWER. IF FILES ARE

OPEN WHEN YOU TURN THE POWER OFF, YOU WILL LOSE ANY CHANGES THAT HAVE NOT BEEN SAVED, AND MAY CAUSE DISK ERRORS.

Using the correct procedure to shut down from Windows allows your Tablet PC to complete its operations and turn off power in the proper sequence to avoid errors. The proper sequence is:

- Power Management

Windows 7: Click the [Start] button, and then move the mouse over the small arrow at the bottom right of the righthand pane. Select Shut Down from the list.

Windows 8: From the Modern Start screen, open Charms ([Windows]+C) or mouse over [-] in the bottom right corner of the screen), click [Settings]->[Power]. Select Shut down from the list.

If you are going to store your Tablet PC for a month or more, see Care and Maintenance Section.

ENERGY STAR® Compliance

Your Fujitsu system is an ENERGY STAR® qualified mobile PC. By choosing a computer with the latest energy-saving technology, you’re helping to preserve our environment for future generations.

ENERGY STAR is a joint program of the U.S. Environmental Protection Agency, U.S. Department of Energy, Natural Resources Canada, and other governments around the world helping us save money while

protecting the environment through energy efficient products and practices. With energy costs and global warming top-of-mind for consumers, Fujitsu is committed to offering solutions that help consumers conserve energy and improve the quality of our environment.

Sleep Mode:

You will notice that your computer is initially set so that the display turns off after 15 minutes of user inactivity, and the computer goes into Sleep mode after 20 minutes of user inactivity. When going into Sleep mode, the computer also reduces the speed of any active Ethernet network links. To “wake” the computer from Sleep mode, press the Suspend/Resume Button.

Energy saving benefits:

Fujitsu ENERGY STAR qualified mobile PCs use about half as much electricity as standard equipment – saving half in utility costs. But more than that, ENERGY STAR also makes a difference for the environment. Did you know that the average house can be responsible for twice the greenhouse gas emissions as the average car? That’s because every time you flip on a light switch, run your dishwasher, or turn on your PC, you use energy, which means more greenhouse gas emissions from power plants. So the more energy we can save through energy efficiency, the more we help to reduce greenhouse gases and the risks of global warming.

To learn more about the important ENERGY STAR program, visit: www.energystar.gov.

- Power Management

To read about how Fujitsu is supporting Sustainable Management along with several other environmental activities, visit the Fujitsu Corporate Citizenship page at:

http://www.computers.us.fujitsu.com/www/content/aboutus/environmental/environment.php

- Power Management

Chapter 3

User-Installable Features

Lithium ion Battery

Your LIFEBOOK Tablet PC has a Lithium ion battery that provides power for operating your Tablet PC when no external power source is available. The battery is durable and long lasting, but should not be exposed to extreme temperatures, high voltages, chemicals or other hazards.

The Lithium ion battery operating time may become shorter if it is used under the following conditions:

• When used at temperatures that exceed a low of 5°C or a high of 35°C (41° to 95° F). Extreme temperatures not

only reduce charging efficiency, but can also cause battery deterioration. The Charging icon on the Status Indicator panel will flash when you try to charge a battery that is outside its operating temperature range.

• When using a high current device such as a modem, external optical drive, or the hard drive, using the AC

adapter will conserve your battery life.

DO NOT LEAVE A FAULTY BATTERY IN YOUR TABLET PC. IT MAY DAMAGE YOUR AC ADAPTER, OPTIONAL AUTO/AIRLINE ADAPTER, ANOTHER BATTERY

OR YOUR TABLET PC ITSELF. IT MAY ALSO PREVENT OPERATION OF YOUR TABLET PC BY DRAINING ALL AVAILABLE CURRENT INTO THE BAD BATTERY.

• ACTUAL BATTERY LIFE WILL VARY BASED ON SCREEN BRIGHTNESS, APPLICATIONS, FEATURES, POWER MANAGEMENT SETTINGS, BATTERY CONDITION

AND OTHER CUSTOMER PREFERENCES. OPTICAL DRIVE OR HARD DRIVE USAGE MAY ALSO HAVE A SIGNIFICANT IMPACT ON BATTERY LIFE. THE BATTERY CHARGING CAPACITY IS REDUCED AS THE BATTERY AGES. IF YOUR BATTERY IS RUNNING LOW QUICKLY, YOU SHOULD REPLACE IT WITH A NEW ONE.

• UNDER FEDERAL, STATE, OR LOCAL LAW IT MAY BE ILLEGAL TO DISPOSE OF BATTERIES BY PUTTING THEM IN THE TRASH. PLEASE TAKE CARE OF OUR

ENVIRONMENT AND DISPOSE OF BATTERIES PROPERLY. CHECK WITH YOUR LOCAL GOVERNMENT AUTHORITY FOR DETAILS REGARDING RECYCLING OR DISPOSING OF OLD BATTERIES. IF YOU CANNOT FIND THIS INFORMATION ELSEWHERE, CONTACT YOUR SUPPORT REPRESENTATIVE AT 1-800-

8FUJITSU (1-800-838-5487)

Recharging the Batteries

If you want to know the condition of the primary Lithium ion battery, check the Battery Level indicator located on the Status Indicator panel or the indicator located on the battery itself. The indicator changes as the battery level changes.

The Lithium ion battery is recharged internally using the AC adapter or Auto/Airline adapter. To recharge the battery make sure the battery that needs to be charged is installed in your LIFEBOOK Tablet PC and connect the AC or Auto/Airline adapter.

AKE SURE THAT THE PERCENTAGE CHARGE IS INDICATED BY THE BATTERY CHARGING INDICATOR ON THE STATUS INDICATOR PANEL.

There is no memory effect on the Lithium ion battery therefore you do not need to discharge the battery completely before recharging. The charge times will be significantly longer if your Tablet PC is in use while the battery is charging. If you want to charge the battery more quickly, put your Tablet PC into Sleep mode, or turn it off while the adapter is charging the battery. (See Power Management on page 63 for mor e information on Sleep mode and shutdown pr ocedure)

- Lithium ion Battery

USING HEAVY CURRENT DEVICES OR FREQUENT EXTERNAL OPTICAL DRIVE ACCESSES MAY PREVENT CHARGING COMPLETELY.

Low Battery State

When the battery is running low, a low battery notification message will appear. If you do not respond to the low battery message, the batteries will continue to discharge until they are too low to operate. When this happens, your Tablet PC will go into Sleep mode. There is no guarantee that your data will be saved once the Tablet PC reaches this point.

• ONCE THE LOW BATTERY NOTIFICATION MESSAGE APPEARS, YOU NEED TO SAVE ALL YOUR ACTIVE DATA AND PUT YOUR LIFEBOOK TABLET PC

INTO SLEEP MODE UNTIL YOU CAN PROVIDE A NEW POWER SOURCE. YOU SHOULD PROVIDE A CHARGED BATTERY, AN AC POWER ADAPTER, OR

UTO/AIRLINE ADAPTER AS SOON AS POSSIBLE.

• WHEN YOU ARE IN SLEEP MODE THERE MUST ALWAYS BE AT LEAST ONE POWER SOURCE ACTIVE. IF YOU REMOVE ALL POWER SOURCES WHILE

YOUR LIFEBOOK TABLET PC IS IN SLEEP MODE, ANY DATA THAT HAS NOT BEEN SAVED TO THE HARD DRIVE WILL BE LOST.

Dead Battery Suspend mode shows on the Status indicator just like the normal Sleep mode. Once your Tablet PC goes into Dead Battery Suspend mode you will be unable to resume operation until you provide a source of power either from an adapter, or a charged battery. Once you have provided power, you will need to press the Power/Suspend/Resume switch to resume operation.

In the Dead Battery Suspend mode, your data can be maintained for some time, but if a power source is not provided promptly, the Power indicator will stop flashing and go out, meaning that you have lost the data that was not stored. Once you provide power, you can continue to use your Tablet PC while an adapter is charging the battery.

Shorted Batteries

The Status Indicator panel indicator associated with the Battery Level indicator displays the operating level available in that battery. If this display shows a flashing red LED, it means the battery is damaged and must be replaced so it does not damage other parts of your LIFEBOOK Tablet PC.

- Lithium ion Battery

Battery Charge Status Indicator

LED Indicator

Battery Indicator Button

In addition to the battery status indicators that are visible when the system is in notebook mode, there is also a battery charge status LED indicator located on the battery itself (Figure 37).

Figure 37. Battery Charge Status Indicator

To see the current state of the battery, press the battery indicator button located adjacent to the LED. The following table indicates what the different colors indicate about the battery condition.

LED indicator condition State of charge

Green The battery is between 50% and 100% charged.

Orange The battery is between 11% and 49% charged.

Red The battery is between 1% and 10% charged.

Unlit The battery is fully discharged.

- Lithium ion Battery

With the purchase of an additional battery, you can have a fully charged spare to swap with one that is not charged. There are two ways to swap batteries, cold-swapping and hot-swapping:

Cold-swapping Batteries

To cold-swap batteries in your battery bay, follow these easy steps (Figure 38):

1 Have a charged battery ready to install. 2 Shut down your Tablet PC and disconnect the AC adapter. 3 While pushing the battery bay release latches in the directions shown in Figure 38, slide the battery out of the

bay.

4 Insert a new battery into the bay, and press it in firmly so that the latches click into place. 5 Plug in the AC adapter and turn the power on.

Hot-swapping Batteries

To hot-swap batteries in your battery bay follow these easy steps:

BE SURE TO PLUG IN AN AC ADAPTER PRIOR TO REMOVING THE BATTERY. THERE IS NO BRIDGE BATTERY PRESENT TO SUPPORT THE SYSTEM

WHILE THE BATTERY IS BEING REPLACED. IF YOU DO NOT USE AN AC ADAPTER YOU WILL LOSE ANY UNSAVED FILES.

1 Plug an AC Adapter into the system and connect it to a power outlet.

- Lithium ion Battery

Battery Bay Release Latches

Battery Pack

Figure 38. Removing a Battery

2 Follow steps 3 through 5 in “Cold Swapping Batteries”.

IF THE LITHIUM ION BATTERY CONNECTOR IS NOT FULLY SEATED, YOU MAY NOT BE ABLE TO USE YOUR TABLET PC OR CHARGE YOUR BATTERY.

- Lithium ion Battery

Figure 39. Installing an SD Card

SD Card

SD Slot

Secure Digital Cards

Your LIFEBOOK Tablet PC supports Secure Digital (SD) cards, on which you can store and transfer data to and from a variety of digital devices. These cards use flash memory architecture, which means they don’t need a power source to retain data.

Secure Digital (SD) is a flash memory technology that allows you to record, transfer and share digital content, such as digital pictures, movies, music, voice, and computer data and applications. SD Cards transfer data quickly, with low battery consumption.

- Secure Digital Cards

Installing SD Cards

SD Cards are installed in the SD Card slot. To install an SD Card, follow these steps:

INSTALLING OR REMOVING AN SD CARD DURING YOUR LIFEBOOK TABLET PC’S SHUTDOWN OR BOOTUP PROCESS MAY DAMAGE THE CARD AND/OR

YOUR LIFEBOOK TABLET PC.

O NOT INSERT A CARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE CARD AS YOU MAY PERMANENTLY DAMAGE THE CARD,

YOUR LIFEBOOK TABLET PC, OR BOTH.

1 See your specific card manual for instructions on the installation of your card. Some cards may require that your

Tablet PC is off while installing them.

2 Make sure there is no card currently in the slot. If there is, see Removing an SD Card. 3 Insert your card into the slot with the product label facing up. 4 Push the card firmly into the slot until it is seated in the connector.

Removing an SD Card

To remove an SD Card, follow these easy steps:

EE YOUR CARD MANUAL FOR SPECIFIC INSTRUCTIONS ON THE REMOVAL OF YOUR CARD. SOME CARDS MAY REQUIRE YOUR LIFEBOOK TABLET PC

TO BE IN SLEEP MODE OR OFF WHILE REMOVING THEM.

1 Select Safely Remove Hardware from the System Tray. Highlight the card in the list, then click [Stop]. 2 Push the SD Card in until it unlatches. It will then eject from the slot for removal.

- Secure Digital Cards

Figure 40. Installing/Removing an ExpressCard

ExpressCard Slot

ExpressCard (54 mm)

ExpressCards

Your LIFEBOOK supports ExpressCardsTM which can perform a variety of functions depending on which type of card you install.

There are two different width ExpressCards: 34 mm and 54 mm. This system supports 54 mm ExpressCards only (Figure 40).

For further information, refer to the instructions supplied with your card(s).

Installing ExpressCards

ExpressCards are installed in the ExpressCard slot on the right-hand side of the system.

• INSTALLING OR REMOVING AN EXPRESSCARD DURING YOUR Tablet PC’S SHUTDOWN OR BOOTUP PROCESS MAY DAMAGE THE CARD AND/OR YOUR

Tablet PC.

• DO NOT INSERT AN EXPRESSCARD INTO A SLOT IF THERE IS WATER OR ANY OTHER SUBSTANCE ON THE CARD AS YOU MAY PERMANENTLY DAMAGE

THE CARD, YOUR Tablet PC, OR BOTH.

- ExpressCards

YOU MAY BE REQUIRED TO LOG ON AS ADMINISTRATOR OR A MEMBER OF THE ADMINISTRATOR’S GROUP TO COMPLETE THIS PROCEDURE. IF YOUR

COMPUTER IS CONNECTED TO A NETWORK, NETWORK POLICY SETTINGS MAY ALSO PREVENT YOU FROM COMPLETING THIS PROCEDURE.

See your ExpressCard manual for instructions on the installation of your card. Some cards may require that your Tablet PC is off while installing them.

To install an ExpressCard, follow these steps (see Figure 40):

1 Make sure there is no ExpressCard currently in the slot. If there is, see Removing ExpressCards. 2 Insert your ExpressCard into the slot with the product label facing up. 3 Push the card firmly into the slot until it is seated in the connector.

Removing ExpressCards

See your ExpressCard manual for specific instructions on removing your card. Some cards may require your Tablet PC to be in Sleep Mode or Off during removal.

• REMOVE DEVICES USING THE SAFELY REMOVE HARDWARE ICON IN THE SYSTEM TRAY AT THE BOTTOM RIGHT OF YOUR SCREEN.

• IF THE DIALOG BOX STATES THAT THE DEVICE CANNOT BE REMOVED, YOU MUST SAVE ALL OF YOUR OPEN FILES, CLOSE ANY OPEN APPLICATIONS

AND SHUT DOWN YOUR Tablet PC.

To remove an ExpressCard, follow these steps:

1 Push the card into the slot to unlatch it, then release it; the card will pop out. 2 Pull the card out of the slot.

- ExpressCards

Memory Upgrade Module

Your Fujitsu LIFEBOOK Tablet PC comes with a minimum of 2 GB of high speed Double Data Rate Synchronous Dynamic RAM (DDR3-1600 SDRAM) factory installed. To increase your Tablet PC’s memory capacity, you may install an additional memory upgrade module. The memory upgrade must be a dual-in-line (DIMM) SDRAM module. To ensure 100% compatibility, purchase the SDRAM module only from the Fujitsu web store at www.shopfujitsu.com.

• DO NOT REMOVE ANY SCREWS FROM THE MEMORY UPGRADE MODULE COMPARTMENT EXCEPT THE ONES SPECIFICALLY SHOWN IN THE DIRECTIONS

FOR INSTALLING AND REMOVING THE MEMORY UPGRADE MODULE.

• THE MEMORY UPGRADE MODULE CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE (ESD). TO MINIMIZE RISK TO THE MODULE, OBSERVE

THE FOLLOWING PRECAUTIONS:

• BEFORE HANDLING A MEMORY MODULE, TOUCH A GROUNDED METAL OBJECT TO DISCHARGE STATIC ELECTRICITY BUILT UP IN YOUR BODY.

• WHEN INSTALLING OR REMOVING A MEMORY MODULE, HOLD IT BY THE EDGE SO AS NOT TO TOUCH ANY CONTACTS OR CHIPS. BE CAREFUL

NOT TO TOUCH ANY INTERNAL COMPUTER TERMINALS OR COMPONENTS; THE OIL FROM YOUR FINGERS COULD CAUSE A SHORT TO THE COMPONENTS.

• BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING MEMORY MODULES. EVEN IF THE SYSTEM IS IN HIBERNATE OR SLEEP

STATES, DATA COULD BE LOST OR THE MEMORY COULD BE DAMAGED IF POWER IS STILL AVAILABLE TO THE SYSTEM.

Installing Memory Upgrade Modules

1 Turn off power to your Tablet PC, remove any power adapter (AC or auto/airline). Remove the battery. 2 Make sure that all the connector covers are closed. 3 Turn the Tablet PC bottom side up, and remove the screw from the memory upgrade module compartment. 4 Slide the cover towards the battery compartment slightly, then lift it and remove it (Figure 41). 5 Remove the memory upgrade module from the static guarded sleeve. 6 Align the memory upgrade module with the part side up. Align the connector edge of the memory upgrade

module with the connector slot in the compartment.(Figure 42)

- Memory Upgrade Module

Retaining Clip

Alignment Key

Figure 41. Opening Memory Compartment Figure 42. Installing a Second Memory Module

7 Insert the memory upgrade module at a 45° angle. Press the connector edge of the module firmly down and into

the connector until it lodges under the retaining clip. You’ll hear a click when it is properly in place.

8 Replace the cover and reinstall the screws.

THE MEMORY UPGRADE MODULE IS NOT SOMETHING YOU ROUTINELY REMOVE FROM YOUR TABLET PC. ONCE IT IS INSTALLED, YOU CAN LEAVE IT IN

PLACE UNLESS YOU WANT TO CHANGE SYSTEM MEMORY CAPACITY.

Removing a Memory Upgrade Module

1 Perform steps 1 through 4 of Installing a Memory Upgrade Module. 2 Pull the clips sideways away from each side of the memory upgrade module at the same time. 3 While holding the clips out, remove the module by lifting it up and pulling it away from your Tablet PC.

- Memory Upgrade Module

4 Store the memory upgrade module in a static guarded sleeve. 5 Replace the cover and reinstall the screw.

Checking the Memory Capacity

Once you have changed the system memory capacity by replacing the installed module with a larger one, be sure to check that your Tablet PC has recognized the change.

To check memory capacity, perform the following: Windows 7: If you are in Control Panel Category view, check the memory capacity by clicking [Start] -> Control Panel

-> System and Security -> System -> View amount of RAM and processor speed. The amount of memory is displayed next to “Memory - RAM:”

Windows 8: From the Modern Start screen press [Windows]+[X]. Select Control Panel from the menu, then select Power Options. The amount of memory is displayed next to “Installed memory (RAM):”

There may be a variation between the actual memory size and what is displayed. This is possible if your system is configured with an integrated Intel Graphics Media Accelerator which dynamically allocates system memory to accelerate graphics performance.

IF THE TOTAL MEMORY DISPLAYED IS INCORRECT, CHECK THAT YOUR MEMORY UPGRADE MODULE IS PROPERLY INSTALLED. (IF THE MODULE IS

PROPERLY INSTALLED AND THE CAPACITY IS STILL NOT CORRECTLY RECOGNIZED, SEE TROUBLESHOOTING ON PAGE 91

- Memory Upgrade Module

Figure 43. Optical Drive

Media Holder Tray

Media Tray Eject Button

Emergency Tray Release

Optical Drive

There is a variety of media available to use with your Multi-Format DVD Writer or Blu-ray Triple Writer, also known as “optical drives”.

Your system may contain one of the following optical drives: Dual-Layer Multi-Format DVD Writer: This drive allows you to access movies, software, and audio DVD/CDs as well

as to read and write to CD-R, CD-RW, DVD-R, DVD+R, DVD-RW, DVD+RW, and DVD RAM discs. The dual-layer architecture allows you to record up to 8.5 GB of data on DVD+R discs.

Blu-ray Triple Writer: The Blu-ray Triple Writer allows you to read and write to CDs, DVDs and Blu-ray discs™. The Triple Writer can store up to 25 GB of data on a single-layer Blu-ray disc. That’s the equivalent of 2.5 hours of high-definition or 12 hours of standard definition video.

Media Player Software

Depending upon which drive you have, the optical drives and media player software allows you to play DVD and Bluray movies and music CDs on your Tablet PC. The media player includes controls which allow you to take full advantage of the features of a movie, as well as standard features such as fast forward, fast reverse, pause, etc. With this drive you can also burn onto recordable DVD-R/RW, DVD+R/RW, CD -R/R W, o r BD disc s, depending up on which drive you have.

- Optical Drive

• DO NOT OPERATE YOUR OPTICAL DRIVE UNLESS YOUR LIFEBOOK Tablet PC IS SITTING ON A FLAT SURFACE. USING A DRIVE WHEN THE SYSTEM

IS NOT LEVEL MAY DAMAGE THE DRIVE OR PREVENT PROPER OPERATION.

• PROLONGED USE OF THE OPTICAL DRIVE, SUCH AS WATCHING A DVD MOVIE, WILL SUBSTANTIALLY REDUCE YOUR BATTERY LIFE IF NO EXTERNAL

POWER SOURCE IS ATTACHED.

Loading Media on Your Drive

To load a disc into your optical drive:

1 Push and release the eject button on the front of the optical drive to open the holder tray. The tray will come out

of the LIFEBOOK Tablet PC a short distance.

2 Gently pull the tray out until a media disc can easily be placed in the tray.

• YOU SHOULD PERIODICALLY CHECK THE FUJITSU WEBSITE AT US.FUJITSU.COM/COMPUTERS FOR THE MOST CURRENT DRIVERS.

• ALL LIFEBOOK DVD PLAYERS ARE SET TO PLAY DVD TITLES WITH REGION CODE NUMBER 1 WHICH IS SPECIFIED FOR THE NORTH AMERICAN

MARKET. THE REGION NUMBER IS A REGIONAL RESTRICTION CODE DEFINED BY THE DVD FORUM ACTING ON HOLLYWOOD REQUIREMENTS.

IFFERENT REGION CODES ARE RECORDED ON VIDEO DVD TITLES FOR PUBLICATION IN DIFFERENT AREAS OF THE WORLD. IF THE REGIONAL CODE

OF THE DVD PLAYER DOES NOT MATCH THE REGIONAL CODES ON THE TITLES, THEN PLAYBACK IS IMPOSSIBLE.

• YOU CAN CHANGE THE REGION CODE ON THE DVD PLAYER USING THE PROPERTIES MENU OF THE DVD SOFTWARE. NOTE, HOWEVER, THAT YOU

CAN ONLY CHANGE THE REGION CODE UP TO FOUR TIMES. AFTER THE 4TH CHANGE, THE LAST CODE ENTERED BECOMES PERMANENT, AND

CANNOT BE CHANGED.

3 Place the media into the tray, label side up, with the hole in the center of the disc. Snap the disc onto the raised

circle in the center of the tray, and then gently push the holder tray back in until you hear a click.

F YOU HAVE DISABLED THE AUTO INSERT NOTIFICATION FUNCTION, YOU WILL HAVE TO START THE DRIVE EITHER BY USING MY COMPUTER OR

FROM WITHIN WINDOWS EXPLORER, SINCE YOUR Tablet PC WILL NOT AUTOMATICALLY RECOGNIZE THAT MEDIA HAS BEEN LOADED.

- Optical Drive

Figure 44. Ejecting Media Tray Figure 45. Inserting Media Tray

Removing Media

1 Push and release the eject button on the front of the optical drive. This will stop the drive and the holder tray will

come out of the LIFEBOOK a short distance.

2 Gently pull the tray out until the disc can easily be removed from the tray. 3 Carefully remove the media disc from the holder tray. 4 Gently push the holder tray back in until you hear a click.

Emergency Optical Drive Tray Release

If for some reason the eject button fails, you can open the media tray with a paper clip or similar tool inserted into the eject hole in the right side of the front of the tray. Straighten one side of a paper clip and push it gently into the hole. The tray will pop out.

Figure 46. Emergency Tray Release

- Optical Drive

Using the Media Player Software

DEPENDING UPON ITS CONFIGURATION, YOUR SYSTEM MAY NOT HAVE THE MEDIA PLAYER SOFTWARE PRE-INSTALLED. IF IT IS NOT INSTALLED,

REFERENCE THE DOCUMENTATION THAT ACCOMPANIES THE MEDIA APPLICATION.

Starting a DVD or Blu-ray Movie

1 Insert the disc into the optical drive of the Tablet PC. If the CD AutoRun feature activates, skip Step 2. 2 The first time you insert a movie into the media tray, you will be prompted to select what you want the system to

do when discs are inserted (e.g., start automatically or wait for a prompt). Until you make a selection, you will receive the same prompt whenever you insert a disc.

3 Click OK to close the About DVD Player Performance dialog box and the movie will begin.

Opening the Media Player Control Panel

With most discs, you have the option of altering how the movie should play and what you wish to view. You can do this by using the media player control panel and the mouse.

1 Right-click on the movie screen to open a dropdown menu for options. 2 Select View, then Player for all controls available. This will open the control panel at the bottom of the screen.

Using the Media Player Control Panel

The media player software allows you to watch the movie much like a VCR player. You can pause, rewind, fast-forward and stop the movie at any point.

1 To pause the movie, click the on-screen button. 2 To rewind the movie, click the  button to rewind to a specific portion of the movie, or the  button to return to

the opening screen.

3 To fast-forward the movie, click the  button to forward to a s pecific portion of the movie, or the button to jump

to the ending credits.

- Optical Drive

4 To stop the movie, click the  button.

Exiting the Media Player

1 Click the  located in the upper right corner of the title bar. This will open a media player dialog box. 2 Click Yes to stop and exit the movie, or No to close the media player dialog box and return to the movie.

Using Media Player on Battery Power

Since optical drives consume a lot of power, your overall battery life will be significantly shorter when operating the optical drive continuously (such as watching a DVD or Blu-ray movie) than during standard operation.

• MANY MOVIE RUN-TIMES ARE LONGER THAN YOUR SYSTEM CAN SUPPORT ON A SINGLE BATTERY. IF YOU ARE WATCHING A DVD MOVIE ON BATTERY

POWER YOU MAY NEED TO SWAP IN AN ADDITIONAL, CHARGED BATTERY OR ATTACH AC POWER DURING THE MOVIE TO VIEW IT IN ITS ENTIRETY.

• AN ADDITIONAL FULLY-CHARGED BATTERY IS HIGHLY RECOMMENDED IF YOU WILL BE WATCHING DVD MOVIES ON BATTERY POWER. IF YOU DON’T

HAVE AN ADDITIONAL BATTERY, YOU MAY PURCHASE ONE EITHER ONLINE AT: HTTP://WWW.COMPUTERS.US.FUJITSU.COM OR BY CALLING 1-877-

372-3473.

To Watch a Movie on Battery Power:

1 Have an additional full-charged battery or your AC adapter ready for use. 2 Start watching your movie. 3 When the low battery warning occurs, immediately stop the movie and exit the media player.

F YOU DO NOT STOP THE MEDIA PLAYER QUICKLY AND THE LIFEBOOK Tablet PC ATTEMPTS TO AUTO-SUSPEND (CRITICAL BATTERY LOW STATE)

THE LIFEBOOK Tablet PC WILL SHUT DOWN IMPROPERLY. IF THIS OCCURS, YOU MAY NEED TO PERFORM A HARD RESET AND FOLLOW THE INSTRUCTIONS, IF ANY, PRESENTED TO YOU BEFORE THE SYSTEM WILL REBOOT.

4 Power down your Tablet PC and replace the discharged battery with an additional fully-charged battery. If you do

not have an additional battery, you may attach AC power as soon as you see the low battery warning.

5 Resume operation by pressing the Suspend button again. This is not required if you attached AC power without

entering standby mode.

- Optical Drive

6 Restart your media player, locate and skip to the chapter of the movie you were last watching, then continue

watching your movie.

SOME SHORTER movies MAY NOT REQUIRE YOU TO SWAP BATTERIES OR ATTACH AC POWER TO COMPLETE THEM. HOWEVER, IT IS BEST TO BE

PREPARED SINCE ACTUAL BATTERY LIFE WHILE OPERATING THE OPTICAL DRIVE CANNOT BE GUARANTEED.

- Optical Drive

Device Ports

LAN Connector

Your Fujitsu LIFEBOOK Tablet PC and the optional Port Replicator come equipped with multiple ports to which you can connect external devices including: disk drives, keyboards, printers, etc.

Internal LAN (RJ-45) Jack

The internal LAN (RJ-45) jack is used for a Gigabit (10Base-T/100Base-Tx/1000Base-T) Ethernet LAN connection. You may need to configure your Tablet PC to work with your particular network. (Please refer to your network administrator for information on your network configuration.) To connect the LAN cable follow these easy steps: Align the connector with the port opening.

1 Push the connector into the port until it is

seated.

2 Plug the other end of the cable into a LAN

Figure 47. Connecting the LAN

outlet.

Port Replicator Connector

The port replicator connector located on the bottom of your system is used for the connection of your Tablet PC to an optional port replicator. (See Figure 6 for location). In order to connect your Tablet PC to this device, follow the instructions that came with your port replicator.

- Device Ports

Universal Serial Bus Ports.

The Universal Serial Bus (USB) ports allow you to connect USB devices such as external game pads, pointing devices, keyboards and/or speakers. There are two USB 2.0 ports and one USB 3.0 port on your Tablet PC: the USB 3.0 port is on the left side and the two USB 2.0 ports are on he rear. Note that the USB 3.0 port is also an Anytime USB Charge port. In order to connect a USB device follow these steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated.

There are two different types of USB ports on this system: USB 2.0 and USB 3.0 Anytime USB Charge. To differentiate between them, please note the following:

• THE INSIDE OF A USB 3.0 PORT IS BLUE IN COLOR.

• THE ICON ASSOCIATED WITH THE ANYTIME USB CHARGE PORT HAS A PLUG ICON NEXT TO THE USB ICON.

DUE TO THE ONGOING CHANGES IN USB TECHNOLOGY AND STANDARDS, NOT ALL USB DEVICES AND/OR DRIVERS ARE GUARANTEED TO WORK.

Figure 48. Connecting a USB Device

Headphone Jack

The headphone jack allows you to connect headphones or powered external speakers to your Tablet PC. Your headphones or speakers must be equipped with a 1/8” (3.5 mm) stereo mini-plug. In order to connect headphones or speakers follow these easy steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated.

- Device Ports

Microphone Jack

The microphone jack allows you to connect an external microphone. Your microphone must be equipped with a 1/8”(3.5 mm) mono mini-plug in order to fit into the microphone jack of your Tablet PC. In order to connect a microphone follow these easy steps:

1 Align the connector with the port opening and push the connector into the port until it is seated.

HDMI Port

The High-Definition Multimedia Interface (HDMI) port is a digital audio/video interface over which uncompressed streams can be transmitted. HDMI is used to connect compatible digital devices with your computer (such as bigscreen TVs and video recorders). See the note on the next page regarding the steps for selecting the HDMI device using keyboard shortcuts.

To connect an HDMI device:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated.

Figure 49. Connecting an HDMI device

External Video Port

The external video port allows you to connect an external monitor or LCD projector. In order to connect an external video device, follow these easy steps:

1 Align the connector with the port opening. 2 Push the connector into the port until it is seated. 3 Tighten the two hold-down screws, located on each end of the connector.

- Device Ports

PRESSING THE [FN] + [F10] KEYS ALLOWS YOU TO CHANGE YOUR SELECTION OF WHERE TO SEND YOUR DISPLAY VIDEO. THE ORDER IS DETERMINED

External Video Port

External Video Cable

BY WHICH TYPE OF EXTERNAL VIDEO DEVICE(S) IS CONNECTED. EACH TIME YOU PRESS THE KEY COMBINATION, YOU WILL STEP TO THE NEXT CHOICE.

F YOU ONLY HAVE AN EXTERNAL CRT CONNECTED, THE ORDER IS: INTERNAL DISPLAY -> EXTERNAL CRT -> SIMULTANEOUS DISPLAY -> INTERNAL

DISPLAY.

F YOU ONLY HAVE AN HDMI DEVICE CONNECTED, THE

ORDER IS: INTERNAL DISPLAY -> HDMI DISPLAY -> SIMULTANEOUS DISPLAY -> INTERNAL DISPLAY.

F YOU HAVE EXTERNAL CRT AND HDMI DEVICES CONNECTED, THE ORDER IS: INTERNAL DISPLAY -> EXTERNAL CRT -> SIMULTANEOUS INTERNAL AND EXTERNAL CRT -> HDMI DISPLAY - SIMULTANEOUS INTERNAL AND HDMI DISPLAY -> INTERNAL DISPLAY.

F YOU HAVE AN EXTERNAL CRT AND DVI DEVICES CONNECTED TO THE PORT REPLICATOR, THE ORDER IS: INTERNAL DISPLAY -> EXTERNAL CRT -> SIMULTANEOUS INTERNAL AND EXTERNAL CRT -> DVI DISPLAY -> SIMULTANEOUS INTERNAL AND DVI DISPLAY. -> INTERNAL DISPLAY.

Figure 50. Connecting an External Video Device

- Device Ports

Chapter 4

Troubleshooting Your LIFEBOOK

Troubleshooting

There may be occasions when you encounter simple setup or operating problems that you can solve on the spot, or problems with peripheral devices that can be solved by replacing the device. The information in this section helps you isolate and resolve some of these straightforward issues and identify failures that require service.

Identifying the Problem

If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:

1 Turn off your LIFEBOOK Tablet PC. 2 Make sure the AC adapter is plugged into your Tablet PC and to an active AC power source. 3 Make sure that any card installed in the ExpressCard slot is seated properly. You can also remove the card from the

slot, thus eliminating it as a possible cause of failure.

4 Make sure that any devices connected to the external connectors are plugged in properly. You can also disconnect

such devices, thus eliminating them as possible causes of failure.

5 Turn on your Tablet PC. Make sure it has been off at least 10 seconds before you turn it back on. 6 Go through the boot sequence. 7 If the problem has not been resolved, refer to the Troubleshooting Table that follows for more detailed

troubleshooting information.

IF YOU KEEP NOTES ABOUT WHAT YOU HAVE TRIED, YOUR SUPPORT REPRESENTATIVE MAY BE ABLE TO HELP YOU MORE QUICKLY BY GIVING

ADDITIONAL SUGGESTIONS OVER THE PHONE.

8 If you have tried the solutions suggested in the Troubleshooting Table without success, contact your support

representative:

Toll free: 1-800-8Fujitsu (1-800-838-5487) Web site: http://solutions.us.fujitsu.com/www/content/support/contact/index.php.

Before you place the call, you should have the following information ready so that the customer support representative can provide you with the fastest possible solution:

• Product name

• Product configuration number

• Product serial number

• Purchase date

• Conditions under which the problem occurred

• Any error messages that have occurred

• Type of device connected, if any

See the Configuration Label on the bottom of your Tablet PC for configuration and serial numbers.

- Troubleshooting

Specific Problems

Using the Troubleshooting Table

When you have problems with your LIFEBOOK Tablet PC, try to find the symptoms under the Problem column of the troubleshooting table for the feature giving you difficulty. You will find a description of common causes for that symptom under the column Possible Cause and what, if anything, you can do to correct the condition under Possible Solutions. All possible causes or solutions may not apply to your Tablet PC.

Troubleshooting Table

Problem Page

Audio Problems . . . . . . . . . . . . . . . . . . . .page 94

Optical Drive Problems . . . . . . . . . . . . . .page 94

Hard Drive Problems . . . . . . . . . . . . . . . .page 95

Keyboard or Mouse Problems . . . . . . . . .page 95

Memory Problems . . . . . . . . . . . . . . . . . .page 95

USB Device Problems . . . . . . . . . . . . . . .page 96

Problem Page

ExpressCard Problems . . . . . . . . . page 96

Power Failures . . . . . . . . . . . . . . . page 96

Shutdown and Startup Problems. . page 98

Video Problems. . . . . . . . . . . . . . . page 99

Connectivity Problems. . . . . . . . . page 101

Miscellaneous Problems . . . . . . . page 101

- Troubleshooting

Problem Possible Cause Possible Solutions Audio Problems

There is no sound coming from the built-in speakers.

The volume is turned too low. Adjust the volume control on your Tablet PC and operating system. Use the [Fn+F9]

key combination on your keyboard. Pressing [F9] repeatedly while holding [Fn] increases your Tablet PC volume.

Optical Drive Problems

LIFEBOOK Tablet PC fails to recognize optical discs.

The software volume control is set too low.

Headphones are plugged in. Plugging in headphones disables the built-in speakers, remove the headphones.

Software driver is not configured correctly.

Speakers have been muted using Volume icon in the system tray.

The disc is not pushed down onto raised circle of the drive.

Optical drive tray is not latched shut.

Incorrect DVD Player or no DVD Player software is installed.

DVD/CD-RW/CD-ROM is dirty or defective.

Manually adjusting the volume should dynamically adjust the volume of the operating (see above). If that doesn’t work, adjust the sound volume control settings in your software or application.

The Audio Driver may be installed or reinstalled by using the Drivers and Applications CD that came with your LIFEBOOK. Refer to your application and operating system documentation for help.

Click on the Volume icon in the tool tray on the bottom right of the screen. If Mute is checked, click on it to uncheck it. You can also use the [Fn+F3] key combination to toggle the volume on and off.

Open optical drive tray and re-install the disc properly.

Push on the front of the optical drive tray until it latches. If that doesn’t work, pull out the modular drive latch to remove the device from the bay, then re-insert the drive until it latched; this ensures that the drive is properly seated.

Install DVD Player software.

(See “Media Player Software” on page 49 for more infor-

mation.)

Wipe the disc with a non-abrasive CD cleaning cloth and reinsert. If it still will not work try another disc in the drive.

Wrong drive designator was used for the disc in the application.

Verify the drive designator used by the application is the same as the one used by the operating system. When the operating system is booted from a DVD/CD, drive designations are automatically adjusted. Note that the drive designation can be changed with the Disk Management tool located at Administrative Tools -> Computer Management.

- Troubleshooting

Problem Possible Cause Possible Solutions

Drive access indicator on the Status Indicator Panel blinks at regular intervals with no disc in the tray or the drive is not installed.

The Windows auto insertion function is active and is checking to see if a disc is ready to run.

This is normal. However, you may disable this feature.

Hard Drive Problems

You cannot access your hard drive.

The wrong drive designator was used by an application when a bootable disc was used to start the Tablet PC.

Verify drive designator used by application is in use by the operating system. When the operating system is booted from a CD, drive designations are automatically adjusted.

Keyboard or Mouse Problems

The built-in keyboard does not seem to work.

You installed an external keyboard or mouse, and it does not seem to work.

You have connected an external keyboard or a mouse and it seems to be locking up the system.

Memory Problems

System Properties screen doesn’t show correct installed memory amount.

Security is set so your OS can’t be started without a password.

LIFEBOOK is in Standby mode. Push the Power/Suspend/Resume button.

Application locked out the keyboard.

Your operating system software is not set up with correct software driver for that device.

Your external device is not properly installed.

Your operating system software is not setup with correct software driver for that device.

Your system crashed. Try to restart your Tablet PC.

Your memory module is not properly installed.

Verify your password and security settings.

Try to use your integrated pointing device to restart your system.

Check your device and operating system documentation and activate the proper driver.

Re-install your device.

Check your device and operating system documentation and activate the proper driver.

Remove and re-install your memory upgrade module.

See “Device Ports” on page 61.

on page 58.

- Troubleshooting

See “Memory Upgrade Module”

Problem Possible Cause Possible Solutions

System Properties screen doesn’t show correct installed memory amount. (continued)

You have a memory failure. Check for Power On Self Test (POST) messages.

page 102.

USB Device Problems

You have installed a USB device, but the Tablet PC does not recognize the device, or the device does not seem to work properly.

The device is not properly installed.

The device may have been installed while an application was running, so your Tablet PC is not aware of its installation.

Remove and re-install the device.

Close the application and restart your Tablet PC.

See “Power On Self Test Messages” on

See “Device Ports” on page 61.

ExpressCard Problems

An ExpressCard is inserted but does not work or is locking up the system.

Power Failures

You turn on your LIFEBOOK Tablet PC and nothing seems to happen.

Your device doesn’t have the correct driver.

You have the wrong I/O address selected for your card device.

The card is not properly installed.

The card may have been installed while an application was running, so your Tablet PC is not aware of its installation.

You don’t have the correct driver active.

The battery is installed but is faulty.

See your software documentation and activate the correct driver.

See your ExpressCard documentation to determine the required I/O address. Change the settings in the Device Manager

Remove and re-install the card.

Close the application and restart your Tablet PC.

See your software documentation and activate the correct driver.

Use the Status Indicator panel to verify the presence and condition of the battery. See “Status Indicator Panel” on page 20. If a battery is indicating a short, remove that battery and operate from another power source or replace that battery.

- Troubleshooting

See “Using ExpressCards” on page 54.

Problem Possible Cause Possible Solutions

You turn on your LIFEBOOK Tablet PC and nothing seems to happen. (continued)

The battery is completely discharged or there is no power adapter installed.

The battery is low. Check the battery indicator to ensure the presence and condition of the battery.

The power adapter is faulty. Try a different Power adapter.

Check Status Indicator Panel to determine the presence and condition of the battery. See “Status Indicator Panel” on page 20. Install a charged battery or a power adapter.

“Status Indicator Panel” on page 20. Use an AC adapter to operate until a battery is charged or install a charged battery.

See

Your LIFEBOOK Tablet PC turns off all by itself.

Your LIFEBOOK Tablet PC will not work on battery alone.

The power adapter is not plugged in properly.

The power adapter has no power from the AC outlet, airplane jack, or cigarette lighter.

The power management parameters are set for auto timeouts which are too short for your operating needs.

You have a battery failure. Verify battery condition using the Status Indicator panel. Replace a shorted battery.

Verify that your adapter is connected correctly.

Move the AC cord to a different outlet, check for a line switch or tripped circuit breaker for the AC outlet. If you are using an auto/airline adapter in a car make sure the ignition switch is in the On or Accessories position.

Press any button on the keyboard, or move the mouse to restore operation. If that fails, push the Power/Suspend/Resume button. Check your power management settings, or close your applications and go to the Power Options Properties located in the Control Panel to adjust the timeout values to better suit your needs.

See “Power Sources” on page 33.

See “Status Indicator Panel” on page 20.

Power adapter failed or lost its power source.

You ignored a low battery alarm until the battery is dead state and system has gone into Dead Battery Suspend mode.

The installed battery is dead. Replace the battery with a charged one or install a power adapter.

No battery is installed. Install a charged battery.

Battery is improperly installed. Verify that the battery is properly connected by re-installing it.

Make sure the adapter is plugged in and the outlet has power.

Install a power adapter and then push the Power/Suspend/Resume button.

Sources” on page 33.

See “Power

- Troubleshooting

Problem Possible Cause Possible Solutions

Your LIFEBOOK Tablet PC will not work on battery alone. (continued)

Your installed battery is faulty. Verify the condition of the battery using the Status Indicator panel and replace or

remove any shorted battery.

See “Status Indicator Panel” on page 20.

The battery seems to discharge too quickly.

You re running an application that uses a lot of power due to frequent hard drive, optical drive, or Wireless LAN use.

The power savings features may be disabled.

The brightness is turned all the way up.

The battery is very old. Replace the battery.

Battery was exposed to high temperatures.

The battery is too hot or too cold.

Shutdown and Startup Problems

The Suspend/Resume button does not work.

The system powers up, and displays power on information, but fails to load the operating system.

Suspend/Resume button is disabled.

There may be application software. conflict

The boot sequence settings of the setup utility are not compatible with your configuration.

Use both the primary battery and an optional second battery and/or use a power adapter for this application when at all possible.

Check the Power Options menu settings and adjust according to your operating needs.

Turn down the brightness adjustment. The higher the brightness the more power your display uses.

Replace the battery.

Restore the Tablet PC to normal operating temperature. Charging icon on the Status Indicator panel will flash when battery is outside of operating range.

Select the “Choose what the power button does” option.

Close all applications and try the button again.

Set the operating source by pressing the [ESC] key while the Fujitsu logo is on screen or use the [F2] key and enter the setup utility and adjust the source settings from the Boot menu.

See “BIOS Setup Utility” on page 38.

Internal hard drive was not detected.

Use the BIOS setup utility or Primary Master submenu, located within the Main menu, to try to auto detect the internal hard drive.

- Troubleshooting

Problem Possible Cause Possible Solutions

The system powers up, and displays power on information, but fails to load the operating system. (continued)

You have a secured system requiring a password to load your operating system.

Make sure you have the right password. Enter the setup utility and verify the Security settings and modify them as accordingly.

See “BIOS Setup Utility” on page 38.

Error message is displayed on the screen during the Tablet PC (boot) sequence.

Your Tablet PC appears to change setup parameters when you start it.

Video Problems

The built-in display is blank when you turn on your LIFEBOOK Tablet PC.

The Tablet PC turned on with a series of beeps and the built-in display is blank.

Power On Self Test (POST) has detected a problem.

BIOS setup changes were not saved before you exited the utility.

The BIOS CMOS hold-up battery has failed.

The Tablet PC is set for an external monitor only.

The display angle and brightness settings are not adequate for your lighting conditions.

Power management timeouts may be set for short intervals and you didn’t see the display come on and go off.

Power On Self Test has detected a failure which does not allow the display to operate.

See the Power On Self Test (POST) messages to determine the meaning and severity of the problem. Not all messages are errors; some are simply status indicators. LIFEBOOK

Make sure you select Save Changes And Exit when exiting the BIOS setup utility.

Contact your support representative for repairs. This is not a user serviceable part but has a normal life of 3 to 5 years.

Pressing [F10] while holding down the [Fn] key allows you to change your selection of where to send your display video. Each time you press the keys you will step to the next choice. The choices, in order are: built-in display only, external monitor only, both built-in display and external monitor.

Move the display and the brightness control until you have adequate visibility. Pressing either the [F6] or [F7] keys while holding down the [Fn] key also allows you to change the brightness level of the display.

Press a keyboard button or move the mouse to restore operation. If that fails, push the Power/Suspend/Resume button. (The display may be shut off by Standby mode, Auto Suspend or Video Timeout)

Contact your support representative.

- Troubleshooting

Fujitsu T732 Operating Manual
