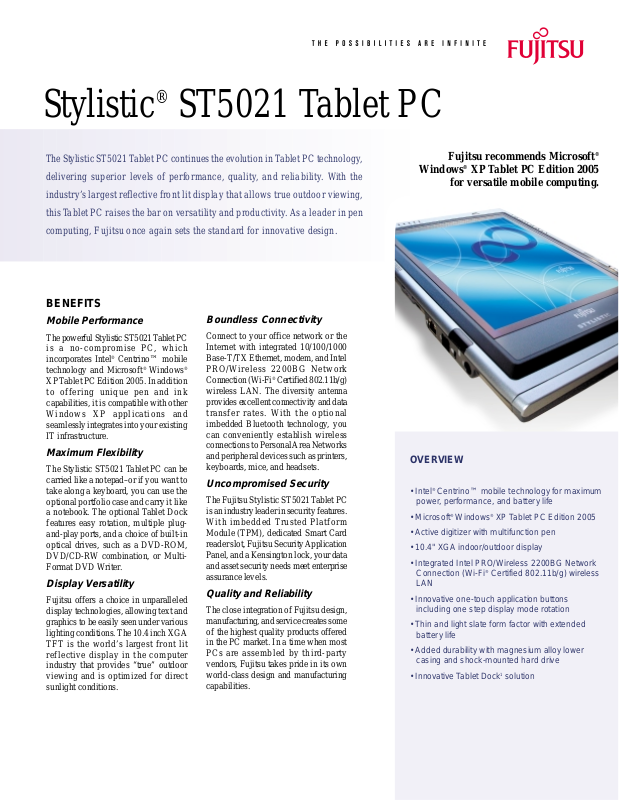

Fujitsu Stylistic ST5021 Specifications

BENEFITS

Mobile Performance

The powerful Stylistic ST5021 T ablet PC
is a no-compromise PC, which
incorporates Intel

®

Centrino™ mobile

technology and Microsoft®Windows

®

XPTablet PC Edition 2005. In addition
to offering unique pen and ink
capabilities, it is compatible with other
Windows XP applications and
seamlessly integrates into your existing
IT infrastructure.

Maximum Flexibility

The Stylistic ST5021 Tablet PC can be
carried like a notepad–or if you want to
take along a keyboard, you can use the
optional portfolio case and carry it like
a notebook. The optional Tablet Dock
features easy rotation, multiple plug­and-play ports, and a choice of built-in
optical drives, such as a DVD-ROM,
DVD/CD-RW combination, or Multi­Format DVD Writer.

Display Versatility

Fujitsu offers a choice in unparalleled
display technologies, allowing text and
graphics to be easily seen under various
lighting conditions. The 10.4 inch XGA
TFT is the world’s largest front lit
reflective display in the computer
industry that provides “true” outdoor
viewing and is optimized for direct
sunlight conditions.

Boundless Connectivity

Connect to your office network or the
Internet with integrated 10/100/1000
Base-T/TX Ethernet, modem, and Intel
PRO/Wireless 2200BG Network
Connection (Wi-Fi

®

Certified 802.11b/g)
wireless LAN. The diversity antenna
provides excellent connectivity and data
transfer rates. With the optional
imbedded Bluetooth technology, you
can conveniently establish wireless
connections to Personal Area Networks
and peripheral devices such as printers,
keyboards, mice, and headsets.

Uncompromised Security

The Fujitsu Stylistic ST5021 T ablet PC
is an industry leader in security features.
With imbedded Trusted Platform
Module (TPM), dedicated Smart Card
reader slot, Fujitsu Security Application
Panel, and a Kensington lock, your data
and asset security needs meet enterprise
assurance levels.

Quality and Reliability

The close integration of Fujitsu design,
manufacturing, and service creates some
of the highest quality products offered
in the PC market. In a time when most
PCs are assembled by third-party
vendors, Fujitsu takes pride in its own
world-class design and manufacturing
capabilities.

S tylistic

®

ST5021 Tablet PC

The Stylistic ST5021 Tablet PC continues the evolution in Tablet PC technology ,
delivering superior levels of performance, quality, and reliability. With the
industry’s lar gest reflective front lit display that allows true outdoor viewing,
this T ablet PC raises the bar on versatility and pr oductivity . As a leader in pen
computing, Fujitsu once again sets the standard for innovative design.

Fujitsu recommends Microsoft

®

Windows®XP Tablet PC Edition 2005

for versatile mobile computing.

OVERVIEW

• Intel®Centrino™ mobile technology for maximum
power, performance, and battery life

• Microsoft

®

Windows®XP Tablet PC Edition 2005

• Active digitizer with multifunction pen

• 10.4" XGA indoor/outdoor display

• Integrated Intel PRO/Wireless 2200BG Network
Connection (Wi-Fi

®

Certified 802.11b/g) wireless

LAN

• Innovative one-touch application buttons
including one step display mode rotation

• Thin and light slate form factor with extended
battery life

• Added durability with magnesium alloy lower
casing and shock-mounted hard drive

• Innovative Tablet Dock

1

solution

S tylisitc

®

ST5021 Tablet PC

Software

Fujitsu recommends
Microsoft®Windows

®

XP Tablet PC Edition
2005 for versatile
mobile computing.

Operating Systems Microsoft®Windows®XP Tablet PC Edition 2005
Bundled Software Microsoft Office OneNote™ 2003

7

, Fujitsu Display Controls, Fujitsu Hot Key

Utility, Fujitsu Security Application Panel, Adobe®Reader, MS Reader

Software on CD Depending upon your optional Tablet Dock configuration, you may also

receive the following:Sonic RecordNow!, InterVideo

®

WinDVD 5,

InterVideo WinDVD Creator Plus

Processor Intel

®

Pentium®M Processor Ultra Low Voltage 733 (1.10 GHz, 2 MB L2

cache, 400 MHz FSB)

Display 10.4" XGA TFT indoor/outdoor (Reflective FL) display
Digitizer Electromagnetic (Active)
Memory 256 MB minimum, two DIMM slots available;

Maximum memory to 2 GB (2x 1 GB)

Memory Type DDR 333 MHz; 200-pin SO DIMM
Hard Drive

2

60 GB or 40 GB ATA 100, 4,200 rpm shock-mounted hard drive

Video Controller Integrated 32-bit 3D/2D gfx core with up to 64 MB dynamic video memory

technology

Audio SigmaTel STAC9753A AC’97 Rev 2.3 compliant, 20-bit audio;

Built-in microphone; headphone and microphone jacks

Communications Multinational

3

56K4V.90 modem (software upgradeable to V.92 via driver

download); 10/100/1000 Base-T/TX Ethernet

Wireless Integrated Intel PRO/Wireless 2200BG Network Connection
Communications (Wi-Fi®Certified 802.11b/g); diversity antenna
Ports Two USB 2.0, Infrared port (IrDA 1.1-compatible, 4 Mbps), external monitor,

modem (RJ-11), Ethernet (RJ-45), IEEE 1394, wireless IR keyboard
receivers, and system interface connector

Security Trusted Platform Module (TPM); dedicated SmartCard reader slot;

Fujitsu Security Application Panel;Kensington™ lock slot

PC Card Slot One Type I or Type II slot; 32-bit PC CardBus architecture
Media Slot One shared slot for MemoryStick®and Secure Digital (SD) card
Battery/Life

5

Standard lithium ion:

6-cell: 10.8V, 4,800 mAh;rated up to 6.0 hours

5

(51 WHr capacity)

High-capacity lithium ion:

9-cell: 10.8V, 7,200 mAh;rated up to 9.0 hours

5

(77 WHr capacity)

AC Adapter Auto-sensing dual voltage support, 100-240V AC;DC 16V, 3.75A
Dimensions (HxWxD)

With Standard battery:

12.77" x 8.66" x .82-.88"; approximately 3.5 lbs.

/Weight

With High-capacity battery:

13.51" x 8.66" x .82-.88"; approximately 3.9 lbs.

Operating Conditions

Operating Temperature:

41°F to 95°F (ambient temperature);

20% to 85% relative humidity, non-condensing

Non-Operating Temperature:

5°F to 140°F; 8% to 85% relative humidity;

non-condensing

Agency Approval

Emissions:

EN55022 (CISPR22) Class B; FCC 15, Class B; FCC15C,

15.247; EN 300-328; ICES-003; Canada RSS-210

Immunity:

EN55024 (1998); EN 301-489-17 V.1.1.1 (2000-9)

Safety:

UL and cUL Listed, UL 1950, 3rd edition;TuV T-Mark, EN60950

Telecom:

FCC Part 68; IC CS-03

Warranty One-year International Limited Warranty6; 24/7 technical support;

Fujitsu Premium Care Service Plans available

Accessories Visit www.fujitsu.ca or call 1-800-263-8716 (English) or 1-800-663-0756

(French) for a complete listing of Fujitsu accessories

Service & Regulatory Information

Key Specifications

1) Optional feature 2) Accessible capacity may be less due
to formatting, applications, and backup utilities. 3) The
internal modems on all Tablet PCs from Fujitsu Computer
Systems Corporation are only qualified for use with
telephone systems in selected countries, including the
United States and Canada.For a list of certified countries,
please check http://www.computers.us.fujitsu.com/modems.

4) Actual speeds over U.S. telephone lines vary, and are
less than 56Kbps due to the current FCC regulations and
line conditions.5) Battery life estimates reflect the results
of Ziff Davis Business Winstone 2001 BatteryMark 1.0 as
performed upon systems with maximum battery life settings
enabled. Actual battery life will vary based on screen
brightness, applications used, features selected, power
management settings, battery conditioning, and other
customer preferences. CD, DVD, CD-RW, or hard drive
usage may also have an impact on battery life.6) Service
and warranty turnaround time may vary by country and
product. International warranty valid only for products
purchased in North, Central, and South America.7) Microsoft
Office OneNote™ 2003 requires product activation.

Fujitsu and the Fujitsu logo, are registered trademarks of
Fujitsu Limited.Stylistic is a registered trademark of Fujitsu
Computer Systems Corporation.Intel, the Intel Inside logo,
Pentium, and Intel SpeedStep are trademarks or registered
trademarks of Intel Corporation or its subsidiaries in the
United States and other countries.Microsoft and Windows
are registered trademarks of Microsoft Corporation. All
other trademarks mentioned herein are the property of
their respective owners.Product description data represents
Fujitsu design objectives and is provided for comparative
purposes; actual results may vary based on a variety of
factors.Specifications are subject to change without notice.
