Fujitsu Stylistic 5030D, Stylistic 5031, Stylistic 5031D, Stylistic 5032, Stylistic 5032D User Guide
Copyright and Trademark Information
Copyright
Fujitsu Computer Systems Corporation has made every
effort to ensure the accuracy and completeness of this
document. Because ongoing development efforts are
made to continually improve the capabilities of our products, however, the data contained herein represents
Fujitsu design objectives and is provided for comparative
purposes; actual results may vary based on a variety of
factors. This product data does not constitute a warranty.
Specifications are subject to change without knowledge.
Fujitsu and the Fujitsu logo are registered trademarks of
Fujitsu Limited; Stylistic is a registered trademark of
Fujitsu Computer Systems Corporation.
Microsoft and Windows are registered trademarks or
trademarks of Microsoft Corporation in the United
States and/or other countries.
PCMCIA and CardBus are registered trademarks of the
Personal Computer Memory Card International Association.
Intel, Pentium, and SpeedStep are trademarks or registered trademarks of Intel Corporation or its subsidiaries
in the United States and other countries.
Atheros is a registered trademark of Atheros
Communications, Inc.
Bluetooth and the Bluetooth logo are registered trademarks of Bluetooth SIG, Inc.
Memory Stick is a registered trademark of Sony Corporation and/or its affiliates
Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA).
All other products are trademarks or registered trademarks of their respective companies.
Warning
Handling the cord on this product will expose
you to lead, a chemical known to the State of
California to cause birth defects or other
reproductive harm.
Wash hands after handling.
Copyright 2005 Fujitsu Computer Systems Corporation.
All rights reserved. No part of this publication may be
copied, reproduced, or translated, without the prior
written consent of Fujitsu Computer Systems
Corporation. No part of this publication may be stored
or transmitted in any electronic form without the prior
consent of Fujitsu Computer Systems Corporation.
B6FH-6891-01EN-00
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name: Fujitsu Computer Systems Corporation
Address: 1250 E. Arques Avenue, MS 122
Sunnyvale, CA 94085
Telephone: 408-746-6000
Declares that product: Model Series: Stylistic® ST5000 Tablet PC
Complies with Part 15 of the FCC Rules
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and, (2) This device must accept any interference
received, including interference that may cause undesired operation.
Note: For more detailed information about the FCC rules and their applicability to the Stylistic ST5000 Series
Tablet PC, refer to Chapter 5 of this document.
Stylistic ST5000 Series Tablet PC - User’s Guide
IMPORTANT SAFETY INSTRUCTIONS
■
This unit requires an AC adapter to operate. Use only
UL Listed Class 2 Adapters with an output rating of 16
VDC, with a current of 3.75A minimum.
AC Adapter output polarity:
+
■
When using your notebook equipment, basic safety
precautions should always be followed to reduce the
risk of fire, electric shock and injury to persons,
including the following:
■
Do not use this product near water for example,
near a bathtub, washbowl, kitchen sink or laundry
tub, in a wet basement or near a swimming pool.
■
Avoid using the modem during an electrical storm.
There may be a remote risk of electric shock from
lightning.
■
Do not use the modem to report a gas leak in the
vicinity of the leak.
■
Use only the power cord and batteries indicated in
this manual. Do not dispose of batteries in a fire.
They may explode. Check with local codes for
possible special disposal instructions.
■
To reduce the risk of fire, use only No. 26 AWG or
larger UL Listed or CSA Certified Telecommunication
Line Cord
SAVE THESE INSTRUCTIONS
For Authorized Repair Technicians Only
Danger of explosion if Lithium (clock) battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer. Dispose of
used batteries according to the manufacturer’s instruction.
For continued protection against risk of
fire, replace only with the same type and
rating fuse.
System Disposal
LAMP(S) INSIDE THIS PRODUCT
CONTAIN MERCURY AND MUST
Hg
BE RECYCLED OR DISPOSED OF
ACCORDING TO LOCAL, STATE, OR
FEDERAL LAWS.
Table of Contents
Tab l e of Con t ent s
PREFACE
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . v
Fujitsu Contact Information . . . . . . . . . . . . . . . . . v
Limited Warranty Information . . . . . . . . . . . . . . . v
1
GETTING STARTED
Getting Started with Your Tablet PC
In-box Items for the Stylistic
ST5000 Series Tablet PC. . . . . . . . . . . . . . . . . . . . 1
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . 2
Stylistic Tablet PC Features. . . . . . . . . . . . . . . . . . 3
Status Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Application Buttons . . . . . . . . . . . . . . . . . . . . . . 10
Navigation Buttons. . . . . . . . . . . . . . . . . . . . . . . 12
Tertiary Functions of Buttons . . . . . . . . . . . . . . . 13
Security Functions of Application Buttons. . . . . . 14
Setting up the Security Panel . . . . . . . . . . . . . . . 14
Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using Your Security Panel . . . . . . . . . . . . . . . . . 15
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Uninstalling the Security Panel Application . . . . . 15
Connectors and Peripheral Interfaces . . . . . . . . . 17
Charging the Battery . . . . . . . . . . . . . . . . . . . . . 25
Removing and Installing the Battery. . . . . . . . . . 26
Tips for Conserving Battery Power . . . . . . . . . . . 26
Modem Connection . . . . . . . . . . . . . . . . . . . . . 27
Memory Stick/SD Card Slot . . . . . . . . . . . . . . . . 27
PC Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

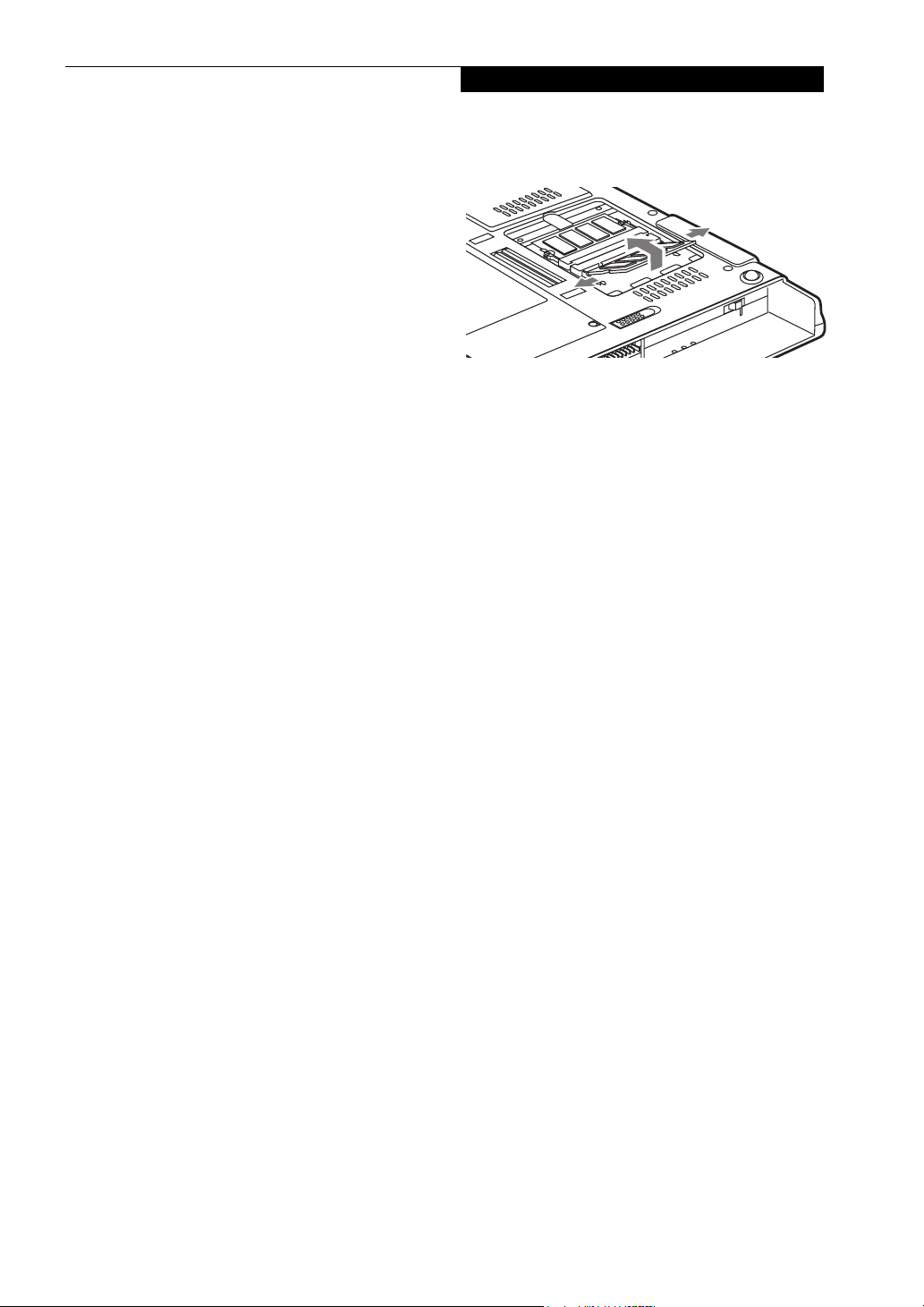

Removing and Installing Memory Modules . . . . 28
3
CARING FOR YOUR TABLET PC
Care and Maintenance
Caring for Your Tablet PC . . . . . . . . . . . . . . . . . 33

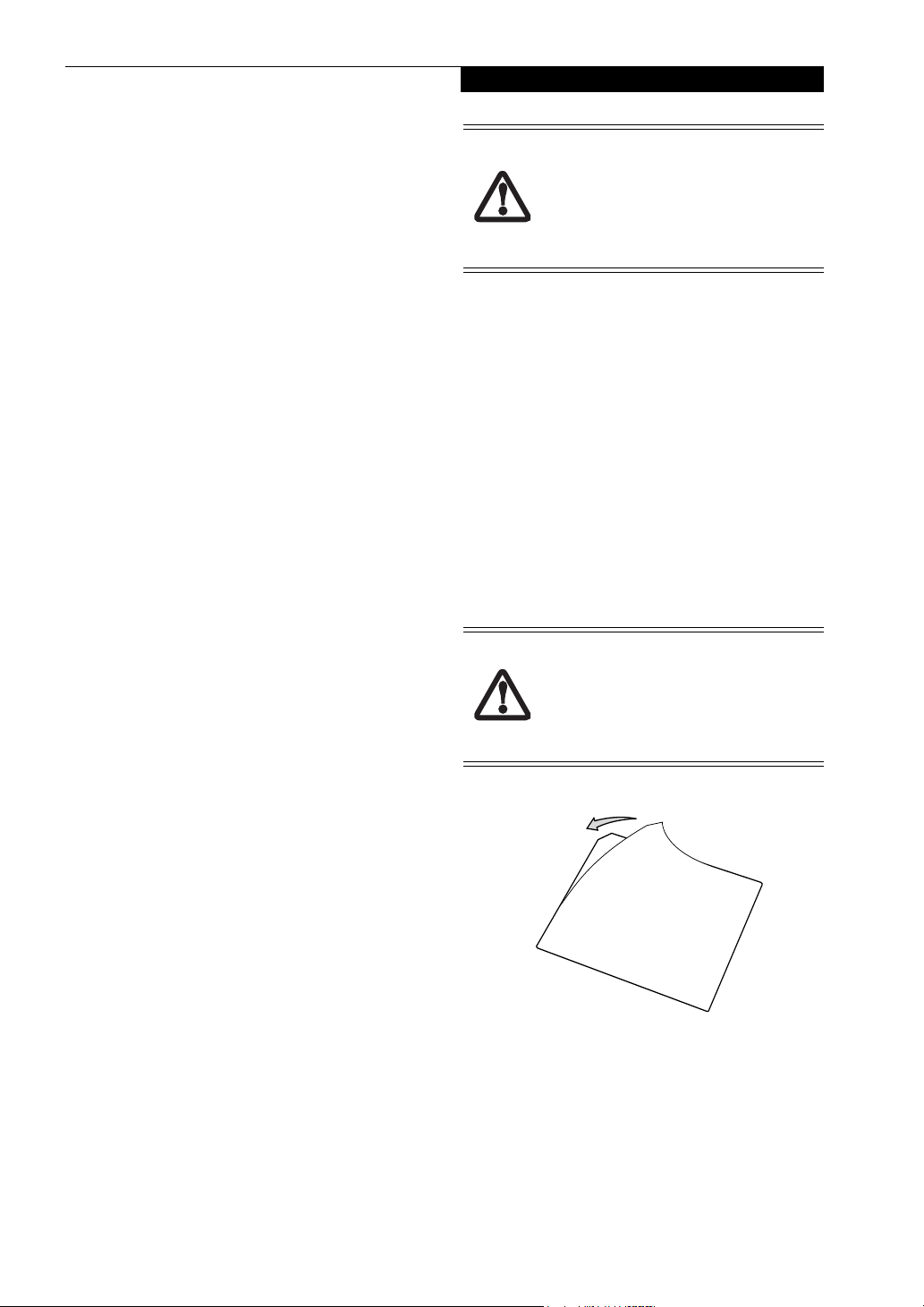

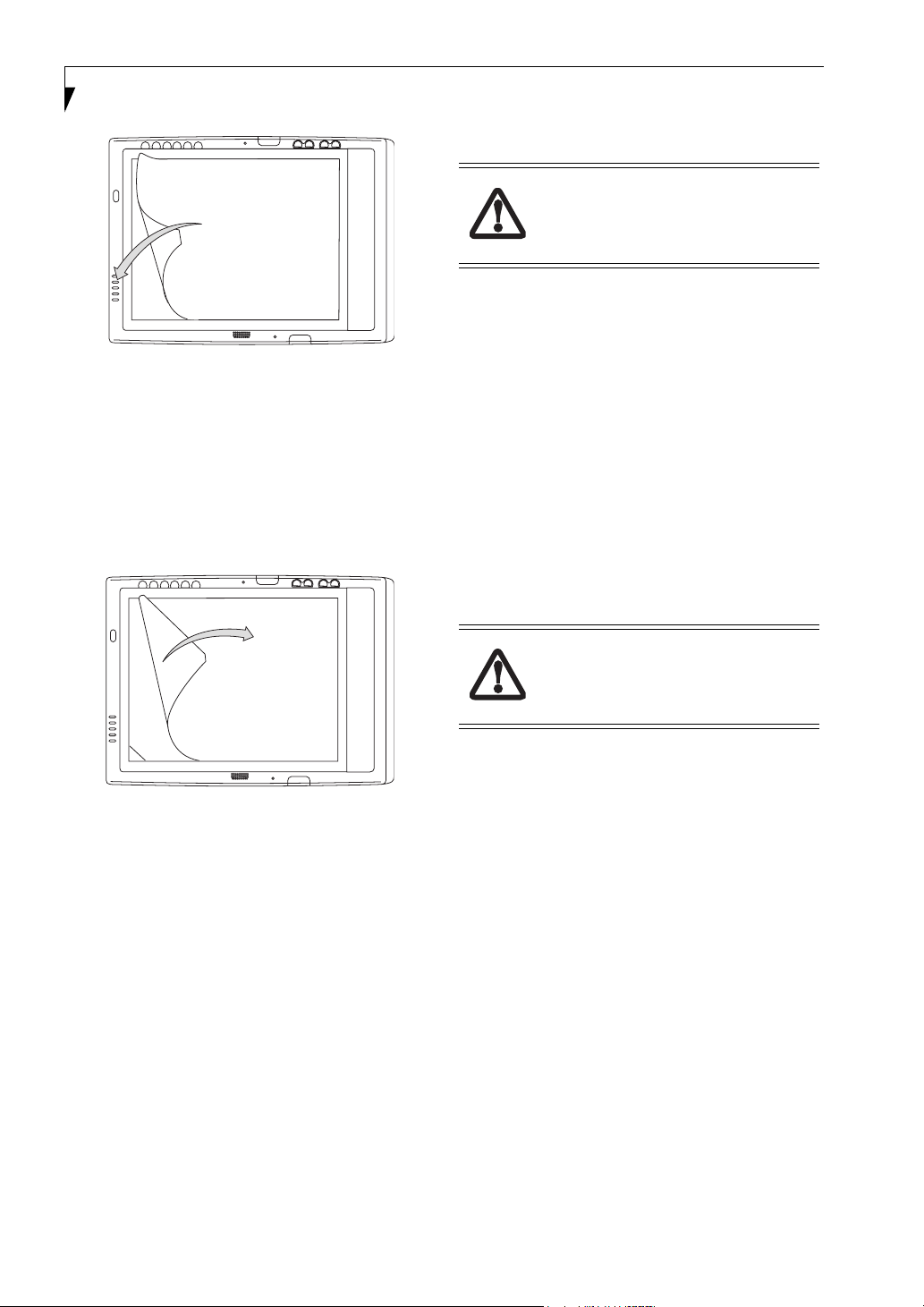

Protecting the Display Screen. . . . . . . . . . . . . . . 33
Storing the Tablet PC. . . . . . . . . . . . . . . . . . . . . 34
Avoiding Overheating . . . . . . . . . . . . . . . . . . . . 34
Cleaning the Display Screen. . . . . . . . . . . . . . . . 34
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 34
Restoring the Pre-Installed Software . . . . . . . . . 35
Restoring the Factory Image . . . . . . . . . . . . . . . 36
Automatically Downloading Driver Updates. . . . 37
4
SYSTEM SPECIFICATIONS
2
USING YOUR TABLET PC
Using the ST5000 Series Tablet PC
System States. . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Powering Up the Tablet PC . . . . . . . . . . . . . . . . 22
Shutting Down the System. . . . . . . . . . . . . . . . . 22
Suspending System Operation . . . . . . . . . . . . . . 22
Resuming System Operation . . . . . . . . . . . . . . . 24
Adjusting the Display Brightness. . . . . . . . . . . . . 24

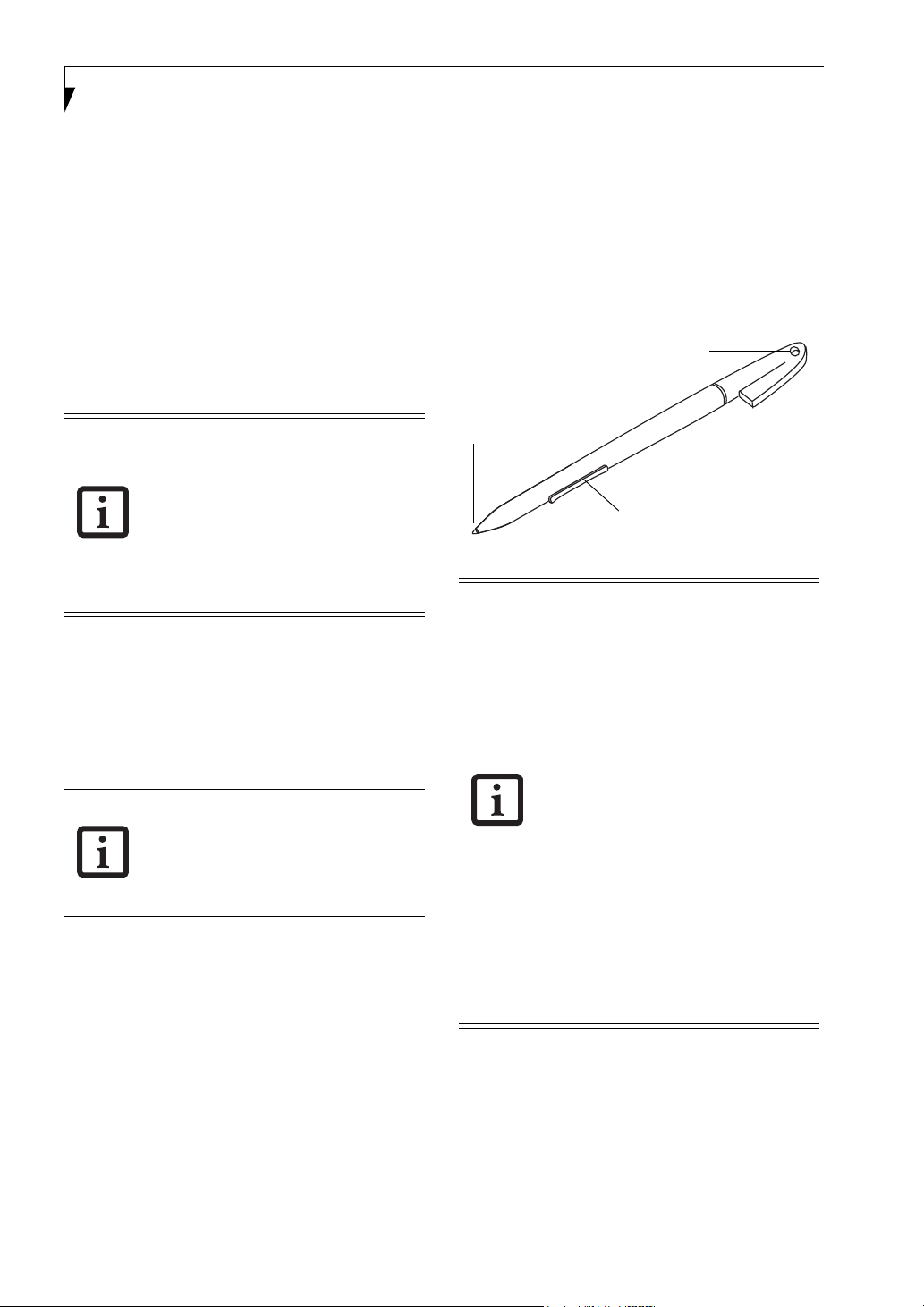

Using the Pen. . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Calibrating the Pen. . . . . . . . . . . . . . . . . . . . . . . 25
Installing a Pen Tether . . . . . . . . . . . . . . . . . . . . 25
Replacing the Pen Tip. . . . . . . . . . . . . . . . . . . . . 25
ST5000 Series Hardware Specifications
Processing Specifications . . . . . . . . . . . . . . . . . . 41
Memory/Storage Specifications . . . . . . . . . . . . . 41
Display Specifications. . . . . . . . . . . . . . . . . . . . . 41
Physical Specifications . . . . . . . . . . . . . . . . . . . . 41
Interface Specifications . . . . . . . . . . . . . . . . . . . 41
Power Specifications . . . . . . . . . . . . . . . . . . . . . 42
Environmental Specifications . . . . . . . . . . . . . . . 42
Agency Approval Specifications . . . . . . . . . . . . . 42
Additional Specifications . . . . . . . . . . . . . . . . . . 42
Regulatory Information
Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Stylistic ST5000 Series Tablet PC User’s Guide
APPENDIX A: WIRELESS LAN/
BLUETOOTH USER’S GUIDE
Before Using the Wireless LAN
For better communications. . . . . . . . . . . . . . . . . 49
Stopping transmission . . . . . . . . . . . . . . . . . . . . 50
Starting Transmission . . . . . . . . . . . . . . . . . . . . . 50
Connecting the WLAN
Flow of operations . . . . . . . . . . . . . . . . . . . . . . . 51
Preparation for wireless LAN connection . . . . . . 51
Connection to the network . . . . . . . . . . . . . . . . 53
Other settings
Setting of power-saving function . . . . . . . . . . . . 57
WLAN Troubleshooting
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 58
Wireless LAN Glossary
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
IP address information
Additional Information . . . . . . . . . . . . . . . . . . . . 62
APPENDIX B: SECURITY
DEVICE USER’S GUIDE

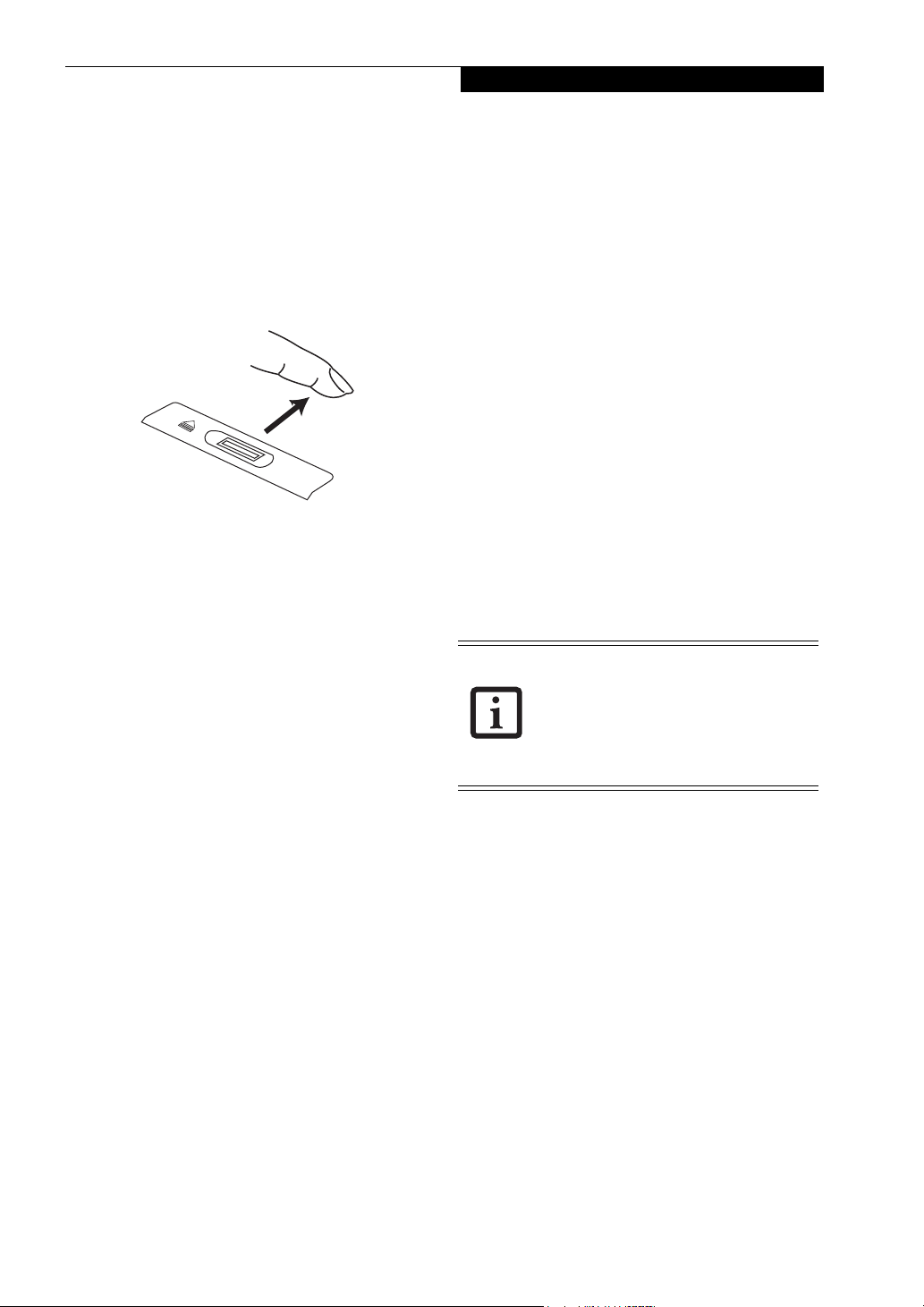

Fingerprint Sensor Device
Introducing the Fingerprint Sensor Device . . . . . 67
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . 67
Installing OmniPass . . . . . . . . . . . . . . . . . . . . . . 67
User Enrollment . . . . . . . . . . . . . . . . . . . . . . . . . 68
Using OmniPass. . . . . . . . . . . . . . . . . . . . . . . . . 69
Configuring OmniPass . . . . . . . . . . . . . . . . . . . . 71
OmniPass Control Center . . . . . . . . . . . . . . . . . 72
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . 74
Trusted Platform Module Installation
TPM Installation. . . . . . . . . . . . . . . . . . . . . . . . . 75
Index
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Specifications
Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Using the Bluetooth Device
What is Bluetooth?. . . . . . . . . . . . . . . . . . . . . . . 64
Where to find information about Bluetooth . . . . 64
Preface
Stylistic ST5000 Series Tablet PC User’s Guide – Preface
Preface
Preface
ABOUT THIS GUIDE
The Stylistic® ST5000 Series Tablet PC is a highperformance, pen-based computer that has been
designed to support Microsoft®Windows® XP Tablet PC
Edition.
This manual explains how to operate your Fujitsu
Stylistic ST5000 Series Tablet PC hardware and built-in
system software.
The Stylistic ST5000 Series Tablet PC is a completely selfcontained unit with an active-matrix (TFT) color LCD
display and an active digitizer. It has a powerful interface
that enables it to support a variety of optional features.
Conventions Used in the Guide
Keyboard keys appear in brackets.
Example: [Fn], [F1], [ESC], [ENTER] and [CTRL].
Pages with additional information about a specific topic
are cross-referenced within the text.
Example: (See page xx.)
On screen buttons or menu items appear in bold
Example: Click OK to restart your Tablet PC.
DOS commands you enter appear in Courier type.
Example: Shut down the computer?
The information icon highlights
information that will enhance your
understanding of the subject material.
FUJITSU CONTACT INFORMATION
Service and Support
You can contact Fujitsu Service and Support in the
following ways:
■
Toll free: 1-800-8Fujitsu (1-800-838-5487)
■
E-mail: 8fujitsu@us.fujitsu.com
■
Web site:
http://www.computers.us.fujitsu.com/support
Before you place the call, you should have the
following information ready so the customer support
representative can provide you with the fastest possible
solution:
■
Product name
■
Product configuration number
■
Product serial number
■
Purchase date
■
Conditions under which the problem occurred
■
Any error messages that have occurred
■
Type of device connected, if any
Fujitsu Online
You can go directly to the online Fujitsu product catalog
for your Stylistic Tablet PC by clicking on the Fujitsu
Weblinks -> LifeBook Accessories web site link, located
in the Windows Start -> All Programs menu.
You can also reach Fujitsu Service and Support on-line by
clicking on the Fujitsu Weblinks -> Fujitsu Service and
Support Web site link, located in the Service and Support
Software folder of the Windows Start -> All Programs
.
menu.
The caution icon highlights information
that is important to the safe operation of
your computer, or to the integrity of your
files. Please read all caution information
carefully.
The warning icon highlights information
that can be hazardous to either you, your
computer, or your files. Please read all
warning information carefully.
You must have an active internet connection to use the online URL links.
LIMITED WARRANTY INFORMATION
Your Stylistic ST5000 Series Tablet PC is backed by an
International Limited Warranty. Check the service kit
that came with your system for warranty terms and
conditions.
Stylistic ST5000 Series Tablet PC User’s Guide – Preface
1
Getting Started
with Your Tablet PC
Stylistic ST5000 Series Tablet PC User’s Guide – Section One
Getting Started
Getting Started with Your Stylistic Tablet PC
Series Tablet PC is available
with either a 10.4” reflective display
or a 12.1” transmissive display. For purposes
of illustration, the 12.1” model is used throughout.
Please refer to the Specifications chapter for additional details.
The Stylistic ST5000
Figure 1-1. Stylistic ST5000 Series Tablet PC
The Stylistic® ST5000 Series Tablet PC is a highperformance, pen-based computer that has been
designed to support Microsoft
®
Windows® XP Tablet PC
Edition 2005. This chapter provides an overview of the
Stylistic ST5000 Series Tablet PC and its features.
IN-BOX ITEMS FOR THE STYLISTIC
ST5000 SERIES TABLET PC
Verify that the following items are included in the box
with your Tablet PC:
• Stylistic ST5000 Series active pen
• Pen tips (quantity: 5)
•Pen tip removal tool
•Pen tether
• Main battery
•Power cord
•AC adapter
• Screen protectors (quantity: 2)
• Getting Started Guide
• Quick Tips Guide
• Drivers and Application Restore (DAR) DVD
• System Restore DVD
1
Stylistic ST5000 Series Tablet PC User’s Guide – Section One
OPTIONAL ACCESSORIES
The following optional accessories can be used with the Stylistic ST5000 Series Tablet PC. Refer to the instructions
provided with these accessories for details on their use.
For the latest list of accessories available for your Tablet PC, be sure to frequently check the Fujitsu Web site at:
www.shopfujitsu.com.
Peripheral/Accessory
Docking Options
Tablet PC Tablet Dock, with CD-ROM drive Universal Dock Mount
Tablet PC Tablet Dock, with Combo DVD/CD-RW drive Folding Desk Stand
Charge-Only Cradle
Carrying Cases
Tablet PC Executive Leather Portfolio Case Bump Case
Tablet PC Nylon Attaché Case Easel Case
Harsh Environment Case (HEC) Hand Strap
Media Options
External USB Floppy Disk Drive USB CD-ROM Drive
External DVD/CD-ROM Combo Drive
Memory
256 MB SO DIMM, DDR2 400 MHz 128 MB Compact Flash Card
512 MB SO DIMM, DDR2 400 MHz 256 MB Compact Flash Card
1 GB SO DIMM, DDR2 400 MHz 128 MB Secure Digital Memory Card
Power Options
AC Adapter with US Cord Auto/Airline Adapter
Main Battery Battery Charger
High-Capacity Battery
Input Devices
Wireless Keyboard USB Optical Mouse
Wireless Keyboard with Touchpad Stylistic ST5000 Tablet PC Pen (2-pack)
Logitech Wireless Keyboard and Mouse Wireless Mouse with Scroll Function
Additional Accessories
Screen Protectors (6-pack) Compact Flash Card Adapter
HEC Screen Protectors (2-pack) Notebook Guardian Lock
4 in 1 PC Card Adapter (SD/MMC/
Memory Stick/SmartMedia)
Deluxe Pen Tether
Charge-Only Cradle DC Adapters
Table 1-1. Stylistic ST5000 Series Optional Accessories
2
Getting Started
STYLISTIC TABLET PC FEATURES
Features and controls that you use to operate the Stylistic ST5000 Series Tablet PC are outlined below and illustrated in
Figures 1-1 through 1-6. Details on using these features and controls are provided later in this manual.
Infrared Keyboard/
Mouse Port
Speaker
Fingerprint
Swipe Sensor*
System
Status
LEDs
Power On/Suspend/
Resume Button
Application/Security
Buttons
Built-in
Microphone
Infrared Keyboard/
Mouse Port
Built-in
Microphone (12.1” model only)
Figure 1-2. Stylistic ST5000 Series Tablet PC Features (Front View)
Front Features: 1
• Infrared keyboard/mouse ports: The infrared ports
are used for communicating with a proprietary
infrared keyboard or mouse.
• Speaker: Allows you to listen to mono audio files.
• Fingerprint Swipe Sensor*: The optional fingerprint
swipe sensor allows you to start your system by
swiping your finger over the sensor.
• System status LEDs: Indicate the operational status of
the Tablet PC and hard disk drive, the charge level of
the battery, and the security panel.
• Power On/Suspend/Resume button: Allows you to
turn on, off, suspend, resume, hibernate or wake the
Tablet PC in order to optimize battery life.
†
Navigation
Buttons
• Application buttons: Allow you to quickly launch
pre-defined applications, utilities, and security
features by pressing a button.
• Navigation buttons: The navigation buttons allow
you to move: Page Up/Page Down, Tab Right/Tab
Left, Cursor Up/Cursor Down, and Cursor Right/
Cursor Left.
• Built-in Microphones: The built-in microphone(s)
allow you to input mono audio. Note that the 10.4”
model has only one microphone.
†
These peripherals and accessories are sold separately.
* The fingerprint swipe sensor is available only on the
12.1” model.
3
Stylistic ST5000 Series Tablet PC User’s Guide – Section One
Wireless LAN Module Cover
Memory
Module Cover
System Interface
Connector
Air Vents
Battery
Release
Latch
Battery
Tablet Dock
Latch Points
Thermal Suede
Wireless LAN*
On/Off Switch
Figure 1-3. Stylistic ST5000 Series Tablet PC Features (Back View)
Back Features: 1
• System interface connector: Allows you to connect
the optional Stylistic Tablet Dock.
• Removable battery: Can be removed and replaced
with a charged battery.
†
• Battery release latch: Used to release the removable
battery.
• Tablet Dock latch point: Allows you to attach the
system to an optional Tablet Dock.
• Memory module cover: Removable cover over the
memory modules.
• Thermal Suede: Several areas of the system back are
covered with “thermal suede”. This material should
not be removed. It is designed to minimize the heat
that the user feels when the system has been
operating for an extended period of time.
†
†
Air Vents: The air vents assist in proper cooling of the
syatem.
To protect your notebook from damage
and to optimize system performance, be
sure to keep all air all vents unobstructed,
clean, and clear of debris. This may
require periodic cleaning, depending upon
the environment in which the system is
used.
Do not operate the notebook in areas
where the air vents can be obstructed,
such as in tight enclosures or on soft
surfaces like a bed or cushion.
• Wireless LAN module cover: Provides protection for
the optional wireless LAN radio.
• Wireless LAN/Bluetooth On/Off switch: For systems
with the optional wireless LAN radio or Bluetooth
device, this switch toggles the radio on or off.
†
These peripherals and accessories are sold separately.
4
Getting Started
Pen Holder
Pen Tether Point
PC Card Slot
PC Card
Eject Button
Air flow vents
SD Card/Memory Stick Slot
Figure 1-4. Stylistic ST5000 Series Tablet PC Features (Top View)
Top Features: 1
• Pen: The main input device that you use to execute
programs and enter data. A pen holder is built into
the Tablet PC to store the pen when not in use.
• Pen Tether Point: The pen tether point is used to
attach a pen tether to help prevent loss of the pen.
• PC Card slot: Allows you to ins er t a Ty pe I o r Ty pe I I
PCMCIA Card
• PC Card Eject Button: The PC Card eject button is
used to remove a PC Card from the PC Card slot.
• Air flow vents: Provides secondary cooling for
processor.
†
in the system.
To protect your notebook from damage
and to optimize system performance, be
sure to keep all air all vents unobstructed,
clean, and clear of debris. This may
require periodic cleaning, depending upon
the environment in which the system is
used.
Do not operate the notebook in areas
where the air vents can be obstructed,
such as in tight enclosures or on soft
surfaces like a bed or cushion.
IrDA/FIR Port
Smart Card Slot
• SD Card/Memory Stick Slot: The Secure Digital (SD)
card/Memory Stick slot allows you to insert a flash
memory card† for data storage. Flash memory cards
allow you to transfer data to and from a variety of
different digital devices.
• IrDA/FIR port: Provides an infrared interface for
communication with devices compliant with IrDA
Standard Revision 1.1.
• Smart Card Slot: The dedicated Smart Card slot
†
allows you to insert a Smart Card
on which you can
store such data as medical information or electronic
“cash”.
†
These peripherals and accessories are sold separately.
5
Stylistic ST5000 Series Tablet PC User’s Guide – Section One
External Monitor Connector (behind cover)
IEEE 1394 Jack
Microphone Jack
Headphone Jack
USB 2.0 Ports
Latch Point
LAN Jack*
Modem Jack*
Lock Slot
DC Input Jack
Figure 1-5. Stylistic ST5000 Series Tablet PC Features (Left Side View)
Left-Side Features: 1
• USB 2.0 ports: Allow you to connect Universal Serial
Bus-compliant devices (compliant with USB
Standard Revision 2.0) to the Tablet PC. Additional
USB ports are located on the optional Tablet Dock
†
• Headphone Jack: Allows you to connect a set of
stereo headphones†.
• Microphone Jack: Allows you to connect an external
microphone†.
• IEEE 1394 Jack: Allows you to connect IEEE 1394
(Firewire) peripherals such as digital video cameras
or external hard drives† to your Tablet PC.
• External Monitor Connector: The External Monitor
connector allows you to connect an external VGA,
XGA, or SVGA CRT monitor.
.
†
modem. Note that the internal 56 Kbps modem
module installed in the Stylistic ST5000 Series Tablet
PC has actual maximum transfer rates of 53 Kbps
(receive), 33.6 Kbps (send), and 14.4 Kbps (fax).
Download rates are limited to 53 Kbps in the United
States due to FCC restrictions.
• LAN jack: Allows you to connect a standard RJ-45
connector to the Tablet PC’s internal local area
network (LAN).
• Lock slot: Allows you to attach a compatible security
†
cable.
• DC input connector: Allows you to connect the AC
†
adapter or auto adapter.
†
These peripherals and accessories are sold separately.
• Modem jack: Allows you to connect a standard RJ-11
connector to the Tablet PC’s internal 56 Kbps
6
Getting Started
Infrared Keyboard/Mouse Port
Optional Wireless LAN location
Latch Point
Figure 1-6. Stylistic ST5000 Series Tablet PC Features (Right Side View)
Right-Side Features: 1
• Pen: The main pointing device that you use to execute
programs and enter data. A pen holder is built into
the Tablet PC to store the pen when not in use.
• Infrared keyboard/mouse port: The infrared port
wraps around the front and bottom of the display,
and is used for communicating with an optional
proprietary infrared keyboard or mouse
• Wireless LAN location: The optional wireless LAN
device is located inside of the system housing.
†
These peripherals and accessories are sold separately.
†
.
Pen / Pen Holder
7
Stylistic ST5000 Series Tablet PC User’s Guide – Section One
STATUS DISPLAY
Icons appear under each of the system status LEDs in the
status display indicating the status of system functions
such as system power and battery charge level. The location of icons in the Status display is shown in Figure 1-7.
Table 1-2. explains how the LEDs associated with the
individual icons are displayed, and describes what the
variations of that display indicate. (If an icon is not
displayed, it indicates that the related system function is
off or inactive.
Power
Battery
Charge/DC In
HDD Access
Figure 1-7. Status Display Icons
In the following table, a “blinking” LED flashes at the rate of once per second; an LED that is “blinking, slow” flashes at the
rate of one second on, five seconds off.
Icon Mode/State LED State Remarks
Security
Power • On State
• Idle Mode
• Suspend-to-RAM Green, blinking The system has suspended and saved active
• Off State
•Hibernate
(Save-to-Disk)
Charge/DC In• On State
• Idle Mode
• Suspend-to-RAM
•Hibernate
(Save-to-Disk)
• Off State
Green, continuous The system is powered on and ready for use.
settings to RAM.
Off The system has suspended and saved settings
and data to the hard disk drive.
Amber AC adapter and battery are available and system
is charging.
Green • AC adapter and battery are available and
system is not charging (battery fully
charged).
• AC adapter is available but battery is not
present.
Amber, blinking AC adapter and battery are available and waiting
to charge (battery is out of thermal range).
Off AC adapter is not available.
8
Getting Started
In the following table, a “blinking” LED flashes at the rate of once per second; an LED that is “blinking, slow” flashes at the
rate of one second on, five seconds off.
Icon Mode/State LED State Remarks
Battery
HDD
Access
• On State
• Idle Mode
• Suspend-to-RAM,
without AC adapter
• Suspend-to-RAM
with AC adapter
•Hibernate
(Save-to-Disk),
with AC adapter
• Off State
•Hibernate
(Save-to-Disk),
without AC adapter
• On State (or
flashing)
• Idle Mode
• Suspend-to-RAM
•Hibernate
(Save-to-Disk)
• Off State
Green, continuous Battery charge is between 50%-100%
Amber, continuous Battery charge is between 13%-49%
Red, continuous Battery charge is between 0%-12%
Red, blinking There is a battery error.
Green, blinking slow Battery charge is between 50%-100%.
Amber, blinking slow Battery charge is between 13%-49%.
Red, blinking slow Battery charge is between 0%-12%.
Off Battery is not installed, or system is off or in
Hibernate mode.
If battery is inserted during power off, LED blinks
amber for 4 seconds to detect battery. Battery
status is displayed for 5 seconds after that.
Green Displayed when hard disk drive is accessed.
Off Hard disk drive is not being accessed.
Security
• On State Green, continuous
(until password is
entered)
Table 1-2. System Status Indicators
The Security Indicator lights (if a password was
set) when the system resumes from Off or
Standby modes. You must enter the password
that was set in the Security Panel before your
system will resume operation.
(See Security
Functions of Application Buttons on page 14 for
more information.)
9
Stylistic ST5000 Series Tablet PC User’s Guide – Section One
APPLICATION BUTTONS
The six application buttons are located on the upper
right-hand side of a vertically-oriented system. (See
figure 1-2 on page 3 for location). Five of the buttons have
secondary functions. The secondary functions are activated by pressing the Function (Fn) button while
pressing the application button.
The buttons also have separate tertiary functions that
can be used while the system is booting up. For more
Tablet Icon
Button Icon
and Name
(Primary)
Ctl-Alt-Del
Button
EMail
Button
(Fn +
Button)
(Secondary)
Security
Button
Internet
Button
Pressing the Ctl-Alt-Del button for approximately one second allows you to log on
after boot or after resuming from power management.
Security Button: All five buttons are used when implementing security functions.
Four of the buttons are used to enter the password, and the fifth is used as an
Enter button. See “Security Functions of Application Buttons” on page 14.
When you press the EMail button, you automatically launch Microsoft Outlook
Express, where you can read, create, and send emails.
When you press the Fn + EMail buttons at the same time, you automatically
launch the Web browser. The default page to which you go is the Fujitsu home
page. If you would like to change your home page, go to the Control Panel->
Internet Options. Select the General tab and enter the starting address you would
like to use.
information about the tertiary functions, refer to
Table 1-5 on page 13.
Ctl-Alt-Del is the only application button
that can be used while the system is
logging on or when the system is locked
(i.e., when you have the Logon or
Computer Locked window showing on
your desktop).
Description
Orientation
Button
Escape
Button
10
Display
Mode
Button
Application
A Button
When you press the Orientation button, the system screen orientation changes
from portrait (vertical) to landscape (horizontal) or from landscape to portrait.
When you would like to use the Tablet PC as an eBook, for example, you would
use the portrait orientation, when accessing spreadsheets, you would more
typically use a landscape orientation.
When you press the Fn + Orientation buttons at the same time*, the display
output will switch between internal, external, and simultaneous display.
The Escape application button acts the same way as an Escape key on a keyboard.
When you press the Fn + Esc buttons at the same time*, they act to invoke a predetermined application or generate a combination keystroke, as assigned in the
Tablet Button Settings utility. (You can change the settings in Control Panel ->
Tablet Button Settings).
By default, pressing the Fn + Esc combination acts the same as if you had pressed
Ctl + Esc on a keyboard: the Start menu is launched.
Button Icon
and Name
(Primary)
Enter
Button
Function
Button
Getting Started
Tablet Icon
(Fn +
Button)
(Secondary)
Application
B Button
Fujitsu
Menu
Utility
The Enter application button acts the same way as an Enter key on a keyboard.
Pressing the Fn + Ent buttons at the same time*, acts to invoke a pre-determined
application or keystroke combination, as assigned in the Tablet Button Settings
utility. (You can change the settings in Control Panel -> Tablet Button Settings).
By default, pressing the Fn + Ent combination acts the same as if you had pressed
Alt on a keyboard: it selects a main menu in the typical Windows application.
The Function button works in conjunction with the other application buttons to
provide additional functionality for the buttons. Refer to specific details above.*
Pressing the Fn button twice in succession (within the “sticky” time*), causes the
Fujitsu menu to appear on your screen, allowing you to modify certain system
settings.
Description
Table 1-3. Application Buttons - Primary and Secondary Functions
* The Fn button has a handy “sticky” feature that allows you to press two buttons in immediate succession, rather
than at exactly the same time. After pressing the Fn button, you have a short time (2 to 3 seconds) to press the
second button.
11
Stylistic ST5000 Series Tablet PC User’s Guide – Section One
NAVIGATION BUTTONS
The two navigation buttons are located on the lower
right-hand side of a vertically-oriented system. (See
figure 1-2 on page 3 for location). Each of the buttons can
be toggled by pressing either end of the button.
The buttons have dual functions. The secondary functions are activated by pressing the Function (Fn) button
while pressing the application button*.
The buttons also have separate tertiary functions that
can be used while the system is booting up. For more
Buttons/icons Purpose (when pressed alone)
(“Primary” function)
This button consists of Page Up and Page
Down segments. When the Page Up
portion is pressed, you will scroll up one
page.
When the Page Down portion is pressed,
you will scroll down one page.
This button consists of Up and Down
segments. When the Up portion is
pressed, the cursor will move up.
When the Down portion is pressed, the
cursor will move down.
information about the tertiary functions, refer to
Table 1-5 on page 13.
Ctl-Alt-Del is the only Application button
that can be used while the system is
logging on or when the system is locked
(i.e., when you have the Logon or
Computer Locked window showing on
your desktop).
Purpose (when pressed with Fn button)
(“Secondary” function)
When pressed with the Function (Fn) button*, the
Up portion of this button allows you to tab right.
When pressed with the Function (Fn) button*, the
Down portion of this button allows you to tab left.
When pressed with the Function (Fn) button*, the
Up portion of this button will move the cursor to the
right.
When pressed with the Function (Fn) button*, the
Down portion of this button will move the cursor to
the left.
* The Fn button has a handy “sticky” feature that allows you to press two buttons in immediate succession, rather
than at exactly the same time. After pressing the Fn button, you have a short time (2 to 3 seconds) to press the
second button.
Table 1-4. Navigation Buttons
12
Getting Started
TERTIARY FUNCTIONS OF APPLICATION AND NAVIGATION BUTTONS
While you are booting up your system, the Application
Buttons and Navigation buttons can be used for entering
and navigating through the Basic Input-Output System
(BIOS), and for invoking the Advanced Options Menu,
where you can enter different modes (such as Safe
Mode).
The BIOS is a program and a set of parameters that are
stored in ROM, which tests and operates your Tablet PC
operating system from disk. Information from the BIOS
is transferred to the operating system to provide it with
information on the configuration and status of the hardware.
The system is booting up while the Fujitsu logo is
displayed immediately after turning on the system. The
table below indicates how the buttons act while the
system is booting up and while you are in the BIOS.
from when you turn it on until it loads your installed
Buttons/icons Purpose (when pressed while the system is booting up)
Pressing the Ctl-Alt-Del button while the system is booting up takes you into BIOS setup. This is the
same as if you had tapped [F2] on a keyboard.
Ctl-Alt-Del
Button
Pressing the EMail button while the system is booting up opens the Boot Options menu. This is the
same as if you had tapped [F12] on a keyboard.
EMail Button
Pressing the Orientation button while the BIOS setup screen is open causes the selected item (if
applicable) to change to the next item. Pressing this is the same as tapping the spacebar on a
keyboard.
Orientation
Button
Pressing the Esc button while the BIOS is open acts to escape from the BIOS. This is the same as if
you had tapped [Esc] on a keyboard.
Escape Button
Enter Button
Function Button
Pressing the Ent button while the BIOS is open acts the same as the [Ent] button on a keyboard.
Pressing the Fn button while the system is displaying the operating system boot menu, opens the
Advanced Operating System Options menu. This menu allows you to enter different operating
system modes (such as Safe Mode). Pressing this button is the same as if you had tapped [F8] on a
keyboard.
Pressing the top half of the upper navigation button while the BIOS setup screen is open causes the
cursor in the BIOS setup screen to move up. This is the same as if you had tapped Arrow Up on a
keyboard. This feature is also functional in the operating system boot menu.
Pressing the bottom half of the upper navigation button while the BIOS setup screen is open causes
the cursor in the BIOS setup screen to move down. This is the same as if you had tapped Arrow Down
on a keyboard. This feature is also functional in the operating system boot menu.
Pressing the top half of the lower navigation button while the BIOS setup screen is open causes the
cursor in the BIOS setup screen to move right. This is the same as if you had tapped Arrow Right on a
keyboard.
Pressing the bottom half of the lower navigation button while the BIOS setup screen is open causes
the cursor in the BIOS setup screen to move left. This is the same as if you had tapped Arrow Left on
a keyboard.
Table 1-5. Tertiary Functions of Application and Navigation Buttons
13
Stylistic ST5000 Series Tablet PC User’s Guide – Section One
SECURITY FUNCTIONS OF APPLICATION BUTTONS
Five buttons are used when implementing security functions. Four of the buttons are used to enter the password, and
the fifth is used as an Enter button. Instructions for using the security feature follow the table.
Button Icons Security Icons Security Purpose
Security Enter Button
Ctl-Alt-Del Button
EMail Button
Orientation Button
Escape Button
Enter Button
Table 1-6. Security Functions of Application Buttons
SETTING UP THE SECURITY PANEL
When you receive your Tablet PC, the security panel
application is pre-installed without any passwords. The
following sections provide detailed information on your
security panel, how to set, change or remove passwords.
Numbered Buttons
Use these buttons to enter your password.(Figure 1-6)
Enter Button
After entering the button strokes, push this button to
enter the password into the Tablet PC. (Figure 1-6)
1
2
3
4
Security Button 1
Security Button 2
Security Button 3
Security Button 4
The following are valid button strokes:
■
Pushing [4] by itself
■
Pushing [2] and [3] at the same time
■
Pushing [1], [2], and [4] at the same time
■
Pushing [1], [2], [3], and [4] at the same time
The following are valid passwords. The numbers within
braces ({ }) are button strokes using more than one
button.
■
{[2]+[3]}, [1], [Enter]
■
[4], [enter]
■
{[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [Enter]
PASSWORDS
The user and supervisor password may be set on this
Tablet PC. A supervisor password is typically the same
for all Tablet PC’s and notebooks in a work group, office,
or company to allow for system management. Individual
computers in a group environment should not use a
common password. A password consists of one to five
button strokes plus the enter button. A valid stroke
consists of pushing one or up to four buttons simultaneously.
14
Setting Passwords
When shipped from the factory, no passwords are set.
You have a choice of having no password or setting a
supervisor and user password. You must set the supervisor password before the user password.
■
The purpose of supervisor password is to
be able to bypass the user password in
case the user password is forgotten. The
supervisor password alone will not lock
the system.
■
You must set the supervisor and user
passwords for the security panel to work.
Getting Started
Setting Supervisor Password
You must have set a supervisor password before setting
any user passwords. The supervisor password can bypass
the user password.
1. Go to the Start menu.
2. Click on Run.
3. Type in:
C:\Program Files\Fujitsu\Security
Panel Application\Supervisor\
FJSECS.EXE, then press [Enter]
4. Follow the on-screen instructions to set the
Supervisor password.
Setting User Password
1 Go to the Start menu.
2. Click on All Programs.
3. Click on Security Panel Application -> Security
Panel Application.
4. Follow the on-screen instructions to set the
user password
.
You may change or remove the supervisor
or user password by repeating the steps
defined above.
USING YOUR SECURITY PANEL
The security lock feature is in effect both when the system
resumes from Off, Standby, or Hibernation state. You
always need to push the Security Panel buttons to input the
user password. Your system will not begin the boot
sequence until you enter your supervisor/user password.
From Off State
1. Turn on your system.
2. When the Security Indicator flashes, enter the password and press Enter button.
For example, if the password is 22222, first press
Button 2 five times and press the Enter button. The
Tablet PC will boot to normal operation.
From Standby/Hibernation State
1. Press your Suspend/Resume button.
2. When the Security Indicator flashes, enter the password and press Enter button.
The Tablet PC should resume normal operation.
PC will resume normal operation. If no password is
entered or an invalid password is entered while the
system beeps, the system will return to its previous locked
state (standby or off) and the Security Indicator will go
off. To reactivate the Tablet PC after a password failure,
you must press the Suspend/Resume button, then enter a
correct password
.
Remember the user password you specified
on the Security Panel Application. If you
forget the password you will not be able to
use your computer. The supervisor password can override the user password.
PRECAUTIONS
Low Battery Operations
If your Tablet PC has a low battery, pushing the suspend/
resume button does not unlock the Tablet PC. To resume
normal operation, first attach a power supply to the
system. Then you may unlock the Tablet PC.
UNINSTALLING THE SECURITY
PANEL APPLICATION
You have two options when uninstalling the security
panel application:
■
Remove passwords and uninstall the security panel
application software. This will disable all security
features.
■
Uninstall the security panel application with password
still active. This will not allow any changes to the
password.
Uninstalling the Security Panel
Application Software
Remove passwords when User wants no password protection whatsoever and doesn’t want to give anybody the
utility to set a password on their computer. In this case, if
passwords (supervisor, user, or both) are set, the passwords must first be cleared BEFORE removing the application. To clear passwords, follow same procedure in
SETTING PASSWORD CODES except this time, select
REMOVE, enter current password then click Next. When
asked to confirm select Ye s .
Incorrect Password Entry
If an invalid supervisor or user password is entered three
times in succession, the system will “beep” for about one
minute. If a valid password is entered within a minute
(while system beeps), the beeping will stop and the Tablet
15
Stylistic ST5000 Series Tablet PC User’s Guide – Section One
Removing Security Panel Application with
Passwords Still Active
Using this feature will not allow any changes to
the password.
Removing the applications does not remove
the password. It simply removes the utility
to change/add/remove passwords. To
change your password you must reinstall
the application.
User :
1. Go to Start -> Control Panel.
2. Open Add or Remove Programs Properties in the
Control Panel.
3. Select the Security Panel Application in the list, and
click Change/Remove.
4. When the Confirm File Deletion box appears,
click Ye s .
Supervisor:
1. Go to Start -> Control Panel.
2. Open Add or Remove Programs Properties in the
Control Panel.
3. Select the Security Panel Application for
Supervisor in the list, and click Change/Remove.
4. When the Confirm File Deletion box appears,
click Ye s .
Reinstalling the Security Panel Application
To reinstall supervisor or user security application, you
will need your Drivers and Applications CD. The
Utilities\Security Panel Application folder contains two
separate folders: Supervisor and User. The setup files for
supervisor and user security applications are contained
in those folders.
1. Go to the Utilities\Security Panel Application\
Supervisor folder on the CD and double-click the
setup.exe file. The Installing Security Panel Applica-
tion window will appear. Follow the instructions on
the screen.
2. Go to the Utilities\Security Panel Application\User
folder on the CD and double-click the setup.exe file.
The Installing Security Panel Application window
will appear. Follow the instructions on the screen.
Supervisor and user passwords can be set via Windows
software using the FJSECS.exe and FJSECU.exe files,
respectively. FJSECU.exe for the user password cannot
run without first setting a supervisor password. You
need to run FJSECS.exe first to set the supervisor password. Follow instructions under Setting Passwords on
page 14.
If you forget both passwords, please contact Fujitsu
Computer Systems Corporation Service and Support at
1-800-8Fujitsu (1-800-838-5487). Fujitsu Computer
Systems Corporation charges a service fee for unlocking
a password-restricted Tablet PC. When calling please
have a valid credit card and provide proof of ownership.
You will then be given instructions on where to ship
your Tablet PC.
16
CONNECTORS AND PERIPHERAL INTERFACES
Getting Started
Connectors and peripheral interfaces on the Stylistic
ST5000 Series Tablet PC allow the connection of a variety
of devices. Specific locations are illustrated in Figures 1-2
through 1-5.
Connector/
Peripheral
DC input
connector
Tablet PC
Icon
Connect an external power source such as the AC adapter or auto/
airline adapter.
Table 1-7 provides a description of each peripheral
connector on the Stylistic ST5000 Series Tablet PC. Each
of the illustrated icons is either molded into or printed on
the Tablet PC chassis.
Purpose
USB Port Connect Universal Serial Bus 2.0 compliant devices to the Tablet PC.
PCMCIA
Insert a Type I or Type II PC Card.
Card slot
SD Card/
Insert a Secure Digital (SD) Card or a Memory Stick.
Memory Stick
slot
Microphone
jack
Connect an external microphone. The internal microphone is disabled
when you plug in an external microphone.
Headphone
jack
Connect stereo headphones or powered external speakers. The internal
speaker is disabled when you plug in external headphones or powered
speakers.
IrDA/FIR port An infrared transceiver built into the Tablet PC allows you to
communicate with other devices that are compliant with the IrDA
Standard Rev. 1.1. Effective range for infrared communication is about
3 feet, and within 15 degrees off center. A clear line-of-sight path must
exist between the IrDA port on the Tablet PC and the IrDA transceiver
on the other device.
Modem Connect a telephone line to the optional internal modem using a
standard RJ-11 telephone plug.
Tablet Dock
port
Connect the Stylistic ST5000 Series Tablet Dock or other approved
docking device. Refer to documentation accompanying the docking
device for more information.
17
Stylistic ST5000 Series Tablet PC User’s Guide – Section One
Connector/
Peripheral
Infrared
keyboard/
mouse port
Tablet PC
Icon
Purpose
An infrared receiver built into the Tablet PC allows you to communicate
with a Fujitsu wireless infrared keyboard or mouse. The keyboard
infrared port works optimally when it is placed between 10 to 30 cm
(approximately 4 in. to 12 in.) from the keyboard infrared port (which is
located on the bottom edge of the Tablet PC). Ensure there is a clear
line-of-sight path between the infrared receiver on the Tablet PC and
the infrared transmitter on the keyboard or mouse. Note that an
infrared keyboard or mouse works best when the system is in landscape
orientation.
Lock slot The security slot allows you to secure the Tablet PC using compatible
locking devices.
IEEE 1394 jack The IEEE 1394 jack allows you to connect IEEE 1394 (Firewire) devices
such as digital video cameras and external hard drives to your Tablet PC.
Suspend/
Resume button
The Suspend/Resume/Power On button allows you to suspend Tablet
PC activity without powering off, resume your Tablet PC from suspend
mode, and power on the system when it has been shut down from
Windows.
Page Up/
Page Down
The Page Up/Page Down button allows you to navigate quickly from
page to page without scrolling.
Local Area
Network (LAN)
Battery Release
Latch
Wireless LAN/
Bluetooth
On-Off Switch
Fingerprint
Swipe Sensor
The LAN (RJ-45) jack is used to connect the internal 10/100/1000* BaseT/Tx Ethernet to a Local Area Network (LAN) in your office or home, or
broadband devices such as a cable modem, DSL, or satellite internet.
*1000 Mbps, commonly referred to as Gigabit Ethernet.
The battery release latch allows you to remove the battery from your
system for storage or replacement.
The wireless LAN/Bluetooth switch allows you to turn power to the
optional wireless LAN or Bluetooth devices on and off.
The optional fingerprint swipe sensor allows you to avoid having to
enter a user name and password every time you want to log into the
system. This icon indicates the direction in which you should swipe your
finger.
Table 1-7. Peripheral Connectors/Interfaces
