Fujitsu Computer Systems Corporation has made every
effort to ensure the accuracy and completeness of this
document. Because ongoing development efforts are
made to continually improve the capabilities of our products, however, the data contained herein represents
Fujitsu design objectives and is provided for comparative
purposes; actual results may vary based on a variety of
factors. This product data does not constitute a warranty.
Specifications are subject to change without knowledge.
Fujitsu and the Fujitsu logo are registered trademarks of
Fujitsu Limited; Stylistic is a registered trademark of
Fujitsu Computer Systems Corporation.
Microsoft, Windows, and Windows Vista are registered
trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
PCMCIA and CardBus are registered trademarks of the
Personal Computer Memory Card International Association.
Centrino, Intel, and Intel Core are trademarks or registered
trademarks of Intel Corporation or its subsidiaries in the
United States and other countries.
OmniPass is a trademark of Softex, Inc.
Adobe, Acrobat, and Acrobat Reader are either registered
trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Atheros and Super AG are registered trademarks of
Atheros Communications, Inc.
SigmaTel is a registered trademark of SigmaTel, Inc.
Bluetooth and the Bluetooth logo are registered trademarks of Bluetooth SIG, Inc.
Memory Stick is a registered trademark of Sony Corporation and/or its affiliates
Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA).
All other products are trademarks or registered trademarks of their respective companies.
Warning
Handling the cord on this product will expose
you to lead, a chemical known to the State of
California to cause birth defects or other
reproductive harm.
Wash hands after handling.
Copyright 2007 Fujitsu Computer Systems Corporation.
All rights reserved. No part of this publication may be
copied, reproduced, or translated, without the prior
written consent of Fujitsu Computer Systems
Corporation. No part of this publication may be stored
or transmitted in any electronic form without the prior
consent of Fujitsu Computer Systems Corporation.
B5FJ-6891-01EN-00
DECLARATION OF CONFORMITY
according to FCC Part 15
Responsible Party Name:Fujitsu Computer Systems Corporation
Address:1250 E. Arques Avenue, MS 122
Sunnyvale, CA 94085
Telephone:408-746-6000
Declares that product:Model Series: Stylistic® ST5112 Tablet PC
Complies with Part 15 of the FCC Rules
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and, (2) This device must accept any interference
received, including interference that may cause undesired operation.
Note: For more detailed information about the FCC rules and their applicability to the Stylistic ST5100 Series
Tablet PC, refer to Chapter 5 of this document.
Stylistic ST5100 Series Tablet PC - User’s Guide
IMPORTANT SAFETY INSTRUCTIONS
■
This unit requires an AC adapter to operate. Use only
UL Listed Class 2 Adapters with an output rating of 16
VDC, with a current of 3.75A minimum.
AC Adapter output polarity:
+
■
When using your tablet PC equipment, basic safety
precautions should always be followed to reduce the
risk of fire, electric shock and injury to persons,
including the following:
■
Do not use this product near water for example,
near a bathtub, washbowl, kitchen sink or laundry
tub, in a wet basement or near a swimming pool.
■
Avoid using the modem during an electrical storm.
There may be a remote risk of electric shock from
lightning.
■
Do not use the modem to report a gas leak in the
vicinity of the leak.
■
Use only the power cord and batteries indicated in
this manual. Do not dispose of batteries in a fire.
They may explode. Check with local codes for
possible special disposal instructions.
■
To reduce the risk of fire, use only No. 26 AWG or
larger UL Listed or CSA Certified Telecommunication Line Cord
■
For TV Tuner Models: To protect from overvoltages
and transients on the Cable Distribution System, make
sure that the outer shield of the coaxial cable is connected to earth (grounded) at the building premises as
close to the point of cable entrance as practicable, as
required per NEC Article 820.93, ANSI/NFPA 70:
2005. If you have questions about your CATV installation, contact your service provider.
SAVE THESE INSTRUCTIONS
For Authorized Repair Technicians Only
Danger of explosion if Lithium (clock) battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer. Dispose of
used batteries according to the manufacturer’s instruction.
For continued protection against risk of
fire, replace only with the same type and
rating fuse.
System Disposal
LAMP(S) INSIDE THIS PRODUCT
CONTAIN MERCURY AND MUST
Hg
BE RECYCLED OR DISPOSED OF
ACCORDING TO LOCAL, STATE, OR
FEDERAL LAWS.
Stylistic ST5100 Series Tablet PC User’s Guide – Preface
Preface
Preface
ABOUT THIS GUIDE
The Stylistic® ST5100 Series Tablet PC is a highperformance, pen-based computer that has been
designed to support Microsoft®Windows® XP Tablet PC
Edition or Windows Vista Business.
This manual explains how to operate your Fujitsu
Stylistic ST5100 Series Tablet PC hardware and built-in
system software.
The Stylistic ST5100 Series Tablet PC is a completely selfcontained unit with an active-matrix (TFT) color
indoor-outdoor LCD display and an active digitizer. It
has a powerful interface that enables it to support a
variety of optional features.
Conventions Used in the Guide
Keyboard keys appear in brackets.
Example: [Fn], [F1], [ESC], [ENTER] and [CTRL].
Pages with additional information about a specific topic
are cross-referenced within the text.
Example: (See page xx.)
On screen buttons or menu items appear in bold
Example: Click OK to restart your Tablet PC.
The information icon highlights
information that will enhance your
understanding of the subject material.
The caution icon highlights information
that is important to the safe operation of
your computer, or to the integrity of your
files. Please read all caution information
carefully.
FUJITSU CONTACT INFORMATION
Service and Support
You can contact Fujitsu Service and Support in the
following ways:
Before you place the call, you should have the
following information ready so the customer support
representative can provide you with the fastest possible
solution:
■
Product name
■
Product configuration number
■
Product serial number
■
Purchase date
■
Conditions under which the problem occurred
■
Any error messages that have occurred
■
Type of device connected, if any
Fujitsu Shopping Online
You can go directly to the online store by going to the
website at: www.shopfujitsu.com.
You must have an active internet connection to use the online URL links.
.
LIMITED WARRANTY INFORMATION
Your Stylistic ST5100 Series Tablet PC is backed by an
International Limited Warranty. Check the service kit
that came with your system for warranty terms and
conditions.
The warning icon highlights information
that can be hazardous to either you, your
computer, or your files. Please read all
warning information carefully.
1
Stylistic ST5100 Series Tablet PC User’s Guide – Preface
2
1
Getting Started
with Your Tablet PC
3
Stylistic ST5100 Series Tablet PC User’s Guide – Section One
4
Getting Started
Getting Started with Your Stylistic Tablet PC
Figure 1-1. Stylistic ST5100 Series Tablet PC
The Stylistic® ST5100 Series Tablet PC is a highperformance, pen-based computer that has been
designed to support Microsoft
Edition 2005 or Windows Vista™ Business. This chapter
provides an overview of the Stylistic ST5100 Series Tablet
PC and its features.
®
Windows® XP Tablet PC
IN-BOX ITEMS FOR THE STYLISTIC
ST5100 SERIES TABLET PC
Verify that the following items are included in the box
with your Tablet PC:
• Stylistic ST5100 Series active pen
• Pen tips (quantity: 5)
• Pen tip removal tool
• Pen tether
• Main battery
•Power cord
•AC adapter
• Screen protectors (quantity: 2)
• Getting Started Guide
• Quick Tips Guide
• Drivers and Application Restore (DAR) DVD
• System Restore DVD
• Microsoft-associated materials and Product
Activation Keys
OPTIONAL ACCESSORIES
There are many optional accessories that can be used
with the Stylistic ST5100 Series Tablet PC. For the latest
list of accessories available for your Tablet PC, be sure to
check the Fujitsu shopping website at: www.shopfujitsu.com. Refer to the instructions provided with these
accessories for details on their use.
5
Stylistic ST5100 Series Tablet PC User’s Guide – Section One
STYLISTIC TABLET PC FEATURES
Features and controls that you use to operate the Stylistic ST5100 Series Tablet PC are outlined below and illustrated in
Figures 1-2 through 1-6. Details on using these features and controls are provided later in this manual.
Infrared Keyboard/Mouse Port
2nd Built-in Microphone
Speaker
Fingerprint Swipe Sensor
System Status LEDs
Display
Power On/Suspend/
Resume Button
Application/Security Buttons
Figure 1-2. Stylistic ST5100 Series Tablet PC Features (Front View)
Front Features:1
• Infrared keyboard/mouse ports: The infrared ports
are used for communicating with a proprietary
infrared keyboard or mouse.
• Speaker: Allows you to listen to audio files.

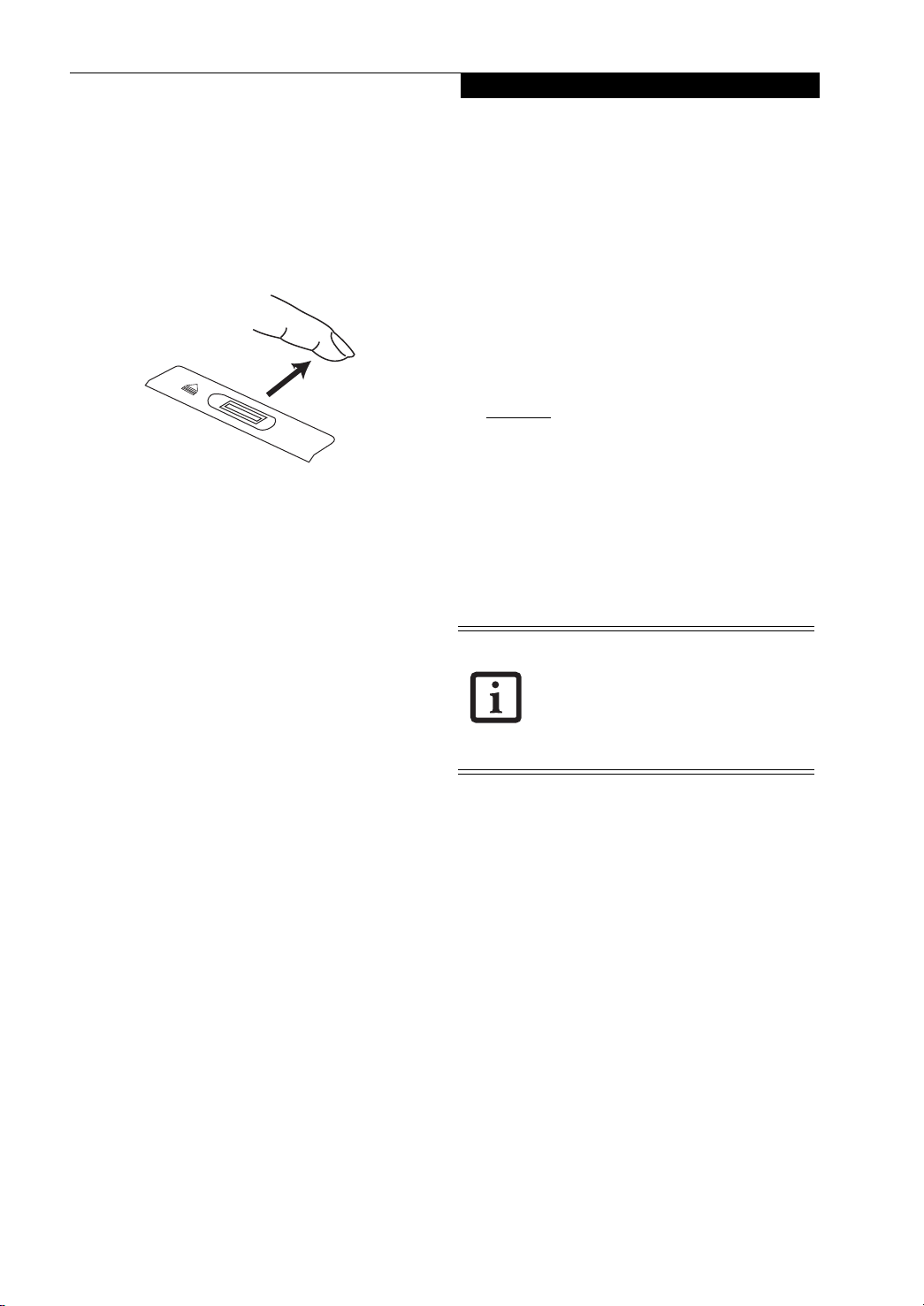

• Fingerprint Swipe Sensor: The optional fingerprint
swipe sensor allows you to start your system by
swiping your finger over the sensor. (See Fingerprint
Sensor Device on page 73 for more information.)
• System status LEDs: Indicate the operational status
of the Tablet PC and hard disk drive, the charge level
of the battery, and the security panel. (See Status
Display on page 11 for more information.)
†
Built-in
Microphone
Infrared Keyboard/Mouse Port
Navigation Buttons
• Application/Security buttons: Allow you to quickly
launch pre-defined applications, utilities, and
security features by pressing a button. (See
Application Buttons on page 13 for more information.)
• Navigation buttons: The navigation buttons allow
you to move: Page Up/Page Down, Tab Right/Tab
Left, Cursor Up/Cursor Down, and Cursor Right/
Cursor Left. (See Navigation Buttons on page 15 for
more information.)
• Built-in Microphones: The built-in microphones
allow you to input mono audio.
†
These peripherals and accessories are sold separately.
• Power On/Suspend/Resume button: Allows you to
turn on, off, standby, resume, hibernate or wake the
Tablet PC in order to optimize battery life. (See
Powering Up the Tablet PC on page 26 for more
information.)
6
Getting Started
Memory
Module Cover
System Interface
Connector
Battery
Battery Release Latch
Tablet Dock
Latch Points
Thermal Suede
Figure 1-3. Stylistic ST5100 Series Tablet PC Features (Back View)
Back Features:1
•Memory module cover: Removable cover over the
memory modules. (See Removing and Installing
Memory on page 35 for more information.)
• System interface connector: Allows you to connect
the optional Stylistic Tablet Dock.
• Removable battery: Can be removed and replaced
with a charged battery.† (See Removing and Installing
the Battery on page 32 for more information.)
• Battery release latch: Used to release the removable
battery.
• Tablet Dock latch point: Allows you to attach the
system to an optional Tablet Dock.
†
†
Wireless LAN*
On/Off Switch
• Thermal Suede: Several areas of the system back are
covered with “thermal suede”. This material should
not be removed. It is designed to minimize the heat
that the user feels when the system has been operating
for an extended period of time.
• Wireless LAN module cover: Provides protection for
the optional wireless LAN radio. (See Connecting the
WLAN on page 57 for more information.)
• Wireless LAN/Bluetooth On/Off switch: For systems
with the optional wireless LAN radio or Bluetooth
device, this switch toggles the radio on or off. (See
Using the Bluetooth Device on page 69 for more
information.)
†
These peripherals and accessories are sold separately.
7
Stylistic ST5100 Series Tablet PC User’s Guide – Section One
Pen Holder
Pen Tether Point
PC Card Slot
PC Card Eject Button
Air flow vents
SD Card/Memory Stick Slot
Figure 1-4. Stylistic ST5100 Series Tablet PC Features (Top View)
Top Features:1
• Pen: The main input device that you use to execute
programs and enter data. A pen holder is built into
the Tablet PC to store the pen when not in use. (See
Using the Pen on page 30 for more information.)
• Pen Tether Point: The pen tether point is used to
attach a pen tether to help prevent loss of the pen.
(See Installing a Pen Tether on page 31 for more
information.)
• PC Card slot: Allows you to insert a Type I or Type II
PCMCIA Card
page 34 for more information.)
• PC Card Eject Button: The PC Card eject button is
used to remove a PC Card from the PC Card slot.
• IrDA/FIR port: Provides an infrared interface for
communication with devices compliant with IrDA
Standard Revision 1.1.
• Air flow vents: Provides secondary cooling for
processor.
†
in the system. (See PC Card Slot on
IrDA/FIR Port
Smart Card Slot
To protect your tablet from damage and to
optimize system performance, be sure to
keep all air all vents unobstructed, clean,
and clear of debris. This may require
periodic cleaning, depending upon the
environment in which the system is used.
Do not operate the tablet in areas where
the air vents can be obstructed, such as in
tight enclosures or on soft surfaces like a
bed or cushion.
• SD Card/Memory Stick Slot: The Secure Digital
(SD) card/Memory Stick slot allows you to insert a
flash memory card† for data storage. Flash memory
cards allow you to transfer data to and from a variety
of different digital devices. (See Memory Stick/SD
Card Slot on page 33 for more information.)
• Smart Card Slot: The dedicated Smart Card slot
†
allows you to insert a Smart Card
on which you can
store such data as medical information or electronic
“cash”.
†
These peripherals and accessories are sold separately.
8
Getting Started
External Monitor Connector (behind cover)
IEEE 1394 Jack
Microphone Jack
Headphone Jack
USB 2.0 Ports
Latch Point
LAN Jack
Modem Jack
Lock Slot
DC Input Jack
Figure 1-5. Stylistic ST5100 Series Tablet PC Features (Left Side View)
Left-Side Features:1
• USB 2.0 ports: Allow you to connect Universal Serial
Bus-compliant devices (compliant with USB
Standard Revision 2.0) to the Tablet PC. Additional
USB ports are located on the optional Tablet Dock
†
• Headphone Jack: Allows you to connect a set of stereo
headphones†.
• Microphone Jack: Allows you to connect an external
†
microphone
.
• IEEE 1394 Jack: Allows you to connect IEEE 1394
(Firewire) peripherals such as digital video cameras
or external hard drives† to your Tablet PC.
• External Monitor Connector: The External Monitor
connector allows you to connect an external VGA,
XGA, SVGA, or UXGA monitor.
• Latch Point: Used in conjunction with the optional
Tablet Dock to secure system to dock.
• Modem jack: Allows you to connect a standard RJ-11
connector to the Tablet PC’s internal 56 Kbps
modem. Note that the internal 56 Kbps modem
.
module installed in the Stylistic ST5100 Series Tablet
PC has actual maximum transfer rates of 53 Kbps
(receive), 33.6 Kbps (send), and 14.4 Kbps (fax).
Download rates are limited to 53 Kbps in the United
States due to FCC restrictions. (See Modem
Connection on page 33 for more information.)
• LAN jack: Allows you to connect a standard RJ-45
†
connector to the Tablet PC’s internal local area
network (LAN).
• Lock slot: Allows you to attach a compatible security
†
cable.
• DC input connector: Allows you to connect the AC
adapter or auto adapter.
†
These peripherals and accessories are sold separately.
†
9
Stylistic ST5100 Series Tablet PC User’s Guide – Section One
Infrared Keyboard/Mouse Port
Optional Wireless LAN location
Latch Point
Figure 1-6. Stylistic ST5100 Series Tablet PC Features (Right Side View)
Right-Side Features:1
• Pen: The main pointing device that you use to
execute programs and enter data. A pen holder is
built into the Tablet PC to store the pen when not in
use.
• Infrared keyboard/mouse port: The infrared port
wraps around the front and bottom of the display,
and is used for communicating with an optional
proprietary infrared keyboard or mouse
• Latch Point: Used in conjunction with the optional
Tablet Dock to secure system to dock.
• Wireless LAN location: The optional wireless LAN
device is located inside of the system housing. (See
Connecting the WLAN on page 57 for more
information.)
†
These peripherals and accessories are sold separately.
†
.
Pen / Pen Holder
10
STATUS DISPLAY
Icons appear under each of the system status LEDs in the
status display indicating the status of system functions
such as system power and battery charge level. The location of icons in the Status display is shown in Figure 1-7.
Table 1-1. explains how the LEDs associated with the
individual icons are displayed, and describes what the
variations of that display indicate. (If an icon is not
displayed, it indicates that the related system function is
off or inactive.
Getting Started
Power
Charge/DC In
Battery
HDD Access
Figure 1-7. Status Display Icons
Security
In the following table, a “blinking” LED flashes at the rate of once per second; an LED that is “blinking, slow” flashes at the
rate of one second on, five seconds off.
IconMode/StateLED StateRemarks
Power
• On State
• Idle Mode
Green, continuousThe system is powered on and ready for
use.
• StandbyGreen, blinkingThe system has suspended and saved active
settings to RAM.
Charge/DC
In
• Off State
• Hibernate
• On State
OffThe system has suspended and saved
settings and data to the hard disk drive.
AmberAC adapter and battery are available and
system is charging.
• Idle Mode
• Standby
• Hibernate
• Off State
Green• AC adapter and battery are available
and system is not charging (battery fully
charged).
• AC adapter is available but battery is
not present.
Amber, blinkingAC adapter and battery are available and
waiting to charge (battery is out of thermal
range).
OffAC adapter is not available.
11
Stylistic ST5100 Series Tablet PC User’s Guide – Section One
In the following table, a “blinking” LED flashes at the rate of once per second; an LED that is “blinking, slow” flashes at the
rate of one second on, five seconds off.
IconMode/StateLED StateRemarks
Battery
HDD Access
• On State
•Idle Mode
• Standby,
without AC
adapter
• Standby with AC
adapter
• Hibernate,
with AC adapter
• Off State
• Hibernate,
without AC
adapter
• On State (or
flashing)
•Idle Mode
Green, continuousBattery charge is between 50%-100%
Amber, continuousBattery charge is between 13%-49%
Red, continuousBattery charge is between 0%-12%
Red, blinkingThere is a battery error.
Green, blinking slowBattery charge is between 50%-100%.
Amber, blinking slowBattery charge is between 13%-49%.
Red, blinking slowBattery charge is between 0%-12%.
OffBattery is not installed, or system is off or in
Hibernate mode.
If battery is inserted during power off, LED
blinks amber for 4 seconds to detect
battery. Battery status is displayed for 5
seconds after that.
GreenDisplayed when hard disk drive is accessed.
12
Security
• Standby
OffHard disk drive is not being accessed.
• Hibernate
• Off State
• On StateGreen, continuous
(until password is
entered)
Table 1-1. System Status Indicators
The Security Indicator lights (if a password
was set) when the system resumes from
Off or Standby modes. You must enter the
password that was set in the Security Panel
before your system will resume operation.
(See Security Functions of Application Buttons
on page 17 for more information.)
APPLICATION BUTTONS
The six application buttons are located on the upper
right-hand side of a vertically-oriented system. Five of the
buttons have secondary functions. The secondary functions are activated by pressing the Function (Fn) button
while pressing the application button.
The buttons also have separate tertiary functions that can
be used while the system is booting up. For more information about the tertiary functions, refer to Table 1-4 on
page 16.
Ctl-Alt-Del is the only application button
that can be used while the system is
logging on or when the system is locked
(i.e., when you have the Logon or
Computer Locked window showing on
your desktop).
Tablet Icon
Button Icon
and Name
Primary)
(Fn +
Button)
(Secondary)
Getting Started
Ctl-Alt-Del
EMail
Orientation
Escape
Enter
Function
Figure 1-8. Application Buttons
Description
Ctl-Alt-Del
Button
EMail
Button
Orientation
Button
Security
Button
Internet
Button
Display
Mode
Button
Pressing the Ctl-Alt-Del button for approximately one second allows you
to log on after boot or after resuming from power management. Holding
the button down for approximately two seconds causes it to act as if CtlAlt-Del had actually been entered from a keyboard.
Security Button: All five buttons are used when implementing security
functions. Four of the buttons are used to enter the password, and the fifth
is used as an Enter button. See “Security Functions of Application Buttons”
on page 17.
When you press the EMail button, you automatically launch Microsoft
Outlook Express, where you can read, create, and send emails.
When you press the Fn +EMail buttons at the same time, you
automatically launch the Web browser. The default page to which you go is
the Fujitsu home page. If you would like to change your home page, go to
the Control Panel-> Internet Options. Select the General tab and enter the
starting address you would like to use.
When you press the Orientation button, the system screen orientation
changes from portrait (vertical) to landscape (horizontal) or from landscape
to portrait. When you would like to use the Tablet PC as an eBook, for
example, you would use the portrait orientation, when accessing
spreadsheets, you would more typically use a landscape orientation.
When you press the Fn + Orientation buttons at the same time*, the
display output will switch between internal, external, and simultaneous
display.
13
Stylistic ST5100 Series Tablet PC User’s Guide – Section One
Tablet Icon
Button Icon
and Name
Primary)
(Fn +
Button)
(Secondary)
Description
The Escape application button acts the same way as an Escape key on a
keyboard.
When you press the Fn +Esc buttons at the same time*, they act to invoke
a pre-determined application or generate a combination keystroke, as
assigned in the Tablet Button Settings utility. (You can change the settings
Escape
Button
Application
A Button
in Control Panel -> Tablet Button Settings).
By default, pressing the Fn + Esc combination acts the same as if you had
pressed Ctl + Esc on a keyboard: the Start menu is launched.
The Enter application button acts the same way as an Enter key on a
keyboard.
Pressing the Fn + Ent buttons at the same time*, acts to invoke a predetermined application or keystroke combination, as assigned in the Tablet
Button Settings utility. (You can change the settings in Control Panel ->
Enter Button
Application
B Button
Tablet Button Settings).
By default, pressing the Fn + Ent combination acts the same as if you had
pressed Alt on a keyboard: it selects a main menu in the typical Windows
application.
The Function button works in conjunction with the other application
buttons to provide additional functionality for the buttons. Refer to specific
Fujitsu
details above.*
Menu
Function
Button
Utility
Pressing the Fn button twice in succession (within the “sticky” time*),
causes the Fujitsu menu to appear on your screen, allowing you to modify
certain system settings.
Table 1-2. Application Buttons - Primary and Secondary Functions
* The Fn button has a handy “sticky” feature that allows you to press two buttons in immediate succession, rather
than at exactly the same time. After pressing the Fn button, you have a short time (2 to 3 seconds) to press the
second button.
14
NAVIGATION BUTTONS
Getting Started
The two navigation buttons are located on the lower
right-hand side of a vertically-oriented system. Each of
the buttons can be toggled by pressing either end of the
button.
The buttons have dual functions. The secondary functions are activated by pressing the Function (Fn) button
while pressing the application button*.
The buttons also have separate tertiary functions that can
be used while the system is booting up. For more information about the tertiary functions, refer to Table 1-4 on
page 16.
Ctl-Alt-Del is the only Application button
that can be used while the system is
logging on or when the system is locked
(i.e., when you have the Logon or
Computer Locked window showing on
your desktop).
Buttons/iconsPurpose (when pressed alone)
(“Primary” function)
This button consists of Page Up and
Page Down segments. When the
Page Up portion is pressed, you will
scroll up one page.
When the Page Down portion is
pressed, you will scroll down one
page.
Navigation Buttons
Figure 1-9. Navigation Button Location
Purpose (when pressed with Fn button)
(“Secondary” function)
When pressed with the Function (Fn) button*,
the Up portion of this button allows you to tab
right.
When pressed with the Function (Fn) button*,
the Down portion of this button allows you to
tab left.
This button consists of Up and Down
segments. When the Up portion is
pressed, the cursor will move up.
When the Down portion is pressed,
the cursor will move down.
When pressed with the Function (Fn) button*,
the Up portion of this button will move the
cursor to the right.
When pressed with the Function (Fn) button*,
the Down portion of this button will move the
cursor to the left.
* The Fn button has a handy “sticky” feature that allows you to press two buttons in immediate succession, rather
than at exactly the same time. After pressing the Fn button, you have a short time (2 to 3 seconds) to press the
second button.
Table 1-3. Navigation Buttons
15
Stylistic ST5100 Series Tablet PC User’s Guide – Section One
TERTIARY FUNCTIONS OF APPLICATION AND NAVIGATION BUTTONS
While you are booting up your system, the Application
Buttons and Navigation buttons can be used for entering
and navigating through the Basic Input-Output System
(BIOS), and for invoking the Advanced Options Menu,
where you can enter different modes (such as Safe
Mode).
The BIOS is a program and a set of parameters that are
stored in ROM, which tests and operates your Tablet PC
operating system from disk. Information from the BIOS
is transferred to the operating system to provide it with
information on the configuration and status of the hardware.
The system is booting up while the Fujitsu logo is
displayed immediately after turning on the system. The
table below indicates how the buttons act while the
system is booting up and while you are in the BIOS.
from when you turn it on until it loads your installed
Buttons/iconsPurpose (when pressed while the system is booting up)
Pressing the Ctl-Alt-Del button while the system is booting up takes you into BIOS setup. This is
the same as if you had tapped [F2] on a keyboard.
Ctl-Alt-Del Button
Pressing the EMail button while the system is booting up opens the Boot Options menu. This is
the same as if you had tapped [F12] on a keyboard.
EMail Button
Pressing the Orientation button while the BIOS setup screen is open causes the selected item (if
applicable) to change to the next item. Pressing this is the same as tapping the spacebar on a
keyboard.
Orientation Button
Pressing the Esc button while the BIOS is open acts to escape from the BIOS. This is the same as if
you had tapped [Esc] on a keyboard.
Escape Button
Enter Button
Function Button
16
Pressing the Ent button while the BIOS is open acts the same as the [Ent] button on a keyboard.
Pressing the Fn button while the system is displaying the operating system boot menu, opens the
Advanced Operating System Options menu. This menu allows you to enter different operating
system modes (such as Safe Mode). Pressing this button is the same as if you had tapped [F8] on
a keyboard.
Pressing the top half of the upper navigation button while the BIOS setup screen is open causes
the cursor in the BIOS setup screen to move up. This is the same as if you had tapped Arrow Up
on a keyboard. This feature is also functional in the operating system boot menu.
Pressing the bottom half of the upper navigation button while the BIOS setup screen is open
causes the cursor in the BIOS setup screen to move down. This is the same as if you had tapped
Arrow Down on a keyboard. This feature is also functional in the operating system boot menu.
Pressing the top half of the lower navigation button while the BIOS setup screen is open causes
the cursor in the BIOS setup screen to move right. This is the same as if you had tapped Arrow
Right on a keyboard.
Pressing the bottom half of the lower navigation button while the BIOS setup screen is open
causes the cursor in the BIOS setup screen to move left. This is the same as if you had tapped
Arrow Left on a keyboard.
Table 1-4. Tertiary Functions of Application and Navigation Buttons
Getting Started
SECURITY FUNCTIONS OF APPLICATION BUTTONS
Five buttons are used when implementing security functions. Four of the buttons are used to enter the password, and
the fifth is used as an Enter button. Instructions for using the security feature follow the table.
Button IconsSecurity IconsSecurity Purpose
Security Enter Button
Ctl-Alt-Del Button
EMail Button
Orientation Button
Escape Button
Enter Button
Table 1-5. Security Functions of Application Buttons
SETTING UP THE SECURITY PANEL
When you receive your Tablet PC, the security panel
application is pre-installed without any passwords. The
following sections provide detailed information on your
security panel, how to set, change or remove passwords.
Numbered Buttons
Use these buttons to enter your password.(Figure 1-5)
Enter Button
After entering the button strokes, push this button to
enter the password into the Tablet PC. (Figure 1-5)
1
2
3
4
Security Button 1
Security Button 2
Security Button 3
Security Button 4
The following are examples of valid button strokes:
■
Pushing [4] by itself
■
Pushing [2] and [3] at the same time
■
Pushing [1], [2], and [4] at the same time
■
Pushing [1], [2], [3], and [4] at the same time
The following are valid passwords. The numbers within
braces ({ }) are button strokes using more than one
button.
■
{[2]+[3]}, [1], [Enter]
■
[4], [enter]
■
{[1]+[3]}, {[2]+[3]+[4]}, [1], [4], [2], [Enter]
PASSWORDS
The user and supervisor password may be set on this
Tablet PC. A supervisor password is typically the same for
all Tablet PC’s and notebooks in a work group, office, or
company to allow for system management. Individual
computers in a group environment should not use a
common password. A password consists of one to five
button strokes plus the enter button. A valid stroke
consists of pushing one or up to four buttons simultaneously.
Setting Passwords
When shipped from the factory, no passwords are set.
You have a choice of having no password or setting a
supervisor and user password. You must set the supervisor password before the user password.
■
The purpose of supervisor password is to
be able to bypass the user password in
case the user password is forgotten. The
supervisor password alone will not lock
the system.
■
You must set the supervisor and user
passwords for the security panel to work.
17
Stylistic ST5100 Series Tablet PC User’s Guide – Section One
Setting Supervisor Password
You must have set a supervisor password before setting
any user passwords. The supervisor password can bypass
the user password.
4. Follow the on-screen instructions to set the
Supervisor password.
Setting User Password
1 Go to the Start menu.
2. Click on All Programs.
3. Click on Security Panel Application -> Security Panel Application.
4. Follow the on-screen instructions to set the
user password
.
You may change or remove the supervisor
or user password by repeating the steps
defined above.
USING YOUR SECURITY PANEL
The security lock feature is in effect both when the system
resumes from Off, Standby, or Hibernation state. You
always need to push the Security Panel buttons to input
the user password. Your system will not begin the boot
sequence until you enter your supervisor/user password.
From Off State
1. Turn on your system.
2. When the Security Indicator flashes, enter the password and press Enter button.
For example, if the password is 22222, first press
Button 2 five times and press the Enter button. The
Tablet PC will boot to normal operation.
From Standby/Hibernation State
1. Press your Suspend/Resume button.
2. When the Security Indicator flashes, enter the password and press Enter button.
The Tablet PC should resume normal operation.
is entered or an invalid password is entered while the
system beeps, the system will return to its previous
locked state (standby or off) and the Security Indicator
will go off. To reactivate the Tablet PC after a password
failure, you must press the Suspend/Resume button,
then enter a correct password
Remember the user password you specified
on the Security Panel Application. If you
forget the password you will not be able to
use your computer. The supervisor password can override the user password.
.
PRECAUTIONS
Low Battery Operations
If your Tablet PC has a low battery, pushing the suspend/
resume button does not unlock the Tablet PC. To resume
normal operation, first attach a power supply to the
system. Then you may unlock the Tablet PC.
UNINSTALLING THE SECURITY
PANEL APPLICATION
You have two options when uninstalling the security
panel application:
■
Remove passwords and uninstall the security panel
application software. This will disable all security
features.
■
Uninstall the security panel application with password
still active. This will not allow any changes to the
password.
Uninstalling the Security Panel
Application Software
Remove passwords when User wants no password
protection whatsoever and doesn’t want to give anybody
the utility to set a password on their computer. In this
case, if passwords (supervisor, user, or both) are set, the
passwords must first be cleared BEFORE removing the
application. To clear passwords, follow same procedure
in SETTING PASSWORD CODES except this time,
select REMOVE, enter current password then click Next.
When asked to confirm select Ye s .
Removing Security Panel Application with
Passwords Still Active
Using this feature will not allow any changes to
the password.
Incorrect Password Entry
If an invalid supervisor or user password is entered three
times in succession, the system will “beep” for about one
minute. If a valid password is entered within a minute
(while system beeps), the beeping will stop and the
Tablet PC will resume normal operation. If no password
18
Removing the applications does not remove
the password. It simply removes the utility
to change/add/remove passwords. To
change your password you must reinstall
the application.
User :
1. Go to Start Menu. Click on Control Panel.
2. Open Add or Remove Programs (In Vista: Programs and Features) in the Control Panel.
3. Select the Security Panel Application (In Vista: Secu-rity Panel) in the list, and click Add/Remove.
4. When the Confirm File Deletion box appears, click
Ye s .
Supervisor:
1. Go to Start Menu, Click on Control Panel.
2. Open Add or Remove Programs (In Vista: Programs and Features) in the Control Panel.
3. Select the Security Panel Applicationfor Supervisor
(In Vista: Security Panel for Supervisor) in the list,
and click Add/Remove (In Vista: Uninstall).
4. When the Confirm File Deletion box appears, click
Ye s .
Getting Started
ClickMe!
INSTALLING CLICK ME!
Before installing the ClickMe! utility, be
sure the wireless LAN switch is turned on.
Windows Vista Systems
The first time you boot up your system, you will see a
“Primary Settings for the PC” window. This window
explains the installations which will be performed by the
Click Me! utility. If you click [Execute], Click Me! will
begin installing. If after clicking the button you receive a
“User Account Control” window, you will be asked for
your permission to continue. Click [Yes] to continue. If
you cancel the operation, the Click Me! icon will appear
on your desktop for later installation.
Reinstalling the Security Panel Application
To reinstall supervisor or user security application, you
will need your Drivers and Applications CD. The
Utilities\Security Panel Application folder contains two
separate folders: Supervisor and User. The setup files for
supervisor and user security applications are contained
in those folders.
1. Go to the Utilities\Security Panel Application\
Supervisor folder on the CD and double-click the
setup.exe file. The Installing Security Panel Applica-
tion window will appear. Follow the instructions on
the screen.
2. Go to the Utilities\Security Panel Application\User
folder on the CD and double-click the setup.exe file.
The Installing Security Panel Application window
will appear. Follow the instructions on the screen.
Supervisor and user passwords can be set via Windows
software using the FJSECS.exe and FJSECU.exe files,
respectively. FJSECU.exe for the user password cannot
run without first setting a supervisor password. You need
to run FJSECS.exe first to set the supervisor password.
Follow instructions under Setting Passwords on page 17.
If you forget both passwords, please contact Fujitsu
Computer Systems Corporation Service and Support at
1-800-8Fujitsu (1-800-838-5487). Fujitsu Computer
Systems Corporation charges a service fee for unlocking a
password-restricted Tablet PC. When calling please have
a valid credit card and provide proof of ownership. You
will then be given instructions on where to ship your
Tablet PC.
Windows XP Systems
The first time you boot up your system, you will see an
icon called Click Me! in the Start menu. We highly
recommend that you install the ClickMe! utility the first
time you boot up. When you click the Click Me! icon,
your system will automatically build the icon tray in the
bottom right of the screen. These icons provide links to
utilities that you will frequently access., such as wireless
LAN software provided by the wireless LAN manufacturer.
There may be additional third-party
applications that are not installed by the
ClickMe! utility. For more information,
refer to your Getting Started Guide.
FUJITSU DRIVER UPDATE UTILITY
Your system has a convenient tool called the Fujitsu
Driver Update (FDU) utility. With FDU, you can choose
to automatically or manually go to the Fujitsu site to
check for new updates for your system. For more information about the FDU utility, refer to “Automatically
Downloading Driver Updates” on page 83.
19
Stylistic ST5100 Series Tablet PC User’s Guide – Section One
CONNECTORS AND PERIPHERAL INTERFACES
Connectors and peripheral interfaces on the Stylistic
ST5100 Series Tablet PC allow the connection of a
variety of devices. Specific locations are illustrated in
Figures 1-2 through 1-5.
Connector/
Peripheral
DC input
connector
USB PortConnect Universal Serial Bus 2.0 compliant devices to the Tablet PC.
PCMCIA
Card slot
SD Card/
Memory Stick
slot
Microphone jackConnect an external microphone. The internal microphone is disabled when you
Tablet PC
Icon
Connect an external power source such as the AC adapter or auto/airline
adapter.
Insert a Type I or Type II PC Card.
Insert a Secure Digital (SD) Card or a Memory Stick.
plug in an external microphone.
Table 1-6 provides a description of each peripheral
connector on the Stylistic ST5100 Series Tablet PC. Each
of the illustrated icons is either molded into or printed
on the Tablet PC chassis.
Purpose
Headphone jackConnect stereo headphones or powered external speakers. The internal speaker
IrDA/FIR port An infrared transceiver built into the Tablet PC allows you to communicate with
ModemConnect a telephone line to the optional internal modem using a standard RJ-11
Tablet Dock portConnect the Stylistic ST5100 Series Tablet Dock or other approved docking
Infrared
keyboard/
mouse port
is disabled when you plug in external headphones or powered speakers.
other devices that are compliant with the IrDA Standard Rev. 1.1. Effective range
for infrared communication is about 3 feet, and within 15 degrees off center. A
clear line-of-sight path must exist between the IrDA port on the Tablet PC and
the IrDA transceiver on the other device.
telephone plug.
device. Refer to documentation accompanying the docking device for more
information.
An infrared receiver built into the Tablet PC allows you to communicate with a
Fujitsu wireless infrared keyboard or mouse. The keyboard infrared port works
optimally when it is placed between 10 to 30 cm (approximately 4 in. to 12 in.)
from the keyboard infrared port (which is located on the bottom edge of the
Tablet PC). Ensure there is a clear line-of-sight path between the infrared receiver
on the Tablet PC and the infrared transmitter on the keyboard or mouse. Note
that an infrared keyboard or mouse works best when the system is in landscape
orientation.
20
Getting Started
Connector/
Peripheral
Lock slotThe security slot allows you to secure the Tablet PC using compatible locking
IEEE 1394 jackThe IEEE 1394 jack allows you to connect IEEE 1394 (Firewire) devices such as
Suspend/Resume
button
Page Up/
Page Down
Local Area
Network (LAN)
Battery Release
Latch
Tablet PC
Icon
Purpose
devices.
digital video cameras and external hard drives to your Tablet PC.
The Suspend/Resume/Power On button allows you to suspend Tablet PC
activity without powering off, resume your Tablet PC from standby mode, and
power on the system when it has been shut down from Windows.
The Page Up/Page Down button allows you to navigate quickly from page to
page without scrolling.
The LAN (RJ-45) jack is used to connect the internal 10/100/1000* Base-T/Tx
Ethernet to a Local Area Network (LAN) in your office or home, or broadband
devices such as a cable modem, DSL, or satellite internet.
*1000 Mbps, commonly referred to as Gigabit Ethernet.
The battery release latch allows you to remove the battery from your system for
storage or replacement.
Wireless LAN/
Bluetooth
On-Off Switch
Fingerprint Swipe
Sensor
The wireless LAN/Bluetooth switch allows you to turn power to the optional
wireless LAN or Bluetooth devices on and off.
The optional fingerprint swipe sensor allows you to avoid having to enter a user
name and password every time you want to log into the system. This icon
indicates the direction in which you should swipe your finger.
Table 1-6. Peripheral Connectors/Interfaces
21
Loading...
+ 67 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
