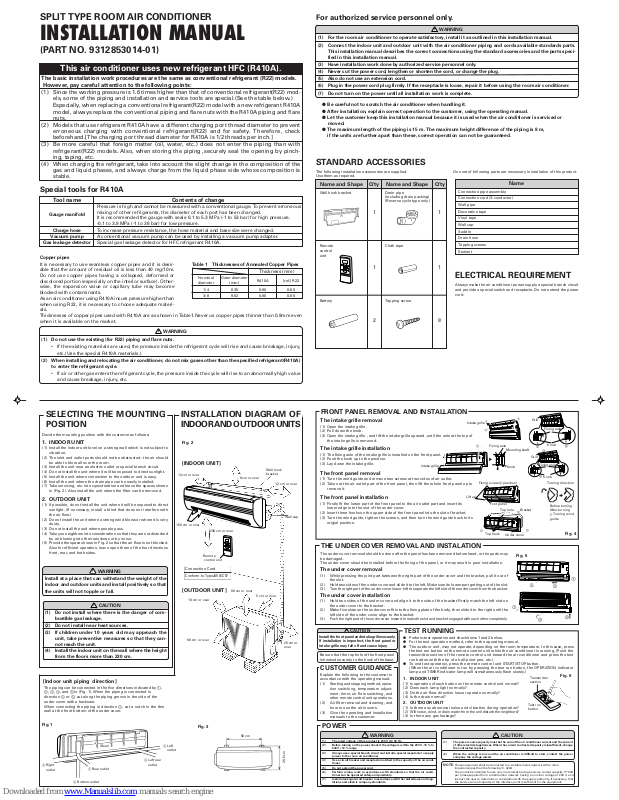

SPLIT TYPE ROOM AIR CONDITIONER
INSTALLATION MANUAL
(PART NO. 9312853014-01)
The basic installation work procedures are the same as conventional refrigerant (R22) models.
However, pay careful attention to the following points:
(1)
Since the working pressure is 1.6 times higher than that of conventional refrigerant(R22) models, some of the piping and installation and service tools are special.(See the table below.)
Especially, when replacing a conventional refrigerant(R22) model with a new refrigerant R410A
model, always replace the conventional piping and flare nuts with the R410A piping and flare
nuts.
(2) Models that use refrigerant R410A have a different charging port thread diameter to prevent
erroneous charging with conventional refrigerant(R22) and for safety. Therefore, check
beforehand.[The charging port thread diameter for R410A is 1/2 threads per inch.]
(3) Be more careful that foreign matter (oil, water, etc.) does not enter the piping than with
refrigerant(R22) models. Also, when storing the piping ,securely seal the opening by pinching, taping, etc.
(4) When charging the refrigerant, take into account the slight change in the composition of the
gas and liquid phases, and always charge from the liquid phase side whose composition is
stable.
This air conditioner uses new refrigerant HFC (R410A).
Special tools for R410A
Copper pipes
It is necessary to use seamless copper pipes and it is desirable that the amount of residual oil is less than 40 mg/10m.
Do not use copper pipes having a collapsed, deformed or
discolored portion (especially on the interior surface). Otherwise, the expansion value or capillary tube may become
blocked with contaminants.
As an air conditioner using R410A incurs pressure higher than
when using R22, it is necessary to choose adequate materials.
Thicknesses of copper pipes used with R410A are as shown in Table1.Never us copper pipes thinner than 0.8mm even
when it is available on the market.
Tool name
Gauge manifold
Charge hose
Vacuum pump
Gas leakage detector
Contents of change
Pressure is high and cannot be measured with a conventional gauge. To prevent erroneous
mixing of other refrigerants, the diameter of each port has been changed.
It is recommended the gauge with seals-0.1 to 5.3 MPa (-1 to 53 bar) for high pressure.
-0.1 to 3.8 MPa (-1 to 38 bar) for low pressure.
To increase pressure resistance, the hose material and base size were changed.
A conventional vacuum pump can be used by installing a vacuum pump adapter.
Special gas leakage detector for HFC refrigerant R410A.
Table 1 Thicknesses of Annealed Copper Pipes
Thickness (mm)
Nominal
diameter
1/4
3/8
Outer diameter
(mm)
6.35
9.52
R410A
0.80
0.80
[ref.] R22
0.80
0.80
(1) Do not use the existing (for R22) piping and flare nuts.
• If the existing materials are used, the pressure inside the refrigerant cycle will rise and cause breakage, injury,
etc.(Use the special R410A materials.)
(2) When installing and relocating the air conditioner, do not mix gases other than the specified refrigerant(R410A)
to enter the refrigerant cycle.
• If air or other gas enters the refrigerant cycle, the pressure inside the cycle will rise to an abnormally high value
and cause breakage, injury, etc.
WARNING
Decide the mounting position with the customer as follows:
1. INDOOR UNIT
(1) Install the indoor unit level on a strong wall which is not subject to
vibration.
(2) The inlet and outlet ports should not be obstructed : the air should
be able to blow all over the room.
(3) Install the unit near an electric outlet or special branch circuit.
(4) Do not install the unit where it will be exposed to direct sunlight.
(5) Install the unit where connection to the outdoor unit is easy.
(6) Install the unit where the drain pipe can be easily installed.
(7) Take servicing, etc. into consideration and leave the spaces shown
in (Fig. 2). Also install the unit where the filter can be removed.
2. OUTDOOR UNIT
(1) If possible, do not install the unit where it will be exposed to direct
sunlight. (If necessary, install a blind that does not interfere with
the air flow.)
(2) Do not install the unit where a strong wind blows or where it is very
dusty.
(3) Do not install the unit where people pass.
(4) Take you neighbors into consideration so that they are not disturbed
by air blowing into their windows or by noise.
(5) Provide the space shown in Fig. 2 so that the air flow is not blocked.
Also for efficient operation, leave open three of the four directions
front, rear, and both sides.
WARNING
Install at a place that can withstand the weight of the
indoor and outdoor units and install positively so that
the units will not topple or fall.
CAUTION
(1) Do not install where there is the danger of com-
bustible gas leakage.
(2) Do not install near heat sources.
(3) If children under 10 years old may approach the
unit, take preventive measures so that they can-
not reach the unit.
(4) Install the indoor unit on the wall where the height
from the floors more than 230 cm.
SELECTING THE MOUNTING
POSITION
[Indoor unit piping direction]
The piping can be connected in the five directions indicated by 1,
2, 3, 4, and 5 in (Fig. 1). When the piping is connected in
direction 2 or 5, cut along the piping groove in the side of the
under cover with a hacksaw.
When connecting the piping in direction 3, cut a notch in the thin
wall at the front bottom of the under cover.
INSTALLATION DIAGRAM OF
INDOOR AND OUTDOOR UNITS
Fig. 2
[INDOOR UNIT]
12 cm or over
Wall hook
bracket
6 cm or over
12 cm or over
150 cm or over
230 cm or over
Wall cap
Remote
control unit
Fig. 1
1 Rear outlet
2 Right
outlet
3 Bottom outlet
4 Left rear
outlet
5 Left
outlet
Connection Cord
Conform to Type245 IEC57
[OUTDOOR UNIT]
10 cm or over
60 cm or over
5 cm or over
60 cm or over
25 cm or
over
Fig. 3
50 cm
26.5 cm
(Rear)
For authorized service personnel only.
(1) For the room air conditioner to operate satisfactory, install it as outlined in this installation manual.
(2) Connect the indoor unit and outdoor unit with the air conditioner piping and cords available standards parts.
This installation manual describes the correct connections using the standard accessories and the parts speci-
fied in this installation manual.
(3) Have installation work done by authorized service personnel only.
(4) Never cut the power cord, lengthen or shorten the cord, or change the plug.
(5) Also do not use an extension cord.
(6) Plug in the power cord plug firmly. If the receptacle is loose, repair it before using the room air conditioner.
(7) Do not turn on the power until all installation work is complete.
WARNING
● Be careful not to scratch the air conditioner when handling it.
● After installation, explain correct operation to the customer, using the operating manual.
● Let the customer keep this installation manual because it is used when the air conditioner is serviced or
moved.
● The maximum length of the piping is 15 m. The maximum height difference of the piping is 8 m,
if the units are further apart than these, correct operation can not be guaranteed.
STANDARD ACCESSORIES
The following installation accessories are supplied.
Use them as required.
Name and Shape Q’ty Name and Shape Q’ty
Connection pipe assembly
Connection cord (3-conductor)
Wall pipe
Decorative tape
Vinyl tape
Wall cap
Saddle
Drain hose
Tapping screws
Sealant
Name
Wall hook bracket
Remote
control
unit
Battery Tapping screw
Drain pipe
(including drain packing)
(Reverse cycle type only)
Cloth tape
1
1
28
1
One set of following parts are necessary in istallation of this product.
ELECTRICAL REQUIREMENT
Always make the air conditioner power supply a special branch circuit
and provide a special switch and receptacle. Do not extend the power
cord.
1
FRONT PANEL REMOVAL AND INSTALLATION
The intake grille removal
(1) Open the intake grille.
(2) Pull down the knob.
(3) Open the intake grille , and lift the intake grille upward ,until the axle at the top of
the intake grille is removed.
The intake grille installation
(1) The fixing axle of the intake grille is installed on the front panel.
(2) Push the knob up to the position.
(3) Lay down the intake grille.
The front panel removal
(1) Turn the wind guide and remove two screws at two sides of air outlet.
(2) Take out the air outlet part of the front panel, then lift the whole front panel up to
remove it.
The front panel installation
(1) Firstly fit the lower part of the front panel to the air outlet part and insert its
lower edge into the slot of the under cover.
(2) Insert three hooks on the upper side of the front panel into the slot of bracket.
(3) Turn the wind guide, tighten the screws, and then turn the wind guide back to its
origial position.
TEST RUNNING
● Perform test operation and check items 1 and 2 below.
● For the test operation method, refer to the operating manual.
● The outdoor unit, may not operate, depending on the room temperature. In this case, press
the test run button on the remote control unit while the air conditioner is running, (Point the
transmitter section of the remote control unit toward the air conditioner and press the test
run button with the tip of a ball-point pen, etc.)
● To end test operation, press the remote control unit START/STOP button.
(When the air conditioner is run by pressing the test run button, the OPERATION indicator
lamp and TIMER indicator lamp will simultaneously flash slowly.)
1. INDOOR UNIT
(1)
Is operation of each button on the remote control unit normal?
(2) Does each lamp light normally?
(3) Do the air flow-direction louver operate normally?
(4) Is the drain normal?
2. OUTDOOR UNIT
(1) Is there any abnormal noise and vibration during operation?
(2) Will noise, wind, or drain water from the unit disturb the neighbors?
(3) Is there any gas leakage?
Transmitter
section
Fig. 6
THE UNDER COVER REMOVAL AND INSTALATION
The under cover removal should be done after the panel has been removed beforehand, or the parts may
be damaged.
The under cover should be installed before the fixing of the panel, or it may result in poor installation.
The under cover removal
(1) While pressing the joint part between the right part of the under cover and the bracket, pull it out of
the slot.
(2)
Hold two sides of the under cover and slide it to the left. Make sure its lower part getting out of the slot.
(3)
Turn the right part of the under cover lower-left to separate the left slot of the under cover from the bracket.
The under cover installation
(1) Hold two sides of the under cover and align it to the side of the bracket.Firstly match the left slot on
the under cover to the bracket.
(2) Make five slots on the under cover fit into the fixing plate of the body, then slide it to the right until the
left side of the under cover align to the bracket.
(3)
Push the right part of the under cover inward to make the slot and bracket engaged with each other completely.
Be sure that the top hole of the front panel
is hooked securely to the hook of the base.
Explain the following to the customer in
accordance with the operating manual:
(1) Starting and stopping method, opera-
tion switching, temperature adjustment, timer, air flow switching, and
other remote control unit operations.
(2) Air filter removal and cleaning, and
how to use the air louvers.
(3) Give the operating and installation
manuals to the customer.
CUSTOMER GUIDANCE
CAUTION
Install the front panel and intake grille securely.
If installation is imperfect, the front panel or
intake grille may fall off and cause injury.
Fig. 5
Fig. 4
POWER
Test run
button
WARNING
(1) The rated voltage of this product is 230 V AC 50 Hz.
(2) Before turning on the power, check if the voltage is within the 220 V -10 % to
240 V +10 % range.
(3) Always use a special branch circuit and install a special receptacle to supply
power to the room air conditioner.
(4) Use a circuit breaker and receptacle matched to the capacity of the air condi-
tioner.
(5) Do not extend the power cord.
(6) Perform wiring work in accordance with standards so that the air condi-
tioner can be operated safely and positively.
(7) Install a leakage circuit breaker in accordance with the related laws and regu-
lations and electric company standards.
CAUTION
(1) The power source capacity must be the sum of the air conditioner current and the current
of other electrical appliances. When the current contracted capacity is insufficient, change
the contracted capacity.
(2) When the voltage is low and the air conditioner is difficult to start, contact the power
company the voltage raised.
NOTE: These equipment shall be connected to a suitable mains network with a main
impedance less than the following: 0. 424Ω
The product is intended for use only in premises having a service current capacity
100A
per phase,supplied from a distribution network having a nominal voltage of 230 V, and
instruct the user to determine in consulation with the supply authority, if necessary, that
the service current capacity at the interface point is sufficient for the equipment.
Bracket
Top hook
Top hole
Under cover
Fixing screw (2 position)
Lift up
Font panel
Turning direction
Before turning
After turning
Turning wind
guide
Fixing axle
Knob
Grill
Intake grille
Fixing axle
Knob
Mounting shaft
Intake grille
Fixing axle
Knob
Grill
Page 2
20
10
4
35 20 35
110
Earth screw
Connection cord (Conform to Type245 IEC57)
3G × 1.5 mm2, 2G × 1.5 mm
2
Be sure that the cord is not
applied inside the hatched
lines.
BAD
Cord clamp
(There is a terminal block inside.)
Right bottom of
indoor unit
Pull
Under cover
● For left piping and left rear piping, align the marks on the wall hook
bracket and shape the connection pipe.
● Bend the connection piping at the bend radius of 70 mm or more and
install no more than 35 mm from the wall.
● After passing the indoor piping and drain hose through the wall hole,
hang the indoor unit on the hooks at the top and bottom of the wall
hook bracket.
[Installing the indoor unit]
● Hang the indoor unit from the hooks at the top of the wall hook bracket.
● Insert the spacer, etc. between the indoor unit and the wall hook
bracket and separate the bottom of the indoor unit from the wall.
Fig. 10
After hooking the indoor unit to the top hook, hook the fittings of the
indoor unit to the two bottom hooks while lowering the unit and
pushing it against the wall.
CONNECTING THE PIPING
Connection
(1) Install the outdoor unit wall cap (supplied with the optional installation set
or procured at the site) to the wall pipe.
(2) Connect the outdoor unit and indoor unit piping.
(3) After matching the center of the flare surface and tightening the nut hand
tight, tighten the nut to the specified tightening torque with a torque
wrench.(Table 2)
Flaring
(1) Cut the connection pipe to the necessary
length with a pipe cutter.
(2) Hold the pipe downward so that cuttings
will not enter the pipe and remove the
burrs.
(3) Insert the flare nut onto the pipe and flare
the pipe with a flaring tool.
Insert the flare nut (always use the flare nut
attached to the indoor and outdoor units respectively) onto the pipe and perform the flare
processing with a flare tool.
Use the special R410A flare tool, or the conventional (for R22) flare tool.
When using the conventional flare tool, always
use an allowance adjustment gauge and secure the A dimension shown in table 3 .
Check if [L] is flared uniformly
and is not cracked or scratched.
Table 2 Flare nut tightening torque
Indoor unit
Wall hook bracket
(Spacer)
Connection pipe
(6.35 mm dia.)
Connection pipe
(9.52 mm dia.)
Align the marks.
Top hooks
Indoor unit
(Fitting)
Bottom hooks
Wall hook
bracket
Fig. 11
Tighten with two wrenches.
Torque
wrench
Wrench (fixed)
Flare nut
Indoor unit pipe
Connection pipe
To prevent gas leakage, coat the flare
surface with refrigerator oil.
Bend (R70) with
a pipe bender
Flare nut
6.35 mm dia.
9.52 mm dia.
Tightening torque
15.7 to 17.6 N•m
(160 to 180 kgf•cm)
29.4 to 41.1 N•m
(300 to 420 kgf•cm)
Tightening torque standard
(using a 20 cm wrench)
Wrist strength
Arm strength
A (mm)
Table 3 Pipe outside diameter
Pipe outside
diameter
ø 6.35 mm (1/4”)
ø 9.52 mm (3/8”)
Flash tool for
R410A, clutch type
0 to 0.5
0 to 0.5
Conventional (R22) flare tool
Clutch type
1.0 to 1.5
1.0 to 1.5
Wing nut type
1.5 to 2.0
1.5 to 2.0
(1) Match the terminal block numbers and connection
cord colors with those of the outdoor unit.
Erroneous wiring may cause burning of the electric parts.
(2) Connect the connection cords firmly to the terminal
block. Imperfect installation may cause a fire.
(3) Always fasten the outside covering of the connec-
tion cord with the cord clamp. (If the insulator is
chafed, electric leakage may occur.)
(4) Securely earth the power cord plug.
(5) Do not use the earth screw for an external connector.
Only use for interconnection between two units.
CAUTION
Die
A
Pipe
Table 4
1. Check if the piping connections are secure.
2. Check that the stems of 2-way valve and 3-way valve are closed
fully.
3. Connect the gauge manifold charge hose to the charging port
of the 3-way valve (side with the projection for pushing in the
valve core).
4. Open the low pressure side valve of the gauge manifold fully.
5. Operate the vacuum pump and start pump down.
6. Slowly loosen the flare nut of the 3-way valve and check if air
enters, then retighten the flare nut.
(When the flare nut is loosened the operating sound of the
vacuum pump changes and the reading of the compound
pressure gauge goes from minus to zero.)
OUTDOOR UNIT
OUTDOOR UNIT INSTALLATION
AIR PURGE
Always use a vacuum pump to purge the air.
Refrigerant for purging the air is not charged in the
outdoor unit at the factory.
Close the high pressure side valve of the gauge manifold fully and do
not operate it during the following work.
● Set the unit on a strong stand, such as one made of concrete blocks
to minimize shock and vibration.
● Do not set the unit directly on the ground because it will cause
trouble.
Connector cover removal
● Remove the two mounting screws.
● Put your hand on the back side ( mark) and take out the connec-
tor cover forwards.
Installing the connector cover
(1) After inserting the three front hooks, then insert the rear hook.
(2) Tighten the two mounting screws.
WARNING
(1) Install the unit where it will not be tilted by more
than 5°.
(2) When installing the outdoor unit where it may
exposed to strong wind, fasten it securely.
7. Pump down the system for at least 15 minutes, then check if the
compound pressure gauge reads -0.1 MPa (-76 cmHg, -1 bar).
8. At the end of pump down, close the low pressure side gauge of
the gauge manifold fully and stop the vacuum pump.
9. Slowly loosen the valve stem of the 3-way valve. When the
compound pressure gauge reading reaches 0.1-0.2 MPa,
retighten the valve stem and disconnect the charge hose
from the 3-way valve charging port.
(If the stem of the 3-way valve is opened fully before the
charge hose is disconnected, it may be difficult to disconnect
the charge hose.)
10. Fully open the valve stems of the 2-way valve and 3-way
valve using a hexagon wrench. (After the valve stem begins to turn, turn it with a torque of less than 2.9 N•m (30
kgf•cm) until it stops turning.)
11. Firmly tighten the 2-way valve and 3-way valve blank cap
and the charging port cap.
Fig. 13
ø5 mm
tapping screw (special)
(Rear hook)
Connector cover
ø4 mm
skirted screw
Front hook
Always use the screws as shown above.
Do not select the top and bottom screws incorrectly.
Tightening torque
Blank cap 19.6 to 24.5 N•m (200 to 250 kgf•cm)
Charging port cap 12.3 to 15.7 N•m (125 to 160 kgf•cm)
Fig. 14
Outdoor unit
2-way valve
Valve
stem
Charging
port cap
Charging port
3-way valve
Blank
cap
Flare nut
-0.1 MPa
(-76 cmHg
-1 bar)
Compound pressure gauge
Gauge manifold
Pressure
gauge
High
pressure
side valve
(closed)
Low pressure
side valve
Charge hose
(For a description of how to use the
gauge manifold, refer to the gauge
manifold operation manual.)
Charge
hose
Vacuum pump
CAUTION
(1) Refrigerant must not be discharged into atmos-
phere.
(2) After connecting the piping , check the joints
for gas leakage with gas leak detector.
Vacuum pump adapter
CAUTION
(1)
When adding refrigerant, add the refrigerant from
the charging port at the completion of work.
(2) The maximum length of the piping is 15 m. If
the units are further apart than this, correct
operation can not be guaranteed.
Additional charge
Refrigerant suitable for a piping length of 7.5 m is charged in the outdoor
unit at the factory.
When the piping is longer than 7.5 m, additional charging is necessary.
For the additional amount, see the table below.
Pipe length
Additional
refrigerant
7.5 m
None
Table 5
10 m
50 g
Between 7.5 m and 15 m, when using a connection pipe other
than that in the table, charge additional refrigerant with 20g/1 m
as the criteria.
OUTDOOR UNIT WIRING
(1) Remove the outdoor unit connector cover.
(2) Remove the control box cover-B.
(3) Bend the end of the cord as shown in the figure.
(4) Connect the end of the connection cord fully into the terminal block.
(5) Fasten the sheath with a cord clamp.
(6) Install the control box cover-B.
(7) Install the connector cover.
15 m
150 g
[Reverse cycle type]
Fig. 15
Connection cord wiring
Run the connection cord to the rear of the outdoor unit within the range of
the arrows shown in the figure.
(The connector cover becomes difficult to install.)
Fig. 16
[Reverse cycle type]
(1) Remove the cord clamp.
(2) Bend the end of the connection cord as shown in the figure.
(3) Connect the end of the connection cord fully into the terminal block.
(4) Match the terminal block numbers and connection cord with those
of the outdoor unit.
(5) Fasten the connection cord with a cord clamp.
Fasten the outside
covering of the
connection cord with
cord clamp.
(Tab)
Connection cord
Insert the tab into the square hole of the indoor
unit and fasten with a screw.
Indoor unit
terminal
block
Cord clamp
Screw
Fig. 12
*unit: mm
INDOOR UNIT
CUTTING THE HOLE IN THE WALL FOR THE CONNECTING PIPING
(1) Cut a 65 mm diameter hole in the wall at the position shown in (Fig.
7).
(2) When cutting the wall hole at the inside of the installation frame, cut
the hole within the range of the left and right center marks 40 mm
below the installation frame.
When cutting the wall hole at the outside of the installation frame,
cut the hole at least 10 mm below over.
(3) Cut the hole so that the outside end is lower (5 to 10 mm) than the
inside end.
(4) Always align the center of the wall hole. If misaligned, water leakage
will occur.
(5) Cut the wall pipe to match the wall thickness, stick it into the wall cap,
fasten the cap with vinyl tape, and stick the pipe through the hole.
(The connection pipe is supplied in the installation set.) (Fig. 7)
(6) For left piping and right piping, cut the hole a little lower so that drain
water will flow freely. (Fig. 7)
INSTALLING THE WALL HOOK BRACKET
(1) Install the wall hook bracket so that it is correctly positioned horizon-
tally and vertically. If the wall hook bracket is tiled, water will drip to
the floor.
(2) Install the wall hook bracket so that it is strong enough to withstand
the weight of an adult.
Before fastening the wall hook bracket to the wall with the screws,
level it by tapping the hook at the center of bracket to the wall with
the handle of a screwdriver.
● Fasten the wall hook bracket to the wall with 6 or more screws through
the holes near the outer edge of the bracket.
● Check that there is no rattle at the wall hook bracket.
FORMING THE DRAIN HOSE AND PIPE
WARNING
If the wall pipe is not used, the cord interconnecting
the indoor and outdoor units may touch metal and
cause electric leakage.
CAUTION
Install the wall hook bracket horizontally and perpendicularly.
[Rear piping, Right piping, Bottom piping]
● Install the indoor unit piping in the direction of the wall hole and bind
the drain hose and pipe together with vinyl tape. (Fig. 9)
● Install the piping so that the drain hose is at the bottom.
● Wrap the pipes of the indoor unit that are visible from the outside
with decorative tape.
[For Left rear piping, Left piping]
Interchange the drain cap and the drain hose.
CAUTION
After removing the drain hose, do not forget to install
the drain cap.
Fig. 7
Lower
65 mm dia. hole
Center mark
10 mm
or over
Fasten with
vinyl tape
(Wall cap)
(Wall pipe)
(Inside)
5 to 10
mm low
Wall (Outside)
65 mm dia. hole
Fig.8
Wall hook
bracket
Tapping screw
Tapped
Hook
(Handle of
screwdriver)
Center notch
Hook
Wall hook
bracket
(String)
Counter
weight
Fig.9
Cut off the piping
outlet cutting groove
with a hacksaw, etc.
Decorative tape
Right piping
Notch the thin part
of under cover.
Bind with
vinyl tape
Indoor unit drain
hose (bottom)
Rear piping
Pipe (top)
Bottom piping
For left outlet
piping, cut off the
piping outlet
cutting groove
with a hacksaw.
Drain cap
Indoor unit drain hose
Under cover
Remove the drain
cap by pulling at
the projection at
the end of the cap
with pliers, etc.
Lower
10 mm
or over
Insert the drain cap and drain hose
until it butts against the drain port.
Drain cap
Indoor unit
drain hose
(1) Insulate between pipes.
● For rear, right, and bottom piping, overlap the connection pipe heat insulation and
indoor unit pipe heat insulation and bind them with vinyl tape so that there is no gap.
● For left and left rear piping, butt the connection pipe heat insulation and indoor unit
pipe heat insulation together and bind them with and vinyl tape so that there is no gap.
● For left and left rear piping, wrap the area which accommodates the rear piping housing section with cloth tape.
● For left and left rear piping, bind the connection cord to the top of the pipe with vinyl
tape.
● For left and left rear piping, bundle the piping and drain hose together by wrapping
them with cloth tape over the range within which they fit into the rear piping housing
section.
(2) Temporarily fasten the connection cord along the connection pipe with vinyl tape. (Wrap
to about 1/3 the width of the tape from the bottom of the pipe so that water does not
enter.)
(3) Fasten the connection pipe to the outside wall with saddles, etc.
(4) Fill the gap between the outside wall pipe hole and the pipe with sealer so that rain
water and wind cannot blow in.
(5) Fasten the drain hose to the outside wall, etc.
Fig. 18
Pipe
(Saddle)
(Outside wall cap)
(Sealer putty)
(Outdoors)
Check the following:
Drain hose
GOOD
BAD
BAD
BAD
Lifted up
Saddle
Wave
End in water
Wall
Outdoor unit
Connection cord
Terminal block
Earth
screw
After installed the
control box cover-B
Control box
cover-B
Cord clamp
23 mm
12 mm
Connection cord
(Sheath)
Cord
clamp
(Insulator)
Earth
screw
Sheath
Earth
screw
Earth
screw
Indoor unit
terminal block
Connection cord
Outdoor unit
terminal block
(1) Match the terminal block numbers and connection
cord colors with those of the indoor unit.
Erroneous wiring may cause burning of the electric
parts.
(2) Connect the connection cords firmly to the terminal
block. Imperfect installation may cause a fire.
(3) Always fasten the outside covering of the con-
nection cord with the cord clamp. (If the insula-
tor is chafed, electric leakage may occur.)
(4) Securely earth the power cord plug.
(5) Do not use the earth screw for an external connector.
Only use for interconnection between two units.
CAUTION
FINISHING
Fig. 17
Overlap the insulation
Bind the pipes together so
that there is no gap.
Connection pipe
(heat insulation)
Indoor unit pipe
(heat insullation)
Vinyl tape
Pipe
Drain hose
Cloth tape
Wrap with cloth tape
Left piping
Connection cord
Pipe
Drain hose
For connection from the left rear
Connection cord
Drain hose
Wall pipe
Connection
pipe
Loading...
