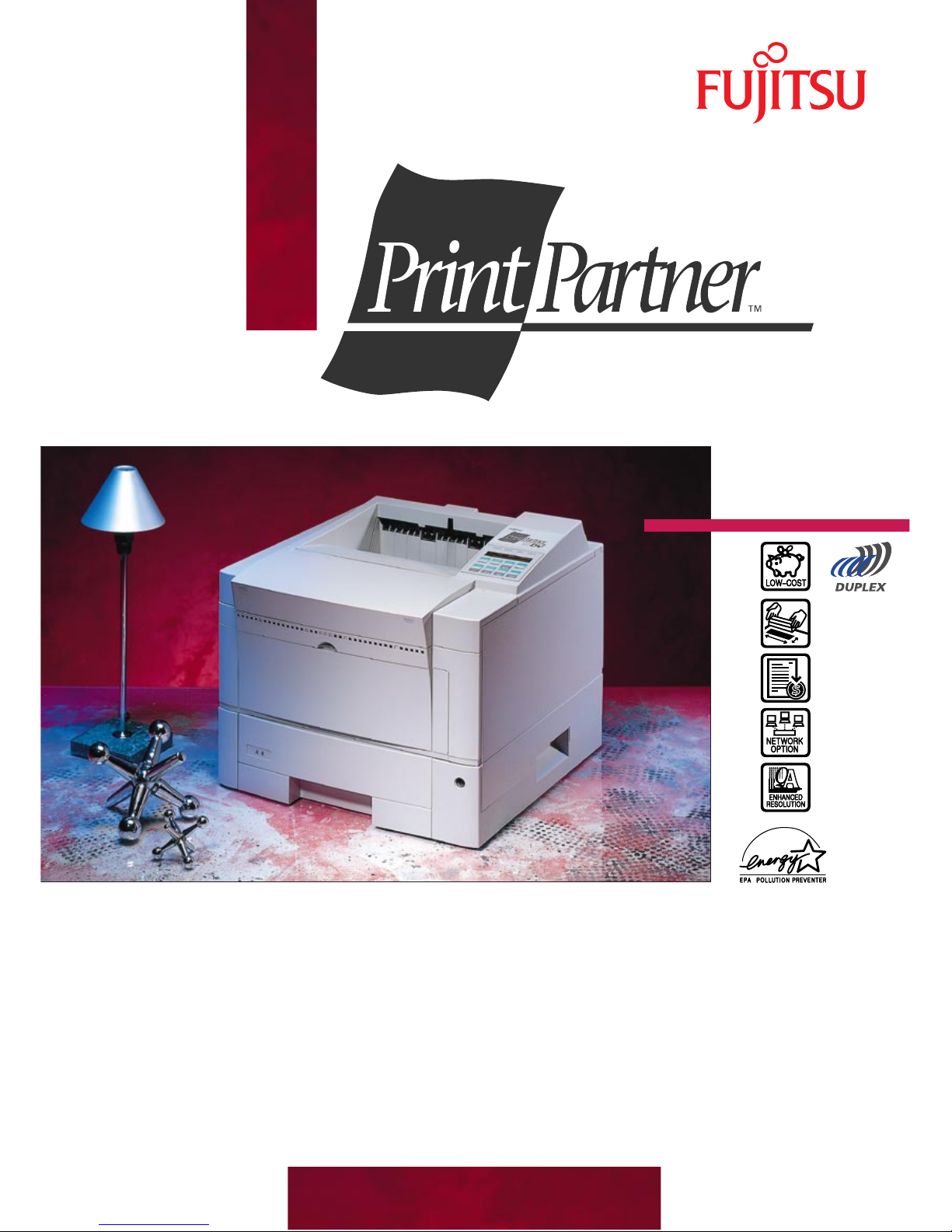

Fujitsu PrintPartner 16DV Technical Specifications

P

AGE

P

RINTER

QUALITY PAGE PRINTER

16ppm

1166DDVV

Laser/Electro-photography
16 pages per minute (A4)
Automatic feed: A4, A5, Letter, Executive

Manual feed: A4, A5, Letter, Executive, Legal, Envelope, Labels,

Transparency Max. 216mm × 360mm (8.5 inch. ×

14.1 inch.)
60 g/m2to 90 g/m2(17 lbs. to 24 lbs.)
Up to 35,000 pages per month
4 MB (expandable to 68 MB)
600 × 600 dpi + Advanced FEIT
Scaleable fonts: 114 fonts

Bitmap fonts: 1 font for PCL5e
Standard: PCL6 (HP LaserJet 5 compatible)

Option: PostScript level 2 compatible (*Power Page

®

)

Option: Dot Matrix Printer Emulation

Paper tray with 550-sheet capacity (0.09mm thickness), Manual feed
250 sheets face down, 20 sheets face up
Standard: Centronics × 2 (IEEE1284 type B × 1, type C × 1)

RS232C (Dsub 9 pin type)

Optional: LocalTalk, Ethernet

(10Base 2 + 10Base T, TCP/IP + Netware + EtherTalk)

Height:289 mm (11.4 inch)
Width: 377 mm (14.8 inch)
Depth: 385 mm (15.1 inch)

Approx. 18 kg (39.7 lbs.) without multifunction feeder
Operating temperature: 10–35°C

Storage temperature: 0–40°C
Relative humidity: 20–80% RH
Maximum wet bulb temperature: 29˚C

4,000 power-on hours MTBF (Mean Time Between Failures)
30 minutes MTTR (Mean Time To Repair)

Toner pack
Print unit (OPC drum & Developer)

Duplex unit.
Paper feeder: 500 sheets capacity (0.09mm thickness)
Page tray: Multisize (A4, A5, Letter, Executive and Legal)
Multifunction feeder: 100 sheets or 30 envelopes
Barcode Card, Flash Rom Card, Ir DA option, LocalTalk Board

Printing technology
Printing speed
Paper size

Paper weight
Duty cycle
Resident RAM
Print resolution
Resident fonts

Emulation

Paper input
Paper output
Interface

Dimensions

Weight
Environmental conditions

Reliability

Consumables

Option

TECHNICAL SPECIFICATIONS

1166DDVV

■ High Performance

– High-speed printing (16 ppm)
– PCL6 emulation
– 1200 dpi class resolution (True 600 dpi print

resolution + Advanced FEIT).

– Optional LocalTalk and Ethernet

(10Base 2+ 10Base T, TCP/IP + NetWare +
EtherTalk) interfaces for network environments
make the PrintPartner 16DV a network printer.

■ Environment Friendly

– All of PrintPartner 16DV’s plastic parts of more

than 25 grams are marked for recycling.

– Energy Star compliant power consumption

saving function.

– Versatile Duplex unit available as an option:

16ipm (A4), A5 size feedable, straight paper
path for simplex available.

– Less toner wasted

■ User Friendly

– PrintPartner 16DV comes with printer

management utility software for printer setup
and status monitoring under the Windows

95/NT4.0 environment.
– Easy to use LCD operational panel
– Small foot print

Specifications are subject to change without notice. For the latest information, contact your local Fujitsu representative.
All brand names and product names are trademarks and registered trademarks of their respective holders.
As an ENERGY STAR Partner, Fujitsu has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
