PDS4233W/E-H PDS4234W/E-S
FUJITSU GENERAL Proprietary
Copy Prohibited
CONTENTS
PART NAMES AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TROUBLESHOOTING USING LED AND OSD . . . . . . . . . . . . . . . . . . . 12

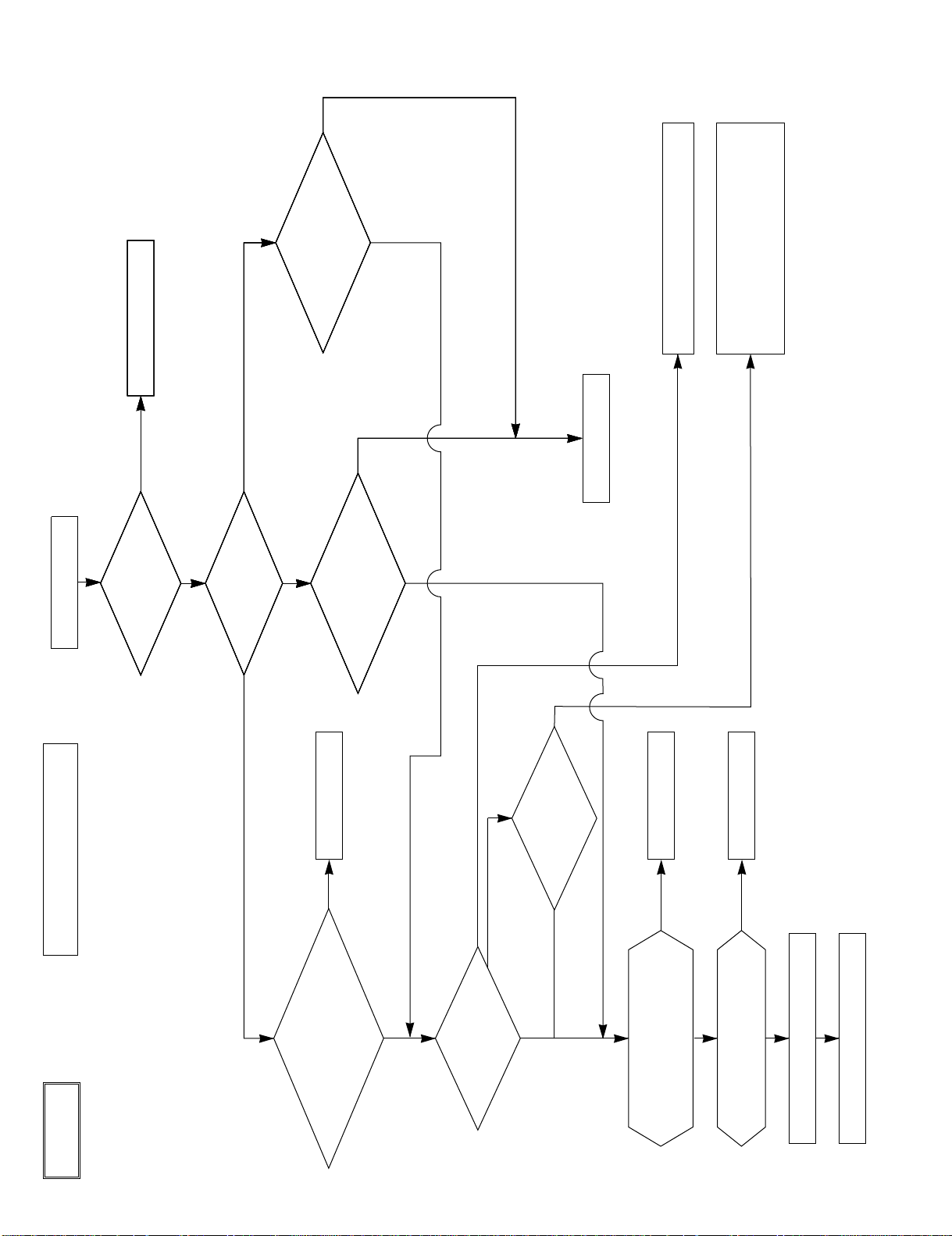

TROUBLESHOOTING FLOWCHART . . . . . . . . . . . . . . . . . . . . . . . . . . 13
V
S AND Vd ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
GENERAL CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DISASSEMBLY PROCEDURES
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
- 1 -
- 2 -
IMPORTANT INFORMATION
WARNING : TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
Please use a screen saver to prevent burning of an after-image on the screen.
Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this unit, observe the following basic rules governing its installation, use and service. Please read these "Important Safeguards" carefully before use.
Read all the safety and operating instructions before operating the unit. Retain the safety and operating instructions for future reference. Adhere to all warnings on the unit and in the operating instructions. Follow all operating instructions. Unplug the unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. Do not use attachments not recommended by the manufacturer as they may be hazardous. Do not use the unit near water. Do not use the unit immediately after moving it from a low temperature to a high
temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards.
Do not place the unit on an unstable cart, stand, or table. The unit may fall, causing serious injury to a child or adult, and
serious damage to the unit. Mount the unit according to the manufacturer's instructions, using the mount recommended by the manufacturer.
When the unit is used on a cart, avoid quick stops, excessive force, and uneven
surfaces which may cause the unit and cart to overturn, damaging the unit or causing possible injury to the operator. When transporting by car, place the unit as shown in the figure.
Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation and protect the unit from
overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the unit on a bed, sofa, rug, or similar surface. The unit should not be placed in a built - in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instructions are adhered to.) For proper ventilation, separate the unit from other equipment, which may obstruct ventilation. Keep the unit at least 10cm from other equipment.
Operate only with the type of power source indicated on the label. If you are not sure of the type of power supply to your
home, consult your dealer or local power company.
This unit is equipped with a three-wire plug. This plug will fit only into a grounded power outlet. If you cannot insert the plug
into the outlet, have an electrician install the proper outlet. Do not defeat the safety purpose of the grounded plug.
Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay
particular attention to cords at doors, plugs, receptacles, and where they exit from the unit.
For added protection during a lightning storm, or when the unit is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the cabling. This will prevent damage to the unit by lighting and power line surges.
Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in fire or
electric shock.
Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or short-circuit
parts that could result in a fire or electric shock. Never spill liquid of any kind onto the unit.
- 2 -
Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltages and
other hazards. Have all service done by qualified service personnel.
Unplug this unit from the wall outlet and have it serviced by qualified service personnel in the following cases:
a) If the power supply cord or plug is damaged. b) If liquid has been spilled, or objects have fallen onto the unit. c) If the unit has been exposed to rain or water. d) If the unit does not operate normally by following the operating instructions. Adjust only those controls that are
covered by the Operation Manual, as improper adjustment of controls may result in damage and will often require extensive work by a qualified technician to restore the unit to normal operation.
e) If the unit has been dropped or damaged in any way.
A distinct change in performance indicates that service is required.
When required, be sure the service technician uses replacement parts specified by the manufacturer or parts with the
same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.
Upon completion of any service of repairs, ask the service technician to perform safety checks to determine that the
unit is in proper operating condition.
Place the unit more than one foot away from heat sources such as radiators, heat registers, stoves, and other devices
(including amplifiers) that produce heat.
When connecting other devices such as VCR's and personal computers, turn off the power to this unit to protect
against electric shock.
Do not place combustibles such as cloth, paper, matches, aerosol cans or gas lighters that prevent special hazards
when overheated behind the cooling fan.
Use only the accessory cord designed for this unit to prevent shock.
The power supply voltage rating of this unit is AC100-240V, but the attached power cord conforms to the following power supply voltage. Use only the Power Cord designated by our dealer to ensure Safety and EMC.
When used with other power supply voltages, the power cable must be changed. Consult your local dealer.
Power Cord
Power supply voltage : AC 100 - 125 V AC 200 - 240 V AC-240V
(SAA TYPE)
- 3 -
SPECIFICATIONS
EN55022 A1/A2 Class B EN61000-3-2, 1995 EN61000-3-3, 1995 EN55024 1998 EN61000-4-2, 1995 EN61000-4-3, 1996 EN61000-4-4, 1995 EN61000-4-5, 1995 EN61000-4-6, 1996 EN61000-4-8, 1993 EN61000-4-11, 1994
100-240V, 50/60Hz
Current drain 3.5A
Display panel
Power requirement
Screen size 92.1 (W) x 51.8 (H) [cm]
36.3 (W) x 20.4 (H) [inch] Aspect ratio 16 : 9 Number of pixels 852 (H) x 480 (V) pixels Pixel pitch 1.08mm x 1.08mm
Contrast ratio PDS4233/4234 1500 : 1 (typ.) Brightness 700 cd/m
2
(typ.)
Viewing angle Max. 160 degrees
Input Terminals
Video input BNC connector
1.0V
P-P /75
S video input S terminal
Y signal:1.0V
P-P /75
C signal:0.286V
P-P /75
Component Three BNC terminals video input Y : 1V
P-P /75
P
b /B-Y: 0.7V P-P
Pr /R-Y: 0.7V P-P
RGB 2 input mD-sub:15pin (3 row type)
Video : 0.7V
P-P
SYNC signal : TTL level
RGB 3 input BNC terminal x 5
R: 0.7V
P-P
G: 0.7VP-P B: 0.7VP-P H: TTL level or 0.3VP-P V: TTL level or 0.3VP-P
User set mode 8 memories (each RGB1,2) Display frequency Horizontal :15.63 to 80.0MHz
Vertical : 50.0 to 120Hz Dot clock:50MHz Max
XGA 68MHz Max
RS-232C D-sub 9 pin terminal Color system
NTSC/PAL/SECAM/N-PAL/M-PAL /4.43NTSC/PAL60
Display colors
16.7 million (256 each for R.G.B.)
2 pin terminals(one system)
Audio input
500mVrms/22k
Effective max.
Level terminal 9W+9W (L/R), 8
output
Dimensions Width : 103.5cm (40.7 inch)
Height: 64.0cm (25.2 inch) Depth : 8.5 cm ( 3.3 inch)
Net weight 28.5kg
Environment (Operating)
Temperature 0 to 40 C Relative humidity 20 to 80% Pressure 720 to 1,100 hPa
Accessories User's manual
Remote controller Batteries (Type AA x 2) Power cord Ferrite core (2)
Options
Stand P-42TT33 Wall mounting unit
P-42WB12 installation angle Horizontal 0 to 15 Vertical 0 to 5
Ceiling mounting unit P-42CT11 installation angle
Available 0 to 15
Standards
PDS4233W/E-H PDS4234W/E-S
AS
Safety : IEC950 A1/A2/A3/A4 IEC950 A1/A2/A3/A4 EMC : AS/NZS 3548 AS/NZS 3548
EN60950 1992
A1 1993 A2 1993 A3 1995 A4 1997
CE
Safety: EN60950 1992
A1 1993 A2 1993 A3 1995 A4 1997
UL,CSA
Safety:
UL1950 UL1950 CSA C22.2 No.950 CSA C22.2 No.950 EMC: FCC Part15 Class A FCC Part15 Class B ICES-003 Class A ICES-003 Class B
EMC : EN55022 A1/A2
Class A EN61000-3-2,1995 EN61000-3-3,1995 EN55024 1998 EN61000-4-2,1995 EN61000-4-3,1996 EN61000-4-4,1995 EN61000-4-5,1995 EN61000-4-6,1996 EN61000-4-8,1993 EN61000-4-11,1994
RGB 1 input
DVI-D terminal
/75 /75
/75
/75 /75 /75
/75 /75
- 4 -
SETTING SIGNALS
This display can store parameter settings for eight additional signals for RGB. To do this, select the desired signal and follow "RGB MODE ADJUSTMENT" in the manual to adjust the parameters. When you finish, the settings will be automatically stored.
FACTORY SET SIGNALS (RGB MODE)
Main corresponding signals (RGB mode)
* With some input signals, “Out of range” may appear even when the horizontal and vertical frequencies are within their permissible ranges. Make
sure that the vertical frequency of the input signal is 85 Hz or less for SVGA, 75 Hz or less for XVGA/ SXGA , 60 Hz or less for UXGA.
640 x 480 31.47 VGA 640 x 480 37.86 72.81
59.94 VGA 72 Hz
640 x 480 37.50 75.00 VGA 75 Hz 640 x 480 43.27 85.01 VGA 85 Hz 720 x 400 31.47 70.09 400 lines 800 x 600 37.88 60.32 SVGA 60 Hz 800 x 600 48.08 72.19 SVGA 72 Hz 800 x 600 46.88 75.00 SVGA 75 Hz 800 x 600 53.67 85.06 SVGA 85 Hz 1024 x 768 48.36 60.00 XGA 60 Hz 1024 x 768 56.48 70.07 XGA 70 Hz 1024 x 768 60.02 75.03 XGA 75 Hz 1280 x 1024 63.98 60.02 SXGA 60 Hz 1280 x 1024 79.98 75.03 SXGA 75 Hz 1600 x 1200 75.00 60.00 UXGA 60 Hz 640 x 480 35.00 66.67 MAC 13RGB 848 x 480 31.02 60.00 852 x 480 31.72 59.97 720 x 485 15.73 59.94 60 fields 720 x 575 15.63 50.00 50 fields 640 x 400 31.50 70.15 NEC 31 kHz
Signal
Display (dots x lines)
Horizontal frequency (kHz) Vertical frequency (Hz)
- 5 -
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
Signal
15.73 SDTV 480i
15.63 SDTV 576i
31.47 SDTV 480p
31.25 SDTV 576p
45.00 HDTV 720p
37.50 HDTV 720p
33.75 HDTV 1,080i
28.13 HDTV 1,080i
FACTORY SET SIGNALS (Component video mode)
Pin No. Input signal Pin No. Input signal
1 Red 9 2 Green 10 Ground 3 Blue 11
12
4 5 Ground 13 Horiz. sync 6 Ground 14 Vert. sync 7 Ground 15 8 Ground
Outer side
Ground
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
Signal
15.73 NTSC
15.63 PAL
15.63 SECAM
15.63 PAL 60
15.63 N-PAL
15.73 M-PAL
15.73 4.43 NTSC
FACTORY SET SIGNALS (Video, S-video mode)
The dedicated graphics card is optional. In the 800 x 600 and 1,024 x 768 modes, images of reduced size are displayed on the screen, using size reduction and interpolation. Also note that on-screen information is also displayed in reduced size. " Out of range" appears if the display receives a signal whose characteristic does not fall within the display's permissible range. You can check the input signals with "Information" on the OTHERS Menu screen.
∗ The sync switch (TTL/ANALOG switch) is on
the rear of the 13-pin horizontal sync and 14-pin vertical sync terminals.
Pin No.
RGB INPUT TERMINAL
Pin No. No. signal
1 DCD (Data Carrier Detect) 2 RD (Receive Data) 3 TD (Transmit Data) 4 DTR (Data Terminal Ready) 5 GND (Ground) 6 DSR (Data Set Ready) 7 RTS (Request To Send) 8 CTS (Clear To Send) 9 RI (Ring Indication)
RS-232C INPUT TERMINAL
DVI-D INPUT TERMINAL
50.00
59.52
59.95
59.94
50.00
50.00
59.94
50.00
60.00
50.00
60.00
50.00
59.94
50.00
59.94
- 6 -
Connection to AV equipment Connection to PC
T
Connection to AV equipment Connection to PC
(color difference
CONNECTION
COMPONEN VIDEO INPUT
input) /
RGB3 INPUT
POWER INPUT
RGB 2
INPUT
(mD-sub)
RGB 1
INPUT
(DVI-D)
VIDEO INPUT
S-VIDEO
INPUT
RS-232C
AUDIO 2
INPUT
AUDIO 1
INPUT
To color difference
output terminal /
o display (analog RGB)
output terminal
To receptacle To display
(analog RGB)
output
terminal
To display
(digital RGB)
output
terminal
To sound
output
terminal
To RS-232C
output
terminal
To S-video
output
terminal
To video
output
terminal
To sound
output
terminal
T
T
Connection to AV equipment Connection to PC
Connection to AV equipment Connection to PC
- 7 -
Control Panel (bottom)Control Panel (bottom)Control Panel (bottom)Control Panel (bottom)
PART NAMES AND FUNCTIONS
Front
Power indicator lamp
This lamp shows the state of the power supply.
Lit (red) : Stand-by Lit (green) : Power ON Lit (orange) : Power saving (DPMS: Power
saving function) mode ON
Flashing (red) : Malfunction (Flashes differently
depending on the type of malfunction.)
Remote control signal receiver
Receives signals from the remote control.
Main power switch
When pressed, power indicator lamp
lights red, and the power can be turned on or off by the remote controller. When this switch is pressed again, the power is cut and power indicator lamp
goes off.
Power button [POWER]
Turns the power ON or OFF.
Input mode selector button [MODE]
Switches between picture input modes.
Wide screen selector button [WIDE]
Switches the screen over to a desired wide screen.
Menu button [MENU]
Displays picture adjustment menus.
Adjustment buttons [ / ]
Adjust the volume. The [ / ] buttons can also be used to scroll through the options when a menu is displayed.
Adjustment buttons [ / ]
The [/] buttons can also be used to scroll through options in a menu, or to change values.
Set button [ENTER]
Press this button to finalize the selection of a desired option in a menu.
Power ON button [POWER ON]
Turns the power ON.
Power OFF button [POWER OFF]
Turns the power OFF.
RGB input mode selector button [RGB]
Switches between RGB input modes.
Video input mode selector button [VIDEO]
Switches between video input modes.
Wide screen selector button [WIDE]
Switches the screen over to a desired wide screen.
Menu button [MENU]
Use this button to display a desired menu for adjusting the picture.
Volume adjustment buttons [VOL +/-]
Adjust the volume.
Press the + button to increase the volume. Press the - button to reduce the volume.
Adjustment buttons [ / / / ]
Use these buttons to scroll through options in a menu and change values.
Enter button [ENTER]
Press this button to finalize the selection of a desired menu or option within a menu.
Display selector buttons [SHIFT 1-4]
When you use two or more displays, you can use these buttons to control up to four displays by assigning an unique number to each display.
ENTER
MENU
SHIFT
1
2
3
4
VIDEO
VOL
POWE
R
ON
RGB
P
OWE
ROFF
W
I
D
E
ENTER
MENU
SHIFT
1
2
3
4
VIDEO
VOL
POWE
R
ON
RGB
P
OWE
ROFF
W
I
D
E
ENTER
MENU
SHIFT
1
2
3
4
VIDEO
VOL
POWE
R
ON
RGB
P
OWE
ROFF
W
I
D
E
ENTER
MENU
SHIFT
1
2
3
4
VIDEO
VOL
POWE
R
ON
RGB
P
OWE
ROFF
W
I
D
E
Remote control
- 8 -
Bottom
External speaker output terminal (EXT SP)
Connect this terminal to the optionally available speaker. (Use a speaker with 4 to 16
.)
∗ See the speaker instruction manual for more information.
Sound 1 input terminal (AUDIO 1 INPUT)
Connect this terminal to the sound output terminal of your VCR, etc.
Sound 2 input terminal (AUDIO 2 INPUT)
Connect this terminal to the sound output terminal of your VCR, etc.
Video input terminal (VIDEO INPUT)
Connect this terminal to the video output terminal of your VCR or video disk player.
S-video input terminal (S-VIDEO INPUT)
Connect this terminal to the S-video output terminal of your VCR or video disk player.
RS-232C terminal (RS-232C)
This terminal is provided for you to control the display from the PC. Connect it to the RS-232C terminal on the PC. When connecting a cable, attach a ferrite core to the cable.
RGB 1 input terminal (RGB 1 INPUT/DVI-D)
Connect this terminal to the PC's display (digital RGB) output terminal or decoder (digital broadcast tuner, etc.) output terminal.
∗ The connection cable No.88741-8000 made by molex Inc. is recommended.
RGB 2 input terminal (RGB 2 INPUT/mD-sub)
Connect this terminal to the PC's display (analog RGB) output terminal or decoder (digital broadcast tuner, etc.) output terminal.
RGB 3 synchronization switch (SYNC SW TTL/ANALOG (75
))
This switch is used to terminate horizontal (H) terminal and vertical (V) terminal, out of RGB3 input terminals, with 75 .
TTL : Used when sending RGB signals from the PC to the RGB terminal ANALOG (75 ) : Used when sending analog synchronization signals to the RGB terminal
RGB 3 input terminal (RGB 3 INPUT/BNC)
Connect this terminal to the PC's display (analog RGB)output terminal or decoder (digital broadcast tuner,etc.) output terminal.
∗ When RGB3 input terminal is connected, Comp.video mode is not available.
Component video input terminal (COMPONENT VIDEO INPUT)
Connect this terminal to the component video output (color difference output) terminal of your HDTV unit or DVD player.
∗ When Comp.video input terminal is connected, RGB3 mode is not available.
Power input terminal
Connect this terminal to the power cable supplied with the display.
∗ When connecting a cable, attach a ferrite core to the cable.
+
- 9 -
VIDEO MODE ADJUSTMENT
Zoom1
Zoom2
POWER ON POWER OFF RGB
VIDEO
WIDE
Normal Auto Wide 1 Wide 2 Zoom 1 Zoom 2
Mask Off
Mask 5
Mask 10
Mask 15
Position
Size
Horizontal "-"
Horizontal "+"
Width "-"
Width "+"
Vertical "-"
Height "-"
Height "+"
POSITION/SIZE
REMOTE CONTROLLER
Normal
Wide 1
Wide 2
Vertical "+"
Video S-Video Comp. Video
MENU ENTER
Contrast {-30 to +30} Brightness {-60 to +60} Color {-60 to +60} Tint {-30 to +30 (Comp. Video -60 to +60)} Sharpness {-4 to +4 (Decoder -16 to +16)}
Picture Mode
Color Temp.
User Color Temp.
Red {0 to 255} Green {0 to 255} Blue {0 to 255}
Standard Cool User Warm
Noise Reduction
Std Max Off Min
POSITION/SIZE
Position Horizontal {-30 to +30 (Comp. Video -16 to +16)}
Vertical {-7 to +7 (Zoom : -15 to +15) (Comp. Video -16 to +16)}
Size Width {-7 to +7 (Comp. Video -4 to +4)}
Height {-7 to +7 (Comp. Video -4 to +4)}
AUDIO
Treble {-6 to +6} Bass {-6 to +6} Balance {-10 to +10}
FEATURES
Adjustment Clamp Position {-8 to +8} *Only Comp. Video Function
24 Frame model
On Off
3D Y/C On
Off
On Screen Menu
OSD On
Off
OSD Rotate Normal
+90 Deg.
-90 Deg. English
Deutsch Espanol Francais Italiano Portugues
ÑN
Pycck *Only E-model
Language
Input Terminal Video Input
S-Video Input Auto
NTSC PAL SECAM PAL 60 N-PAL M-PAL
4.43 NTSC
Auto NTSC PAL SECAM PAL 60 N-PAL M-PAL
4.43 NTSC
BNC Input RGB PC
Decoder Comp. video
Mask Off
5 10 15
Others DPMS Time Off
1 min 15 min 45 min 60 min
Background Black
White
Audio Input No Audio
Audio 1 Audio 2
Off RGB2 RGB3 Video S-Video Comp. Video
Input Priority
Monitor No. 0
1 2 3 4
White Screen Off
On
Exhibition Mode
Off On
Installation Horizontal
Vertical
Key Lock Off
On
Information
Mode Monitor No. Freq. Scan Mode Input Signal Freq.
Execute Yes
No
FACTORY DEFAULT
RGB 1 RGB 2 RGB 3
D-Sub Input
Mask Off
5 10 15
Function
Dynamic Fine Real 1 Real 2 Static
RGB PC Decoder
- 10 -
RGB MODE ADJUSTMENT
Zoom
Moving Area Min. (5 dot)
Moving Area Std. (10 dot)
Moving Area Max. (15 dot)
POWER ON POWER OFF RGB
VIDEO
WIDE
Normal Wide Zoom
Mask Off
Mask 5
Mask 10
Mask 15
Position
Size
Horizontal "-"
Horizontal "+"
Width "-"
Width "+"
Vertical "-"
Height "-"
Height "+"
POSITION/SIZE
REMOTE CONTROLLER
Normal
Wide
Vertical "+"
Video S-Video Comp. Video
MENU ENTER
Color Temp.
User Color Temp.
Red {0 to 255} Green {0 to 255} Blue {0 to 255}
Standard Cool User Warm
POSITION/SIZE
Position Horizontal {-150 to +150 (Decoder: -16 to +16) (1080I, 720P: -32 to +32)}
Vertical {-150 to +150 (Decoder: -16 to +16) (1080I, 720P: -32 to +32)}
Size Width {-25 to +50 (Decoder: -4 to +4)}
Height {-25 to +50 (Decoder: -4 to +4)}
AUDIO
Treble {-6 to +6} Bass {-6 to +6} Balance {-10 to +10}
FEATURES
Adjustment Dot Clock {-60 to +60}
Clock Phase
Auto Manual {1 to 32}
Vertical Sync. {-1 to +1} Clamp Position {-8 to +8}
On Screen Menu
OSD On
Off
OSD Rotate
English Deutsch Espanol Francais Italiano Portugues
ÑN
Pycck
*Only E-model
Language
Input Terminal Video Input
S-Video Input
BNC Input RGB PC
Decoder Comp. video
Mask Off
5 10 15
Others DPMS Time
Off 1 min 15 min 45 min 60 min
Background Black
White
Audio Input
Input Priority
Monitor No.
White Screen Off
On
Exhibition Mode
Off On
Installation Horizontal
Vertical
Key Lock Off
On
Information
Mode Monitor No. Freq. Scan Mode Input Signal Freq. Preset No.
Execute Yes
No
FACTORY DEFAULT
Execute
Yes No
Auto Calibration
Mode/Time Off
Time Mode
Screen Orbiter
Moving Area Std
Max Min
Direct Setting
Code Setting Auto
Manual {01 to 2A} *Hexadecimal
RGB 1 RGB 2 RGB 3
Auto NTSC PAL SECAM PAL 60 N-PAL M-PAL
4.43 NTSC
D-Sub Input
Off 5 10 15
Function RGB PC
Decoder
Mask
Auto NTSC PAL SECAM PAL 60 N-PAL M-PAL
4.43 NTSC
Off RGB2 RGB3 Video S-Video Comp. Video
Auto VGA WVGA 480P XGA WXGA SXGA SXGA+
0 1 2 3 4
Normal +90 Deg.
-90 Deg.
No Audio Audio 1 Audio 2
Contrast {-30 to +30} Brightness {-60 to +60} Color {-60 to +60} Tint {-60 to +60} Sharpness {-4 to +4(Decoder -16 to +16)}
Picture Mode
Dynamic Fine Real 1 Real 2 Static
- 11 -
TROUBLESHOOTING USING LED AND OSD
1. Display
(1) OSD
Two kinds of error messages are displayed on the screen, and the power is turned off 10 sec later.
(2) LED
LED error is displayed continuously after the power is turned off.
2. Error types and check points
On screen display Cause Check point
ERROR MESSAGE CONDITION 1
Fan protector operated
Fan Main power PCB Main/Digital PCB
ERROR MESSAGE CONDITION 2
Temperature protector operated
Ambient temperature of unit Main/Digital PCB Temp. sensor IC757
(1) OSD
LED lamp display status Cause Check point
Steady light (Red)
Stand-by status
Continuous
Flashes continuously (Red)
No power Power supply protector
operated
Main power PCB PDP panel
1 time
Flashes once every 4 sec. (Red)
Fan protector operated
Fan Main power PCB Main/Digital PCB
2 times
Flashes twice every 5 sec. (Red)
Temperature protector operated
Ambient temperature of unit Temperature sensor IC757 Main/Digital PCB
4 times
Flashes four times every 7 sec. (Red)
Main/Digital circuit faulty Main/Digital PCB
5 times
Flashes five times every 8 sec. (Red)
Video circuit faulty Video PCB Assy
(2) LED
--------------------
- 12 -
TROUBLESHOOTING FLOWCHART
LED lamp blinking
Turn power on and check state of lamp.
Not lighted.
LAMP STATE
Power supply circuit faulty.
POWER SUPPLY STATE
∗ Replace Power
Supply PCB.
REMEDY
∗ Vs and V
d must be adjusted.
Blinks continuously.
Power turned off immediately.
RED
Check 1
Blinks continuously.
Power turned off immediately.
RED
Check 1
Blinks once
Power turned off after 10 sec.
RED
Check 2
Blinks twice
Power turned off after 10 sec.
RED
Check 3
Blinks four times
Power not turned off, LED blinks only.
RED
Replace Main/Digital PCB Assy.
Blinks five times
Power not turned off, LED blinks only.
RED
Replace Video PCB Assy.
Is on-screen display normal?
All input image faulty.
Signal processing
PDP panel faulty.
Video PCB faulty.
Video PCB faulty.
PCB faulty.
Signal processing PCB faulty.
Replace Main/Digital PCB Assy.
Replace PDP panel
Replace Main/Digital PCB Assy.
Replace Video PCB Assy.
Replace Video PCB Assy.
Video input image faulty.
S-video input image faulty.
Component video input image faulty.
RGB 1,2 input image faulty.
Check 4
Lights steadily for more than 10 sec.
GREEN
NO
YES
Note : 1. Protector operates when connector P4(CN4)
is disconnected and power is turn off.
- 13 -
Check 1
Start
(1) Turn the main power off and disconnect the connector P2,P3,P4,P5 and P6 on the
Main Power PCB.
(2) Connect pin 1 and pin 13 of P2 through a 1/4W, 1kΩ resistor.
Connect pin 1 of P4 and pin 9 of P6 Turn the main power on again.
(4)
(3)
Measure during relay turning on and off.
PDP Panel
Power supply protector operated
Flashing continuously in red. (at an interval of 0.5 sec)
∗
Replace PDP Panel.
∗ Vs and Vdmust be adjusted.
Yes
Is voltage
at connector P5 pin
10(Vs) 160V and pin 7(Vd)
65V on Main Power
PCB ?
faulty.
Power Supply
∗
Replace Power Supply PCB.
∗ Vs and Vdmust be adjusted.
PCB.
No
Power lamp:
- 14 -
No
No
Fan protector operated
Power lamp: Flashes once intermittently in red.
(For 0.5 sec. at an interval of 3 sec.)
Check 2
Start
Yes
Is voltage at
connectors P951 3pin,
P953 3pin and P954 3pin
on Main/Digital PCB
14V?
Microcomputer
peripheral
circuit faulty.
Replace Main/
Digital PCB Assy.
Temperature protector operated
Power lamp : Flashes intermittently twice in red.
(For 0.5 sec. at an interval of 5 sec.)
Check 3
Start
Adjust PDP unit installation so that
peripheral temperature is 40.0 C or
less.
No
Is ambient temperature
of IC757 on Main/Digital
PCB less than 60 C ?
Microcomputer
peripheral circuit
faulty.
Yes
Replace
Main/Digital
PCB Assy.
Fan faulty Replace fan.
Temperature
sensor IC757 faulty.
Temperature sensor cooling
The temperature sensor IC757 is installed
on Main/Digital PCB. Turn the power off
and cool with a point cooler.
Replace
temperature sensor
IC757.
Does unit
operate normally
when temperature sensor
IC757 changed ?
- 15 -
Yes
Yes
Yes
Sync. on green signal
Yes
No
No
Is RGB
cable pin arrangement
appropriate ?
What kind of
signal is output from signal
source ?
Is composite sync.
signal input to pin 2 of RGB
cable ?
Is composite sync.
signal input to pin 13 of RGB
cable ?
Is Sync.
correctly ?
Is horizontal sync.
signal input to pin
signal input to pin
RGB cable ?
Check input signal.
Check input signal.
Check input signal.
Is input level(∗) within specified
range ?
Signal processing circuit faulty.
Yes
Yes
Yes
Sync. on green signal
Yes
No
No
Is RGB
cable pin arrangement
appropriate ?
What kind of
signal is output from signal
source ?
Is composite sync.
signal input to pin 2 of RGB
cable ?
Is composite sync.
signal input to pin 13 of RGB
cable ?
Is Sync. switch
Is horizontal sync.
signal input to pin 13 and vertical sync
signal input to pin
RGB cable ?
Check input signal.
Check input signal.
Check input signal.
Is input level(∗) within specified
range ?
Signal processing circuit f .
Yes
Yes
Yes
Sync. on green signal
Yes
No
No
Is RGB
cable pin arrangement
appropriate ?
What kind of
signal is output from signal
source ?
Is composite sync.
signal input to pin 2 of RGB
cable ?
Is composite sync.
signal input to pin 13 of RGB
cable ?
Is horizontal sync.
signal input to pin
RGB cable ?
Check input signal.
Check input signal.
Check input signal.
Is input level(∗) within specified
range ?
Signal processing circuit faulty.
RGB input is abnormal.
Power lamp: Lighted green
(10 sec or more)
Check 4
Start
Separate signal Composite signal
No
Yes
Yes
Yes
Sync. on green signal
Yes
No
No
No
No
Is RGB
cable pin arrangement
appropriate ?
What kind of
signal is output from signal
source ?
Is composite sync.
signal input to pin 2 of RGB
cable ?
Is composite sync.
signal input to pin 13 of RGB
cable ?
(TLL/ANALOG) selected
Is horizontal sync.
signal input to pin 14 of
RGB cable ?
Check connection cable.
Check input signal.
Check input signal.
Mak
Change sync.switch (TTL/ANALOG)
e sync. signal polarity output
from signal source negative, or make
output impedance TTL.
No
No
Check input signal.
Check input signal.
Is input level(∗) within specified
range ?
Yes
Yes
Signal processing circuit faulty.
Replace Main/Digital PCB Assy.
- 18 -
Is Sync.
signal polarity
negative ?
Note(∗): If the synchronizing signal cannot be identified by
TTL level, it is in the 75Ω terminated state.
Yes(ANALOG)
Yes
Connect RGB cable
to terminal.
Is frequency of horizontal sync.
and vertical sync signals within
specified range ?
- 16 -
VS AND Vd ADJUSTMENT
When the Main Power Supply PCB and PDP panel are replaced, Vs and Vd must be adjusted.
Adjustment time Within 3 minutes after power on.
Adjustment signal Adjust the Vs and Vd in the no-signal state.
Check points Refer to the dra wing shown below.
Adjustment points Refer to the drawing shown below.
Adjustment value Within +/- 0.1V of voltage indicated on the label on the PDP panel.
Vs & Vd check point P6
T4
T3
T2
L4
L2
L1
P5
P6
C56
RV3 Vs ADJ.
RV4 Vd ADJ.
1
9
1 pin Vs 2 pin Vs
4 pin Vd
5 pin GND 6 pin GND
Main Power Supply PCB (PFW-423)
- 17 -
GENERAL CONNECTION DIAGRAM
1
AC(N)
CN1
(DF7-2P)
P1
AC(L)
M4
INLET
FG
2
OPTICAL FILTER MC 2.20 HM T2.5 GLS M8
PLASMA DISPLAY PANEL UNIT
AC/DC POWER SUPPLY
NP42B2MF02
CN201
(F1-TWE31PB-VF)
1
LVDS
20
CN104
(B10B-VH)
1
LVP
GND
GND
VCC
GND
GNDVCN.C.VSVS
10
(EH-2P)
1
CN507
(VH-2P)
2
1
GND
+14V
2
1
PFW-423
P2 P3 P6
CN352
(B13B-PH-K-S)
P5V
+14V
+14V
GND
-8V
GND
RE12.5V
GND
GND
PSIATE0
PSIATE1
ACON
RELAY
13
(VH-10P)
10
+8V
GND
CN351
+5V
GND
+3.3V
GND
+2.5V
+2.5V
GND
GND
1
Vs : 160 V Vcc : 5 V Vd : 65 V Lvp : 5V
CN105
(B9B-VH-B)
1VSVS
N.C.VCGND
GND
VCC
GND
GND
9
(B10B-VH)
1
LVP
GND
P5P4P7
CN104
GND
VCC
GND
GNDVCN.C.VSVS
CN105
(B9B-VH)
1
VCC1
GND
GND
GND
GND
10
N.C.VSVSVS9
92 FAN
2** Pitch wire with connector
L angle type
P6701
M00BWC
40 FAN
M00BWE
92 FAN
CN1004
(TX24-30R-6ST-H1)
0500848539
TERMINAL
(BNC)
CN1001
COMPONENT VIDEO INPUT 75 OHM SW
RGB3
(BNC)
CN1002
SW1001
2** Pitch wire with connector
L angle type
P6900
M00BWD
1 GND KEYIN0 KEYIN1 KEYIN2 KEYIN3 KEYSCAN1 KEYSCAN2 KEYSCAN3 8
(B8B-PH-SM3-TB)
0500200382
3
+14V
FANPRM1
GND
CN751
Y TYP SMT
(TX25-30P-12ST-H1)
P951
CN702
0500826568
3
1
1
13
+14V
FANPRM3
GND
P953
(S3B-PH-SM3-TB)
0500205349
(S3B-PH-SM3-TB)
CN401
M-SUB 15PIN
RGB2
1
10
+8V
RELAY
ACON
PSIATE1
PSIATE0
GND
GND
RE12.5V
GND
CN352
-8V
GND
+14V
+14V
P5V
(VH-10P)
M01AX
0500205301
GND
CN351 L TYP
(S13B-PH-SM3-TB)
MAIN / DIGITAL
(SIGNAL PROCESSING)
2** Pitch wire with connector
Straight type
M00BWH
6
N.C.
GND
DATA
1
CLKCEMUTE
(TX25-60P)
(TX24-60P)
S.TERMINAL
S-VIDEO INPUT
CN3001
6
P1001
M00BWA M00BWB
V TYP SMT
N.C.
GND
DATA
CLKCEMUTE
CN2
(PH-6P)
1
VIDEO
AUDIO
J1202
(BNC) J1200
VIDEO INPUT
TER1
EXT-SP
1
GND
CN4
(VH-2P)
L TYP
J1
AUDIO 2 AUDIO 1
AUDIO INPUT
2
+14V
M00BWF
1
+5V
GND
+3.3V
GND
+2.5V
+2.5V
GND
GND
5
3
1
+14V
FANPRM4
GND
(S5B-PH-SM3-TB)
1
+5V
LEDR
LEDG
REMOCON
GND
CN752
L TYP SMT 0500205363
P954
0500205349
(S3B-PH-SM3-PH)
CN301
DV1 24P
RGB1
CN3002
(TX25-60P)
CN701
(TX24-60P)
(F1-WE31P)
P902
D-SUB 9PIN
RS232C
CN3003
Straight TYP SMT
CONNECTION PCB
CN201 V TYP
CN202
(VH-2P)
1
31
PHOTO AMP
LED / PHOTO AMP
POWER
MODE MENUWIDE
KEY SWITCH
ENTER
POWER SWITCH
– 18 –
DISASSEMBLY PROCEDURES
A : Main Power PCB
B : Main Digital PCB
C : Video PCB
D : Audio PCB
1.Removing the Rear Case
1)Remove the 22 circled screws and remove the Rear Case.
∗Layout of Main PCB.
- 19 -
- 19 -
2. Removing the Main Power PCB
1)Remove the Rear Case.
2)Remove 2 circled screws and remove the Option Frame.
3)Disconnect the circled connector.
4)Remove the 4 screws and Main Power PCB.
∗View after Main Power PCB removed.
- 20 -
3. Removing the Main Digital PCB (1 of 2)
1)Remove the Rear Case.
2)Remove the Video Unit.
3)Remove the circled screw and remove the Interface PCB from the Main Digital PCB.
4)Disconnect the circled connector
- 21 -
3. Removing the Main Digital PCB (2 of 2)
5)Remove the Rear Panel.
6)Remove the 4 screws at the shield bracket of the Main Digital PCB, and remove the shield bracket.
7)Remove the Main Digital PCB.
∗View after Main Digital PCB removed.
- 22 -
4. Removing the Audio PCB
1)Remove the Rear Case.
2)Disconnect the circled connector.
3)Remove the 5 screws.
∗View after Audio PCB removed.
- 23 -
5. Removing the PDP Unit (1 of 3)
1)Remove the Rear Case.
2)Disconnect the circled connectors CN751, CN752, P7and remove their wires to the outside of the Main Unit.
3)Remove the 6 circled screws. (Two screws indicated by the arrows are inside stand cover)
4)Remove the Base Frame from the Front Case together with panel and PCBs.
∗View of removal of the Base Frame from the Front
Case.
- 24 -
5. Removing the PDP Unit (2 of 3)
∗View after the Front Case Panel Unit and PCBs
removed.
5)Remove the 12 circled screws.
6)Disconnect the circled connector and Base Frame together with the other parts.
7)Remove the 9 circled screws and Shield Frame.
8)Disconnect the circled connector.
- 25 -
5. Removing the PDP Unit (3 of 3)
∗View after only the PDP Unit removed. ∗Replace the parts which are already mounted
correctly, when the PDP Unit is replaced.
- 26 -
6. Removing the Bezel Front
1)Remove the 2 circled Cover Stands and remove the screw in the holes.
2)Lift the bottom of the Bezel Front.
3)Lift the Bezel Front upward to remove it. (The top of the Bezel Front is hooked.)
∗View after Bezel Front removed.
- 27 -

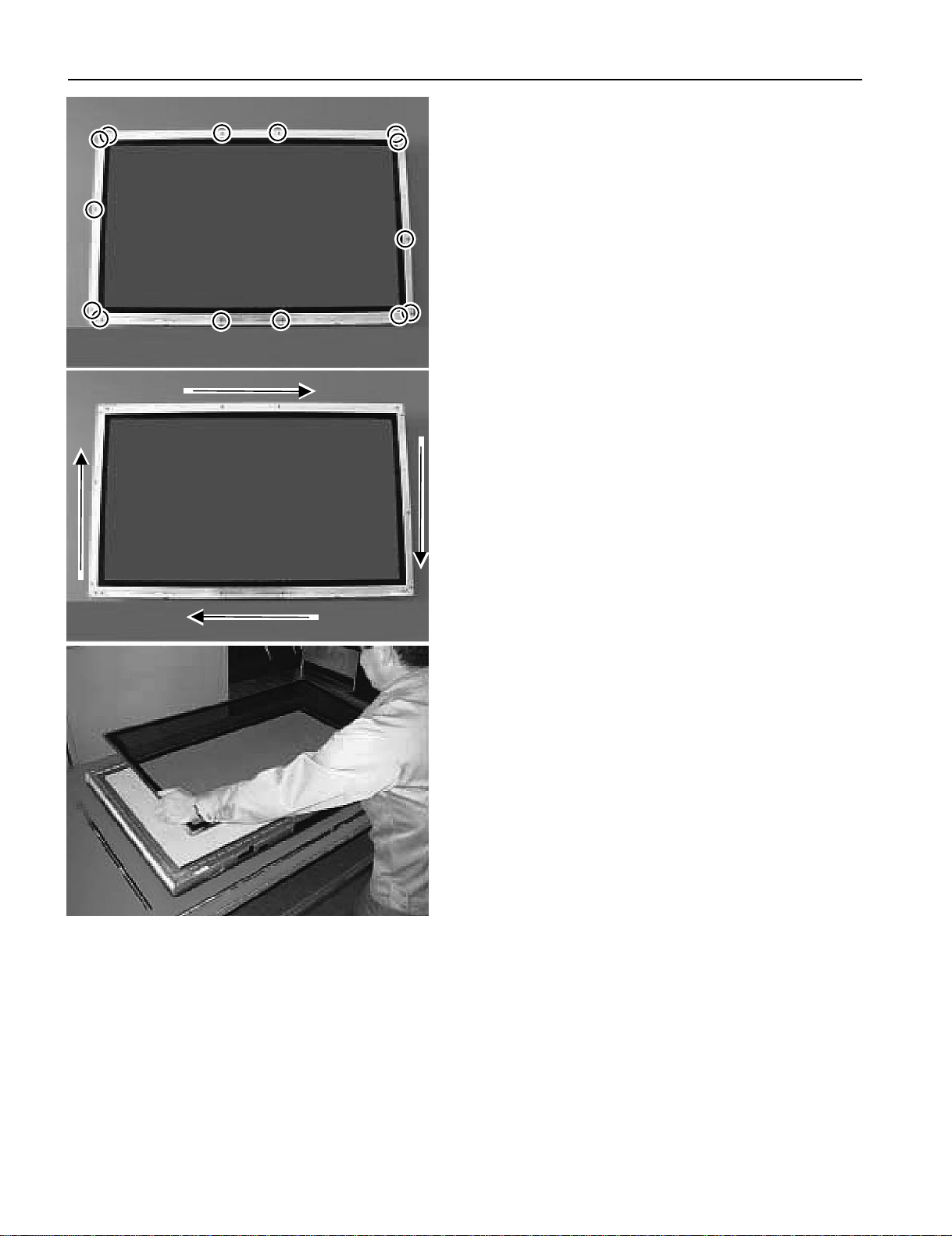

7. Removing the Optical Filter
1)Remove the Bezel Front.
2)Remove the 14 screws on the Filter Holders at each side.
3)Remove by sliding the Filter Holder in the arrow directions.
4)Remove the Optical Filter.
- 28 -
8. Removing the Key Switch PCB
1)Remove the Bezel Front.
2)Remove the Rear Case.
3)Remove by tilting the key switch part forward.
4)Unhook the hook holding the Key Switch PCB.
3)Remove the Key Switch PCB.
- 29 -
9. Removing the Video PCB
∗The Video PCB can be removed without moving
the Rear Case.
1)Remove the 4 circled screws.
2)Pull out the Video PCB Unit from the Plasmavision.
3)Remove 5 screws from the Video PCB Unit.
Note:
Three kinds of screws are used on this Video Unit. Be careful not to make any mistakes when reinstalling.
4)Remove the Video PCB.
- 30 -
Ref. No. Description PDS4233W-H PDS4233E-H PDS4233W-S PDS4233E-S PDS4234W-S PDS4234E-S Cabinet
Case Front 8111430006 Case Rear 8112684002 Bazel Front 8112000000 8112905008 8112966009 Cover Stand 8108298008 8112807005 ---------------- ---------------­Cover Stand L ---------------- ---------------- ---------------- ---------------- 8108360002 Cover Stand R ---------------- ---------------- ---------------- ---------------- 8108585009 Holder Filter (L/R) 8110619006 Holder Filter (T/B) 8110614001 Holder Key Switch 8108067000 8112806008 8108066003
Electric Fan Motor DO4R-12TM 8900291009
Fan Motor DO9A-12PH 8900233009 Optical Filter 8112396004 8112397001 Audio PCB Assy 8112577007 Connection PCB Assy 8112583008 I/O PCB Assy 8112585002 Key Switch PCB Assy 8112581004 LED/PHOTO PCB Assy 8112579001 Main Digital PCB Assy 8112997003 Video PCB Assy 8112575003 Main Power PCB Assy 8112608008 PDP Unit 8112595001 Noise Filter 0400222729 Power Cord UL.CSA 8111725003 ---------------- 8111725003 ---------------- 8111725003 ---------------­ VDE ---------------- 8111726000 ---------------- 8111726000 ---------------- 8111726000 Remote Control Unit 8108442005 8110867001
Packing Carton Top 8113152005
Carton Bottom 8108658000 Packing Joint-D 8108655009 Packing Pad-Top 8111629004 Packing Pad-Bottom 8111630000
: Same as left
PARTS LIST
- 31 -
TRANSPORTATION AND HANDLING RESTRICTIONS
Transportation
Bad loading
Don't load the plasmavision on a truck as shown in the drawing.
Handling
Never drop.Never topple.
Don't hold the surface of the optical filter.
Over 30 cm
Drop
Floor
- 32 -
3
4
Don't stack the plasmavision over three units high.
Example of good transportation and handling
Good loading
Load the plasmavision as shown above.
- 33 -
MEMO
- 34 -
January 2002 Printed in Japan0202J1957
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
