MPG3xxxAT

DISK DRIVES

PRODUCT MANUAL

C141-E110-02EN





5(9,6,21 5(&25'







(GLWLRQ

'DWH SXEOLVKHG

5HYLVHG FRQWHQWV







01

July, 2000









02

Aug, 2000

As the result of evaluation













6SHFLILFDWLRQ 1R & ( (1

7KH FRQWHQWV RI WKLV PDQXDO LV VXEMHFW WR FKDQJH ZLWKRXW SULRU QRWLFH

$OO 5LJKWV 5HVHUYHG &RS\ULJKW ã )8-,768 /,0,7('

C141-E110-02EN

i

This page is intentionally left blank.

PREFACE

This manual describes the MPG3xxxAT series, a 3.5-inchhard disk drive with aBUILT-INcontroller that is compatible with the ATA interface.

This manual explains, in detail, how to incorporate the hard disk drives into user systems.

This manual assumes that users have a basic knowledge of hard disk drives and their application in computer systems.

This manual consists of the following six chapters:

Chapter 1

DEVICE OVERVIEW

Chapter 2

DEVICE CONFIGURATION

Chapter 3

INSTALLATION CONDITIONS

Chapter 4

THEORY OF DEVICE OPERATION

Chapter 5

INTERFACE

Chapter 6

OPERATIONS

In this manual, disk drives may be referred to as drives or devices.

C141-E110-02EN

iii

Conventions for Alert Messages

This manual uses the following conventions to show the alert messages. An alert message consists of an alert signal and alert statements. The alert signal consists of an alert symbol and a signal word or just a signal word.

The following are the alert signals and their meanings:

This indicates a hazardous situation likely to result inserious personal injury if the user does not perform the procedure correctly.

This indicates a hazardous situation could result inpersonal injury if the user does not perform the procedure correctly.

This indicates a hazardous situation could result inminor ormoderate personal injury if the user does not perform the procedure correctly. This alert signal also indicates that damages to the product or other property,may occur if the user does not perform the procedure correctly.

This indicates information that could help the user use the product more efficiently.

In the text, the alert signal is centered, followed below by the indented message. A wider line space precedes and follows the alert message to show where the alert message begins and ends. The following is an example:

(Example)

IMPORTANT

HA (host adapter) consists of address decoder, driver, and receiver. ATA is an abbreviation of "AT attachment". The disk drive is conformed to the ATA-5interface

The main alert messages in the text are also listed in the “Important Alert Items.”

iv

C141-E110-02EN

LIABILITY EXCEPTION

"Disk drive defects" refers to defects that involve adjustment, repair, or replacement.

Fujitsu is not liable for any other disk drive defects, such as those caused by user misoperation or mishandling, inappropriate operating environments, defects in the power supply or cable, problems of the host system, or other causes outside the disk drive.

C141-E110-02EN

v

MANUAL ORGANIZATION

MPG3xxxAT



• DEVICE OVERVIEW

DISK DRIVES



• DEVICE CONFIGURATION

PRODUCT



• INSTALLATION CONDITIONS

MANUAL



• THEORY OF DEVICE OPERATION

(C141-E110)



• INTERFACE

<This manual>



• OPERATIONS













MPG3xxxAT



• MAINTENANCE AND DIAGNOSIS

DISK DRIVES



• REMOVAL AND REPLACEMENT PROCEDURE

MAINTENANCE





MANUAL





(C141-F045)











vi

C141-E110-02EN

CONTENTS







page

CHAPTER 1

DEVICE OVERVIEW.........................................................................................

1 - 1

1.1

Features

................................................................................................................................

1

- 1

1.1.1

Functions and performance ..................................................................................................

1

- 1

1.1.2

Adaptability ..........................................................................................................................

1

- 2

1.1.3

Interface

................................................................................................................................

1

- 2

1.2

Device Specifications ...........................................................................................................

1

- 4

1.2.1

Specifications summary........................................................................................................

1

- 4

1.2.2

Model and product number ..................................................................................................

1

- 5

1.3

Power Requirements.............................................................................................................

1

- 5

1.4

Environmental Specifications...............................................................................................

1

- 8

1.5

Acoustic Noise......................................................................................................................

1

- 8

1.6

Shock and Vibration .............................................................................................................

1

- 9

1.7

Reliability .............................................................................................................................

1

- 9

1.8

Error Rate .............................................................................................................................

1

- 10

1.9

Media Defects.......................................................................................................................

1

- 10

CHAPTER 2

DEVICE CONFIGURATION ............................................................................

2 - 1

2.1

Device Configuration ...........................................................................................................

2

- 1

2.2

System Configuration ...........................................................................................................

2

- 3

2.2.1

ATA interface.......................................................................................................................

2

- 3

2.2.2

1 drive connection ................................................................................................................

2

- 3

2.2.3

2 drives connection...............................................................................................................

2

- 3

CHAPTER 3

INSTALLATION CONDITIONS ......................................................................

3 - 1

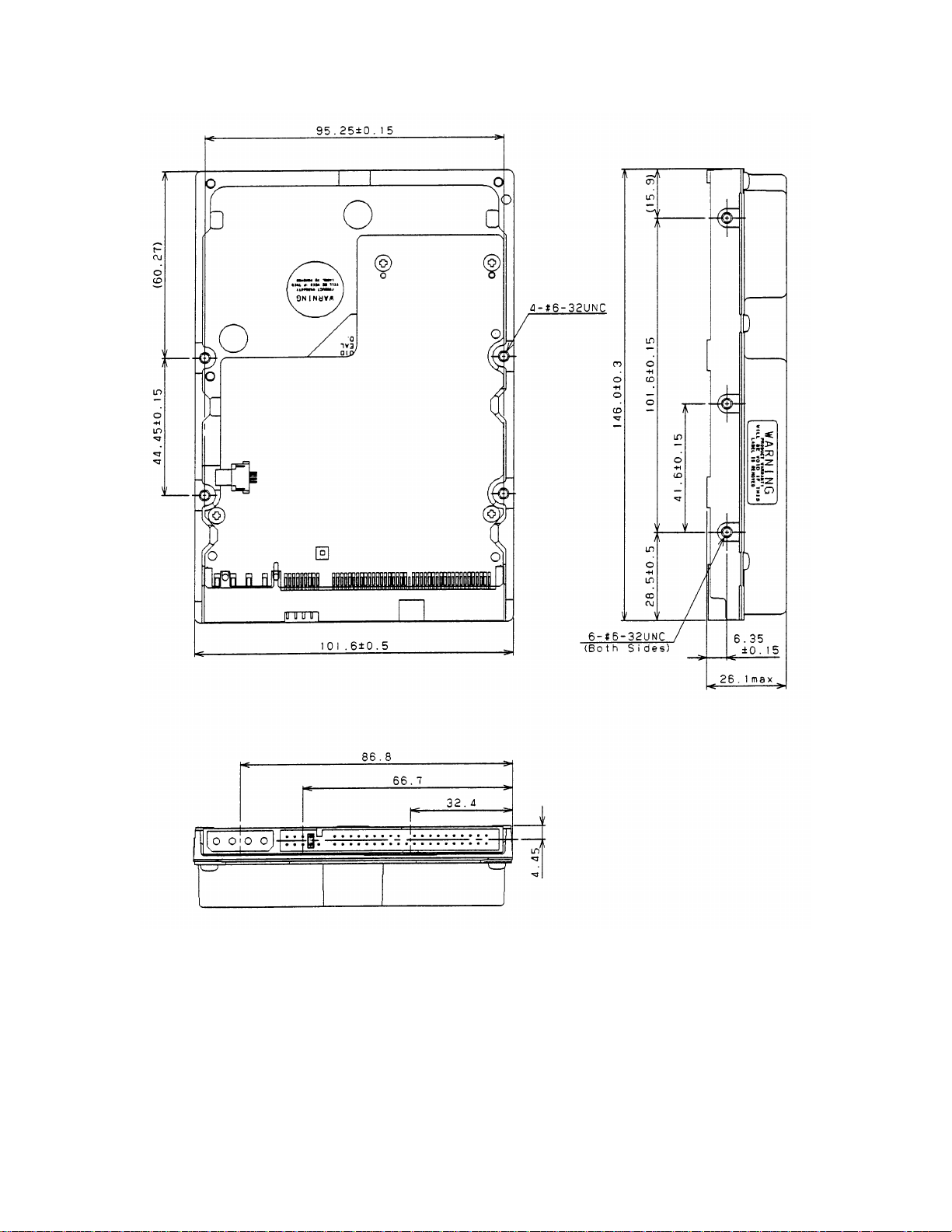

3.1

Dimensions ...........................................................................................................................

3

- 1

3.2

Handling Cautions ................................................................................................................

3

- 3

3.2.1

General notes ........................................................................................................................

3

- 3

3.2.2

Installation ............................................................................................................................

3

- 3

3.2.3

Recommended equipments...................................................................................................

3

- 3

3.3

Mounting ..............................................................................................................................

3

- 4

3.4

Cable Connections................................................................................................................

3

- 8

3.4.1

Device connector ..................................................................................................................

3

- 8

C141-E110-02N

vii

3.4.2

Cable connector specifications .............................................................................................

3

- 9

3.4.3

Device connection ................................................................................................................

3

- 9

3.4.4

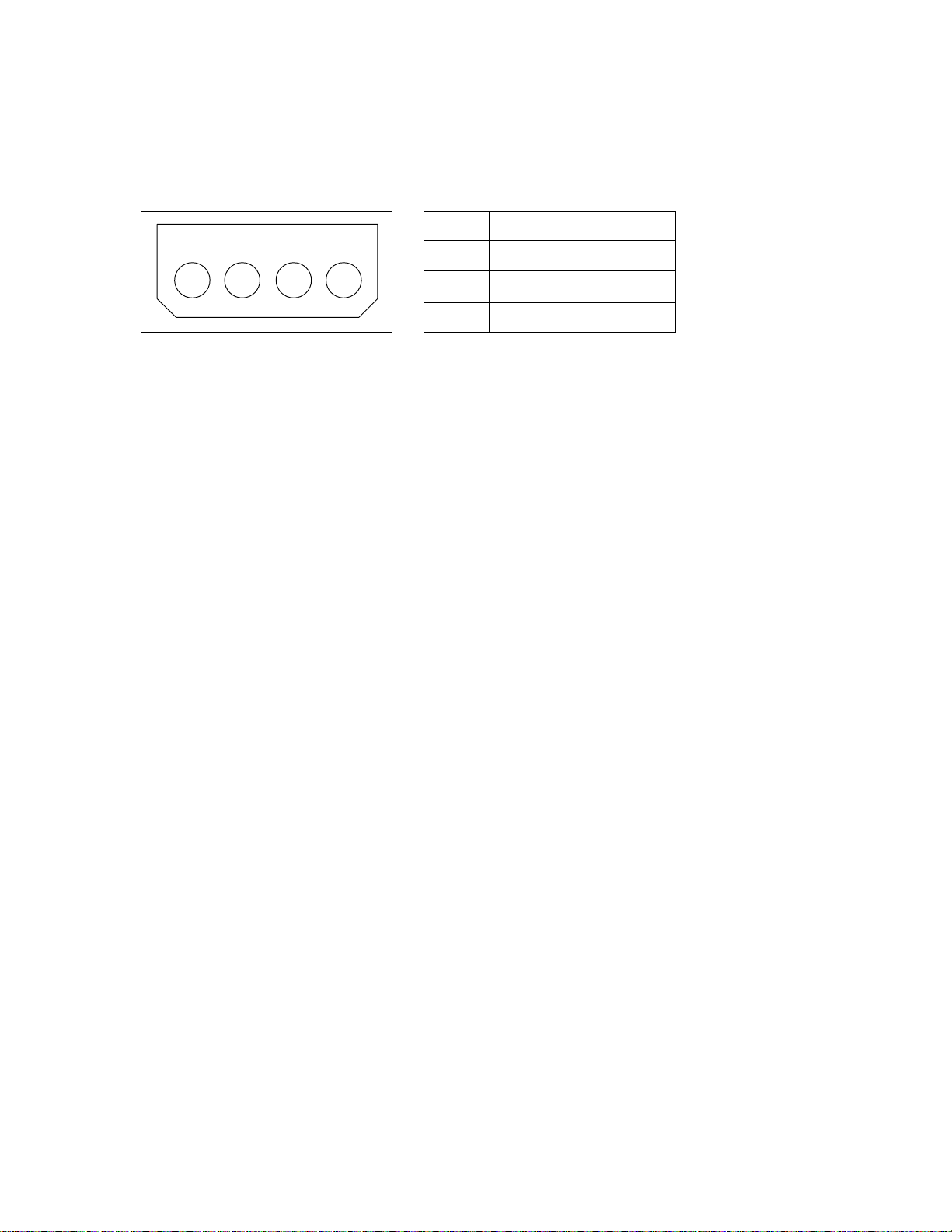

Power supply connector (CN1) ............................................................................................

3

- 10

3.4.5

System configuration for Ultra DMA...................................................................................

3 - 10

3.5

Jumper Settings ....................................................................................................................

3

- 13

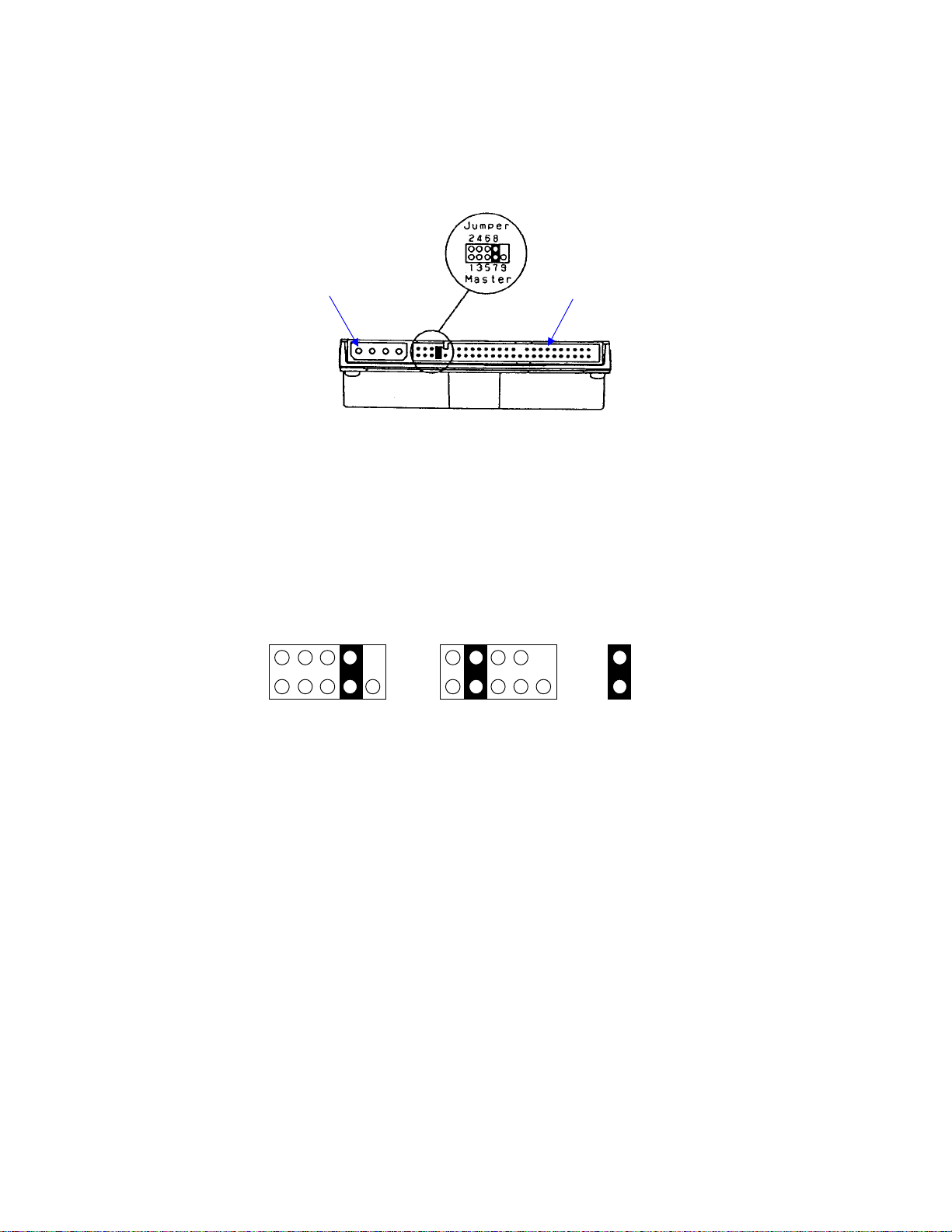

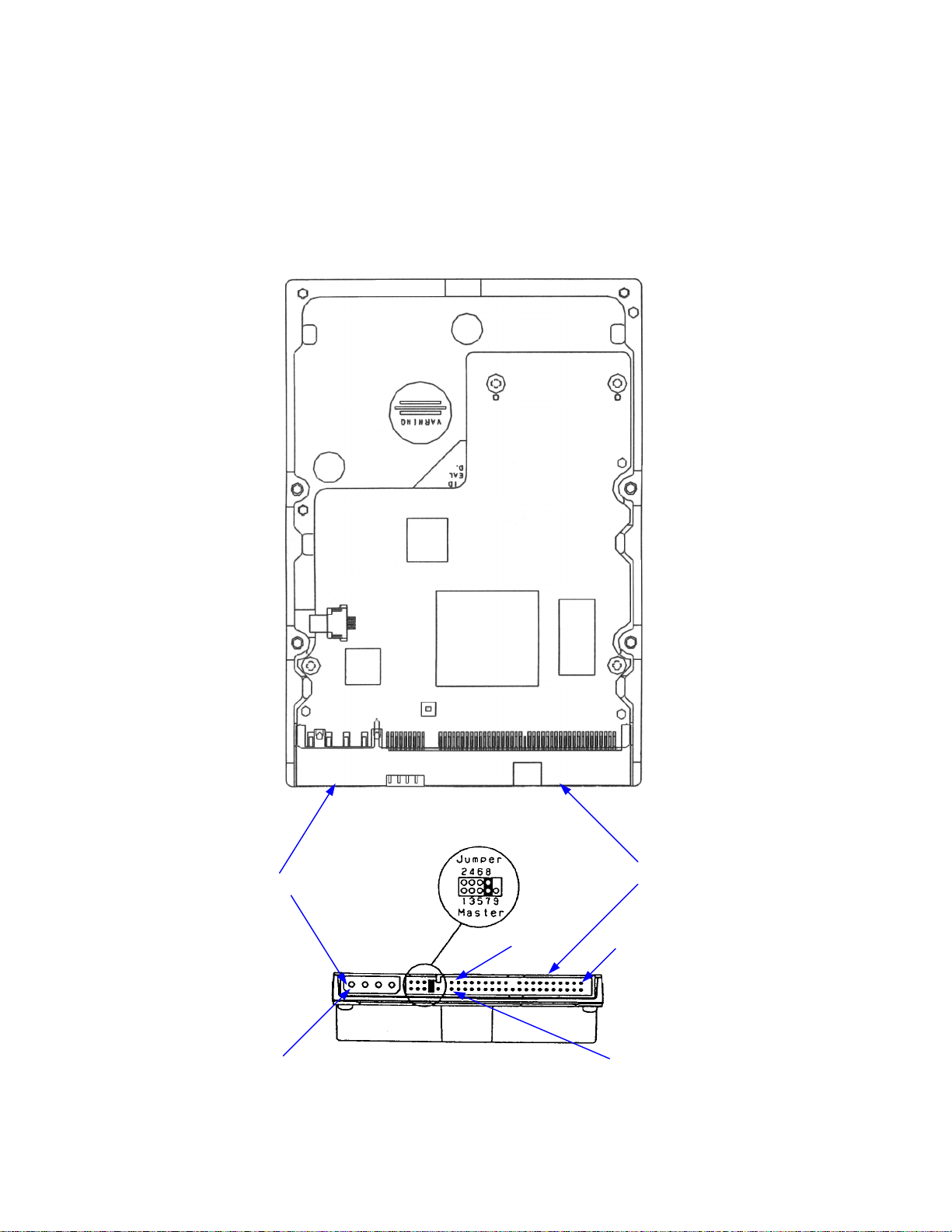

3.5.1

Location of setting jumpers ..................................................................................................

3

- 13

3.5.2

Factory default setting ..........................................................................................................

3

- 14

3.5.3

Jumper configuration............................................................................................................

3

- 14

CHAPTER 4

THEORY OF DEVICE OPERATION ..............................................................

4 - 1

4.1

Outline ..................................................................................................................................



4

- 1

4.2

Subassemblies.......................................................................................................................

4

- 1

4.2.1

Disk ......................................................................................................................................



4

- 1

4.2.2

Head......................................................................................................................................



4

- 2

4.2.3

Spindle..................................................................................................................................



4

- 3

4.2.4

Actuator

................................................................................................................................

4

- 3

4.2.5

Air filter

................................................................................................................................

4

- 3

4.3

Circuit Configuration............................................................................................................

4

- 4

4.4

Power-onSequence ..............................................................................................................

4

- 5

4.5

Self-calibration .....................................................................................................................

4

- 7

4.5.1

Self-calibrationcontents .......................................................................................................

4

- 7

4.5.2

Execution timing of self-calibration .....................................................................................

4

- 8

4.5.3

Command processing during self-calibration .......................................................................

4 - 8

4.6

Read/write Circuit ................................................................................................................

4

- 9

4.6.1

Read/write preamplifier (PreAMP) ......................................................................................

4 - 9

4.6.2

Write circuit..........................................................................................................................

4

- 9

4.6.3

Read circuit...........................................................................................................................

4

- 9

4.6.4

Time base generator circuit ..................................................................................................

4

- 10

4.7

Servo Control .......................................................................................................................

4

- 12

4.7.1

Servo control circuit .............................................................................................................

4

- 12

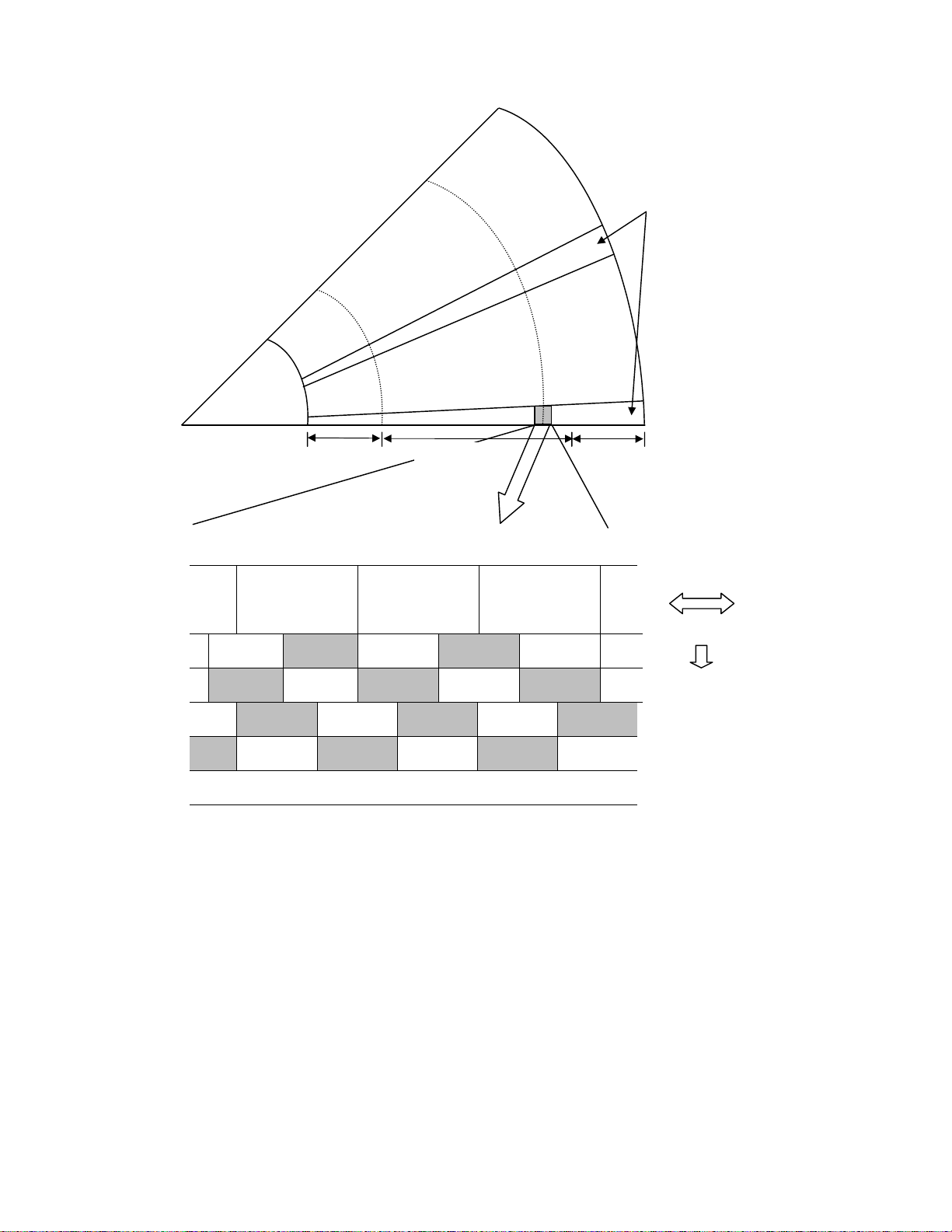

4.7.2

Data-surfaceservo format ....................................................................................................

4

- 15

4.7.3

Servo frame format...............................................................................................................

4

- 16

4.7.4

Actuator motor control .........................................................................................................

4

- 17

4.7.5

Spindle motor control ...........................................................................................................

4

- 18

viii

C141-E110-02EN

CHAPTER 5 INTERFACE ........................................................................................................

5 - 1

5.1

Physical Interface .................................................................................................................

5

- 2

5.1.1

Interface signals....................................................................................................................

5

- 2

5.1.2

Signal assignment on the connector .....................................................................................

5 - 3

5.2

Logical Interface...................................................................................................................

5

- 6

5.2.1

I/O registers ..........................................................................................................................

5

- 6

5.2.2

Command block registers .....................................................................................................

5

- 8

5.2.3

Control block registers .........................................................................................................

5

- 13

5.3

Host Commands ...................................................................................................................

5

- 13

5.3.1

Command code and parameters............................................................................................

5 - 14

5.3.2

Command descriptions .........................................................................................................

5

- 16

5.3.3

Error posting.........................................................................................................................

5

- 75

5.4

Command Protocol ...............................................................................................................

5

- 76

5.4.1

Data transferring commands from device to host.................................................................

5 - 76

5.4.2

Data transferring commands from host to device.................................................................

5 - 78

5.4.3

Commands without data transfer ..........................................................................................

5 - 80

5.4.4

Other commands...................................................................................................................

5

- 81

5.4.5

DMA data transfer commands..............................................................................................

5

- 81

5.5

Ultra DMA Feature Set ........................................................................................................

5

- 83

5.5.1

Overview ..............................................................................................................................

5

- 83

5.5.2

Phases of operation...............................................................................................................

5

- 84

5.5.3

Ultra DMA data in commands..............................................................................................

5

- 84

5.5.3.1

Initiating an Ultra DMA data in burst ..................................................................................

5

- 84

5.5.3.2

The data in transfer ...............................................................................................................

5

- 85

5.5.3.3

Pausing an Ultra DMA data in burst ....................................................................................

5

- 85

5.5.3.4

Terminating an Ultra DMA data in burst .............................................................................

5 - 86

5.5.4

Ultra DMA data out commands............................................................................................

5

- 88

5.5.4.1

Initiating an Ultra DMA data out burst ................................................................................

5

- 88

5.5.4.2

The data out transfer .............................................................................................................

5

- 89

5.5.4.3

Pausing an Ultra DMA data out burst ..................................................................................

5

- 89

5.5.4.4

Terminating an Ultra DMA data out burst ...........................................................................

5 - 90

5.5.5

Ultra DMA CRC rules..........................................................................................................

5

- 92

5.5.6

Series termination required for Ultra DMA..........................................................................

5 - 93

5.6

Timing ..................................................................................................................................

5

- 94

5.6.1

PIO data transfer...................................................................................................................

5

- 94

5.6.2

Multiword data transfer ........................................................................................................

5

- 95

C141-E110-02N

ix

5.6.3

Ultra DMA data transfer.......................................................................................................

5

- 96

5.6.3.1

Initiating an Ultra DMA data in burst ..................................................................................

5

- 96

5.6.3.2

Ultra DMA data burst timing requirements..........................................................................

5 - 97

5.6.3.3

Sustained Ultra DMA data in burst ......................................................................................

5

- 100

5.6.3.4

Host pausing an Ultra DMA data in burst ............................................................................

5 - 101

5.6.3.5 Device terminating an Ultra DMA data in burst ..................................................................

5 - 102

5.6.3.6

Host terminating an Ultra DMA data in burst ......................................................................

5 - 103

5.6.3.7

Initiating an Ultra DMA data out burst ................................................................................

5

- 104

5.6.3.8

Sustained Ultra DMA data out burst ....................................................................................

5

- 105

5.6.3.9

Device pausing an Ultra DMA data out burst ......................................................................

5 - 106

5.6.3.10

Host terminating an Ultra DMA data out burst ....................................................................

5 - 107

5.6.3.11 Device terminating an Ultra DMA data in burst ..................................................................

5 - 108

5.6.4

Power-onand reset ...............................................................................................................

5

- 109

CHAPTER 6

OPERATIONS .....................................................................................................

6 - 1

6.1

Device Response to the Reset...............................................................................................

6

- 1

6.1.1

Response to power-on ..........................................................................................................

6

- 2

6.1.2

Response to hardware reset ..................................................................................................

6

- 3

6.1.3

Response to software reset ...................................................................................................

6

- 4

6.1.4

Response to diagnostic command.........................................................................................

6

- 5

6.2

Address Translation..............................................................................................................

6

- 6

6.2.1

Default parameters................................................................................................................

6

- 6

6.2.2

Logical address.....................................................................................................................

6

- 7

6.3

Power Save ...........................................................................................................................

6

- 8

6.3.1

Power save mode ..................................................................................................................

6

- 8

6.3.2

Power commands..................................................................................................................

6

- 10

6.4

Defect Management..............................................................................................................

6

- 10

6.4.1

Spare area .............................................................................................................................

6

- 11

6.4.2

Alternating defective sectors ................................................................................................

6

- 11

6.5

Read-AheadCache ...............................................................................................................

6

- 13

6.5.1

Data buffer configuration ....................................................................................................

6

- 13

6.5.2

Caching operation................................................................................................................

6 - 14

6.5.3

Usage of read segment.........................................................................................................

6 - 15

6.6

Write Cache .........................................................................................................................

6 - 20

x

C141-E110-02EN

FIGURES





page

1.1

Current fluctuation (Typ.) when power is turned on ............................................................

1 - 7

2.1

Disk drive outerview ............................................................................................................

2

- 1

2.2

1 drive system configuration ................................................................................................

2

- 3

2.3

2 drives configuration...........................................................................................................

2

- 3

3.1

Dimensions ...........................................................................................................................

3

- 2

3.2

Handling cautions.................................................................................................................

3

- 3

3.3

Direction ...............................................................................................................................

3

- 4

3.4

Limitation of side-mounting .................................................................................................

3

- 5

3.5

Mounting frame structure .....................................................................................................

3

- 5

3.6

Surface temperature measurement points .............................................................................

3 - 6

3.7

Service area ..........................................................................................................................

3

- 7

3.8

Connector locations ..............................................................................................................

3

- 8

3.9

Cable connections.................................................................................................................

3

- 9

3.10

Power supply connector pins (CN1).....................................................................................

3 - 10

3.11

Cable configuration ..............................................................................................................

3

- 11

3.12

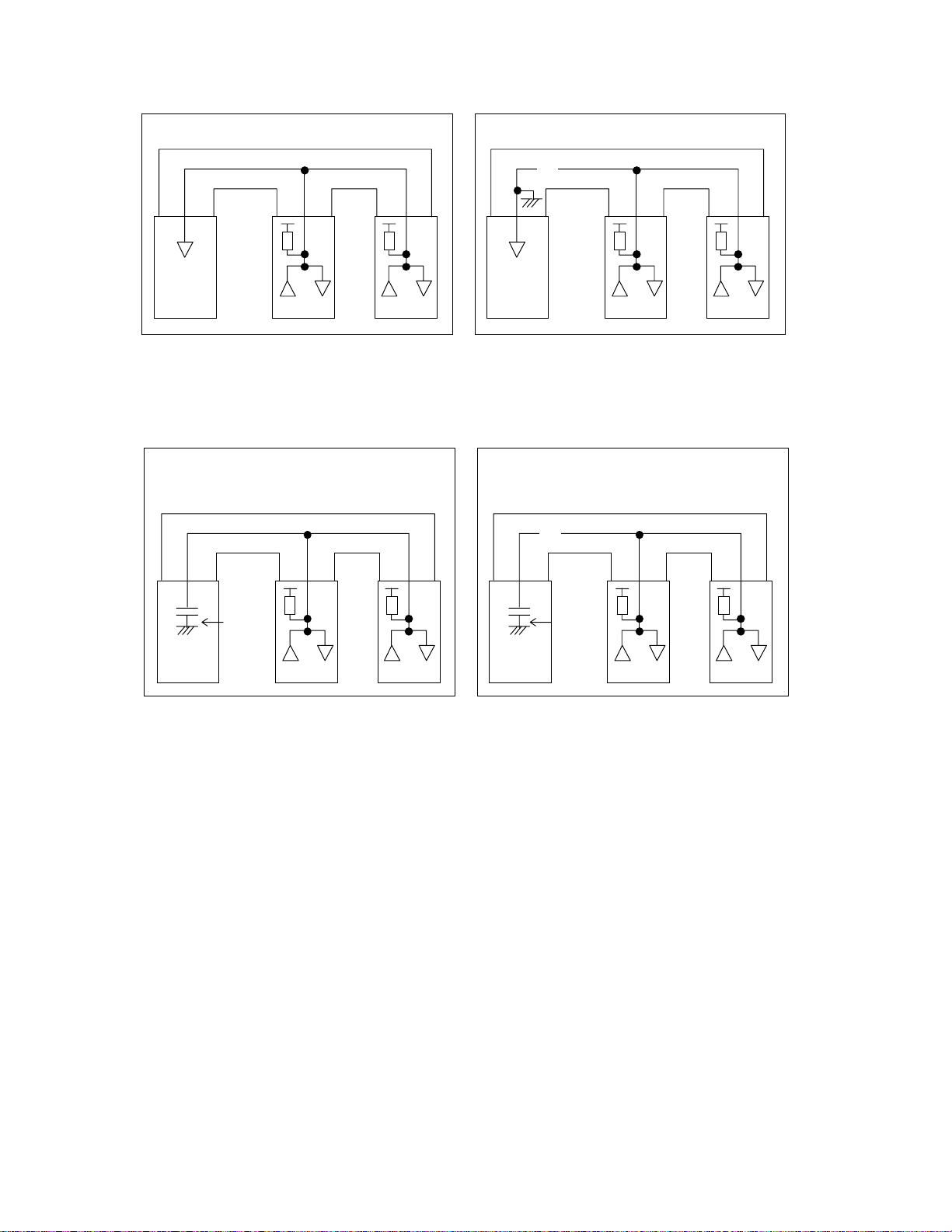

Cable type detection using CBLIDsignal







(Host sensing the condition of the CBLIDsignal) ..............................................................

3 - 12

3.13Cable type detection using IDENTIFY DEVICE data



(Device sensing the condition of the CBLIDsignal) ..........................................................

3 - 12

3.14

Jumper location ....................................................................................................................

3

- 13

3.15

Factory default setting ..........................................................................................................

3

- 14

3.16

Jumper setting of master or slave device ..............................................................................

3

- 14

3.17

Jumper setting of Cable Select .............................................................................................

3

- 15

3.18

Example (1) of Cable Select .................................................................................................

3

- 15

3.19

Example (2) of Cable Select .................................................................................................

3

- 15

4.1

Head structure.......................................................................................................................

4

- 2

4.2

MPG3xxxAT Block diagram................................................................................................

4 - 5

4.3

Power-onoperation sequence...............................................................................................

4

- 6

4.4

Block diagram of servo control circuit .................................................................................

4

- 12

4.5

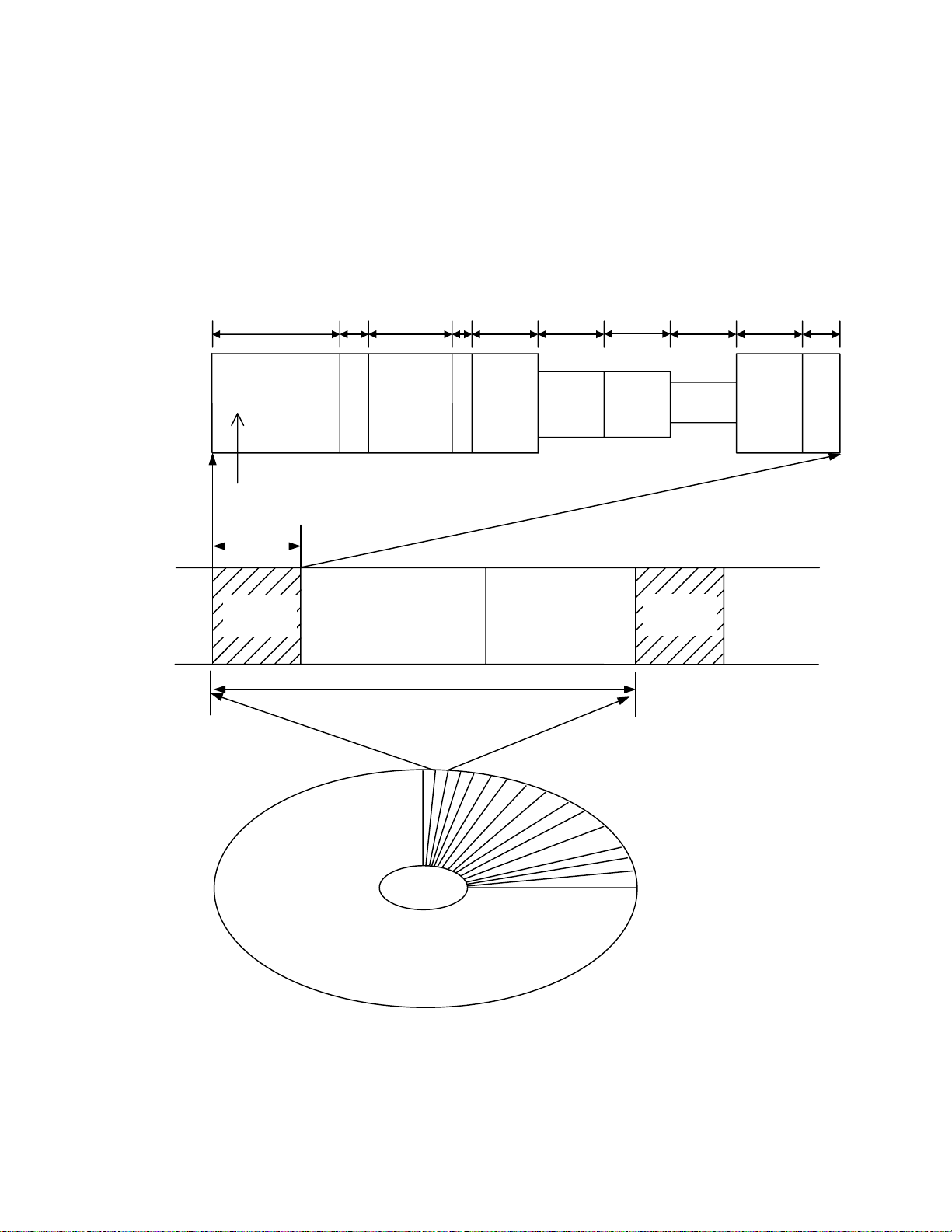

Physical sector servo configuration on disk surface.............................................................

4

- 14

4.6

126 Servo frames in each track.............................................................................................

4

- 16

5.1

Execution example of READ MULTIPLE command ..........................................................

5

- 19

5.2

Read Sector(s) command protocol .......................................................................................

5 - 77

C141-E110-02N

xi

5.3

Protocol for command abort .................................................................................................

5 - 78

5.4

WRITE SECTOR(S) command protocol .............................................................................

5 - 79

5.5

Protocol for the command execution without data transfer ..................................................

5 - 80

5.6

Normal DMA data transfer...................................................................................................

5 - 82

5.7

Ultra DMA termination with pull-uporpull-down ..............................................................

5 - 93

5.8

PIO data transfer timing ......................................................................................................

5

- 94

5.9

Multiword DMA data transfer timing (mode 2) ...................................................................

5 - 95

5.10

Initiating an Ultra DMA data in burst ..................................................................................

5 -96

5.11

Sustained Ultra DMA data in burst ......................................................................................

5 -100

5.12

Host pausing an Ultra DMA data in burst ............................................................................

5 - 101

5.13

Device terminating an Ultra DMA data in burst ..................................................................

5 - 102

5.14

Host terminating an Ultra DMA data in burst ......................................................................

5 - 103

5.15

Initiating an Ultra DMA data out burst ................................................................................

5 - 104

5.16

Sustained Ultra DMA data out burst ....................................................................................

5 - 105

5.17

Device pausing an Ultra DMA data out burst ......................................................................

5 - 106

5.18

Host terminating an Ultra DMA data out burst ....................................................................

5 - 107

5.19

Device terminating an Ultra DMA data out burst ................................................................

5 - 108

5.20

Power-onReset Timing ........................................................................................................

5

- 109

6.1

Response to power-on ..........................................................................................................

6

- 2

6.2

Response to hardware reset ..................................................................................................

6

- 3

6.3

Response to software reset ...................................................................................................

6

- 4

6.4

Response to diagnostic command.........................................................................................

6 - 5

6.5

Address translation (example in CHS mode) .......................................................................

6 - 7

6.6

Address translation (example in LBA mode) .......................................................................

6 - 8

6.7

Sector slip processing ...........................................................................................................

6

- 11

6.8

Alternate cylinder assignment ..............................................................................................

6

- 12

6.9

Data buffer configuration .....................................................................................................

6

- 13

xii

C141-E110-02EN

TABLES





page

1.1

Specifications .......................................................................................................................

1

- 4

1.2

Model names and product numbers......................................................................................

1 - 5

1.3

Current and power dissipation..............................................................................................

1

- 6

1.4

Environmental specifications ...............................................................................................

1

- 8

1.5

Acoustic noise specification .................................................................................................

1

- 8

1.6

Shock and vibration specification.........................................................................................

1

- 9

3.1

Surface temperature measurement points and standard values.............................................

3

- 6

3.2

Cable connector specifications .............................................................................................

3

- 9

4.1

Transfer rate of each zone ....................................................................................................

4

- 11

5.1

Interface signals....................................................................................................................

5

- 2

5.2

Signal assignment on the interface connector ......................................................................

5

- 3

5.3

I/O registers ..........................................................................................................................

5

- 7

5.4

Command code and parameters............................................................................................

5 - 14

5.5

Information to be read by IDENTIFY DEVICE command..................................................

5 - 29

5.6

Features register values and settable modes .........................................................................

5

- 37

5.7

Diagnostic code ....................................................................................................................

5

- 41

5.8

Features Register values (subcommands) and functions ......................................................

5 - 51

5.9

Device attribute data structure ..............................................................................................

5

- 54

5.10

Warranty failure threshold data structure .............................................................................

5 - 55

5.11

Error logging data structure..................................................................................................

5

- 59

5.12

Contents of security password..............................................................................................

5

- 62

5.13

Contents of SECURITY SET PASSWORD data.................................................................

5 - 67

5.14Relationship between combination of Identifier and Security level,



and operation of the lock function........................................................................................

5 - 67

5.15

Command code and parameters............................................................................................

5 - 75

5.16

Recommended series termination for Ultra DMA................................................................

5 - 93

5.17

Ultra DMA data burst timing requirements..........................................................................

5 - 97

5.18

Ultra DMA sender and recipient timing requirements .........................................................

5 -99

6.1

Default parameters................................................................................................................

6 - 6

C141-E110-02N

xiii

This page is intentionally left blank.

CHAPTER 1 DEVICE OVERVIEW

1.1Features

1.2Device Specifications

1.3Power Requirements

1.4Environmental Specifications

1.5Acoustic Noise

1.6Shock and Vibration

1.7Reliability

1.8Error Rate

1.9Media Defects

Overview and features are described in this chapter, and specifications and power requirement are described.

The MPG3xxxAT series are a 3.5-inchhard disk drive with abuilt-inATA controller. The disk drive is compact and reliable.

1.1Features

1.1.1Functions and performance

(1)Compact

The disk drive has 1 or 2 disks of 95 mm (3.5 inches) diameter, and its height is 26.1 mm (1 inch).

(2)Large capacity

The disk drive can record up to 20.49 GB (formatted) on one disk using the 48/51 CC2EPRML recording method and 15 recording zone technology. The MPG3xxxAT series have a formatted capacity of 10.24 GB to 40.99 GB respectively.

(3)High-speedTransfer rate

The disk drive has an internal data rate up to 49.8 MB/s. The disk drive supports an external data rate up to 16.6 MB/s (PIO mode 4, DMA mode 2), 66.6 MB/s (ultra DMA mode 4) or 100 MB/s (ultra DMA mode 5).

C141-E110-02EN

1 - 1

(4)Average positioning time

Use of a rotary voice coil motor in the head positioning mechanism greatly increases the positioning speed. The average positioning time is 9.5 ms (at read).

1.1.2Adaptability

(1)Power save mode

The power save mode feature for idle operation, stand by and sleep modes makes the disk drive ideal for applications where power consumption is a factor.

(2)Wide temperature range

The disk drive can be used over a wide temperature range (5°C to 55°C).

(3)Low noise and vibration

In Ready status, the noise of the disk drive is only about 3.4 bels (MPG3409AT, Typical Sound Power per ISO7779 and ISO9296).

1.1.3Interface

(1)Connection to interface

With the built-inATA interface controller, the disk drive can be connected to an ATA interface of a personal computer.

(2)Data buffer

The disk drive uses a 512-KBor2-MBdata buffer to transfer data between the host and the disk media.

In combination with the read-aheadcache system described in item (3) and the write cache described in item (6), the buffer contributes to efficient I/O processing.

(3)Read-aheadcache system

After the execution of a disk read command, the disk drive automatically reads the subsequent data block and writes it to the data buffer (read ahead operation). This cache system enables fast data access. The next disk read command would normally cause another disk access. But, if the read ahead data corresponds to the data requested by the next read command, the data in the buffer can be transferred instead.

1 - 2

C141-E110-02EN

(4)Master/slave

The disk drive can be connected to ATA interface as daisy chain configuration. Drive 0 is a master device, drive 1 is a slave device.

(5)Error correction and retry by ECC

If a recoverable error occurs, the disk drive itself attempts error recovery. The 42 bytes ECC has improved buffer error correction for correctable data errors.

(6)Write cache

When the disk drive receives a write command, the disk drive posts the command completion at completion of transferring data to the data buffer completion of writing to the disk media. This feature reduces the access time at writing.

C141-E110-02EN

1 - 3

1.2Device Specifications

1.2.1Specifications summary

Table 1.1 shows the specifications of the disk drive.







Table 1.1

Specifications





























MPG3153AT

MPG3307AT

MPG3102AT



MPG3204AT



MPG3409AT

















Formatted Capacity (*1)

15.37 GB

30.74 GB

10.24 GB



20.49 GB



40.99 GB



















Number of Disks

1

2



1



1



2



















Number of Heads

2

4



1



2



4



















Number of Cylinders

28,928 + 698







30,784 + 769





(User + Alternate & SA)













































Bytes per Sector







512























Recording Method





48/51 CC2EPRML





















Track Density

31,000 TPI







33,000 TPI

















Bit Density

388,716 BPI







478,415 BPI

















Rotational Speed





5400 rpm























Average Latency







5.56 ms

























Positioning time (Fast)

















Minimum



(Read) 1.0 ms typical, (write) 1.2 ms typical



Average



(Read) 9.5 ms typical, (write) 10.5 ms typical



Maximum



(Read) 17 ms typical, (write) 18 ms typical





















Positioning time (Slow)

















Minimum



(Read) 1.0 ms typical, (write) 1.2 ms typical



Average



(Read) 12 ms typical, (write) 13 ms typical



• Maximum



(Read) 20 ms typical, (write) 21 ms typical





















Start/Stop time

















• Start (0 rpm to Drive



Typical: 8 sec. Maximum: 15 sec.





Read)

















• Stop (at Power



Typical:

20 sec.

Maximum:

30 sec.





Down)

































Interface







ATA-5













(Maximum Cable length: 0.46 m [18 inch])





















Data Transfer Rate

















• To/From Media

22.7 to 38.6 MB/s



27.5 to 49.8 MB/s







• To/From Host

16.6 MB/s Max. (burst PIO mode4, burst

16.6 MB/s Max. (burst PIO mode4, burst DMA mode2)





DMA mode2)



















66.6 MB/s Max. (burst ultra DMA

66.6 MB/s Max. (burst ultra DMA mode4),







mode4),



















100.0 MB/s Max. (burst ultra DMA

100.0 MB/s Max. (burst ultra DMA mode5)







mode5)





























Data buffer



512 KB (option: 2,048 KB)















Physical Dimensions



26.1 mm max. × 101.6 mm × 146.0 mm



(Height × Width × Depth)



(1.03” max. × 4.0” × 5.75”)





















Weight





600 g or less





























*1: Capacity under the LBA mode.

















Under the CHS mode (normal BIOS specification), formatted capacity, number of cylinders, number of heads, and number of



sectors are as follows.















1 - 4

C141-E110-02EN







CHS Parameter



Model

Formatted Capacity







No. of Cylinder

No. of Heads

No. of Sectors















MPG3102AT

10,248 MB

16,383

16

63











MPG3153AT

15,371 MB

16,383

16

63











MPG3204AT

20,496 MB

16,383

16

63











MPG3307AT

30,743 MB

16,383

16

63











MPG3409AT

40,992 MB

16,383

16

63











1.2.2Model and product number

Table 1.2 lists the model names and product numbers.

Table 1.2 Model names and product numbers

Model Name

Capacity

Mounting

Order No.

Remarks



(User area)

Screw















MPG3102AT

10.24 GB

No. 6-32UNC

CA05761-B511

512 KB Data Buffer











MPG3153AT

15.37 GB

No. 6-32UNC

CA05761-B323

512 KB Data Buffer











MPG3204AT

20.49 GB

No. 6-32UNC

CA05761-B521

512 KB Data Buffer











MPG3307AT

30.74 GB

No. 6-32UNC

CA05761-B343

2,048 KB Data Buffer











MPG3409AT

40.99 GB

No. 6-32UNC

CA05761-B542

2,048 KB Data Buffer











1.3Power Requirements

(1)Input Voltage

∙ + 5 V ±5 %

∙ + 12 V ±8 %

(2)Ripple



+12 V

+5 V







Maximum

200 mV (peak to peak)

100 mV (peak to peak)







Frequency

DC to 1 MHz

DC to 1 MHz







(3)Current Requirements and Power Dissipation Table 1.3 lists the current and power dissipation.

C141-E110-02EN

1 - 5

Table 1.3 Current and power dissipation



Mode of Operation



Typical RMS current (*1) [mA]

Typical Power (*2) [watts]



















+12 V

+5 V





























Model



MPG3102AT

MPG3307AT





MPG3102AT

MPG3307AT









MPG3153AT

All Models

MPG3153AT









MPG3409AT

MPG3409AT









MPG3204AT





MPG3204AT









































Spin up



1600

1600

570



22.1

22.1









1800 peak

1800 peak

600 peak





























Idle (Ready) (*3)



230

270

460



5.1

5.5

























R/W (On Track) (*4)



300

330

460



5.9

6.3

























Seek (Random) (*5)



430

450

460



7.5

7.7





Seek/W/R















































Standby



18

18

120



0.8

0.8

























Sleep



18

18

120



0.8

0.8











































Model



MPG3153AT

MPG3102AT



MPG3307AT

MPG3409AT













MPG3204AT











Energy efficiency (rank)(*6)[watt/GB]

0.332 (A)

0.249 (A)



0.179 (B)

0.134 (B)























*1 Current is typical rms except for spin up.

*2 Power requirements reflect nominal values for +12V and +5V power.

*3 Idle mode is in effect when the drive is not reading, writing, seeking, or executing any commands. A portion of the R/W circuitry is powered down, the spindle motor is up to speed and the Drive ready condition exists.

*4 R/W mode is defined as 50% read operations and 50% write operations on a single physical track.

*5 Seek/W/R mode is defined as 33% seek operations, 33% write operations and 33% read operations.

*6 Energy efficiency based on the Law concerning the Rational Use of Energy indicates the value obtained by dividing power consumption by the storage capacity. (Japan only)

1 - 6

C141-E110-02EN

(4)Current fluctuation (Typ.) when power is turned on

[A]

0.5

+5VDC

(0.5A/div)

0.0

[A]

1.5

1.0

0.5

+12VDC

(0.5A/div)

0.0

0

1

2

3

4

5

6

[seconds]

Note:

Maximum current is 1.8 A.

Figure 1.1 Current fluctuation (Typ.) when power is turned on

(5)Power on/off sequence

The voltage detector circuit monitors +5 V and +12 V. The circuit does not allow a write signal if either voltage is abnormal. This prevents data from being destroyed and eliminates the need to be concerned with the power on/off sequence.

C141-E110-02EN

1 - 7

1.4Environmental Specifications

Table 1.4 lists the environmental specifications.



Table 1.4

Environmental specifications







Temperature





Operating



5°C to 55°C (ambient)







5°C to 60°C (disk enclosure surface)

Non-operating



–40°Cto 60°C

Thermal Gradient



20°C/hour or less









Humidity







Operating



8% to 80%RH (Non-condensing)

Non-operating



5% to 85%RH (Non-condensing)

Maximum Wet Bulb



29°C







Altitude (relative to sea level)





Operating



–60to 3,000 m(–200to 10,000 ft)

Non-operating



–60to 12,000 m(–200to 40,000 ft)









1.5Acoustic Noise

Table 1.5 lists the acoustic noise specification.

Table 1.5 Acoustic noise specification





MPG3102AT





Sound Power

Model

MPG3153AT

MPG3307AT

MPG3409AT



MPG3204AT





per ISO 7779 and

















ISO9296

Idle mode (DRIVE READY)

3.3 bels

3.4 bels

3.1 bels

(Typical at 1m)









Seek mode (Random)

3.6 bels

3.9 bels

3.6 bels













Sound Pressure

Idle mode (DRIVE READY)

28 dBA

29 dBA

25 dBA

(Typical at 1m)









Seek mode (Random)

31 dBA

34 dBA

31 dBA













1 - 8

C141-E110-02EN

1.6Shock and Vibration

Table 1.6 lists the shock and vibration specification.



Table 1.6 Shock and vibration specification





Vibration (swept sine, one octave per minute)

4.9m/s2 (0.5G0-p);5 to 300 Hz

Operating





(without non-recoverederrors)

Non-operating

39.2m/s2 (4.0G0-p);5 to 400 Hz (no damage)





Shock (half-sinepulse, Operating)

392m/s 2 (40G) (withoutnon-recoverederror)

2 ms duration





Shock (half-sinepulse,Non-operating)

2940m/s 2 (300G) (Typical, no damage)

2 ms duration







1.7Reliability

(1)Mean time between failures (MTBF)

The mean time between failures (MTBF) is 500,000 POH (power on hours) or more (operation: 24 hours/day, 7 days/week).

This does not include failures occurring during the first three months after installation. MTBF is defined as follows:

Total operation time in all fields

MTBF=

(H)

number of device failure in all fields

"Disk drive defects" refers to defects that involve repair, readjustment, or replacement. Disk drive defects do not include failures caused by external factors, such as damage caused by handling, inappropriate operating environments, defects in the power supply host system, or interface cable.

(2)Mean time to repair (MTTR)

The mean time to repair (MTTR) is 30 minutes or less, if repaired by a specialist maintenance staff member.

(3)CSS cycle

The number of CSS must be less than 50,000.

C141-E110-02EN

1 - 9

(4)Service life

In situations where management and handling are correct, the disk drive requires no overhaul for five years when the DE surface temperature is less than 48°C. When the DE surface temperature exceeds 48°C, the disk drives requires no overhaul for five years or 20,000 hours of operation, whichever occurs first. Refer to item (3) in Subsection 3.3 for the measurement point of the DE surface temperature.

(5)Data assurance in the event of power failure

Except for the data block being written to, the data on the disk media is assured in the event of any power supply abnormalities. This does not include power supply abnormalities during disk media initialization (formatting) or processing of defects (alternative block assignment).

1.8Error Rate

Known defects, for which alternative blocks can be assigned, are not included in the error rate count below. It is assumed that the data blocks to be accessed are evenly distributed on the disk media.

(1)Unrecoverable read error

Read errors that cannot be recovered by read retries without user's retry and ECC corrections shall occur no more than 10 times when reading data of 1015 bits. Read retries are executed according to the disk drive's error recovery procedure, and include read retries accompanying head offset operations.

(2)Positioning error

Positioning (seek) errors that can be recovered by one retry shall occur no more than 10 times in 107 seek operations.

1.9Media Defects

Defective sectors are replaced with alternates when the disk is formatted prior to shipment from the factory (low level format). Thus, the host sees a defect-freedevice.

Alternate sectors are automatically accessed by the disk drive. The user need not be concerned with access to alternate sectors.

Chapter 6 describes the low level format at shipping.

1 - 10

C141-E110-02EN

CHAPTER 2 DEVICE CONFIGURATION

2.1Device Configuration

2.2System Configuration

2.1Device Configuration

Figure 2.1 shows the disk drive. The disk drive consists of a disk enclosure (DE), read/write preamplifier, and controller PCA. The disk enclosure contains the disk media, heads, spindle motors actuators, and a circulating air filter.

Figure 2.1 Disk drive outerview

C141-E110-02EN

2 - 1

(1)Disk

The outer diameter of the disk is 95 mm. The inner diameter is 25 mm. The number of disks used varies with the model, as described below. The disks are rated at over 50,000 start/stop operations.

MPG3102AT, MPG3153AT, MPG3204AT: 1 disk MPG3307AT, MPG3409AT: 2 disks

(2)Head

The heads are of the contact start/stop (CSS) type. The head touches the disk surface while the disk is not rotating and automatically lifts when the disk starts.

(3)Spindle motor

The disks are rotated by a direct drive Hall-lessDC motor.

(4)Actuator

The actuator uses a revolving voice coil motor (VCM) structure which consumes low power and generates very little heat. The head assembly at the tip of the actuator arm is controlled and positioned by feedback of the servo information read by the read/write head. If the power is not on or if the spindle motor is stopped, the head assembly stays in the specific CSS zone on the disk and is fixed by a mechanical lock.

(5)Air circulation system

The disk enclosure (DE) is sealed to prevent dust and dirt from entering. The disk enclosure features a closed loop air circulation system that relies on the blower effect of the rotating disk. This system continuously circulates the air through the recirculation filter to maintain the cleanliness of the air in the disk enclosure.

(6)Read/write circuit

The read/write circuit uses a LSI chip for the read/write preamplifier. It improves data reliability by preventing errors caused by external noise.

(7)Controller circuit

The controller circuit consists of an LSI chip to improve reliability. The high-speedmicroprocessor unit (MPU) achieves ahigh-performanceAT controller.

2 - 2

C141-E110-02EN

2.2System Configuration

2.2.1ATA interface

Figures 2.2 and 2.3 show the ATA interface system configuration. The drive has a 40-pinPC AT interface connector and supports the PIO transfer till 16.6 MB/s (PIO mode 4), the DMA transfer till 16.6 MB/s (Multiword DMA mode 2), the ultra DMA transfer till 66.6 MB/s (Ultra DMA mode 4), and the ultra DMA transfer till 100 MB/s (Ultra DMA mode 5).

2.2.21 drive connection

Host

HA

Disk drive

(Host adaptor)







AT bus

ATA interface



(Host interface)



Figure 2.2 1 drive system configuration

2.2.32 drives connection

Host

HA

Disk drive #0

(Host adaptor)





AT bus (Host interface)

Disk drive #1

ATA interface

Note:

When the drive that is not conformed to ATA is connected to the disk drive is above configuration, the operation is not guaranteed.

Figure 2.3 2 drives configuration

C141-E110-02EN

2 - 3

IMPORTANT

HA (host adaptor) consists of address decoder, driver, and receiver. ATA is an abbreviation of "AT attachment". The disk drive is conformed to the ATA-5interface.

At high speed data transfer (PIO mode 3, mode 4, DMA mode 2, ultra DMA mode 4, or ultra DMA mode 5), occurrence of ringing or crosstalk of the signal lines (AT bus) between the HA and the disk drive may be a great cause of the obstruction of system reliability. Thus, it is necessary that the capacitance of the signal lines including the HA and cable does not exceed the ATA-3andATA-4standard, and the cable length between the HA and the disk drive should be as short as possible.

2 - 4

C141-E110-02EN

CHAPTER 3 INSTALLATION CONDITIONS

3.1Dimensions

3.2Handling Cautions

3.3Mounting

3.4Cable Connections

3.5Jumper Settings

3.1Dimensions

Figure 3.1 illustrates the dimensions of the disk drive and positions of the mounting screw holes. All dimensions are in mm.

C141-E110-02EN

3 - 1

Figure 3.1 Dimensions

3 - 2

C141-E110-02EN

3.2Handling Cautions

Please keep the following cautions, and handle the HDD under the safety environment.

3.2.1General notes

ESD mat

Wrist strap



Use the Wrist strap.

Shock absorbing mat





Place the shock absorbing mat on the



operation table, and place ESD mat on it.

Do not hit HDD each other.

Do not stack when carrying.

Do not place HDD vertically

Do not drop.

to avoid falling down.



Figure 3.2 Handling cautions

3.2.2Installation

(1)Please use the driver of a low impact when you use an electric driver. HDD is occasionally damaged by the impact of the driver.

(2)Please observe the tightening torque of the screw strictly. 6-32UNC······· Max. 0.59 N·m (6 Kg·cm)

3.2.3Recommended equipments



Contents

Model

Maker









ESD

Wrist strap

JX-1200-3056-8

SUMITOMO 3M











ESD mat

76000DES (ASK7876)

COMKYLE









Shock

Low shock driver

SS-3000

HIOS









C141-E110-02EN

3 - 3

3.3Mounting

(1)Direction

Figure 3.3 illustrates normal direction for the disk drive. The disk drives can be mounted in any direction.

Horizontal mounting with the PCB facing down

Figure 3.3 Direction

(2)Frame

The disk enclosure (DE) body is connected to signal ground (SG) and the mounting frame is also connected to signal ground. These are electrically shorted.

Note:

Use No.6-32UNCscrew for the mounting screw and the screw length should satisfy the specification in Figure 3.5.

(3)Limitation of side-mounting

When the disk drive is mounted using the screw holes on both side of the disk drive, use two screw holes shown in Figure 3.4.

Do not use the center hole. For screw length, see Figure 3.5.

3 - 4

C141-E110-02EN

Use these screw holes

Do not use this screw hole

Figure 3.4 Limitation of side-mounting

















2.5

Side surface



2.5



mounting



Bottom surface mounting















DE



DE





2.5







2



PCA

B

A

Frame of system







Frame of system

cabinet

cabinet



4.5 or





less

Screw

Screw

5.0 or less

Details of A

Details of B

Figure 3.5 Mounting frame structure

C141-E110-02EN

3 - 5

(4)Ambient temperature

The temperature conditions for a disk drive mounted in a cabinet refer to the ambient temperature at a point 3 cm from the disk drive. Pay attention to the air flow to prevent the DE surface temperature from exceeding 60°C.

Provide air circulation in the cabinet such that the PCA side, in particular, receives sufficient cooling. To check the cooling efficiency, measure the surface temperatures of the DE. Regardless of the ambient temperature, this surface temperature must meet the standards listed in Table 3.1. Figure 3.6 shows the temperature measurement point.

1

Figure 3.6 Surface temperature measurement points

Table 3.1 Surface temperature measurement points and standard values

No.



Measurement point

Temperature









1

DE cover



60°C max









3 - 6

C141-E110-02EN

(5)Service area

Figure 3.7 shows how the drive must be accessed (service areas) during and after installation.

-Mounting screw hole





[Q side]





- Mounting screw hole

[P side]













[R side]

- Cable connection

- Mounting screw hole

- Mode setting switches









Figure 3.7 Service area

(6)External magnetic fields

Avoid mounting the disk drive near strong magnetic sources such as loud speakers. Ensure that the disk drive is not affected by external magnetic fields.

C141-E110-02EN

3 - 7

3.4Cable Connections

3.4.1Device connector

The disk drive has the connectors and terminals listed below for connecting external devices. Figure 3.8 shows the locations of these connectors and terminals.

Power supply connector (CN1)

ATA interface connector (CN1)

Power supply connector (CN1)

Mode

Setting

Pins

ATA interface connector

Figure 3.8 Connector locations

3 - 8

C141-E110-02EN

3.4.2Cable connector specifications

Table 3.2 lists the recommended specifications for the cable connectors for Host system that do not support Ultra DMA modes greater than mode 2.

For Host system that support Ultra DMA modes greater than mode 2, the 80-conductorcable assemblies shall be used. The80-conductorcable assemblies are manufactured by AMP or 3M.

Table 3.2 Cable connector specifications



Name

Model

Manufacturer











Cable socket

FCN-707B040-AU/B

Fujitsu

ATA interface cable

(closed-endtype)





(40-pin,CN1)

Cable socket

FCN-707B040-AU/O

Fujitsu



(through-endtype)















Power supply cable

Cable socket housing

1-480424-0

AMP







(CN1)

Contact

60617-4

AMP









Note :

The cable of twisted pairs and neighboring line separated individually is not allowed to use for the host interface cable. It is because that the location of signal lines in these cables is not fixed, and so the problem on the crosstalk among signal lines may occur.

It is recommended to use the ribbon cable for ATA interface that cable length is less than 18 inch (46 cm) and cable capacitance is less than 35 pico farad. Also it is recommended to use AWG18 power supply cable.

3.4.3Device connection

Figure 3.9 shows how to connect the devices.



ATA interface cable

Power supply cable



















Disk Drive #0







DC

































Host system











power supply

































































Disk Drive #1

Figure 3.9 Cable connections

C141-E110-02EN

3 - 9

3.4.4Power supply connector (CN1)

Figure 3.10 shows the pin assignment of the power supply connector (CN1).

1

2

3

4

(Viewed from cable side)

1+12VDC

2+12V RETURN

3+5V RETURN

4+5VDC

Figure 3.10 Power supply connector pins (CN1)

3.4.5System configuration for Ultra DMA

Host system that support Ultra DMA transfer modes greater than mode 2 shall not share I/O ports. They shall provide separate drivers and separate receivers for each cable.

a)The 80-conductorcable assemblies shall be used for systems operating at Ultra DMA modes greater than 2. The80-coductorcable assemblies may be used in place of40-conductorcable assemblies to improve signal quality for data transfer modes that do not require an 80conductor cable assembly. And the80-conductorcable assembly shall meet the following specifications.

1)The assembly utilizes a fine pitch cable to double the number of conductors available to the 40-pinconnector. The grounds assigned by the interface are commoned with the additional 40 conductors to provide a ground between each signal line and provide the effect of a common ground plane.

2)The cable assembly may contain up to 3 connectors which shall be uniquely colored as follows. All connectors shall have position 20 blocked.

The System Board Connector shall have a Blue base and Black retainer. Pin 34 (PDIAG-:CBLID-)shall be connected to ground and shall not be wired to the cable assembly.

Connector Device “0” shall have a Black base and Black retainer.

Connector Device “1” shall have a Gray base and Black retainer. Pin 28 (CSEL) shall not be connected to the cable (contact 28 may be removed to meet this requirement).

The cable assembly may be printed with connector identifiers.

3)Typical cable characteristics are shown as follows.

Cable: AWG 30 (pitch: 0.635 mm)

Single Ended impedance: typical 80 Ω

Cable capacitance: typical 57 pF/m

4)The dimensions are shown in Figure 3.11.

3 - 10

C141-E110-02EN

Pin 40 (Ground)

Pin 34

Pin 30 (Ground)

Pin 26 (Ground)

Pin 24 (Ground)

Pin 22 (Ground)

Pin 19 (Ground)

Pin 2 (Ground)

254.0 to 457.2 mm

(10 to 18 inch)

127.0 to 304.8 mm

101.6 to 152.4 mm

(5 to 12 inch)

(4 to 6 inch)

open





Pin 34 contact

Symbolizes Pin 34

(PDIAG-:CBLID-signal)

Conductor being cut



Position 1



System Board

Connector 1

Connector 2

Connector





Figure 3.11

Cable configuration



b)Host system that do support Ultra DMA modes greater than mode 2 shall either connect directly to the device without using a cable assembly, or determine the cable assembly type. Determining the cable assembly type may be done either by the host sensing the condition of

the PDIAG-:CBLID-signal (see Figure 3.12), or by relying on information from the device (see Figure 3.13). Hosts that rely on information from the device shall have a 0.047 μF capacitor connected from thePDIAG-:CBLID-signal to ground. The tolerance on this capacitor shall be 20% or less.

C141-E110-02EN

3 - 11

Host detected CBLIDabove VIH



PDIAG-:CBLIDconductor

Host

Device 1

Device 0

with 40-conductorcable

Host detected CBLIDbelow VIL

open

PDIAG-:CBLIDconductor

Host

Device 1

Device 0

with 80-conductorcable

Figure 3.12 Cable type detection using CBLIDsignal

(Host sensing the condition of the CBLIDsignal)

IDENTIFY DEVICE information



word 93 bit13:0



Device detected CBLIDbelow VIL



PDIAG-:CBLID-conductor





0.047 μF





±10% or





±20%



Host

Device 1

Device 0

with 40-conductorcable

IDENTIFY DEVICE information



word 93 bit13:1



Device detected CBLIDabove VIH



open

PDIAG-:CBLID-conductor

0.047 μF



±10% or



±20%





Host

Device 1

Device 0

with 80-conductorcable

Figure 3.13 Cable type detection using IDENTIFY DEVICE data (Device sensing the condition of the CBLIDsignal)

3 - 12

C141-E110-02EN

3.5Jumper Settings

3.5.1Location of setting jumpers

Figure 3.14 shows the location of the jumpers to select drive configuration and functions.

Interface Connector

DC Power Connector

2

40

1

1

Figure 3.14 Jumper location

C141-E110-02EN

3 - 13

3.5.2Factory default setting

Figure 3.15 shows the default setting position at the factory. (Master device setting)

DC Power

Connector

Interface Connector

Figure 3.15 Factory default setting

3.5.3Jumper configuration

(1)Device type

Master device (device #0) or slave device (device #1) is selected.

2

4

6

8

2

4

6

8

= shorted

1

3

5

7

9

1

3

5

7

9

(a)

Master device

(b)

Slave device

Figure 3.16 Jumper setting of master or slave device

Note:

When the device type is set by the jumper on the device, the device should not be configured for cable selection.

(2)Cable Select (CSEL)

In Cable Select mode, the device can be configured either master device or slave device. For use of Cable Select function, Unique interface cable is needed.

3 - 14

C141-E110-02EN

2 4 6 8

1 3 5 7 9

CSEL connected to the interface cable selection can be done by the special interface cable.

Figure 3.17 Jumper setting of Cable Select

Figures 3.18 and 3.19 show examples of cable selection using unique interface cables.

By connecting the CSEL of the master device to the CSEL Line (conductor) of the cable and connecting it to ground further, the CSEL is set to low level. The device is identified as a master device. At this time, the CSEL of the slave device does not have a conductor. Thus, since the slave device is not connected to the CSEL conductor, the CSEL is set to high level. The device is identified as a slave device.







CSEL conductor





























































GND















Open



























Host system





Master device



Slave device

























Figure 3.18 Example (1) of Cable Select







CSEL conductor





























































GND









Open

































Host system





Slave device



Master device

























Figure 3.19 Example (2) of Cable Select

C141-E110-02EN

3 - 15

(3)Special jumper settings

(a)2.1 GB clip (Limit capacity to 2.1 GB)/33.8 GB clip (Limit capacity to 33.8GB)

If the drive cannot be recognized by system with legacy BIOS’s which do not allow single volume size greater than approximately 2.1 GB, the following jumper settings should be applied.

This jumper settings is also used as the 33.8 GB clip for MPG3409AT. (MPG3409AT does not have the 2.1 GB clip feature.)

2

4

6

8

2

4

6

8



2

4

6

8































1

3

5

7

9

1

3

5

7

9

1

3

5

7



9

Master Device

Slave Device

Cable Select

























Model







No. of cylinders



No. of heads

No. of sectors





Capacity





























MPG3102AT





4,092







16

63









2.1 GB





























MPG3153AT





4,092







16

63









2.1 GB





























MPG3204AT





4,092







16

63









2.1 GB





























MPG3307AT





4,092







16

63









2.1 GB





























MPG3409AT





16,383







16

63









33.8 GB

































(b)Slave present

If the slave device does not use the Device Active/Slave Present (DASP–)signal to indicate its presence, the device is configured as a Master with slave present when the following jumper settings is applied.

2 4 6 8

1 3 5 7 9 Slave present

3 - 16

C141-E110-02EN

Note:

The following Jumper Plug is the recommended specification for jumper settings on this device.

Parts Name

Parts Number

Manufacturer

Remarks









Jumper Plug

IMAS-9251H-GF

IRISO ELECTRONICS

2.54 mm Pitch





CO., LTD

0.64 mm











206-A-BLK

OUPIIN ENTERPRISE







CO., LTD











C141-E110-02EN

3 - 17

This page is intentionally left blank.

CHAPTER 4 THEORY OF DEVICE OPERATION

4.1Outline

4.2Subassemblies

4.3Circuit Configuration

4.4Power-onsequence

4.5Self-calibration

4.6Read/write Circuit

4.7Servo Control

This chapter explains basic design concepts of the disk drive. Also, this chapter explains subassemblies of the disk drive, each sequence, servo control, and electrical circuit blocks.

4.1Outline

This chapter consists of two parts. First part (Section 4.2) explains mechanical assemblies of the disk drive. Second part (Sections 4.3 through 4.7) explains a servo information recorded in the disk drive and drive control method.

4.2Subassemblies

The disk drive consists of a disk enclosure (DE) and printed circuit assembly (PCA).

The DE contains all movable parts in the disk drive, including the disk, spindle, actuator, read/write head, and air filter. For details, see Subsections 4.2.1 to 4.2.5.

The PCA contains the control circuits for the disk drive. The disk drive has one PCA. For details, see Sections 4.3.

4.2.1Disk

The DE contains the disks with an outer diameter of 95 mm. The MPG3102AT, MPG3153AT, and MPG3204AT have 1 disk. The MPG3307AT and MPG3409AT have 2 disks.

The head contacts the disk each time the disk rotation stops; the life of the disk is 50,000 contacts or more.

Servo data is recorded on each cylinder (total 126). Servo data written at factory is read out by the read/write head. For servo data, see Section 4.7.

C141-E110-02EN

4 - 1

4.2.2Head

Figure 4.1 shows the read/write head structures. The Numerals 0 to 3 indicate read/write heads. These heads are raised from the disk surface as the spindle motor approaches the rated rotation speed.

MPG3102AT

S p i n d l e



A c t u a t o r







0

MPG3153AT/MPG3204AT



S p i n d l e

A c t u a t o r

1



0



MPG3307AT/MPG3409AT



S p i n d l e

A c t u a t o r

3



2



1



0



Figure 4.1 Head structure

4 - 2

C141-E110-02EN

4.2.3Spindle

The spindle consists of a disk stack assembly and spindle motor. The disk stack assembly is activated by the direct drive sensor-lessDC spindle motor, which has a speed of 5,400 rpm. The spindle is controlled with detecting a PHASE signal generated by counter electromotive voltage of the spindle motor at starting. After that, the rotational speed is kept with detecting a servo information.

4.2.4Actuator

The actuator consists of a voice coil motor (VCM) and a head carriage. The VCM moves the head carriage along the inner or outer edge of the disk. The head carriage position is controlled by feeding back the difference of the target position that is detected and reproduced from the servo information read by the read/write head.

4.2.5Air filter

There are two types of air filters: a breather filter and a circulation filter.

The breather filter makes an air in and out of the DE to prevent unnecessary pressure around the spindle when the disk starts or stops rotating. When disk drives are transported under conditions where the air pressure changes a lot, filtered air is circulated in the DE.

The circulation filter cleans out dust and dirt from inside the DE. The disk drive cycles air continuously through the circulation filter through an enclosed loop air cycle system operated by a blower on the rotating disk.

C141-E110-02EN

4 - 3

4.3Circuit Configuration

Figure 4.2 shows the disk drive circuit configuration.

(1)Read/write circuit

The read/write circuit consists of two LSIs; read/write preamplifier (PreAMP) and read channel (RDC).

The PreAMP consists of the write current switch circuit, that flows the write current to the head coil, and the voltage amplifier circuit, that amplitudes the read output from the head.

The RDC is the read demodulation circuit using the Extended Partial Response Class 4 (EPR4), and contains the Viterbi detector, programmable filter, adaptable transversal filter, times base generator, and data separator circuits. The RDC also contains the 48/51 group coded recording (GCR) encoder and decoder and servo demodulation circuit.

(2)Servo circuit

The position and speed of the voice coil motor are controlled by 2 closed-loopservo using the servo information recorded on the data surface. The servo information is an analog signal converted to digital for processing by a MPU and then reconverted to an analog signal for control of the voice coil motor.

(3)Spindle motor driver circuit

The circuit measures the interval of a PHASE signal generated by counter-electromotivevoltage of a motor, or servo mark at the MPU and controls the motor speed comparing target speed.

(4)Controller circuit

Major functions are listed below.

Data buffer management

ATA interface control and data transfer control

Sector format control

Defect management

ECC control

Error recovery and self-diagnosis

4 - 4

C141-E110-02EN







Console I/F (RS232C)



Himalaya 2.0





Switch

CL-SH8671

40.0 MHz







Flash ROM



MCU





ARM7TDMI





64K × 16 bits









RDC





ATA

CL-SH3515













Series Termination



HDC







SH7661





I/F



Head IC

SVC











SR1756

HA13627

– PIO Mode-4









– Multiword DMA Mode-2









– Ultra DMA Mode-4(66.6MB/s)

Buffer

Bandwidth = 160.0 MB/s

R/W

SPM/VCM

– Ultra DMA Mode-5(100MB/s)





control









Data Buffer







256K × 16 bits









Option







(1024K × 16 bits)





Figure 4.2 MPG3xxxAT Block diagram

4.4Power-onSequence

Figure 4.3 describes the operation sequence of the disk drive at power-on.The outline is described below.

a)After the power is turned on, the disk drive executes the MPU bus test, internal register read/write test, and work RAM read/write test. When the self-diagnosisterminates successfully, the disk drive starts the spindle motor.

b)The disk drive executes self-diagnosis(data buffer read/write test) after enabling response to the ATA bus.

c)After confirming that the spindle motor has reached rated speed, the disk drive releases the heads from the actuator magnet lock mechanism by applying current to the VCM. This unlocks the heads which are parked at the inner circumference of the disks.

d)The disk drive positions the heads onto the SA area and reads out the system information.

e)The disk drive executes self-seek-calibration.This collects data for VCM torque and mechanical external forces applied to the actuator, and updates the calibrating value.

f)The drive becomes ready. The host can issue commands.

C141-E110-02EN

4 - 5

Power on

Start

a)Self-diagnosis1

MPU bus test

Inner register write/read test

Work RAM write/read test

The spindle motor starts.

b)Self-diagnosis2

Data buffer write/read test

c)Confirming spindle motor speed

Release heads from actuator lock

d)Initial on-trackand read out of system information

e)Execute self-calibration

f)Drive ready state (command waiting state)

End

Figure 4.3 Power-onoperation sequence

4 - 6

C141-E110-02EN

4.5Self-calibration

The disk drive occasionally performs self-calibrationin order to sense and calibrate mechanical external forces on the actuator, and VCM torque. This enables precise seek and read/write operations.

4.5.1Self-calibrationcontents

(1)Sensing and compensating for external forces

The actuator suffers from torque due to the FPC forces and winds accompanying disk revolution. The torque vary with the disk drive and the cylinder where the head is positioned. To execute stable fast seek operations, external forces are occasionally sensed.

The firmware of the drive measures and stores the force (value of the actuator motor drive current) that balances the torque for stopping head stably. This includes the current offset in the power amplifier circuit and DAC system.

The forces are compensated by adding the measured value to the specified current value to the power amplifier. This makes the stable servo control.

To compensate torque varying by the cylinder, the disk is divided into 28 areas from the innermost to the outermost circumference and the compensating value is measured at the measuring cylinder on each area at factory calibration. The measured values are stored in the SA cylinder. In the self-calibration,the compensating value is updated using the value in the SA cylinder.

(2)Compensating open loop gain

Torque constant value of the VCM has a dispersion for each drive, and varies depending on the cylinder that the head is positioned. To realize the high speed seek operation, the value that compensates torque constant value change and loop gain change of the whole servo system due to temperature change is measured and stored.

For sensing, the firmware mixes the disturbance signal to the position signal at the state that the head is positioned to any cylinder. The firmware calculates the loop gain from the position signal and stores the compensation value against to the target gain as ratio.

For compensating, the direction current value to the power amplifier is multiplied by the compensation value. By this compensation, loop gain becomes constant value and the stable servo control is realized.

To compensate torque constant value change depending on cylinder, whole cylinders from most inner to most outer cylinder are divided into 15 partitions at calibration in the factory, and the compensation data is measured for representative cylinder of each partition. This measured value is stored in the SA area. The compensation value at self-calibrationis calculated using the value in the SA area.

C141-E110-02EN

4 - 7

4.5.2Execution timing of self-calibration

Self-calibrationis executed when:

The power is turned on.

The self-calibrationexecution timechart of the disk drive specifiesself-calibration.

The disk drive performs self-calibrationaccording to the timechart based on the time elapsed frompower-on.Afterpower-on,self-calibrationis performed about every 30 minutes and when the host command is not issued for 15 seconds.

4.5.3Command processing during self-calibration

If the disk drive receives a command execution request from the host while executing selfcalibration according to the timechart, the disk drive terminates self-calibrationand starts executing the command precedingly. In other words, if a disk read or write service is necessary, the disk drive positions the head to the track requested by the host, reads or writes data. Then restarts calibration if the host command is not issued for 15 seconds.

This enables the host to execute the command without waiting for a long time, even when the disk drive is performing self-calibration.Only the first command execution wait time is about maximum 100 ms.

4 - 8

C141-E110-02EN

4.6Read/write Circuit

The read/write circuit consists of the read/write preamplifier (PreAMP), the write circuit, the read circuit, and the time base generator in the read channel (RDC).

4.6.1Read/write preamplifier (PreAMP)

One PreAMP is mounted on the FPC. The PreAMP consists of a 4-channelread preamplifier and a write current switch and senses a write error. Each channel is connected to each data head. The head IC switches the heads by the serial port (SDEN, SCLK, SDATA). The IC generates a write error sense signal (WUS) when a write error occurs due to headshort-circuitor head disconnection.

4.6.2Write circuit

The write data is output from the hard disk controller (HDC) with the NRZ data format, and sent to the encoder circuit in the RDC with synchronizing with the write clock. The NRZ write data is converted from 48-bitsdata to51-bitsdata by the encoder circuit then sent to the PreAMP, and the data is written onto the media.

(1)48/51 GCR

The disk drive converts data using the 48/51 group coded recording (GCR) algorithm.

(2)Write precompensation

Write precompensation compensates, during a write process, for write non-linearitygenerated at reading.

4.6.3Read circuit

The head read signal from the PreAMP is regulated by the automatic gain control (AGC) circuit. Then the output is converted into the sampled read data pulse by the programmable filter circuit and the FIR adaptation equalizer circuit. This clock signal is converted into the NRZ data by the 48/51 GCR decoder circuit based on the read data maximum-likelihood-detectedby the Viterbi detection circuit, then is sent to the HDC.

(1)AGC circuit

The AGC circuit automatically regulates the output amplitude to a constant value even when the input amplitude level fluctuates. The AGC amplifier output is maintained at a constant level even when the head output fluctuates due to the head characteristics or outer/inner head positions.

C141-E110-02EN

4 - 9

(2)Programmable filter

The programmable filter circuit has a low-passfilter function that eliminates unnecessary high frequency noise component and a high frequencyboost-upfunction that equalizes the waveform of the read signal.

Cut-offfrequency of thelow-passfilter andboost-upgain are controlled from each DAC circuit in read channel. The MPU optimizes thecut-offfrequency andboost-upgain according to the transfer frequency of each zone.

(3)FIR (Digital Finite Impulse Response Equalization Filter) adaptation circuit

The FIR provides support for changing equalization needs from head to head and zone to zone. The FIR is a specialized digital filter with ten independently controlled coefficients.

(4)Viterbi detection circuit

The Viterbi detection circuit demodulates data according to the survivor path sequence.

(5)Data separator circuit

The data separator circuit generates clocks in synchronization with the output of the adaptive equalizer circuit. To write data, the VFO circuit generates clocks in synchronization with the clock signals from a synthesizer.

(6)48/51 GCR decoder

This circuit converts the 51-bitsread data into the48-bitsNRZ data.

4.6.4Time base generator circuit

The drive uses constant density recording to increase total capacity. This is different from the conventional method of recording data with a fixed data transfer rate at all data area. In the constant density recording method, data area is divided into zones by radius and the data transfer rate is set so that the recording density of the inner cylinder of each zone is nearly constant. The drive divides data area into 15 zones to set the data transfer rate. Table 4.1 describes the data transfer rate and recording density (BPI) of each zone.

4 - 10

C141-E110-02EN

Table 4.1 Transfer rate of each zone

MPG3153AT/3307AT

Zone

Cylinder

Transfer rate





[MB/s]







0

0 to 2655

38.59







1

2656 to 5311

38.59







2

5312 to 6527

38.04







3

6528 to 9151

36.71







4

9152 to 11839

35.29







5

11840 to 13823

34.12







6

13824 to 15743

32.94







7

15744 to 18751

30.98







8

18752 to 19583

30.59







9

19584 to 21887

29.02







10

21888 to 24191

27.45







11

24192 to 25631

26.35







12

25632 to 27039

25.29







13

27040 to 28895

23.53







14

28896 to 25927

22.75







MPG3102AT/3204AT/3409AT

Zone

Cylinder

Transfer rate





[MB/s]







0

0 to 3231

49.80







1

3232 to 5727

48.47







2

5728 to 9055

46.47







3

9056 to 11071

45.10







4

11072 to 13055

43.76







5

13056 to 15743

41.76







6

15744 to 17663

40.47







7

17664 to 20031

38.59







8

20032 to 22335

36.71







9

22336 to 23999

35.29







10

24000 to 25375

34.12







11

25376 to 27135

32.55







12

27136 to 28799

30.98







13

28800 to 30431

29.41







14

30432 to 30783

27.45







The MPU transfers the data transfer rate setup data to the RDC that includes the time base generator circuit to change the data transfer rate.

C141-E110-02EN

4 - 11

4.7Servo Control

The actuator motor and the spindle motor are submitted to servo control. The actuator motor is controlled for moving and positioning the head to the track containing the desired data. To turn the disk at a constant velocity, the actuator motor is controlled according to the servo data that is written on the data side beforehand.

4.7.1Servo control circuit

Figure 4.4 is the block diagram of the servo control circuit. The following describes the functions of the blocks:









(1)











MPU

SVC





(2)

(3)



(4)

(5)

VCM current



Servo



DSP



P.



ADC

DAC



Head

burst



unit

Amp.





capture































CSR



Position Sense





















VCM









(6)

(7)











Spindle

Driver

Spindle









motor

CSR:

Current Sense Resistor



motor



control









VCM: Voice Coil Motor











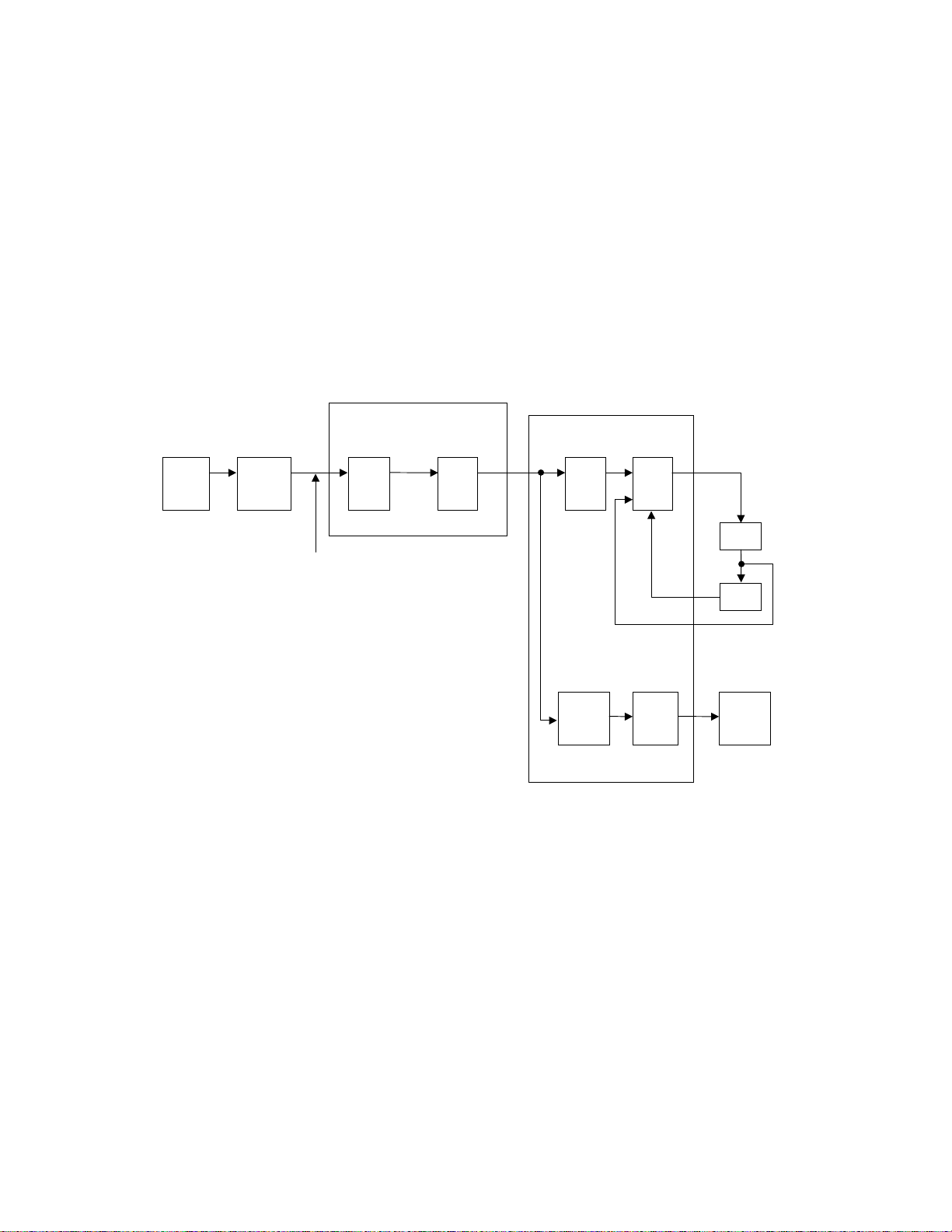

Figure 4.4 Block diagram of servo control circuit

(1)Microprocessor unit (MPU)

The MPU includes DSP unit, etc., and the MPU starts the spindle motor, moves the heads to the reference cylinders, seeks the specified cylinder, and executes calibration according to the internal operations of the MPU.

The major internal operations are listed below.

a.Spindle motor start

Starts the spindle motor and accelerates it to normal speed when power is applied.

4 - 12

C141-E110-02EN

b.Move head to reference cylinder

Drives the VCM to position the head at the any cylinder in the data area. The logical initial cylinder is at the outermost circumference (cylinder 0).

c.Seek to specified cylinder

Drives the VCM to position the head to the specified cylinder.

d.Calibration

Senses and stores the thermal offset between heads and the mechanical forces on the actuator, and stores the calibration value.

C141-E110-02EN

4 - 13

Servo frame

(126 servo frames per revolution)



































































































































































































IGB



































OGB





























Data area



















































































































































































































































































expand





























































































































CY1 n + 1





CY1 n













CY1 n – 1









(n: odd number)





















































































W/R Recovery

W/R Recovery



W/R Recovery

















Servo Mark



Servo Mark









Servo Mark

















Gray Code



Gray Code









Gray Code









Diameter direction

















































Erase



Servo A



Erase



Servo A



Erase

























































Servo B



Erase

Servo B



Erase



Servo B





































































Circumference direction







Servo C



Erase

Servo C







Erase





































































Erase: DC erase area







Erase





Servo D



Erase



Servo D





















































































PAD





























































































Figure 4.5 Physical sector servo configuration on disk surface

(2)Servo burst capture circuit

The four servo signals can be synchronously detected by the STROB signal, full-waverectified integrated.

(3)A/D converter (ADC)

The A/D converter (ADC) receives the servo signals are integrated, converts them to digital, and transfers the digital signal to the DSP unit.

4 - 14

C141-E110-02EN

(4)D/A converter (DAC)

The D/A converter (DAC) converts the VCM drive current value (digital value) calculated by the DSP unit into analog values and transfers them to the power amplifier.

(5)Power amplifier

The power amplifier feeds currents, corresponding to the DAC output signal voltage to the VCM.

(6)Spindle motor control circuit

The spindle motor control circuit controls the sensor-lessspindle motor. This circuit detects number of revolution of the motor by the interrupt generated periodically, compares with the target revolution speed, then flows the current into the motor coil according to the differentiation (aberration).

(7)Driver circuit

The driver circuit is a power amplitude circuit that receives signals from the spindle motor control circuit and feeds currents to the spindle motor.

(8)VCM current sense resistor (CSR)

This resistor controls current at the power amplifier by converting the VCM current into voltage and feeding back.

4.7.2Data-surfaceservo format

Figure 4.5 describes the physical layout of the servo frame. The three areas indicated by (1) to (3) in Figure 4.5 are described below.

(1)Inner guard band

The head is in contact with the disk in this space when the spindle starts turning or stops, and the rotational speed of the spindle can be controlled on this cylinder area for head moving.

(2)Data area

This area is used as the user data area and SA area.

(3)Outer guard band

This area is located at outer position of the user data area, and the rotational speed of the spindle can be controlled on this cylinder area for head moving.

C141-E110-02EN

4 - 15

4.7.3Servo frame format

As the servo information, the drive uses the two-phaseservo generated from the gray code and Pos A to D. This servo information is used for positioning operation of radius direction and position detection of circumstance direction.

The servo frame consists of 6 blocks; write/read recovery, servo mark, preamble, gray code, Pos A to D and PAD. Figure 4.6 shows the servo frame format.

0.16μs



0.17μs



















0.80μs

0.72μs





1.81 μs



0.53μs



0.74μs



0.56μs



0.56μs



0.56μs









PA

SCD

PosA

PosB

PosC

PosD PAD















ASM

SSM









R/W Recovery Field

6.63 μs

Servo

DATA

DATA

Servo

DATA

Frame

Frame







88.18 μs

Figure 4.6 126 Servo frames in each track

4 - 16

C141-E110-02EN

(1)Write/read recovery

This area is used to absorb the write/read transient and to stabilize the AGC.

(2)Servo mark (ASM, SSM)

This area generates a timing for demodulating the gray code and position-demodulatingPos A to D by detecting the servo mark.

(3)Preamble

This area is used to synchronize with the PLL, which is used to search the SSM by detecting the ASM.

(4)Gray code (including index bit) (SCD)

This area is used as cylinder address. The data in this area is converted into the binary data by the gray code demodulation circuit.

(5)Pos A, Pos B, Pos C, Pos D

This area is used as position signals between tracks, and the device control at on-trackso that Pos A level equals to Pos B level.

(6)PAD

This area is used as a gap between servo and data.

4.7.4Actuator motor control

The voice coil motor (VCM) is controlled by feeding back the servo data recorded on the data surface. The MPU fetches the position sense data on the servo frame at a constant interval of sampling time, executes calculation, and updates the VCM drive current.

The servo control of the actuator includes the operation to move the head to the reference cylinder, the seek operation to move the head to the target cylinder to read or write data, and the track-followingoperation to position the head onto the target track.

(1)Operation to move the head to the reference cylinder

The MPU moves the head to the reference cylinder when the power is turned. The reference cylinder is in the data area.

When power is applied the heads are moved from the inner circumference shunt zone to the normal servo data zone in the following sequence:

a)Micro current is fed to the VCM to press the head against the inner circumference.

C141-E110-02EN

4 - 17

b)A current is fed to the VCM to move the head toward the outer circumference.

c)When the servo mark is detected the head is moved slowly toward the outer circumference at a constant speed.

d)If the head is stopped at the reference cylinder from there. Track following control starts.

(2)Seek operation

Upon a data read/write request from the host, the MPU confirms the necessity of access to the disk. If a read or instruction is issued, the MPU seeks the desired track.

The MPU feeds the VCM current via the D/A converter and power amplifier to move the head. The MPU calculates the difference (speed error) between the specified target position and the current position for each sampling timing during head moving. The MPU then feeds the VCM drive current by setting the calculated result into the D/A converter. The calculation is digitally executed by the firmware. When the head arrives at the target cylinder, the track is followed.

(3)Track following operation

Except during head movement to the reference cylinder and seek operation under the spindle rotates in steady speed, the MPU does track following control. To position the head at the center of a track, the DSP drives the VCM by feeding micro current. For each sampling time, the VCM drive current is determined by filtering the position difference between the target position and the position clarified by the detected position sense data. The filtering includes servo compensation. These are digitally controlled by the firmware.

4.7.5Spindle motor control

Hall-lessthree-phaseeight-polemotor is used for the spindle motor, and the3-phasefull/halfwave analog current control circuit is used as the spindle motor driver (called SVC hereafter). The firmware operates on the MPU manufactured by Fujitsu. The spindle motor is controlled by sending several signals from the MPU to the SVC. There are three modes for the spindle control; start mode, acceleration mode, and stable rotation mode.

(1)Start mode

When power is supplied, the spindle motor is started in the following sequence:

a)After the power is turned on, the MPU sends a signal to the SVC to charge the change pump capacitor of the SVC. The charged amount defines the current that flows in the spindle motor.

b)When the charge pump capacitor is charged enough, the MPU sets the SVC to the motor start mode. Then, a current (approx. 1.6 A) flows into the spindle motor.

c)The SVC generates a phase switching signal by itself, and changes the phase of the current flowed in the motor in the order of (V-phasetoU-phase),(W-phasetoU-phase),(W-phasetoV-phase),(U-phasetoV-phase),(U-phasetoW-phase),and(V-phasetoW-phase)(after that, repeating this order).

4 - 18

C141-E110-02EN

d)During phase switching, the spindle motor starts rotating in low speed, and generates a counter electromotive force. The SVC detects this counter electromotive force and reports to the MPU using a PHASE signal for speed detection.

e)The MPU is waiting for a PHASE signal. When no phase signal is sent for a specific period, the MPU resets the SVC and starts from the beginning. When a PHASE signal is sent, the SVC enters the acceleration mode.

(2)Acceleration mode

In this mode, the MPU stops to send the phase switching signal to the SVC. The SVC starts a phase switching by itself based on the counter electromotive force. Then, rotation of the spindle motor accelerates. The MPU calculates a rotational speed of the spindle motor based on the PHASE signal from the SVC, and accelerates till the rotational speed reaches 5,400 rpm. When the rotational speed reaches 5,400 rpm, the SVC enters the stable rotation mode.

(3)Stable rotation mode

The MPU calculates a time for one revolution of the spindle motor based on the PHASE signal from the SVC. The MPU takes a difference between the current time and a time for one revolution at 5,400 rpm that the MPU already recognized. Then, the MPU keeps the rotational speed to 5,400 rpm by charging or discharging the charge pump for the different time. For example, when the actual rotational speed is 5,600 rpm, the time for one revolution is 10.714 ms.

And, the time for one revolution at 5,400 rpm is 11.111 ms. Therefore, the MPU discharges the charge pump for 0.397 ms × k (k: constant value). This makes the flowed current into the motor lower and the rotational speed down. When the actual rotational speed is later than 5,400 rpm, the MPU charges the pump the other way. This control (charging/discharging) is performed every 1/4 revolution.

C141-E110-02EN

4 - 19

This page is intentionally left blank.

CHAPTER 5

INTERFACE

5.1 Physical Interface

5.2 Logical Interface

5.3 Host Commands

5.4 Command Protocol

5.5 Ultra DMA Feature Set

5.6 Timing

C141-E110-02EN

5 - 1

5.1Physical Interface

5.1.1Interface signals

Table 5.1 shows the interface signals.

Table 5.1 Interface signals

Description

Host

Dir

Dev

Acrorym

Cable select



see note



CSEL

Chip select 0





CS0–

Chip select 1





CS1–

Data bus bit 0





DD0

Data bus bit 1





DD1

Data bus bit 2





DD2

Data bus bit 3





DD3

Data bus bit 4





DD4

Data bus bit 5





DD5

Data bus bit 6





DD6

Data bus bit 7





DD7

Data bus bit 8





DD8

Data bus bit 9





DD9

Data bus bit 10





DD10

Data bus bit 11





DD11

Data bus bit 12





DD12

Data bus bit 13





DD13

Data bus bit 14





DD14

Data bus bit 15





DD15

Device active or slave present



see note



DASP–

Device address bit 0





DA0

Device address bit 1





DA1

Device address bit 2





DA2

DMA acknowledge





DMACK–

DMA request





DMARQ

Interrupt request





INTRQ

I/O read





DIOR–

DMA ready during Ultra DMA data in bursts





HDMARDY–

Data strobe during Ultra DMA data out bursts





HSTROBE

I/O ready





IORDY

DMA ready during Ultra DMA data out bursts





DDMARDY–

Data strobe during Ultra DMA data in bursts





DSTROBE

I/O write





DIOW–

Stop during Ultra DMA data bursts





STOP

Passed diagnostics



see note



PDIAG–

Cable type detection







CBLID–

Reset





RESET–

Note See signal descriptions









5 - 2

C141-E110-02EN

5.1.2Signal assignment on the connector

Table 5.2 shows the signal assignment on the interface connector.

Table 5.2 Signal assignment on the interface connector

Pin No.

Signal

Pin No.

Signal









1

RESET–

2

GND

3

DATA7

4

DATA8

5

DATA6

6

DATA9

7

DATA5

8

DATA10

9

DATA4

10

DATA11

11

DATA3

12

DATA12

13

DATA2

14

DATA13

15

DATA1

16

DATA14

17

DATA0

18

DATA15

19

GND

20

(KEY)

21

DMARQ

22

GND

23

DIOW–,STOP

24

GND

25

DIOR–,HDMARDY–,HSTROBE

26

GND

27

IORDY, DDMARDY–,DSTROBE

28

CSEL

29

DMACK–

30

GND

31

INTRQ

32

reserved

33

DA1

34

PDIAG–,CBLID–

35

DA0

36

DA2

37

CS0–

38

CS1–

39

DASP–

40

GND









[signal]

[I/O]

[Description]

RESET–

I

Reset signal from the host. This signal is low active and is asserted





for a minimum of 25 μs during power on. The device has a 10 kΩ





pull-upresistor on this signal.

DATA 0-15

I/O

Sixteen-bitbi-directionaldata bus between the host and the device.





These signals are used for data transfer

DIOW–,STOP

I

DIOW– is the strobe signal asserted by the host to write device





registers or the data port.





DIOW– shall be negated by the host prior to initiation of an Ultra





DMA burst. STOP shall be negated by the host before data is





transferred in an Ultra DMA burst. Assertion of STOP by the host





during an Ultra DMA burst signals the termination of the Ultra





DMA burst.

C141-E110-02EN

5 - 3

[signal]

[I/O]

[Description]

DIOR–

I

DIOR– is the strobe signal asserted by the host to read device





registers or the data port.

HDMARDY–

I

HDMARDY– is a flow control signal for Ultra DMA data in bursts.





This signal is asserted by the host to indicate to the device that the





host is ready to receive Ultra DMA data in bursts.





The host may negate HDMARDYto pause an Ultra DMA data in





burst.

HSTROBE

I

HSTROBE is the data out strobe signal from the host for an Ultra





DMA data out burst. Both the rising and falling edge of HSTROBE





latch the data from DATA 0-15into the device. The host may stop





generating HSTROBE edges to pause an Ultra DMA data out burst.

INTRQ

O

Interrupt signal to the host.





This signal is negated in the following cases:





– assertion of RESET– signal





– Reset by SRST of the Device Control register





– Write to the command register by the host





– Read of the status register by the host





– Completion of sector data transfer





(without reading the Status register)





When the device is not selected or interrupt is disabled, the INTRQ





Signal shall be in a high impedance state.

CS0–

I

Chip select signal decoded from the host address bus. This signal is





used by the host to select the command block registers.

CS1–

I

Chip select signal decoded from the host address bus. This signal is





used by the host to select the control block registers.

DA 0-2

I

Binary decoded address signals asserted by the host to access task





file registers.

KEY

Key pin for prevention of erroneous connector insertion

PIDAG–

I/O

This signal is an input mode for the master device and an output





mode for the slave device in a daisy chain configuration. This signal





indicates that the slave device has been completed self diagnostics.





This signal is pulled up to +5 V through 10 kΩ resistor at each device.

CBLID–

I/O

This signal is used to detect the cable type (80 or 40-conductor





cable) installed in the system. This signal is pulled up to +5 V





through 10 kΩ resistor at each device.

DASP–

I/O

This is a time-multiplexedsignal that indicates that the device is





active and a slave device is present.





This signal is pulled up to +5 V through 10 kΩ resistor at each device.

5 - 4

C141-E110-02EN

[signal]

[I/O]

[Description]

IORDY

O

This signal is negated to extend the host transfer cycle of any host





register access (Read or Write) when the device is not ready to respond





to a data transfer request.

DDMARDY–

O

DDMARDY– is a flow control signal for Ultra DMA data out bursts.





This signal is asserted by the device to indicate to the host that the





device is ready to receive Ultra DMA data out bursts. The device may





negate DDMARDY– to pause an Ultra DMA data out burst.

DSTROBE

O

DSTROBE is the data in strobe signal from the device for an Ultra





DMA data in burst. Both the rising and falling edge of DSTROBE





latch the data from DATA 0-15into the host. The device may stop





generating DSTROBE edges to pause an Ultra DMA data in burst.

CSEL

I

This signal to configure the device as a master or a slave device.





When CSEL signal is grounded, the IDD is a master device.





When CSEL signal is open, the IDD is a slave device.





This signal is pulled up with 10 kΩ resistor.

DMACK–

I

The host system asserts this signal as a response that the host system





receive data or to indicate that data is valid.

DMARQ

O

This signal is used for DMA transfer between the host system and





the device. The device asserts this signal when the device completes





the preparation of DMA data transfer to the host system (at reading)





or from the host system (at writing).





The direction of data transfer is controlled by the IORand IOW-





signals. In other word, the device negates the DMARQ signal after





the host system asserts the DMACK– signal. When there is another





data to be transferred, the device asserts the DMARQ signal again.





When the DMA data transfer is performed, IOCW16–,CS0– and





CS1signals are not asserted. The DMA data transfer is a 16-bit





data transfer. The device has a 10 kΩ pull-downresistor on this





signal.

GND

Grounded

Note:

"I" indicates input signal from the host to the device. "O" indicates output signal from the device to the host.

"I/O" indicates common output or bi-directionalsignal between the host and the device.

C141-E110-02EN

5 - 5

5.2Logical Interface

The device can operate for command execution in either address-specifiedmode;cylinder-head-sector (CHS) or Logical block address (LBA) mode. The IDENTIFY DEVICE information indicates whether the device supports the LBA mode. When the host system specifies the LBA mode by setting bit 6 in the Device/Head register to 1, HS3 to HS0 bits of the Device/Head register indicates the head No. under the LBA mode, and all bits of the Cylinder High, Cylinder Low, and Sector Number registers are LBA bits.

The sector No. under the LBA mode proceeds in the ascending order with the start point of LBA0 (defined as follows).

LBA0 = [Cylinder 0, Head 0, Sector 1]

Even if the host system changes the assignment of the CHS mode by the INITIALIZE DEVICE PARAMETER command, the sector LBA address is not changed.

LBA = [((Cylinder No.) × (Number of head) + (Head No.)) × (Number of sector/track)]

+(Sector No.) – 1

5.2.1I/O registers

Communication between the host system and the device is done through input-output(I/O) registers of the device.

These I/O registers can be selected by the coded signals, CS0–,CS1–,and DA0 to DA2 from the host system. Table 5.3 shows the coding address and the function of I/O registers.

5 - 6

C141-E110-02EN

Table 5.3 I/O registers

CS0–

CS1–

DA2

DA1

DA0

I/O registers



Host I/O









Read operation



Write operation



address



















































Command block registers



































1

0

0

0

0

Data



Data



X'1F0'





















1

0

0

0

1

Error Register



Features



X'1F1'





















1

0

0

1

0

Sector Count



Sector Count



X'1F2'





















1

0

0

1

1

Sector Number



Sector Number



X'1F3'





















1

0

1

0

0

Cylinder Low



Cylinder Low



X'1F4'





















1

0

1

0

1

Cylinder High



Cylinder High



X'1F5'





















1

0

1

1

0

Device/Head



Device/Head



X'1F6'





















1

0

1

1

1

Status



Command



X'1F7'





















1

1

X

X

X

(Invalid)



(Invalid)























Control block registers



































0

1

1

1

0

Alternate Status



Device Control



X'3F6'





















0

1

1

1

1



X'3F7'





















Notes:

1.The Data register for read or write operation can be accessed by 16 bit data bus (DATA0 to DATA15).

2.The registers for read or write operation other than the Data registers can be accessed by 8 bit data bus (DATA0 to DATA7).

3.When reading the Drive Address register, bit 7 is high-impedancestate.

4.The LBA mode is specified, the Device/Head, Cylinder High, Cylinder Low, and Sector Number registers indicate LBA bits 27 to 24, 23 to 16, 15 to 8, and 7 to 0.

C141-E110-02EN

5 - 7

5.2.2Command block registers

(1)Data register (X'1F0')

The Data register is a 16-bitregister for data block transfer between the device and the host system.

(2)Error register (X'1F1')

The Error register indicates the status of the command executed by the device. The contents of this register are valid when the ERR bit of the Status register is 1.

This register contains a diagnostic code after power is turned on, a reset , or the EXECUTIVE DEVICE DIAGNOSTIC command is executed.

[Status at the completion of command execution other than diagnostic command]

Bit 7



Bit 6



Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

























ICRC



UNC



X

IDNF

X

ABRT

TK0NF

AMNF

























X: Unused



















- Bit 7:

Interface CRC error (ICRC). This bit indicates that an interface CRC error has





occurred during an Ultra DMA data transfer. The content of this bit is not





applicable for Multiword DMA transfers.







- Bit 6:

Uncorrectable Data Error (UNC). This bit indicates that an uncorrectable data error





has been encountered.











- Bit 5:

Unused















- Bit 4:

ID Not Found (IDNF). This bit indicates an error except for, uncorrectable error and





SB not found, and Aborted Command.









- Bit 3:

Unused















- Bit 2:

Aborted Command (ABRT). This bit indicates that the requested command was





aborted due to a device status error (e.g. Not Ready, Write Fault) or the command





code was invalid.













- Bit 1:

Track 0 Not Found (TK0NF). This bit indicates that track 0 was not found during





RECALIBRATE command execution.









- Bit 0:

Address Mark Not Found. This bit indicates that an SB not found error has been





encountered.













5 - 8

C141-E110-02EN

[Diagnostic code]

X'01': No Error Detected.

X'02': HDC Register Compare Error

X'03': Data Buffer Compare Error.

X'05': ROM Sum Check Error.

X'80': Device 1 (slave device) Failed.

Error register of the master device is valid under two devices (master and slave) configuration. If the slave device fails, the master device posts X’80’ OR (the diagnostic code) with its own status (X'01' to X'05').

However, when the host system selects the slave device, the diagnostic code of the slave device is posted.

(3)Features register (X'1F1')

The Features register provides specific feature to a command. For instance, it is used with SET FEATURES command to enable or disable caching.

(4)Sector Count register (X'1F2')

The Sector Count register indicates the number of sectors of data to be transferred in a read or write operation between the host system and the device. When the value in this register is X'00', the sector count is 256.

When this register indicates X'00' at the completion of the command execution, this indicates that the command is completed successfully. If the command is not completed successfully, this register indicates the number of sectors to be transferred to complete the request from the host system. That is, this register indicates the number of remaining sectors that the data has not been transferred due to the error.

The contents of this register has other definition for the following commands; INITIALIZE DEVICE PARAMETERS, FORMAT TRACK, SET FEATURES, IDLE, STANDBY and SET MULTIPLE MODE.

(5)Sector Number register (X'1F3')

The contents of this register indicates the starting sector number for the subsequent command. The sector number should be between X'01' and [the number of sectors per track defined by INITIALIZE DEVICE PARAMETERS command.

Under the LBA mode, this register indicates LBA bits 7 to 0.

C141-E110-02EN

5 - 9

(6)Cylinder Low register (X'1F4')

The contents of this register indicates low-order8 bits of the starting cylinder address for anydisk-access.

At the end of a command, the contents of this register are updated to the current cylinder number. Under the LBA mode, this register indicates LBA bits 15 to 8.

(7)Cylinder High register (X'1F5')

The contents of this register indicates high-order8 bits of thedisk-accessstart cylinder address.

At the end of a command, the contents of this register are updated to the current cylinder number. The high-order8 bits of the cylinder address are set to the Cylinder High register.

Under the LBA mode, this register indicates LBA bits 23 to 16.

(8)Device/Head register (X'1F6')

The contents of this register indicate the device and the head number.

When executing INITIALIZE DEVICE PARAMETERS command, the contents of this register defines "the number of heads minus 1".

Bit 7

Bit 6



Bit 5

Bit 4

Bit 3



Bit 2

Bit 1

Bit 0





















X

L



X

DEV

HS3



HS2

HS1

HS0





















- Bit 7:

Unused















- Bit 6:

L. 0 for CHS mode and 1 for LBA mode.







- Bit 5:

Unused















-Bit 4: DEV bit. 0 for the master device and 1 for the slave device.

-Bit 3: HS3 CHS mode head address 3 (23). LBA bit 27.

-Bit 2: HS2 CHS mode head address 3 (22). LBA bit 26.

-Bit 1: HS1 CHS mode head address 3 (21). LBA bit 25.

-Bit 0: HS0 CHS mode head address 3 (20). LBA bit 24.

5 - 10

C141-E110-02EN

(9)Status register (X'1F7')

The contents of this register indicate the status of the device. The contents of this register are updated at the completion of each command. When the BSY bit is cleared, other bits in this register should be validated within 400 ns. When the BSY bit is 1, other bits of this register are invalid. When the host system reads this register while an interrupt is pending, it is considered to be the Interrupt Acknowledge (the host system acknowledges the interrupt). Any pending interrupt is cleared (negating INTRQ signal) whenever this register is read.

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit

2

Bit

1

Bit 0





















BSY

DRDY

DF

DSC

DRQ

0



0



ERR





















- Bit 7: Busy (BSY) bit. This bit is set whenever the Command register is accessed. Then this bit is cleared when the command is completed. However, even if a command is being executed, this bit is 0 while data transfer is being requested (DRQ bit = 1).When BSY bit is 1, the host system should not write the command block registers. If the host system reads any command block register when BSY bit is 1, the contents of the Status register are posted. This bit is set by the device under following conditions:

(a)Within 400 ns after RESETis negated or SRST is set in the Device Control register, the BSY bit is set. the BSY bit is cleared, when the reset process is completed.

The BSY bit is set for no longer than 15 seconds after the IDD accepts reset.

(b)Within 400 ns from the host system starts writing to the Command register.

(c)Within 5 μs following transfer of 512 bytes data during execution of the READ SECTOR(S), WRITE SECTOR(S), FORMAT TRACK, or WRITE BUFFER command.

Within 5 μs following transfer of 512 bytes of data and the appropriate number of ECC bytes during execution of READ LONG or WRITE LONG command.

- Bit 6: Device Ready (DRDY) bit. This bit indicates that the device is capable to respond to a command.

The IDD checks its status when it receives a command. If an error is detected (not ready state), the IDD clears this bit to 0. This is cleared to 0 at power-onand it is cleared until the rotational speed of the spindle motor reaches the steady speed.

- Bit 5: The Device Write Fault (DF) bit. This bit indicates that a device fault (write fault) condition has been detected.

If a write fault is detected during command execution, this bit is latched and retained until the device accepts the next command or reset.

- Bit 4: Device Seek Complete (DSC) bit. This bit indicates that the device heads are positioned over a track.

In the IDD, this bit is always set to 1 after the spin-upcontrol is completed.

C141-E110-02EN

5 - 11

- Bit 3:

Data Request (DRQ) bit. This bit indicates that the device is ready to transfer data



of word unit or byte unit between the host system and the device.

- Bit 2:

Always 0.

- Bit 1:

Always 0.

- Bit 0:

Error (ERR) bit. This bit indicates that an error was detected while the previous



command was being executed. The Error register indicates the additional



information of the cause for the error.

(10)Command register (X'1F7')

The Command register contains a command code being sent to the device. After this register is written, the command execution starts immediately.

Table 5.3 lists the executable commands and their command codes. This table also lists the necessary parameters for each command which are written to certain registers before the Command register is written.

5 - 12

C141-E110-02EN

5.2.3Control block registers

(1)Alternate Status register (X'3F6')

The Alternate Status register contains the same information as the Status register of the command block register.

The only difference from the Status register is that a read of this register does not imply Interrupt Acknowledge and INTRQ signal is not reset.

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit

2

Bit

1

Bit 0





















BSY

DRDY

DF

DSC

DRQ

0



0



ERR





















(2)Device Control register (X'3F6')

The Device Control register contains device interrupt and software reset.

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit

0



















X

X

X

X

X

SRST

nIEN

0





















- Bit 2: SRST is the host software reset bit. When this bit is set, the device is held reset state. When two device are daisy chained on the interface, setting this bit resets both device simultaneously.

The slave device is not required to execute the DASPhandshake.

- Bit 1: nIEN bit enables an interrupt (INTRQ signal) from the device to the host. When this bit is 0 and the device is selected, an interruption (INTRQ signal) can be enabled through a tri-statebuffer. When this bit is 1 or the device is not selected, the INTRQ signal is in thehigh-impedancestate.

5.3Host Commands

The host system issues a command to the device by writing necessary parameters in related registers in the command block and writing a command code in the Command register.

The device can accept the command when the BSY bit is 0 (the device is not in the busy status).

The host system can halt the uncompleted command execution only at execution of hardware or software reset.

When the BSY bit is 1 or the DRQ bit is 1 (the device is requesting the data transfer) and the host system writes to the command register, the correct device operation is not guaranteed.

C141-E110-02EN

5 - 13

5.3.1Command code and parameters

Table 5.4 lists the supported commands, command code and the registers that needed parameters are written.

Table 5.4 Command code and parameters (1 of 2)

Command name





Command code (Bit)







Parameters used





































7

6



5

4

3

2



1

0

FR



SC

SN

CY

DH













































READ SECTOR(S)

0

0



1

0

0

0



0

R

N



Y

Y

Y



Y





































READ MULTIPLE

1

1



0

0

0

1



0

0

N



Y

Y

Y



Y





































READ DMA

1

1



0

0

1

0



0

R

N



Y

Y

Y



Y





































READ VERIFY SECTOR(S)

0

1



0

0

0

0



0

R

N



Y

Y

Y



Y





































WRITE MULTIPLE

1

1



0

0

0

1



0

1

N



Y

Y

Y



Y





































WRITE DMA

1

1



0

0

1

0



1

R

N



Y

Y

Y



Y





































WRITE VERIFY

0

0



1

1

1

1



0

0

N



Y

Y

Y



Y





































WRITE SECTOR(S)

0

0



1

1

0

0



0

R

N



Y

Y

Y



Y





































RECALIBRATE

0

0



0

1

X

X



X

X

N



N

N

N



D





































SEEK

0

1



1

1

X

X



X

X

N



N

Y

Y



Y





































INITIALIZE DEVICE DIAGNOSTIC

1

0



0

1

0

0



0

1

N



Y

N

N



Y





































IDENTIFY DEVICE

1

1



1

0

1

1



0

0

N



N

N

N



D





































IDENTIFY DEVICE DMA

1

1



1

0

1

1



1

0

N



N

N

N



D





































SET FEATURES

1

1



1

0

1

1



1

1

Y



N*

N

N



D





































SET MULTIPLE MODE

1

1



0

0

0

1



1

0

N



Y

N

N



D





































EXECUTE DEVICE DIAGNOSTIC

1

0



0

1

0

0



0

0

N



N

N

N



D*





































FORMAT TRACK

0

1



0

1

0

0



0

0

N



N

Y*

Y



Y





































READ LONG

0

0



1

0

0

0



1

R

N



Y

Y

Y



Y





































WRITE LONG

0

0



1

1

0

0



1

R

N



Y

Y

Y



Y





































READ BUFFER

1

1



1

0

0

1



0

0

N



N

N

N



D





































WRITE BUFFER

1

1



1

0

1

0



0

0

N



N

N

N



D





































IDLE

1

0



0

1

0

1



1

1

N



Y

N

N



D



1

1



1

0

0

0



1

1





























































IDLE IMMEDIATE

1

0



0

1

0

1



0

1

N



N

N

N



D



1

1



1

0

0

0



0

1





























































STANDBY

1

0



0

1

0

1



1

0

N



Y

N

N



D



1

1



1

0

0

0



1

0





























































5 - 14

C141-E110-02EN

Table 5.4 Command code and parameters (2 of 2)

Command name





Command code (Bit)







Parameters used





































7

6



5

4

3

2



1

0

FR



SC

SN

CY

DH













































STANDBY IMMEDIATE

1

0



0

1

0

1



0

0

N



N

N

N



D



1

1



1

0

0

0



0

0





























































SLEEP

1

0



0

1

1

0



0

1

N



N

N

N



D



1

1



1

0

0

1



1

0





























































CHECK POWER MODE

1

0



0

1

1

0



0

0

N



N

N

N



D



1

1



1

0

0

1



0

1





























































SMART

1

0



1

1

0

0



0

0

Y



Y

Y

Y



D





































FLUSH CACHE

1

1



1

0

0

1



1

1

N



N

N

N



D





































SECURITY DISABLE PASSWORD

1

1



1

1

0

1



1

0

N



N

N

N



D





































SECURITY ERASE PREPARE

1

1



1

1

0

0



1

1

N



N

N

N



D





































SECURITY ERASE UNIT

1

1



1

1

0

1



0

0

N



N

N

N



D





































SECURITY FREEZE LOCK

1

1



1

1

0

1



0

1

N



N

N

N



D





































SECURITY SET PASSWORD

1

1



1

1

0

0



0

1

N



N

N

N



D





































SECURITY UNLOCK

1

1



1

1

0

0



1

0

N



N

N

N



D





































SET MAX ADDRESS

1

1



1

1

1

0



0

1

N



Y

Y

Y



Y





































READ NATIVE MAX ADDRESS

1

1



1

1

1

0



0

0

N



N

N

N



D





































Notes:



FR : Features Register

CY: Cylinder Registers

SC : Sector Count Register

DH : Drive/Head Register

SN : Sector Number Register



R: R = 0 or 1

Y: Necessary to set parameters

Y*: Necessary to set parameters under the LBA mode.

N: Necessary to set parameters (The parameter is ignored if it is set.)

N*: May set parameters

D: The device parameter is valid, and the head parameter is ignored.

D*: The command is addressed to the master device, but both the master device and the slave device execute it.

X: Do not care

C141-E110-02EN

5 - 15

5.3.2Command descriptions

The contents of the I/O registers to be necessary for issuing a command and the example indication of the I/O registers at command completion are shown as following in this subsection.

Example: READ SECTOR(S)

At command issuance (I/O registers setting contents)

Bit

7

6

5



4



3

2



1

0

























1F7H(CM)

0

0

1



0

0

0



0

0

















1F6H(DH)

×

L

×



DV



Head No. / LBA [MSB]

















1F5H(CH)



Start cylinder address [MSB] / LBA

















1F4H(CL)



Start cylinder address [LSB]

/ LBA





















1F3H(SN)



Start sector No.







/ LBA [LSB]















1F2H(SC)





Transfer sector count



























1F1H(FR)











xx

































At command completion (I/O registers contents to be read)

Bit

7

6

5



4

3

2



1

0























1F7H(ST)







Error information



















1F6H(DH)

×

L

×



DV

End Head No. / LBA [MSB]



















1F5H(CH)



End cylinder address [MSB]

/ LBA

















1F4H(CL)



End cylinder address [LSB]

/ LBA

















1F3H(SN)



End sector No.



/ LBA [LSB]























1F2H(SC)









X‘00’























1F1H(ER)







Error information



























CM: Command register DH: Device/Head register CH: Cylinder High register CL: Cylinder Low register SN: Sector Number register SC: Sector Count register

FR: Features register ST: Status register ER: Error register

L: LBA (logical block address) setting bit DV: Device address. bit

x, xx: Do not care (no necessary to set)

5 - 16

C141-E110-02EN

Notes:

1.When the L bit is specified to 1, the lower 4 bits of the DH register and all bits of the CH, CL and SN registers indicate the LBA bits (bits of the DH register are the MSB (most significant bit) and bits of the SN register are the LSB (least significant bit).

2.At error occurrence, the SC register indicates the remaining sector count of data transfer.

3.In the table indicating I/O registers contents in this subsection, bit indication is omitted.

(1)READ SECTOR(S) (X'20' or X'21')

This command reads data of sectors specified in the Sector Count register from the address specified in the Device/Head, Cylinder High, Cylinder Low and Sector Number registers. Number of sectors can be specified to 256 sectors in maximum. To specify 256 sectors reading, '00' is specified. For the DRQ, INTRQ, and BSY protocols related to data transfer, see Subsection 5.4.1.

If the head is not on the track specified by the host, the device performs a implied seek. After the head reaches to the specified track, the device reads the target sector.

The DRQ bit of the Status register is always set prior to the data transfer regardless of an error condition.

Upon the completion of the command execution, command block registers contain the cylinder, head, and sector addresses (in the CHS mode) or logical block address (in the LBA mode) of the last sector read.

If an error occurs in a sector, the read operation is terminated at the sector where the error occurred.

Command block registers contain the cylinder, the head, and the sector addresses of the sector (in the CHS mode) or the logical block address (in the LBA mode) where the error occurred, and remaining number of sectors of which data was not transferred.

At command issuance (I/O registers setting contents)

1F7H(CM)

0

0

1

0

0

0

0

R













1F6H(DH)

×

L

×

DV

Start head No. /LBA [MSB]

















1F5H(CH)



Start cylinder No. [MSB] / LBA





1F4H(CL)



Start cylinder No. [LSB]

/ LBA





1F3H(SN)



Start sector No.



/ LBA [LSB]



1F2H(SC)





Transfer sector count





1F1H(FR)







xx









R = 0 or 1

C141-E110-02EN

5 - 17

At command completion (I/O registers contents to be read)

1F7H(ST)







Status information















1F6H(DH)

×

L

×



DV

End head No. /LBA [MSB]















1F5H(CH)



End cylinder No. [MSB]

/ LBA

1F4H(CL)



End cylinder No. [LSB]

/ LBA

1F3H(SN)



End sector No.



/ LBA [LSB]

1F2H(SC)







00 (*1)



1F1H(ER)







Error information

*1 If the command is terminated due to an error, the remaining number of sectors of which data was not transferred is set in this register.

(2)READ MULTIPLE (X'C4')

This command operates similarly to the READ SECTOR(S) command. The device does not generate an interrupt (assertion of the INTRQ signal) on each every sector. An interrupt is generated after the transfer of a block of sectors for which the number is specified by the SET MULTIPLE MODE command.

The implementation of the READ MULTIPLE command is identical to that of the READ SECTOR(S) command except that the number of sectors is specified by the SET MULTIPLE MODE command are transferred without intervening interrupts. In the READ MULTIPLE command operation, the DRQ bit of the Status register is set only at the start of the data block, and is not set on each sector.

The number of sectors (block count) to be transferred without interruption is specified by the SET MULTIPLE MODE command. The SET MULTIPLE MODE command should be executed prior to the READ MULTIPLE command.

When the READ MULTIPLE command is issued, the Sector Count register contains the number of sectors requested (not a number of the block count or a number of sectors in a block).

Upon receipt of this command, the device executes this command even if the value of the Sector Count register is less than the defined block count (the value of the Sector Count should not be 0).

If the number of requested sectors is not divided evenly (having the same number of sectors [block count]), as many full blocks as possible are transferred, then a final partial block is transferred. The number of sectors in the partial block to be transferred is n where n = remainder of ("number of sectors"/"block count").

If the READ MULTIPLE command is issued before the SET MULTIPLE MODE command is executed or when the READ MULTIPLE command is disabled, the device rejects the READ MULTIPLE command with an ABORTED COMMAND error.

If an error occurs, reading sector is stopped at the sector where the error occurred. Command block registers contain the cylinder, the head, the sector addresses (in the CHS mode) or the logical block address (in the LBA mode) of the sector where the error occurred, and remaining number of sectors that had not transferred after the sector where the error occurred.

An interrupt is generated when the DRQ bit is set at the beginning of each block or a partial block.

5 - 18

C141-E110-02EN

Figure 5.1 shows an example of the execution of the READ MULTIPLE command.

Block count specified by SET MULTIPLE MODE command = 4 (number of sectors in a block)

READ MULTIPLE command specifies;

Number of requested sectors = 9 (Sector Count register = 9)

Number of sectors in incomplete block = remainder of 9/4 =1

Command Issue

Parameter







Write

Status read

Status read

Status read

~







BSY

DRDY

INTRQ

DRQ

Sector

1

2

3

4



5

6

7

8



9

















transferred



































Partial













































Block











Block













block

































Figure 5.1 Execution example of READ MULTIPLE command

At command issuance (I/O registers setting contents)

1F7H(CM)

1

1

0

0

0

1

0

0













1F6H(DH)

×

L

×

DV

Start head No. /LBA [MSB]

















1F5H(CH)



Start cylinder No. [MSB] / LBA





1F4H(CL)



Start cylinder No. [LSB]

/ LBA





1F3H(SN)



Start sector No.



/ LBA [LSB]



1F2H(SC)





Transfer sector count





1F1H(FR)







xx









At command completion (I/O registers contents to be read)

1F7H(ST)







Status information















1F6H(DH)

×

L

×



DV

End head No. /LBA [MSB]















1F5H(CH)



End cylinder No. [MSB]

/ LBA

1F4H(CL)



End cylinder No. [LSB]

/ LBA

1F3H(SN)



End sector No.



/ LBA [LSB]

1F2H(SC)









00H (*1)



1F1H(ER)







Error information

*1 If the command is terminated due to an error, the remaining number of sectors for which data was not transferred is set in this register.

C141-E110-02EN

5 - 19

(3)READ DMA (X'C8' or X'C9')

This command operates similarly to the READ SECTOR(S) command except for following events.

The data transfer starts at the timing of DMARQ signal assertion.

The device controls the assertion or negation timing of the DMARQ signal.

The device posts a status as the result of command execution only once at completion of the data transfer.

When an error, such as an unrecoverable medium error, that the command execution cannot be continued is detected, the data transfer is stopped without transferring data of sectors after the erred sector. The device generates an interrupt using the INTRQ signal and posts a status to the host system. The format of the error information is the same as the READ SECTOR(S) command.

In LBA mode

The logical block address is specified using the start head No., start cylinder No., and first sector No. fields. At command completion, the logical block address of the last sector and remaining number of sectors of which data was not transferred, like in the CHS mode, are set.

The host system can select the DMA transfer mode by using the SET FEATURES command.

1) Multiword DMA transfer mode 2:

Sets the FR register = X'03' and SC register = X'22' by the SET FEATURES command

2) Ultra DMA transfer mode 2:

Sets the FR register = X'03' and SC register = X'42' by the SET FEATURES command

At command issuance (I/O registers setting contents)

1F7H(CM)

1

1

0

0

1

0

0

R













1F6H(DH)

×

L

×

DV

Start head No. /LBA [MSB]

















1F5H(CH)



Start cylinder No. [MSB] / LBA





1F4H(CL)



Start cylinder No. [LSB]

/ LBA





1F3H(SN)



Start sector No.



/ LBA [LSB]



1F2H(SC)





Transfer sector count





1F1H(FR)







xx









R = 0 or 1

5 - 20

C141-E110-02EN

At command completion (I/O registers contents to be read)

1F7H(ST)







Status information















1F6H(DH)

×

L

×



DV

End head No. /LBA [MSB]















1F5H(CH)



End cylinder No. [MSB]

/ LBA

1F4H(CL)



End cylinder No. [LSB]

/ LBA

1F3H(SN)



End sector No.



/ LBA [LSB]

1F2H(SC)







00 (*1)



1F1H(ER)







Error information

*1 If the command is terminated due to an error, the remaining number of sectors of which data was not transferred is set in this register.

(4)READ VERIFY SECTOR(S) (X'40' or X'41')

This command operates similarly to the READ SECTOR(S) command except that the data is not transferred to the host system.

After all requested sectors are verified, the device clears the BSY bit of the Status register and generates an interrupt. Upon the completion of the command execution, the command block registers contain the cylinder, head, and sector number of the last sector verified.

If an error occurs, the verify operation is terminated at the sector where the error occurred. The command block registers contain the cylinder, the head, and the sector addresses (in the CHS mode) or the logical block address (in the LBA mode) of the sector where the error occurred. The Sector Count register indicates the number of sectors that have not been verified.

At command issuance (I/O registers setting contents)

1F7H(CM)

0

1

0

0

0

0

0

R













1F6H(DH)

×

L

×

DV

Start head No. /LBA [MSB]

















1F5H(CH)



Start cylinder No. [MSB] / LBA





1F4H(CL)



Start cylinder No. [LSB]

/ LBA





1F3H(SN)



Start sector No.



/ LBA [LSB]



1F2H(SC)





Transfer sector count





1F1H(FR)







xx









R = 0 or 1

C141-E110-02EN

5 - 21

At command completion (I/O registers contents to be read)

1F7H(ST)







Status information















1F6H(DH)

×

L

×



DV

End head No. /LBA [MSB]















1F5H(CH)



End cylinder No. [MSB]

/ LBA

1F4H(CL)



End cylinder No. [LSB]

/ LBA

1F3H(SN)



End sector No.



/ LBA [LSB]

1F2H(SC)







00 (*1)



1F1H(ER)







Error information

*1 If the command is terminated due to an error, the remaining number of sectors of which data was not transferred is set in this register.

(5)WRITE SECTOR(S) (X'30' or X'31')

This command writes data of sectors from the address specified in the Device/Head, Cylinder High, Cylinder Low, and Sector Number registers to the address specified in the Sector Count register. Number of sectors can be specified to 256 sectors in maximum. Data transfer begins at the sector specified in the Sector Number register. For the DRQ, INTRQ, and BSY protocols related to data transfer, see Subsection 5.4.2.

If the head is not on the track specified by the host, the device performs a implied seek. After the head reaches to the specified track, the device writes the target sector.

The data stored in the buffer, and CRC code and ECC bytes are written to the data field of the corresponding sector(s). Upon the completion of the command execution, the command block registers contain the cylinder, head, and sector addresses of the last sector written.

If an error occurs during multiple sector write operation, the write operation is terminated at the sector where the error occurred. Command block registers contain the cylinder, the head, the sector addresses (in the CHS mode) or the logical block address (in the LBA mode) of the sector where the error occurred. Then the host can read the command block registers to determine what error has occurred and on which sector the error has occurred.

At command issuance (I/O registers setting contents)

1F7H(CM)

0

0

1

1

0

0

0

R













1F6H(DH)

×

L

×

DV

Start head No. /LBA [MSB]

















1F5H(CH)



Start cylinder No. [MSB] / LBA





1F4H(CL)



Start cylinder No. [LSB]

/ LBA





1F3H(SN)



Start sector No.



/ LBA [LSB]



1F2H(SC)





Transfer sector count





1F1H(FR)







xx









R = 0 or 1

5 - 22

C141-E110-02EN

At command completion (I/O registers contents to be read)

1F7H(ST)







Status information















1F6H(DH)

×

L

×



DV

End head No. /LBA [MSB]















1F5H(CH)



End cylinder No. [MSB]

/ LBA

1F4H(CL)



End cylinder No. [LSB]

/ LBA

1F3H(SN)



End sector No.



/ LBA [LSB]

1F2H(SC)







00 (*1)



1F1H(ER)







Error information

*1 If the command is terminated due to an error, the remaining number of sectors of which data was not transferred is set in this register.

(6)WRITE MULTIPLE (X'C5')

This command is similar to the WRITE SECTOR(S) command. The device does not generate interrupts (assertion of the INTRQ signal) on each sector but on the transfer of a block which contains the number of sectors for which the number is defined by the SET MULTIPLE MODE command.

The implementation of the WRITE MULTIPLE command is identical to that of the WRITE SECTOR(S) command except that the number of sectors is specified by the SET MULTIPLE MODE command are transferred without intervening interrupts. In the WRITE MULTIPLE command operation, the DRQ bit of the Status register is required to set only at the start of the data block, not on each sector.

The number of sectors (block count) to be transferred without interruption is specified by the SET MULTIPLE MODE command. The SET MULTIPLE MODE command should be executed prior to the WRITE MULTIPLE command.

When the WRITE MULTIPLE command is issued, the Sector Count register contains the number of sectors requested (not a number of the block count or a number of sectors in a block).

Upon receipt of this command, the device executes this command even if the value of the Sector Count register is less than the defined block count the value of the Sector Count should not be 0).

If the number of requested sectors is not divided evenly (having the same number of sectors [block count]), as many full blocks as possible are transferred, then a final partial block is transferred. The number of sectors in the partial block to be transferred is n where n = remainder of ("number of sectors"/"block count").

If the WRITE MULTIPLE command is issued before the SET MULTIPLE MODE command is executed or when WRITE MULTIPLE command is disabled, the device rejects the WRITE MULTIPLE command with an ABORTED COMMAND error.

Disk errors encountered during execution of the WRITE MULTIPLE command are posted after attempting to write the block or the partial block that was transferred. Write operation ends at the sector where the error was encountered even if the sector is in the middle of a block. If an error occurs, the subsequent block shall not be transferred. Interrupts are generated when the DRQ bit of the Status register is set at the beginning of each block or partial block.

C141-E110-02EN

5 - 23

The contents of the command block registers related to addresses after the transfer of a data block containing an erred sector are undefined. To obtain a valid error information, the host should retry data transfer as an individual requests.

At command issuance (I/O registers setting contents)

1F7H(CM)

1

1

0

0

0

1

0

1













1F6H(DH)

×

L

×

DV

Start head No. /LBA [MSB]

















1F5H(CH)



Start cylinder No. [MSB] / LBA





1F4H(CL)



Start cylinder No. [LSB]

/ LBA





1F3H(SN)



Start sector No.



/ LBA [LSB]



1F2H(SC)





Transfer sector count





1F1H(FR)







xx









At command completion (I/O registers contents to be read)

1F7H(ST)







Status information

















1F6H(DH)

×

L

×



DV



End head No. /LBA [MSB]















1F5H(CH)



End cylinder No. [MSB]

/ LBA

1F4H(CL)



End cylinder No. [LSB]

/ LBA

1F3H(SN)



End sector No.



/ LBA [LSB]

1F2H(SC)









00H





1F1H(ER)







Error information

Note:

When the command terminates due to error, only the DV bit and the error information field are valid.

(7)WRITE DMA (X'CA' or X'CB')

This command operates similarly to the WRITE SECTOR(S) command except for following events.

The data transfer starts at the timing of DMARQ signal assertion.

The device controls the assertion or negation timing of the DMARQ signal.

The device posts a status as the result of command execution only once at completion of the data transfer.

When an error, such as an unrecoverable medium error, that the command execution cannot be continued is detected, the data transfer is stopped without transferring data of sectors after the erred sector. The device generates an interrupt using the INTRQ signal and posts a status to the host system. The format of the error information is the same as the WRITE SECTOR(S) command.

A host system can be select the following transfer mode using the SET FEATURES command.

5 - 24

C141-E110-02EN

1) Multiword DMA transfer mode 2:

Sets the FR register = X'03' and SC register = X'22' by the SET FEATURES command

2) Ultra DMA transfer mode 2:

Sets the FR register = X'03' and SC register = X'42' by the SET FEATURES command

At command issuance (I/O registers setting contents)

1F7H(CM)

1

1

0

0

1

0

1

R













1F6H(DH)

×

L

×

DV

Start head No. /LBA [MSB]

















1F5H(CH)



Start cylinder No. [MSB] / LBA





1F4H(CL)



Start cylinder No. [LSB]

/ LBA





1F3H(SN)



Start sector No.



/ LBA [LSB]



1F2H(SC)





Transfer sector count





1F1H(FR)







xx









R = 0 or 1

At command completion (I/O registers contents to be read)

1F7H(ST)







Status information















1F6H(DH)

×

L

×



DV

End head No. /LBA [MSB]















1F5H(CH)



End cylinder No. [MSB]

/ LBA

1F4H(CL)



End cylinder No. [LSB]

/ LBA

1F3H(SN)



End sector No.



/ LBA [LSB]

1F2H(SC)







00 (*1)



1F1H(ER)







Error information

*1 If the command is terminated due to an error, the remaining number of sectors of which data was not transferred is set in this register.

(8)WRITE VERIFY (X'3C')

This command operates similarly to the WRITE SECTOR(S) command except that the device verifies each sector immediately after being written. The verify operation is a read and check for data errors without data transfer. Any error that is detected during the verify operation is posted.

At command issuance (I/O registers setting contents)

1F7H(CM)

0

0

1

1

1

1

0

0













1F6H(DH)

×

L

×

DV

Start head No. /LBA [MSB]

















1F5H(CH)



Start cylinder No. [MSB] / LBA





1F4H(CL)



Start cylinder No. [LSB]

/ LBA





1F3H(SN)



Start sector No.



/ LBA [LSB]



1F2H(SC)





Transfer sector count





1F1H(FR)







xx









C141-E110-02EN

5 - 25

At command completion (I/O registers contents to be read)

1F7H(ST)







Status information















1F6H(DH)

×

L

×



DV

End head No. /LBA [MSB]















1F5H(CH)



End cylinder No. [MSB]

/ LBA

1F4H(CL)



End cylinder No. [LSB]

/ LBA

1F3H(SN)



End sector No.



/ LBA [LSB]

1F2H(SC)







00 (*1)



1F1H(ER)







Error information

*1 If the command is terminated due to an error, the remaining number of sectors of which data was not transferred is set in this register.

(9)RECALIBRATE (X'1x', x: X'0' to X'F')

This command performs the rezero. Upon receipt of this command, the device sets BSY bit of the Status register and performs a rezero. When the device completes the rezero, the device updates the Status register, clears the BSY bit, and generates an interrupt.

This command can be issued in the LBA mode.

At command issuance (I/O registers setting contents)

1F7H(CM)

0

0

0

1



x

x

x

x





















1F6H(DH)

×

×

×

DV







xx























1F5H(CH)









xx







1F4H(CL)









xx







1F3H(SN)









xx







1F2H(SC)









xx







1F1H(FR)









xx



























At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)









xx



1F1H(ER)







Error information



















5 - 26

C141-E110-02EN

(10)SEEK (X'7x', x : X'0' to X'F')

This command performs a seek operation to the track and selects the head specified in the command block registers. After completing the seek operation, the device clears the BSY bit in the Status register and generates an interrupt.

The IDD always sets the DSC bit (Drive Seek Complete status) of the Status register to 1.

In the LBA mode, this command performs the seek operation to the cylinder and head position in which the sector is specified with the logical block address.

At command issuance (I/O registers setting contents)

1F7H(CM)

0

1

1



1



x

x

x

x



















1F6H(DH)

×

L



×



DV



Head No. /LBA [MSB]





















1F5H(CH)





Cylinder No. [MSB] / LBA







1F4H(CL)





Cylinder No. [LSB] / LBA







1F3H(SN)





Sector No.





/ LBA [LSB]





1F2H(SC)













xx







1F1H(FR)













xx







At command completion (I/O registers contents to be read)

1F7H(ST)









Status information

















1F6H(DH)

×

L



×



DV

Head No. /LBA [MSB]















1F5H(CH)





Cylinder No. [MSB] / LBA

1F4H(CL)





Cylinder No. [LSB] / LBA

1F3H(SN)





Sector No.

/ LBA [LSB]

1F2H(SC)











xx



1F1H(ER)









Error information

C141-E110-02EN

5 - 27

(11)INITIALIZE DEVICE PARAMETERS (X'91')

The host system can set the number of sectors per track and the maximum head number (maximum head number is "number of heads minus 1") per cylinder with this command. Upon receipt of this command, the device sets the BSY bit of Status register and saves the parameters. Then the device clears the BSY bit and generates an interrupt.

When the SC register is specified to X'00', an ABORTED COMMAND error is posted. Other than X'00' is specified, this command terminates normally.

The parameters set by this command are retained even after reset or power save operation regardless of the setting of disabling the reverting to default setting.

In LBA mode

The device ignores the L bit specification and operates with the CHS mode specification. An accessible area of this command within head moving in the LBA mode is always within a default area. It is recommended that the host system refers the addressable user sectors (total number of sectors) in word 60 to 61 of the parameter information by the IDENTIFY DEVICE command.

At command issuance (I/O registers setting contents)

1F7H(CM)

1

0

0

1

0

0

0

1



















1F6H(DH)

×

×

×

DV





Max. head No.























1F5H(CH)









xx







1F4H(CL)









xx







1F3H(SN)









xx







1F2H(SC)





Number of sectors/track





1F1H(FR)









xx



























At command completion (I/O registers contents to be read)

1F7H(ST)







Status information

















1F6H(DH)

×

×

×



DV



Max. head No.

















1F5H(CH)











xx

1F4H(CL)











xx

1F3H(SN)











xx

1F2H(SC)











xx

1F1H(ER)







Error Information

















(12)IDENTIFY DEVICE (X'EC')

The host system issues the IDENTIFY DEVICE command to read parameter information (512 bytes) from the device. Upon receipt of this command, the drive sets the BSY bit of Status register and sets required parameter information in the sector buffer. The device then sets the DRQ bit of the Status register, and generates an interrupt. After that, the host system reads the information out of the sector buffer. Table 5.5 shows the arrangements and values of the parameter words and the meaning in the buffer.

5 - 28

C141-E110-02EN

At command issuance (I/O registers setting contents)

1F7H(CM)

1

1

1

0

1

1

0

0





















1F6H(DH)

×

×

×

DV







xx























1F5H(CH)









xx







1F4H(CL)









xx







1F3H(SN)









xx







1F2H(SC)









xx







1F1H(FR)









xx



























At command completion (I/O registers contents to be read)



1F7H(ST)









Status information































1F6H(DH)

×



×



×



DV



xx



























1F5H(CH)













xx







1F4H(CL)













xx







1F3H(SN)













xx







1F2H(SC)













xx







1F1H(ER)









Error information















Table 5.5 Information to be read by IDENTIFY DEVICE command (1 of 7)





















Word

Value















Description















0

X‘045A’

General Configuration *1



























1

*2

Number of cylinders



































2

X‘0000’

Retired



































3

*3

Number of Heads



































4

X‘0000’

Retired







































5

X‘0000’

Retired































6

X‘003F’

Number of sectors per track































7-9

X‘000000000000’

Retired



























10-19

Serial number (ASCII code) *4























20

X‘0003’

Old specifications























21

X‘0400’

Buffer size in 512 byte increments











22

X‘0004’

Number of ECC bytes transferred at READ LONG or WRITE LONG command











23-26

Firmware revision (ASCII code) *5















27-46

Model number (ASCII code) *6











47

X‘8010’

Maximum number of sectors per interrupt on READ/WRITE MULTIPLE command























48

X‘0000’

Reserved



































49

X‘2B00’

Capabilities *7



































50

X‘4000’

Capabilities































51

X‘0200’

PIO data transfer mode *8



















52

X‘0200’

Single word DMA data transfer timing mode











53

X‘0007’

Enable/disable setting of words 54-58,64-70and 88 *9

























C141-E110-02EN

5 - 29

Table 5.5 Information to be read by IDENTIFY DEVICE command (2 of 7)

Word

Value

Description







54

(Variable)

Number of current Cylinders







55

(Variable)

Number of current Head







56

(Variable)

Number of current sectors per track







57-58

(Variable)

Total number of current sectors







59

*10

Transfer sector count currently set by READ/WRITE MULTIPLE command







60-61

*11

Total number of user addressable sectors (LBA mode only)







62

X‘0000’

Retired







63

X‘xx07’

Multiword DMA transfer mode *12







64

X‘0003’

Advance PIO transfer mode support status *13







65

X‘0078’

Minimum multiword DMA transfer cycle time per word : 120 [ns]







66

X‘0078’

Manufacturer's recommended DMA transfer cycle time : 120 [ns]







67

X‘00F0’

Minimum PIO transfer cycle time without flow control : 240 [ns]







68

X‘0078’

Minimum PIO transfer cycle time with IORDY flow control : 120 [ns]







69-79

X‘00’

Reserved







80

X‘003E’

Major version number *14







81

X‘0015’

Minor version number ATA/ATAPI 5 X3T13 1321D Support of rev 1







82

X‘346B’

Support of command sets *15







83

X‘4108’

Support of command sets *16







84

X‘4000’

Support of command set/feature extension (fixed)







85

X‘34xx’

Enable/disable Command set/feature enabled. *17







86

X‘xxxx’

Enable/disable Command set/feature enabled. *18







87

X‘4000’

Default of command set/feature (fixed)







88

X‘xx3F’

Ultra DMA modes *19







89

X‘000x’

Time required for security erase unit completion *20







90

X‘0000’

Time required for Enhanced security erase completion







91

X‘00xx’

Current advanced power management value







92

X‘0000’

Reserved







93

X‘xxxx’

CBLID detection results *21







94

X‘00xx’

Automatic Acoustic Management (Slow Seek mode) *22







95-127

X‘00’

Reserved







128

X‘0xxx’

Security Status







129-255

X‘00’

Reserved







5 - 30

C141-E110-02EN

Table 5.5 Information to be read by IDENTIFY DEVICE command (3 of 7)

*1 Word 0: General configuration



Bit 15:

0

= ATA device

0

Bit 14-8:

Vendor specific

0

Bit 7:

1

= Removable media device

0

Bit 6:

1

= not removable controller and/or device

1

Bit 5-1:

Vendor specific

0

Bit 0:

Reserved

0

*2 Number of Cylinders ,

*3 Number of Heads,





*11

Total number of user addressable sectors (LBA mode only.)

























MPG3102AT

MPG3153AT

MPG3204AT

MPG3307AT



MPG3409AT























*2



X'3FFF'







*3



X'10'







*11



X'01316AF0'

X'01CA1E70'

X'0262D5E0'

X'03943CE0'



X'04C5ABC0'























*4 Word 10-19:Serial number; ASCII code (20 characters,right-justified)

*5 Word 23-26:Firmware revision; ASCII code (8 characters,Left-justified)

*6 Word 27-46:Model number;

ASCII code (40 characters, Left-justified),remainder filled with blank code (X'20') One of the following model numbers;

MPG3102AT, MPG3153AT, MPG3204AT, MPG3307AT, MPG3409AT

*7

Word 49:

Capabilities









Bit 15-14:

Reserved









Bit 13:

Standby timer value 0 = Standby timer values shall be managed by the device



Bit 12:

Reserved









Bit 11:

IORDY support

1

= Supported





Bit 10:

IORDY inhibition

0

= Disable inhibition



Bit 9:

LBA support

1

= Supported





Bit 8:

DMA support

1

= Supported





Bit 7-0:

Vendor specific







*8

Word 51: PIO data transfer mode









Bit 15-8:

PIO data transfer mode

X'04' = PIO mode 4



Bit 7-0:

Vendor specific







*9 Word 53: Enable/disable setting of word 54-58 ,64-70and 88



Bit 15-3:

Reserved









Bit 2:

Enable/disable setting of word 88

1 = Enable



Bit 1:

Enable/disable setting of word 64-70

1 = Enable



Bit 0:

Enable/disable setting of word 54-58

1 = Enable

C141-E110-02EN

5 - 31

Table 5.5 Information to be read by IDENTIFY DEVICE command (4 of 7)

*10

Word 59: Transfer sector count currently set by READ/WRITE MULTIPLE command



Bit 15-9:

Reserved



Bit 8:

Multiple sector transfer 1 = Enable



Bit 7-0:

Transfer sector count currently set by READ/WRITE MULTIPLE without





interrupt supports 2, 4, 8 and 16 sectors.

*12

Word 63: Multiword DMA transfer mode



Bit 15-11:

Reserved



Bit 10:

1 = Multiword DMA mode 2 is selected





0 = Multiword DMA mode 2 is not selected



Bit 9:

1 = Multiword DMA mode 1 is selected





0 = Multiword DMA mode 1 is not selected



Bit 8:

1 = Multiword DMA mode 0 is selected





0 = Multiword DMA mode 0 is not selected



Bit 7-3:

Reserved



Bit 2:

1 = Multiword DMA mode 2 and below are supported



Bit 1:

1 = Multiword DMA mode 1 and below are supported



Bit 0:

1 = Multiword DMA mode 0 is supported

*13

Word 64: Advance PIO transfer mode support status



Bit 15-8:

Reserved



Bit 7-0:

Advance PIO transfer mode



Bit 1 = 1



Mode 4



Bit 0 = 1



Mode 3

*14

Word 80: Major version number



Bit 15-6:

Reserved



Bit 5:

ATA-5

Supported = 1



Bit 4:

ATA-4

Supported = 1



Bit 3:

ATA-3

Supported = 1



Bit 2:

ATA-2

Supported = 1



Bit 1:

ATA-1

Supported = 1



Bit 0:

Undefined

*15

Word 82: Support of command sets



Bit 15:

Reserved



Bit 14:

NOP command supported = 0



Bit 13:

Read Buffer command supported = 1



Bit 12:

Write Buffer command supported = 1



Bit 11:

Write Verify command supported (Old Spec.) = 0



Bit 10:

Host Protected Area feature command supported = 1



Bit 9:

Device Reset command supported = 0



Bit 8:

SERVICE Interrupt supported = 0



Bit 7:

Release Interrupt supported = 0



Bit 6:

Lock Ahead supported = 1



Bit 5:

Write-cachesupported = 1



Bit 4:

Packet command feature set supported = 0



Bit 3:

Power Management feature set supported = 1



Bit 2:

Removable feature set supported = 0



Bit 1:

Security feature set supported = 1



Bit 0:

SMART feature set supported = 1

5 - 32

C141-E110-02EN

Table 5.5 Information to be read by IDENTIFY DEVICE command (5 of 7)

*16

Word 83: Support of command sets



Bit 15:

0





Bit 14:

1





Bit 13-5:

Reserved



Bit 4:

Removable Media Status Notification feature set supported = 0



Bit 3:

Advanced Power Management feature set supported = 1



Bit 2:

CFA feature set supported = 0



Bit 1:

READ/WRITE DMA QUEUED supported = 0



Bit 0:

DOWNLOAD MICROCODE command supported = 0

*17 Word 85: Enable/disable Command set/feature enabled



Bit 15:

Reserved



Bit 14:

NOP command enabled = 0



Bit 13:

READ BUFFER command enabled



Bit 12:

WRITE BUFFER command enabled



Bit 11:

Reserved



Bit 10:

Host Protected Area feature set enabled



Bit 9:

DEVICE RESET command enabled = 0



Bit 8:

SERVICE interrupt enabled = 0



Bit 7:

Release interrupt enabled = 0



Bit 6:

Look-aheadenabled



Bit 5:

Write cache enabled



Bit 4:

PACKET Command feature set enabled = 0



Bit 3:

Power Management feature set enabled



Bit 2:

Removable Media feature set enabled = 0



Bit 1:

Security Mode feature set enabled



Bit 0:

SMART feature set enabled

*18

Word 86: Command set/feature enabled



Bit 15-10:

Reserved



Bit 9:

1

= Automatic Acoustic Management feature set enabled



Bit 8:

1

= SET MAX security extension enabled by SET MAX SET PASSWORD



Bit 7:

Reserved



Bit 6:

0

= SET FEATURES subcommand required to spin-upafterpower-up



Bit 5:

0

= Power-UpIn Standby feature set enabled



Bit 4:

0

= Removable Media Status Notification feature set enabled



Bit 3:

1

= Advanced Power Management feature set enabled



Bit 2:

0

= CFA feature set enabled



Bit 1:

0

= READ/WRITE DMA QUEUED command supported



Bit 0:

0

= DOWNLOAD MICROCODE command supported

C141-E110-02EN

5 - 33

Table 5.5 Information to be read by IDENTIFY DEVICE command (6 of 7)

*19 Word 88: Ultra DMA modes

Bit 15-14:

Reserved

Bit 13:

1

= Ultra DMA mode 5 is selected



0

= Ultra DMA mode 5 is not selected

Bit 12:

1

= Ultra DMA mode 4 is selected



0

= Ultra DMA mode 4 is not selected

Bit 11:

1

= Ultra DMA mode 3 is selected



0

= Ultra DMA mode 3 is not selected

Bit 10:

1

= Ultra DMA mode 2 is selected



0

= Ultra DMA mode 2 is not selected

Bit 9:

1

= Ultra DMA mode 1 is selected



0

= Ultra DMA mode 1 is not selected

Bit 8:

1

= Ultra DMA mode 0 is selected



0

= Ultra DMA mode 0 is not selected

Bit 7-6:

Reserved

Bit 5:

1

= Ultra DMA mode 5 and below are supported

Bit 4:

1

= Ultra DMA mode 4 and below are supported

Bit 3:

1

= Ultra DMA mode 3 and below are supported

Bit 2:

1

= Ultra DMA mode 2 and below are supported

Bit 1:

1

= Ultra DMA mode 1 and below are supported

Bit 0:

1

= Ultra DMA mode 0 is supported

*20 Word89: Time required for SECURITY ERASE UNIT command to complete.

MPG3102AT = 0004H: 8 minutes

MPG3153AT = 0008H: 16 minutes

MPG3204AT = 0008H: 16minutes

MPG3307AT = 0010H: 32 minutes

MPG3409AT = 0010H: 32 minutes

*21 Word 93: Hardware reset result. The contents of bits 12-0of this word shall change only during the execution of a hardware reset.

Bit 15:

0





Bit 14:

1





Bit 13:

1 = device detected CBLIDabove VIH (80-conductorcable)



0 = device detected CBLIDbelow VIL (40-conductorcable)

Bit 12-8:

Device 1 hardware reset result. Device 0 shall clear these bits to zero.



Device 1 shall set these bits as follows:

Bit 12:

0

= Reserved

Bit 11:

0

= Device 1 did not assert PDIAG-



1

= Device 1 asserted PDIAG-

Bit 10-9:

These bits indicate how Device 1 determined the device number.





00

= Reserved





01

= a jumper was used





10

= the CSEL signal was used





11

= some other method was used or the method is unknown

Bit 8:

1





5 - 34

C141-E110-02EN

Table 5.5 Information to be read by IDENTIFY DEVICE command (7 of 7)

Bit 7-0:

Device 0 hardware reset result. Device 1 shall clear these bits to zero.



Device 0 shall set these bits as follows:

Bit 7:

0



Bit 6:

0

= Device 0 does not respond when Device 1 is selected



1

= Device 0 responds when Device 1 is selected

Bit 5:

0

= Device 0 did not detect the assertion of DASP-



1

= Device 0 detected the assertion of DASP-

Bit 4:

0

= Device 0 did not detect the assertion of PDIAG-



1

= Device 0 detected the assertion of PDIAG-

Bit 3:

0

= Device 0 failed diagnostics



1

= Device 0 passed diagnostics

Bit 2-1:

These bits indicate how Device 0 determined the device number.





00 = Reserved





01 = a jumper was used





10 = the CSEL signal was used





11 = some other method was used or the method is unknown

Bit 0:

1



*22 Word 94: Automatic Acoustic Management

Bit 15-8:

0



Bit 7-0:

Current automatic acoustic management value

C141-E110-02EN

5 - 35

(13)IDENTIFY DEVICE DMA (X'EE')

When this command is not used to transfer data to the host in DMA mode, this command functions in the same way as the Identify Device command.

At command issuance (I/O registers setting contents)

1F7H(CM)

1

1

1

0

1

1

1

0





















1F6H(DH)

×

×

×

DV







xx























1F5H(CH)









xx







1F4H(CL)









xx







1F3H(SN)









xx







1F2H(SC)









xx







1F1H(FR)









xx



























At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)









xx



1F1H(ER)







Error information



















(14)SET FEATURES (X'EF')

The host system issues the SET FEATURES command to set parameters in the Features register for the purpose of changing the device features to be executed. For the transfer mode (Feature register = 03), detail setting can be done using the Sector Count register.

Upon receipt of this command, the device sets the BSY bit of the Status register and saves the parameters in the Features register. Then, the device clears the BSY bit, and generates an interrupt.

If the value in the Features register is not supported or it is invalid, the device posts an ABORTED COMMAND error.

Table 5.6 lists the available values and operational modes that may be set in the Features register.

5 - 36

C141-E110-02EN



Table 5.6 Features register values and settable modes





Features Register

Drive operation mode





X‘02’

Enables the write cache function.





X‘03’

Specifies the transfer mode. Supports PIO mode 4, single word DMA mode 2,



and multiword DMA mode regardless of Sector Count register contents.





X‘04’

No operation.





X‘05’

Enable the advanced power management function.





X‘33’

No operation.





X‘42’

Enable Automatic Acoustic Management feature set





X‘54’

No operation.





X‘55’

Disables read cache function.





X‘66’

Disables the reverting to power-ondefault settings after software reset.





X‘77’

No operation.





X‘81’

No operation.





X‘82’

Disables the write cache function.





X‘84’

No operation.





X‘85’

Disable the advanced power management function.





X‘88’

No operation.





X‘89’

No operation.





X‘AA’

Enables the read cache function.





X‘AB’

No operation.





X‘BB’

Specifies the transfer of 4-byteECC for READ LONG and WRITE LONG



commands.





X‘C2’

Disable Automatic Acoustic Management feature set





X‘CC’

Enables the reverting to power-ondefault settings after software reset.





C141-E110-02EN

5 - 37

At command issuance (I/O registers setting contents)

1F7H(CM)

1

1

1

0

1

1

1

1























1F6H(DH)

×

×

×



DV







xx

























1F5H(CH)











xx







1F4H(CL)











xx







1F3H(SN)











xx







1F2H(SC)







xx or transfer mode







1F1H(FR)







[See Table 5.6]





























At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)









xx



1F1H(ER)







Error information



















The host sets X'03' to the Features register. By issuing this command with setting a value to the Sector Count register, the transfer mode can be selected. Upper 5 bits of the Sector Count register defines the transfer type and lower 3 bits specifies the binary mode value.

However, the IDD can operate with the PIO transfer mode 4 and multiword DMA transfer mode 2 regardless of reception of the SET FEATURES command for transfer mode setting.

The IDD supports following values in the Sector Count register value. If other value than below is specified, an ABORTED COMMAND error is posted.

PIO default transfer mode

00000

000

(X‘00’)

PIO flow control transfer mode X

00001 000

(X‘08’: Mode 0)



00001

001

(X‘09’: Mode 1)



00001

010

(X‘0A’: Mode 2)



00001

011

(X‘0B’: Mode 3)



00001

100

(X‘0C’: Mode 4)

Multiword DMA transfer mode X

00100 000

(X‘20’: Mode 0)



00100

001

(X‘21’: Mode 1)



00100

010

(X‘22’: Mode 2)

Ultra DMA transfer mode X

01000 000

(X‘40’: Mode 0)



01000

001

(X‘41’: Mode 1)



01000

010

(X‘42’: Mode 2)



01000

011

(X‘43’: Mode 3)



01000

100

(X‘44’: Mode 4)



01000

101

(X‘45’: Mode 5)

5 - 38

C141-E110-02EN

Subcommand code 42h allows the host to enable the Automatic Acoustic Management feature set. To enable the Automatic Acoustic Management feature set, the host writes the Sector Count register with the requested automatic acoustic management level and executes a SET FEATURES command with subcommand code 42h. The acoustic management level is selected on a scale from 01h to FEh. Following table shows the acoustic management level values.

Enabling or disabling of the Automatic Acoustic Management feature set, and the current automatic acoustic management level setting will be preserved by the device across all forms of reset, i.e., power on, hardware, and software resets.

Automatic management levels

Level

Sector Count value





Reserved

FFh





Maximum performance

C0h - FEh





Minimum acoustic emanation level

80h - BFh





Retired

01h - 7Fh





Vendor Specific (Maximum performance)

00h





Subcommand code C2h disables the Automatic Acoustic Management feature set. Devices that implement SET FEATURES subcommand 42h are not required to implement subcommand C2h. If device successfully completes execution of this subcommand, then the acoustic behavior of the device shall be vendor-specific,and the device return zeros in bits0-7of word 94 and bit 9 of word 86 of the IDENTIFY DEVICE data.

(15)SET MULTIPLE MODE (X'C6')

This command enables the device to perform the READ MULTIPLE and WRITE MULTIPLE commands. The block count (number of sectors in a block) for these commands are also specified by the SET MULTIPLE MODE command.

The number of sectors per block is written into the Sector Count register. The IDD supports 2, 4, 8 and 16 (sectors) as the block counts.

Upon receipt of this command, the device sets the BSY bit of the Status register and checks the contents of the Sector Count register. If the contents of the Sector Count register is valid and is a supported block count, the value is stored for all subsequent READ MULTIPLE and WRITE MULTIPLE commands. Execution of these commands is then enabled. If the value of the Sector Count register is not a supported block count, an ABORTED COMMAND error is posted and the READ MULTIPLE and WRITE MULTIPLE commands are disabled.

If the contents of the Sector Count register is 0 when the SET MULTIPLE MODE command is issued, the READ MULTIPLE and WRITE MULTIPLE commands are disabled.

When the SET MULTIPLE MODE command operation is completed, the device clears the BSY bit and generates an interrupt.

C141-E110-02EN

5 - 39

At command issuance (I/O registers setting contents)

1F7H(CM)

1

1

0

0

0

1

1

0























1F6H(DH)

×

×

×



DV







xx

























1F5H(CH)











xx







1F4H(CL)











xx







1F3H(SN)











xx







1F2H(SC)







Sector count/block







1F1H(FR)











xx





























At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)







Sector count/block



1F1H(ER)







Error information



















After power-onor after hardware reset, the READ MULTIPLE and WRITE MULTIPLE command operation are disabled as the default mode.

Regarding software reset, the mode set prior to software reset is retained after software reset.

The parameters for the multiple commands which are posted to the host system when the IDENTIFY DEVICE command is issued are listed below. See Subsection 5.3.2 for the IDENTIFY DEVICE command.

Word 47 = 8010: Maximum number of sectors that can be transferred per interrupt by the READ MULTIPLE and WRITE MULTIPLE commands are 16 (fixed).

Word 59 = 0000: The READ MULTIPLE and WRITE MULTIPLE commands are disabled.

= 01xx: The READ MULTIPLE and WRITE MULTIPLE commands are enabled. "xx" indicates the current setting for number of sectors that can be transferred per interrupt by the READ MULTIPLE and WRITE MULTIPLE commands.

e.g. 0110 = Block count of 16 has been set by the SET MULTIPLE MODE command.

(16)EXECUTE DEVICE DIAGNOSTIC (X'90')

This command performs an internal diagnostic test (self-diagnosis)of the device. This command usually sets the DRV bit of the Drive/Head register is to 0 (however, the DV bit is not checked). If two devices are present, both devices executeself-diagnosis.

5 - 40

C141-E110-02EN

If device 1 is present:

Both devices shall execute self-diagnosis.

The device 0 waits for up to 5 seconds until device 1 asserts the PDIAGsignal.

If the device 1 does not assert the PDIAGsignal but indicates an error, the device 0 shall append X'80' to its own diagnostic status.

The device 0 clears the BSY bit of the Status register and generates an interrupt. (The device 1 does not generate an interrupt.)

A diagnostic status of the device 0 is read by the host system. When a diagnostic failure of the device 1 is detected, the host system can read a status of the device 1 by setting the DV bit (selecting the device 1).

When device 1 is not present:

The device 0 posts only the results of its own self-diagnosis.

The device 0 clears the BSY bit of the Status register, and generates an interrupt.

Table 5.7 lists the diagnostic code written in the Error register which is 8-bitcode.

If the device 1 fails the self-diagnosis,the device 0 "ORs" X'80' with its own status and sets that code to the Error register.



Table 5.7 Diagnostic code







Code



Result of diagnostic







X‘00’



Mechanical failure

X‘01’



No error detected

X‘02’



Hardware error

X‘03’



Buffer failure

X‘04’



SRAM failure

X‘05’



SA read failure

X‘06’



Power ON calibration failure

X‘8x’



Failure of device 1







At command issuance (I/O registers setting contents)

1F7H(CM)

1

0

0

1

0

0

0

0





















1F6H(DH)

×

×

×

DV







xx























1F5H(CH)









xx







1F4H(CL)









xx







1F3H(SN)









xx







1F2H(SC)









xx







1F1H(FR)









xx



























C141-E110-02EN

5 - 41

At command completion (I/O registers contents to be read)

1F7H(ST)

Status information





1F6H(DH)

00





1F5H(CH)

00

1F4H(CL)

00

1F3H(SN)

01H

1F2H(SC)

01H

1F1H(ER)

Diagnostic code





(17)FORMAT TRACK (X'50')

Upon receipt of this command, the device sets the DRQ bit and waits the completion of 512-byteformat parameter transfer from the host system. After completion of transfer, the device clears the DRQ bits, sets the BSY bit. However the device does not perform format operation, but the drive clears the BSY bit and generates an interrupt soon. When the command execution completes, the device clears the BSY bit and generates an interrupt.

The drive supports this command for keep the compatibility with previous drive only.

(18)READ LONG (X'22' or X'23')

This command operates similarly to the READ SECTOR(S) command except that the device transfers the data in the requested sector and the ECC bytes to the host system. The ECC error correction is not performed for this command. This command is used for checking ECC function by combining with the WRITE LONG command.

The READ LONG command supports only single sector operation.

At command issuance (I/O registers setting contents)

1F7H(CM)

0

0

1



0



0

0

1

R



















1F6H(DH)

×

L



×



DV



Head No. /LBA [MSB]





















1F5H(CH)





Cylinder No. [MSB] / LBA







1F4H(CL)





Cylinder No. [LSB] / LBA







1F3H(SN)





Sector No.





/ LBA [LSB]





1F2H(SC)





Number of sectors to be transferred





1F1H(FR)











xx









R = 0 or 1

5 - 42

C141-E110-02EN

At command completion (I/O registers contents to be read)

1F7H(ST)







Status information

















1F6H(DH)

×

L



×



DV

Head No. /LBA [MSB]















1F5H(CH)





Cylinder No. [MSB] / LBA

1F4H(CL)





Cylinder No. [LSB] / LBA

1F3H(SN)





Sector No.



/ LBA [LSB]

1F2H(SC)











00 (*1)

1F1H(ER)







Error information

*1 If the command is terminated due to an error, this register indicates 01.

(19)WRITE LONG (X'32' or X'33')

This command operates similarly to the READ SECTOR(S) command except that the device writes the data and the ECC bytes transferred from the host system to the disk medium. The device does not generate ECC bytes by itself. The WRITE LONG command supports only single sector operation.

This command is operated under the following conditions:

The command is issued in a sequence of the READ LONG or WRITE LONG (to the same address) command issuance. (WRITE LONG command can be continuously issued after the READ LONG command.)

If above condition is not satisfied, the command operation is not guaranteed.

At command issuance (I/O registers setting contents)

1F7H(CM)

0

0

1



1



0

0

1

R



















1F6H(DH)

×

L



×



DV



Head No. /LBA [MSB]





















1F5H(CH)





Cylinder No. [MSB] / LBA







1F4H(CL)





Cylinder No. [LSB] / LBA







1F3H(SN)





Sector No.





/ LBA [LSB]





1F2H(SC)





Number of sectors to be transferred





1F1H(FR)











xx









R = 0 or 1

At command completion (I/O registers contents to be read)

1F7H(ST)







Status information

















1F6H(DH)

×

L



×



DV

Head No. /LBA [MSB]















1F5H(CH)





Cylinder No. [MSB] / LBA

1F4H(CL)





Cylinder No. [LSB] / LBA

1F3H(SN)





Sector No.



/ LBA [LSB]

1F2H(SC)











00 (*1)

1F1H(ER)







Error information

*1 If the command is terminated due to an error, this register indicates 01.

C141-E110-02EN

5 - 43

(20)READ BUFFER (X'E4')

The host system can read the current contents of the sector buffer of the device by issuing this command. Upon receipt of this command, the device sets the BSY bit of Status register and sets up the sector buffer for a read operation. Then the device sets the DRQ bit of Status register, clears the BSY bit, and generates an interrupt. After that, the host system can read up to 512 bytes of data from the buffer.

At command issuance (I/O registers setting contents)

1F7H(CM)

1

1

1

0

0

1

0

0





















1F6H(DH)

×

×

×

DV







xx























1F5H(CH)









xx







1F4H(CL)









xx







1F3H(SN)









xx







1F2H(SC)









xx







1F1H(FR)









xx



























At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)









xx



1F1H(ER)







Error information



















(21)WRITE BUFFER (X'E8')

The host system can overwrite the contents of the sector buffer of the device with a desired data pattern by issuing this command. Upon receipt of this command, the device sets the BSY bit of the Status register. Then the device sets the DRQ bit of Status register and clears the BSY bit when the device is ready to receive the data. After that, 512 bytes of data is transferred from the host and the device writes the data to the sector buffer, then generates an interrupt.

At command issuance (I/O registers setting contents)

1F7H(CM)

1

1

1

0

1

0

0

0





















1F6H(DH)

×

×

×

DV







xx























1F5H(CH)









xx







1F4H(CL)









xx







1F3H(SN)









xx







1F2H(SC)









xx







1F1H(FR)









xx



























5 - 44

C141-E110-02EN

At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)









xx



1F1H(ER)







Error information



















(22)IDLE (X'97' or X'E3')

Upon receipt of this command, the device sets the BSY bit of the Status register, and enters the idle mode. Then, the device clears the BSY bit, and generates an interrupt. The device generates an interrupt even if the device has not fully entered the idle mode. If the spindle of the device is already rotating, the spin-upsequence shall not be implemented.

If the contents of the Sector Count register is other than 0, the automatic power-downfunction is enabled and the timer starts countdown immediately. When the timer reaches the specified time, the device enters the standby mode.

If the contents of the Sector Count register is 0, the automatic power-downfunction is disabled.

Enabling the automatic power-downfunction means that the device automatically enters the standby mode after a certain period of time. When the device enters the idle mode, the timer starts countdown. If any command is not issued while the timer is counting down, the device automatically enters the standby mode. If any command is issued while the timer is counting down, the timer is initialized and the command is executed. The timer restarts countdown after completion of the command execution.

The period of timer count is set depending on the value of the Sector Count register as shown below.

Sector Count register value

Point of timer







0

[X'00']

Disable of timer







1 to 240

[X'01' to X'F0']

(Value ×5) seconds







241 to 251

[X'F1' to X'FB']

(Value – 240) ×30 minutes







252

[X'FC']

21 minutes







253

[X'FD']

8 hours







254 to 255

[X'FE' to X'FF']

21 minutes 15 seconds







C141-E110-02EN

5 - 45

At command issuance (I/O registers setting contents)

1F7H(CM)









X'97' or X'E3'



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)







Period of timer



1F1H(FR)









xx



















At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)









xx



1F1H(ER)







Error information



















(23)IDLE IMMEDIATE (X'95' or X'E1')

Upon receipt of this command, the device sets the BSY bit of the Status register, and enters the idle mode. Then, the device clears the BSY bit, and generates an interrupt. This command does not support the automatic power-downfunction.

At command issuance (I/O registers setting contents)

1F7H(CM)







X'95' or X'E1'

















1F6H(DH)

×

×

×

DV



xx















1F5H(CH)







xx



1F4H(CL)







xx



1F3H(SN)







xx



1F2H(SC)







xx



1F1H(FR)







xx

















At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)









xx



1F1H(ER)







Error information



















5 - 46

C141-E110-02EN

(24)STANDBY (X'96' or X'E2')

Upon receipt of this command, the device sets the BSY bit of the Status register and enters the standby mode. The device then clears the BSY bit and generates an interrupt. The device generates an interrupt even if the device has not fully entered the standby mode. If the device has already spun down, the spin-downsequence is not implemented.

If the contents of the Sector Count register is other than 0, the automatic power-downfunction is enabled and the timer starts countdown when the device returns to idle mode.

When the timer value reaches 0 (passed a specified time), the device enters the standby mode. If the contents of the Sector Count register is 0, the automatic power-downfunction is disabled.

Under the standby mode, the spindle motor is stopped. Thus, when the command involving a seek such as the READ SECTOR(S) command is received, the device processes the command after driving the spindle motor.

At command issuance (I/O registers setting contents)

1F7H(CM)









X'96' or X'E2'



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)







Period of timer



1F1H(FR)









xx



















At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)









xx



1F1H(ER)







Error information



















(25)STANDBY IMMEDIATE (X'94' or X'E0')

Upon receipt of this command, the device sets the BSY bit of the Status register and enters the standby mode. The device then clears the BSY bit and generates an interrupt. This command does not support the automatic power-downsequence.

C141-E110-02EN

5 - 47

At command issuance (I/O registers setting contents)

1F7H(CM)







X'94' or X'E0'

















1F6H(DH)

×

×

×

DV



xx















1F5H(CH)







xx



1F4H(CL)







xx



1F3H(SN)







xx



1F2H(SC)







xx



1F1H(FR)







xx

















At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)









xx



1F1H(ER)







Error information



















(26)SLEEP (X'99' or X'E6')

This command is the only way to make the device enter the sleep mode.

Upon receipt of this command, the device sets the BSY bit of the Status register and enters the sleep mode. The device then clears the BSY bit and generates an interrupt. The device generates an interrupt even if the device has not fully entered the sleep mode.

In the sleep mode, the spindle motor is stopped and the ATA interface section is inactive. All I/O register outputs are in high-impedancestate.

The only way to release the device from sleep mode is to execute a software or hardware reset.

At command issuance (I/O registers setting contents)

1F7H(CM)







X'99' or X'E6'

















1F6H(DH)

×

×

×

DV



xx















1F5H(CH)







xx



1F4H(CL)







xx



1F3H(SN)







xx



1F2H(SC)







xx



1F1H(FR)







xx

















5 - 48

C141-E110-02EN

At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)









xx



1F1H(ER)







Error information



















(27)CHECK POWER MODE (X'98' or X'E5')

The host checks the power mode of the device with this command.

The host system can confirm the power save mode of the device by analyzing the contents of the Sector Count and Sector registers.

The device sets the BSY bit and sets the following register value. After that, the device clears the BSY bit and generates an interrupt.

Power save mode

Sector Count register





• During moving to standby mode



• Standby mode

X'00'

• During returning from the standby mode







• Idle mode

X'80'





• Active mode

X'FF'





At command issuance (I/O registers setting contents)

1F7H(CM)







X'98' or X'E5'

















1F6H(DH)

×

×

×

DV



xx















1F5H(CH)







xx



1F4H(CL)







xx



1F3H(SN)







xx



1F2H(SC)







xx



1F1H(FR)







xx

















C141-E110-02EN

5 - 49

At command completion (I/O registers contents to be read)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx

















1F5H(CH)









xx



1F4H(CL)









xx



1F3H(SN)









xx



1F2H(SC)









X'00' or X'FF'



1F1H(ER)







Error information



















(28)SMART (X'B0)

This command performs operations for device failure predictions according to a subcommand specified in the FR register. If the value specified in the FR register is supported, the Aborted Command error is posted.

It is necessary for the host to set the keys (CL = 4Fh and CH = C2h) in the CL and CH registers prior to issuing this command. If the keys are set incorrectly, the Aborted Command error is posted.

When the failure prediction feature is disabled, the Aborted Command error is posted in response to subcommands other than SMART Enable Operations (FR register = D8h).

When the failure prediction feature is enabled, the device collects or updates several items to forecast failures. In the following sections, note that the values of items collected or updated by the device to forecast failures are referred to as attribute values.

5 - 50

C141-E110-02EN

Table 5.8 Features Register values (subcommands) and functions (1/2)

Features Resister

Function









X’D0’

SMART Read Attribute Values:





A device that received this subcommand asserts the BSY bit and saves all the



updated attribute values. The device then clears the BSY bit and transfers 512-byte



attribute value information to the host.





* For information about the format of the attribute value information, see Table 5.9.

X’D1’

SMART Read Attribute Thresholds:





This subcommand is used to transfer 512-byteinsurance failure threshold value data



to the host.





* For information about the format of the insurance failure threshold value data, see



Table 5.10.



X’D2’

SMART Enable-DisableAttribute AutoSave:





This subcommand is used to enable (SC register ¹ 00h) or disable (SC register =



00h) the setting of the automatic saving feature for the device attribute data. The



setting is maintained every time the device is turned off and then on. When the



automatic saving feature is enabled, the attribute values are saved after 15 minutes



passed since the previous saving of the attribute values. However, if the failure



prediction feature is disabled, the attribute values are not automatically saved.



When the device receives this subcommand, it asserts the BSY bit, enables or



disables the automatic saving feature, then clears the BSY bit.



X’D3’

SMART Save Attribute Values:





When the device receives this subcommand, it asserts the BSY bit, saves device



attribute value data, then clears the BSY bit.



X’D4’

SMART Execute off-lineImmediate/Execute Self Test:





The device that received these subcommands shall execute off-linedata collection or



Self Test, or device shall abort current Self Test.





The setting of SN register is described as following.





Off-linedata collection:

(SN register = 00h)



Self Test functions:





- Quick Test – Off-lineMode

(SN register = 01h)



- Quick Test – Captive Mode

(SN register = 81h)



- Comprehensive Test – Off-lineMode

(SN register = 02h)



- Comprehensive Test – Captive Mode

(SN register = 82h)



- Self Test Stop

(SN register = 7Fh)



The device that received subcommand (SN register is described 00h, 01h or 02h)



shall execute Off-linedata collection or Self Test after asserts the BSY bit and clears



it.





The device that received subcommand (SN register is described 81h or 82h) shall



execute Self Test after assert the BSY bit, then clears the BSY bit after completes



these command process.





The device that received subcommand (SN register is described 7Fh) shall assert the



BSY bit. When the device is in process of performing Self Test or off-linedata



collection, it should abort the current Self Test or off-linedata collection, then clears



the BSY bit.



C141-E110-02EN

5 - 51

Table 5.8 Features Register values (subcommands) and functions (2/2)

X’D5’

SMART Read Logging Data:





This subcommand is used to transfer 512-bytelogging data to the host.



The setting of SN register is described as following.





Log Sector Address

01h (SC register 01h):

SMART Error Log







(See Table 5.11)





06h (SC register 01h):

SMART Self Test Log







(See Table 5.12)





80-9Fh:

Host vendor specific



When the device receives these subcommands, it asserts the BSY bit and transfers



512-bytelogging data to the host, then clears the BSY bit.

X’D6’

SMART Write Logging Data:





This subcommand is used to transfer 512-bytelogging data from the host, and saves



these data on the media.







Log Sector Address

80-9Fh:

Host vendor specific



When the device receives this subcommand, it receives 512-bytelogging data from



the host, and asserts the BSY bit and saves 512-bytedata on the media, then clears



the BSY bit.





X’D8’

SMART Enable Operations:





This subcommand enables the failure prediction feature. The setting is maintained



even when the device is turned off and then on.





When the device receives this subcommand, it asserts the BSY bit, enables the



failure prediction feature, then clears the BSY bit.



X’D9’

SMART Disable Operations:





This subcommand disables the failure prediction feature. The setting is maintained



even when the device is turned off and then on.





When the device receives this subcommand, it asserts the BSY bit, disables the



failure prediction feature, then clears the BSY bit.



X’DA’

SMART Return Status:







When the device receives this subcommand, it asserts the BSY bit and saves the



current device attribute values. Then the device compares the device attribute values



with insurance failure threshold values. If there is an attribute value exceeding the



threshold, F4h and 2Ch are loaded into the CL and CH registers. If there are no



attribute values exceeding the thresholds, 4Fh and C2h are loaded into the CL and



CH registers. After the settings for the CL and CH registers have been determined,



the device clears the BSY bit.



X’DB’

SMART Enable/Disable Automatic Off-line:





The device that receives this subcommand enables (SC register ¹ 00h) or disables



(SC register = 00h) automatic off-linedata collection. The condition is maintained



even when the device is turned off and turned on.





When the failure prediction feature and automatic off-linedata collection are



enabled, an off-linedata collection shall be performed regardless of host issued



command after more than 4 hours passed since power-onor the previousoff-line



data collection.







When the device receives this subcommand, it asserts the BSY bit, enables or



disables automatic off-linedata collection, then clears the BSY bit.

5 - 52

C141-E110-02EN

The host must regularly issue the SMART Read Attribute Values subcommand (FR register = D0h), SMART Save Attribute Values subcommand (FR register = D3h), or SMART Return Status subcommand (FR register = DAh) to save the device attribute value data on a medium.

Alternative, the device must issue the SMART Enable-DisableAttribute AutoSave subcommand (FR register = D2h) to use a feature which regularly save the device attribute value data to a medium.

The host can predict failures in the device by periodically issuing the SMART Return Status subcommand (FR register = DAh) to reference the CL and CH registers.

If an attribute value is below the insurance failure threshold value, the device is about to fail or the device is nearing the end of it life . In this case, the host recommends that the user quickly backs up the data.

At command issuance (I-Oregisters setting contents)

1F7H(CM)

1

0

1

1

0

0

0

0





















1F6H(DH)

×

×

×

DV







xx





















1F5H(CH)







Key (C2h)







1F4H(CL)







Key (4Fh)







1F3H(SN)









xx







1F2H(SC)









xx







1F1H(FR)







Subcommand



























At command completion (I-Oregisters setting contents)

1F7H(ST)







Status information



















1F6H(DH)

×

×

×



DV



xx













1F5H(CH)



Key-failureprediction status(C2h-2Ch)

1F4H(CL)



Key-failureprediction status(4Fh-F4h)

1F3H(SN)









xx



1F2H(SC)









xx



1F1H(ER)







Error information



















C141-E110-02EN

5 - 53

The attribute value information is 512-bytedata; the format of this data is shown in Table 5.9. The host can access this data using the SMART Read Attribute Values subcommand (FR register = D0h). The insurance failure threshold value data is512-bytedata; the format of this data is shown in Table 5.10. The host can access this data using the SMART Read Attribute Thresholds subcommand (FR register = D1h).





Table 5.9

Device attribute data structure















Byte (Hex)











Description















00

Data structure revision number *1

01













02

1st

attribute



Attribute ID number *2

03











Status flag *3

04























05











Normalized attribute values *4















06











Worst ever normalized *5















07











Raw attribute values *6

to























0C













0D











Reserved















0E

2

nd

to 30

th



Reserved

to







attribute





(Each attribute format is the same as 1st attribute.)

169





























16A

Off-linedata



Off-linedata collection status *7







collection





16B



Self Test execution status byte *8



























16C











Off-linedata collection executing times (sec)

16D























16E











Reserved



























16F











Off-linedata collection capability *9



























170

SMART capability flag *10

171













172

Drive error logging capability *11

















173

Self Test failure checkpoint

















174

Quick Test completion time (min) *12

















175

Comprehensive Test completion time (min) *13

















176

Reserved





to

















181













182

Vendor unique

to













1FE













1FF

Check sum *14

















5 - 54

C141-E110-02EN

Table 5.10 Warranty failure threshold data structure

Byte (Hex)











Description



















00

Data structure revision number *1



01

















02

1st

drive threshold

Attribute ID number *2



03











Attribute threshold *15



04































05











Reserved



















06































07















to















0C































0D































0E

2

nd

to 30

th

drive

Reserved



to







threshold



st

drive

169



(Each threshold format is the same as 1











threshold.)

































16A

Reserved







to





















17B















17C

Vendor unique





to



















1FE























1FF

Check sum





















*1 Data structure revision number

It indicates the revision number of device attribute and warranty failure threshold. They will have the same “Data structure revision number”.

C141-E110-02EN

5 - 55

*2 Attribute ID

The attribute ID is defined as follows:



Attribute ID (Dec)

Description









0

(Indicates unused attribute data)









1

Read error rate









2

Throughput performance









3

Spin up time









4

Number of times the spindle motor is activated









5

Number of alternative sectors









6

Read channel margin (Not supported)









7

Seek error rate









8

Seek time performance









9

Power-ontime









10

Number of retries made to activate the spindle motor









11

Number of retries to calibration









12

Number of turn on/off times









13 to 198

Reserved









199

Ultra ATA CRC Error Rate









200

Write error rate









201 to 255

(Vendor unique)







*3 Status flag











Bit

Description









0

If this bit is set to 1, it indicates the attribute is guaranteed for





normal operation when an attribute value exceeds the threshold.









1

If this bit is set to 1 (0), it indicates the attribute is updated only





by on-linetest(off-linetest).









2

If this bit is set to 1, it indicates a performance attribute.









3

If this bit is set to 1, it indicates an error-rateattribute.









4

If this bit is set to 1, it indicates an event count attribute.









5

If this bit is set to 1, it indicates the attribute shall be collected





and saved even if the failure prediction feature is disabled.









6 to 15

Reserved bits







5 - 56

C141-E110-02EN

*4 Normalized attribute value

The current attribute value is the normalized raw attribute data. The value varies between 01h and 64h. The closer the value gets to 01h, the higher the possibility of a failure. The device compares the attribute values with thresholds. When the attribute values are larger than the thresholds, the device is operating normally.

*5 Worst ever normalized

This is the worst attribute value among the attribute values collected to date. This value indicates the state nearest to a failure so far.

*6 Raw attribute value

Raw attributes data is retained.

*7 Off-linedata collection status

Values

Description





00h or 80h

Off-linedata collection is not started.





01h or 81h

Reserved





02h or 82h

Off-linedata collection has been completed without error.





03h or 83h

Reserved





04h or 84h

Off-linedata collection has been suspended by an interrupt



command from the host.





05h or 85h

Off-linedata collection has been aborted by an interrupt



command from the host.





06h or 86h

Off-linedata collection has been aborted with a fatal error. (Not



used)





40h to 7Fh

Vendor unique (Not used)

C0h to FFh







07h to 3Fh

Reserved

87h to BFh







If bit [7] is 1, it indicates that automatic off-linedata collection function is enabled.

*8 Self Test execution status byte [16Bh]

Bit 0-3:Self Test remain time.

The values in these bits indicate the remaining percentage (0% - 90%) of Self Test until completion by 0h-9h.

Bit 4-7:Self Test execution status

00h: Self Test has been completed normally. Otherwise Self Test has not performed.

01h: Self Test has been interrupted by host.

02h: Self Test has been interrupted by the soft/hard reset from the host.

C141-E110-02EN

5 - 57

03h: Self Test has been aborted for a final error.

04h: Self Test has been completed abnormally for an unknown meaning. 05h: Self Test has been completed abnormally by Write/Read Test.

06h: Self Test has been completed abnormally by servo analysis. 07h: Self Test has been completed abnormally by Read Scan Test 08h-0Eh:Reserved





0Fh: Self Test is being performed.

*9 Off-linedata collection capability [16Fh]











Bit



Description











0



If this bit is set to 1, it indicates SMART EXECUTE OFF-LINE







IMMEDIATE subcommand is supported. (FR register = D4)











1



Vendor unique











2



If this bit is set to 1, it indicates off-linedata collection being







aborted when a new command is received.











3



If this bit is set to 1, it indicates SMART off-lineread scanning is







supported.











4



If this bit is set to 1, it indicates SMART Self Test is supported.











5 to 7



Reserved bits







*10

SMART capability flag [170-171h]











Bit



Description











0
