Fujitsu M3000 User Manual

SPARC Enterprise

M3000 Server

Service Manual

™

Manual Code C120-E540-03EN
Part No. 820-5685-12
November 2009, Revision A

Copyright 2008-2009 FUJITSU LIMITED, 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki-shi, Kanagawa-ken 211-8588, Japan.All rights
reserved.

Sun Microsystems, Inc. provided technical input and review on portions of this material.
Sun Microsystems,Inc. andFujitsu Limited eachown orcontrol intellectualproperty rights relating to products andtechnology described in

this document,and such products, technology andthis documentare protectedby copyright laws, patents andother intellectual property laws
and internationaltreaties. Theintellectual property rights of SunMicrosystems, Inc.and Fujitsu Limited in suchproducts, technologyand this
document include,without limitation, one or moreof theUnited States patentslisted athttp://www.sun.com/patentsand one ormore
additional patentsor patent applications in theUnited States or other countries.

This documentand the product and technologyto whichit pertains are distributedunder licensesrestricting their use, copying, distribution,
and decompilation.No part of such productor technology,or ofthis document, maybe reproducedin anyform by anymeans withoutprior
written authorizationof Fujitsu Limited and SunMicrosystems, Inc.,and their applicablelicensors, ifany.The furnishingof this documentto
you doesnot give you any rightsor licenses, express or implied,with respectto theproduct or technology to whichit pertains, and this
document doesnot contain or represent any commitment ofany kindon the partof FujitsuLimited or SunMicrosystems, Inc.,or any affiliate of
either ofthem.

This documentand the product and technologydescribed inthis document mayincorporate third-partyintellectual propertycopyrighted by
and/or licensedfrom suppliersto Fujitsu Limitedand/or SunMicrosystems, Inc.,including software and font technology.

Per theterms of the GPL orLGPL, a copy of thesource codegoverned by theGPL orLGPL, as applicable,is availableupon requestby the End
User.Please contactFujitsu Limited orSun Microsystems,Inc

This distribution may include materials developed by third parties.
Parts of the product may be derived from Berkeley BSD systems, licensed from the University of California. UNIX is a registered trademark

in the U.S. and in other countries, exclusively licensed through X/Open Company, Ltd.
Sun, Sun Microsystems, the Sun logo, Java, Netra, Solaris, Sun Ray, Answerbook2, docs.sun.com, OpenBoot, and Sun Fire are trademarks or

registered trademarks of Sun Microsystems, Inc., or its subsidiaries, in the U.S. and other countries.
Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited.
All SPARC trademarks are used under license and are registered trademarks of SPARC International, Inc. in the U.S. and other countries.

Products bearing SPARC trademarks are based upon architecture developed by Sun Microsystems, Inc.
SPARC64 is a trademark of SPARC International, Inc., used under license by Fujitsu Microelectronics, Inc. and Fujitsu Limited.
The OPEN LOOK and Sun™ Graphical User Interface was developed by Sun Microsystems, Inc. for its users and licensees. Sunacknowledges

the pioneering efforts of Xerox in researching and developing theconcept of visual or graphical user interfaces forthe computer industry. Sun
holds anon-exclusive license from Xerox to the Xerox GraphicalUser Interface, which license alsocovers Sun’s licensees who implementOPEN
LOOK GUIs and otherwise comply with Sun’s written license agreements.

United StatesGovernment Rights - Commercial use.U.S. Governmentusers aresubject to thestandard governmentuser license agreements of
Sun Microsystems,Inc. andFujitsu Limited andthe applicableprovisions ofthe FARand itssupplements.

Disclaimer: The only warranties granted by Fujitsu Limited, Sun Microsystems, Inc. or any affiliate of either of them in connection with this
document or any product or technology described herein are those expressly set forth in the license agreement pursuant to which the product
or technology is provided. EXCEPT AS EXPRESSLY SET FORTH IN SUCH AGREEMENT, FUJITSU LIMITED, SUN MICROSYSTEMS, INC.
AND THEIRAFFILIATES MAKENO REPRESENTATIONSOR WARRANTIES OF ANY KIND (EXPRESS OR IMPLIED)REGARDING SUCH
PRODUCT OR TECHNOLOGY OR THIS DOCUMENT, WHICH ARE ALL PROVIDED AS IS, AND ALL EXPRESS OR IMPLIED
CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT, ARE DISCLAIMED, EXCEPT TO THE
EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID. Unless otherwise expressly set forth in such agreement, to the
extent allowed by applicable law, in no event shall Fujitsu Limited, Sun Microsystems, Inc. or any of their affiliates have any liability to any
third party under any legal theory for any loss of revenues or profits, loss of use or data, or business interruptions, or for any indirect, special,
incidental or consequential damages, even if advised of the possibility of such damages.

DOCUMENTATION IS PROVIDED “AS IS” AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES,
INCLUDING ANYIMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT,
ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID.

Please

Recycle

Copyright 2008-2009 FUJITSU LIMITED, 1-1, Kamikodanaka 4-chome, Nakahara-ku, Kawasaki-shi, Kanagawa-ken 211-8588, Japon. Tous
droits réservés.

Entrée et revue tecnical fournies par Sun Microsystems, Incl sur des parties de ce matériel.
Sun Microsystems, Inc. et Fujitsu Limited détiennent et contrôlent toutes deux des droits de propriété intellectuelle relatifs aux produits et

technologies décrits dans ce document. De même, ces produits, technologies et ce document sont protégés par des lois sur le copyright, des
brevets, d’autreslois sur la propriétéintellectuelle et des traités internationaux. Les droits de propriété intellectuelle de Sun Microsystems, Inc.
et Fujitsu Limited concernant ces produits, ces technologies et ce document comprennent, sans que cette liste soit exhaustive, un ou plusieurs
des brevets déposésaux États-Unis et indiqués à l’adresse http://www.sun.com/patents de même qu’un ou plusieursbrevets ou applications
brevetées supplémentaires aux États-Unis et dans d’autres pays.

Ce document, le produit et les technologies afférents sont exclusivement distribués avec des licences qui en restreignent l’utilisation, la copie,
la distribution et la décompilation. Aucune partie de ce produit, de ces technologies ou de ce document ne peut être reproduite sous quelque
forme quece soit, par quelque moyen que ce soit, sans l’autorisation écrite préalable de Fujitsu Limited et de Sun Microsystems, Inc., etde leurs
éventuels bailleurs de licence. Ce document, bien qu’il vous ait été fourni, ne vous confère aucun droit et aucune licence, expresses ou tacites,
concernant le produitou la technologie auxquelsil se rapporte. Par ailleurs, il ne contient nine représente aucun engagement,de quelque type
que ce soit, de la part de Fujitsu Limited ou de Sun Microsystems, Inc., ou des sociétés affiliées.

Ce document, et le produit et les technologies qu’il décrit, peuvent inclure des droits de propriété intellectuelle de parties tierces protégés par
copyright et/ou cédés sous licence par des fournisseurs à Fujitsu Limited et/ou Sun Microsystems, Inc., y compris des logiciels et des
technologies relatives aux polices de caractères.

Par limites du GPL ou du LGPL, une copie du code source régi par le GPL ou LGPL, comme applicable, est sur demande vers la fin utilsateur
disponible; veuillez contacter Fujitsu Limted ou Sun Microsystems, Inc.

Cette distribution peut comprendre des composants développés par des tierces parties.
Des parties de ce produit pourront être dérivées des systèmes Berkeley BSD licenciés par l’Université de Californie. UNIX est une marque

déposée aux Etats-Unis et dans d’autres pays et licenciée exclusivement par X/Open Company, Ltd.
Sun, Sun Microsystems, le logo Sun, Java, Netra, Solaris, Sun Ray, Answerbook2, docs.sun.com, OpenBoot, et Sun Fire sont des marques de

fabrique ou des marques déposées de Sun Microsystems, Inc., ou ses filiales, aux Etats-Unis et dans d’autres pays.
Fujitsu et le logo Fujitsu sont des marques déposées de Fujitsu Limited.
Toutes les marques SPARC sont utilisées sous licence et sont des marques de fabrique ou des marques déposées de SPARC International, Inc.

aux Etats-Unis et dans d’autres pays. Les produits portant les marques SPARC sont basés sur une architecture développée par Sun
Microsystems, Inc.

SPARC64 est une marques déposée de SPARC International, Inc., utilisée sous le permis par Fujitsu Microelectronics, Inc. et Fujitsu Limited.
L’interface d’utilisation graphique OPEN LOOK et Sun™ a été développée par Sun Microsystems, Inc. pour ses utilisateurs et licenciés. Sun

reconnaît les effortsde pionniers de Xerox pour la recherche et le développement du concept des interfaces d’utilisation visuelle ou graphique
pour l’industrie de l’informatique. Sun détient une license non exclusive de Xerox sur l’interface d’utilisation graphique Xerox, cette licence
couvrant également les licenciés de Sun qui mettent en place l’interface d’utilisation graphique OPEN LOOK et qui, en outre, se conforment
aux licences écrites de Sun.

Droits du gouvernement américain - logiciel commercial. Les utilisateurs du gouvernement américain sont soumis aux contrats de licence
standard de Sun Microsystems, Inc. et de Fujitsu Limited ainsi qu’aux clauses applicables stipulées dans le FAR et ses suppléments.

Avis denon-responsabilité: les seulesgaranties octroyéespar Fujitsu Limited,Sun Microsystems, Inc. ou toutesociété affiliée del’une ou l’autre
entité enrapport avec cedocument ou toutproduit ou toutetechnologie décrit(e) dansles présentes correspondent aux garanties expressément
stipulées dans le contrat de licence régissant le produit ou la technologie fourni(e). SAUF MENTION CONTRAIRE EXPRESSÉMENT
STIPULÉE DANS CE CONTRAT, FUJITSU LIMITED, SUN MICROSYSTEMS, INC. ET LES SOCIÉTÉS AFFILIÉES REJETTENT TOUTE
REPRÉSENTATION OU TOUTE GARANTIE, QUELLE QU’EN SOIT LA NATURE (EXPRESSE OU IMPLICITE) CONCERNANT CE
PRODUIT,CETTE TECHNOLOGIE OUCE DOCUMENT, LESQUELS SONT FOURNISEN L’ÉTAT. EN OUTRE,TOUTES LES CONDITIONS,
REPRÉSENTATIONS ET GARANTIES EXPRESSES OU TACITES, Y COMPRIS NOTAMMENT TOUTE GARANTIE IMPLICITERELATIVE À
LA QUALITÉ MARCHANDE, À L’APTITUDE À UNE UTILISATION PARTICULIÈRE OU À L’ABSENCE DE CONTREFAÇON, SONT
EXCLUES, DANS LA MESURE AUTORISÉE PAR LA LOI APPLICABLE. Sauf mention contraire expressément stipulée dans ce contrat, dans
la mesure autoriséepar la loi applicable, en aucun cas Fujitsu Limited,Sun Microsystems, Inc. ou l’une de leurs filiales nesauraient être tenues
responsables envers une quelconque partie tierce, sous quelque théorie juridique que ce soit, de tout manque à gagner ou de perte de profit,
de problèmes d’utilisation ou de perte de données, ou d’interruptions d’activités, ou de tout dommage indirect, spécial, secondaire ou
consécutif, même si ces entités ont été préalablement informées d’une telle éventualité.

LA DOCUMENTATION EST FOURNIE “EN L’ETAT” ET TOUTES AUTRES CONDITIONS, DECLARATIONS ET GARANTIES EXPRESSES
OU TACITES SONT FORMELLEMENTEXCLUES, DANSLA MESURE AUTORISEE PAR LA LOIAPPLICABLE, Y COMPRIS NOTAMMENT
TOUTE GARANTIE IMPLICITE RELATIVE A LA QUALITE MARCHANDE, A L’APTITUDE A UNE UTILISATION PARTICULIERE OU A
L’ABSENCE DE CONTREFACON.

Contents

Preface xiii

1. Safety Precautions for Maintenance 1–1

1.1 ESD Precautions 1–1

1.2 Server Precautions 1–3

1.2.1 Electrical Safety Precautions 1–3

1.2.2 Equipment Rack Safety Precautions 1–3

1.2.3 Component Handling Precautions 1–4

2. Hardware Overview 2–1

2.1 Name of Each Part 2–1

2.2 Operator Panel 2–5

2.2.1 Operator Panel Overview 2–6

2.2.2 Switches on the Operator Panel 2–7

2.2.3 LEDs on the Operator Panel 2–9

2.3 LED Functions of Components 2–11

2.4 External Interface Port on Rear Panel 2–13

2.5 Labels 2–17

3. Troubleshooting 3–1

3.1 Emergency Power Off 3–1

v

3.2 Failure Diagnostic Method 3–2

3.3 Checking the Server and System Configuration 3–4

3.3.1 Checking the Hardware Configuration and FRU Status 3–4

3.3.1.1 Checking the Hardware Configuration. 3–5

3.3.2 Checking the Software and Firmware Configurations 3–6

3.3.2.1 Checking the Software Configuration 3–7

3.3.2.2 Checking the Firmware Configuration 3–7

3.3.2.3 Downloading Error Log Information 3–7

3.4 Error Conditions 3–8

3.4.1 Predictive Self-Healing Tools 3–8

3.4.2 Monitoring Output 3–10

3.4.3 Messaging Output 3–10

3.5 Using Troubleshooting Commands 3–11

3.5.1 Using the showhardconf Command 3–11

3.5.2 Using the showlogs Command 3–14

3.5.3 Using the showstatus Command 3–15

3.5.4 Using the fmdump Command 3–16

3.5.4.1 fmdump -V Command 3–16

3.5.4.2 fmdump -e Command 3–17

3.5.5 Using the fmadm Command 3–17

3.5.5.1 Using the fmadm faulty Command 3–17

3.5.5.2 fmadm repair Command 3–18

3.5.5.3 fmadm config Command 3–18

3.5.6 Using the fmstat Command 3–19

3.6 General Solaris Troubleshooting Commands 3–19

3.6.1 Using the iostat Command 3–20

3.6.1.1 Options 3–20

3.6.2 Using the prtdiag Command 3–21

vi SPARC Enterprise M3000 Server Service Manual • November 2009

3.6.2.1 Options 3–21

3.6.3 Using the prtconf Command 3–23

3.6.3.1 Options 3–24

3.6.4 Using the netstat Command 3–26

3.6.4.1 Options 3–26

3.6.5 Using the ping Command 3–27

3.6.5.1 Options 3–27

3.6.6 Using the ps Command 3–28

3.6.6.1 Options 3–29

3.6.7 Using the prstat Command 3–29

3.6.7.1 Options 3–30

4. FRU Replacement Preparation 4–1

4.1 Tools Required for Maintenance 4–1

4.2 FRU Replacement and Installation Methods 4–2

4.2.1 FRU Replacement 4–2

4.2.2 FRU Installation 4–3

4.3 Active Replacement/Active Addition 4–5

4.3.1 Releasing a FRU from a Domain 4–5

4.3.2 FRU Removal and Replacement 4–6

4.3.3 Configuring a FRU in a Domain 4–6

4.3.4 Verifying the Hardware Operation 4–7

4.4 Hot Replacement/Hot Addition 4–7

4.4.1 FRU Removal and Replacement 4–8

4.4.2 Verifying the Hardware Operation 4–10

4.5 Cold Replacement/Cold Addition 4–12

4.5.1 Powering off the Server 4–12

4.5.1.1 Power-off by Using the XSCF Command 4–12

4.5.1.2 Power off by Using the Operator Panel 4–13

Contents vii

4.5.2 FRU Removal and Replacement 4–13

4.5.3 Powering on the Server 4–13

4.5.3.1 Power-on by Using the XSCF Command 4–13

4.5.3.2 Power-on by Using the Operator Panel 4–14

4.5.4 Verifying the Hardware Operation 4–15

5. Internal Components Access 5–1

5.1 Sliding the Server Into and Out of the Equipment Rack 5–1

5.1.1 Sliding the Server Out from the Equipment Rack 5–1

5.1.2 Sliding the Server into the Equipment Rack 5–3

5.2 Removing and Attaching the Top Cover 5–3

5.2.1 Removing the Top Cover 5–3

5.2.2 Attaching the Top Cover 5–4

5.3 Removing and Attaching the Air Duct 5–4

5.3.1 Accessing the Air Duct 5–5

5.3.2 Removing the Air Duct 5–5

5.3.3 Attaching the Air Duct 5–6

5.4 Removing and Attaching the Fan Cover 5–6

5.4.1 Removing the Fan Cover 5–6

5.4.2 Attaching the Fan Cover 5–7

6. Motherboard Unit Replacement 6–1

6.1 Accessing the Motherboard Unit 6–4

6.2 Removing the Motherboard Unit 6–7

6.3 Mounting the Motherboard Unit 6–8

6.4 Reassembling the Server 6–9

7. Replacement and Installation of Memory 7–1

7.1 Memory Mounting Rules 7–3

7.1.1 Confirmation of DIMM Information 7–3

viii SPARC Enterprise M3000 Server Service Manual • November 2009

7.1.2 Memory Mounting Conditions 7–4

7.2 Accessing the DIMMs 7–7

7.3 Removing the DIMMs 7–8

7.4 Installing the DIMMs 7–9

7.5 Reassembling the Server 7–9

8. Replacement and Installation of PCIe Cards 8–1

8.1 Accessing a PCIe Card 8–3

8.2 Removing a PCIe Card 8–3

8.3 Mounting a PCIe Card 8–4

8.4 Reassembling the Server 8–5

9. Replacement and Installation of a Hard Disk Drive (HDD) 9–1

9.1 Accessing a Hard Disk Drive 9–3

9.2 Removing a Hard Disk Drive 9–3

9.3 Installing a Hard Disk Drive 9–5

9.4 Reassembling the Server 9–5

10. Replacing the Hard Disk Drive Backplane 10–1

10.1 Accessing the Hard Disk Drive Backplane 10–2

10.2 Removing the Hard Disk Drive Backplane 10–3

10.3 Mounting the Hard Disk Drive Backplane 10–5

10.4 Reassembling the Server 10–6

11. CD-RW/DVD-RW Drive Unit (DVDU) Replacement 11–1

11.1 Accessing the CD-RW/DVD-RW Drive Unit 11–2

11.2 Removing the CD-RW/DVD-RW Drive Unit 11–3

11.3 Mounting the CD-RW/DVD-RW Drive Unit 11–4

11.4 Reassembling the Server 11–5

12. Power Supply Unit Replacement 12–1

Contents ix

12.1 Accessing a Power Supply Unit 12–3

12.2 Removing the Power Supply Unit 12–3

12.3 Mounting the Power Supply Unit 12–5

12.4 Reassembling the Server 12–5

13. Fan Unit Replacement 13–1

13.1 Accessing a Fan Unit 13–3

13.2 Removing a Fan Unit 13–3

13.3 Mounting a Fan Unit 13–5

13.4 Reassembling the Server 13–5

14. Fan Backplane Replacement 14–1

14.1 Accessing the Fan Backplane 14–2

14.2 Removing the Fan Backplane 14–5

14.3 Mounting the Fan Backplane 14–6

14.4 Reassembling the Server 14–6

15. Operator Panel Replacement 15–1

15.1 Accessing the Operator Panel 15–3

15.2 Removing the Operator Panel 15–4

15.3 Mounting the Operator Panel 15–5

15.4 Reassembling the Server 15–5

A. Components List A–1

B. FRU List B–1

B.1 Server Overview B–1

B.2 Motherboard Unit B–2

B.2.1 Memory (DIMM) B–3

B.2.2 PCIe Slot B–3

B.2.3 CPU B–4

x SPARC Enterprise M3000 Server Service Manual • November 2009

B.2.4 XSCF Unit B–4

B.3 Drive B–5

B.3.1 Hard Disk Drive B–5

B.3.2 CD-RW/DVD-RW Drive Unit (DVDU) B–6

B.4 Power Supply Unit B–6

B.5 Fan Unit B–7

C. External Interface Specifications C–1

C.1 Serial Port C–2

C.2 UPC Port C–2

C.3 USB Port C–3

C.4 SAS Port C–3

C.5 Connection Diagram for Serial Cable C–4

D. UPS Controller D–1

D.1 Overview D–1

D.2 Signal Cable D–2

D.3 Configuration of Signal Lines D–3

D.4 Power Supply Conditions D–4

D.4.1 Input Circuit D–4

D.4.2 Output Circuit D–5

D.5 UPS Cable D–5

D.6 Connections D–6

E. DC Power Supply Model E–1

E.1 The Server Views E–2

E.2 LED Functions of Power Supply Unit E–4

E.3 Electricals Specifications E–5

E.4 Using the showhardconf Command E–6

Contents xi

Abbreviations Abbreviations–1

Index Index–1

xii SPARC Enterprise M3000 Server Service Manual • November 2009

Preface

This manual describes how to service SPARC Enterprise™ M3000 server. It is written
for maintenance providers who have received training under a self-maintenance
contract.

This section includes:

■ “Glossary” on page xiii

■ “Structure and Contents of This Manual” on page xiv

■ “M3000 Server Documentation” on page xv

■ “Text Conventions” on page xviii

■ “Prompt Notations” on page xviii

■ “Syntax of the Command-Line Interface (CLI)” on page xix

■ “Environment Requirements for Using This Product” on page xix

■ “Conventions for Alert Messages” on page xx

■ “Notes on Safety” on page xxi

■ “Alert Labels” on page xxiv

■ “Product Handling” on page xxv

■ “Limitations and Cautions” on page xxvi

■ “Fujitsu Welcomes Your Comments” on page xxviii

Glossary

For the terms used in the “M3000 Server Documentation” on page xv, refer to the
SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers Glossary.

xiii

Structure and Contents of This Manual

This manual is organized as described below:

■ CHAPTER 1 Safety Precautions for Maintenance

Provides safety precautions required for maintenance.

■ CHAPTER 2 Hardware Overview

Explains the names of components and also explains the LEDs on the operator
panel and rear panel.

■ CHAPTER 3 Troubleshooting

Explains fault diagnosis information.

■ CHAPTER 4 FRU Replacement Preparation

Explains the method of preparing for the safe replacement of FRUs.

■ CHAPTER 5 Internal Components Access

Explains how to access internal components.

■ CHAPTER 6 Motherboard Unit Replacement

Explains how to replace the motherboard unit.

■ CHAPTER 7 Replacement and Installation of Memory

Explains how to replace and install memory (DIMMs).

■ CHAPTER 8 Replacement and Installation of PCIe Cards

Explains how to replace and install PCIe cards.

■ CHAPTER 9 Replacement and Installation of a Hard Disk Drive (HDD)

Explains how to replace and install hard disk drive.

■ CHAPTER 10 Replacing the Hard Disk Drive Backplane

Explains how to replace the hard disk drive backplane.

■ CHAPTER 11 CD-RW/DVD-RW Drive Unit (DVDU) Replacement

Explains how to replace the CD-RW/DVD-RW drive unit.

■ CHAPTER 12 Power Supply Unit Replacement

Explains how to replace a power supply unit.

■ CHAPTER 13 Fan Unit Replacement

Explains how to replace a fan unit.

xiv SPARC Enterprise M3000 Server Service Manual • November 2009

■ CHAPTER 14 Fan Backplane Replacement

Explains how to replace the fan backplane.

■ CHAPTER 15 Operator Panel Replacement

Explains how to replace the operator panel.

■ APPENDIX A Components List

Explains the server nomenclature and component numbering.

■ APPENDIX B FRU List

Explains FRUs.

■ APPENDIX C External Interface Specifications

Explains connector specifications for external interfaces.

■ APPENDIX D UPS Controller

Explains the UPS controller (UPC) that controls the uninterruptible power
supply (UPS) unit.

■ APPENDIX E DC Power Supply Model

Describes the requirements specific to the DC power supply model.

■ Abbreviations

Provides the full spellings of abbreviations used in this manual.

■ Index

Provides keywords and corresponding reference page numbers so that the
reader can easily search for items in this manual as necessary.

M3000 Server Documentation

The manuals listed below are provided for reference.

Book titles Manual codes

SPARC Enterprise M3000 Server Site Planning Guide C120-H030

SPARC Enterprise Equipment Rack Mounting Guide C120-H016

SPARC Enterprise M3000 Server Getting Started Guide C120-E536

SPARC Enterprise M3000 Server Overview Guide C120-E537

Important Safety Information for Hardware Systems C120-E391

SPARC Enterprise M3000 Server Safety and Compliance Guide C120-E538

Preface xv

Book titles Manual codes

SPARC Enterprise M3000 Server Installation Guide C120-E539

SPARC Enterprise M3000 Server Service Manual C120-E540

SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers RCI
Build Procedure

SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers
Administration Guide

SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers XSCF
User’s Guide

SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers XSCF
Reference Manual

SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers RCI
User’s Guide

SPARC Enterprise M3000 Server Product Notes Go to the Web

SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers
Glossary

SPARC Enterprise /PRIMEQUEST Common Installation Planning
Manual

C120-E361

C120-E331

C120-E332

Go to the Web

C120-E360

C120-E514

C120-H007

1. Manuals on the web
The latest versions of all the SPARC Enterprise Series manuals are available at the

following websites.
Global Site

http://www.fujitsu.com/sparcenterprise/manual/

Japanese Site

http://primeserver.fujitsu.com/sparcenterprise/manual/

Note – SPARC Enterprise M3000 Server Product Notes are available on the website

only. Please check for the most recent update on your product.

2. Documentation CD
For the Documentation CD, please contact your local sales representative.

■ SPARC Enterprise M3000 Server Documentation CD (C120-E541)

xvi SPARC Enterprise M3000 Server Service Manual • November 2009

3. Manual on the Enhanced Support Facility x.x CD-ROM disk

■ Remote maintenance service

Book title Manual code

Enhanced Support Facility User's Guide for REMCS C112-B067

4. Manual (man page) provided in system
XSCF man page

Note – The man page can be referenced on the XSCF Shell, and it provides the same

content as the SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers XSCF
User’s Guide.

5. Sun Microsystems software (for Solaris OS, etc.) related manuals

http://docs.sun.com

6. Information on using the RCI function
The manual does not contain an explanation of the RCI build procedure. For

information on using the RCI function, refer to the SPARC Enterprise

M3000/M4000/M5000/M8000/M9000 Servers RCI Build Procedure and SPARC
Enterprise M3000/M4000/M5000/M8000/M9000 Servers RCI User's Guide provided

on the website.

Preface xvii

Text Conventions

This manual uses the following fonts and symbols to express specific types of
information.

Fonts/symbols Meaning Example

AaBbCc123 What you type, when contrasted

with on-screen computer output.
This font represents the example of

command input in the frame.

AaBbCc123 The names of commands, files, and

directories; on-screen computer
output.

This font represents the example of
command output in the frame.

Italic Indicates the name of a reference

manual

" " Indicates names of chapters,

sections, items, buttons, or menus

XSCF> adduser jsmith

XSCF> showuser -p
User Name: jsmith
Privileges: useradm

See the SPARC Enterprise
M3000/M4000/M5000/M8000/M90
00 Servers XSCF User’s Guide

See Chapter 2, "Hardware
Overview."

Prompt Notations

The following prompt notations are used in this manual.

Shell Prompt notations

XSCF

C shell machine-name%

C shell super user machine-name#

Bourne shell and Korn shell

Bourne shell and Korn shell
super user

OpenBoot™ PROM

XSCF>

$

#

ok

auditadm

xviii SPARC Enterprise M3000 Server Service Manual • November 2009

Syntax of the Command-Line Interface
(CLI)

The command syntax is as follows:

■ A variable that requires input of a value must be enclosed in <>.

■ An optional element must be enclosed in [ ].

■ A group of options for an optional keyword must be enclosed in [ ] and delimited

by |.

■ A group of options for a mandatory keyword must be enclosed in {} and

delimited by |.

■ The command syntax is shown in a box.

Example:

XSCF> showuser -a

Environment Requirements for Using
This Product

This product is a computer that is intended to be used in a data center. For details of
the system requirements, refer to SPARC Enterprise M3000 Server Installation Guide.

Preface xix

Conventions for Alert Messages

This manual uses the following conventions to show alert messages, which are
intended to prevent injury to the user or bystanders as well as property damage, and
important messages that are useful to the user.

WARNING:
This indicates a hazardous situation that could result in death or serious personal
injury (potential hazard) if the user does not perform the procedure correctly.

CAUTION:
This indicates a hazardous situation that could result in minor or moderate personal
injury if the user does not perform the procedure correctly. This signal also indicates
that damage to the product or other property may occur if the user does not perform
the procedure correctly.

IMPORTANT:
This indicates information that could help the user to use the product more
effectively.

Alert messages in the text

An alert message in the text consists of a signal indicating an alert level followed by
an alert statement. Alert messages are indented to distinguish them from regular
text. Also, a space of one line precedes and follows an alert statement.

WARNING:
The tasks listed below for this product and optional product provided by Fujitsu
Computers should be performed only by field engineer.

The user must not perform these tasks. Incorrect operation of these tasks may cause
electric shock, injury, or fire.

■ Installation and reinstallation of all components

■ Removal of front panel and top cover

■ Mounting/unmounting of optional internal devices

■ Connecting/disconnecting of external interface cables

■ Maintenance (repair and regular diagnosis and maintenance)

Also, important alert messages are shown in “Important Alert Messages” on

page xxi.

xx SPARC Enterprise M3000 Server Service Manual • November 2009

Notes on Safety

Important Alert Messages

This manual provides the following important alert signals:

Caution – The WARNING signal indicates a dangerous situation could result in

death or serious injury if the user does not perform the procedure correctly.

Task Warning

Normal
operation

Emergency Smoking or fire

Electric shock, fire

Do not damage, break, or modify the power cords. Cord damage may
cause electric shock or fire.

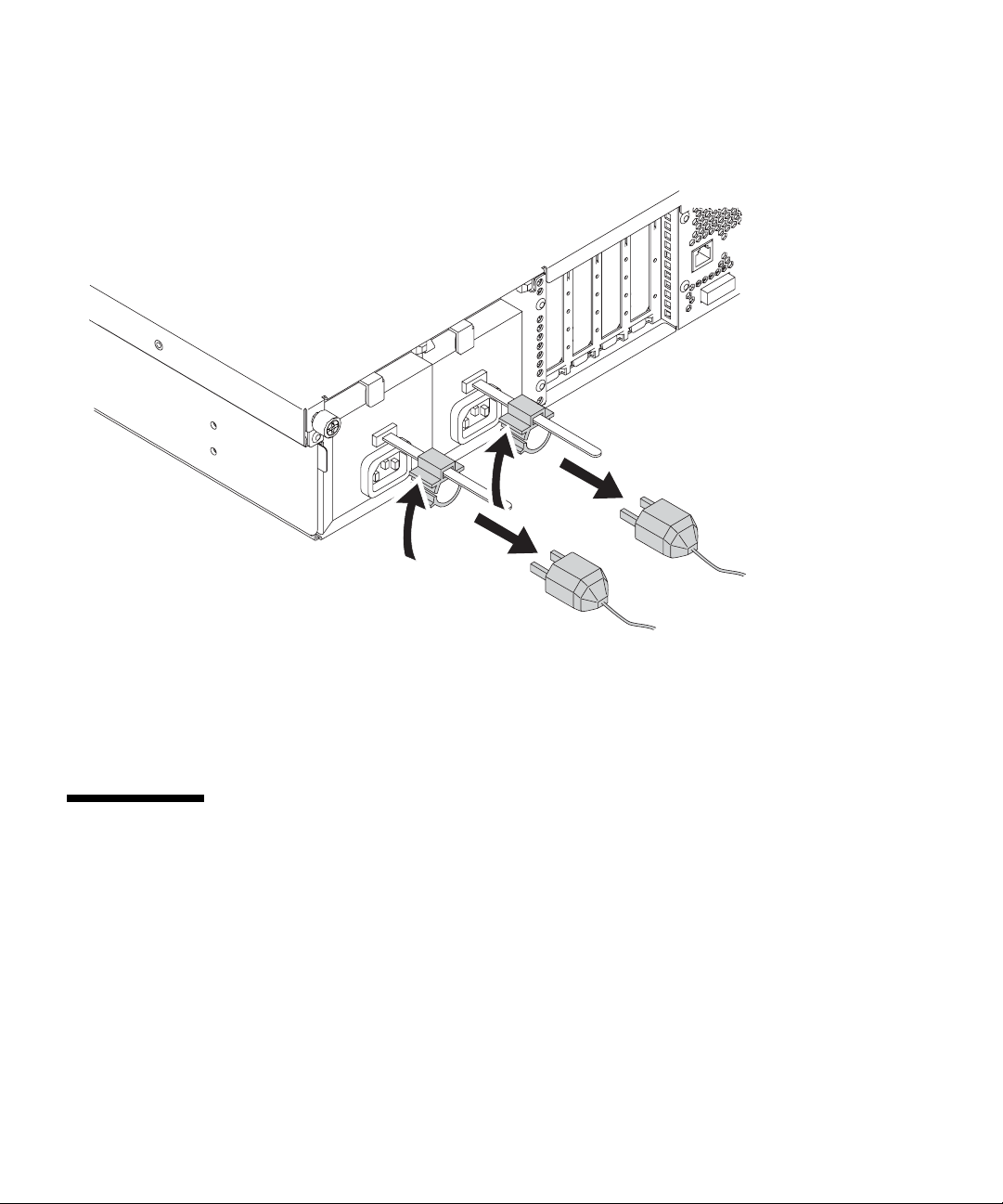

If smoke or fire is generated from the server, press down the power switch
for 4 seconds or more, power off the server, and then remove the cord
clamp and disconnect the power cord.

Preface xxi

Caution – The CAUTION signal indicates a hazardous situation could result in

minor or moderate personal injury if the user does not perform the procedure
correctly. This signal also indicates that damage to the product or other property
may occur if the user does not perform the procedure correctly.

Task Warning

Normal
operation

Equipment damage

Be sure to follow the precautions below when installing the main unit.
Otherwise, the equipment may be damaged.

• Do not block ventilation slits.

• Avoid installing the equipment in a place exposed to direct sunlight or
near devices that becomes extremely hot.

• Avoid installing the equipment in a dusty place or a place directly
exposed to corrosive gas or salty air.

• Avoid installing the equipment in a place exposed to strong vibration.
Also, install the equipment on a level surface so that it is stable.

• The grounding resistance must not be greater than 10
method varies by the building where you install the server. Make sure
that the facility administrator or a qualified electrician verifies the
grounding method for the building and performs the grounding work.

• Do not run any cable beneath any equipment. Also, prevent cables from
becoming taut. Never disconnect any power cord from the equipment
while power is being supplied to the equipment.

• Do not place anything on top of the main unit. Do not use the main unit
as a workspace.

• Avoid exposing the equipment to rapid changes in the ambient
temperature, such as a rapid increase during transport in winter. A rapid
increase in the ambient temperature causes moisture to condense in the
equipment. Use the equipment only after the difference between its
temperature and the ambient temperature is negligible.

• Avoid installing the equipment near a copy machine, air conditioner,
welding machine, or any other devices generating electronic noise.

• Take preventive action to minimize static electricity at the installation
location. Note that static electricity is easily generated in some carpets
and can cause the equipment to malfunction.

• Confirm that the power supply voltage and frequency during operation
match the rated values indicated on the equipment.

• Do not insert any object into an opening in the equipment. Components
inside the equipment use high voltage. Conductive foreign matter, such
as a metal object, inserted into the equipment, may cause a short circuit
between components, resulting in fire, electric shock, or equipment
damage.

• For maintenance of the equipment, contact your authorized service
personnel.

Ω. The grounding

xxii SPARC Enterprise M3000 Server Service Manual • November 2009

Task Warning

Normal
operation

Data destruction

Confirm the items listed below before turning off the power. Otherwise,
data may be destroyed.

• All applications have completed processing.

• No user is using the equipment.

• When the main unit power is turned off, the POWER LED on the
operation panel is turned off. Be sure to confirm that the POWER LED is
off before turning off the main power (uninterruptible power supply
[UPS], power input, etc.).

If necessary, back up files before turning off the system power.

Data destruction

Do not forcibly stop a domain that is operating normally. Otherwise, data
may be destroyed.

Data destruction

Do not disconnect the power cord from the power input while power is
being supplied. Otherwise, data stored on hard disk units may be
destroyed.

Maintenance Failure

Unpacking and maintenance of this equipment and Fujitsu optional
products must always be performed by a certified field engineer. Customer
shall never perform this work by themselves, as this could lead to failures.

Equipment damage

When handling parts, be sure to wear an antistatic wrist strap and connect
the clip to the grounding port of the server. Place removed parts on an
antistatic conductive mat. Failure to do so may result in serious damage or
injury.

Electric shock

Before doing the maintenance, unplug the power cords. This product uses
double pole/neutral fusing which could create an electric shock hazard.

Preface xxiii

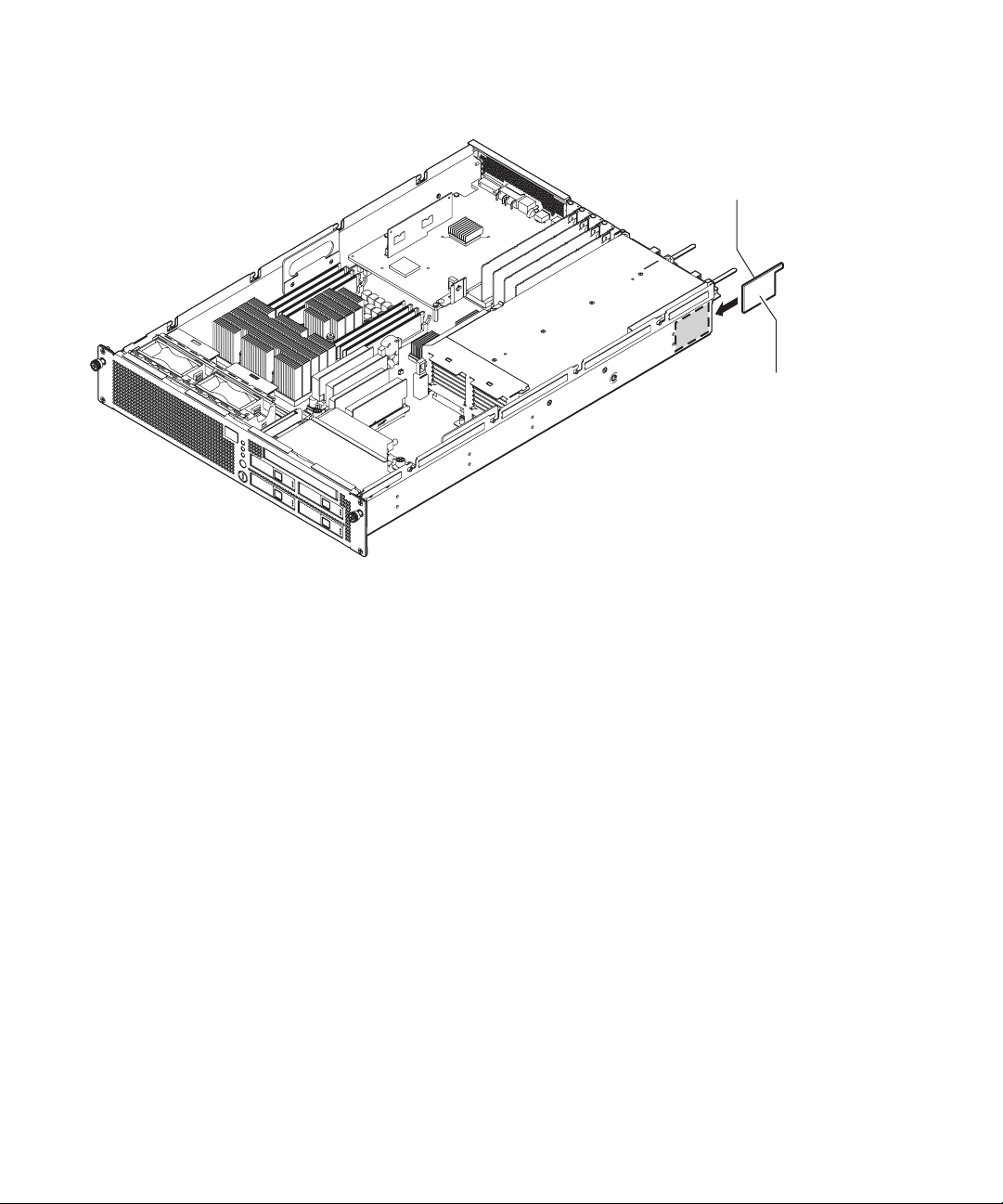

Alert Labels

The following are labels attached to this product:

Caution – Never peel off the labels.

SPARC Enterprise M3000

(Front View)

xxiv SPARC Enterprise M3000 Server Service Manual • November 2009

Product Handling

Maintenance

Caution – Certain tasks in this manual should only be performed by a certified

service engineer. User must not perform these tasks. Incorrect operation of these
tasks may cause electric shock, injury, or fire.

■ Installation and reinstallation of all components, and initial settings

■ Removal of front panel and top cover

■ Mounting/de-mounting of optional internal devices

■ Plugging or unplugging of external interface cards

■ Maintenance and inspections (repairing, and regular diagnosis and maintenance)

Caution – The following tasks regarding this product and the optional products

provided from Fujitsu should only be performed by a certified service engineer.
Users must not perform these tasks. Incorrect operation of these tasks may cause
malfunction.

■ Unpacking optional adapters and such packages delivered to the users

■ Plugging or unplugging of external interface cards

Remodeling/Rebuilding

Caution – Any modification and/or recycling of this product and its components

may be carried out only by a certified service engineer and must not be done by the
customer under any circumstances. Otherwise, electric shock, injury or fire may
result.

Preface xxv

Emission of Laser Beam (Invisible)

Caution – The server contains modules that generate invisible laser radiation. Laser

beams are generated while the equipment is operating, even if an optical cable is
disconnected or a cover is removed. Do not look at any laser light source directly or
through an optical apparatus (e.g., magnifying glass, microscope).

Limitations and Cautions

Power Control and Operator Panel Mode Switch

When you use the remote power control utilizing the RCI function or the automatic
power control system (referred to below as APCS), you can disable this remote
power control or the APCS by switching to Service mode on the operator panel.

Disabling these features ensures that you do not unintentionally switch the system
power on or off during maintenance. Note system power off with the APCS cannot
be disabled with the mode switch. Therefore, be sure to turn off automatic power
control via APCS before starting maintenance.

If you switch the mode while using the RCI or the automatic power control, the
system power is controlled as follows.

Function Mode switch

Locked Service

RCI Remote power-on/power-off

operations are enabled.

Automatic
power control

To use the RCI function, see the SPARC Enterprise

M3000/M4000/M5000/M8000/M9000 Servers RCI Build Procedure and the SPARC
Enterprise M3000/M4000/M5000/M8000/M9000 Servers RCI User’s Guide which are

available on the website of manuals.

xxvi SPARC Enterprise M3000 Server Service Manual • November 2009

Automatic power-on/power­off operations are enabled.

Remote power-on/power-off
operations are disabled.

Automatic power-on is
disabled, but power-off
remains enabled.

To use the APCS, see the Enhanced Support Facility User's Guide for Machine
Administration Automatic Power Control Function (Supplement Edition).

Preface xxvii

Fujitsu Welcomes Your Comments

If you have any comments or requests regarding this document or if you find any
unclear statements in the document, please state your points specifically on the form
at the following URL.

For Users in U.S.A., Canada, and Mexico:

http://www.computers.us.fujitsu.com/www/support_servers.shtml?support/servers

For Users in Other Countries:
SPARC Enterprise contact

http://www.fujitsu.com/global/contact/computing/sparce_index.html

xxviii SPARC Enterprise M3000 Server Service Manual • November 2009

CHAPTER

1

Safety Precautions for Maintenance

This chapter provides safety precautions required for maintenance.

■ Section 1.1, “ESD Precautions” on page 1-1

■ Section 1.2, “Server Precautions” on page 1-3

1.1 ESD Precautions

To ensure that you and bystanders are not exposed to harm and to prevent damage
to the system, observe the following safety precautions.

TABLE1-1 ESD Precautions

Item Precaution

ESD connector/wrist strap Connect the ESD connector to your server and wear the antistatic wrist strap

when handling printed circuit boards. See
connection destination.

Conductive mat An approved conductive mat provides protection from static damage when

used with a wrist strap. The mat also cushions and protects small parts that
are attached to printed circuit boards.

ESD safe packaging box Place a printed board or component in the ESD safe packaging box after you

remove it.

FIGURE 1-1, for the wrist strap

1-1

FIGURE 1-1 Wrist Strap Connection Destination

■ Hard disk drive or fan unit:

Connect to one of two thumbscrews
on the front of the server.

■ FRU* other than hard disk drive and fan unit

Connect to either upper right on the front or upper left
on the rear of the server.

* FRU: Field Replaceable Unit

Caution – Do not connect the wrist strap cable to the conductive mat. Connect it

directly to the server.

The wrist strap and FRU must have the same level of potential.

1-2 SPARC Enterprise M3000 Server Service Manual • November 2009

1.2 Server Precautions

When maintaining the server, observe the following precautions for your protection.

■ Follow all cautions, warnings, and instructions marked on the server.

Caution – Do not insert any object in an opening of the server. If any object comes

into contact with a high-voltage part or short-circuits a component, fire or electric
shock might result.

■ Refer servicing of the server to the service engineer.

1.2.1 Electrical Safety Precautions

■ Ensure that the voltage and frequency of the power source to be used matches the

electrical rating labels on the server.

■ Wear antistatic wrist straps when handling hard disk drives, motherboard units,

or other printed circuit boards.

■ Use grounded power outlets as described in the SPARC Enterprise M3000 Server

Installation Guide.

Caution – Do not make mechanical or electrical modifications. We are not

responsible for regulatory compliance of modified servers.

1.2.2 Equipment Rack Safety Precautions

■ The equipment racks must be anchored to the floor, ceiling, or to adjacent frames.

■ Some equipment racks are supplied with a Quake-Resistant Options Kit or

stabilizer, which supports the weight of the server when it is extended on its slide
rails. This prevents the equipment from toppling over during installation or
maintenance.

■ In the following cases, a safety evaluation must be conducted by the service

engineer prior to installation or maintenance work.

■ When no Quake-Resistant Options Kits or stabilizers are attached and the

equipment rack is not anchored to the floor, ensure safety by confirming that
the server does not fall over when it is pulled out from the slide rails.

Chapter 1 Safety Precautions for Maintenance 1-3

■ When the equipment rack is mounted on a raised floor, ensure that the raised

floor has sufficient strength to withstand the weight upon it when the server is
extended on its slide rails. Fix the equipment rack through the raised floor to
the concrete floor below it, using a proprietary mounting kit for this purpose.

Caution – If more than one server is installed in an equipment rack, maintain the

servers one at a time.

For details of equipment racks, see the SPARC Enterprise Equipment Rack Mounting Guide.

1.2.3 Component Handling Precautions

Caution – The server is easily damaged by static electricity. To prevent damage to

printed circuit boards, wear a wrist strap and connect it to the server prior to
starting maintenance.

Caution – Do not bend the motherboard unit (MBU) or the components mounted

on circuit boards might be damaged.

To prevent the motherboard unit from being bent, observe the following precautions:

■ Hold the motherboard unit by the handle, where the board stiffener is located.

■ When removing the motherboard unit from the packaging, keep the motherboard

unit horizontal until you lay it on the cushioned conductive mat.

■ Connectors and components on the motherboard unit have thin pins that bend

easily. Therefore, do not place the motherboard unit on a hard surface.

■ Be careful not to damage the small parts located on both sides of the motherboard unit.

Caution – The heat sinks can be damaged by incorrect handling. Do not touch the

heat sinks while replacing or removing motherboard units. If a heat sink is loose or
broken, obtain a replacement motherboard unit. When storing or carrying a
motherboard unit, ensure that the heat sinks have sufficient protection.

Caution – When removing a cable such as the LAN cable, if your fingers do not

reach the latch lock of the connecter, use a flat head screwdriver to push the latch to
disconnect the cable. If you forcibly insert your fingers into the service clearance, the
LAN port of the motherboard unit of PCI Express (PCIe) cards may be damaged.

1-4 SPARC Enterprise M3000 Server Service Manual • November 2009

CHAPTER

2

Hardware Overview

This chapter explains the names of components and also explains the LEDs on the
operator panel and rear panel.

■ Section 2.1, “Name of Each Part” on page 2-1

■ Section 2.2, “Operator Panel” on page 2-5

■ Section 2.3, “LED Functions of Components” on page 2-11

■ Section 2.4, “External Interface Port on Rear Panel” on page 2-13

■ Section 2.5, “Labels” on page 2-17

2.1 Name of Each Part

This section explains the names of parts mounted on the M3000 server.

Among these parts, those which can be replaced in the field by a certified field
engineer are called Field Replaceable Units (FRU). For information on the actual
replacement/expansion procedure for FRUs, see Chapter 6 to Chapter 15.

The server consists of a chassis in which various components are mounted, top cover
to protect the mounted components, front panel, and rear panel. An operator panel
is located on the front panel, and ports used to connect external interfaces are
located on the rear panel. From the LEDs on the operator panel and rear panel, error
and other status information can be checked. For details, see Section 2.2, “Operator

Panel” on page 2-5 to Section 2.4, “External Interface Port on Rear Panel” on
page 2-13.

2-1

FIGURE 2-1, FIGURE 2-2 and FIGURE 2-3 are the internal view, front view, and rear view

of the server, respectively, and they indicate the names and abbreviated names of
main components.

FIGURE 2-1 Server (Internal View)

Fan backplane (FANBP_B)

Fan
unit
(FAN_A)

DC-DC
converter

(DDC)

Hard disk drive backplane
(HDDBP)

CPU

Memory (DIMM) XSCF unit (XSCFU)

Motherboard unit

PCIe
slot

Power supply unit (PSU)

CD-RW/DVD-RW drive unit (DVDU)

2-2 SPARC Enterprise M3000 Server Service Manual • November 2009

PCIe card (PCIe)

FIGURE 2-2 Server (Front View)

12 34

Location No. Component

1 Fan unit (FAN_A)

2 Operator panel (OPNL)

3 Hard disk drive (HDD) (2.5-inch SAS disk)

4 CD-RW/DVD-RW drive unit (DVDU)

Chapter 2 Hardware Overview 2-3

FIGURE 2-3 Server (Rear View) (AC Power Supply Model)

123456 7

Location No. Component

1 Power supply unit (PSU)

2 PCIe slot

3 RCI port

4 USB port (for XSCF)

5 Serial port (for XSCF)

6 LAN port (for XSCF)

7 UPC port

8 Serial Attached SCSI (SAS) port

9 Gigabit Ethernet (GbE) port (for OS)

89

2-4 SPARC Enterprise M3000 Server Service Manual • November 2009

2.2 Operator Panel

The operator panel has the important function of controlling the power of the server.
The operator panel is usually locked with a key to prevent the server from being
mistakenly powered off during system operation.

Before starting maintenance work, ask the system administrator to unlock the
operator panel.

Chapter 2 Hardware Overview 2-5

2.2.1 Operator Panel Overview

The system administrator or service engineer checks the operating status of the
server with LEDs or operates the power supply with the power switch.
shows the location of the operator panel.

FIGURE 2-4 Operator Panel Location

FIGURE 2-4

1

2

3

4

5

Location number Component

1 POWER LED

2 XSCF STANDBY LED

3 CHECK LED

4 Power button

5 Mode switch (key switch)

2-6 SPARC Enterprise M3000 Server Service Manual • November 2009

2.2.2 Switches on the Operator Panel

TABLE 2-1 depicts the functions of the switches on the operator panel.

The switches on the operator panel include the mode switch for setting the operation
mode and the power switch for turning on and off the server.

TABLE2-1 Switches (Operator Panel)

Switch Name Description of function

Mode
Switch

(Key
Switch)

Power button This button is used to turn on or turn off the power to the

Holding down the button
for a short time
(less than 4 seconds)

Holding down the button
for a long time in Service
mode
(4 seconds or longer)

* In normal operation, the server is powered on only when the data center environmental conditions satisfy the specified values. Then,

the server remains in the reset state until the operating system is booted.

Locked Normal operation mode

Service Mode for maintenance

This switch is used to set the operation mode for the server.
Insert the special key that is under the customer's control, to

switch between modes.

• The system can be powered on with the power button, but
it cannot be powered off with the power button.

• The key can be pulled out at this key position.

• The system can be powered on and off with the power
button.

• The key cannot be pulled out at this key position.

• To stop and maintain the server, set the mode to Service.

server (a domain).
Power on and power off are controlled by pressing this button

in different patterns, as described below.

Regardless of the mode switch setting, the server is powered
on.

If set in the XSCF, facility (air conditioners) power-on and
warm-up processing is skipped.

• If power to the server is on, OS shutdown processing is
executed for all domains before the system is powered off.

• If the server is being powered on, the power-on processing
is cancelled, and the server is powered off.

• If the server is being powered off, the operation of the
power button is ignored, and the power-off processing is
continued.

*

TABLE 2-2 shows the function of the mode switch.

Chapter 2 Hardware Overview 2-7

TABLE2-2 Mode Switch Function

Function Mode switch

Locked Service

Inhibition of Break Signal Reception Enabled Reception of the

Break signal can be
enabled or disabled for
each domain using

setdomainmode

command.

Power On/Off by power button Only Power On is

enabled.

Disabled

Enabled

2-8 SPARC Enterprise M3000 Server Service Manual • November 2009

2.2.3 LEDs on the Operator Panel

TABLE 2-3 lists the server states displayed with the LEDs on the operator panel.

The three LED indicators on the operator panel indicate the following:

■ General system status

■ System error warning

■ System error location

Besides the states listed in

TABLE 2-3, the operator panel also displays various states

of the server using combinations of the three LEDs.
are displayed in the course of operation from power-on to power-off of the server.

The blinking interval is 1 second (1 Hz).

TABLE2-3 LEDs on the Operator Panel

Icon Name Color Description

POWER LED Green Indicates the server power status.

• On: The power to the server (a domain) is on.

• Off: The power to the server is off.

• Blinking: The server is powered off.

XSCF

XSCF
STANDBY
LED

CHECK LED Amber Indicates that the server has detected an error. This is

Green Indicates the XSCF unit status.

• On: XSCF unit is functioning normally.

• Off: Input power source is off or is just after turned on, and

• Blinking: System initialization is in progress after power

sometimes called a locator.

• On: An error that hinders startup was detected.

• Off: Normal, or power is not being supplied.

• Blinking: Indicates that the unit is a maintenance target.

TABLE 2-4 indicates the states that

XSCF unit is stopped.

was turned on.

In service mode, break signals can be suppressed. If the key position is switched to
Service, the server will boot into service mode the next time it reboots. Service is
selected by default at the initial power-on.

Chapter 2 Hardware Overview 2-9

TABLE2-4 State Display by Combination of LEDs on the Operator Panel

Name Description
POWER

*

XSCF STANDBY CHECK

XSCF

Off Off Off Power is not being supplied.

Off Off On Power has been turned on.

Off Blinking Off The XSCF unit is being initialized.

Off Blinking On An error occurred in the XSCF unit.

Off On Off The XSCF unit is in the standby state.

The server is waiting for power-on of the air
conditioning facilities in the data center.

On On Off Warm-up standby processing is in progress (power is

turned on after the end of processing).
The power-on sequence is in progress.
The server is in operation.

Blinking On Off The power-off sequence is in progress.

(The fan units are stopped after the end of processing.)

* READY LED is referred to when the XSCF unit status is indicated.

2-10 SPARC Enterprise M3000 Server Service Manual • November 2009

2.3 LED Functions of Components

This section explains the LEDs of each component. When replacing a FRU, check in
advance the states of LEDs.

Normal system state can be confirmed by checking the operator panel. If an error
occurs in an individual hardware component in the server, the LEDs of the FRU
containing the hardware component which caused the error will indicate the error
location. However, some FRUs such as DIMMs do not have LEDs.

To check the state of a FRU that has no LEDs, use an XSCF Shell command such as
showhardconf in the maintenance terminal. For details, see

TABLE 2-5 describes the component LEDs and their functions.

TABLE2-5 Component LEDs and Their Functions

Component Name Color Description

Motherboard unit
(MBU)

POWER Indicates whether the MBU is operating.

On (green) Indicates that the motherboard is operating. The motherboard

cannot be removed from the server while the POWER LED is
on.

Blinking
(green)

Off Indicates that the MBU is stopped. The MBU can be

CHECK Indicates the motherboard unit status.

On (amber) Indicates that an error occurred in the MBU.

Off Indicates that the MBU is in the normal state.

Indicates that the MBU is being incorporated into the system
or being disconnected from the system.

disconnected and replaced.

TABLE 3-1.

Chapter 2 Hardware Overview 2-11

TABLE2-5 Component LEDs and Their Functions (Continued)

Component Name Color Description

Hard disk drive
(HDD)

Power supply unit
(PSU)

Indicates that the hard disk drive can be removed. However,
this LED is not used.

CHECK On (amber) Indicates that an error occurred in the HDD. However, this

LED stays on for several minutes (until initialization starts)
immediately after power-on. This state does not indicate an
error.

Blinking

Indicates that the HDD is ready to be replaced.

(amber)

Off Indicates that the HDD is in the normal state.

READY On (green) Indicates that the HDD is operating. The HDD cannot be

removed (cannot be replaced).

OK

Blinking
(green)

Indicates that the HDD is performing communication.
The HDD cannot be removed (cannot be replaced).

Off The HDD can be replaced.

DC On (green) Indicates that power is turned on and being supplied.

AC On (green) Indicates that input power is being supplied to the power

supply unit.

Off Indicates that input power is not being supplied to the power

supply unit.

CHECK On (amber) Indicates that an error occurred in the PSU.

Blinking

Indicates that the power supply unit is ready to be replaced.

(amber)

Off Indicates that the PSU is in the normal state.

Fan unit (FAN_A) CHECK On (amber) Indicates that an error occurred in the fan unit.

Blinking

Indicates that the fan unit is ready to be replaced.

(amber)

Off Indicates that the fan unit is in the normal state.

2-12 SPARC Enterprise M3000 Server Service Manual • November 2009

TABLE2-5 Component LEDs and Their Functions (Continued)

Component Name Color Description

LAN port display
part

ACTIVE On (green) Indicates that communication is being performed through the

LAN port.

Off Indicates that communication is not being performed through

the LAN port.

LINK
SPEED

On (amber) Indicates that the communication speed of the LAN port is 1

Gbps.

On (green) Indicates that the communication speed of the LAN port is

100 Mbps.

Off Indicates that the communication speed of the LAN port is 10

Mbps.

2.4 External Interface Port on Rear Panel

This section shows the location of the external interface ports located on the server
rear panel and explains their functions.

Chapter 2 Hardware Overview 2-13

FIGURE 2-5 External Interface Port Locations

12345 6

789101112

2-14 SPARC Enterprise M3000 Server Service Manual • November 2009

TABLE2-6 External Interface Port Functions

Location number Component Description

1 RCI port Used to connect the server to a peripheral device

having a RCI connector to enable power
interlocking and error monitoring.

2 USB port (for XSCF) Exclusive for maintenance personnel. Cannot be

connected to general-purpose USB devices.

3 Serial port (for XSCF) Connects to the XSCF unit through serial

connection to set up and manage the server.

4 LAN port 1

(for XSCF)

Accommodates a 100Base-TX LAN cable to set up
the server and display status.

• XSCF Shell (command-line interface: CLI):

• XSCF Web (browser user interface: BUI):

5 LAN port 0

(for XSCF)

Through CLI or BUI, the user or system
administrator monitors the server, displays
status, operates domains, and displays
information on the console.

6 UPC port 1 By connecting an uninterruptible power supply

(UPS) unit that has the UPS controller (UPC)
interface, stable power supply is provided in the
event of a failure in the power supply or even a

7 UPC port 0

large-scale power failure.
If a single power feed is used, connect a UPS cable

to UPC port 0. In a dual power feed, connect UPS
cables to UPC ports 0 and 1.

Chapter 2 Hardware Overview 2-15

TABLE2-6 External Interface Port Functions (Continued)

Location number Component Description

8 GbE port 0 (for OS) Up to 4 100Base-TX/1000Base-T cables can be

connected to GbE ports.
High-capacity data can be transferred at a high

speed.

9 GbE port 1 (for OS)

10 GbE port 2 (for OS)

11 GbE port 3 (for OS)

12 SAS port Accommodates external Serial Attached SCSI (SAS)

devices such as a tape drive.

2-16 SPARC Enterprise M3000 Server Service Manual • November 2009

2.5 Labels

This section explains the labels and the card affixed to the server.

Note – The information on the label might differ from that shown on the affixed

labels.

■ The model number, serial number, and hardware version, all of which are

required for maintenance and management, are shown on the system faceplate
label.

■ The standards label is affixed close to the system faceplate label and shows the

approval standards.

■ Safety: NRTL/C

■ Radio wave: VCCI-A, FCC-A, DOC-A, MIC

■ Safety and radio wave: CE

A label-affixed card that can be inserted or extracted is provided near the power
supply unit at the right side at the rear of the server (see
be instered in such a way that the standards label faces the outside of the server and
the system faceplate label faces the inside of the server.

TABLE 2-6). The card should

Chapter 2 Hardware Overview 2-17

FIGURE 2-6 Label Locations

Inside: System faceplate label

Outside: Standards label

2-18 SPARC Enterprise M3000 Server Service Manual • November 2009

CHAPTER

3

Troubleshooting

This chapter provides the fault diagnosis information and the actions to take for
problems.

■ Section 3.1, “Emergency Power Off” on page 3-1

■ Section 3.2, “Failure Diagnostic Method” on page 3-2

■ Section 3.3, “Checking the Server and System Configuration” on page 3-4

■ Section 3.4, “Error Conditions” on page 3-8

■ Section 3.5, “Using Troubleshooting Commands” on page 3-11

■ Section 3.6, “General Solaris Troubleshooting Commands” on page 3-19

3.1 Emergency Power Off

This section explains how to power off in an emergency.

Caution – In an emergency (such as smoke or flames coming from the server),

immediately stop using the server and turn off the power supply. Regardless of the
type of business, give top priority to fire prevention measures.

1. Press the power switch for more than 4 seconds to power off the server.

3-1

2. Remove the power cord clamp and disconnect the cable.

FIGURE 3-1 Power-off Method

3.2 Failure Diagnostic Method

When an error occurs, a message is displayed on the maintenance monitor in many
cases. Use the flowchart in
failures.

3-2 SPARC Enterprise M3000 Server Service Manual • November 2009

FIGURE 3-2 to find the correct methods for diagnosing

FIGURE 3-2 Diagnostic Method Flowchart

Start

OS panic or performance

error?

mail function sent an E-mail

Check whether an error message
is displayed on the OS console
and XSCF console.

The XSCF console displays

Check /var/adm/messages in the
Solaris OS.

FMA message?

YES

Execute fmadm to display fault
information.

Can the message

ID be used?

YES

Enter the message ID in http://sun.com/msg/
to refer to fault information.

NO

NO

Is the power OK or

AC OK LED off?

NO

The XSCF

message?

NO

an error message?

YES

YES

YESNO

Execute showlogs or fmadm in the
XSCF to display fault information.

Make a memo of the displayed
fault information.

Check the power supply unit and
its connection.

Has the problem been

solved?

YES

NO

Contact your service engineer.

End

Chapter 3 Troubleshooting 3-3

3.3 Checking the Server and System Configuration

The operating conditions must remain the same before and after maintenance. If an
error occurs in the server, save the system configuration and component status
information. Confirm that the recovered state after maintenance is the same as that
before maintenance.

If an error occurs in the server, one of the following messages is displayed.

■ Solaris™ Operating System message file

■ XSCF Shell showhardconf(8) command and showstatus(8) command

■ Management console

■ Service processor log

3.3.1 Checking the Hardware Configuration and FRU Status

To replace a faulty FRU and perform the maintenance on the server, it is important
to check and understand the hardware configuration of the server and the state of
each hardware component.

The hardware configuration refers to information that indicates to which layer a
hardware component belongs.

The status of each hardware component refers to information on the conditions of a
standard or optional component in the server: temperature, power supply voltage,
CPU operating conditions, and other status information.

To check the hardware configuration and the status of each hardware component,
use XSCF Shell commands from the maintenance terminal. See
commands used.

TABLE3-1 Commands for Checking Hardware Configuration

Command Description

showhardconf Displays hardware configuration.

showstatus Displays the status of a component. This command is used only when a

faulty component is checked.

3-4 SPARC Enterprise M3000 Server Service Manual • November 2009

TABLE 3-1 for the

TABLE3-1 Commands for Checking Hardware Configuration (Continued)

Command Description

showboards Displays information on the system board (XSB).

showdcl Displays the hardware resource configuration information of a domain.

showfru Displays the setting information of a device.

The status of each component can be checked based on the On or blinking state of
the component LEDs.

For the component types and LED states, see

TABLE 2-3 and TABLE 2-5.

For details of commands, see the SPARC Enterprise

M3000/M4000/M5000/M8000/M9000 Servers XSCF User's Guide and the SPARC
Enterprise M3000/M4000/M5000/M8000/M9000 Servers XSCF Reference Manual .

3.3.1.1 Checking the Hardware Configuration.

To check the hardware configuration, authority (user account) to log in with the
XSCF user account to the XSCF is required. The following procedure can be used to
check the hardware configuration from the maintenance terminal.

Ask the system administrator for the required information, such as the user account
and password. For details, see the SPARC Enterprise
M3000/M4000/M5000/M8000/M9000 Servers XSCF User's Guide .

1. Log in to XSCF Shell.

2. Type showhardconf.

XSCF> showhardconf

The showhardconf command displays hardware configuration information. For
details, see the SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers XSCF
User's Guide.

Chapter 3 Troubleshooting 3-5

3.3.2 Checking the Software and Firmware Configurations

The software and firmware configurations and versions affect the operation of the
server. To change the configuration or investigate a problem, check the latest
information and check for any problems in the software.

Software and firmware varies according to user conditions.

■ The software configuration and version can be checked in the Solaris Operating

System. Refer to the Solaris OS documentation for more information.

■ The firmware configuration and versions can be checked from the maintenance

terminal using XSCF Shell commands. Refer to the SPARC Enterprise
M3000/M4000/M5000/M8000/M9000 Servers XSCF User's Guide for more detailed

information.

Check the software and firmware configuration information with assistance from the
system administrator. However, if you have received login authority from the
system administrator, the following commands can be used from the maintenance
terminal for these checks:

TABLE3-2 Commands for Checking the Software Configuration

Command Description

showrev(1M) Displays system configuration information and Solaris OS patch information.

uname(1) Outputs current system information.

TABLE3-3 Commands for Checking the XSCF Firmware Configuration

Command Description

version(8) Outputs current firmware version information.

showhardconf(8) Outputs information on the components mounted on the server.

showstatus(8) Displays the status of a component. This command is used only when a faulty

component is checked.

showboards(8) Displays XSB information. It can display information on an XSB that belongs to the

specified domain and information on all XSBs mounted. An XSB combines hardware
resources on physical system boards. The M3000 server consists of a single physical
system board (Uni-XSB).

showdcl(8) Displays the configuration information of a domain (hardware resource information).

showfru(8) Displays the setting information of a device.

3-6 SPARC Enterprise M3000 Server Service Manual • November 2009

3.3.2.1 Checking the Software Configuration

The following procedure can be used to check the software configuration from the
domain console.

● Type showrev.

# showrev

The showrev command displays system configuration information on the screen.

3.3.2.2 Checking the Firmware Configuration

Login authority is required to check the firmware configuration. The procedure
below can be used to check the configuration from the maintenance terminal.

1. Log in with the account of the XSCF hardware maintenance engineer.

2. Type version.

XSCF> version

The version command displays firmware version information on the screen. For
details, see the SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers XSCF
User's Guide.

3.3.2.3 Downloading Error Log Information

To download error log information, use the XSCF log fetch function. The XSCF unit
has an interface with external units so that the service engineer can easily obtain
useful maintenance information such as error logs.

Connect the maintenance terminal, and use the XSCF Shell or XSCF Web to
download error log information to the maintenance terminal.

Chapter 3 Troubleshooting 3-7

3.4 Error Conditions

This section describes error conditions and relevant corrective actions.

This work is explained in the following sections:

■ Section 3.4.1, “Predictive Self-Healing Tools” on page 3-8

■ Section 3.4.2, “Monitoring Output” on page 3-10

■ Section 3.4.3, “Messaging Output” on page 3-10

Details of the fault information, see the SPARC Enterprise
M3000/M4000/M5000/M8000/M9000 Servers XSCF User's Guide.

You can find more detailed descriptions of Solaris OS Predictive Self-Healing at the
website below:

http://www.sun.com/bigadmin/features/articles/selfheal.html

Predictive self-healing is an architecture and methodology for automatically
diagnosing, reporting, and handling software and hardware error conditions. This
new technology reduces the time required to debug a hardware or software problem
and provides the administrator and service engineer with detailed data about each
error.

3.4.1 Predictive Self-Healing Tools

In the Solaris OS, Solaris Fault Manager runs in the background. When an error
occurs, the system software recognizes the error and attempts to determine the
faulty hardware component. The system software also takes steps to prevent the
faulty component from being used until it has been replaced. The system software
performs the following activities:

■ Receives telemetry information about errors detected by the system software.

■ Diagnoses the errors.

■ Initiates predictive self-healing activities. For example, Solaris Fault Manager can

disable faulty components.

■ When possible, causes the faulty FRU to provide an LED indication of the error in

addition to populating system console messages with more details.

3-8 SPARC Enterprise M3000 Server Service Manual • November 2009

TABLE 3-4 shows typical messages generated when an error occurs. Messages are

displayed on your console and are recorded in the /var/adm/messages file.

A message in

TABLE 3-4 indicates that the fault has already been diagnosed. If there

was any corrective action that the system could take, the system has already taken it.
If your server is still running, the corrective action continues to be taken.

TABLE3-4 Predictive Self-Healing Messages

Output displayed Description

Nov 1 16:30:20 dt88-292 EVENT-TIME:Tue Nov 1
16:30:20 PST 2005

Nov 1 16:30:20 dt88-292 PLATFORM:SUNW,A70,
CSN:-, HOSTNAME:dt88-292

Nov 1 16:30:20 dt88-292 SOURCE:eft, REV: 1.13 SOURCE: Information on the Diagnosis Engine used to

Nov 1 16:30:20 dt88-292 EVENT-ID:afc7e660-d609­4b2f-86b8-ae7c6b8d50c4

Nov 1 16:30:20 dt88-292 DESC:
Nov 1 16:30:20 dt88-292 A problem was detected in the

PCI Express subsystem

Nov 1 16:30:20 dt88-292 Refer to
http://sun.com/msg/SUN4-8000-0Y for more
information.

Nov 1 16:30:20 dt88-292 AUTO-RESPONSE:One or
more device instances may be disabled.

Nov 1 16:30:20 dt88-292 IMPACT:Loss of services
provided by the device instances associated with this
fault.

Nov 1 16:30:20 dt88-292 REC-ACTION:Schedule a
repair procedure to replace the affected device.Use
Nov 1 16:30:20 dt88-292 fmdump -v -u EVENT_ID to
identify the device or contact Sun for support.

EVENT-TIME: The time stamp of the diagnosis

PLATFORM: A description of the server encountering
the error

determine the error

EVENT-ID: The Universally Unique event ID for this
error

DESC: A basic description of the error

WEB SITE: Where to find specific information and
actions for this error

AUTO-RESPONSE: What, if anything, the system did
to alleviate any follow-on problems

IMPACT: A description of what is considered to be the
impact of the fault

REC-ACTION: A brief description of the corrective
action the system administrator should take

Chapter 3 Troubleshooting 3-9

3.4.2 Monitoring Output

To understand error conditions, collect monitoring output information. For the
collection of the information, use the commands shown in

TABLE3-5 XSCF Commands for Checking Monitoring Output

Command Operand Description

showlogs(8) console Displays the console of a domain.

monitor Logs messages that are displayed in the message window.

panic Logs output to the console during a panic.

ipl Collects console data generated during the period of the power-on of a

domain to the completion of the Solaris OS start.

3.4.3 Messaging Output

To understand error conditions, collect messaging output information. For the
collection of the information, use the commands shown in

TABLE3-6 Commands for Checking Messaging Output

TABLE 3-5.

TABLE 3-6.

Command Operand Description

showlogs(8) env Displays the temperature history log. The environmental temperature

data and power status are indicated in 10-minute intervals. The data is
stored for a maximum of six months.

power Displays power and reset information.

event Displays information reported to the system and stored it as event

logs.

error Displays error logs.

fmdump (1M)
fmdump(8)

Displays FMA diagnostic results and errors. This command is
provided as a Solaris OS command and XSCF Shell command.

Each error message logged by the predictive self-healing architecture has a message
ID and Web address associated with the message. From this message ID and Web
address, information on the most up-to-date corrective measures can be retrieved.

For details of predictive self-healing, see the Solaris OS documents.

3-10 SPARC Enterprise M3000 Server Service Manual • November 2009

3.5 Using Troubleshooting Commands

When any message listed in TABLE 3-4 is displayed, detailed information on the error
may be required. For details on troubleshooting commands, see manual pages of the
Solaris OS or XSCF Shell. This section provides detailed explanations of the
following commands:

■ “Using the showhardconf Command” on page 3-11

■ “Using the showlogs Command” on page 3-14

■ “Using the showstatus Command” on page 3-15

■ “Using the fmdump Command” on page 3-16

■ “Using the fmadm Command” on page 3-17

■ “Using the fmstat Command” on page 3-19

3.5.1 Using the showhardconf Command

The showhardconf command displays information on each FRU. The following
information is displayed:

■ Current configuration and status

■ Number of mounted units

■ Domain information

■ Name properties of the PCIe card

Chapter 3 Troubleshooting 3-11

XSCF> showhardconf
SPARC Enterprise M3000;
+ Serial:IKK0813023; Operator_Panel_Switch:Locked;
+ Power_Supply_System:Single; SCF-ID:XSCF#0;
+ System_Power:On; System_Phase:Cabinet Power On;
Domain#0 Domain_Status:OpenBoot Execution Completed;

MBU_A Status:Normal; Ver:0101h; Serial:PP0829045F ;
+ FRU-Part-Number:CA07082-D902 A1 /541-3302-01 ;
+ CPU Status:Normal;
+ Freq:2.520 GHz; Type:32;
+ Core:4; Strand:2;
+ Memory_Size:8 GB;
MEM#0A Status:Normal;
+ Code:ce0000000000000001M3 93T2950EZA-CE6 4145-473b3c23;
+ Type:1A; Size:1 GB;
MEM#0B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2918;
+ Type:1A; Size:1 GB;
MEM#1A Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b28af;
+ Type:1A; Size:1 GB;
MEM#1B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b28ab;
+ Type:1A; Size:1 GB;
MEM#2A Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b283e;
+ Type:1A; Size:1 GB;
MEM#2B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2829;
+ Type:1A; Size:1 GB;
MEM#3A Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2840;
+ Type:1A; Size:1 GB;
MEM#3B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2830;
+ Type:1A; Size:1 GB;
PCI#0 Name_Property:fibre-channel; Card_Type:Other;
PCI#1 Name_Property:fibre-channel; Card_Type:Other;
PCI#2 Name_Property:pci; Card_Type:Other;
PCI#3 Name_Property:pci; Card_Type:Other;
OPNL Status:Normal; Ver:0101h; Serial:PP0829045Y ;
+ FRU-Part-Number:CA07082-D912 A0 /541-3306-01 ;

3-12 SPARC Enterprise M3000 Server Service Manual • November 2009

The showhardconf output continued:

PSU#0 Status:Normal; Serial:EA08260208;
+ FRU-Part-Number:CA01022-0720 03C /300-2193-03 ;
+ Power_Status:On;
+ Type:AC;
PSU#1 Status:Normal; Serial:EA08260210;
+ FRU-Part-Number:CA01022-0720 03C /300-2193-03 ;
+ Power_Status:On;
+ Type:AC;
FANBP_B Status:Normal; Ver:0101h; Serial:PP082704TD ;
+ FRU-Part-Number:CA20399-B12X 006AB/541-3304-02 ;
FAN_A#0 Status:Normal;
FAN_A#1 Status:Normal;

For details, see the showhardconf manual pages.

Chapter 3 Troubleshooting 3-13

3.5.2 Using the showlogs Command

The showlogs command displays information of specified logs in the order of time
stamps. The information with the oldest time stamp is displayed first. The
showlogs command displays the following logs:

■ Error log

■ Power log

■ Event log

■ Temperature and humidity record

■ Monitoring message log

■ Console message log

■ Panic message log

■ IPL message log

XSCF> showlogs error
Date: Jun 17 11:05:32 JST 2008 Code: 80000000-c3ff0000-0173000600000000
Status: Alarm Occurred: Jun 17 11:05:32.522 JST 2008
FRU: /PSU#1
Msg: PSU shortage
Date: Jun 17 13:41:46 JST 2008 Code: 80002080-7801c201-0130000000000000
Status: Alarm Occurred: Jun 17 13:41:44.861 JST 2008
FRU: /MBU_A,*
Msg: Board control error (MBC link error)
Date: Jun 17 13:46:31 JST 2008 Code: 60000000-cd01c701-0164010100000000
Status: Warning Occurred: Jun 17 13:46:31.158 JST 2008
FRU: /OPNL,/FANBP_B
Msg: TWI access error
XSCF>

3-14 SPARC Enterprise M3000 Server Service Manual • November 2009

3.5.3 Using the showstatus Command

The showstatus command displays information about faulty or degraded units
that are among the FRUs composing the server and information on the units on the
layers immediately above the layers of the faulty or degraded units. For each of the
displayed units, an asterisk (*) indicating that the unit is faulty is displayed with any
of the following status indicators, which is displayed after "Status:".

■ Normal: Normal state

■ Faulted: The unit is faulty and is not operating.

■ Degraded: The unit is operating. The unit is partly faulty or degraded and some

error has been detected. Although a faulty state is displayed for the unit, it is
operating normally.

■ Deconfigured: There is no problem with the unit itself, but it is degraded due to a

configuration problem, environmental problem, or the degradation of another
unit.

■ Maintenance: Maintenance is being performed. replacefru(8) or addfru(8) is

being executed.

XSCF> showstatus
FANBP_B Status:Normal;
* FAN_A#0 Status:Faulted;
XSCF>

Chapter 3 Troubleshooting 3-15

3.5.4 Using the fmdump Command

The fmdump command displays the contents of the log managed by the module
called Fault Manager.

This example assumes that only one error exists.

# fmdump
TIME UUID SUNW-MSG-ID
Nov 02 10:04:15.4911 0ee65618-2218-4997-c0dc-b5c410ed8ec2 SUN4-8000-0Y

3.5.4.1 fmdump -V Command

To get more detailed information you can use the -e option, as shown in the
following example.

# fmdump -V -u 0ee65618-2218-4997-c0dc-b5c410ed8ec2
TIME UUID SUNW-MSG-ID
Nov 02 10:04:15.4911 0ee65618-2218-4997-c0dc-b5c410ed8ec2 SUN4-8000-0Y
100% fault.io.fire.asic
FRU: hc://product-id=SUNW,A70/motherboard=0
rsrc: hc:///motherboard=0/hostbridge=0/pciexrc=0

The output method using the -V option displays at least three additional lines.

■ The first line is the same information shown for console messages above,

including a time stamp, UUID, and message ID.

■ The second line is a declaration of the certainty of diagnosis. In this case we are

100 percent sure the failure is in the ASIC described. If the diagnosis may involve
multiple components, you may see two lines here with 50% in each of the two
lines.

■ The "FRU" line indicates what component must be replaced to return the server to

a fully operational state.

■ The "rsrc" line indicates the component that has become unusable because of this

error.

3-16 SPARC Enterprise M3000 Server Service Manual • November 2009

3.5.4.2 fmdump -e Command

To get information of the errors that caused this failure you can use the -e option, as
shown in the following example.

# fmdump -e
TIME CLASS
Nov 02 10:04:14.3008 ereport.io.fire.jbc.mb_per

3.5.5 Using the fmadm Command

3.5.5.1 Using the fmadm faulty Command

The fmadm faulty command can be used by administrators and service personnel to
view and modify system configuration parameters that are maintained by the Solaris
fault manager. The command is primarily used to determine the status of a
component involved in a fault, as shown in the following example:

# fmadm faulty
STATERESOURCE / UUID

-------- -------------------------------------------------------­degraded dev:////pci@1e,600000
0ee65618-2218-4997-c0dc-b5c410ed8ec2
# fmadm repair
0ee65618-2218-4997-c0dc-b5c410ed8ec2

The PCIe slot has been degraded and it is associated with the same UUID as above.
Also, the "faulted" status may be displayed.

Chapter 3 Troubleshooting 3-17

3.5.5.2 fmadm repair Command

When the fmadm faulty command displays a fault, the fmadm repair command
must be executed to clear the FRU information in the domain after replacement of
the motherboard unit that has encountered the error. If the fmadm repair
command is not executed, the error message is not cleared.

If the fmadm faulty command displays a fault, clearing the FMA resource cache
on the operating system side causes no problem. Data in the cache does not need to
match the hardware fault information held by the XSCF.

# fmadm repair
STATERESOURCE / UUID

-------- -------------------------------------------------------­degraded dev:////pci@1e,600000
0ee65618-2218-4997-c0dc-b5c410ed8ec2

3.5.5.3 fmadm config Command

The fmadm config command output displays the version number and current
status of the diagnosis engine that is being used by the server. Whether the latest
engine is being used can be determined by consulting the SunSolve web site.

# fmadm config
MODULE VERSION STATUS DESCRIPTION
cpumem-diagnosis 1.6 active CPU/Memory Diagnosis
cpumem-retire 1.1 active CPU/Memory Retire Agent
disk-transport 1.0 active Disk Transport Agent
eft 1.16 active eft diagnosis engine
event-transport 2.0 active Event Transport Module
fabric-xlate 1.0 active Fabric Ereport Translater
fmd-self-diagnosis 1.0 active Fault Manager Self-Diagnosis
io-retire 1.0 active I/O Retire Agent
snmp-trapgen 1.0 active SNMP Trap Generation Agent
sysevent-transport 1.0 active SysEvent Transport Agent
syslog-msgs 1.0 active Syslog Messaging Agent
zfs-diagnosis 1.0 active ZFS Diagnosis Engine
zfs-retire 1.0 active ZFS Retire Agent

3-18 SPARC Enterprise M3000 Server Service Manual • November 2009

3.5.6 Using the fmstat Command

The fmstat command reports statistical information and a set of modules that are
associated with the module called Solaris Fault Manager. By using the fmstat
command, statistical information about the diagnostic engine and diagnostic agent
that are currently involved in fault management can be displayed.

The following output example shows that the fmd-self-diagnosis DE module
(displayed also on the console output) has received accepted events.

# fmstat
module ev_recv ev_acpt wait svc_t %w %b open solve memsz bufsz
cpumem-diagnosis 0 0 0.0 0.0 0 0 0 0 3.0K 0
cpumem-retire 0 0 0.0 0.0 0 0 0 0 0 0
disk-transport 0 0 0.0 1793.8 0 0 0 0 40b 0
eft 0 0 0.0 0.0 0 0 0 0 1.2M 0
event-transport 0 0 0.0 0.0 0 0 0 0 210b 0
fabric-xlate 0 0 0.0 0.0 0 0 0 0 0 0
fmd-self-diagnosis 0 0 0.0 0.0 0 0 0 0 0 0
io-retire 0 0 0.0 0.0 0 0 0 0 0 0
snmp-trapgen 0 0 0.0 0.0 0 0 0 0 32b 0
sysevent-transport 0 0 0.0 2395.3 0 0 0 0 0 0
syslog-msgs 0 0 0.0 0.0 0 0 0 0 0 0
zfs-diagnosis 0 0 0.0 0.0 0 0 0 0 0 0
zfs-retire 0 0 0.0 0.0 0 0 0 0 0 0

3.6 General Solaris Troubleshooting Commands

Superuser commands of this type are useful to determine whether there is a problem
with the server, network, or another server connected via the network.

This section explains the following commands:

■ “Using the iostat Command” on page 3-20

■ “Using the prtdiag Command” on page 3-21

■ “Using the prtconf Command” on page 3-23

■ “Using the netstat Command” on page 3-26

■ “Using the ping Command” on page 3-27

■ “Using the ps Command” on page 3-28

■ “Using the prstat Command” on page 3-29

Chapter 3 Troubleshooting 3-19

Most of these commands are located in the /usr/bin directory or /usr/sbin
directory.

3.6.1 Using the iostat Command

The iostat command repeatedly reports terminal, drive, and I/O activity, as well
as CPU utilization.

3.6.1.1 Options

TABLE 3-7 lists the options of the iostat command and how those options can help

troubleshoot the server.

TABLE3-7 Options for iostat

Option Description How it can help

No option Reports status of local I/O devices. A quick three-line output of device status

information.

-c Reports the percentages of time the system has
spent in user mode, in system mode, waiting
for I/O, and idling.

-e Displays device error summary statistics.
Displays the total number of errors, hardware
errors, software errors, and transfer errors.

-E Displays all device error statistics. Provides information about devices:

-n Displays names in a descriptive format. The descriptive format helps identify devices.

-x Reports extended drive statistics of each drive.

The output is in a tabular form.

Quick report of CPU status

Provides a short table with accumulated
errors. Identifies suspect I/O devices.

manufacturer, model number, serial number,
size, and errors.

Similar to the -e option, but provides rate
information. This helps identify internal
devices with poor performance and other I/O
devices with poor performance across the
network.

3-20 SPARC Enterprise M3000 Server Service Manual • November 2009

The following example shows output for the iostat command:

# iostat -En
c0t0d0 Soft Errors: 0 Hard Errors: 0 Transport Errors: 0
Model: ST3120026A Revision: 8.01 Serial No: 3JT4H4C2
Size: 120.03GB <120031641600 bytes>
Media Error: 0 Device Not Ready: 0 No Device: 0 Recoverable: 0
Illegal Request: 0
c0t2d0 Soft Errors: 0 Hard Errors: 0 Transport Errors: 0
Vendor: LITE-ON Product: COMBO SOHC-4832K Revision: O3K1 Serial No:
Size: 0.00GB <0 bytes>
Media Error: 0 Device Not Ready: 0 No Device: 0 Recoverable: 0
Illegal Request: 0 Predictive Failure Analysis: 0

3.6.2 Using the prtdiag Command

The prtdiag command displays system configuration and diagnostic information.
The diagnostic information identifies any failed FRU in the system.

The prtdiag command is located in the /usr/platform/platform-name/sbin/
directory.

The prtdiag command may indicate a slot number different from that shown
elsewhere in this document. This is normal.

3.6.2.1 Options

TABLE 3-8 lists the options of the prtdiag command and how those options can help

troubleshooting.

TABLE3-8 Options for prtdiag

Option Description How it can help

No option Lists components. Shows CPU information, memory

configuration, PCIe cards installed, OBP
version, status of the mode switch, and CPU
operation mode.

-v Verbose mode. Provides the same information as no option.
Additionally, displays the detail information
of PCIe cards.

Chapter 3 Troubleshooting 3-21

The following example shows output for the prtdiag command in verbose mode:

# prtdiag -v
System Configuration: Sun Microsystems sun4u SPARC Enterprise M3000 Server
System clock frequency: 1064 MHz
Memory size: 7808 Megabytes

================================== CPUs ===========================

CPU CPU Run L2$ CPU CPU
LSB Chip ID MHz MB Impl. Mask

--- ---- ----------------------- ---- --- ----- ---­ 00 0 0, 1, 2, 3, 4, 5, 6, 7 2520 5.0 7 145

=================== Memory Configuration ==========================

Memory Available Memory DIMM # of Mirror Interleave
LSB Group Size Status Size DIMMs Mode Factor

--- ------ ------------ ------- ------ ----- ------- ---------­ 00 A 4096MB okay 1024MB 4 no 2-way
00 B 3712MB okay 1024MB 4 no 2-way

========================= IO Devices =============================

IO Lane/Frq
LSB Type LPID RvID,DvID,VnID BDF State Act,Max Name Model
Logical Path

--- ----- ---- --------------- ------- ----- -------- ----------------- ----

------ ----------------------------

00 PCIe 0 aa, 8533, 10b5 2, 0, 0 okay 8, 8 pci-pciex10b5,8533
N/A /pci@0,600000/pci@0
00 PCIe 0 aa, 8533, 10b5 3, 0, 0 okay 4, 8 pci-pciex10b5,8533
N/A /pci@0,600000/pci@0/pci@0
00 PCIe 0 aa, 8533, 10b5 3, 1, 0 okay 4, 4 pci-pciex10b5,8533
N/A /pci@0,600000/pci@0/pci@1
00 PCIe 0 aa, 8533, 10b5 3, 2, 0 okay 4, 4 pci-pciex10b5,8533
N/A /pci@0,600000/pci@0/pci@2
00 PCIe 0 aa, 8533, 10b5 3, 8, 0 okay 0, 8 pci-pciex10b5,8533
N/A /pci@0,600000/pci@0/pci@8
00 PCIe 0 8, 58, 1000 4, 0, 0 okay 4, 8 scsi-pciex1000,58
LSI,1068E /pci@0,600000/pci@0/pci@0/scsi@0
00 PCIx 0 b5, 103, 1166 5, 0, 0 okay 133,133 pci-pciex1166,103
N/A /pci@0,600000/pci@0/pci@1/pci@0
00 PCI 0 a3, 1678, 14e4 6, 4, 0 okay --,133 network-pci14e4,1678
N/A /pci@0,600000/pci@0/pci@1/pci@0/network@4

3-22 SPARC Enterprise M3000 Server Service Manual • November 2009

The prtdiag output continued:

00 PCI 0 a3, 1678, 14e4 6, 4, 1 okay --,133 network-pci14e4,1678
N/A /pci@0,600000/pci@0/pci@1/pci@0/network@4,1
00 PCIx 0 b5, 103, 1166 7, 0, 0 okay 133,133 pci-pciex1166,103
N/A /pci@0,600000/pci@0/pci@2/pci@0
00 PCI 0 a3, 1678, 14e4 8, 4, 0 okay --,133 network-pci14e4,1678
N/A /pci@0,600000/pci@0/pci@2/pci@0/network@4
00 PCI 0 a3, 1678, 14e4 8, 4, 1 okay --,133 network-pci14e4,1678
N/A /pci@0,600000/pci@0/pci@2/pci@0/network@4,1
00 PCIe 1 aa, 8533, 10b5 2, 0, 0 okay 8, 8 pci-pciex10b5,8533
N/A /pci@1,700000/pci@0
00 PCIe 1 aa, 8533, 10b5 3, 0, 0 okay 0, 8 pci-pciex10b5,8533
N/A /pci@1,700000/pci@0/pci@0
00 PCIe 1 aa, 8533, 10b5 3, 8, 0 okay 0, 8 pci-pciex10b5,8533
N/A /pci@1,700000/pci@0/pci@8
00 PCIe 1 aa, 8533, 10b5 3, 9, 0 okay 0, 8 pci-pciex10b5,8533
N/A /pci@1,700000/pci@0/pci@9
==================== Hardware Revisions ====================

System PROM revisions:

----------------------

OBP 4.24.8 2008/04/23 15:15

=================== Environmental Status ===================

Mode switch is in LOCK mode

=================== System Processor Mode ===================

SPARC64-VII mode

#

3.6.3 Using the prtconf Command

Similar to the show-devs command executed at the ok prompt, the prtconf
command displays the devices that are configured.

The prtconf command identifies hardware that is recognized by the Solaris OS. If
software applications are having problems with hardware but the hardware is not
suspected of being faulty, the prtconf command can be used to check whether the
Solaris software recognizes the hardware and whether a driver for the hardware is
loaded.

Chapter 3 Troubleshooting 3-23

3.6.3.1 Options

TABLE 3-9 lists the options of the prtconf command and how those options can help

troubleshooting.

TABLE3-9 Options for prtconf

Option Description How it can help

No option Displays the device tree of devices recognized

by the operating system.

-D Similar to the output of no option, but device
driver names are listed.

-p Similar to the output of no option, yet is
abbreviated.

-V Displays the version and date of the
OpenBoot™ PROM firmware.

If a hardware device is recognized, then it is
considered to be functioning properly. If the
message "(driver not attached)" is displayed
for the device or sub-device, then the driver
for the device is corrupt or missing.

Lists the drivers needed or used by the
operating system to enable the device.

Provides a brief list of the devices.

Useful for a quick check of the firmware
version.

The following example shows output for the prtconf command:

# prtconf
System Configuration: Sun Microsystems sun4u
Memory size: 7616 Megabytes
System Peripherals (Software Nodes):

SUNW,SPARC-Enterprise
scsi_vhci, instance #0
packages (driver not attached)
SUNW,probe-error-handler (driver not attached)
SUNW,builtin-drivers (driver not attached)
deblocker (driver not attached)
disk-label (driver not attached)
terminal-emulator (driver not attached)
obp-tftp (driver not attached)
ufs-file-system (driver not attached)
chosen (driver not attached)
openprom (driver not attached)
client-services (driver not attached)
options, instance #0
aliases (driver not attached)
memory (driver not attached)
virtual-memory (driver not attached)
pseudo-console, instance #0

3-24 SPARC Enterprise M3000 Server Service Manual • November 2009

The prtconf output continued:

nvram (driver not attached)
pseudo-mc, instance #0
cmp (driver not attached)
core (driver not attached)
cpu (driver not attached)
cpu (driver not attached)
core (driver not attached)
cpu (driver not attached)
cpu (driver not attached)
core (driver not attached)
cpu (driver not attached)
cpu (driver not attached)
core (driver not attached)
cpu (driver not attached)
cpu (driver not attached)
pci, instance #0
ebus, instance #0
flashprom (driver not attached)
serial, instance #0
scfc, instance #0
panel, instance #0
pci, instance #0
pci, instance #0
pci, instance #1
scsi, instance #0
tape (driver not attached)
disk (driver not attached)
sd, instance #1
sd, instance #0
pci, instance #2
pci, instance #0
network, instance #0
network, instance #1 (driver not attached)
pci, instance #3
pci, instance #1
network, instance #2 (driver not attached)
network, instance #3 (driver not attached)
pci, instance #4
pci, instance #1
pci, instance #5
pci, instance #6
pci, instance #7
pci, instance #8
os-io (driver not attached)
iscsi, instance #0

Chapter 3 Troubleshooting 3-25

The prtconf output continued:

pseudo, instance #0
#

3.6.4 Using the netstat Command

The netstat command displays the network status and protocol statistics.

3.6.4.1 Options

TABLE 3-10 lists the options of the netstat command and how those options can

help troubleshooting.

TABLE3-10 Options for netstat

Option Description How it can help

-i Displays the interface status. The information
includes packets in/out, errors in/out,
collisions, and queues.

-i interval Repeats the setstat command in the
intervals of as many seconds as specified after
the -i option.

-p Displays the media table. Provides the MAC address for hosts on the

-r Displays the routing table. Provides routing information.

-n Replaces host names with IP addresses and

displays them.

Provides a quick overview of the network
status.

Identifies intermittent or long duration
network events. By piping setstat output to
a file, overnight activity can be viewed all at
once.

subnet.

Used when an IP address is more useful than a
host name.

3-26 SPARC Enterprise M3000 Server Service Manual • November 2009

The following example shows the output for the netstat -p command:

# netstat -p
Net to Media Table: IPv4
Device IP Address Mask Flags Phys Addr

------ -------------------- --------------- -------- --------------­bge0 san-ff1-14-a 255.255.255.255 o 00:14:4f:3a:93:61
bge0 san-ff2-40-a 255.255.255.255 o 00:14:4f:3a:93:85
sppp0 224.0.0.22 255.255.255.255
bge0 san-ff2-42-a 255.255.255.255 o 00:14:4f:3a:93:af
bge0 san09-lab-r01-66 255.255.255.255 o 00:e0:52:ec:1a:00
sppp0 192.168.1.1 255.255.255.255
bge0 san-ff2-9-b 255.255.255.255 o 00:03:ba:dc:af:2a
bge0 bizzaro 255.255.255.255 o 00:03:ba:11:b3:c1
bge0 san-ff2-9-a 255.255.255.255 o 00:03:ba:dc:af:29
bge0 racerx-b 255.255.255.255 o 00:0b:5d:dc:08:b0
bge0 224.0.0.0 240.0.0.0 SM 01:00:5e:00:00:00
#

3.6.5 Using the ping Command

The ping command sends an ICMP ECHO_REQUEST packet to a network host.
Depending on how the ping command is configured, troublesome network links or
nodes can be identified from the displayed output. The destination host is specified
in the variable hostname.

3.6.5.1 Options

TABLE 3-11 lists the options of the ping command and how those options can help

troubleshooting.

TABLE3-11 Options for ping

Option Description How it can help

hostname The probe packet is sent to hostname and

returned.

-g hostname Forcibly routes the probe packet through a
specified gateway.

-i interface Specifies through which interface to send and
receive the probe packet.

Verifies that a host is active on the network.

By sending the probe packet through different
routes to the target host, individual routes can
be tested for quality.

Enables a simple check of secondary network
interfaces.

Chapter 3 Troubleshooting 3-27

TABLE3-11 Options for ping (Continued)

Option Description How it can help

-n Replaces host names with IP addresses and
displays them.

-s Continues to repeat ping at intervals of 1
second. Pressing
After it is stopped, statistics are displayed.

-svR Displays the route the probe packet followed
in 1-second intervals.

CTRL-C stops the execution.

The following example shows output for the ping -s command:

# ping -s san-ff2-17-a
PING san-ff2-17-a: 56 data bytes
64 bytes from san-ff2-17-a (10.1.67.31): icmp_seq=0. time=0.427 ms
64 bytes from san-ff2-17-a (10.1.67.31): icmp_seq=1. time=0.194 ms
^C

----san-ff2-17-a PING Statistics---­2 packets transmitted, 2 packets received, 0% packet loss
round-trip (ms) min/avg/max/stddev = 0.172/0.256/0.427/0.102
#

3.6.6 Using the ps Command

Used when an IP address is more useful than a
host name.

Helps identify intermittent or long duration
network events. By piping ping output to a
file, overnight activity can be viewed all at
once.

Indicates the probe packet route and number
of hops. Comparing multiple routes can
identify bottlenecks.

The ps commands lists the status of processes. If no option is specified, the ps
command outputs information about the processes that have the same execution user
ID as the user who is executing this command and are controlled from the same
control terminal as this command.

If any option is specified, the output information is controlled according to the
specified option.

3-28 SPARC Enterprise M3000 Server Service Manual • November 2009

3.6.6.1 Options

TABLE 3-12 lists the options of the ps command and how those options can help

troubleshooting.

TABLE3-12 Options for ps

Option Description How it can help

-e Displays information for every process. Identifies the process ID and the executable
files.

-f Generates a full listing. Provides the following process information:
user ID, parent process ID, time when
executed, and the paths to the executable files.

-o option Enables configurable output. The pid, pcpu,

pmem, and comm options display process ID,
percent CPU consumption, percent memory
consumption, and the relevant executable file,
respectively.

The following example shows output for the ps command:

# ps
PID TTY TIME CMD
101042 pts/3 0:00 ps
101025 pts/3 0:00 sh
#

Provides only most important information.
Knowing the percentage of resource
consumption helps identify processes that are
affecting performance and might be hung.

When using sort with the -r option, the column headings are output so that the
value in the first column is equal to zero.

3.6.7 Using the prstat Command

The prstat utility repeatedly examines all the active processes in the system and
reports statistics based on the selected output mode and sort order. The prstat
command provides output similar to the ps command.

Chapter 3 Troubleshooting 3-29

3.6.7.1 Options

TABLE 3-13 lists the options of the prstat command and how those options can help

troubleshooting.

TABLE3-13 Options for prstat

Option Description How it can help

No option Displays a list of the processes sorted in

descending order of consumption amount of
CPU resources. The list is limited to the height
of the terminal window and the total number
of processes. Output is automatically updated
every 5 seconds. Pressing
execution.

-n number Limits the number of output lines. Limits the amount of data displayed and

-s key Enables the sorting of list contents by key

parameter.

-v Verbose mode Displays additional parameters.

CTRL-C stops the

The following example shows output for the prstat command:

# prstat -n 5 -s size
PID USERNAME SIZE RSS STATE PRI NICE TIME CPU PROCESS/NLWP
100463 root 66M 61M sleep 59 0 0:01:03 0.0% fmd/19
100006 root 11M 9392K sleep 59 0 0:00:09 0.0% svc.configd/16
100004 root 10M 8832K sleep 59 0 0:00:04 0.0% svc.startd/14
100061 root 9440K 6624K sleep 59 0 0:00:01 0.0% snmpd/1
100132 root 8616K 5368K sleep 59 0 0:00:04 0.0% nscd/35
Total: 52 processes, 188 lwps, load averages: 0.00, 0.00, 0.00
#

Output identifies the process ID, user ID, used
amount of memory, state, CPU consumption,
and command name.

displays processes consuming many resources.

Useful keys are cpu (default), time, and size.

3-30 SPARC Enterprise M3000 Server Service Manual • November 2009

CHAPTER

4

FRU Replacement Preparation

This chapter explains the method of preparing for the safe replacement of FRUs.

■ Section 4.1, “Tools Required for Maintenance” on page 4-1

■ Section 4.2, “FRU Replacement and Installation Methods” on page 4-2

■ Section 4.3, “Active Replacement/Active Addition” on page 4-5

■ Section 4.4, “Hot Replacement/Hot Addition” on page 4-7

■ Section 4.5, “Cold Replacement/Cold Addition” on page 4-12

4.1 Tools Required for Maintenance

The actual maintenance work described in Chapter 5 to Chapter 15 requires
maintenance software to confirm that the server and other components are operating
correctly and to collect status information and log data on the server and
components. Work for mounting, removing, or replacing a specific component
requires special tools, including screwdrivers and an antistatic wrist strap. These
items are generally named maintenance tools and are listed in

TABLE4-1 Maintenance Tools

Item Part name Use

1 Phillips screwdriver (No. 2)

2 Wrist strap For electrostatic control

3 Conductive mat For electrostatic control

4 SunVTS Test program

TABLE 4-1.

4-1

4.2 FRU Replacement and Installation Methods

This section explains how to replace and install FRUs.

4.2.1 FRU Replacement

There are three methods of replacing FRUs, as follows:

■ Active replacement

A target FRU is operated while the Solaris OS of the domain to which the FRU
belongs is operating.

The target FRU is operated by using Solaris OS commands or XSCF commands.
Because the power supply unit (PSU) and fan unit (FAN) do not belong to any

domain, they are operated by using XSCF commands regardless of the operating
state of the Solaris OS.

Note – The hard disk drive has a redundant configuration only when disk mirroring

software is used.

Note – If a hard disk drive is an unmirrored boot device, it must be replaced by

using the cold replacement procedure. However, if a boot device can be
disconnected by means of a Solaris OS function or disk mirroring software function,
active replacement can also be performed. The procedure for disconnecting a hard
disk drive varies depending on the software being used. For details, see the manuals
for the relevant software.

■ Hot replacement

A target FRU is operated while the domain to which the FRU belongs is stopped.

Depending on the target FRU, there are two cases as follows:

■ Power supply unit/Fan unit: operated with XSCF commands.

■ Hard disk drive: operated directly, not by using XSCF commands.

4-2 SPARC Enterprise M3000 Server Service Manual • November 2009

■ Cold replacement

After all the domains are stopped and then the server is powered off, a FRU is
operated.

Note – Do not operate a target FRU while the OpenBoot PROM is running (the ok

prompt is displayed). After stopping the relevant domain (power-off) or starting the
Solaris OS, operate the target FRU.

4.2.2 FRU Installation

For empty slots without hard disk drives or PCIe cards, the number of mounted
FRUs can be changed from 1 to the maximum number as required. There are some
components that are tentatively mounted physically in the server. If such a
component is a hard disk drive, it is called an HDD dummy, and if such a
component is a PCIe card, it is called a PCIe slot cover. These components are
necessary to protect the server from noise and to properly cool the server.

The same methods as those used for replacement are used for installation.

Note – When installing a new component in an empty slot, remove the HDD

dummy or PCIe slot cover and then install a new FRU.

TABLE 4-2 lists the access locations and applicable replacement methods for each

FRU.

TABLE4-2 FRU Access Locations and Replacement Methods

FRU

Motherboard unit

Access
location

Top Yes No No Chapter 6
(MBU_A, MBU_A_2, MBU_A_3,
MBU_A_4)

Memory (DIMM) Top Yes No No Chapter 7

PCIe card (PCIe) Top Yes No No Chapter 8

Hard disk drive (HDD) Front Yes Yes

Hard disk drive backplane (HDDBP) Top Yes No No Chapter 10

CD-RW/DVD-RW drive unit

Front/top Yes No No Chapter 11
(DVDU)

Power supply unit (PSU) Rear Yes Yes

Cold
replacement

Hot
replacement

*

†

Chapter 4 FRU Replacement Preparation 4-3

Active
replacement

‡

Ye s

†

Ye s

Where to find the
procedure

Chapter 9

Chapter 12

TABLE4-2 FRU Access Locations and Replacement Methods (Continued)

FRU

Access
location

Fan unit (FAN_A) Top Yes Yes

Cold
replacement

Hot
replacement

†

Active
replacement

†

Ye s

Where to find the
procedure

Chapter 13

Fan backplane (FANBP_B) Top Yes No No Chapter 14

Operator panel (OPNL) Front/top Yes No No Chapter 15

* The FRU is operated directly, without using XSCF commands.
† The FRU is operated with XSCF commands.

■ The hard disk drive has a redundant configuration only when disk mirroring software is used.

‡

■ If a harddisk drive is an unmirrored boot device, it must be replaced by usingthe cold replacement procedure. However, ifa boot

device can be disconnected by means of a Solaris OS function or disk mirroring software function, active replacement can also be
performed. The procedure for disconnectinga hard disk drive varies dependingon the software being used. Fordetails, see theman­uals for the relevant software.

TABLE 4-3 lists the access location and applicable installation methods for each FRU.

TABLE4-3

FRU

Motherboard unit

FRU Access Locations and Installation Methods

Access
location Cold addition Hot addition

TopNoNoNo

Active
addition

Where to find the
procedure

(MBU_A, MBU_A_2, MBU_A_3,
MBU_A_4)

Memory (DIMM) Top Yes No No Chapter 7

PCIe card (PCIe) Top Yes No No Chapter 8

Hard disk drive (HDD) Front Yes Yes

*

Ye s

†

Chapter 9

Hard disk drive backplane (HDDBP) Top No No No

CD-RW/DVD-RW drive unit

Front/top No No No

(DVDU)

Power supply unit (PSU) Rear No No No

Fan unit (FAN_A) Top No No No

Fan backplane (FANBP_B) Top No No No

Operator panel (OPNL) Front/top No No No

* The FRU is operated directly, without using XSCF commands.
† The FRU is operated with XSCF commands.

4-4 SPARC Enterprise M3000 Server Service Manual • November 2009

4.3 Active Replacement/Active Addition

In active replacement, the target FRU is operated while the Solaris OS of the domain
to which the FRU belongs is operating.

The target FRU is operated using Solaris OS commands or XSCF commands.

Because the power supply unit (PSU) and fan unit (FAN) do not belong to any
domain, they are operated by using XSCF commands regardless of the operating
state of the Solaris OS.

Active replacement has the following four stages:

■ “Releasing a FRU from a Domain” on page 4-5

■ “FRU Removal and Replacement” on page 4-6

■ “Configuring a FRU in a Domain” on page 4-6

■ “Verifying the Hardware Operation” on page 4-7

For active installation, see Section 4.3.3, “Configuring a FRU in a Domain” on

page 4-6 and "Section 4.3.4, “Verifying the Hardware Operation” on page 4-7.

4.3.1 Releasing a FRU from a Domain

1. From the Solaris OS, type the cfgadm command to obtain the component

status.

# cfgadm -a

2. Stop the application from using the component and disconnect the component
from the Solaris OS.

The READY LED (green) of the HDD goes off.

Note – If a hard disk drive is an unmirrored boot device, it must be replaced by

using the cold replacement procedure. However, if a boot device can be
disconnected by means of a Solaris OS function or disk mirroring software function,
active replacement can also be performed.

3. Type the cfgadm -c command to disconnect the component from the Solaris
OS.

# cfgadm -c unconfigure Ap_Id

Chapter 4 FRU Replacement Preparation 4-5

4. Type the cfgadm -x command to confirm that the CHECK LED blinks.

# cfgadm -x led=fault, mode=blink Ap_Id

The Ap_Id is shown in the output of cfgadm (for example, disk#0).
The CHECK LED (amber) of the HDD blinks.

5. Type the cfgadm command to verify that the component has been

disconnected.

# cfgadm -a

The disconnected component is displayed as being unconfigured.

4.3.2 FRU Removal and Replacement

After the disconnection of a FRU from a domain, the same procedure as that for Hot
Replacement/Hot Addition applies. See Section 4.4, “Hot Replacement/Hot

Addition” on page 4-7.

4.3.3 Configuring a FRU in a Domain

This section explains the procedure for active replacement/installation by using
Solaris OS commands. For information on using the XSCF command, see Section 4.4,

“Hot Replacement/Hot Addition” on page 4-7.

1. Type the cfgadm -c command from the Solaris OS to integrate the component

into the Solaris OS.

# cfgadm -c configure Ap_Id

2. Type the cfgadm -x command to confirm that the CHECK LED is off.

# cfgadm -x led=fault, mode=off Ap_Id

The Ap_Id is shown in the output of cfgadm (for example, disk#0).
The CHECK LED (amber) of the HDD is turned off.

4-6 SPARC Enterprise M3000 Server Service Manual • November 2009

3. Type the cfgadm command to verify that the component has been configured.

# cfgadm -a

The configured component is displayed as being configured.
The READY LED (green) of the HDD goes on.

4.3.4 Verifying the Hardware Operation

■ Confirm the status of the LED indicators.

For information on the LED status, see

TABLE 2-3 and TABLE 2-5.

4.4 Hot Replacement/Hot Addition

In hot replacement, the target FRU is operated while the domain to which the FRU
belongs is stopped.

Depending on the target FRU, there are two cases as follows:

■ Power supply unit/Fan unit: operated with XSCF commands.

■ Hard disk drive: operated directly, not by using XSCF commands.

For hot addition, do the same operation as that for hot replacement.

Chapter 4 FRU Replacement Preparation 4-7

4.4.1 FRU Removal and Replacement

● Type the replacefru command from the XSCF Shell prompt.

XSCF> replacefru

---------------------------------------------------------------------­Maintenance/Replacement Menu
Please select a type of FRU to be replaced.

1. FAN (Fan Unit)

2. PSU (Power Supply Unit)

---------------------------------------------------------------------­Select [1,2|c:cancel] :1

---------------------------------------------------------------------­Maintenance/Replacement Menu
Please select a FAN to be replaced.

No. FRU Status

--- --------------- ------------------

1. FAN_A#0 Normal

2. FAN_A#1 Normal

---------------------------------------------------------------------­Select [1,2|b:back] :1

You are about to replace FAN_A#0.
Do you want to continue?[r:replace|c:cancel] :r

Please confirm the Check LED is blinking.
If this is the case, please replace FAN_A#0.
After replacement has been completed, please select[f:finish] :f

4-8 SPARC Enterprise M3000 Server Service Manual • November 2009

The replacefru command automatically tests the status of the component after the
completion of removal and replacement.

Diagnostic tests for FAN_A#0 have started.
[This operation may take up to 3 minute(s)]
(progress scale reported in seconds)

0..... 30..done

---------------------------------------------------------------------­Maintenance/Replacement Menu
Status of the replaced FRU.

FRU Status

------------- -------­FAN_A#0 Normal

---------------------------------------------------------------------­The replacement of FAN_A#0 has completed normally.[f:finish] :f

---------------------------------------------------------------------­Maintenance/Replacement Menu
Please select a type of FRU to be replaced.

1. FAN (Fan Unit)

2. PSU (Power Supply Unit)

---------------------------------------------------------------------­Select [1,2|c:cancel] :c

The display may vary depending on the XCP version

When the tests are complete, the program displays the original menu again. To
return to the XSCF Shell prompt, select cancel.

For details, see the manual pages of replacefru.

Chapter 4 FRU Replacement Preparation 4-9

4.4.2 Verifying the Hardware Operation

1. Type the showhardconf command to confirm that the new component has

been installed.

XSCF> showhardconf
SPARC Enterprise M3000;
+ Serial:IKK0813023; Operator_Panel_Switch:Locked;
+ Power_Supply_System:Single; SCF-ID:XSCF#0;
+ System_Power:On; System_Phase:Cabinet Power On;
Domain#0 Domain_Status:OpenBoot Execution Completed;

MBU_A Status:Normal; Ver:0101h; Serial:PP082202QX ;
+ FRU-Part-Number:CA07082-D901 A1 /541-3302-01 ;
+ CPU Status:Normal;
+ Freq:2.520 GHz; Type:32;
+ Core:4; Strand:2;
+ Memory_Size:8 GB;
MEM#0A Status:Normal;
+ Code:ce0000000000000001M3 93T2950EZA-CE6 4145-473b3c23;
+ Type:1A; Size:1 GB;
MEM#0B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2918;
+ Type:1A; Size:1 GB;
MEM#1A Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b28af;
+ Type:1A; Size:1 GB;
MEM#1B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b28ab;
+ Type:1A; Size:1 GB;
MEM#2A Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b283e;
+ Type:1A; Size:1 GB;
MEM#2B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2829;
+ Type:1A; Size:1 GB;
MEM#3A Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2840;
+ Type:1A; Size:1 GB;
MEM#3B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2830;
+ Type:1A; Size:1 GB;
PCI#0 Name_Property:fibre-channel; Card_Type:Other;
PCI#1 Name_Property:fibre-channel; Card_Type:Other;
PCI#2 Name_Property:pci; Card_Type:Other;
PCI#3 Name_Property:pci; Card_Type:Other;

4-10 SPARC Enterprise M3000 Server Service Manual • November 2009

The showhardconf output continued:

OPNL Status:Normal; Ver:0101h; Serial:PP082202R8 ;
+ FRU-Part-Number:CA07082-D911 A1 /541-3306-01 ;
PSU#0 Status:Normal; Serial:EA08210127;
+ FRU-Part-Number:CA01022-0720 02B /300-2193-02 ;
+ Power_Status:On;
+ Type:AC;
PSU#1 Status:Normal; Serial:EA08210131;
+ FRU-Part-Number:CA01022-0720 02B /300-2193-02 ;
+ Power_Status:On;
+ Type:AC;
FANBP_B Status:Normal; Ver:0101h; Serial:PP0821031E ;
+ FRU-Part-Number:CA20399-B12X 004AA/541-3304-01 ;
FAN_A#0 Status:Normal;
FAN_A#1 Status:Normal;
XSCF>

For details, see the manual pages of showhardconf.

2. Confirm the state of the status LEDs of the FRU.

For information on the LED status, see

TABLE 2-3 and TABLE 2-5.

Chapter 4 FRU Replacement Preparation 4-11

4.5 Cold Replacement/Cold Addition

In cold replacement, all business operations must be stopped. When accessing the
server, power off the server and disconnect the power cord to ensure safety.

For cold addition, do the same operation as that for cold replacement.

4.5.1 Powering off the Server

This section explains how to power off the server.

4.5.1.1 Power-off by Using the XSCF Command

1. Notify users that the server is being powered off.

2. Back up the system files and data to tape, if necessary.

3. A user with platadm or fieldeng authority must log in to the XSCF Shell and
enter the poweroff command.

XSCF> poweroff -a

The following activity is executed when the poweroff command is used:

■ The Solaris OS shuts down completely.

■ The server is powered off and the server enters standby mode. (The power to

the XSCF unit remains on.)

For details, see the SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers
XSCF User's Guide.

4. Verify that the POWER LED on the operator panel is off.

5. Disconnect all the power cords from the power outlets.

Caution – There is a risk of electrical failure if the power cords are not

disconnected. All the power cords must be disconnected to completely cut the power
to the server.

4-12 SPARC Enterprise M3000 Server Service Manual • November 2009

4.5.1.2 Power off by Using the Operator Panel

1. Notify users that the server is being powered off.

2. Back up the system files and data to tape, if necessary.

3. Turn the mode switch on the operator panel to the Service position.

4. Press the power switch on the operator panel for 4 seconds or more.

5. Verify that the POWER LED on the operator panel is off.

6. Disconnect all the power cords from the power outlets.

Caution – There is a risk of electrical failure if the power cords are not

disconnected. All the power cords must be disconnected to completely cut the power
to the server.

4.5.2 FRU Removal and Replacement

In cold replacement, a FRU is removed and replaced while the power is turned off.
After the FRU replacement, power on the server.

4.5.3 Powering on the Server

This section explains how to power on the server.

4.5.3.1 Power-on by Using the XSCF Command

1. Verify that the server has enough power supply units to operate in the desired
configuration.

2. Connect all the power cords to power outlets.

3. Verify that the XSCF STANDBY LED on the operator panel is on.

4. Turn the mode switch on the operator panel to the desired mode position
(Locked or Service).

Chapter 4 FRU Replacement Preparation 4-13

5. A user with platadm or fieldeng authority must log in to the XSCF Shell and
type the poweron command.

XSCF> poweron -a

Soon, the following activity is executed:

■ The POWER LED on the operator panel is turned on.

■ The power-on self-test (POST) is executed.

Then, the server is completely powered on.

Note – If automatic startup of the Solaris OS is specified, use the sendbreak -d

domain_id command of the XSCF Shell to display the ok prompt after the display

console banner is displayed but before the system starts booting the Solaris OS.

For details, see the SPARC Enterprise M3000/M4000/M5000/M8000/M9000 Servers
XSCF User's Guide.

4.5.3.2 Power-on by Using the Operator Panel

1. Verify that the server has enough power supply units to operate in the desired
configuration.

2. Connect all the power cords to power outlets.

3. Verify that the XSCF STANDBY LED on the operator panel is on.

4. Turn the mode switch on the operator panel to the desired mode position
(Locked or Service).

5. Press the power button on the operator panel.

Soon, the following activity is executed:

■ The POWER LED on the operator panel is turned on.

■ The power-on self-test (POST) is executed.

Then, the server is completely powered on.

Note – If automatic startup of the Solaris OS is specified, use the sendbreak -d

domain_id command of the XSCF Shell to display the ok prompt after the display

console banner is displayed but before the system starts booting the Solaris OS.

4-14 SPARC Enterprise M3000 Server Service Manual • November 2009

4.5.4 Verifying the Hardware Operation

1. In response to the ok prompt, press the ENTER key and enter ”#” (default value)
and then press the ”.” (period) key.

The domain console is switched to the XSCF console.

2. Use the showhardconf command to confirm that the new component has been
installed.

XSCF> showhardconf
SPARC Enterprise M3000;
+ Serial:IKK0813023; Operator_Panel_Switch:Locked;
+ Power_Supply_System:Single; SCF-ID:XSCF#0;
+ System_Power:On; System_Phase:Cabinet Power On;
Domain#0 Domain_Status:OpenBoot Execution Completed;

MBU_A Status:Normal; Ver:0101h; Serial:PP082202QX ;
+ FRU-Part-Number:CA07082-D901 A1 /541-3302-01 ;
+ CPU Status:Normal;
+ Freq:2.520 GHz; Type:32;
+ Core:4; Strand:2;
+ Memory_Size:8 GB;
MEM#0A Status:Normal;
+ Code:ce0000000000000001M3 93T2950EZA-CE6 4145-473b3c23;
+ Type:1A; Size:1 GB;
MEM#0B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2918;
+ Type:1A; Size:1 GB;
MEM#1A Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b28af;
+ Type:1A; Size:1 GB;
MEM#1B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b28ab;
+ Type:1A; Size:1 GB;
MEM#2A Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b283e;
+ Type:1A; Size:1 GB;
MEM#2B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2829;
+ Type:1A; Size:1 GB;
MEM#3A Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2840;
+ Type:1A; Size:1 GB;
MEM#3B Status:Normal;
+ Code:7f7ffe00000000004aEBE10RD4AJFA-5C-E 3020-223b2830;
+ Type:1A; Size:1 GB;
PCI#0 Name_Property:fibre-channel; Card_Type:Other;
PCI#1 Name_Property:fibre-channel; Card_Type:Other;

Chapter 4 FRU Replacement Preparation 4-15

The showhardconf output continued:

PCI#2 Name_Property:pci; Card_Type:Other;
PCI#3 Name_Property:pci; Card_Type:Other;
OPNL Status:Normal; Ver:0101h; Serial:PP082202R8 ;
+ FRU-Part-Number:CA07082-D911 A1 /541-3306-01 ;
PSU#0 Status:Normal; Serial:EA08210127;
+ FRU-Part-Number:CA01022-0720 02B /300-2193-02 ;
+ Power_Status:On;
+ Type:AC;
PSU#1 Status:Normal; Serial:EA08210131;
+ FRU-Part-Number:CA01022-0720 02B /300-2193-02 ;
+ Power_Status:On;
+ Type:AC;
FANBP_B Status:Normal; Ver:0101h; Serial:PP0821031E ;
+ FRU-Part-Number:CA20399-B12X 004AA/541-3304-01 ;
FAN_A#0 Status:Normal;
FAN_A#1 Status:Normal;
XSCF>

For details, see the manual pages of showhardconf.

3. Type the console command to switch from the XSCF console to the ok prompt

(domain console) again:

XSCF> console -d 0

4. From the ok prompt, type the show-devs command to confirm that all the

PCIe cards are mounted.

{0} ok show-devs
/pci@1,700000
/pci@0,600000
/pci@8,4000
/cmp@400,0
/pseudo-mc@200,200
/nvram
/pseudo-console
/virtual-memory
/memory@m0
/aliases
/options
/openprom
/chosen
/packages

4-16 SPARC Enterprise M3000 Server Service Manual • November 2009

The show-devs output continued:

/pci@1,700000/pci@0
/pci@1,700000/pci@0/pci@9
/pci@1,700000/pci@0/pci@8
/pci@1,700000/pci@0/pci@0
/pci@1,700000/pci@0/pci@9/pci@0
/pci@1,700000/pci@0/pci@9/pci@0/FJSV,e2ta@4,1
/pci@1,700000/pci@0/pci@9/pci@0/FJSV,e2ta@4
/pci@1,700000/pci@0/pci@8/pci@0
/pci@1,700000/pci@0/pci@8/pci@0/FJSV,e2ta@4,1
/pci@1,700000/pci@0/pci@8/pci@0/FJSV,e2ta@4
/pci@1,700000/pci@0/pci@0/pci@0
/pci@1,700000/pci@0/pci@0/pci@0/FJSV,e2ta@4,1
/pci@1,700000/pci@0/pci@0/pci@0/FJSV,e2ta@4
/pci@0,600000/pci@0
/pci@0,600000/pci@0/pci@8
/pci@0,600000/pci@0/pci@2
/pci@0,600000/pci@0/pci@1
/pci@0,600000/pci@0/pci@0
/pci@0,600000/pci@0/pci@8/pci@0
/pci@0,600000/pci@0/pci@8/pci@0/FJSV,e2ta@4,1
/pci@0,600000/pci@0/pci@8/pci@0/FJSV,e2ta@4
/pci@0,600000/pci@0/pci@2/pci@0
/pci@0,600000/pci@0/pci@2/pci@0/network@4,1
/pci@0,600000/pci@0/pci@2/pci@0/network@4
/pci@0,600000/pci@0/pci@1/pci@0
/pci@0,600000/pci@0/pci@1/pci@0/network@4,1
/pci@0,600000/pci@0/pci@1/pci@0/network@4
/pci@0,600000/pci@0/pci@0/scsi@0
/pci@0,600000/pci@0/pci@0/scsi@0/disk
/pci@0,600000/pci@0/pci@0/scsi@0/tape
/pci@8,4000/ebus@1
/pci@8,4000/ebus@1/panel@14,280030
/pci@8,4000/ebus@1/scfc@14,200000
/pci@8,4000/ebus@1/serial@14,400000
/pci@8,4000/ebus@1/flashprom@10,0
/cmp@400,0/core@3
/cmp@400,0/core@2
/cmp@400,0/core@1
/cmp@400,0/core@0
/cmp@400,0/core@3/cpu@1
/cmp@400,0/core@3/cpu@0
/cmp@400,0/core@2/cpu@1
/cmp@400,0/core@2/cpu@0
/cmp@400,0/core@1/cpu@1
/cmp@400,0/core@1/cpu@0

Chapter 4 FRU Replacement Preparation 4-17

The show-devs output continued:

/cmp@400,0/core@0/cpu@1
/cmp@400,0/core@0/cpu@0
/openprom/client-services
/packages/obp-tftp
/packages/terminal-emulator
/packages/disk-label
/packages/deblocker
/packages/SUNW,builtin-drivers
/packages/SUNW,probe-error-handler
{0} ok

5. Type the probe-scsi-all command to confirm that the storage devices are

mounted.

{0} ok probe-scsi-all
/pci@0,600000/pci@0/pci@0/scsi@0

MPT Version 1.05, Firmware Version 1.24.00.00

Target 0
Unit 0 Disk FUJITSU MAY2073RC 3701 143374738 Blocks, 73 GB
SASAddress 500000e0197292c2 PhyNum 0
Target 1
Unit 0 Disk FUJITSU MAY2073RC 3701 143374738 Blocks, 73 GB
SASAddress 500000e019728f22 PhyNum 1
Target 2
Unit 0 Disk FUJITSU MAY2073RC 3701 143374738 Blocks, 73 GB
SASAddress 500000e019729002 PhyNum 2
Target 3
Unit 0 Disk FUJITSU MAY2073RC 3701 143374738 Blocks, 73 GB
SASAddress 500000e019729302 PhyNum 3
Target 4
Unit 0 Removable Read Only device MATSHITADVD-RAM UJ875AS 1000
SATA device PhyNum 4

{0} ok

6. Type the boot command to start the Solaris OS.

ok boot

4-18 SPARC Enterprise M3000 Server Service Manual • November 2009
