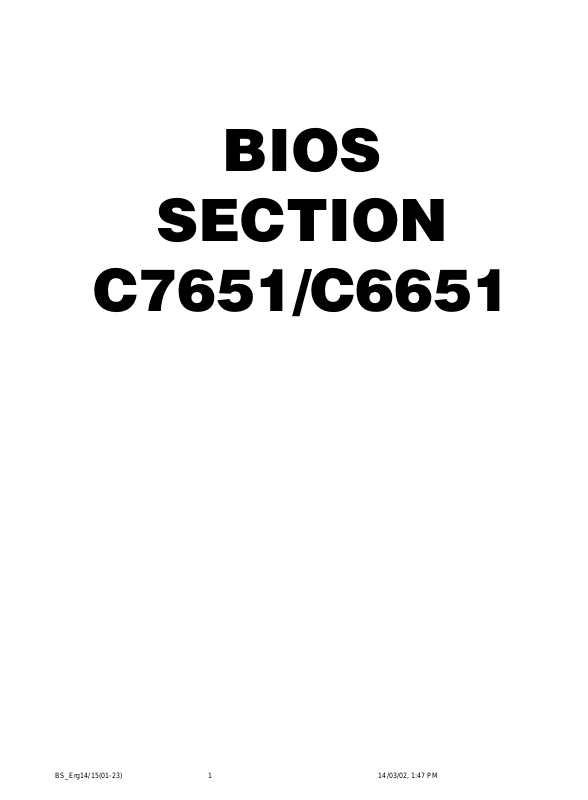

C7651/C6651

1. BIOS setup

BIOS SETUP UTILITY

The BIOS Setup Utility is a program that sets up the operating environment for your notebook. Your BIOS is set at the factory for normal operating conditions, therefore there is no need to set or change the BIOS environment to operate your notebook.

The BIOS Setup Utility configures:

• Device control feature parameters, such as changing I/O addresses and boot devices.

• System Data Security feature parameters, such as passwords.

Entering the BIOS Setup Utility

To enter the BIOS Setup Utility do the following:

1. Turn on or restart your notebook.

2. Press the [F2] key once the Fujitsu logo appears on the screen. This will open the main menu of the BIOS Setup Utility with the current settings displayed.

3. Press the [RIGHT ARROW] or [LEFT ARROW] key to scroll through the other setup menus to review or alter the current settings.

Navigating Through The Setup Utility

The BIOS setup utility consists of seven menus; Main, Advanced, Security, Power, Boot, Info and Exit. This document explains each menu, including all submenus and setup items.

The following procedures allow you to navigate the setup utility menus:

1. To select a menu, use the cursor keys: [→] , [←].

2. To select a field within a menu or a submenu, use the cursor keys: [ ↑], [ ↓].

3. To select the different values for each field, press the [Spacebar] or [+] to change to the next higher selec-tion and [F5] or [ - ] to go to the next lower selection.

4. To activate a submenu press the [Enter] key.

5. To return to a menu from a submenu, press the [Esc] key.

6. To go to the Exit menu from any other menu, press the [Esc] key.

Critical Point

Selecting a field causes a help message about that field to be displayed on the right-hand side of the screen. Pressing the Enter key with the highlight on a selection that is not a submenu or auto selection will cause a list of all options for that item to be displayed. Pressing the Enter key again will select the highlighted choice.

7. Pressing the [F9] key resets all items in the BIOS to the default values.

8. Pressing the [F10] key saves the current configuration and exits the BIOS Setup Utility. You will

be asked to verify this selection before it is executed.

9. Pressing the [F1] key gives you a general help screen.

Entering the Setup Utility After a Configuration Change or System Failure

If there has been a change in the system configuration that does not match the parameter settings stored in your BIOS memory , or there is a f ailure in the system, the system beeps and/or displa ys an error message after the Power On Self Test (POST). If the failure is not too sev ere, it will give y ou the opportunity to modify the settings of the setup utility, as described in the following steps:

1. When you turn on or restart the computer there is a beep and/or the following message appears

on the screen:

Error message - please run SETUP program Press <F1> key to continue, <F2> to run SETUP

2. If an error message is displayed on the screen, and you want to continue with the boot process

and start the operating system anyway, press the [F1] key.

Critical Point

If your notebook emits a series of beeps that sounds like a code and the display is blank, please refer to the Troubleshooting Section. The Troubleshooting Section includes a list of error messages and their meanings. If your data security settings require it, you may be ask ed for a pass word bef ore the operating system will be loaded.

3. If an error message is displayed on the screen, and y ou want to enter the setup utility, press the

[F2] key.

4. When the setup utility starts with a fault present, the system displays the following message:

Warning! Error message [Continue]

5. Press any key to enter the setup utility. The system will then display the Main Menu with current

parameters values.

MAIN MENU

SETTING STANDARD SYSTEM PARAMETERS

The Main Menu allows you to set or view the current system parameters. Follow the instructions for Navigating Through The Setup Utility to make any changes. The following tables show the names of the menu fields for the Main menu and its submenus, all of the options for each field, the default settings and a description of the field’ s function and any special information needed to help understand the field’s use.

Critical Point

System Time and System Date can also be set from your oper ating system without using the setup utility. Use the calendar and time icon on your Windows Control panel or type time or date from the MS-DOS prompt.

Figure 1. Main Menu

Table 1: Fields, Options and Defaults for the Main Menu

* Note that the parameters listed below may differ, as determined by your system configuration.

Menu Field

System Time:

System Date:

Floppy Disk A:

Primary Master:

Primary Slave:

Language:

Options

—

• Disabled

• 1.44/1.2 MB 3.5" Selects Primary

Master submenu

• Selects Primary Master submenu

• English (US)

• Japanese (JP)

Default

—

[1.44/1.2 MB 3.5"]

The product # of the Hard Drive

The product # of the CD-ROM or DVD/CD-RW

[English (US)]

Description

Sets and displays the current time. Time is in a 24 hour format of hours:minutes:seconds with 2 digits for each. (HH:MM:SS). Example: 16:45:57. You may change each segment of the time separately. Move between the segments with the [Tab] key and/or [Shift] + [Tab] keys.

Sets and displays the current date. Date is in a month/day/year numeric format with 2 digits each for month and day and 4 digits for year. (MM/ DD/YYYY) for example: 03/20/1998. You may change each segment of the date separately. Move between the segments with the [Tab] key and/ or [Shift] + [Tab] keys.

Enables or disables a floppy disk.

Display the type of device on this ATA/ATAPI interface, if there is one. Pressing the Enter key selects the Primary Master submenu allowing additional device configuration options for this interface.

Display the type of device on this ATA/ATAPI interface, if there is one. Pressing the Enter key selects the Secondary Master submenu allowing additional device configuration options for this interface.

The default setting differs between the US/European and the Japanese model. Selects the display language for the BIOS.

Primary Master Submenu of the Main Menu

The Primary Master submenu identifies what ATA devices are installed. * Note that actual hard drive label shown ma y vary. Depending on the drive type, information such as

cylinders, heads and sectors may also be displayed.

Figure 2. Primary Master Submenu

Table 2: Fields, Options and Defaults for the Primary Master Submenu of the Main Menu

Menu Field

Type:

Cylinders:

Heads:

Sectors:

Maximum Capacity:

Options

• Auto

• None

• CD-ROM

• Hard Disk

• A number between 0 and 65,535

• A number between 1 and 16

• A number between 0 and 63

• Display only

Default

[Auto]

—

––

Description

Selects the ATA/ATAPI device type. Select Auto to have the type automatically identified by the BIOS at POST. If None is selected, all of the following Set-up items do not appear. Select CD-ROM if a CDROM drive is installed at this connection. If User is selected, you must specify the number of Cylinders, Heads, and Sectors for the drive. Select ATAPI Removable if a removable disk drive is installed at the connection.

This item appears only when Hard Disk is selected. When Hard Disk is selected, you can change the value. This field is changed by incrementing (pressing the [Spacebar]) or by typing in the number.

Displays the maximum capacity of the drive calculated from the parameters of the hard disk when Auto is selected and the type is identified as hard disk, or User is selected.

Table 2: Fields, Options and Defaults for the Primary Master Submenu of the Main Menu

Menu Field

Multi-Sector Transfers:

LBA Mode Control:

PIO T ransf er Mode:

DMA T ransf er Mode:

Options

• Disabled

• 2 Sectors

• 4 Sectors

• 8 Sectors

• 16 Sectors

• 32 Sectors

• 64 Sectors

• 128 Sectors

• Disabled

• Enabled

• Standard

• Fast PIO 1

• Fast PIO 2

• Fast PIO 3

• Fast PIO 4

• Disabled

• Multiword DMA 1

• Multiword DMA 2

• Ultra DMA 0

• Ultra DMA 1

• Ultra DMA 2

• Ultra DMA 3

• Ultra DMA 4

• Ultra DMA 5

Default

[16 Sectors]

[Enabled]

[Fast PI0 4]

[Ultra DMA 5]

Description

This option cannot be changed when Auto is selected. Specify the number of sectors per block for multiple sector transfer. MAX refers to the size the disk returns when required.

Enables or disables logical Block Addressing in place of Cylinder, Head, Sector addressing. This option cannot be changed when Auto is selected.

Selects the method for moving data to/from the drive. Autotype the drive to select the optimum transfer mode. This option cannot be changed when Auto is selected. Multi-word DMA is automatically set to mode 1 for Fast PIO 1, Fast PIO 2, Fast PIO 3, and set to mode 2 for Fast PIO 4 / DMA.

Selects the method for moving data to/from the drive. Autotype the drive to select the optimum transfer mode. This option cannot be changed when Auto is selected.

Primary Master Submenu of the Main Menu

The Primary Slave submenu is for the internal CD/D VD/CD-R W drive . The driv e type is displa y ed on this menu as well as the Main menu. Your notebook auto-senses the characteristics of the internal drive installed. You will not need to modify these settings, they are displayed for your reference.

* Note that actual drive labels shown may vary.

Figure 3. Primary Slave Submenu

Table 3: Fields, Options and Defaults for the Primary Slave Submenu of the Main Menu

Menu Field

Type:

Multi-Sector Transfers:

LBA Mode Control:

PIO T ransf er Mode:

DMA T ransf er Mode:

Options

• Auto

• None

• CD-ROM

• Hard Disk

• Disabled

• 2 Sectors

• 4 Sectors

• 8 Sectors

• 16 Sectors

• 32 Sectors

• 64 Sectors

• 128 Sectors

• Disabled

• Enabled

• Standard

• Fast PIO 1

• Fast PIO 2

• Fast PIO 3

• Fast PIO 4

• Disabled

• Multiword DMA 1

• Multiword DMA 2

• Ultra DMA 0

• Ultra DMA 1

• Ultra DMA 2

• Ultra DMA 3

• Ultra DMA 4

• Ultra DMA 5

Default

[Auto]

[Disabled]

[Fast PIO 4]

[Ultra DMA 2]

Description

This option cannot be changed when Auto is selected. Specify the number of sectors per block for multiple sector transfer.

Enables or disables Logical Block Addressing in place of Cylinder, Head, Sector addressing. This option cannot be changed when Auto is selected.

Selects the method for moving data to/from the drive. Autotype the drive to select the optimum transfer mode. This option cannot be changed when Auto is selected.

Exiting from Main Menu

When you have finished setting the parameters on this menu, you can either exit from the setup utility, or move to another menu. If you wish to exit from the setup utility, press the [Esc] key or use the cursor keys to go to the Exit menu. If you wish to move to another menu, use the cursor keys.

ADVANCED MENU

SETTING DEVICE FEATURE CONTROLS

The Advanced Menu allows you to:

• Enable or disable support for Plug & Play operating systems.

• Set the I/O addresses for the serial and parallel ports.

• Set the communication mode for the parallel and infrared ports.

• Set the features of the keyboard/mouse.

• Select between the display panel and an external CRT display.

• Configure PCI devices in your system.

• Configure CPU features.

• Configure USB features.

• Configure DMI Event Logging. The following tables show the names of the menu fields f or the Advanced Men u and its submenus, all

of the options for each field, the default settings and a description of the field’s function and any special information needed to help understand the field’s use.

Figure 4. Advanced Menu

Table 4: Fields, Options and Defaults for the Advanced Menu

Menu Field

Plug & Play O/S:

Protected Device Configurations:

Serial/Parallel Port Configurations

Keyboard/Mouse Features

Video Features

Internal Device Configurations

PCI Configurations

CPU Features Page

USB Features Page

Event Logging

Options

• No

• Y es

• No

• Y es

—

––

Default

[Yes]

[No]

—

––

—

––

Description

Select Yes if you are using a Plug & Play capable operating system. Select No if you need the BIOS to configure non-boot devices.

No: allows Plug & Play operating system to change device system settings. Yes: prevents a Plug & Play operating system from changing system settings. * ACPI operating system ignores this setting.

When selected, opens the Serial/ Parallel Port Configurations submenu which allows the user to modify settings for serial, infrared and parallel ports.

When selected, opens the Keyboard/Mouse Features submenu, which allows setting external and internal keyboard and mouse parameters.

When selected, opens the Video Features submenu, which allows setting of the display parameters, including routing of video signals to different displays.

When selected, opens the Internal Device Configurations submenu, which allows enabling or disabling the Floppy Disk and IDE, Modem and LAN Controllers.

When selected, opens additional menus to configure PCI devices.

Configures CPU features.

Configures USB features.

When selected, opens the event logging submenu.

Serial/Parallel Port Configuration Submenu of the Advanced Menu

The Serial/Parallel Port Configuration submenu provides the ability to set the I/O addresses and interrupt levels for the serial, infrared, and parallel ports of your notebook.

CAUTION

I/O addresses, DMA channels, and Interrupt levels can be entered in various ways, including via the BIOS setup utility, the control software for the I/O device, or the hardware. If any two ports or devices, serial or parallel, have the same I/O address assigned, your notebook will not function normally. Please keep a record of original settings before making any changes in the event that a restoration is required. See your hardware and software documentation as well as the setup utility to determine settings, limitations, etc. The BIOS will warm you of a resource conflict by placing a yellow asterisk ne xt to each device that is in conflict.

Critical Point

To prevent IRQ and address conflicts, avoid changing the default settings. All I/O addresses in Table 5 are in hexadecimal.

Figure 5. Serial/Parallel Port Configuration Submenu

Table 5: Fields, Options and Defaults for the Port Configuration Submenu of the

Advanced Menu

Menu Field

Infrared Port:

Mode:

I/O Address

Interrupt:

I/O address:

DMA Channel:

Parallel Port:

Mode:

I/O address:

Interrupt:

Options

• Disabled

• Enabled

• Auto

• IrDA

• FIR

• 3F8 - 3FF

• 2F8 - 2FF

• 3E8 - 3EF

• 2E8 - 2EF

• IRQ 3

• IRQ 4

• IRQ 10

• IRQ 11

• 400 - 43F

• 400 - 4BF

• 500 - 53F

• 580 - 5BF

• DMA 1

• DMA 3

• Disabled

• Enabled

• Auto

• Output Only

• Bi-directional

• ECP

• 378 - 37F

• 278 - 27F

• 3BC - 3BF

• IRQ 5

• IRQ 7

Default

[Enabled]

[FIR]

[2E8 - 2EF]

[IRQ 3]

[400 - 43F]

[DMA 3]

[Enabled]

[Bi-directional]

[378 - 37F]

[IRQ 7]

Description

Configures the infrared port using either no configuration (Disabled), a user defined configuration (Enabled), or by allowing the BIOS or OS to choose the configuration (Auto).

When the infrared port is enabled this option is available allowing the user to set the mode for the infrared port.

Allows user to set the infrared port I/O address when the infrared port is Enabled.

Allows user to set the infrared port interrupt when the infrared port is Enabled.

Allows user to set the infrared port I/O address when the infrared port is Enabled.

Allows user to set the infrared port DMA Channel when the infrared port is Enabled.

Configures the parallel port using either no configuration (Disabled), a user defined configuration (Enabled), or by allowing the BIOS or OS to choose the configuration (Auto).

When the parallel port is enabled this option is available allowing the user to set the mode for the parallel port. Bi-directional allows two-way transfer of information between your notebook and a connected parallel device. Output Only (Half Duplex) allows information to be transferred in only one direction, from your notebook to the printer or similar device. ECP Mode allows communication with the ECP class of parallel I/O devices.

Allows user to set the parallel port base I/O address when the parallel port is Enabled.

Allows user to set the parallel port interrupt when the parallel port is Enabled.

Keyboard/Mouse Features Submenu of the Advanced Menu

The Keyboard/Mouse F eatures submenu is f or setting the par ameters of the integr ated and external mouse and keyboard.

Figure 6. Keyboard/Mouse Features Submenu

Table 6: Fields, Options and Defaults for the Keyboard/Mouse Submenu of the

Advanced Menu

Menu Field

Numlock:

Options

• On

• Off

Default

[Off]

Description

Sets the NumLock function state when the computer completes booting.

Video Features Submenu of the Advanced Menu

The Video Features Submenu is for setting the display parameters.

Figure 7. Video Features Submenu

Table 7: Fields, Options and Defaults for the Video Features Submenu of the

Advanced Menu

Menu Field

Display:

Options

• Internal Flat Panel

• External

• Simultaneous

Default

[Internal Flat Panel]

Description

Selects where the video signal will be routed.

Internal Device Configurations Submenu of the Advanced Menu

The Internal Device Configurations submenu allows the user to configure other internal devices.

Figure 8. Internal Device Configurations Submenu

Table 8: Fields, Options and Defaults for the Internal Device Configurations Submenu of the

Menu Field

Floppy Disk Controller:

IDE Controller:

Advanced Menu

Options

• Disabled

• Enabled

• Disabled

• Primary

• Secondary

• Both

Default

[Enabled]

[Both]

Description

Enables or disables the Floppy Disk Drive.

Enables or disables selectede IDE devices.

PCI Configurations Submenu of the Advanced Menu

The PCI Configurations submenu allows the user to reserve specific interrupts (IRQs) for legacy ISA devices, and to enable or disable built in PCI device modules.

Figure 9. PCI Configurations Submenu

Table 9: Fields, Options and Defaults for the PCI Configurations Submenu of the

Advanced Menu

Menu Field

IRQ Reservation

Options

––

Default

—

Description

Reserve specific IRQs for use by legacy ISA devices.

IRQ Reservation Submenu of the PCI Configurations Submenu

The IRQ Reservation submenu of the PCI Configurations submenu allows the user to mark various IRQs as reserved for use by legacy ISA de vices. When an IRQ is reserved, the BIOS does not use it for embedded PCI or ISA devices.

Critical Point

Only IRQ’s 9, 10 & 11 can be reserved without conflict.

Figure 10. IRQ Reservation Submenu

Table 10: Fields, Options and Defaults for the IRQ Reservation Submenu of the PCI

Menu Field

IRQ 3:

IRQ 4:

IRQ 5:

IRQ 7:

IRQ 9:

IRQ 10:

IRQ 11:

Configurations Submenu of the Advanced Menu

Options

• Available

• Reserved

• Available

• Reserved

• Available

• Reserved

• Available

• Reserved

• Available

• Reserved

• Available

• Reserved

• Available

• Reserved

Default

[Available]

Description

Reserves IRQ 3. If Reserved is selected, the BIOS reserves IRQ 3 for use by legacy ISA devices and does not use it for embedded PCI or ISA devices. IRQ 3 is removed from the IRQ bitmap in the PCI IRQ routing table.

Reserves IRQ 4.

Reserves IRQ 5.

Reserves IRQ 7.

Reserves IRQ 9.

Reserves IRQ 10.

Reserves IRQ 11.

CPU Features Submenu of the Advanced Menu

The CPU Features Submenu configures the system Processor.

Figure 11. CPU Features Submenu

T able 11: Fields, Options and Defaults for the CPU Features Submen u of the Adv anced Menu

Menu Field SpeedStep

Technology

On Battery

On AC

(TM)

Options

• Enabled

• Disabled

• Maximum

• Performance

• Battery Optimized

• Automatic

• Maximum

• Performance

• Battery Optimized

• Automatic

Default

[Enabled]

[Battery Optimized]

[Maximum Performance]

Description

Select Enchanced Intel (R) SpeedStep (TM). Technology enabled or disabled.

Select Enchanced Intel (R) SpeedStep (TM). Technology mode on Battery.

Select Enchanced Intel (R) SpeedStep (TM). Technology mode on AC.

USB Features Submenu of the Advanced Menu

The USB Features Submenu configures the USB features for your system.

Figure 12. USB Features Submenu

T able 12: Fields, Options and Defaults f or the USB Features Submenu of the Ad v anced Menu

Menu Field

USB Floppy Disk:

Options

• Disabled

• Enabled

Default

[Disabled]

Description

When Enabled is selected, Legacy Floppy Emulation is enabled and the USB floppy drive and bootable support are available without a USBaware OS.

Event Logging Submenu of the Advanced Menu

The Event Logging Submenu is for setting up the logs for DMI event logging.

Figure 13. Event Logging Submenu

Table 13: Fields, Options and Defaults for the Event Logging Submenu of the

Menu Field

Event Log Capacity:

Event Log Validity:

View Event Log:

Event Logging:

System Boot Event:

Clear All Event Logs:

Mark Events as Read:

Advanced Menu

Options

• Disabled

• Enabled

• Enter

• Disabled

• Enabled

• Disabled

• Enabled

• No

• Y es

• Enter

Default

Space Available

Valid

[Enter]

[Enabled]

[Disabled]

[No]

[Enter]

Description

Display only

Allows you to view content of event log.

Turns event logging on and off for all DMI events.

Turns event logging on and off for DMI system boot events.

When set to [Yes] all event logs will be cleared at next boot.

Allows you to make all events currently in the event log as having been read.

SECURITY MENU

SETTING THE SECURITY FEATURES

The Security menu allows you to set up the data security features of your notebook to fit y our operating needs and to view the current data security configuration. Follow the instructions for Navigating Through The Setup Utility to make any changes. The following tables sho w the names of the menu fields for the Security menu and its submenus, all of the options for each field, the default settings and a description of the field’s function and any special information needed to help understand the field’s use. The def ault condition is no pass w ords required and no write protection.

Critical Point

If you make an error when re-entering the password a [Warning] will be displayed on the screen. To try again press the Enter key and then retype the password. Press the Esc key to abort the password setting process. If you set a password, write it down and keep it in a saf e place . If you forget the password you will have to contact your support representative to regain access to your secured functions and data. Boot sector protection must be set to [Normal] to install or upgrade an operating system.

CAUTION

If Password On Resume is Enabled and Password On Boot is Disabled you will not have to type your password upon resuming the system from the Suspend or Save-to-Disk modes. Password On Resume will work only if Password On Boot is enabled. Entering a password incorrectly 3 times in a row will cause the keyboard and mouse to be locked out and the warning [System Disabled] to be displayed. If this happens restart the computer by turning the power off and on with the power switch and use the correct password on reboot.

Menu Field

Supervisor Password is:

User Passw ord is:

Set Supervisor Password

Set User Password

Figure 14. Security Menu

Table 14: Fields, Options and Defaults for the Security Menu

Options

––

[Enter]

Default

Clear

[Enter]

Description

A display-only field. Set is displa yed when the system supervisor password is set and Clear when it is not.

A display-only field. Set is displa y ed when the general user password is set, and Clear when it is not.

Sets, changes or cancels the Supervisor Passw ord. The Supervisor P assword may be up to seven characters long and must include only letters or numbers (no symbols). P ass w ords are NOT casesensitive. To cancel a password press the Enter key instead of entering characters in the Enter New Pass word field and in the Re-enter New Pass word field. When a Supervisor Password is set it must be used to access the BIOS setup utility .

This field can only be accessed if the Supervisor Password is set. This field sets, changes or cancels the User Password. The User Password ma y be up to seven characters long and must include only letters or numbers (no symbols). Passw ords are NO T case-sensitiv e . To cancel a password press the Enter key instead of entering characters in the Enter New Passw ord field and in the Re-enter New Passw ord field. When a User Passw ord is set it must be used to access the BIOS setup utility .

Table 14: Fields, Options and Defaults for the Security Menu

Menu Field

Minimum User Password Length:

Password on Boot:

Password on Resume:

Floppy Disk Access:

Boot from Removable Media:

Hard Disk Security:

Owner Information:

Hard Disk Boot Sector:

Options

[0]

• Disabled

• First Boot

• Every Boot

• Disabled

• Enabled

• All

• Supervisor only

• All

• Supervisor only

––

• Normal

• Write Protected

Default

[0]

[Disabled]

[All]

––

[Normal]

Description

Sets the minimum length for User Password.

When set to Disabled, a password (User or Supervisor) is required after the Power On Self Test (POST) before the operating system will be read from a disk. When set to Disabled no password is required. If no Supervisor Password is set this feature is not available and no password is required.

When set to Enabled, a password (User or Supervisor) is required before the operating system will resume. When set to Disabled no password is required. If no Supervisor Password is set this feature is not available and no password is required.

Enable password allows supervisor access only.

Configures hard disk security features.

Set Owner information.

Sets protection mode for hard disk drive.

Hard Disk Security Submenu of the Security Menu

The Hard Disk Security submenu is for configuring hard disk security features.

Figure 15. Hard Disk Security Submenu

Table 15: Fields, Options and Defaults for the Hard Disk Security Submenu of the

Menu Field

Primary Master:

Primary Slave:

Security Menu

Options

• Disabled

• Enabled

• Disabled

• Enabled

Default

[Disabled]

Description

Disabled: No password protection. Enabled: Hard drive password protected. Password must be entered to access data on drive.

Owner Information Submenu of the Security Menu

The Owner Information submenu is for setting owner information.

Figure 16. Owner Information Submenu

Table 16: Fields, Options and Defaults for the Owner Information Submenu of the

Security Menu

Menu Field

Owner

Options

––

Default

Clear

Description

Display only.

Information Is: Set Owner

Information:

Foreground Color:

Background Color:

––

• Black • Gray

• Blue • Light Blue

• Green • Light Green

• Cyan • Light Cyan

• Red • Light Red

• Magenta • Light Magenta

• Brown • Yellow

• White • Bright White

• Black • Gray

• Blue • Light Blue

• Green • Light Green

• Cyan • Light Cyan

• Red • Light Red

• Magenta • Light Magenta

• Brown • Yellow

• White • Bright White

[Enter]

[Gray]

[Black]

Field to write owner information (i.e. name).

Set foreground color.

Sets background color.

Exiting from Security

When you have finished setting the boot parameters with the Security, you can either exit from the setup utility or move to another menu. If you wish to e xit from the setup utility press the [Esc] key to go to the Exit menu. If you wish to move to another menu, use the cursor keys.

POWER MENU

SETTING POWER MANAGEMENT FEATURES

The Power menu allows you to set and change the power management parameters. Follow the instructions for Navigating Through the Setup Utility to make any changes. The following tables show the names of the men u fields f or the Power menu and its submenus, all of the options for each field, the default settings and a description of the field’ s function and any special information needed to help understand the field’s use.

Critical Point

In Windows 98 systems A uto-suspend Timeout, Hard Disk Timeout, and Video Timeout f eatures are available exclusively through the operating system. When resuming from a Save-to-Disk suspension there will be a delay while the contents of system memory and operating parameters are loaded from the hard drive.

CAUTION

In Save-to-Disk mode there is no indication on the Status Indicator to let you know you are suspended rather than shut off from the power switch. Y ou may want to make a habit of alw ays trying the Suspend/ Resume button before using the power switch. Resume on Modem ring when enabled will draw power from the bridge battery alone when your system is running off battery power. This ma y potentially drain your bridge battery . Disabling Resume on Modem ring will prevent this from happening.

Figure 17. Power Menu

Table 17: Fields, Options and Defaults for the Power Menu

Menu Field

Power Savings:

Hard Disk Timeout:

Standby Timeout:

Auto Suspend Timeout:

Options

• Disabled

• Customized

• Maximum Power Savings

• Maximum Performance

• Off

• 30 seconds to 20 Minutes

• Off

• 1 to 16 Minutes

• Off

• 5 to 60 minutes

Default

[Customized]

[Off]

[4 Minutes]

[15 Minutes]

Description

Sets the power savings parameters to a factory installed combination of parameters, a custom set of parameters set by you or no power saving features.

Sets the length of time that the hard drive can be inactive before your notebook automatically turns off the power to the hard drive controller and drive motor. If you choose a factory installed combination of parameters this field will display the setting. If you choose to customize the parameters you will be able to set this yourself. The options available vary from Off, which has noinactivity shutoff, to 20 minutes.

Sets the length of time without any user input device activity before the CPU is set to half speed and the display and the hard drive are turned off. If you choose a factory combination of parameters this field will display the setting. If you choose to customize the parameters you will be able to set this yourself.

Sets the length of time without any I/O activity before your notebook goes into Suspend mode. If you choose a factory combination of parameters this field will display that setting. If you choose to customize the parameters you will be able to set this yourself. Off has no inactivity suspension.

Table 17: Fields, Options and Defaults for the Power Menu

Menu Field

Suspend Mode:

Auto Save to Disk:

Resume On Modem Ring:

Resume On Time:

Resume Time:

Advanced Features:

Options

• Suspend

• Save to Disk*

• Off

• After 1 Hour

• Off

•On

• Off

•On

• 00:00:00 to 23:59:59

––

Default

[Suspend]

[Off]

[00:00:00]

––

Description

Sets the form of suspension state. If you choose Suspend, you will suspend operation with power to system memory, and everything else powered down or in a very low power state. If you choose Save-toDisk your notebook will save all of system memory and the operating parameters to the hard drive before turning your notebook to the pseudo-off condition.

When set to After 1 Hour, your notebook will automatically save all of system memory and the operating parameters to the hard drive, and go to the pseudo-off if you leave your notebook in Suspend mode for an hour.

Sets whether or not to Resume from a suspension state when a message is received by telephone line. This feature will not operate if the Saveto-Disk mode is enabled. This feature applies to internal and external modems.

Sets whether or not to resume from a suspension state at a designated time. This feature is available from either the Suspend mode or the Save-to-Disk mode.

Sets the designated time, on a 24-hour clock, when the notebook is to automatically resume operation from the Suspend state. The format of the clock setting is hours: minutes: seconds. Each segment of the time is set separately, either by incrementing or by typing in the numbers. You move between the segments with the [Tab] key or the [Shift]+[Tab] keys. This only applies when Resume on Time is set to On.

When selected, opens the Advanced Features submenu which allows setting additional power saving parameters.

Factory Installed Values for Power Saving Profiles

Customized: Maximum Power Savings: Maximum Performance: Disabled: Sample Customized Profile:

(To get even better battery life keep the display and volume settings as low as possible and use the sample customized profile.)

Hard Disk Timeout

Off 30 Seconds Off Off 2 Minutes

Standby Timeout

4 Minutes 1 Minute Off Off 1 Minute

Auto Suspend Timeout

15 Minutes 5 Minutes 15 Minutes Off 5 Minutes

Advanced Features Submenu of the Power Menu

The Advanced Features submenu is for setting some non-time related power saving parameters.

Figure 18. Advanced Features Submenu

Table 18: Fields, Options and Defaults for the Advanced Features Submenu of the

Menu Field

Suspend/Resume Switch:

Lid Closure Suspend:

Lid Open Resume:

Exiting from Po wer Menu

When you have finished setting the boot parameters with the Power menu, you can either exit from the setup utility or move to another menu. If you wish to exit from the setup utility press the [Esc] key to go to the Exit menu. If you wish to move to another menu, use the cursor keys.

Power Menu

Options

• Disabled

• Enabled

• Off

• On

• Off

• On

Default

[Enabled]

[On]

Description

Sets the function of the Suspend/ Resume button when your notebook is in an active state. The resume function can not be disabled as it works regardless of any other settings.

Enables and disables having closure of the Display panel put your notebook in Suspend mode.

Enables and disables having opening the Display panel act as an automatic resume.

BOOT MENU

SELECTING THE OPERATING SYSTEM SOURCE

The Boot Menu is used to select the order in which the BIOS searches sources for the operating system. Follow the instructions for Navigating Through the Setup Utility to make any changes. The following tables show the names of the men u fields for the Boot men u and its submenu, all of the options for each field, the default settings and a description of the field’s function and any special information needed to help understand the field’s use.

Figure 19. Boot Menu

Table 19: Fields, Options and Defaults for the Boot Menu

Menu Field

QuickBoot:

Boot-time Diagnostic Screen:

Preboot Execution Environment

Boot Device Priority

Options

• Disabled

• Enabled

• Auto

• Disabled

• Enabled

• Disabled

• Enabled

—

Default

[Enabled]

[Disabled]

—

Description

Turns on and off booting with a truncated set of Power On Self Test. (Fewer tests mean faster turn on.)

Turns on and off display of test results instead of Fujitsu logo screen during Power On Self Test.

[Disabled] This feature is disabled.

This menu allows setting up the source for the operating system. See “The Boot Device Priority Submenu” in the following section.

The Boot Device Priority Submenu of the Boot Menu

The Boot Device Priority Submenu is for setting the order of checking of sources for the operating system.

Figure 20. Boot Device Priority Submenu

Table 20: Fields, Options and Defaults for the Boot Device Priority Submenu of the Boot

Menu Field

+Floppy Disk Drive

+Hard Disk Drive ATAPI CD-ROM

Drive

Exiting from Boot Menu

When you have finished setting the boot parameters with the Boot men u, you can either e xit from the setup utility or move to another menu. If you wish to exit from the setup utility, press the [Esc] key to go to the Exit menu. If you wish to move to another menu, use the cursor keys.

Options

—

— —

Default

—

— —

Description

The boot selections determine the order in which the BIOS searches for the operating system during a startup sequence. To change the order highlight one source by using the [up] or [down] cursor keys and then press the [+] or [-] key to change the order number for that source. Be sure to save your changed order when you exit the BIOS setup utility.

— —

INFO MENU

DISPLAYS BASIC SYSTEM INFORMATION

The Info menu is a display only screen that pro vides the configuration inf ormation for your notebook. The following table shows the names of the men u fields for the Info menu and the inf ormation displayed in those fields. These fields are for information purposes only, and are not editable (except for the Asset Number as in the Point below).

Figure 21. Info Menu

Table 21: Fields, Options and Defaults for the Info Menu

Menu Field

BIOS Version: BIOS Date: BIOS Area: CPU T ype:

CPU Speed: L1 Cache: L2 Cache: Total Memory: Onboard: Memory Slot:

Default

–– –– –– ––

–– –– –– –– –– ––

Default

1.XX 03/29/2001 E400h – FFFh Pentium(R) III

processor-M XXXGHz 32KB 512KB 256MB 256MB SDRAM None

Description

–– –– –– ––

–– –– –– –– –– ––

EXIT MENU

LEAVING THE SETUP UTILITY

The Exit Menu is used to leave the setup utility. Follow the instructions for Navigating Through the Setup Utility to make any changes. The following table sho ws the names of the menu fields for the Exit menu, the default settings and a description of the field’s function and any special information needed to help understand the field’s use.

Figure 22. Exit Menu

Menu Field

Exit Saving Changes

Exit Discarding Changes

Load Setup Defaults

Discard Changes

Save Changes

Table 22: Fields, Options and Defaults for the Exit Menu

Optional Keyboard Shortcut

—

Default

—

Description

Exit Saving Changes and Exit will store all the entries on every menu of the setup utility to the BIOS memory and then exit the setup utility . A confirmation message Save

Configuration changes and exit now? [Yes] [No] will be

displayed. Selecting Exit Discarding Changes

and Exit will exit the setup utility with out writing to the BIOS memory. When the BIOS recognizes the Exit Discarding Changes selection it will load the operating system and begin operation.

Selecting Load Setup Defaults will load the factory preset default values f or all menu fields, then display the message

Load default configuration now? [Yes] [No]. When confirmed

the setup utility will return to the Exit Menu. T o return to another menu f ollow the directions in the Navigating Through The Setup Utility section.

Selecting Discard Changes will load the previous values in BIOS memory for all menu fields. The message

Load previous now? [Yes] [No]

will be displayed. When confirmed the setup utility will return to the Exit menu. To retur n to another menu, follow the directions in the Navigating Through The Setup Utility section.

Selecting Save Changes will cause the new settings in all menus to be written to the BIOS memory. The message Save configuration changes now? [Yes] [No] will be displayed. When confirmed, the setup utility will return to the Exit menu. To retur n to another menu, follow the directions in the Navigating Through The Setup Utility section.

2. POST Diagnostic Screen

Figure 23. Typical Diagnostic Screen

Normal Messages

0640K System Memory Passed nnnnM Extended Memory Passed nnnnK Memory Cache Passed System BIOS shadowed Mouse initialized Press <F2> to enter SETUP Entering SETUP ...

Table 23: Normal Messages in Diagnostic Screen

Error Messages

System Memory Failed at offset: xxxx Failing Bits: zzzz

Extended Memory Failed at offset: xxxx Failing Bits: zzzz zzzz

System cache error - Cache disabled Keyboard controller error Keyboard error Diskette drive A error Failure Fixed Disk n

Table 23: Error Messages in Diagnostic Screen

Error Messages

System timer error Real time clock error System CMOS checksum bad - Default configuration used Previous boot incomplete - Default configuration used Press <F1> to resume,<F2> to Setup Check date and time settings Password locked: Fixed Disk n No Save To Disk partition or file exists on Fixed Disk

- Save To Disk features is disabled. Not enough Save To Disk partition or file exists on Fixed Disk.

- Save To Disk feature is disabled. Hard Disk Drive is not installed.

- Save To Disk feature is disabled. Unknown Save To Disk error.

- Save To Disk feature is disabled. Hard disk sector read function failed.

- Save To Disk feature is disabled. Hard disk sector write function failed.

- Save To Disk feature is disabled. Save To Disk partition or file corrupted.

- Save To Disk feature is disabled. Fixed Disk is not installed. Cannot restore from disk.

To restore from disk : turn off system, install original fixed disk and reboot. Press <F1> to continue to boot without save to disk data.

Fixed Disk has been changed. Cannot restore from disk.

To restore from disk : turn off system, install original fixed disk and reboot. Press <F1> to continue to boot without save to disk data.

Fujitsu LifeBook C7651 User's Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
