Fujitsu FTP-639MCL103 User Manual
FTP-639MCL103/383-R
24V DRIVE, FTP-609 SERIES
ULTRA HIGH SPEED (200
mm/s)
3" TYPE MECHANISM (Cutter option)
FTP-639MCL103/383-R
n OVERVIEW
The FTP-609MCL Series thermal printer (driven by 24VDC)
provides ultra-high speed printing (200mm/s) for 2-inch and 3inch wide paper.
This series is suitable for a variety of applications, such as POS/
ECR, kiosk terminals, ticket machines, label printers, banking
machines, measuring devices, medical equipment, etc.
n HIGHLIGHTS
• Ultra high speed printing
It can print at 200 mm/s (1600 dotlines/s) maximum by using
Fujitsu Components' unique head drive control.
FTP-6x9MCL103R with FTP-629DSL034R
• High resolution
8 dots/mm head provides clear print out.
• ELM (Easy Loading Mechanism) with lock type
Fujitsu Components' unique platen release mechanism allows
easy paper setting and easy head maintenance.
• Auto Cutter
Printer with auto cutter (full cut/ partial cut) is available. It can
be mounted on top of the mechanism.
• Multi-featuring diecast frame
By application of multi-featuring diecast frame, continous print
by function of heat-sink, high ESD stand by function of earth
frame and shock/vibration stand by function of solid frame are
valid.
• Compact size
Depth: 40.5mm, width: 82.2mm, height: 20.5mm for the 2-
inch model. The 3-inch model has a width of 104.2mm
• RoHS compliant
1
FTP-639MCL103/383-R
n PART NUMBERS
Name Part Number
Printer mechanism Detachable platen FTP-639MCL103R FTP-639MCL105R FTP-639MCL103R
Mechanism with cutter Detachable platen FTP-639MCL383#01/#02R* FTP-639MCL385R FTP-639MCL383#01/#02-R
LSI FTP-629CU101R FTP-629SR201 FTP-629CU301R
Interface board Parallel FTP-629DCL014R FTP-629DSL181R*
Serial (RS232C) FTP-629DSL034R FTP-629DSL181R* FTP-629DSL301R
USB --- FTP-629DSL112R FTP-629DSL301R
Thermal head cable extension --- FTP-629Y001 ---
Interface cable (board
to mechanism)
Power supply cable Logic FTP-629Y401 --- ---
*1: #01 is for full cut, #02 is for partial cut *2: Interface is selectable by DIP switch
n GENERAL SPECIFICATIONS
Part number FTP-639MCL103/105-R FTP-639MCL383/385#01/#02-R
Printing method Thermal sensitive line dot method
Dot structure 576 dots/line
Dot pitch (horizontal) 0.125mm (8dots/mm) - Dot density
Dot pitch (vertical) 0.125mm (8dots/mm) - Line feed pitch
Effective printing area 72 mm
Number of columns ANK 48 columns/line (12 x 24 dot font) OCR 24 columns
Paper width 80mm +0/-1
Paper thickness 60 to 100µm (there may be exceptions)
Cutting type --- ELM full or partial
Printing
speed
Character
types
Character,
dimensions
(WxH),
number of
columns
FTP-629DCL/DSL series 80mm/sec. (640 dot lines/sec.) line mode
FTP-629DSL100 series
FTP-629DSL300 series
Alphanumeric, Kana:
International:
JIS Kanji (Kanji CG
loaded board):
OCRI
OCRIII
OCRIV
Extended numeric
24x12 dots, (3.0x1.5mm)
16x16 dots, (2.0x2.0mm)
24x24 dots, (3.0x3.0mm)
8x16 dots, (1.0x4.0mm)
Parallel FTP-628Y202 ---
Serial FTP-628Y302 FTP-629Y302
USB --- FTP-629Y301
Head, motor FTP-629Y601 FTP-629Y602
Item Specications
200mm/sec. (1600 dot lines/sec.) image mode
125mm/sec. (1000 dot lines/sec.) line mode
200mm/sec. (1600 dot lines/sec.) page mode
159 types
195 types
about 6,800 types
159 types
195 types
about 6,800 types
103 types
23 types
103 types
11 types
48 columns
24 columns
72 columns
36 columns
24 columns, OCRI
24 columns, OCRIII
16 columns, OCRIV
24 columns, extended numeric
Interface standard Centronics / RS232C /USB Serial/USB
2
FTP-639MCL103/383-R
(Continued)
Item Specications
Part number FTP-639MCL103/105-R FTP-639MCL383#01/#02-R
Power supply For head 24 VDC ±5%, 1.9A (4A) (24V, 25% printing ratio)
For printer motor 24 VDC ±5% 1A maximum
For cutter motor --- 24 VDC ±5% 1A maximum
For logic 5 VDC ±5% 0.2A maximum
Dimension
W x D x H
Weight Printer mechanism Approximately 125g ---
Life Head Pulse durability: 100M pulse/dot (using Fujitsu's standard driving
Environmental
conditions
Detection Head temperature By thermistor
Recommended
thermal
sensitive paper

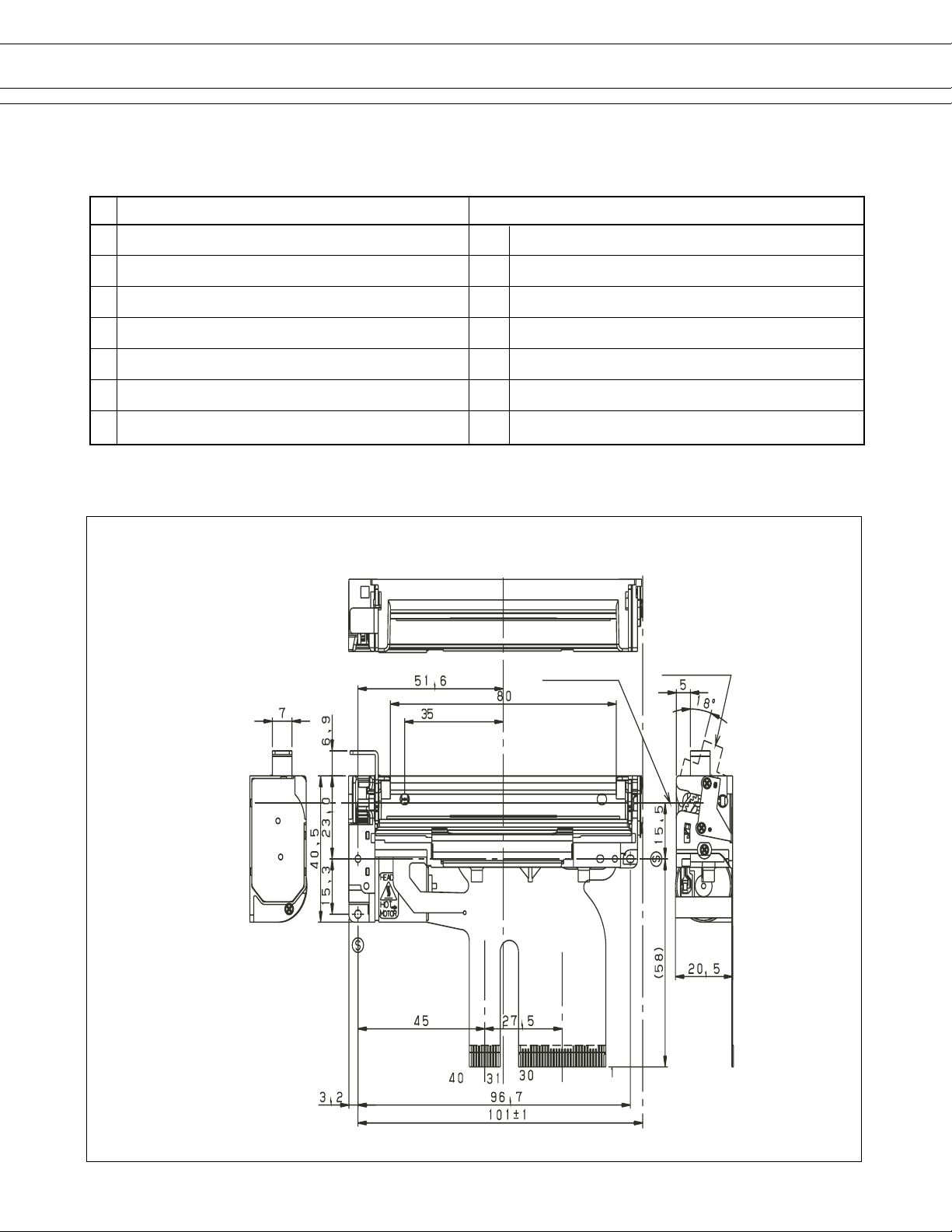

Printer mechanism 104.2 x 40.2 x 20.5mm ---

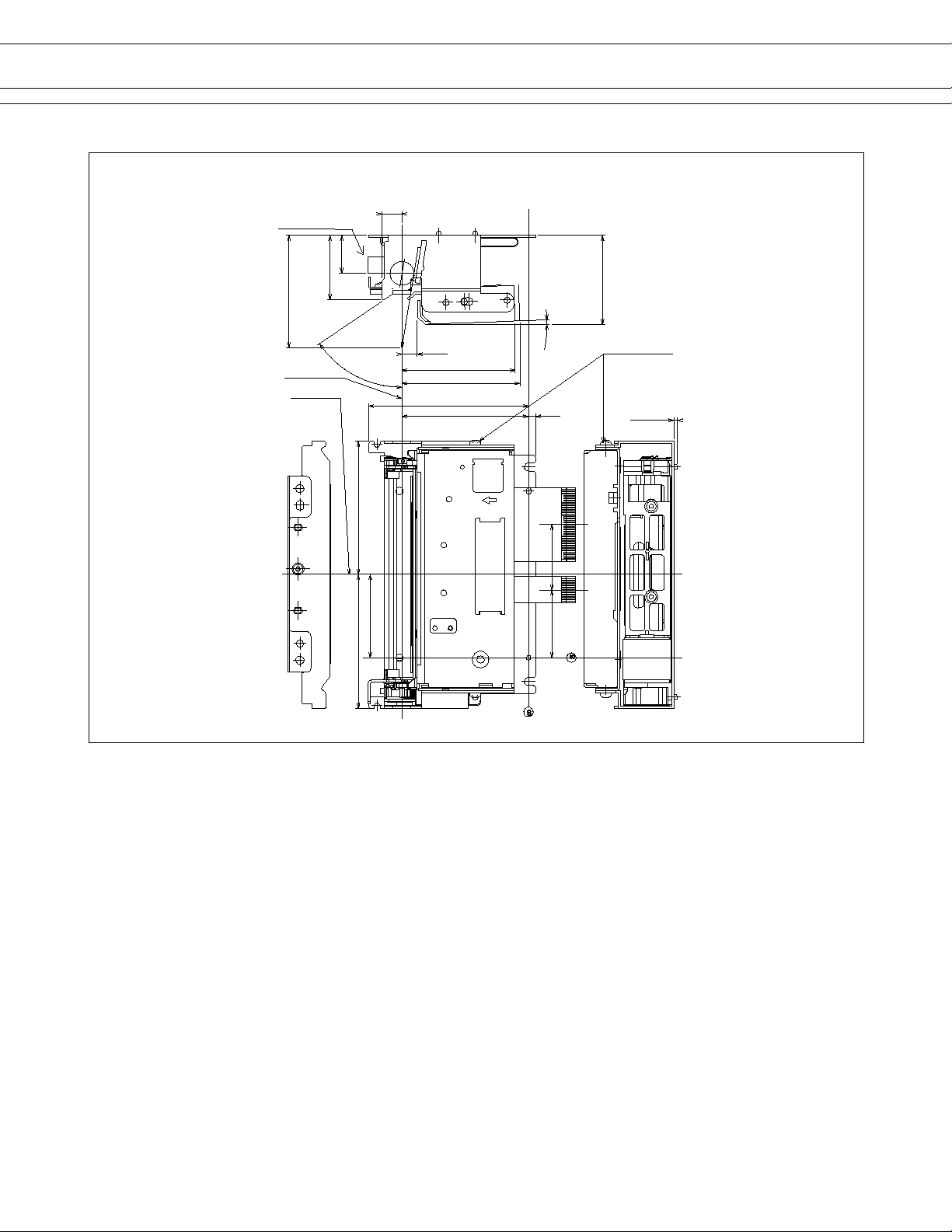

Printer mechanism with cutter --- 112.5 x 70.3 x 37.4mm
Interface board (DCL/DSL) 70 x 60 x 21.6mm
Interface board (DSL100) 95 x 73.5 x 11.6mm
Interface board (DSL300) 77 x 50 x 21.5mm
Printer mechanism with cutter --- Approximately 350g
Interface board (std) Approximately 25g
Interface board (medium speed) Approximately 45g
Interface board (high speed) Approximately 20g
method)
Wear resistance: 100km (at 12.5% print ratio)
Cutter --- 1,000,000 cuts minimum
Platen 5,000 times (open/close)
Operating temperature -10ºC to +60ºC (guarantee) 0ºC to +50ºC (guarantee)
Operating humidity 20 to 85% RH (no condensation)
Storage temperature -40ºC to +70ºC -20ºC to +60ºC
Storage humidity 5 to 95% RH (no condensation)
Paper out/Mark detect By photointerruptor
Head release By slide switch
High sensitive paper TF50KS-E4 (Nippon paper)
Standard paper TF60KS-E2 (Nippon paper), FTP-030P0104 (80mm)
PD150R (Oji paper), FTP-030P0701 (80mm)
Medium life storage paper TF60KS-F1 (Nippon paper), FTP-030P0102 (80mm)
PD170R (Oji paper)
P220VBB-1 (Mitsubishi paper)
PD160R-N (Oji paper)
Long life storage paper AFP-235 (Mitsubishi paper)
TP50KJ-R (Nippon paper)
HA220AA (Nippon paper)
3
