Fujitsu FTP-631MCL351, FTP-631MCL352 User Manual

24V DRIVE, ULTRA HIGH SPEED LINE THERMAL PRINTER 3” MECHANISM, WITH AVAILABLE CUTTER
FTP-631MCL351/352
OVERVIEW
This thermal printer (driven by VDC 24) and cutter provide high speed printing for 3- inch wide paper (85 mm). This printer is small in size, light weight, and has low power consumption. The print head is desined with open construction for easy maintenance.
This printer is suitable for the variety of applications, such as POS terminals, ticket machines, label printers, measuring devices and medical equipment.
In addition to the interface board, a driving LSI (MCU + Gate Array) is also available.
FTP-631MCL351/352 shown after assembly with FTP-631CT001cutter
HIGHLIGHTS
• Ultra high speed printing
It can print at 100 mm/s (800 dotlines/s) by using Fujitsu Components' unique head drive control system.
• Auto cutter
Full or partial cutting are available by normal or reverse rotation of the motor (command set).
• Low power consumption
The peak current for head driving is approximately 2.6 A (at 50 mm/s printing speed, 50% printing ratio).
• Easy head access
Head-open construction makes head maintenance easy, especially for head cleaning.
• Paper auto loading function
The thermal paper can be loaded without head-up lever operation.
• High resolution
8 dots/mm head provides clear print output.
• Selectable paper paths
Front or rear insertion types are available.
FTP-621CU102, FTP-633GA101
FTP-621DCL013
1
DESIGNATION
FTP-631MCL351/352
Item
Front paper insertion type
Printer mechanism
Rear paper insertion type Cutter Interface board
Micro Controller Unit
LSI
Gate Array
GENERAL SPECIFICATIONS
SpecificationsItem
Printing method Thermal-sensitive line dot method Dot structure 576 dots/line Dot pitch (Horizontal) 0.125 mm (8 dots/mm)—Dot density
Part number FTP-631MCL351 FTP-631MCL352 FTP-631CT001
FTP-621DCL013 FTP-621CU102 FTP-633GA101
Dot pitch (Vertical) 0.125 mm (8 dots/mm)—Line feed pitch Effective printing area 72 mm Number of columns 48 columns/line (maximum)—Alphanumeric KANA Maximum printing speed 800 dot lines/s (100 mm/s) maximum
JIS ANK : 128 International characters : 130
Character types Semi-graphic : 63 ASCII small characters : 31
Character composition, dimensions (H×W), Number of columns (standard)
Interface 1) Centronics standard 2) Bus interface*
Cutting method Guillotine method Cutting type Full-cut or partial cut (command set)
Cutter
Minimum cut length 20 mm Paper thickness 65 to 150 µm
Download : 384 24 × 12 dots, (3.0 × 1.5 mm), 48 columns
32 × 16 dots, (4.0 × 2.0 mm), 36 columns 24 × 24 dots, (3.0 × 3.0 mm), 24 columns 32 × 32 dots, (4.0 × 4.0 mm), 18 columns
1
(Continued)
2
(Continued)
FTP-631MCL351/352
SpecificationsItem
24 VDC ± 5%, average:*
2
0.55 (0.56) A (at 25 mm/s printing speed, 25% printing ratio)
For head 0.84 (1.11) A (at 50 mm/s printing speed, 25% printing ratio)
Power supply
3.23 (4.29) A (at 50 mm/s printing speed, 100% printing ratio)
( ): Peak For motor 24 VDC ± 5%, 1.0 A maximum For logic 5 VDC ± 5%, 0.5 A maximum
Weight Mechanism with cutter: approx. 540 g. Interface board: approx. 100 g Dimension
Mechanism + cutter 132 (W) × 60 (D) × 71.0 (H) mm (Excluding connector) Interface board 140 (W) × 89 (D) × 24.0 (H) mm
Life
Thermal head
Pulse durability : 5 × 107 pulse/dot (usingFujitsu Takamisawa's standard
driving method)
Wear resistance: 50 km (at 12.5% printing ratio) Cutter Cutting life: 3 × 105 times Operating temperature +5 to +40°C*
3
Environmental condition
Operating humidity 20 to 85% RH (no condensation) Storage temperature –20 to +60°C (excluding paper) Storage humidity 5 to 95% RH (no condensation) Head temperature By thermistor (applied energy control, abnormal temperature detection)
Detection Paper out/Mark detect By photointerrupter (command set)
Head-up By microswitch
Paper width 85 mm Recommended thermal sensitive
4
paper*
+0 –1
1 ply paper in roll : FTP-030P0020
*1: The data to be printed is automatically read out by the printer driver equipment memory (host system frame
memory). The communication is parameter transfer. *2: At 25°C, maximum applied voltage, minimum head resistance, specified paper, stable printing ratio. *3: Temperature range for guaranteed printing density. It can operate at 0 to +40°C. *4: Please contact us for other thermal papers.
3
DIMENSIONS

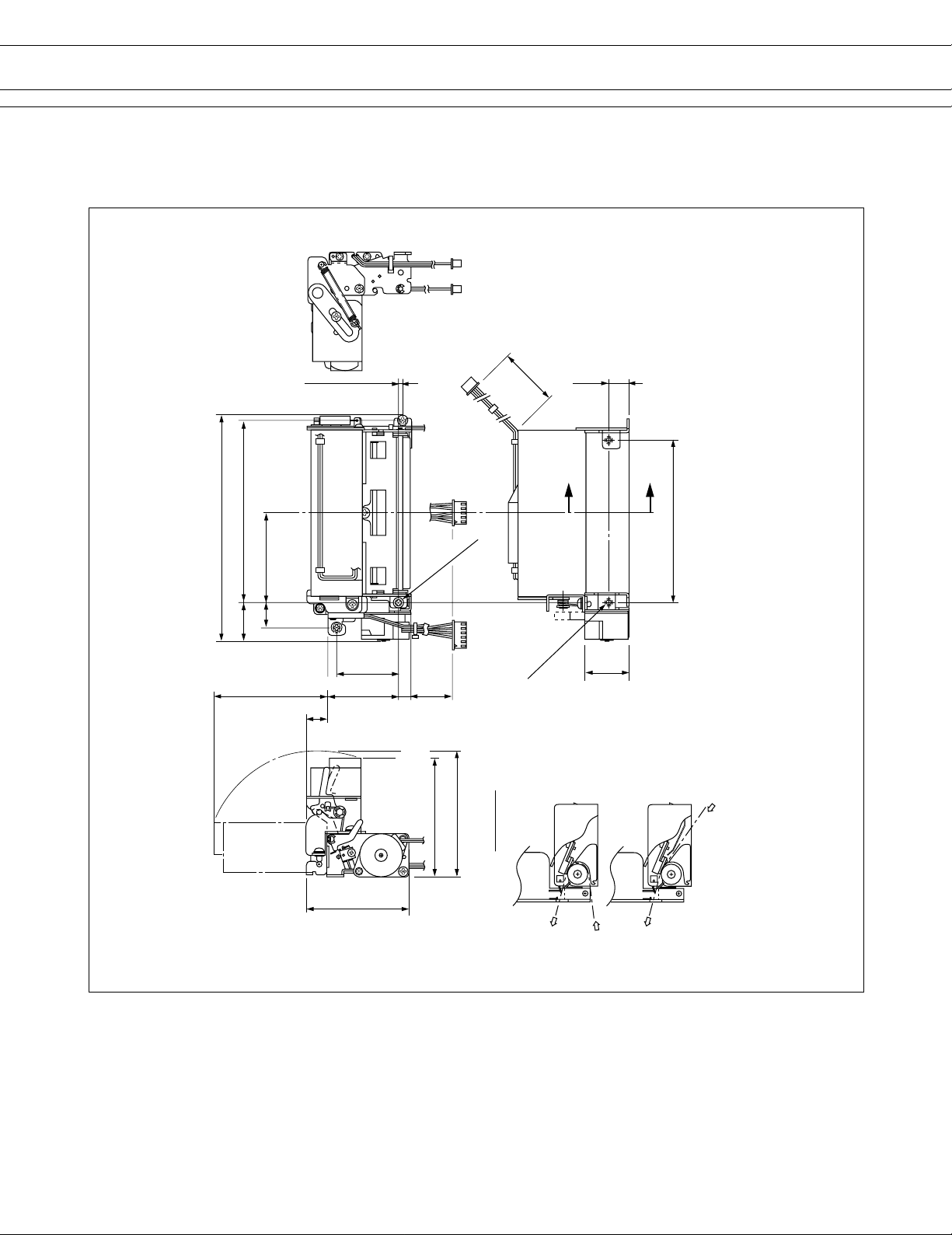

Printer mechanism with cutter
FTP-631MCL351/352
2.5 (Mounting hole)
106.2 (Mounting hole)
132
52.1 (Center of paper & connector)
14.2
21.9
35.5 (Mounting hole)
68 (At cutter open)
315
(Mounting screw)
JAPAN
2-M3 Burring
40.5
7.5 (300)
12
71
(76)
11.8
Y
25.4
<FTP-631MCL351>
Note:
Y
94.8
<FTP-631MCL352>
All dimensions are nominal value.
Paper insertion
SECTION Y-Y
60
Paper insertion
Unit: mm
4
Interface board
FTP-631MCL351/352
139.7
129.6
113.1
88.9
(5.1)
(5.1)
78.8
(5.1)
22.9 14.0
CN3 CN4 CN2
CN5 CN1
14.0
CN6
31.8
22.3 27.4
15.3
4—ø3.6
CN12 CN13
CN7
28.0
CN11
25.4
CN10
(5.1)
(5.1)
88.9
17
1.6 5
Height of devices side
Height of solder side
INTERFACE, COMMAND, OPTIONS
Please refer to the FTP-621DCL003/013 DATA SHEET for Interface, Command, and Options.
23.6
Unit: mm
5
