Fujitsu FTP-629MCL383-R, FTP-6x9MCL103R, FTP-629DCL014R, FTP-629MCL103-R User Manual

24V DRIVE, FTP-609 SERIES
ULTRA HIGH SPEED (200

mm/s)

2” TYPE MECHANISM (Cutter option)

FTP-629MCL103/383-R

n OVERVIEW

The FTP-609MCL Series thermal printer (driven by 24VDC)
provides ultra-high speed printing (200mm/s) for 2-inch and 3­inch wide paper.

This series is suitable for a variety of applications, such as POS/
ECR, kiosk terminals, ticket machines, label printers, banking
machines, measuring devices, medical equipment, etc.

n HIGHLIGHTS

• Ultra high speed printing

It can print at 200 mm/s (1600 dotlines/s) maximum by using
Fujitsu Components' unique head drive control.

FTP-6x9MCL103R with FTP-629DCL014R

• High resolution

8 dots/mm head provides clear print out.

• ELM (Easy Loading Mechanism) with lock type

Fujitsu Components' unique platen release mechanism allows

easy paper setting and easy head maintenance.

• Auto Cutter

Printer with auto cutter (full cut/ partial cut) is available. It can

be mounted on top of the mechanism.

• Multi-featuring diecast frame

By application of multi-featuring diecast frame, continous print

by function of heat-sink, high ESD stand by function of earth
frame and shock/vibration stand by function of solid frame are
valid.

• Compact size

Depth: 40.5mm, width: 82.2mm, height: 20.5mm for the 2­ inch model. The 3-inch model has a width of 104.2mm

• RoHS compliant

1

FTP-629MCL103/383-R

n PART NUMBERS

Name Part Number

Printer mechanism Detachable platen FTP-629MCL103R FTP-629MCL105R FTP-629MCL103R

Mechanism with cutter Detachable platen FTP-629MCL383#01/#02-R TBA FTP-629MCL383#01/#02-R

LSI FTP-629CU101R FTP-629SR201 FTP-629CU301R

Interface board Parallel FTP-629DCL014R FTP-629DSL181R*

Serial (RS232C) FTP-629DSL034R FTP-629DSL181R* FTP-629DSL301R

USB --- FTP-629DSL112R FTP-629DSL301R

Thermal head cable extension --- FTP-629Y001 ---

Interface cable (board
to mechanism)

Power supply cable Logic FTP-629Y401 --- ---

*1: #01 is for full cut, #02 is for partial cut *2: Interface is selectable by DIP switch

n GENERAL SPECIFICATIONS

Part number FTP-629MCL103/105-R FTP-629MCL383#01/#02-R

Printing method Thermal sensitive line dot method

Dot structure 432 dots/line

Dot pitch (horizontal) 0.125mm (8dots/mm) - Dot density

Dot ptich (vertical) 0.125mm (8dots/mm) - Line feed pitch

Effective printing area 54 mm

Number of columns ANK 36 columns/line (12 x 24 dot font)

Paper width 58mm +0/-1

Paper thickness 60 to 150µm (there may be

Cutting type --- full or partial

Printing

speed

Character

types

Character,

dimensions

(WxH), number

of columns

Parallel FTP-628Y202 ---

Serial FTP-628Y302 FTP-629Y302

USB --- FTP-629Y301

Head, motor FTP-629Y601 FTP-629Y602

Item Specications

60 to 100µm

exceptions)

FTP-629DCL/DSL series 80mm/sec. (640 dot lines/sec.) line mode

200mm/sec. (1600 dot lines/sec.) image mode

FTP-629DSL100 series

FTP-629DSL300 series

Alphanumeric, Kana:

International

JIS Kanji (Kanji CG

loaded board)

OCRI

OCRIII

OCRIV

125mm/sec. (1000 dot lines/sec.) line mode

200mm/sec. (1600 dot lines/sec.) page mode

159 types

195 types

about 6,800 types

159 types

195 types

about 6,800 types

103 types

23 types

103 types

11 types

Extended numeric

24x12 dots, (3.0x1.5mm)

16x16 dots, (2.0x2.0mm)

24x24 dots, (3.0x3.0mm)

8x16 dots, (1.0x4.0mm)

36 columns

18 columns

54 columns

27 columns

18 columns, OCRI

18 columns, OCRIII

12 columns, OCRIV

18 columns, extended numeric

Interface standard Centronics / RS232C / USB Serial/USB

2

FTP-629MCL103/383-R

(Continued)

Item Specications

Part number FTP-629MCL103/105-R FTP-629MCL383#01/#02-R

Power supply For head 24 VDC ±5%, 1.4A (3A) (24V, 25% printing ratio)

For printer motor 24 VDC ±5% 1A maximum

For cutter motor --- 24 VDC ±5% 1A maximum

For logic 5 VDC ±5% 0.2A maximum

Dimension
W x D x H

Weight Printer mechanism Approximately 110g ---

Life Head Pulse durability: 1 x 108 pulse/dot (using Fujitsu's standard driving

Environmental
conditions

Detection Head temperature By thermistor

Recommended
thermal
sensitive paper

Printer mechanism 82.5 x 40.5 x 20.5mm ---

Printer mechanism with cutter --- 90.5 x 70.3 x 37.4mm

Interface board (standard speed) 70 x 60 x 24mm

Interface board (medium speed) 95.1 x 73.6 x 18.6mm

Interface board (high speed) 77 x 50 x 21.5mm

Printer mechanism with cutter --- Approximately 300g

Interface board (standard speed) Approximately 30g

Interface board (medium speed) Approximately 45 g

Interface board (high speed) Approximately 22g

method)
Wear resistance: 100km (at 12.5% print ratio)

Cutter --- 500,000 cuts minimum

Platen 5,000 times (open/close)

Operating temperature -25ºC to +70ºC (guarantee) 0ºC to +50ºC

Operating humidity 20 to 85% RH (no condensation)

Storage temperature -40ºC to +85ºC -20ºC to +60ºC

Storage humidity 5 to 95% RH (no condensation)

Paper out/Mark detect By photointerruptor

Head release By slide switch

High sensitive paper TF50KS-E4 (Nippon paper)

Standard paper TF60KS-E2 (Nippon paper), FTP-020P0104 (58mm)

PD150R (Oji paper), FTP-020P0701 (58mm)

Medium life storage paper TF60KS-F1 (Nippon paper), FTP-020P0102 (58mm)

PD170R (Oji paper)
P220VBB-1 (Mitsubishi paper)
PD160R-N (Oji paper)

Long life storage paper AFP-235 (Mitsubishi paper)

TP50KJ-R (Nippon paper)
HA220AA (Nippon paper)

3

FTP-629MCL103/383-R

Center of paper

Platen open lever

center of platen

(paper end sensor)

n FUNCTION

ITEM ITEM

1. Test printing 8. Cutter trouble detection

2. Paper-out detection 9. Motor power save

3. Paper near end detection 10. Mark detection

4. Head-up detection 11. MCU trouble detection

5. Abnormal temp. of thermal head detection 12. Power on/off sequence protection

6. Blown fuse detection 13. Motor protection

7. Abnormal voltage detection of head 14. Hardware timer

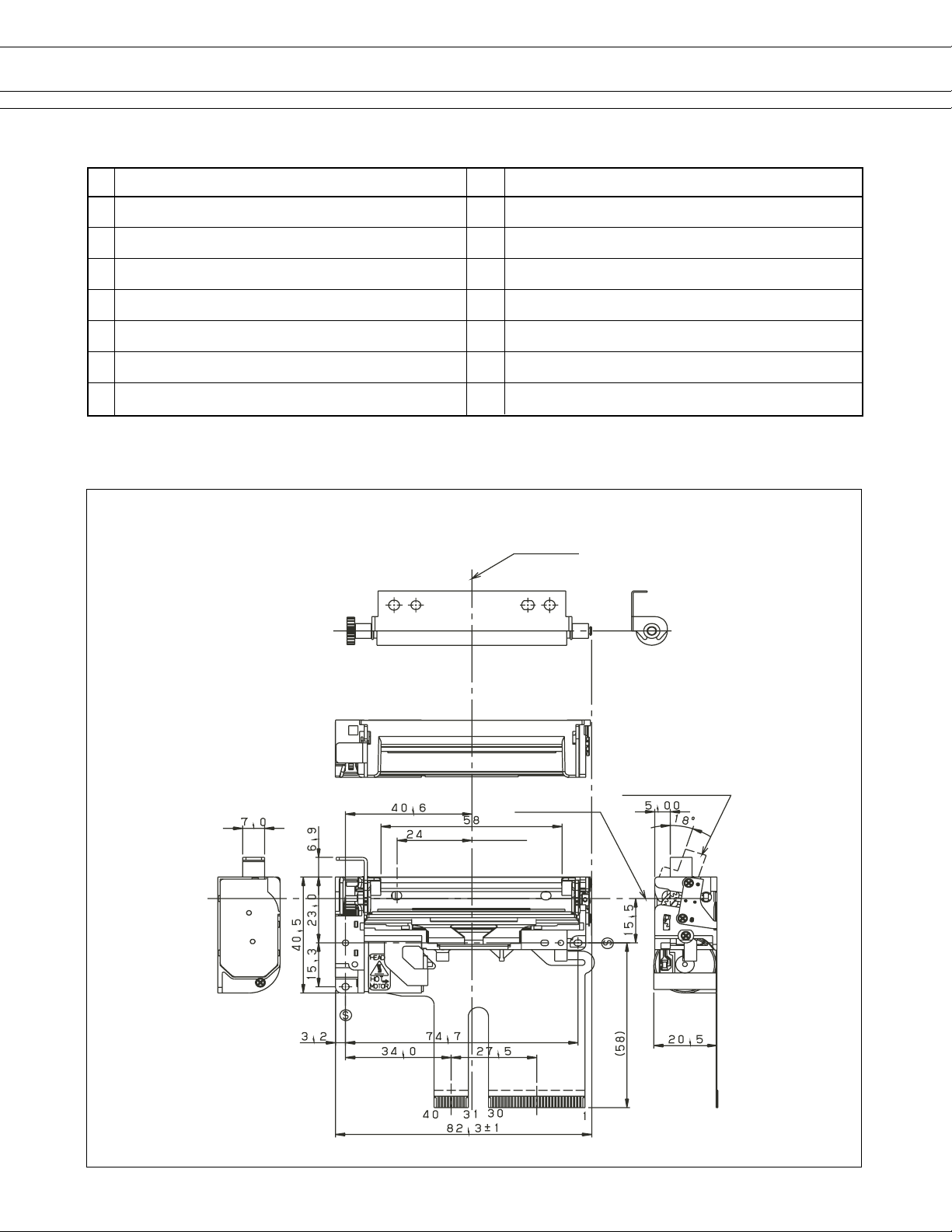

n DIMENSIONS

1. Printer mechanism

FTP-629MCL103R

Unit: mm

4

2. Printer mechanism

MAX3.0

27.1

27.517.35

24.0

45.0

53.3

45.5

67.3

3.0

(47.2)

16.0

6.4

56û

2°

37.4

8.5

Center of paper

Center of platen

Paper end sensor

49.6 at partial cut

47.6 at full cut

Platen open lever

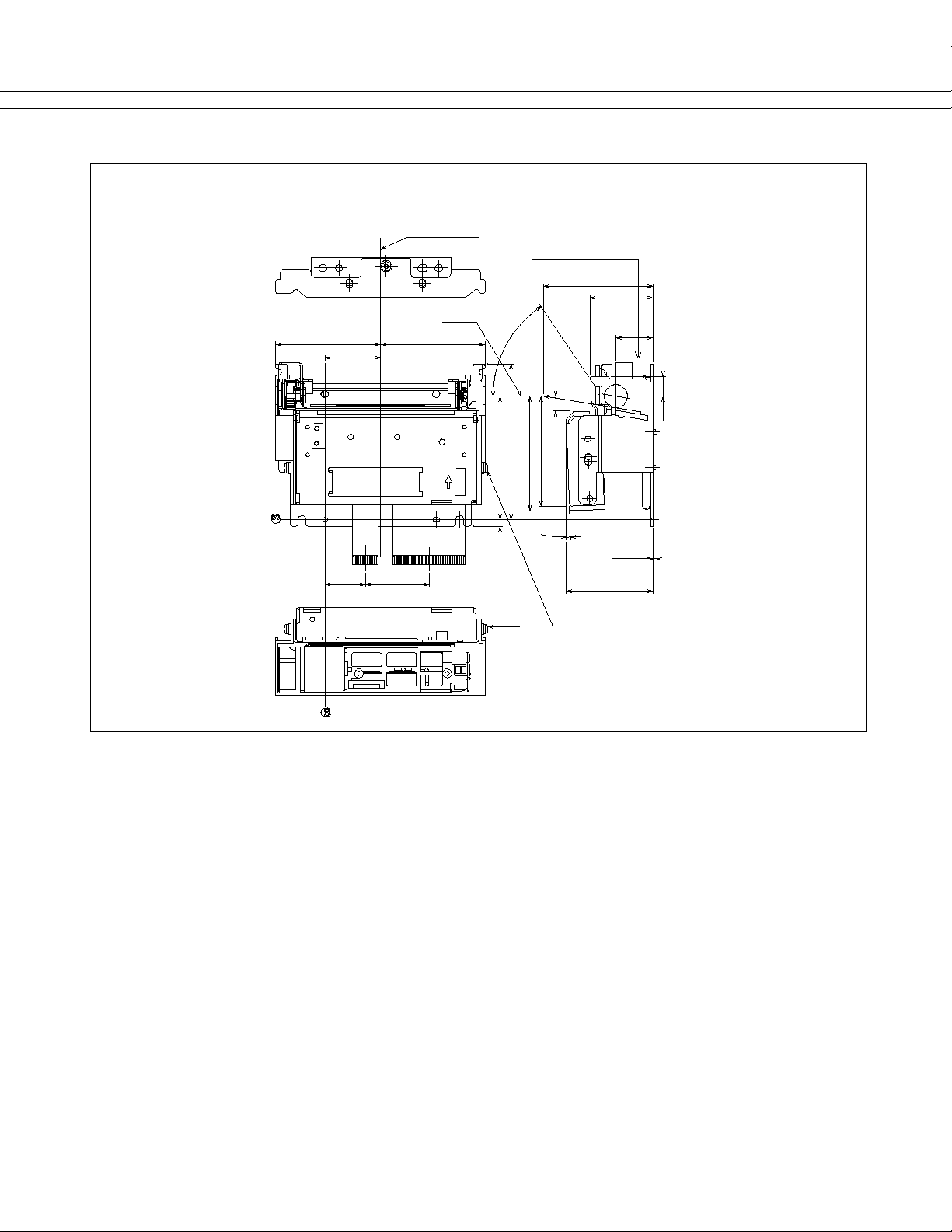

FTP-629MCL103/383-R

FTP-629MCL383#01/#02-R

Unit: mm

5

Interface Board - FTP-629DCL/DSL0XX-R

.oN emaN noitcnuF

1NC rotcennoCF/IortneC ecafretnIscinortneCrofnoitcennoC

2NC rotcennoCF/IC232-SR ecafretnIC232-SRrofnoitcennoC

3NC rotcennoCdaeHlamrehT )CPF(daeHlamrehTrofnoitcennoC

4NC rotcennoCrotoMretnirP )CPF(rotoMretnirProfnoitcennoC

5NC rotcennoCrettuC rettuCrepaProfnoitcennoC

6NC rotcennoCrewoPcigoL ylppuSrewoPV5+rofnoitcennoC

7NC rotcennoCrewoProtoMdaeH ylppuSrewoPV42+rofnoitcennoC

8NC rotcennoCrosneSdnEraeN rosneSdnEraeNrofnoitcennoC

35.5

51.0

63.5

3.3

17.5

3.3

3.3

¿ 3.2(TH)

¿ 6.5(FG)

CN1

CN2

CN3

CN5

CN6

CN7

CN8

1

6

1

2

29

30

1

3

1

2

14

1

8

CN4

41.0

12.6

1

30

1

10

42.0

53.5

21.8

16.0

4.2

3-¿ 3.2(NTH)

FTP-629MCL103/383-R

Connectors on Control Board - FTP-629DCL/DSL0XX-R

Unit: mm

6

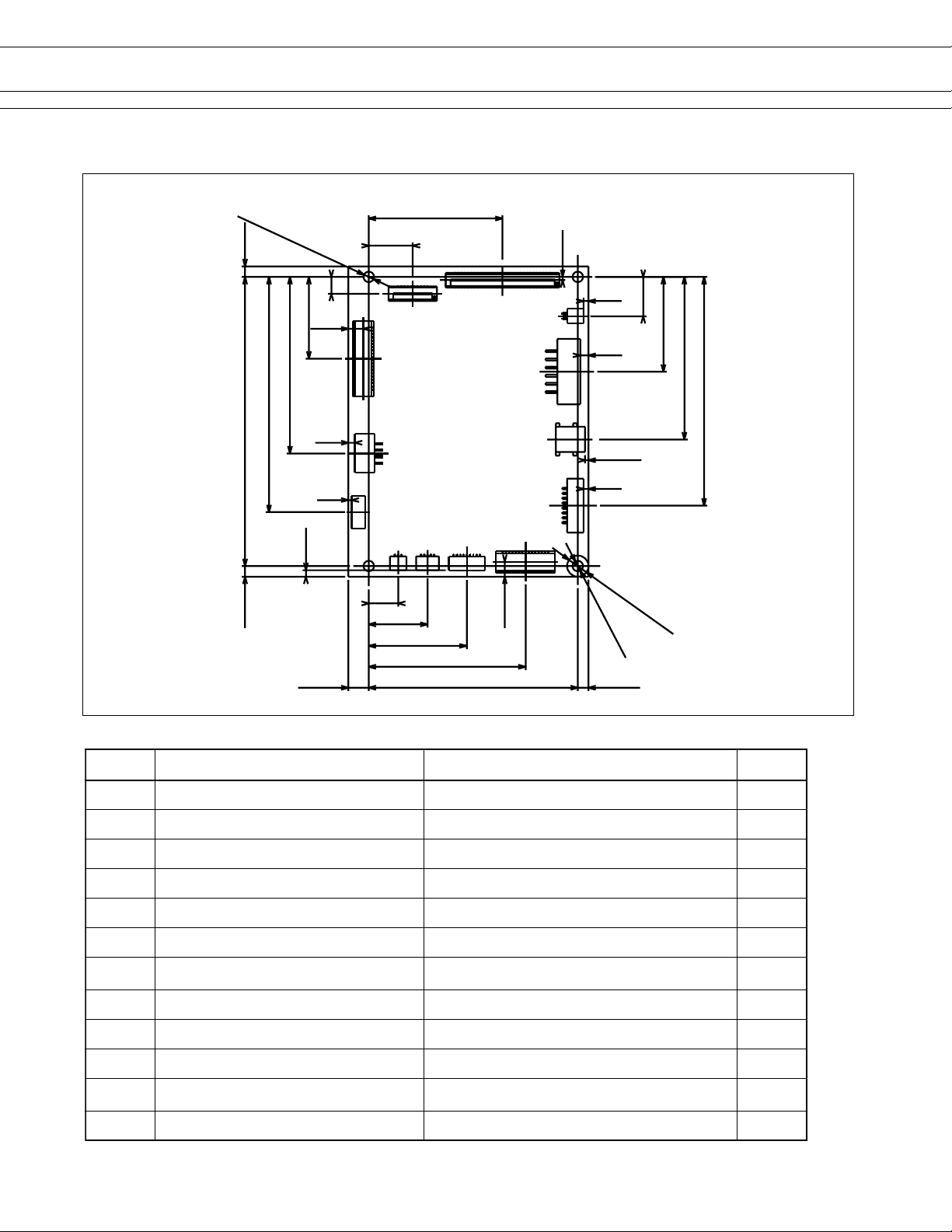

3. Interface Board - FTP-629DCL/DSL100-R Series

.oN emaN noitcnuF krameR

1NC rotcennoCF/IortneC ecafretnIscinortneCrofnoitcennoC

2NC rotcennoCF/IC232-SR ecafretnIC232-SRrofnoitcennoC

3NC rotcennoCF/IBSU ecafretnIBSUrofnoitcennoC

4NC rotcennoCrewoP ylppuSrewoPV42+rofnoitcennoC

5NC rotcennoCdaeHlamrehT )CPF(daeHlamrehTrofnoitcennoC 1*

6NC rotcennoCrotoMretnirP )CPF(rotoMretnirProfnoitcennoC 1*

7NC rotcennoCrotoM/daeH rotoMretnirP/daeHlamrehTrofnoitcennoC 1*

8NC rotcennoCrettuC rettuCrepaProfnoitcennoC

9NC rotcennoCrotoMecnayevnoC rotoMecnayevnoCrofnoitcennoC

01NC rotcennoCrosneSdnEraeN rosneSdnEraeNrofnoitcennoC

21NC rotcennoCrosneSkraM/etliT-ahceM rosneSkraM/etliT-ahceMrofnoitcennoC

31NC rotcennoCrotoMecnayevnoC rotoMecnayevnoCrofnoitcennoC

3-dia 3.2(NTH)

¿3.2(TH)

41.0

1.5

12.0

2.5

29.0

49.8

1.5

25.0

4.6

2.0

1.0

54.0

72.0

2.0

9.0

18.0

30.0

48.0

4.6

88.5 3.3

3.3

64.0

6.3

3.3

CN1

CN2

CN3

CN5

CN6

CN7

CN8

CN9

CN11

CN12

CN13

CN4

1.0

5.2

13.5

1.0

70.0

¿ 6.5(FG)

CN10

FTP-629MCL103/383-R

Connectors on Control Board - FTP-629DCL/DSL100-R Series

*1: When CN5 and CN6 are mounted, CN7 is not mounted. When CN7 is mounted, CN5 and CN6 are not

mounted.

Unit: mm

7

8

3

1.448

3

8

10

1

CN7

CN8

30

CN6

27.5

55.45

27.95

8

3

1.285

3

8

13.653

28.702

56.705

CN5

9

1

CN2

CN1

2.5

8

3

8

14.605

3

8

2.5

24.13

34.607

8

3

1

3

1

3

CN4

CN3

1

1

1

3

4

1

Ø 3.3 NTH rand Ø 6.0

1

Part side H=15 mm (max.)

Solder side H=5 mm (max.)

Substrate t=1.2 mm

Interface boards for FTP-629DSL300-R Series

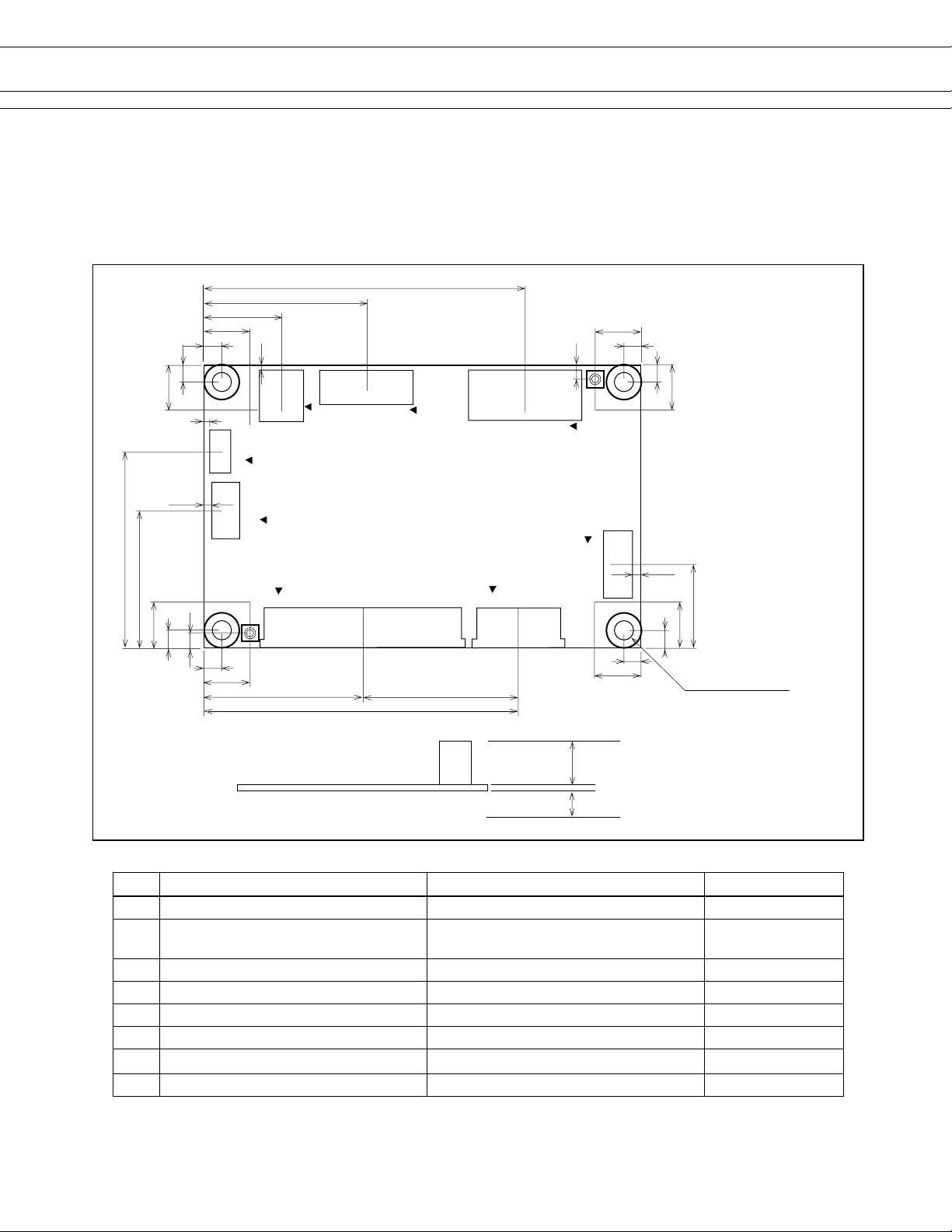

EXTERNAL DIMENSION SPECIFICATIONS■

1. External Dimension Chart of the Control Board

FTP-629MCL103/383-R

PRELIMINARY

2. Connector Types on Control Board

No. Name Function Remarks

CN1 Power connector To connect +24V and +5V power supply -

CN2 Connector for RS-232C interface control

signal connection

CN3 Near end switch connector To connect Near End detection switch -

CN4 Reserved connector -

CN5 USB interface connector To connect USB interfaces depends on models

CN6 Head connector To connect the head

CN7 Transport motor connector To connect the transport

CN8 Cutter connector To connect the cutter depends on models

To connect RS-232C interface and control
signal

Unit: mm

depends on models

8

FTP-629MCL103/383-R

.oN langiS O/I stnetnoC .oN langiS O/I stnetnoC

1 1WS O hctiwsnoitisopemohrettuC 2 2WS O hctiwsnoitisopemohrettuC

3 +M O/I evirdrotomrettuC 4 -M O/I evirdrotomrettuC

.oN langiS O/I stnetnoC .oN langiS O/I stnetnoC

1 CN - detcennoctoN 2 MT O rosneserutarepmetrotoM

3 MT - rosneserutarepmetrotoM 4 A/TM O/I A/noitaticxeliocrotoM

5 ATM O/I AnoitaticxeliocrotoM 6 B/TM O/I B/noitaticxeliocrotoM

7 BTM O/I BnoitaticxeliocrotoM 8 KHP - edohtacrosnestuorepaP

9 NESV - rosnesrepaprofrewoP 01 EHP O rottimerosnestuorepaP

oN langiS O/I stnetnoC oN langiS O/I stnetnoC

1 WS O hctiwsneponetalP 2 WS - hctiwsneponetalP

3 HV - daehlamrehtrofrewoP 4 HV - daehlamrehtrofrewoP

5 HV - daehlamrehtrofrewoP 6 HV - daehlamrehtrofrewoP

7 ID I niataD 8 2BTS I 2elbanetnirP

9 3BTS I 3elbanetnirP 01 DDV - cigolrofrewoP

11 MT - rotsimrehT 21 DNG - DNGdaeH

31 DNG - DNGdaeH 41 DNG - DNGdaeH

51 DNG - DNGdaeH 61 DNG - DNGdaeH

71 DNG - DNGdaeH 81 DNG - DNGdaeH

91 DNG - DNGdaeH 02 DNG - DNGdaeH

12 HT O rotsimrehT 22 1BTS I 1elbanetnirP

32 CN I detcennoctoN 42 TAL I hctalatadtnirP

52 KLC I kcolC 62 OD O tuptuoataD

72 HV - daehlamrehtrofrewoP 82 HV - daehlamrehtrofrewoP

92 HV - daehlamrehtrofrewoP 03 HV - daehlamrehtrofrewoP

n CONNECTOR PIN ASSIGNMENT OF PRINTER MECHANISM (FPC)

1. Thermal head control circuit side (CN3)

Part number : 52610-3090 (Molex) or equivalent

2. Motor, Sensor (CN4)

Connector on circuit side : 52610-1090 (Molex) or equivalent

3. Cutter (CN5)

Connector type: B4B-PH-SM3-TB (J.S.T.) or equivalent

n INTERFACE, COMMAND, OPTIONS

Please refer to the FTP-629DCL/DSL or FTP-629DCL/DSL series datasheet.

9

Fujitsu Components International Headquarter Ofces

FTP-629MCL103/383-R

Japan

Fujitsu Component Limited
Gotanda-Chuo Building
3-5, Higashigotanda 2-chome, Shinagawa-ku
Tokyo 141, Japan
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: www.fcl.fujitsu.com

North and South America

Fujitsu Components America, Inc.
250 E. Caribbean Drive
Sunnyvale, CA 94089 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: http://us.fujitsu.com/printers/

Europe

Fujitsu Components Europe B.V.
Diamantlaan 25
2132 WV Hoofddorp
Netherlands
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: emea.fujitsu.com/components/

Asia Pacic

Fujitsu Components Asia Ltd.
102E Pasir Panjang Road
#01-01 Citilink Warehouse Complex
Singapore 118529
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: http://www.fujitsu.com/sg/services/micro/components/

©2007 Fujitsu Components America, Inc. All rights reserved. All trademarks or registered trademarks are the property of their respective
owners.

Fujitsu Components America or its afliates do not warrant that the content of datasheet is error free. In a continuing effort to improve our
products Fujitsu Components America, Inc. or its afliates reserve the right to change specications/datasheets without prior notice.

Rev. April 30, 2007

10
