INSTRUCTION MANUAL

’11.5

F-09C_EN_ninshou

DOCOMO W-CDMA, GSM/GPRS, Wireless LAN System

Thank you for purchasing "docomo PRIME series F-09C" mobile terminal.

Before using F-09C, read this manual to ensure safe use and handling.

About manuals for F-09C

The operations of F-09C are described in this manual, " terminal) and "Instruction manual (detailed version)" (in pdf format).

Instruction manual (this manual)

使いかたガイド

(Guide) "(installed in FOMA terminal)

"Instruction manual (detailed version)" (in pdf format)

･

In this "F-09C INSTRUCTION MANUAL", "F-09C" mobile terminal is usually referred to as "FOMA terminal".

･

The images or illustration used in this manual are examples. They may differ from the actual displays.

･

The images used in this manual assume that Kisekae Tool is set to "White" and Color theme setting is set to "White".

･

In this manual, "authenticate" indicates the operating procedure for entering the terminal security code in 4-

⇒

8 digits (

This manual provides information about screens and operations of basic functions.

This guide provides overviews and operations of frequently-used functions. (In Japanese only) In F-09C Stand-by display,

This manual provides detailed information and operations of all the functions. (In Japanese only) <From a PC> This manual can be downloaded from NTT DOCOMO website. http://www.nttdocomo.co.jp/support/trouble/manual/download/index.html

The URL and contents are subject to change without prior notice.

P42) or performing fingerprint authentication.

Basic package

使いかたガイド

mef

(Guide)” (installed in FOMA

Toole# GuideeSelect a search method

F-09C

(including Back Cover F60 and warranty)

･

Unauthorized copying of parts of or this entire manual is prohibited.

･

The contents in this manual, URL and contents are subject to change without prior notice.

Battery Pack F18 Desktop Holder F33

Desktop Holder F33 is made of recycled ABS from used products.

Instruction manual

電子辞書データ

(Electronic dictionary data DVD) (Sample)

Compatible options

DVD

⇒

PXX

F-09C_EN_ninshouF-09C_EN_ninshouF-09C_EN_ninshou

Contents

FOMA terminal ...........................

What you can do with F-09C.....

Part names and functions .........

Usage styles ...............................

Before Using ...............................

Screen Explanation ....................

Character Entry ..........................

Call Telephone ............................

Mail..............................................

Phonebook ..................................

i-mode/Full Browser/Smart

Browser ...................................

i-Channel .....................................

Camera ........................................

1Seg.............................................

Music ...........................................

Osaifu-Keitai ...............................

i-concier.......................................

Convenient tools ........................

Support .......................................

Appendix .....................................

Index............................................

Precautions (Always follow these

directions)...............................

Handling precautions ................

Waterproof/Dustproof function

Sound/Screen Setting ..............

Lock/Security .............................

47 56 60

Map/GPS ....................................

62 64

i-αppli..........................................

i-motion/Movie ..........................

Data Management .....................

76 77

87 94

112

7 16 21

37 42

73 74

Introduction

Basic Operation

Connect

Enjoy

More Convenient

Others

F-09C_EN_ninshou

FOMA terminal

･

Because your FOMA terminal uses wireless transmission, it may not function in locations where it is difficult for radio waves to penetrate, such as tunnels, underground passages and some buildings, in areas where radio waves are weak, or out of service area. Even when you are high up in a tall building or

Introduction

condominium and nothing blocks your view outside, your FOMA terminal may not be able to receive or transmit signals. Also, communication may be interrupted even when the signal meter on your FOMA terminal indicates there are strong radio waves and you are not moving (traveling).

･

Use your FOMA terminal in a way that does not disturb others in public spaces, crowded locations or quiet places.

･

Because your FOMA terminal uses radio waves to communicate, it is possible that a third party may attempt to tap your calls. However, the W-CDMA, GSM/GPRS, Wireless LAN system automatically applies a confidential communication function to all calls, so even if a third party could somehow tap a call, they only hear noise.

･

Your FOMA terminal encodes voice communication as digital data. When you are operating your FOMA terminal while moving to a location subject to weaker radio wave conditions, the transmitted digital data may not be correctly decoded and as a result the decoded voice may differ somewhat from the actual voice.

･

Maintain a separate record of the data (Phonebook, Schedule, Memo, Recorded messages, Voice memos, Moving picture memos, etc.) you registered in your FOMA terminal. Note that DOCOMO assumes no responsibility for any loss of saved contents of data resulting from malfunction, repair, changing of the model or other handling of FOMA terminal.

･

You are recommended to save important data to microSD card. Using DOCOMO keitai datalink, you can transfer and save phonebook, mail, schedule and other data to a PC.

･

The user hereby agrees that the user shall be solely responsible for the result of the use of SSL/TLS. Neither DOCOMO nor the certifier as listed herein makes any representation and warranty as for the security in the use of SSL/TLS. If the data should be erased, DOCOMO assumes no responsibility for the loss of any data. Certifier : VeriSign Japan K.K., Cybertrust Japan Co., Ltd., GlobalSign K.K., RSA Security Japan Ltd., SECOM Trust Systems Co., Ltd., Comodo CA Ltd., Entrust, Inc., Go Daddy, Inc.

･

This FOMA terminal supports FOMA Plus-Area and FOMA HIGH-SPEED Area.

･

FOMA terminal can be used only via the FOMA network provided by DOCOMO and DOCOMO's roaming area.

F-09C_EN_ninshou

What you can do with F-09C

Waterproofness/Dustproofness

Waterproofness of IPX5 and IPX8 and dustproofness of IP5X are provided by firmly closing the external/HDMI connection jack cap and installing the back cover in a locked state.

Quick voice activation

Just speaking a keyword of function you want to use activates the function. It is useful when you do not know where is a desired function in the menu or when you want to activate the function immediately.

使いかたガイド

Without the instruction manual at your hand, you can check readily the operations of function you want to use. By searching from the function list or entering a keyword, you can view the outline or operation for the function and also activate the function. (In Japanese only)

Smart Browser

WebKit, adopted by Smartphone etc., enables to view contents on the Internet comfortably by touch operation.

(Guide)

AUTO-GPS

The AUTO-GPS function allows for useful services that deliver information about the weather or shops around where you are, or sightseeing information. (In Japanese only) You can also enjoy a game using your location or the distance you moved.

High functionality camera

Camera offers approximately 16,3 million pixels (effective pixels) and high functionality such as HDR (High Dynamic Range) synthesis, Art camera function, etc., which enable to shoot 3D still images and Full HD moving pictures. You can also view images on wide-screen by connecting the FOMA terminal to a TV with HDMI cable.

i-concier

It is a service that Machi-chara (a character on the stand-by display) supports your life like a butler or concierge. It stores your various information (area of residence, memo, schedule, ToruCa, phonebook, etc.) and offers you information that matches contents of Memo or Schedule, your living area or current location, or preferences and interest at the right time. (In Japanese only)

Wi-Fi

You can perform Internet connection with connecting the access point for home network or Public wireless LAN service (Client mode), and use the FOMA terminal as access point (Base unit) of Wi-Fi to enjoy a versus game etc. on Wi-Fi device (Sub unit).

Introduction

F-09C_EN_ninshou

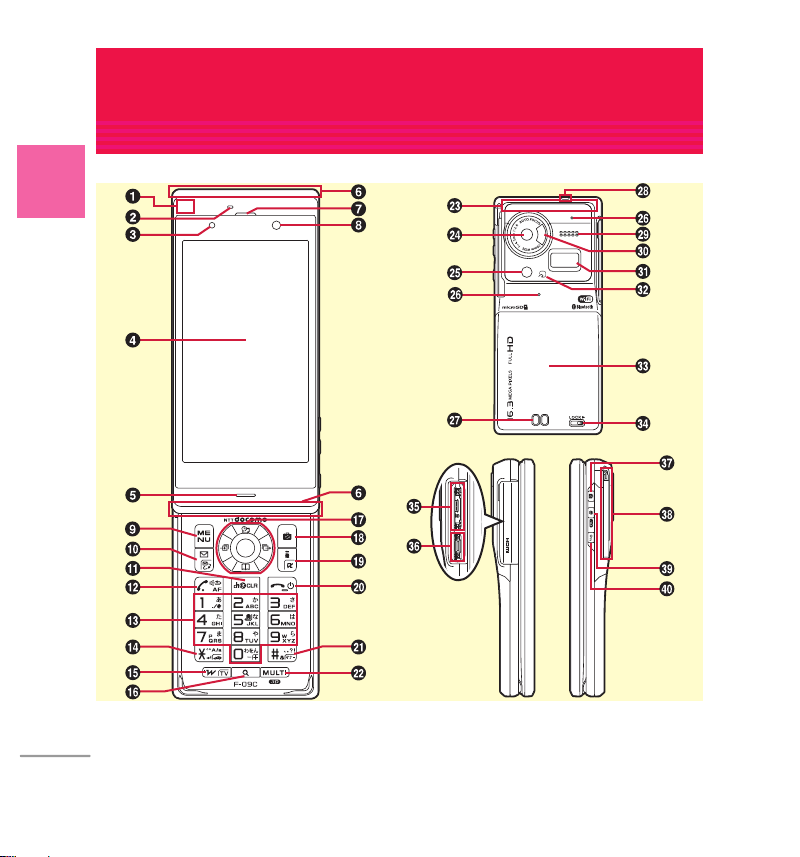

Part names and functions

Part names of F-09C and major functions assigned to each part are as follows.

Introduction

F-09C_EN_ninshou

To use the function with *, press the key for 1 second or more.

GPS antenna is built-in

Temperature/Humidity sensor

Light sensor for sensing the ambient lightness to adjust the brightness of the display

Display (Touch panel)

Microphone for calling and recording

Light for indicating charging

Earpiece

In-camera

i m

Display the menu

j a

Display the mail menu, switch text

input modes or check new mail/message

k c

Display i-Channel or return to the

previous screen

l n

Start voice call, switch to hands-free

call or perform quick voice activation

m 0

- 9 Enter phone number or

characters, or select menu item

n *

Enter "*" or voiced/semi-voiced

sound, or start/cancel Public mode (Drive

mode)

o T

Start/Exit i-Widget, or watch 1Seg

p U

(Search key) Activate Quick search/i-

mode voice search

q k

Multi-cursor key for moving the cursor

g :

Perform an operation.

u :

Display Schedule, or adjust sound

volume

d :

Display Phonebook, adjust sound volume

or add a phonebook entry

l :

Display Received calls.

r :

Display Redial or start/cancel IC card lock

r C

Start the still camera shooting

s I

Display iMenu or i-αppli folder

t f

Exit a running function, or turn ON/ OFF the FOMA terminal by pressing for 2 seconds or more

u #

Enter "#" or punctuation, or start/ cancel Silent mode.

v s

Multitask key for starting another function during a call or operation, or switching 3D/2D

FOMA antenna is built-in

Out-camera

Light/Shooting light

Back side microphone for Movie shooting or Voice recorder

Charging jack

Strap opening

Speaker

Infrared data port for infrared

communication or infrared remote control function

Fingerprint sensor for registering fingerprint and authentication

mark for placing over IC card reader for

Osaifu-Keitai and iC transmission

Back cover

Back cover lever

Jack for charger, earphone, etc.

HDMI jack (type D)

K Z

Stop the ring alert, record video during

1Seg watching* or start the still camera

shooting

1Seg antenna used for 1Seg watching

M N

Side multi key for starting another

function during a call or operation, or

switching 3D/2D

Introduction

F-09C_EN_ninshou

N z

Lock key for starting Operation lock or

starting/canceling Privacy view

Connection of Stereo Earphone Set 01 (Optional) for external connection jack

* AC adapter uses a common jack.

Introduction

Stereo Earphone Set 01

Usage styles

You can use functions of F-09C with three styles: "closed style (closed state)", "slide style (opened state)", "YOKO-MOTION style (opened state)". In closed style, vertical and horizontal views can be switched according to tilt of the FOMA terminal by the auto rotation in Motion sensor.

AC adapter

External connection jack

Closed style

Slide style YOKO-MOTION

Point

･

When you use the slide style or YOKO-MOTION style, do not rotate the display counterclockwise nor more than 90 degrees clockwise.

･

The sliding operation of the FOMA terminal may be felt hard, but it is not malfunction. When opening/ closing or rotating, hold the display lightly with your hand and move it until it clicks.

･

Microphone is below the displ ay. When making a call in YOKO-MOTION style, change the holding hand etc. to get close to the microphone.

･

When you carry the FOMA terminal, close the FOMA terminal and activate Operation lock by pressing to avoid erroneous touch panel operation and save battery consumption. For opening, closing or rotating the FOMA terminal, do not touch the touch panel with your fingers to avoid erroneous operation.

F-09C_EN_ninshou

Precautions (Always follow these directions)

・

Before using your FOMA terminal, or when necessary, read the precautions below to ensure safe use and handling. After reading this manual, keep it carefully.

・

These precautions are intended to protect you and others around you. Read and follow them carefully to avoid injury, damage to the product or damage to property.

・

The signs below differentiate between the levels of danger that can occur if the product is not used within the specified guidelines.

This sign denotes that death or serious injury

DANGER

may directly result from improper use.

This sign denotes that death or serious injury

WARNING

may result from improper use.

This sign denotes that minor injury or damage

CAUTION

・

The symbols below show specific directions.

to property may result from improper use.

No wet hands

No liquids

Unplug

■

Precautions contain the description below.

Handling FOMA terminal, battery pack, adapter,

desktop holder and UIM (common) .........................8

Handling FOMA terminal ..............................................9

Handling battery pack .................................................11

Handling adapter and desktop holder .......................12

Handling UIM...............................................................13

Handling mobile phones near electronic medical

equipment.................................................................13

This symbol denotes that using the phone or its components with wet hands is not allowed.

This symbol denotes that using the phone or its components in a bathroom or other highly humid area is not allowed.

This symbol denotes that an instruction must be obeyed at all times.

This symbol denotes that the equipment should be unplugged.

Introduction

Don’t

No disassembly

This symbol denotes that the action is prohibited.

This symbol denotes that disassembling the phone or its components is not allowed.

F-09C_EN_ninshou

Handling FOMA terminal, battery pack, adapter, desktop holder and UIM (common)

DANGER

Introduction

Do not use, store, or leave the equipment in hot areas such as near flames or in areas under strong direct

Don’t

sunlight such as inside a vehicle.

May cause fire, burns or injuries.

Do not put the terminal into heating cooking device such as microwave oven or high-pressure container.

Don’t
