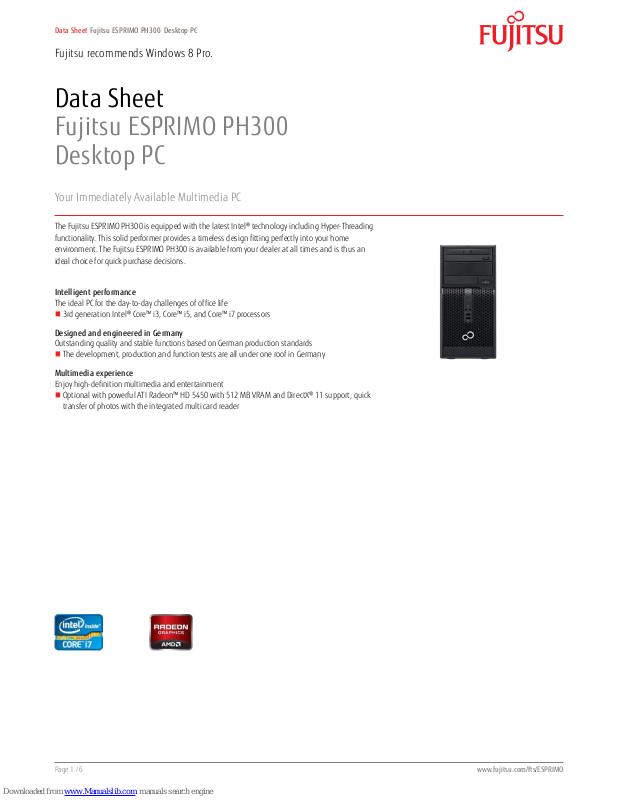

Data Sheet Fujitsu ESPRIMO PH300 Desktop PC
Page 1 / 6 www.fujitsu.com/fts/ESPRIMO
Fujitsu recommends Windows 8 Pro.
Data Sheet
Fujitsu ESPRIMO PH300
Desktop PC
Your Immediately Available Multimedia PC
The Fujitsu ESPRIMO PH300 is equipped with the latest Intel® technology including Hyper-Threading
functionality. This solid performer provides a timeless design tting perfectly into your home
environment. The Fujitsu ESPRIMO PH300 is available from your dealer at all times and is thus an
ideal choice for quick purchase decisions.
Intelligent performance
The ideal PC for the day-to-day challenges of ofce life
3rd generation Intel® Core™ i3, Core™ i5, and Core™ i7 processors
Designed and engineered in Germany
Outstanding quality and stable functions based on German production standards
The development, production and function tests are all under one roof in Germany
Multimedia experience
Enjoy high-denition multimedia and entertainment
Optional with powerful ATI Radeon™ HD 5450 with 512 MB VRAM and DirectX® 11 support, quick
transfer of photos with the integrated multi card reader
Page 2
Data Sheet Fujitsu ESPRIMO PH300 Desktop PC
Page 2 / 6 www.fujitsu.com/fts/ESPRIMO
Fujitsu recommends Windows 8 Pro.
Components
*with Intel® Turbo Boost Technology (clock speed and performance will vary depending on workload and other
variables)
Operating systems
Operating system Windows 8
Windows® 7 Home Premium 64-bit
Windows® 7 Home Basic 32-bit (EM)
Operating system compatible openSUSE Linux
Operating system notes Limited Windows® XP support. Microsoft discontinued Windows® XP certication on system level, basic drivers via
http://support.ts.fujitsu.com
Hard disk notes Up to 20 GB of HDD space is reserved for system recovery
Base unit ESPRIMO PH300
Mainboard
Mainboard type D2990
Formfactor μATX
Chipset Intel® H61
Processor socket LGA 1155
Processor quantity maximum 1
Memory slots 2 DIMM (DDR3)
Supported capacity RAM (max.) 8 GB
Memory frequency 1,333 MHz
Memory notes Dual channel support.
For dual channel performance, identical memory modules in each channel are necessary (minimum 2 modules).
LAN 10/100/1,000 MBit/s Realtek RTL 8111E
BIOS version AMI Aptio 4.6
BIOS features BIOS Flash EPROM update by software
Recovery BIOS
Unied Extensible Firmware Interface (UEFI)
Audio codec Realtek ALC663
Audio features 5.1 surround sound
I/O controller on board
Serial ATA total 4
Controller functions Serial ATA II (3 Gbit)
NCQ
AHCI
Interfaces
Audio: line-in 1
Audio: line-in / microphone 1
Audio: line-out 1
Front audio: microphone 1
Front audio: headphone 1
USB 2.0 total 8
USB front 2
USB rear 4
USB internal 2
VGA 1
DVI 1 (DVI-D)
Mouse / Keyboard (PS/2) 2
Page 3
Data Sheet Fujitsu ESPRIMO PH300 Desktop PC
Page 3 / 6 www.fujitsu.com/fts/ESPRIMO
Fujitsu recommends Windows 8 Pro.
Interfaces
Ethernet (RJ-45) 1
Input device / components
Optical USB wheel mouse
Keyboard
Drive bays
Drive bays total 5
3.5-inch internal bays 2
3.5-inch external bays 1
5.25-inch external bays 2
Slots
PCI-Express 2.0 x16 1 x (210 mm / 8.27 inch) Full height
PCI-Express x1 2 x (190 mm / 7.48 inch) Full height
Graphics on board
Graphics brand name Intel® HD Graphics, HD Graphics 2000, HD Graphics 2500, HD Graphics 4000 (depending on CPU)
Shared video memory up to 1,759 MB
TFT resolution (VGA) 1,024 x 768 pixel
1,280 x 1,024 pixel
1,360 x 768 pixel
1,440 x 900 pixel
1,600 x 900 pixel
1,600 x 1,200 pixel
1,680 x 1,050 pixel
1,920 x 1,080 pixel
1,920 x 1,200 pixel
TFT resolution (DVI) 1,360 x 768 pixel
1,440 x 900 pixel
1,600 x 900 pixel
1,680 x 1,050 pixel
1,920 x 1,080 pixel
1,920 x 1,200 pixel
Graphics features Dual display support
DirectX® 10.1 or DirectX® 11 (depending on CPU)
HDCP support
Open GL® 3.3 (depending on CPU)
Open CL® 1.1 (depending on CPU)
Graphics notes Tested resolutions, depending on display type additional resolutions and frequencies possible
Shared memory depending on main memory size and operating system
Resolution (color depth up to 32 Bit/pixel)
For TFT we recommend using 60Hz
Electrical values
0-Watt mode with hard-off switch
Rated voltage range 200 V - 240 V
Rated frequency range 50 Hz - 60 Hz
Operating voltage range 200 V - 240 V
Operating line frequency range 47 Hz - 63 Hz
Max. output of single power supply 300 W
Monitor outlet No
Power consumption
Heat dissipation
Heat dissipation notes See white paper Energy Consumption
Noise for standard conguration (HDD, ODD)
Noise emission According to ISO9296
Page 4
Data Sheet Fujitsu ESPRIMO PH300 Desktop PC
Page 4 / 6 www.fujitsu.com/fts/ESPRIMO
Fujitsu recommends Windows 8 Pro.
Noise for standard conguration (HDD, ODD)
Related Processors for noise Intel® Core™ i5 2400
Noise Operation mode 1: ODD load
(Blue angel requirement)
5.1 B/ 38 dB(A)
Noise Operation mode 2: HDD load
(Blue angel requirement)
4.4 B/ 29 dB(A)
Noise Operation mode 3: CPU 90% load
(Blue angel requirement)
4.7 B/ 32 dB(A)
Noise Operation mode 4: High load 4.7 B/ 32 dB(A)
Noise Operation mode 5: Ofce
applications 2.0
4.4 B/ 29 dB(A)
Noise notes A weighted sound power level Lwad (in B) / workplace related A-weighted sound pressure level LpAm (in dB(A)),
Bystander position
Dimensions / Weight / Environmental
Dimensions (W x D x H) 175 x 425 x 353 mm
6.89 x 16.74 x 13.9 inch
Operating position Vertical
Weight 9 kg
Weight (lbs) 20.22 lbs
Weight notes Actual weight may vary depending on conguration
Operating ambient temperature 10 - 35 °C (50 - 95 °F)
Compliance
Product ESPRIMO PH300
Model MI4W-2990
Europe CE
Global RoHS (Restriction of hazardous substances)
WEEE (Waste electrical and electronic equipment)
Microsoft Operating Systems (HCT / HCL entry / WHQL)
Compliance link http://globalsp.ts.fujitsu.com/sites/certicates
Additional Software
Additional software (preinstalled) Adobe® Reader® (pdf reader)
Norton Internet Security (incl. Firewall) 60 days version
Win7: Fujitsu Recovery (hard disk based recovery)
Win8: Microsoft Push Button Recovery (hard disk based recovery)
Microsoft Ofce (buy license to activate the pre-installed Microsoft Ofce)
Additional software (optional) Recovery DVD for Windows®
Drivers & Utilities DVD (DUDVD)
CyberLink PowerDVD BD (playback software for Blu-ray Disc™)
CyberLink PowerDVD DVD (playback software for DVD)
Nero Essentials XL
Miscellaneous
Compatibility (references)
DMI 2.0
PC 2001
WMI 1.5
USB 2.0
SMBIOS
Manageability
Security
Physical Security Kensington Lock support
Eye for padlock
System and BIOS Security Boot sector virus protection
Control of external interfaces
Page 5
Data Sheet Fujitsu ESPRIMO PH300 Desktop PC
Page 5 / 6 www.fujitsu.com/fts/ESPRIMO
Fujitsu recommends Windows 8 Pro.
Security
User Security User and supervisor BIOS password
Access protection via external SmartCard reader (optional)
Packaging information
Packaging dimension (mm) 540 x 290 x 500 mm
Packaging dimension (inch) 21.26 x 11.42 x 19.69 inch
Max. quantity / pallet 24
Material - Weight (g) Carton 1270 g
Material - Weight (lbs) Carton 2.8 lbs
Material - Weight (g) EPS / PS 160 g
Material - Weight (lbs) EPS / PS 0.35 lbs
Material - Weight (g) PE 60 g
Material - Weight (lbs) PE 0.13 lbs
Packaging notes printed user documentation is bleached in chlorine free process
Warranty
Standard Warranty 1 year / 2 years (depending on country)
Service level Collect & Return Service / Bring-in Service (depending on country specic requirements)
Warranty Terms & Conditions http://support.ts.fujitsu.com/warranty
Maintenance and Support Services - the perfect extension
Recommended Service 3 years, Collect & Return Service
Service Weblink http://www.fujitsu.com/fts/services/support
Recommended Accessories
HS E2000 Communicator
Headset
The Fujitsu HS E2000 Communicator headset allows you to use your
personal computer for Voice over IP (VoIP) in stereo audio quality. This
premium headset is designed to provide superb audio quality and comfort
for the telephony, internet chat, speech recognition, video conferencing and
multimedia applications.
Order Code:
S26391-F7139-L5
Page 6
Data Sheet Fujitsu ESPRIMO PH300 Desktop PC
Page 6 / 6 www.fujitsu.com/fts/ESPRIMO
Fujitsu recommends Windows 8 Pro.
