ESPRIMO P5635
ESPRIMO P5730
ESPRIMO P7935
Operating Manual
Are there ...
... any technical problems or other questions that you would like help with?
Please contact:
● our Hotline/Help Desk
(see the enclosed Help Desk List or look us up on the Internet:
http://ts.fujitsu.com/support/helpdesk.html)
● your sales partner
● Your sales office
Further information can be found in the "Safety" and "Warranty" manuals.
The latest information on our products, tips, updates, etc., can be found on the Internet at:
http://ts.fujitsu.com
Published by
Fujitsu Technology Solutions GmbH
A26361-K1006-Z220-1-7619, Edition 2
2009/08
Produced by
XEROX Global Services
Introduction
ESPRIMO P5635
ESPRIMO P5730
ESPRIMO P7935
Operating Manual
Important notes
Preparing for use
Operation
Troubleshooting and tips
System upgrades
Technical data
August 2009 edition
Index
ESPRIMO is a registered trademark of Fujitsu Technology Solutions GmbH.
Windows XP, Windows Vista and Windows 7 are registered trademarks of the Microsoft
Corporation.
PS/2 is a registered trademark of International Business Machines, Inc.
Pentium is a registered trademark of Intel Corporation, USA.
Kensington and MicroSaver are registered trademarks of ACCO World Corporation.
All other trademarks referenced are trademarks or registered trademarks of their respective
owners, whose protected rights are acknowledged.
Copyright © Fujitsu Technology Solutions 2009
All rights, including rights of translation, reproduction by printing, copying or similar methods,
in part or in whole, are reserved.
Offenders will be liable for damages.
All rights reserved, particularly for rights created by patent grant or registration of a utility
model or design.
Delivery subject to availability. Right of technical modification reserved.
Contents
Your ESPRIMO P ... ............................................................................................................................ 1
Notational conventions ......................................................................................................................... 2
Important notes .................................................................................................................................. 3
Safety notes.......................................................................................................................................... 3
Transporting the device ........................................................................................................................ 3
Cleaning the device .............................................................................................................................. 3
Energy saving, disposal and recycling ................................................................................................. 4
CE marking........................................................................................................................................... 4
FCC Class B Compliance Statement ................................................................................................... 4
Preparing for use................................................................................................................................ 5
Unpacking and checking the delivery................................................................................................... 5
Steps for initial setup ............................................................................................................................ 5
Setting up the device ............................................................................................................................ 6
External devices, connecting................................................................................................................ 7
Ports ............................................................................................................................................. 8
Connecting the monitor ................................................................................................................ 9
Connecting the mouse ................................................................................................................. 9
Connecting the keyboard............................................................................................................ 10
Connecting external devices to the parallel or serial port........................................................... 10
Connecting external devices to the USB ports........................................................................... 11
Connecting the device to the mains voltage....................................................................................... 12
Indicators provided by the device....................................................................................................... 13
Switching on for the first time: installing the software......................................................................... 14
Switching on monitor and device................................................................................................ 15
Installing the software................................................................................................................. 16
Operation........................................................................................................................................... 17
Switching the device on...................................................................................................................... 17
Switching on a device when the lithium battery is discharged (0-Watt devices) ................................ 17
Switching off the device...................................................................................................................... 18
Keyboard ............................................................................................................................................ 19
Important keys and key combinations ........................................................................................ 19
Settings in BIOS Setup....................................................................................................................... 21
Property and data protection .............................................................................................................. 21
Mechanical casing lock (optional) .............................................................................................. 21
Anti-theft protection and lead-sealing......................................................................................... 22
BIOS setup security functions .................................................................................................... 22
Access authorization via SmartCard .......................................................................................... 23
Access protection with SystemLock ........................................................................................... 23
Troubleshooting and tips................................................................................................................. 25
Help if problems occur................................................................................................................ 25
Troubleshooting.................................................................................................................................. 26
Power-on indicator remains unlit after you have switched on your device................................. 26
The device cannot be switched off with the ON/OFF switch. ..................................................... 26
The device cannot be switched on with the ON/OFF switch (0-Watt devices)........................... 26
Monitor remains blank ................................................................................................................ 27
No mouse pointer displayed on the screen ................................................................................ 29
The floppy disk cannot be read or written................................................................................... 29
Time and/or date is not correct................................................................................................... 30
Error messages on the screen ................................................................................................... 30
A26361-K1006-Z220-1-7619, edition 2
Contents
Installing new software........................................................................................................................30
Hard disk contents, restoring ..............................................................................................................30
Tips ....................................................................................................................................................30
System upgrades ..............................................................................................................................31
Information about boards ....................................................................................................................31
Opening the casing ............................................................................................................................. 32
Closing the casing...............................................................................................................................33
Installing the locking device with casing lock ......................................................................................34
Opening the drive cage.......................................................................................................................36
Closing the drive cage ........................................................................................................................37
Removing ventilation duct...................................................................................................................38
Ventilation duct: installing ...................................................................................................................39
Installing and removing a board..........................................................................................................40
Installing a board.........................................................................................................................40
Removing boards........................................................................................................................42
Low-profile boards...............................................................................................................................44
Installing and removing optional ports ................................................................................................45
Installing an optional additional port............................................................................................45
Removing an optional port ..........................................................................................................46
Installing and removing drives ............................................................................................................47
Removing an accessible drive ....................................................................................................47
Installing an accessible drive ...................................................................................................... 48
Installing and removing the floppy disk drive .............................................................................. 49
Installing and removing the hard disk drive.........................................................................................50
Removing a hard disk drive ........................................................................................................50
Installing a hard disk drive ..........................................................................................................51
Installing USB ports on the rear panel ................................................................................................53
Mainboard expansions........................................................................................................................54
Main memory, upgrading ............................................................................................................54
Processor, replacing ...................................................................................................................54
Replacing the lithium battery.......................................................................................................55
Technical data ...................................................................................................................................57
Index...................................................................................................................................................59
A26361-K1006-Z220-1-7619, edition 2
Your ESPRIMO P ...
... is available with various configuration levels with different hardware and software. You can
incorporate operable drives (for example DVD drive) as well as other boards.
This manual tells you how to put your device into operation and how to operate it in daily use. This
manual applies for all configuration levels. Depending on the configuration level chosen some of the
hardware components described may not be available on your PC. Please observe the notes on your
operating system.
Depending on the configuration selected, the operating system is preinstalled on your hard disk (e.g.
Microsoft Windows Vista).
Your device has a number of security features to ensure that no unauthorised persons can access
your data. The security functions in the BIOS Setup also allow you to protect your data by means of
passwords. In addition, systems with a SmartCard reader offer additional protection.
Under certain operating systems, DeskUpdate allows you to quickly and easily install the latest drivers
and operating system upgrades with just a few mouse clicks. DeskUpdate is contained on the
"Drivers & Utilities" CD/DVD.
Further information on this device is provided:
● in the poster "Getting Started"
● in the "Safety" manual
● in the "Warranty" manual
● in the operating manual for the monitor
● in the manual for the mainboard
● in your operating system documentation
● in the information files (e.g. *.PDF, *.HTML, *.DOC, *.CHM, *.TXT, *.HLP)
You will find an electronic version of some of the listed manuals on the "User
Documentation" or "Drivers & Utilities" CD/DVD.
i
You can access and view the required information using the Acrobat Reader program,
which is also on the CD/DVD. If necessary, you can also make a print version of the
manual.
A26361-K1006-Z220-1-7619, edition 2 1
Your ESPRIMO P ...
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
!
i
► Texts which follow this symbol describe steps that must be performed in the
This font indicates screen outputs.
This font indicates programme names, commands, or menu items.
"Quotation marks" indicate names of chapters, data carriers, and terms that are being
This symbol indicates information which is important for your health or for
preventing material damage.
This symbol indicates important information which is required to use the
system properly.
order shown.
emphasised.
2 A26361-K1006-Z220-1-7619, edition 2
Important notes
In this chapter you will find information regarding safety which it is essential to take note of when
working with your device.
Safety notes
Pay attention to the information provided in the "Safety" manual and in the following safety
notes.
!
During installing and operating the device, please observe the instructions on
environmental conditions in the "
"
XPreparing for useX" chapter.
You may only operate the device, if the rated voltage for the device is set to the local
mains voltage. Check the rated voltage set for this device (see "
The main switch and the ON/OFF switch do not disconnect the device from the mains
voltage. To completely disconnect the mains voltage, remove the power plug from the
power socket.
Replace the lithium battery on the mainboard in accordance with the instructions in the
"
XReplacing the lithium batteryX" chapter.
Transporting the device
Transport all parts separately in their original packaging or in a packaging which protects
them from knocks and jolts, to the new site. Do not unpack them until all transportation
!
manoeuvres are completed.
XTechnical dataX" chapter as well as the instructions in the
XPreparing for useX").
Cleaning the device
Turn off all power and equipment switches and disconnect the power plug from the mains
outlet.
!
Do not clean any interior parts yourself, leave this job to a service technician.
Do not use any cleaning agents that contain abrasives or may corrode plastic.
Ensure that no liquid enters the system.
Wipe the casing with a dry cloth. If particularly dirty, use a cloth that has been moistened in mild
domestic detergent and then carefully wrung out. Use disinfectant wipes to clean the keyboard and
the mouse.
A26361-K1006-Z220-1-7619, edition 2 3
Important notes
Energy saving, disposal and recycling
Information on these topics can be found on the "Drivers & Utilities" CD/DVD or on our website
http://ts.fujitsu.com.
CE marking
The shipped version of this device complies with the requirements of the EC
Guidelines 2004/108/EC "Electromagnetic compatibility" and 2006/95/EC "Low
voltage directive".
FCC Class B Compliance Statement
The following statement applies to the products covered in this manual, unless otherwise specified
herein. The statement for other products will appear in the accompanying documentation.
NOTE:
This equipment has been tested and found to comply with the limits for a "Class B" digital device,
pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian InterferenceCausing Equipment Standard ICES-003 for digital apparatus. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in strict
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between equipment and the receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
Fujitsu Technology Solutions GmbH is not responsible for any radio or television interference caused
by unauthorized modifications of this equipment or the substitution or attachment of connecting
cables and equipment other than those specified by Fujitsu Technology Solutions GmbH. The
correction of interferences caused by such unauthorized modification, substitution or attachment will
be the responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to any and all optional
peripheral or host devices. Failure to do so may violate FCC and ICES rules.
4 A26361-K1006-Z220-1-7619, edition 2
Preparing for use
Please observe the safety information in the "
!
XImportant notesX" chapter.
Unpacking and checking the delivery
It is recommended not to throw away the original packaging material! It may be required for
reshipment at some later date.
► Unpack all the individual parts.
► Check the delivery for damage incurred during transportation.
► Check whether the delivery agrees with the details in the delivery note.
► Should you discover that the delivery does not correspond to the delivery note, notify your local
sales outlet immediately.
Steps for initial setup
Only a few steps are necessary to put your new device into operation for the first time:
– Select a location for device and set up device
– Connect the monitor, mouse and keyboard
– Check the voltage at the mains outlet and connect the device to an electrical outlet
– Switch the device on
You will learn more about the individual steps in the following sections.
Drives and boards
If you have received drives or boards with your device, please do not install them until
after first-time setup. How to install drives and boards is described in the "
i
upgrades
X" chapter.
XSystem
A26361-K1006-Z220-1-7619, edition 2 5
Preparing for use
Setting up the device
When installing your device, please read the recommendations and safety notes in the
"Safety" manual.
!
Set up the device only in its correct orientation (vertical position).
We recommend that you place your device on a surface with good anti-slip qualities. In
view of the multitude of different finishes and varnishes used on furniture, it is possible that
the rubber feet will mark the surface they stand on.
Do not expose the device to extreme environmental conditions (see "
Protect the device from dust, humidity, and heat.
Make sure that the device is adequately ventilated. In order to avoid overheating, do not
cover the ventilation area of the monitor or the device.
Do not stack several devices on top of each other.
Depending on the location of your device, bothersome vibrations and noises may occur.
To prevent this, a distance of at least 10 mm should be maintained from other devices on
casing sides without ventilation surfaces. In addition, we recommend placing the device on
support feet, as these buffer vibrations.
XTechnical dataX").
6 A26361-K1006-Z220-1-7619, edition 2
Preparing for use
External devices, connecting
Read the documentation on the external device before connecting it.
!
With the exception of USB devices, always remove all power plugs before connecting
external devices!
Do not connect or disconnect cables during a thunderstorm.
Always take hold of the actual plug. Never unplug a cable by pulling the cable itself.
Connect and disconnect the cables in the order described below.
Connecting cables
● Turn off all power and equipment switches.
● Remove all power plugs from the mains outlets.
● Plug all cables into the device and peripherals. Please observe the safety notes provided in
XImportant notesX".
"
● Plug all data communication cables into the utility sockets.
● Plug all power cables into the grounded mains outlets.
Disconnecting cables
● Turn off all power and equipment switches.
● Remove all power plugs from the mains outlets.
● Unplug all data communication cables from the utility sockets.
● Unplug all cables from the device and peripherals.
USB devices are hot-pluggable. This means you can connect and disconnect devices
while your operating system is running.
i
Additional information can be found in the "
section and in the documentation for the USB devices.
XConnecting external devices to the USB portsX"
A26361-K1006-Z220-1-7619, edition 2 7
Preparing for use
Ports
The connections are located on the front and back of the device. The ports available on your device
depend on the configuration level you have selected. The standard ports are marked with the
symbols shown below (or similar). Detailed information on the location of the connections is provided
in the manual for the mainboard.
Keyboard port, purple
1
Serial port 1, teal or turquoise
Monitor port, blue
Headphones port, orange or light
green
Audio output (Line out), light green
USB - Universal Serial Bus, black
LAN
Parallel port/Printer, burgundy
2
Serial port 2, teal or turquoise
Microphone jack (mono), pink
Audio input (Line in), light blue
SCSI connection
LAN port
PS/2 mouse port, green
Some of the devices that you connect require special drivers (see the operating system
and device documentation).
i
1394
FireWire™, grey
8 A26361-K1006-Z220-1-7619, edition 2
Preparing for use
Connecting the monitor
► Follow the instructions contained in the monitor manual to prepare the monitor for operation
(e.g. connecting cables).
► Plug the data cable into the monitor port
The following illustrations may differ slightly from your device, depending on its
configuration level.
i
► Depending on your device configuration level, plug the monitor power cable into either the
system unit (1) or a grounded mains outlet (2).
The monitor power cable may only be connected to the device monitor socket if the
monitor current consumption is less than 1.5 A for 230 V or 3 A for 115 V. The values for
!
the monitor current consumption can be found in the technical data on the monitor or in the
operating manual for the monitor.
of the device.
2
1
Connecting the mouse
Depending on the equipment level selected, your device will be supplied with a USB mouse or a
PS/2 mouse.
Connecting a USB mouse
► Connect the USB mouse to one of the USB ports
Connecting a PS/2 mouse
► Connect the PS/2 mouse to the PS/2 mouse port
If you do not attach a mouse at the PS/2 mouse port
i
controller in the BIOS Setup in order to free the IRQ12 for a different application.
A26361-K1006-Z220-1-7619, edition 2 9
on the device.
of the device.
, you can disable the mouse
Preparing for use
Connecting the keyboard
Depending on the equipment level selected, your device will be supplied with a USB keyboard or a
PS/2 keyboard.
Connecting a USB keyboard
Use the supplied keyboard cable only.
► Plug the rectangular connector of the keyboard cable into the rectangular socket on the
underside of the keyboard.
► Insert the flat rectangular USB plug of the keyboard cable into a USB port
Connecting a PS/2 keyboard
Use the supplied keyboard cable only.
► Plug the rectangular connector of the keyboard cable into the rectangular socket on the
underside of the keyboard.
► Plug the round plug of the keyboard cable into the keyboard port
on the device.
of the device.
Connecting external devices to the parallel or serial port
If your device has parallel and serial ports, you can connect external devices to these ports (such as
a printer or modem).
► Connect the data cable to the external device.
► Depending on the device, connect the data cable to the parallel port
For an exact description of how to connect external devices to the corresponding port, please see
the external device documentation.
Port settings
You can change the port settings (e.g. address, interrupt) in the BIOS Setup (refer to the
Mainboard manual or the "BIOS Setup" manual.
i
Device drivers
The devices connected to the parallel or serial port require drivers. Your operating system
already includes many drivers. If the required drive is missing, install it. Current drivers are
i
10 A26361-K1006-Z220-1-7619, edition 2
usually available on the Internet or will be supplied on a data carrier.
or the serial port .
Preparing for use
Connecting external devices to the USB ports
You can connect a wide range of external devices to the USB ports (e.g. printer, scanner, modem or
keyboard).
► Connect the data cable to the external device.
► Connect the data cable to a USB port
► Read the documentation for the USB device to obtain full information about the installation of
Device drivers
USB devices are hot-pluggable. This means you can connect and disconnect devices
while your operating system is running.
i
Additional information can be found in the documentation for the USB devices.
.
the device.
The devices you connect to the USB ports usually require no driver of their own, as the
required software is already included in the operating system. However, if the USB device
i
requires its own software, please install it from the data carrier provided with the USB
device.
To ensure USB 2.0, only a 3 m long cable may be used from the front USB port to the
USB peripheral device.
A26361-K1006-Z220-1-7619, edition 2 11
Preparing for use
Connecting the device to the mains voltage
The following illustrations may differ slightly from your device, depending on its
configuration level.
i
1
2
► Connect the power cable to the device (1).
► Plug the power plug into a grounded mains outlet (2).
12 A26361-K1006-Z220-1-7619, edition 2
Preparing for use
Indicators provided by the device
The indicators are on the front of the casing. Which indicators are available on your device depends
on the configuration level you have selected.
1
3
2
4
1 = Drive indicator, e.g. DVD
2 = Floppy disk indicator
Hard disk indicator
The indicator lights up when the hard disk drive of the device is accessed.
3 = Hard disk indicator
4 = Power-on indicator
Power-on indicator
● The indicator lights up green:
The device is switched on.
● The display illuminates in orange or flashes green (depending on the type of device):
The device is in energy-saving mode. After being switched on with the power button, the device
switches on or returns to the state it was in before the energy-saving mode.
● The indicator does not light up:
The device is switched off (power switch at 0 or disconnected from the mains) or ready. If the
device is ready it can be enabled with the ON/OFF switch.
Floppy disk indicator
The indicator lights up when the floppy disk drive of the device is accessed. You may only remove
the floppy disk when the indicator is unlit.
Drive indicator, e.g. DVD
The indicator lights up when the CD-ROM or DVD drive is accessed. You may only remove the
CD/DVD when the indicator is dark.
A26361-K1006-Z220-1-7619, edition 2 13
In an energy-saving mode the device must not be switched off with the main
power switch (if present) or disconnected from the mains, as this may result in
!
data loss.
Preparing for use
Switching on for the first time: installing the software
If the device is integrated into a network, the user and server details as well as the network protocol
are required during the software installation. Contact your network administrator if you have any
questions about these settings.
When you switch on the device for the first time, the supplied software is installed and configured.
Plan a reasonable amount of time for this, as this process must not be interrupted.
You may need the licence number for Windows during the installation. The licence number is located
on a sticker on your device.
Once the installation has been started the device must not be switched off, unless the
installation has been completed.
!
During installation, the device may only be rebooted when you are requested to do so!
The installation will otherwise not be carried out correctly and the contents of the hard disk
must be completely restored.
14 A26361-K1006-Z220-1-7619, edition 2
Preparing for use
Switching on monitor and device
► Switch the monitor on (see the operating manual for the monitor).
► Switch the device on. To do this, follow the instructions below.
Switching on the device (with main power switch)
Depending on the version, the device may be equipped with a main power switch on the
back of the device in addition to the ON/OFF button on the front. As a result, there are
i
different ways to switch on the two variants.
I
1
0
0 = Device is off
► Switch the device on with the main power switch (1) on the back of the device.
► Press the ON/OFF switch (2) on the front of the device.
The power-on indicator lights green and the device is started.
A26361-K1006-Z220-1-7619, edition 2 15
I = Device is ready-to-operate
Preparing for use
Switching on the device (without main power switch)
► Press the ON/OFF button on the front of the device.
The power-on indicator lights green and the device is started.
Installing the software
► During installation, follow the on-screen instructions.
► Consult the operating system manual if anything is unclear about the input data requested by
the system.
You will find further information about the system as well as drivers, additional software
and updates on the "Drivers & Utilities" CD/DVD.
i
16 A26361-K1006-Z220-1-7619, edition 2
Operation
Switching the device on
► If necessary, switch the monitor on (see the operating manual for the monitor).
► Switch on the device with the main power switch located on the rear of the device (if present).
► Press the ON/OFF button on the front of the device.
The power-on indicator lights green and the device is started.
Switching on a device when the lithium battery is discharged (0-Watt devices)
A 0-Watt device consumes no current when it is switched off and in the quiescent state.
Your 0-Watt device is equipped with an emergency on button (primary resume button) for use if it can
no longer be started, for instance because the lithium battery is discharged.
After the emergency on button (1) has been pressed for a short time, the device can be switched on
again using the ON/OFF switch at the front of the device.
1
► Press the emergency on button (1) to start the device.
A26361-K1006-Z220-1-7619, edition 2 17
Operation
Switching off the device
► Shut down the operating system properly. In Windows: via the Start menu and the Exit function.
► If the operating system does not automatically switch the device into energy-saving mode or
switch it off, press the ON/OFF switch.
If the device is ready-to-use, the device consumes a minimum of energy.
► Switch the device off at the main switch (if present). The device no longer uses any power.
► If necessary, switch the monitor off (see the operating manual for the monitor).
The main switch and the ON/OFF switch do not disconnect the device from the mains
voltage. To completely disconnect the mains voltage, remove the power plug from the
!
socket.
18 A26361-K1006-Z220-1-7619, edition 2
Operation
Keyboard
1 = Function keys
2 = Power button (optional)
3 = Alphanumeric keypad
The illustrated keyboard is an example and may differ from the model you use.
i
1
34
4 = Cursor keys
5 = Numeric keypad (calculator keypad)
2
5
Important keys and key combinations
The description of the following keys and key combinations applies to Microsoft operating systems.
Details of other keys and key combinations can be found in the documentation of the relevant
application programme.
ON/OFF switch (optional)
Depending on the setting in the BIOS Setup, the system can be switched on, off, or
on and off with this button. Some operating systems allow you to configure
additional functions of the ON/OFF switch in the Control Panel (e.g. standby mode,
rest mode).
With some keyboards the ON/OFF switch can only be used with an ACPI
(Advanced Configuration and Power Management Interface). Otherwise the key is
inoperative. The mainboard must support this function.
Enter key
confirms the marked selection. The enter key is also referred to as the "Return"
key.
A26361-K1006-Z220-1-7619, edition 2 19
Operation
Warm boot
restarts your device. Press simultaneously the keys Ctrl , Alt + Del .
Under some operating systems the Task Manager appears first. Then you
must press all three keys again to re-boot.
Alt Gr
Num
Ctrl
AltCtrl
++
Start key
calls up the Windows Start menu.
Menu key
invokes the menu for the marked item (Windows).
Shift key
enables upper-case letters and the upper key symbols to be used.
Alt Gr (e.g. German keyboard)
produces a character shown on the right-hand side of a key (e.g. the character @
on the key Q ).
Num key
Switches the numeric key pad between number mode ("Num" indicator lights up)
and editing mode ("Num" indicator does not light up).
When the Num Lock indicator is lit the digit and comma keys are active.
When the Num Lock indicator is not lit the cursor control functions are active in the
Numeric keypad.
Ctrl key
starts key combination actions. The Ctrl key is also called "Control" or "Control
key".
Del
SysRq
20 A26361-K1006-Z220-1-7619, edition 2
Operation
Settings in BIOS Setup
In BIOS Setup you can set the system functions and the hardware configuration of the device. When
the PC is delivered, the default entries are valid (see "BIOS Setup" manual or manual for the
mainboard). You can customise these settings to your requirements in the BIOS Setup.
Property and data protection
Software functions and mechanical locking offer a broad range of functions for protecting your device
and your personal data from unauthorised access. You can also combine these functions.
The following illustrations may differ slightly from your device, depending on its
configuration level.
i
Mechanical casing lock (optional)
With the casing lock you can mechanically lock the casing to prohibit unauthorised persons from
opening it. On delivery, you will find the keys on the rear panel of your device.
2
1
Locking the casing
► Turn the key in the direction of the arrow (1).
Unlocking the casing
► Turn the key in the direction of the arrow (2).
A26361-K1006-Z220-1-7619, edition 2 21
Operation

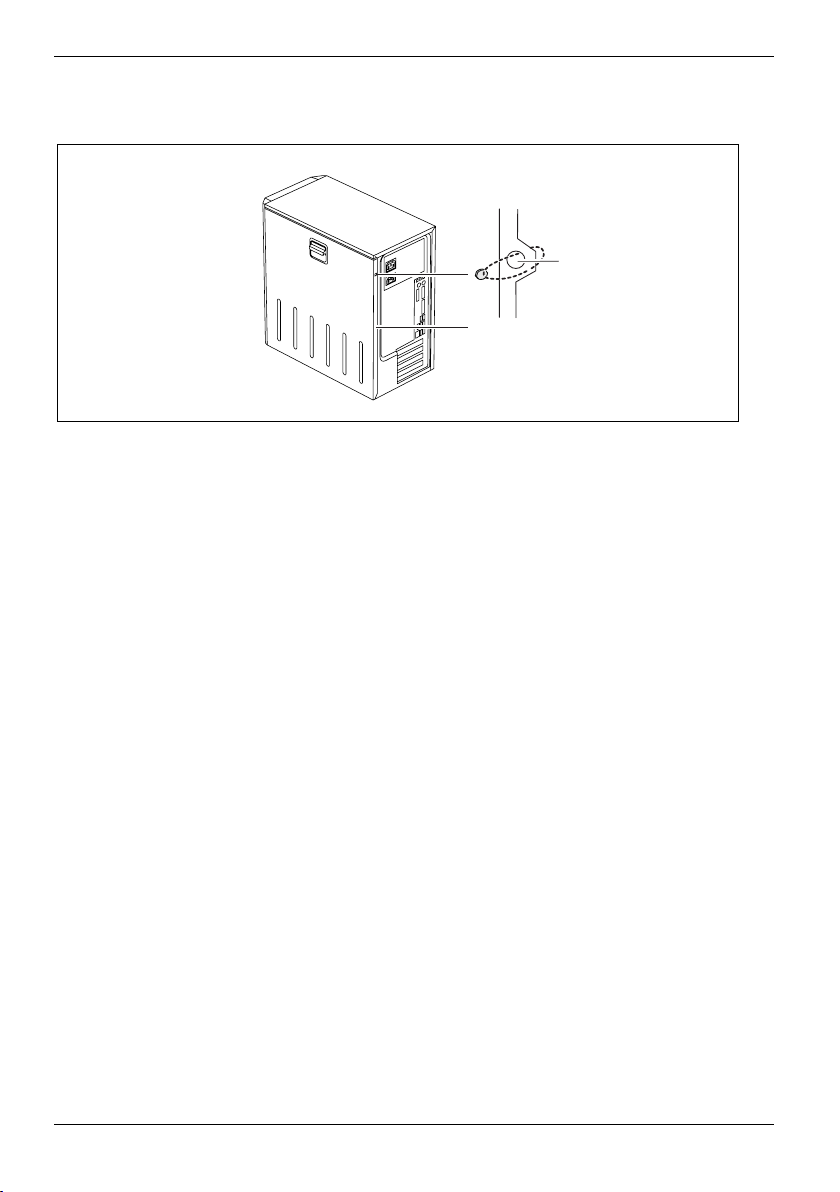

Anti-theft protection and lead-sealing
1
2
1 = Holes for padlock 2 = Device for "Kensington Lock"
Anti-theft protection
You can protect your device from theft.
● with the Kensington Lock device (2) and with a Kensington MicroSaver.
Consult the manual for your Kensington Lock.
● with the holes (1), a padlock and a chain, which you have connected to a fixed object
beforehand.
Lead-sealing
To prevent unauthorised persons from opening the casing, the casing can be sealed. To do this,
feed the sealing chain through the holes (1) and seal the chain with the lead seal.
BIOS setup security functions
The Security menu in BIOS Setup offers you various options for protecting your personal data against
unauthorised access, e.g.:
● Preventing unauthorised access to the BIOS Setup.
● Preventing unauthorised system access
● Preventing unauthorised access to the settings of boards with their own BIOS
● Preventing system booting from the diskette drive
● Virus warnings, activating
● Diskettes, preventing unauthorised writing of
● BIOS: Protecting BIOS from overwriting
● Protecting the device from being switched on by an external device
You can also combine these functions.
You will find a detailed description of the Security menus and how to assign passwords in the manual
for the mainboard or in the "BIOS Setup" manual.
22 A26361-K1006-Z220-1-7619, edition 2
Operation
Access authorization via SmartCard
In systems equipped with a SmartCard reader, access can be restricted to those users who have a
corresponding SmartCard.
Access protection with SystemLock
With SystemLock you can protect your system from unauthorised booting. Then a system can only be
booted when the user inserts a valid SmartCard in the SmartCard reader and enters his/her personal
code number (PIN). To use SystemLock you require the following components:
● External or internal SmartCard reader
● SystemLock installed (see "BIOS Setup" manual)
● SmartCard
SystemLock controls access to your device. When a SmartCard is initialised, permissions are
assigned for system access (system, setup, system+setup, admin). You can configure several
SmartCards for one system and initialise them with different permissions. In addition you can protect
access to your hard disk.
In this way users can be divided into user groups. Users of a user group use SmartCards with the
same permissions.
More information on SystemLock
If you also want to use other security software in addition to SystemLock (e.g.
SMARTY), please read the documentation on your security software beforehand.
i
SystemLock permissions
You can initialise a SmartCard with one of the following permissions:
System The system starts following entry of the user PIN. You can change the user PIN.
Setup You can open and change the BIOS Setup and change the user PIN.
System+Setup The system starts following entry of the user PIN. You can open and change the
Admin The system starts following entry of the user PIN. You can change the user PIN
For instructions on how to install and operate SystemLock, and how to initialise SmartCards, see the
"BIOS Setup" manual.
SmartCard reader: operating
► Connect the external SmartCard reader to your system as described in the instructions for the
SmartCard reader.
► After the device is switched on, you will be prompted to insert your SmartCard.
A26361-K1006-Z220-1-7619, edition 2 23
BIOS Setup and change the user PIN.
an the administrator PIN, unlock locked SmartCards, open and change the
BIOS Setup and generate additional SmartCards for this system.
Operation
24 A26361-K1006-Z220-1-7619, edition 2
Troubleshooting and tips
Refer to the safety notes in the "Safety" manual and in the "
when connecting or disconnecting cables.
!
If a fault occurs, try to correct it as described in the following places:
● in this chapter
● in the documentation of the connected devices
● in the help systems of the software used
● in the documentation of your operating system
XPreparing for useX" chapter
Help if problems occur
Should you ever have a problem with your computer that you cannot solve yourself, in many cases
you can solve it quickly using the SystemDiagnostics program pre-installed on your computer.
► To start the SystemDiagnostics program, click Start - Programs - Fujitsu - SystemDiagnostics.
If a problem is detected during the test run, the SystemDiagnostics program outputs a code (e.g. DIFS
code YXXX123456789123).
► Take a note of this DIFS code and the ID number of your device. The ID number can be found
on the type rating plate on the back of the casing.
► If you still need assistance resolving the problem, contact the relevant Help Desk for your
country (see the Help Desk List or go to
your system and the DIFS code ready.
H http://ts.fujitsu.com/supportH). Have the ID/serial No. of
A26361-K1006-Z220-1-7619, edition 2 25
Troubleshooting and tips
Troubleshooting
Power-on indicator remains unlit after you have switched on your device
Cause Troubleshooting
The mains voltage supply is faulty. ► Check whether the power cable is plugged properly
Internal power supply overloaded.
The device cannot be switched off with the ON/OFF switch.
Cause Troubleshooting
The device has not been switched on
with the ON/OFF switch.
System crash
into the device and a grounded mains outlet.
► Switch the device on.
► Unplug the mains plug of the device from the mains
socket.
► Wait for a moment.
► Plug the power plug into a properly grounded mains
outlet again.
► Switch the device on.
► Press the ON/OFF switch again.
► Press the ON/OFF switch for at least 4 seconds,
until the device switches off.
The operating system is not shut-down properly in the
process. Error messages are therefore possible the next
time the system is booted.
The device cannot be switched on with the ON/OFF switch (0Watt devices)
Cause Corrective measure
The lithium battery is discharged.
26 A26361-K1006-Z220-1-7619, edition 2
► Press the emergency on button at the rear of the
device, see chapter "
XSwitching on a device when
the lithium battery is discharged (0-Watt devices)
X".
Troubleshooting and tips
Monitor remains blank
Cause Troubleshooting
Monitor is switched off.
Power saving has been activated
(monitor is blank).
Brightness controls set to dark.
Power cable is not connected.
Monitor cable is not connected.
► Switch your monitor on.
► Press any key on the keyboard.
or
► Deactivate the screen saver. If necessary, enter the
appropriate password.
► Adjust the brightness control. For detailed
information, please refer to the operating manual
supplied with your monitor.
► Switch off the monitor and the device.
► Check that the monitor power cable is properly
connected to the monitor and to a grounded mains
outlet or to the monitor socket of the device.
► Check that the device power cable is properly
plugged into the device and a grounded mains
outlet.
► Switch on the monitor and the device.
► Switch off the monitor and the device.
► Check that the monitor cable is properly connected
to the device and monitor.
► Switch on the monitor and the device.
A26361-K1006-Z220-1-7619, edition 2 27
Troubleshooting and tips
Cause Troubleshooting
Wrong monitor has been set under
Window XP
Wrong setting for the monitor under
Windows Vista
Wrong setting for the monitor under
Windows 7
The wrong RAM memory modules
have been inserted.
► Restart the device.
► Press F8 while the system is booting.
Either the Windows Advanced Start Options menu or the
menu for selecting the operating system appears.
► If the menu for selecting the operating system
appears, press F8 .
► Select Safe Mode or Safe Mode with Network.
► Set the correct values for the connected monitor as
described in the operating manual of the monitor by
selecting Start - Settings - Control Panel - Display and
then the Appearance, Themes, Settings tabs.
► Restart the device.
► Press F8 while the system is booting.
Either the Windows Advanced Start Options menu or the
menu for selecting the operating system appears.
► If the menu for selecting the operating system
appears, press F8 .
► Select Safe Mode or Safe Mode with Network.
► Set the correct values for the connected monitor, as
described in the operating manual of the monitor, by
selecting Start (Settings) - Control Panel - Display -
Settings.
► Restart the device.
► Press F8 while the system is booting.
Either the Windows Advanced Start Options menu or the
menu for selecting the operating system appears.
► If the menu for selecting the operating system
appears, press F8 .
► Select Safe Mode or Safe Mode with Network.
► Select Start – Control Panel – Appearance and Themes
– Display to set the correct values for the connected
monitor, as explained in the monitor instructions.
► See the manual for the mainboard for information on
which memory modules can be used.
28 A26361-K1006-Z220-1-7619, edition 2
Troubleshooting and tips
No mouse pointer displayed on the screen
Cause Troubleshooting
The mouse is not correctly
connected.
The mouse controller is not enabled.
► Shut down the operating system properly.
► Switch the device off.
► Check that the mouse cable is properly connected
to the system unit.
If you use an adapter or extension lead with the
mouse cable, check the connections.
► Make sure that only one mouse is connected.
► Switch the device on.
The mouse controller must be enabled if you use a PS/2
mouse on the PS/2 mouse port
.
► Check in the BIOS Setup that the mouse controller is
Enabled.
► Check that the mouse driver is properly installed
and is present when the application programme is
started. Detailed information can be found in the
user guide for the mouse and application
programme.
The floppy disk cannot be read or written
Cause Troubleshooting
The write protection of the floppy disk
or the floppy disk drive is activated.
The floppy disk drive controller is not
enabled.
The floppy disk drive is not
connected.
A26361-K1006-Z220-1-7619, edition 2 29
► Check that the write protection of the floppy disk or
the floppy disk drive is activated (refer to the "BIOS
Setup" manual and if necessary to the manual for
the mainboard).
► Check the relevant entries for floppy disk drive in the
Main menu of the BIOS Setup.
► Check that the floppy disk drive controller is enabled
(refer also to the manual for the mainboard or in the
"BIOS Setup" manual).
► Check that the cables of the floppy disk drive are
properly connected (see "
the floppy disk drive
XInstalling and removing
X").
Troubleshooting and tips
Time and/or date is not correct
Cause Troubleshooting
Time and date are incorrect.
The on-board backup battery in the
device is flat.
► Set the correct time and date within the operating
system you are using.
or
► Set the correct time and/or date in the BIOS Setup.
► If the time and date are repeatedly wrong when you
switch on your device, replace the lithium battery
(see "
XReplacing the lithium batteryX").
Error messages on the screen
Error messages and their explanation are contained:
● in the manual for the mainboard
● in the documentation for the programmes used
Installing new software
When installing programmes or drivers, important files may be overwritten and modified. You should
backup your hard disk prior to installation so that you can still access the original data in the event of
any problems following installation.
Hard disk contents, restoring
Should you need to restore your hard disk, the instructions are provided on the case of the
"Recovery CD/DVD" (delivered with your system).
Tips
Topic Tip
Out of system resources
Other manuals
30 A26361-K1006-Z220-1-7619, edition 2
If you have too many applications running at once, you
may experience problems due to a lack of system
resources.
► Close unnecessary applications.
or
► Run the applications in a different order.
Additional manuals are provided as PDF files on the
"User Documentation" or "Drivers & Utilities" CD/DVD.
System upgrades
As the device has to be shut down in order to install/deinstall system hardware
components, it is a good idea to print out the relevant sections of this chapter.
i
It may be necessary to update the BIOS when carrying out a system expansion or
hardware upgrade. Additional information is contained in the "BIOS Setup" manual or
possibly in the manual for the mainboard.
When installing components that become very hot, make sure that the maximum
permissible temperature is not exceeded.
The following illustrations may differ slightly from your device, depending on its
configuration level.
This chapter describes all the activities required to modify your device hardware (e.g. installing
boards or drives).
Read the supplied documentation before installing new drives and/or boards.
Refer to the manual for the mainboard before making any extensions to the mainboard.

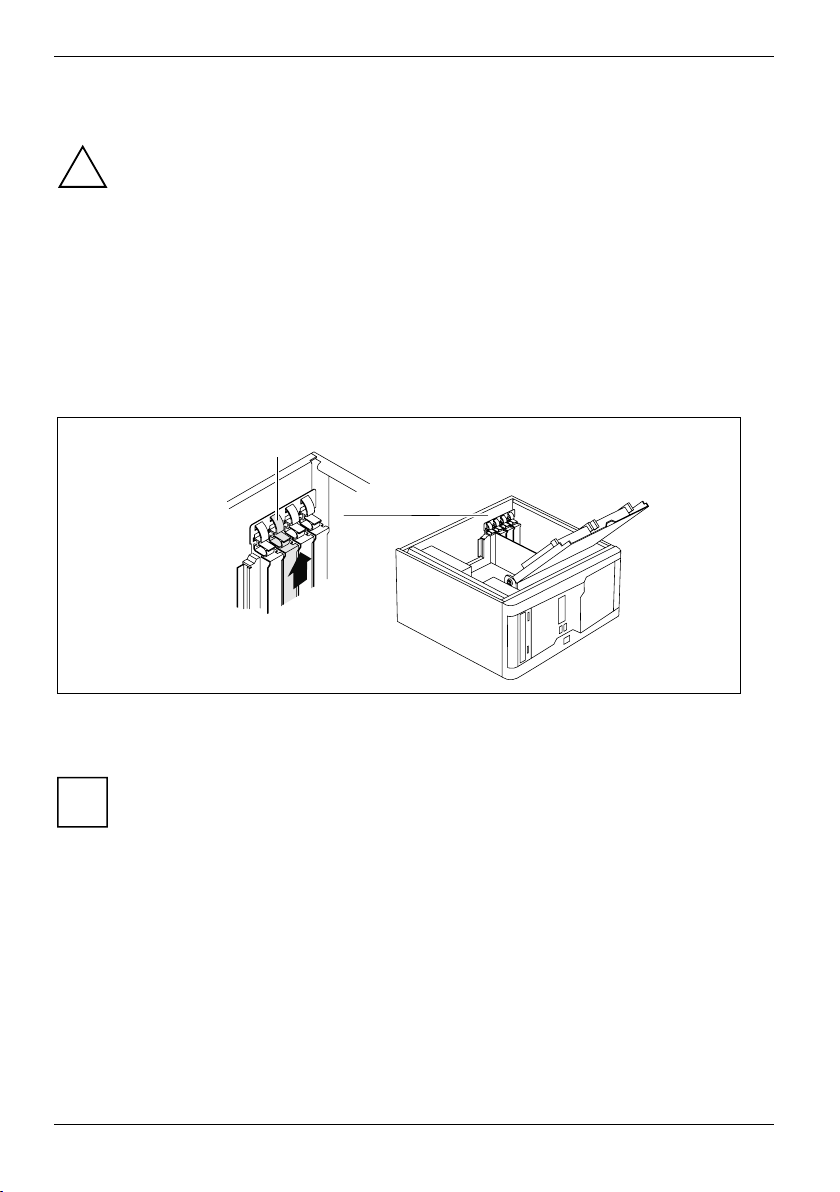

Information about boards
The device must be switched off when installing/removing the system expansions and may
not be in the energy-saving mode.
!
Remove the power plug before opening the device.
Take care with the locking mechanisms (catches and centring pins) when you are replacing boards
or components on boards.
To prevent damage to the board or the components and conductors on it, please take care when you
insert or remove boards. Make sure expansion boards are inserted straight.
Never use sharp objects (screwdrivers) for leverage.
Boards with electrostatic sensitive devices (ESD) are identifiable by the label
shown.
When you handle boards fitted with ESDs, you must, under all
circumstances, observe the following points:
● You must always discharge static build up (e.g. by touching a
A26361-K1006-Z220-1-7619, edition 2 31
grounded object) before working.
● The equipment and tools you use must be free of static charges.
● Always hold boards with ESDs by their edges.
● Never touch pins or conductors on boards fitted with ESDs.
System upgrades
Opening the casing
► Switch the device off. The device must not be in the energy-saving mode!
► On devices with a casing lock: Unlock the casing.
► Remove any plugged-in wires which are in the way.
► Lay the device on its side.
Please observe the safety information in the "XImportant notesX" chapter.
!
Disconnect the mains plug from the mains outlet.
Only insert the power plug after you have closed the casing.
► Pull the locking device (1) and swivel the
side part in the direction of the arrow (2).
1
2
32 A26361-K1006-Z220-1-7619, edition 2
System upgrades
Closing the casing
► Insert the side part in the guide rail on the
lower part of the casing.
► Swivel the side part in the direction of the
arrow (1) until it engages.
1
► On devices with a casing lock: Lock the casing.
► Reconnect the cables that you disconnected before.
A26361-K1006-Z220-1-7619, edition 2 33
System upgrades
Installing the locking device with casing lock
Removing the locking device
2
1
1
► Open the casing (see "XOpening the casingX").
► Place the removed side part on a flat surface with the inside facing upwards.
► Press the catch in the direction of the arrow (1).
► Carefully thread the locking device out of the side part in the direction of the arrow (2).
34 A26361-K1006-Z220-1-7619, edition 2
System upgrades
Installing the locking device with casing lock
1
3
2
2
► Turn the removed side part over (so that the outside faces upwards).
► Guide the locking device with the casing lock in the direction of the arrow (1) into the side part.
► Press the catch in the direction of the arrow (2) and, at the same time, press the locking device
into the side part (3) until the catch engages.
A26361-K1006-Z220-1-7619, edition 2 35
System upgrades
Opening the drive cage
► Open the casing (see "XOpening the casingX").
► Unscrew the knurled screw (1).
► Fold open the drive cage (2).
Thanks to the integrated torque controller the drive cage will stop in any position.
i
1
2
36 A26361-K1006-Z220-1-7619, edition 2
System upgrades
Closing the drive cage
2
1
► Fold down the drive cage (1). Be careful that no wires become trapped.
► Secure the drive cage with the knurled screw (2).
► Close the casing (see "
XClosing the casingX").
A26361-K1006-Z220-1-7619, edition 2 37
System upgrades
Removing ventilation duct
When removing the ventilation duct, be careful not to damage the processor cooler on the
mainboard.
i
1
2
► Open the casing (see "XOpening the casingX").
► Fold up the drive cage (see "
► Unhook the wires from the holder on the ventilation duct.
► Remove any plugged-in wires which are in the way.
► Unlock the ventilation duct by pressing locking hooks in the direction of the arrow (1).
► Keep pressing the locking hook and pull the ventilation duct in the direction of the arrow (2) out
from the casing.
38 A26361-K1006-Z220-1-7619, edition 2
XOpening the drive cageX").
System upgrades
Ventilation duct: installing
When installing the ventilation duct, be careful not to damage the processor cooler on the
mainboard.
i
1
► Insert the latches on the underside of the ventilation duct into the corresponding slots in the
casing.
► Press the ventilation duct into the casing in the direction of the arrow (1) so that the locking
hook is felt to engage.
► Reconnect the cables that you disconnected before.
► Hook the wires into the holder on the ventilation duct.
► Fold down the drive cage (see "
► Close the casing (see "
XClosing the casingX").
XClosing the drive cageX").
A26361-K1006-Z220-1-7619, edition 2 39
System upgrades
Installing and removing a board
Please take note of the section "
!
When installing new boards, make sure that they do not interfere with existing boards.
The number, position and arrangement of the board slots on the mainboard can be found in the
manual for the mainboard. Boards may already be installed on shipment.
XInformation about boardsX".
Installing a board
► Open the casing (see "XOpening the casingX").
► Fold up the drive cage (see "
► Press on the curved part of the retaining clip (1).
► Pull the slot cover out of the slot in the direction of the arrow (2).
Do not throw away the slot cover. For cooling, protection against fire and in order to
comply with EMC regulations, you must refit the slot cover if you remove the board.
i
XOpening the drive cageX").
1
2
40 A26361-K1006-Z220-1-7619, edition 2
System upgrades
2
1
► Push the board into the slot (1).
► Press on the retaining clip until it noticeable engages (2).
► If necessary also secure the board with a screw.
► If necessary, connect the cables to the board.
► Fold down the drive cage (see "
► Close the casing (see "
XClosing the casingX").
XClosing the drive cageX").
If you have installed or removed a board, please check the relevant PCI slot settings in the
BIOS Setup. If necessary, change the settings. Further information is provided in the PCI
i
board documentation.
Information about the installation of low profile boards can be found in the section "
profile boards
X".
XLow-
A26361-K1006-Z220-1-7619, edition 2 41
System upgrades
Removing boards
► Open the casing (see "XOpening the casingX").
► Fold up the drive cage (see "
► Disconnect the cables connected to the board.
XOpening the drive cageX").
1
2
► Press on the curved part of the retaining clip (1).
► If you have also secured the board with an additional screw, remove the screw now.
► Pull the board out of the slot in the direction of the arrow (2).
► Place the board into appropriate packaging.
For cooling, protection against fire, and in order to comply with EMC (electromagnetic
compatibility) regulations, you must refit the slot cover.
!
42 A26361-K1006-Z220-1-7619, edition 2
System upgrades
2
1
► Push the slot cover into the slot (1).
► Press on the retaining clip until it noticeable engages (2).
► Fold down the drive cage (see "
► Close the casing (see "
XClosing the casingX").
XClosing the drive cageX").
If you have installed or removed a PCI board, please check the relevant PCI slot settings
in the BIOS Setup. If necessary, change the settings. Further information is provided in the
i
PCI board documentation.
A26361-K1006-Z220-1-7619, edition 2 43
System upgrades
Low-profile boards
You will need to fit a corresponding slot adapter first before you can install a low-profile board in a
normal board slot.
Two-piece board slot covers are fitted to the slots intended for low-profile boards. The two pieces are
connected together with a screw.
► Remove the desired board slot cover and undo the screw.
Mounting slot adapter
Do not dispose of the slot cover. If you remove the board again, you must reinstall the slot
cover (cooling, fire protection or EMC regulations to be complied with).
!
► Fit the slot adapter on the slot cover of the
1
low-profile board (1) and screw it on (2).
Now you can install the low-profile board in a
suitable slot like a normal board (see "
board
X").
2
XInstalling a
Removing slot adapter
► Unscrew the screw (1) and remove the slot
adapter (2).
2
1
44 A26361-K1006-Z220-1-7619, edition 2
System upgrades
Installing and removing optional ports
An additional port (serial or parallel) can be installed in a rear slot cover plate like a board. For an
exact description of how to connect external devices to ports, refer to the documentation for the
external device.
Installing an optional additional port
► Open the casing (see "XOpening the casingX").
1
2
► Press on the curved part of the retaining
clip (1).
► Remove the rear slot cover plate from the
slot (2).
► Connect the cable of the additional port to the connector on the mainboard.
► Close the casing (see "
A26361-K1006-Z220-1-7619, edition 2 45
Do not dispose of the cover plate. For cooling, protection against fire and in order to
comply with EMC regulations, you must refit the cover plate if you later remove the port.
!
2
1
XClosing the casingX").
► Push the port into the slot (1) as far as it will
go.
► Press the port into the slot until you feel it
engage.
► Press on the retaining clip until it you feel it
engage (2).
System upgrades
Removing an optional port
► Open the casing (see "XOpening the casingX").
► Disconnect the cables connected to the port.
► Press on the curved part of the retaining
1
2
clip (1).
► Remove the port from the slot (2).
► Close the casing (see "XClosing the casingX").
For cooling, protection against fire, and in order to comply with EMC (electromagnetic
compatibility) regulations, you must refit the cover plate.
!
2
1
► Push the rear slot cover plate into the
slot (1). Ensure that the point of the cover
engages on the outside of the casing.
► Press on the retaining clip until it you feel it
engage (2).
46 A26361-K1006-Z220-1-7619, edition 2
System upgrades
Installing and removing drives
The PC casing can accommodate a total of five drives:
● four accessible drives
(two 5 1/4 inch drives and two 3 1/2 inch drives)
● two non-accessible drives
(two 3 1/2 inch drives)
"Accessible drives" are e.g. DVD or CD ROM drives, into which a data carrier can be inserted from
outside. Non-accessible drives are e.g. hard disk drives.
Removing an accessible drive
► Open the casing (see "XOpening the casingX").
2
1
► Pull the data and the power supply connectors from the drive.
► Remove the screw (1).
► Pull the drive out of the casing in the direction of the arrow (2).
► If necessary, make the required settings on the remaining drives.
► If you do not install a new drive, secure a cover (optional) at the location so that no foreign
bodies can enter the casing.
► Close the casing (see "
A26361-K1006-Z220-1-7619, edition 2 47
It may be necessary to modify the entry for the drive in the BIOS Setup.
i
XClosing the casingX").
System upgrades
Installing an accessible drive
► Open the casing (see "XOpening the casingX").
► If you are installing the drive in the upper bay and a cover (optional) is already in place, please
remove it.
or
► If you are installing the drive in the lower bay, break out the pre-stamped metal panel on the
► Adjust the required settings on the drive (also on drives which are already installed, if
Do not throw away the cover. For cooling, protection against fire, and in order to comply
with EMC (electromagnetic compatibility) regulations, you must refit the cover if you
!
remove the drive again later (see "
drive bay opening using a screwdriver.
necessary).
2
XRemoving an accessible driveX").
1
► Slide the accessible drive into the casing as far as the stop (1).
► Plug the data and the power supply connectors into the drive. Make sure the polarity is correct.
► Fasten the screw (2).
► Close the casing (see "
48 A26361-K1006-Z220-1-7619, edition 2
It may be necessary to modify the entry for the drive in the BIOS Setup.
i
XClosing the casingX").
System upgrades
Installing and removing the floppy disk drive
► Open the casing (see "XOpening the casingX").
1
2
► Remove the data and power supply connectors from the floppy disk drive.
► Remove the screws (1) on the right side of the floppy disk drive.
► Slide the floppy disk drive out of the casing in the direction of the arrow (2).
► Slide the new floppy disk drive into the case opposite the direction of the arrow (2).
► Fasten the floppy disk drive with the screws (1).
► Fit the data and power supply connectors to the floppy disk drive. Make sure the polarity is
correct.
► Close the casing (see "
It may be necessary to modify the entry for the drive in the BIOS Setup.
i
XClosing the casingX").
A26361-K1006-Z220-1-7619, edition 2 49
System upgrades
Installing and removing the hard disk drive
Removing a hard disk drive
► Open the casing (see "XOpening the casingX").
► Fold up the drive cage (see "
► Disconnect all cables connected to the drive (data cable, power supply cable).
1
1
XOpening the drive cageX").
2
► Slightly press together the EasyChange rails mounted on the hard disk (1) and pull the hard
disk drive out of the drive cage in the direction of the arrow (2).
50 A26361-K1006-Z220-1-7619, edition 2
It may be necessary to modify the entry for the drive in the BIOS Setup.
i
► Pull the EasyChange rails off the hard disk
drive.
► If you no longer need the EasyChange rails,
secure them again at their location in the
drive cage.
System upgrades
► Fold down the drive cage (see "XClosing the drive cageX").
► Close the casing (see "
XClosing the casingX").
Installing a hard disk drive
► Open the casing (see "XOpening the casingX").
► Fold up the drive cage (see "
EasyChange rails for a second hard disk drive are mounted on the drive cage.
i
XOpening the drive cageX").
► Secure the EasyChange rails on the side of
the hard disk by inserting the upper pins of
the EasyChange rail in the corresponding
holes of the hard disk.
A26361-K1006-Z220-1-7619, edition 2 51
System upgrades
1
► Slide the hard disk drive with the EasyChange rails in the direction of the arrow (1) into the
drive cage. Check that the component side of the hard disk drive faces inwards towards the
casing.
► Connect the cables to the hard disk drive.
► Fold down the drive cage (see "
► Close the casing (see "
XClosing the drive cageX").
XClosing the casingX").
It may be necessary to modify the entry for the drive in the BIOS Setup.
i
52 A26361-K1006-Z220-1-7619, edition 2
System upgrades
Installing USB ports on the rear panel
A slot for USB ports is provided on the rear panel of the casing. As a result, no board slot is occupied
when a second serial port is installed.
1
► Insert a screwdriver into the opening and break out the pre-stamped installation opening by
moving it backwards and forwards.
► Slide the USB ports into the slot and secure them with the screw (1).
► Connect the USB cable to the mainboard – refer to the mainboard manual for details.
A26361-K1006-Z220-1-7619, edition 2 53
System upgrades
Mainboard expansions
Details on how you can upgrade the main memory or the processor of your device are provided in
the manual for the mainboard.
Main memory, upgrading
► Open the casing (see "XOpening the casingX").
► Fold up the drive cage (see "
► Upgrade the memory as it is described in the manual for the mainboard.
► Fold down the drive cage (see "
► Close the casing (see "
Processor, replacing
► Open the casing (see "XOpening the casingX").
► Fold up the drive cage (see "
► Remove the ventilation duct (see "
► Replace the processor as it is described in the manual for the mainboard.
► Install the ventilation duct (see "
► Fold down the drive cage (see "
► Close the casing (see "
XOpening the drive cageX").
XClosing the drive cageX").
XClosing the casingX").
XOpening the drive cageX").
XRemoving ventilation ductX").
XVentilation duct: installingX").
XClosing the drive cageX").
XClosing the casingX").
54 A26361-K1006-Z220-1-7619, edition 2
System upgrades
Replacing the lithium battery
In order to permanently save the system information, a lithium battery is installed to provide the
CMOS-memory with a current. A corresponding error message notifies the user when the charge is
too low or the battery is empty. The lithium battery must then be replaced.
For 0-Watt devices: As an interim solution, the device can be started using the emergency on button
at the rear, see chapter "
devices)
X".
Incorrect replacement of the lithium battery may lead to a risk of explosion!
!
The lithium battery may be replaced only with an identical battery or with a type
recommended by the manufacturer.
Do not throw lithium batteries into the household waste. They must be disposed of in
accordance with local regulations concerning special waste.
Make sure that you observe the correct polarity when replacing the lithium battery. The
plus pole must be on the top!
The lithium battery holder exists in different designs that function in the same way.
XSwitching on a device when the lithium battery is discharged (0-Watt
2
2
1
3
3
► Press the catch in the direction of the arrow (1).
The battery will slightly jump out of the holder.
► Remove the battery (2).
► Push the new lithium battery of the identical type into the holder (3) and press it downward until
it engages.
A26361-K1006-Z220-1-7619, edition 2 55
System upgrades
56 A26361-K1006-Z220-1-7619, edition 2
Technical data
Electrical data
Regulations complied with: IEC 60950-1, EN 60950-1, UL 60950
Protection class: I
Rated voltage range 100 V - 240 V
Frequency: 50 Hz – 60 Hz
Maximum rated current (casing with monitor
socket)
Maximum rated current (monitor socket
(output)):
Dimensions
Width/depth/height: 203 mm/387 mm/390 mm
Weight
In basic configuration: approx. 11 kg
Environmental conditions
Environment class (3K2)
Environment class (2K2)
Temperature
Operating (3K2) 15 °C .... 35 °C
Transport (2K2) –25 °C .... 60 °C
Condensation must be avoided during operation.
Clearance required to ensure adequate ventilation:
Without air vents min. 10 mm
With air vents min. 200 mm
The data sheets of these devices contains further technical data. You will find the data
sheets on the internet at http://ts.fujitsu.com/support.
i
CSA 22.2 No.60950-1
100 V – 127 V / 6.5 A
200 V – 240 V / 3.5 A
100 V – 127 V / 3.0 A
200 V – 240 V / 1.5 A
DIN IEC 721 part 3-3
DIN IEC 721 part 3-2
A26361-K1006-Z220-1-7619, edition 2 57
Technical data
58 A26361-K1006-Z220-1-7619, edition 2
Index
A
Accessible drive
installing 48
removing 47
Alphanumeric keypad 19
Anti-theft protection 22
Audio input 7
Audio output 7
B
Battery 55
BIOS Setup 21
security functions 22
settings 21
System settings 21
Board 31
installing 40
removing 42
C
Cables
connecting 6
disconnecting 7
Casing
closing 33
lead-sealing 22
mechanical lock 21
opening 32
Casing lock 21
installing 34
CD/DVD Drivers&Utilities 4
CD/DVD User Documentation 4
CD-ROM drive
indicator 12
installing 48
removing 47
CD-ROM indicator 12
Chain 22
Closing the drive cage 37
Configuration, BIOS Setup 21
Connecting a PS/2 keyboard 9
Connecting a PS/2 mouse 8
Connecting USB keyboard 9
Connecting USB mouse 8
Contents of delivery 5
Ctrl+Alt+Del 20
Cursor keys 19
D
Data protection 21
Data, technical 57
Date
not correct 30
Device
Anti-theft protection 22
cannot be switched on 26
cannot boot 26
cleaning 3
closing 33
connecting 6
connecting devices 6
indicators 12
lead-sealing 22
locking mechanically 21
opening 32
ports 7
setting up 6
switching off 18
switching on 14, 17
switching on for the first time 14
transporting 3
Device drivers
parallel port 9
serial port 9
Devices
connecting 6, 9, 10
ports 7
Dimensions 57
Disposal 4
Drive
installing 48, 50, 51
removing 47, 50
Drive Cage
opening 36
DVD drive
indicator 12
DVD indicator 12
E
Electrical data 57
EMC, Electromagnetic compatibility 43
Energy saving 4
Environmental conditions 57
Environmental data 57
Ergonomic, video workstation 6
Error
device 26
Error message 30
ESD 31
Expansion 31
Expansions
mainboard 54
A26361-K1006-Z220-1-7619, edition 2 59
Index
External devices
connecting 6, 9, 10
ports 7
F
Fault
mouse 29
Fault
date 30
device 26
mouse 29
screen 27
time 30
FireWire 7
First time switching on 13, 14
First-time setup 5
Flashing power-on indicator 12
Floppy disk drive
indicator 12
removing 47, 49
Function keys 19
G
Guarantee coupon booklet 5
H
Hard disk contents, restoring 30
Hard disk drive
installing 50, 51
removing 50
Hard disk indicator 12
Headphones 7
I
Important notes 3
Indicator
power-on indicator
green 12
orange 12
Indicators, device 12
Installation
new software 30
software 13, 15
Installing an optional additional port 44, 45
Installing: additional serial port 44
Interfaces 7
K
Kensington Lock 22
Key
Alt Gr 20
Control 20
Ctrl 20
cursor keys 19
Enter 19
enter key 19
Num 20
ON/OFF switch 19
Return 19
Shift 20
Key combination 19, 20
Keyboard 19
alphanumeric keypad 19
connecting 9
cursor keys 19
function keys 19
numeric keypad 19
Keyboard port 7, 9
Keys 19
Ctrl key 20
Ctrl+Alt+Del 20
Menu key 20
Shift key 20
Start key 20
L
LAN port 7
Lead-sealing 22
Line in 7
Line out 7
Lithium battery 54
replacing 55
Lock 21
Locking device
removing 34
Low-profile boards 43
mounting slot adapter 43
removing slot adapter 44
M
Main memory 54
Main memory, upgrading 54
Mainboard
extensions 54
Mainboard expansions 54
Manuals, further 30
Microphone port 7
Monitor
cleaning 3
connecting 8
no screen display 27
remains blank 27
switching on 14
transporting 3
Monitor port 7
Mouse
connecting 8
60 A26361-K1006-Z220-1-7619, edition 2
Index
fault 29
Mouse Cursor 29
Mouse port 7
N
New installation, software 30
Noise level 57
Notational conventions 2
Note
boards 31
safety 3
Notes
important 3
Numeric keypad 19
O
ON/OFF switch 19
Optionale Schnittstelle einbauen 44
Other manuals 30
Out of system resources 30
Overview, device 1
P
Packaging 5
Parallel port 7, 9
connecting devices 9
settings 9
Port
SCSI 7
Ports, external devices 7
Power-on indicator 12
not lit up 26
Power-on LED
fails to light 26
Preparing for use 5
Printer 7
Processor 54
replacing 54
Property protection 21
PS/2 mouse port 7, 8
R
Recycling 4
Replacing
lithium battery 55
Replacing, lithium battery 55
Retransportation 3
Security functions
BIOS setup 22
SmartCard 23
SmartLock 23
Security measures 21
Serial port 7, 9
connecting devices 9
settings 9
Setup see BIOS-Setup
Signs and symbols 2
SmartCard reader
operating 23
Software
installing 13, 15
new installation 30
Summer time 30
Surface 57
Switching the device off
devices with main power switch 18
Switching the device on
devices with main power switch 17
System expansion 31
System resources
insufficient 30
System settings, BIOS Setup 21
System unit, see Device
T
Technical data 57
Time
not correct 30
Time, daylight savings 30
Tips 25
Transport 3
Troubleshooting 25
U
Unpacking 5
USB
Universal Serial Bus 7
USB devices
connecting 10
USB port 8, 9
connecting devices 10
USB ports
installing 53
USB-ports
rear panel 53
S
Safety notes 3
SCSI connection 7
Security functions
SmartCard 23
A26361-K1006-Z220-1-7619, edition 2 61
V
Ventilation duct
installing 39
removing 38
Video workstation 6
Index
W
Warm boot 20
Weight 57
