Fujitsu LifeBook

E Series

BIOS Guide

LifeBook E Series Models:

E-6595 E-6575 E-6555

Document Date: 01/29/01

Document Part Number: FPC58-0480-01

FUJITSU PC CORPORATION

E Series BIOS

], [ ].

BIOS SETUP UTILITY

The BIOS Setup Utility is a program that sets up the operating environment for your notebook. Your BIOS is set at the factory for normal operating conditions, therefore there is no need to set or change the BIOS environment to operate your notebook.

The BIOS Setup Utility configures:

■

Device control feature parameters, such as changing I/O addresses and boot devices.

■

System Data Security feature parameters, such as passwords.

Entering the BIOS Setup Utility

To enter the BIOS Setup Utility do the following:

1. Turn on or restart your notebook.

2. Press the [F2] key once the Fujitsu logo appears on the screen. This will open the main menu of the BIOS Setup Utility with the current settings displayed.

3. Press the [RIGHT ARROW] or [LEFT ARROW] key to scroll through the other setup menus to review or alter the current settings.

Navigating Through The Setup Utility

The BIOS setup utility consists of seven menus: Main, Advanced, Security, Power, Boot, Info, and Exit. This document explains each menu in turn, including all submenus and setup items.

The following procedures allow you to navigate the setup utility menus:

1. To select a menu, use the cursor keys:

2. To select a field within a menu or a submenu, use the cursor keys:

3. To select the different values for each field, press the [Spacebar] or [+] to change to the next higher selection and [F5] or [-] to go to the next lower selection.

[ ], [ ].

4. To activate a submenu press the [Enter] key.

5. To return to a menu from a submenu, press the [Esc] key.

E Series BIOS

6. To go to the Exit menu from any other menu, press the [Esc] key.

POINT

Selecting a field causes a help message about that field to be displayed on the right-hand side of the screen.

POINT

Pressing the Enter key with the highlight on a selection that is not a submenu or auto selection will cause a list of all options for that item to be displayed. Pressing the Enter key again will select the highlighted choice.

7. Pressing the [F9] key resets all items in the BIOS to the default values.

8. Pressing the [F10] key saves the current configuration and exits the BIOS Setup Utility. You will be asked to verify this selection before it is executed.

9. Pressing the [F1] key gives you a general help screen.

Entering the Setup Utility After a Configuration Change or System Failure

If there has been a change in the system configuration that does not agree with the parameter settings stored in your BIOS memory, or there is a failure in the system, the system beeps and/or displays an error message after the Power On Self Test (POST). If the failure is not too severe, it will give you the opportunity to modify the settings of the setup utility, as described in the following steps:

1. When you turn on or restart the computer there is a beep and/or the following message appears on the screen:

Error message - please run SETUP program Press <F1> key to continue, <F2> to run SETUP

2. If an error message is displayed on the screen, and you want to continue with the boot process and start the operating system anyway, press the [F1] key.

CAUTION

If your notebook emits a series of beeps that sounds like a code and the display is blank, please refer to the Troubleshooting Section. The Troubleshooting Section includes a list of error messages and their meanings.

POINT

If your data security settings require it, you may be asked for a password before the operating system will be opened.

3. If an error message is displayed on the screen, and you want to enter the setup utility, press the [F2] key.

4. When the setup utility starts with a fault present, the system displays the following message:

Warning! Error message [Continue]

5. Press any key to enter the setup utility. The system will then display the Main Menu with current parameters values.

Main Menu

LifeBook E Series BIOS

MAIN MENU – SETTING STANDARD SYSTEM PARAMETERS

The Main Menu allows you to set or view the current system parameters. Follow the instructions for Navigating Through The Setup Utility to make any changes.

(See Navigating Through The Setup Utility on page 2 for more information.)

The following tables show the names of the menu fields for the Main menu and its submenus, all of the options for each field, the default settings and a description of

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Info Exit

System Time: [14:57:01] System Date: [07/14/2000]

Floppy Disk A: [1.44/1.2 MB 3.5"]

Primary Master [FUJITSUMHM2200AT-(PM)]

▲▲

Secondary Master [MATSHITADVD-ROM SR-8175]

Language: [English (US)]

the field’s function and any special information needed to help understand the field’s use.

POINT

System Time and System Date can also be set from your operating system without using the setup utility. Use the calendar and time icon on your Windows Control panel or type time or date from the MS-DOS prompt.

Item Specific Help

Adjust calendar clock.

<Tab>, <Shift-Tab>, or <Enter> selects field.

F1 Help ESC Exit

Select Item Select Menu

-/Space Change Values Enter Select Sub-Menu

Figure 1. Main Menu

▲

F9 Setup Defaults F10 Save and Exit

Table 1: Fields, Options and Defaults for the Main Menu

Note that the parameters listed in the following table may vary depending upon your system’s configuration.

Menu Field Options Default Description

System Time: –— –— Sets and displays the current time. Time is in a 24 hour format

of hours:minutes:seconds with 2 digits for each. (HH:MM:SS). Example: 16:45:57. You may change each segment of the time separately. Move between the segments with the [Tab] key and/or [Shift] + [Tab] keys.

Main Menu

Table 1: Fields, Options and Defaults for the Main Menu

Note that the parameters listed in the following table may vary depending upon your system’s configuration.

Menu Field Options Default Description

System Date: –— –— Sets and displays the current date. Date is in a month/day/year

numeric format with 2 digits each for month and day and 4 digits for year. (MM/DD/YYYY) for example: 03/20/1998. You may change each segment of the date separately. Move between the segments with the [Tab] key and/or [Shift] + [Tab] keys.

Floppy Disk A:

Primary Master:

Secondary Master

Language:

■

Disabled

■

1.44/1.2 MB

3.5"

■

Selects Primary Master submenu

■

Selects Secondary Master submenu

■

English (US)

■

Japanese (JP)

[1.44/1.25 MB

Sets the format for floppy disk drive A if it is installed.

3.5"]

[Fujitsu MHM2200AT(PM)]

[MATSHITADVDROM SR-8175(SM)]

Display the type of device on this ATA/ATAPI interface, if there is one. Pressing the Enter key selects the Primary Master submenu allowing additional device configuration options for this interface.

Display the type of device on this ATA/ATAPI interface, if there is one. Pressing the Enter key selects the Secondary Master submenu allowing additional device configuration options for this interface

[English (US)] The default setting differs between the US/European and the

Japanese model. Selects the display language for the BIOS.

LifeBook E Series BIOS

Primary Master Submenu of the Main Menu

The Primary Master submenu identifies what ATA devices are installed.

PhoenixBIOS Setup Utility

Main

Primary Master [FUJITSU MHH2064AT-(PM)]

Type: Auto] Maximum Capacity: 20004MB

Multi-Sector Transfers: [16 Sectors] LBA Mode Control: [Enabled] PIO Transfer Mode: [Fast PIO 4]

Item Specific Help

Select ATA/ATAPI drive installed here.

[Auto] The BIOS auto-types the drive on boot time.

DMA Transfer Mode: [Ultra DMA 4]

Except [Auto] You enter parameters of the drive.

[None] The drive is disabled.

F1 Help ESC Exit

Select Item Select Menu

Figure 2. Primary Master Submenu

-/Space Enter

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 2: Fields, Options and Defaults for the Primary Master Submenu of the Main Menu

Menu Field Options Default Description

Typ e:

■

Auto

■

None

■

CD-ROM

■

SuperDisk

■

Hard Disk

[Auto] Selects the ATA/ATAPI device type. Select Auto to have the type

automatically identified by the BIOS at POST. If None is selected, all of the following Set-up items do not appear. Select CD-ROM if a CD-ROM drive is installed at this connection. If Hard Disk is selected, you must specify the number of Cylinders, Heads, and Sectors for the drive.

Cylinders:

Heads:

Sectors:

■

A number between 0 and 65,535

■

A number between 1 and 16

■

A number between 0 and 63

–— This item appears only when Hard Disk is selected as the type. This

–— This item appears only when Hard Disk is selected as type. You can

field is changed by incrementing (pressing the [Spacebar]) or by typing in the number.

change the value by incrementing (pressing the [Spacebar]) or by typing in the number.

Main Menu

Table 2: Fields, Options and Defaults for the Primary Master Submenu of the Main Menu

Menu Field Options Default Description

■

Maximum Capacity:

Multi-Sector Transfers:

Display only –— Displays the maximum capacity of the drive calculated from the

parameters of the hard disk when Auto is selected and the type is identified as hard disk, or User is selected.

■

Disabled

■

2 Sectors

■

4 Sectors

■

8 Sectors

■

16 Sectors

■

32 Sectors

■

64 Sectors

■

128 Sectors

[16 Sectors] This option cannot be changed when Auto is selected. Specify the

number of sectors per block for multiple sector transfer. MAX refers to the size the disk returns when required.

LBA Mode Control:

PIO Transfer Mode:

DMA Transfer Mode:

■

Disabled

■

Enabled

■

Standard

■

Fast PIO 1

■

Fast PIO 2

■

Fast PIO 3

■

Fast PIO 4

■

Disabled

■

Multiword DMA 1

■

Multiword DMA 2

■

Ultra DMA 0

■

Ultra DMA 1

■

Ultra DMA 2

■

Ultra DMA 3

■

Ultra DMA 4

[Enabled] Enables or disables logical Block Addressing in place of Cylinder,

Head, Sector addressing. This option cannot be changed when Auto is selected.

[Fast PI0 4] Selects the method for moving data to/from the drive. Autotype

the drive to select the optimum transfer mode. This option cannot be changed when Auto is selected. Multi-word DMA is automatically set to mode 1 for Fast PIO 1, Fast PIO 2, Fast PIO 3, and set to mode 2 for Fast PIO 4 / DMA.

[Ultra DMA 4] Selects the method for moving data to/from the drive. Autotype

the drive to select the optimum transfer mode. This option cannot be changed when Auto is selected.

LifeBook E Series BIOS

Secondary Master Submenu of the Main Menu

The Secondary Master submenu allows you to configure secondary ATA devices.

PhoenixBIOS Setup Utility

Main

Secondary Master [MATSHITADVD-ROM SR-8175-(SM)]

Type: [Auto]

Item Specific Help

Select ATA/ATAPI drive

installed here. Multi-Sector Transfers: [Disabled] LBA Mode Control: [Disabled] PIO Transfer Mode: [Standard] DMA Transfer Mode: [Disabled]

[Auto]

The BIOS auto-types the

drive on boot time.

Except [Auto]

You enter parameters of

the drive.

[None]

The drive is disabled.

F1 Help ESC Exit

Select Item Select Menu

Figure 3. Secondary Master Submenu

-/Space Enter

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 3: Fields, Options and Defaults for the Secondary Master Submenu of the Main Menu

Menu Field Options Default Description

Typ e:

Multi-Sector Transfers:

■

Auto

■

None

■

CD-ROM

■

SuperDisk

■

Hard Disk

■

Disabled

■

2 Sectors

■

4 Sectors

■

8 Sectors

■

16 Sectors

■

32 Sectors

■

64 Sectors

■

128 Sectors

[Auto] Selects the ATA/ATAPI device type. Select Auto to have the type

automatically identified by the BIOS at POST. If None is selected, all of the following Set-up items do not appear. Select CD-ROM, SuperDisk or Hard Disk for appropriate drive type installed at this connection.

[Disabled] This option cannot be changed when Auto is selected. Specify the

number of sectors per block for multiple sector transfer.

LBA Mode Control:

■

Disabled

■

Enabled

[Disabled] Enables or disables Logical Block Addressing in place of Cylinder,

Head, Sector addressing. This option cannot be changed when Auto is selected.

Main Menu

Table 3: Fields, Options and Defaults for the Secondary Master Submenu of the Main Menu

Menu Field Options Default Description

PIO Transfer Mode:

DMA Transfer Mode:

■

Standard

■

Fast PIO 1

■

Fast PIO 2

■

Fast PIO 3

■

Fast PIO 4

■

Disabled

■

Multiword DMA 1

■

Multiword DMA 2

■

Ultra DMA 0

■

Ultra DMA 1

■

Ultra DMA 2

■

Ultra DMA 3

■

Ultra DMA 4

[Standard] Selects the method for moving data to/from the drive. Autotype

[Disabled] Selects the method for moving data to/from the drive. Autotype

Exiting from Main Menu

When you have finished setting the parameters on this menu, you can either exit from the setup utility, or move to another menu. If you wish to exit from the setup utility, press the [Esc] key or use the cursor keys to go to the Exit menu. If you wish to move to another menu, use the cursor keys.

the drive to select the optimum transfer mode. This option cannot be changed when Auto is selected.

LifeBook E Series BIOS

ADVANCED MENU – SETTING DEVICE FEATURE CONTROLS

The Advanced Menu allows you to:

■

Enable or disable support for Plug & Play operating systems.

■

Set the I/O addresses for the serial and parallel ports.

■

Set the communication mode for the parallel port.

■

Set an audio function I/O address, interrupt level and DMA channel.

■

Select between the display panel and an external CRT display.

■

Enable or disable compensation for your display.

■

Configure PCI devices in your system.

PhoenixBIOS Setup Utility

Main Advanced Security Power Boot Info Exit

Plug & Play O/S: [Yes] Protected Device Configurations: [No]

▲ ▲ ▲ ▲ ▲

Serial/Parallel Port Configurations Keyboard/Mouse Features Video Features Internal Device Configurations PCI Configurations

▲ ▲ ▲

CPU Features USB Features

Event Logging

Follow the instructions for Navigating Through the Setup Utility to make any changes.

(See Navigating Through The Setup Utility on page 2 for more information.)

The following tables show the names of the menu fields for the Advanced Menu and its submenus, all of the options for each field, the default settings and a description of the field’s function and any special information needed to help understand the field’s use.

Item Specific Help

[No] The BIOS configures also non-boot devices. Select if you are using a non-Plug & Play OS or a non-ACPI OS.

[Yes] The BIOS configures only boot devices.

F1 Help ESC Exit

Select Item Select Menu

-/Space Enter

Figure 4. Advanced Menu

Change Values

▲

Select Sub-Menu

Table 4: Fields, Options and Defaults for the Advanced Menu

Menu Field Options Default Description

Plug & Play O/S:

■

Yes

[Yes] Select Yes if you are using a Plug & Play capable operating system.

Select No if you need the BIOS to configure non-boot devices.

F9 Setup Defaults F10 Save and Exit

Table 4: Fields, Options and Defaults for the Advanced Menu

Menu Field Options Default Description

Advanced Menu

Protected Device Configuration:

■

Yes

[No] No: allows Plug & Play operating system to change device

system settings. Yes: prevents a Plug & Play operating system from changing system settings. *ACPI operating system ignores this setting.

Serial/Parallel Port Configurations

–— –— When selected, opens the Serial/Parallel Port Configurations sub-

menu which allows the user to modify settings for serial, infrared and parallel ports.

Keyboard/Mouse Features

–— –— When selected, opens the Keyboard/Mouse Features submenu,

which allows setting external and internal keyboard and mouse parameters.

Video Features –— –— When selected, opens the Video Features submenu, which allows

setting of the display parameters, including routing of video signals to different displays.

Internal Device Configurations

–— –— When selected, opens the Internal Device Configuration submenu,

which allows enabling or disabling the Floppy Disk, IDE, Modem and LAN Controllers.

PCI Configurations –— –— When selected, opens additional menus to configure PCI devices.

CPU Features –— –— When selected, opens the CPU Features submenu to allow you to

USB Features ___ ___ When selected, opens the USB Features submenu to allow you to

change the CPU speed for battery life optimization.

enable or disable the USB Floppy Disk Drive.

Event Logging –— –— When selected, opens the event logging submenu.

LifeBook E Series BIOS

Serial/Parallel Port Configuration Submenu of the Advanced Menu

The Serial/Parallel Port Configuration submenu provides the ability to set the I/O addresses and interrupt levels for the serial, infrared and parallel ports of your notebook.

CAUTION

I/O addresses, DMA channels and Interrupt levels can be entered in various ways, including via the BIOS setup utility, the control software for the I/O device, or the hardware. If any two ports or devices, serial or parallel, have the same I/O address assigned your notebook will not function normally. Please keep a record of original settings before making any changes in the event that a restoration is required. See your hardware and software documentation as well as the setup utility to determine settings, limitations, etc.

PhoenixBIOS Setup Utility

Advanced

POINT

To prevent IRQ and address conflicts, avoid changing the default settings. If you must change the settings, you can call 1-800-8FUJITSU for technical assistance.

CAUTION

The BIOS will warn you of a resource conflict by placing a yellow asterisk next to each device that is in conflict.

POINT

All I/O addresses in Table 5 are in hexadecimal.

Serial/Parallel Port Configurations

Serial port: [Enabled] I/O Address: [3F8 - 3FF] Interrupt: [IRQ 4] Infrared Port: [Enabled] Mode: [FIR] I/O Address: [2E8 - 2EF] Interrupt: [IRQ 3] I/O Address: [400-43F] DMA Channel: [DMA 3] Parallel Port: [Enabled] Mode: [Bi-directional] I/O Address: [378 - 37F] Interrupt: [IRQ 7]

F1 Help ESC Exit

Select Item Select Menu

Figure 5. Serial/Parallel Port Configuration Submenu

-/Space Enter

[Disabled] The port is disabled.

[Enabled] The port is enabled with user configuration.

[Auto] The port is configured depending on 'Plug & Play OS' setting.

Change Values

▲

Select Sub-Menu

Item Specific Help

F9 Setup Defaults F10 Save and Exit

Advanced Menu

Table 5: Fields, Options and Defaults for the Serial/Parallel Port Configuration Submenu of Advanced Menu

Menu Field Options Default Description

Serial Port:

I/O Address:

Interrupt:

Infrared Port:

Mode:

I/O Address:

Interrupt:

I/O address:

■

Disabled

■

Enabled

■

Auto

■

3F8 - 3FF

■

2F8 - 2FF

■

3E8 - 3EF

■

2E8 - 2EF

■

IRQ 3

■

IRQ 4

■

IRQ 10

■

IRQ 11

■

Disabled

■

Enabled

■

Auto

■

IrDA

■

FIR

■

3F8 - 3FF

■

2F8 - 2FF

■

3E8 - 3EF

■

2E8 - 2EF

■

IRQ 3

■

IRQ 4

■

IRQ 10

■

IRQ 11

■

400 - 43F

■

480 - 4BF

■

500 - 53F

■

580 - 5BF

[Enabled] Configures the serial port using either no configuration (Disabled), a user

defined configuration (Enabled), or by allowing the BIOS or OS to choose the configuration (Auto).

[3F8 - 3FF] Allows user to set the serial port base I/O address when serial port is

Enabled.

[IRQ 4] Allows user to set the serial port interrupt when serial port is Enabled.

[Enabled] Configures the infrared port using either no configuration (Disabled), a user

defined configuration (Enabled), or by allowing the BIOS or OS to choose the configuration (Auto).

[FIR] When the infrared port is enabled this option is available allowing

the user to set the mode for the infrared port.

[2E8 - 2EF] Allows user to set the infrared port I/O address when the

infrared port is Enabled.

[IRQ 3] Allows user to set the infrared port interrupt when the infrared

port is Enabled.

[400 - 43F] Allows user to set the infrared port I/O address when the

infrared port is Enabled.

DMA Channel:

Parallel Port:

Mode:

I/O address:

Interrupt:

■

DMA 1

■

DMA 3

■

Disabled

■

Enabled

■

Auto

■

Output Only

■

Bi-directional

■

ECP

■

378 - 37F

■

278 - 27F

■

3BC - 3BF

■

IRQ 5

■

IRQ 7

[DMA 3] Allows user to set the infrared port DMA Channel when the

infrared port is Enabled.

[Enabled] Configures the parallel port using either no configuration (Disabled), a user

defined configuration (Enabled), or by allowing the BIOS or OS to choose the configuration (Auto).

[Bi-directional] When the parallel port is enabled this option is available allowing the user

to set the mode for the parallel port. Bi-directional allows two-way transfer of information between your notebook and a connected parallel device. Output Only (Half Duplex) allows information to be transferred in only one direction, from your notebook to the printer or similar device. ECP Mode allows communication with the ECP class of parallel I/O devices.

[378 - 37F] Allows user to set the parallel port base I/O address when the

parallel port is Enabled.

[IRQ 7] Allows user to set the parallel port interrupt when the parallel

port is Enabled.

LifeBook E Series BIOS

Keyboard/Mouse Features Submenu of the Advanced Menu

The Keyboard/Mouse Features submenu is for setting the parameters of the integrated and external mouse and keyboard.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Exit

Keyboard/Mouse Features

Numlock: Hot Plug: Internal Pointing Device: Infrared Mouse:

F1 Help ESC Exit

Select Item Select Menu

Figure 6. Keyboard/Mouse Features Submenu

[Auto] [Enabled] [Auto Disabled] [Disabled]

-/Space Enter

Change Values Select Sub-Menu

▲

Item Specific Help

Select power-on state for Numlock.

F9 Setup Defaults F10 Save and Exit

Table 6: Fields, Options and Defaults for the Keyboard/Mouse Submenu of the Advanced Menu

Menu Field Options Default Description

Numlock:

■

Auto

■

Off

[Auto] Sets the NumLock function state when the computer

completes booting.

Hot Plug:

Internal Pointing Device:

Infrared Mouse:

■

Disabled

■

Enabled

■

Auto Disabled

■

Manual Setting

■

Always Enabled

■

Always Disabled

■

Disabled

■

Enabled

[Enabled] Enables and disables the ability to plug a mouse or keyboard into

[Auto Disabled] Sets the device controlling the mouse cursor on the screen.

[Disabled] If IR Mouse is enabled, the PS/2 mouse is disabled. If you want to

the PS/2 port and have it immediately recognized and activated.

Always Enabled makes the pointing device always enabled whether there is an external mouse or not. Always Disabled makes the pointing device always disabled. Auto Disabled disables the internal pointing device when an external pointing device is connected to the PS/2 port. Manual Setting allows the device to be enabled or disabled using a Hot Key.

use the internal pointing device with the IR Mouse, you must select Always Enabled in the Internal Pointing Device.

Video Features Submenu of the Advanced Menu

The Video Features Submenu is for setting the display parameters.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Exit

Advanced Menu

Video Features

Display: [Internal Flat Panel]

Item Specific Help

Select display terminal.

Compensation: [Disabled]

Primary Video Adapter: [Auto]

F1 Help ESC Exit

Select Item Select Menu

Figure 7. Video Features Submenu

-/Space Enter

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 7: Fields, Options and Defaults for the Video Features Submenu of the Advanced Menu

Menu Field Options Default Description

Display:

■

Internal Flat Panel

■

External

■

Simultaneous

[Internal Flat-Panel]

Selects where the video signal will be routed.

Compensation:

Primary Video Adapter:

■

Disabled

■

Enabled

■

Auto

■

Internal

[Disabled] Enables or disables compensation which controls spacing on the

display. When enabled, displays with less than pixel resolution 1024 x 768 or 800 x 600 will still cover the entire screen.

[Auto] Auto uses external video on Docking stations if present.

Internal always uses the internal video adapter.

LifeBook E Series BIOS

Internal Device Configurations Submenu of the Advanced Menu

The Internal Device Configuration submenu allows the user to configure other internal devices.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Exit

Internal Device Configurations

Floppy Disk Controller: [Enabled] IDE Controller: [Both] Modem Controller: [Enabled]

Item Specific Help

[Disabled] Floppy disk drive is disabled.

LAN Controller: [Enabled]

[Enabled] Floppy disk drive is enabled.

F1 Help ESC Exit

Select Item Select Menu

Figure 8. Internal Device Configuration Submenu

-/Space Enter

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 8: Fields, Options and Defaults for the Internal Device Configuration Submenu of the Advanced Menu

Menu Field Options Default Description

Floppy Disk Controller:

IDE Controller:

■

Disabled

■

Enabled

■

Disabled

■

Primary

■

Secondary

■

Both

[Enabled] Enables or disables the Floppy Disk Drive.

[Both] Enables or disables selected IDE devices.

Modem Controller

LAN Controller

■

Disabled

■

Enabled

■

Disabled

■

Enabled

[Enabled] Enables or disables Modem controller.

[Enabled] Enable or disables the LAN controller.

PCI Configuration Submenu of the Advanced Menu

The PCI Configuration submenu allows the user to reserve specific interrupts (IRQs) for legacy ISA devices, and to enable or disable built in PCI device modules.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Exit

Advanced Menu

POINT

The BIOS setting for your communication device is variable depending on your LifeBook E Series Built-to-order configuration.

Item Specific Help

Reserve specific IRQs

▲

IRQ Reservation

PCI Configurations

for use by legacy ISA devices.

F1 Help ESC Exit

Select Item Select Menu

Figure 9. PCI Configuration Submenu

-/Space Enter

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 9: Fields, Options and Defaults for the PCI Configuration Submenu of the Advanced Menu

Menu Field Options Default Description

IRQ Reservation –— –— Reserve specific IRQs for use by legacy ISA devices.

LifeBook E Series BIOS

IRQ Reservation Submenu of the PCI Configuration Submenu

The IRQ Reservation submenu of the PCI Configuration submenu allows the user to mark various IRQs as reserved for use by legacy ISA devices. When an IRQ is reserved, the BIOS does not use it for embedded PCI or

ISA devices.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Exit

CAUTION

Only IRQ’s 9, 10, & 11 can be reserved without conflict.

IRQ Reservation

IRQ 3: [Available] IRQ 4: [Available] IRQ 5: [Available]

Item Specific Help

Reserve the specified IRQ for use by legacy ISA devices.

IRQ 7: [Available] IRQ 9: [Available] IRQ 10: [Available] IRQ 11: [Available]

F1 Help ESC Exit

Select Item Select Menu

Figure 10. IRQ Reservation Submenu

-/Space Enter

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 10: Fields, Options and Defaults for the IRQ Reservation Submenu of the PCI Configuration Submenu of the Advanced Menu

Menu Field Options Default Description

IRQ 3:

■

Available

■

Reserved

[Available] Reserves IRQ 3. If Reserved is selected, the BIOS reserves IRQ 3 for

use by legacy ISA devices and does not use it for embedded PCI or ISA devices. IRQ 3 is removed from the IRQ bitmap in the PCI IRQ routing table.

IRQ 4:

IRQ 5:

IRQ 7:

■

Available

■

Reserved

■

Available

■

Reserved

■

Available

■

Reserved

[Available] Reserves IRQ 4.

[Available] Reserves IRQ 5.

[Available] Reserves IRQ 7.

Advanced Menu

Table 10: Fields, Options and Defaults for the IRQ Reservation Submenu of the PCI Configuration Submenu of the Advanced Menu

Menu Field Options Default Description

IRQ 9:

IRQ 10:

IRQ 11:

■

Available

■

Reserved

■

Available

■

Reserved

■

Available

■

Reserved

[Available] Reserves IRQ 9.

[Available] Reserves IRQ 10.

[Available] Reserves IRQ 11.

LifeBook E Series BIOS

CPU Features Submenu of the Advanced Menu

The CPU Features Submenu provides options for configuring the CPU.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Exit

CPU Features

Item Specific Help

Configures Processor

Processor Serial Number: Intel(R) SpeedStep(TM) Technology: [Auto]

[Disabled]

Serial Number feature of Pentium(R) III processor.

[Disabled] Processor Serial Number feature is disabled.

[Enabled] Processor Serial Number feature is enabled.

F1 Help ESC Exit

Select Item Select Menu

Figure 11. CPU Features Submenu

-/Space Enter

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 11: Fields, Options and Defaults for the CPU Features Submenu of the Advanced Menu

Menu Field Options Default Description

Processor Serial Number:

Intel(R) SpeedStep(TM) Technology:

■

Enabled

■

Disabled

■

Auto

■

Max. Perf.

■

Batt. Opt.

■

Disabled

[Disabled] Enables or disables the Pentium III processor Serial Number feature.

[Auto] When Auto is selected, the CPU speed changes based upon the

power source change. When Max. Perf. is selected, the CPU speed is maximized. When Batt. Opt. is selected, the CPU speed is optimized for battery operation. When Disabled is selected, the CPU speed is fixed to the Batt. Opt. speed.

USB Features Submenu of the Advanced Menu

The USB Features Submenu provides options for enabling or disabling the USB Floppy Disk Drive.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Exit

Advanced Menu

USB Features

USB Floppy Disk:

[Disabled]

Item Specific Help

[Disabled] Legacy Floppy Emulation is disabled.

[Enabled] Legacy Floppy Emulation is enabled and USB floppy is available without USB aware OS.

F1 Help ESC Exit

Select Item Select Menu

Figure 12. USB Features Submenu

-/Space Enter

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 12: Fields, Options and Defaults for the USB Features Submenu of the Advanced Menu

Menu Field Options Default Description

USB Floppy Disk:

■

Disabled

■

Enabled

[Disabled] Enables or disables Legacy Floppy Emulation. When Enabled is

selected, the USB floppy disk is available without a USB-aware operating system.

LifeBook E Series BIOS

Event Logging Submenu of the Advanced Menu

The Event Logging Submenu configures event logging features for DMI events.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Exit

Security Menu

Event Logging

Event Log Capacity: Space Available Event Log Validity: Valid

Item Specific Help

Press <Enter> key to view the contents of the event log.

View Event Log: [Enter]

Event Logging: [Enabled] System Boot Event: [Disabled]

Clear All Event Logs: [No]

Mark Events as Read: [Enter]

F1 Help ESC Exit

Select Item Select Menu

Figure 13. Event Logging Submenu

-/Space Enter

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 13: Fields, Options and Defaults for the Event Logging Submenu of the Advanced Menu

Menu Field Options Default Description

Event Log Capacity:

Space Available Display only

Event Log Validity: Valid Display only

View Event Log:

Event Logging:

System Boot Event:

Clear All Event Logs:

Mark Events as Read:

■

Enter [Enter] Allows you to view content of event log

■

Disabled

■

Enabled

■

Disabled

■

Enabled

■

Yes

■

Enter [Enter] Allows you to mark all events currently in the event log as having

[Enabled] Turns event logging on and off for all DMI events.

[Disabled] Turns event logging on and off for DMI system boot events.

[No] When set to [Yes] all event logs will be cleared at next boot.

been read.

SECURITY MENU – SETTING THE SECURITY FEATURES

The Security menu allows you to set up the data security features of your notebook to fit your operating needs and to view the current data security configuration. Follow the instructions for Navigating Through the Setup Utility to make any changes.

(See Navigating Through The Setup Utility on page 2 for more information.)

The following tables show the names of the menu fields for the Security menu and its submenus, all of the options for each field, the default settings and a description of the field’s function and any special information needed to help understand the field’s use. The default condition is no passwords required and no write protection.

POINT

If you set a password, write it down and keep it in a safe place. If you forget the password you will have to contact your support representative to regain access to your secured functions and data.

CAUTION

Entering a password incorrectly 3 times in a row will cause the keyboard and mouse to be locked out and the warning happens restart the computer by turning off and on the power with the power switch and use the correct password on reboot.

[System Disabled] to be displayed. If this

POINT

If you make an error when re-entering the password

[Warning] will be displayed on the screen. To try

a again press the Enter key and then retype the password. Press the Esc key to abort the password setting process.

CAUTION

If the Power Management Security is Enabled and the Password on Boot is Disabled you will not have to type your password upon resuming the system from the Suspend or Save-to-Disk modes. Power Management Security will work only if Password boot is enabled.

POINT

Boot sector protection must be set to [Normal] to install or upgrade an operating system.

LifeBook E Series BIOS

Main Advanced Security Power Boot Info Exit

Security Menu

PhoenixBIOS Setup Utility

Supervisor Password Is: Clear User Password Is: Clear

Set Supervisor Password [Enter] Set User Password [Enter] Minimum User Password Length: [0]

Password on Boot: [Disabled] Password on Unattended Boot: [Disabled] Password on Resume: [Disabled] Boot from Removable Media: [All]

▲ ▲

Floppy Disk Access: [All] Hard Disk Security Owner Information

Hard Disk Boot Sector [Normal] Security Panel on Resume [Enabled]

F1 Help ESC Exit

Select Item Select Menu

-/Space Enter

Figure 14. Security Menu

Change Values

▲

Select Sub-Menu

Table 14: Fields, Options and Defaults for the Security Menu

Menu Field Options Default Description

Supervisor Password is:

–— Clear A display-only field. Set is displayed when the system supervisor

password is set and Clear when it is not.

Item Specific Help

Press <Enter> key to set Supervisor Password to enable any password features.

Then password entry is required to enter BIOS Setup.

F9 Setup Defaults F10 Save and Exit

User Password is: –— Clear A display-only field. Set is displayed when the general user

Set Supervisor Password

Set User Password –— [Enter] This field can only be accessed if the Supervisor Password is set.

–— [Enter] Sets, changes or cancels the Supervisor Password. The Supervisor

password is set, and Clear when it is not.

Password may be up to seven characters long and must include only letters or numbers (no symbols). Passwords are NOT casesensitive. To cancel a password press the Enter key instead of entering characters in the Enter New Password field and in the Re-enter New Password field. When a Supervisor Password is set it must be used to access the BIOS setup utility.

Sets, changes or cancels the User Password. The User Password may be up to seven characters long and must include only letters or numbers (no symbols). Passwords are NOT case-sensitive. To cancel a password press the Enter key instead of entering characters in the Enter New Password field and in the Re-enter New Password field. When a User Password is set it must be used to access the BIOS setup utility.

Table 14: Fields, Options and Defaults for the Security Menu

Menu Field Options Default Description

Minimum User

–— [0]

Password Length:

Password on Boot:

■

Disabled

■

First Boot

■

Every Boot

[Disabled] When set to First Boot, a password (User or Supervisor) is required

just once after the Power On Self Test (POST) before the operating system will be read from a disk. When set to Every Boot, a password (User or Supervisor) is required every time after the Power On Self Test (POST) before the operating system will be read from a disk. When set to Disabled no password is required.

Password on Unattended Boot

Password on Resume:

■

Disabled

■

Enabled

■

Disabled

■

Enabled

[Disabled] When Enabled, a PS/2 keyboard and mouse are locked out when

an unattended boot occurs via LAN until a password is entered.

[Disabled] When set to Enabled, a password (User or Supervisor) is required

before the operating system will resume. When set to Disabled no password is required. If no Supervisor Password is set this feature is not available and no password is required.

Boot from Removable Media:

Floppy Disk Access:

■

All

■

Supervisor only

■

All

■

Supervisor only

[All] Enable password allows supervisor access only.

Hard Disk Security: –— –— Configures hard disk security features

Owner

–— –— Sets Owner information.

Information:

Hard Disk Boot Sector:

Security Panel on Resume

■

Normal

■

Write Protected

■

Disabled

■

Enabled

[Normal] Sets protection mode for hard disk drive.

Enabled Enables or disables the Security Panel feature upon Resume from

Suspend.

Exiting from the Security Menu

When you have finished setting the parameters on the Security Menu, you can either exit from setup utility or move to another menu. If you wish to exit from setup utility, press the Esc key to go to the Exit Menu. If you wish to move to another menu, use the cursor keys.

LifeBook E Series BIOS

Hard Disk Security Submenu of the Security Menu

The Hard Disk Security Submenu is for configuring hard disk security features.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Exit

Power Menu

Hard Disk Security

Item Specific Help

Primary Master Password Is: Clear Secondary Master Password Is: Clear

Set Primary Master Password [Enabled] Set Secondary Master Passwordz: [Enabled]

F1 Help ESC Exit

Select Item Select Menu

Figure 15. Hard Disk Security Submenu

-/Space Enter

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 15: Fields, Options and Defaults for the Hard Disk Security Submenu of the Security Menu

Menu Field Options Default Description

Primary Master Password Is:

___

Clear Display-only. Default is Clear. When the Primary Master Password has been set,

the field changes to Set. When this password is set, the primary hard disk drive cannot be used in another system unless the password is entered.

Secondary Master Password Is:

Set Primary Master Password:

Set Secondary Master Password:

___

Clear Display-only. Default is Clear. When Secondary Master Password has been set, the

[Enter] Sets, changes or cancels the Primary Master Password. The Primary Master Pass-

[Enter] Sets, changes or cancels the Secondary Master Password. The Secondary Master

field changes to Set. When this password is set, the secondary (modular) hard disk drive cannot be used in another system unless the password is entered.

word may be up to seven characters long and must include only letters or numbers (no symbols). Passwords are NOT case- sensitive. When a Primary Master Password is set, it must be used to access the primary hard drive if it is used in another system. Note that the password will not take effect until the system has been rebooted.

Password may be up to seven characters long and must include only letters or numbers (no symbols). Passwords are NOT case- sensitive. When a Secondary Master Password is set, it must be used to access the modular (secondary) hard drive if it is used in another system. Note that the password will not take effect until the system has been rebooted.

Owner Information Submenu of the Security Menu

The Owner Information Submenu is for setting owner information.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Exit

Owner Information

Owner Information Is: Clear

Item Specific Help

Press <Enter> key to set owner information.

Set Owner Information [Enter]

Up to 80 characters can

be set. Available Foreground Color: [Gray] Background Color: [Black]

characters are ASCII

codes from 32 through

126.

The owner information

is always displayed at

the bottom line of the

screen during POST.

F1 Help ESC Exit

Select Item Select Menu

-/Space Enter

Figure 16. Owner Information Submenu

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 16: Fields, Options and Defaults for the Owner Information Submenu of the Security Menu

Menu Field Options Default Description

Owner Information Is: –— Clear Display only.

Set Owner Information: –— [Enter] Field to write owner information i.e. name.

Foreground Color:

■

Black

■

Blue

■

Green

■

Cyan

■

Red

■

Magenta

■

Brown

■

White

■

Gray

■

Light Blue

■

Light Green

■

Light Cyan

■

Light Red

■

Light Magenta

■

Yellow

■

Bright White

[Gray] Set foreground color.

LifeBook E Series BIOS

Power Menu

Table 16: Fields, Options and Defaults for the Owner Information Submenu of the Security Menu

Menu Field Options Default Description

Background Color:

■

Black

■

Blue

■

Green

■

Cyan

■

Red

■

Magenta

■

Brown

■

White

■

Gray

■

Light Blue

■

Light Green

■

Light Cyan

■

Light Red

■

Light Magenta

■

Yellow

■

Bright White

[Black] Set background color.

POWER MENU – SETTING POWER MANAGEMENT FEATURES

The Power menu allows you to set and change the power management parameters. Follow the instructions for Navigating Through the Setup Utility to make any changes. (See Navigating Through The Setup Utility on

page 2 for more information.)

The following tables show the names of the menu fields for the Power menu and its submenus, all of the options for each field, the default settings and a description of the field’s function and any special information needed to help understand the field’s use.

POINT

In Windows 98 Auto-suspend Timeout, Hard Disk Timeout, and Video Timeout features are available exclusively through the operating system.

POINT

When resuming from a Save-to-Disk suspension there will be a delay while the contents of system memory and operating parameters are loaded from the hard drive.

CAUTION

In Save-to-Disk mode there is no indication on the Status Indicator to let you know you are suspended rather than shut off from the power switch. You may want to make a habit of always trying the Suspend/ Resume button before using the power switch.

CAUTION

Resume on Modem ring when enabled will draw power from the bridge battery alone when your system is running off battery power. this may potentially drain your bridge battery. Disabling Resume on Modem ring will prevent this from happening.

LifeBook E Series BIOS

Main Advanced Security Power Boot Info Exit

Power Menu

PhoenixBIOS Setup Utility

Power Savings: [Customized] Hard Disk Timeout: [Off] Standby Timeout: [4 Minutes] Auto Suspend Timeout: [15 Minutes]

Suspend Mode: [Suspend] Auto Save To Disk: [Off]

Resume On Modem Ring: [Off] Resume On Time: [Off] Resume Time: [00:00:00]

Advanced Features

▲

F1 Help ESC Exit

Select Item Select Menu

-/Space Enter

Figure 17. Power Menu

Change Values

▲

Select Sub-Menu

Table 17: Fields, Options and Defaults for the Power Menu

Menu field Options Default Description

Power Savings:

■

Disabled

■

Customized

■

Maximum Power Savings

■

Maximum Performance

[Customized] Sets the power savings parameters to a factory installed

combination of parameters, a custom set of parameters set by you or no power saving features.

Item Specific Help

Select Power Management Mode. Choosing modes changes system power management settings. Maximum Power Savings conserves the greatest amount of system power while Maximum Performance conserves power but allows greatest system performance. To alter these setting, choose Customize. To turn off power management, choose Disabled.

F9 Setup Defaults F10 Save and Exit

Hard Disk Timeout:

Standby Timeout:

Auto Suspend Timeout:

■

Off

■

30 seconds to 20 Minutes

■

Off

■

1 to 16 Minutes

■

Off

■

5 to 60 minutes

[Off] Sets the length of time that the hard drive can be inactive before

[4 Minutes] Sets the length of time without any user input device activity

[15 Minutes] Sets the length of time without any I/O activity before your note-

your notebook automatically turns off the power to the hard drive controller and drive motor. If you choose a factory installed combination of parameters this field will display the setting. If you choose to customize the parameters you will be able to set this yourself. The options available vary from Off, which has no inactivity shutoff, to 20 minutes.

before the CPU is set to half speed and the display and the hard drive are turned off. If you choose a factory combination of parameters this field will display the setting. If you choose to customize the parameters you will be able to set this yourself.

book goes into Suspend mode. If you choose a factory combination of parameters this field will display that setting. If you choose to customize the parameters you will be able to set this yourself. Off has no inactivity suspension.

Table 17: Fields, Options and Defaults for the Power Menu

Menu field Options Default Description

Suspend Mode:

■

Suspend

■

Save to Disk

[Suspend] Sets the form of suspension state. If you choose Suspend, you will

suspend operation with power to system memory, and everything else powered down or in a very low power state. If you choose Save-to-Disk your notebook will save all of system memory and the operating parameters to the hard drive before turning your notebook to the pseudo-off condition.

Auto Save to Disk:

Resume On Modem Ring:

■

Off

■

After 1 Hour

■

Off

■

[Off] When set to

After 1 Hour your notebook will automatically

save all of system memory and the operating parameters to the hard drive and go to the pseudo-off if you leave your notebook in Suspend mode for an hour.

[Off] Sets whether or not to Resume from a suspension state when a

message is received by telephone line. This feature will not operate if the Save-to-Disk mode is enabled. This feature applies to internal and external modems.

■

Resume On Time:

Off

■

Resume Time: –— [00:00:00] Sets the designated time, on a 24-hour clock, when the notebook

[Off] Sets whether or not to resume from a suspension state at a

designated time. This feature is available from either the Suspend mode or the Save-to-Disk mode.

is to automatically resume operation from the Suspend state. The format of the clock setting is hours:minutes:seconds. Each segment of the time is set separately, either by incrementing or by typing in the numbers. You move between the segments with the [Tab] key or the [Shift]+[Tab] keys. This only applies when Resume on Time is set to On.

Advanced Features:

–— –— When selected, opens the Advanced Features submenu which

allows setting additional power saving parameters.

Factory Installed Values for Power Saving Profiles

Hard Disk Timeout Standby Timeout Auto Suspend Timeout

Customized: Off 4 Minutes 15 Minutes

Maximum Power Savings: 30 Seconds 1 Minute 5 Minutes

Maximum Performance: Off Off 15 Minutes

Disabled: Off Off Off

Sample Customized Profile: (To get even better battery life keep the display and volume settings as low as possible and use the sample customized profile.)

2 Minutes 1 Minute 5 Minutes

LifeBook E Series BIOS

Advanced Features Submenu of the Power Menu

The Advanced Features submenu is for setting some non-time related power saving parameters.

PhoenixBIOS Setup Utility

Power

Boot Menu

Advanced Features

Suspend/Resume Switch: [Enabled] Lid Closure Suspend: [On]

Item Specific Help

Configures the

Suspend/Resume switch. Lid Open Resume: [On] Resume On LAN: [Off]

Auto Suspend on Undock: [Disabled]

F1 Help ESC Exit

Select Item Select Menu

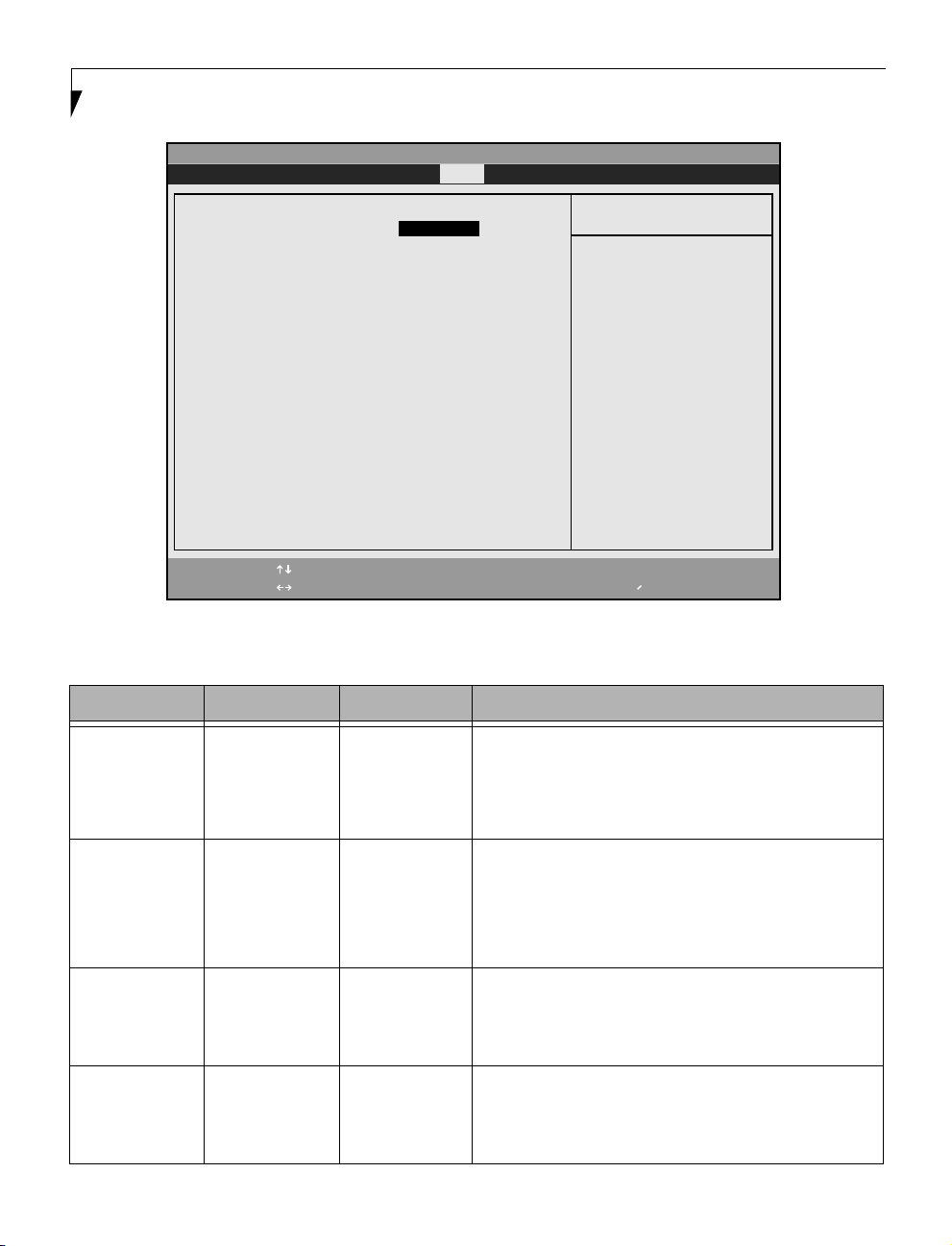

Figure 18. Advance Features Submenu

-/Space Enter

Change Values

▲

Select Sub-Menu

F9 Setup Defaults F10 Save and Exit

Table 18: Fields, Options and Defaults for the Advanced Features Submenu of the Power Menu

Menu Field Options Default Description

Suspend/Resume Switch:

■

Disabled

■

Enabled

[Enabled] Sets the function of the Suspend/Resume button when your

notebook is in an active state. The resume function can not be disabled as it works regardless of any other settings.

Lid Closure Suspend:

Lid Open Resume:

Resume On LAN:

Auto Suspend on Undock:

■

Off

■

Off

■

Off

■

Disabled

■

Auto

■

Always Enabled

[On] Enables and disables having closure of the Display panel put your

notebook in Suspend mode.

[On] Enables or disables the system resuming automatically when the lid

is opened.

[Off] Enables and disables having LAN activity cause the system to

reactivate from inactivity timeouts.

[Disabled] When set to disable, your notebook will not automatically enter

Suspend mode when ejected from a docking station. When set to Auto, your notebook will automatically enter Suspend mode if your lid is closed when ejected. When set to Always Enabled, your notebook will automatically enter Suspend mode when ejecting from a docking station.

Exiting from Power Menu

When you have finished setting the boot parameters with the Power menu, you can either exit from the setup utility or move to another menu. If you wish to exit from the setup utility press the Esc key to go to the Exit menu. If you wish to move to another menu, use the cursor keys.

LifeBook E Series BIOS

Info Menu

BOOT MENU – SELECTING THE OPERATING SYSTEM SOURCE

The Boot Menu is used to select the order in which the BIOS searches sources for the operating system. Follow the instructions for Navigating Through the Setup Utility to make any changes. (See Navigating Through

The Setup Utility on page 2 for more information.)

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Boot

Quick Boot: Boot Time Diagnostic Screen: [Disabled]

Preboot Execution Envionment: [Disabled]

▲

Boot Device Priority

The following tables show the names of the menu fields for the Boot menu and its submenu, all of the options for each field, the default settings and a description of the field’s function and any special information needed to help understand the field’s use.

[Enabled]

Item Specific Help

[Disabled] All diagnostic tests will be done.

[Enabled] Some diagnostic tests may be skipped while booting to speed up.

[Auto] Diagnostic tests will be automatically skipped or done according to the order of the ACPI OS.

F1 Help ESC Exit

Select Item Select Menu

-/Space Enter

Change Values

▲

Select Sub-Menu

Figure 19. Boot Menu

Table 19: Fields, Options and Defaults for the Boot Menu

Menu Field Options Default Description

QuickBoot Mode:

Boot-time Diagnostic Screen:

Preboot Execution Environment:

Boot Device Priority

■

Disabled

■

Enabled

■

Auto

■

Disabled

■

Enabled

■

Disabled

■

Enabled

[Enabled] Turns on and off booting with a truncated set of Power On Self

[Disabled] Turns on and off display of test results instead of Fujitsu logo screen

[Disabled] Turns on and off the preboot execution environment feature.

— This menu allows setting up the source for the operating system.

Test. (Fewer tests mean faster turn on.)

during Power On Self Test.

See “The Boot Device Priority Submenu” in the following section.

F9 Setup Defaults F10 Save and Exit

Boot Device Priority Submenu of the Boot Menu

The Boot Device Priority Submenu is for setting the order of checking of sources for the operating system.

CAUTION

Be careful of the operating environment when booting from a CD-ROM or you may overwrite files by mistake.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Boot

CAUTION

A bootable CD-ROM may have either a floppy disk format or a hard drive format. When the bootable CDROM is used, the drive allocations change automatically without changing the BIOS setup. If a floppy disk format CD-ROM is used, the CD-ROM becomes Drive A. The CD-ROM will only take drive C: (hard drive format) if the internal hard drive is not present or is disabled. The bootable CD-ROM can never use a C: designation if a formatted internal hard drive is present since the C: designator is always reserved for the internal hard drive.The boot sequence ignores the new drive designations, however, your application software will use the new designations.

Boot Device Priority

+Floppy Disk Drive +Hard Disk Drive ATAPI CD-ROM Drive

F1 Help ESC Exit

Select Item Select Menu

-/Space Enter

Figure 20. Boot Device Priority Submenu

Change Values

▲

Select Sub-Menu

Item Specific Help

The top device has the highest priority.

<Enter> expands or collapses devices with a + or -. <Ctrl+Enter> expands all. < > or < > selects a device. <+>/<Space> or <-> moves the device up or down. <Shift+1> enables or disables a device.

➞

F9 Setup Defaults F10 Save and Exit

LifeBook E Series BIOS

Info Menu

Table 20: Fields, Options and Defaults for the Boot Device Priority Submenu of the Boot Menu

Menu Field Options Default Description

+Floppy Disk Drive –— –— The boot selections determine the order in which the BIOS searches

+Hard Disk Drive –— –— –—

ATAPI CD-ROM Drive

–— –— –—

for the operating system during a startup sequence. To change the order highlight one source by using the [up] or [down] cursor keys and then press the [+] or [-] key to change the order number for that source. Be sure to save your changed order when you exit the BIOS setup utility.

Exiting from Boot Menu

When you have finished setting the boot parameters with the Boot menu, you can either exit from the setup utility or move to another menu. If you wish to exit from the setup utility press the Esc key to go to the Exit menu. If you wish to move to another menu, use the cursor keys.

INFO MENU - DISPLAYS BASIC SYSTEM INFORMATION

The Info menu is a display only screens that provides the configuration information for your notebook.

The following table shows the names of the menu fields for the Info menu and the information displayed in those fields. These fields are for information purposes only, and cannot be modified by the user (except for the

Asset Number as in the Point below).

POINT

The asset number is an optional user-entered field and can be entered through the use of third party DMI Compliant software, such as LANdesk Client Manager.

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Boot Info

BIOS Version: 1.09 BIOS Date: 12/18/2000 BIOS Area: E400h - FFFFh

CPU Type: Pentium(R)III processor CPU Speed: 850 MHz L1 Cache: 32 KB L2 Cache: 256 KB

POINT

The information, including CPU type and speed, and total memory, displayed on this screen varies according to the unit you purchased.

Item Specific Help

Total Memory: 128 MB Memory Slot 1: 128 MB SDRAM Memory Slot 2: None

F1 Help ESC Exit

Select Item Select Menu

-/Space Change Values Enter Select Sub-Menu

Figure 21. Info Menu

▲

F9 Setup Defaults F10 Save and Exit

LifeBook E Series BIOS

Table 21: Fields, Options and Defaults for the Info Menu

Note that the parameters listed in the following table may be different, depending upon the configuration of your system.

Menu Field Options Default

BIOS Version: –— 1.09 –—

BIOS Date: –— 12/18/2000 –—

BIOS Area: –— E400h – FFFFh –—

CPU Type: –— Pentium(R) III

CPU Speed: –— 850 MHz –—

L1 Cache: –— 32 KB –—

L2 Cache: –— 256 KB –—

Tota l M e m ory: –— 128 MB –—

Memory Slot 1: –— 128 MB SDRAM –—

Memory Slot 2: –— None –—

processor

–—

EXIT MENU – LEAVING THE SETUP UTILITY

The Exit Menu is used to leave the setup utility. Follow the instructions for Navigating Through the Setup Utility to make any changes. (See Navigating Through

The Setup Utility on page 2 for more information.)

PhoenixBIOS Setup Utility

Main Advanced Security Power Savings Boot Exit

Exit Saving Changes Exit Discarding Changes Load Setup Defaults Discard Changes Save Changes

F1 Help ESC Exit

Select Item Select Menu

-/Space Change Values Enter Select Sub-Menu

The following table shows the names of the menu fields for the Exit menu, the default settings and a description of the field’s function and any special information needed to help understand the field’s use.

Item Specific Help

Exit System Setup and save your changes to CMOS.

▲

F9 Setup Defaults F10 Save and Exit

Figure 22. Exit Menu

Table 22: Fields, Options and Defaults for the Exit Menu

Menu Field Options Default Description

Exit Saving Changes

Exit Discarding Changes

Load Setup Defaults

–— –— Exit Saving Changes and Exit will store all the entries on every

–— –— Selecting Exit Discarding Changes and Exit will exit the setup

–— –— Selecting Load Setup Defaults will load the factory preset default

menu of the setup utility to the BIOS memory and then exit the setup utility. A confirmation message

changes and exit now? [Yes] [No]

utility with out writing to the BIOS memory. When the BIOS recognizes this selection it will load the operating system and begin operation.

values for all menu fields, then display the message

default configuration now? [Yes] [No].

firmed the setup utility will return to the Exit Menu. To return to another menu follow the directions in the Navigating Through the Setup Utility Section.

Save Configuration

will be displayed.

Load

When con-

LifeBook E Series BIOS

Table 22: Fields, Options and Defaults for the Exit Menu

Menu Field Options Default Description

Discard Changes –— –— Selecting Discard Changes will load the previous values in BIOS

Save Changes –— –— Selecting Save Changes will cause the new settings in all menus to

memory for all menu fields. The message

[Yes] [No]

will return to the Exit menu. To return to another menu, follow the directions in the Navigating Through the Setup Utility Section.

be written to the BIOS memory. The message

tion changes now? [Yes] [No]

confirmed, the setup utility will return to the Exit menu. To return to another menu, follow the directions in the Navigating Through the Setup Utility section.

will be displayed. When confirmed the setup utility

Load previous now?

Save configura-

will be displayed. When

Fujitsu E-6575, E-6555 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

BIOS SETUP UTILITY

Entering the BIOS Setup Utility

Navigating Through The Setup Utility

Entering the Setup Utility After a Configuration Change or System Failure

MAIN MENU – SETTING STANDARD SYSTEM PARAMETERS

Primary Master Submenu of the Main Menu

Secondary Master Submenu of the Main Menu

ADVANCED MENU – SETTING DEVICE FEATURE CONTROLS

Serial/Parallel Port Configuration Submenu of the Advanced Menu

Keyboard/Mouse Features Submenu of the Advanced Menu

Video Features Submenu of the Advanced Menu

Internal Device Configurations Submenu of the Advanced Menu

PCI Configuration Submenu of the Advanced Menu

IRQ Reservation Submenu of the PCI Configuration Submenu

CPU Features Submenu of the Advanced Menu

USB Features Submenu of the Advanced Menu

Event Logging Submenu of the Advanced Menu

SECURITY MENU – SETTING THE SECURITY FEATURES

Exiting from the Security Menu

Hard Disk Security Submenu of the Security Menu

Owner Information Submenu of the Security Menu

POWER MENU – SETTING POWER MANAGEMENT FEATURES

Advanced Features Submenu of the Power Menu

BOOT MENU – SELECTING THE OPERATING SYSTEM SOURCE

Boot Device Priority Submenu of the Boot Menu

INFO MENU - DISPLAYS BASIC SYSTEM INFORMATION

EXIT MENU – LEAVING THE SETUP UTILITY
