FUJITSU E19-2 User Manual

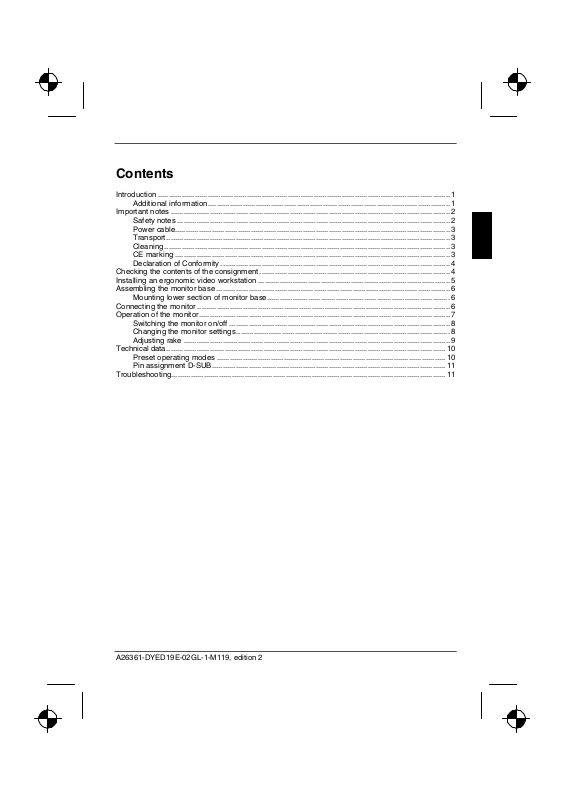

Contents

Introduction .......................................................................................................................................1

Additional information................................................................................................................1

Important notes................................................................................................................................. 2

Safety notes.............................................................................................................................. 2

Power cable............................................................................................................................... 3

Transport................................................................................................................................... 3

Cleaning.................................................................................................................................... 3

CE marking ...............................................................................................................................3

Declaration of Conformity.......................................................................................................... 4

Checking the contents of the consignment........................................................................................4

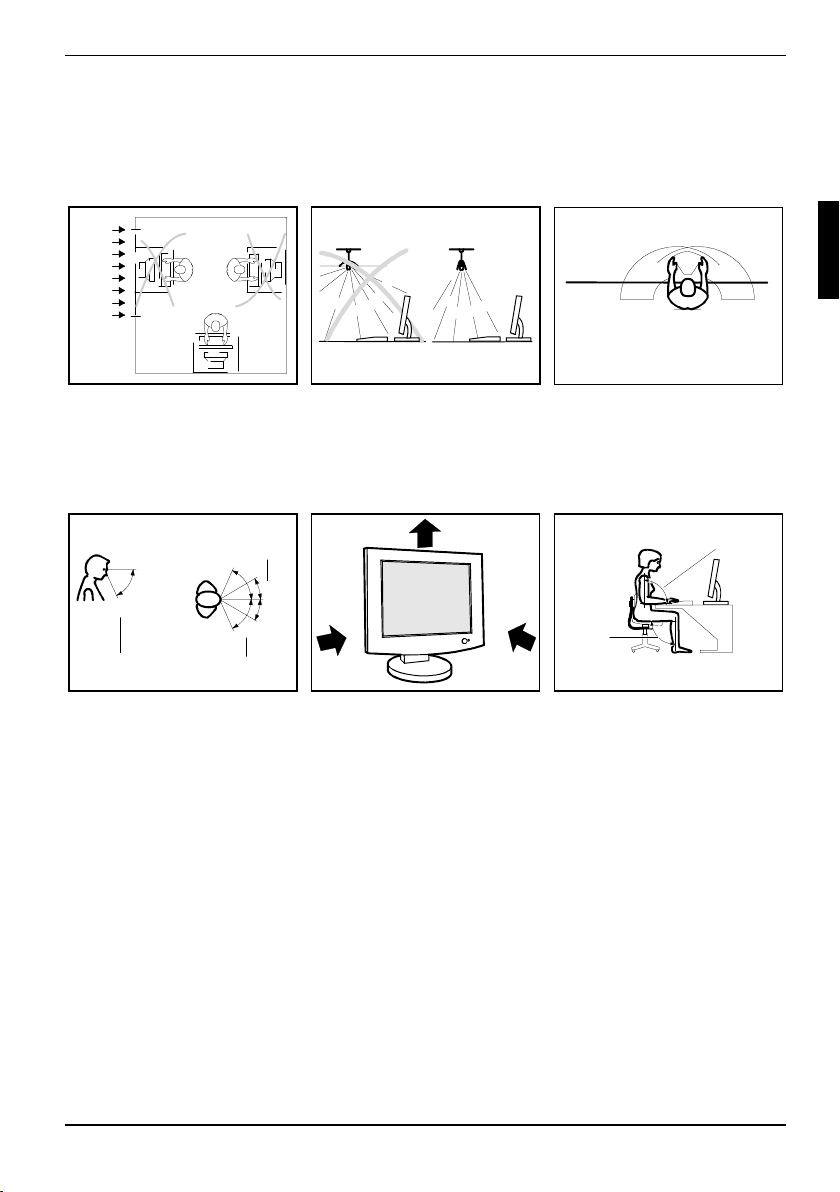

Installing an ergonomic video workstation ......................................................................................... 5

Assembling the monitor base ............................................................................................................ 6

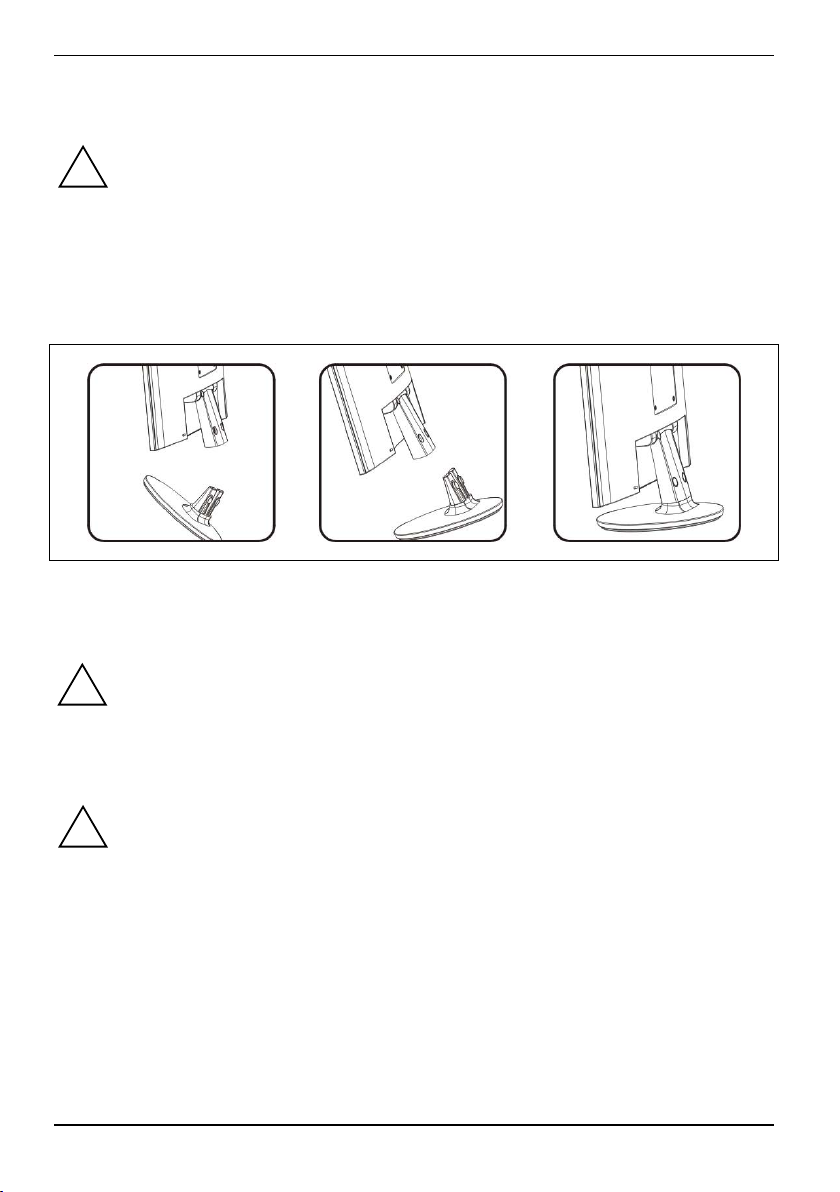

Mounting lower section of monitor base.....................................................................................6

Connecting the monitor .....................................................................................................................6

Operation of the monitor.................................................................................................................... 7

Switching the monitor on/off ...................................................................................................... 8

Changing the monitor settings...................................................................................................8

Adjusting rake ...........................................................................................................................9

Technical data................................................................................................................................. 10

Preset operating modes ..........................................................................................................10

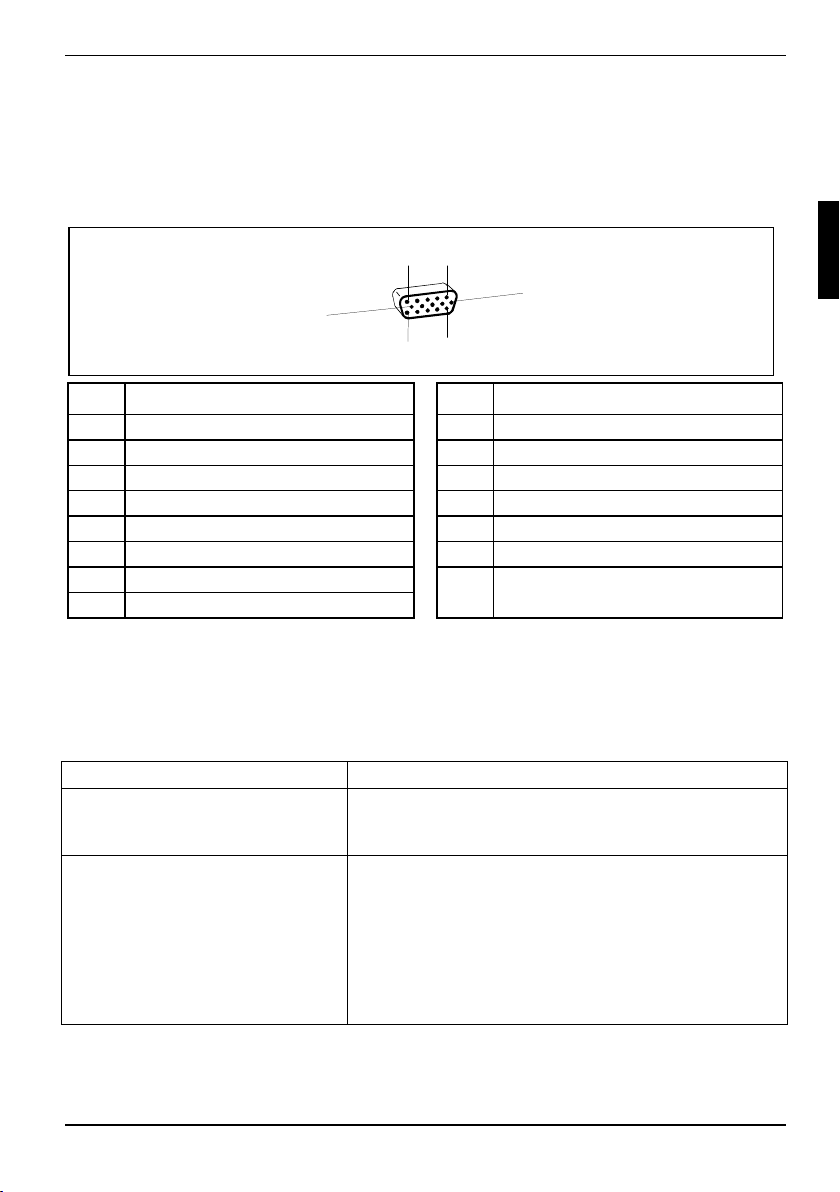

Pin assignment D-SUB............................................................................................................11

Troubleshooting............................................................................................................................... 11

A26361-DYED19E-02GL-1-M119, edition 2

Introduction

This manual contains important information for correct set-up of your LCD monitor.
A screen controller with VGA interface is required to control the SCENICVIEW E19-2 LCD monitor.

The monitor processes the data supplied to it by the screen controller. The screen controller/the
associated driver software is responsible for setting the modes (resolution and refresh rate).

When putting the monitor into operation for the first time, the screen display should be optimally
adapted to the screen controller used and adjusted in accordance with your needs (see the
operating manual).

Target group

You don't need to be an "expert" to perform the operations described here. However, please
observe the safety information given in the operating instructions of the computer and in this
manual.

In the event of any problems occurring, please contact your sales outlet or our help desk.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

► Text which follows this symbol describes activities that must be performed in the order shown.
"Quotation marks" indicate names of chapters or terms.
This font indicates filenames and menu items.

Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroys the device, or may lead to loss of data.

!

Supplementary information, remarks, and tips follow this symbol.

i

Additional information

Details of how you set the resolution and refresh rate are provided in the documentation on your
screen controller/the associated driver software.

In this "Getting Started" manual you will find information you require to operate your monitor.

Information Source Type of Information Where?

Documentation about
the graphics card or
appropriate driver
software

A26361-DYED19E-02GL-1-M119, edition 2 English - 1

Instructions for adjusting the
resolution and refresh rate

manufacturer-dependent

SCENICVIEW E19-2

Important notes

In this chapter you will find information regarding safety which is essential to take note of
with your monitor.

!

Safety notes

This device complies with the relevant safety regulations for data processing equipment, including
electronic office machines for use in an office environment. If you have any questions, contact your
sales outlet or our help desk.

● The display surface of the LCD monitor is sensitive to pressure and scratches. You should
therefore be careful with the display surface so as to avoid lasting damage (Newton rings,
scratches).

● If the device is brought into the installation site from a cold environment, condensation can
form. Before operating the device, wait until it is absolutely dry and has reached approximately
the same temperature as the installation site.

● During installation and before operating the device, please observe the instructions on
environmental conditions in the "Technical data" chapter as well as the instructions in the
"Installing an ergonomic video workstation" chapter.

● To ensure sufficient ventilation, the intake and exhaust air openings of the monitor must never
be blocked.

● The monitor automatically sets itself to a mains voltage in the range of 100 V to 240 V. Ensure
that the local mains voltage lies within these limits.

● Ensure that the power socket on the device or the grounded mains outlet is freely accessible.

● The monitor is equipped with a power cable that complies with safety standards.

● The ON/OFF switch does not disconnect the device from the mains voltage. To completely

disconnect the mains voltage, remove the power plug from the socket.

● Lay all cables so that nobody can stand on them or trip over them. When attaching the device,
observe the relevant notes in the "Connecting the monitor" chapter.

● No data transfer cables should be connected or disconnected during a thunderstorm.

● Make sure that no objects (e.g. jewellery chains, paper clips, etc.) or liquids get inside the

device (danger of electric shock, short circuit).

● The device is not waterproof! Never immerse the device in water and protect it from spray
water (rain, sea water).

● In emergencies (e.g. damaged casing, elements or cables, penetration of liquids or foreign
matter), switch off the unit, disconnect the power plug and contact your sales outlet or our help
desk.

● The monitor must be disposed of in accordance with the local regulations for disposal of
special waste. The screen background lighting contains mercury. You must observe the
applicable handling and disposal safety regulations for fluorescent tubes.

● Only qualified technicians should repair the device. Unauthorised opening and incorrect repair
may greatly endanger the user (electric shock, fire risk).

● You may set only those resolutions and refresh rates specified in the "Technical data" chapter.
Otherwise you may damage your monitor. If you are in any doubt, contact your sales outlet or
our help desk.

2 - English A26361-DYED19E-02GL-1-M119, edition 2

SCENICVIEW E19-2

● Use a screen saver with moving images and activate the power management for your monitor
to prevent still images from "burning in".

● Store this manual close to the device. If you pass the device on to third parties, you should
pass this manual on with it.

Power cable

To guarantee safe operation, use the cable supplied. Use the following guidelines if it is necessary
to replace the original cable set.

● The female/male receptacles of the cord set must meet IEC60320/CEE-22 requirements.

● The cable has to be HAR-certified or VDE-certified. The mark HAR or VDE will appear on the

outer sheath.

● For devices which are mounted on a desk or table, type SVT or SJT cable sets may be used.
For devices which sit on the floor, only SJT type cable sets may be used.

● The cable set must be selected according to the rated current for your device.

● If necessary, replace the original power cable with a regular grounded 3-core mains lead.

Transport

● Transport the monitor with care and only in its original packaging or another corresponding
packaging fit to protect it against knocks and jolts.

● Never drop the LCD monitor (danger of glass breakage).

Cleaning

● Always pull out the power plug before you clean the monitor.

● Do not clean any interior parts yourself, leave this job to a service technician.

● Do not use any cleaning agents that contain abrasives or may corrode plastic.

● Ensure that no liquid will run into the system.

● Ensure that the ventilation areas of the monitor are free.

● The display surface of the LCD monitor is sensitive to pressure and scratches. Clean it only

using a soft, slightly moistened cloth.

Wipe the monitor casing with a dry cloth. If the monitor is particularly dirty, use a cloth which has
been moistened in mild domestic detergent and then carefully wrung out.

CE marking

The shipped version of this device complies with the requirements of the EEC
directives 89/336/EEC "Electromagnetic compatibility" and 73/23/EEC "Low voltage
directive".

A26361-DYED19E-02GL-1-M119, edition 2 English - 3
