Fujitsu D3607 User Manual

D3607 PCI Express Gigabit

Ethernet Adapter

Congratulations on buying an innovative product

from Fujitsu.

The latest information about our products, tips, updates etc. can be found on the Internet at: "http://www.fujitsu.com/fts/"

For driver updates, go to: "http://support.ts.fujitsu.com/download"

Should you have any technical questions, please contact:

● our Hotline/Service Desk ("http://support.ts.fujitsu.com/contact/servicedesk")

● Your sales partner

● Your sales outlet

We hope you enjoy working with your new Fujitsu system!

Published by / Contact address in the EU

Fujitsu Technology Solutions GmbH Mies-van-der-Rohe-Straße 8 80807 München, Germany

http://www.fujitsu.com/fts/

Publication Date

03/2019

Order No.: A26361-D3607-Z320-1-7619, Edition 1

D3607 PCI Express Gigabit

Ethernet Adapter

User Manual

Notational conventions 1 Overview Approvals and standards LED display Description Power consumption Mounting the bracket Installation Abbreviations

2 3 4 5 6 7 8 9

Remarks

Product description information corresponds to the design requirements of Fujitsu and is provided for the purposes of comparison. The actual results may differ due to several factors. Subject to changes to technical data without prior notification. Fujitsu accepts no responsibility with regard to technical or editorial mistakes or omissions.

Trademarks

Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited in Japan and in other countries.

Intel is a trademark of the Intel Corporation in the USA and/or other countries.

Microsoft and Windows are registered or unregistered trademarks of the Microsoft Corporation in the USA and/or in other countries.

Other product names and company names mentioned are trademarks or registered trademarks of the corresponding companies or trademark owners.

No part of this publication may be copied, reproduced or translated without the prior, written consent of Fujitsu.

No part of this publication may be saved or transmitted by any electronic means without the written consent of Fujitsu.

Content

Notational conventions...................................................................................................................... 1

Overview.............................................................................................................................................. 2

Approvals and standards................................................................................................................... 3

LED displays....................................................................................................................................... 4

Description.......................................................................................................................................... 5

Power consumption ...........................................................................................................................6

Mounting the bracket .........................................................................................................................7

Installation........................................................................................................................................... 8

Installing the network adapter............................................................................................................... 8

Installing the driver software................................................................................................................. 8

Abbreviations...................................................................................................................................... 9

Fujitsu

Content

Fujitsu

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

indicates information which is important for your health or for preventing physical damage.

indicates additional information which is required to use the system properly.

► Text which follows this symbol describes activities that must be performed in the order shown.

 This symbol indicates that you must press the Enter key.

Text in this typeface indicates screen outputs.

Text in this bold typeface indicates the entries you make via the keyboard.

Text in italics indicates commands or menu items.

"Quotation marks" indicate names of chapters or terms.

Fujitsu 1

Overview

The D3607 is a complete low profile PCI Express Gigabit Ethernet Adapter (in the following text called NIC) utilizing the BCM57762 LAN Controller.

The NIC is available with ATX I/O connector bracket and/or low profile bracket.

LAN Controller Broadcom BCM57762

LAN interface 10/100/1000 Base-T - IEEE 802.3 compliant

Host interface x1 PCIexpress 1.1 bus interface

Performance 40 Kbyte receive and 22 KByte transmit buffer

Manageability ACPI

Special feature PXE support

Memory for LAN Controller

Connector RJ45 connector

Driver Support Windows® 7

Form factor PCI Express low profile Card 66.0 x 62.5 mm

TCP, IP, and UDP checksum Offload Microsoft® Large Send Offload Receive Side Scaling (RSS)

Wake on LAN by interesting packets and Magic-Packet

2 MBit FLASH

Windows® 8.1 Windows® 10 Linux

2 Fujitsu

Approvals and standards

CE certification According to EU Directives 2014/30/EU (EMC) and 2014/35/EU

Product safety IEC 60950-1, EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1

Electromagn. compatibility EN55032/B, FCC class B, EN55024

The component has to be installed in a suitable housing to meet the requirements.

(Product safety)

RoHS (Restriction of hazardous substances) Environmental compatibility

WEEE (Waste electrical and electronical equipment)

Fujitsu 3

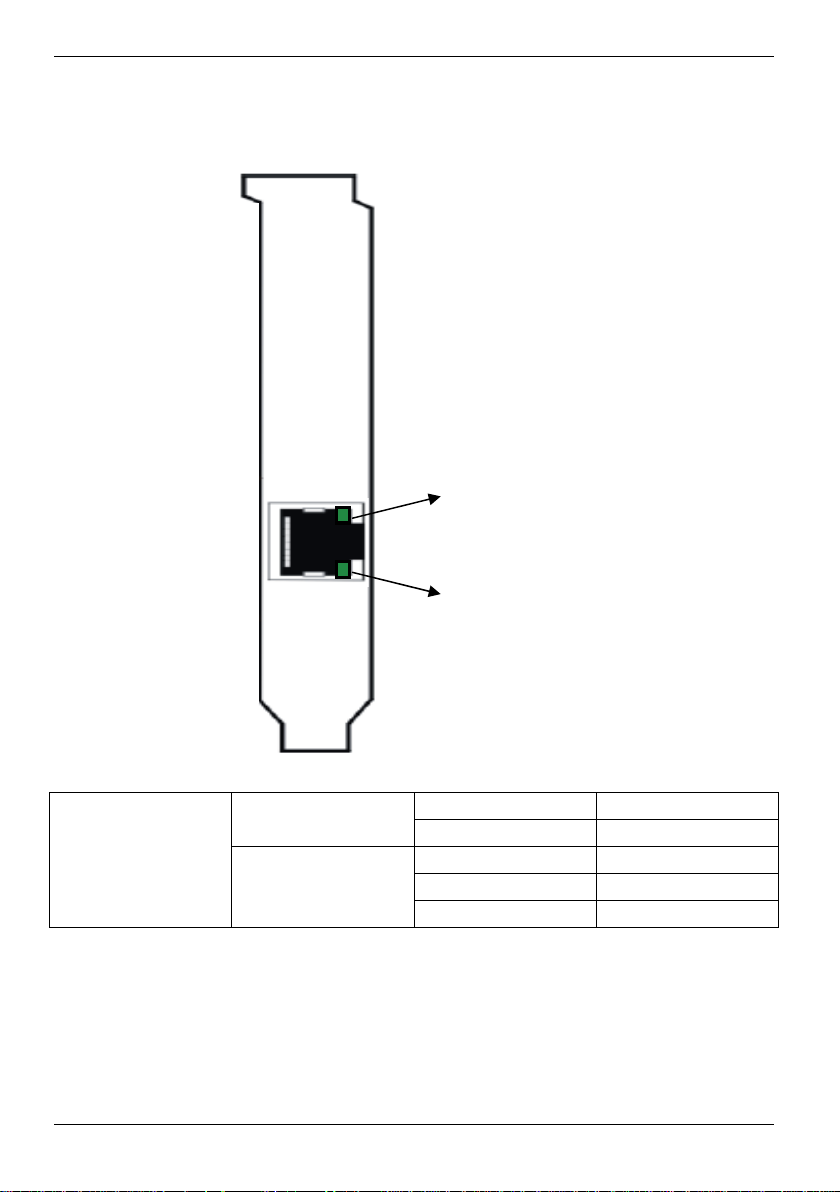

LED displays

ACT/LINK

10=off 100=GRN 1000=ORG

ACT/LINK Link green LED

Activity green LED is flashing

LED-signaling 10 Mb link LED off

Speed 100 Mb link green LED

1000 Mb link orange LED

The Speed LED might flash during power-on-reset or software driver initialization.

ACT/LINK

10=OFF 100=GRN 1000=ORG

4 Fujitsu

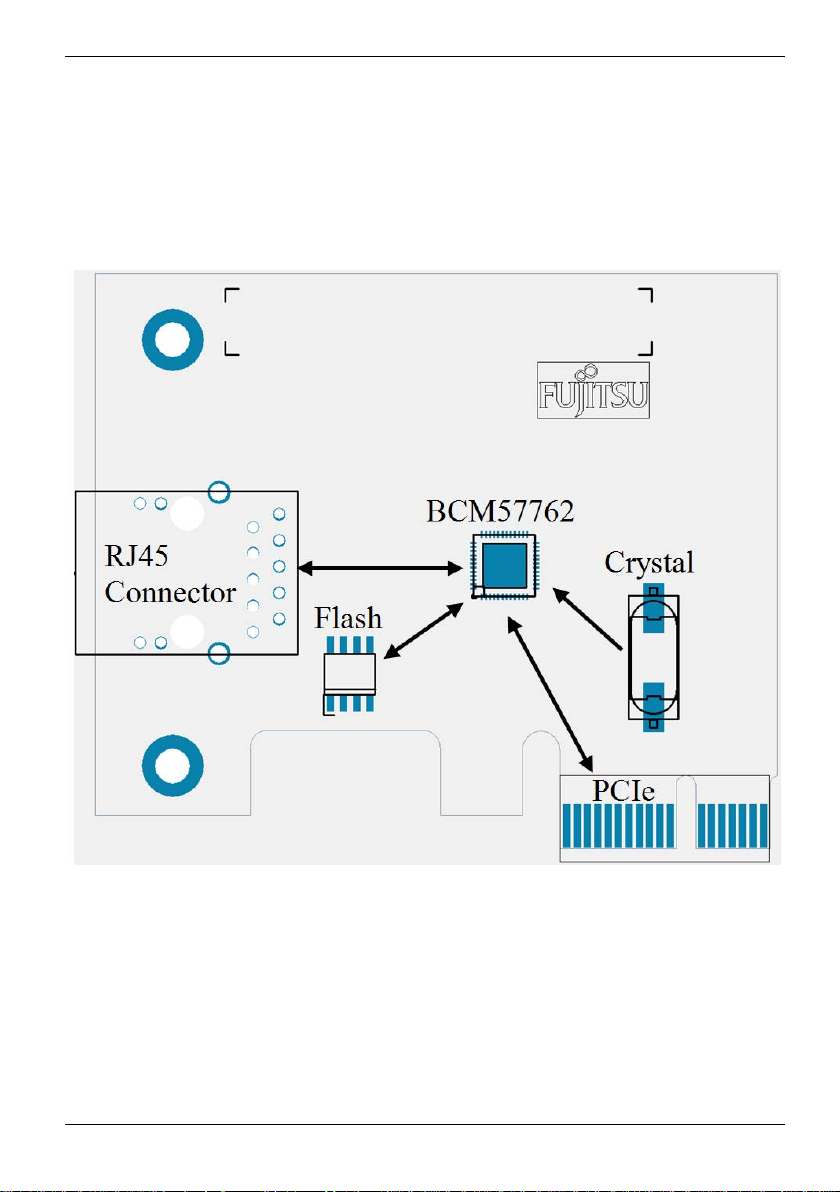

Description

Main part of the D3607 NIC Card is the BCM57762 LAN Controller. The controller settings and MAC Address required for operation are stored in the SPI Flash as well as the PXE code.

The BCM57762 uses a 25 MHz Crystal as reference for the generation of the LAN Signals, which are transmitted through the transformer module integrated in the RJ45 Connector. For the operation of the PCI Express Interface is a 100 MHz Clock required, which is provided over the PCI Express Slot.

Fujitsu 5

Power consumption

The D3607 NIC requires the following supply voltages provided over the PCI Express Slot.

Source Voltage Maximal variation Typical current Operating Condition

Supply Voltage

+ 3,3 V Main +/- 5 % 1 mA Working

+ 12 V Main +/- 5 % 0 mA Working

+ 3,3V AUX +/- 5 %

320 mA Working

100 mA Standby

6 Fujitsu

Mounting the bracket

The network adapter is shipped with a low profile and a standard bracket. Depending on your system, you need to mount one of the brackets to your adapter card.

► Align the tabs of the bracket with the holes on the network adapter and fasten the screws onto

the network adapter.

Fujitsu 7

Installation

Installing the network adapter

► Refer to the manuals that were supplied with your system for details about installing the

Installing the driver software

When installing the network adapter on your computer and start the system, the system detects a new adapter and installs the native Broadcom driver.

Before installing the network adapter, ensure the system power is OFF and unplugged from the power outlet and that proper electrical grounding procedures have been followed.

network adapter card on your particular system.

You may need to download the latest driver software from the Fujitsu Support website:

"http://support.ts.fujitsu.com/download"

8 Fujitsu

Abbreviations

ACPI Advanced Configuration and Power Interface

CPU

FIFO

LAN

NIC

PCI-Bus

PXE

RAM

SMBus

SPI

WOL Wake on LAN

Central Processing Unit

First-In First-Out

Local Area Network

Networking Interface Card

Peripheral Component Interconnect Bus

Preboot eXecution Environment

Random Access Memory

System Management Bus

Serial Peripheral Interface
