Datasheet FUJITSU Mainboard D3402-B µATX
Page 1 of 6
ts.fujitsu.com/mainboards.
Data Sheet
FUJITSU Mainboard D3402-B µATX
Extended Lifecycle Series
Powered by the Intel® Q170 Express Chipset supporting DDR4 2133/2400 SDRAM
Memory and 6th & 7th generation Intel® CoreTM i3 / i5 / i7 Processors (Socket LGA1151)
Designed for 24/7 continuous operation @ 50°C
(planned)
Chipset:
Intel® Q170 Express Chipset
Processors:
Intel® Core™ i7 / i5 / i3 – (6th gen. & 7th gen.) processor series
Intel® Pentium® / Celeron® processor series
Socket LGA1151 – up to 65W TDP
Memory:
DDR4 2133 SDRAM (UDIMM)
DDR4 2400 SDRAM (UDIMM)
Product Features:
Intel® iAMT 11.0 / vPro 2015
Onboard Support for M.2 SSD (PCIe or SATA)
Intel® HD Graphics
PCI Express Gen3
Multichannel Audio & Intel GbE LAN onboard
USB 2.0/3.0 and USB 3.0 Socket (Stick) onboard
Trusted Platform Module V2.0 (Infineon) onboard
HW Watchdog onboard
Data Sheet
Page 2 of 6
ts.fujitsu.com/mainboards.
Board Size
reduced µATX: 9.6“ x 8.4“ (243.8 x 213.4 mm)
Chipset
Intel® Q170 Express Chipset
Memory
4 DIMM Sockets DDR4, max. 64GB, Dual Channel, 2133MHz (CL15) / 2400MHz (CL17),
UDIMM, 1.2V/2.5V, 288-pin, non-ECC.
Effective memory speed depends on installed processor
Processor
Intel® Core™ i7 / i5 / i3 – (6th generation) processor series
Intel® Core™ i7 / i5 / i3 – (7th generation) processor series (D3402-B2 only)
Intel® Pentium® / Celeron® processor series
Socket LGA1151, max. 65W TDP
(For details on supported processors please refer to OEM FTP Server)
Power Specification
ATX- 24 Pin or ATX- 20 Pin + 4 Pin (12V) Power Connector required
Support for Soft-Off Power Supplies
12V and 3.3V Supply Voltage on PCIe Slots
3.3V Auxiliary Supply Voltage on PCIe Slots (Wake-Up Function)
On board CPU Voltage Regulator, 5V / 2A Auxiliary Power
required for USB Wake-Up from Save-to-RAM, Save-to-Disk
Power Supply Requirements
for onboard components (worst case incl. processor & memory;
w/o USB devices; w/o PCIe cards, w/o M.2 / SATA drives)
1) Max. Cont. Current = 8A; max. Surge Current = 10A (< 100sec) / 12A (< 10ms)
Source
Voltage
Min. PS
Load
Max.Voltage
Tolerance
Mainboard
Capacitive
Load
Max. Mainboard
Current
Main Power
Supply
+ 12V
0.05A
± 5 %
5.000µF
8A/12A 1)
- 12V
0A
± 10 %
470µF
0.3A
+ 5V
0.2A
± 5 %
3.000µF
6.0A
+ 3.3V
0A
± 5 %
3.000µF
0.5A
Aux. Power
+ 5Vaux
0A
+5 % / -3%
3.000µF
2.5A
BIOS
AMI Aptio 5.x (UEFI) BIOS
modified and adapted by Fujitsu Technology Solutions; Recovery BIOS, SM-BIOS (DMI),
BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic
DRAM and PCIe Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management,
ACPI S3/S4, Wake on time from S5.
Boot support for M.2 SSD (PCIe-based or SATA-based modules, AHCI / NVME)
Security Features
Recovery BIOS, System and BIOS Password, Boot Sequence Control, Serial-/ Parallel-/ USB- Port
Access, Boot Sector Virus Warning, Write Protection for Flash BIOS, EraseDisk
(optional BIOS Feature)
Trusted Platform Module (Infineon SLB 9665; TPM V2.0; TCG compliant).
Features and benefits
FUJITSU Mainboard D3402-B µATX
Data Sheet
Page 3 of 6
ts.fujitsu.com/mainboards.
Special Features
Silent Fan Independent temperature related processor fan and
system fan supervision and control
System Guard View and adjust Silent Fan features
Silent Drives Noise reduction for optical and hard disk drives
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with Driver&Utilities DVD
Multi Boot Comfortable boot from any boot device
HDD Password Access protection for disk drives
CSA / UL / FCC certified cCSAus 60950-1/ FCC-B
Operating Systems
OS “Runnable” “Tested/Released by Fujitsu”
MS Windows XP -- -MS Windows 7-32 1) X X 2)
MS Windows 7-64 1) X X 2)
MS Windows 8.1-64 1) X X
MS Windows 10-64 X X
Linux-32 X -Linux-64 X --
1) Requires Skylake (= 6th gen.) processor! 2) MS Windows 7 release for D34xx-B2 scheduled for Q2/2017
Further Features
1) DDR4-2400 modules can be used, but they will operate at reduced speed
Mainboard Versions
Feature
D3402-B1x
D3402-B2x
UDIMM DDR4-2133 / DDR4-2400
x / - 1)
x / x
Intel® Core™ i processor series – 6th gen. / 7th gen.
x / -
x / x
Intel® Pentium® / Celeron® processor series – 6th gen. / 7th gen.
x / -
x / x
Skylake Drivers / Kabylake Drivers (MS Windows)
x / x
- / x
LAN Intel Jacksonville i219LM with 10/100/1000 MBit/s, iAMT 11 / vPro Support,
Wake-on-LAN (WoL) by interesting Packets, Link Status Change and
Magic Packet™, PXE Support, BIOS MAC Address Display, Jumbo Frames (up to 9KB)
Drives
5 x Serial ATA III 600 Interface (up to 6GBit/s, NCQ, AHCI, RAID 0/1/5/10)
1 x M.2 Socket (2260/2280) for PCIe (4 lanes) or SATA based M.2 modules,
AHCI / NVME Boot support
Designed for 24 / 4 use
Longlife components for 24 / 7 continuous operation @ 50°C
Revision control & Extended Lifecycle (up to 3 years)
FUJITSU Mainboard D3402-B µATX
Data Sheet
Page 4 of 6
ts.fujitsu.com/mainboards.
Features
Chipset
iQ170
D3402-B
Board Size
reduced µATX
VGA1 / DVI-I / DVI-D / DP V1.2 / 2nd DP V1.2 / LVDS
- / - / / / / -
Stereo Audio / 5.1 Multichannel Audio
- /
Buzzer / int. Speaker Support
- /
LAN Gbit / 100 Mbit / 10 Mbit / WoL / LAN Boot
/ / / /
iAMT 11.0 vPro / Intel Standard Manageability / DASH V1.1
/ /
SATA / ATA / RAID / eSATA-support / M.2 (PCIe x4 or SATA)
/ - / / /
FireWire™ / USB 2.0 / USB 3.0
- / /
FAN monitored & controlled PSU2 / CPU / AUX1 / AUX2
/ / /
TEMP monitored CPU / onboard sensors / external sensor
/ / -
Special Features
Silent Fan / Silent Fan LT / System Guard / Silent Drives
/ - / /
D3402-B
Recovery BIOS / Desk Update / Multi Boot
/ /
HDD Password / HDD Encryption / EraseDisk3 / TPM
/ - / /
BIOS POST Watchdog / BIOS Boot Watchdog / OS HW Watchdog
/ /
Logo Boot Option / Intel On Screen Branding
/
High Efficiency Core Voltage Regulator Design
Operating Mode 24-7 / 8-5 (hrs per day - days per week)
/ -
Mainboard operating temperature range (chassis inside)
10°C – 50°C
ILM - Backplate / ILM + Heatsink combined4
/ -
Internal Connectors
DIMM Sockets (DDR4-2133/2400)
4
D3402-B
PCI Express x16 Slot (Gen3)
1
PCI Express x16 Slot (4 Lanes, Gen3) / x1 Slot (Gen3)
1 / 2
PCI Slots (32Bit, 33 MHz, Rev. 2.3)
-
SATA-600 / SATA-300 / ATA / Floppy / M.2 SSD
5 / - / - / - / 1
S/PDIF (digital Audio) OUT / IN
- / -
Frontpanel Audio (9-Pin, HD Audio)
1
USB 2.0 channels / USB 3.0 channels / USB Stick (3.0)
4 / 2 / 1
Serial (COM2, RS232)
1
FAN PSU2 / CPU / AUX1 / AUX2
1 / 1 / 1 / 1
SMBus (Case Temperature)
-
Intrusion (Case Open)
1
Parallel Port Pin Connector5
1
ATX Power Supply (24 pin + 4 pin) / 12V-only Power Supply
/ -
LPC Connector
External Connectors
VGA Sub D1 / DVI-I / DVI-D / DisplayPort V1.2
- / - / 1 / 2
D3402-B
Audio Mic. In / Line in / Line out (or driver configuration)
1 / 1 / 1
LAN (RJ-45)
1
PS/2 Mouse / Keyboard
1 / 1
USB 2.0 / USB 3.0
2 / 4
Serial (COM1, RS232)
1
Parallel (EPP/ECP)
5
-
1
2
3
4
5
FUJITSU Mainboard D3402-B µATX
VGA possible via optional converter board D3453 or DP-VGA-converter (dongle)
Not supported by standard Power Supplies
Optional BIOS Feature, License required
Combined backplate: Can’t be used for pushpin heatsink
External parallel port possible via optional connector cable - Note: Intel limitation ECP-DMA-Mode no longer supported
Data Sheet
Page 5 of 6
ts.fujitsu.com/mainboards.

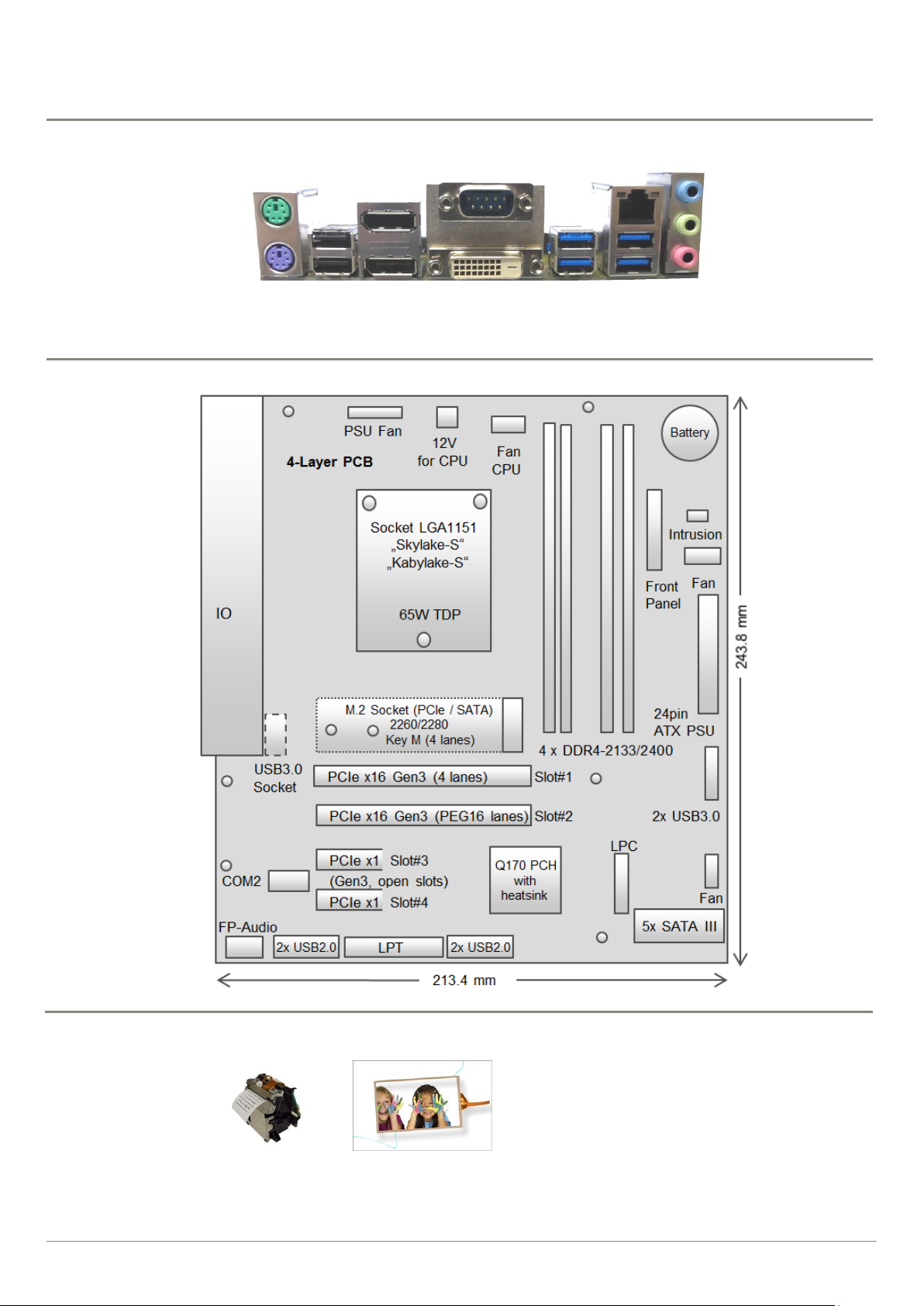

External Connectors
Mouse 2 x USB 2.0 COM1 LAN1 (iAMT)
Kbd 2 x DisplayPort V1.2 DVI-D 4 x USB 3.0 Audio
Connector / Socket Diagram
