Fujitsu D2530 User Manual

PRIMERGY

System Board D2530
for Econel 200 S2

Technical Manual

Susanne Däschlein
Fujitsu Siemens Computers GmbH München
81730 München
e-mail: email: [e-mail]
Tel.: [phone]
Fax: (++49) 700 / 372 00000
D2530 (Econel 200 S2)
Sprachen: En

Edition November 2006

Comments… Suggestions… Corrections…

The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.

Fax forms for sending us your comments are included in
the back of the manual.

There you will also find the addresses of the relevant
User Documentation Department.

Certified documentation
according to DIN EN ISO 9001:2000

To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.

cognitas. Gesellschaft für Technik-Dokumentation mbH

www.cognitas.de

Copyright and Trademarks

Copyright © 2006 Fujitsu Siemens Computers GmbH.

All rights reserved.
Delivery subject to availability; right of technical modifications reserved.

All hardware and software names used are trademarks of their respective manufacturers.

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Important notes . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Notes on safety . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 CE Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.3 Environmental Protection . . . . . . . . . . . . . . . . . . . 11

3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2 Main memory . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.3 PCI bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.4 Screen resolution . . . . . . . . . . . . . . . . . . . . . . . 18

3.5 Temperature / system monitoring . . . . . . . . . . . . . . . 18

3.6 Connectors and jumpers . . . . . . . . . . . . . . . . . . . . 20

3.6.1 External connectors . . . . . . . . . . . . . . . . . . . . . . . 22

4 Replacing the lithium battery . . . . . . . . . . . . . . . . . 25

Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

D2530 (Econel 200 S2) Technical Manual

1Introduction

This technical manual describes the system board D2530, which can be
equipped with one or two Intel

Further information about drivers is provided in the readme files on the hard
disk, on the supplied "ServerSupport" or "ServerStart" CDs.

You will find further information in the BIOS description.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

italics indicates commands, menu items, file and path

fixed font indicate system output on the monitor

semi-bold fixed
font

[Key symbol] indicates keys according to their representation on the

“quotation marks” indicates names and terms that are being empha-

Ê indicates an operation that to be performed

®

processors.

names or software programs

indicates values to be entered through the keyboard

keyboard
If capital letters are to be entered explicitly, then the

Shift key is shown, e.g. [SHIFT] - [A] for A.
If two keys need to be pressed at the same time, then

this is shown by placing a hyphen between the two key
symbols.

sized.

V CAUTION! indicates warnings, which, if ignored, will endanger

your health, destroy the system or lead to the loss of
data.

I indicates additional information, notes and tips

Table 1: Notational conventions

D2530 (Econel 200 S2) Technical Manual 5

2 Important notes

In this chapter you will find essential information regarding safety when working
with your server.

V CAUTION!

With the system board installed you must open the system to access the
system board. How to access the system board of your system is
described in the appropriate service supplement.

When handling the system board, refer to the specific notes on safety in
the operating manual and/or service supplement for the respective
server.

2.1 Notes on safety

V CAUTION!

● The actions described in these instructions should only be performed

by authorized, qualified personnel. Equipment repairs should only be
performed by qualified staff. Any failure to observe the guidelines in
this manual, and any unauthorized openings and improper repairs
could expose the user to risks (electric shock, fire hazards) and could
also damage the equipment. Please note that any unauthorized
openings of the device will result in the invalidation of the warranty
and exclusion from all liability.

● Transport the device only in the antistatic original packaging or in

packaging that protects it from knocks and jolts.

● Only install expansions that are allowed for the system board. If you

install other expansions, you may damage the requirements and rules
governing safety and electromagnetic compatibility or your system.
Information on which system expansions are suitable can be
obtained from the customer service centre or your sales outlet.

● The warranty expires if the device is damaged during the installation

or replacement of system expansions.

D2530 (Econel 200 S2) Technical Manual 7

Notes on safety Important notes

V ● Components can become very hot during operation. Ensure you do

not touch components when making extensions to the system board.
There is a danger of burns!

● Transmisson lines to peripheral devices must be adequately shielded.

● To the LAN wiring the requirements apply in accordance with the

standards EN 50173 and EN 50174-1/2. As minimum requirement
the use of a protected LAN line of category 5 for 10/100 MBps
Ethernet, and/or of category 5e for Gigabit Ethernet is considered.
The requirements of the specification ISO/IEC 11801 are to be
considered.

● Never connect or disconnect data transmission lines during a storm

(lightning hazard).

Batteries

V CAUTION!

● Incorrect replacement of lithium battery may lead to a risk of

explosion. The batteries may only be replaced with identical batteries
or with a type recommended by the manufacturer.

It is essential to observe the instructions in chapter “Replacing the

lithium battery”.

8 Technical Manual D2530 (Econel 200 S2)

Important notes Notes on safety

Modules with electrostatic-sensitive components

Systems and components that might be damaged by electrostatic discharge
(ESD) are marked with the following label:

Figure 1: ESD label

When you handle components fitted with ESDs, you must observe the following
points under all circumstances:

● You must always discharge yourself of static charges (e.g. by touching a

grounded object) before working.

● The equipment and tools you use must be free of static charges.

● Remove the power plug from the power socket before inserting or removing

boards containing ESDs.

● Always hold boards with ESDs by their edges.

● Never touch pins or conductors on boards fitted with ESDs.

● Use a grounding cable designed for this purpose to connect yourself to the

system unit as you install/deinstall the board.

● Place all components on a static-safe base.

I You will find a detailed description for handling ESD components in the

relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).

D2530 (Econel 200 S2) Technical Manual 9

CE Certificate Important notes

Notes about boards

● During installation/deinstallation of the system board, observe the specific

instructions described in the service manual for the server.

● Remove the plug from the mains outlet so that system and system board are

totally disconnected from the mains voltage.

● To prevent damage to the system board, the components and conductors on

it, please take great care when you insert or remove boards. Take great care
to ensure that extension boards are slotted in straight, without damaging
components or conductors on the system board, or any other components,
for example EMI spring contacts

● Be careful with the locking mechanisms (catches, centring pins etc.) when

you replace the system board or components on it, for example memory
modules or processors.

● Never use sharp objects (screwdrivers) for leverage.

2.2 CE Certificate

The shipped version of this board complies with the requirements
of the EEC directive 89/336/EEC "Electromagnetic compatibility".

Compliance was tested in a typical PRIMERGY configuration.

10 Technical Manual D2530 (Econel 200 S2)

Important notes Environmental Protection

2.3 Environmental Protection

Environmentally friendly product design and development

This product has been designed in accordance with standards for ”environmen­tally friendly product design and development“. This means that the designers
have taken into account important criteria such as durability, selection of
materials and coding, emissions, packaging, the ease with which the product
can be dismantled and the extent to which it can be recycled.

This saves resources and thus reduces the harm done to the environment.

Notes on saving energy

Devices that do not have to be on permanently should not be switched on until
they need to be used and should be switched off during long breaks and on
completion of work.

Notes on packaging

Please do not throw away the packaging. We recommend that you do not throw
away the original packaging in case you need it later for transporting.

Notes on dealing with consumables

Please dispose batteries in accordance with local government regulations.
Do not throw batteries and accumulators into the household waste. They must

be disposed of in accordance with local regulations concerning special waste.
All batteries containing pollutants are marked with a symbol (a crossed-out

rubbish bin on wheels). In addition, the marking is provided with the chemical
symbol of the heavy metal decisive for the classification as a pollutant:

Cd Cadmium
Hg Mercury
Pb Lead

Notes on labeling plastic housing parts

Please avoid attaching your own labels to plastic housing parts wherever
possible, since this makes it difficult to recycle them.

D2530 (Econel 200 S2) Technical Manual 11

Environmental Protection Important notes

Returning, recycling and disposal

The device may not be disposed of with household rubbish. This
appliance is labelled in accordance with European Directive
2002/96/EC concerning used electrical and electronic appliances
(waste electrical and electronic equipment - WEEE).
The guideline determines the framework for the return and recycling
of used appliances as applicable throughout the EU. To return your
used device, please use the return and collection systems available
to you. You will find further information on this at www.fujitsu-
siemens.com/recycling.

For details on returning and reuse of devices and consumables within Europe,
refer to the “Returning used devices” manual, or contact your Fujitsu Siemens
Computers branch office/subsidiary or our recycling centre in Paderborn:

Fujitsu Siemens Computers
Recycling Center
D-33106 Paderborn

Tel. [phone]
Fax [phone]

12 Technical Manual D2530 (Econel 200 S2)

Features Overview

3 Features

3.1 Overview

Processors

– 2 x Intel
– 2 processor sockets Dual LGA771 for Intel

with 1333/1066/667 MHz front side bus
– supports Intel
– supports Intel

Main memory

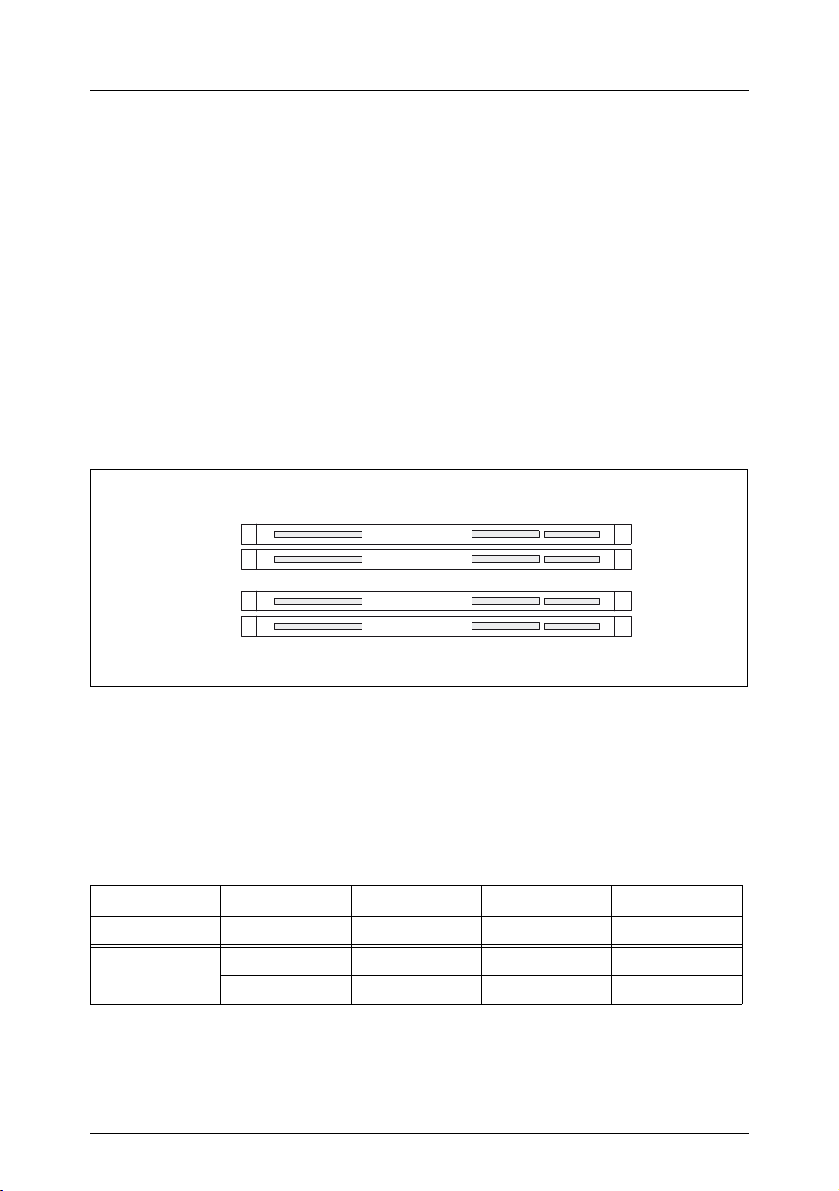

– 4 slots for main memory FBD533/PC2-4200F Fully Buffered DIMM memory

modules with 512 MB, 1Gbyte and 2Gbyte
– maximum 8 Gbyte of memory
– minimum 512 MB
– ECC multiple bit error detection and single bit error correction
– memory scrubbing function
– Single Device Data Correction (SDDC) function (Chipkill™)

®

Xeon™ Dual Core processors

®

Extended Memory 64 Technology (EM64T)

®

Hyper-Threading Technology (H.T.), except: 5100 series

®

Xeon™ Dual Core processor

Chipsets on the system board

– Intel
– Intel
– Intel
– VGA controller (ATI

®

5000V chipset Memory Controller Hub (MCH)

®

6321 I/O Controller Hub (ICH) with integrated GBit LAN

®

Single 1 GB PHY 82564EB onboard

®

ES1000) onboard with 32 MB RAM memory

– 1 MBYTE Flash EPROM für:

–System BIOS

– Onboard Video

– Onboard LAN

– Onboard LSI Software RAID

– Onboard SATA
– system management controller (temperature, voltages, fans) W83793G

D2530 (Econel 200 S2) Technical Manual 13

Overview Features

Internal connectors

– floppy disk
– 1 IDE primary
– 6 SATA connectors
– SATA-HDD access (HDLED)
– 2 USB connectors
– 1 serial port connector (COM2)
– PC98 connector
– 1 parallel port connector (LPT1)
– front panel
– main power connector (12V, -12V, 5V, 3.3V and 5V auxiliary)
– 12V (CPU) power connector
– 2 CPU fans
– 1 rear fan
– BPSMB connector
– BPSMB connector
–RAID key

External connectors

– 1 serial port (COM1)
– 2 PS/2 interfaces for keyboard and mouse
– 2 USB 2.0 ports with 480 Mbits/s (rear)
– 1 VGA port
– 1 RJ45 LAN port

PCI slots

– 3 x PCI-X (133/100 MHz)
– 1 x PCI 33 MHz
– 1 x PCI-Express x16 slot (x8 wired)
– 1 x PCI-Express x8 slot (x4 wired)

BIOS features

– AMI (American Megatrend BIOS)

Form factor

12“ x 10.5“

14 Technical Manual D2530 (Econel 200 S2)

Features Main memory

3.2 Main memory

The system board supports up to 8 Gbyte main memory. 4 slots (2 banks with
2 modules) are available for the main memory. Each memory bank can be
populated with 512 Mbyte, 1 Gbyte or 2 Gbyte FBD533/PC2-4200F Fully
Buffered DIMM memory modules.

ECC with memory scrubbing and with the Single Device Data Correction
(SDDC) function is supported.

I You will find the descriptions how to install memory modules in the

Options Guide of your server.

Module population

DIMM 2B
DIMM 1B

DIMM 2A
DIMM 1A

Figure 2: Main memory

– If the memory modules are populated in pairs, each pair must consist of

identical memory modules (2-way interleaved mode)
– The module capacity between pairs can differ: pair 2A/2B can be populated

with two 512 Mbyte modules and pair 1A/1B with two 1 Gbyte modules.
Following table shows the mandatory population order:

DIMM 1A DIMM 2A DIMM 1B DIMM 2B

single channel populated empty empty empty
dual channel populated empty populated empty

populated populated populated populated

D2530 (Econel 200 S2) Technical Manual 15

PCI bus Features

3.3 PCI bus

slot 6

slot 5

slot 4

slot 3

slot 2

slot 1

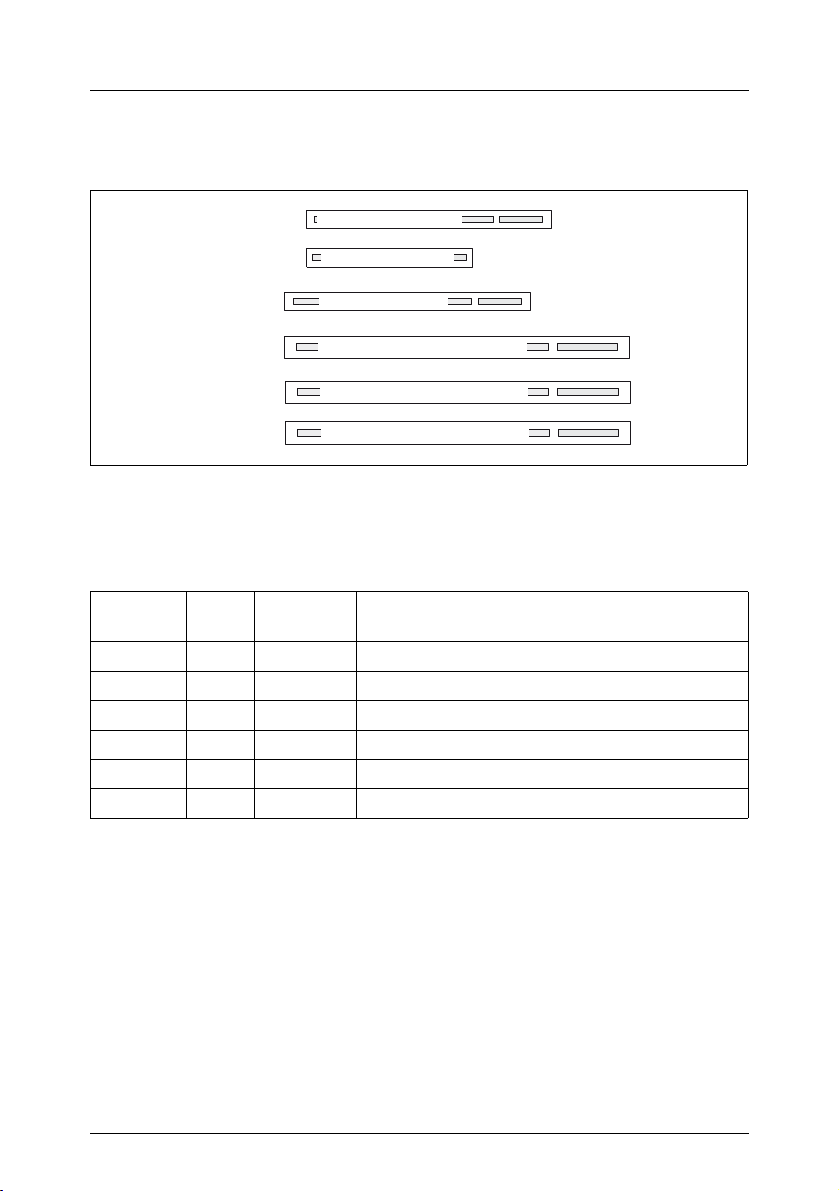

Figure 3: PCI slots

PCI-Express x16

PCI-Express x8

PCI 33MHz

PCI-X 133/100 MHz

PCI-X 133/100 MHz

PCI-X 133/100 MHz

PCI slots

The following table shows an overview of the PCI slots:

PCI slot 64Bit/

32Bit

1 133/100 PCI-X bus slot, IOOP
2 133/100 PCI-X bus slot, IOOP
3 133/100 PCI-X bus slot, IOOP
4 32 Bit 33 PCI bus slot
5 PCI-Express x8 slot (x4 accessed)
6 PCI-Express x16 slot (x8 accessed)

Frequency

in MHz

Description

PCI IRQ Line x - Assignment of the PCI interrupts

PCI IRQ Line x defines which ISA interrupts are used for the separate PCI slots.
If you select Auto in the BIOS setup, the interrupts are assigned automatically

and no further settings are required.
Multifunctional PCI boards or boards with an integrated PCI-to-PCI bridge can

use several PCI interrupts (INTA#, INTB#, INTC#, INTD#). Monofunctional PCI
boards (default) only use one PCI interrupt (INTA#) per PCI slot.

16 Technical Manual D2530 (Econel 200 S2)

Features PCI bus

The PCI interrupts INTA#, INTB#, INTC# and INTD# are available for each PCI
slot (except the PCI-Express slots).

The same interrupt can be assigned simultaneously to several PCI boards. You
should avoid this condition due to reduced performance.

If you use a setting other than Auto, the Plug&Play functionality of the system
BIOS for the corresponding PCI boards is deactivated.

Auto The PCI interrupts are assigned automatically in accordance with

the Plug&Play guidelines.

Disabled No ISA interrupt is assigned to the PCI interrupt.
3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15

The selected ISA interrupt is assigned to the PCI interrupt. You
may not select an ISA interrupt that is used by a component on
the system board (e.g. controller) or an ISA board.

Device

Slot 1 PCI-X 1
Slot 2 PCI-X 18 PXIRQ4 PXIRQ5 PXIRQ6 PXIRQ7
Slot 3 PCI-X 1
Slot 4 PCI 17 PIRQA PIRQB PIRQC PIRQD
Slot 5 PCI-Express
Slot 6 PCI-Express
VGA PCI 18 PIRQB
LAN PIRQE
USB UHCI

Bus IDsel INTA INTB INTC INTD

9 PXIRQ8 PXIRQ9 PXIRQ10 PXIRQ11

7 PXIRQ0 PXIRQ1 PXIRQ2 PXIRQ3

PIRQA

Controller #0

USB UHCI
Controller #1

USB UHCI
Controller #2

USB UHCI
Controller #3

USB 2.0 EHCI PIRQH

PIRQD

PIRQC

PIRQA

D2530 (Econel 200 S2) Technical Manual 17

Screen resolution Features

3.4 Screen resolution

Depending on the operating system used the screen resolutions in the following
table refer to the screen controller on the system board. If you are using an
external screen controller, you will find details of supported screen resolutions
in the operating manual or technical manual supplied with the controller.

Screen resolution

640x480 60, 72, 75, 85, 90, 100, 120, 160, 200 8, 16 2), 32
800x600 60, 70, 72, 75, 85, 90, 100, 120, 160, 200 8, 16 2), 32
1024x768 60, 70, 72, 75, 85, 90, 100, 120, 140, 150, 160,

1152x864 43, 47, 60, 70, 75, 80, 85, 100, 120, 150, 160 8, 16 2), 32
1280x1024 60, 70, 74, 75, 85, 90, 100, 120 8, 16 2), 32
1600x1200 52, 58, 60, 66, 75 8, 16 2), 32

1)

depending on the operating system specific video drivers

2)

depending on the selected refresh rate and the modified video memory clock

Possible refresh rates (Hz)

200

1)

Color depth

(bits pro pixel, bpp)

2)

2)

8, 16 2), 32

2)

2)

2)

2)

3.5 Temperature / system monitoring

Temperature and system monitoring aim to reliably protect the computer
hardware against damage caused by overheating. In addition, any unnecessary
noise is also prevented by reducing the fan speed, and information is provided
about the system status.

The temperature and system monitoring is controlled by an onboard controller.
The following functions are supported:

Temperature monitoring

Measurement of the processor temperature, measurement of the ambient
temperature by a temperature sensor on the LED board.

Fan monitoring

Fans that are no longer available, blocked or sticky fans are detected.

18 Technical Manual D2530 (Econel 200 S2)

Features Temperature / system monitoring

Fan control

The fans are controlled according to temperature.

Sensor monitoring

The removal of, or a fault in, a temperature sensor is detected. Should this
happen all fans monitored by this sensor run at maximum speed, to achieve the
greatest possible protection of the hardware.

Voltage monitoring

The most important voltages are monitored. When a voltage exceeds warning
level high or falls below warning level low an alert will be generated. Adequate
measurements can be done by running agents.

Cover monitoring

Unauthorised opening of the cover is detected, even when the system is
switched off. However, this will only be indicated when the system is switched
on again

System Event Log (SEL)

All monitored events of the system board are recorded in the System Event Log.
They could be retrieved after a system reboot via ServerView.

D2530 (Econel 200 S2) Technical Manual 19

Connectors and jumpers Features

3.6 Connectors and jumpers

27

26

25

24

23

22

21

1 2

3

DIMM 2B
DIMM 1B

DIMM 2A
DIMM 1A

4

5 6

CPU 1

CPU 2

PCI-E x16

PCI-E x8

PCI 33MHz

PCI-X 133/100 MHz

PCI-X 133/100 MHz

A

PCI-X 133/100 MHz

Battery

RAID
key

SATA 2SATA 4SATA 6

7

8

SATA 1SATA 3SATA 5

9

20

Figure 4: Schematic overview of the system board D2530

1 = KBPWR (jumper) 15 = USBPW 3/4 (jumper)
2 = USBPW 1/2 (jumper) 16 = USB 3/4
3 = power supply ATX 17 = BPSMB
4 = PC98 18 = floppy disk
5 = power supply12V (CPU1, CPU2) 19 = BIOSREC (jumper)
6 = CPU1 fan 20 = COM2

14

13

11121516171819

10

20 Technical Manual D2530 (Econel 200 S2)

Features Connectors and jumpers

7 = CPU2 fan 21 = LPT1
8=RAID key 22=VGA_EN (jumper)
9=SATA 1 - 6 23=CLRTC (jumper)
10 = USB 7/8 24 = LAN_EN (jumper)
11 = IDE primary 25 = LAN_BW (jumper)
12 = HDLED 26 = rear fan
13 = intrusion 27 = external connectors
14 = front panel A = 5V Standby LED

Settings with jumpers

The system board is supplied with all jumpers set on default position (pin 1-2).

KBPWR (1)

1-2 PS/2 keyboard/mouse powered by 5V (default)
2-3 PS/2 keyboard/mouse powered by 5V Standby

USBPW 1/2 (2) and USBPW 3/4 (15)

1-2 USB device powered by 5V (default)
2-3 USB device powered by 5V Standby

BIOSREC (19)

1-2 system BIOS (default)
2-3 recover system BIOS (Flash BIOS, Recovery Diskette required)

VGA_EN (22)

1-2 onboard VGA enabled (default)
2-3 onboard VGA disabled (PCI VGA graphics controller)

CLRTC (23)

1-2 CMOS/RTC settings are not cleared (default)
2-3 clear CMOS/RTC settings

D2530 (Econel 200 S2) Technical Manual 21

Connectors and jumpers Features

LAN_EN (24)

1-2 onboard LAN enabled (default)
2-3 onboard LAN disabled (PCI LAN controller)

LAN_BW (25)

1-2 LAN bandwidth setting to balanced mode (default)
2-3 LAN bandwidth setting to centric mode

LED

5V Standby(A)

lightning green standby power present
off AC loss or system board not connected to power supply unit

3.6.1 External connectors

1

3562

Figure 5: External connectors of the system board D2530

1 = PS/2 mouse port 4 = Serial port COM1
2 = PS/2 keyboard port 5 = VGA port
3 = USB port 1/2 6 = LAN port

4

22 Technical Manual D2530 (Econel 200 S2)

Features Connectors and jumpers

LAN connector

®

On this system board you will find a LAN controller integrated in the Intel

6321
I/O controller Hub (ICH). This controller is supported by an external chip (Intel
Single 1 GB PHY 82564EB), which is connected to the I/O controller Hub via an
original Intel interface (Kumeran Interface). The LAN controller supports the
transfer rates of 10 Mbit/s, 100 Mbit/s and 1 Gbit/s and supports WOL function
through Magic Packet™.

It is also possible to boot a device without its own boot hard disk via LAN. Here
Intel PXE is supported.

The LAN controller connector is equipped with two LEDs (light emitting diode)
indicating the transfer rate and the activity.

1 2

Figure 6: LAN connector

®

1 LAN link/activity green on LAN connection

off no LAN connection
flashing LAN transfer

2 LAN transfer rate green + orange off transfer rate 10 Mbit/s (or no

connection)
green on transfer rate 100 Mbit/s
orange on transfer rate 1000 Mbit/s

D2530 (Econel 200 S2) Technical Manual 23

4 Replacing the lithium battery

In order to save the system information permanently, a lithium battery is
installed to provide the CMOS-memory with a current. When the charge is too
low or the battery is empty, a corresponding error message is provided. The
lithium battery must then be replaced.

V The lithium battery must be replaced with an identical battery or a battery

type recommended by the manufacturer (CR2032).
Do not throw lithium batteries into the trashcan. It must be disposed of in

accordance with local regulations concerning special waste.
Make sure that you insert the battery the right way round. The plus pole

must be on the top!

4

2

1

3

Figure 7: Replacing the lithium battery

Ê Press the locking spring into direction of of the arrow (1), so that the lithium-

battery jumps out of its socket.

Ê Remove the battery (2).
Ê Insert a new lithium battery of the same type into the socket (3) and (4).

D2530 (Econel 200 S2) Technical Manual 25

Abbreviations

The technical terms and abbreviations given below represent only a selection of
the full list of common technical terms and abbreviations.

Not all technical terms and abbreviations listed here are valid for the described
system board.

AC

Alternating Current

ACPI

Advanced Configuration and Power management Interface

ANSI

American National Standards Institute

ASR&R

Automatic Server Recovery and Restart

ATA

Advanced Technology Attachment

BBU

Battery Backup Unit

BIOS

Basic Input Output System

BMC

Baseboard Management Controller

CMOS

Complementary Metal Oxide Semiconductor

COM

COMmunication port

CPU

Central Processing Unit

D2530 (Econel 200 S2) Technical Manual 27

Abbreviations

DDR

Double Data Rate

DIMM

Dual In-line Memory Module

DIP

Dual In-line Package

DMI

Desktop Management Interface

DRAM

Dynamic Random Access Memory

ECC

Error Correction Code

EEPROM

Electrical Erasable Programmable Read Only Memory

EFI

Extensible Firmware Interface

EGB

Elektrostatisch gefährdete Bauteile

EHCI

Enhanced Host Controller Interface

EMI

Electromagnetic interference

EMRL

Embedded RAID Logic

EMV

Elektromagnetische Verträglichkeit (electromagnetic compatibility)

EPROM

Erasable Programmable Read Only Memory

28 Technical Manual D2530 (Econel 200 S2)

ESD

ElectroStatic Discharge (elektrostatische Entladung)

EVRD

Enterprise VRD

HPC

Hotplug Controller

FPC

Front Panel Controller

FRU

Field Replaceable Unit

FSB

Front Side Bus

ICE

In Circuit Emulation

IDE

Integrated (intelligent) Drive Electronics

Abbreviations

IEC

International Electrotechnical Commission

IME

Integrated Mirroring Enhanced

IOOP

Intelligent Organisation Of PCI

IPMB

Intelligent Platform Management Bus

IPMI

Intelligent Platform Management Interface

iRMC

integrated Remote Management Controller

D2530 (Econel 200 S2) Technical Manual 29

Abbreviations

ISO

International Organisation for Standardisation

LAN

Local Area Network

LED

Light Emitting Diode

MPS

Multi Processor Specification

NMI

Non Maskable Interrupt

OEM

Original Equipment Manufacturer

OHCI

Open Host Controller Interface

OS

Operating System

PCI

Peripheral Components Interconnect

PDA

Prefailure Detection and Analyzing

PIO

Programmed Input Output

PDB

Power Distribution Board

PLD

Programmable Logic Device

PS(U)

Power Supply (Unit)

30 Technical Manual D2530 (Econel 200 S2)

PWM

Pulse Wide Modulation

PXE

Preboot eXecution Environment

RAID

Redundant Array of Inexpensive Disks

RoHS

Restriction of the Use of Certain Hazardous Substances (Waste from
Electric and Electronic Equipment, EU Directive)

RoMB

RAID on Motherboard

RSB

Remote Service Board

RST

ReSeT

RTC

Real Time Clock

Abbreviations

SAS

Serial Attached SCSI

SATA

Serial ATA

SCSI

Small Computer Systems Interface

SDDC

Single Device Data Correction

SDRAM

Synchronous Dynamic Random Access Memory

SEL

System Event Log

D2530 (Econel 200 S2) Technical Manual 31

Abbreviations

SHDG

Server Hardware Design Guide

SMB

System Management Bus

SMM

Server Management Mode

SMP

Symmetrical Multi Processing

UHCI

Unified Host Controller Interface

USB

Universal Serial Bus

VGA

Video Graphics Adapter

VRD

Voltage Regulator Down

VRM

Voltage Regulator Module

WEEE

Waste from Electric and Electronic Equipment (EU Directive)

WfM

Wired for Management

WOL

Wake up On LAN

32 Technical Manual D2530 (Econel 200 S2)

Fujitsu Siemens Computers GmbH
User Documentation
81730 München
Germany

Fax: (++49) 700 / 372 00000

e-mail: [e-mail]

http://manuals.fujitsu-siemens.com

Submitted by

Comments

Suggestions

Corrections

Comments on System Board D2530

for Econel 200 S2

✁

D2530 (Econel 200 S2)
