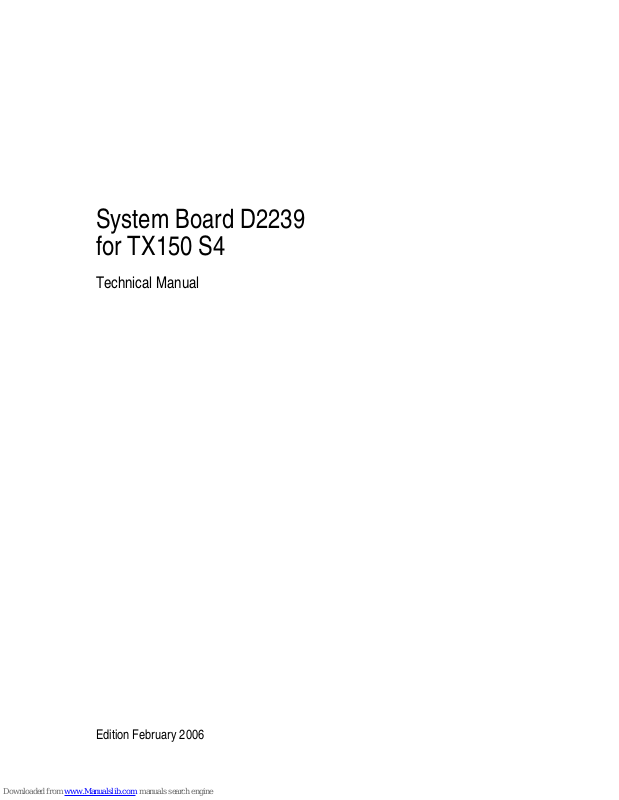

Fujitsu D2239 Technical Manual

PRIMERGY

System Board D2239
for TX150 S4

Technical Manual

Susanne Däschlein
Fujitsu Siemens Computers GmbH
München
81730 München
e-mail: email: [e-mail]
Tel.: [phone]
Fax: (++49) 700 / 372 00000
D2239 (TX150 S4)
Sprachen: En

Edition February 2006

Comments… Suggestions… Corrections…

The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.

Fax forms for sending us your comments are included in
the back of the manual.

There you will also find the addresses of the relevant
User Documentation Department.

Certified documentation
according to DIN EN ISO 9001:2000

To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.

cognitas. Gesellschaft für Technik-Dokumentation mbH

www.cognitas.de

Copyright and Trademarks

Copyright © 2006 Fujitsu Siemens Computers GmbH.

All rights reserved.
Delivery subject to availability; right of technical modifications reserved.

All hardware and software names used are trademarks of their respective manufacturers.

D2239 (TX150 S4) Technical Manual

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Important notes . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Notes on safety . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 CE Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.3 Environmental Protection . . . . . . . . . . . . . . . . . . . . 11

3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2 Main memory . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.3 PCI bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.4 Screen resolution . . . . . . . . . . . . . . . . . . . . . . . . 20

3.5 Temperature / system monitoring . . . . . . . . . . . . . . . . 20

3.6 Interfaces and connectors . . . . . . . . . . . . . . . . . . . . 22

3.6.1 Settings with jumpers . . . . . . . . . . . . . . . . . . . . . . 24

3.6.2 External connectors . . . . . . . . . . . . . . . . . . . . . . . 24

4 Replacing the lithium battery . . . . . . . . . . . . . . . . . 27

Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

D2239 (TX150 S4) Technical Manual 5

1Introduction

This technical manual describes the system board D2239, which can be
equipped with one Intel

®

processor.
You will find further information in the manual “BIOS Setup”.
Further information about drivers is provided in the readme files on the hard

disk, on the supplied “ServerSupport” or “ServerStart” CDs.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

italics indicates commands, menu items, file and path

names or software programs

fixed font indicate system output on the monitor
semi-bold fixed font indicates values to be entered through the

keyboard

[Key symbol] indicates keys according to their representation on

the keyboard
If capital letters are to be entered explicitly, then the

Shift key is shown, e.g. [SHIFT] - [A] for A.
If two keys need to be pressed at the same time,

then this is shown by placing a hyphen between the
two key symbols.

“quotation marks” indicates names and terms that are being empha-

sized.

Ê indicates an operation that to be performed

V CAUTION! indicates warnings, which, if ignored, will endanger

your health, destroy the system or lead to the loss
of data.

I indicates additional information, notes and tips

Table 1: Notational conventions

D2239 (TX150 S4) Technical Manual 7

2 Important notes

In this chapter you will find essential information regarding safety when working
with the system board.

V CAUTION!

With the system board installed you must open the system to access the
system board. How to access the system board of your system is
described in the appropriate service supplement.

When handling the system board, refer to the specific notes on safety in
the operating manual and/or service supplement for the respective
server.

2.1 Notes on safety

V CAUTION!

● The actions described in these instructions should only be performed

by authorized, qualified personnel. Equipment repairs should only be
performed by qualified staff. Any failure to observe the guidelines in
this manual, and any unauthorized openings and improper repairs
could expose the user to risks (electric shock, fire hazards) and could
also damage the equipment. Please note that any unauthorized
openings of the device will result in the invalidation of the warranty
and exclusion from all liability.

● Transport the device only in the antistatic original packaging or in

packaging that protects it from knocks and jolts.

● Only install expansions that are allowed for the system board. If you

install other expansions, you may damage the requirements and rules
governing safety and electromagnetic compatibility or your system.
Information on which system expansions are suitable can be
obtained from the customer service centre or your sales outlet.

● The warranty expires if the device is damaged during the installation

or replacement of system expansions.

8 Technical Manual D2239 (TX150 S4)

Notes on safety Important notes

V ● Components can become very hot during operation. Ensure you do

not touch components when making extensions to the system board.
There is a danger of burns!

● Transmission lines to peripheral devices must be adequately

shielded.

● To the LAN wiring the requirements apply in accordance with the

standards EN 50173 and EN 50174-1/2. As minimum requirement
the use of a protected LAN line of category 5 for 10/100 MBps
Ethernet, and/or of category 5e for Gigabit Ethernet is considered.
The requirements of the specification ISO/IEC 11801 are to be
considered.

● Never connect or disconnect data transmission lines during a storm

(lightning hazard).

Batteries

V CAUTION!

● Incorrect replacement of lithium battery may lead to a risk of

explosion. The batteries may only be replaced with identical batteries
or with a type recommended by the manufacturer.

It is essential to observe the instructions in chapter “Replacing the

lithium battery”.

D2239 (TX150 S4) Technical Manual 9

Important notes Notes on safety

Modules with electrostatic-sensitive components

Systems and components that might be damaged by electrostatic discharge
(ESD) are marked with the following label:

Figure 1: ESD label

When you handle components fitted with ESDs, you must observe the following
points under all circumstances:

● You must always discharge yourself of static charges (e.g. by touching a

grounded object) before working.

● The equipment and tools you use must be free of static charges.

● Remove the power plug from the power socket before inserting or removing

boards containing ESDs.

● Always hold boards with ESDs by their edges.

● Never touch pins or conductors on boards fitted with ESDs.

● Use a grounding cable designed for this purpose to connect yourself to the

system unit as you install/deinstall the board.

● Place all components on a static-safe base.

I You will find a detailed description for handling ESD components in the

relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).

10 Technical Manual D2239 (TX150 S4)

CE Certificate Important notes

Notes about boards

● During installation/deinstallation of the system board, observe the specific

instructions described in the service supplement for the respective device.

● Remove the plug from the mains outlet so that system and system board are

totally disconnected from the mains voltage.

● To prevent damage to the system board, the components and conductors on

it, please take great care when you insert or remove boards. Take great care
to ensure that extension boards are slotted in straight, without damaging
components or conductors on the system board, or any other components,
for example EMI spring contacts

● Be careful with the locking mechanisms (catches, centring pins etc.) when

you replace the system board or components on it, for example memory
modules or processors.

● Never use sharp objects (screwdrivers) for leverage.

2.2 CE Certificate

The shipped version of this board complies with the requirements
of the EEC directive 89/336/EEC “Electromagnetic compatibility”.

Compliance was tested in a typical PRIMERGY configuration.

D2239 (TX150 S4) Technical Manual 11

Important notes Environmental Protection

2.3 Environmental Protection

Environmentally friendly product design and development

This product has been designed in accordance with standards for ”environmen­tally friendly product design and development“. This means that the designers
have taken into account important criteria such as durability, selection of
materials and coding, emissions, packaging, the ease with which the product
can be dismantled and the extent to which it can be recycled.

This saves resources and thus reduces the harm done to the environment.

Notes on saving energy

Devices that do not have to be on permanently should not be switched on until
they need to be used and should be switched off during long breaks and on
completion of work.

Notes on packaging

Please do not throw away the packaging. We recommend that you do not throw
away the original packaging in case you need it later for transporting.

Notes on dealing with consumables

Please dispose batteries in accordance with local government regulations.
Do not throw batteries and accumulators into the household waste. They must

be disposed of in accordance with local regulations concerning special waste.
All batteries containing pollutants are marked with a symbol (a crossed-out

rubbish bin on wheels). In addition, the marking is provided with the chemical
symbol of the heavy metal decisive for the classification as a pollutant:

Cd Cadmium
Hg Mercury
Pb Lead

Notes on labeling plastic housing parts

Please avoid attaching your own labels to plastic housing parts wherever
possible, since this makes it difficult to recycle them.

12 Technical Manual D2239 (TX150 S4)

Environmental Protection Important notes

Returning, recycling and disposal

For details on returning and reuse of devices and consumables within Europe,
refer to the “Returning used devices” manual, or contact your Fujitsu Siemens
Computers branch office/subsidiary or our recycling centre in Paderborn:

Fujitsu Siemens Computers
Recycling Center
D-33106 Paderborn

Tel. [phone]
Fax [phone]

The device may not be disposed of with household rubbish. This
appliance is labelled in accordance with European Directive
2002/96/EC concerning used electrical and electronic appliances
(waste electrical and electronic equipment - WEEE).
The guideline determines the framework for the return and recycling
of used appliances as applicable throughout the EU. To return your
used device, please use the return and collection systems available
to you. You will find further information on this at www.fujitsu-
siemens.com/recycling.

D2239 (TX150 S4) Technical Manual 13

3 Features

3.1 Overview

The system board D2239 is available in two versions:
– SCSI version; you will find on the system board a SCSI controller and one

SCSI connector

– SATA version; four SATA connectors and one SATA LED connector

Processors

– 1 x Intel

®

Pentium®4 or Pentium®D processor

– 1 processor socket LGA775 for Intel

®

Pentium®4 or Pentium®D processor

with 533/800 MT/s (133/200 MHz) front side bus

Main Memory

– 4 slots for main memory DDR2 533/667 MHz (unbuffered),

SDRAM memory modules with 512 MB up to 8 Gbyte
– maximum 8 Gbyte of memory
– minimum 512 MB
– ECC multiple bit error detection and single bit error correction

Chips on the system board

– Intel

®

iE7230 chipset
– ATI VGA controller (RAGE XL)
– Intel

®

i82801 ICH7R chipset
– Intel

®

PXH-V PCI-X bridge
– Super-I/O controller (SMSC DME1737)
– 1 x GBit LAN controller (Broadcom BCM5721)
– SCSI controller (LSI 53C1020A) with IME functionality (only SCSI version)
– Flash EPROM for:

–BIOS

–BMC
– BMC controller
– ADM1026 thermal and system management controller

14 Technical Manual D2239 (TX150 S4)

Overview Features

internal connectors

– floppy disk
– 1 IDE primary
– power (12V, -12V, 5V, 3.3V and 5V auxiliary)
– 12V (CPU) power
– SCSI (only SCSI version)
– 4 SATA (only SATA version)
– SATA LED (only SATA version)
– 1 CPU fan
– 2 system fans
– PC98
– intrusion detection
–RSB power
– IPMB
– HDD LED
– front panel
– battery holder
– dual USB 2.0 (USB3/4)
–buzzer
–SMB1

external connectors

– 2 serial ports (COM1, COM2)
– 1 parallel port
– 2 PS/2 interfaces for keyboard and mouse
– 2 USB 2.0 ports with 480 Mbits/s (rear)
– 1 USB 2.0 port with 480 Mbits/s (front panel)
– 1 VGA port
– 1 RJ45 LAN port

PCI slots

– 2 x PCI-X (64 Bit / 66 MHz), slot 2 prepared for ZCR (ZCR only possible in

SCSI version)
– 3 x PCI (32 Bit / 33 MHz)
– 1 x PCI Express x1 (short, 0.5 GB/s)
– 1 x PCI Express x4 (2 GB/s)

D2239 (TX150 S4) Technical Manual 15

Features Overview

BIOS features

– Phoenix System BIOS V 4.06
– SMBIOS 2.31 (DMI)
– MultiProcessor specification 1.1
– Server Hardware Design Guide 3.0
– WfM 2.0
– ACPI 1.0 support
– LSI-IME SCSI BIOS
– USB keyboard/mouse
– boot possible from:

– 120 MB floppy disk drive

– CD-ROM

– USB drives

–LAN
– console redirection support
– OEM logo (optional)
– Memory disable
– no Alert on LAN

Environmental protection

Battery in holder

Form factor, slot compatibility list

–ATX-L
– ACPI 1.0b, OnNow, PCI 2.3, PCI-X1.0b, PCI-X2.0, PCI Express 1.0a,

WfM 2.0, SHDG 3.0, MPS 1.4, IPMI 1.5, PCI SHPC 1.0, USB2.0

16 Technical Manual D2239 (TX150 S4)

Main memory Features

3.2 Main memory

The system board supports up to 8 Gbyte main memory. 4 slots (2 memory
banks with 2 modules) are available for the main memory. Each memory bank
can be populated with 512 Mbyte, 1 Gbyte or 2 Gbyte unbuffered DDR2
memory modules.

Module population

Figure 2: Main memory

– If the memory modules are populated in pairs, each pair must consist of

identical memory modules (2-way interleaved mode).
– The module capacity between pairs can differ: pair 2A/2B can be populated

with two 512 Mbyte memory modules and pair 1A/1B with two 1 Gbyte

memory modules.
Following table shows the mandatory population order:

DIMM_1A DIMM_2A DIMM_1B DIMM_2B

single
channel

populated empty empty empty

empty populated empty empty
empty empty populated empty
empty empty empty populated

dual channel

populated empty populated empty

empty populated empty populated

populated populated populated populated

DIMM 1A

DIMM 2A

DIMM 2B

DIMM 1B

D2239 (TX150 S4) Technical Manual 17

Features PCI bus

3.3 PCI bus

Figure 3: PCI slots

PCI slots

The following table shows an overview of the PCI slots:

Zero Channel RAID (only SCSI version)

PCI slot 2 is prepared for Zero Channel RAID (ZCR). ZCR means that the
oboard SCSI controller can be upgraded to a SCSI RAID controller through the
inserted ZCR PCI card.

PCI slot 64Bit/

32Bit

Frequency

(MHz)

Description

1 32 Bit 33 32 bit PCI bus slot
2 64 Bit 66 64 bit PCI-X bus slot, prepared for ZCR
3 64 Bit 66 64 bit PCI-X bus slot
4 32 Bit 33 32 bit PCI bus slot
5 32 Bit 33 32 bit PCI bus slot
6 PCIe x4 bus slot
7 PCIe x1 bus slot

18 Technical Manual D2239 (TX150 S4)

PCI bus Features

PCI IRQ Line x - Assignment of the PCI interrupts

PCI IRQ Line x defines which ISA interrupts are used for the separate PCI slots.
If you select Auto in the BIOS setup, the interrupts are assigned automatically

and no further settings are required.
Multifunctional PCI boards or boards with an integrated PCI-to-PCI bridge can

use several PCI interrupts (INTA#, INTB#, INTC#, INTD#). Monofunctional PCI
boards (default) only use one PCI interrupt (INTA#) per PCI slot.

The PCI interrupts INTA#, INTB#, INTC# and INTD# are available for each PCI
slot.

The same interrupt can be assigned simultaneously to several PCI boards. You
should avoid this condition due to reduced performance.

If you use a setting other than Auto, the Plug&Play functionality of the system
BIOS for the corresponding PCI boards is deactivated.

Auto The PCI interrupts are assigned automatically in accordance with

the Plug&Play guidelines.

Disabled No ISA interrupt is assigned to the PCI interrupt.

3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15

The selected ISA interrupt is assigned to the PCI interrupt. You
may not select an ISA interrupt that is used by a component on
the system board (e.g. controller) or an ISA board.

D2239 (TX150 S4) Technical Manual 19

Features PCI bus

*) only SCSI version

PCI

INT

LINE

ICH

Controller or slot INT

Onboard controller Slot

USB 1.1

U
S
B

2.0

S
M
B

u

s

S
C
S

I

(P

X
H

-V
*)

L
A
N

P

CI

e
(I
C

H)

12 34567

1st 2nd 3rd 4th

PCI PCI-X PCI-X PCI PCI

PCIe x4PCIe

x1

ICH

PXH-V

(ZCR*)PXH-V ICH ICH ICH ICH

1 (A) xBD BD
2 (B) xCA CA
3 (C) DD BCADB
4 (D) xCACDBA

5 (E) x

6 (F) xBAC
7 (G) xABD
8 (H) xx

P
X

H

-

V

0 BD
1 CA
2 DB
3 AC

IDSel 21 19 25 23 25

20 Technical Manual D2239 (TX150 S4)

Screen resolution Features

3.4 Screen resolution

Depending on the operating system used the screen resolutions in the following
table refer to the screen controller on the system board (with ATI VGA driver).

The ATI VGA driver is supported by the operation systems Windows 2000
Server and Windows Server 2003, and by all LINUSX derivates.

If you are using a different screen controller, you will find details of supported
screen resolutions in the documentation supplied with the controller.

3.5 Temperature / system monitoring

Temperature and system monitoring aim to reliably protect the computer
hardware against damage caused by overheating. In addition, any unnecessary
noise is also prevented by reducing the fan speed, and information is provided
about the system status.

The temperature and system monitoring are controlled by an onboard controller.
The following functions are supported:

Temperature monitoring

Measurement of the processor and the inhouse temperature by an onboard
sensor, measurement of the ambient temperature by a I²C temperature sensor.

Fan monitoring

Fans that are no longer available, blocked or sticky fans are detected.

Fan control

The fans are regulated according to temperature.

Screen resolution Refresh rate

800x600

8, 16, 32 bpp 60/75/85 Hz1024x768

1280x1024

D2239 (TX150 S4) Technical Manual 21

Features Temperature / system monitoring

Sensor monitoring

The removal of, or a fault in, a temperature sensor is detected. Should this
happen all fans monitored by this sensor run at maximum speed, to achieve the
greatest possible protection of the hardware.

Voltage monitoring

When voltage exceeds warning level high or falls below warning level low an
alert will be generated.

Cover monitoring:

Unauthorized opening of the cover is detected, even when the system is
switched off. However, this will only be indicated when the system is switched
on again

System Event Log (SEL)

All monitored events of the system board are recorded in the System Event Log.
They could be retrieved after a reboot via ServerView.

22 Technical Manual D2239 (TX150 S4)

Interfaces and connectors Features

3.6 Interfaces and connectors

Figure 4: Schematic view of the system board D2239 - SCSI version

1 = CPU fan 11 = Intrusion detection
2 = Floppy disk drive 12 = SMB1 (I²C temperature sensor)
3 = Front panel 13 = RSB LP power
4 = PC98 14 = IPMB
5 = IDE 15 = HDD activity
6 = Power supply 16 = Buzzer
7 = PSU 12V connector (CPU) 17 = System fan 1
8 = USB 3/4 18 = external ports
9 = System fan 2 19 = PWD SKIP/RCVR (jumper)

10 = SCSI U320

D2239 (TX150 S4) Technical Manual 23

Features Interfaces and connectors

Figure 5: Schematic view of the system board D2239 - SATA version

1 = CPU fan 10b = SATA LED
2 = Floppy disk drive 11 = Intrusion detection
3 = Front panel 12 = SMB1 (I²C temperature sensor)
4 = PC98 13 = RSB LP power
5=IDE 14=IPMB
6 = Power supply 15 = HDD activity
7 = PSU 12V connector (CPU) 16 = Buzzer
8 = USB 3/4 17 = System fan 1
9 = System fan 2 18 = external ports

10a = SATA 1-4 19 = PWD SKIP/RCVR (jumper)

24 Technical Manual D2239 (TX150 S4)

Interfaces and connectors Features

3.6.1 Settings with jumpers

The following jumper settings are possible:

Figure 6: Jumper settings

3.6.2 External connectors

Figure 7: External ports of the system board D2239

default: System BIOS recovery disabled/

Password skip disabled

PWD SKIP: Skip password (enabled)

RCVR: Recover system BIOS (enabled)

1 = PS/2 mouse port 6 = Serial port COM2
2 = Parallel port 7 = Serial port COM1
3 = LAN port 8 = PS/2 keyboard port
4=VGA port 9=ID LED
5 = USB port (1/2) 10 = Global Error LED

1

3

4

5

2

6

7

8

9

10

D2239 (TX150 S4) Technical Manual 25

Features Interfaces and connectors

LEDs

LAN connectors

On this system board you will find one GbE Broadcom LAN controller
BCM5721. This LAN controller supports the transfer rates of 10 Mbit/s,
100 Mbit/s and 1 Gbit/s. The LAN controller supports WOL function through
Magic Package™.

It is also possible to boot a device without its own boot hard disk via LAN. Here
Intel

®

PXE is supported.

The LAN port serves as management interface and is prepared for
RemoteView.

The LAN controller connectors are equipped with two LEDs (light emitting
diode) indicating the transfer rate and the activity.

LED Indicator Meaning

9 Identify blue Server is identified via ServerView

10 Global Error

orange

Indicates a prefailure

orange

flashing

Indicates a failure.
Reasons for a failure may be:

- overheating of one of the sensors

- sensor defect

- fan defect

- CPU error

- Software detected an error

26 Technical Manual D2239 (TX150 S4)

Interfaces and connectors Features

Figure 8: LAN connectors

1 LAN link/activity

green ON LAN connection

OFF no LAN connection

flashing LAN transfer

2 LAN transfer rate

green +

yellow

OFF

transfer rate 10 Mbit/s

(or no connection)

green ON transfer rate 100 Mbit/s

yellow ON transfer rate 1000 Mbit/s

1

2

D2239 (TX150 S4) Technical Manual 27

4 Replacing the lithium battery

In order to save the system information permanently, a lithium battery is
installed to provide the CMOS-memory with a current. When the charge is too
low or the battery is empty, a corresponding error message is provided. The
lithium battery must then be replaced.

V ATE NTIO N!

The lithium battery must be replaced with an identical battery or a battery
type recommended by the manufacturer (CR2032).

Do not throw lithium batteries into the trashcan. It must be disposed of in
accordance with local regulations concerning special waste.

Make sure that you insert the battery the right way round. The plus pole
must be on the top!

Figure 9: Replacing the lithium battery

Ê Press the locking spring into direction of the arrow (1), so that the lithium-

battery jumps out of its socket.

Ê Remove the battery (2).
Ê Insert a new lithium battery of the same type into the socket (3) and (4).

+

3

1

2

4

D2239 (TX150 S4) Technical Manual 29

Abbreviations

The technical terms and abbreviations given below represent only a selection of
the full list of common technical terms and abbreviations.

Not all technical terms and abbreviations listed here are valid for the described
system board.

ACPI

Advanced Configuration and Power management Interface

ASRR

Automatic Server Recovery and Restart

ATA

Advanced Technology Attachment

BBU

Battery Backup Unit

BIOS

Basic Input Output System

BMC

Baseboard Management Controller

CMOS

Complementary Metal Oxide Semiconductor

COM

COMmunication port

CPU

Central Processing Unit

DDR

Double Data Rate

DIMM

Dual In-line Memory Module

30 Technical Manual D2239 (TX150 S4)

Abbreviations

DIP

Dual In-line Package

DMI

Desktop Management Interface

DRAM

Dynamic Random Access Memory

ECC

Error Correction Code

EEPROM

Electrical Erasable Programmable Read Only Memory

EPROM

Erasable Programmable Read Only Memory

EMRL

Embedded RAID Logic

EVRD

Enterprise VRD

HPC

Hot-plug Controller

ICE

In Circuit Emulation

IDE

Integrated (intelligent) Drive Electronics

IME

Integrated Mirror Enhanced

IOOP

Intelligent Organization Of PCI

IPMB

Intelligent Platform Management Bus

D2239 (TX150 S4) Technical Manual 31

Abbreviations

IPMI

Intelligent Platform Management Interface

LAN

Local Area Network

LED

Light Emitting Diode

MPS

Multi Processor Specification

NMI

Non Maskable Interrupt

OEM

Original Equipment Manufacturer

OHCI

Open Host Controller Interface

OS

Operating System

PCI

Peripheral Components Interconnect

PDA

Prefailure Detection and Analyzing

PIO

Programmed Input Output

PLD

Programmable Logic Device

PS(U)

Power Supply (Unit)

PWM

Puls Wide Modulation

32 Technical Manual D2239 (TX150 S4)

Abbreviations

PXE

Preboot eXecution Environment

RAID

Redundant Array of Independent Disks

RSB

Remote Service Board

RST

ReSeT

RTC

Real Time Clock

SATA

Serial Advanced Technology Attachment

SCSI

Small Computer Systems Interface

SDDC

Single Device Data Correction

SDRAM

Synchronous Dynamic Random Access Memory

SHDG

Server Hardware Design Guide

SMB

System Management Bus

SMM

Server Management Mode

SMP

Symmetrically Multi Processing

UHCI

Unified Host Controller Interface

D2239 (TX150 S4) Technical Manual 33

Abbreviations

USB

Universal Serial Bus

VGA

Video Graphics Adapter

VRD

Voltage Regulator Down

VRM

Voltage Regulator Module

WfM

Wired for Management

WOL

Wake up On LAN
