Technisches Handbuch / Technical Manual

Mainboard D1931

Deutsch / English

Sie haben ...

... technische Fragen oder Probleme? Wenden Sie sich bitte an:

● Ihren zuständigen Vertriebspartner

● Ihre Verkaufsstelle

Aktuelle Informationen und Updates (z. B. BIOS-Update) zu unseren Mainboards finden Sie im Internet: http://www.fujitsu-siemens.com/mainboards

Are there ...

... any technical problems or other questions you need clarified? Please contact:

● your sales partner

● your sales outlet

The latest information and updates (e.g. BIOS update) on our mainboards can be found on the Internet under: http://www.fujitsu-siemens.com/mainboards

Dieses Handbuch wurde auf Recycling-Papier gedruckt. This manual has been printed on recycled paper. Ce manuel est imprimé sur du papier recyclé. Este manual ha sido impreso sobre papel reciclado. Questo manuale è stato stampato su carta da riciclaggio. Denna handbok är tryckt på recyclingpapper. Dit handboek werd op recycling-papier gedrukt.

Herausgegeben von/Published by Fujitsu Siemens Computers GmbH

Bestell-Nr./Order No.: A26361-D1931-Z120-1-7419 Ausgabe/Edition 1 Printed in the Federal Republic of Germany AG 0504 05/04

A26361-D1931-Z120-1-7419

Deutsch

Mainboard D1931

Technisches Handbuch Technical Manual

English

Ausgabe Mai 2004 May 2004 edition

Intel, Pentium und Celeron sind eingetragene Warenzeichen der Intel Corporation, USA.

Microsoft, MS, MS-DOS und Windows sind eingetragene Warenzeichen der Microsoft Corporation.

PS/2 und OS/2 Warp sind eingetragene Warenzeichen von International Business Machines, Inc.

Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen der jeweiligen Inhaber und werden als geschützt anerkannt.

Zuwiderhandlungen verpflichten zu Schadenersatz.

Liefermöglichkeiten und technische Änderungen vorbehalten.

Dieses Handbuch wurde erstellt von cognitas. Gesellschaft für Technik-Dokumentation mbH www.cognitas.de

Intel, Pentium and Celeron are registered trademarks of Intel Corporation, USA.

Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation.

PS/2 and OS/2 Warp are registered trademarks of International Business Machines, Inc.

All other trademarks referenced are trademarks or registered trademarks of their respective owners, whose protected rights are acknowledged.

All rights, including rights of translation, reproduction by printing, copying or similar methods, even of parts are reserved.

Offenders will be liable for damages.

All rights, including rights created by patent grant or registration of a utility model or design, are reserved. Delivery subject to availability.

Right of technical modification reserved.

This manual was produced by cognitas. Gesellschaft für Technik-Dokumentation mbH www.cognitas.de

Übersicht/Overview Mainboard D1931

1 =

Interne Anschlüsse und Steckplätze / Internal connectors and slots

Channel A

Channel B

slot 1

slot 3

slot 4

PCI Express x16

PCI Express x1

PCI 1

PCI 2

slot 2

Externe Anschlüsse / External connectors

1 2 3

6 7

8 9

Diskettenlaufwerk / Floppy disk drive

2 = Stromversorgungsüberwachung /

Power supply control

3 = Bedienfeld / Front panel 4 = Stromversorgung / Power supply 5 = IDE-Laufwerke 1/2 / IDE-drives 1/2 6 = Serial ATA3 7 = Serial ATA4 8 = Serial ATA2 9 = Serial ATA1 10 = LCD-Anzeige / LCD Display 11 = Lüfter 3 / Fan 3 12 = Lüfter 2 / Fan 2 13 = USB 14 = Gehäuseüberwachung / Intrusion 15 = USB 16 = SMB 17 = S/PDIF-Anschluss / S/PDIF

connector

18 = Audio-Anschlüsse Vorderseite /

Audio port front

19 = Audio in 20 = Zusätzliche-Stromversorgung /

additional power supply

21 = Lüfter 1 / Fan 1

Optionale Komponenten / Optional components

Bedienfeld / Front panel

HD-LED

Message LED

Power On LED

Power On/Off

Reset

1) Both connector positions possible

2) 2pin or 3pin connector possible

Recovery Password

Speaker

A26361-D1931-Z120-1-7419 Umschlag/Cover

Übersicht/Overview Mainboard D1931

Mainboard D1931.............................................................................................................................1

Notational conventions...............................................................................................................1

Important notes .................................................................................................................................2

Information about boards ...........................................................................................................2

List of features...................................................................................................................................3

Special features.........................................................................................................................5

Brief instructions on installing mainboard...........................................................................................7

Prior to installation.....................................................................................................................7

Interfaces and connectors ..............................................................................................................9

External ports ....................................................................................................................................9

LAN connector...........................................................................................................................9

Graphics port ...........................................................................................................................10

Internal ports and connectors ..........................................................................................................10

Hard disk connection ...............................................................................................................10

Audio front panel......................................................................................................................11

Pin assignment of internal ports.......................................................................................................12

Jumper settings.............................................................................................................................18

Add-on modules / Upgrading........................................................................................................19

Replacing processor........................................................................................................................ 19

Installing processor with heat sink ...........................................................................................19

Upgrading main memory .................................................................................................................22

Adding PCI Express cards...............................................................................................................24

Adding PCI cards.............................................................................................................................24

PCI bus interrupts - Selecting correct PCI slot.........................................................................24

Replacing the lithium battery....................................................................................................26

BIOS update....................................................................................................................................27

BIOS Recovery - Recovering System BIOS.....................................................................................28

Microcode Update............................................................................................................................29

Drivers.............................................................................................................................................30

Annex .............................................................................................................................................31

Electrical Properties.........................................................................................................................31

APM and ACPI system status, energy-saving modes ......................................................................32

Mainboard Revision and BIOS Version............................................................................................ 33

Error messages .............................................................................................................................34

Glossary.........................................................................................................................................38

A26361-D1931-Z120-1-7419, Edition 1 English

Mainboard D1931

Your mainboard is available in different configuration levels. Depending on the configuration chosen, some of the hardware components described may not be available on your mainboard.

Additional information

Information on the BIOS Setup and additional descriptions of the drivers are contained:

● in the readme files on your hard disk

● on the driver floppy disks included

● on the CD "Drivers & Utilities Collection" or "Drivers & Utilities" or "ServerStart".

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

► Text which follows this symbol describes activities that must be performed in the order shown.

└┘

↵ This symbol indicates that you must press the Enter key.

Text in this typeface indicates screen outputs.

Text in this bold typeface indicates the entries you make via the keyboard.

Text in italics indicates commands or menu items. "Quotation marks" indicate names of chapters or terms.

The programme Acrobat Reader must be installed to be able to open the manuals. You will find the programme on the CD in the directory "utls/acrobat".

For more details please read the according readme.txt files.

indicates information which is important for your health or for preventing physical damage.

indicates additional information which is required to use the system properly.

This symbol indicates that you must enter a blank space (press the Space Bar) at this point.

A26361-D1931-Z120-1-7419, Edition 1 English - 1

Important notes

With the mainboard installed you must open the system to access the mainboard. How to dismantle and reassemble the system is described in the operating manual accompanying the system.

Connecting cables for peripherals must be adequately shielded to avoid interference.

Observe the safety notes in the operating manual of your system.

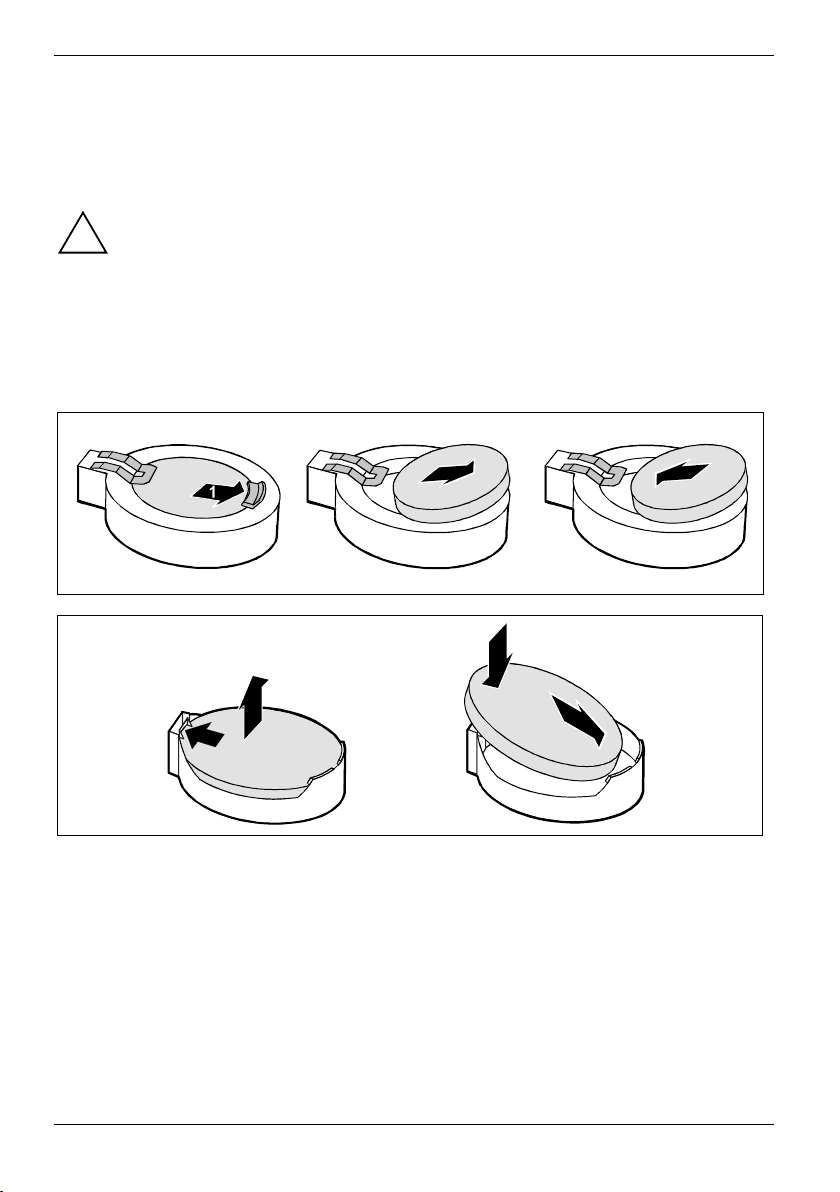

Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore essential to observe the instructions in the "Add-on modules / Upgrading" - "Replacing the lithium battery" section.

Components can become very hot during operation. Ensure you do not touch components when making extensions to the mainboard. There is a danger of burns!

Information about boards

To prevent damage to the mainboard, the components and conductors on it, please take great care when you insert or remove boards. Take great care to ensure that extension boards are slotted in straight, without damaging components or conductors on the mainboard, or any other components, for example EMI spring contacts.

Remove the plug from the mains outlet so that system and mainboard are totally disconnected from the mains voltage.

Be careful with the locking mechanisms (catches, centring pins etc.) when you replace the mainboard or components on it, for example memory modules or processors.

Never use sharp objects (screwdrivers) for leverage.

The shipped version of this board complies with the requirements of the EEC directive 89/336/EEC "Electromagnetic compatibility".

Compliance was tested in a typical PC configuration. When installing the board, refer to the specific installation information in the manual for

the receiving device.

The warranty is invalidated if the system is damaged during the installation or replacement of expansions. Information on which expansions you can use is available

from your sales outlet or the customer service centre.

Boards with electrostatic sensitive devices (ESD) are identifiable by the label shown. When you handle boards fitted with ESDs, you must, under all circumstances,

observe the following:

● You must always discharge static build up (e.g. by touching a grounded object)

before working.

●

• The equipment and tools you use must be free of static charges.

● Remove the power plug from the mains supply before inserting or removing

boards containing ESDs.

● Always hold boards with ESDs by their edges.

● Never touch pins or conductors on boards fitted with ESDs.

2 - English A26361-D1931-Z120-1-7419, Edition 1

List of features

Onboard features D1931-A

Chipset Intel® 915G Board size µATX VGA ! Audio / 8-channel / S/PDIF ! / - / Buzzer / int. Speaker Support - / ! LAN 1 Gbit / 100 Mbit / 10 Mbit ! / ! / ! LAN ASF / Alert-on-LAN / WoL / Boot - / - / ! / ! SATA / ATA / RAID ! / ! / FireWireTM / HI-SPEED USB 2.0 - / ! Fan monitoring PSU** / CPU (FAN1) / AUX1 (FAN2) /

AUX2 (FAN3) Fan control PSU** / CPU (FAN1) / AUX1 (FAN2) / AUX2

(FAN3) Temperature monitoring CPU/ONB1/ONB2/OFFB ! / - / - / SmartCard Reader Support (USB / serial) ! / Fujitsu Siemens Computers Keyboard Power Button

Support

Special onboard features

Silent Fan / Silent Fan LT - / ! System Guard / Silent Drives - / ! Recovery BIOS / Desk Update / Multi Boot / Safe

Standby HDD Password / USB Security - / ! Logo Boot / Intel On Screen Branding - / !

Internal ports

DIMM Sockets (DDR 400 / DDR2 533) 4 / PCI Express x16 slot for graphics cards 1 PCI Express x1 slot 1 PCI slot (32 bit, 33 MHz, 5 V and 3.3 V) 2 Serial ATA interface (150 Mbyte/s) /

ATA interface (100 Mbyte/s) / Floppy interface S/PDIF (digital Audio)* OUT / IN - / Audio Input !

- / - / - / -

- / ! / - / -

! / ! / ! / !

2 / 1 / 1

A26361-D1931-Z120-1-7419, Edition 1 English - 3

List of features

Internal ports (continued) D1931-A

Front panel Audio (9-pin for headphone, microphone) AC'97 / High Definition Audio (Azalia)

FireWireTM * (9-Pin, Intel standard header) USB Ports* (2.0, ~480 MB/s) 4 Serial Ports* (FIFO, 16550 compatible) Fan Connectors PSU** / CPU (FAN1) / AUX1 (FAN2) /

AUX2 (FAN3) SMBus Connector* (Case Temperature) Cover monitoring* (Casing open) BTX (24-pin) / ATX12V (20-pin) power supply 1 / 1

External ports

VGA 1 Audio Mic. In / Line in / Line out (or configurable with

driver) Audio Surround / Rear Surround / Center LFE - / - / S/PDIF (digital audio, cinch)* OUT / IN - / S/PDIF (digital audio, optical) OUT - LAN (RJ-45) 1 PS/2 mouse/keyboard 1 / 1 FireWire™ * (6-Pin, IEEE 1394 port) USB Ports (2,0, ~480 MB/s) 4 Serial Ports (RS232, FIFO, 16550 compatible) 1 Parallel Port (EPP/ECP) 1

* for use with internal devices or optional Front or Rear panel

** not supported by standard power supplies

1 / -

- / 1 / 1 / -

1 / 1 / 1

4 - English A26361-D1931-Z120-1-7419, Edition 1

List of features

Special features

Your mainboard is available in different configuration levels. Depending on the configuration, your mainboard is equipped with or supports the features described in the following.

Silent Fan LT

A controller regulates the processor fan in the PC and thus prevents unnecessary noise pollution. The controller operates independently of the operating system and the processor.

Silent Drives

Hard disks and optical drives (CD-ROM, CD-RW, DVD etc.) are besides the fans some of the greatest sources of noise in a PC. The BIOS-Setup can be used to switch these drives into a quieter mode.

Recovery BIOS

If an error occurs during a BIOS update (e. g. due to a power failure), the system BIOS will be destroyed. All Fujitsu Siemens Computers mainboards are equipped with a recovery BIOS. With it a destroyed BIOS can easily be restored. Exact instructions are provided in the chapter "BIOS Recovery - Recovering System BIOS".

DeskUpdate

DeskUpdate enables simple, automatic driver installation. The function is available both on the CD "Drivers & Utilities" and on the Internet.

Multi Boot

The BIOS of the Fujitsu Siemens Computers mainboards enables booting from all types mass storage devices. In addition to IDE hard disks, this also includes optical drives, such as CD-ROM, DVD and external drives that can be connected to USB or FireWire.

USB Security

USB Security is a BIOS function that offers protection against unauthorised access regardless of the operating system used. If USB Security is activated, the system can only be started, if the MemoryBird of Fujitsu Siemens Computers is connected to one of the existing USB-ports.

A26361-D1931-Z120-1-7419, Edition 1 English - 5
