Mainboard D1740

Technisches Handbuch Technical Manual

English

Français

Ausgabe April 2004 April 2004 edition

Intel, Pentium und Celeron sind eingetragene Warenzeichen der Intel Corporation, USA.

Microsoft, MS, MS-DOS und Windows sind eingetragene Warenzeichen der Microsoft Corporation.

PS/2 und OS/2 Warp sind eingetragene Warenzeichen von International Business Machines, Inc.

Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen der jeweiligen Inhaber und werden als geschützt anerkannt.

Zuwiderhandlungen verpflichten zu Schadenersatz.

Liefermöglichkeiten und technische Änderungen vorbehalten.

Dieses Handbuch wurde erstellt von cognitas. Gesellschaft für Technik-Dokumentation mbH www.cognitas.de

Intel, Pentium and Celeron are registered trademarks of Intel Corporation, USA.

Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation.

PS/2 and OS/2 Warp are registered trademarks of International Business Machines, Inc.

All other trademarks referenced are trademarks or registered trademarks of their respective owners, whose protected rights are acknowledged.

All rights, including rights of translation, reproduction by printing, copying or similar methods, even of parts are reserved.

Offenders will be liable for damages.

All rights, including rights created by patent grant or registration of a utility model or design, are reserved. Delivery subject to availability.

Right of technical modification reserved.

This manual was produced by cognitas. Gesellschaft für Technik-Dokumentation mbH www.cognitas.de

Übersicht/Overview Mainboard D1740

Interne Anschlüsse und Steckplätze / internal connectors and slots

Externe Anschlüsse / External connectors

LAN USB Port

USB Port

(optional)

AUDIO

1 = Stromversorgung /

Power Supply 2 = Bedienfeld / Frontpanel 3 = Diskettenlaufwerk /

Floppy disk drive 4 = IDE-Laufwerke 3/4 /

IDE-drives 3/4 5 = IDE-Laufwerke 1/2 /

IDE-drives 1/2 6 = Batterie / Battery 7 = USB 8 = AUX-Audio-In /

AUX-Audio Input 9 = Audio-Bedienfeld /

Audio Frontpanel 10 = SPDIF-Ausgang / SPDIF Out 11 = Summer / Buzzer 12 = Stromversorgung Prozessor /

Power supply processor 13 = Prozessorlüfter 1 / Fan 1 (CPU)

Optionale Komponenten / Optional components

Power On/Off

HD-LED

Reset

Recovery

1) Cable is not included in the delivery scope.

2) 2-pin or 3-pin connector possible

Power On

1) LED

Password

1) 2)

1 2

A26361-D1740-Z120-1-6319, Ausgabe: 3 Umschlag/Cover

Übersicht/Overview Mainboard D1740...........................................................................................1

Mainboard D1740.............................................................................................................................1

Notational conventions...............................................................................................................1

Important notes .................................................................................................................................2

Information about boards ...........................................................................................................2

List of features...................................................................................................................................3

Special technical features – special features .............................................................................4

Brief instructions on installing mainboard....................................................................................6

Prior to installation.............................................................................................................................6

Interfaces and connectors ..............................................................................................................8

External ports ....................................................................................................................................8

Audio ports and audio configuration...........................................................................................9

Internal ports and connectors ..........................................................................................................11

Hard disk connection ...............................................................................................................11

Pin assignment of internal ports.......................................................................................................12

Settings with switches and jumpers ............................................................................................ 15

Add-on modules / Upgrading........................................................................................................16

Installing and removing processors..................................................................................................16

Installing the processor with heat sink and fan (optional) .........................................................16

Upgrading main memory..........................................................................................................18

Adding PCI cards.............................................................................................................................19

PCI bus interrupts - Selecting correct PCI slot ......................................................................... 19

Replacing lithium battery..........................................................................................................20

BIOS update....................................................................................................................................22

BIOS Recovery - Recovering System BIOS.....................................................................................23

Microcode Update............................................................................................................................23

Drivers.............................................................................................................................................24

Annex .............................................................................................................................................25

Electrical Properties.........................................................................................................................25

Loadability for connections and fuses ...................................................................................... 25

Mainboard current requirement................................................................................................25

APM and ACPI system status, energy-saving modes ......................................................................26

Mainboard Revision and BIOS Version............................................................................................ 27

Error messages .............................................................................................................................28

DOS error messages.......................................................................................................................31

SmartCard reader - error messages ................................................................................................32

Glossary..........................................................................................................................................33

A26361-D1740-Z120-1-6319, Edition: 3 English

Mainboard D1740

Your mainboard is available in different configuration levels. Depending on the configuration chosen, some of the hardware components described may not be available on your mainboard.

Additional information

Information on the BIOS Setup and additional descriptions of the drivers are contained:

• in the readme files on your hard disk

• on the driver floppy disks included

• on the CD "Drivers & Utilities Collection" or "Drivers & Utilities" or "ServerStart".

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

► Text which follows this symbol describes activities that must be performed in the order shown.

└┘

↵ This symbol indicates that you must press the Enter key.

Text in this typeface indicates screen outputs.

Text in this bold typeface indicates the entries you make via the keyboard.

Text in italics indicates commands or menu items. "Quotation marks" indicate names of chapters or terms.

The programme Acrobat Reader must be installed to be able to open the manuals. You will find the programme on the CD-ROM directory: utls/acrobat.

For more details please read the according readme.txt files.

indicates information which is important for your health or for preventing physical damage.

indicates additional information which is required to use the system properly.

This symbol indicates that you must enter a blank space (press the Space Bar) at this point.

A26361-D1740-Z120-1-6319, Edition: 3 English - 1

Important notes

With the mainboard installed you must open the system to access the mainboard. How to dismantle and reassemble the system is described in the operating manual accompanying the system.

Connecting cables for peripherals must be adequately shielded to avoid interference.

Information about boards

To prevent damage to the mainboard, the components and conductors on it, please take great care when you insert or remove boards. Take great care to ensure that extension boards are slotted in straight, without damaging components or conductors on the mainboard, or any other components, for example EMI spring contacts.

Remove the plug from the mains outlet so that system and mainboard are totally disconnected from the mains voltage.

Be careful with the locking mechanisms (catches, centring pins etc.) when you replace the mainboard or components on it, for example memory modules or processors.

Never use sharp objects (screwdrivers) for leverage.

Observe the safety notes in the operating manual of your system.

Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore essential to observe the instructions in the "Add-on modules / Upgrading" - "Replacing lithium battery" section. Components can become very hot during operation. Ensure you do not touch components when making extensions to the mainboard. There is a danger of burns!

The shipped version of this board complies with the requirements of the EEC directive 89/336/EEC "Electromagnetic compatibility". Compliance was tested in a typical PC configuration.

When installing the board, refer to the specific installation information in the manual for the receiving device.

The warranty is invalidated if the system is damaged during the installation or replacement of expansions. Information on which expansions you can use is available

from your sales outlet or the customer service centre.

Boards with electrostatic sensitive devices (ESD) are identifiable by the label shown.

When you handle boards fitted with ESDs, you must, under all circumstances, observe the following:

• You must always discharge static build up (e.g. by touching a grounded object)

before working.

• The equipment and tools you use must be free of static charges.

• Remove the power plug from the mains supply before inserting or removing

boards containing ESDs.

• Always hold boards with ESDs by their edges.

Never touch pins or conductors on boards fitted with ESDs.

2 - English A26361-D1740-Z120-1-6319, Edition: 3

List of features

Onboard features D1740-A D1740-C *

Chipset Board size

Intel

845GV Intel® 845GV

µATX µATX VGA ü ü Audio / 6-channel / S/PDIF 5.1 Buzzer / int. Speaker Support LAN 1 Gigabit / 100Mbit / 10 Mbit LAN / with Alert-on-LAN / WoL / Boot SATA / ATA / RAID FireWireTM / HI-SPEED USB 2.0 Fan monitoring PSU** / CPU / AUX1 / AUX2 Fan control PSU** / CPU / AUX1 / AUX2 Temperature monitoring CPU/ONB1/ONB2/OFFB

ü / - / - ü / ü / -

ü / - ü / -

- / ü / ü - / ü / ü

- / - / ü / ü - / - / ü / ü

- / ü / - - / ü / -

- / ü - / ü

- / - / - / - - / - / - / -

- / - / - / - - / ü / - / -

- / - / - / - ü / - / - / -

SmartCard Reader Support (USB / serial) - / - - / Fujitsu Siemens Computers Keyboard Power Button

- -

Support

* Support for PSC FMB 1.0

Special onboard features

Silent Fan / Silent Fan LT System Guard / Silent Drives Recovery BIOS / Desk Update / Multi Boot HDD Password / USB Security Logo Boot / Intel On Screen Branding

- / - - / ü

- / ü - / ü

ü / ü / ü ü / ü / ü

- / ü - / ü

ü / ü ü / ü

Internal ports DIMM Sockets (DDR 333 SDRAM, PC2700) AGP Slot (4/8x, 32 bit, 66 MHz, 1.5 V) PCI slot (32 bit, 33 MHz, 5 V and 3.3 V) CNR Slot (Type A, AC‘97 only) Serial ATA interface (150 Mbyte/s) /

2 (DDR333) 2 (DDR333)

- 3 3

- -

- / 2 / 1 - / 2 / 1

ATA interface (100 Mbyte/s) / Floppy interface S/PDIF 5,1 (digital Audio)* OUT / IN

- / - - / -

A26361-D1740-Z120-1-6319, Edition: 3 English - 3

List of features

Internal ports (continued) D1740-A D1740-C

CD / AUX audio input Front panel Audio (9-pin for headphone, microphone) FireWire™ * (9-Pin, Intel standard header) USB Ports* (2.0, ~480 MB/s) Serial Ports* (FIFO, 16550 compatible) Fan Connectors PSU** / CPU / AUX1 / AUX2 SMBus Connector (Case Temperature) Cover monitoring (Casing open) Power Connectors ATX / ATX12V / AGP Pro

External ports VGA Audio Mic. In / Line in / Line out (or configurable with

driver) S/PDIF 5.1 (digital audio, cinch) OUT / IN LAN (RJ-45) PS/2 mouse/keyboard FireWire™ (6-Pin, IEEE 1394 port) USB Ports (2,0, ~480 MB/s) Serial Ports (RS232, FIFO, 16550 compatible) Parallel Port (EPP/ECP)

* for use with internal devices or optional Front or Rear panel

** not supported by standard power supplies

- / - - / 1

- 1

- -

2 2

- -

- / - / - / - - / 1 / - / -

- -

1 / 1 / - 1 / 1 / -

1 1

1 / 1 / 1 1 / 1 / 1

- / - - / 1 1

1 / 1 1 / 1

- 2 4 1 1 1 1

Special technical features – special features

Your mainboard is available in different configuration levels. Depending on the configuration, your mainboard is equipped with or supports the features described in the following.

Silent Fan LT

A controller regulates the processor fan in the PC and thus prevents unnecessary noise pollution. The controller operates independently of the operating system and the processor.

4 - English A26361-D1740-Z120-1-6319, Edition: 3

List of features

Silent Drives

Hard disks and optical drives (CD-ROM, CD-RW, DVD etc.) are besides the fans some of the greatest sources of noise in a PC. The BIOS-Setup can be used to switch these drives into a quieter mode.

Recovery BIOS

DeskUpdate

DeskUpdate enables simple, automatic driver installation. The function is available both on the CD "Drivers & Utilities" and on the Internet.

Multi Boot

The BIOS of the Fujitsu Siemens Computers mainboards enables booting from all types mass storage devices. In addition to IDE hard disks, this also includes optical drives, such as CD-ROM, DVD and external drives that can be connected to USB or FireWire.

USB Security

USB Security is a BIOS function that offers protection against unauthorised access regardless of the operating system used. If USB Security is activated, the system can only be started, if the MemoryBird of Fujitsu Siemens Computers is connected to one of the existing USB-ports.

If an error occurs during a BIOS update (e. g. due to a power failure), the system BIOS will be destroyed. All Fujitsu Siemens Computers mainboards are equipped with a recovery BIOS. With it a destroyed BIOS can easily be restored. Exact instructions are provided in the chapter "BIOS Recovery - Recovering System BIOS".

A26361-D1740-Z120-1-6319, Edition: 3 English - 5

Prior to installation

Brief instructions on installing mainboard

If you have purchased a separate mainboard, you can install the mainboard in your system in accordance with the following brief instructions.

The activities described here assume a basic knowledge of PCs and cannot be carried out by a layperson. If you are not sure whether you have the necessary specialised knowledge, then leave this work to an expert.

The illustrations of the system show examples of possible cases.

Prior to installation

► Please take note of the safety information in the "Important notes" chapter. ► Check whether the processor, memory modules and power supply are suitable for this

mainboard:

− processor (see "Installing and removing processors" chapter).

− memory modules (see "Upgrading main memory" chapter).

− power supply (see "Electrical Properties" chapter).

► Make sure the current requirement of the fans (processor, case) does not exceed the

loadability of the fan connections (see chapter entitled "Electrical Properties").

► First only install the components absolutely necessary (graphics card, processor and heat sink,

one memory module) and only connect the required connections (power supply unit, case connections such as ATX on/off switch, hard disk or floppy disk drive). You should not install additional cards and devices until this minimum configuration successfully boots (see chapter entitled "Settings with switches and jumpers").

Installation

► Equip the mainboard with the processor, heat sink and memory modules before installation if

possible. Further information can be found in "Installing and removing processors" chapter.

► Open the casing as described in the

operating manual.

6 - English A26361-D1740-Z120-1-6319, Edition: 3

Prior to installation

► Should no suitable connection field be

provided in the case, then you must install the connection field (1) provided.

Ensure the plate is aligned properly so that the connections are suitable for the mainboard later.

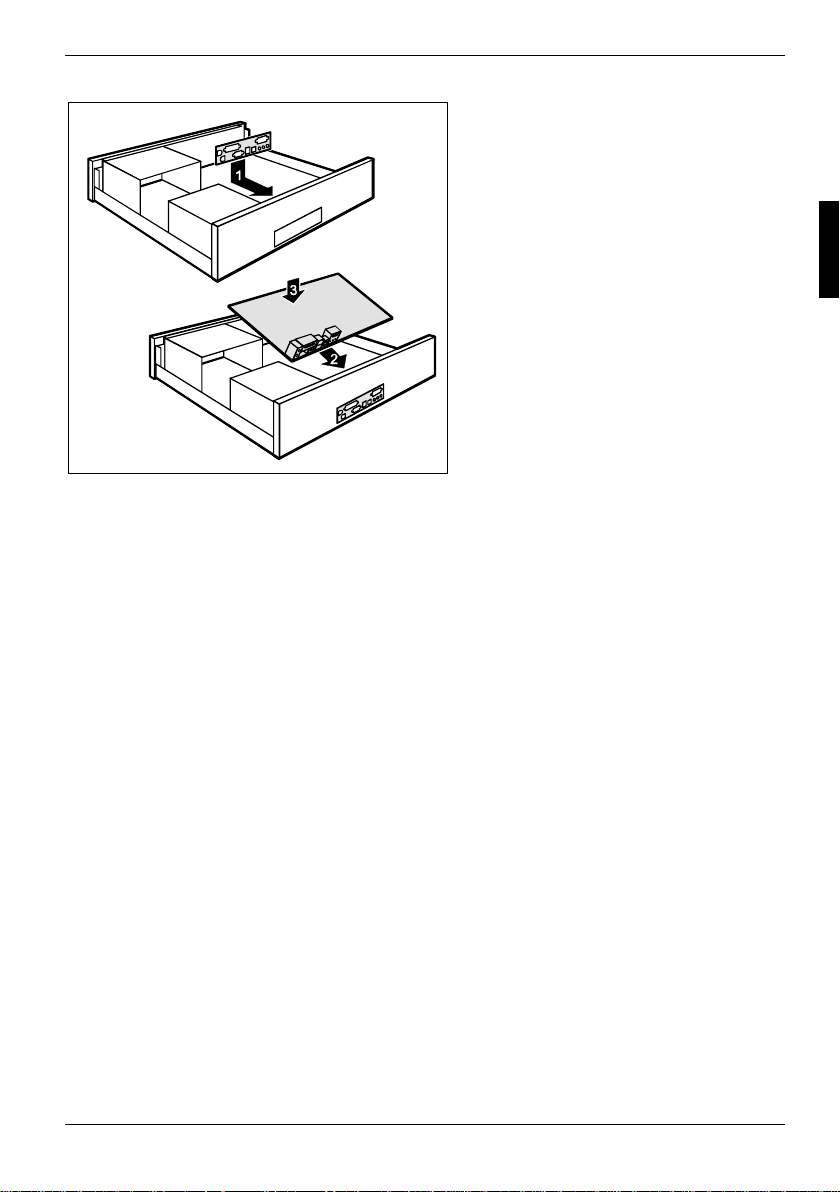

► Set the mainboard on the edge on

which the connection field is located (2) and then insert the board in the case (3).

Make sure that spacers in the housing are only mounted at points at which there are mounting holes in the mainboard.

► Fasten the mainboard with the screws.

► Connect the plugs for the power supply, control panel and drives to the corresponding

connections on the mainboard.

Driver installation

► Install the drivers for the chipset. You may find the driver on the "Drivers & Utilities" CD. Please

refer to chapter "Drivers" for a description of installing drivers.

A26361-D1740-Z120-1-6319, Edition: 3 English - 7

External ports

Interfaces and connectors

The positions of the interfaces and connectors are shown on page "Cover". The components and connectors marked are not necessarily present on the mainboard.

External ports

The positions of the external ports are shown on page "Cover".

PS/2 keyboard port, purple

Serial interface, turquoise

LAN

LAN connector

This mainboard has an ADMtek AN983B LAN controller. The LAN controller supports transfer speeds of 10 Mbit/s and 100 Mbit/s. The LAN controller is equipped with a 3 KB transmission and receiving buffer (FIFO) and supports WOL function through Magic Packetä.

It is also possible to boot a device without its own boot hard disk via LAN. Here bootix® LAN BootP or bootix® PXE are supported.

The LAN RJ45 connector has two LEDs (light emitting diodes).

1 =

2 =

LAN connector

Audio output (Line out), light green

Audio input (Line in), light blue

lights green: flashes green: glows yellow: off:

a connection exists (e.g. to a hub). Activity 100 Mbit/s 10 Mbit/s

PS/2 mouse port, green

Parallel port/Printer, burgundy

USB - Universal Serial Bus, black

Microphone jack (mono), pink

VGA port, blue (monitor)

8 - English A26361-D1740-Z120-1-6319, Edition: 3

External ports

Audio ports and audio configuration

Audio ports

Blue Green Red

Connecting loudspeakers

The mainboard supports 2, 4 or 6-channel audio mode. For surround sound it is possible to connect up to 6 analogue speakers and use the digital S/PDIF output.

Analogue 2-channel audio output

With the 2-channel configuration the functions Line-In, Line-Out and MIC are available. MIC can be configured for operation at the front or rear of the PC (see "Audio configuration" section).

1 = Stereo L/R In 2 = Stereo L/R Out 3 = MIC In or no function (see the "Audio configuration" section)

Analogue 2-channel audio output with headphones

With the 2-channel configuration with headphones the functions Line-In, Headphones-Out and MIC are available. MIC can be configured for operation at the front or rear of the PC (see "Audio configuration" section).

1 = Stereo L/R In 2 = Headphones Out 3 = MIC In or no function (see the "Audio configuration" section)

Analogue 4-channel audio output

1 = Surround L/R Out 2 = Stereo L/R Out 3 = MIC

1 2

Analogue 6-channel audio output

The centre and subwoofer channel can be interchanged. 1 = Surround L/R Out 2 = Stereo L/R Out 3 = centre and subwoofer channel

A26361-D1740-Z120-1-6319, Edition: 3 English - 9

Depending on driver, software or hardware version and operating system the functions may differ from this presentation. If necessary, further information is provided in the

respective help system as well as in the "Audio configuration" section.

External ports

Audio configuration

The mainboard supports 2, 4 or 6-channel audio mode. For surround sound it is possible to connect up to 6 analogue speakers and use the digital S/PDIF output (see "Audio ports" section).

Depending on the operating system used, the audio driver and additionally installed software, you can configure the audio properties.

Drivers

A corresponding driver must be installed for the 2, 4 or 6-channel audio mode. If the drive is not installed yet, proceed as described in the chapter "Add-on modules / Upgrading", in the section "Drivers".

Software

To configure MIC-In and fully utilize all audio-functions of your Mainboard, it may be necessary to install additional software. If the required software was not preinstalled, it can be found on the supplied "Drivers & Utilities" CD.

BIOS

In a current BIOS MIC-In can be configured for operation at the front or rear of the PC Additional information is contained in the "BIOS Setup" manual.

MIC can be configured for operation at the front or rear of the PC, if the case has a properly connected front MIC-In (see the "Pin assignment of internal ports" section, in the

"Front panel" chapter). You can switch in the BIOS Setup or by using the software Sigmatel JackSharing, which is either automatically installed or may be found on the CD

"Drivers & Utilities" supplied with your mainboard.

10 - English A26361-D1740-Z120-1-6319, Edition: 3

Internal ports and connectors

Graphics port - Supported screen resolutions

Depending on the operating system used, the screen resolutions in the following table refer to the mainboard screen controller.

If you are using an external screen controller, you will find details of supported screen resolutions in the operating manual or technical manual supplied with the controller.

Screen resolution Refresh rate (Hz) bpp Colour

640 x 480 120 32 32 bit 800 x 600 120 32 32 bit

1024 x 768 100 32 32 bit 1280 x 1024 100 32 32 bit 1600 x 1200 100 32 16 bit 1920 x 1440 75 32 16 bit 2048 x 1536 60 32 16 bit

Internal ports and connectors

The positions of the internal ports and connectors are shown on the Cover. Additional information on some ports is also provided here.

Hard disk connection

An ultra ATA/66 or ultra ATA/100 hard disk must be connected with a cable especially designed for the ultra ATA/66 or ultra ATA/100 mode.

► Connect the end of the cable marked with blue to the mainboard.

A26361-D1740-Z120-1-6319, Edition: 3 English - 11

Pin assignment of internal ports

The pin assignment of some internal connections is shown in English in the following.

Some of the following connectors may be optional!

Front panel

Watch the poling of the LEDs. The positive pole of the connection cables is often indicated with a coloured wire.

Power On/Off

HD-LED

Reset

Recovery

1) Cable is not included in the delivery scope.

2) 2-pin or 3-pin connector possible

Power On

1) LED

Password

1) 2)

1 2

Connection Note

Reset

Power On/Off

HD LED

Power On LED I Indicates the system state APM or ACPI (see chapter "APM and ACPI system

status, energy-saving modes").

Password see "Settings with switches and jumpers" chapter

Recovery see "Settings with switches and jumpers" chapter

AUX-Audio In or CD-ROM Audio Conector

Pin Signal

1 Left CD audio input 2 CD GND 3 CD GND 4 Right CD audio input

12 - English A26361-D1740-Z120-1-6319, Edition: 3

Pin assignment of internal ports

Audio port front

1 2

Pin Signal Pin Signal

1 Micro input 2 Analogue GND 3 Micro bias 4 Analogue VCC 5 Right line output 6 Right line return 7 not connected 8 Key 9 Left line output 10 Left line return

If the audio front panel is not used, you must plug jumpers on pin pairs 5/6 and 9/10.

USB - dual channel

(internal or external via special wire)

Pin Signal Pin Signal

1 Key 2 Chipcard reader on 3 VCC C 4 VCC D 5 Data negative C 6 Data negative D 7 Data positive C 8 Data positive D 9 GND 10 GND

11 Key 12 not connected

Fan 1 (CPU)

(processor fan - only for 3 pin fans)

Pin Signal

1 GND 2 Controlled FAN voltage (0V, +6V, ... +12V, max. 1A)

or fix Fan voltage (+12 V, max. 1 A)

3 Fan sense

A26361-D1740-Z120-1-6319, Edition: 3 English - 13

Pin assignment of internal ports

Power supply ATX

Pin Signal Pin Signal

1 +3.3 V (P3V3P) 11 +3,3 V (P3V3P) 2 +3,3 V (P3V3P) 12 -12 V (P12VN) 3 GND 13 GND 4 +5 V (VCC) 14 PS on (low asserted) 5 GND 15 GND 6 +5 V (VCC) 16 GND 7 GND 17 GND 8 Powergood (high asserted) 18 -5 V (P5VN) 9 +5 V Auxiliary (VCC Aux) 19 +5 V (VCC)

10 +12 V (P12VP) 20 +5 V (VCC)

Processor power supply power supply

Pin Signal Pin Signal

1 GND 3 +12 V 2 GND 4 +12 V

14 - English A26361-D1740-Z120-1-6319, Edition: 3

Pin assignment of internal ports

Settings with switches and jumpers

Setting via control-panel plug connector

Please pay attention on the exact position of the pin pairs!

1 2

Skipping system and BIOS Setup password - pinpair A

Pinpair A enables skipping the system and BIOS Setup password.

On / inserted

Off /

System and BIOS Setup password are skipped when the device is switched on and may be changed.

System and BIOS Setup password must be entered when the device is switched on.

not inserted

Pin pair A inserted = Skipping system and BIOS Setup password

Pin pair B inserted = System BIOS recovery

Pin pair C inserted = factory setting

Recovering System BIOS - pinpair B

Pinpair B enables recovery of the old system BIOS after an attempt to update has failed. To restore the old system BIOS you need a Flash BIOS Diskette (please call our customer service centre).

On / inserted

Off /

The System BIOS executes from floppy drive A: and the inserted "Flash-BIOSDiskette" restores the System BIOS on the mainboard.

Normal operation (default setting).

not inserted

A26361-D1740-Z120-1-6319, Edition: 3 English - 15

Installing and removing processors

Add-on modules / Upgrading

Exit energy-saving mode, switch off the system and remove the power plug from the mains outlet, before carrying out any of the procedures described in this chapter!

Even when you have switched off the device, parts (e.g. memory modules, AGP and PCI extension boards) are still supplied with power.

Installing and removing processors

Technical data

Intel Pentium 4 with 400 or 533 MHz system bus in the mPGA478 design. Intel Celeron with 400 or 533 MHz System Bus in the mPGA478 design. A current list of the processors supported by this mainboard is available on the Internet at:

www.fujitsu-siemens.com/mainboards.

Installing the processor with heat sink and fan (optional)

► Remove the fan that there may be and the heat sink.

► Pull the lever in the direction of the arrow (1) and lift it as far as it will go (2). ► Remove the old processor from the socket (3). ► Insert the new processor in the socket so that the angled corner of the processor matches the

coding on the socket (A) with regard to the position (4).

► Push the lever back down until it clicks into place (5).

16 - English A26361-D1740-Z120-1-6319, Edition: 3

The angled corner of the processor can also be at a different location than shown in the illustration.

Installing and removing processors

Mounting heat sink

Be sure to use heat conducting material between the processor and the heat sink. If a heat conducting pad (rubber-like foil) is already applied to the heat sink, then use it. Otherwise you must apply a very thin layer of heat conducting paste.

Heat conducting pads can only be used once. If you remove the heat sink, you must clean it and apply new heat conducting paste before you remount it.

Please note that, depending on the heat sink used, different heat sink mounts are required on the mainboard.

If a counter-plate is mounted on the underside of the mainboard for reinforcement, no heat sinks of the type "Intel Boxed" may be used. Otherwise the retaining clips of the heat

sink will be damaged. When using an "Intel Boxed" heat sink, the mainboard must be converted. This

conversion set is either included with the mainboard or is available separately. If no counter-plate is mounted, you can use both "Intel Boxed" heat sinks and standard

heat sinks. If you use the "Intel Boxed" heat sink, the mainboard will bend due to the high pressure of the retaining clips. This behaviour is specified by Intel.

► Depending on the configuration variant, you

must pull a protective foil off the heat sink or coat the heat sink with heat conducting paste before fitting it.

► Depending on the processor variant, clips

may also be supplied for mounting the heat sink that fix it in place.

► When you have mounted the optional fan,

connect the fan plug to the corresponding connection on the mainboard.

A26361-D1740-Z120-1-6319, Edition: 3 English - 17

Installing and removing processors

Upgrading main memory

Technical data

Technology: DDR 200, DDR 266 or DDR 333 unbuffered DIMM modules

Size: 128 Mbytes up to 2 Gbyte DDR-SDRAM Granularity: 128, 256, 512 or 1024 Mbyte for one socket A current list of the memory modules recommended for this mainboard is available on the Internet

at: www.fujitsu-siemens.com/mainboards. At least one memory module must be installed. Memory modules with different memory capacities

can be combined.

Installing a memory module

184-Pin; 2.5 V; 64 Bit, no ECC

You may only use unbuffered 2,5 V memory modules. Buffered memory modules are not supported.

DDR- DIMM memory modules must meet the PC1600 (DDR 200), the PC2100 (DDR 266) or the PC2700 (DDR 333) specification.

► Push the holders on each side of the memory slot outwards. ► Insert the memory module into the location (1). ► At the same time flip the lateral holders upwards until the memory module snaps in place (2).

18 - English A26361-D1740-Z120-1-6319, Edition: 3

Adding PCI cards

Removing a memory module

► Push the clips on the right and left of the memory slot outward (1). ► Pull the memory module out of the memory slot (2).

Adding PCI cards

Technical data: 32 bit / 33 MHz PCI slots 5 V and 3.3 V supply voltage

3.3 V auxiliary voltage

PCI bus interrupts - Selecting correct PCI slot

PCI IRQ Lines connect AGP slots, PCI slots and onboard components to the interrupt controller. PCI IRQ Lines are permanently wired on the mainboard.

Which ISA IRQs are assigned to the PCI IRQ Lines is normally automatically specified by the BIOS (see description in "BIOS Setup").

To achieve optimum stability, performance and compatibility, avoid the multiple use of ISA IRQs or PCI IRQ Lines (IRQ sharing). Should IRQ sharing be unavoidable, then all

involved devices and their drivers must support IRQ sharing.

Monofunctional expansions cards:

Standard AGP and PCI expansion cards require a maximum of one interrupt, which is called the PCI interrupt INT A. Expansion cards that do not require an interrupt can be installed in any desired slot.

A26361-D1740-Z120-1-6319, Edition: 3 English - 19

Adding PCI cards

Multifunctional expansion cards or expansion cards with integrated PCI-PCI bridge:

These expansion cards require up to four PCI interrupts: INT A, INT B, INT C, INT D. How many and which of these interrupts are used is specified in the documentation provided with the card.

The assignment of the PCI interrupts to the PCI IRQ Lines is shown in the following table:

Onboard controller

PCI INT LINE

1 (A) A - - - - - - - A - - 2 (B) - - - - A A A - - A - 3 (C) - - A - - - - - - B A 4 (D) - A - - - - - - - C B A 5 (E) - - - - - - - - - D C B 6 (F) - - - - - - - - - - D C 7 (G) - - - - - - - - - - - D 8 (H) - - - A - - - A - - - -

Use the first PCI slots that have a single PCI IRQ Line (no IRQ sharing). If you must use another PCI slot with IRQ sharing, check whether the expansion card properly supports IRQ sharing with the other devices on this PCI IRQ Line. The drivers of all cards and components on this PCI IRQ Line must also support IRQ sharing.

USB 1,1 AC97 PCI slot

USB

1st 2nd 3rd

2,0

Audio Modem LAN

Bus

Graphic

1 2 3

Replacing lithium battery

In order to permanently save the system information, a lithium battery is installed to provide the CMOS-memory with a current. A corresponding error message notifies the user when the charge is too low or the battery is empty. The lithium battery must then be replaced.

20 - English A26361-D1740-Z120-1-6319, Edition: 3

Incorrect replacement of the lithium battery may lead to a risk of explosion!

The lithium battery may be replaced only with an identical battery or with a type recommended by the manufacturer.

Do not throw lithium batteries into the household waste. They must be disposed of in accordance with local regulations concerning special waste.

Make sure that you insert the battery the right way round. The plus pole must be on the top!

Adding PCI cards

The lithium battery holder exists in different designs that function in the same way.

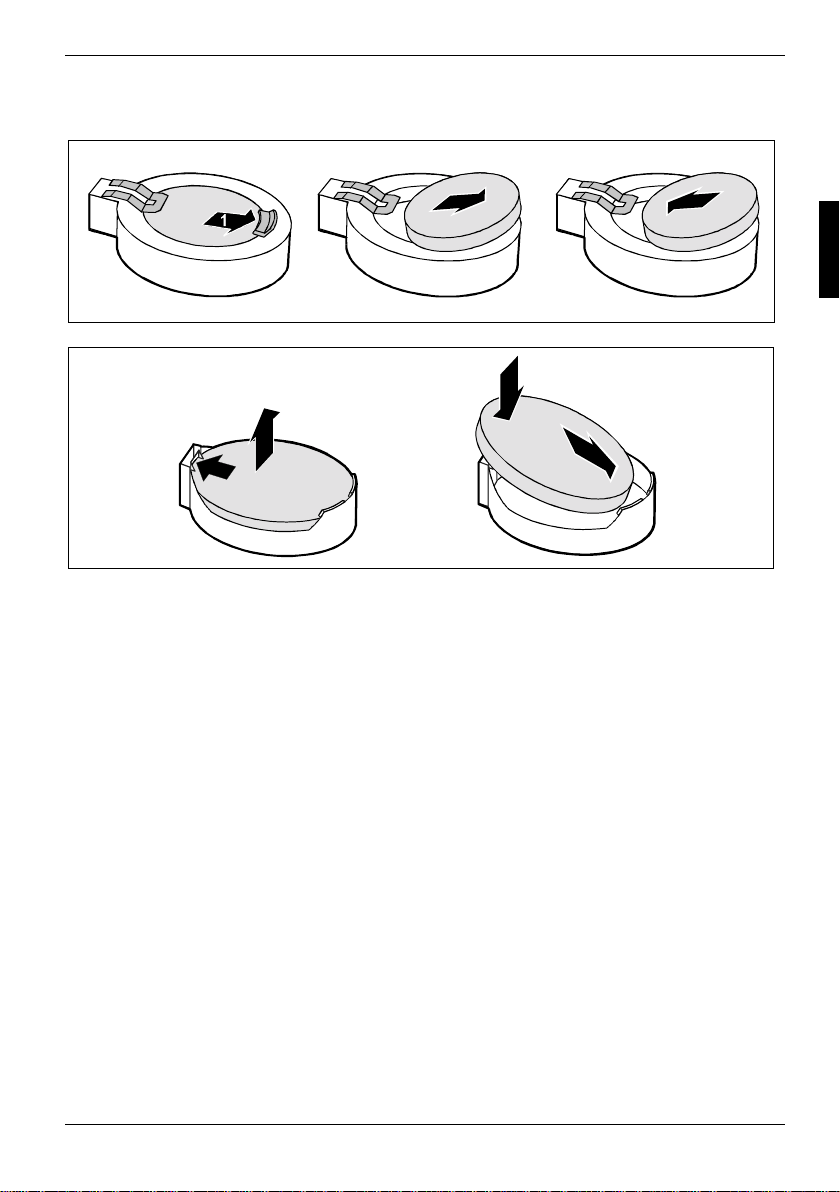

► Press the locking lug in the direction of the arrow; the battery jumps somewhat out of the

holder (1).

► Remove the battery (2). ► Insert a new lithium battery of the same type into the socket (3).

A26361-D1740-Z120-1-6319, Edition: 3 English - 21

BIOS update

When should a BIOS update be carried out?

Fujitsu Siemens Computers makes new BIOS versions available to ensure compatibility to new operating systems, new software or new hardware. In addition, new BIOS functions can also be integrated.

A BIOS update should always also be carried out when a problem exists that cannot be solved with new drivers or new software.

Where can I obtain BIOS updates?

The BIOS updates are available on the Internet at www.fujitsu-siemens.de/mainboards.

How does a BIOS update work?

You have two ways of doing this:

1. BIOS update under DOS with bootable BIOS update floppy disk - brief description

► Download the update file from out website to your PC. ► Insert an empty floppy disk (1.44 MB). ► Run the update file (e.g. 1522103.EXE).

A bootable update floppy disk is created. Leave this floppy disk in the drive.

► Restart the PC. ► Follow the instructions on screen.

2. BIOS update under Windows with DeskFlash utility

A BIOS update can also be carried out directly under Windows with the DeskFlash utility. DeskFlash is located on the "Drivers & Utilities" CD (from CD version 2001.05 with DeskView Readme file in the subfolder DeskFlash you will find the installation instructions for DeskFlash. Further information on DeskFlash is provided in the DeskView.PDF file and in the DeskView

Detailed information on the BIOS update under DOS is provided in the manual on "BIOS Setup" ("Drivers & Utilities" CD).

OEM

V5.0). In the

online help.

22 - English A26361-D1740-Z120-1-6319, Edition: 3

BIOS Recovery - Recovering System BIOS

All BIOS settings are reset to the default values.

► Open the casing as described in the operating manual.

► Set the jumper for "Restore system BIOS" to ON. (see "Settings with switches and jumpers" chapter)

► Close the casing as described in the operating manual. ► Insert a BIOS update floppy disk and start the PC. ► Note the signals issued from the loudspeaker. You have successfully restored the BIOS if you

hear the signal sequence "short-short–long–long–long" and the diskette access indicator is dark. This can take a few minutes.

► Open the casing as described in the operating manual. ► Set the jumper for "Restore system BIOS" to OFF. ► Close the casing as described in the operating manual. ► Remove the floppy disk from the drive. ► Start the PC and invoke BIOS Setup. ► Select the menu item Reset Configuration in the menu Advanced and change the setting to Yes. ► Save the change and terminate BIOS Setup.

The BIOS recovery has now been completed. The system restarts.

Detailed information on the BIOS recovery is contained in the manual "BIOS Setup" ("Drivers & Utilities" CD).

Microcode Update

What is a microcode update?

As there are no drivers for processors, Intel offers the possibility from the P6 family (Pentium Pro) on to update the command set (microcode) of the processor. This enables minor errors to be corrected and the performance to be increased.

To guarantee the best possible performance and error-free operation, Intel recommends updating the microcode regularly. Intel refers to the use of the processor without regular microcode updates as operation outside the specifications.

A26361-D1740-Z120-1-6319, Edition: 3 English - 23

Drivers

Safety for processor on Fujitsu Siemens Computers mainboards

If the processor uses an old or incorrect microcode, error-free operation cannot be ensured. Fujitsu Siemens Computers has therefore implemented a function on its mainboards that interrupts the booting process if no suitable microcode is available for the installed processor. The output error message is

Patch for installed CPU not loaded. Please run the bios flash update diskette.

This message appears until the microcode update has been carried out. If the computer is nevertheless operated without a microcode update, error-free operation is not ensured.

When should a microcode update be carried out?

A microcode update should be carried out in the following cases:

• Following installation of a new processor

• When a new microcode update is issued.

In contrast to the BIOS update, only an updated version of the processor command set is stored. The system BIOS remains unaffected by this.

Microcode update under DOS with bootable microcode update floppy disk - brief description

► Download the update file from out website to your PC. ► Insert an empty floppy disk (1.44 MB). ► Run the update file under DOS (e.g. 1495101.EXE). ► A bootable update floppy disk is created. Leave the floppy disk in the drive. ► Restart the PC. ► Follow the instructions on screen.

To determine whether the latest microcode update has been loaded, the so-called Patch-ID of the processor can be read out.

► Press the F1 key in the BIOS Setup. The entry CPU / Patch ID is shown on the displayed information page. A list with the current processors and the related Patch-IDs is available on the Internet.

If the processor is not recognised, you also require the microcode update tool for processors of the P6 family.

Drivers

Only when no drivers are installed on your system, or you want to update these, proceed as follows:

► Insert the CD "Drivers & Utilities Collection" into the CD-ROM drive. ► If the CD does not start automatically, run the START.EXE programme in the main directory of

the CD.

► Select DeskUpdate - Fully automatic installation. ► Follow the instructions on screen.

24 - English A26361-D1740-Z120-1-6319, Edition: 3

Electrical Properties

Annex

Electrical Properties

Loadability for connections and fuses

Make sure that the connected devices do not overload the connections.

Fuse No. Fuse Connection Maximum loadability

1 750 mA Keyboard Not specified

Mouse Not specified VGA connector Minimum 50 mA

2 1500 mA USB port A

USB port B

3 1500 mA USB port C

USB port D

4 1500 mA USB port E

USB port F

(gray marked fuses are optional) The fuses on this mainboard can be used several times (polyfuses). Shortly after the error state has

been eliminated, the fuses reset to the original state.

500 mA

Mainboard current requirement

You require a Pentium4 power supply nit as per the ATX12V specification for this mainboard. If you do not have a PC from Fujitsu Siemens Computers, make sure that the power supply unit provides the required amperages.

Resource Voltage Maximum

ATX12V power supply +12 V ±5 % 8 A ATX12V power supply -12 V ±10 % 350 mA ATX12V power supply +5,0 V ±5 % 1 A ATX12V power supply +3,3 V ±5 % 5 A

Standby voltage of power supply

The specifications apply to the onboard components and represent the least favourable case. In addition, at least 350 mA is required for PCI on 3.3 V, and 500 mA per connected device for USB on 5 V.

A26361-D1740-Z120-1-6319, Edition: 3 English - 25

unit

+5,0 V SB ±5 % 2 A

difference

Maximum current

APM and ACPI system status, energy-saving modes

System

status

Normal

operation

Simple

energy-

saving mode

Maximum

energy-

saving mode

)

ACPI

Status

APM

Status

Power

LED I

Power

LED II

Sleep

LED

Power

consum

ption

G0 S0 On On/Off On Off Normal

S1 Standby Off/On flashin

Almost

normal

S3 Off/On flashin

RAM, wake-up compon

ents

Wake-up

time

Almost

immediate

ca. 5s

"Save to

DRAM"

Maximum

energy-

saving mode

Off/Off Off RAM,

wake-up

compo-

nents

ca. 20s

"Save To

Disk"

”Soft Off" G2 S5 Soft Off Off/Off Off

Mechanicall

G3 Off Off/Off Off Off Zero Full boot

y Off

)

G = Global status; S = System status

)

Two colours

)

One colour

)

The power supply unit must provide sufficiently loadable 5 V standby voltage.

Nearly

zero

Full boot

time

To use the WOL functionality the power supply must provide a 5 V auxiliary voltage (5VSB) of at least 1 A.

26 - English A26361-D1740-Z120-1-6319, Edition: 3

Mainboard Revision and BIOS Version

The compatibility, e.g. with new processors, can be independent of the BIOS version or the revision status of the mainboard used. The CPU and BIOS compatibility lists are available on the Internet at www.fujitsu-siemens.de/mainboards.

Mainboard: Revision level

The revision status of the mainboard exactly identifies which mainboard you have. It is indicated on a sticker on the edge of the mainboard:

D1740-A10 GS1 05618476

Example of revision status of the mainboard D1740-A10 GS1

BIOS version

The BIOS version can be displayed in the BIOS Setup.

► Press F2 during booting to open the BIOS Setup. ► Press F1 .

The BIOS version is specified on the displayed information page under the entry BIOS Release.

A26361-D1740-Z120-1-6319, Edition: 3 English - 27

Error messages

This chapter contains error messages generated by the mainboard.

Available CPUs do not support the same bus frequency – System halted! Memory type mixing detected Non Fujitsu Siemens Memory Module detected – Warranty void There are more than 32 RDRAM devices in the system

Check whether the system configuration has changed. If necessary, correct the settings.

BIOS update for installed CPU failed

This message appears if the microcode update required for the connected processor is not contained in the system BIOS.

► Boot the system with the inserted Flash BIOS floppy disk. ► Abort the normal Flash BIOS update by answering the question about whether you want to

perform the update with

n ↵

► To carry out the Flash BIOS update for the processor, enter:

flashbio

Check date and time settings

The system date and time are invalid. Set the current date and time in the Main menu of the BIOS Setup.

CPU ID 0x failed

Switch the server off and on again. If the message is still displayed, go into the BIOS setup and set the corresponding processor to Disabled in the Server - CPU Status menu; please contact your sales outlet or customer service centre.

CPU mismatch detected

You have replaced the processor or changed the frequency setting. As a result, the characteristic data of the processor have changed. Confirm this change by running the BIOS Setup and exiting it again.

Diskette drive A error Diskette drive B error

Check the entry for the diskette drive in the Main menu of the BIOS Setup. Check the connections to the diskette drive.

/p6 ↵

└┘

28 - English A26361-D1740-Z120-1-6319, Edition: 3

Error Messages

DMA test failed EISA CMOS not writable Extended RAM Failed at offset: nnnn Extended RAM Failed at address line: nnnn Failing Bits: nnnn Fail-Safe Timer NMI failed Multiple-bit ECC error occurred Memory decreased in size Memory size found by POST differed from EISA CMOS Single-bit ECC error occurred Software NMI failed System memory exceeds the CPU’s caching limit System RAM Failed at offset: nnnn Shadow RAM Failed at offset: nnnn

Switch the device off and on again. If the message is still displayed, please contact your sales outlet or customer service centre.

Failure Fixed Disk 0 Failure Fixed Disk 1 Fixed Disk Controller Failure

Check the entry for the hard disk drive in the Main menu and the entry for the IDE drive controller in the Advanced - Peripheral Configuration menu of the BIOS Setup. Check the hard disk drive's connections and jumpers.

Incorrect Drive A - run SETUP Incorrect Drive B - run SETUP

Correct the entry for the diskette drive in the Main menu of the BIOS Setup.

Invalid NVRAM media type

Switch the device off and on again. If the message is still displayed, please contact your sales outlet or customer service centre.

Invalid System Configuration Data

In the Advanced menu of the BIOS Setup set the entry Reset Configuration Data to Yes.

Invalid System Configuration Data - run configuration utility Press F1 to resume, F2 to Setup

This error message may be displayed if the machine was switched off during system start-up. Call BIOS Setup and switch to the Advanced menu. Select the menu item Reset Configuration

Data and change the setting to Yes. Save the change and terminate BIOS Setup. Reboot the device.

Keyboard controller error

Connect another keyboard or another mouse. If the message is still displayed, please contact your sales outlet or customer service centre.

Keyboard error

Check that the keyboard is connected properly.

Keyboard error nn nn Stuck Key

Release the key on the keyboard (nn is the hexadecimal code for the key).

A26361-D1740-Z120-1-6319, Edition: 3 English - 29

Error Messages

Missing or invalid NVRAM token

Switch the device off and on again. If the message is still displayed, please contact your sales outlet or customer service centre.

Monitor type does not match CMOS - RUN SETUP

Correct the entry for the monitor type in the Main menu of the BIOS Setup.

On Board PCI VGA not configured for Bus Master

In the BIOS Setup, in the Advanced menu, submenu PCI Configuration, set the Shared PCI Master Assignment entry to VGA.

One or more RDRAM devices are not used One or more RDRAM devices have bad architecture/timing One or more RDRAM devices are disabled

Contact your system administrator or contact our customer service centre.

Operating system not found

Check the entries for the hard disk drive and the floppy disk drive in the Main menu and the entries for Boot Sequence submenu of the BIOS Setup.

Parity Check 1 Parity Check 2

Switch the device off and on again. If the message is still displayed, please contact your sales outlet or customer service centre.

Previous boot incomplete - Default configuration used

By pressing function key F2 you can check and correct the settings in BIOS Setup. By pressing function key F1 the system starts with incomplete system configuration. If the message is still displayed, please contact your sales outlet or customer service centre.

Real time clock error

Call the BIOS Setup and enter the correct time in the Main menu. If the message is still displayed, please contact your sales outlet or customer service centre.

Service Processor not properly installed

The server management controller has not been correctly installed. If the message is still displayed, please contact your sales outlet or customer service centre.

Storage Extension Group = xy Configuration error, x Storage Extensions(s) found, configured are y SE(s). Device List: k1, k2 ...

The specified number of storage expansion units (SEs) in the BIOS Setup menu Server - Storage Extensions - Number of connected SE is incorrect. Check how many SEs within the group are

connected at the server and change the setting in BIOS Setup. Check whether you have assigned the same device ID twice.

xy = Group number x = Number of SEs found on the communication bus y = Number of SEs entered in Number of connected SE k1, k2 ... = Device ID of the storage extensions found

30 - English A26361-D1740-Z120-1-6319, Edition: 3

DOS error messages

System battery is dead - Replace and run SETUP

Replace the lithium battery on the mainboard and redo the settings in the BIOS Setup.

System Cache Error - Cache disabled

Switch the device off and on again. If the message is still displayed, please contact your sales outlet or customer service centre.

System CMOS checksum bad - - Default configuration used

Call the BIOS Setup and correct the previously made entries or set the default entries.

System Management Configuration changed or Problem occurred

A system fan or system sensor has failed. Check the hardware operation.

System timer error

Switch the device off and on again. If the message is still displayed, please contact your sales outlet or customer service centre.

Uncorrectable ECC DRAM error DRAM Parity error Unknown PCI error

Switch the device off and on again. If the message is still displayed, please contact your sales outlet or customer service centre.

Verify CPU frequency selection in Setup

The frequency setting for the processor is invalid. Correct the BIOS Setup and the setting.

DOS error messages

This chapter contains the error messages that occur while DOS is running. If a uncorrectable error occurs while DOS is running, then the following error text is output on the

screen:

Critical error logged to server management processor - system halted

If the NMI button of the control panel is pressed, then the following error text is output on the screen:

Frontpanel NMI activated - system halted

A26361-D1740-Z120-1-6319, Edition: 3 English - 31

SmartCard reader - error messages

This chapter contains error messages generated by the SmartCard reader (chipcard reader).

Boot access denied

The Sicrypt SmartCard has no access rights to the system.

Check your chipcard

Either the Sicrypt SmartCard has been wrongly inserted, or it is not a PC-Lock Sicrypt card.

Chipcard reader FAIL

An error has occurred on the serial port to the SmartCard reader (chipcard reader). If this error occurs always or often, the connection between the SmartCard reader and the mainboard must be checked, or the SmartCard reader must be replaced. While the error is present, access to the system is blocked.

Non authorized chipcard

The Sicrypt SmartCard cannot be used on this PC. The Sicrypt SmartCard has been configured for a different PC.

PC-Lock installation FAIL:

An error has occurred during installation of PC Lock. Do not switch off, but insert the "BIOS Flash diskette", and try the installation again.

The chipcard is blocked. Enter the Admin PIN:

You have exceeded the maximum number of failed attempts to enter the PIN. The Sicrypt SmartCard is blocked. Enter the administrator PIN to re-activate the Sicrypt SmartCard. You must then enter a new User PIN to restart the system.

32 - English A26361-D1740-Z120-1-6319, Edition: 3

Glossary

The technical terms and abbreviations given below represent only a selection of the full list of common technical terms and abbreviations. Not all technical terms and abbreviations listed here are valid for the described mainboard.

ACPI Advanced Configuration and

Power Management Interface AC'97 Audio Codec '97 LAN Local Area Network AGP Accelerated Graphics Port LSA LAN Desk Service Agent AMR Audio Modem Riser MCH Memory Controller Hub AOL Alert On LAN MMX MultiMedia eXtension APM Advanced Power Management P64H PCI64 Hub ATA Advanced Technology

Attachment BIOS Basic Input Output System PXE Preboot eXecution Environment BMC Baseboard management

controller CAN Controller Area Network RAMDAC Random Access Memory Digital

CPU Central Processing Unit RDRAM Rambus Dynamic Random

CNR Communication Network Riser RIMM Rambus Inline Memory Module C-RIMM Continuity Rambus Inline

Memory Module DIMM Dual Inline Memory Module SB Soundblaster ECC Error Correcting Code SDRAM Synchronous Dynamic Random

EEPROM Electrical Erasable

Programmable Read Only

Memory FDC Floppy disk controller SIMD Streaming Mode Instruction

FIFO First-In First-Out SMBus System Management Bus FSB Front Side Bus SVGA Super Video Graphic Adapter FWH Firmware Hub USB Universal Serial Bus GMCH Graphics and Memory Controller

Hub GPA Graphics Performance

Accelerator I2C Inter Integrated Circuit IAPC Instantly Available Power

Managed Desktop PC Design ICH I/O Controller Hub IDE Intelligent Drive Electronics IPSEC Internet Protocol Security

ISA Industrial Standard Architecture

PCI Peripheral Component

Interconnect

RAM Random Access Memory

Analogue Converter

Access Memory

RTC Real Time Clock

Access Memory

SGRAM Synchronous Graphic Random

Access Memory

(Single Instruction Multiple Data)

VGA Video Graphic Adapter

WOL Wake On LAN

A26361-D1740-Z120-1-6319, Edition: 3 English - 33

Fujitsu D1740 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Übersicht/Overview Mainboard D1740

Contents

Mainboard D1740

Additional information

Notational conventions

Important notes

Information about boards

List of features

Onboard features D1740-A D1740-C *

Special onboard features

Internal ports DIMM Sockets (DDR 333 SDRAM, PC2700) AGP Slot (4/8x, 32 bit, 66 MHz, 1.5 V) PCI slot (32 bit, 33 MHz, 5 V and 3.3 V) CNR Slot (Type A, AC‘97 only) Serial ATA interface (150 Mbyte/s) /

Internal ports (continued) D1740-A D1740-C

External ports VGA Audio Mic. In / Line in / Line out (or configurable with

Special technical features – special features

Silent Fan LT

Silent Drives

Recovery BIOS

DeskUpdate

Multi Boot

USB Security

Brief instructions on installing mainboard

Prior to installation

Installation

Driver installation

Interfaces and connectors

External ports

LAN connector

Audio ports and audio configuration

Audio ports

Connecting loudspeakers

Analogue 2-channel audio output

Analogue 2-channel audio output with headphones

Analogue 4-channel audio output

Analogue 6-channel audio output

Audio configuration

Drivers

Software

BIOS

Graphics port - Supported screen resolutions

Internal ports and connectors

Hard disk connection

Pin assignment of internal ports

Front panel

AUX-Audio In or CD-ROM Audio Conector

Audio port front

USB - dual channel

Fan 1 (CPU)

Power supply ATX

Processor power supply power supply

Settings with switches and jumpers

Setting via control-panel plug connector

Skipping system and BIOS Setup password - pinpair A

Recovering System BIOS - pinpair B

Add-on modules / Upgrading

Installing and removing processors

Technical data

Installing the processor with heat sink and fan (optional)

Mounting heat sink

Upgrading main memory

Technical data

Installing a memory module

Removing a memory module

Adding PCI cards

PCI bus interrupts - Selecting correct PCI slot

Monofunctional expansions cards:

Multifunctional expansion cards or expansion cards with integrated PCI-PCI bridge:

Replacing lithium battery

BIOS update

1. BIOS update under DOS with bootable BIOS update floppy disk - brief description

2. BIOS update under Windows with DeskFlash utility

BIOS Recovery - Recovering System BIOS

Microcode Update

What is a microcode update?

Safety for processor on Fujitsu Siemens Computers mainboards

When should a microcode update be carried out?

Microcode update under DOS with bootable microcode update floppy disk - brief description
