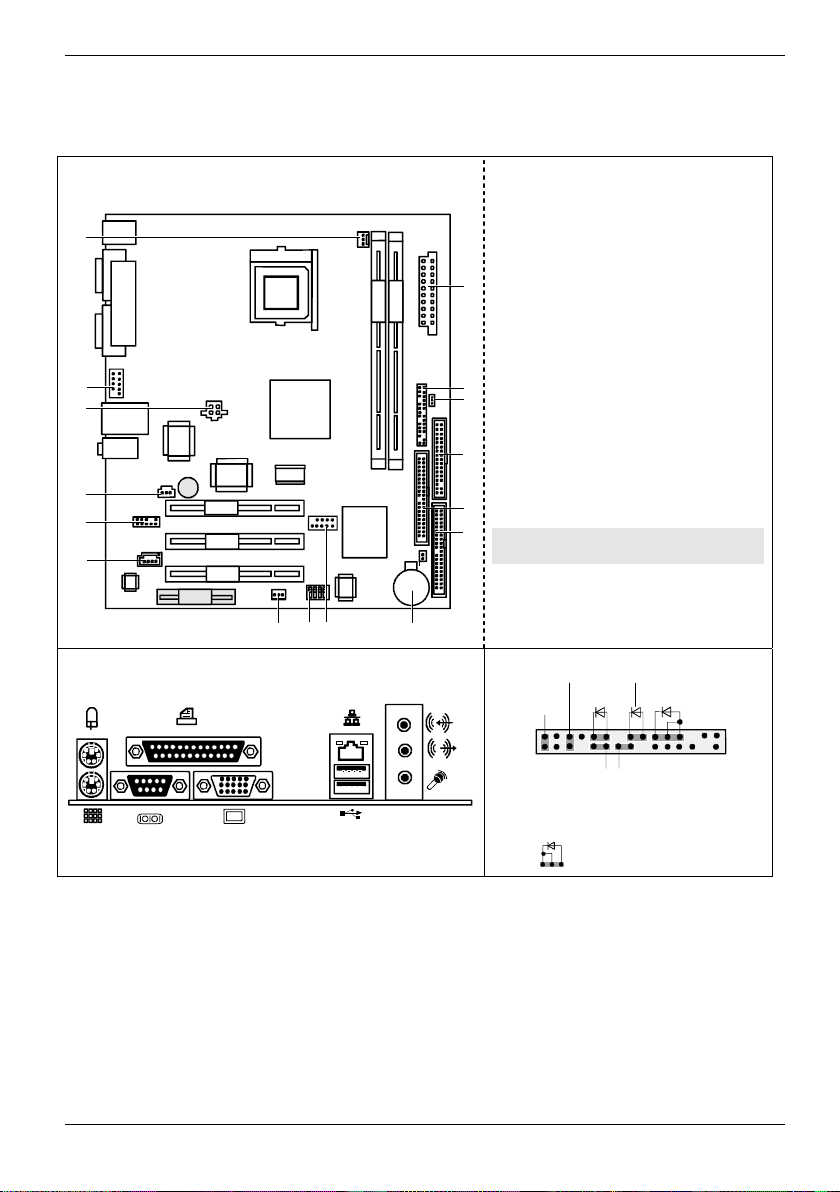

Übersicht/Overview Mainboard D1450

Stromversorgung / Power Supply

Interne Anschlüsse und Steckplätze / Internal
connectors and slots

16

D I M M 1

D I M M 2

15
14

13

12

11

PCI 1

PCI 2

PCI 3

CNR

1 =
2 = Bedienfeld / Frontpanel
3 = PowerOn LED II
4 = Diskettenlaufwerk / Floppy disk drive
5 = IDE-Laufwerke 3/4/ IDE-drives 3/4
6 = IDE-Laufwerke 1/2/ IDE-drives 1/2

1

7 = Batterie / Battery
8 = USB
9 = Schalter / Configuration Switch
10 = Lüfter 2 / Fan 2 (AUX)
11 = CD-Audio in

2

12 = Audio Bedienfeld / Audio Frontpanel

3

13 = S/PDIF Anschluss / S/PDIF

Connector

14 = Stromversorgung Prozessor / Power

4

supply processor

15 = USB
16 = Lüfter 1 / Fan 1 (CPU)

5
6

Optionale Komponenten / Optional

components

8910

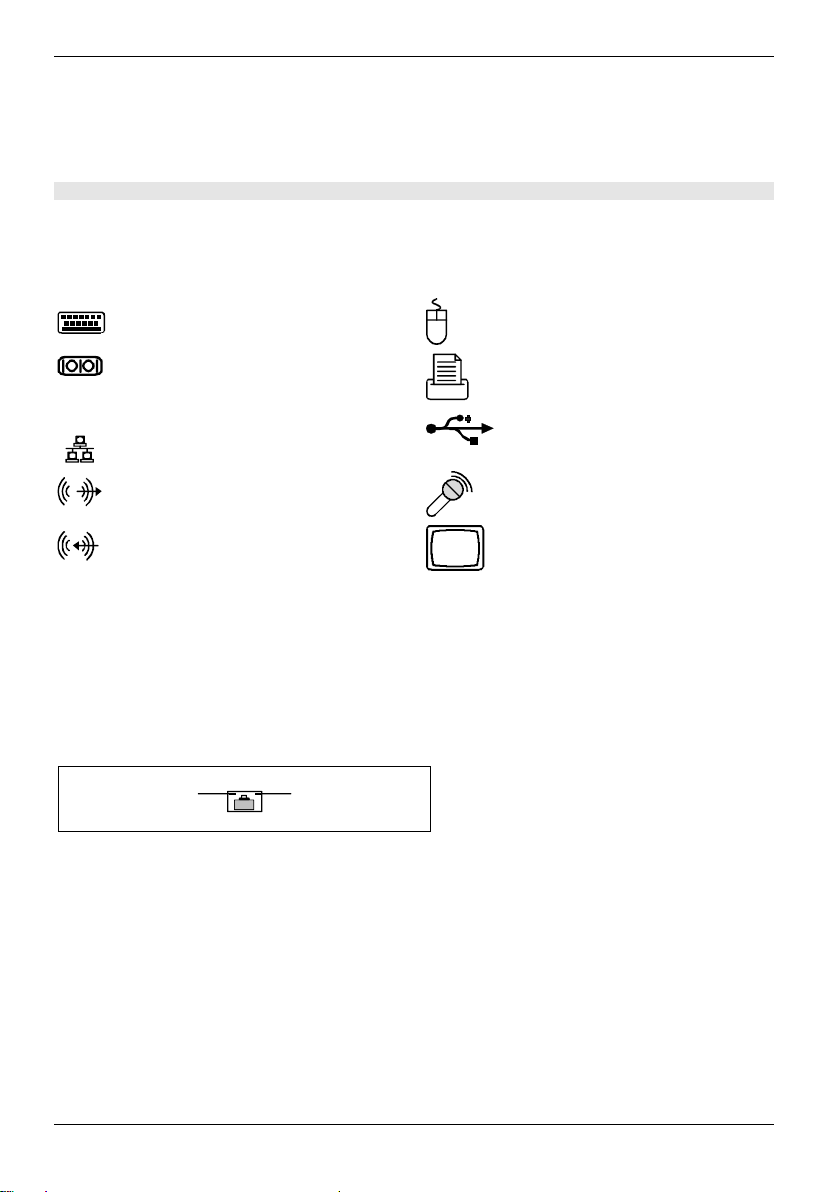

Externe Anschlüsse / External connectors

LAN

AUDIO

7

Power On/Off

HD-LED

1)

Reset

SCSI LED Input

1) Cable is not included in the de livery scope.

2) The same interface

3) 2pin or 3pin connector possible

13

PowerOn LED II

1)

Message LED

1)

3)

1)

Power On

1) 3)

LED

2)1)

1
2

A26361-D1450-Z120-1-6319 Umschlag/Cover

Contents

Mainboard D1450.............................................................................................................................1

Notational conventions...............................................................................................................1

Important notes .................................................................................................................................2

Information about boards ...........................................................................................................2

List of features...................................................................................................................................3

Special technical features – special features .............................................................................5

Brief instructions on installing mainboard....................................................................................6

Prior to installation.....................................................................................................................6

Interfaces and connectors ..............................................................................................................8

External ports ....................................................................................................................................8

Internal ports and connectors ............................................................................................................9

Hard disk connection .................................................................................................................9

Pin assignment of internal ports.......................................................................................................10

Settings with switches and jumpers............................................................................................14

Add-on modules / Upgrading........................................................................................................15

Installing and removing processors..................................................................................................15

Installing the processor with heat sink and fan.........................................................................15

Upgrading main memory..........................................................................................................17

Adding PCI cards.............................................................................................................................18

PCI bus interrupts - Selecting correct PCI slot.........................................................................18

Replacing lithium battery..........................................................................................................19

BIOS update....................................................................................................................................21

BIOS Recovery - Recovering System BIOS.....................................................................................22

Microcode Update............................................................................................................................23

Drivers.............................................................................................................................................24

Annex .............................................................................................................................................25

Electrical Properties.........................................................................................................................25

Loadability for connections and fuses ......................................................................................25

Mainboard current requirement................................................................................................25

APM and ACPI system status, energy-saving modes ......................................................................26

Mainboard Revision and BIOS Version............................................................................................ 27

Error messages .............................................................................................................................28

DOS error messages.......................................................................................................................31

Glossary..........................................................................................................................................32

A26361-D1450-Z120-1-6319

Mainboard D1450

Your mainboard is available in different configuration levels. Depending on the configuration chosen,
some of the hardware components described may not be available on your mainboard.

Additional information

Information on the BIOS Setup and additional descriptions of the drivers are contained:

• in the readme files on your hard disk

• on the driver floppy disks included

• on the CD "Drivers & Utilities Collection" or "Drivers & Utilities" or "ServerStart".

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

► Text which follows this symbol describes activities that must be performed in the order shown.
↵ This symbol indicates that you must press the Enter key.
Text in this typeface indicates screen outputs.
Text in this bold typeface indicates the entries you make via the keyboard.
Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or terms.

The programme Acrobat Reader must be installed to be able to open the manuals. You will
find the programme on the CD-ROM directory: utls/acrobat.

i

For more details please read the according readme.txt files.

indicates information which is important for your health or for preventing physical
damage.

!

indicates additional information which is required to use the system properly.

i

A26361-D1450-Z120-1-6319 English - 1

Mainboard D1450

Important notes

With the mainboard installed you must open the system to access the mainboard. How to dismantle
and reassemble the system is described in the operating manual accompanying the system.

Connecting cables for peripherals must be adequately shielded to avoid interference.

Observe the safety notes in the operating manual of your system.

!

Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore
essential to observe the instructions in the "Add-on modules / Upgrading" - "Replacing
lithium battery" section.

Components can become very hot during operation. Ensure you do not touch
components when making extensions to the mainboard. There is a danger of burns!

Information about boards

To prevent damage to the mainboard, the components and conductors on it, please take great care
when you insert or remove boards. Take great care to ensure that extension boards are slotted in
straight, without damaging components or conductors on the mainboard, or any other components,
for example EMI spring contacts.

Remove the plug from the mains outlet so that system and mainboard are totally disconnected from
the mains voltage.

Be careful with the locking mechanisms (catches, centring pins etc.) when you replace the
mainboard or components on it, for example memory modules or processors.

Never use sharp objects (screwdrivers) for leverage.

The shipped version of this board complies with the requirements of the EEC directive
89/336/EEC "Electromagnetic compatibility".

Compliance was tested in a typical PC configuration.
When installing the board, refer to the specific installation information in the manual for

the receiving device.

The warranty is invalidated if the system is damaged during the installation or
replacement of expansions. Information on which expansions you can use is available

i

from your sales outlet or the customer service centre.

Boards with electrostatic sensitive devices (ESD) are identifiable by the label shown.
When you handle boards fitted with ESDs, you must, under all circumstances,

observe the following:

• You must always discharge static build up (e.g. by touching a grounded object)

before working.

• The equipment and tools you use must be free of static charges.

• Remove the power plug from the mains supply before inserting or removing

boards containing ESDs.

• Always hold boards with ESDs by their edges.

• Never touch pins or conductors on boards fitted with ESDs.

2 - English A26361-D1450-Z120-1-6319

Mainboard D1450

List of features

Onboard features D1450-A D1450-C

Chipset

Board size

VGA ü ü

Audio / 6-channel / S/PDIF 5.1

Buzzer / int. Speaker Support

LAN 1 Gbit / 100 Mbit / 10 Mbit

LAN / with Alert-on-LAN / WoL / Boot

SATA / ATA / RAID

FireWireTM / HI-SPEED USB 2.0

Fan monitoring PSU** / CPU / AUX1 / AUX2

Fan control PSU** / CPU / AUX1 / AUX2

Temperature monitoring CPU/ONB1/ONB2/OFFB

Special onboard features D1450-A D1450-C

Silent Fan / Silent Fan LT

System Guard / Silent Drives

Recovery BIOS / Desk Update / Multi Boot

HDD Password / USB Security

Logo Boot / Intel On Screen Branding

®

845GL Intel® 845GV

Intel

µATX µATX

ü / - / - ü / - / -

ü / - ü / -

- / ü / ü - / ü / ü

- / - / ü / ü - / - / ü / ü

- / ü / - - / ü / -

- / ü - / ü

- / - / - / - - / - / - / -

- / - / - / - - / - / - / -

- / - / - / - - / - / - / -

- / - - / -

- / ü - / ü

ü / ü / ü ü / ü / ü

- / ü - / ü

ü / ü ü / ü

A26361-D1450-Z120-1-6319 English - 3

Mainboard D1450

Internal ports D1450-A D1450-C

DIMM slots (DDR, SDRAM)
AGP Slot (2/4/8x, 32 bit, 66 MHz, 1.5 V)
PCI slot (32 bit, 33 MHz, 5 V and 3.3 V)
CNR Slot (Type A, AC‘97 only)
Serial ATA interface (150 Mbyte/s) /

ATA interface (100 Mbyte/s) / Floppy interface
S/PDIF 5,1 (digital Audio)* OUT / IN
CD audio input / AUX audio input
Front panel Audio (9-pin for headphone, microphone)
FireWire™ * (9-Pin, Intel standard header)
USB Ports* (2.0, ~480 MB/s)
Serial Ports* (FIFO, 16550 compatible)
Fan Connectors PSU** / CPU / AUX1 / AUX2
SMBus Connector* (Case Temperature)
Cover monitoring* (Casing open)
Power Connectors ATX / ATX12V / AGP Pro

External ports D1450-A D1450-C

VGA
Audio Mic. In / Line in / Line out (or configurable with

driver)
S/PDIF (5.1 digital audio, cinch) OUT / IN
LAN (RJ-45)
PS/2 mouse/keyboard
FireWire™ * (6-Pin, IEEE 1394 port)
USB Ports (2.0, ~480 MB/s)
Serial Ports (RS232, FIFO, 16550 compatible)
Parallel Port (EPP/ECP)

* for use with internal devices or optional Front or Rear panel

** not supported by standard power supplies

2 (DDR266) 2 (DDR333)

- ­3 3
1 -

- / 2 / 1 - / 2 / 1

1 / - 1 / ­1 / - 1 / -

1 1

- ­4 4

- -

- / 1 / 1 / - - / 1 / 1 / -

- -

- -

1 / 1 / - 1 / 1 / -

1 1

1 / 1 / 1 1 / 1 / 1

- / - - / ­1 1

1 / 1 1 / 1

- ­2 2
1 1
1 1

4 - English A26361-D1450-Z120-1-6319

Mainboard D1450

Special technical features – special features

Your mainboard is available in different configuration levels. Depending on the configuration, your
mainboard is equipped with or supports the features described in the following.

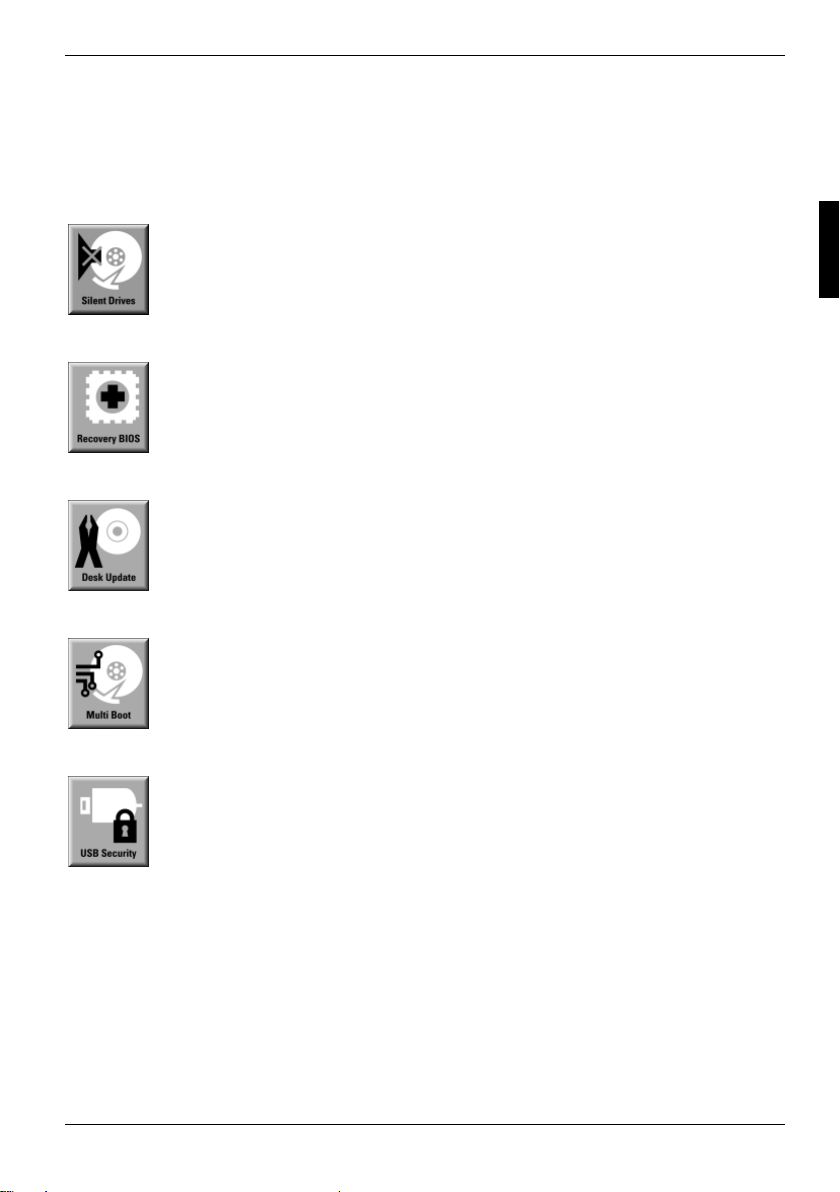

Silent Drives

Hard disks and optical drives (CD-ROM, CD-RW, DVD etc.) are besides the fans
some of the greatest sources of noise in a PC. The BIOS-Setup can be used to switch
these drives into a quieter mode.

Recovery BIOS

If an error occurs during a BIOS update (e. g. due to a power failure), the system
BIOS will be destroyed. All Fujitsu Siemens Computers mainboards are equipped with
a recovery BIOS. With it a destroyed BIOS can easily be restored. Exact instructions
are provided in the chapter "BIOS Recovery - Recovering System BIOS".

DeskUpdate

DeskUpdate enables simple, automatic driver installation. The function is available
both on the CD "Drivers & Utilities" and on the Internet.

Multi Boot

The BIOS of the Fujitsu Siemens Computers mainboards enables booting from all
types mass storage devices. In addition to IDE hard disks, this also includes optical
drives, such as CD-ROM, DVD and external drives that can be connected to USB or
FireWire.

USB Security

USB Security is a BIOS function that offers protection against unauthorised access
regardless of the operating system used. If USB Security is activated, the system can
only be started, if the MemoryBird of Fujitsu Siemens Computers is connected to one
of the existing USB-ports.

A26361-D1450-Z120-1-6319 English - 5

Brief instructions on installing mainboard

Brief instructions on installing mainboard

If you have purchased a separate mainboard, you can install the mainboard in your system in
accordance with the following brief instructions.

The activities described here assume a basic knowledge of PCs and cannot be carried out by a
layperson. If you are not sure whether you have the necessary specialised knowledge, then leave
this work to an expert.

The illustrations of the system show examples of possible cases.

Prior to installation

► Please take note of the safety information in the "Important notes" chapter.
► Check whether the processor, memory modules and power supply are suitable for this

mainboard:

− processor (see "Installing and removing processors" chapter).

− memory modules (see "Upgrading main memory" chapter).

− power supply (see "Electrical Properties" chapter).

► Make sure the current requirement of the fans (processor, case) does not exceed the loadability

of the fan connections (see chapter entitled "Electrical Properties").

► First only install the components absolutely necessary (graphics card, processor and heat sink,

one memory module) and only connect the required connections (power supply unit, case
connections such as ATX on/off switch, hard disk or floppy disk drive). You should not install
additional cards and devices until this minimum configuration successfully boots (see chapter
entitled "Add-on modules / Upgrading").

Installation

► Equip the mainboard with the processor, heat sink and memory modules before installation if

possible. Further information can be found in "Installing and removing processors" chapter.

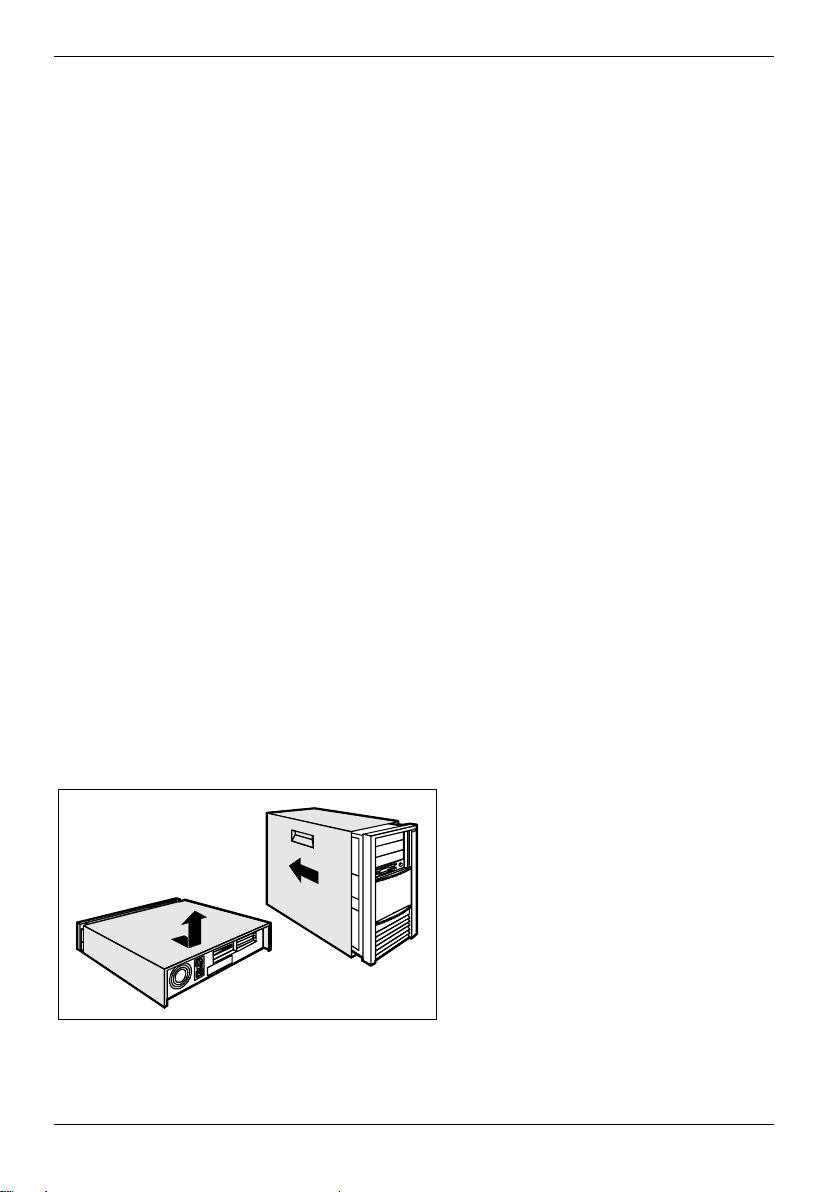

► Open the casing as described in the

operating manual.

6 - English A26361-D1450-Z120-1-6319

Brief instructions on installing mainboard

► Should no suitable connection field be

provided in the case, then you must
install the connection field (1) provided.

Ensure the plate is aligned properly so that
the connections are suitable for the
mainboard later.

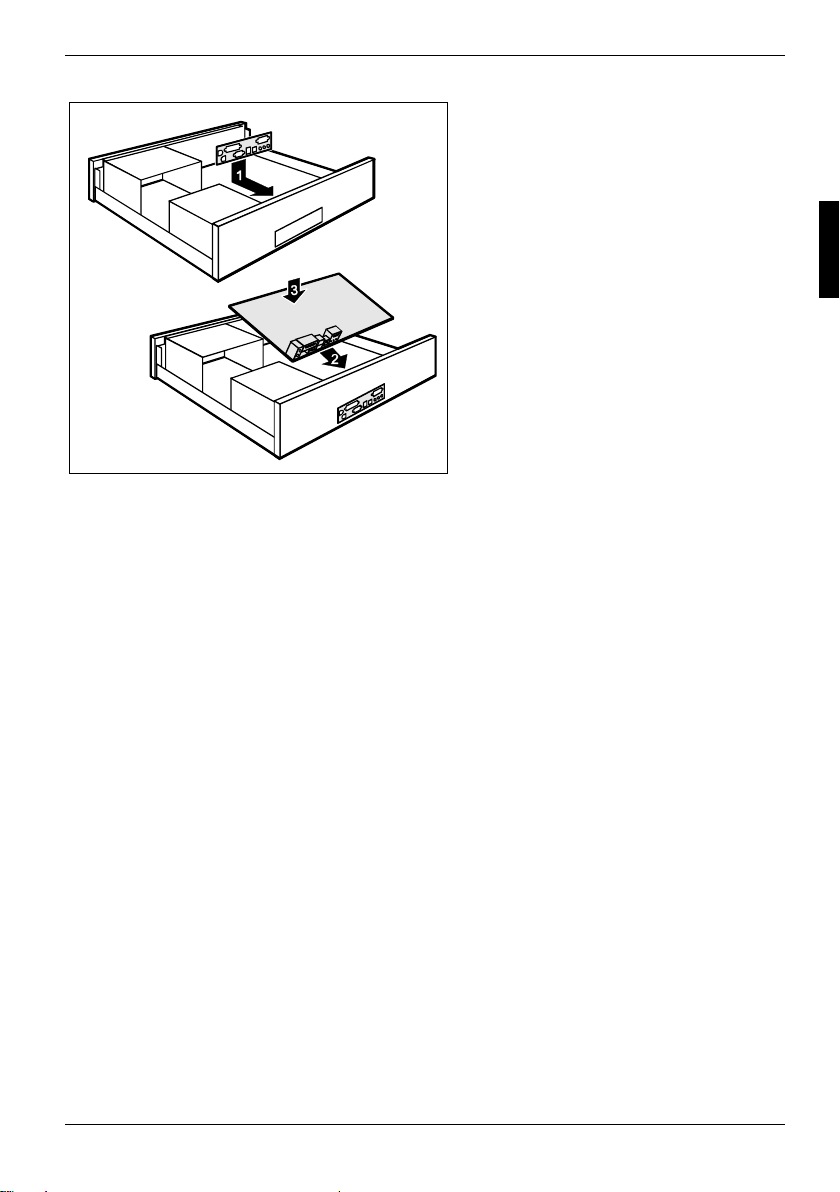

► Set the mainboard on the edge on

which the connection field is located (2)
and then insert the board in the
case (3).

Make sure that spacers in the housing are
only mounted at points at which there are
mounting holes in the mainboard.

► Fasten the mainboard with the screws.

► Connect the plugs for the power supply, control panel and drives to the corresponding

connections on the mainboard.

Driver installation

► Install the drivers for the chipset. You may find the driver on the "Drivers & Utilities" CD. Please

refer to chapter "Drivers" for a description of installing drivers.

A26361-D1450-Z120-1-6319 English - 7

Interfaces and connectors

Interfaces and connectors

The positions of the interfaces and connectors are shown on page "Cover".
The components and connectors marked are not necessarily present on the mainboard.

External ports

The positions of the external ports are shown on page "Cover".

PS/2 keyboard port, purple

Serial interface, turquoise

LAN

LAN connector

This mainboard has an AN983B LAN controller. The LAN controller supports transfer speeds of 10
Mbit/s and 100 Mbit/s. The LAN controller is equipped with a 3 KB transmission and receiving buffer
(FIFO) and supports WOL function through Magic Packetä.

It is also possible to boot a device without its own boot hard disk via LAN. Here bootix® LAN BootP
or bootix® PXE are supported.

The LAN RJ45 connector has two LEDs (light emitting diodes).

LAN connector

Audio output (Line out), light green

Audio input (Line in), light blue

2

1

PS/2 mouse port, green

Parallel port/Printer, burgundy

USB - Universal Serial Bus, black

Microphone jack (mono), pink

VGA port, blue (monitor)

1 = A connection exists (e.g. to a hub).
2 = Link Mode: the LAN connection is active.

8 - English A26361-D1450-Z120-1-6319

Interfaces and connectors

Graphics port - Supported screen resolutions

Depending on the operating system used, the screen resolutions in the following table refer to the
mainboard screen controller.

If you are using an external screen controller, you will find details of supported screen resolutions in
the operating manual or technical manual supplied with the controller.

Screen resolution Refresh rate (Hz) bpp Colour

640 x 480 120 32 32 bit
800 x 600 120 32 32 bit

1024 x 768 100 32 32 bit
1280 x 1024 100 32 32 bit
1600 x 1200 100 32 16 bit
1920 x 1440 75 32 16 bit
2048 x 1536 60 32 16 bit

Internal ports and connectors

The positions of the internal ports and connectors are shown on the Cover. Additional information on
some ports is also provided here.

Hard disk connection

An ultra ATA/66 or ultra ATA/100 hard disk must be connected with a cable especially designed for
the ultra ATA/66 or ultra ATA/100 mode.

► Connect the end of the cable marked with blue to the mainboard.

A26361-D1450-Z120-1-6319 English - 9

Interfaces and connectors

Pin assignment of internal ports

The pin assignment of some internal connections is shown in English in the following.

Some of the following connectors may be optional!

i

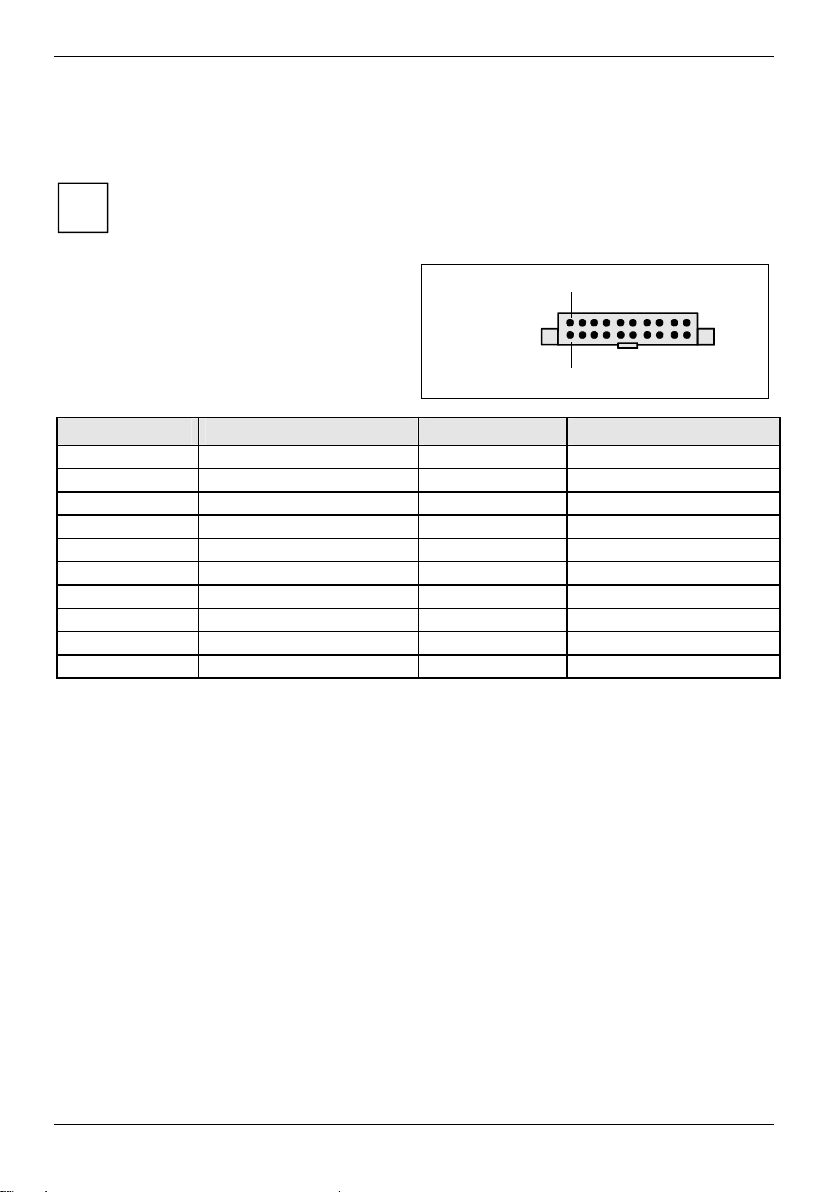

Power supply ATX

1

11

Pin Signal Pin Signal

1 +3.3 V (P3V3P) 11 +3.3 V (P3V3P)
2 +3.3 V (P3V3P) 12 -12 V (P12VN)
3 GND 13 GND
4 +5 V (VCC) 14 PS on (low asserted)
5 GND 15 GND
6 +5 V (VCC) 16 GND
7 GND 17 GND
8 Powergood (high asserted) 18 -5 V (P5VN)
9 +5 V Auxiliary (VCC Aux) 19 +5 V (VCC)

10 +12 V (P12VP) 20 +5 V (VCC)

10 - English A26361-D1450-Z120-1-6319

Interfaces and connectors

1)

Power On

1) 3)

LED

2)1)

1
2

HD-LED

Message LED

1)

Front panel

Watch the poling of the LEDs. The positive pole
of the connection cables is often indicated with a

Power On/Off

1)

Reset

coloured wire.

SCSI LED Input

1) Cable is not included in the delivery scope.

2) The same interface

3) 2pin or 3pin connector possible

Connection Note

Reset

Power On/Off

HD LED

SCSI Activity

Input

Attention: Do not connect to the LED connections of an SCSI controller! This
connection is intended for a cable with a 4-pin connector. An SCSI controller
reports activity (low-active) via this cable.

Message LED

Power On LED I Indicates the system state APM or ACPI together with the Sleep LED (see

chapter entitled "APM and ACPI system status, energy-saving modes").

Power On LED II

1

Pin Note

1 Power On LED (Anode)
2 Power On LED (Anode)
3 Power On LED (Cathode)

A26361-D1450-Z120-1-6319 English - 11

3

Interfaces and connectors

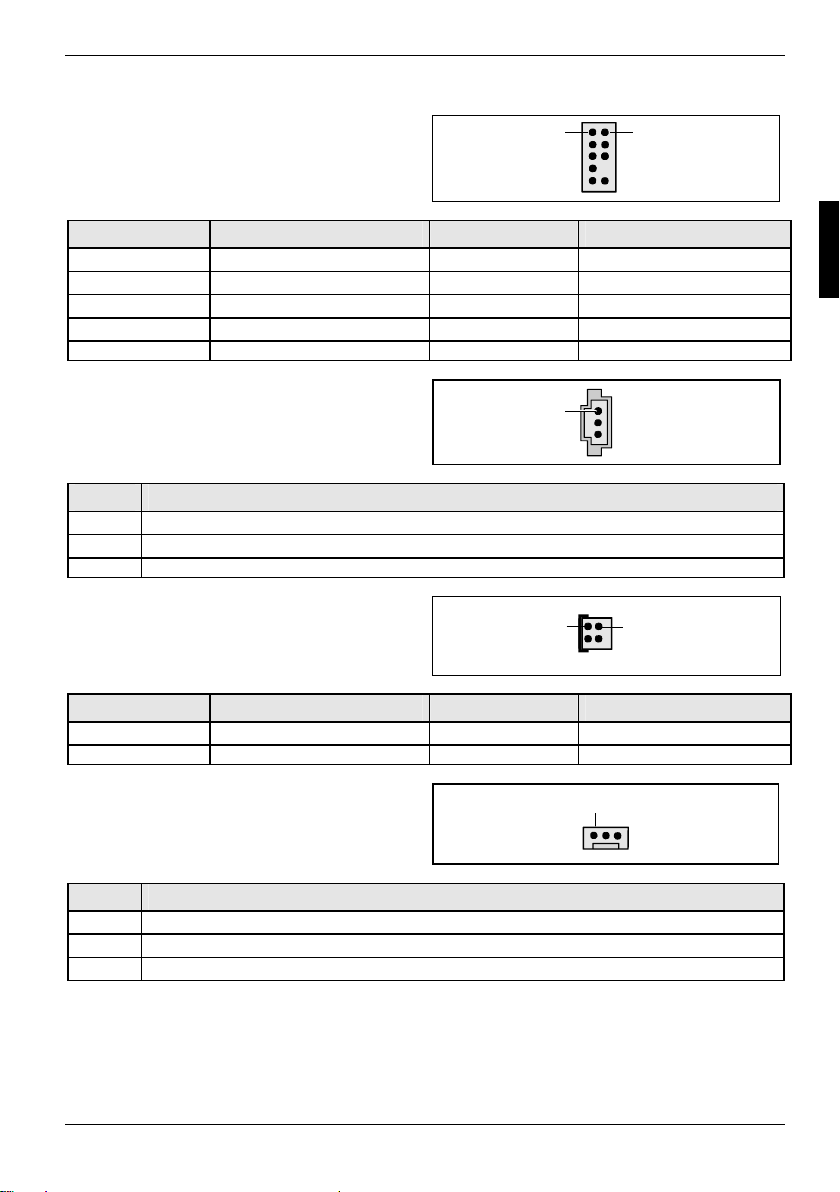

USB

1

2

(internal or external via special wire)

9

10

Pin Signal Pin Signal

1 VCC C 2 VCC D
3 Data negative C 4 Data negative D
5 Data positive C 6 Data positive D
7 GND 8 GND

Fan 2 (AUX)

9 Key 10 Not Connected

1

(system fan - supervised)

Pin Signal

1 GND
2 Fix Fan voltage (+12 V, max. 1 A)
3 Fan sense

CD-ROM audio

1

Pin Signal

1 Left CD audio input
2 CD GND
3 CD GND
4 Right CD audio input

12 - English A26361-D1450-Z120-1-6319

Interfaces and connectors

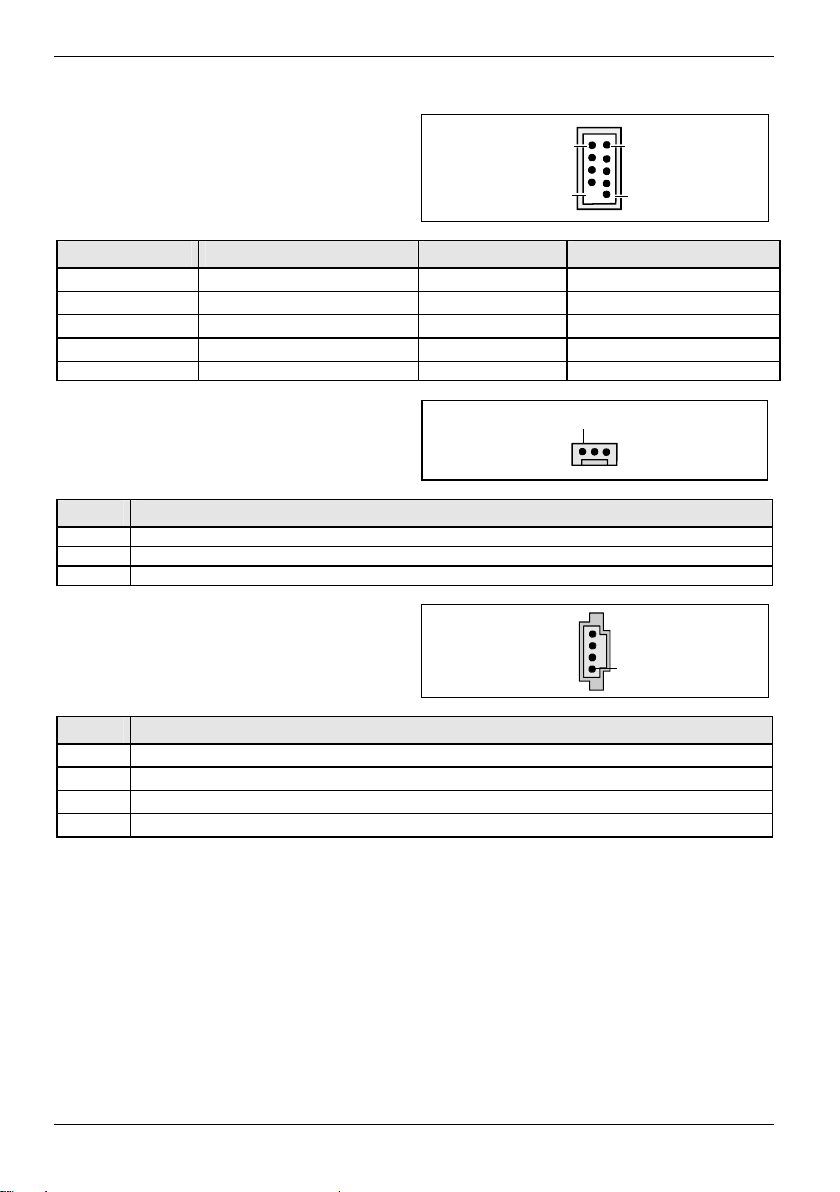

Audio front panel

Pin Signal Pin Signal

1 Micro input 2 Analogue GND
3 Micro bias 4 Analogue VCC
5 Right line output 6 Right line return
7 NC 8 Key
9 Left line output 10 Left line return

1 2

Audio S/PDIF

1

Pin Signal

1 VCC
2 SPDIF out
3 GND

Processor power supply

13

power supply

Pin Signal Pin Signal

1 GND 3 +12 V

Fan 1 (CPU)

2 GND 4 +12 V

1

Pin Signal

1 GND
2 Fix Fan voltage (+12 V, max. 1 A)
3 Fan sense

A26361-D1450-Z120-1-6319 English - 13

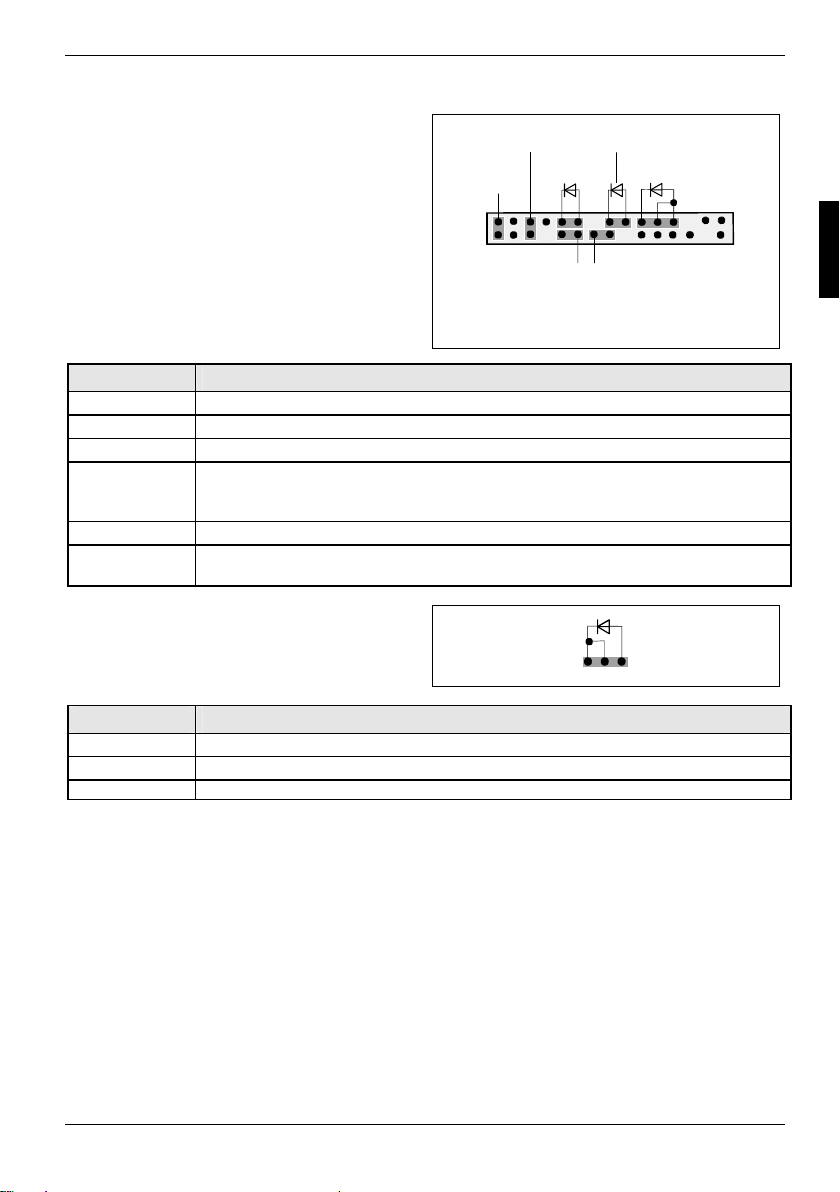

Settings with switches and jumpers

Settings with switches and jumpers

The positions of the switches and jumpers are shown on page "Cover".

Skipping system and BIOS Setup password - switch 1

Switch 1 enables skipping the system and BIOS Setup password.

On System and BIOS Setup password are skipped when the device is switched on and

Off System and BIOS Setup password must be entered when the device is switched on.

Recovering System BIOS - switch 2

Switch 2 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Diskette (please call our customer service centre).

On The System BIOS executes from floppy drive A: and the inserted "Flash-BIOS-

Off Normal operation (default setting).

Reserved - switch 3 and switch 4

Switch 3 and 4 are reserved.

may be changed.

Diskette" restores the System BIOS on the mainboard.

14 - English A26361-D1450-Z120-1-6319

Add-on modules / Upgrading

Add-on modules / Upgrading

Exit energy-saving mode, switch off the system and remove the power plug from the
mains outlet, before carrying out any of the procedures described in this chapter!

!

Even when you have switched off the device, parts (e.g. memory modules, AGP and PCI
extension boards) are still supplied with power.

Installing and removing processors

Technical data

Intel Pentium 4 with 400 or 533 MHz system bus in the mPGA478 design.
Celeron with 400 MHz System Bus in the mPGA478 design.
A current list of the processors supported by this mainboard is available on the Internet at:

www.fujitsu-siemens.com/mainboards.

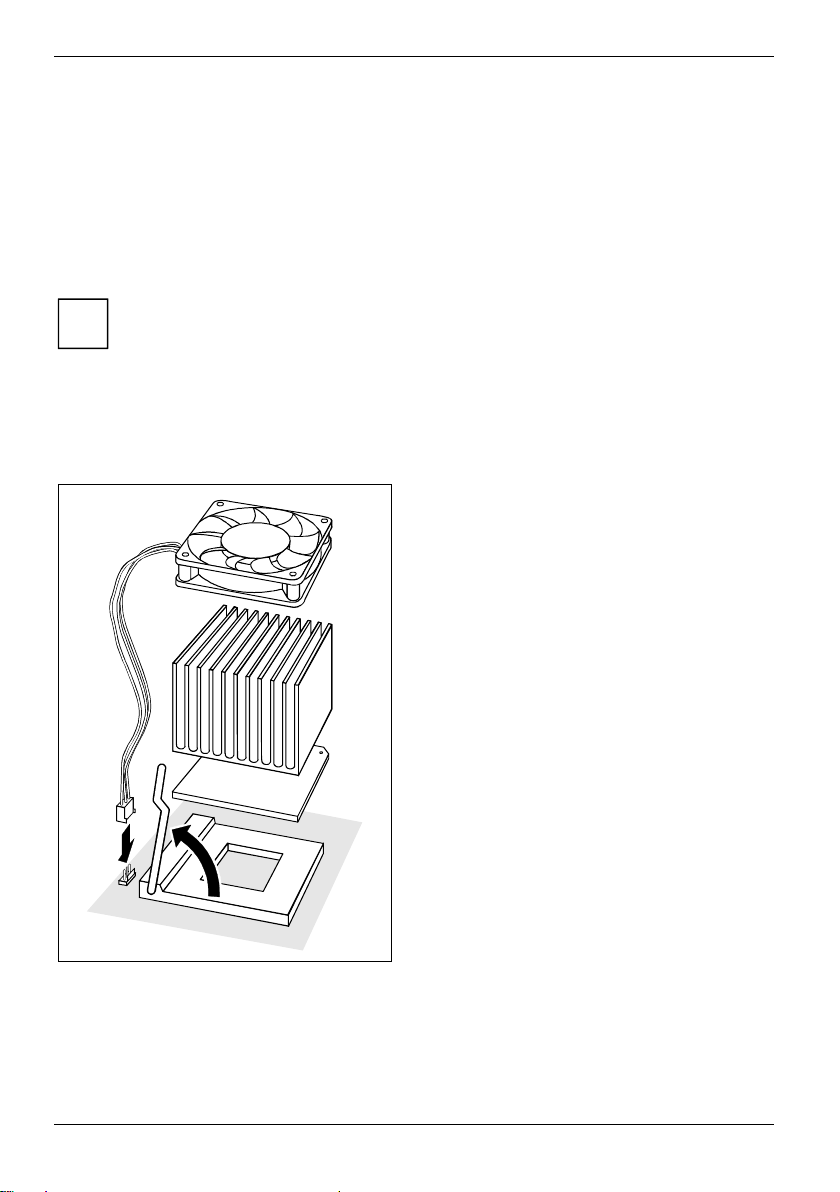

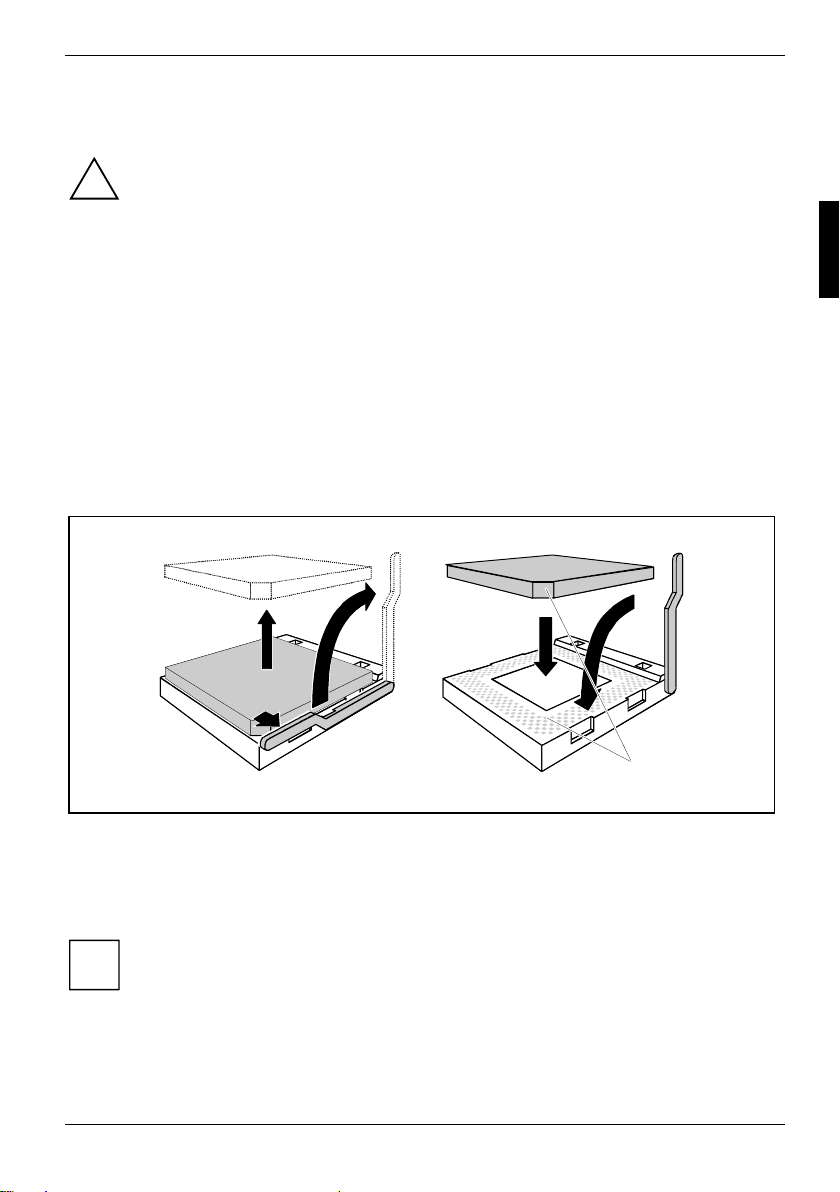

Installing the processor with heat sink and fan

► Remove the fan that there may be and the heat sink.

2

2

3

3

1

1

► Pull the lever in the direction of the arrow (1) and lift it as far as it will go (2).
► Remove the old processor from the socket (3).
► Insert the new processor in the socket so that the angled corner of the processor matches the

coding on the socket (A) with regard to the position (4).

► Push the lever back down until it clicks into place (5).

A26361-D1450-Z120-1-6319 English - 15

The angled corner of the processor can also be at a different location than shown in the
illustration.

i

4

4

5

5

A

A

Add-on modules / Upgrading

Mounting heat sink

Be sure to use heat conducting material between the processor and the heat sink. If a heat
conducting pad (rubber-like foil) is already applied to the heat sink, then use it. Otherwise you must
apply a very thin layer of heat conducting paste.

Heat conducting pads can only be used once. If you remove the heat sink, you must clean it and
apply new heat conducting paste before you remount it.

Please note that, depending on the heat sink used, different heat sink mounts are required on the
mainboard.

If a counter-plate is mounted on the underside of the mainboard for reinforcement, no
heat sinks of the type "Intel Boxed" may be used. Otherwise the retaining clips of the heat

i

sink will be damaged.
When using an "Intel Boxed" heat sink, the mainboard must be converted. This

conversion set is either included with the mainboard or is available separately.
If no counter-plate is mounted, you can use both "Intel Boxed" heat sinks and standard

heat sinks. If you use the "Intel Boxed" heat sink, the mainboard will bend due to the high
pressure of the retaining clips. This behaviour is specified by Intel.

► Depending on the configuration variant, you

must pull a protective foil off the heat sink or
coat the heat sink with heat conducting paste
before fitting it.

► Depending on the processor variant, clips

may also be supplied for mounting the heat
sink that fix it in place.

► When you have mounted the optional fan,

connect the fan plug to the corresponding
connection on the mainboard.

16 - English A26361-D1450-Z120-1-6319

Add-on modules / Upgrading

Upgrading main memory

Technical data

Technology: DDR 200, DDR 266 or DDR 333 unbuffered DIMM modules

i

Size: 128 Mbytes up to 2 Gbyte DDR-SDRAM
Granularity: 128, 256, 512 or 1024 Mbyte for one socket
A current list of the memory modules recommended for this mainboard is available on the Internet

at: www.fujitsu-siemens.com/mainboards.
At least one memory module must be installed. Memory modules with different memory capacities

can be combined.

!

Installing a memory module

184-Pin; 2.5 V; 64 Bit, no ECC

DDR 333 is only supported with the mainboard version D1450-C.

You may only use unbuffered 2,5 V memory modules. Buffered memory modules are not
supported.

DDR-DRAM memory modules must meet the PC1600 (DDR 200), the PC2100 (DDR

266) or the PC2700 (DDR 333) specification.

2

2

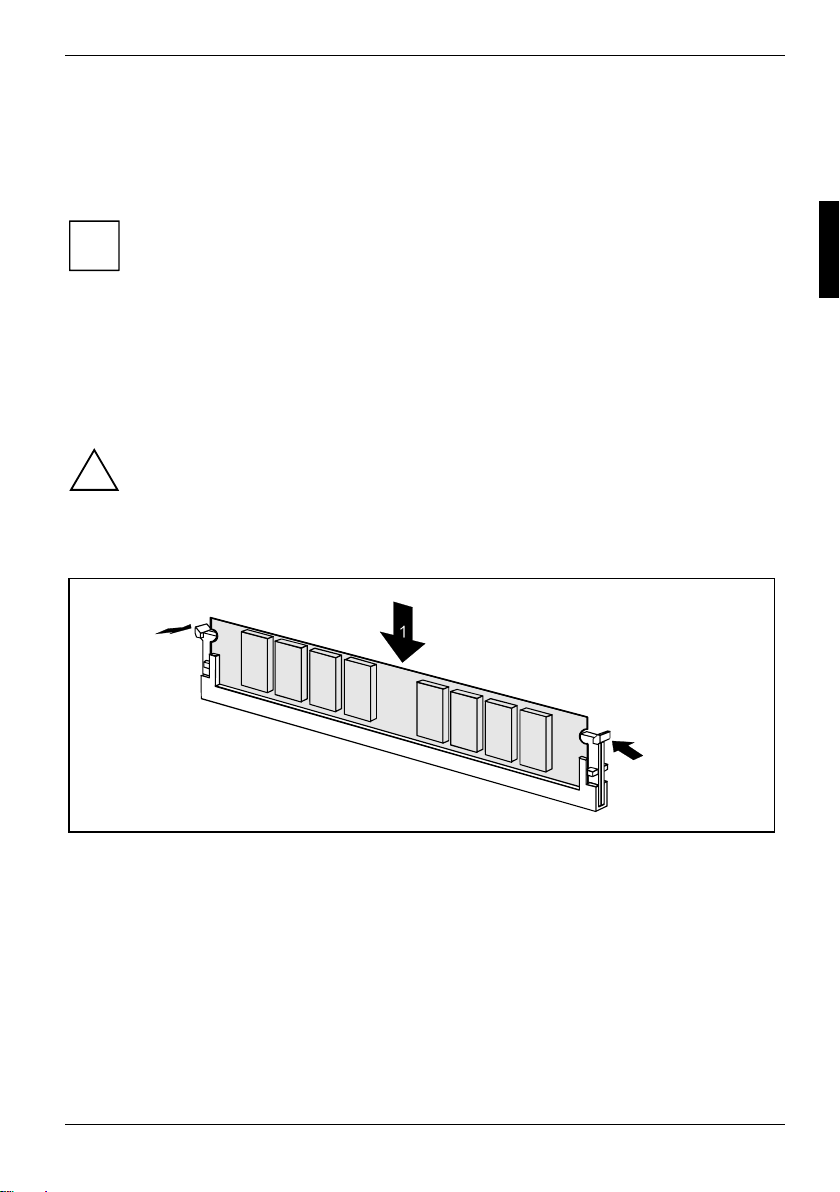

► Push the holders on each side of the memory slot outwards.
► Insert the memory module into the location (1).
► At the same time flip the lateral holders upwards until the memory module snaps in place (2).

A26361-D1450-Z120-1-6319 English - 17

Add-on modules / Upgrading

Removing a memory module

1

1

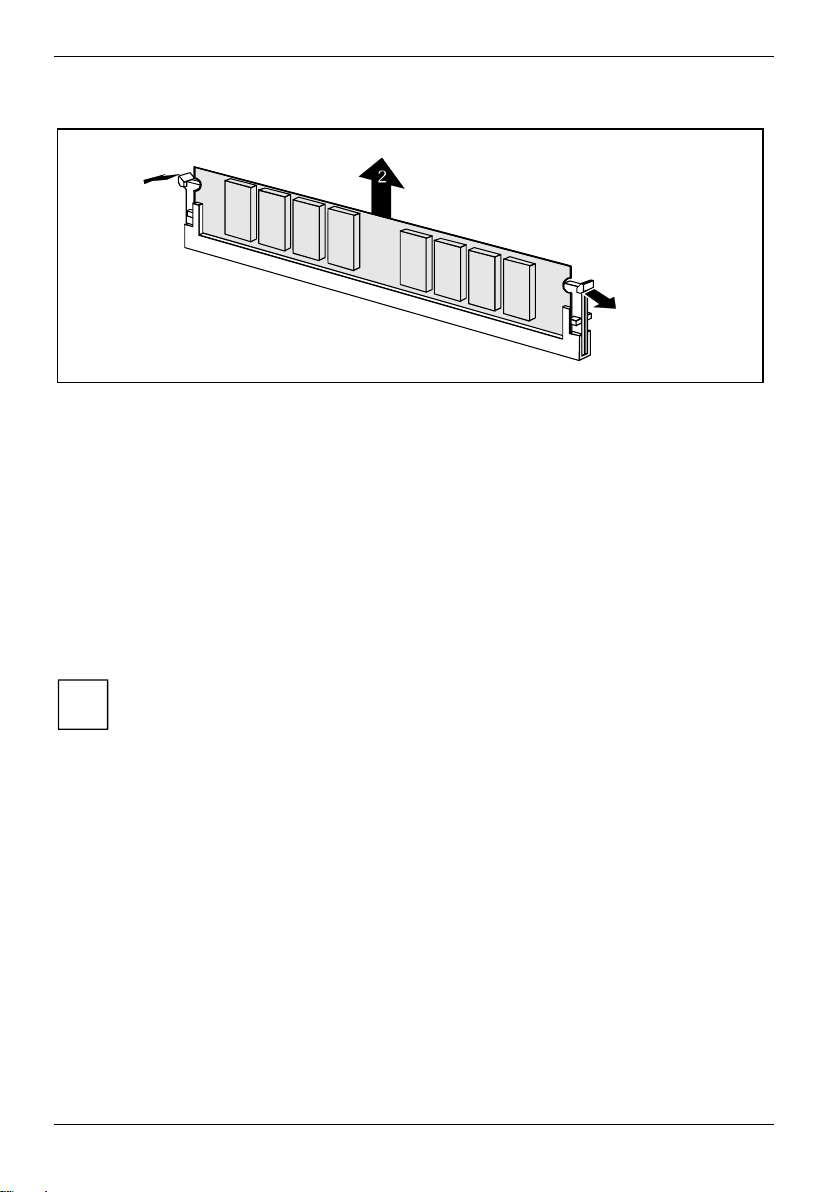

► Push the clips on the right and left of the memory slot outward (1).
► Pull the memory module out of the memory slot (2).

Adding PCI cards

Technical data:
32 bit / 33 MHz PCI slots

5 V and 3.3 V supply voltage

3.3 V auxiliary voltage

PCI bus interrupts - Selecting correct PCI slot

PCI IRQ Lines connect AGP slots, PCI slots and onboard components to the interrupt controller.
PCI IRQ Lines are permanently wired on the mainboard.

Which ISA IRQs are assigned to the PCI IRQ Lines is normally automatically specified by the BIOS
(see description in "BIOS Setup").

Monofunctional expansions cards:

Standard AGP and PCI expansion cards require a maximum of one interrupt, which is called the PCI
interrupt INT A. Expansion cards that do not require an interrupt can be installed in any desired slot.

To achieve optimum stability, performance and compatibility, avoid the multiple use of
ISA IRQs or PCI IRQ Lines (IRQ sharing). Should IRQ sharing be unavoidable, then all

i

involved devices and their drivers must support IRQ sharing.

18 - English A26361-D1450-Z120-1-6319

Add-on modules / Upgrading

Multifunctional expansion cards or expansion cards with integrated PCI-PCI bridge:

These expansion cards require up to four PCI interrupts: INT A, INT B, INT C, INT D. How many and
which of these interrupts are used is specified in the documentation provided with the card.

The assignment of the PCI interrupts to the PCI IRQ Lines is shown in the following table:

Onboard controller

PCI INT
LINE

1 (A) A - - - - - - - A - - ­2 (B) - - - - A A A - - A - ­3 (C) - - A - - - - - - B A ­4 (D) - A - - - - - - - C B A
5 (E) - - - - - - - - - D C B
6 (F) - - - - - - - - - - D C
7 (G) - - - - - - - - - - - D
8 (H) - - - A - - - A - - - -

Use the first PCI slots that have a single PCI IRQ Line (no IRQ sharing). If you must use another
PCI slot with IRQ sharing, check whether the expansion card properly supports IRQ sharing with the
other devices on this PCI IRQ Line. The drivers of all cards and components on this PCI IRQ Line
must also support IRQ sharing.

USB 1,1 AC97 PCI slot

USB

1st 2nd 3rd

2,0

SM

Audio Modem LAN

Bus

Graphic

1 2 3

Replacing lithium battery

In order to permanently save the system information, a lithium battery is installed to provide the
CMOS-memory with a current. A corresponding error message notifies the user when the charge is
too low or the battery is empty. The lithium battery must then be replaced.

Incorrect replacement of the lithium battery may lead to a risk of explosion!

!

The lithium battery may be replaced only with an identical battery or with a type
recommended by the manufacturer.

Do not throw lithium batteries into the household waste. They must be disposed of in
accordance with local regulations concerning special waste.

Make sure that you insert the battery the right way round. The plus pole must be on the
top!

A26361-D1450-Z120-1-6319 English - 19

Add-on modules / Upgrading

The lithium battery holder exists in different designs that function in the same way.

2

3

2

1

3

3

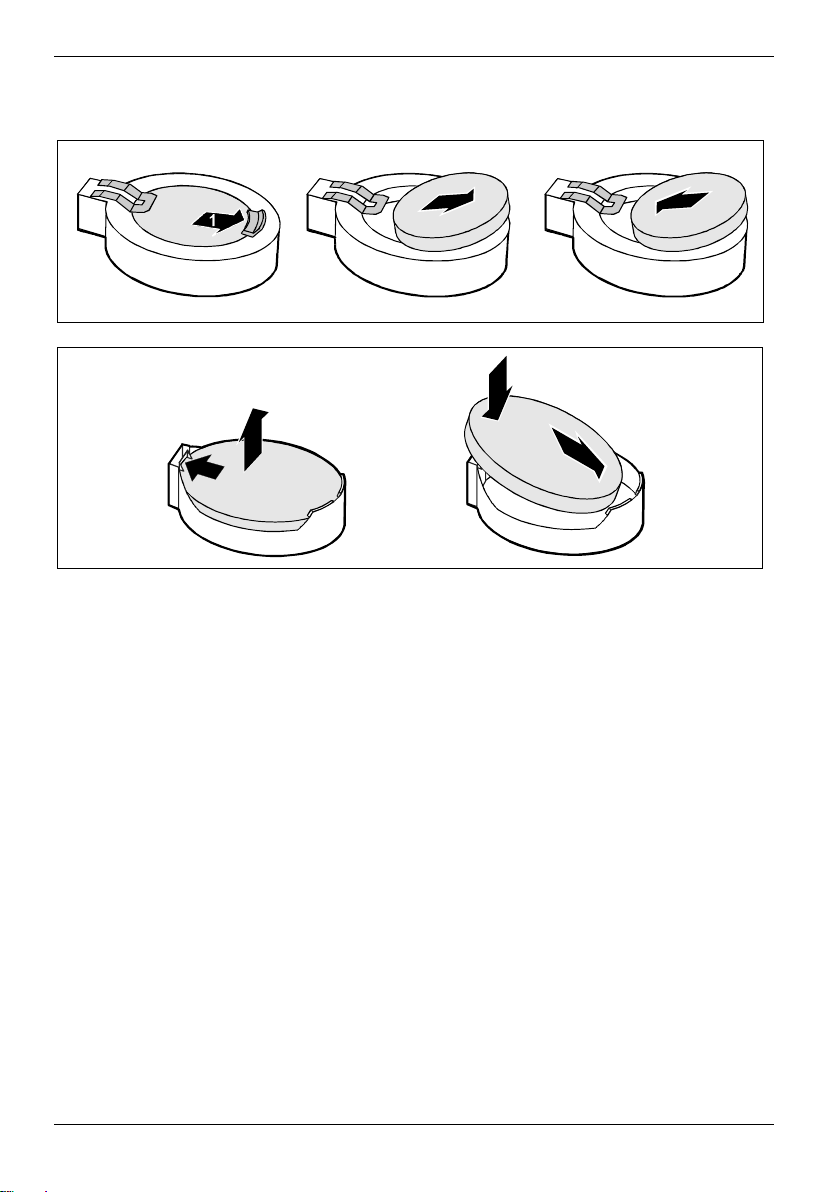

► Press the locking lug in the direction of the arrow; the battery jumps somewhat out of the

holder (1).

► Remove the battery (2).
► Insert a new lithium battery of the same type into the socket (3).

20 - English A26361-D1450-Z120-1-6319

Add-on modules / Upgrading

BIOS update

When should a BIOS update be carried out?

Fujitsu Siemens Computers makes new BIOS versions available to ensure compatibility to new
operating systems, new software or new hardware. In addition, new BIOS functions can also be
integrated.

A BIOS update should always also be carried out when a problem exists that cannot be solved with
new drivers or new software.

Where can I obtain BIOS updates?

The BIOS updates are available on the Internet at www.fujitsu-siemens.de/mainboards.

How does a BIOS update work?

You have two ways of doing this:

1. BIOS update under DOS with bootable BIOS update floppy disk - brief description

► Download the update file from out website to your PC.
► Insert an empty floppy disk (1.44 MB).
► Run the update file (e.g. 1450103.EXE).

A bootable update floppy disk is created. Leave this floppy disk in the drive.

► Restart the PC.
► Follow the instructions on screen.

2. BIOS update under Windows with DeskFlash utility

A BIOS update can also be carried out directly under Windows with the DeskFlash utility. DeskFlash
is located on the "Drivers & Utilities" CD (from CD version 2001.05 with DeskView
Readme file in the subfolder DeskFlash you will find the installation instructions for DeskFlash. Further
information on DeskFlash is provided in the DeskView.PDF file and in the DeskView

Detailed information on the BIOS update under DOS is provided in the manual on "BIOS
Setup" ("Drivers & Utilities" CD).

i

OEM

OEM

V5.0). In the

online help.

A26361-D1450-Z120-1-6319 English - 21

Add-on modules / Upgrading

BIOS Recovery - Recovering System BIOS

All BIOS settings are reset to the default values.

i

► Open the casing as described in the operating manual.
► Set the switch for "Restore system BIOS" to ON.
► Close the casing as described in the operating manual.
► Insert a BIOS update floppy disk and start the PC.
► Note the signals issued from the loudspeaker. You have successfully restored the BIOS if you

hear the signal sequence "short-short- long- long- long" and the diskette access indicator is
dark. This can take a few minutes.

► Open the casing as described in the operating manual.
► Set the switch for "Restore system BIOS" to OFF.
► Close the casing as described in the operating manual.
► Remove the floppy disk from the drive.
► Start the PC and invoke BIOS Setup.
► Select the menu item Reset Configuration in the menu Advanced and change the setting to Yes.
► Save the change and terminate BIOS Setup.

The BIOS recovery has now been completed. The system restarts.

Detailed information on the BIOS recovery is contained in the manual "BIOS Setup"
("Drivers & Utilities" CD).

i

22 - English A26361-D1450-Z120-1-6319

Add-on modules / Upgrading

Microcode Update

What is a microcode update?

As there are no drivers for processors, Intel offers the possibility from the P6 family (Pentium Pro)
on to update the command set (microcode) of the processor. This enables minor errors to be
corrected and the performance to be increased.

To guarantee the best possible performance and error-free operation, Intel recommends updating
the microcode regularly. Intel refers to the use of the processor without regular microcode updates
as operation outside the specifications.

Safety for processor on Fujitsu Siemens Computers mainboards

If the processor uses an old or incorrect microcode, error-free operation cannot be ensured. Fujitsu
Siemens Computers has therefore implemented a function on its mainboards that interrupts the
booting process if no suitable microcode is available for the installed processor. The output error
message is:

Patch for installed CPU not loaded. Please run the bios flash update
diskette.

This message appears until the microcode update has been carried out. If the computer is
nevertheless operated without a microcode update, error-free operation is not ensured.

When should a microcode update be carried out?

A microcode update should be carried out in the following cases:

• Following installation of a new processor

• When a new microcode update is issued.

In contrast to the BIOS update, only an updated version of the processor command set is stored.
The system BIOS remains unaffected by this.

Microcode update under DOS with bootable microcode update floppy disk - brief description

► Download the update file from out website to your PC.
► Insert an empty floppy disk (1.44 MB).
► Run the update file under DOS (e.g. 1495101.EXE).
► A bootable update floppy disk is created. Leave the floppy disk in the drive.
► Restart the PC.
► Follow the instructions on screen.

To determine whether the latest microcode update has been loaded, the so-called Patch-ID of the
processor can be read out.

► Press the F1 key in the BIOS Setup.
The entry CPU / Patch ID is shown on the displayed information page.
A list with the current processors and the related Patch-IDs is available on the Internet.

If the processor is not recognised, you also require the microcode update tool for
processors of the P6 family.

i

A26361-D1450-Z120-1-6319 English - 23

Add-on modules / Upgrading

Drivers

Only when no drivers are installed on your system, or you want to update these, proceed as follows:

► Insert the CD "Drivers & Utilities Collection" into the CD-ROM drive.
► If the CD does not start automatically, run the START.EXE programme in the main directory of

the CD.
► Select DeskUpdate - Fully automatic installation.
► Follow the instructions on screen.

24 - English A26361-D1450-Z120-1-6319

Annex

Annex

Electrical Properties

Loadability for connections and fuses

Make sure that the connected devices do not overload the connections.

i

Fuse No. Fuse Connection Maximum loadability

- - Fan1, Fan2 1000 mA each

1 750 mA Keyboard Not specified

Mouse Not specified
VGA connector Minimum 50 mA

2 1500 mA USB port A

USB port B

3 1500 mA USB port C

USB port D

4 1500 mA USB port E

USB port F

The fuses on this mainboard can be used several times (polyfuses). Shortly after the error state has
been eliminated, the fuses reset to the original state.

500 mA

500 mA

500 mA

Mainboard current requirement

You require a Pentium4 power supply nit as per the ATX12V specification for this mainboard. If you
do not have a PC from Fujitsu Siemens Computers, make sure that the power supply unit provides
the required amperages.

Resource Voltage Maximum

ATX12V power supply +12 V ±5 % 8 A
ATX12V power supply -12 V ±10 % 905 mA
ATX12V power supply +5,0 V ±5 % 1 A
ATX12V power supply +3,3 V ±5 % 5 A

Standby voltage of power

The specifications apply to the onboard components and represent the least favourable case. In addition,
at least 350 mA is required for PCI on 3.3 V, and 500 mA per connected device for USB on 5 V.

A26361-D1450-Z120-1-6319 English - 25

supply unit

+5,0 V SB ±5 % 2 A

difference

Maximum current

Annex

APM and ACPI system status, energy-saving modes

System

status

Normal

ACPI

Status

)1

APM

Status

Power

LED I

)2

Power
LED II

)3

Power

consum

ption

Wake-up

time

G0 S0 On On/Off On Normal

operation

Simple

energy-

saving mode

Maximum

energy-

saving mode

4

)

S1 Standby Off/On flashing Almost

G1

S3 Off/On flashing RAM,

like

normal

wake-up

compon

ents

Almost

immediate

ly

ca. 5s

"Save to

DRAM"

Maximum

energy-

saving mode

**

S4

Off/Off Off RAM,

wake-up

compo-

nents

ca. 20s

"Save To

Disk"

”Soft Off" G2 S5 Soft Off Off/Off Off Nearly

zero

Mechanicall

G3 Off Off/Off Off Zero Full boot

y Off

1

)

G = Global status; S = System status

2

)

Two colours

3

)

One colour

4

)

The power supply unit must provide sufficiently loadable 5 V standby voltage.

Full boot

time

time

To use the WOL functionality the power supply must provide a 5 V auxiliary voltage (5VSB) of at
least 1 A.

26 - English A26361-D1450-Z120-1-6319

Annex

Mainboard Revision and BIOS Version

The compatibility, e.g. with new processors, can be independent of the BIOS version or the revision
status of the mainboard used. The CPU and BIOS compatibility lists are available on the Internet at
www.fujitsu-siemens.de/mainboards.

Mainboard: Revision level

The revision status of the mainboard exactly identifies which mainboard you have. It is indicated on
a sticker on the edge of the mainboard:

D1450-A10 GS1
05618476

Example of revision status of the mainboard D1450-A10 GS1

BIOS version

The BIOS version can be displayed in the BIOS Setup.

► Press F2 during booting to open the BIOS Setup.
► Press F1 .

The BIOS version is specified on the displayed information page under the entry BIOS Release.

A26361-D1450-Z120-1-6319 English - 27

Error messages

Error messages

This chapter contains error messages generated by the mainboard.

Available CPUs do not support the same bus frequency – System halted!
Memory type mixing detected
Non Fujitsu Siemens Memory Module detected – Warranty void
There are more than 32 RDRAM devices in the system

Check whether the system configuration has changed. If necessary, correct the settings.

BIOS update for installed CPU failed

This message appears if the microcode update required for the connected processor is not
contained in the system BIOS.

► Boot the system with the inserted Flash BIOS floppy disk.
► Abort the normal Flash BIOS update by answering the question about whether you want to

perform the update with

n ↵

► To carry out the Flash BIOS update for the processor, enter:

flashbioË/p6 ↵

Check date and time settings

The system date and time are invalid. Set the current date and time in the Main menu of the
BIOS Setup.

CPU ID 0x failed

Switch the server off and on again. If the message is still displayed, go into the BIOS setup and
set the corresponding processor to Disabled in the Server - CPU Status menu; please contact
your sales outlet or customer service centre.

CPU mismatch detected

You have replaced the processor or changed the frequency setting. As a result, the
characteristic data of the processor have changed. Confirm this change by running the BIOS
Setup and exiting it again.

Diskette drive A error
Diskette drive B error

Check the entry for the diskette drive in the Main menu of the BIOS Setup. Check the
connections to the diskette drive.

28 - English A26361-D1450-Z120-1-6319

Error messages

DMA test failed
EISA CMOS not writable
Extended RAM Failed at offset: nnnn
Extended RAM Failed at address line: nnnn
Failing Bits: nnnn
Fail-Safe Timer NMI failed
Multiple-bit ECC error occurred
Memory decreased in size
Memory size found by POST differed from EISA CMOS
Single-bit ECC error occurred
Software NMI failed
System memory exceeds the CPU’s caching limit
System RAM Failed at offset: nnnn
Shadow RAM Failed at offset: nnnn

Switch the device off and on again. If the message is still displayed, please contact your sales
outlet or customer service centre.

Failure Fixed Disk 0
Failure Fixed Disk 1
Fixed Disk Controller Failure

Check the entry for the hard disk drive in the Main menu and the entry for the IDE drive
controller in the Advanced - Peripheral Configuration menu of the BIOS Setup. Check the hard
disk drive's connections and jumpers.

Incorrect Drive A - run SETUP
Incorrect Drive B - run SETUP

Correct the entry for the diskette drive in the Main menu of the BIOS Setup.

Invalid NVRAM media type

Switch the device off and on again. If the message is still displayed, please contact your sales
outlet or customer service centre.

Invalid System Configuration Data

In the Advanced menu of the BIOS Setup set the entry Reset Configuration Data to Yes.

Invalid System Configuration Data - run configuration utility
Press F1 to resume, F2 to Setup

This error message may be displayed if the machine was switched off during system start-up.
Call BIOS Setup and switch to the Advanced menu. Select the menu item Reset Configuration

Data and change the setting to Yes. Save the change and terminate BIOS Setup. Reboot the
device.

Keyboard controller error

Connect another keyboard or another mouse. If the message is still displayed, please contact
your sales outlet or customer service centre.

Keyboard error

Check that the keyboard is connected properly.

Keyboard error nn
nn Stuck Key

Release the key on the keyboard (nn is the hexadecimal code for the key).

A26361-D1450-Z120-1-6319 English - 29

Error messages

Missing or invalid NVRAM token

Switch the device off and on again. If the message is still displayed, please contact your sales
outlet or customer service centre.

Monitor type does not match CMOS - RUN SETUP

Correct the entry for the monitor type in the Main menu of the BIOS Setup.

On Board PCI VGA not configured for Bus Master

In the BIOS Setup, in the Advanced menu, submenu PCI Configuration, set the Shared PCI Master
Assignment entry to VGA.

One or more RDRAM devices are not used
One or more RDRAM devices have bad architecture/timing
One or more RDRAM devices are disabled

Contact your system administrator or contact our customer service centre.

Operating system not found

Check the entries for the hard disk drive and the floppy disk drive in the Main menu and the
entries for Boot Sequence submenu of the BIOS Setup.

Parity Check 1
Parity Check 2

Switch the device off and on again. If the message is still displayed, please contact your sales
outlet or customer service centre.

Previous boot incomplete - Default configuration used

By pressing function key F2 you can check and correct the settings in BIOS Setup. By pressing
function key F1 the system starts with incomplete system configuration. If the message is still
displayed, please contact your sales outlet or customer service centre.

Real time clock error

Call the BIOS Setup and enter the correct time in the Main menu. If the message is still
displayed, please contact your sales outlet or customer service centre.

Service Processor not properly installed

The server management controller has not been correctly installed. If the message is still
displayed, please contact your sales outlet or customer service centre.

Storage Extension Group = xy
Configuration error, x Storage Extensions(s) found, configured are y
SE(s).
Device List: k1, k2 ...

The specified number of storage expansion units (SEs) in the BIOS Setup menu Server - Storage
Extensions - Number of connected SE is incorrect. Check how many SEs within the group are

connected at the server and change the setting in BIOS Setup. Check whether you have
assigned the same device ID twice.

xy = Group number
x = Number of SEs found on the communication bus
y = Number of SEs entered in Number of connected SE
k1, k2 ... = Device ID of the storage extensions found

30 - English A26361-D1450-Z120-1-6319

Error messages

System battery is dead - Replace and run SETUP

Replace the lithium battery on the mainboard and redo the settings in the BIOS Setup.

System Cache Error - Cache disabled

Switch the device off and on again. If the message is still displayed, please contact your sales
outlet or customer service centre.

System CMOS checksum bad - - Default configuration used

Call the BIOS Setup and correct the previously made entries or set the default entries.

System Management Configuration changed or Problem occurred

A system fan or system sensor has failed. Check the hardware operation.

System timer error

Switch the device off and on again. If the message is still displayed, please contact your sales
outlet or customer service centre.

Uncorrectable ECC DRAM error
DRAM Parity error
Unknown PCI error

Switch the device off and on again. If the message is still displayed, please contact your sales
outlet or customer service centre.

Verify CPU frequency selection in Setup

The frequency setting for the processor is invalid. Correct the BIOS Setup and the setting.

DOS error messages

This chapter contains the error messages that occur while DOS is running.
If a uncorrectable error occurs while DOS is running, then the following error text is output on the

screen:

Critical error logged to server management processor - system halted

If the NMI button of the control panel is pressed, then the following error text is output on the screen:

Frontpanel NMI activated - system halted

A26361-D1450-Z120-1-6319 English - 31

Error messages

Glossary

The technical terms and abbreviations given below represent only a selection of the full list of
common technical terms and abbreviations.
Not all technical terms and abbreviations listed here are valid for the described mainboard.

ACPI Advanced Configuration and

Power Management Interface
AC'97 Audio Codec '97 LAN Local Area Network
AGP Accelerated Graphics Port LSA LAN Desk Service Agent
AMR Audio Modem Riser MCH Memory Controller Hub
AOL Alert On LAN MMX MultiMedia eXtension
APM Advanced Power Management P64H PCI64 Hub
ATA Advanced Technology

Attachment
BIOS Basic Input Output System PXE Preboot eXecution Environment
BMC Baseboard management

controller
CAN Controller Area Network RAMDAC Random Access Memory Digital

CPU Central Processing Unit RDRAM Rambus Dynamic Random

CNR Communication Network Riser RIMM Rambus Inline Memory Module
C-RIMM Continuity Rambus Inline

Memory Module
DIMM Dual Inline Memory Module SB Soundblaster
ECC Error Correcting Code SDRAM Synchronous Dynamic Random

EEPROM Electrical Erasable

Programmable Read Only

Memory
FDC Floppy disk controller SIMD Streaming Mode Instruction

FIFO First-In First-Out SMBus System Management Bus
FSB Front Side Bus SVGA Super Video Graphic Adapter
FWH Firmware Hub USB Universal Serial Bus
GMCH Graphics and Memory Controller

Hub
GPA Graphics Performance

Accelerator
I2C Inter Integrated Circuit
IAPC Instantly Available Power

Managed Desktop PC Design
ICH I/O Controller Hub
IDE Intelligent Drive Electronics
IPSEC Internet Protocol Security

ISA Industrial Standard Architecture

PCI Peripheral Component

Interconnect

RAM Random Access Memory

Analogue Converter

Access Memory

RTC Real Time Clock

Access Memory

SGRAM Synchronous Graphic Random

Access Memory

(Single Instruction Multiple Data)

VGA Video Graphic Adapter

WOL Wake On LAN

32 - English A26361-D1450-Z120-1-6319
