Contents

Introduction........................................................................................................................................1

Notational conventions ..............................................................................................................1

Important notes..................................................................................................................................2

Information about boards...........................................................................................................2

Features............................................................................................................................................4

External ports............................................................................................................................6

Internal ports and connectors ....................................................................................................7

Temperature / System monitoring..............................................................................................8

Hard disk connection.................................................................................................................9

LAN connector...........................................................................................................................9

PCI bus interrupts....................................................................................................................10

Settings with switches and jumpers.................................................................................................10

Add-on modules ..............................................................................................................................11

Installing and removing processors..........................................................................................12

Upgrading main memory..........................................................................................................13

Replacing the lithium battery....................................................................................................14

Glossary..........................................................................................................................................15

A26361-D1447-Z120-1-7419

Introduction

Depending on the configuration chosen, some of the hardware components described
may not be available on your mainboard.

i

You will find further information in the "BIOS Setup" description.
Further information about drivers i s provided in the readme files on t he hard di sk, on the supplied

drivers diskettes, on the "Drivers & Utilities" or on the "ServerStart" CD.
Onyl if the CD Drivers & Utilities Collection was delivered with your mainboard proceed as follows:

Ê Insert the CD Drivers & Utilities Collection into the CD ROM drive.
Ê If the CD does not start automatically, run the START.EXE programme in the main directory of

the CD.

Ê Select your mainboard or your dev i ce.
Ê Select Documentation.
Ê Select Technical Manuals
Ê Select Technical Manuals (BIOS)

The programme Adobe Acrobat Reader must be installed to be able to open the m anual s.
You may find the programme on the CD-ROM di rectory: utls/ac robat .

i

For more details please read the acc ordi ng readme.txt files.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroy s the device, or may lead t o l oss of data.

!

Supplementary information, remarks, and tips fol l ow t h i s symbol.

i

Ê Text which follows thi s symbol describes activities that m ust be performed in the order shown.

Ë This symbol indicates that you must enter a blank space (press the Space Bar) at this point.

Ú This symbol indicates that you must press t he Enter key.

Text in this typeface indicates screen output s.

Text in this bold typeface indicates the entries you make via the keyboard.

Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or t erm s.

A26361-D1447-Z120-1-7419 English - 1

Important notes

Important notes

Store this manual clos e to the device. If you pass the device on to third parti es, you should pass this
manual on with it.

Be sure to read this page careful l y and note the information before you open t he device.

!

You cannot access t he m ai nboard components without firs t opening the device. How to
dismantle and reassemble t he device is described in the Operat i ng M anual
accompanying the devic e.

Please observe the safety information provided in the "Important notes" chapt er i n the
device’s operating manual.

Incorrect replacement of the lithium battery may l ead to a risk of explosion. It is therefore
essential to observe t he i nstructions in the "Add-on modules" - "Replacing the lit hi um
battery" section.

The shipped version of this board complies with the requirements of the EEC
directive 89/336/EEC "Electromagnetic compatibility".

Compliance was tested in a t ypical PC configuration.
When installing the board, refer to the specific installation information in the

Operating Manual or Technical Manual for the receiving device.

Connecting cables for peripherals must be adequately shielded to avoid interference.

Components can become very hot during operation. Make sure you do not touch
components when making extensions to the mainboard. There is a danger of burns!

!

The warranty is invalidated if the device is damaged during the i nstallation or
replacement of system expansions. Information on which system expansions you can

i

use is available from y our sales outlet or the cust om er service centre.

Information about boards

To prevent damage to the mainboard or the com ponents and conductors on it, pl ease take great
care when you insert or remove boards. Take great care to ensure that ex t ension boards are slotted
in straight, without dam agi ng components or conductors on the m ainboard, or any other
components, for example EMI spring contacts.

Be especially careful with the locking mechani sms (catches, c entring pins etc.) when you replac e
the mainboard or components on it, for example memory modules or proc essors.

2 - English A26361-D1447-Z120-1-7419

Never use sharp objects (s crewdrivers) for leverage.

Boards with electrost at i c sensitive devices (ESD) are identifiable by the
label shown.

When you handle boards fitted with E SDs, you must, under all
circumstances, observe the following points :

· You must always di scharge static build up (e. g. by touching a

grounded object) before working.

· The equipment and tools you us e m ust be free of static c harges.

· Remove the power plug from the mai ns supply before inserting or

removing boards containing ES Ds.

· Always hold boards wit h ESDs by their edges.

· Never touch pins or conductors on boards fitted wit h E SDs.

Important notes

A26361-D1447-Z120-1-7419 English - 3

Features

Features

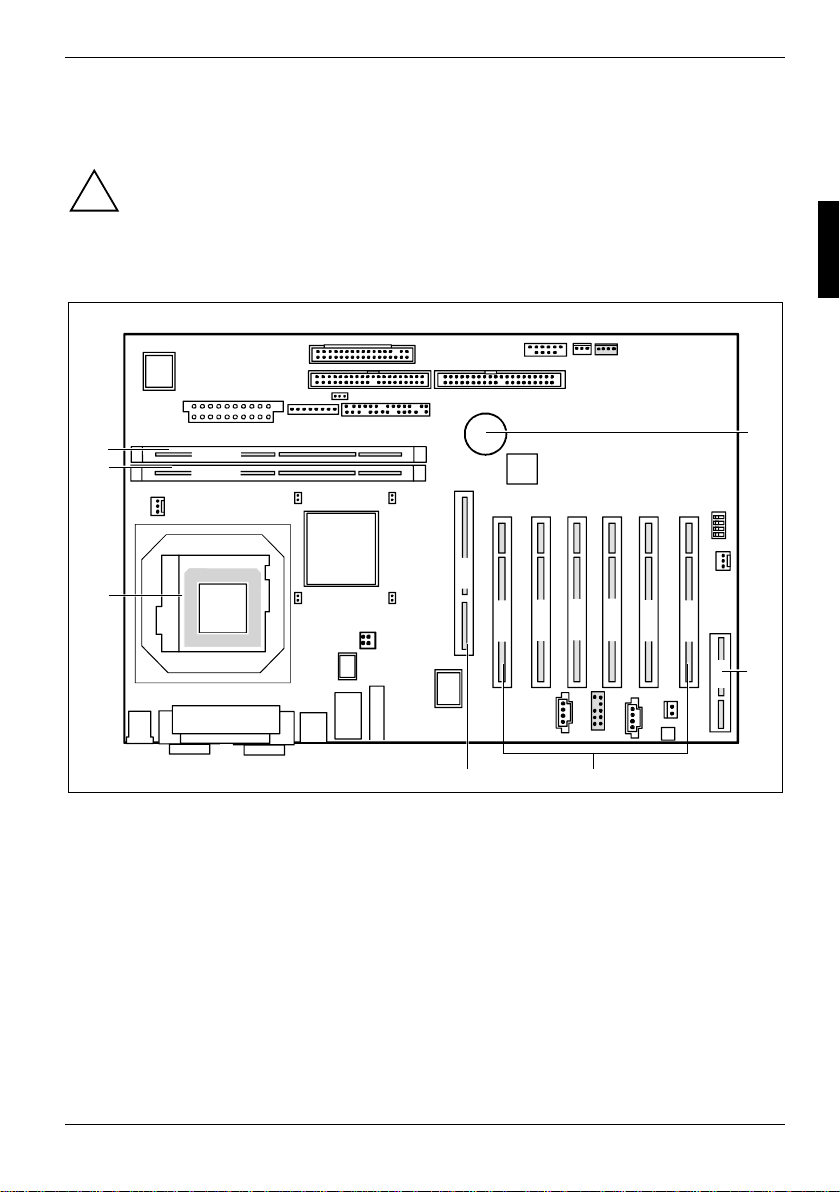

The components and connectors m arked are not necessarily pres ent on the mainboard.

· Mainboard in ATX format

· Intel Celeron processor Pentium 4 from 1. 4 GHz and with 400 MHz system Bus.

Pentium 4 processors s upport MMX technology and Intel S treaming SIMD Extensi ons. The size and
frequency of first-level cache and second-level cache are dependent upon the processor used.

· Intel c hi pset 845E

· Intel 82562 LA N controller (10/100 Mbit/s) wi th RJ45 interface.

WOL with Magic Packet ä and B asic AOL is supported, as is booting from LAN with boot i x®
LAN BootP or bootix® PXE.

· Sigmatel STAC 9750 (AC'97) Audio Codec

internal: Stereo CD-In, audio f ront panel , S/PDIF
external: Mono Micro-In, S tereo Line-In, Stereo Line-Out

· 2 DIMM s l ots for 128 MB up to 2 GB main mem ory (DDR-DIMM memory modules m eet the

PC2100 specification) wi th and without ECC

· Flash BIOS

· Fujitsu Siemens Computers system monitoring and temperature monitoring

· Power-on functions:

- Wake on RTC

- Wake on LAN (via PCI bus or LAN onboard)

- Wake on PCI Cards

- Wake on USB

- COM1 wake up support (standby )

· Energy saving functions:

- APM and ACPI (requires an operating system that supports ACPI)

- Switching on/off, standby mode, suspend mode via on/off switch

- Switching on/off via software

· Security functions:

- Processor serial number

- Cover monitoring: cover moni toring reports when the cover has been opened without

authorisation.

- System and setup password

- parallel and serial ports can be deac t i vated

- Floppy disk write-protection and boot protection via BIOS Setup

- Boot hard disk virus warning function

- Monitoring of the boot sequence of each IDE or floppy disk dri ve.

- Flash BIOS and EEPROMs (on the memory modules) vi rus protection function.

· 6 PCI slots

PCI slots support 3.3 V main and auxiliary voltages.

4 - English A26361-D1447-Z120-1-7419

· 1 AGP slot

The AGP slot supports 2x AGP mode. Only AGP boards with 1.5 V are supported.

· IDE hard dis k controller connected to P CI bus for up to four IDE drives

(e.g. IDE hard disk driv es, ATAPI CD-ROM drives )

The IDE hard disk controller are A T A 100, ultra DMA capable and support PI O m odes 0-5.

· Floppy disk drive controller (possibl e formats: 720 Kbyte, 1. 44 M byte)

· The mainboard supports booting from a 120 MB IDE floppy disk drive.

· Real-time clock/calendar with integrated battery backup

· 2 internal USB ports (E / F)

· 1 external parallel port (ECP- and EPP-compatible)

· 2 external s eri al ports (16C550 compatible with FIFO)

· 2 external P S /2 ports for keyboard and mouse

· 4 external US B ports (A / B and C / D)

Features

A26361-D1447-Z120-1-7419 English - 5

Features

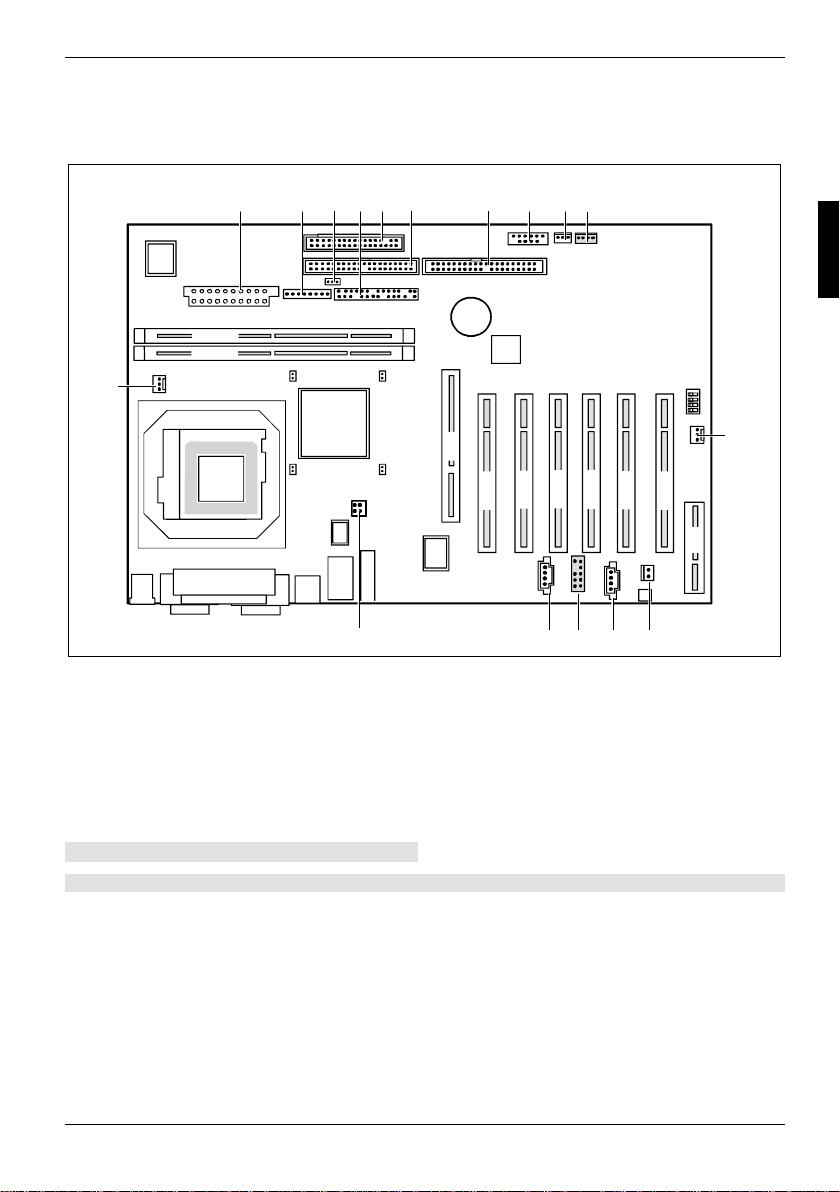

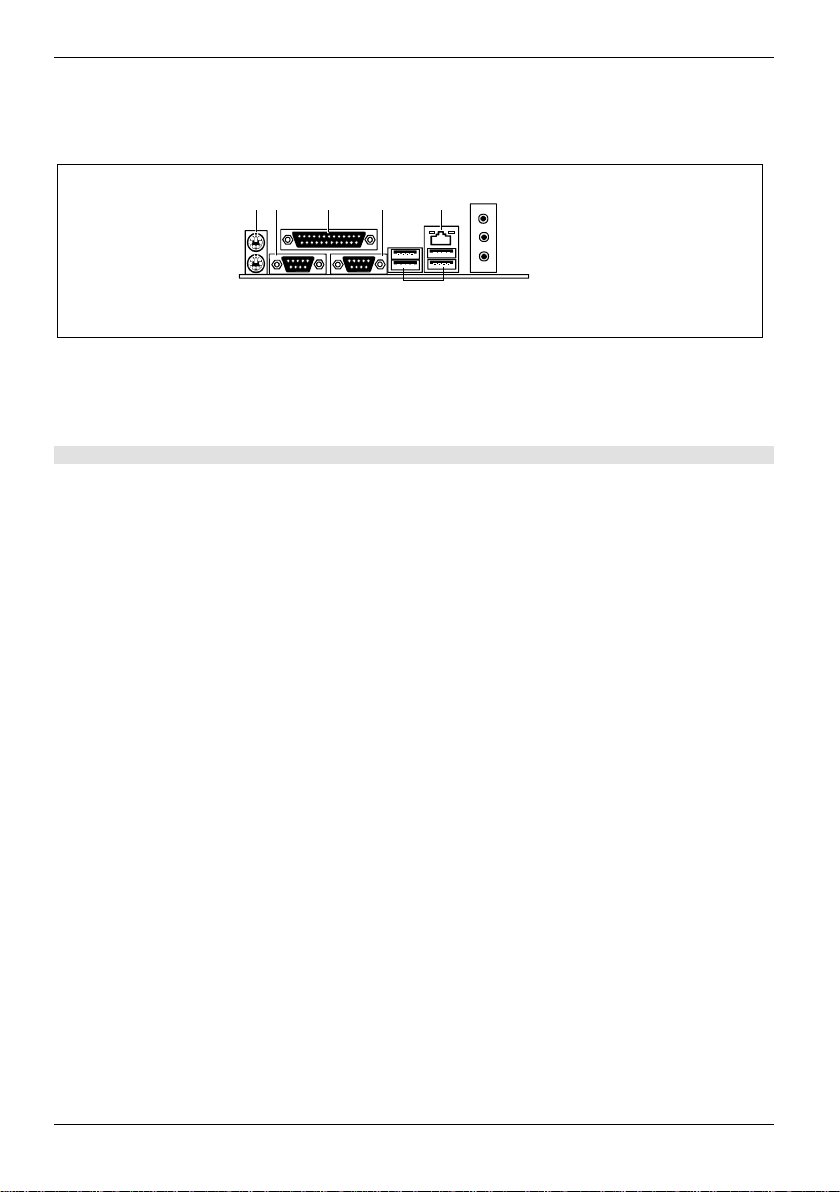

External ports

31 4 5

2

1 = PS/2 mouse port
2 = PS/2 keyboard port
3 = Serial port 1
4 = Parallel port
5 = Serial port 2

The components and connectors m arked are not necessarily pres ent on the mainboard.

7

8a
8b

8c

6

6 = USB ports A, B, C and D
7 = LAN connector
8a = Audio Line-In
8b = Audio Head Out
8c = Audio Micro-In

6 - English A26361-D1447-Z120-1-7419

Internal ports and connectors

123456 87109

DIMM 2

DIMM 1

17

Features

AGP

PCI 3

1 = Power supply ATX
2 = Power supply monitoring
3 = Power LED II (OEM LED)
4 = Connector for front panel
5 = Floppy Disk Drive
6 = IDE drives 1 and 2 (primary)
7 = IDE drives 3 and 4 (secondary)

16

PCI 2

PCI 1

14 12

15

11 = Fan 2
12 = SPDIF (digital audio)
13 = CD audio input
14 = Audio front panel
15 = AUX audio input
16 = Power supply +12 V
17 = Fan 1 (e.g. for the processor)

PCI 5

PCI 4

PCI 6

13

8 = USB ports E / F
9 = Cover monitoring
10 = SMBus (Case Temperature)

The components and connectors m arked are not necessarily pres ent on the mainboard.

11

CNR

A26361-D1447-Z120-1-7419 English - 7

Features

Temperature / System monitoring

Temperature and system monitoring aim to reliably protect the computer hardware against damage
caused by overheating. In addi tion, any unnecessary noise is also prevented by reduci ng the fan
speed, and information is prov i ded about the system status. Cover monitoring protects the system
from unauthorised opening.

An onboard controller developed by Fujitsu Siemens Computers c ontrols the temperature and
system monitoring.

The following functions are s upported:

Temperature monitoring:

Measurement of the process or and the system temperature with an onboard temperature sensor.

Temperature control:

The temperature is controlled by adj usting the fan speed and/or by reduci ng the clock frequency of
the processor. The clock frequency of the process or i s dependent upon the setting in the BIOS Setup.
Temperature-dependent processor speed control enables a reduced fan speed, decreasing noise.

Fan monitoring:

Fans which have been removed, bloc ked or sticky fans are detected. Blocked or sticky fans are
operated with 12 V pulse voltage. If the device has a monit ored f an rem o ved while the system is
switched off this i s indicated by the mess age LE D when the system is switched on again and
processed by the BIOS or the application.

Fan control:

The fans are regulated according to temperature.

Sensor monitoring:

The removal of, or a fault in, a temperature sensor is detected. Should this happen all fans
monitored by this sens or run at m aximum speed, to achiev e t he greatest possible protection of the
hardware. If the device has a monitored fan removed while the system is switched off this is
indicated by the mess age LE D when the system is switched on again and processed by the BIOS or
the application.

Cover monitoring:

Unauthorised opening of the cover is detected, even when the system is switched off. However, this
will only be indicated when the system is switched on again.

8 - English A26361-D1447-Z120-1-7419

Features

Voltage monitoring:

The voltages 12 V, 5 V and the CMOS battery are monitored.
With hardware monitoring - regardless of the operating system and processor - the advantages

compared to conventional s of tware monitoring are clear:

- suitable for all operati ng systems and proces sor types

- no additional load on processor (performance)

- optimum temperature protection, even if process faults or faults are present i n the

operating system

- optimum noise reducti on

Three different operating modes are avai l abl e and can be configured in BIOS Setup - System
Management.

Hard disk connection

An ultra ATA/66 or ultra ATA/100 hard disk must be connected with a cable especiall y designed for
the ultra ATA/66 or ultra ATA/100 mode.

Ê Connect the end of the cable mark ed wi th blue to the mainboard.

LAN connector

This mainboard has an optional Intel 82562EM LAN controller which support s transfer speeds of 10
Mbit/s and 100 Mbit/s . The LAN controller is equipped with a 3 KB transmission and recei ving buffer
(FIFO) and supports WOL function through Magic Packetä.

It is also possi bl e to boot a device without its own boot hard disk via LAN. Here boot i x® LAN BootP
or bootix® PXE are supported.

Basic AOL II is al so supported. Basic AOL II helps to protect systems against t heft or damage.
Basic AOL II can al so inform the administrat or about hardware faults and software errors.

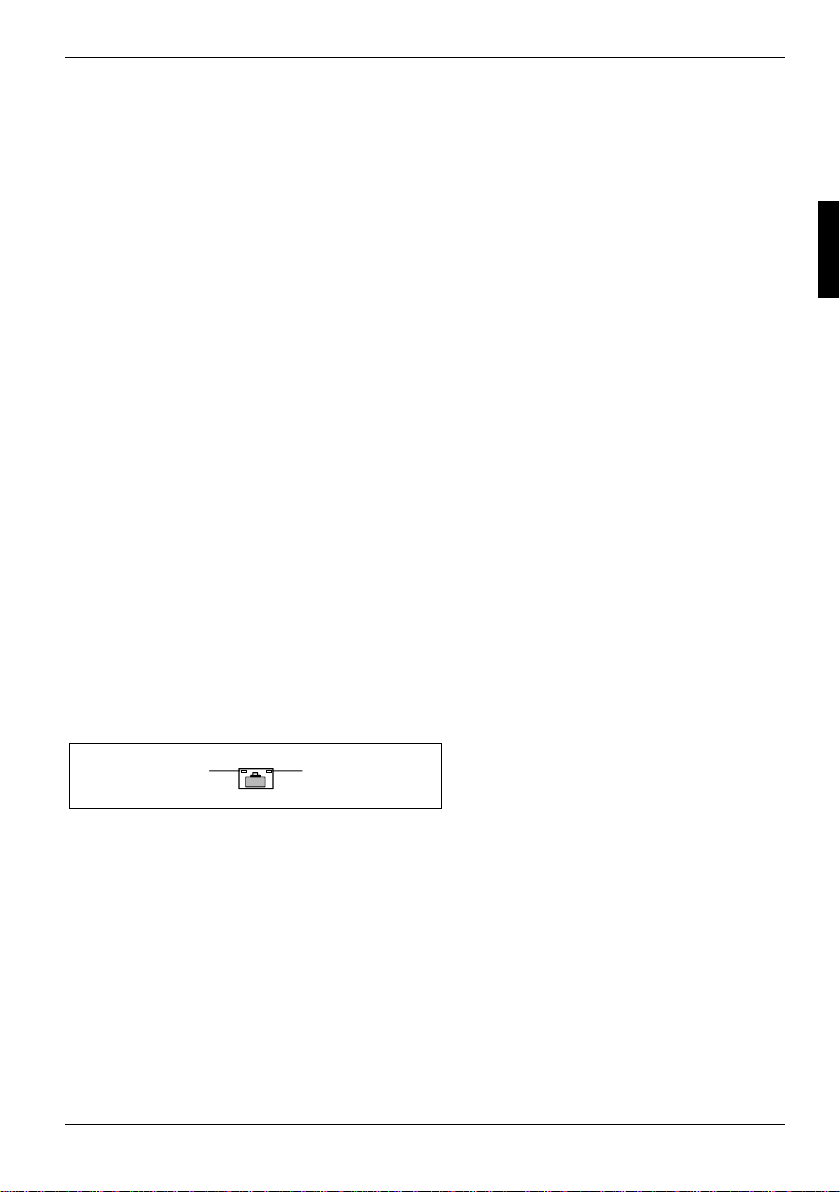

The LAN RJ45 connector is equipped wi t h a yellow and a green LED (light emitti ng di ode).

1 = a connection exists (e.g. to a hub).

2

1

2 = Link Mode: the LAN connection is active.

WOL mode: a Magic Packet
received.

TM

is being

A26361-D1447-Z120-1-7419 English - 9

Settings with switches and jumpers

PCI bus interrupts

The following table shows which PCI bus interrupts are assi gned on the mainboard.
PCI bus interrupt Component on mainboard

B, C, D, E PCI bus slot 1
C, D, E, F PCI bus slot 2
D, E, F, G PCI bus slot 3
E, F, G, H PCI bus slot 4
F, G, H, A PCI bus slot 5
G, H, A, B PCI bus slot 6

A, B AGP slot

A First USB controller 1.1
B Second USB controller 1. 1
C Third USB controller 1.1
E LAN controller
BSMBus
B AC'97 Audio
C Fourth USB controller 1.1
D USB controller 2.0

Settings with switches and jumpers

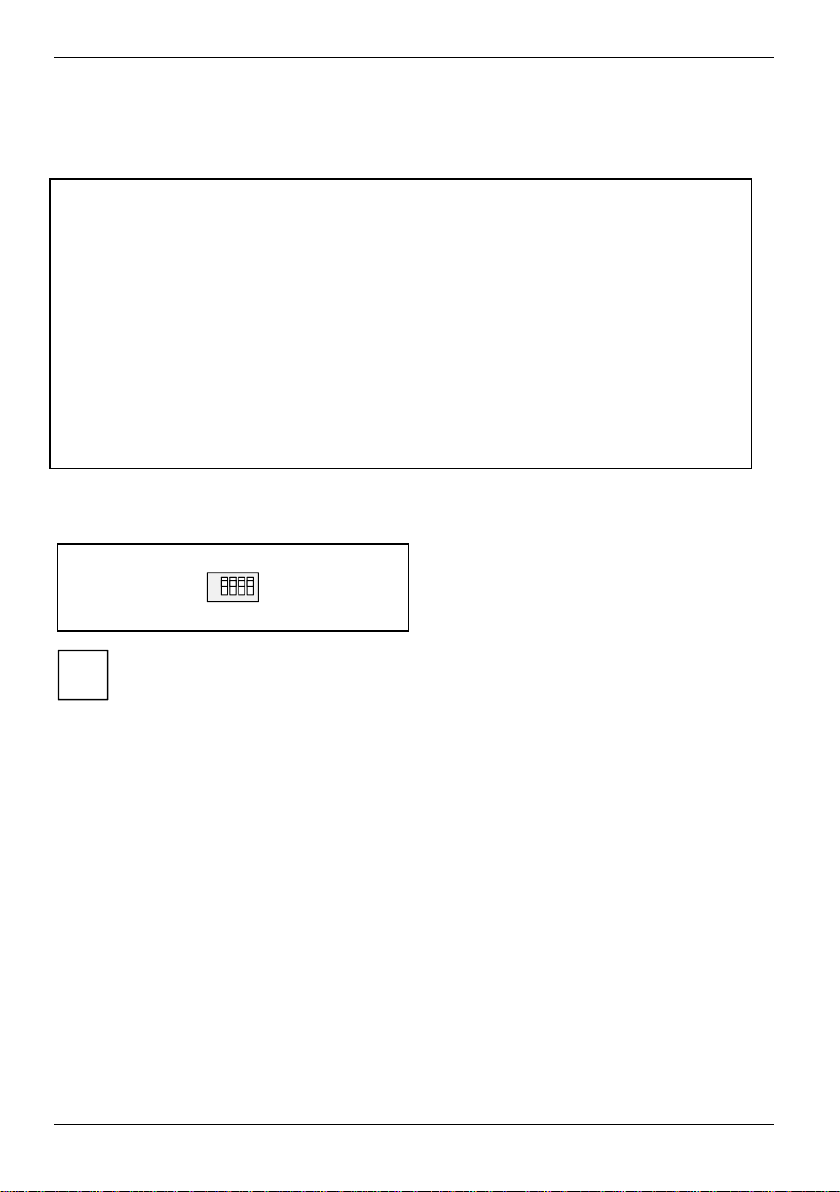

Switch 1 = must always be set to off

ON

1234

Switch 2 = System BIOS recovery
Switch 3 = must always be set to
Switch 4 = must always be set to off

off

The clock frequency of the processor is set autom atically.

i

Skipping system and BIOS Setup password - switch 1

Switch 1 enables skippi ng t he system and BI OS Setup password.

On System and BIOS Setup password are skipped when the device is switched on and

Off System and BIOS Setup password must be entered when the device is switched on.

may be changed.

Recovering System BIOS - switch 2

Switch 2 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Diskette (please call our customer service centre).

On The System BIOS ex ecutes from floppy drive A : and the inserted "Flash-BI OS -

Off Normal operation (default setting).

10 - English A26361-D1447-Z120-1-7419

Diskette" restores the System BIOS on t he m ai nboard.

Add-on modules

Exit Suspend mode, swi tch off the device and remove the power plug from the mains
supply, before carrying out any of the procedures described in t hi s chapter!

!

Even when you have switched off the device, parts (e. g. memory modules, AGP and PCI
extension boards) are still supplied with power.
All PCI slots support 3.3 V main and auxiliary voltages. AGP boards support 1,5 V main
and auxiliary voltages.

Add-on modules

3
2

DIMM 2

DIMM 1

1

1 = Socket for processor wit h heat sink
2 = Location bank 1 for main memory
3 = Location bank 2 for main memory
4 = Lithium battery

AGP

PCI 3

PCI 2

PCI 1

PCI 4

67

5 = CNR slot (only AC97 support)
6 = PCI slots 1, 2, 3, 4, 5, 6
7 = AGP slot

4

PCI 5

PCI 6

5

CNR

A26361-D1447-Z120-1-7419 English - 11

Add-on modules

Installing and removing processors

2

2

3

3

1

1

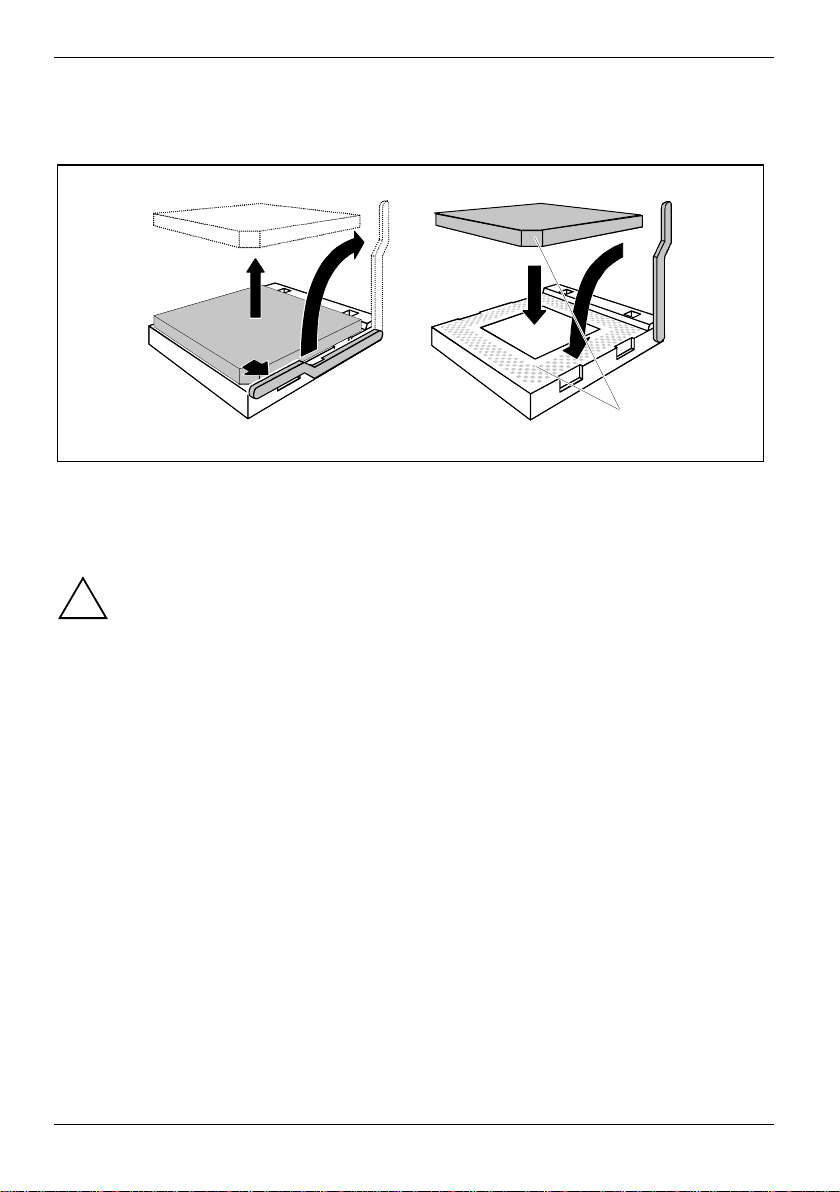

Ê Pull the lever in the direction of the arrow (1) and lift it as far as it will go (2).
Ê Remove the old processor from the socket (3).
Ê Insert the new processor in the socket so that t he angl ed corner of the processor matc hes the

coding on the socket (A) wi th regard to the position (4).

The angled corner of the processor may be covered by the heat sink. I n this case let
yourself be guided by the mark i ng i n the rows of pins on the underside of t he processor.

!

4

4

5

5

A

A

Ê Push the lever back down until it clicks into place (5).

12 - English A26361-D1447-Z120-1-7419

Add-on modules

Upgrading main memory

These slots are suit abl e f or 128, 256, 512 and 1024 Mbyte DDR-200 or DDR-266 memory modules
of the DIMM format with or without ECC.

Memory modules with different memory capacities can be combined.

You may only use unbuffered 2, 5 V memory modules. Buffered m emory modules are not
supported.

!

DDR-DRAM memory modules mus t meet the PC1600/PC2100 specification.

Installing a memory module

2

2

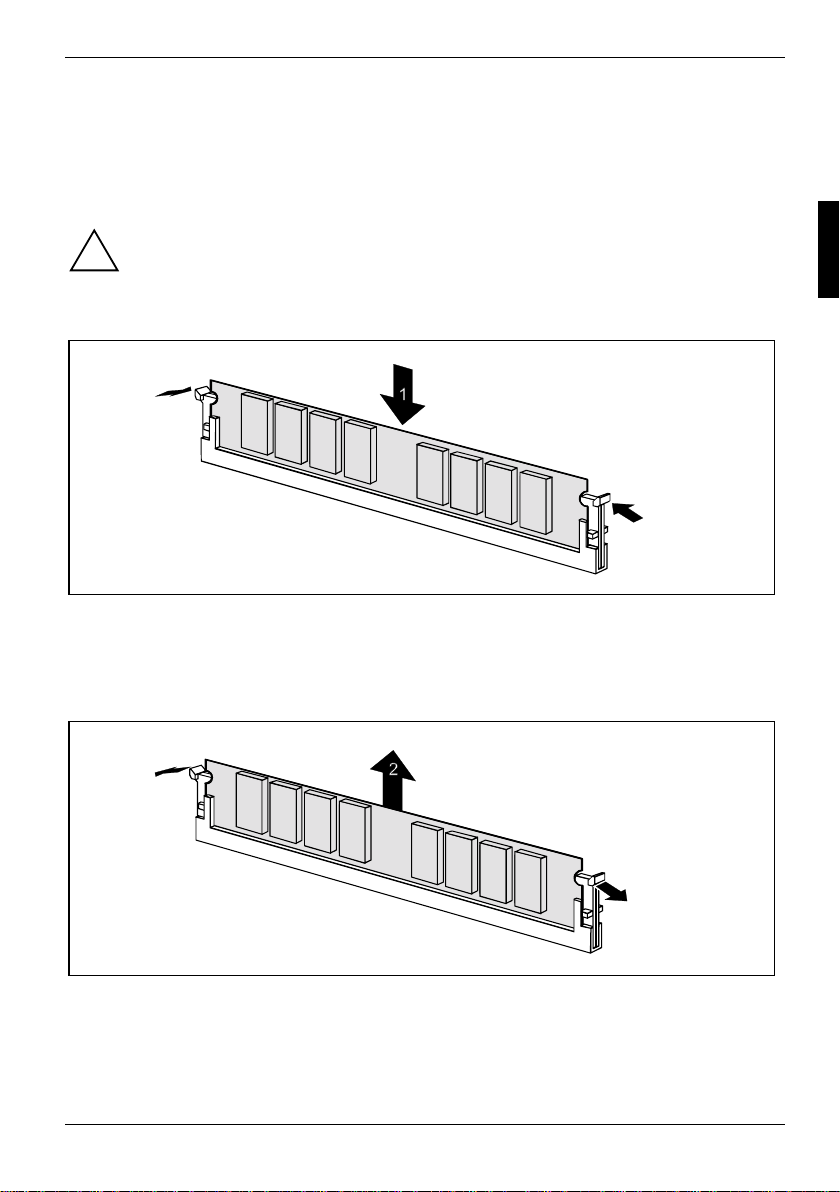

Ê Push the holders on each side of the memory compartment outwards.
Ê Insert the memory module i nto the location (1).
Ê At the same time fl i p the lateral holders upwards until the memory module snaps in place (2).

Removing a memory module

1

1

Ê Push the clips on the right and left of the compartment outward (1).
Ê Carefully remove the memory module from the compartment (2).

A26361-D1447-Z120-1-7419 English - 13

Add-on modules

Replacing the lithium battery

Incorrect replacement of the lithium battery may l ead to a risk of explosion.

!

The lithium battery must be replaced with an identical bat t ery or a battery type
recommended by the manufact urer (CR2032).

Do not throw lithium batteries into the household waste. They m ust be disposed of in
accordance with local regulations concerning special waste.

Ensure that you insert t he battery the right way round. The plus pol e m ust be on the top!

The following graphic representation i s also valid if the lithium battery is built-in vertically.

1

+

+

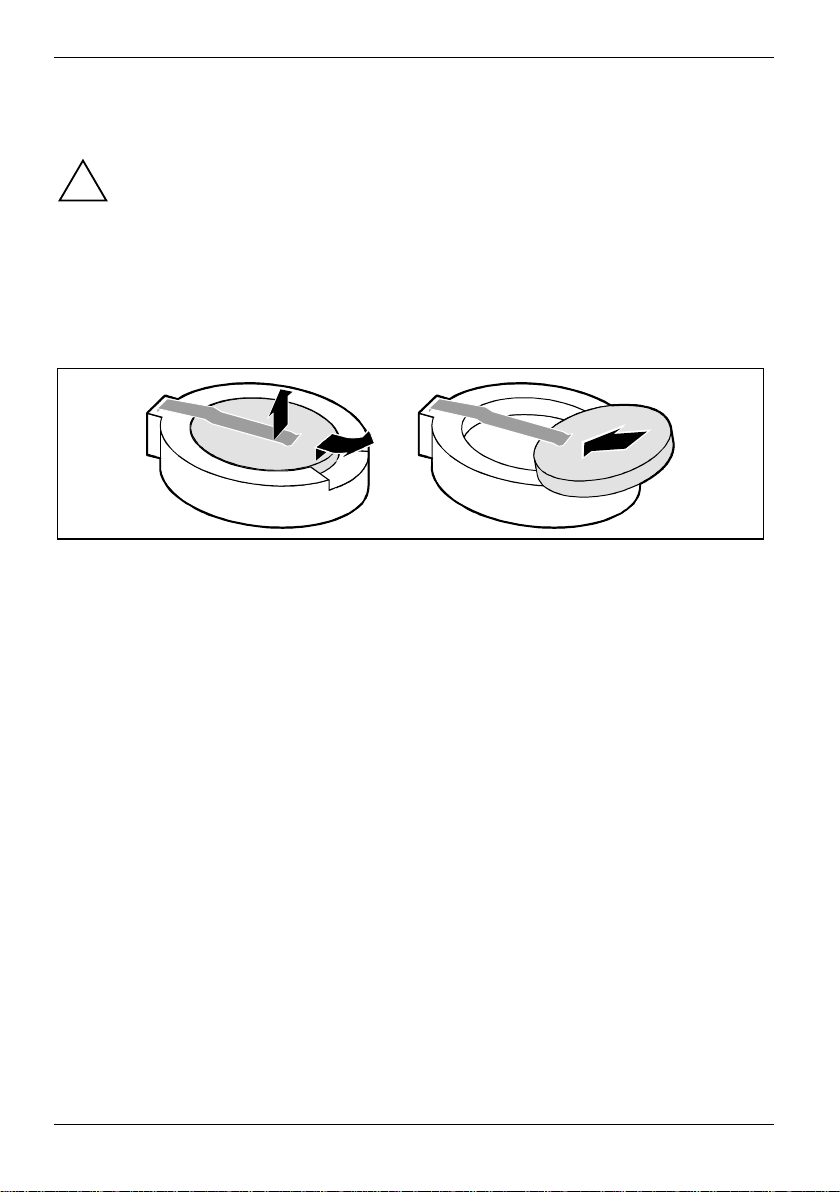

Ê Lift the contact (1) a few millimetres and remove the battery from its socket (2).
Ê Insert a new lithium batt ery of the same type into t he socket (3).

2

+

3

+

14 - English A26361-D1447-Z120-1-7419

Glossary

Glossary

The technical terms and abbrevi ations given below represent only a selection of the full li st of
common technical term s and abbreviations.
Not all technical terms and abbreviations list ed here are valid for the described mainboard.

ACPI Advanced Configuration and

Power Management Interface
AC'97 Audi o Codec '97 LAN Loc al Area Network
AGP Accelerat ed Graphics Port LSA LAN Des k Service Agent
AMR Audio Modem Riser MCH Memory Controller Hub
AOL Alert On LAN MMX MultiMedia eXtension
APM Advanced Power Management P 64H PCI64 Hub
ATA A dvanced Technology

Attachment
BIOS Basic Input Output System PXE Preboot eXecution Environment
BMC Baseboard M anagem ent

Controller
CAN Controller Area Net work RAMDAC Random Access Memory Digital

CPU Central Processing Unit RDRAM Rambus Dynamic Random
CNR Communication Network Riser RIMM Rambus Inline Memory Module

C-RIMM Continuity Rambus Inline

Memory Module
DIMM Dual Inline Memory Module SB Soundblaster
ECC Error Correcting Code SDRAM Synchronous Dynamic Random

EEPROM Electrical Erasable

Programmable Read Only

Memory
FDC Floppy Disk Controller SIMD Streaming Mode Instruction

FIFO First-In First-Out SMBus System Management Bus
FSB Front S i de Bus SVGA Super Video Graphic Adapter
FWH Firmware Hub USB Universal Serial Bus
GMCH Graphics and Memory Controller

Hub
GPA Graphics Perf orm ance

Accelerator
I2C Inter I ntegrated Circuit
IAPC Instantly Available Power

Managed Desktop PC Design
ICH I/O Controller Hub
IDE Intelligent Drive Electronics
IPSEC Internet Protocol Security

ISA Industrial Standard Archi tecture

PCI Peripheral Component

Interconnect

RAM Random Ac cess Memory

Analogue Converter
Access Memory

RTC Real Time Clock

Access Memory

SGRAM Synchronous Graphic Random

Access Memory

(Single Instruction Multiple Data)

VGA Video Graphic Adapt er
WOL Wake On LAN

A26361-D1447-Z120-1-7419 English - 15
