Contents

Introduction........................................................................................................................................1

Notational conventions ..............................................................................................................1

Important notes..................................................................................................................................1

Information about boards...........................................................................................................2

Features............................................................................................................................................3

Interfaces and connectors..........................................................................................................4

Temperature / System monitoring..............................................................................................5

LAN connector...........................................................................................................................6

PCI bus resources.....................................................................................................................6

PCI slots............................................................................................................................6

PCI IRQ line x - Assignment of the PCI interrupts..............................................................6

Screen resolution.......................................................................................................................7

Jumper settings.........................................................................................................................8

IDE RAID / ATA controller – jumper JP2............................................................................8

Clear CMOS - jumper JP3.................................................................................................8

VGA interrupt – jumper JP5...............................................................................................8

Power on circuit – jumper JP10.........................................................................................8

Processor's clock speed............................................................................................................9

Add-on modules ..............................................................................................................................10

Slot sequence..........................................................................................................................11

Upgrading main memory..........................................................................................................11

Replacing the lithium battery....................................................................................................13

Glossary..........................................................................................................................................14

A26361-D1350-Z120-1-7419

Introduction

This Technical Manual descri bes the system board D1350.
You will find further information in the "BIOS Setup" description.
Further information about drivers is provided in the readme f iles on the hard disk, on the suppli ed

drivers diskettes, on the "Drivers & Utilities" or on the "ServerStart" CD.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

Pay particular attention to text marked with this symbol. Failure to observe this warning

endangers your life, destroy s the device, or may lead t o l oss of data.

!

Supplementary information, remarks, and tips fol l ow t h i s symbol.

i

Ê Text which follows thi s symbol describes activities that m ust be performed in the order shown.

Ë This symbol indicates that you must enter a blank space (press the Space Bar) at this point.

Ú This symbol indicates that you must press t he Enter key.

Text in this typeface indicates screen output s.

Text in this bold typeface indicates the entries you make via the keyboard.

Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or t erm s.

Important notes

Store this manual clos e to the device. If you pass the device on to third parti es, you should pass this
manual on with it.

Be sure to read this page careful l y and note the information before you open t he device.

!

You cannot access t he system board com ponent s without first opening the device. How

to dismantle and reassembl e t he device is described in the Operating Manual

accompanying the devic e.

Please observe the safety information provided in the "Important notes" chapt er i n the

device’s operating manual.

Incorrect replacement of the lithium battery may l ead to a risk of explosion. It is therefore

essential to observe t he i nstructions in the "Add-on modules" - "Replacing the lit hi um

battery" section.

The Primergy L100 is no redundant system. Turn off the system and unplug the power

cable before any repairing action.

A26361-D1350-Z120-1-7419 English - 1

Important notes

The shipped version of this board complies with the requirements of the EEC
directive 89/336/EEC "Electromagnetic compatibility".

Compliance was tested in a t ypical PC configuration.
When installing the board, refer to the specific installation information in the

Operating Manual or Technical Manual for the receiving device.

Connecting cables for peripherals must be adequately shielded to avoid interference.

Components can become very hot during operation. Ensure you do not touch
components when making ext ensions to the system board. There is a danger of burns!

!

The warranty is invalidated if the device is damaged during the i nstallation or
replacement of system expansions. Information on which system expansions you can

i

use is available from y our sales outlet or the cust om er service centre.

Information about boards

To prevent damage to the system board or the components and conductors on it, please t ake great
care when you insert or remove boards. Take great care to ensure that ex t ension boards are slotted
in straight, without dam agi ng components or conductors on t he system board, or any other
components, for example EMI spring contacts.

Be especially careful with the locking mechani sms (catches, c entring pins etc.) when you replac e
the system board or components on it, for example memory modules or processors.

Never use sharp objects (s crewdrivers) for leverage.

Boards with electrost at i c sensitive devices (ESD) are identifiable by the
label shown.

When you handle boards fitted with E SDs, you must, under all
circumstances, observe the following points :

· You must al ways discharge static build up (e.g. by touching a

grounded object) before working.

· The equipment and tool s you use must be free of static charges.

· Remove the power pl ug f rom the mains supply before ins ert ing or

removing boards containing ES Ds.

· Always hol d boards with ESDs by their edges .

· Never touch pi ns or conductors on boards fit ted with ESDs.

2- English

Features

Features

· one processor slot for Pentium III processors with up to 1.20 GHz and 66 /100 / 133 MHz Front

Side Bus
512 Kbyte second level c ache

· two 32 bit PCI slots with 33 MHz

· three DIMM slots (PC133) for up to 1.5 Gbyte main memory (SDRAM memory modules)

· Intel 82550P M E thernet LAN controller with 10/100 M b i t /s

Promise PDC20265R, IDE hard dis k controller connected to P CI bus

ultra DMA100 mode capable, support s PIO modes 0-4

VIA 686B, floppy dis k drive controller (possi bl e f ormats: 720 KB, 1.44 MB, 2.88 MB)

· IPMI server management onboard

· system monitoring

· Security functions:

- Chipdisk interface

- Cover monitoring: cover moni toring reports when the cover has been opened without

authorisation.

- Simple error detection and correction in the main memory with an ECC (only for memory

modules with ECC)

- System, Setup and K eyboard password

- serial port can be deactivated

- Write protection for floppy disk drive

- Boot hard disk virus warning function

- Flash BIOS and EEPROMs (on the memory modules) virus prot ection function.

· one external s eri al port (COM1)

· two external US B ports (USB = Universal S eri al Bus)

· two LAN ports

· two external P S/2 interfaces for keyboard and mouse

· Real-time clock/calendar with integrated battery backup

A26361-D1350-Z120-1-7419 English - 3

Features

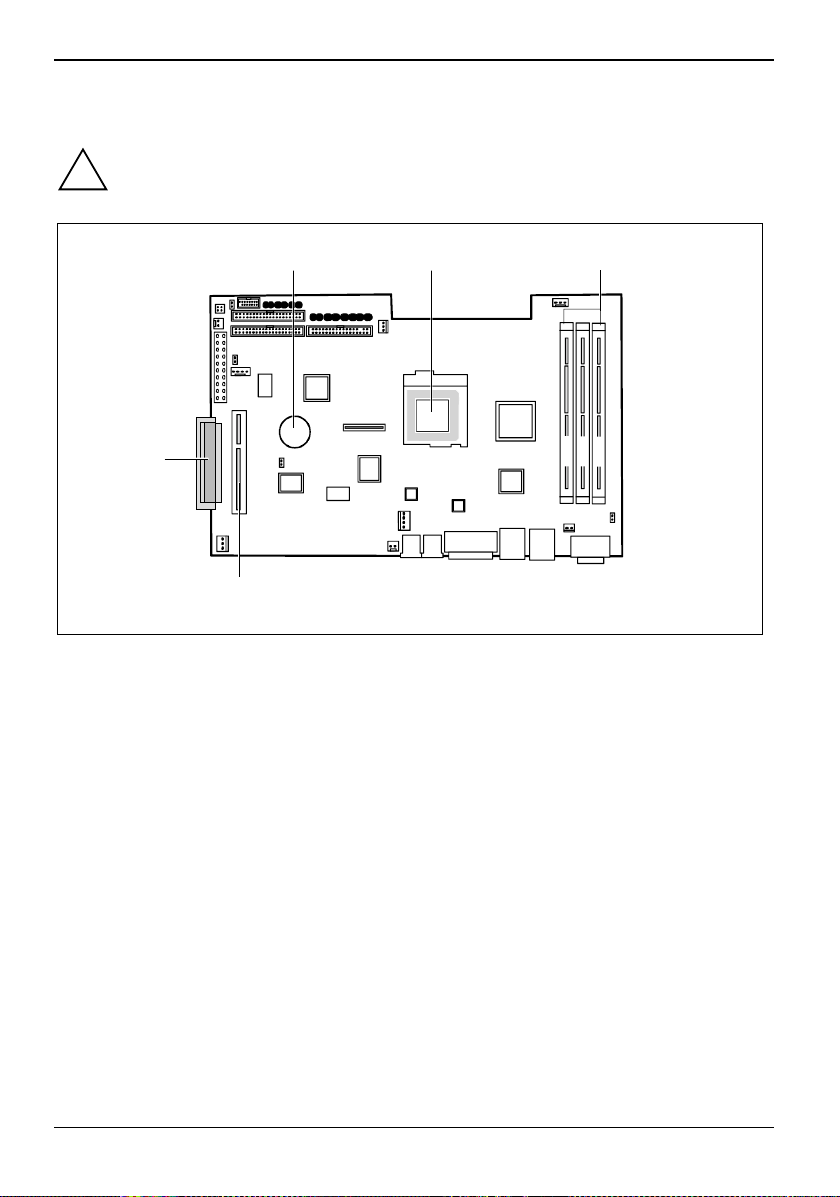

Interfaces and connectors

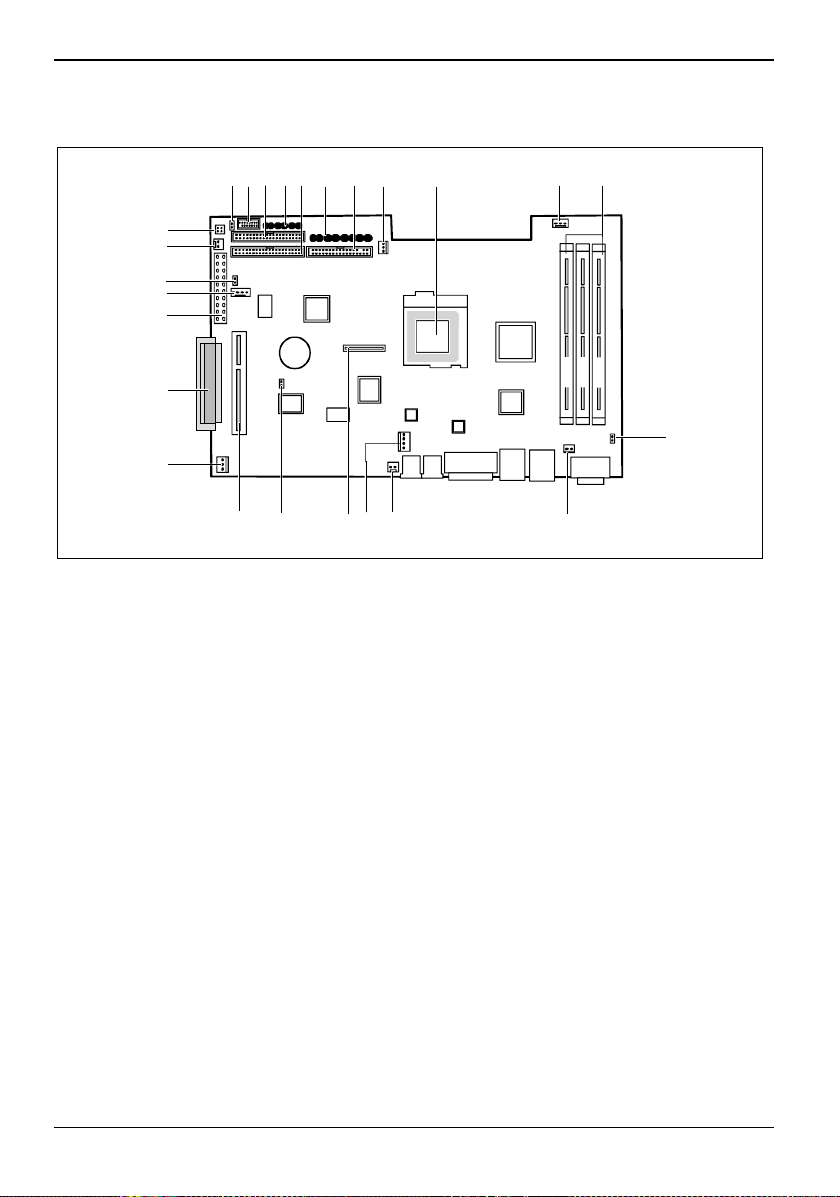

12345 6 7 8 11

25
24

23
22

21

20

19

18

1 = JP4
2 = Connector for LED board/USB
3 = Secondary RAID channel
4 = Cable for LED board
5 = Primary RAID channel
6 = Secondary IDE channel
7 = Primary IDE channel
8 = Connector for fan 2
9 = CPU
10 = Connector for fan 3
11 = DIMM sockets
12 = JP5
13 = Connector for fan 4

9

14151617

14 = RSB (Remote Service Board) power

supply
15 = IPMB connector
16 = Connection for floppy disk drive
17 = JP3
18 = PCI slot
19 = Connector for fan 1
20 = PCI slot (low-profile)
21 = Power supply (ATX)
22 = Power supply for chipdis k
23 = JP2
24 = Fan for power supply
25 = JP10

10

13

DI MM 3

DI MM 2

DI MM 1

12

4- English

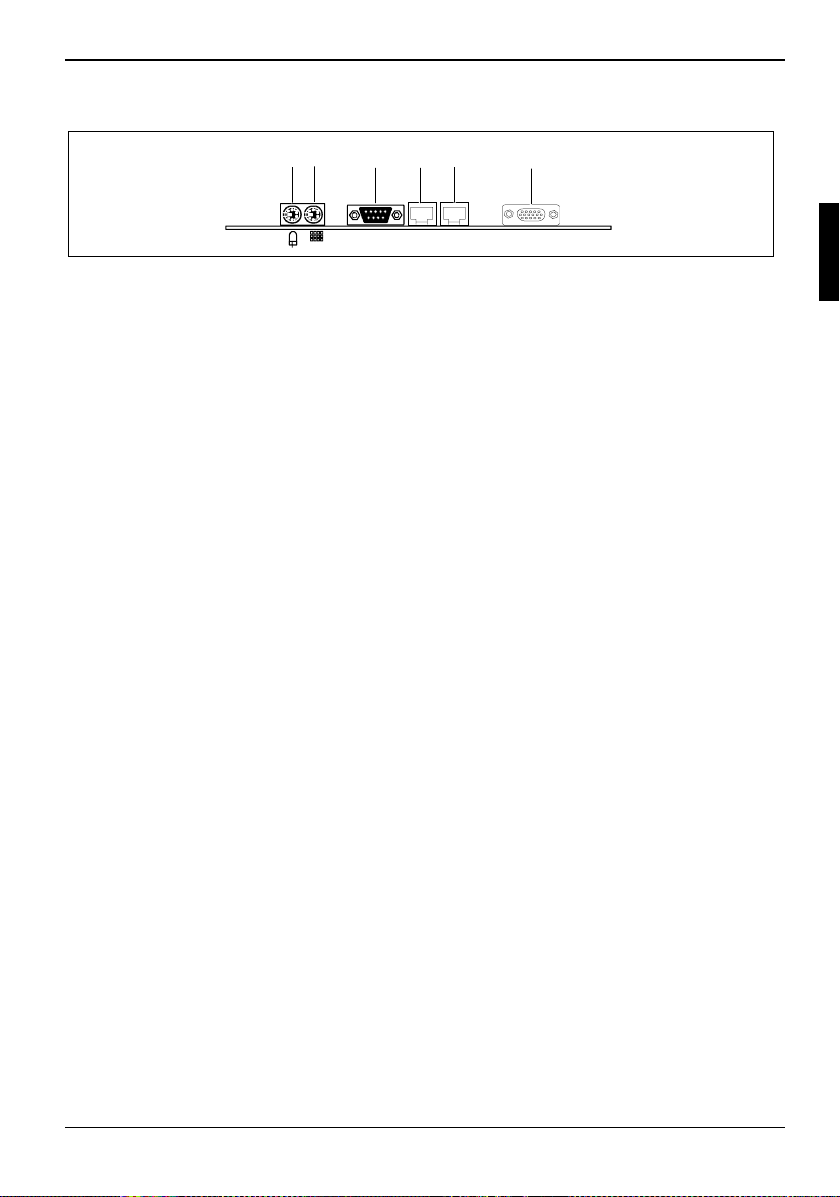

External ports

Features

1 2345 6

VGACOM1 LAN LAN

1 = PS/2 mouse port
2 = PS/2 keyboard port
3 = Serial interface COM1

4 = LAN connector
5 = LAN connector
6 = VGA port

Temperature / System monitoring

Temperature and system monitoring aim to reliably protect the computer hardware against damage
caused by overheating. In addi tion, any unnecessary noise is also prevented by reduci ng the fan
speed, and information is prov i ded about the system status. Cover monitoring protects the system
from unauthorised opening.

The temperature and system monitoring are controlled by an onboard controller.
The following functions are s upported:

Temperature monitoring:

Measurement of the processor temperature, measurement of the system temperature with an
onboard temperature sensor, measurem ent of the ambient temperature with an opt i onal temperature
sensor.

Fan monitoring:

Fans that are no longer available, blocked or sticky fans are detected. Blocked or sticky fans are
operated with 12 V pulse voltage. Fans removed while the system is switched off are signaled by
the Event LED when the system is switched on again and processed by the BIOS or the application.

Fan control:

The four fans are regulated according to temperature.

Sensor monitoring:

The removal of, or a fault in, a temperature sensor is detected. Should this happen all fans
monitored by this sens or run at m aximum speed, to achiev e t he greatest possible protection of the
hardware. Temperature sensors removed while the system is switched off are signaled by the Event
LED and processed by the BIOS or the application.

Cover monitoring:

Unauthorised opening of the cover is detected, even when the system is switched off. However, this
will only be indicated when the system is switched on again.

A26361-D1350-Z120-1-7419 English - 5

Features

LAN connector

This system board has an Intel 82550PM LAN controller. The LAN controller is equipped with a 3
KB transmission and rec ei ving buffer (FIFO) and supports WOL f unction through Magic Packet ä.

It is also possi bl e to boot a device without its own boot hard disk via LAN. Here B ootix LAN BootP
and Intel PXE are supported.

The LAN RJ45 connector is equipped wi t h a yellow and a green LED (light emitti ng di ode).

1 = Yellow indicator

12

Green a connection exists (e.g. to a hub).
Yellow Link Mode: the LAN connection is activ e.

WOL mode: a Magic Packet

2 = Green indicator

TM

is being received.

PCI bus resources

PCI slots

The following table shows an overv i ew of the PCI slots:

PCI slot 64bit/32bit Description Bus frequency

1 32 bit 32 bit PCI bus slot 33 MHz / 5 V
2 32 bit 32 bit PCI bus slot 33 MHz / 5 V

PCI IRQ line x - Assignment of the PCI interrupts

PCI IRQ Line x defines whi ch ISA interrupts are used for the separate PCI slots .
If you select Auto in the BIOS setup, the interrupts are assigned automatically and no f urther

settings are required.
Multifunctional PCI boards or boards with an integrated PCI-to-PCI bridge can use several PCI

interrupts (INTA#, INTB#, INTC#, INTD#). Monofunctional PCI boards (default) only use one PCI
interrupt (INTA#) per PCI slot .

The PCI interrupts INTA#, INTB #, INTC# and INTD# are available for every PCI slot.
The same interrupt can be assigned simultaneously to several PCI boards. You should av oi d t hi s

condition due to reduced performance.

6- English

Features

If you use a setting ot her than Auto, the Plug&Play functionality of the system BIOS for the
corresponding PCI boards is deac tivated.

Auto The PCI interrupts are assigned automaticall y in accordance with the Pl ug& Play

Disabled No ISA interrupt is assigned to the PCI i nterrupt.
3, 4, 5, 7, 10, 11, 12, 14, 15

IRQ Device

IRQ 0 Timer output 0
IRQ 1 Keyboard
IRQ 3 Serial port 2
IRQ 4 Serial port 1
IRQ 6 Diskette
IRQ 7 Printer port
IRQ 8 Real-time clock (RTC)
IRQ 12 PS/2 mouse
IRQ 13 Numeric processor
IRQ 14 Embedded hard disk

guidelines.

The selected ISA interrupt i s assigned to the PCI int errupt . You may not select an
ISA interrupt that is used by a component on the system board (e.g. control l er) or an
ISA board.

Screen resolution

Depending on the operating system used, the screen resolutions in the following table refer to the
system board screen controller. If you are using an external screen controller, you will find details of
supported screen resolutions i n the Operating Manual or Technical Manual s uppl i ed wi th the
controller.

Screen resolution Refresh rate (Hz) Max. number of colours

640x480 200 16,7 mio.

800x600 200 16,7 mio.
1024x768 150 16,7 mio.
1057x864 120 16,7 mio.

1280x1024 100 16,7 mio.
** Horizontal v al ues tolerance ±0.3 kHz.
Shaded screen resolutions are not s upport ed by LCD monitors (TFT).

A26361-D1350-Z120-1-7419 English - 7

Features

Jumper settings

IDE RAID / ATA controller – jumper JP2

Supports IDE RAID or ATA interface.

1-2 RAID interface (default entry)
2-3 ATA interface

Clear CMOS - jumper JP3

Chooses between normal or Clear CMOS setting.

1-2 Normal CMOS setting (default entry). CMOS will not be cleared (default entry).
2-3 CMOS settings are not c l eared.

VGA interrupt – jumper JP5

Decides whether VGA can send out IRQ signals to system.

1-2 The VGA interrupt function i s disabled. VGA cannot s end out interrupting signals

2-3 The VGA interrupt function i s enabled. VGA can send out interrupting signals.

Power on circuit – jumper JP10

(default entry).

The system is powered on by one of the following mechanisms: IPMI or South Bridge.

3-5/4-6 Power on by IPMI (default entry).
1-3/2-4 Power on by South Bridge.

8- English

Processor's clock speed

The clock frequency of the processor is set automatically. It cannot be changed manually.
Bit 1 Bit 2 Bit 3 Bit 4 C0 D0

Ratio FSB 100 FSB 133 Ratio FSB 133
ON ON ON ON X2 200 266 X4 533
ON ON OFF ON X2.5 250 333 Reserved Reserved
ON OFF ON ON X3 300 400 X8.5 1133
ON OFF OFF ON X3.5 350 466 Reserved Reserved
OFF ON ON ON X4 400 533 Reserved Reserved
OFF ON OFF ON X4.5 450 600 Reserved Reserved
OFF OFF ON ON X5 500 666 Reserved Reserved
OFF OFF OFF ON X5.5 550 733 X5.5 733
ON ON ON OFF X6 600 800 X6 800
ON ON OFF OFF X6.5 650 866 X6.5 866
ON OFF ON OFF X7 700 933 X7 933
ON OFF OFF OFF X7.5 750 1000 X7.5 1000
OFF ON ON OFF X8 800 1066 X8 1066
ON OFF ON ON X8.5 850 1133 Reserved Reserved
ON OFF OFF ON X9 900 1200 Reserved Reserved

Features

A26361-D1350-Z120-1-7419 English - 9

Add-on modules

Add-on modules

For all steps described in t hi s chapter pull the power plug out of the m ai ns outlet!

!

23

1

5

1 = PCI slot (low-profile)
2 = Lithium battery
3 = Processor socket

Both PCI slots s upport 3.3 V operating voltage.

4 = Memory
5 = PCI slot

4

DIMM 3

DIMM 2

DI MM 1

10- English

Add-on modules

Slot sequence

No sequence concern for PCI s l ot s. Either PCI slot 1 or PCI slot 2 first, t hen the other.

Upgrading main memory

These slots are suitable for 128, 256, 512 and 1024 Mbyte SDRAM mem ory modules. The board
supports a maximum of 1, 5 Gbytes.

In other words, you fit t he first pair to bank 0, and the s econd pair in bank 1. One memory bank
must always be fully equipped with memory modules of the same type.

You may only use buffered 3. 3V m emory modules. Unbuffered memory modules are not
permitted. You may only use unstacked modules.

!

SDRAM memory modules must be designed for a clock frequency of 66 / 100 / 133 MHz
(meets PC133 specification).

Installing a memory module

2

2

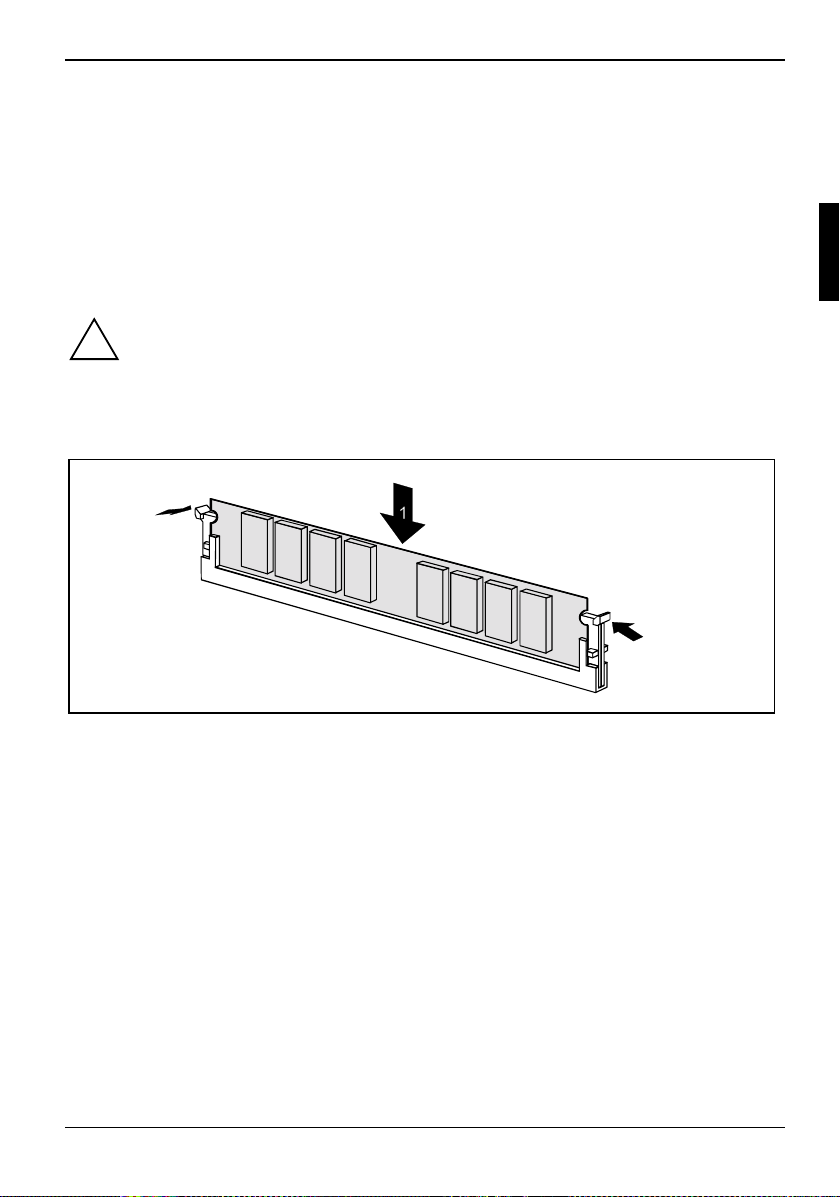

Ê Push the holders on each side of the memory compartment outwards.
Ê Insert the memory module i n t he slot while folding the side hol ders up until the memory module

engages (2).

A26361-D1350-Z120-1-7419 English - 11

Add-on modules

Removing a memory module

1

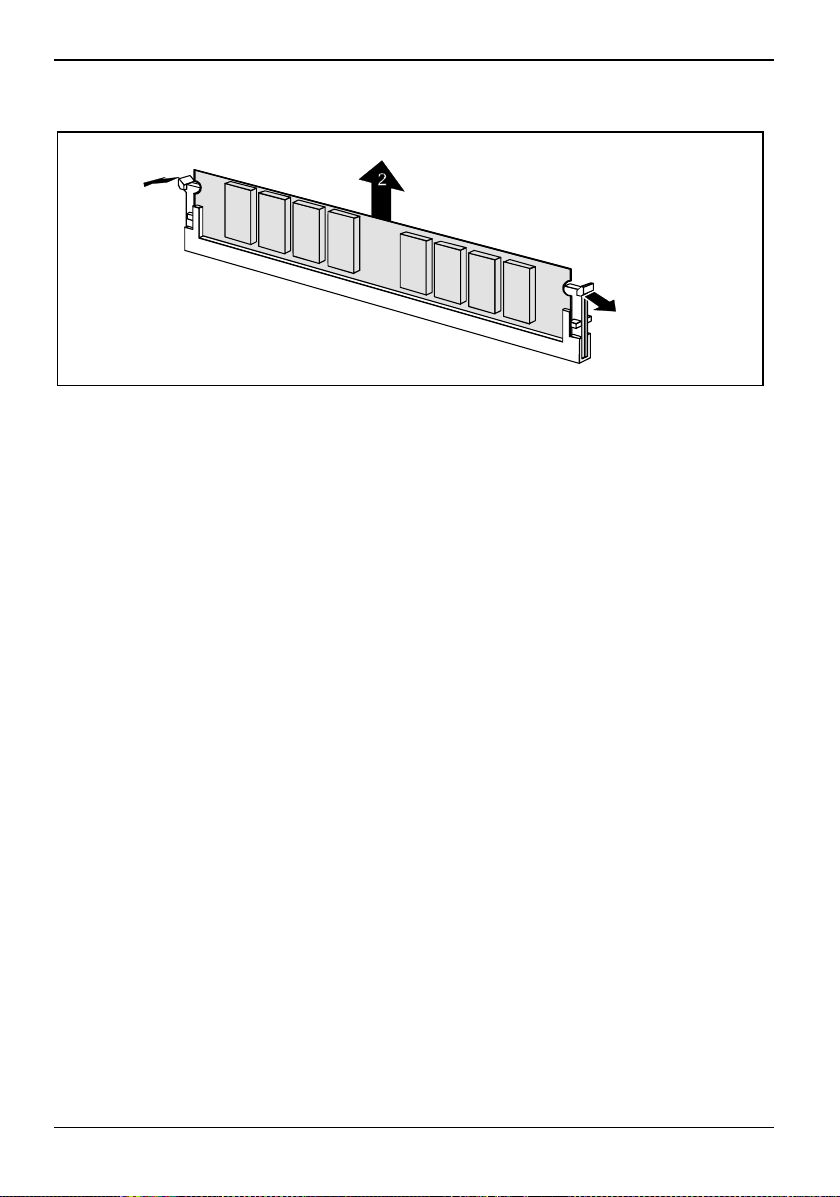

Ê Push the clips on the right and left of the compartment outward (1).
Ê Carefully remove the memory module from the compartment (2).

1

12- English

Add-on modules

Replacing the lithium battery

Incorrect replacement of the lithium battery may l ead to a risk of explosion.

!

The lithium battery must be replaced with an identical bat t ery or a battery type
recommended by the manufact urer (CR2032).

Do not throw lithium batteries into the household waste. They m ust be disposed of in
accordance with local regulations concerning special waste.

Make sure that you insert the batteries the right way round! The plus pole must be on the
top!

4

2

1

3

+

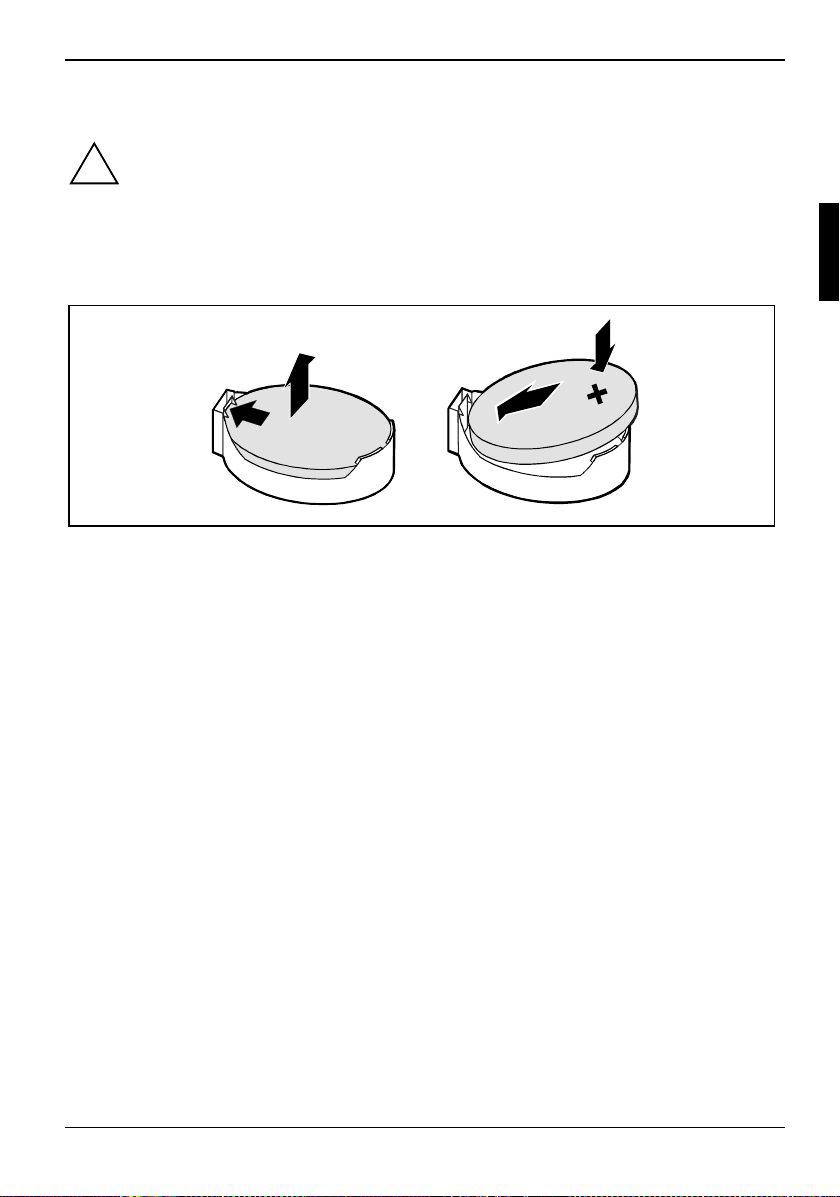

Ê Lift the contact (1) a few millimet res and remove the lithium battery from its s oc ket (2).
Ê Insert a new lithium batt ery of the same type into t he socket (3).

A26361-D1350-Z120-1-7419 English - 13

Glossary

Glossary

The technical terms and abbrevi ations given below represent only a selection of the full li st of
common technical term s and abbreviations.
Not all technical terms and abbreviations list ed here are valid for the described system board.

ACPI Advanced Configuration and

Power Management Interface
AC'97 Audio Codec '97 ISA Industrial Standard Architecture
AGP Accelerated Graphics Port LAN Local Area Network
AMR Audio Modem Riser LSA LAN Desk Serv i ce Agent
AOL Alert On LAN MCH Memory Controller Hub
APM Advanced P ower M anagement MMX MultiMedia eXtension
ATA Advanced Technology

Attachment
BIOS Basic Input Output System P64H PCI64 Hub
CAN Controller Area Network PCI Peripheral Com ponent

CPU Central Processing Unit PXE Preboot eXecution Environment
CNR Communic ation Network Riser RAM Random Access Memory
C-RIMM Continuity Rambus Inline

Memory Module
DDR Double Data Rate RDRAM Rambus Dynamic Random

DIMM Dual Inline Memory Module RIMM Rambus Inline Memory Module
DRAM Dynamic Random Access

Memory
ECC Error Correcting Code SB Soundblaster
EEPROM Electrical Erasable

Programmable Read Only

Memory
FDC Floppy Disk Controller SGRAM Synchronous Graphic Random

FIFO First-In Firs t -Out SIMD Streaming Mode Instruction
FSB Front Side Bus SMBus System Management Bus

FWH Firmware Hub SVGA Super Video Graphic Adapter
GMCH Graphics and Memory Controller

Hub
GPA Graphics Performance

Accelerator
I2C Inter Integrated Circ uit WOL Wake On LAN
IAPC Instantly Avai l abl e P ower

Managed Desktop PC Design
ICH I/O Controller Hub
IDE Intell i gent Dri ve Electronics

IPSEC Internet Protocol Security

NIC Networking Interface Card

Interconnect

RAMDAC Random Access Memory Digital

Analogue Converter
Access Memory

RTC Real Time Clock

SDRAM Synchronous Dynamic Random

Access Memory

Access Memory
(Single Instruction Multiple Data)

USB Universal Serial Bus
VGA Video Graphic Adapter

14- English
