Fujitsu-Siemens D1306 Technical Manual

SYSTEMBAUGRUPPE D1306
SYSTEM BOARD D1306

TECHNISCHES HANDBUCH

TECHNICAL MANUAL

Sie haben ...

r

r

r

r

... technische Fragen oder Probleme?
Wenden Sie sich bitte an:

• unsere Hotline:

Mo-Fr: 9 - 18 Uh
Sa: 9 - 14 Uh
Tel.: ++49 (0) 180 3777 000

• Ihren zuständigen Vertriebspartne

• Ihre Verkaufsstelle

Weitere Informationen finden Sie im Handbuch "Sicherheit, Garantie und Ergonomie".
Aktuelle Informationen zu unseren Produkten, Tipps, Updates usw. finden Sie im Internet:

http://www.fujitsu-siemens.com

Are there ...

... any technical problems or other questions you need clarified?
Please contact:

• your sales partne

• your sales outlet

You will find further information in the manual "Safety, Warranty and Ergonomics".
The latest information on our products, tips, updates, etc., can be found on the Internet under:

http://www.fujitsu-siemens.com

Dieses Handbuch wurde auf Recycling-Papier gedruckt.
This manual has been printed on recycled paper.
Ce manuel est imprimé sur du papier recyclé.
Este manual ha sido impreso sobre papel reciclado.
Questo manuale è stato stampato su carta da riciclaggio.
Denna handbok är tryckt på recyclingpapper.
Dit handboek werd op recycling-papier gedrukt.

Bestell-Nr./Order No.:
Printed in the Federal Republic of Germany
AG 0401 04/01

A26361-D1306-Z120-1-7419

A26361-D1306-Z120-1-7419

Systembaugruppe
D1306
System board D1306

Technisches Handbuch
Technical Manual

Deutsch

English

Ausgabe Juli 2001
July 2001 edition

Intel ist ein eingetragenes Warenzeichen der Intel Corporation, USA.
PS/2 ist ein eingetragenes Warenzeichen von International Business Machines, Inc.
Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen

der jeweiligen Inhaber und werden als geschützt anerkannt.
Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetzung, des

Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
Zuwiderhandlungen verpflichten zu Schadenersatz.
Alle Rechte vorbehalten, insbesondere für den Fall der Patenterteilung oder GM-Eintragung.
Liefermöglichkeiten und technische Änderungen vorbehalten.
Dieses Handbuch wurde erstellt von

cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de

Copyright ã Fujitsu Siemens Computers GmbH 2001
Intel is a registered trademark of Intel Corporation, USA.
PS/2 is a registered trademark of International Business Machines, Inc.
All other trademarks referenced are trademarks or registered trademarks of their respective

owners, whose protected rights are acknowledged.
All rights, including rights of translation, reproduction by printing, copying or similar methods,

even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,

are reserved. Delivery subject to availability.
Right of technical modification reserved.
This manual was produced by

cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de

Contents

Introduction........................................................................................................................................ 1

Notational conventions ..............................................................................................................1

Important notes .................................................................................................................................1

Information about boards...........................................................................................................2

Features............................................................................................................................................3

Interfaces and connectors .........................................................................................................4

Temperature / System monitoring..............................................................................................5

LAN connector...........................................................................................................................6

PCI bus resources.....................................................................................................................7

PCI slots............................................................................................................................7

PCI IRQ line x - Assignment of the PCI interrupts..............................................................7

Screen resolution.......................................................................................................................8

Settings with switches ...............................................................................................................9

Recovering System BIOS - switch 2..........................................................................................9

Write protection for floppy disks - switch 3.................................................................................9

Write protection for Flash BIOS - switch 4 .................................................................................9

Processor's clock speed............................................................................................................9

Add-on modules..............................................................................................................................10

Slot sequence..........................................................................................................................11

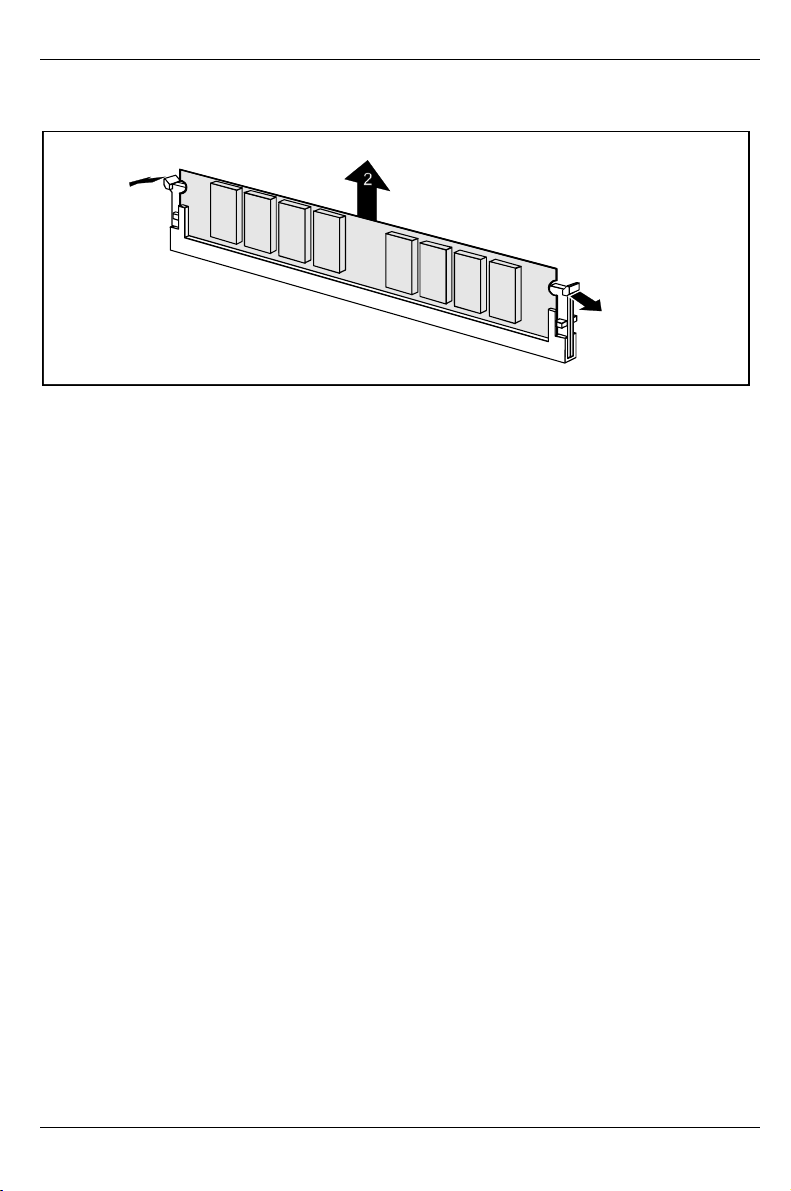

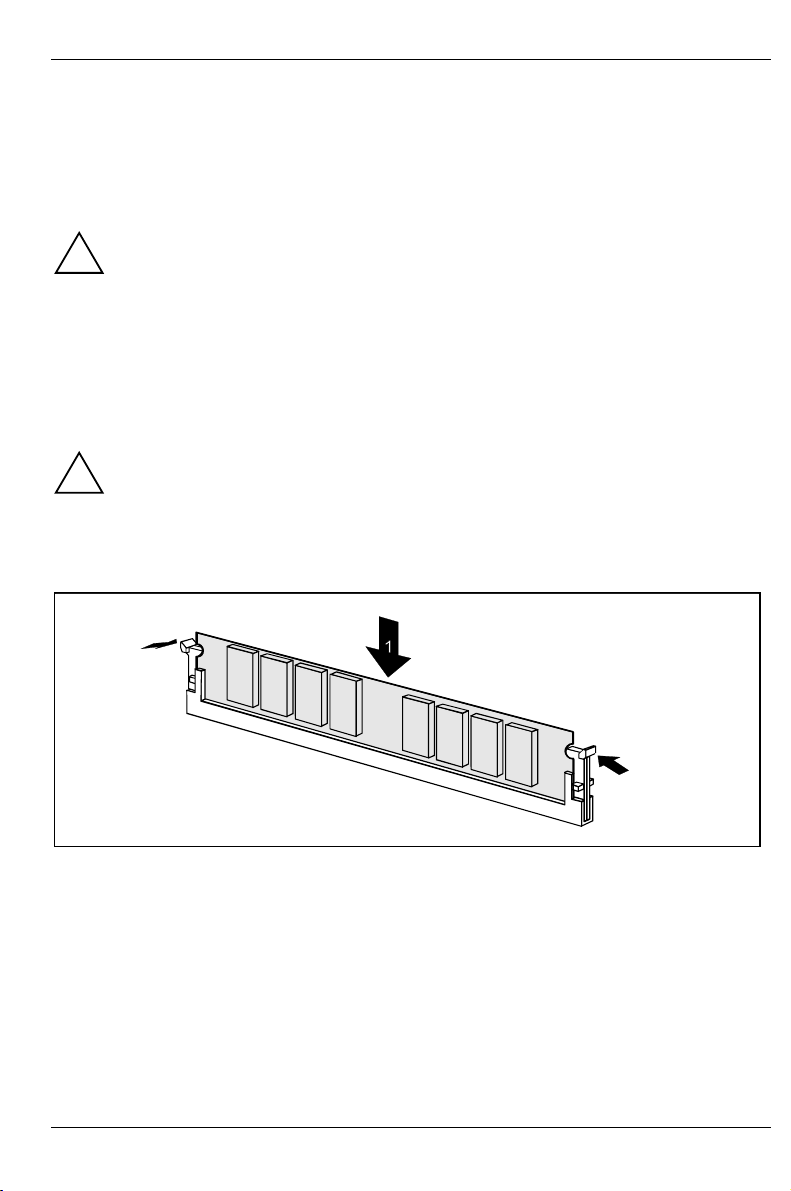

Upgrading main memory..........................................................................................................11

Replacing the lithium battery....................................................................................................13

Glossary..........................................................................................................................................14

A26361-D1306-Z120-1-7419

w

Introduction

This Technical Manual describes the system board D1306, which can be equipped with up to four
Intel processors.

You will find further information in the "BIOS Setup" description.
Further information about drivers is provided in the readme f iles on the hard disk, on the suppli ed

drivers diskettes, on the "Drivers & Utilities" or on the "ServerStart" CD.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

Pay particular attention to text marked with this symbol. Failure to observe this warning

endangers your life, destroys the device, or may lead to loss of data.

!

Supplementary information, remarks, and tips follow this symbol.

i

Ê Text which follows this symbol describes activities that must be performed in the order shown.

Ë This symbol indicates that you must enter a blank space (press the Space Bar) at this point.

Ú This symbol indicates that you must press the Enter key.

Text in this typeface indicates screen outputs.

Text in this bold typeface indicates the entries you make via the keyboard.

Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or terms.

Important notes

Store this manual close to the device. If you pass the device on to third parties, you should pass this
manual on with it.

Be sure to read this page carefully and note the information before you open the device.

!

You cannot access the system board components without first opening the device. Ho

to dismantle and reassemble the device is described in the Operating Manual

accompanying the device.

Please observe the safety information provided in the "Important notes" chapter in the

device’s operating manual.

Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore

essential to observe the instructions in the "Add-on modules" - "Replacing the lithium

battery" section.

A26361-D1306-Z120-1-7419 English - 1

Important notes

r

The shipped version of this board complies with the requirements of the EEC
directive 89/336/EEC "Electromagnetic compatibility".

Compliance was tested in a typical PC configuration.
When installing the board, refer to the specific installation information in the

Operating Manual or Technical Manual of the receiving device.

Connecting cables for peripherals must be adequately shielded to avoid interference.

Components can become very hot during operation. Ensure you do not touch
components when making extensions to the system board. There is a danger of burns!

!

The warranty is invalidated if the device is damaged during the installation or
replacement of system expansions. Information on which system expansions you can

i

use is available from your sales outlet or the customer service centre.

Information about boards

To prevent damage to the system board or the components and conductors on it, please take great
care when you insert or remove boards. Take great care to ensure that extension boards are slotted
in straight, without damaging components or conductors on the system board, or any other
components, for example EMI spring contacts.

Be especially careful with the locking mechanisms (catches, centring pins etc.) when you replace
the system board or components on it, for example memory modules or processors.

Never use sharp objects (screwdrivers) for leverage.

Boards with electrostatic sensitive devices (ESD) are identifiable by the
label shown.

When you handle boards fitted with ESDs, you must, under all
circumstances, observe the following points:

• You must always discharge static build up (e.g. by touching a grounded

object) before working.

• The equipment and tools you use must be free of static charges.

• Remove the power plug from the mains supply before inserting o

removing boards containing ESDs.

• Always hold boards with ESDs by their edges.

• Never touch pins or conductors on boards fitted with ESDs.

2 - English A26361-D1306-Z120-1-7419

Features

Features

• two processor slots for Pentium III processors with up to 1,4 GHz and higher ("end of lifetime")

and 133 MHz Front Side Bus
512 Kbyte second level cache

• four 64 bit PCI slots with 66 MHz

• two 32 bit PCI slots with 33 MHz

• four DIMM slots (PC133) for up to 4 Gbyte main memory (SDRAM memory modules)

• onboard SCSI controller Ultra 160 to the 64 bit/66MHz PCI bus with LVDS (Low Voltage

Differential) SCSI-Interface

• Screen controller ATI Rage XL VGA with 24 bit and 230 MHz RAMDAC

• Intel 82559GM Ethernet LAN controller with 10/100 Mbit/s

• IDE hard disk controller connected to PCI bus

ultra DMA33 mode capable, supports PIO modes 0-4

• Floppy disk drive controller (possible formats: 720 KB, 1.44 MB, 2.88 MB)

• Server management onboard with Scylla

• system monitoring

• Security functions:

− Cover monitoring: cover monitoring reports when the cover has been opened without

authorisation.

− Simple error detection and correction in the main memory with an ECC (only for memory

modules with ECC)

− System, Setup and Keyboard password

− parallel and serial ports can be deactivated

− Write protection for floppy disk drive

− Boot hard disk virus warning function

− Flash BIOS and EEPROMs (on the memory modules) virus protection function.

• one external parallel interface (ECP- and EPP-compatible)

• two external serial ports (COM1 and COM2)

• two external and one internal USB port (USB = Universal Serial Bus)

• 1 internal WOL interface

• two external PS/2 interfaces for keyboard and mouse

• Real-time clock/calendar with integrated battery backup

A26361-D1306-Z120-1-7419 English - 3

Features

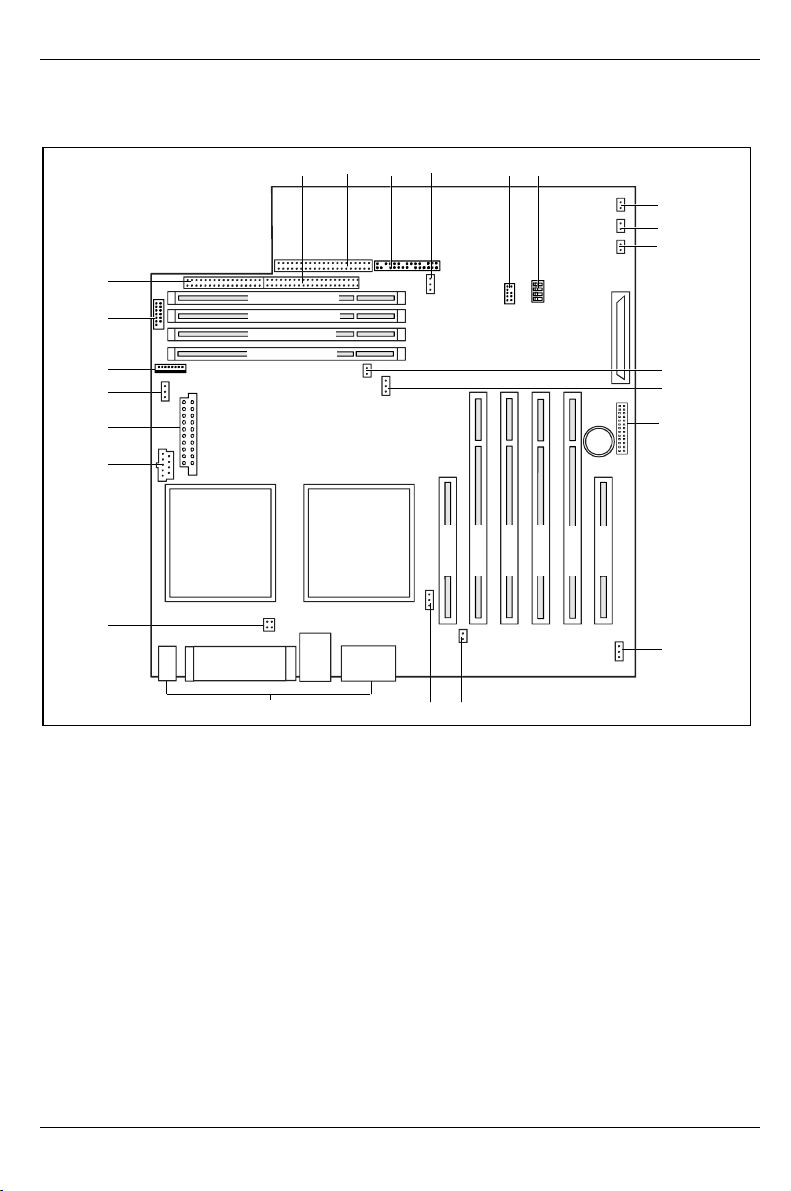

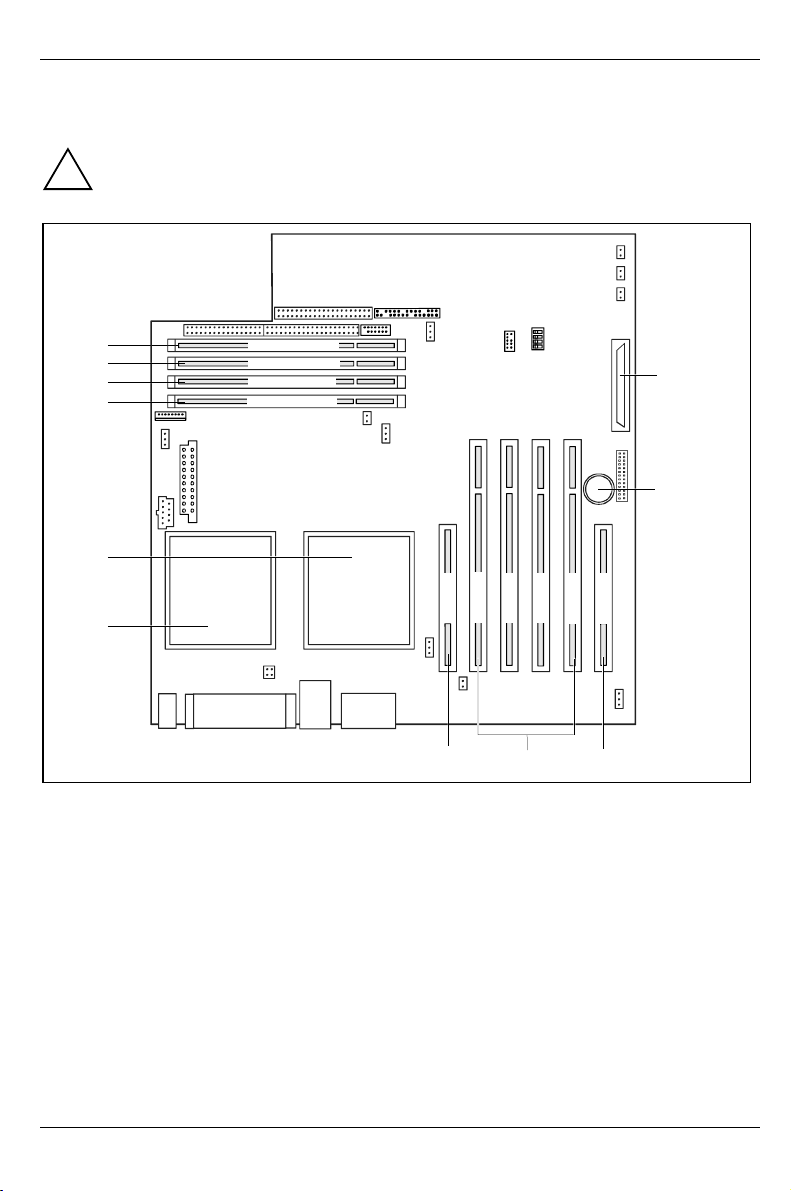

Interfaces and connectors

12

23
22

DIMM Module 1B

DIMM Module 0B
DIMM Module 1A
DIMM Module 0A

21
20

19
18

Pentium III
CPU 0

17

16

1 = IDE drives (primary)
2 = IDE drives (primary)
3 = Control panel
4 = Fan (SysFan 2)
5 = USB port
6 = Switch block
7 = Cover monitoring
8 = SMB 1
9 = SMB 2
10 = NMI
11 = Fan (CPU 1)
12 = Connector for RSB (Remote Service

Board)

3

4

Pentium III
CPU 1

PCI Bus 6

PCI Bus 5

1415

13 = Wake On LAN (WOL)
14 = Power supply RSB
15 = Fan (SysFan 1)
16 = External ports
17 = Power supply (ATX 12 V)
18 = Power supply (ATX 3,3 V)
19 = Power supply (ATX)
20 = Fan (CPU 0)
21 = Power supply monitoring
22 = Power supply (Intel 3.3 V)
23 = Port for floppy disk drive

56

PCI Bus 4

PCI Bus 3

7
8
9

10
11

12

PCI Bus 2

PCI Bus 1

13

4 - English A26361-D1306-Z120-1-7419

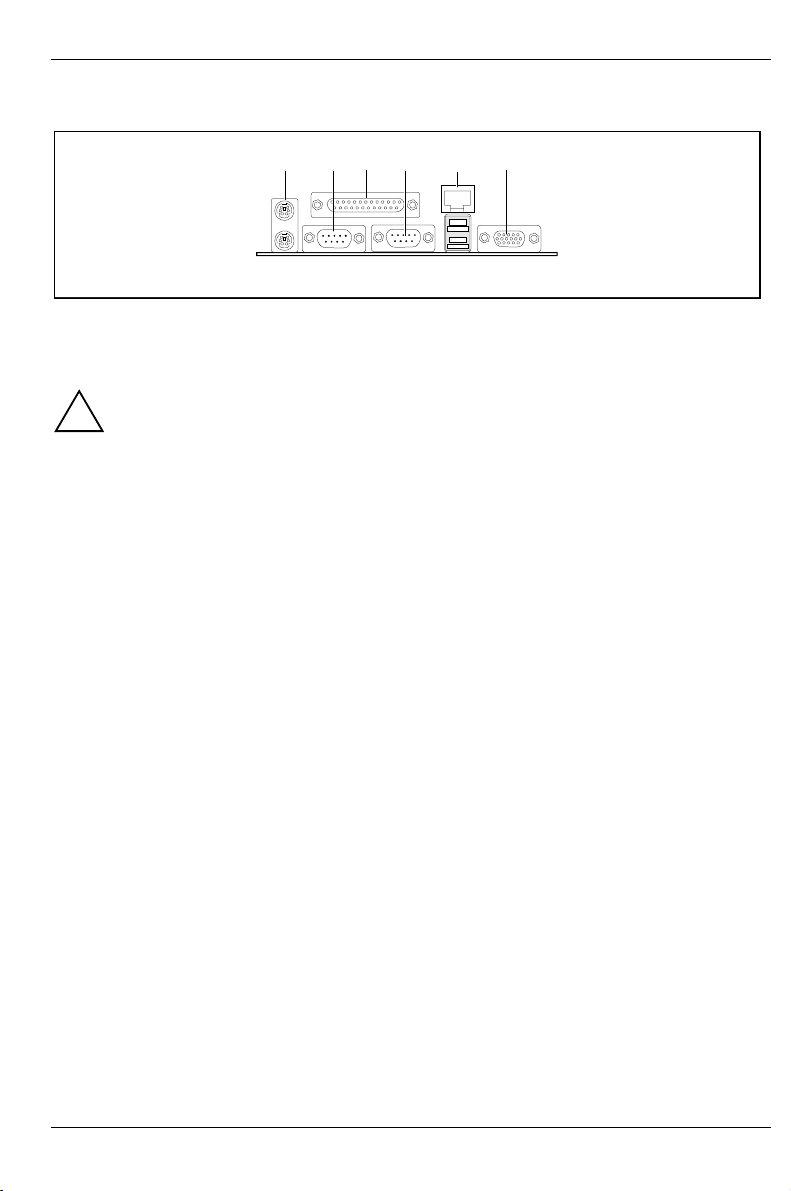

External ports

r

Features

1 23 4 5 6

78

1 = PS/2 mouse port
2 = Serial interface COM1
3 = Parallel port
4 = Serial port COM2

If a USB chipcard reader (SmartCard reader) is installed, no device may be connected to
serial interface 2 (COM2).

!

Please use the current driver from the supplied driver disk for the USB chipcard reader
(SmartCard reader).

5 = LAN connecto
6 = VGA port
7 = USB port 1 and 2
8 = PS/2 keyboard port

Temperature / System monitoring

Temperature and system monitoring aim to reliably protect the computer hardware against damage
caused by overheating. In addition, any unnecessary noise is also prevented by reducing the fan
speed, and information is provided about the system status. Cover monitoring protects the system
from unauthorised opening.

The temperature and system monitoring are controlled by an onboard controller developed by
Fujitsu Siemens.

The following functions are supported:

Temperature monitoring:

Measurement of the processor temperature, measurement of the system temperature with an
onboard temperature sensor, measurement of the ambient temperature with an optional temperature
sensor.

Fan monitoring:

Fans that are no longer available, blocked or sticky fans are detected. Blocked or sticky fans are
operated with 12 V pulse voltage. Fans removed while the system is switched off are signaled by
the Display news LED when the system is switched on again and processed by the BIOS or the
application.

Fan control:

The fans are regulated according to temperature.

Sensor monitoring:

The removal of, or a fault in, a temperature sensor is detected. Should this happen all fans
monitored by this sensor run at maximum speed, to achieve the greatest possible protection of the
hardware. Temperature sensors removed while the system is switched off are signaled by the
Display news LED and processed by the BIOS or the application.

A26361-D1306-Z120-1-7419 English - 5

Features

Cover monitoring:

Unauthorised opening of the cover is detected, even when the system is switched off. However, this
will only be indicated when the system is switched on again.

LAN connector

This system board has an Intel 82559 LAN controller. The LAN controller is equipped with a 3 KB
transmission and receiving buffer (FIFO) and supports WOL function through Magic Packetä.

It is also possible to boot a device without its own boot hard disk via LAN. Here Bootix LAN BootP
and Intel PXE are supported.

The LAN RJ45 connector is equipped with a yellow and a green LED (light emitting diode).

1 = Yellow indicator

12

Green a connection exists (e.g. to a hub).
Yellow Link Mode: the LAN connection is active.

WOL mode: a Magic Packet

2 = Green indicator

TM

is being received.

6 - English A26361-D1306-Z120-1-7419

Features

PCI bus resources

PCI slots

The following table shows an overview of the PCI slots:

PCI slot 64bit/32bit Description Bus frequency

6 32 bit 32 bit PCI bus slot 33 MHz / 5 V
5 64 bit 64 bit PCI bus slot 66 MHz / 3.3 V
4 64 bit 64 bit PCI bus slot 66 MHz / 3.3 V
3 64 bit 64 bit PCI bus slot 66 MHz / 3.3 V
2 64 bit 64 bit PCI bus slot 66 MHz / 3.3 V
1 32 bit 32 bit PCI bus slot 33 MHz / 5 V

PCI IRQ line x - Assignment of the PCI interrupts

PCI IRQ Line x defines which ISA interrupts are used for the separate PCI slots.
If you select Auto in the BIOS setup, the interrupts are assigned automatically and no further

settings are required.
Multifunctional PCI boards or boards with an integrated PCI-to-PCI bridge can use several PCI

interrupts (INTA#, INTB#, INTC#, INTD#). Monofunctional PCI boards (default) only use one PCI
interrupt (INTA#) per PCI slot.

The PCI interrupts INTA#, INTB#, INTC# and INTD# are available for every PCI slot.
The same interrupt can be assigned simultaneously to several PCI boards. You should avoid this

condition due to reduced performance.
If you use a setting other than Auto, the Plug&Play functionality of the system BIOS for the

corresponding PCI boards is deactivated.

Auto The PCI interrupts are assigned automatically in accordance with the Plug&Play

Disabled No ISA interrupt is assigned to the PCI interrupt.
3, 4, 5, 7, 10, 11, 12, 14, 15

guidelines.

The selected ISA interrupt is assigned to the PCI interrupt. You may not select an
ISA interrupt that is used by a component on the system board (e.g. controller) or an
ISA board.

A26361-D1306-Z120-1-7419 English - 7

Features

Slot 1 PCI IRQ line 0 PCI IRQ line 1 PCI IRQ line 2 PCI IRQ line 3
Slot 2 PCI IRQ line 4 PCI IRQ line 5 PCI IRQ line 6 PCI IRQ line 7
Slot 3 PCI IRQ line 6 PCI IRQ line 7 PCI IRQ line 4 PCI IRQ line 5
Slot 4 PCI IRQ line 8 PCI IRQ line 9 PCI IRQ line 10 PCI IRQ line 11
Slot 5 PCI IRQ line 10 PCI IRQ line 11 PCI IRQ line 8 PCI IRQ line 9
Slot 6 PCI IRQ line 2 PCI IRQ line 3 PCI IRQ line 0 PCI IRQ line 1
VGA PCI IRQ line 12 - - ­SCSI PCI IRQ line 13 - - ­LAN PCI IRQ line 14 - - ­USB PCI IRQ line 12 - - -

A..D = Interrupt output of the PCI controller

A B C D

Screen resolution

Depending on the operating system used the screen resolutions in the following table refer to the
screen controller on the system board. If you are using an external screen controller, you will find
details of supported screen resolutions in the Operating Manual or Technical Manual supplied with
the controller.

Screen resolution Refresh rate (Hz) Max. number of colours

640x480 200 16.7 mio.

800x600 200 16.7 mio.
1024x768 150 16.7 mio.
1057x864 120 16.7 mio.

1280x1024 100 16.7 mio.
1600x1200 85 16.7 mio.

Shaded screen resolutions are not supported by LCD monitors (TFT).

8 - English A26361-D1306-Z120-1-7419

Features

ff

Settings with switches

Switch 1 = must always be set to o

1234

ON

Switch 2 = System BIOS recovery
Switch 3 = Write-protection for floppy disk
Switch 4 = Write-protection for Flash BIOS

Recovering System BIOS - switch 2

Switch 2 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Diskette (please call our customer service centre).

on The system boots from the "Flash BIOS floppy disk" from Drive A and reprograms

off The System BIOS is started with the system BIOS from the system board (default

the system BIOS on the board.

setting).

Write protection for floppy disks - switch 3

Switch 3 is used to define whether floppy disks can be written or deleted in the floppy disk drive. To
write and delete floppy disks, the write-protection in BIOS Setup must be disabled (in menu Security,
the field Diskette Write must be set to Enabled).

on The floppy disk drive is write-protected.
off Floppy disks can be read, written and deleted (default setting).

Write protection for Flash BIOS - switch 4

Switch 4 is used to define whether the System BIOS is write protected or not.

on The System BIOS can neither be written to nor deleted. Flash-BIOS update from

off The System BIOS can be written or deleted. Flash-BIOS update from floppy disk is

floppy disk is not possible (default setting).

possible

Processor's clock speed

The clock frequency of the processor is set automatically. It cannot be changed manually.
If 2 processors are installed, these processors must be of the same type and frequency, as

otherwise the system will "hang". This means two Pentium III Tualatin or two Pentium III
Coppermine with the same clock frequency must be used.

A26361-D1306-Z120-1-7419 English - 9

Add-on modules

Add-on modules

For all steps described in this chapter pull the power plug out of the mains outlet!

!

6
5
4
3

DIMM Module 1B

DIMM Module 0B
DIMM Module 1A
DIMM Module 0A

7

8

2

Pentium III
CPU 0

1

1 = Socket for processor 1 (CPU 0)
2 = Socket for processor 2 (CPU 1)
3 = Location 0A for main memory (bank 0)
4 = Location bank 1A for main memory
5 = Location 0B for main memory (bank 0)

Pentium III
CPU 1

PCI Bus 6

PCI Bus 4

PCI Bus 5

10

7 = SCSI connection
8 = Lithium battery
9 = PCI slot 1
10 = PCI slots 2 -5
11 = PCI slot 6

PCI Bus 3

PCI Bus 2

PCI Bus 1

911

6 = Location bank 1B for main memory

(bank 1)

PCI slots PCI 2, PCI 3, PCI 4 and PCI 5 support 3.3 V operation and auxiliary voltages. PCI slots
PCI 1 and PCI 6 support 5 V operating voltage.

10 - English A26361-D1306-Z120-1-7419

Add-on modules

y

Slot sequence

• Insert 64 bit / 66 MHz adapter preferably into PCI slots 2, 3.

• Insert 64 bit / 33 MHz adapter preferably into PCI slots 4, 5.

• Insert 32 bit / 33 MHz adapter preferably into PCI slots 1, 6.

Take special care to the coding of the PCI slot and the adapter when you select a PCI
slot.

!

Upgrading main memory

These slots are suitable for 128, 256, 512 and 1024 Mbyte SDRAM memory modules of the DIMM
format. The board supports a maximum of 4 Gbytes.

In other words, you fit the first pair to bank 0, and the second pair in bank 1. One memory bank
must always be fully equipped with memory modules of the same type.

You may only use buffered (registered) 3.3V memory modules. Unbuffered memor
modules are not permitted.

!

SDRAM memory modules must be designed for a clock frequency of 133 MHz (meets
PC133 specification).

Installing a memory module

2

2

Ê Push the holders on each side of the memory compartment outwards.
Ê Insert the memory module in the slot while folding the side holders up until the memory module

engages (2).

A26361-D1306-Z120-1-7419 English - 11

Add-on modules

Removing a memory module

1

Ê Push the clips on the right and left of the compartment outward (1).
Ê Carefully remove the memory module from the compartment (2).

1

12 - English A26361-D1306-Z120-1-7419

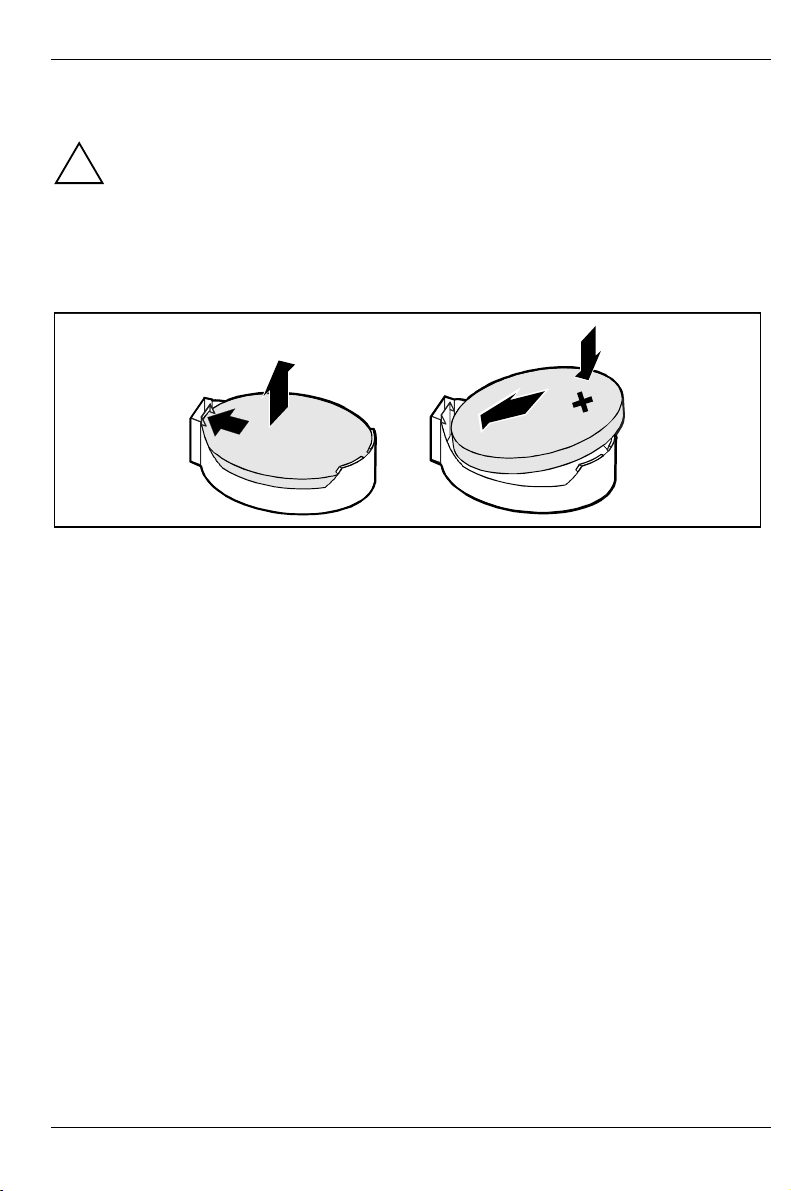

Replacing the lithium battery

Incorrect replacement of the lithium battery may lead to a risk of explosion.

!

The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer (CR2032).

Do not throw lithium batteries into the household waste. They must be disposed of in
accordance with local regulations concerning special waste.

Ensure that you insert the battery the right way round. The plus pole must be on the top!

Add-on modules

4

2

1

3

+

Ê Lift the contact (1) a few millimetres and remove the lithium battery from its socket (2).
Ê Insert a new lithium battery of the same type into the socket (3).

A26361-D1306-Z120-1-7419 English - 13

Glossary

Glossary

The technical terms and abbreviations given below represent only a selection of the full list of
common technical terms and abbreviations.
Not all technical terms and abbreviations listed here are valid for the described system board.

ACPI Advanced Configuration and

Power Management Interface
AC'97 Audio Codec '97 ISA Industrial Standard Architecture
AGP Accelerated Graphics Port LAN Local Area Network
AMR Audio Modem Riser LSA LAN Desk Service Agent
AOL Alert On LAN MCH Memory Controller Hub
APM Advanced Power Management MMX MultiMedia eXtension
ATA Advanced Technology

Attachment
BIOS Basic Input Output System P64H PCI64 Hub
CAN Controller Area Network PCI Peripheral Component

CPU Central Processing Unit PXE Preboot eXecution Environment
CNR Communication Network Riser RAM Random Access Memory
C-RIMM Continuity Rambus Inline

Memory Module
DDR Double Data Rate RDRAM Rambus Dynamic Random

DIMM Dual Inline Memory Module RIMM Rambus Inline Memory Module
DRAM Dynamic Random Access

Memory
ECC Error Correcting Code SB Soundblaster
EEPROM Electrical Erasable

Programmable Read Only

Memory
FDC Floppy Disk Controller SGRAM Synchronous Graphic Random

FIFO First-In First-Out SIMD Streaming Mode Instruction
FSB Front Side Bus SMBus System Management Bus

FWH Firmware Hub SVGA Super Video Graphic Adapter
GMCH Graphics and Memory Controller

Hub
GPA Graphics Performance

Accelerator
I2C Inter Integrated Circuit WOL Wake On LAN
IAPC Instantly Available Power

Managed Desktop PC Design
ICH I/O Controller Hub
IDE Intelligent Drive Electronics

IPSEC Internet Protocol Security

NIC Networking Interface Card

Interconnect

RAMDAC Random Access Memory Digital

Analogue Converter
Access Memory

RTC Real Time Clock

SDRAM Synchronous Dynamic Random

Access Memory

Access Memory
(Single Instruction Multiple Data)

USB Universal Serial Bus
VGA Video Graphic Adapter

14 - English A26361-D1306-Z120-1-7419
