Introduction
This Technical Manual desc ri bes the mainboard D1290, which can be equipped with up t o four Intel
Xeon processors.
You will find further information in the "BIOS Setup" description.
Further information about drivers is provided in the readme f iles on the hard disk, on the suppli ed
drivers diskettes, on the "Drivers & Utilities" or on the "ServerStart" CD.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroy s the device, or may lead to l oss of data.
!
Supplementary information, remarks, and tips foll ow this symbol.
i
Ê Text which follows thi s symbol describes ac tivities that mus t be performed in the order shown.
Ë This symbol indicat es that you must enter a blank space (press the Space Bar) at this point.
Ú This symbol indicates that you must press the Enter key.
Text in this typeface indicates screen output s.
Text in this bold typeface indicates the entries you make via the keyboard.
Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or term s.
Important notes
Store this manual clos e to the device. If you pas s the device on to third parties , you should pass this
manual on with it.
Be sure to read this page careful l y and note the information before you open t he device.
!
You cannot access t he m ai nboard components without first opening the device. How to
dismantle and reassemble t he device is described in the Operati ng Manual
accompanying the devic e.
Please observe the safety information provided in the " Important notes" chapter in t he
device’s operating manual.

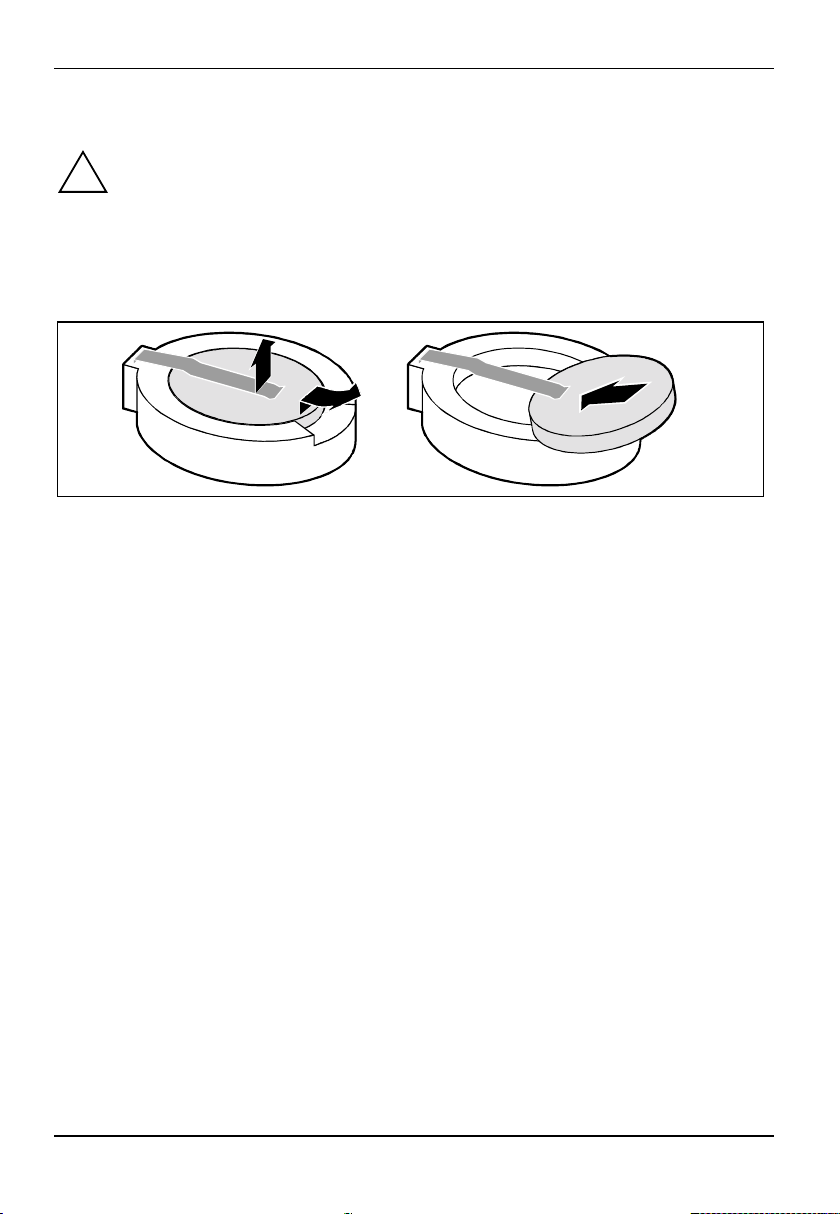

Incorrect replacement of the lithium battery may l ead to a risk of explosion. I t is therefore
essential to observe the instructions in the "off The system is started with the system
BIOS from the mainboard. The system BIOS cannot be reprogrammed (defaul t setting).
" - "Replacing the lithium bat tery" section.
A26361-D1290-Z120-2-7419 English - 1
Page 10
Important notes
The shipped version of this board complies with the requirements of the EEC
directive 89/336/EEC "Electromagnetic compatibility".
Compliance was tested in a t ypical PC configuration.
When installing the board, refer to the specific installation information in the
Operating Manual or Technical Manual for the receiving device.
Connecting cables for peripherals must be adequately shielded to avoid interference.
Components can become very hot during operation. Make sure you do not t ouch
components when making extensions to the mainboard. There is a danger of burns!
!
The warranty is invalidated if the device is damaged during the installation or
replacement of system expansions. Information on whic h system expansions you can
i
use is available from y our sales outlet or the customer service centre.
Information about boards
To prevent damage to the mainboard or the com ponents and conductors on it, please take great
care when you insert or remove boards. Take great care to ensure that extension boards are slotted
in straight, without dam agi ng components or conductors on the m ai nboard, or any other
components, for example EMI spring contacts .
Be especially careful with the locking mechanisms (catches, c ent ri ng pi ns etc.) when you replace
the mainboard or components on it, for example memory modules or proc essors.
Never use sharp objects (s crewdrivers) for leverage.
Boards with electrost at i c sensitive devic es (ESD) are identifiable by the
label shown.
When you handle boards fitted with E SDs, you must, under all
circumstances, observe the following points :
· You must al ways discharge static bui l d up (e.g. by touching a
grounded object) before working.
· The equipment and tool s you use must be free of st atic charges.
· Remove the power pl ug f rom the mains supply before inserting or
removing boards containing ES Ds.
· Always hol d boards with ESDs by their edges .
· Never touch pi ns or conductors on boards fit t ed wi th ESDs.
2 - English A26361-D1290-Z120-2-7419
Page 11
Features
Features
· RCC Grand Champion high end chi pset (CMIC, REMC, CSB5 and CIOB30)
· our process or slots for Pentium Xeon MP processors, socket 603 with 400 MHz System-Bus
· Second lev el cache: 256 KB
· Third level c ache: 512 KB or 1 MB
· Slot f or m em ory board
- 16 PC1600 slots (DDR SDRAM mem ory modules) for up to 16/32 Gbyte m ai n m em ory
· one 64 bit hot-plug PCI slot with 66 MHz
· five 64 bit hot-plug PCIX slots wi th 100 MHz
· two 32 bit PCI slots with 33 MHz
· 2 channel SCSI controller AIC7899W onboard with 64 bit and 66 MHz and 2x Ultra3 port
· Screen controller ATI Rage XL VGA onboard with 32 B i t, 33 MHz PCI and 8 Mbyte SDRAM
memory
· Intel i82559 Ethernet LAN controller with 10 Mbi ts / 100 Mbit Ethernet
· Server Managem ent with Copernicus A onboard with LAN and COM port
· IDE hard disk controller connected to P CI bus
ultra DMA33 mode capable, support s PIO modes 0-4
· one external parallel interface (ECP- and EPP-compatible)
· two external serial ports (COM1 and COM2)
· two external and one i nternal USB port (USB = Universal Serial Bus)
· two external P S/2 interfaces for keyboard and mouse
· system monitoring
· Flash Dis c for RemoteView inserted directly
· Hot-Spare memory function
A26361-D1290-Z120-2-7419 English - 3
Page 12
Features

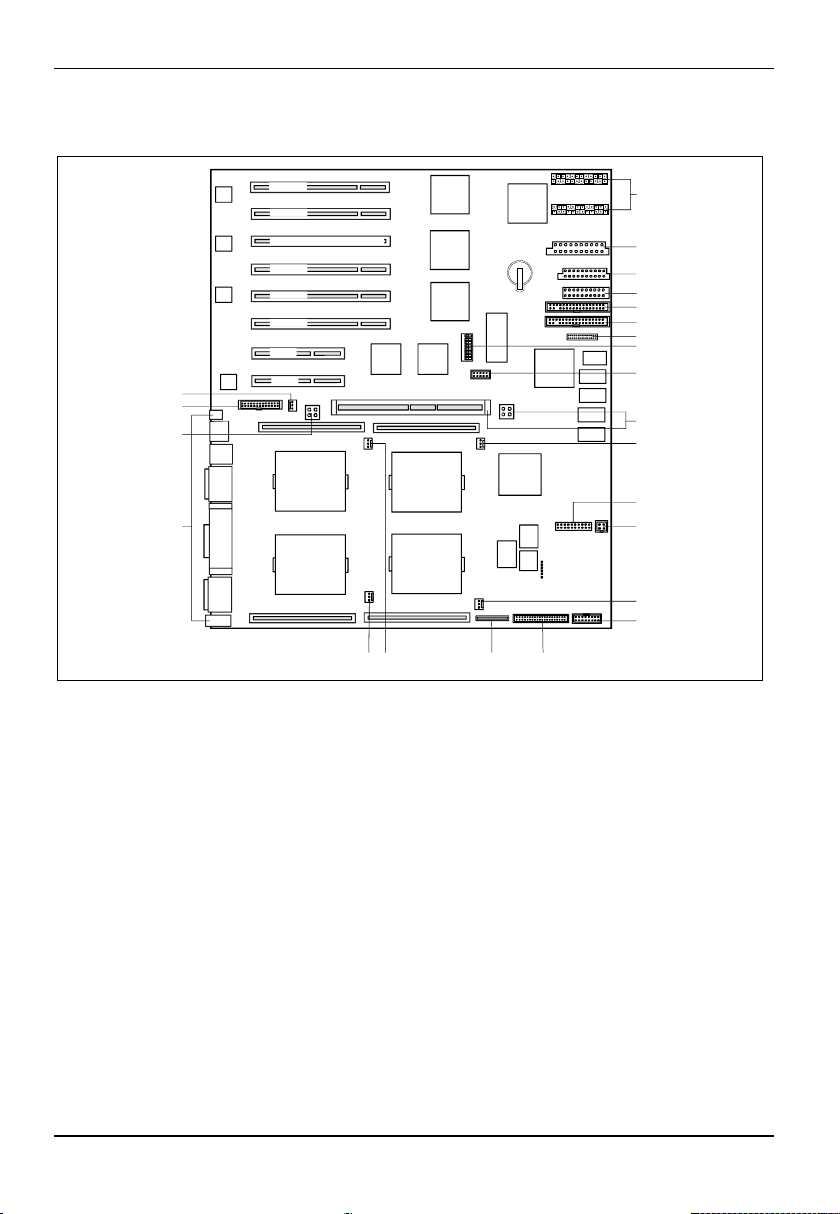

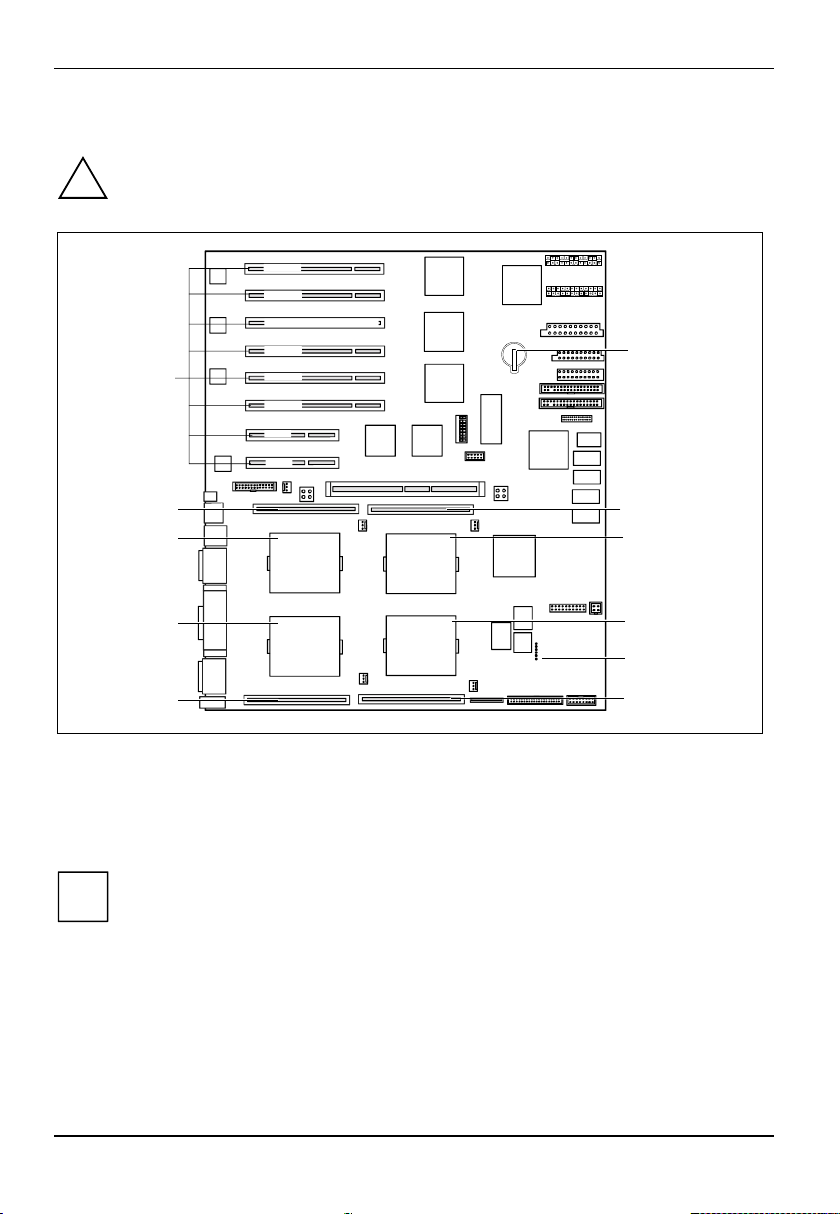

Interfaces and connectors
PCI -X 8
PCI -X 7
PCI 6 / ADAPTEC RAID 2000 S
PCI -X 5
PCI -X 4
PCI -X 3
PCI 2
22
21
10
PCI 1
CPU 3
CPU 2
1 = SCSI connections
2 = Power supply I
3 = Power supply II
4 = Data cables to the power supply board
5 = IDE drives (secondary)
6 = IDE drives (primary)
7 = Serial port for modem
8 = Switch block
9 = Internal USB port for chipcard reader
10 = Connector for memory board D1290
11 = Fan connector for CPU 4
SCSI B
SCSI A
1
2345678
1
2
3
4
5
6
7
8
9
10
11
CPU 4
12
13
CPU 1
14
15
17192018
16
12 = Port for accumulator card
13 = Port for SMBUS debugger
14 = Fan connector for CPU 1
15 = Internal COM port for chipcard reader
16 = Floppy disk drive I
17 = Floppy disk drive I
18 = Fan connector for CPU 3
19 = Fan connector for CPU 2
20 = External ports
21 = Connector for hot plug panel
22 = Wake On LAN
4 - English A26361-D1290-Z120-2-7419
Page 13

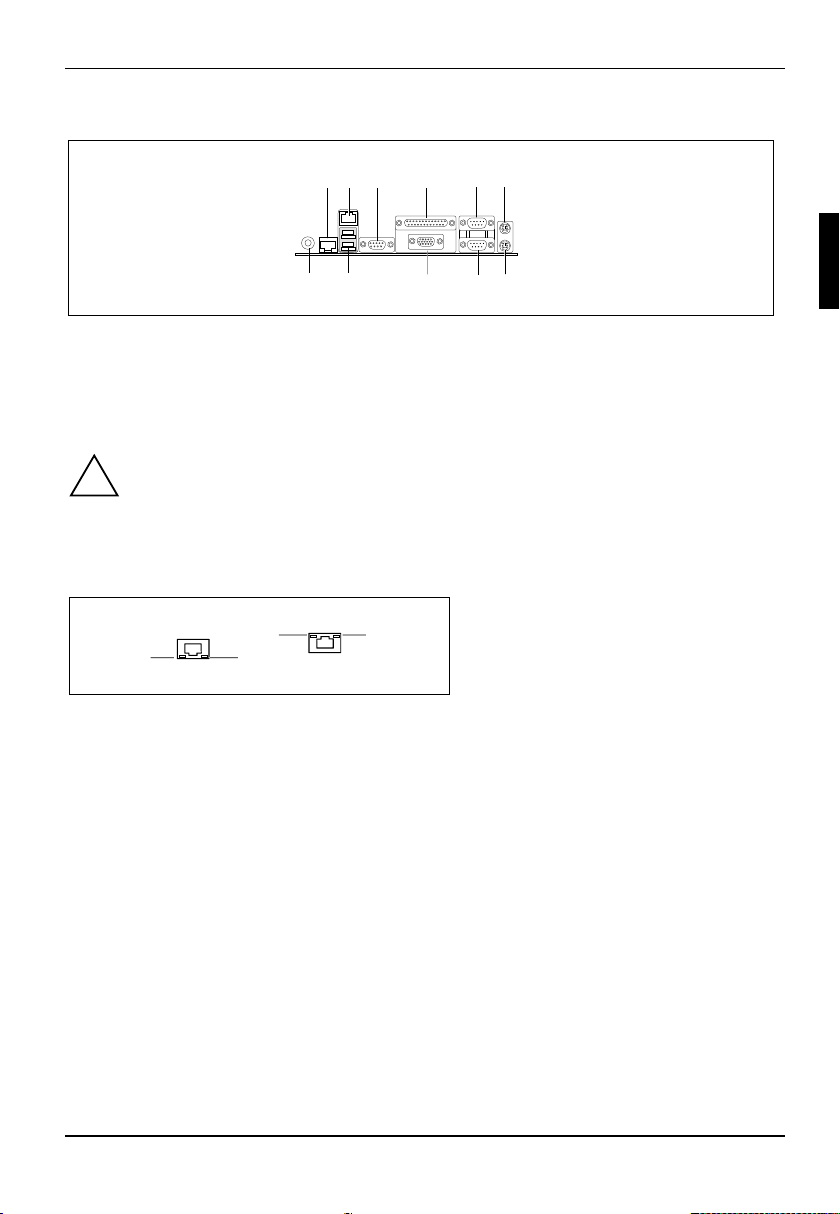

External ports
Features
1 23 4 56
10
1 = LAN port for Server Management
2 = LAN connector
3 = Serial port COM for Server Management
4 = Parallel port LPT
5 = Serial port COM2
6 = PS/2 mouse port
If a chipcard reader is installed, no device may be connected to serial interface 2 (COM 2).
!
Please use the current driv er from the internet under http://www.fujitsu-siemens.com –
"Service & Support" for the chipcard reader.
LAN connector: indicators
1
1
2
2
78911
7 = PS/2 keyboard port
8 = Serial port COM1
9 = VGA port
10 = USB ports (below 1, above 2)
11 = DC power external for Server Management
1 = lighting orange: 100 Mbit/s
does not light: 10 Mbit/s
2 = lighting green: existing connection
flashes green: data transf er takes place
A26361-D1290-Z120-2-7419 English - 5
Page 14
Features
ISA bus resources
Device IRQ Address DMA
Keyboard 1
Serial port COM2 3 03F8, 02F8, 03E8, 02E8
Serial port COM1 4 03F8, 02F8, 03E8, 02E8
5
Floppy disk drive control l er 6 2
Parallel interface LPT1 7 0278, 0378 0, 1, 3
Real-time clock (RTC) 8
free 9, 10, 11
Mouse controller 12
Numeric processor 13
IDE controller 14 1F0-1F7
free 15
"IRQ" = interrupt assigned as shipped
"Address" = this addres s can be used for your particular dev i ce
"Address" = this DMA can be used for your particular dev i ce
Default settings are s hown i n bol d pri nt.
PCI bus resources
PCI slots
The following table shows an overv i ew of the PCI slots:
PCI slot 64bit/32bitFrequency
1 32 bit 33 no no 32 bit PCI bus slot
2 32 bit 33 no no 32 bit PCI bus slot
3 64 bit 100 yes yes 64 bit PCI bus s l ot
4 64 bit 100 yes yes 64 bit PCI bus s l ot
5 64 bit 100 yes yes 64 bit PCI bus s l ot
6 64 bit 66 yes no 64 bit PCI bus slot
7 64 bit 100 yes yes 64 bit PCI bus s l ot
8 64 bit 100 yes yes 64 bit PCI bus s l ot
PCI slot 6 and SCSI controller are connected to the same P CI bus.
i
Together with "Adaptec 2000S Control l er“ a RA ID solution can be realised. This
controller may be instal l ed onl y in PCI slot 6.
6 - English A26361-D1290-Z120-2-7419
in MHz
Hot plug PCIX Description
Page 15
Features
PCI IRQ line x - Assignment of the PCI interrupts
Defines which ISA int errupts are used for the separate PCI slots.
Multifunctional PCI boards or boards with an integrated PCI-t o-PCI bridge can use several PCI
interrupts (INTA#, INTB#, INTC#, INTD#). Monofunctional PCI boards (default) only use one PCI
interrupt (INTA#) per PCI slot .
The PCI interrupts INTA#, INTB #, INTC# and INTD# are available for every PCI s l ot .
With monofunctional PCI boards, the following PCI IRQ Line is assigned for INTA# of each PCI slot:
PCI slot 12 3 4 5678
PCI IRQ Line for INTA# 1 3 5 7 9 11 13 15
With multifunctional PCI boards, the following PCI IR Q Line is assigned for INTA # to INTD# of each
PCI slot:
PCI slot 1 2 3 4 5678
PCI IRQ Line for INTA# 1 3 5 7 9 11 13 15
PCI IRQ Line for INTB# 2 4 6 8 10121416
PCI IRQ Line for INTC# 3 1 7 5 11 9 15 14
PCI IRQ Line for INTD# 4 2 8 6 12101613
PCI devices on the mainboard use the following PCI IRQ Line :
PCI Device Copernicus VGA Ethernet SCS I A SCSI B
PCI IRQ Line 17 21 22 23 24
The same interrupt can be assigned simultaneously to several PCI boards. You should avoid this
condition due to reduced performance.
If you use a setting ot her than Auto, the Plug&Play functionality of the system BIOS for the
corresponding PCI boards is deac tivated.
Auto The PCI interrupts are assigned aut om atically in accordance wi t h the Plug&Play
Disabled No ISA interrupt is assigned to the PCI interrupt .
3, 4, 5, 7, 10, 11, 12, 14, 15
guidelines.
The selected ISA interrupt i s assigned to the PCI interrupt. You may not select an
ISA interrupt that is used by a component on the mainboard (e.g. controller) or an
ISA board.
With the Auto setting, you can use the ICU (ISA Configuration Utility) utility to check
how the interrupts are assigned.
i
A26361-D1290-Z120-2-7419 English - 7
Page 16
Settings with switches
Screen resolution
Depending on the operating system used, the screen resolutions in the following table refer to the
mainboard screen controller. If you are us ing an ex ternal screen controller, you will find details of
supported screen resolutions i n the Operating Manual or Technical Manual suppl i ed wi th the
controller.
Screen resolution Refresh rate (Hz) Max. number of colours
640x480 200 16.7 mio.
800x600 200 16.7 mio.
1024x768 150 16.7 mio.
1057x864 120 16.7 mio.
1280x1024 100 16.7 mio.
1600x1200 75 16.7 mio.
** Horizontal v al ues tolerance ±0.3 kHz.
Shaded screen resolutions are not s upport ed by LCD monitors (TFT).
Settings with switches
ON
1234
OFF
5
678
Switches 3, 4 = must al ways be set to Off
Switch 1 = clear CMOS
Switch 2 = new configuration of t he memory
Switch 5 = Server Management c ontroller
Switch 6 = Write protecti on f or floppy disks
Switch 7 = Skipping pass word query
Switch 8 = Recovering system BIOS
Clear CMOS – switch 1
Switch 1 is used to defi ne whether CMOS entries can be cleared.
on CMOS entries are cleared.
off CMOS entries cannot be cleared.
New configuration of the memory - switch 2
Switch 2 is used to defi ne whether the memory configuration s aved in CMOS is accepted or
redetermined.
on The memory configuration saved in CMOS is ignored and the physical memory size
off The memory configuration from CMOS is used.
is redetermined.
Server Management controller - switch 5
Swich 5 is used to define whet her the Server Management controller on t he m ai nboard i s activated
8 - English A26361-D1290-Z120-2-7419
Page 17
Settings with switches
or deactivated.
on The Server Management controller on t he m ai nboard i s deactivated.
off The Server Management Controller is activated.
Write protection for floppy disks - switch 6
Switch 6 is used to defi ne whether floppy disks can be written or deleted in the floppy disk drive. To
write and delete floppy disks, the write-protection in BIOS Setup must be disabled (in menu Security,
the field Diskette Write must be set to Enabled).
on The floppy disk drive is write-protected.
off Floppy disks can be read, written and deleted (default s etting).
Skipping the password query - switch 7
Switch 7 is used to defi ne whether the password is queried at system startup, if the password
protection is enabled in BIOS Setup (in Security menu , t he Password field must be set to Enabled).
on The password query is effect i ve.
off The password query is skipped (default setting).
Recovering System BIOS - switch 8
Switch 8 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Disk et te (please call our customer s ervice centre).
on The system boots from the "Flash BIOS floppy di sk" from Drive A and reprograms
off The system is started with the system BIOS from the mainboard. The system BIOS
the system BIOS on the board.
cannot be reprogrammed (default setting).
A26361-D1290-Z120-2-7419 English - 9
Page 18
Add-on modules
Add-on modules
For all steps described in t hi s chapter pull the power plug out of the mai ns outlet!
!
PCI -X 8
PCI -X 7
PCI 6 / ADAPTEC RAID 2000 S
PCI -X 5
11
10
9
PCI -X 4
PCI -X 3
PCI 2
PCI 1
CPU 3
8
CPU 2
1 = Lithium battery
2 = Voltage Regulator Module
3 = Processor socket for CPU 4
4 = Processor socket for CPU 1
5 = LEDs
6 = Voltage Regulator Module
SCSI B
SCSI A
12345678
CPU 4
CPU 1
7 = Voltage Regulator Module
8 = Processor socket for CPU 2
9 = Processor socket for CPU 3
10 = Voltage Regulator Module
11 = PCI slots 1 to 8
1
2
3
4
5
67
PCI slots support 3.3 V main and auxiliary voltages.
i
10 - English A26361-D1290-Z120-2-7419
Page 19
Add-on modules
Slot sequence
· An additional screen controller must always be inserted into PCI slot 1 or 2.
· I nsert 32 bit / 33 MHz adapter firs t i nto PCI slots 1, 2 and then into PCI slots 3, 4, 5, 6, 7, 8.
· I nsert 64 bit / 33 MHz adapter firs t i nto PCI slots 3, 4, 5, 6, 7, 8 and then into PCI slots 1, 2.
· I nsert 64 bit / 66 MHz adapter firs t i nto PCI slots 3, 4 and then into PCI slots 5, 6, 7, 8 and then
into PCI slots 1, 2
· I nsert 64 bit / 100 MHz adapter or 133 MHz adapt er f i rst into PCI slots 3, 4, 5, 6, 7, 8 and then
into PCI slot 6 and then into PCI slots 1, 2.
· The Adaptec 2000S Raid controller must be i nstalled into PCI slot 6.
Memory board
The installation and removal of the memory board should be performed only by our
service technici ans.
i
BANK
4.4
4.2 4.1
3.4
2
3.2 3.1
2.4 2.3
2.2 2.1
1.4
1.2
SM SMSEL SEL
1415
3
1213
11
10
2
8
9
6
7
1
5
4
2
3
0
0
1
1
DIMMDIMM
4.3
3.3
1.3
1.1

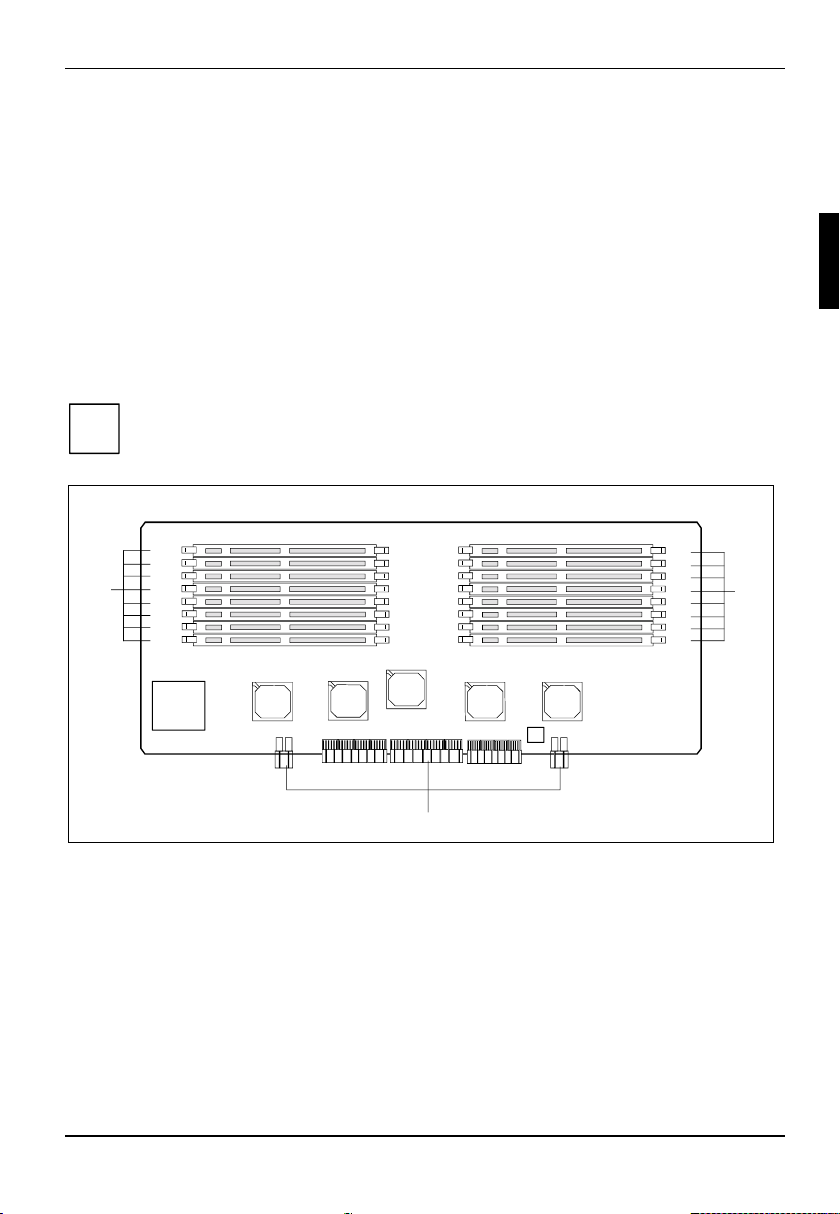

1 = Connection for mainboard D1290 2 = Location for DIMM banks 1 to -16 f or m ai n
memory (DDR-SDRAM)
2
A26361-D1290-Z120-2-7419 English - 11
Page 20
Add-on modules
Upgrading main memory
These slots are suit abl e f or 128, 256, 512 and 1024 Mbyte DDR SDRAM memory modules of the
DIMM format. The organisat i on i n four memory banks 1 to 4 enables f ast memory access wi th fourfold interleave. The board supports a m aximum of 16/32 Gbytes.
A memory bank must always be fully equipped starti ng with bank 1 (SM) or 0 (SEL) in increas i ng
order.
You may only use buffered 3. 3 V memory modules. Unbuffered memory modules are not
permitted.
!
DDR SDRAM memory modules mu st be designed for a clock f requency of 100 MHz
(meets PC1600 specification).
To use the hot-spare memory func tion all memory modules installed must have the same
capacity!
!
12 - English A26361-D1290-Z120-2-7419
Page 21
Add-on modules

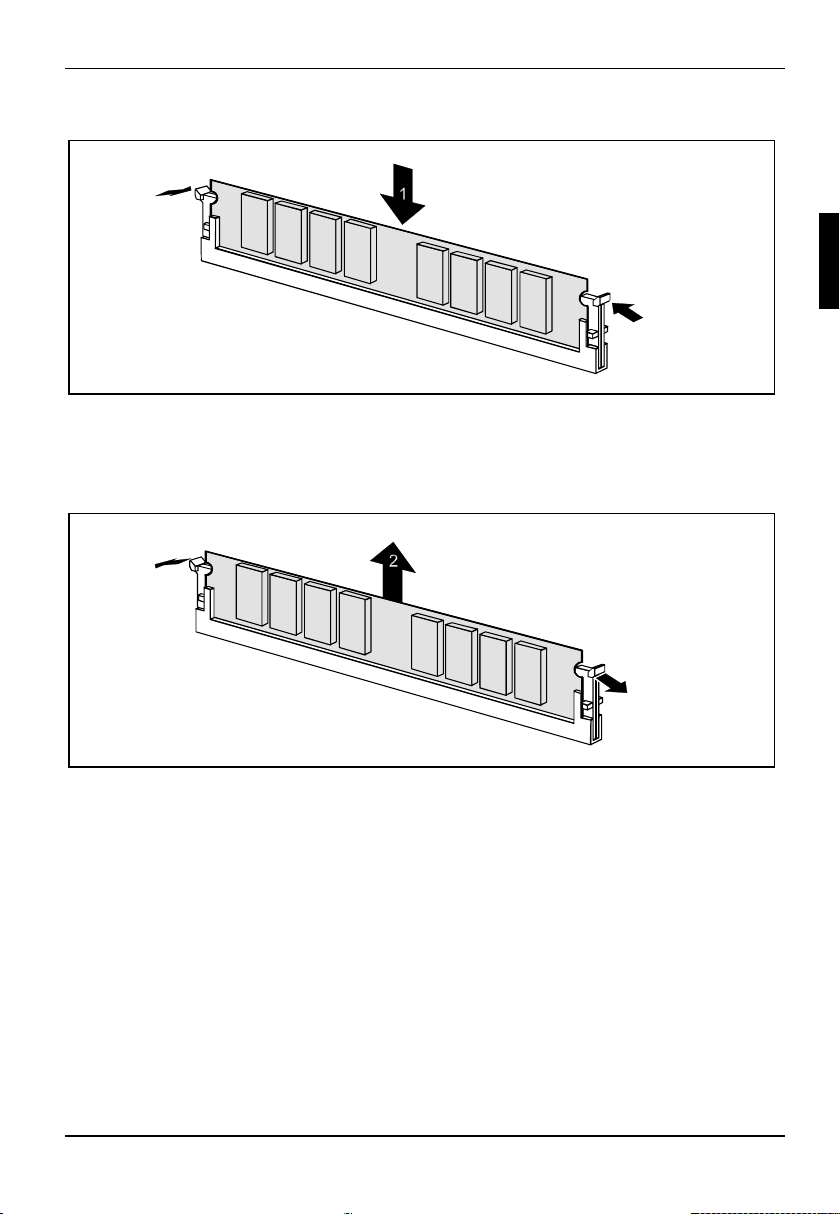

Installing a memory module
2
2
Ê Push the holders on each side of the memory compartment outwards .
Ê Insert the memory module i n t he slot while folding the side holders up until the memory module
engages (2).
Removing a memory module
1
1
Ê Push the clips on the right and left of the compartment outward (1).
Ê Carefully remove the memory module from the compartment (2).
A26361-D1290-Z120-2-7419 English - 13
Page 22
Add-on modules
Replacing the lithium battery
Incorrect replacement of the lithium battery may l ead to a risk of explosion.
!
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufact urer (CR2032).
Do not throw lithium batteries into the household waste. They m ust be disposed of in
accordance with local regulations concerning special waste.
Ensure that you insert t he battery the right way round. The plus pol e must be on the top!
1
+
+
Ê Lift the contact (1) a few millimet res and remove the lithium battery from its socket (2).
Ê Insert a new lithium batt ery of the same type into the socket (3).
2
+
3
+
14 - English A26361-D1290-Z120-2-7419
Page 23
Glossary
Glossary
The technical terms and abbrevi ations given below represent only a s el ection of the full list of
common technical term s and abbreviations.
Not all technical terms and abbreviations listed here are valid for the described mainboard.
ACPI Advanced Configuration and
Power Interface
AC'97 Audio Codec '97 LAN Local Area Network
AGP Accelerated Graphics Port LSA LAN Desk Service Agent
AIMM AGP Inline Memory Module MCH Memory Controller Hub
AMR Audio Modem Riser MMX MultiMedia eXtension
AOL Alert On LAN P64H PCI64 Hub
APM Advanc ed Power Management PCI Peripheral Component
ATA Advanced Technology
Attachment
BIOS Basic Input Output System RAM Random Access Memory
CAN Controller Area Network RAMDAC Random Access Memory Digi tal
CPU Central Processing Unit RDRAM Rambus Dynamic Random
CNR Communication Network Riser RIMM Rambus Inline Memory Module
C-RIMM Continuit y Rambus Inline
Memory Module
DIMM Dual Inl i ne M em ory Module RTC Real Time Clock
DDR Double Data Rat e
ECC Error Correcting Code
EEPROM Electrical Erasable
Programmable Read Only
Memory
FDC Floppy Di sk Controller SGRAM Synchronous Graphic Random
FIFO First-In Firs t-Out SIMD St reami ng M ode I nstruction
FSB Front Side Bus SMBus System Management Bus
FWH Firmware Hub SVGA Super Video Graphic Adapter
GMCH Graphics and Memory Controller
Hub
I2C Inter I ntegrated Circuit VGA Video Graphic Adapter
IAPC Instantly Avai l abl e Power
Managed Desktop PC Design
ICH I/O Controller Hub
IDE Intelligent Drive Elect roni cs
IPSEC Internet Protocol Security
ISA Industrial S tandard Architecture
Interconnect
PXE Preboot eXecution Environment
Analogue Converter
Access Memory
RSB Remote S ervice Board
SB Soundblaster
SDRAM Synchronous Dynamic Random
Access Memory
Access Memory
(Single Instruction Multiple Data)
USB Universal Serial Bus
WOL Wake On LAN
A26361-D1290-Z120-2-7419 English - 15
Loading...
