Introduction

This Technical Manual descri bes the system board D1242, which can be equipped with up to two
Intel Xeon processors.

You will find further information in the "BIOS Setup" description.
Further information about drivers is provided in the readme f iles on the hard disk, on the suppli ed

drivers diskettes, on the "Drivers & Utilities" or on the "ServerStart" CD.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroy s the device, or may lead to l oss of data.

!

Supplementary information, remarks, and tips foll ow this symbol.

i

Ê Text which follows this symbol describes activiti es that must be performed in the order s hown.

Ë This symbol indicat es that you must enter a blank space (press the Space Bar) at this point.

Ú This symbol indicates that you must press the Enter key.

Text in this typeface indicates screen output s.

Text in this bold typeface indicates the entries you make via the keyboard.

Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or term s.

Important notes

Store this manual clos e to the device. If you pas s the device on to third parties , you should pass this
manual on with it.

Be sure to read this page careful l y and note the information before you open t he device.

!

You cannot access t he system board com ponent s without first opening the device. How
to dismantle and reassembl e t he device is described in the Operat i ng M anual
accompanying the devic e.

Please observe the safety information provided in the " Important notes" chapter in t he
device’s operating manual.

Incorrect replacement of the lithium battery may l ead to a risk of explosion. I t is therefore
essential to observe t he i nstructions in the "Add-on m odul es" - "Replacing the lithium
battery" section.

A26361-D1242-Z120-1-7419 - Preliminary English - 1

Important notes

The shipped version of this board complies with the requirements of the EEC
directive 89/336/EEC "Electromagnetic compatibility".

Compliance was tested in a t ypical PC configuration.
When installing the board, refer to the specific installation information in the

Operating Manual or Technical Manual for the receiving device.

Connecting cables for peripherals must be adequately shielded to avoid interference.

Components can become very hot during operation. Ensure you do not touch
components when making ext ensions to the system board. There is a danger of burns!

!

The warranty is invalidated if the device is damaged during the installation or
replacement of system expansions. Information on whic h system expansions you can

i

use is available from y our sales outlet or the customer service centre.

Information about boards

To prevent damage to the system board or the components and conductors on it, please t ake great
care when you insert or remove boards. Take great care to ensure that extension boards are slotted
in straight, without dam agi ng components or conductors on the system board, or any other
components, for example EMI spring contacts .

Be especially careful with the locking mechanisms (catches, c ent ri ng pi ns etc.) when you replace
the system board or components on it, for example memory modules or processors.

Never use sharp objects (s crewdrivers) for leverage.

Boards with electrost at i c sensitive devic es (ESD) are identifiable by the
label shown.

When you handle boards fitted with E SDs, you must, under all
circumstances, observe the following points :

· You must always discharge static build up (e.g. by touching a

grounded object) before working.

· The equipment and tools you use mus t be free of static charges .

· Remove the power plug from the mains supply before inserting or

removing boards containing ES Ds.

· Always hold boards with ESDs by their edges.

· Never touch pins or conduct ors on boards fitted with ESDs .

2 - English A26361-D1242-Z120-1-7419 - Preliminary

Features

Features

· two processor slots for Intel Xeon processors wi th 1.8 GHz or higher, with 100/400 MHz Front

Side Bus, quad pumped data and double pumped address bus
512 Kbyte on-die cache

· two 64 bit hot-plug PCI-X slots with 100 MHz

· two 64 bit PCI slots wi th 66 MHz

· two 32 bit PCI slots wi th 33 MHz

· 8 PC1600 slots (DDR DIMM mem ory modules) with minimum 256 MB, maximum 16 GB

possible memory confi guration

· SCSI controller AIC7899W S CS I 160

· Screen controller ATI Rage X L VGA with 32 bit and 33 MHz PCI

· Intel 82559C Ethernet LAN cont rol l er

· IDE hard disk controller connected to PCI bus for up to f our IDE hard disks

ultra DMA66 mode capable, support s PIO modes 3 and 4

· 1 internal serial port for chipcard reader (COM2)

· 1 external parallel port (ECP- and EPP-compatible)

· two external serial ports (COM 1 and COM 2)

· two external USB ports (US B = Uni versal Serial Bus)

· 1 RJ45 LAN port for Rompilot/O S

· 1 VGA port

· two external PS/2 ports for keyboard and mouse

· 1 RJ45 LAN port for System Management

· 1 serial port for Syst em M anagem ent

· 1 power supply connector for System Management

· 1 port for an accumulator card f or System Management

A26361-D1242-Z120-1-7419 - Preliminary English - 3

Features

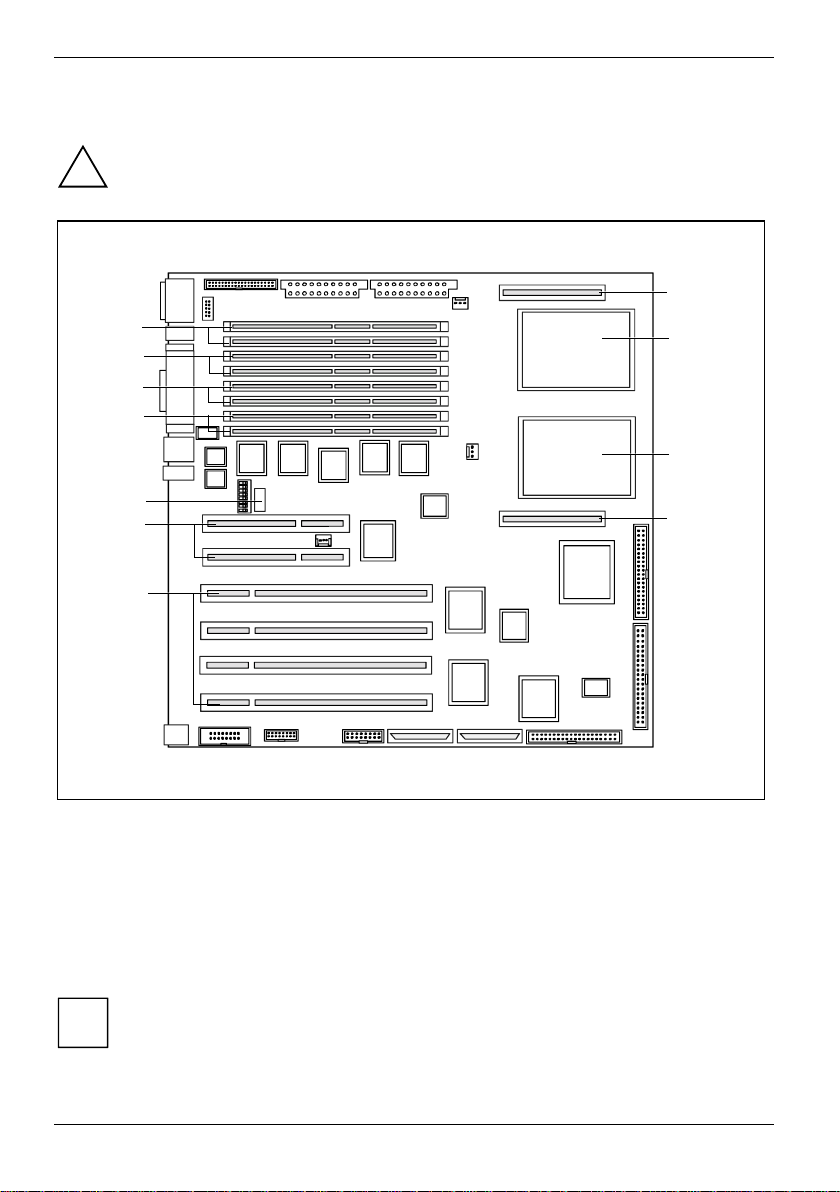

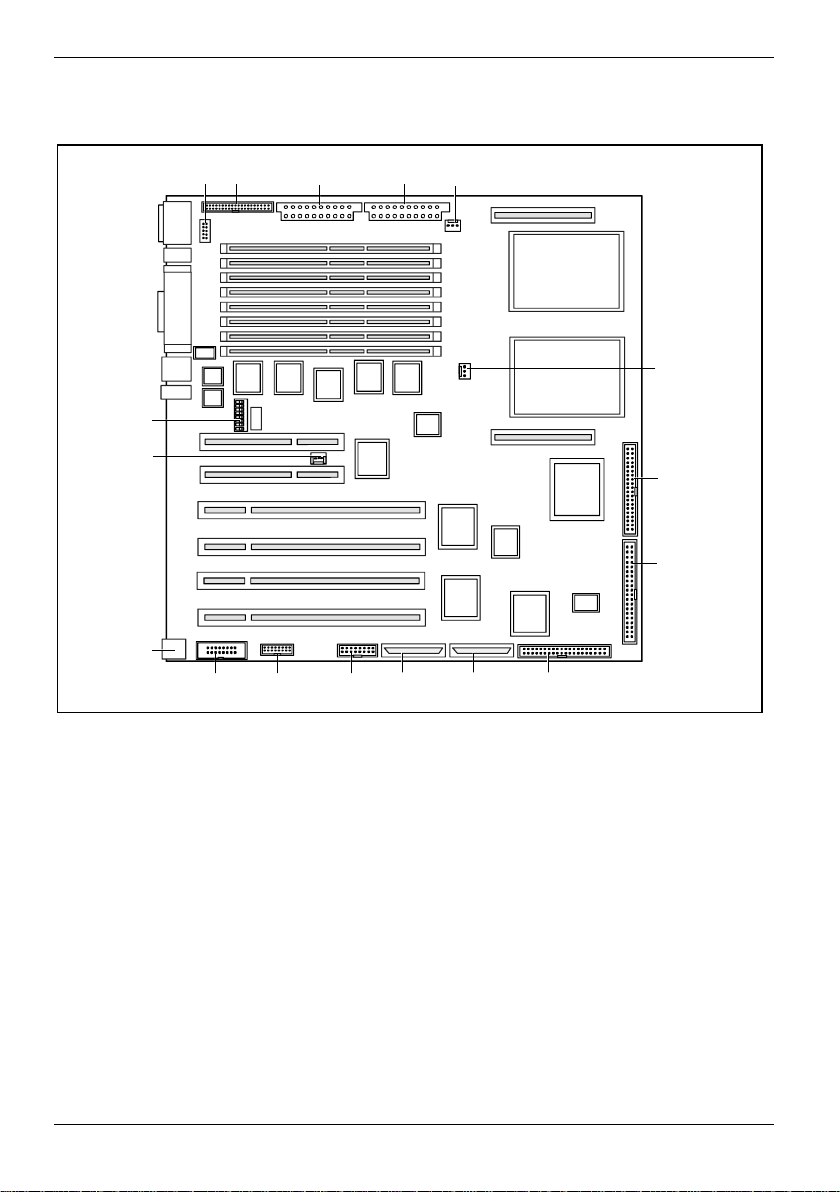

Interfaces and connectors

1 23 45

DIMM 1.1
DIMM 1.2

DIMM 2.1
DIMM 2.2

DIMM 3.1
DIMM 3.2

DIMM 4.1

DIMM 4.2

CPU 1

CPU 2

6

17

PCI 1

12345678

16

PCI 2

PCI 3

PCI 4

PCI 5

PCI 6

15

1 = Serial port for Server Management
2 = Connection for floppy disk drive
3 = Power supply II
4 = Power supply I
5 = Fan connector for CPU 1
6 = Fan connector for CPU 2
7 = IDE drives (secondary)
8 = IDE drives (primary)
9 = Port for powerbackplane support

7

8

91011121314

10 = Connector for SCSI B
11 = Connector for SCSI A
12 = Serial port for chipcard reader
13 = Port for accumulator card
14 = Connector for hot plug panel
15 = Power supply connector for System

Management
16 = Wake On LAN
17 = Switch block

4 - English A26361-D1242-Z120-1-7419 - Preliminary

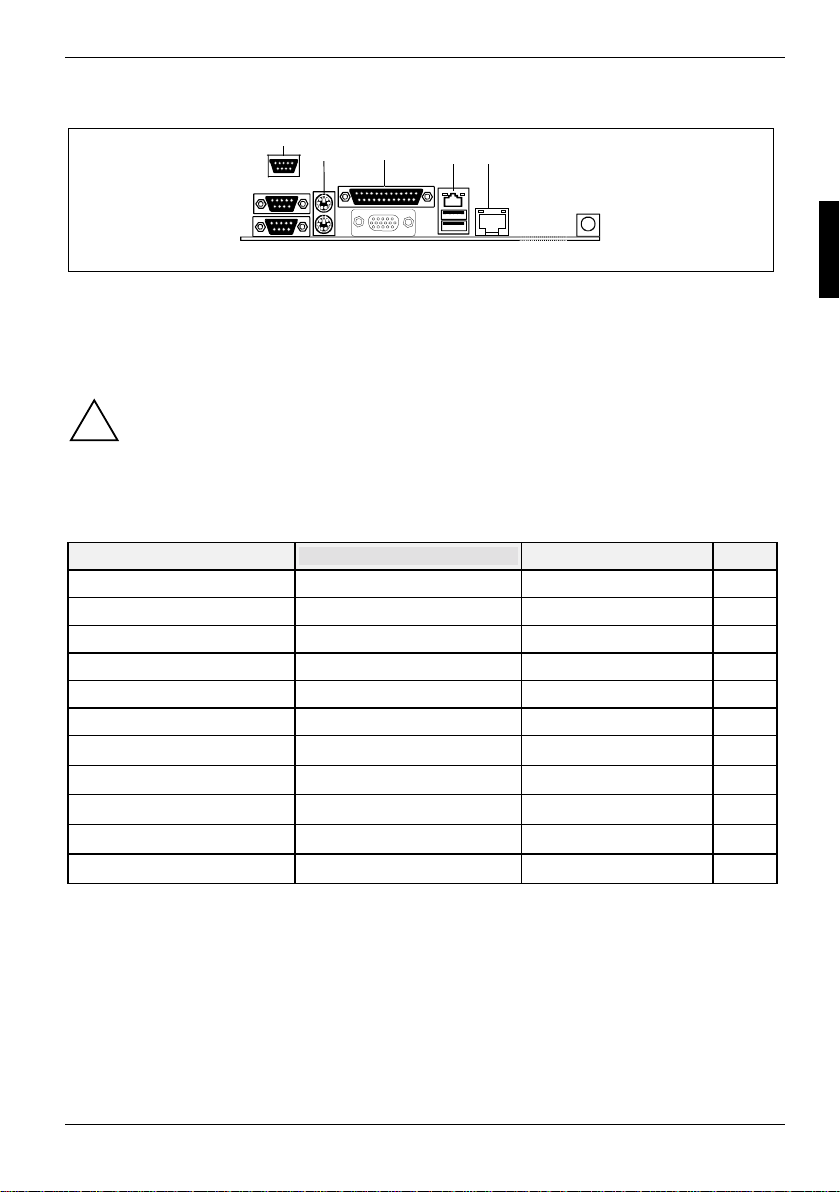

External ports

Features

1

4

6

8

10

2

3

1 = Serial port Server Management
2 = Serial port COM2
3 = Serial port COM1
4 = PS/2 mouse port
5 = PS/2 keyboard port
6 = Parallel port

If a chipcard reader is installed, no device may be connected to serial interface 2 (COM 2).

!

Please use the current driv er from the internet under http://www.fujitsu-siemens.com –
"Service & Support" for the chipcard reader.

5

7

7 = VGA port
8 = LA N connector
9 = USB ports
10 = LAN port for Server Management
11 = DC power external for Server Management

9

11

ISA bus resources

Device IRQ Address DMA

Keyboard 1 0060
Serial port COM2 4, 3, 4, 3 03F8, 02F8, 03E8, 02E8
Serial port COM1 4, 3, 4, 3 03F8, 02F8, 03E8, 02E8
Floppy disk drive controll er 6 03F2 2
Parallel interface LPT1 5, 7 0278, 0378, 03BC 1
Real-time clock (RTC) 8 0070
free 9, 10, 11
Mouse controller 12
Numeric processor 13
IDE controller (primary) 14 1F0-1F7, 3F6
IDE controller (secondary ) 15 170-177, 376

"IRQ" = interrupt assigned as shipped
"Address" = this addres s can be used for your particular dev i ce
"Address" = this DMA can be used for your particular dev i ce
Default settings are s hown i n bol d pri nt.

A26361-D1242-Z120-1-7419 - Preliminary English - 5

Features

PCI bus resources

PCI slots

The following table shows an overv i ew of the PCI slots:

PCI slot 64bit/32bit Description

1 32 bit PCI bus slot 33 MHz
2 32 bit PCI bus slot 33 MHz
3 64 bit Hot Plug PCI-X bus slot 100 MHz
4 64 bit Hot Plug PCI-X bus slot 100 MHz
5 64 bit PCI bus slot 66 MHz
6 64 bit PCI bus slot 66 MHz

PCI IRQ line x - Assignment of the PCI interrupts

Defines which ISA int errupts are used for the separate PCI slots.
Multifunctional PCI boards or boards with an integrated PCI-t o-PCI bridge can use several PCI

interrupts (INTA#, INTB#, INTC#, INTD#). Monofunctional PCI boards (default) only use one PCI
interrupt (INTA#) per PCI slot .

The PCI interrupts INTA#, INTB #, INTC# and INTD# are available for every PCI s l ot .
With monofunctional PCI boards, the following PCI IRQ Line is assigned for INTA# of each PCI slot:

PCI slot 12 3 4 56
PCI IRQ Line for INTA# 1 3 5 7 9 11

With multifunctional PCI boards, the following PCI IR Q Line is assigned for INTA # to INTD# of each
PCI slot:

PCI slot 123456

PCI IRQ Line for INTA# 1 3 5 7 9 11
PCI IRQ Line for INTB# 2 4 6 8 10 12
PCI IRQ Line for INTC# 3 5 7 9 11 13
PCI IRQ Line for INTD# 4 6 8 10 12 14

PCI devices on the system board use the following PCI IRQ Line:

PCI Device USB Ethernet Copernicus SCSI A SCSI B VGA
PCI IRQ Line - 15 1, 2, 3, 4 13 14 16

6 - English A26361-D1242-Z120-1-7419 - Preliminary

Features

The same interrupt can be assigned simultaneously to several PCI boards. You should avoid this
condition due to reduced performance.

If you use a setting ot her than Auto, the Plug&Play functionality of the system BIOS for the
corresponding PCI boards is deac tivated.

Auto The PCI interrupts are assigned aut om atically in accordance wi t h the Plug&Play

Disabled No ISA interrupt is assigned to the PCI i nterrupt.
3, 4, 5, 7, 10, 11

i

guidelines.

The PCI interrupt is switched to the selected ISA i nt errupt. You may not select an
ISA interrupt that is used by a component on the system board (e.g. controll er) or an
ISA board.

With the Auto setting, you can use the ICU (ISA Configuration Utility) utility to check
how the interrupts are assigned.

Screen resolution

Depending on the operating system used, the screen resolutions in the following table refer to the
system board screen controller. If you are using an external screen controller, you will find details of
supported screen resolutions i n the Operating Manual or Technical Manual suppl i ed wi th the
controller.

Screen resolution Refresh rate (Hz) Max. number of colours

640x480 60 32 bit True Color
640x480 72 32 bit True Color
640x480 75 32 bit True Color
640x480 85 32 bit True Color
640x480 90 32 bit True Color
640x480 100 32 bit True Color
640x480 120 32 bit True Color
640x480 160 32 bit True Color
640x480 200 32 bit True Color
800x600 47 32 bit True Color
800x600 56 32 bit True Color
800x600 60 32 bit True Color
800x600 70 32 bit True Color
800x600 72 32 bit True Color
800x600 75 32 bit True Color
800x600 85 32 bit True Color
800x600 90 32 bit True Color
800x600 100 32 bit True Color
800x600 120 32 bit True Color

800x600 160 32 bit True Color
1024x768 43 32 bit True Color
1024x768 60 32 bit True Color
1024x768 70 32 bit True Color
1024x768 72 32 bit True Color

A26361-D1242-Z120-1-7419 - Preliminary English - 7

Settings with switches

Screen resolution Refresh rate (Hz) Max. number of colours

1024x768 75 32 bit True Color
1024x768 85 32 bit True Color
1024x768 90 32 bit True Color
1024x768 100 32 bit True Color
1152x864 43 32 bit True Color
1152x864 47 32 bit True Color
1152x864 60 32 bit True Color
1152x864 70 32 bit True Color
1152x864 75 32 bit True Color

1152x864 80 32 bit True Color
1280x1024 43 32 bit True Color
1280x1024 47 32 bit True Color
1280x1024 60 32 bit True Color
1280x1024 70 24 bit True Color
1280x1024 74 24 bit True Color
1280x1024 75 24 bit True Color
1600x1200 52 16 bit High Color
1600x1200 58 16 bit High Color
1600x1200 60 16 bit High Color
1600x1200 66 16 bit High Color
1600x1200 70 16 bit High Color
1600x1200 75 16 bit High Color
1600x1200 76 16 bit High Color
1600x1200 85 16 bit High Color

Settings with switches

ON

1234

5

678

Switches 1, 3, 4 = must al ways be set to Off
Switch 2 = New configuration of the memory
Switch 5 = Server Management c ontroller

New configuration of the memory - switch 2

Switch 2 is used to defi ne whether the memory configuration s aved in CMOS is ignored and the
physical memory s i ze is redetermined.

on The memory configuration saved in CMOS is ignored and the physical memory size

is redetermined.

off The m em ory configuration from CMOS is used.

8 - English A26361-D1242-Z120-1-7419 - Preliminary

Switch 6 = Write protecti on f or floppy disks
Switch 7 = Skipping pass word query
Switch 8 = Recovering system BIOS

Settings with switches

Server Management controller - switch 5

Switch 5 activates or deactivates the Server Management controller on the system board.

on The Server Management controller on t he system board is deactivated.
off The Server Management controller on the system board is ac tivated.

Write protection for floppy disks - switch 6

Switch 6 is used to defi ne whether floppy disks can be written or deleted in the floppy disk drive. To
write and delete floppy disks, the write-protection in BIOS Setup must be disabled (in menu Security,
the field Diskette Write must be set to Enabled).

on The floppy disk drive is write-protected.
off Fl oppy disks can be read, written and deleted (default setting).

Skipping the password query - switch 7

Switch 7 is used to defi ne whether the password is queried at system startup, if the password
protection is enabled in BIOS Setup (in Security menu , t he Password field must be set to Enabled).

on The password query is skipped.
off The password query is effective (default setting).

Recovering System BIOS - switch 8

Switch 8 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Disk et te (please call our customer s ervice centre).

on The system boots from the "Flash BIOS floppy di sk" from Drive A and reprograms

off The System BIOS is started with the system BIOS from the system board (default

the system BIOS on the board.

setting).

A26361-D1242-Z120-1-7419 - Preliminary English - 9

Add-on modules

Add-on modules

For all steps described in t hi s chapter pull the power plug out of the mai ns outlet!

!

7

6

5

4

DIMM 1.1
DIMM 1.2

DIMM 2.1
DIMM 2.2

DIMM 3.1

DIMM 3.2
DIMM 4.1

DIMM 4.2

CPU 1

CPU 2

8

9

10

3

PCI 1

2

PCI 2

PCI 3

1

PCI 4

PCI 5

PCI 6

12345678

1 = PCI slots 3 to 6
2 = PCI slots 1 and 2
3 = Lithium battery
4 = Locations for main memory (mem ory

bank 4)

5 = Locations for main memory (mem ory

bank 3)

6 = Locations for main memory (mem ory

bank 2)

PCI slots 3 to 6 have 3. 3 V signal voltage, PCI slots 1 and 2 have 5 V signal voltage.

i

11

7 = Locations for main memory (memory

bank 1)
8 = Voltage regulator module (VRM) for CPU 1
9 = Slot for processor 1
10 = Slot for processor 2
11 = Voltage regulator module (VRM) for

CPU 2

10 - English A26361-D1242-Z120-1-7419 - Preliminary

Add-on modules

Slot sequence

· An additional screen controller m ust always be inserted into PCI slot 1 or 2.

· Insert 32 bit / 33 MHz adapter fi rst into PCI slots 5, 2 and then into PCI slots 1, 6.

· Insert 64 bit / 66 MHz adapter fi rst into PCI slots 5, 6 and then into PCI slots 1, 2.

· Insert 64 bit / 100 MHz adapter fi rst into PCI slots 5, 3 and then into PCI slots 6, 2.

Upgrading main memory

These slots are suit abl e f or DIMM format 128, 256, 512 MB and 1 and 2 GB DDR DRA M memory
modules. The organisation in four m emory banks 1 to 4 enables fast memory access with two-fold
interleave. The board supports a maximum of 16 Gbytes.

Two identical memory modules m ust be installed per memory bank . Partial equipping of a memory
bank is not possible. The equi ppi ng sequence of the memory banks i s arbitrary.

You may only use buffered 2. 5 V memory modules. Unbuffered memory modules are not
permitted.

!

DDR SDRAM memory modules mu st be designed for a clock f requency of 100 MHz
(meets PC1600 specification).

Installing a memory module

2

2

Ê Push the holders on each side of the memory compartment outwards.

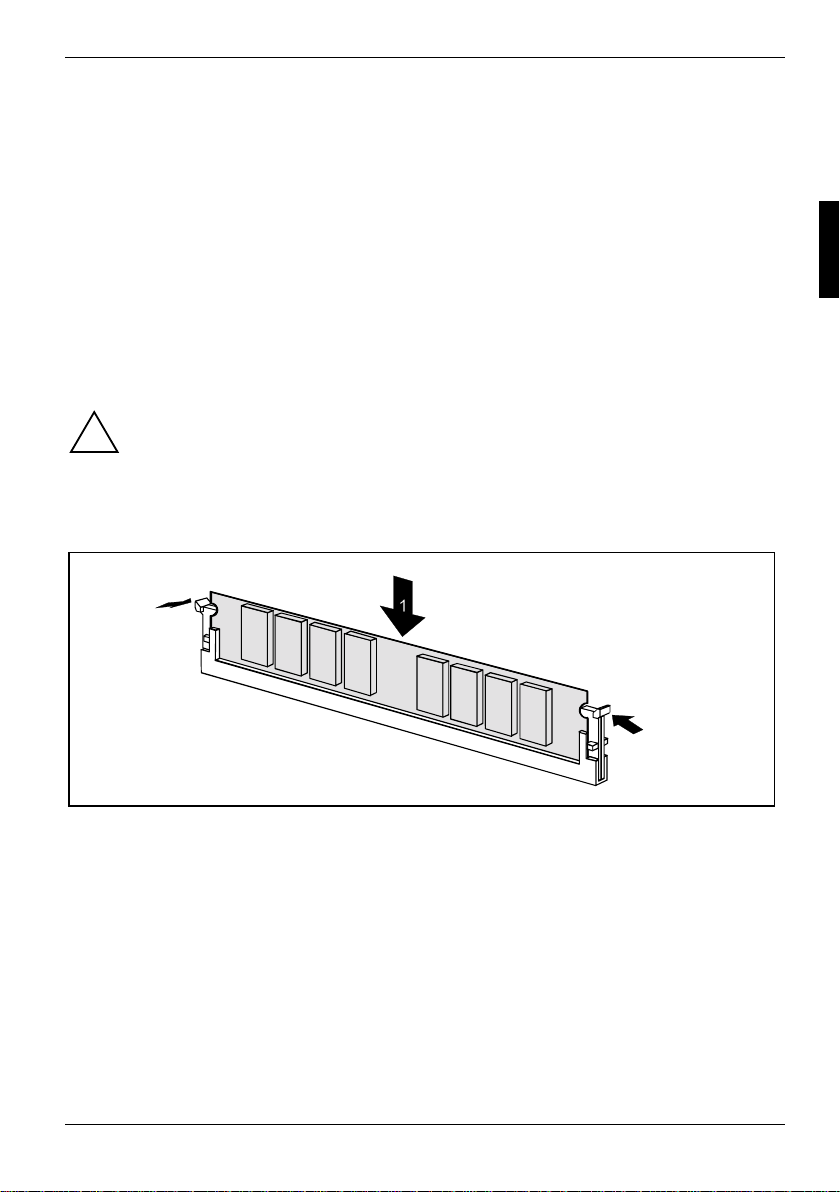

Ê Insert the memory module in the slot while folding the side holders up until t he m em ory module

engages (2).

A26361-D1242-Z120-1-7419 - Preliminary English - 11

Add-on modules

Removing a memory module

1

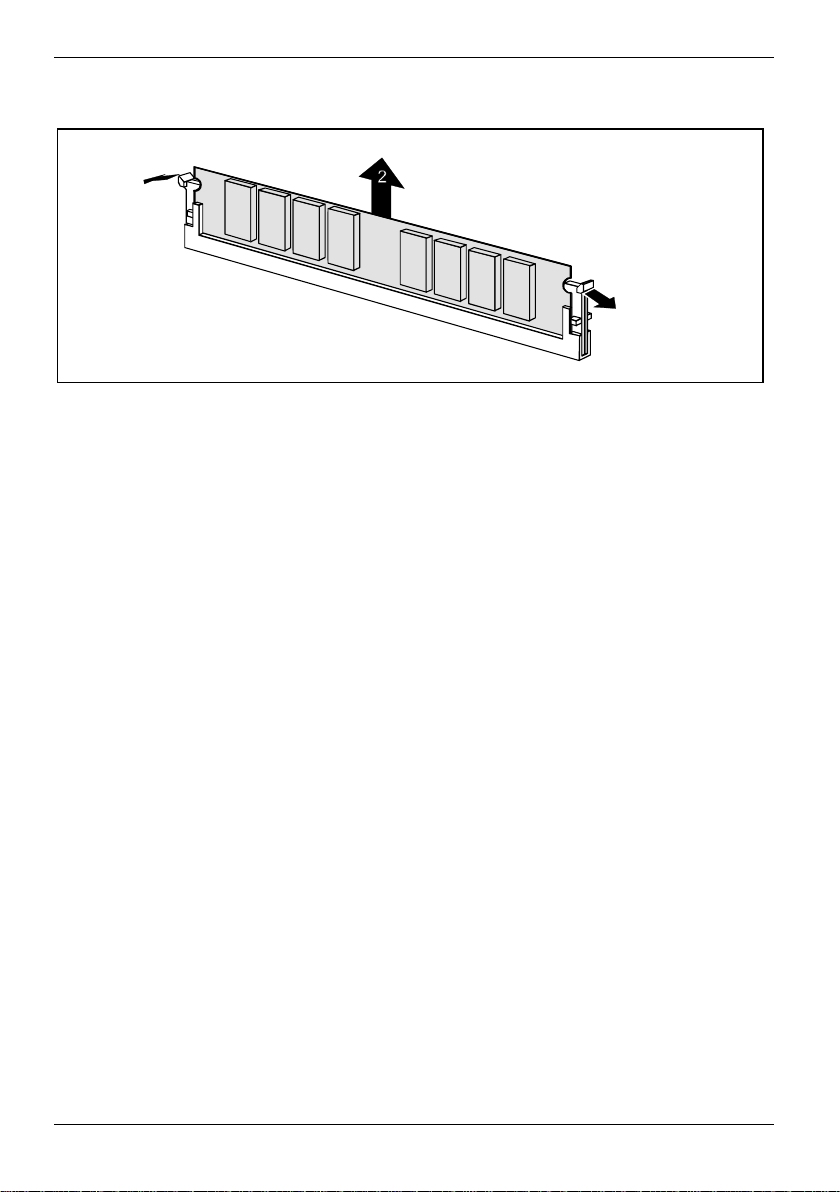

Ê Push the clips on the right and left of t he compartment outward (1).
Ê Carefully remove the memory module from the compartment (2).

1

12 - English A26361-D1242-Z120-1-7419 - Preliminary

Replacing the lithium battery

Incorrect replacement of the lithium battery may l ead to a risk of explosion.

!

The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufact urer (CR2032).

Do not throw lithium batteries into the household waste. They m ust be disposed of in
accordance with local regulations concerning special waste.

Ensure that you insert t he battery the right way round. The plus pol e must be on the top!

· VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoas taan
laitevalmistajan suosittelemaan tyyppi i n. Hävitä käytetty pari sto valmistajan
ohjeiden mukaisesti.

· VARNING

Explosionsfara vid felaktigt batteribyte. Använd samma batterit yp eller en ekvivalent
typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt
fabrikantens instruk tion.

· ADVARSEL

Lithiumbatteri - Explosionsfare ved fejlagtig håndt eri ng. Udskiftning må kun ske med
batteri af samme fabrik at og type. Lever det brugte batteri t i l bage til leverandøren.

· ADVARSEL

Explosionsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en
tilsvarende type anbefalt av apparatfabrikanten. Bruk t e batterier kasseres i henhold
til fabrikantens ins truksjoner.

Add-on modules

1

+

+

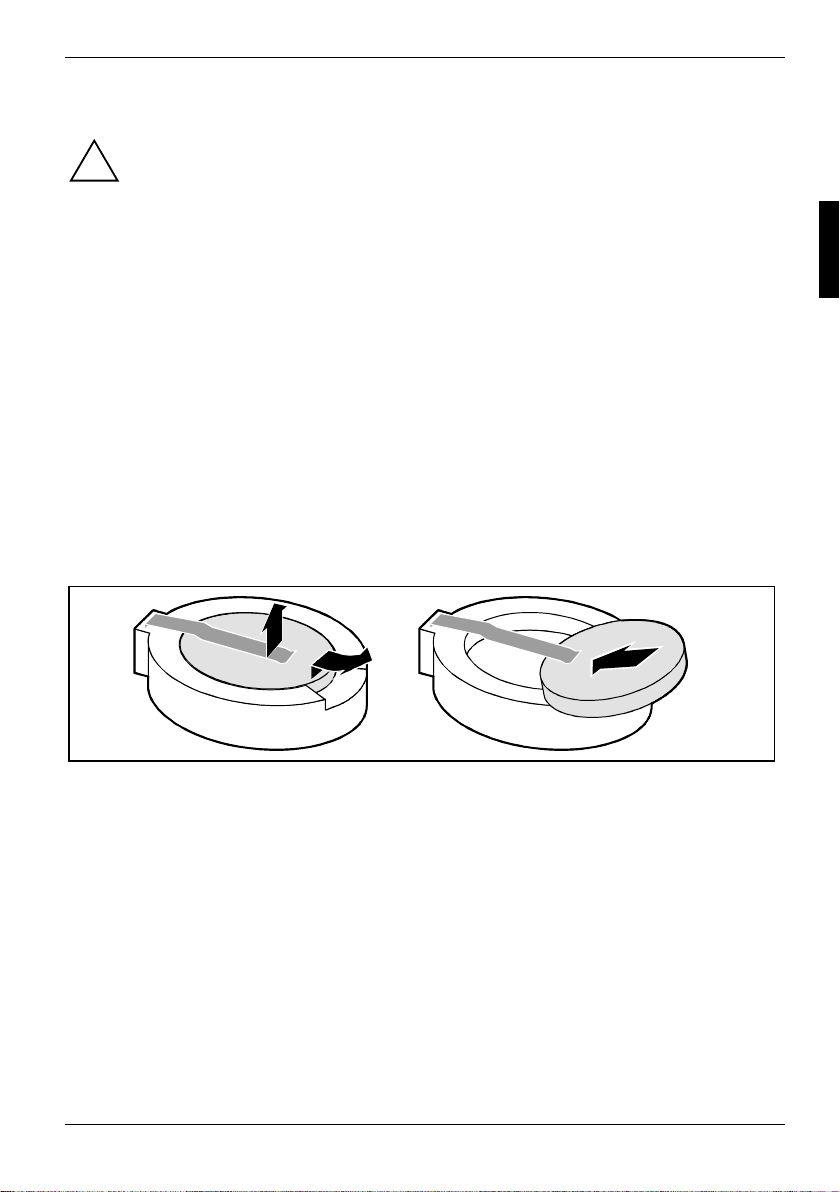

Ê Lift the contact (1) a few millimetres and remove the lithium bat tery from its socket (2).
Ê Insert a new lithium battery of the sam e type into the socket (3).

A26361-D1242-Z120-1-7419 - Preliminary English - 13

2

+

3

+

Glossary

Glossary

The technical terms and abbrevi ations given below represent only a s el ection of the full list of
common technical term s and abbreviations.
Not all technical terms and abbreviations listed here are valid for the described system board.

ACPI Advanced Configuration and

Power Interface
AC'97 Audio Codec '97 LAN Local Area Network
AGP Accelerated Graphics P ort LSA LAN Desk Service Agent
AIMM AGP Inline Memory Module MCH Memory Control l er Hub
AMR Audio Modem Riser MMX MultiMedia eXtension
AOL Alert On LAN P64H PCI 64 Hub
APM Advanc ed Power Management PCI Peripheral Component

ATA Advanced Technology

Attachment
BIOS Basic Input Output System RAM Random Access Memory
CAN Controller Area Network RAMDAC Random Access Memory Digital

CPU Central Processing Unit RDRAM Rambus Dynamic Random
CNR Communication Network Riser RIMM Ram bus Inline Memory Module

C-RIMM Continui t y Rambus Inline

Memory Module
DDR Double Data Rat e SB Soundblaster
DIMM Dual Inline Memory Module SCSI Small Computer System

ECC Error Correcting Code SDRAM Synchronous Dynamic Random
EEPROM Electrical Erasable

Programmable Read Only

Memory
FDC Floppy Disk Controller SIMD St ream i ng Mode Instruction

FIFO First-In First-Out SMBus System Management Bus
FSB Front Side Bus SVGA Super Video Graphic Adapter
FWH Firmware Hub USB Universal Seri al Bus
GMCH Graphics and Memory Control l er

Hub
I2C Inter I nt egrated Circuit WOL Wake On LAN
IAPC Instantly Availabl e Power

Managed Desktop PC Design
ICH I/O Controller Hub
IDE Intelligent Drive Electronics
IPSEC Internet Protocol Security

ISA Industrial Standard Archi tecture

Interconnect

PXE Preboot eXecution Environment

Analogue Converter
Access Memory

RTC Real Time Clock

Interface
Access Memory

SGRAM Synchronous Graphic Random

Access Memory

(Single Instruction Multiple Data)

VGA Video Graphic Adapter

14 - English A26361-D1242-Z120-1-7419 - Preliminary
