Systembaugruppe
D1236
System Board D1236

Technisches Handbuch
Technical Manual

Deutsch

English

Ausgabe Januar 2001
January 2001 edition

Intel, Pentium und Celeron sind eingetragene der Intel Corporation, USA.
Microsoft, MS, MS-DOS und Windows sind eingetragene Warenzeichen der Microsoft

Corporation.
PS/2 und OS/2 Warp sind eingetragene Warenzeichen von International Business Machines,

Inc.
Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen

der jeweiligen Inhaber und werden als geschützt anerkannt.
Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetzung, des

Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
Zuwiderhandlungen verpflichten zu Schadenersatz.
Alle Rechte vorbehalten, insbesondere für den Fall der Patenterteilung oder GM-Eintragung.
Liefermöglichkeiten und technische Änderungen vorbehalten.
Dieses Handbuch wurde erstellt von

cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de

Copyright ã Fujitsu Siemens Computers GmbH 2001
Intel, Pentium and Celeron are registered trademarks of Intel Corporation, USA.
Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation.
PS/2 and OS/2 Warp are registered trademarks of International Business Machines, Inc.
All other trademarks referenced are trademarks or registered trademarks of their respective

owners, whose protected rights are acknowledged.
All rights, including rights of translation, reproduction by printing, copying or similar methods,

even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,

are reserved. Delivery subject to availability.
Right of technical modification reserved.
This manual was produced by

cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de

Contents

Introduction........................................................................................................................................ 1

Notational conventions ..............................................................................................................1

Important notes .................................................................................................................................1

Information about boards...........................................................................................................2

Features............................................................................................................................................3

Interfaces and connectors .........................................................................................................5

Temperature / System monitoring..............................................................................................7

Hard disk connection.................................................................................................................8

LAN connector...........................................................................................................................8

Settings with switches and jumpers...................................................................................................9

Recovering System BIOS - switch 2..........................................................................................9

Write protection for floppy disks - switch 3.................................................................................9

Add-on modules..............................................................................................................................10

Installing and removing processors..........................................................................................11

Upgrading main memory..........................................................................................................12

Installing network board with WOL...........................................................................................13

Replacing the lithium battery....................................................................................................14

Glossary..........................................................................................................................................15

A26361-D1236-Z120-2-7419

Introduction

w

Depending on the configuration chosen, some of the hardware components described
may not be available on your system board.

i

You will find further information in the "BIOS Setup" description.
Further information about drivers is provided in the readme files on the hard disk, on the supplied

drivers diskettes, on the "Drivers & Utilities" or on the "ServerStart" CD.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroys the device, or may lead to loss of data.

!

Supplementary information, remarks, and tips follow this symbol.

i

Ê Text which follows this symbol describes activities that must be performed in the order shown.

Ë This symbol indicates that you must enter a blank space (press the Space Bar) at this point.

Ú

Ú This symbol indicates that you must press the Enter key.

ÚÚ

Text in this typeface indicates screen outputs.

Text in this bold typeface indicates the entries you make via the keyboard.

Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or terms.

Important notes

Store this manual close to the device. If you pass the device on to third parties, you should pass this
manual on with it.

Be sure to read this page carefully and note the information before you open the device.

!

You cannot access the system board components without first opening the device. Ho
to dismantle and reassemble the device is described in the Operating Manual
accompanying the device.

Please note the information provided in the "Safety" chapter in the device’s Operating
manual.

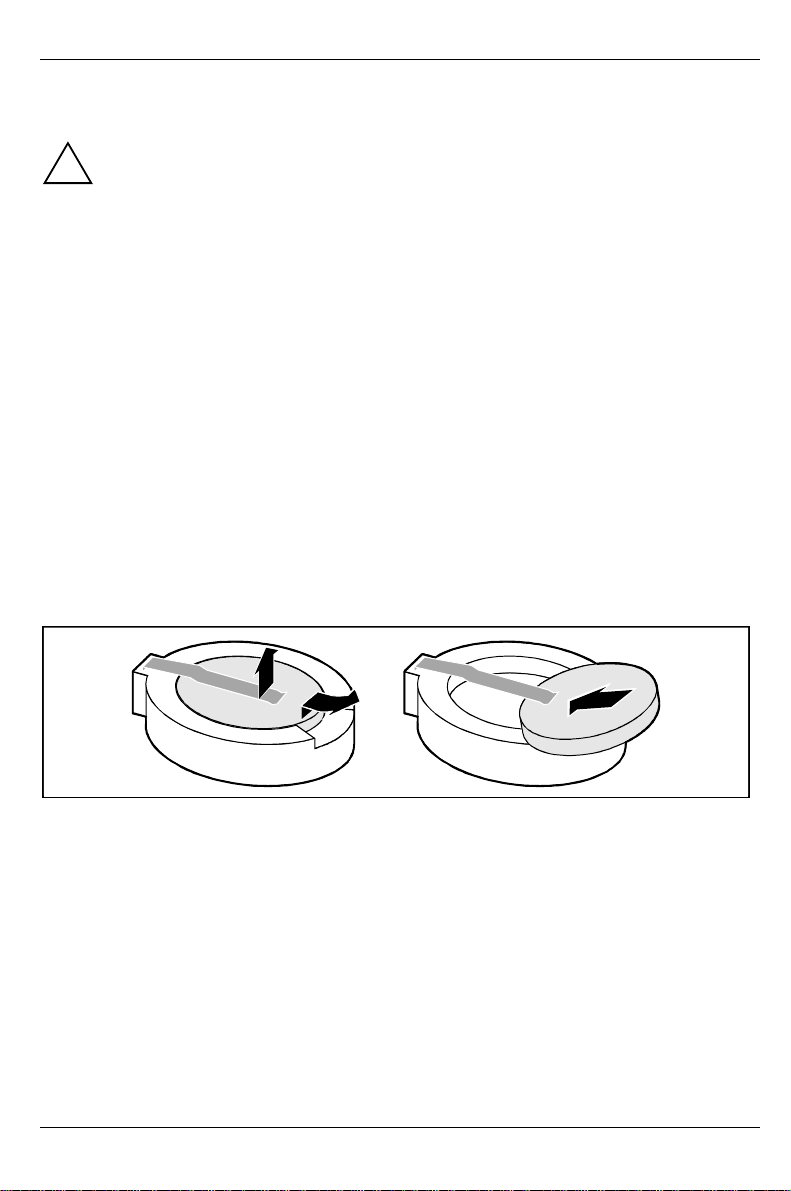

Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore
essential to observe the instructions in the "Add-on modules"-"Replacing the lithium

battery" section.

A26361-D1236-Z120-2-7419 English - 1

Important notes

r

The shipped version of this board complies with the requirements of the EEC
directive 89/336/EEC "Electromagnetic compatibility".

Compliance was tested in a typical PC configuration.
When installing the board, refer to the specific installation information in the

Operating Manual or Technical Manual of the receiving device.

Connecting cables for peripherals must be adequately shielded to avoid interference.

Components can become very hot during operation. Ensure you do not touch
components when making extensions to the system board. There is a danger of burns!

!

The warranty is invalidated if the device is damaged during the installation or
replacement of system expansions. Information on which system expansions you can

i

use is available from your sales outlet or the customer service centre.

Information about boards

To prevent damage to the system board or the components and conductors on it, please take great
care when you insert or remove boards. Take great care to ensure that extension boards are slotted
in straight, without damaging components or conductors on the system board, or any other
components, for example EMI spring contacts.

Be especially careful with the locking mechanisms (catches, centring pins etc.) when you replace
the system board or components on it, for example memory modules or processors.

Never use sharp objects (screwdrivers) for leverage.

Boards with electrostatic sensitive devices (ESD) are identifiable by the
label shown.

When you handle boards fitted with ESDs, you must, under all
circumstances, observe the following points:

• You must always discharge static build up (e. g. by touching a

grounded object) before working.

• The equipment and tools you use must be free of static charges.

• Remove the power plug from the mains supply before inserting o

removing boards containing ESDs.

• Always hold boards with ESDs by their edges.

• Never touch pins or conductors on boards fitted with ESDs.

2 - English A26361-D1236-Z120-2-7419

Features

Features

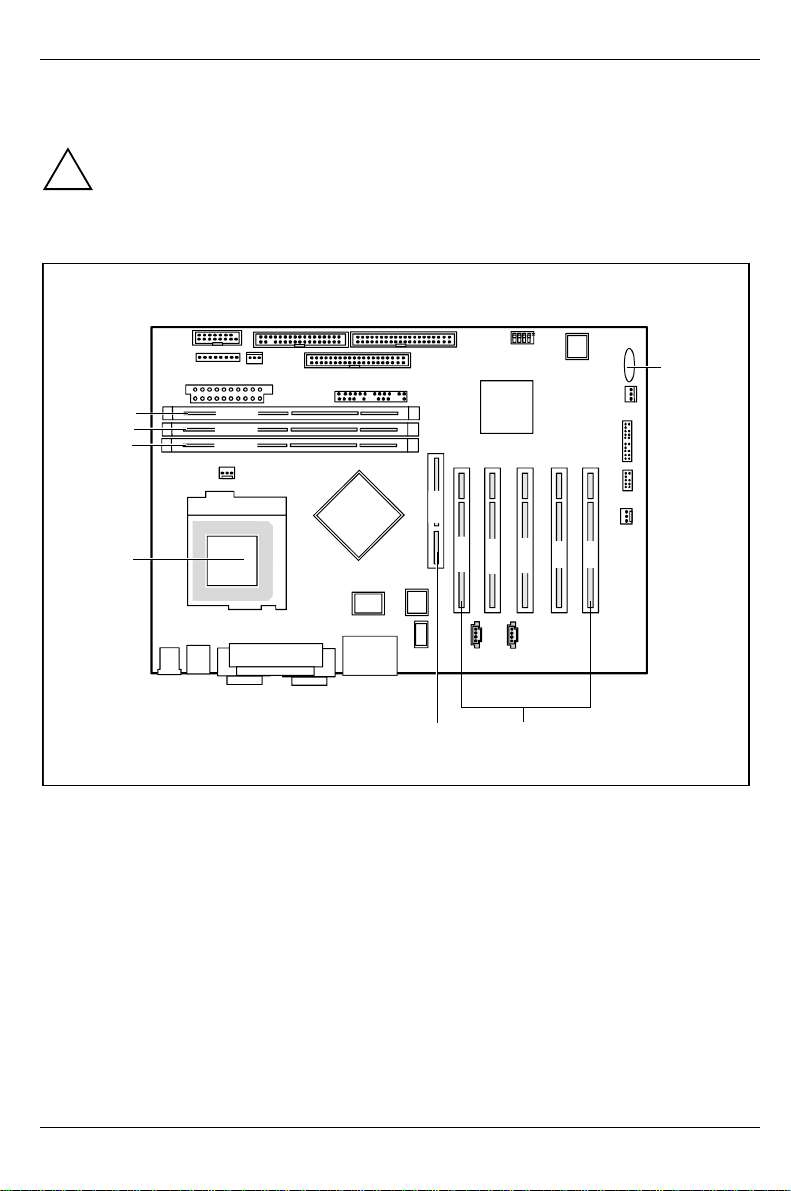

The components and connectors marked are not necessarily present on the system board.

• System board in µ-ATX format

• FC-PGA 370 Celeron processor with 66 MHz Front Side Bus for PGA 370 socket and

Pentium III with 100 / 133 MHz Front Side Bus for PGA 370 socket.

Celeron and Pentium III processors support MMX technology and Intel Streaming SIMD Extensions.
The size and frequency of first-level cache and second-level cache are dependent upon the
processor used.

• VIA Apollo Pro266

• Intel 82550-EY or 82559 LAN controller (10/100 Mbit/s) with RJ45 interface

WOL with Magic Packetä is supported, as is booting from LAN with Bootix LAN BootP or Intel
PXE.

• Analogue Devices AD1885 (AC'97) Audio Codec

internal: Stereo CD-In, Stereo AUX-In
external: Mono Micro-In, Stereo Line-In, Stereo Line-Out

• Game/Midi port

• 3 DIMM slots for up to 3 GB main memory (DDR-DRAM memory modules meet the

PC200/PC266 specification) with ECC

• Flash BIOS

• Fujitsu Siemens system monitoring and temperature monitoring

• Energy saving functions:

− APM and ACPI (requires an operating system that supports ACPI)

− Switching on/off, standby mode, suspend mode via on/off switch

− Switching on/off via software

− Wake on RTC

− Wake on LAN

− Wake on PCI Cards

− Wake on USB

• Security functions:

− Chipcard reader interface (SmartCard reader)

− Processor serial number

− Cover monitoring: cover monitoring reports when the cover has been opened without

authorisation.

− System, Setup and Keyboard password

− parallel and serial ports can be deactivated

− Floppy disk write-protection

− Boot hard disk virus warning function

− Flash BIOS and EEPROMs (on the memory modules) virus protection function.

A26361-D1236-Z120-2-7419 English - 3

Features

• 5 PCI slots

PCI slots support 3.3 V main and auxiliary voltages.

• 1 AGP slot

The AGP slot supports 1x, 2x and 4x AGP mode. The voltage is detected and configured
automatically.

• IDE hard disk controller connected to PCI bus for up to four IDE drives

(e.g. IDE hard disk drives, ATAPI CD-ROM drives)
The IDE hard disk controller are ATA33/66/100, ultra DMA capable and support PIO modes 0-

4.

• Floppy disk drive controller (possible formats: 720 KB, 1.44 MB, 2.88 MB)

• The system board supports booting from a 120 MB IDE floppy disk drive.

• 1 external parallel port (ECP- and EPP-compatible)

• 1 external serial port (16C550 compatible with FIFO)

• 1 external serial port (16C550 compatible with FIFO)

• 1 internal chipcard reader interface (SmartCard reader). This port does not support Wake-On-

Ring.
This interface can also be used as a second serial port (16C550 compatible with FIFO).

• 1 internal WOL interface

• 2 external PS/2 ports for keyboard and mouse

• 2 external USB ports

• USB ports D, E, F (internal)

• Real-time clock/calendar with integrated battery backup

4 - English A26361-D1236-Z120-2-7419

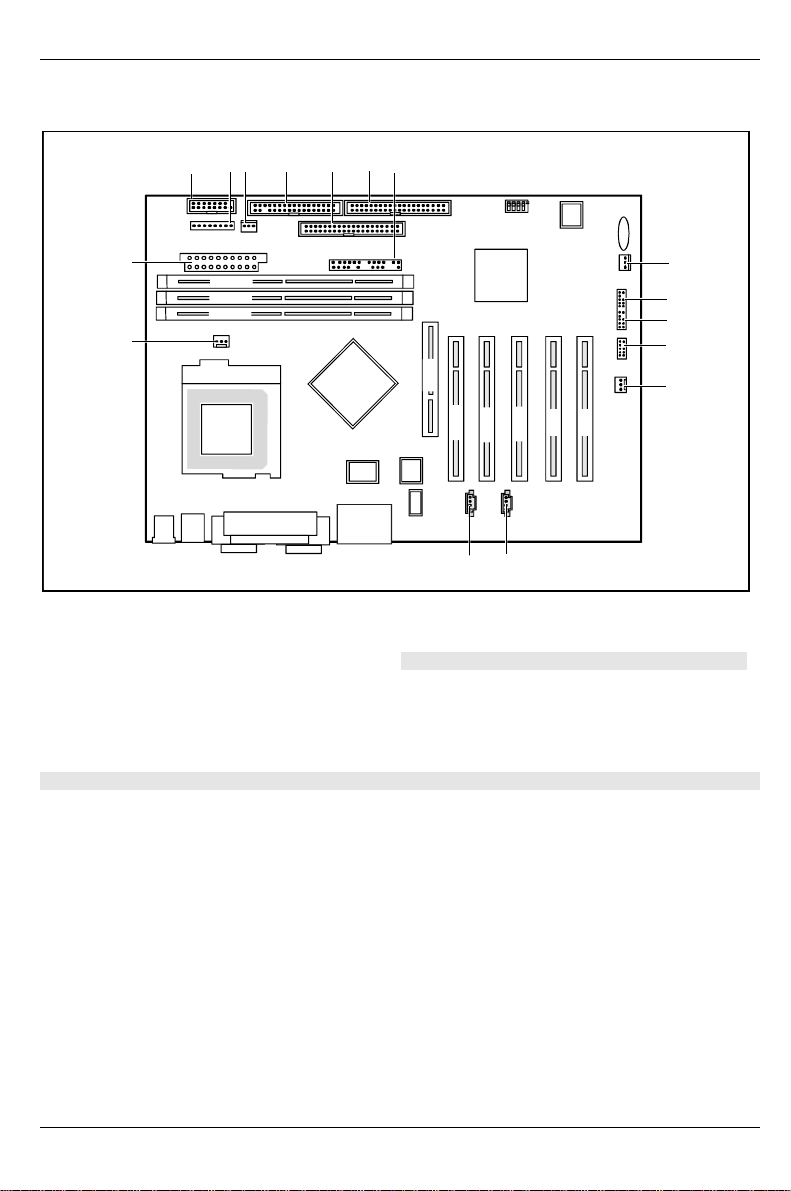

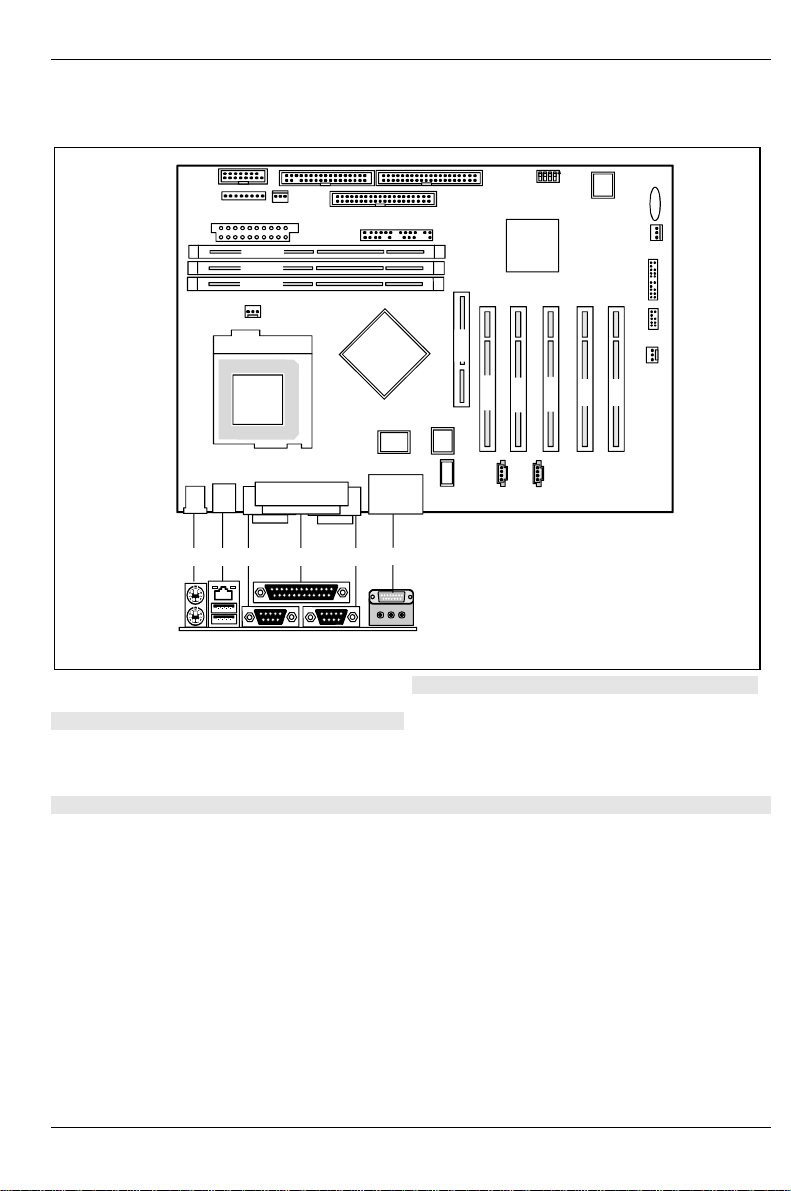

Interfaces and connectors

r

DIMM3
DIMM2
DIMM 1

Features

AGP

PCI 4

PCI 1

PCI 3

PCI 2

PCI 5

5 6 7

2314

1 = PS/2 mouse port
2 = PS/2 keyboard port
3 = LAN connecto
4 = USB ports 1 and 2
5 = Serial port 1

8

9a 9c9b

7 = Serial port 2
8 = Game/Midi port
9a = Audio Line-Out
9b = Audio Line-In
9c = Audio Micro-In

6 = Parallel port
The components and connectors marked are not necessarily present on the system board.

A26361-D1236-Z120-2-7419 English - 5

Features

r

1

34

2

67

5

16

DIMM 3
DIMM 2
DIMM1

15

AGP

PCI 4

PCI 1

PCI 3

PCI 2

PCI 5

1314

1 = Chipcard reader interface or serial port 2
2 = Power supply monitoring
3 = Cover monitoring
4 = Floppy disk drive
5 = IDE drives 3 and 4 (secondary)
6 = IDE drives 1 and 2 (primary)
7 = Connector for control panel and

loudspeake

9 = USB port F
10 = USB port E
11 = USB port D
12 = Fan 2 (e. g. for the processor)
13 = CD audio input
14 = AUX audio input
15 = Fan 1 (e. g. for the processor)
16 = Power supply

8 = Wake On LAN
The components and connectors marked are not necessarily present on the system board.

8

9
10
11

12

6 - English A26361-D1236-Z120-2-7419

Features

Temperature / System monitoring

Temperature and system monitoring aim to reliably protect the computer hardware against damage
caused by overheating. In addition, any unnecessary noise is also prevented by reducing the fan
speed, and information is provided about the system status. Cover monitoring protects the system
from unauthorised opening.

An onboard controller developed by Fujitsu Siemens Computers controls the temperature and
system monitoring.

The following functions are supported:

Temperature monitoring:

Measurement of the processor temperature, measurement of the system temperature with an
onboard temperature sensor, measurement of the device temperature with an optional temperature
sensor (AUX).

Temperature control:

The temperature is controlled by adjusting the fan speed and/or by reducing the clock frequency of
the processor. The clock frequency of the processor is dependent upon the setting in the BIOS Setup.
Temperature-dependent processor speed control enables a reduced fan speed, decreasing noise.

Fan monitoring:

Fans which have been removed, blocked or sticky fans are detected and blocked or sticky fans are
operated with 12 V pulse voltage. If the device has a monitored fan removed while the system is
switched off this is indicated by the message LED when the system is switched on again and
processed by the BIOS or the application.

Fan control:

With the exception of the auxiliary fan (AUX), the fans are regulated according to temperature.

Sensor monitoring:

The removal of, or a fault in, a temperature sensor is detected. Should this happen all fans
monitored by this sensor run at maximum speed, to achieve the greatest possible protection of the
hardware. If the device has a monitored fan removed while the system is switched off this is
indicated by the message LED when the system is switched on again and processed by the BIOS or
the application.

Cover monitoring:

Unauthorised opening of the cover is detected, even when the system is switched off. However, this
will not be indicated until the system is operating again.

A26361-D1236-Z120-2-7419 English - 7

Features

Voltage monitoring:

The voltages 12 V, 5 V and the CMOS battery are monitored.
With hardware monitoring - regardless of the operating system and processor - the advantages

compared to conventional software monitoring are clear:

− suitable for all operating systems and processor types

− no additional load on processor (performance)

− optimum temperature protection, even if process faults or faults are present in the

operating system

− optimum noise reduction

Three different operating modes are available and can be configured in BIOS Setup - System
Management.

Hard disk connection

An ultra ATA/66 or ultra ATA/100 hard disk must be connected with a cable especially designed for
the ultra ATA/66or ultra ATA/100 mode.

Ê Connectthe end of the cable marked with blue to the system board.

LAN connector

This system board has an optional Intel 82550-EY or 82559 LAN controller which supports transfer
speeds of 10 Mbit/s and 100 Mbit/s. The LAN controller is equipped with a 3 Kbyte transmission and
receiving buffer (FIFO) and supports WOL function through Magic Packetä.

Remote boot via LAN is supported with Bootix LAN BootP and Intel PXE are supported.
The LAN RJ45 connector is equipped with a yellow and a green LED (light emitting diode).

1 = Yellow indicator

12

2 = Green indicator

Green a connection exists (e. g. to a hub).
Yellow Link Mode: theLAN connection is active.

WOL mode: a Magic Packet

8 - English A26361-D1236-Z120-2-7419

TM

is being received.

Settings with switches and jumpers

Settings with switches and jumpers

DIMM 3
DIMM 2
DIMM 1

AGP

PCI 1

PCI 2

234

1

ON

PCI 4

PCI 3

PCI 5

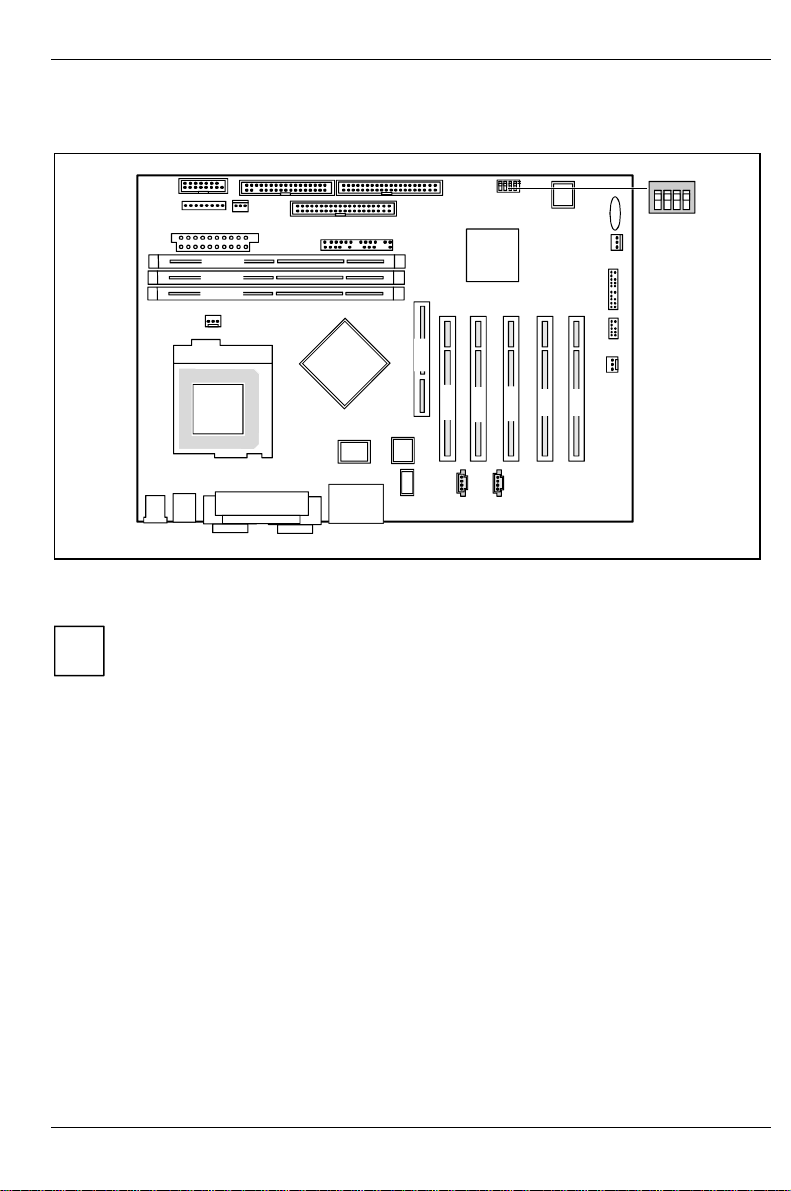

Switch 1 = must be set to off
Switch 2 = System BIOS recovery

Switch 3 = Write-protection for floppy disk
Switch 4 = must be set to off

The clock frequency of the processor is set automatically.

i

Recovering System BIOS - switch 2

Switch 2 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Diskette (please call our customer service centre).

On The System BIOS executes from floppy drive A: and the inserted "Flash-BIOS-

Off Normal operation (default setting).

Write protection for floppy disks - switch 3

Switch 3 is used to define whether floppy disks can be written or deleted in the floppy disk drive. To
write and delete floppy disks, the write-protection in BIOS Setup must be disabled (in menu Security,
the field Diskette Write must be set to Enabled).

On The floppy disk drive is write-protected.
Off Floppy disks can be read, written and deleted (default setting).

A26361-D1236-Z120-2-7419 English - 9

Diskette" restores the System BIOS on the system board.

Add-on modules

Add-on modules

Exit Suspend mode, switch off the device and remove the power plug from the mains
supply, before carrying out any of the procedures described in this chapter!

!

Even when you have switched off the device, parts (e. g. memory modules, AGP and PCI
extension boards) are still supplied with power.
All AGP and PCI slots support 3.3 V main and auxiliary voltages.

5

4
3
2

DIMM 3
DIMM 2

DIMM 1

1

1 = Socket for processor with heat sink
2 = Location bank 1 for main memory
3 = Location bank 2 for main memory
4 = Location bank 3 for main memory

AGP

PCI 1

7

PCI 3

PCI 2

6

5 = Lithium battery
6 = PCI slots 1, 2, 3, 4, 5
7 = AGP slot

PCI 4

PCI 5

10 - English A26361-D1236-Z120-2-7419

Add-on modules

Installing and removing processors

2

2

3

3

1

1

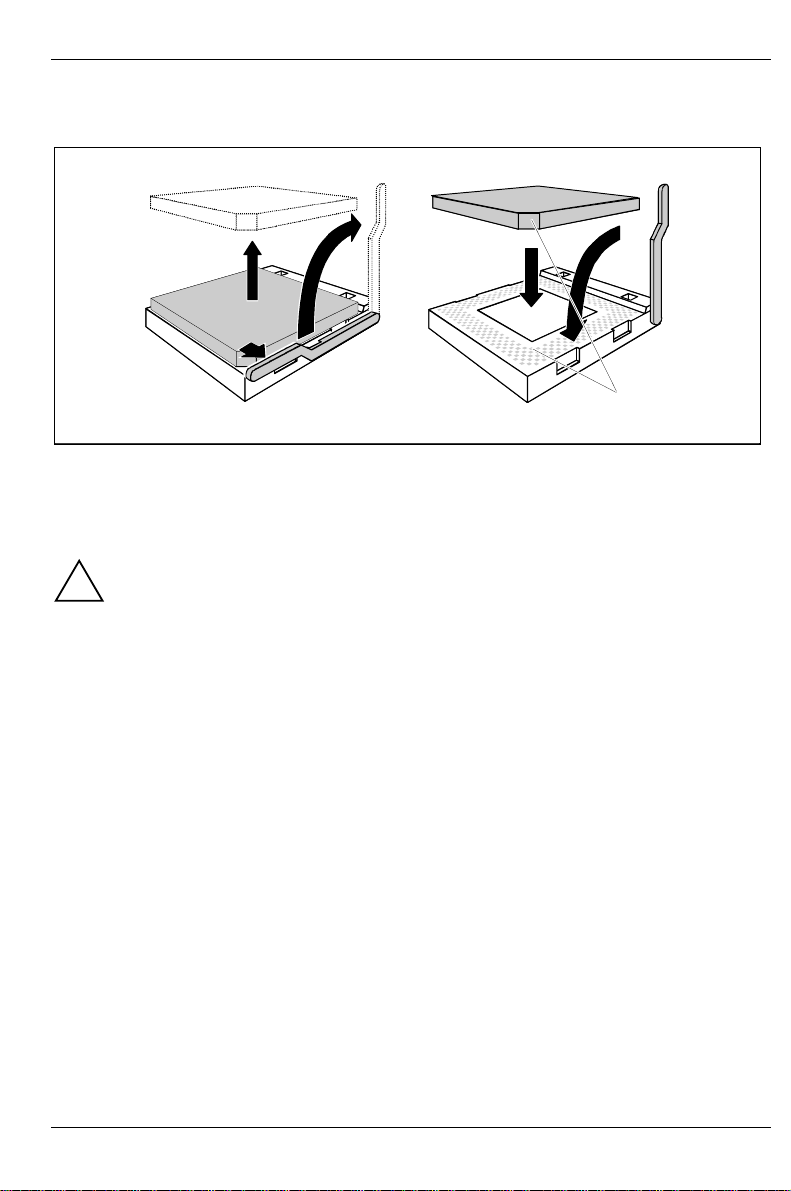

Ê Pullthe lever in the direction of the arrow (1) and lift it as far as it will go (2).
Ê Removethe old processor from the socket (3).
Ê Insertthe new processor in the socket so that the angled corner of the processor matches the

coding on the socket (A) with regard to the position (4).

The angled corner of the processor may be covered by the heat sink. In this case let
yourself be guided by the marking in the rows of pins on the underside of the processor.

!

4

4

5

5

A

A

Ê Pushthe lever back down until it clicks into place (5).

A26361-D1236-Z120-2-7419 English - 11

Add-on modules

Upgrading main memory

These slots are suitable for DIMM format 64, 128, 256, 512 MB and 1 GB DDR-DRAM memory
modules.

Memory modules with different memory capacities can be combined.

You may only use unbuffered 2.5V memory modules. Buffered memory modules are not
supported.

!

DDR-DRAM memory modules must meet the PC200/PC266 specification.

Installing a memory module

2

2

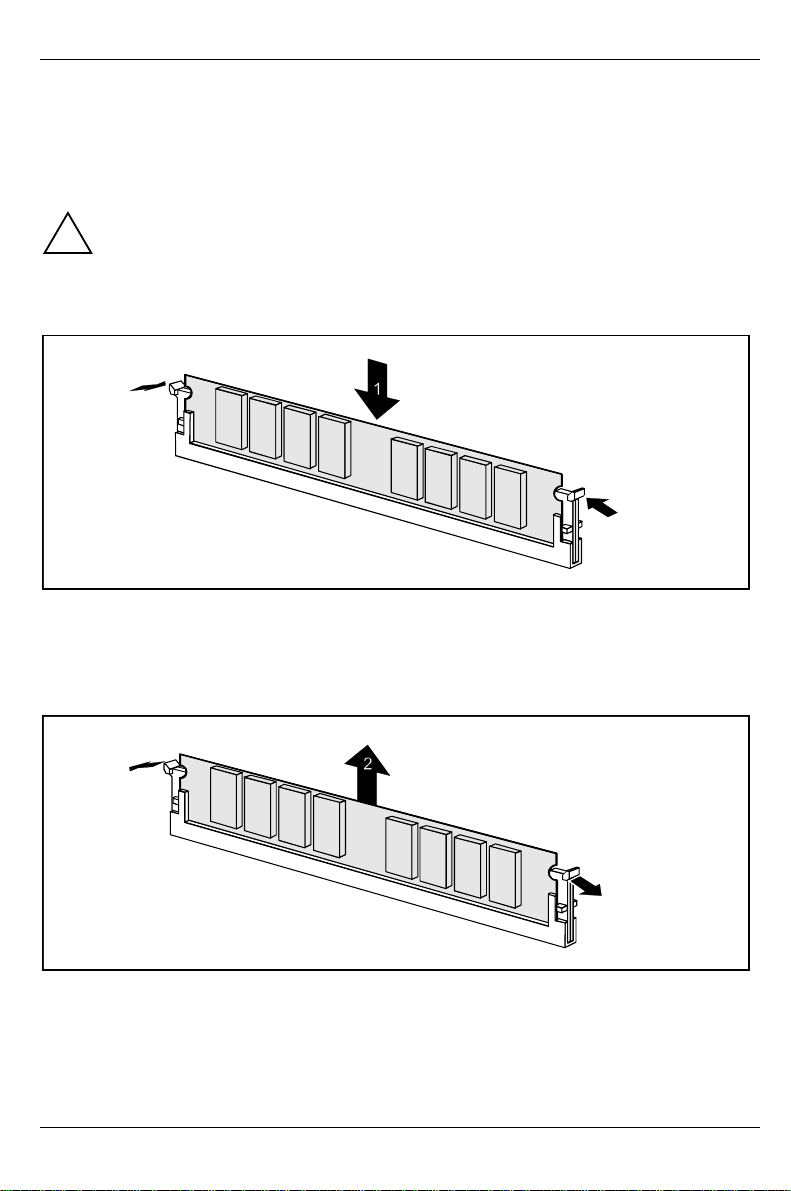

Ê Pushthe holders on each side of the memory compartment outwards.
Ê Insertthe memory module into the location (1), ensuring that it is in the correct orientation.
Ê Atthe same time flip the lateral holders upwards until the memory module snaps in place (2).

Removing a memory module

1

1

Ê Pushthe clips on the right and left of the compartment outward (1).
Ê Carefullyremove the memory module from the compartment (2).

12 - English A26361-D1236-Z120-2-7419

Installing network board with WOL

Ê Installthe network board as described in the operating manual for your unit.
Ê Pushthe WOL cable onto the WOL plug connector of the system board.

To use the WOL functionality of a network board the power supply must provide a
5 V auxiliary voltage of at least 1 A. If the system board was not already

i

incorporated in a device when you bought it you must check whether your power
supply can provide the auxiliary voltage.

You may find further information in the supplied description of the network board.

Add-on modules

A26361-D1236-Z120-2-7419 English - 13

Add-on modules

Replacing the lithium battery

Incorrect replacement of the lithium battery may lead to a risk of explosion.

!

The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer (CR2032).

Do not throw lithium batteries into the household waste. They must be disposed of in
accordance with local regulations concerning special waste.

Ensure that you insert the battery the right way round. The plus pole must be on the top!

• VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan
laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden
mukaisesti.

• VARNING

Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent
typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt
fabrikantens instruktion.

• ADVARSEL

Lithiumbatteri - Explosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med
batteri af samme fabrikat og type. Lever det brugte batteri tilbage til leverandøren.

• ADVARSEL

Explosionsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en
tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold
til fabrikantens instruksjoner.

The following graphic representation is also valid if the lithium battery is built-in vertically.

1

+

+

2

+

3

+

Ê Liftthe contact (1) a few millimetres and remove the battery from its socket (2).
Ê Inserta new lithium battery of the same type into the socket (3).

14 - English A26361-D1236-Z120-2-7419

Glossary

Glossary

The technical terms and abbreviations given below represent only a selection of the full list of
common technical terms and abbreviations.
Not all technical terms and abbreviations listed here are valid for the described system board.

ACPI Advanced Configuration and

Power Management Interface
AC'97 Audio Codec '97 ISA Industrial Standard Architecture
AGP Accelerated Graphics Port LAN Local Area Network
AMR Audio Modem Riser LSA LAN Desk Service Agent
AOL Alert On LAN MCH Memory Controller Hub
APM Advanced Power Management MMX MultiMedia eXtension
ATA Advanced Technology

Attachment
BIOS Basic Input Output System P64H PCI64 Hub
CAN Controller Area Network PCI Peripheral Component

CPU Central Processing Unit PXE Preboot eXecution Environment
CNR Communication Network Riser RAM Random Access Memory
C-RIMM Continuity Rambus Inline

Memory Module
DDR Double Data Rate RDRAM Rambus Dynamic Random

DIMM Dual Inline Memory Module RIMM Rambus Inline Memory Module
DRAM Dynamic Random Access

Memory
ECC Error Correcting Code SB Soundblaster
EEPROM Electrical Erasable

Programmable Read Only

Memory
FDC Floppy Disk Controller SGRAM Synchronous Graphic Random

FIFO First-In First-Out SIMD Streaming Mode Instruction
FSB Front Side Bus SMBus System Management Bus

FWH Firmware Hub SVGA Super Video Graphic Adapter
GMCH Graphics and Memory Controller

Hub
GPA Graphics Performance

Accelerator
I2C Inter Integrated Circuit WOL Wake On LAN
IAPC Instantly Available Power

Managed Desktop PC Design
ICH I/O Controller Hub
IDE Intelligent Drive Electronics

IPSEC Internet Protocol Security

NIC Networking Interface Card

Interconnect

RAMDAC Random Access Memory Digital

Analogue Converter
Access Memory

RTC Real Time Clock

SDRAM Synchronous Dynamic Random

Access Memory

Access Memory
(Single Instruction Multiple Data)

USB Universal Serial Bus
VGA Video Graphic Adapter

A26361-D1236-Z120-2-7419 English - 15
