Page 1
TECHNISCHES HANDBUCH
TECHNISCHES HANDBUCH
TECHNISCHES HANDBUCHTECHNISCHES HANDBUCH
TECHNICAL MANUAL
TECHNICAL MANUAL
TECHNICAL MANUALTECHNICAL MANUAL
SYSTEMBAUGRUPPE D1235
SYSTEMBAUGRUPPE D1235
SYSTEMBAUGRUPPE D1235SYSTEMBAUGRUPPE D1235
SYSTEM BOARD D1235
SYSTEM BOARD D1235
SYSTEM BOARD D1235SYSTEM BOARD D1235
Page 2
Sie haben ...
r
r
r
r
... technische Fragen oder Probleme?
Wenden Sie sich bitte an:
• unsere Hotline:
Mo-Fr: 9 - 18 Uh
Sa: 9 - 14 Uh
Tel.: ++49 (0) 180 3777 000
• Ihren zuständigen Vertriebspartne
• Ihre Verkaufsstelle
Weitere Informationen finden Sie im Handbuch "Sicherheit, Garantie und Ergonomie".
Aktuelle Informationen zu unseren Produkten, Tipps, Updates usw. finden Sie im Internet:
http://www.fujitsu-siemens.com
Are there ...
... any technical problems or other questions you need clarified?
Please contact:
• your sales partne
• your sales outlet
You will find further information in the manual "Safety, Warranty and Ergonomics".
The latest information on our products, tips, updates, etc., can be found on the Internet under:
http://www.fujitsu-siemens.com
Page 3
Page 4
Dieses Handbuch wurde auf Recycling-Papier gedruckt.
This manual has been printed on recycled paper.
Ce manuel est imprimé sur du papier recyclé.
Este manual ha sido impreso sobre papel reciclado.
Questo manuale è stato stampato su carta da riciclaggio.
Denna handbok är tryckt på recyclingpapper.
Dit handboek werd op recycling-papier gedrukt.
Herausgegeben von/Published by
Fujitsu Siemens Computers GmbH
A26361-D1235-Z120-1-7419
Bestell-Nr./Order No.:
Printed in the Federal Republic of Germany
AG 0101 01/01
A26361-D1235-Z120-1-7419
A26361-D1235-Z120-1-7419
A26361-D1235-Z120-1-7419A26361-D1235-Z120-1-7419
Page 5
Systembaugruppe
D1235
System Board D1235
Technisches Handbuch
Technical Manual
Deutsch
English
Ausgabe Januar 2001
January 2001 edition
Page 6
Intel, Pentium und Celeron sind eingetragene der Intel Corporation, USA.
Microsoft, MS, MS-DOS und Windows sind eingetragene Warenzeichen der Microsoft
Corporation.
PS/2 und OS/2 Warp sind eingetragene Warenzeichen von International Business Machines,
Inc.
Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen
der jeweiligen Inhaber und werden als geschützt anerkannt.
Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetzung, des
Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
Zuwiderhandlungen verpflichten zu Schadenersatz.
Alle Rechte vorbehalten, insbesondere für den Fall der Patenterteilung oder GM-Eintragung.
Liefermöglichkeiten und technische Änderungen vorbehalten.
Dieses Handbuch wurde erstellt von
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright ã Fujitsu Siemens Computers GmbH 2001
Intel, Pentium and Celeron are registered trademarks of Intel Corporation, USA.
Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation.
PS/2 and OS/2 Warp are registered trademarks of International Business Machines, Inc.
All other trademarks referenced are trademarks or registered trademarks of their respective
owners, whose protected rights are acknowledged.
All rights, including rights of translation, reproduction by printing, copying or similar methods,
even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved. Delivery subject to availability.
Right of technical modification reserved.
This manual was produced by
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Page 7
Contents
Introduction........................................................................................................................................ 1
Notational conventions ..............................................................................................................1
Important notes .................................................................................................................................1
Information about boards...........................................................................................................2
Features............................................................................................................................................3
Interfaces and connectors .........................................................................................................5
Hard disk connection.................................................................................................................6

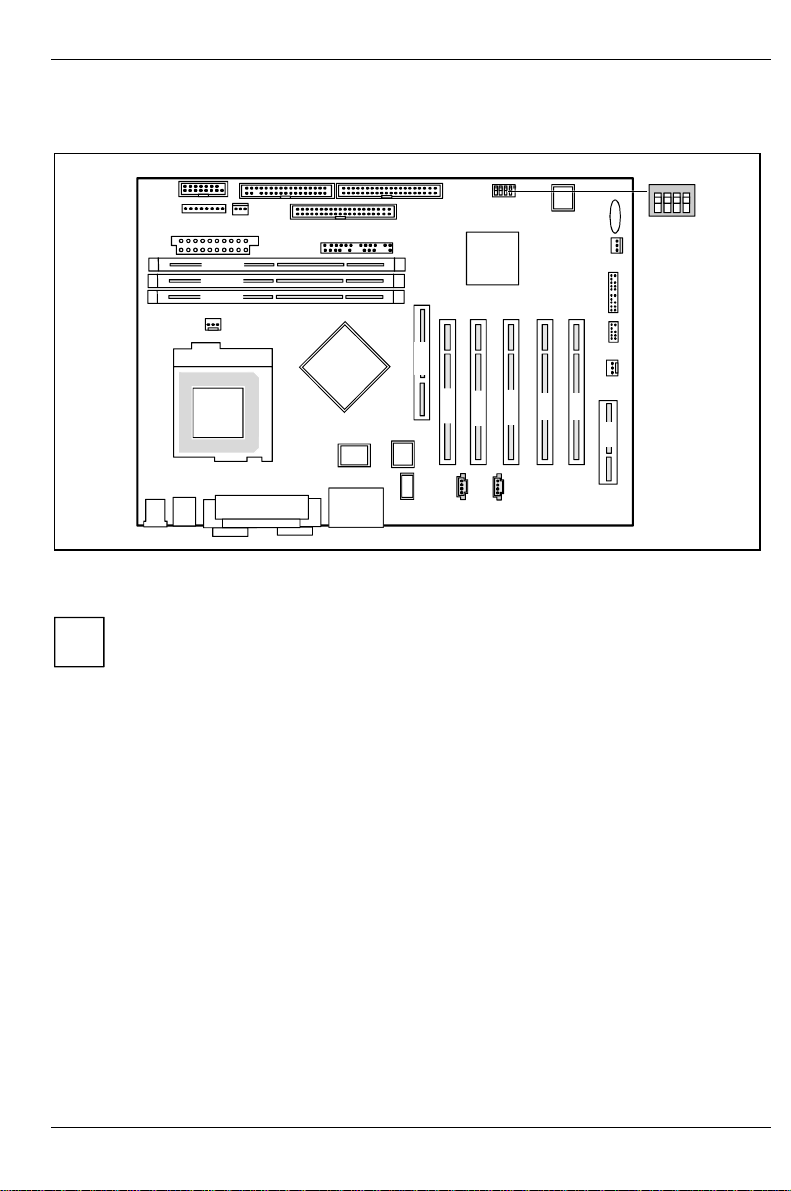

Settings with switches and jumpers...................................................................................................7
Recovering System BIOS - switch 2..........................................................................................7
Write protection for floppy disks - switch 3.................................................................................7
Add-on modules................................................................................................................................8

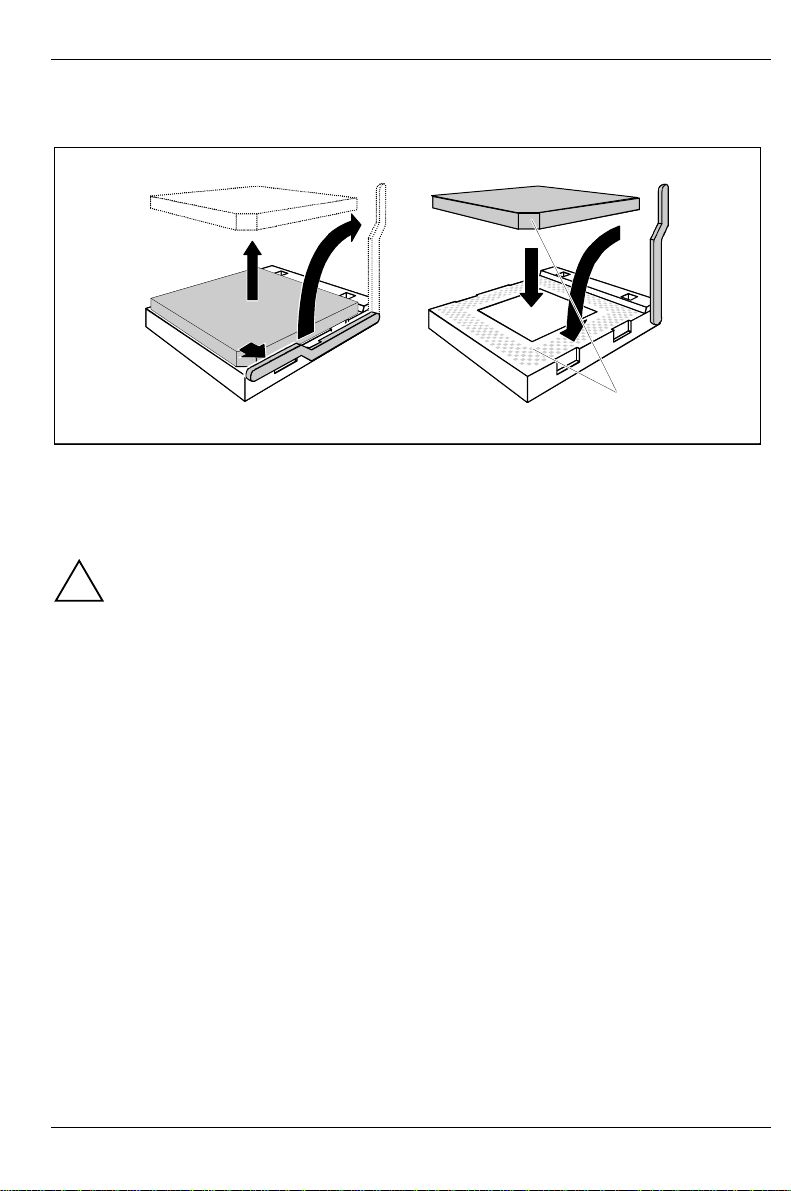

Installing and removing processors............................................................................................9

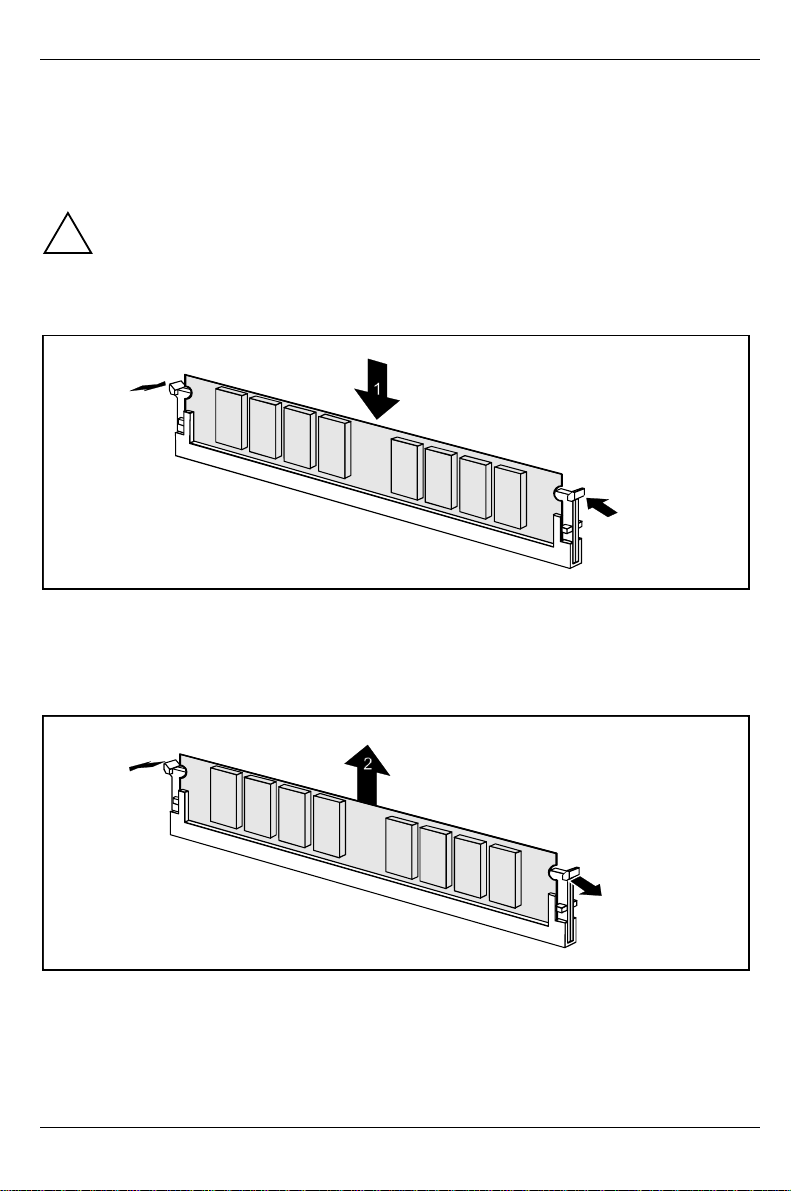

Upgrading main memory..........................................................................................................10
Installing network board with WOL...........................................................................................11

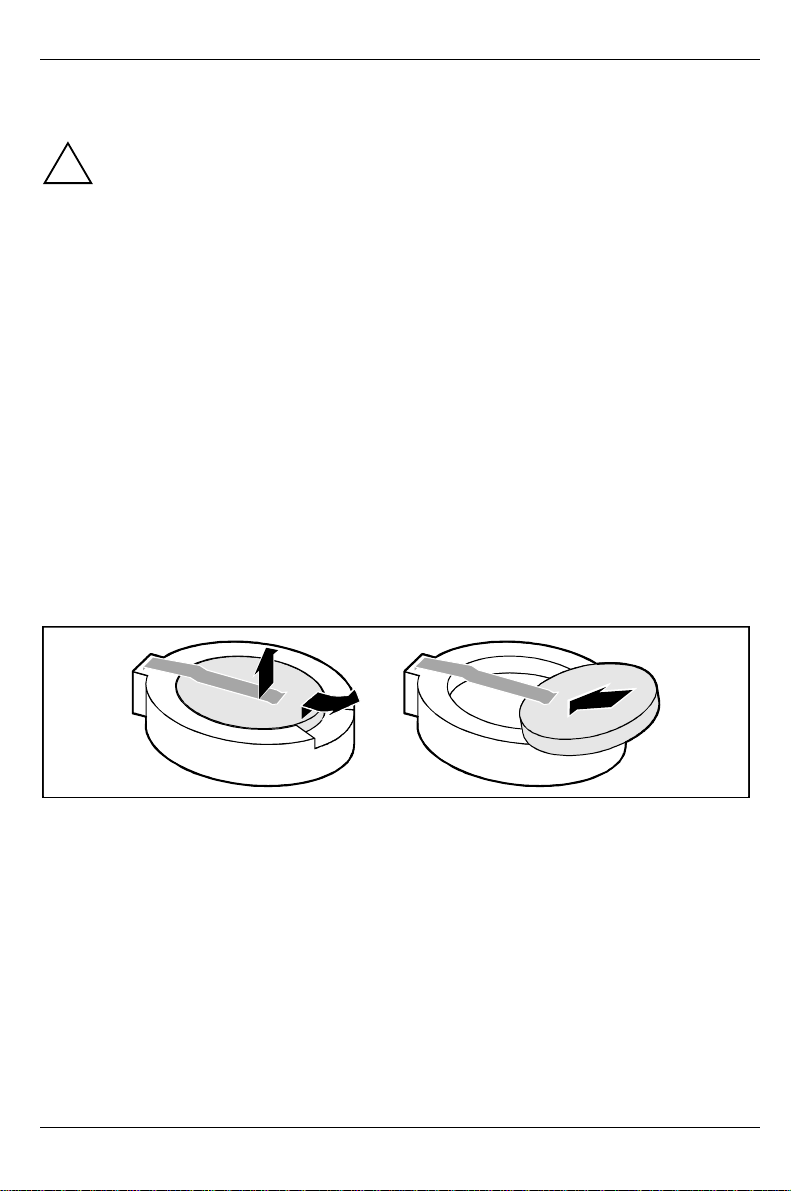

Replacing the lithium battery....................................................................................................12
Glossary..........................................................................................................................................13
A26361-D1235-Z120-2-7419
Page 8
Page 9
Introduction
w
Depending on the configuration chosen, some of the hardware components described
may not be available on your system board.
i
You will find further information in the "BIOS Setup" description.
Further information about drivers is provided in the readme files on the hard disk, on the supplied
drivers diskettes, on the "Drivers & Utilities" or on the "ServerStart" CD.
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, destroys the device, or may lead to loss of data.
!
Supplementary information, remarks, and tips follow this symbol.
i
Ê Text which follows this symbol describes activities that must be performed in the order shown.
Ë This symbol indicates that you must enter a blank space (press the Space Bar) at this point.
Ú
Ú This symbol indicates that you must press the Enter key.
ÚÚ
Text in this typeface indicates screen outputs.
Text in this bold typeface indicates the entries you make via the keyboard.
Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters or terms.
Important notes
Store this manual close to the device. If you pass the device on to third parties, you should pass this
manual on with it.
Be sure to read this page carefully and note the information before you open the device.
!
You cannot access the system board components without first opening the device. Ho
to dismantle and reassemble the device is described in the Operating Manual
accompanying the device.
Please note the information provided in the "Safety" chapter in the device’s Operating
manual.
Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore
essential to observe the instructions in the "Add-on modules"-"Replacing the lithium
battery" section.
A26361-D1235-Z120-2-7419 English - 1
Page 10
Important notes
r
The shipped version of this board complies with the requirements of the EEC
directive 89/336/EEC "Electromagnetic compatibility".
Compliance was tested in a typical PC configuration.
When installing the board, refer to the specific installation information in the
Operating Manual or Technical Manual of the receiving device.
Connecting cables for peripherals must be adequately shielded to avoid interference.
Components can become very hot during operation. Ensure you do not touch
components when making extensions to the system board. There is a danger of burns!
!
The warranty is invalidated if the device is damaged during the installation or
replacement of system expansions. Information on which system expansions you can
i
use is available from your sales outlet or the customer service centre.
Information about boards
To prevent damage to the system board or the components and conductors on it, please take great
care when you insert or remove boards. Take great care to ensure that extension boards are slotted
in straight, without damaging components or conductors on the system board, or any other
components, for example EMI spring contacts.
Be especially careful with the locking mechanisms (catches, centring pins etc.) when you replace
the system board or components on it, for example memory modules or processors.
Never use sharp objects (screwdrivers) for leverage.
Boards with electrostatic sensitive devices (ESD) are identifiable by the
label shown.
When you handle boards fitted with ESDs, you must, under all
circumstances, observe the following points:
• You must always discharge static build up (e. g. by touching a
grounded object) before working.
• The equipment and tools you use must be free of static charges.
• Remove the power plug from the mains supply before inserting o
removing boards containing ESDs.
• Always hold boards with ESDs by their edges.
• Never touch pins or conductors on boards fitted with ESDs.
2 - English A26361-D1235-Z120-2-7419
Page 11
Features
Features
The components and connectors marked are not necessarily present on the system board.
• System board in ATX format
• FC-PGA 370 Celeron processor with 66 MHz Front Side Bus for PGA 370 socket and
Pentium III with 100 / 133 MHz Front Side Bus for PGA 370 socket.
Celeron and Pentium III processors support MMX technology and Intel Streaming SIMD Extensions.
The size and frequency of first-level cache and second-level cache are dependent upon the
processor used.
• VIA Apollo Pro266
• Analogue Devices AD1885 (AC'97) Audio Codec
internal: Stereo CD-In, Stereo AUX-In
external: Mono Micro-In, Stereo Line-In, Stereo Line-Out
• Game/Midi port
• 3 DIMM slots for up to 3 GB main memory (DDR-DRAM memory modules meet the
PC200/PC266 specification) with ECC
• Flash BIOS
• Energy saving functions:
− APM and ACPI (requires an operating system that supports ACPI)
− Switching on/off, standby mode, suspend mode via on/off switch
− Switching on/off via software
− Wake on RTC
− Wake on LAN
− Wake on PCI Cards
− Wake on USB
• Security functions:
− Chipcard reader interface (SmartCard reader)
− Processor serial number
− Cover monitoring: cover monitoring reports when the cover has been opened without
authorisation.
− System, Setup and Keyboard password
− parallel and serial ports can be deactivated
− Floppy disk write-protection
− Boot hard disk virus warning function
− Flash BIOS and EEPROMs (on the memory modules) virus protection function.
A26361-D1235-Z120-2-7419 English - 3
Page 12
Features
• 5 PCI slots
PCI slots support 3.3 V main and auxiliary voltages.
• 1 AGP slot
The AGP slot supports 1x, 2x and 4x AGP mode. The voltage is detected and configured
automatically.
• 1 CNR type B slot
• IDE hard disk controller connected to PCI bus for up to four IDE drives
(e.g. IDE hard disk drives, ATAPI CD-ROM drives)
The IDE hard disk controller are ATA33/66/100, ultra DMA capable and support PIO modes 0-
4.
• Floppy disk drive controller (possible formats: 720 KB, 1.44 MB, 2.88 MB)
• The system board supports booting from a 120 MB IDE floppy disk drive.
• 1 external parallel port (ECP- and EPP-compatible)
• 1 external serial port (16C550 compatible with FIFO)
• 1 external serial port (16C550 compatible with FIFO)
• 1 internal chipcard reader interface (SmartCard reader). This port does not support Wake-On-
Ring.
This interface can also be used as a second serial port (16C550 compatible with FIFO).
• 1 internal WOL interface
• 2 external PS/2 ports for keyboard and mouse
• 2 external USB ports
• USB ports D, E, F (internal)
• Real-time clock/calendar with integrated battery backup
4 - English A26361-D1235-Z120-2-7419
Page 13

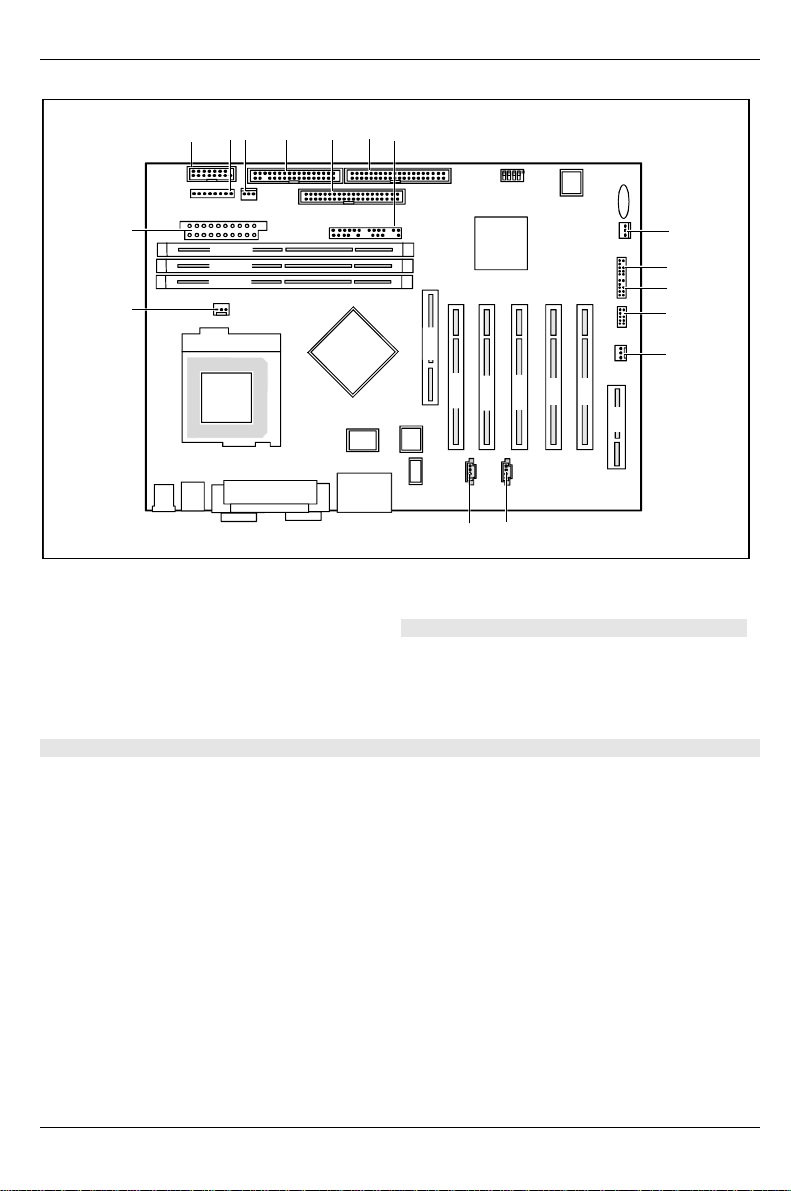

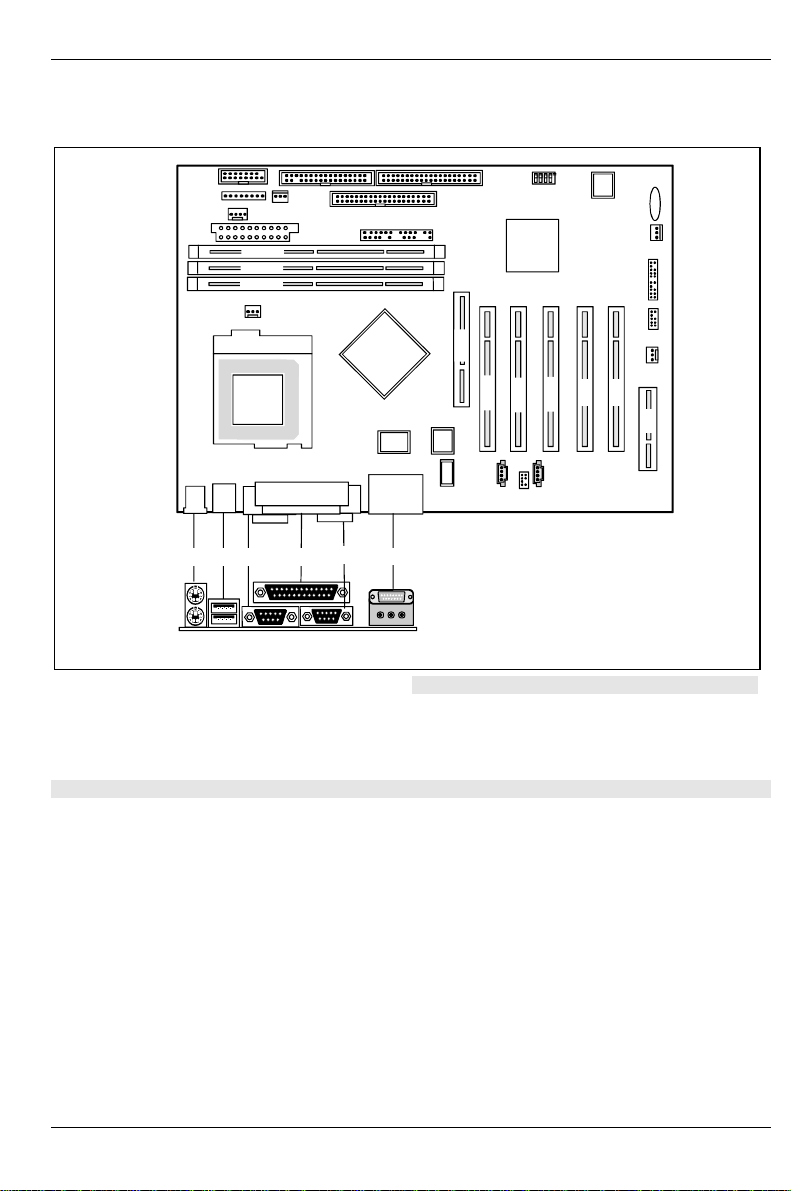

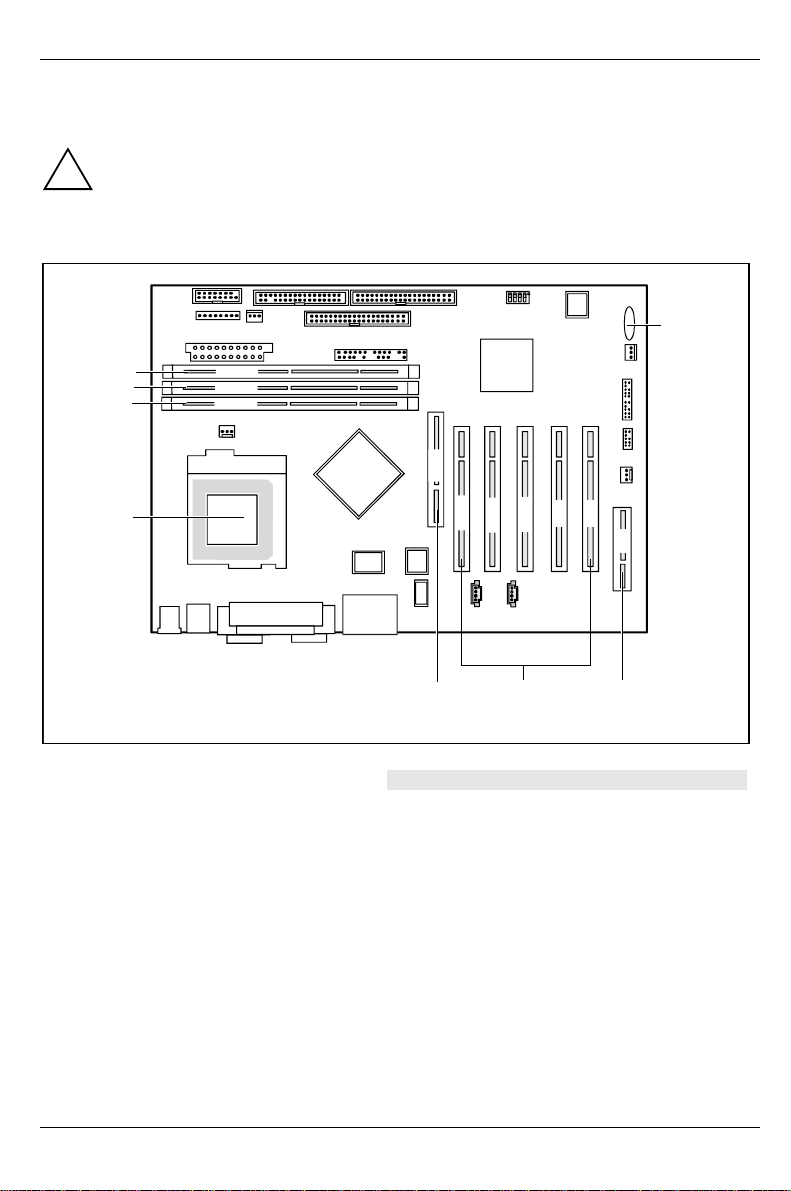

Interfaces and connectors
DIMM3
DIMM2
DIMM 1
31 4 5
Features
AGP
PCI 4
PCI 1
6
7
PCI 3
PCI 2
PCI 5
CNR
2
1 = PS/2 mouse port
2 = PS/2 keyboard port
3 = USB ports 1 and 2
4 = Serial port 1
5 = Parallel port
8a 8c8b
6 = Serial port 2
7 = Game/Midi port
8a = Audio Line-Out
8b = Audio Line-In
8c = Audio Micro-In
The components and connectors marked are not necessarily present on the system board.
A26361-D1235-Z120-2-7419 English - 5
Page 14
Features
r
1
34
2
67
5
16
15
DIMM 3
DIMM 2
DIMM1
AGP
PCI 4
PCI 1
PCI 3
PCI 2
PCI 5
8
9
10
11
12
CNR
1314
1 = Chipcard reader interface or serial port 2
2 = Power supply monitoring
3 = Cover monitoring
4 = Floppy disk drive
5 = IDE drives 3 and 4 (secondary)
6 = IDE drives 1 and 2 (primary)
7 = Connector for control panel and
loudspeake
9 = USB port F
10 = USB port E
11 = USB port D
12 = Fan 2 (e. g. for the processor)
13 = CD audio input
14 = AUX audio input
15 = Fan 1 (e. g. for the processor)
16 = Power supply
8 = Wake On LAN
The components and connectors marked are not necessarily present on the system board.
Hard disk connection
An ultra ATA/66 or ultra ATA/100 hard disk must be connected with a cable especially designed for
the ultra ATA/66or ultra ATA/100 mode.
Ê Connectthe end of the cable marked with blue to the system board.
6 - English A26361-D1235-Z120-2-7419
Page 15
Settings with switches and jumpers
Settings with switches and jumpers
DIMM3
DIMM 2
DIMM 1
AGP
PCI 1
PCI 2
234
1
ON
PCI 4
PCI 3
PCI 5
CNR
Switch 1 = must be set to off
Switch 2 = System BIOS recovery
Switch 3 = Write-protection for floppy disk
Switch 4 = must be set to off
The clock frequency of the processor is set automatically.
i
Recovering System BIOS - switch 2
Switch 2 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Diskette (please call our customer service centre).
On The System BIOS executes from floppy drive A: and the inserted "Flash-BIOS-
Off Normal operation (default setting).
Write protection for floppy disks - switch 3
Switch 3 is used to define whether floppy disks can be written or deleted in the floppy disk drive. To
write and delete floppy disks, the write-protection in BIOS Setup must be disabled (in menu Security,
the field Diskette Write must be set to Enabled).
On The floppy disk drive is write-protected.
Off Floppy disks can be read, written and deleted (default setting).
A26361-D1235-Z120-2-7419 English - 7
Diskette" restores the System BIOS on the system board.
Page 16
Add-on modules
Add-on modules
Exit Suspend mode, switch off the device and remove the power plug from the mains
supply, before carrying out any of the procedures described in this chapter!
!
Even when you have switched off the device, parts (e. g. memory modules, AGP and PCI
extension boards) are still supplied with power.
All AGP and PCI slots support 3.3 V main and auxiliary voltages.
5
4
3
2
DIMM3
DIMM 2
DIMM 1
1
1 = Slot for processor with heat sink
2 = Location bank 1 for main memory
3 = Location bank 2 for main memory
4 = Location bank 3 for main memory
AGP
PCI 1
8
PCI 3
PCI 2
7
5 = Lithium battery
6 = CNR type B slot
7 = PCI slots 1, 2, 3, 4, 5
8 = AGP slot
PCI 4
PCI 5
CNR
6
8 - English A26361-D1235-Z120-2-7419
Page 17
Add-on modules
Installing and removing processors
2
2
3
3
1
1
Ê Pullthe lever in the direction of the arrow (1) and lift it as far as it will go (2).
Ê Removethe old processor from the socket (3).
Ê Insertthe new processor in the socket so that the angled corner of the processor matches the
coding on the socket (A) with regard to the position (4).
The angled corner of the processor may be covered by the heat sink. In this case let
yourself be guided by the marking in the rows of pins on the underside of the processor.
!
4
4
5
5
A
A
Ê Pushthe lever back down until it clicks into place (5).
A26361-D1235-Z120-2-7419 English - 9
Page 18
Add-on modules
Upgrading main memory
These slots are suitable for DIMM format 64, 128, 256, 512 MB and 1 GB DDR-DRAM memory
modules.
Memory modules with different memory capacities can be combined.
You may only use unbuffered 2.5V memory modules. Buffered memory modules are not
supported.
!
DDR-DRAM memory modules must meet the PC200/PC266 specification.
Installing a memory module
2
2
Ê Pushthe holders on each side of the memory compartment outwards.
Ê Insertthe memory module into the location (1), ensuring that it is in the correct orientation.
Ê Atthe same time flip the lateral holders upwards until the memory module snaps in place (2).
Removing a memory module
1
1
Ê Pushthe clips on the right and left of the compartment outward (1).
Ê Carefullyremove the memory module from the compartment (2).
10 - English A26361-D1235-Z120-2-7419
Page 19
Installing network board with WOL
Ê Installthe network board as described in the operating manual for your unit.
Ê Pushthe WOL cable onto the WOL plug connector of the system board.
To use the WOL functionality of a network board the power supply must provide a
5 V auxiliary voltage of at least 1 A. If the system board was not already
i
incorporated in a device when you bought it you must check whether your power
supply can provide the auxiliary voltage.
You may find further information in the supplied description of the network board.
Add-on modules
A26361-D1235-Z120-2-7419 English - 11
Page 20
Add-on modules
Replacing the lithium battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
!
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer (CR2032).
Do not throw lithium batteries into the household waste. They must be disposed of in
accordance with local regulations concerning special waste.
Ensure that you insert the battery the right way round. The plus pole must be on the top!
• VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan
laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden
mukaisesti.
• VARNING
Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent
typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt
fabrikantens instruktion.
• ADVARSEL
Lithiumbatteri - Explosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med
batteri af samme fabrikat og type. Lever det brugte batteri tilbage til leverandøren.
• ADVARSEL
Explosionsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en
tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold
til fabrikantens instruksjoner.
The following graphic representation is also valid if the lithium battery is built-in vertically.
1
+
+
2
+
3
+
Ê Liftthe contact (1) a few millimetres and remove the battery from its socket (2).
Ê Inserta new lithium battery of the same type into the socket (3).
12 - English A26361-D1235-Z120-2-7419
Page 21
Glossary
Glossary
The technical terms and abbreviations given below represent only a selection of the full list of
common technical terms and abbreviations.
Not all technical terms and abbreviations listed here are valid for the described system board.
ACPI Advanced Configuration and
Power Management Interface
AC'97 Audio Codec '97 ISA Industrial Standard Architecture
AGP Accelerated Graphics Port LAN Local Area Network
AMR Audio Modem Riser LSA LAN Desk Service Agent
AOL Alert On LAN MCH Memory Controller Hub
APM Advanced Power Management MMX MultiMedia eXtension
ATA Advanced Technology
Attachment
BIOS Basic Input Output System P64H PCI64 Hub
CAN Controller Area Network PCI Peripheral Component
CPU Central Processing Unit PXE Preboot eXecution Environment
CNR Communication Network Riser RAM Random Access Memory
C-RIMM Continuity Rambus Inline
Memory Module
DDR Double Data Rate RDRAM Rambus Dynamic Random
DIMM Dual Inline Memory Module RIMM Rambus Inline Memory Module
DRAM Dynamic Random Access
Memory
ECC Error Correcting Code SB Soundblaster
EEPROM Electrical Erasable
Programmable Read Only
Memory
FDC Floppy Disk Controller SGRAM Synchronous Graphic Random
FIFO First-In First-Out SIMD Streaming Mode Instruction
FSB Front Side Bus SMBus System Management Bus
FWH Firmware Hub SVGA Super Video Graphic Adapter
GMCH Graphics and Memory Controller
Hub
GPA Graphics Performance
Accelerator
I2C Inter Integrated Circuit WOL Wake On LAN
IAPC Instantly Available Power
Managed Desktop PC Design
ICH I/O Controller Hub
IDE Intelligent Drive Electronics
IPSEC Internet Protocol Security
NIC Networking Interface Card
Interconnect
RAMDAC Random Access Memory Digital
Analogue Converter
Access Memory
RTC Real Time Clock
SDRAM Synchronous Dynamic Random
Access Memory
Access Memory
(Single Instruction Multiple Data)
USB Universal Serial Bus
VGA Video Graphic Adapter
A26361-D1235-Z120-2-7419 English - 13
Loading...
