Fujitsu-Siemens D1205 Technical Manual

TECHNISCHES HANDBUCH

TECHNICAL MANUAL

SYSTEMBAUGRUPPE D1205
SYSTEM BOARD D1205

Sie haben ...

r

r

r

r

... technische Fragen oder Probleme?
Wenden Sie sich bitte an:

· unsere Hotline:

Mo-Fr: 9 - 18 Uh
Sa: 9 - 14 Uh
Tel.: ++49 (0) 180 3777 000

· Ihren zuständigen Vertriebspartne

· Ihr Verkaufsstelle

Weitere Informationen finden Sie im Handbuch "Sicherheit, Ergonomie und Garantie".
Aktuelle Informationen zu unseren Produkten, Tipps, Updates usw. finden Sie im Internet:

http://www.fujitsu-siemens.com

Are there ...

... any technical problems or other questions you need clarified?
Please contact:

· your sales partne

· your sales outlet

You will find further information in the manual "Safety, Guarantee and Ergonomics".
The latest information on our products, tips, updates, etc., can be found on the Internet under:

http://www.fujitsu-siemens.com

Dieses Handbuch wurde auf Recycling-Papier gedruckt.
This manual has been printed on recycled paper.
Ce manuel est imprimé sur du papier recyclé.
Este manual ha sido impreso sobre papel reciclado.
Questo manuale è stato stampato su carta da riciclaggio.
Denna handbok är tryckt på recyclingpapper.
Dit handboek werd op recycling-papier gedrukt.

Bestell-Nr./Order No.:
Printed in the Federal Republic of Germany
AG 0800 08/00

A26361-D1205-Z120-1-7419

A26361-D1205-Z120-1-7419

Systembaugruppe
D1205
System board D1205

Technisches Handbuch
Technical Manual

Deutsch

English

Ausgabe August 2000
August 2000 edition

Copyright ã Fujitsu Siemens Computers GmbH 2000
Intel ist ein eingetragenes Warenzeichen der Intel Corporation, USA.
PS/2 ist ein eingetragenes Warenzeichen von International Business Machines, Inc.
Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen

der jeweiligen Inhaber und werden als geschützt anerkannt.
Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetzung, des

Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
Zuwiderhandlungen verpflichten zu Schadenersatz.
Alle Rechte vorbehalten, insbesondere für den Fall der Patenterteilung oder GM-Eintragung.
Liefermöglichkeiten und technische Änderungen vorbehalten.
Intel is a registered trademark of Intel Corporation, USA.
PS/2 is a registered trademark of International Business Machines, Inc.
All other trademarks referenced are trademarks or registered trademarks of their respective

owners, whose protected rights are acknowledged.
All rights, including rights of translation, reproduction by printing, copying or similar methods,

even of parts are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,

are reserved. Delivery subject to availability.
Right of technical modification reserved.

Contents

Introduction........................................................................................................................................ 1

Notational conventions ..............................................................................................................1

Important notes .................................................................................................................................1

Information on boards................................................................................................................2

Features............................................................................................................................................3

Interfaces and connectors .........................................................................................................4

PCI bus resources.....................................................................................................................6

Possible screen resolution.........................................................................................................8

Settings with switches .......................................................................................................................9

Write protection for floppy disks - switch 6.................................................................................9

Skipping the password query - switch 7.....................................................................................9

Recovering System BIOS - switch 8..........................................................................................9

Add-on modules..............................................................................................................................10

Slot sequence..........................................................................................................................11

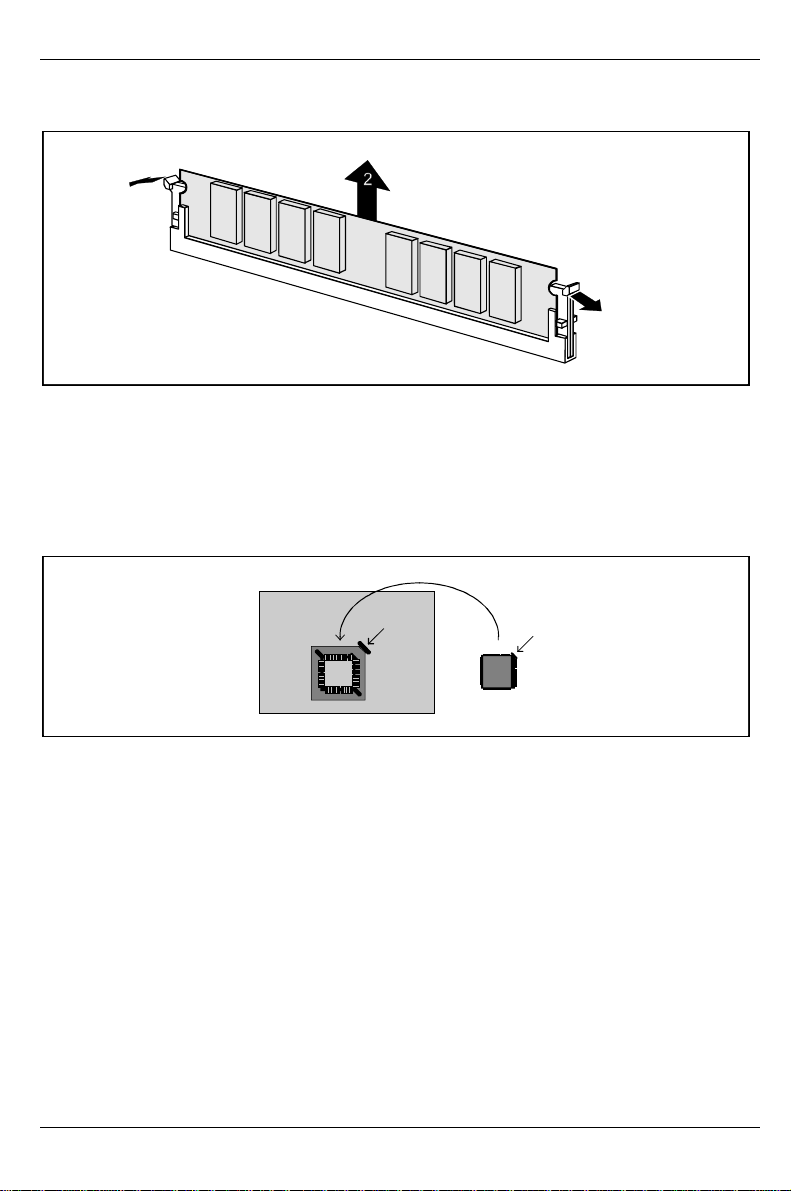

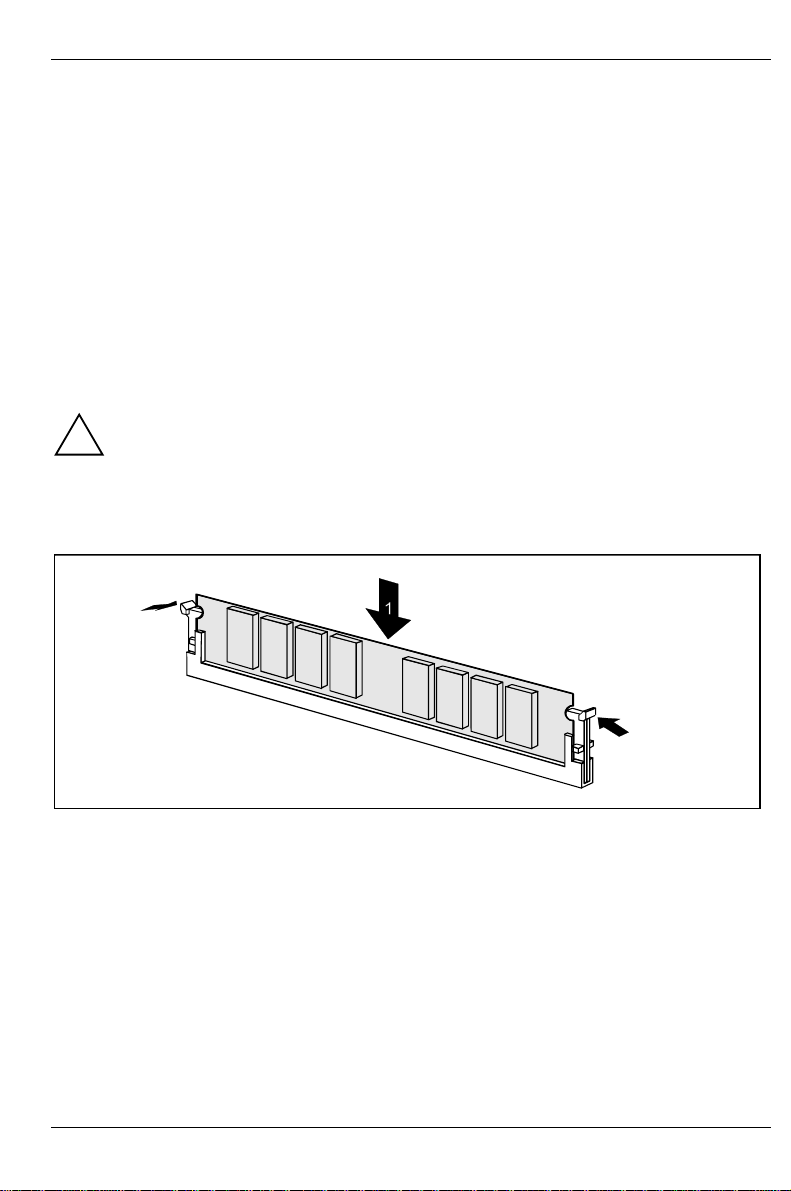

Upgrading main memory..........................................................................................................11

Upgrading the IPSEC accelerator chip ....................................................................................12

Replacing the lithium battery....................................................................................................13

Glossary..........................................................................................................................................14

A26361-D1205-Z120-1-7419

Introduction

This Technical Manual describes the system board D1205, which can be equipped with up to four
Intel Xeon processors.

You may find further information in the description "BIOS Setup".
Further information to drivers is provided in the readme files on hard disk or on the supplied drivers

diskettes or on the "Drivers & Utilities" or "ServerStart" CD.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

Pay particular attention to texts marked with this symbol. Failure to observe this warning
endangers your life, destroys the system, or may lead to loss of data.

!

Supplementary information, remarks and tips follow this symbol.

i

Ê Texts which follow this symbol describe activities that must be performed in the order shown.

Ë This symbol means that you must enter a blank space at this point.

Ú

Ú This symbol means that you must press the Enter key.

ÚÚ

Texts in this typeface are screen outputs.

Texts in this bold typefaceare the entries you make via the keyboard.

Texts in italics indicate commands or menu items.
"Quotation marks" indicate names of chapters and terms that are being emphasized.

Important notes

Store this manual close to the device. If you pass on the device to third parties, you should also
pass on this manual.

Be sure to read this page carefully and note the information before you open the device.

!

You cannot access the components of the system board without first opening the device.
How to dismantle and reassemble the device is described in the Operating Manual
accompanying the device.

Please note the information provided in the chapter "Safety" in the Operating Manual of
the device.

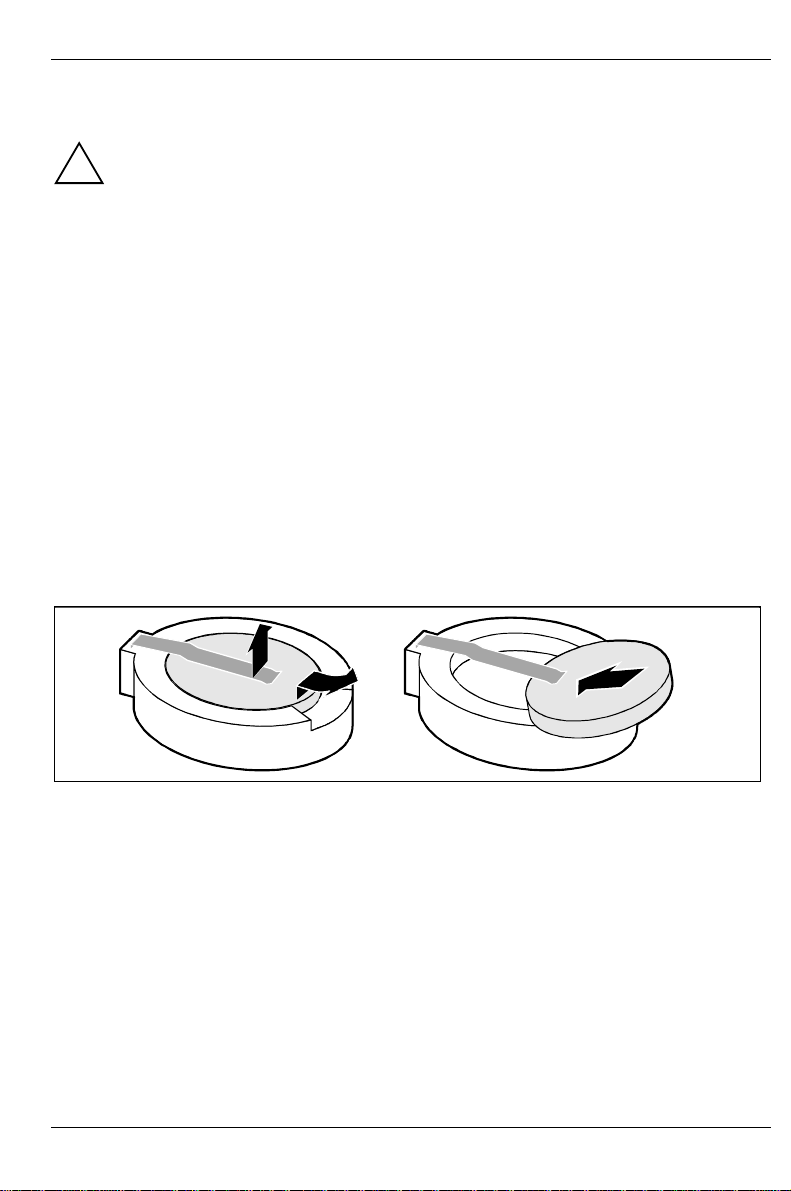

Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore
essential to observe the instructions in the chapter „Add-on modules“-„Replacing the

lithium battery“.

A26361-D1205-Z120-1-7419 English - 1

Important notes

The shipped version of this board complies with the requirements of the EEC
directive 89/336/EEC "Electromagnetic compatibility".

Compliance was tested in a typical PC configuration.
When installing the board, refer to the specific installation information in the

Operating Manual or Technical Manual of the receiving device.

Connecting cables for peripherals must be adequately insulated to avoid interference.

Components can become very hot during operation. Make sure you do not touch
components when making extensions to the system board. There is a danger of burns!

!

The warranty is invalidated if the device is damaged during the installation or
replacement of system expansions. Information on which system expansions you can

i

use is available from your sales outlet or the customer service center.

Information on boards

To prevent damage to the system board or the components and conductors on it, please take great
care when you insert or remove boards. Take care above all to ensure that extension boards are
slotted in straight without damaging components or conductors on the system board, or any other
components, for example EMI spring contacts.

Be especially careful with the locking mechanisms (catches, centering pins etc.) when you replace
the system board or components on it, for example memory modules or processors.

Never use sharp objects (screwdrivers) for leverage.

Boards with electrostatic sensitive devices (ESD) are identifiable by the
label shown.

When you handle boards fitted with ESDs, you must observe the following
points under all circumstances:

• You must always discharge yourself (e. g. by touching a grounded

object) before working.

• The equipment and tools you use must be free of static charges.

• Pull out the power plug before inserting or pulling out boards containing

ESDs.

• Always hold boards with ESDs by their edges.

• Never touch pins or conductors on boards fitted with ESDs.

2 - English A26361-D1205-Z120-1-7419

Features

Features

• RCC chipset CNB20HE, CIOB20HE and OSB4 high-end PCI

• two processor slots for Pentium III Xeon processors with 866 MHz or higher, with 133 MHz

Front Side Bus
512 Kbyte second level cache

• 4 PC133 slots (SDRAM memory modules)

• two 64 bit hot-plug PCI slots with 66 MHz

• four 64 bit hot-plug PCI slots with 33 MHz

• one 32 bit PCI slot with 33 MHz

• SCSI-Controller AIC7899 onboard with 2 x Ultra-3-Wide SCSI-LVD (Low Voltage Differential)

with 64-Bit and 66 MHz

• Screen controller ATI Rage XL VGA with 32 bit and 33 MHz PCI

• Intel i82559 Ethernet LAN controller with 10/100 Mbit/s

• Server management onboard with Copernicus I

• IDE hard disk controller connected to PCI bus

ultra DMA33 mode capable, supports PIO modes 0-4

• one external parallel interface (ECP- and EPP-compatible)

• two external serial ports (COM1 and COM2)

• two external and one internal USB port (USB = Universal Serial Bus)

• external CAN bus port

• two external PS/2 interfaces for keyboard and mouse

• system monitoring

A26361-D1205-Z120-1-7419 English - 3

Features

r

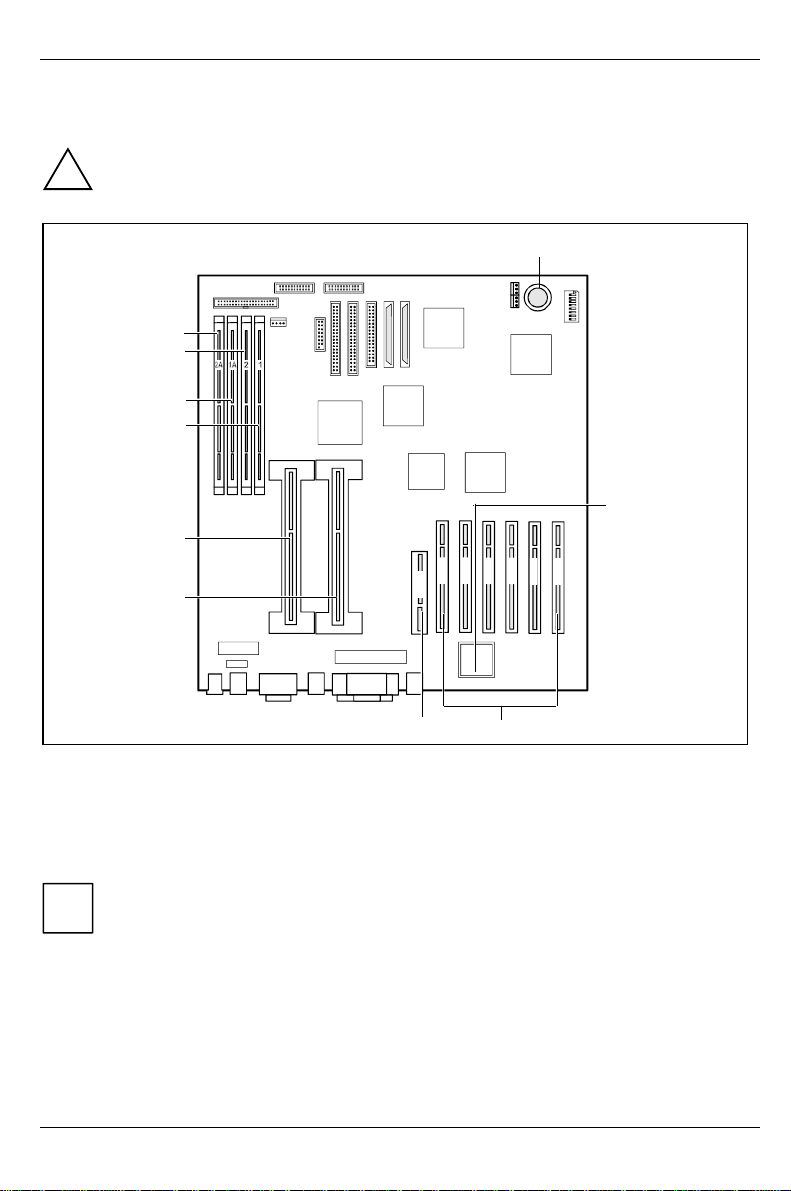

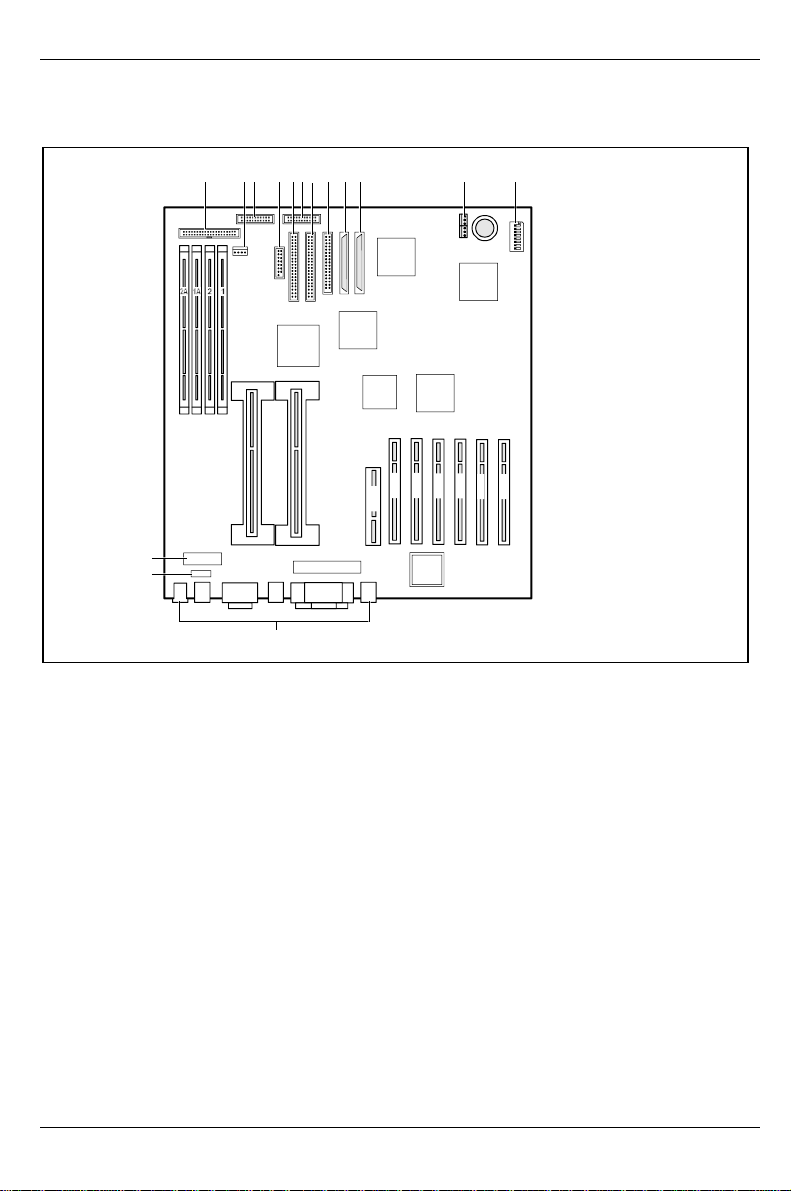

Interfaces and connectors

1

23 4 567

15
14

13

1 = Power supply monitoring
2 = Power supply connector for chipdisk
3 = Power supply I
4 = Internal USB port for chipcard reade
5 = IDE drives (primary)
6 = Power supply II
7 = IDE drives (primary)

8 9 10 11 12

PCI 5

PCI 6

PCI 7

PCI 3

PCI 4

PCI 2

8 = Port for floppy disk drive
9 = SCSI channel B
10 = Port for SCSI channel A
11 = Fan connectors 1 and 2 (optional)
12 = Switch block
13 = External ports
14 = CAN port
15 = Internal USB port

PCI 1

4 - English A26361-D1205-Z120-1-7419

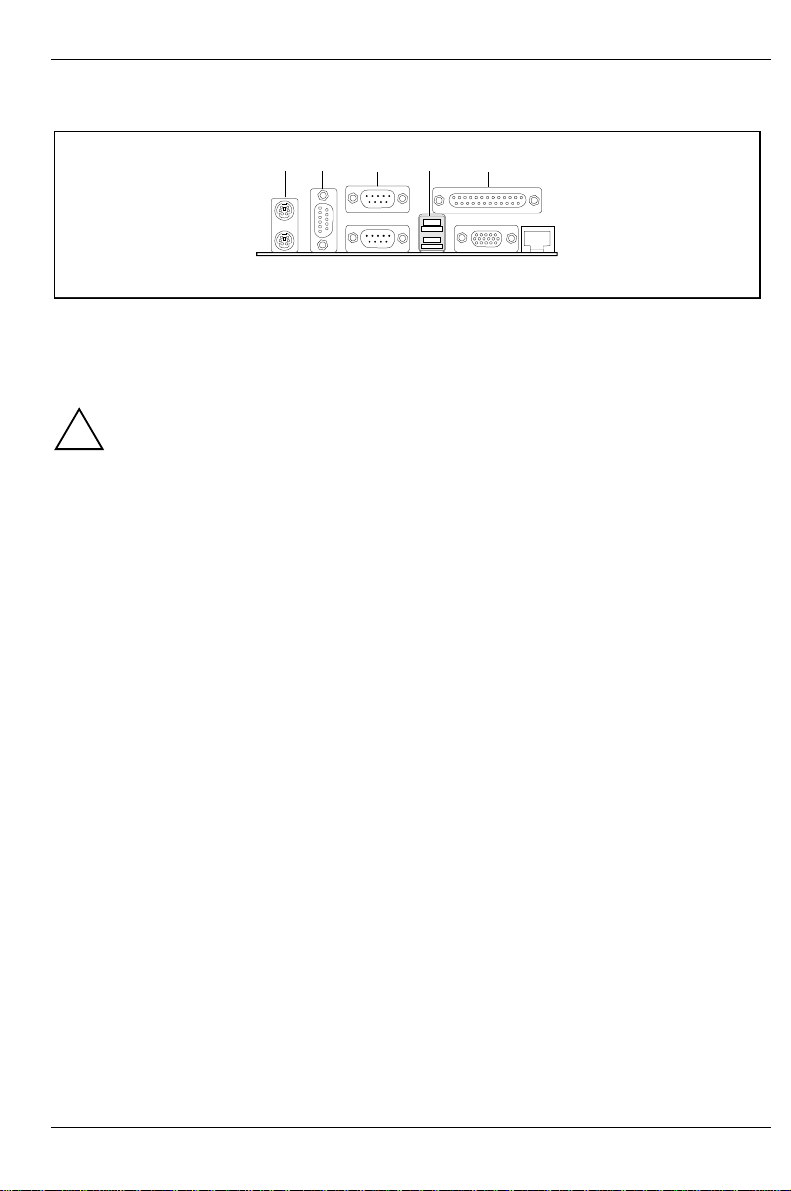

External ports

Features

1 234 5

678910

1 = PS/2 mouse port
2 = CAN port
3 = Serial port COM2
4 = USB port 1
5 = Parallel port

If a chipcard reader is installed, no device may be connected to serial interface 2 (COM2).

!

Please use the current driver from the mailbox for the chipcard reader.

6 = LAN port
7 = VGA port
8 = USB port 2
9 = Serial interface COM1
10 = PS/2 keyboard port

A26361-D1205-Z120-1-7419 English - 5

Features

PCI bus resources

PCI slots

The following table shows an overview of the PCI slots:

PCI slot 64bit/32bit Description Bus frequency

1 64 bit 64 bit PCI bus slot 66 MHz / 3.3 V
2 64 bit 64 bit PCI bus slot 66 MHz / 3.3 V
3 64 bit 64 bit PCI bus slot 33 MHz/5V
4 64 bit 64 bit PCI bus slot 33 MHz/5V
5 64 bit 64 bit PCI bus slot 33 MHz/5V
6 64 bit 64 bit PCI bus slot 33 MHz/5V
7 32 bit 32 bit PCI bus slot 33 MHz/5V

6 - English A26361-D1205-Z120-1-7419

Features

PCI IRQ line x - Assignment of the PCI interrupts

PCI IRQ Line x defines which ISA interrupts are used for the separate PCI slots.
If in BIOS Setup the setting Auto is enabled the interrupts are assigned automatically and no further

settings are necessary.
Multifunctional PCI boards or boards with an integrated PCI-to-PCI bridge can use several PCI

interrupts (INTA#, INTB#, INTC#, INTD#). Monofunctional PCI boards (default) only use one PCI
interrupt (INTA#) per PCI slot.

The PCI interrupts INTA#, INTB#, INTC# and INTD# are available for every PCI slot.
The same interrupt can be assigned simultaneously to several PCI boards. You should avoid this

condition due to reduced performance.
If you use a setting other than Auto, the Plug&Play functionality of the system BIOS for the

corresponding PCI boards is deactivated.

Auto The PCI interrupts are assigned automatically in accordance with the Plug&Play

Disabled No ISA interrupt is assigned to the PCI interrupt.
3, 4, 5, 7, 10, 11, 12, 14, 15

i

guidelines.

The selected ISA interrupt is assigned to the PCI interrupt. You may not select an
ISA interrupt that is used by a component on the system board (e.g. controller) or an
ISA board.

With the Auto setting, you can use the ICU (ISA Configuration Utility) utility to check
how the interrupts are assigned.

A26361-D1205-Z120-1-7419 English - 7

Features

Possible screen resolution

Depending on the operating system used the screen resolutions in the following table refer to the
screen controller on the system board. If you are using an external screen controller, you will find
details of supported screen resolutions in the Operating Manual or Technical Manual supplied with
the controller.

Screen resolution Refresh rate (Hz) Max. number of colors

640x480 60 16.7 mio.
640x480 72 16.7 mio.
640x480 75 16.7 mio.
640x480 90 16.7 mio.
640x480 100 16.7 mio.
800x600 60 16.7 mio.
800x600 70 16.7 mio.
800x600 75 16.7 mio.
800x600 90 16.7 mio.

800x600 100 16.7 mio.
1024x768 60 16.7 mio.
1024x768 72 16.7 mio.
1024x768 75 16.7 mio.
1024x768 90 16.7 mio.
1024x768 100 16.7 mio.

1280x1024 43 16.7 mio.
1280x1024 60 16.7 mio.
1280x1024 70 16.7 mio.
1280x1024 72 16.7 mio.
1600x1200 60 65 535
1600x1200 66 65 535
1600x1200 76 65 535

1600x1200 85 65 535
** The horizontal rate values may have a tolerance range of ±0.3 kHz.
Shaded screen resolutions are not supported by LCD monitors (TFT).

8 - English A26361-D1205-Z120-1-7419

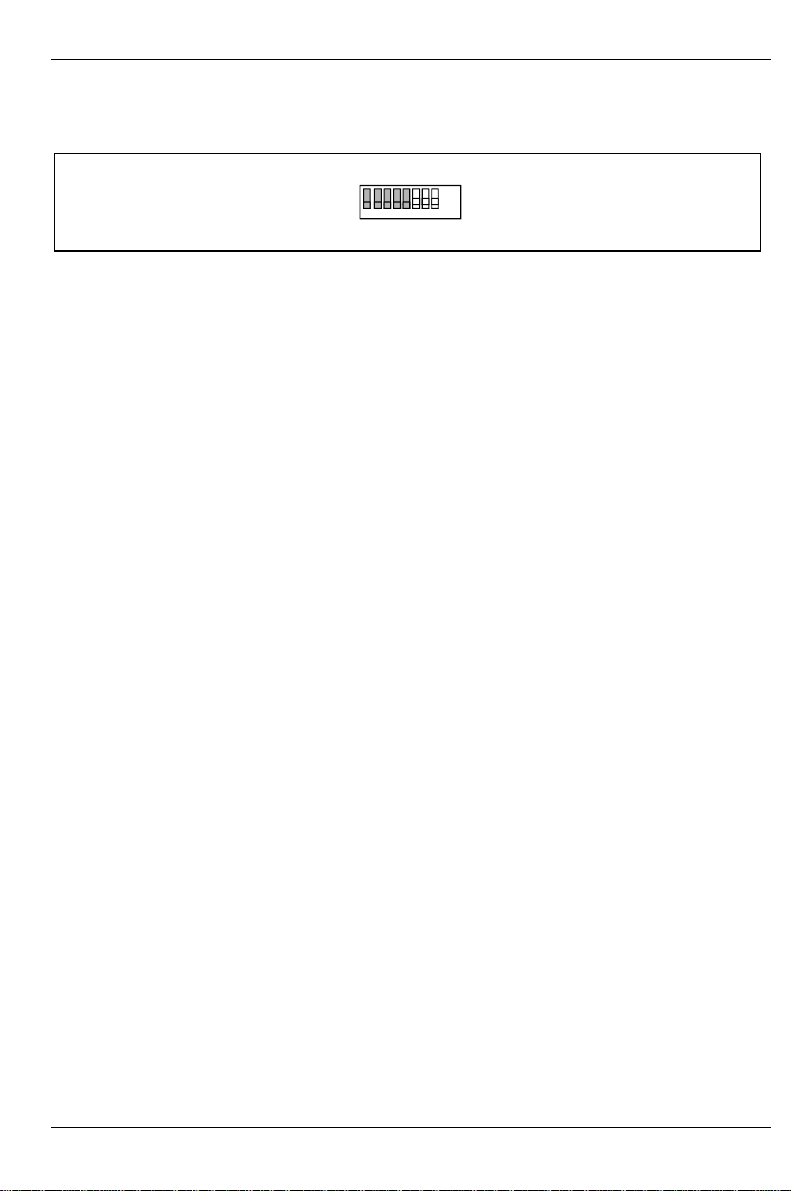

Settings with switches

1234

Settings with switches

ON

OFF

5

678

Switch 1 to 5 = must always be set to Off
Switch 6 = Write protection for floppy disks

Switch 7 = Skipping password query
Switch 8 = Recovering system BIOS

Write protection for floppy disks - switch 6

Switch 6 is used to define whether floppy disks can be written or deleted in the floppy disk drive. To
write and delete floppy disks, the write-protection in BIOS Setup must be disabled (in menu Security,
the field Diskette Write must be set to Enabled).

on The floppy disk drive is write-protected.
off Read, write and delete floppy disks is possible (default setting).

Skipping the password query - switch 7

Switch 7 is used to define whether the password is queried at system startup, if the password
protection is enabled in BIOS Setup (in Security menu , the Password field must be set to Enabled).

on The password query is effective.
off The password query is skipped (default setting).

Recovering System BIOS - switch 8

Switch 8 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Diskette (please call our customer service center).

on The system boots from the "Flash BIOS floppy disk" from Drive A and reprograms

off The system is started with the system BIOS from the system board. The system

the system BIOS on the board.

BIOS cannot be reprogrammed (default setting).

A26361-D1205-Z120-1-7419 English - 9

Add-on modules

Add-on modules

For all steps described in this chapter pull the power plug out of the power outlet!

!

6
5

4
3

2

1

7

8

PCI 5

PCI 6

PCI 7

PCI 3

PCI 4

PCI 2

PCI 1

1 = Slot for processor 1
2 = Slot for processor 2
3 = Location bank 1 for main memory
4 = Location bank 1A for main memory

10

7 = Lithium battery
8 = IPSEC accelerator chip (optional)
9 = PCI slots1-6
10 = PCI slot 7

9

5 = Location bank 2 for main memory
6 = Location bank 2A for main memory

PCI slots support 3.3 V main and auxiliary voltages.

i

10 - English A26361-D1205-Z120-1-7419

Add-on modules

Slot sequence

• An additional screen controller must always be inserted into PCI slot 7.

• Insert 32 bit / 33 MHz adapter first into PCI slot 7 and then into PCI slots 3, 4, 5, 6.

• Insert 64 bit / 33 MHz adapter first into PCI slots 5, 3, 4, 6 and then into PCI slots 1, 2.

• Insert 64 bit / 66 MHz adapter adapter first into PCI slots 1, 2.

Upgrading main memory

These slots are suitable for 128, 256, 512 and 1024 Mbyte SDRAM memory modules of the DIMM
format. The organization in two memory banks 1 and 2 enables fast memory access. The board
supports a maximum of 4 Gbytes.

Two identical memory modules must be installed per memory bank. Partial equipping of a memory
bank is not possible. The equipping sequence of the memory banks is arbitrary.

You may only use buffered 3.3V memory modules. Unbuffered memory modules are not
permitted.

!

SDRAM memory modules must be designed for a clock frequency of 133 MHz (meets
PC133 specification).

Installing memory modules

2

2

Ê Flipthe holders on each side of the relevant location outwards.
Ê Insertthe memory module in the slot while folding the side holders up until the memory module

engages (2).

A26361-D1205-Z120-1-7419 English - 11

Add-on modules

Removing a memory module

1

1

Ê Flipthe holders to the right and left of the location outwards (1).
Ê Pullthe memory module out of its location (2).

Upgrading the IPSEC accelerator chip

If the system board is prepared for upgrading with an IPSEC accelerator chip (Intel IPSEC), the
upgrade is carried out as shown in the figure.

12 - English A26361-D1205-Z120-1-7419

Replacing the lithium battery

Incorrect replacement of the lithium battery may lead to a risk of explosion.

!

The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer (CR2032).

Do not throw lithium batteries into the trashcan. It must be disposed of in accordance with
local regulations concerning special waste.

Make sure that you insert the battery the right way round. The plus pole must be on the
top!

· VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan
laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden
mukaisesti.

· VARNING

Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent
typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt
fabrikantens instruktion.

· ADVARSEL

Lithiumbatteri - Explosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med
batteri af samme fabrikat og type. Lever det brugte batteri tilbage til leverandøren.

· ADVARSEL

Explosionsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en
tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold
til fabrikantens instruksjoner.

Add-on modules

1

+

+

Ê Liftthe contact (1) a few millimeters and remove the battery from its socket (2).
Ê Inserta new lithium battery of the same type in the socket (3).

A26361-D1205-Z120-1-7419 English - 13

2

+

3

+

Glossary

Glossary

The technical terms and abbreviations given below represent only a selection of the full list of
common technical terms and abbreviations.
Not all technical terms and abbreviations listed here are valid for the described system board.

ACPI Advanced Configuration and

Power Management Interface
AC'97 Audio Codec '97 LAN Local Area Network
AGP Accelerated Graphics Port LSA LAN Desk Service Agent
AIMM AGP Inline Memory Module MCH Memory Controller Hub
AMR Audio Modem Riser MMX MultiMedia eXtension
AOL Alert On LAN P64H PCI64Hub
APM Advanced Power Management PCI Peripheral Component

ATA Advanced Technology

Attachment
BIOS Basic Input Output System RAM Random Access Memory
CAN Controller Area Network RAMDAC Random Access Memory Digital

CPU Central Processing Unit RDRAM Rambus Dynamic Random
CNR Communication Network Riser RIMM Rambus Inline Memory Module

C-RIMM Continuity Rambus Inline

Memory Module
DIMM Dual Inline Memory Module SB Soundblaster
ECC Error Correcting Code SDRAM Synchronous Dynamic Random

EEPROM Electrical Erasable

Programmable Read Only

Memory
FDC Floppy Disk Controller SIMD StreamingMode Instruction

FIFO First-In First-Out SMBus System Management Bus
FSB Front Side Bus SVGA SuperVideo Graphic Adapter
FWH Firmware Hub USB Universal Serial Bus
GMCH Graphics and Memory Controller

Hub
I2C Inter Integrated Circuit WOL Wake On LAN
IAPC Instantly Available Power

Managed Desktop PC Design
ICH I/O Controller Hub
IDE Intelligent Drive Electronics
IPSEC Internet Protocol Security

ISA Industrial Standard Architecture

Interconnect

PXE Preboot eXecution Environment

Analog Converter
Access Memory

RTC Real Time Clock

Access Memory

SGRAM Synchronous Graphic Random

Access Memory

(Single Instruction Multiple Data)

VGA Video Graphic Adapter

14 - English A26361-D1205-Z120-1-7419
