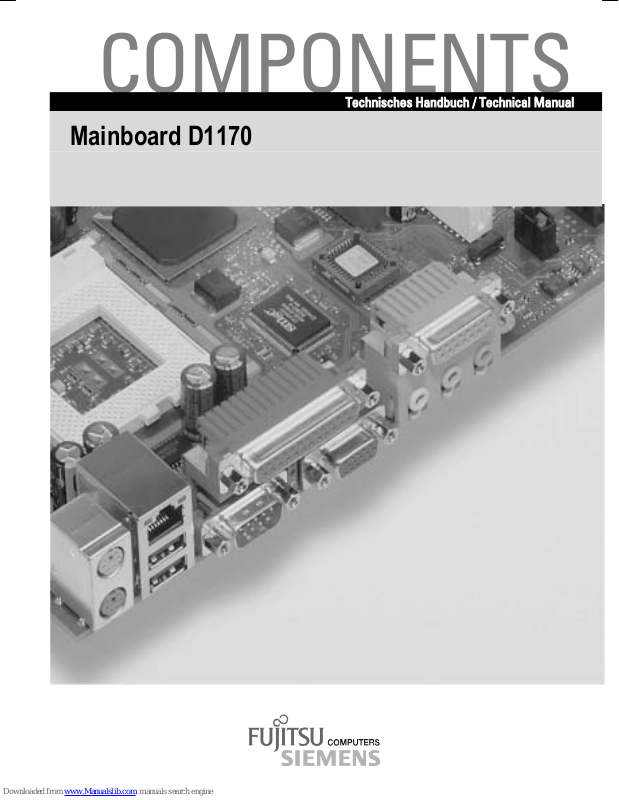

COMPONENTS
Mainboard D1170
Technisches Handbuch / Technical Manual
Sie haben ...
... technische Fragen oder Probleme?
Wenden Sie sich bitt e an:
· Ihren zuständigen Vert ri ebspartner
· Ihre Verkaufs stelle
Weitere Informationen f i nden Sie in den Handbüchern "Sicherheit " und "Ergonomie".
Aktuelle Inform ationen zu unseren Produkten, Ti pps, Updates usw. finden Sie im Internet:
http://www.fujitsu-siemens.com
Are there ...
... any technical problems or other questions you need clarified?
Please contact :
· your sales partner
· your sales out l et
You will find further information in the manuals "Safety" and "Ergonomics" .
The latest informat i on on our products, tips, updates, etc., c an be found on the Internet under:
http://www.fujitsu-siemens.com
Dieses Handbuch wurde auf Recycling-Papier gedruckt.
This manual has been printed on recycled paper.
Ce manuel est imprimé sur du papier recyclé.
Este manual ha sido impreso sobre papel reciclado.
Questo manuale è stato stampato su carta da riciclaggio.
Denna handbok är tryckt på recyclingpapper.
Dit handboek werd op recycling-papier gedrukt.
Herausgegeben von/Published by
Fujitsu Siemens Computers GmbH
Bestell-Nr./Order No.:
Printed in the Federal Republic of Germany
AG 0602 06/02
A26361-D1170-Z120-1-7419
A26361-D1170-Z120-1-7419
Mainboard D1170
Technisches Handbuch
Deutsch
English
Technical Manual
Ausgabe Juni 2002
June 2002 edition
Intel, Pentium und Cel eron sind eingetragene der Intel Corporation, USA.
Microsoft, MS, MS-DOS und Windows sind eingetragene Warenzeichen der Microsoft
Corporation.
PS/2 und OS/2 Warp sind ei ngetragene Warenzeichen von Internat i onal Business Machines,
Inc.
Alle weiteren genannten Warenzeichen sind Warenzeichen oder eingetragene Warenzeichen
der jeweiligen Inhaber und werden als geschützt anerkannt.
Copyright ã Fujitsu Siemens Computers GmbH 2002
Alle Rechte vorbehalten, insbesondere (auch auszugsweise) die der Übersetz ung, des
Nachdrucks, der Wiedergabe durch Kopieren oder ähnliche Verfahren.
Zuwiderhandlungen verpflicht en zu Schadenersatz.
Alle Rechte vorbehalt en, insbesondere für den Fall der Pat enterteilung oder GM-Eintragung.
Liefermöglichkeiten und technische Änderungen vorbehalten.
Dieses Handbuch wurde erst el l t von
cognitas. Gesel l schaft für Technik -Dok umentation mbH
www.cognitas.de
Intel, Pentium and Cel eron are regi stered trademarks of I ntel Corporation, USA.
Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation.
PS/2 and OS/2 Warp are registered trademarks of Int ernat i onal Business Machines, Inc.
All other trademarks referenced are trademarks or registered trademarks of t heir respective
owners, whose protect ed ri ght s are acknowledged.
All rights, including rights of translation, reproduction by pri nting, copying or sim i l ar m ethods,
even of parts are reserv ed.
Offenders will be liable for damages.
All rights, including rights created by patent grant or regis t ration of a utility model or design,
are reserved. Delivery subject to availability.
Right of technic al m odi fication reserved.
This manual was produced by
cognitas. Gesel l schaft für Technik -Dok umentation mbH
www.cognitas.de
Contents
Introduction........................................................................................................................................1
Notational conventions ..............................................................................................................1
Important notes.................................................................................................................................. 1
Information about boards...........................................................................................................2
Features............................................................................................................................................3
Interfaces and connectors..........................................................................................................5
Hard disk connection.................................................................................................................6
PCI bus interrupts......................................................................................................................7
Screen resolution.......................................................................................................................7
Settings with switches .......................................................................................................................8
Recovering System BIOS - switch 2..........................................................................................9
Write protection for floppy disks - switch 3.................................................................................9
Add-on modules ..............................................................................................................................10
Installing and removing processors..........................................................................................11
Upgrading main memory..........................................................................................................12
Installing network board with WOL...........................................................................................13
Replacing the lithium battery.................................................................................................... 13
Glossary..........................................................................................................................................14
A26361-D1170-Z120-5-7419
Introduction
Depending on the configuration chosen, some of the hardware c om ponents described
i
You will find further information in the "BIOS Setup" description.
Further information about drivers is provided in the readme files on the hard disk , on the supplied
drivers diskettes, on the "Drivers & Utilities" or on the "ServerStart" CD.
Notational conventions
The meanings of the sy m bol s and fonts used in this manual are as follows:
!
may not be available on your system board.
Pay particular attention to text marked with this symbol. Failure to observe this warning
endangers your life, des troys the device, or m ay lead to loss of data.
i
Ê Text which follows this symbol describes activ i ties that must be performed in the order shown.
Ë This symbol i ndi cates that you must enter a blank space (pres s the Space Bar) at this point.
Ú This symbol indi cates that you mus t press the Enter key.
Text in this typeface indicates sc reen outputs.
Text in this bold typeface indicates the ent ri es you make via the k eyboard.
Text in italics indicates commands or menu items.
"Quotation marks " i ndi cate names of chapters or terms.
Supplementary inform ation, remarks, and ti ps follow this symbol.
Important notes
Store this manual c l ose to the device. I f you pass the device on to third parties, y ou should pass this
manual on with it.
Be sure to read this page c a ref ul l y and note the information bef ore you open the device.
!
You cannot acces s the system board components without f i rst opening the device. How
to dismantle and reassemble the device is described in the Operating Manual
accompanying the dev i ce.
Please observe the safety informati on provided in the "Important notes" chapter in the
device’s operating m anual .
Incorrect replacem ent of the lithium battery may lead to a risk of explosion. It is therefore
essential to obs erve the instructions in the "Add-on modules" - "Replacing the lithium
battery" section.
A26361-D1170-Z120-5-7419 English - 1
Important notes
The shipped version of t hi s board complies with t he requi rem ents of the EEC
directive 89/336/EEC "Elec t romagnet ic compatibility".
Compliance was tes t ed i n a typical PC confi guration.
When installing the board, refer to the s pecific installation information in t he
Operating Manual or Technical M anual for the receiving device.
Connecting cables f or peri pheral s must be adequately s hi el ded to avoid interference.
Components can become very hot during operation. Ens ure you do not touch
!
i
components when maki ng extensions to the system board. There is a danger of burns!
The warranty is invali dated if the device is dam aged duri ng the installation or
replacement of system expansions. Information on which system expansions you can
use is available f rom your sales outlet or t he customer servic e centre.
Information about boards
To prevent damage to the system board or the components and conductors on it , please take great
care when you insert or remove boards. Take great care to ensure that extension boards are slotted
in straight, wit hout damaging components or c onductors on the system board, or any other
components, for example EMI spring c ont acts.
Be especially careful with the locking mechanisms (catches, centri ng pi ns etc.) when you replace
the system board or components on it, for exampl e m em ory modules or processors.
Never use sharp object s (screwdrivers) for l everage.
Boards with elect rostatic sensitive devices (E S D) are i dentifiable by the
label shown.
When you handle boards fitt ed wi t h ESDs, you must , under al l
circumstances, observe the fol l owi ng poi nts:
· You m ust always disc harge static build up (e.g. by touching a
grounded object) before working.
· The equipment and tools you use mus t be free of static c harges.
· Remov e the power plug from the mains s uppl y before inserting or
removing boards containi ng ESDs.
· Al ways hold boards with ESDs by their edges.
· Never touch pins or conductors on boards fitted with ESDs.
2 - English A26361-D1170-Z120-5-7419
Features
Features
· System board in micro AT X format
· Intel Celeron processor with 66 M Hz/100 MHz Front Side Bus for PGA 370 socket and
Pentium III with 100 / 133 MHz Front Side Bus for PGA 370 socket.
Intel Celeron and Pentium III processors support MMX technology and Intel Streaming SIMD
Extensions. The size and frequency of f i rst-level cache and s econd-level cache are dependent upon
the processor used.
· Int el chipset 810E
consisting of GM CH 82810E, ICH 82801 and FWH82802
· AC' 97 A udi o Codec
internal: Stereo CD-In, Stereo AUX-In
external: Mono Mic ro-In, Stereo Line-In, Game/ M i di -Port, Stereo Line-Out (max . 2 x 0,5 W/8 W)
· 2 DIM M slots for 16 to 512 Mby te main memory (SDRAM m em ory modules meet the PC100
specificat i on) wi thout ECC
· Flas h B I OS
· Energy saving functions:
- ACPI and APM
- Switching on/off, standby mode, suspend mode via on/off switch
- Switching on/off via software
- Wake on RTC
- Wake on LAN
- Wake on PCI Cards
· Security functions:
- System, S etup and Keyboard password
- parallel and serial ports can be deactivated
- Cover monitoring: co ver monitoring reports when the c over has been opened without
authorisation.
- Write protection for floppy disk drive
- Boot hard disk vi rus warning function
- Flash BIOS and EEPROMs (on the memory modules) virus protection function.
· 4 PCI slots
PCI slots s upport 3.3 V main voltage.
· IDE hard di sk controller connec ted to PCI bus for up to f our IDE drives
(e.g. IDE hard disk dri ves, ATAPI CD-ROM drives)
The IDE hard disk cont rol l er are ATA33/66, ultra DMA c apabl e and support PIO modes 0-4.
· Floppy di sk drive controller (possible formats: 720 K B, 1.44 MB, 2.88 MB )
· The system board supports booting f rom a 120 M B IDE floppy disk drive.
· 2D/3D graphi cs processor, 24 bit 230 MHz RAMDAC
· Monitor connector: Sub D
A26361-D1170-Z120-5-7419 English - 3
Features
· 1 ext ernal parallel int erface (ECP- and EPP-compatible)
· 1 external serial port (16C550 compati bl e wi t h FIFO)
This port does not support the ring indicator signal.
· 1 int ernal chipcard reader interface.
As an alternative the chipcard reader interfac e can also be used as a second serial port
(16C550 compatible with FIFO). This port does not support t he ri ng i ndi cator signal.
· 1 int ernal WOL i nterface
· 2 external PS/2 interfac es for keyboard and mouse
· 2 external USB ports
· Real-t i m e clock/calendar with integrated battery bac kup
4 - English A26361-D1170-Z120-5-7419
Interfaces and connectors
DIMM 2
DIMM 1
Features
2314
1 = PS/2 mouse port
2 = PS/2 keyboard port
3 = USB port 2
4 = USB port 1
5 6 7
PCI 1
8
9a 9c9b
5 = Serial port 1
6 = Parallel port
7 = VGA port
8 = Game/Midi port
9a = Audio Line-Out
9b = Audio Line-In
9c = Audio Micro-In
PCI 4
PCI 3
PCI 2
A26361-D1170-Z120-5-7419 English - 5
Features
213456
12
DIMM 2
DIMM 1
11
7
8
PCI 4
PCI 3
1 = Chipcard reader port (optional) or serial
port 2
2 = Power supply
3 = IDE drives 3 and 4 (secondary)
4 = Floppy Disk Drive
5 = Connector for control panel and
PCI 1
PCI 2
9
10
7 = Fan 2 (e.g. for the processor)
8 = Wake On LAN
9 = CD audio input
10 = AUX audio input
11 = Fan 1 (e.g. for the processor)
12 = Cover monitoring
loudspeaker
6 = IDE drives 1 and 2 (primary)
The components and connectors marked are not necessarily present on the system board.
Hard disk connection
An ultra ATA/66 hard disk must be connected with a cable especial l y designed for the ATA/ 66
mode.
Ê Connect the end of the cabl e marked with blue to the system board.
6 - English A26361-D1170-Z120-5-7419
Features
PCI bus interrupts
The following table shows whi ch PCI bus interrupts are assigned on the system board.
PCI bus interrupt Component on system board:
A PCI bus slot 1
B PCI bus slot 2
C PCI bus slot 3
D PCI bus slot 4
D USB controller
A Graphics process or
BSMBus
BAC'97
Screen resolution
Depending on the operating system used, the screen resolutions in the following table refer to the
system board screen controller.
If you are using an external s creen controller, you will find details of supported screen resolutions in
the Operating Manual or Technic al M anual supplied with the controll er.
Screen resolution Refresh rate (Hz) Horizontal-
640x480 60 - 85 31,5 - 43,3 256
640x480 60 - 85 31,5 - 43,3 65536
640x480 60 - 85 31,5 - 43,3 16777216
800x600 60 - 85 35,1 - 53,7 256
800x600 60 - 85 35,1 - 53,7 65536
800x600 60 - 85 35,1 - 53,7 16777216
1024x768 60 - 85 48,8 - 68,7 256
1024x768 60 - 85 48,8 - 68,7 65536
1024x768 60 - 85 48,8 - 68,7 16777216
1152x864 60 - 85 54,4 - 76,9 256
1152x864 60 - 85 54,4 - 76,9 65536
1152x864 60 - 85 54,4 - 76,9 16777216
1280x1024 60 - 85 64,0 - 91,1 256
1280x1024 60 - 85 64,0 - 91,1 65536
1280x1024 60 - 85 64,0 - 91,1 16777216
1600x1200 60 - 75 75,0 - 93,8 256
* no 16 colour mode
** Horizontal values t ol erance ±0.3 kHz.
rate (kHz) **
Max. number of
colours
A26361-D1170-Z120-5-7419 English - 7
Settings with switches
Settings with switches
DIMM 2
DIMM 1
1234
ON
Switch 1 = must be set to off
Switch 2 = System BIOS recovery
i
The clock frequency of the processor is set automatically.
PCI 1
PCI 2
PCI 4
PCI 3
Switch 3 = Write-protection for floppy dis k
Switch 4 = must be set to off
8 - English A26361-D1170-Z120-5-7419
Settings with switches
Recovering System BIOS - switch 2
Switch 2 enables recovery of the old system BIOS after an attempt to update has failed. To restore
the old system BIOS you need a Flash BIOS Diskette (please call our c ustomer service c ent re).
On The System BI OS executes from floppy drive A: and the inserted "Flash-BIOS-
Diskette" restores the System BIOS on the system board.
Off Normal operation (default setting).
Write protection for floppy disks - switch 3
Switch 3 is used to define whether floppy disks can be written or deleted in the floppy disk dri ve. To
write and delete floppy disks, the write-protection in BIOS Setup must be disabled (in m enu Security,
the field Diskette Write must be set to Enabled).
On The floppy disk drive is write-protected.
Off Floppy disks can be read, written and deleted (default setting).
A26361-D1170-Z120-5-7419 English - 9
Add-on modules
Add-on modules
Exit Suspend mode, switch off t he device and remove the power plug from the mains
!
supply, before carrying out any of the procedures described in this chapter!
Even when you have swit ched off the device, parts (e.g. memory modul es, AGP and PCI
extension boards) are still supplied with power.
All PCI slots hav e bus master capability and support 3.3 V.
4
3
2
DIMM 2
DIMM 1
1
1 = Socket for processor with heat sink
2 = Location bank 1 for main memory
3 = Location bank 2 for main memory
PCI 1
PCI 3
PCI 2
5
4 = Lithium battery
5 = PCI slots 2, 3, 4, 1
PCI 4
10 - English A26361-D1170-Z120-5-7419
Installing and removing processors
Add-on modules
3
2
4
5
1
A
Ê Pull the lever in the direction of t he arrow (1) and lift it as far as it will go (2).
Ê Remove the old processor from the socket (3).
Ê Insert the new proces sor in the socket so that the angled corner of the processor matches the
coding on the sock et (A) with regard to the positi on (4).
The angled corner of the processor may be covered by the heat sink. In this case let
!
Ê Push the lever back down so that it snaps i nto place.
yourself be guided by t he m arking in the rows of pins on the underside of the process or.
A26361-D1170-Z120-5-7419 English - 11
Add-on modules
Upgrading main memory
These slots are sui table for memory modules wi th 16, 32, 64, 128 and 256 Mbyte of the DIMM
format. Therefore the mem ory capacity of one component on the memory module m ay not exceed
128 Mbit (= 16 MB). Memory modules with diff erent memory capaciti es can be combined.
You may only use unbuf fered 3.3 V memory modules . Buffered memory modul es are not
!
Installing a memory module
supported.
SDRAM memory modules must be designed for a c l ock frequency of 100 MHz (meets
PC100 specification).
2
2
Ê Push the holders on each side of the memory com partment outwards.
Ê Insert the memory m odul e into the location.
Watch the coding of t he m emory module when doing so.
Ê At the same tim e flip the lateral holders upwards until the memory modul e snaps in place.
Removing a memory module
1
1
Ê Flip the holders to the right and left of the location outwards.
Ê Pull the memory modul e out of its locati on.
12 - English A26361-D1170-Z120-5-7419
Installing network board with WOL
Ê Install the network board as described in the operat i ng m anual for your unit.
Ê Push the WOL cable onto t he WOL pl ug connector of the system board.
To use the WOL functionali ty of a network board the power suppl y must provide a 5 V
i
auxiliary voltage of at leas t 1 A. If the system board was not already i ncorporated in a
device when you bought it you must check whether your power supply can provi de the
auxiliary voltage.
You may find further i n f orm ation in the supplied desc ri ption of the network board.
Replacing the lithium battery
Incorrect replacem ent of the lithium battery may lead to a risk of explosion.
!
The lithium battery m ust be replaced with an identical battery or a battery type
recommended by the manuf acturer (CR2032).
Do not throw lithium batteries into the household waste. They must be disposed of in
accordance with local regulations concerni ng special waste.
Add-on modules
Ensure that you ins ert the battery the right way round. The plus pole must be on t he top!
1
+
3
+
+
2
+
Ê Lift the contact (1) a few millimetres and remove the lithium bat t ery from its socket (2).
Ê Insert a new lithium battery of the same t ype into the socket (3).
A26361-D1170-Z120-5-7419 English - 13
Glossary
Glossary
The technical terms and abbreviations given bel ow represent only a selecti on of the full list of
common technic al t erms and abbreviations.
Not all technical terms and abbreviations l i sted here are valid for the des cribed system board.
ACPI Advanced Configuration and
Power Management Interface
AC'97 Audio Codec '97 LAN Local Area Network
AGP Accelerated Graphics Port LSA LAN Desk Service Agent
AMR Audio Modem Riser MCH M em ory Controller Hub
AOL Alert On LAN MMX MultiMedia eXtens i on
APM A dvanced Power Management P64H PCI64 Hub
ATA Advanced Technology
Attachment
BIOS Basic Input Output System PXE Preboot eXecution Environment
CAN Controll er Area Network RAM Random Access Memory
CPU Central Processing Unit RAMDAC Random Access M emory Digital
CNR Com m unication Network Ris er RDRAM Rambus Dynamic Random
C-RIMM Continuity Rambus Inline
Memory Module
DIMM Dual Inline Memory Module RTC Real Time Clock
ECC Error Correcting Code SB Soundblaster
EEPROM Electrical Erasable
Programmable Read Only
Memory
FDC Floppy Disk Controller SGRAM Synchronous Graphic Random
FIFO First-In First-Out
FSB Front Side Bus SIMD Streaming Mode Instruc t i on
FWH Firm ware Hub SMBus System Management Bus
GMCH Graphic s and Memory Controller
Hub
GPA Graphics Performance
Accelerator
I2C I nter Integrated Circuit VGA Video Graphic Adapter
IAPC Instantly A vailable Power
Managed Desktop PC Desi gn
ICH I/O Controller Hub
IDE Intelligent Drive Electronics
IPSEC Internet Protocol Security
ISA Industrial Standard Architecture
PCI Peripheral Component
Interconnect
Analogue Converter
Access Memory
RIMM Rambus Inli ne M emory Module
SDRAM S ynchronous Dynamic Random
Access Memory
Access Memory
(Single Instruction Multiple Data)
SVGA Super Video Graphic Adapter
USB Universal Serial Bus
WOL Wake On LAN
14 - English A26361-D1170-Z120-5-7419
Loading...
