CELSIUS Mobile H
Operating Manual
Introduction
Index
Important notes
Preparing the workstation
for use
Working with the
workstation
Security functions
Connecting external
devices
Settings in BIOS Setup
Troubleshooting and tips
Memory expansion
Technical data
May 2002 edition
DPMS and VESA are registered trademarks of Video Electronics Standards Association.
Intel is a registered trademark, Pentium and Celeron are trademarks of Intel Corporation,
USA.
Macrovision is a trademark of Macrovision Corporation, USA.
Microsoft, MS, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft
Corporation.
OS/2 and PS/2 are registered trademarks of International Business Machines, Inc.
Zip is a trademark of Iomega Corporation.
All other trademarks referenced are trademarks or registered trademarks of their respective
owners, whose protected rights are acknowledged.
This manual was produced by
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright ã Fujitsu Siemens Computers GmbH 2002
All rights, including rights of translation, reproduction by printing, copying or similar methods,
in part or in whole, are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved.
Delivery subject to availability. Right of technical modification reserved.
A26391-K124-Z100-1-7619
Contents
Introduction......................................................................................................................................1
Notational conventions.......................................................................................................................2
Important notes................................................................................................................................3
Declarations of Conformity.........................................................................................................3
Safety ................................................................................................................................................3
Notes on installing and removing boards and modules ..............................................................4
Manufacturer’s notes .........................................................................................................................5
Copyright-protected technology .................................................................................................5
Energy saving............................................................................................................................5
Disposal and recycling ...............................................................................................................6
CE marking........................................................................................................................................6
GS symbol.........................................................................................................................................6
FCC Class B Compliance Statement.................................................................................................7
Battery storage..................................................................................................................................7
Transporting the workstation..............................................................................................................8
Before you travel........................................................................................................................8
Transporting the workstation......................................................................................................8
Cleaning the workstation....................................................................................................................9
Preparing the workstation for use................................................................................................11
Unpacking and checking the delivery...............................................................................................11
Setting up the workstation................................................................................................................11
Switching on removable radio keyboard...........................................................................................12
Connecting the power adapter and switching on the workstation for the first time............................14
Installing the software for the first time.....................................................................................15
Working with the workstation.......................................................................................................17
Switching the workstation on ...........................................................................................................17
Switching off the workstation ...........................................................................................................18
Switching off workstation via operating system ........................................................................18

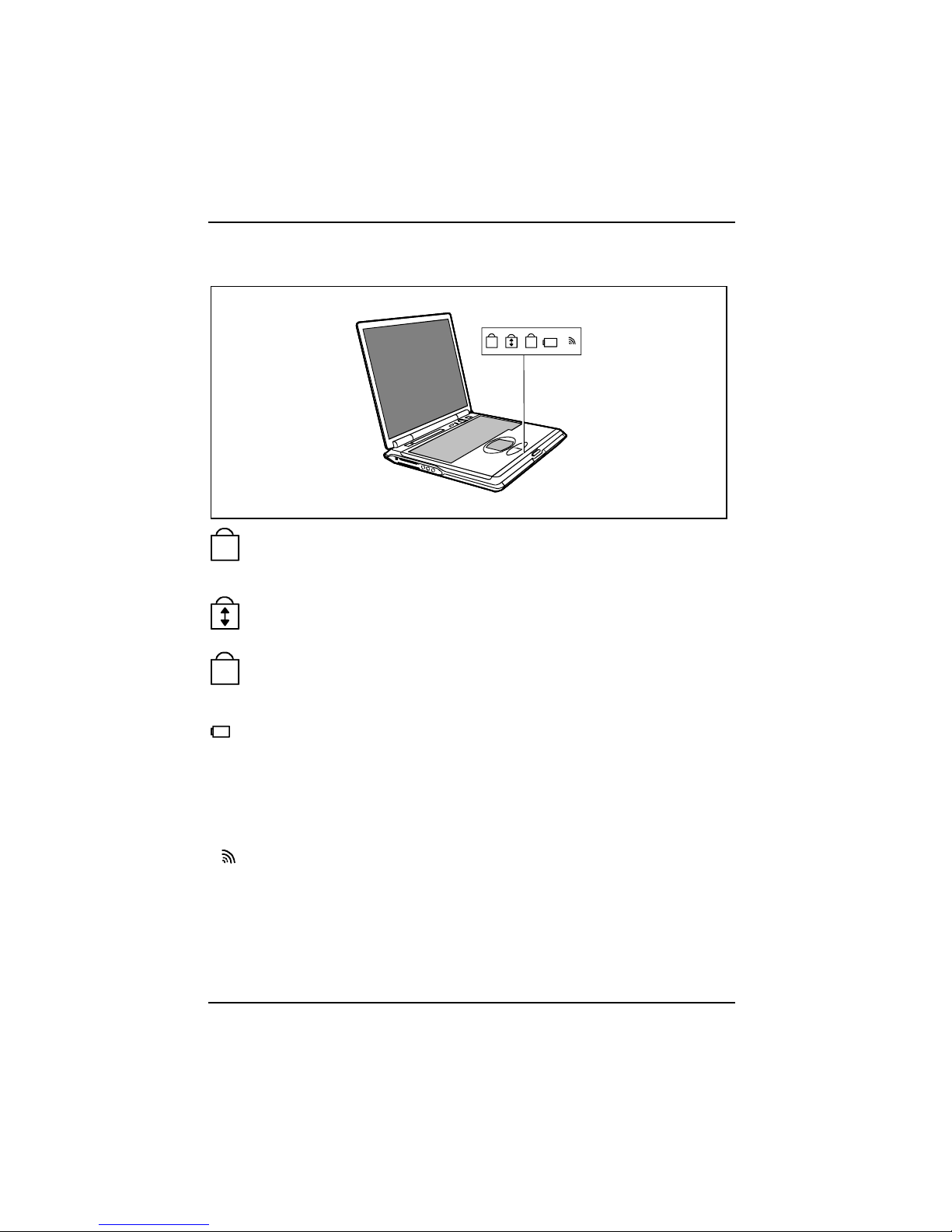

Indicators on the workstation ...........................................................................................................19
Operating the removable radio keyboard .........................................................................................21

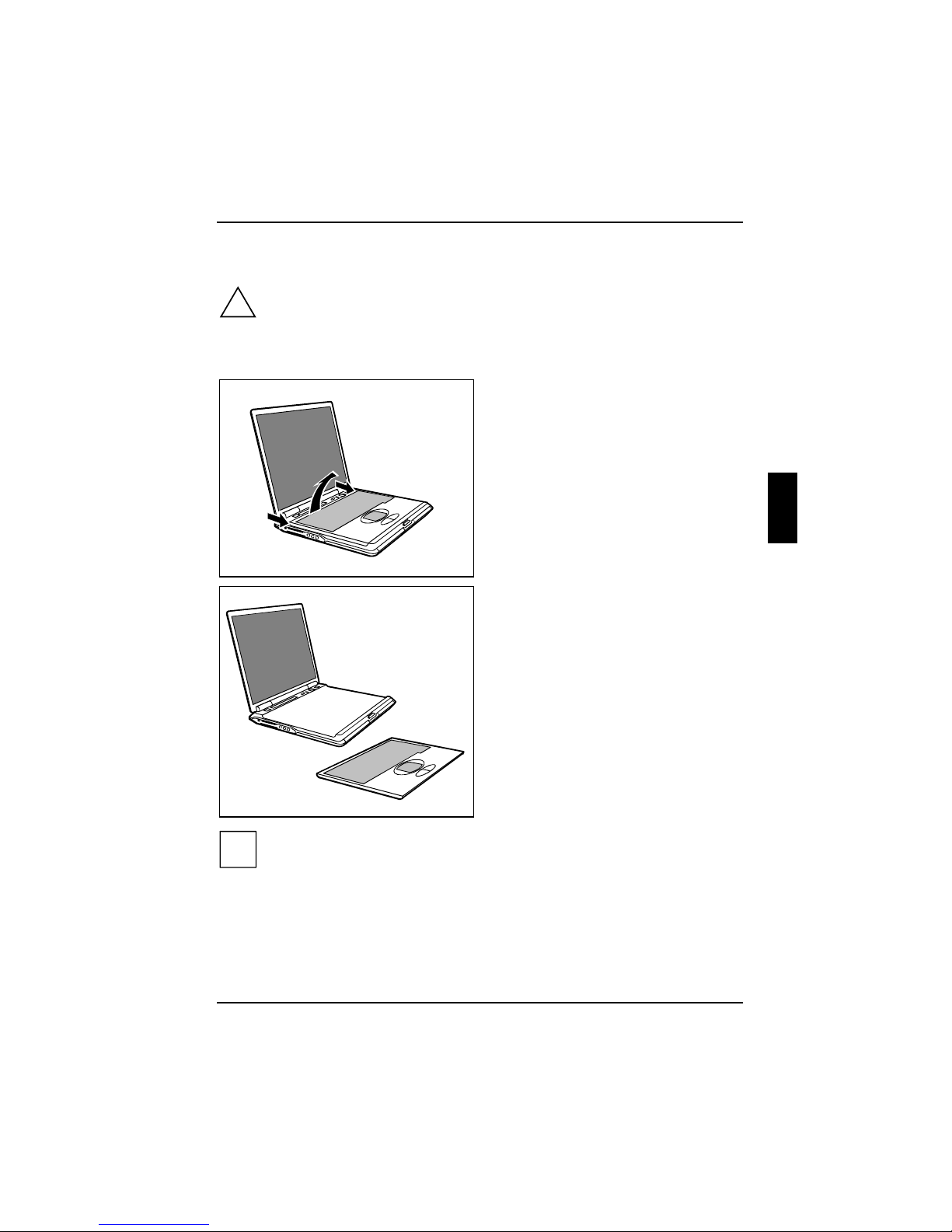

Removing the radio keyboard ..................................................................................................21
Attaching the radio keyboard ...................................................................................................22
Charging the keyboard battery.................................................................................................22
Replacing the keyboard battery................................................................................................23
Switching the radio keyboard on and off ..................................................................................24
Operating the keyboard without a radio connection..................................................................25
Indicators on the keyboard.......................................................................................................26

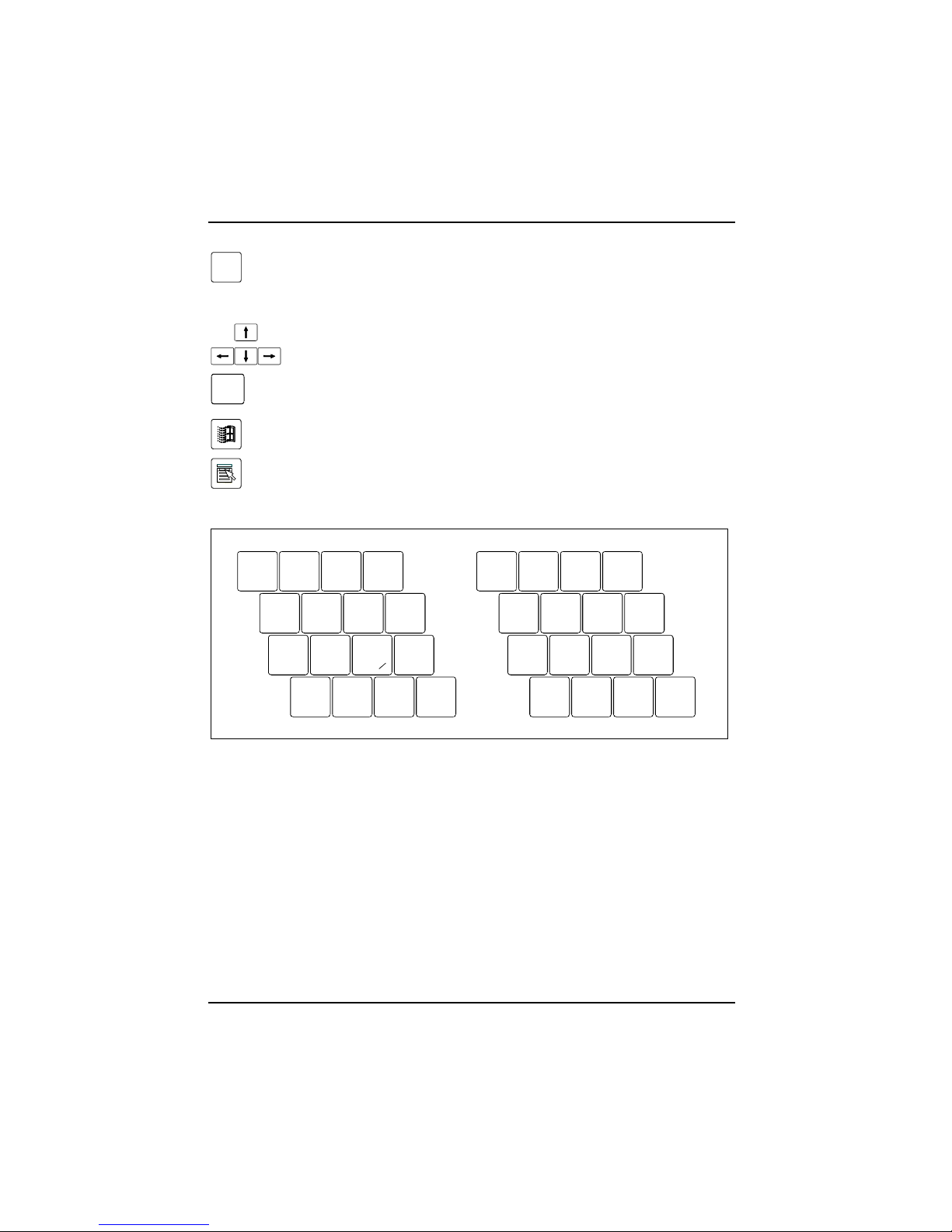

Description of keys ..................................................................................................................27
Touchpad and touchpad buttons..............................................................................................30
LCD display panel............................................................................................................................31
Information on LCD monitor.....................................................................................................31
Display settings........................................................................................................................31
Battery.............................................................................................................................................32
Performing the battery learning cycle.......................................................................................32
Charging the battery ................................................................................................................33
Monitoring the battery charging level .......................................................................................33
Inserting and removing the battery...........................................................................................33
Using the power-management features ...........................................................................................36
Energy-saving modes of workstation .......................................................................................36
Hard disk .........................................................................................................................................37
Contents
A26391-K124-Z100-1-7619
Inserting and removing modules...................................................................................................... 37
Optical drives .................................................................................................................................. 40
Optical drive indicator.............................................................................................................. 40
Inserting or removing a CD/DVD............................................................................................. 40
LS240 drive (floppy disk drive) ........................................................................................................ 41
Working with floppy disks ........................................................................................................ 41
56k-Modem ..................................................................................................................................... 42
Connecting workstation modem to telephone connection........................................................ 42
Connecting the workstation to Ethernet/LAN................................................................................... 43
Connecting IEEE1394 (FireWire) ....................................................................................................44
PC cards......................................................................................................................................... 45
Installing a PC card................................................................................................................. 45
Removing a PC card ............................................................................................................... 46
Microphone and loudspeakers......................................................................................................... 47
Security functions......................................................................................................................... 49
Overview of all security functions.................................................................................................... 49
Kensington Lock...................................................................................................................... 49
Password protection................................................................................................................ 49
SmartCard reader.................................................................................................................... 50
Fingerprint sensor ................................................................................................................... 50
Brief overview of the security functions ........................................................................................... 50
Using Kensington Lock.................................................................................................................... 51
Configuring password protection in BIOS Setup.............................................................................. 51
Protecting BIOS Setup (supervisor and user password).......................................................... 52
Password protection of operating system................................................................................ 53
Password protection for hard disk ........................................................................................... 53
Configuring and using SmartCard reader ........................................................................................ 54
SmartCards............................................................................................................................. 54
Application examples .............................................................................................................. 55
Configuring and using fingerprint sensor ......................................................................................... 56
Activating fingerprint sensor .................................................................................................... 56
Using fingerprint sensor........................................................................................................... 58
Adding fingerprint .................................................................................................................... 58
Deactivating fingerprint sensor ................................................................................................ 59
Troubleshooting .............................................................................................................................. 60
BIOS passwords .....................................................................................................................60
SmartCard reader.................................................................................................................... 60
Fingerprint sensor ................................................................................................................... 60
Connecting external devices........................................................................................................ 61

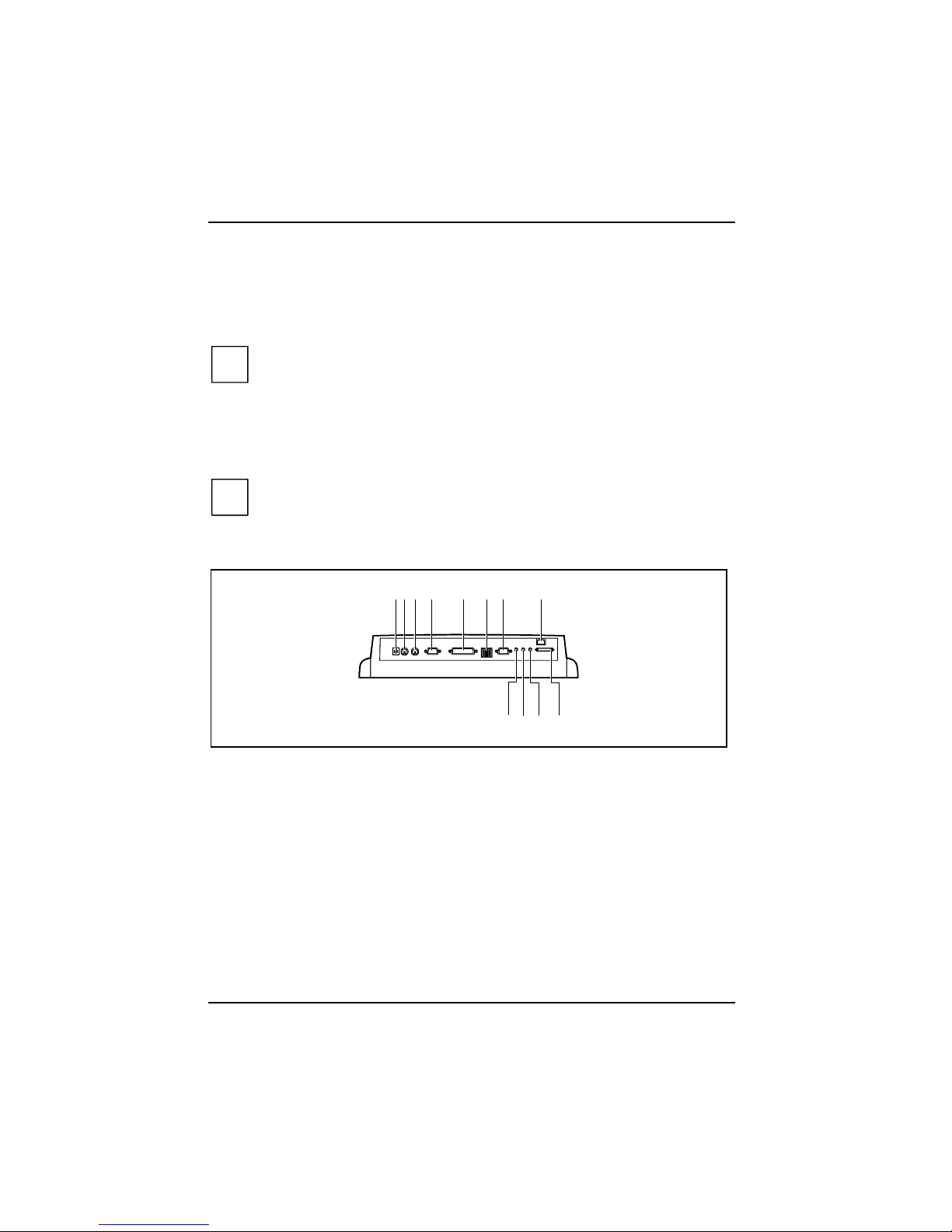

Ports ...............................................................................................................................................61
Connecting an external monitor....................................................................................................... 63
Connecting an external keyboard.................................................................................................... 64
Connecting an external PS/2 mouse ...............................................................................................64
Connecting a serial mouse.............................................................................................................. 64
Using the parallel port .....................................................................................................................64
Establishing an infrared connection................................................................................................. 65
Connecting USB devices................................................................................................................. 65
Operating workstation with docking device...................................................................................... 66
Connections for external devices on the Port Replicator II-L ...................................................66
Indicators on the II-L port replicator......................................................................................... 67
Mounting the tray..................................................................................................................... 67
Removing the tray................................................................................................................... 68

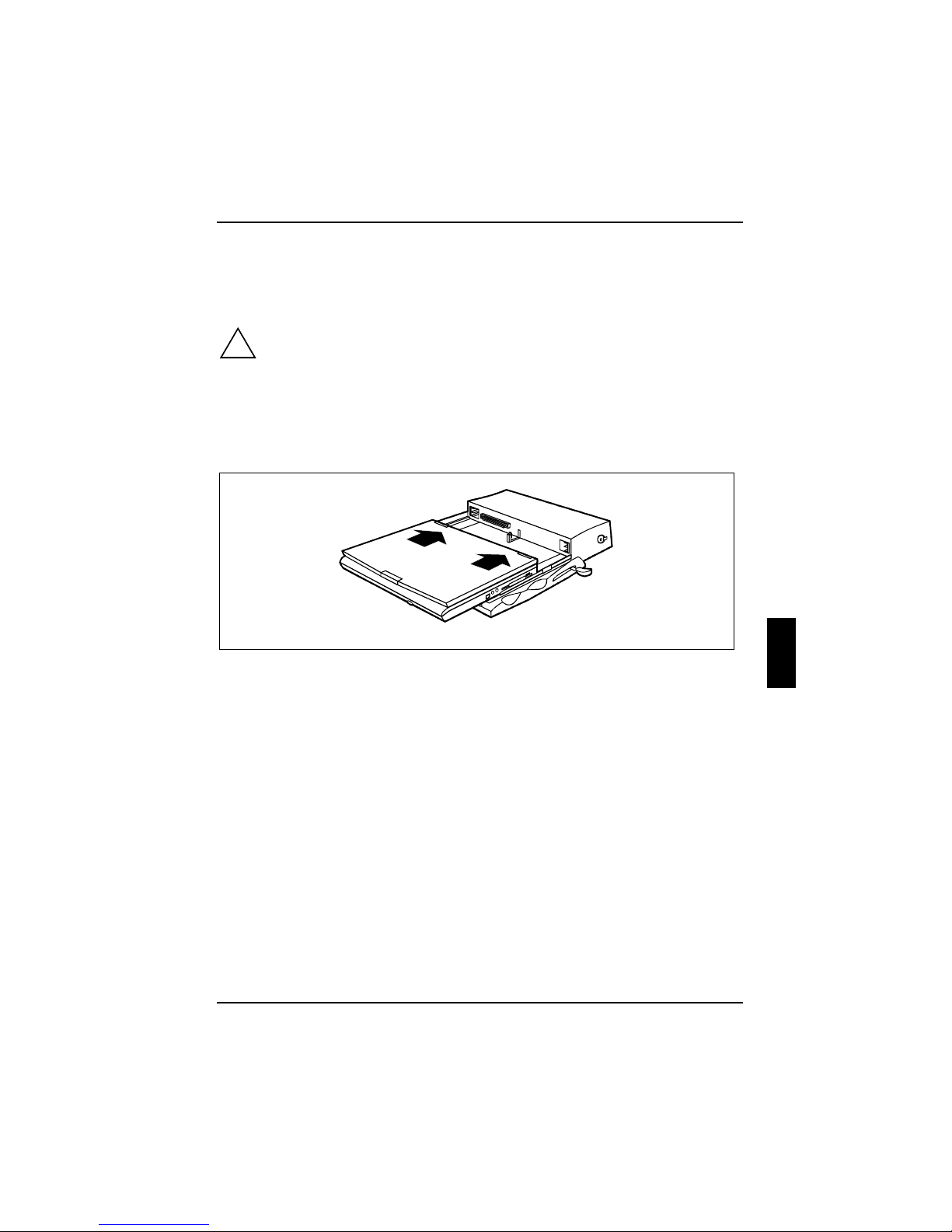

Docking workstation ................................................................................................................ 68
Removing workstation ............................................................................................................. 69
Contents
A26391-K124-Z100-1-7619
Settings in BIOS Setup..................................................................................................................71
Start BIOS Setup.............................................................................................................................71
Operating BIOS Setup .....................................................................................................................71
Exiting BIOS-Setup..........................................................................................................................72
Troubleshooting and tips..............................................................................................................73
CD "CELSIUS Mobile Driver CD".............................................................................................73
"Recovery CD".........................................................................................................................73
Installing new software.............................................................................................................73
Restoring the contents of the hard disk under Windows...........................................................74
The workstation's date or time is incorrect ...............................................................................74
Battery indicator does not illuminate ........................................................................................74
No display appears on the screen............................................................................................75
The workstation's LCD display is difficult to read .....................................................................75
The external monitor stays blank .............................................................................................75
The external monitor is blank or the image is unstable.............................................................76
Characters or digits do not appear on the screen on entering..................................................76
The workstation does not start after switch on .........................................................................76
The workstation switches itself off when you disconnect the power adapter ............................77
The workstation stops working.................................................................................................77
The battery is dead. .................................................................................................................77
The battery discharges too quickly...........................................................................................78
The Suspend/Resume button does not respond properly.........................................................78
No sound or minimal volume....................................................................................................78
The CD-ROM/DVD-ROM does not function.............................................................................79
The mouse does not work........................................................................................................79
The floppy disk cannot be written.............................................................................................79
The printer does not print.........................................................................................................79
The workstation casing gets warm...........................................................................................80
Acoustic warnings....................................................................................................................80
Error messages on the screen.................................................................................................80
Contact with Hotline/Help Desk................................................................................................82
Memory expansion........................................................................................................................83

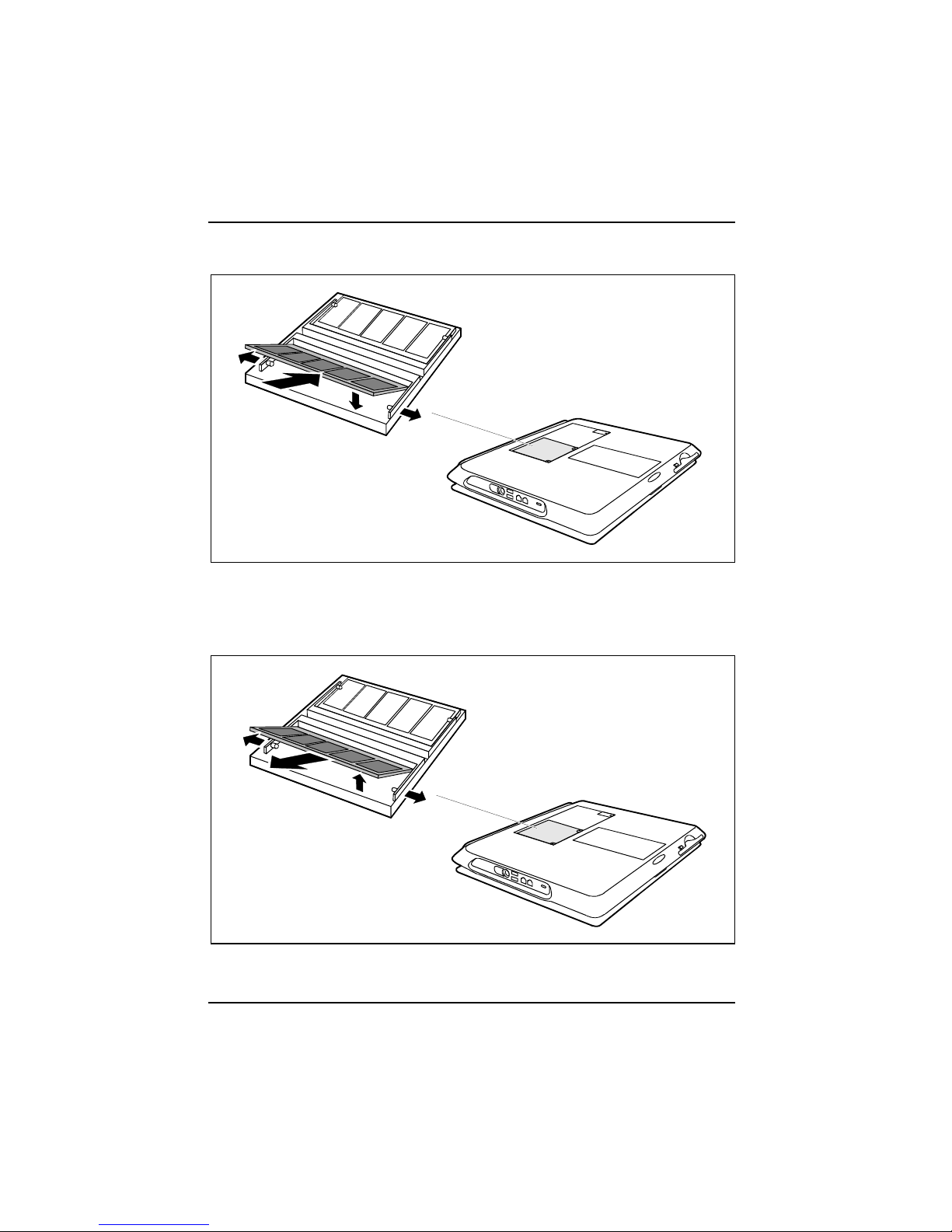

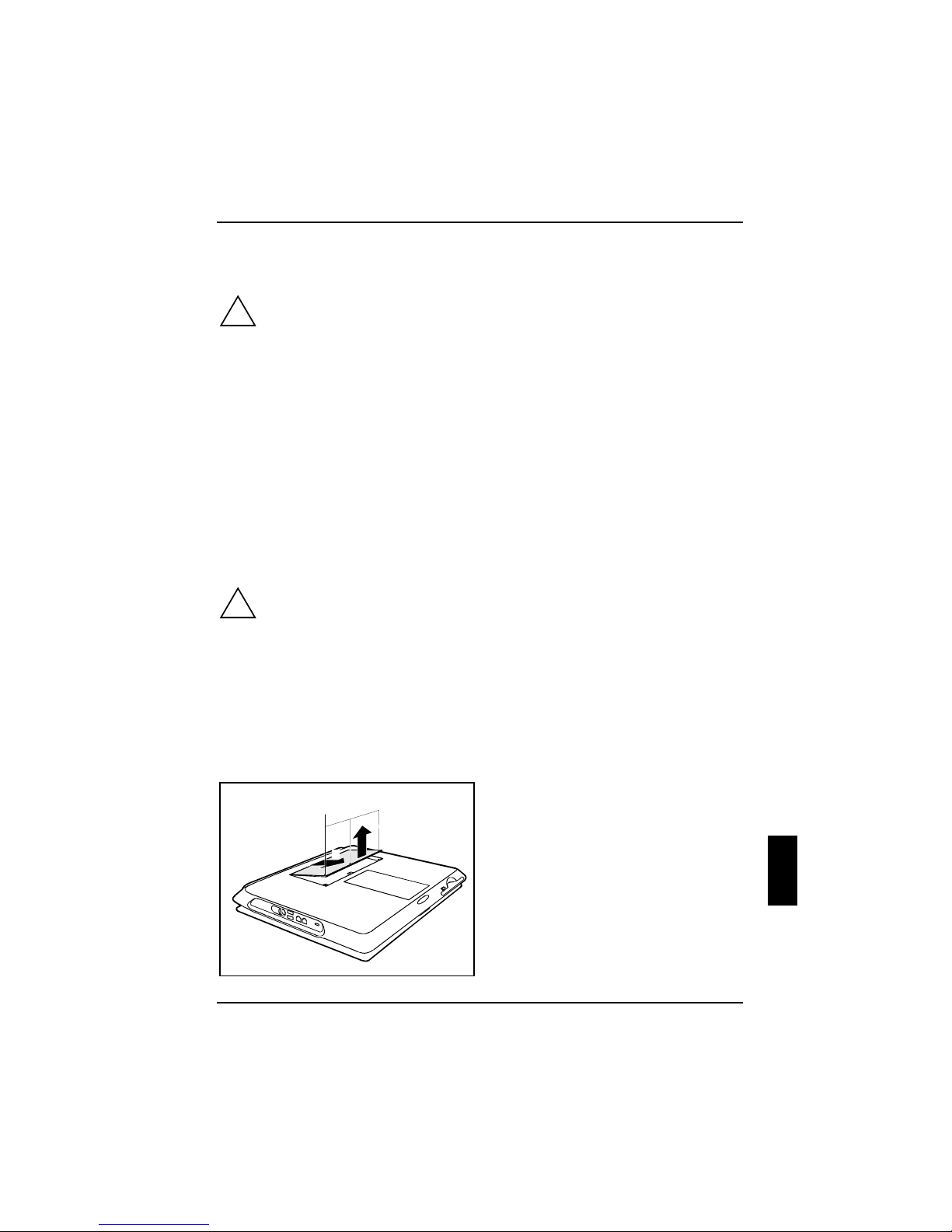

Removing and installing memory extension.............................................................................83
Technical data................................................................................................................................87
Workstation......................................................................................................................................87
Battery.............................................................................................................................................89
Power adapter .................................................................................................................................89
Radio keyboard................................................................................................................................90
Index...............................................................................................................................................91
A26391-K124-Z100-1-7619 1
Introduction
Your CELSIUS Mobile H is a versatile and ergonomic workstation. Innovative technology and
ergonomic design make your CELSIUS Mobile H user-friendly and reliable.
To simplify the initial start-up of your workstation, one or two operating systems are preinstalled on
the hard disk (dual-installation). If two operating systems are preinstalled, you can select which of
the two operating systems you want to install during initial start-up.
The energy-saving processor and the energy-saving functions that can be configured allow you to
make the most effective use of the battery capacity.
Your
WORKSTATION has 128 -1024 Mbyte of main memory installed, depending on the upgrade level.
Data is stored on a hard disk drive. Your workstation is also equipped with a 3 1/2-inch disk drive.
Your workstation is shipped with a combo drive (CD-RW/DVD). A PC card slot (CardBus or
PCMCIA) enables the device to operate two type II PC cards or one type III PC card. Depending on
the variant, your workstation may be equipped with an internal mini-PCI board.

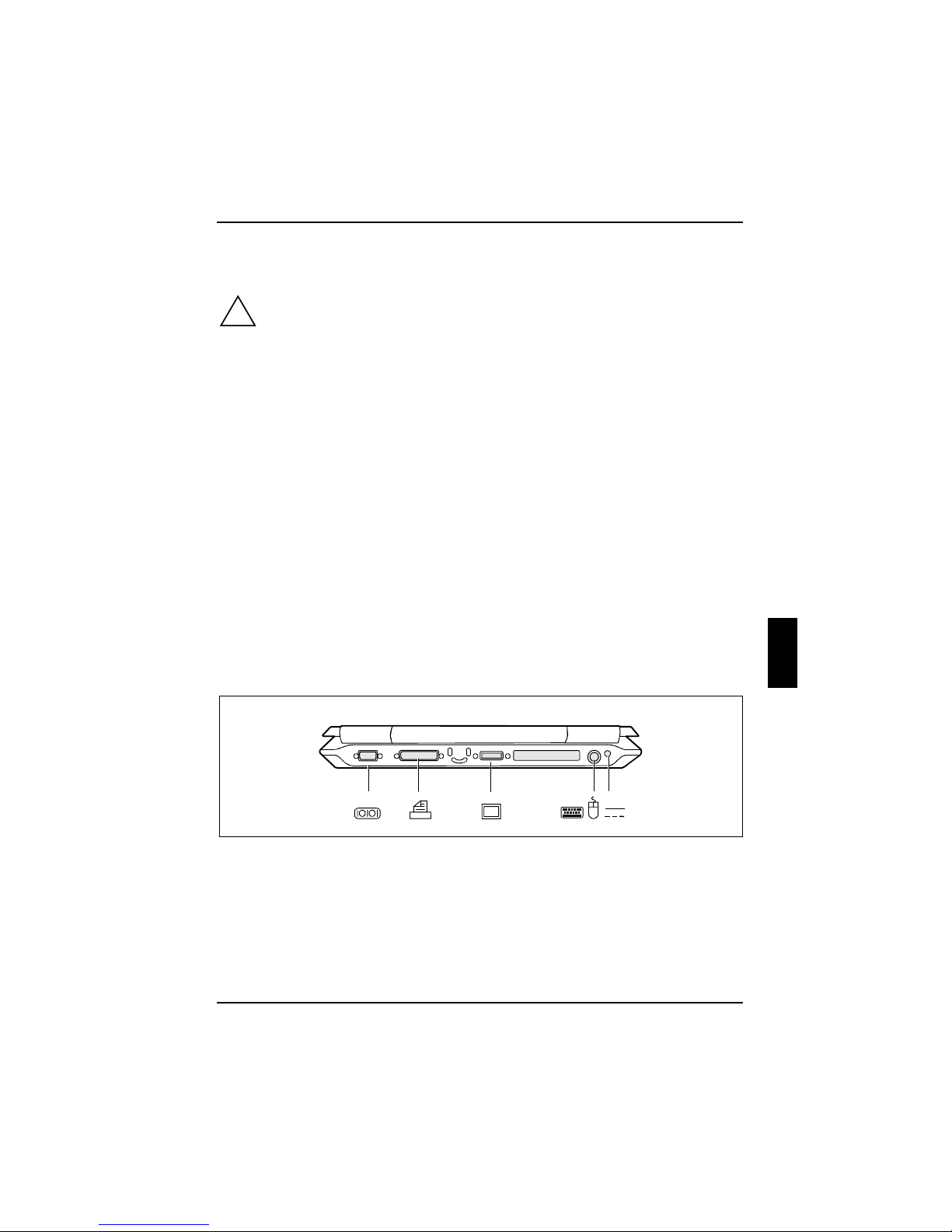

Your workstation has connectors for external devices such as an external monitor, a printer, and a
mouse. The ECP capable parallel port is designed for fast bi-directional data transfer. You can
connect peripheral devices such as a scanner, loudspeakers, gamepads, keyboard, or mouse via
the two USB ports. A video output lets you connect a television or video device.
For convenient operation your workstation is equipped with a removable radio keyboard. For mouse
control, the radio keyboard has a touchpad with touchpad buttons.
An audio controller, two built in loudspeakers, and a built in microphone provide your workstation
with audio functionality. You can thus incorporate voice, noise effects and music into your
workstation environment. You can also connect an external microphone and an external
loudspeaker. Furthermore a digital audio output (SPDIF) is provided.
The system settings of the workstation can be configured via the user-friendly BIOS Setup
programme. Certain system settings (e.g. screen display, energy saving functions) can be modified
via various key combinations while you are using the workstation.
Your workstation has a number of security features to ensure that no unauthorised persons can
access your data. For example, you can activate a screen saver with password protection. The
security functions in the BIOS Setup also allow you to protect your data by means of passwords.
This Operating Manual tells you how to put your workstation into operation and how to operate it in
daily use.
Additional information on your workstation is contained in the following documents:
• on the "CELSIUS Mobile Driver CD"
• in the "Safety" manual
• in the documentation of the operating system
• in the information files (e.g. *.TXT, *.DOC, *.WRI, *.HLP)
• on the internet at http://www.fujitsu-siemens.com/
Introduction
2 A26391-K124-Z100-1-7619
Notational conventions
The following symbols are used in this manual:
!
Pay particular attention to texts marked with this symbol. Failure to observe
this warning endangers your life, destroys the system, or may lead to loss
of data. Failure to follow the instructions may lead to loss of data, invalidate
your warranty, destroy the device, or endanger your life.
i
Indicates important information which is required to use the system
properly.
Ê Text which follows this symbol describes activities that must be performed
in the order shown.
This font indicates screen outputs.
This font indicates programme names, commands, or menu items.
"Quotation marks" indicate names of chapters, data carriers, and terms that are being
emphasised.
A26391-K124-Z100-1-7619 3
Important notes
In this chapter you will find information regarding safety which it is essential to take note of when
working with your workstation. The manufacturer's notes contain helpful information on your device.
Declarations of Conformity
The "Declarations of Conformity" concerning this workstation can be found at our internet address:
http://www.driver-cd.com.
Hereby, Fujitsu Siemens Computers, declares that this CELSIUS Mobile workstation is in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC. (BMWi), (Wien).
Safety
This CELSIUS Mobile Workstation complies with the relevant safety regulations for data processing
equipment. If you have any questions, contact your sales outlet or our Help Desk.
!
Pay attention to the information provided in the manual "Safety" and in the following
security notes.
Observe the sections in the manual marked with the symbol on the left.
• When connecting and disconnecting cables, observe the relevant notes in this operating
manual.
• Only use batteries designed for this workstation.
Do not store batteries for longer periods in the workstation.
Take care not to drop the batteries or otherwise damage their casing (fire risk).
If the rechargeable batteries are defective, they must not be used.
Do not touch the contacts of the batteries.
Never interconnect the positive and negative terminals of a battery.
Used batteries must be disposed of in accordance with local regulations (special waste).
• During installation and before operating the device, please observe the instructions on
environmental conditions in the "Technical data" chapter as well as the instructions in the
"Preparing the workstation for use" chapter.
• When cleaning the device, please observe the relevant notes in the paragraph "Cleaning the
workstation".
• If the workstation is brought into the installation site from a cold environment, condensation can
form. Before operating the workstation, wait until it is absolutely dry and has reached
approximately the same temperature as the installation site.
• Your workstation is equipped with numerous security functions that offer you a high level of
security according to a multi-level concept. Detailed information can be found in chapter
"Security functions".
Important notes
4 A26391-K124-Z100-1-7619
Safety precautions for the removable radio keyboard
• Switch off the radio keyboard or operate the radio keyboard without the radio function when
you are in a hospital, an operating room or near a medical electronics system. The transmitted
radio waves can impair the operation of the medical devices.
• Keep the workstation at least 20 cm from a pacemaker with the radio keyboard switched on, as
otherwise the proper functioning of the pacemaker can be interfered with by the radio waves.
• The transmitted radio waves can cause an unpleasant humming in hearing aids.
• Switch off the radio keyboard when you are in an aircraft or driving in a car.
• Do not let the workstation near flammable gases or into hazardous environments (e.g.
paintshops) with radio keyboard switched on, as the transmitted radio waves can cause an
explosion or a fire.
• With data traffic via a wireless connection, it is also possible for unauthorised third parties to
receive data.
The company Fujitsu Siemens Computers GmbH cannot be held responsible for radio or television
faults arising from unauthorised changes made to this device. Fujitsu Siemens is, furthermore, not
responsible for replacing and / or exchanging connector cables and devices which have not been
specified by Fujitsu Siemens Computers GmbH. The user is solely responsible for repairing faults
arising from such unauthorised changes made to a device and for replacing and / or exchanging
devices.
Notes on installing and removing boards and modules
!
Only qualified technicians should repair the device. Unauthorised opening or incorrect
repair may greatly endanger the user (electric shock, fire risk).

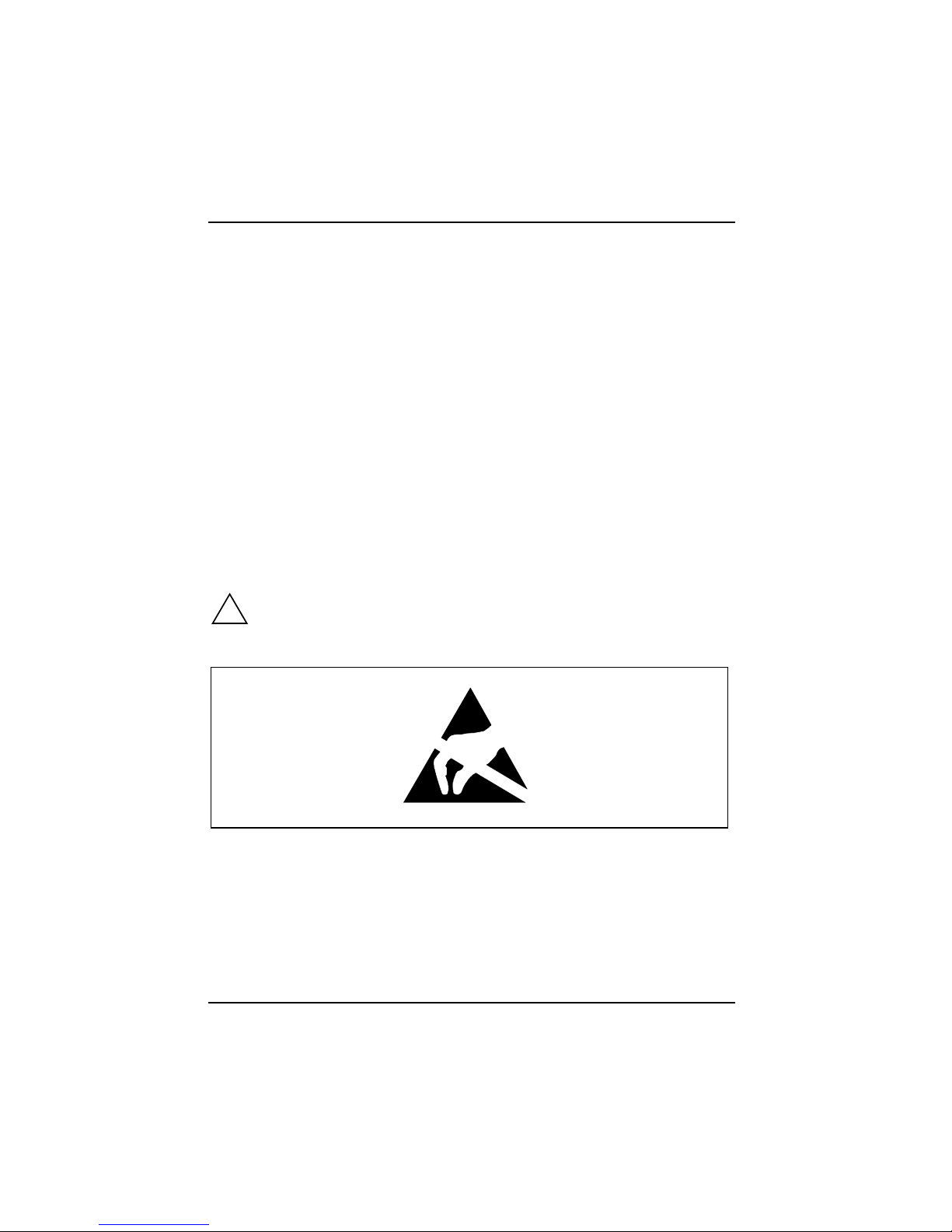

Boards with electrostatic sensitive devices (ESD) are identifiable by the label shown.
Important notes
A26391-K124-Z100-1-7619 5
When you handle boards fitted with ESDs, you must, under all circumstances, observe the following
points:
• You must statically discharge yourself before working with boards (e.g. by touching a grounded
object).
• The equipment and tools you use must be free of static charges.
• Remove the power plug from the mains supply before inserting or removing boards containing
ESDs.
• Always hold boards with ESDs by their edges.
• Never touch pins or conductors on boards fitted with ESDs.
Manufacturer’s notes
Keep this operating manual together with your device. If you pass on the device to third parties, you
should include this manual.
Copyright-protected technology
This product incorporates copyright protection technology that is protected by method claims of
certain U. S. patents and other intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorised by Macrovision
Corporation, and is intended for home and other limited viewing uses only unless otherwise
authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Energy saving
If you will not be using your workstation, switch it off.
Make use of the device's energy saving functions (see "Working with the workstation"). The
workstation uses less power when the power management features are enabled. You will then be
able to work for longer before having to recharge the battery.
Energy saving under Windows
If a monitor with energy saving features is connected to your workstation, you can use the Screen
Saver tab to set the energy saving features of the monitor. If you wish to do this, select My computer Control Panel - Display - Display Properties - Screen Saver - Energy saving functions for the display. You
can set additional energy saving functions in the start menu by selecting the following item: Settings Control Panel - Energy - Extended.
Energy Star
The Fujitsu Siemens Computers CELSIUS Mobile H is designed to
conserve electricity by dropping to less than 8 W when it goes into
standby/suspend mode and to less than 3 W when it goes into OFF mode.
With this new power management the CELSIUS Mobile H qualifies for the
U.S. Environmental Protection Agency's (EPA) Energy Star Computers
award.
Important notes
6 A26391-K124-Z100-1-7619
The EPA estimates that computer equipment uses 5 percent of all business electricity and that this
is growing rapidly. If all desktop PCs and peripherals enter a low-power mode when not in use, the
overall savings in electricity could amount to $ 2 milliard annually. These savings could also prevent
the emission of 20 million tons of carbon dioxide into the atmosphere - the equivalent of 5 million
automobiles.
As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product
meets the Energy Star guidelines for energy efficiency.
Disposal and recycling
This device has been manufactured to the highest possible degree from materials which can be
recycled or disposed of in a manner that is not environmentally damaging. The device may be taken
back after use to be recycled, provided that it is returned in a condition that is the result of normal
use. Any components not reclaimed will be disposed of in an environmentally acceptable manner.
Do not throw lithium batteries into the household waste. They must be disposed of in accordance
with local regulations concerning special waste.
If you have any questions on disposal, please contact your local office, our Hotline/Help Desk, or:
Fujitsu Siemens Computers GmbH
Recyclingcenter
D-33106 Paderborn
Tel: +49 5251 81 80 10
Fax: +49 5251 81 80 15
CE marking
CE marking for workstation
The shipped version of this device complies with the requirements of
the EEC directives 89/336/EEC "Electromagnetic compatibility" and
73/23/EEC "Low voltage directive".
0681
CE marking for radio keyboard
This equipment complies with the requirements of Directive 1999/5/EC
of the European Parliament and Commission from 9 March, 1999
governing Radio and Telecommunications Equipment and mutual
recognition of conformity.
This keyboard is approved for use in Belgium, Denmark, Germany,
Finland, France, Greece, Great Britain, Ireland, Italy, Luxembourg, the
Netherlands, Norway, Austria, Portugal, Sweden, Spain, Switzerland,
and in the USA.
GS symbol
In normal screen mode (dark characters against a light background) the LCD panel satisfies the
ergonomic requirements for the GS symbol.
Important notes
A26391-K124-Z100-1-7619 7
FCC Class B Compliance Statement
The following statement applies to the products covered in this manual, unless otherwise specified
herein. The statement for other products will appear in the accompanying documentation.
NOTE:
This equipment has been tested and found to comply with the limits for a "Class B" digital device,
pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian InterferenceCausing Equipment Regulations. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in strict accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Fujitsu Siemens Computers GmbH is not responsible for any radio or television interference caused
by unauthorised modifications of this equipment or the substitution or attachment of connecting
cables and equipment other than those specified by Fujitsu Siemens Computers GmbH. The
correction of interference caused by such unauthorised modification, substitution or attachment will
be the responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to any and all optional
peripheral or host devices. Failure to do so may violate FCC rules.
Battery storage
i
If you do not intend to use the battery for long periods of time, remove it from the
workstation. Never store the battery in the device.
Store the battery in a fully charged state. The battery should be stored in a dry area at a
temperature between 0°C and +30°C. The lower the temperature at which the batteries are stored,
the lower is the rate of self-discharge.
If storing for a long period of time (longer than two months) batteries should be fully charged before
storage.
To be able to use the optimum battery charging capacity, you should work in the battery mode until
the battery is completely discharged, and then recharge the battery.
Important notes
8 A26391-K124-Z100-1-7619
Transporting the workstation
Please observe the points listed below when transporting your workstation.
Before you travel
!
If the removable keyboard is operated by a radio connection, your workstation may not be
switched on during a flight. In this case switch off the keyboard also (see chapter
"Working with the workstation").
However, you can also operate the keyboard without a radio connection (see chapter
"Working with the workstation").
• Copy important data from the hard disk onto a floppy disk.
• If you are travelling abroad, ensure that the power adapter can be operated with the local
mains voltage. If this is not the case, obtain the appropriate power adapter for your workstation.
Do not use any other voltage converter!
i
If you travel in another country, check whether the local power supply and the
specifications of the power cable are compatible. If this is not the case, buy a power cable
that matches the local conditions. Do not use a connection adapter for electrical devices
to connect the workstation.
If you use a modem, incompatibilities with the local telecommunications system may
result.
Transporting the workstation
• Remove all data carriers (e.g. floppy disk, CD) from the drives.
• Switch off the workstation.
• Unplug the power adapter and all peripheral devices from the mains outlet.
• Disconnect the power adapter cable and the data cables of all peripheral devices.
• Close the LCD display of the workstation so that it locks into place.
• If the device needs to be shipped, use the original packaging or other suitable packaging to
protect it from damage caused by mishandling.
• To protect against damaging jolts and bumps, use a carrying case to transport your
workstation.
• Protect the workstation from severe shocks and extreme temperatures (e.g., direct sunlight in a
car).
Important notes
A26391-K124-Z100-1-7619 9
Cleaning the workstation
Ê Switch off the workstation.
Ê Pull the power plug of the network adapter out of the mains outlet.
Ê Remove the battery.
How to remove the battery is described in the section "Inserting and removing the battery".
!
Do not clean any interior parts yourself; leave this job to a service technician.
Do not use any cleaning agents that contain abrasives or may corrode plastic. The use of
improper cleaning agents can damage the markings on the keyboard and the workstation,
the paintwork of the device or the device itself.
Ensure that no liquid enters the workstation.
Wipe the casing with a dry cloth.
If particularly dirty, use a cloth that has been moistened in mild domestic detergent and then
carefully wrung out.
To clean the keyboard and the touchpad, you can use disinfectant wipes.
Wipe the LCD screen with a soft, moistened cloth.
A26391-K124-Z100-1-7619 11
Preparing the workstation for use
!
Please read the chapter "Important notes".
Before you can work with your workstation, you need to charge the battery and install and configure
the delivered software. The operating system and drivers required are preinstalled.
Upon delivery, the battery can be found in the battery compartment and is not charged. You need to
charge the battery if you want to operate your workstation with a rechargeable battery.
If you use the workstation in a normal office situation, run it off the mains using the power adapter.
Unpacking and checking the delivery
Ê Unpack all the individual parts.
Ê Check the delivery for damage incurred during transportation.
Ê Check whether the delivery agrees with the details in the delivery note.
i
Should you discover that the delivery does not correspond to the delivery note, notify you
r
local sales outlet immediately.
Do not discard the original packing material of the devices. Keep the original packing
material in case you need to ship the equipment again.
Setting up the workstation
!
Do not place the workstation on a soft surface (e.g., a carpet or soft furnishings). The
space between the workstation's feet must be clear.
Do not place the workstation and the power adapter on heat-sensitive material.
The workstation and the power adapter should be at least 200 mm apart.
Keep other objects 100 mm away from the workstation and its power adapter to ensure
adequate ventilation.
Never cover the ventilation slots of the workstation.
The power cable supplied conforms to the requirements of the country in which you
purchased your workstation. Make sure that the power cable is approved for use in the
country in which you intend to use it.
The power adapter's AC cord should only be connected to a mains outlet if the
workstation is already connected to the power adapter.
Do not expose the workstation to extreme environmental conditions. Protect the
workstation from dust, humidity and heat.
Upon delivery, the battery can be found in the battery compartment and is not fully
charged.
Preparing the workstation for use
12 A26391-K124-Z100-1-7619
i
Should radio interference occur with the keyboard and workstation, because radios or
radio equipment are nearby, then move the workstation to a different location or connect
the keyboard to the workstation with the PS/2 cable provided (see chapter "Working with
the workstation", section "Operating the keyboard without a radio connection".
Use the workstation with radio keyboard at least 2 m away from other electrical or
electronic systems. If you must use the workstation near a microwave cooker, then
maintain a distance of at least 3 m from the microwave cooker, as the radio reception is
subject to interference with regard to microwaves.
Ê Place the workstation on a flat, stable, nonslippery surface.
2
1
Ê Press the release button (1) and open the LED display panel (2).
Switching on removable radio keyboard
The ON/OFF switch of the radio keyboard is located on the underside of the keyboard.
1
2
1
3
Ê Lift the keyboard at the two positions indicated (1).
Ê Remove the keyboard in the direction of the arrow (2).
Preparing the workstation for use
A26391-K124-Z100-1-7619 13
Ê Turn the keyboard over (3).
Ê Switch the keyboard on with the ON/OFF switch (ON).
The keyboard is permanently linked to the workstation by means of a wireless connection, if both
devices are switched on. The right-hand indicator on the keyboard lights as soon as a wireless
connection is established. No keyboard input is possible until the indicator lights. Occasionally it can
take up to 15 seconds to establish a connection (normally 2 to 5 seconds).
1
1
Ê Hold the keyboard at an angle and ensure
that the pins (1) fit into the matching
recesses.
The keyboard battery is being charged.
Preparing the workstation for use
14 A26391-K124-Z100-1-7619
Connecting the power adapter and switching on the
workstation for the first time
When you switch on your workstation for the first time the supplied software is installed and
configured. You should plan some time for this, as this process must not be interrupted.
2
3
1
!
Use only the power adapter provided.
Ê Plug the DC output connector on the power adapter into the DC input connector (DC IN) on the
workstation (1).
Ê Connect the power cable to the power adapter (2).
Ê Plug the power cable into the mains supply (3).
The power indicator
on the workstation should illuminate. The workstation battery is being
recharged.
i
With the workstation switched on and off, the battery will completely recharge in
approximately three to four hours. Therefore you should leave the workstation connected
for some time even after completion of preparing for use.
Ê Press the Suspend/Resume button (4), and release it again.
The Suspend/Resume button functions like an ON/OFF switch.
The power-on indicator
on the workstation lights up.
Preparing the workstation for use
A26391-K124-Z100-1-7619 15
!
After switch-on a self-test (POST, Power On Self Test) is automatically carried out. Never
switch the workstation off during the self-test.
Installing the software for the first time
!
Leave the external power adapter connected to your workstation during the initial
installation.
Once the installation has been started the workstation must not be switched off, unless
the installation has been completed.
During installation the workstation may only be rebooted when you are requested to do
so!
Ê During installation, follow the instructions on screen.
Consult the operating system manual if there is anything unclear about the requested input data.
i
You will find further information about the system, drivers, utilities, updates, manuals etc.
on the "CELSIUS Mobile Driver CD" supplied.
A26391-K124-Z100-1-7619 17
Working with the workstation
This chapter describes the basics for operating your workstation.
The chapter on "Connecting external devices" has instructions on how to connect external devices
(e.g. mouse, printer) to the workstation.
!
Please take note of the information in the chapter "Important notes".

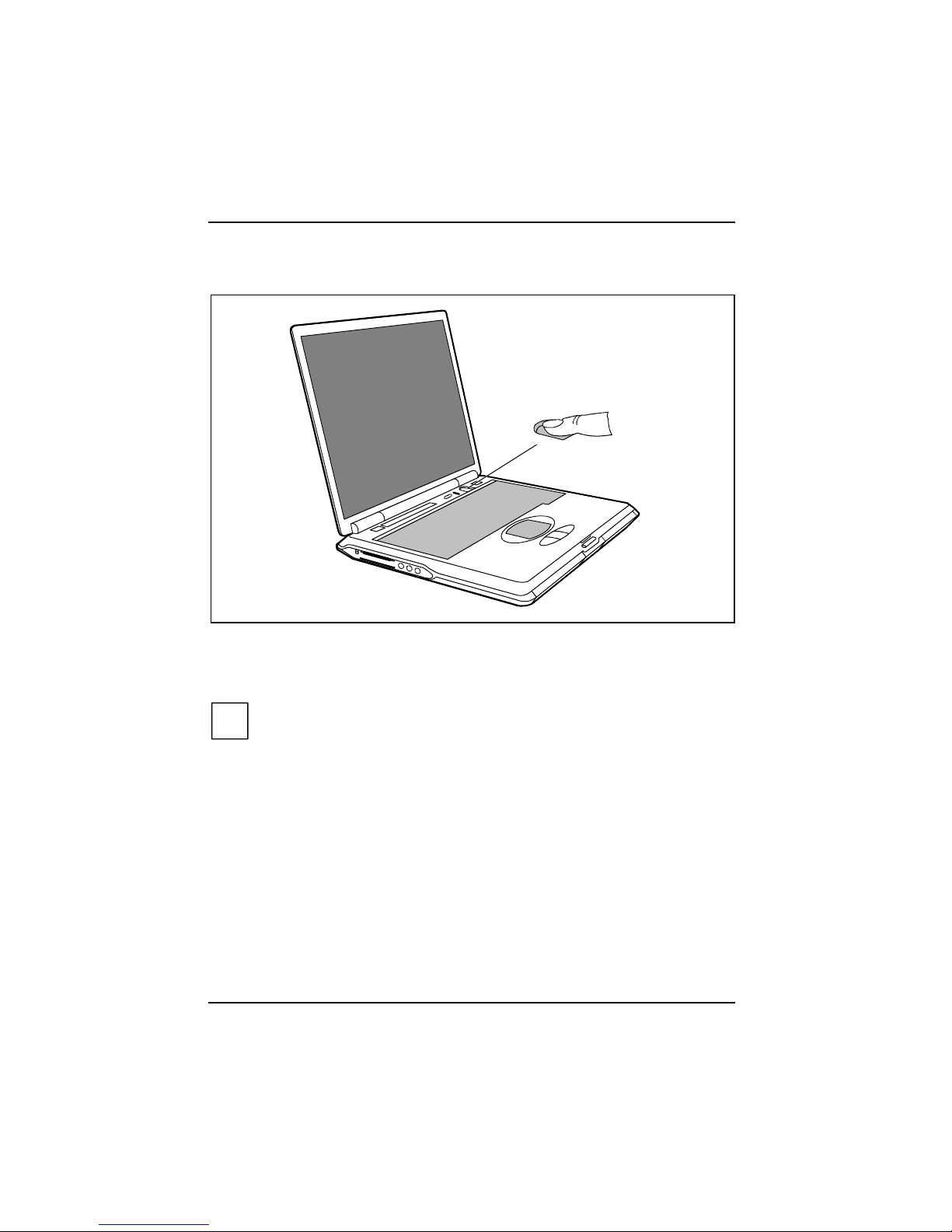

Switching the workstation on
2
1
Ê Press the release button (1) and open the LED display panel (2).
Ê Press the Suspend/Resume button to switch on the workstation (3).
The power-on indicator
on the workstation lights up.
i
You can configure the Suspend/Resume button under Start - Settings - Control Panel Power Options - Power Options Properties.
If you have assigned a password, you must enter this when requested to do so, in order
to start the operating system password.
Working with the workstation
18 A26391-K124-Z100-1-7619
Switching off the workstation
2
Ê Shut down the operating system properly.
If the workstation does not switch itself off, press the Suspend/Resume button (1) and hold it
down for approx. 4 seconds until the power-on indicator
of the workstation goes out.
The workstation is switched off.
Ê Close the LCD display of the workstation (2) so that it locks into place.
Switching off workstation via operating system
How you can switch off your workstation via the operating system is dependent on the settings of
the power-management feature. Additional information is contained in the section "Removing the
battery" in this chapter.
i
Save all open files before switching the workstation into the Standby mode to avoid data
loss when the workstation remains switched off for a longer time.
Working with the workstation
A26391-K124-Z100-1-7619 19
Indicators on the workstation
The following icons appear in the display field of your workstation:
The meanings of the symbols are as follows:
Power-on indicator
• The indicator lights up: The workstation is on.
• The indicator flashes (1 second on / 1 second off):
The workstation is in energy-saving mode.
• The indicator is dark:
The workstation is switched off.
Battery indicator
The battery charge state is indicated in the status indicator panel.
Power indicator
The power adapter is supplying power to the workstation.
"Speed Step" indicator
The indicator shows the processor performance (see key combination [Fn]
Fn]Fn]
Fn] + [F5]
F5]F5]
F5]). The
complete symbol lights up, when the processor performs at its best.
Working with the workstation
20 A26391-K124-Z100-1-7619
Hard disk indicator
The indicator lights up when the hard disk drive is being accessed.
Optical drive indicator
The indicator is lit when the CD/DVD in the optical drive is being accessed.
You must not remove the CD/DVD from the drive when this indicator is lit.
LS240 drive indicator
The indicator lights up when a floppy disk in the LS240 drive is being accessed.
You must not remove the floppy disk from the floppy disk drive when this indicator is
shown.
Indicator PC card 1 or 2
The indicator lights up when a PC card disk in slot 1 or 2 is being accessed.
You must not remove the PC card from the slot when this indicator is lit.
Indicator for radio connection to keyboard
The indicator lights up, when there is a radio connection between the keyboard and the
workstation.
If no keyboard cable is connected, input via keyboard and touchpad is possible only
when the indicator lights up.
CapsLK
CapsLK indicator (Caps Lock)
The ÏÏÏÏ key has been pressed. All the characters you type appear in uppercase. In the
case of overlay keys, the character printed on the upper left of the key appears when that
key is pressed.
ScrLK
Scroll indicator (Scroll Lock)
The [Scr]
[Scr][Scr]
[Scr] key has been pressed. The effect this key has varies from programme to
programme.
PadLK
PadLK (Pad Lock) indicator
The [Num
[Num[Num
[Num LK]
LK] LK]
LK] key on the radio keyboard has been pressed. The numeric keypad on the
radio keyboard is enabled.
NumLK
NumLK indicator (Num Lock)
The [Num
[Num[Num
[Num LK]
LK] LK]
LK] key on the external keyboard has been pressed. The numeric keypad on
the external keyboard is enabled.
i
A description of the indicators on the keyboard can be found in section "Operating the
removable radio keyboard" in this chapter.
Working with the workstation
A26391-K124-Z100-1-7619 21
Operating the removable radio keyboard
!
Please take note of the safety information in the "Important notes" chapter.

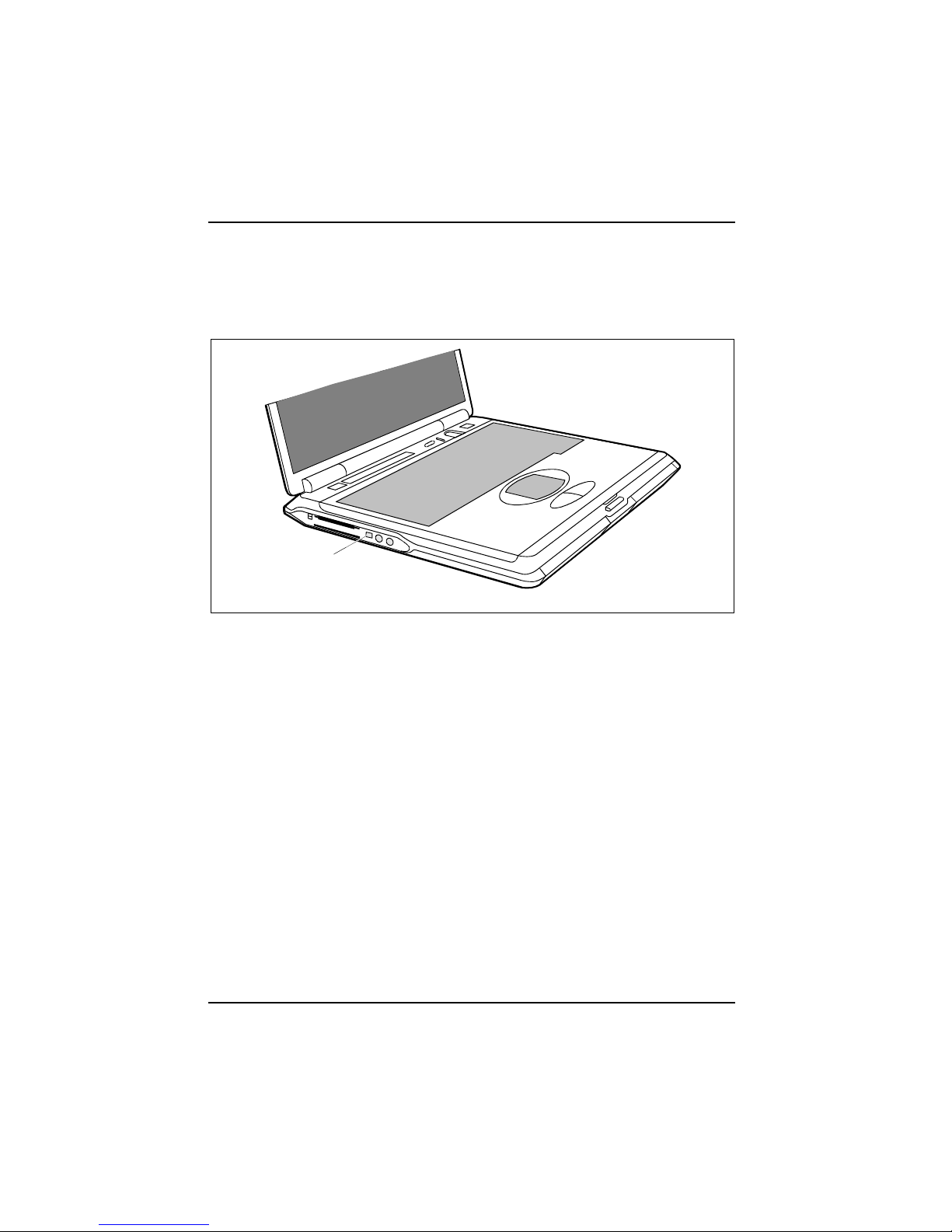

Removing the radio keyboard
1
1
2
Ê Lift the keyboard at the two positions
indicated (1).
Ê Remove the keyboard in the direction of the
arrow (2).
The keyboard is permanently linked to the
workstation by means of a wireless connection.
The right-hand indicator on the keyboard lights
as soon as a wireless connection is established.
No keyboard input is possible until the indicator
lights. Occasionally it can take up to 15 seconds
to establish a connection (normally 2 to
5 seconds).
i
If you are unable to establish a connection between the keyboard and the CELSIUS
Mobile Workstation, switch the keyboard off and then on again with the ON/OFF switch on
the underside of the keyboard.
Working with the workstation
22 A26391-K124-Z100-1-7619

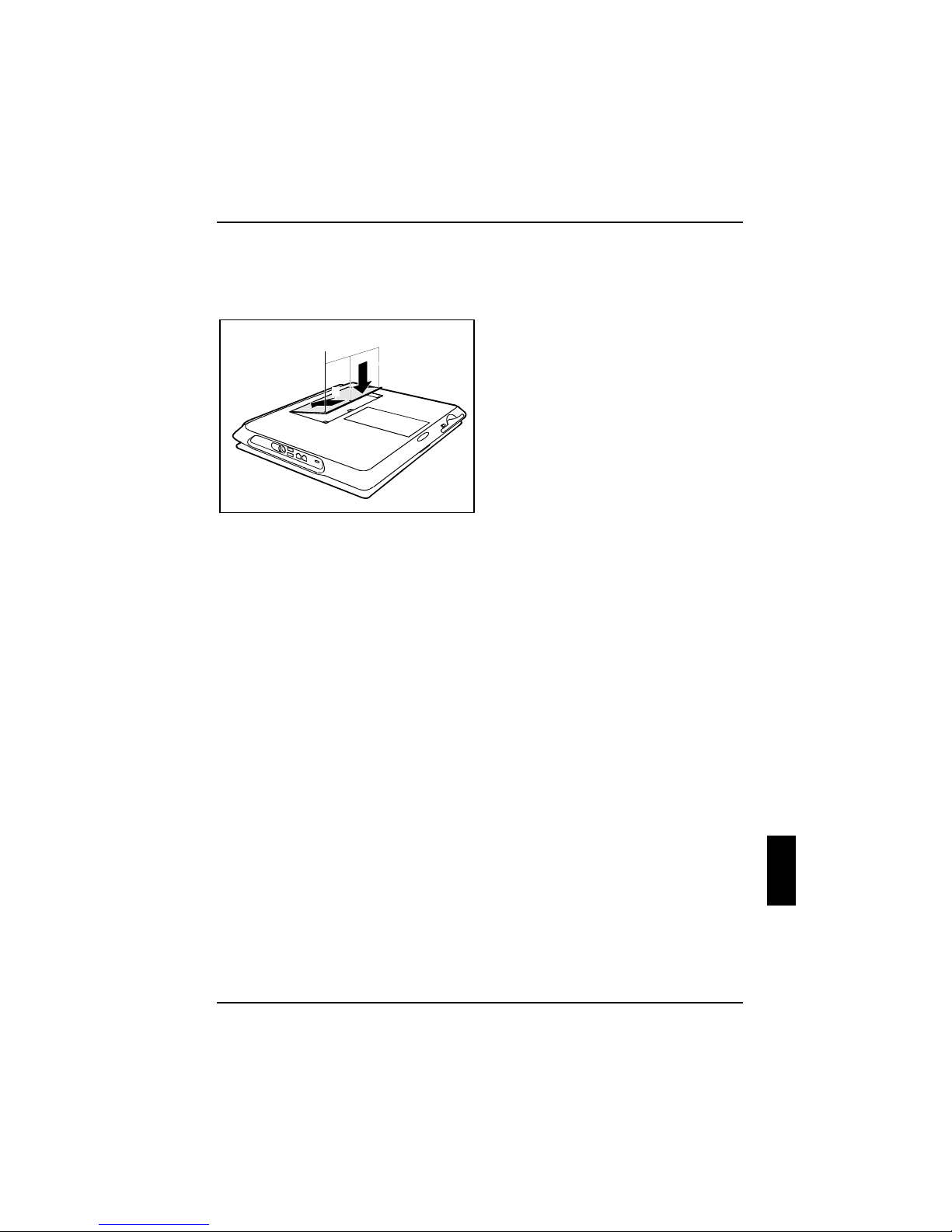

Attaching the radio keyboard
1
1
Ê Hold the keyboard at an angle and ensure
that the pins (1) fit into the matching
recesses.
Charging the keyboard battery
When the keyboard is attached to the workstation, the keyboard battery will be charged. The battery
indicator is on when the keyboard battery is charging.
The battery indicator flashes if the battery is low and the keyboard is removed. Re-attach the
keyboard so that the keyboard battery can recharge.
i
Place the keyboard on the device as often as possible so that the keyboard battery can
be charged.
If no power adapter is connected to the workstation, the keyboard battery will be charged
by the workstation battery. Even if the workstation is switched off, the keyboard battery is
charging and detracts energy from the workstation battery.
Working with the workstation
A26391-K124-Z100-1-7619 23
Replacing the keyboard battery
The keyboard battery has a limited service life. If the battery indicator flashes soon after charging,
the keyboard battery has to be replaced.
You obtain the information on the appropriate battery type from your sales outlet or our
Hotline/Help Desk.
1
2
1
3
Ê Lift the keyboard at the two positions indicated (1).
Ê Remove the keyboard in the direction of the arrow (2).
Ê Turn the keyboard over (3).
1
Ê Open the battery compartment on the
underside of the keyboard.
Ê Lift the cover of the battery compartment.
Working with the workstation
24 A26391-K124-Z100-1-7619
Ê Insert the new keyboard battery.
Ê Plug the connector of the keyboard battery into the connector in the battery compartment.
Ê Close the battery compartment.
Ê Re-attach the keyboard.
Switching the radio keyboard on and off
i
If you will not be using the radio keyboard, switch it off.
Ê Switch the keyboard ON or OFF with the ON/OFF switch on the underside of the keyboard.
