Fujitsu CELSIUS H730 Operating Manual

Download

System

Operating Manual

FUJITSU CELSIUS H730

Congratulations on your pu

rchase of an innovative

product from Fujitsu.

The latest information about our products, tips, updates etc. can be found on the Internet at: "

http://www.fujitsu.com/fts/"

You can ﬁnd driver updates at: "http://support.ts.fujitsu .com/download"

Should you have any technical questions, please contact:

• our Hotline/Service Desk (see the Service Desk list or visit:

http://support.ts.fujitsu.com/contac t/servicedesk")

• Your sales partner

• Your sales ofﬁce

We hope you enjoy working with your new Fujitsu system!

Published by / Contact address in the EU

Fujitsu Te

chnology Solutions GmbH

Mies-van-der-Rohe-Straße 8

80807 Munich, Germany

http://

www.fujitsu.com/fts/"

©Fujits

Publication Date

12/2013

Order No.: A26391-K396-Z320-1-19, edition 1

FUJITSU CELSIUS H730

Operating Manual

Innovative technology 7 Ports and operating elements 9 Important notes 12 First-time setup of your device 15 Working with the notebook 18 Security functions 46 Connecting external devices 55 Removing and installing components

during servicing 60 Settings in BIOS Setup Utility 67 Troubleshooting and tips 69 Technical data 77 Manufacturer’s notes 79 Index 85

Remarks

Information on the product description meets the design speciﬁcations of Fujitsu and is provided for comparison purposes. Several factors may cause the actual results to differ. Technical data is subject to change without prior notiﬁcation. Fujitsu rejects any responsibility with regard to technical or editorial mistakes or omissions.

Trademarks

Fujitsu, the Fujitsu logo and CELSIUS are registered trademarks of Fujitsu Limited or its subsidiaries in the United States of America and other countries.

Microsoft and W indows are trademarks or registered trademarks of the Microsoft Corporation in the United States and/or other countries.

Adobe Reader is a trademark of Adobe Systems Incorporated.

Sony and Memory Stick are registered trademarks of Sony Electronics, Inc.

All other trademarks speciﬁed here are the property of their respective owners.

No part of this publication m ay be copied, reproduced or translated without the prior written consent of Fujitsu.

No part of this publication may be saved or transferred by any electronic means without the written approval of Fujitsu.

Contents

Innovativetechnology ................................................................. 7

Furtherinformation ...................................................................... 7

Notational conventions .................................................................. 8

Ports and operating elemen

ts ..........................................................

Importantnotes ........................................................................ 12

Safety notes ............................................................................ 12

Additional safety notes for devices with radio components . . . . . ............................. 12

Energy saving .......................................................................... 13

Energy saving under Windows ....................................................... 13

Travelling withyournotebook ............................................................ 13

Before you travel ................................................................... 13

Notebook: transporting ............................................................... 14

Cleaning the notebook .................................................................. 14

First-time setup o

fyourdevice .........................................................

Unpacking and che

cking thedevice ......................................................

Selectingalocat

ion .....................................................................

Mains adapter con

necting ...............................................................

Switchingonthe

device for the ﬁrst time ..................................................

Workingwiththenotebook ............................................................ 18

Status indicators ........................................................................ 18

Switching on the notebook . . . . ........................................................... 21

Notebook: switching off .................................................................. 21

Keyboard ............................................................................... 22

Separate number block . . . ........................................................... 24

Key combinations ................................................................... 24

Country and keyboard settings ....................................................... 26

Application keys ........................................................................ 26

Touchpad and touchpadbuttons .......................................................... 27

Moving the pointer .................................................................. 27

Selecting an item .................................................................... 27

Executing commands . . . . . ........................................................... 27

Dragging items ...................................................................... 28

LCDscreen ............................................................................ 28

Webcam ............................................................................... 29

Rechargeable battery ................................................................... 30

Charging, caringforand maintaining the battery ....................................... 30

Removing and installingthebattery ................................................... 30

Module ................................................................................. 32

Removing a module . . . . . . ........................................................... 32

Installing a module .................................................................. 33

Optical drive ............................................................................ 33

Handling data carriers ............................................................... 33

CD/DVD indicator ................................................................... 34

Inserting or removinga datacarrier ................................................... 34

Manual removal (emergency removal) . . . . ............................................ 35

Removing and ﬁtting thedustremoval cover(ventilationslotcover) ......................... 35

Using thepower-management features ................................................... 37

Memory cards .......................................................................... 38

Fujitsu 3

Contents

Supported formats .................................................................. 38

Inserting thememorycard ........................................................... 38

Removing the memorycard .......................................................... 38

Loudspeakers and microphones . . ........................................................ 39

SIM card ............................................................................... 39

Inserting aSIM card ................................................................. 39

Removing a SIMcard ............................................................... 40

Wireless LAN/Bluetooth/UMTS/LTE radio c omponen ts . . . .................................. 40

Switching the wireless components on and off ......................................... 40

Setting up WLANaccess ............................................................ 41

Access viaUMTS/LTE ............................................................... 41

Ethernet and LAN ....................................................................... 41

Your Port Replicator (optional) . . . ........................................................ 42

Ports onthePortReplicator .......................................................... 42

Connecting the notebook to the Port Replicator . . . . . .................................. 43

Connecting the mains adapter to the Port Replicator . .................................. 44

Switching on the notebook via the port replicator . . . . . .................................. 44

Switching offnotebookviaPort Replicator ............................................. 44

Disconnecting the notebook from the Po rt Replicator .................................. 45

Securityfunctions ..................................................................... 46

Conﬁguring thepalmveinsensor ........................................................ 46

Conﬁguring the ﬁngerprint sensor ........................................................ 47

Using theSecurity Lock ................................................................. 47

Conﬁguring password protection in BIOS SetupUtility ...................................... 48

Password protection for the hard disk ................................................. 48

Password protection for booting of the operating system . .............................. 49

Password protectionfortheharddisk ..................................................... 50

Activating hard diskprotection ........................................................ 50

Deactivatingharddiskprotection ..................................................... 50

Boot fromRemovable Media ............................................................ 51

Owner Information (device-dependent) . . . ................................................. 51

Virus Warning (device-dependent) . . . . . . ................................................. 52

SmartCard reader ....................................................................... 53

Inserting theSmartCard ............................................................. 53

Trusted Platform Module (TPM) (device-dependent) . . . . . .................................. 54

EnablingTPM ....................................................................... 54

Disabling TPM ...................................................................... 54

Connectingexternaldevices ........................................................... 55

Connecting an external monitor . . ........................................................ 56

Connecting USB devices ................................................................ 57

Connecting an external SATA hard disk (eSATA) (Port Replicator only) . . . ............... 58

Safe removalofeSATAandUSBdevices ............................................. 58

Connecting external audio devices . . . . . . ................................................. 59

Microphone port/Line In . . ............................................................ 59

Headphone port . . . . . ................................................................ 59

Removing and installing components du r ing servicing .. . .............................. 60

Notes on installing and removing boards and components .................................. 60

Preparing to remove components ........................................................ 61

Installingand removingmemoryexpansion ................................................ 61

Removing a cover ................................................................... 62

Removing memory modules . . ........................................................ 62

4 Fujitsu

Contents

Installinga memory module .......................................................... 62

Attaching the cover .................................................................. 63

Removing andinstalling the hard disk .................................................... 64

Removing a cover ................................................................... 64

Removing a harddisk ............................................................... 65

Installinga hard disk ................................................................. 65

Attaching the cover .................................................................. 66

Finishing component removal . ........................................................... 66

Settings in BIOS Setup Utility . . . ....................................................... 67

Starting the BIOS Setup Utility ........................................................... 67

Operating BIOS Setup Utility ............................................................. 67

Exiting BIOS Setup Utility ................................................................ 68

Exit Saving Changes - save changes and exit BIOS Setup Utility . . ..................... 68

Exit Discarding Changes – Discard changes and exit BIOS Setup Utility . . . .............. 68

Load Setup Defaults – Copy Standard Entries . ........................................ 68

Discard Changes – Disca rd changes without exiting the BIOS Setup Utility . .............. 68

Save Changes - save changes without exiting the BIOS Setup Utility . . . . . . .............. 68

Save Changes and Po wer Off ....................................................... 68

Troubleshootingandtips .............................................................. 69

Help ifproblemsoccur ................................................................... 69

Restoring the hard disk contents under Windows . . ........................................ 70

The notebook’s date or time is incorrect ................................................... 70

The notebook’s LCD screen remains blank . . . . ............................................ 70

The LCD screen is difﬁcult to read ........................................................ 71

Theexternal monitor remainsblank ...................................................... 71

Theexternal monitor is blank or the image is unstable ..................................... 71

The notebook cannot be started . . . ....................................................... 72

The notebook stops w orking . . ........................................................... 72

The printer does not print . . . . . ........................................................... 73

The radio connection to a network does not work . . ........................................ 73

SmartCard reader is not recognised . . . ................................................... 73

SmartCard PIN forgotten ................................................................ 73

User and/or supervisor SmartC ard lost ................................................... 74

SmartCard lost ......................................................................... 74

Acoustic warnings ....................................................................... 74

Error messageson the screen ........................................................... 75

Technicaldata ......................................................................... 77

Notebook . . ............................................................................. 77

Rechargeable battery ................................................................... 78

Mains adapter 150W . . .................................................................. 78

Manufacturer’snotes .................................................................. 79

Disposal and recycling .................................................................. 79

Declarationsof Conformity ............................................................... 79

CEmarking ............................................................................ 79

Regulatory notices ...................................................................... 80

Regulatory information for notebooks without radio device . ............................. 80

DOC(IndustryCANADA) notices ..................................................... 81

FCC regulatory information for notebooks with radio device ............................. 83

Index .................................................................................. 85

Fujitsu 5

Contents

6 Fujitsu

Innovative technology

... a nd ergonomic design make your device a reliable and convenient companion.

The device boots very quickly, is ready for immediate use and offers a particularly long operating time because of its high capacity battery.

With the user-friendly "BIOS Se tup Utility" you can control your notebook’s hardware and better protect your system against unauthorised access by using the pow erful password properties.

Information on the connections and user components of your notebook can be found in "

Ports and operating elements", Page 9.

Further information

The Windows drivers for your device can be found on our Internet site. The factory installation of your device does not support any other operating system. F ujitsu Technology Solutions accepts no liability whatsoever if any other op erating system is used.

Software oriented components of these instructions refer to Microsoft products, if they come within the scope of the delivery.

If you install other software products, pay attention to the operating instructions of the manufacturer.

Fujitsu 7

Innovative technology

Notational conventions

Pay particu lar attention to text marked with this symbol. Failure to observe these warnings could pose a risk to health, damage the device or lead to loss of data. The warranty will be invalidated if the device becomes defective through failure to observe these warnings.

Indicates importan t informa

tion for the proper use of the device.

►

Indicates an activity t hat must be performed



Indicates a result

This font

indicates data entered

using the keyboard in a program dialogue or at

the command line, e.g.

your password (Name123) or a command used to

start a program (star

t.exe)

This font

indicates information tha t is displayed on the screen by a program, e.g.:

Installation is complete.

This font

Indicates

• terms an d texts used in a software interface, e.g.: Click on Save

• names of programs or ﬁles, e.g. Windows or setup.exe.

"This font"

Indicates

• cross-references to another section, e.g. "Safety information"

• cross-references to an external source , e.g. a web address: For more information, go to "

http://www.fujitsu.com/fts/"

• Names of CDs, DVDs and titles or designations for other materials, e.g.: "CD/DVD Drivers & Utilities" or "Safety/Regulations" manual

Key

indicates a key on the keyboard, e.g:

F10

This font

indicates terms and texts that are emphasised or highlighted, e.g.: Do not switch off the device

8 Fujitsu

Ports and operating elements

This chapter presents the individual hardware components of your device. It gives an overview of the indicators and ports of the device. Please familiarise yourself with these components before you start to work with the device.

1 = Microphone 2 = WebCam 3 = WebCam LED 4 = Status indicators 5 = Application buttons 6 = ON/OFF switch

7 = Loudspeakers 8 = Touchpad buttons 9 = Touchpad 10 = TouchStick 11 = Fingerprint sensor

Fujitsu 9

Ports a nd operating elements

Left side

1 2 3 4 5 8 9 10 1167

1 = DC input connecto r (DC IN) 2 = LAN port 3 = VGA monitor port 4 = DisplayPort 5 = USB port with charging function (Anytime

USB charge, USB 3.0)

6 = USB port (USB 3.0)

7=USBport(USB3.0) 8 = SmartCard reader 9 = Memory card slot 10 = Microphone port 11 = Headphone port

Right side

12 3 4

1 = Module bay with optical drive 2 = Emergency removal opening

3 = USB port (USB 2.0) 4 = Security Lock device

10 Fujitsu

Ports and operating elements

Bottom

467

1 = Hard disk serv

ice compartment 2 = Module release 3 = Ventilation

slot cover

4 = Battery release

5=Portforportr

eplicator 6 = Battery with SIM card slot under the battery 7 = Battery rele

ase

8 = Memory service compartment

Fujitsu 11

Important notes

ImportantnotesNotes

This chapter contains essential safety information which must be followed when working with your notebook. Other notes also provide useful information which will help you with your notebook.

Safety notes

SafetynotesNotes

Please follow the safety notes provided in the "Safety/Regulations" m anua l as well as the safety n otes given below.

Please pay special attention to the sections in the manual marked with the symbol on the left.

When connecting and disconnecting cables, observe the r elevan t notes in this operating manual.

Read the information on the ambient conditions in the "

Technical data", Page 7 7 and "First-time setup of your device", Page 15 before preparing your

notebook for use and switching it on for the ﬁrst time.

When cleaning the device, please observe the relevant notes in the section "

Cleaning the notebook", Page 14.

Pay attention to the additional safety notes for devices with radio components provided in the "Safety/Regulations" manual.

Please refer to the notes in the chapter "

Removing and installing

components during servicing", Page 60.

This notebook

complies with the relevant safety regulations for data processing

equipment. I

f you have questions about using your notebook in a particular area,

please conta

ct your sales outlet or our Hotline/Service Desk.

Additional safety notes for devices with radio components

Radiocomponent:WirelessLAN:Bluetooth,safetynotes

If a r adio component (Wireless LAN/ Bluetooth, UMTS/LTE) is integrated in your notebook, you must be sure to observe the following safety precautions when using your notebook:

• Switch off the radio components when you are in an aircraft or driving in a car.

• Switch off the radio components when you are in a hospital, an operating room or near a medical electronics system. The transmitted radio waves can impair the operation of medical devices.

• Switch off the radio components when you let the device get near ﬂammable gases or into hazardous environments (e.g. petrol station, paintshops), as the transmitted radio waves can cause an explosion or a ﬁre.

For informa tion on how to switch radio components on and off, see chapter

Switching the w ireless components on and off", Page 40.

12 Fujitsu

Important notes

Energy saving

NotesEnergyEnergysaving

Switch the notebook off when it is not in use. Switch off external, connected device s if you are not using them. If you use the energy saving functions, the notebook uses less energy. You will then be able to work for longer before having to r echa rge the battery.

Energy efﬁciency is increased and the environmental impact is reduced. You save money while protecting the environment.

Energy saving under Windows

► Make use of the power m anagement features (see ""Using the power-management features",

Page 37").

Travelling with you

r notebook

MobileoperationNotesTrans portationNotebook

Please observe the points listed below when travelling with your notebook.

Before you travel

► Back up important data stored on your hard disk.

NotebookTravel,notebook

► Switch off the radio component for dat a security reasons. With data trafﬁc via a wireless

connection, it is also possible for unauthorised third parties to receive data.

Information on activating data encryption is provided in the documentation for your radio component.

► If you want to use your notebook during a ﬂight, ﬁrst check with the ﬂight

attendants whether this is permissible.

When travelling in other countries

► If you are travelling abroad, check that the mains adapter can be operated with the

local mains voltage. If this is not the case, obtain the appropriate mains adapter for your notebook. Do not use any other voltage converter!

► Check whethe r the local mains voltage and the power cable are compatible. If this is

not the case, buy a power cable that matches the local conditions.

► Enquire with the corresponding government ofﬁce of the country you will be

travelling in as to whether you may operate the radio component integrated in your notebook there (see also "

CE marking", Page 79).

Fujitsu 13

Important notes

Notebook: transporting

Protect the notebook from severe shocks and extreme temperatures (e.g. direct sunlight in a car).

► If your device has an optical drive, remove all data media (e.g. CD, DVD) from the drives.

TransportationNotebo ok

► Switch the notebook off. ► Unplug the mains adapter and all external devices from the power socket. ► Disconnect the mains adapter cable and the data cables for all external d evices. ► Close the LCD screen. ► To protect against damaging jolts and bumps, use a notebook carrying

case to transport your notebook.

Cleaning the notebo

Do not clean any interior parts yourself; leave this job to a service technician.

Only use cleaning products designed for computers. Normal household cleaners and polishes can damage the markings on the keyboard and the device, the paintwork or the notebook itself.

Ensure that no liquid enters the notebook.

The LCD screen very sensitive to scratches. Only clean the display surface with a very soft, slightly damp cloth.

► Switch the notebook off.

CleaningNotesNotebookKeyboardTouchpadLCDscreenCrystalView

display

► In order to prevent accidentially switching the device on, remove the power cable from the mains

adaptor and remove t he battery (see "

Removing and installing the battery", Page 30).



The surface c

an be cleaned with a dry cloth. If particularly dirty, use a cloth which has

been moiste

ned in mild domestic detergent and then carefully wrung out.

To clean the keyboard and the touchpad, if available, you can use disinfectant wipes.

Ensure that no liquid enters the device.

14 Fujitsu

First-time setup of your device

First-time setup of your devic

First-timese tupGettingstarted

Please read the chapter "Important notes", Page 12.

If your device is equipped with a Windows operating system, the necessary hardware drivers and supplied software are already pre-installed.

Beforeyouswitchonthedevicefortheﬁrst time, connect it to the mains voltage using the mains adapter, see "

Mains adapter connecting", Page 1 6.Themains

adapter must be connected during the entire installation process.

A system test is performed when your device is ﬁrst switched on. Various messages can appear. The display may remain dark for a short time or may ﬂicker.

Please follow the instructions on the screen.

NEVER switch off your device during the ﬁrst-time setup process.

On delivery, the battery can be found in the battery co mpartment or in the accessories kit. The battery must be charged if you want to operate your device using the battery.

When used on the move, the built-in battery provides the device with the necessary power. You can increase the operating time by using the available energy-saving functions.

For instructions on how to connect external devices (e.g. mouse, printer) to your device, please refer to the operating ma nual for your device.

Unpacking and

checking the device

Should you discover any damage th at occurred during transportation, notify your local sales outlet immediately!

► Unpack all the individual parts.

PackagingTransport

► Check your

device for any visible dam age which may have occurred during transportation.

You ma y ne

ed the packaging in the future, if you need to transport your device.

Fujitsu 15

First-time setup of your device

Selecting a location

SelectingalocationDeviceMainsad apter

Select a suitable location for the device before setting it up. Follow the instructions below when doing so:

• Never place the device or the mains adapter on a heat-sensitive surface. The surface could be damaged as a result.

• Never place the device on a soft surface (e.g. carpeting, upholstered furniture, bed). This can block the air vents and cause overheating and damage.

• The underside of the device heats up during normal operation. Prolonged contact with the skin may become unpleasant or even result in burns.

• Place the device on a stable, ﬂat, non-slippery surface. Please note that the rubber feet of the device may mark certain types of delicate surfaces.

• Keep other objects at least 100 mm / 3.97 inch away from the device and its mains adapter to ensure a dequate ventilation.

• Never cover the ventilation slots of the device.

• Do not expose the device to extreme environmental conditions. Protect the device from dust, humidity, and heat.

Mains adapter connecting

PreparingforoperationMainsadapter

Observe the safety notes in the enclosed "Safety/Regulations" manual.

The supplied power cable conforms to the requirements of the country in which you purchased your device. Make sure that the power cable is approved for use in the country in which you intend to use it.

► Connect the power cable (1) to the

mains adapter.

► Plug the mains cable (2) into a mains outlet. ► Connect the mains adapter cable (3) to

the DC jack (DC IN) of the device.

16 Fujitsu

First-time setup of your device

Switching on the device for the ﬁrst time

Switchingonfortheﬁrsttime

On devices with ON/OFF switch for wireless components: Slide the ON/OFF switch for wireless components to the ON position before switching on the device.

When you switch on the device for the ﬁrst time, the supplied software is installed and conﬁgured. Because this proced ure must not be interrupted, you should set aside enough time for it to be fully completed and connect the device to the mains using the mains adapter.

During the installation process, DO NOT restart the device unless you are requested to do so!

To make it easier to use y

our device for the ﬁrst time, the operating system

is pre-installed on th

e hard disk.

► Switch on your device.

► During installation, follow the instructions on screen.

If a Windows operating system is installed on your device, you will ﬁnd more information on the system and drivers, help programmes, updates, manuals etc. on the device or on the Internet under "

http://www.fujitsu.com/fts/support/".

You can ﬁnd information and help on the Windows operating system functions on the Internet at "

http://windows.microsoft.com".

Fujitsu 17

Working with the noteboo k

Working with the notebook

Notebook,operationNotebook

This chapter describes the basics for operating your notebook. Please read the chapter entitled "

Connecting external devices", Page 55 for instructions on how to connect

devices such as a mouse and a printer to the notebook.

Please refer to the notes in "Important notes", Page 12.

Status indicators

Statusindicatorpanel

The status indicators provide information about the status of the power supply, the drives and the keyboard functions.

18 Fujitsu

Working with the notebook

Indicator Description

Power-on indicator

Power-onindicatorIndicat or

• The indicator is illuminated: The notebook is switched on.

• The indicator ﬂashes (1 second on/1 second off): The notebook is in power saving mode.

• The indicator is not illuminated: The notebook is switched off or is in Save-to-Disk mode.

Battery charging indicator

• The indicator lights up green: The mains adapter is connected and the installed battery or batteries are already fully charged, or no battery is installed.

• The indicator lights up orange: The m ains adapter is connected and the installed battery or batteries are being charged.

•Theindicatorﬂashes orange: The mains adapter is connected and the installed battery or batteries cannot be charged (the battery is too hot for charging).

• The indicato r is not illuminated: The mains adapter is not connected.

First battery indicator

• The indicator lights up green: The ﬁrst battery is charged to between 51% and 100% of maximum capacity.

• The indicator slowly ﬂashes green (1 second on/5 seconds off): The notebook is in suspend mode and power is being supplied by the ﬁrst battery. The ﬁrst battery is charged to between 51% and 100% of maximum capacity.

• The indicator lights up orange: The mains adapter is con nect ed and the ﬁrst battery is being charged. The ﬁrst battery is charged to between 13% and 50% of maximum capacity.

• The indicator slowly ﬂashes orange (1 second on/5 seconds off): The notebook is in suspend mode and power is being supplied by the ﬁrst battery. The ﬁrst battery is charged to between 13% and 50% of maximum capacity.

• The indicator ﬂashes orange (for four seconds after installing the battery): The battery charge level is being checked.

• The indicator lights up red: The mains adapter is connected and the ﬁrst battery is being charged. The ﬁrst battery is charged to between 0% and 12% of maximum capacity.

• The indicator slowly ﬂashes red (1 second on/5 seconds off): The no tebook is in suspend mode and power is being supplied by the ﬁrst battery. The ﬁrst battery is charged to between 0% and 12% of maximum capacity.

• The indicator ﬂashes red (1 second on/1 second off). Malfunction.

• The indicator is not illuminated: The ﬁrst battery is not installed or is not charged.

Fujitsu 19

Working with the noteboo k

Indicator Description

Second battery indicator

• The indicator lights up green: The second battery is charged to between 51% and 100% of its capacity.

• The indicator slowly ﬂashes gre en (1 second on/5 seconds off): The notebook is in suspend mode and power is being supplied by the second battery. The second battery is charged to between 51% and 100% of its capacity.

• The indicator lights up orange: The mains adapter is connected and the second battery is being charged. The second battery is charged to between 13% and 50% of its capacity.

• The indicator slowly ﬂashes orange (1 second on/5 seconds off): The notebook is in suspend mode and power is being supplied by the second battery. The second battery is charged to between 13% and 50% of its capacity.

• The indicator ﬂashes orange (for four seconds after installing the battery): The battery charge level is being checked.

• The indicator lights up red: The mains adapter is connected and the second battery is being charged . The second battery is charged to between 0% and 12% of its capacity.

• The indicator slowly ﬂashe s red (1 second on/5 seconds off): The notebook is in suspend mode and power is being supplied by the second battery. The second ba ttery is charged to between 0% and 12% of its capacity.

• The indicator ﬂashes red (1 second on/1 second off). Malfunction.

• The indicator is not illuminated: The second battery is not installed or is not charged.

Drive indicator

IndicatorCD/D VDindicator

The indica tor is illuminated: The hard disk drive or the CD/DVD in the optical drive of the notebook is being accessed.

Radio components indicator

• Indicator is illuminated: The wireless components are switched on.

• Indicator is off: The wireless components are switched off.

Num Lock indicator

IndicatorNum Lock

The indicator is illuminated: The

Num

key has been pressed. The virtual numerical keypad is activated. You c an output the c haracte rs indicated on the upper right of the keys.

Caps Lock indicator

IndicatorCap s Lock

The indicator is illuminated: The Caps Lock key has been pressed. All the characters you type will appear in upper case. In the case of overlay keys, the character printed on the upper left of the key will appear when that key is pressed.

Scroll Lock indicator

Indic

ator

Scrol

lLock

Indic

ator

Scrol

lLock

The indicator is illuminated: The key combination

Fn+Scr

has been pressed. The

effect that this key has varies between applications.

Energy saving functions indicator

• The indicator is illuminated: The energy saving functions are enabled (e.g.

reduce screen brightness).

• The indicator is not illuminated: The energy saving functions have been

disabled.

20 Fujitsu

Working with the notebook

Switching on the notebook

► Open the LCD screen.

Switchingon

► Press the O N/O FF switch for about one

second to switch the notebook on.



The power-on indicator

is lit.

Notebook: switching off

Back up your data and close all applications before you switch off your device. Otherwise data might be lost.

► Shut down the operating system correctly.

Notebook

► If the notebook is not switched off

automatically, press the ON/OFF switch

for approx. ﬁve seconds.

► Close the LCD screen.

Fujitsu 21

Working with the noteboo k

Keyboard

KeyboardNumerickeypadNumerickeypadButtons

The keyboard of your notebook is subject to continuous wear through normal use. The key markings are especially prone to wear. The key markings are liable to wear away over the life of the notebook.

The keyboard has been de sig

ned to provide all the functions of an enhanced keyboard.

Some enhanced keyboard fun

ctions are mapped with k ey combinations.

The following descriptio

n of k eys refers to Windows. Additional functions supported by the keys

are described in the relev

ant manuals supplied with your application programs.

The ﬁgure below shows how

to access the different characters on keys with overlaid functions.

The example applies when

the Caps Lock key has not been activated.

The illustrations show

n below may differ from your actual device.

}

Num

Alt Gr

}

22 Fujitsu

Working with the notebook

Key Description

Backspace key

The Ba ckspace key deletes the character to the left of the cursor.

BackspaceBackspace

Tab key

The Tab key moves the cursor to

the next tab stop.

Tabkey

Enter key (return)

The Enter key terminates

a command line. The command you have entered

is executed when you pres

sthiskey.

EnterkeyReturnEnterLinefeed

Caps Lock key

The Caps Lock key a ctivates the Caps Lock mode, and the corresponding icon is displayed in the Windows information area. In Caps Lock mode, all of the characters you type appear in upper c ase. In the case of overlay keys, the character printed on the upper left of the key will appear when that key is pressed. To cancel the Caps Lock function, simply press the Caps Lock key again.

ShiftkeyCap sLock

Shift key

The Shift key ca

uses uppercase characters to appear. In the case of overlay

keys, the chara

cter printed on the upper left of the key appears when that

keyispressed.

ShiftkeyShift

Fn button

The

key enabl

es the special functions indicated on overlay keys (see

Key combina

tions", Page 24).

Fnkey

Cursor keys

The cursor

keys move the cursor in the direction of the arrow, i.e. up, down,

left, or ri

ght.

CursorkeysCursorcontrolkeys

Windows key

The Windows key switches between the start screen and the last used application.

Windowskey

Menu key

The Menu key opens the menu for the active application.

Fujitsu 23

Working with the noteboo k

Separate number block

NumerickeypadSeparaten umerickeypadNumLock

The keyboard of your notebook has a separate number block on the far right.

Key combinations

Keycombinations

The following description of key combinations applies to Windows operating systems. Some of the following key combinations may not function in other operating systems or with certain device drivers.

Other key combinations are described in the relevant manuals supplied with y our application programs.

Key combinations are entered as follows:

► Press the ﬁrst key in the combination and keep it pressed. ► While holding the ﬁrst key down, press the other key or keys in the combination.

Combination Description

Activate/deactivate keyboard backlight (optional)

On backlit keyboards, this key combination activates or deactivates the backlight.

Fn+F2keyboar dbacklightkeyboardbacklight

Switching the loudspeakers on and off

This key combination switches your n otebook’s loudspeakers off and on.

Fn+F3Loud speakersLoudspeakers

Switching the touc hpad and touchpad buttons on/off

This key combination switches the touchpad and the touchpad buttons on or off.

Fn+F4Touc

hpad

Touc

hpadbuttons

Touc

hpad

24 Fujitsu

Working with the notebook

Combination Description

Decrease screen brightness

This key combination decreases the brightness of the screen.

Fn+F6LCD screenScreenbright ness

Increase screen brightness

This key combination increases the brightness of the screen.

Fn+F7Screen brightness

Decrease volume

This key combination red

uces the volume of the internal

loudspeakers.

Fn+F8Vol ume

Increase volume

This key combination increases the volume of the internal loudspeakers.

Fn+F9Vol ume

Toggle output screen

Use this key combination to select which screen(s) is/are used for display if an external monitor is connected.

Screen output is possible:

• only on the notebook’s L CD screen

• on the LCD screen of the notebook and the external monitor atthesametime

• only on the external monitor This setting is useful if you would like a high resolution and a

high refresh rate on an external monitor.

Fn+F10Toggle outpu

tscreen

Switch between open applications

Use this key combination to switch between several open applications.

Alt+Tab

AltCtrl

Del

Windows security/Task-Manager

This key combination opens the Windows security/Task-Manager window.

Ctrl+Al

t+Del

Back tab

This key combination moves the cursor back to the previous tab stop.

Shift+TabBacktab

Key com

binations using the Wi ndow s keys are detailed in the manual

for yo

ur op erating system.

Fujitsu 25

Working with the noteboo k

Country and keyboard settings

► Change the country and keyboard settings as described in the documentation for your operating

system.

Application keys

Applicationkeys

Your notebook is equipped with two application keys.

Button Description

Eco button

(E key)

The E key i

s a simple way of activating and deactivating power management functions

(e.g. red

uce screen brightness), see "

Using t he power-management features", Page 37.

Wireless Components key

This application k ey is used to start the WirelessSelector software. The wireless components that have been activat ed in the BIOS Setup canbeswitchedonandoff

individually.

26 Fujitsu

Working with the notebook

Touchpad and touchpad buttons

Keep the touchpad clean. Protect it from dirt, liquids and grease.

TouchpadTouc hpad

Do not use the touchpad if your ﬁngers are dirty.

Do not rest heavy objects (e.g. books) on the touchpad or the tou chpad buttons.

1 = TouchStick (optional)

2 = Touchpad

3 = Touchpad buttons

The touchpad enable

s you to move the mouse pointer on the screen.

The touchpad butto

ns allow you to select and execute commands. They correspond

to the buttons on a c

onventional mouse.

Youcanuseakeyc

ombination to disable the touchpad, t o avoid accidentally moving

the pointer o n th

escreen(seealso"

Key combinations", Page 24).

Moving the pointer

► Move your ﬁnger on the touchpad .

Touchpad

► Press down gently with your ﬁnger on the TouchStick. If you want to move the pointer

to the left for example, press down gently on the left side of the TouchStick.



The pointer will move.

Selecting an item

► Move the pointer to the item you wish to select.

Touchp

► Tap the touchpad once or press the left button once.



The item is selected.

Execut

ing commands

► Move the pointer to the ﬁeld you wish to select.

Tou

chpad

► Ta p th

e touchpad twice or press the left button twice.



The command is executed.

Fujitsu 27

Working with the noteboo k

Dragging items

► Move the pointer to the item you wish to select. ► Select the desired object and keep the left button pressed. ► Drag the object to the desired position. ► Lift your ﬁnger from the touchpad.

► Lift your ﬁnger from the TouchStick.



The item will be moved.

LCD screen

LCDscreenNotes

High-quality TFT displays are installed in notebooks from Fujitsu Technology Solutions GmbH. For technical reasons, TFT monitors are manufactured for a speciﬁc resolution. An optimal, clear picture can only be ensured with the correct resolution intended for the relevant TFT monitor. A monitor resolution which differs from the speciﬁcation can result in an unclear picture.

The screen resolution of the LCD monitor of your notebook is optimally set at the factory.

Current production technology cannot guarantee an absolutely fault-free screen display. A few isolated constantly lit or unlit pixels (picture elements) may be present. The maximum permitted number of such faulty pixels is speciﬁed in t he international standard ISO 9241-307 (Class II).

Example:

A screen with a resolution of 1280 x 800 has 1280 x 800 = 1024000 pixels. Each pixel consists of three subpixels (red, green and blue), so there are almost 3 million subpixels in total. According to ISO 9241-307 (class II), a maximum of 2 light and 2 dark pixels and in addition 5 light or 10 dark subpixels or an equivalent mix (1 light subpixel counts as 2 dark subpixels) are allowed to be defective.

Pixel

A pixel con sists of 3 subpixels, normally red, green and blue. A pixel is the smallest element that can be generated by complete functionality of the display.

Subpixel

A subpixel is a separately addressable internal structure within a pixel that enhances the pixel function.

Cluster A cluster c

ontains two or m ore defective pixels or

subpixels

in a 5 x 5 pixel block.

Background lighting

TFT monitors are operated with background lighting. The luminosity of the background lighting can decrease during the period of use of the notebook. How ever, you can set the brightness of your monitor individually.

Synchronising the display on the LCD screen and an external monitor

For more information, please refer to the chapter "

Key combinations", Page 24

under "Display output, s witch between".

28 Fujitsu

Working with the notebook

Webcam

Depending on the software used, you can use your Webcam to take pictures, record video clips or take part in web chats.

The WebCam has its own status indicator. The indicator lights up when the WebCam is switched on.

• The picture quality depends on the lighting conditions and the software being used.

• You can only operate the webcam with a particular application (e.g. an Internet telepho ny program or a video conferencing program which supports a webcam).

• When using the w ebcam the notebook support must not wobble.

• The webcam automatically adjusts itself to the current light level. F or this reason the LC D screen may ﬂicker while the light level is adjusted.

Further information on using the webcam and on the additional settings which are possible for your webcam can be found in the help function of the program which uses the w ebcam.

If you would like to perform a funct ion test of your web cam, there is suitable test software available at "

http://www.fujitsu.com/fts/support/index.html".

Fujitsu 29

Working with the noteboo k

Rechargeable battery

RechargeablebatteryBatteryLife,batteryRechargeablebatteryRechargeablebattery

When not plugged into a mains socket, the notebook runs on its built-in battery. You can increase the life of the battery by caring for the battery properly. The average battery life is around 500 charge/discharge cycles.

You can extend the battery life by taking advantage of the available energy saving functions.

Charging, caring for and maintaining the battery

BatteryBattery

The notebook battery can only be charged, when the ambient temperature is between 5°C / 41°F and max. 35°C / 95°F

You can charge the battery by connecting the notebook to the mains adapter (see "

Mains adapter connecting", Page 16).

If the battery is running low you will hear a warning alarm. If you do not connect the mains adapter within ﬁve minutes of the warning alarm described above, your notebook will automatically switch off.

monitoring the battery charging level

BatteryBatterystatusmet

Windows also has a "Battery status meter" in the taskbar for monitoring the battery capacity. When you place the mouse pointer on the battery symbol, the system displays the battery status.

Battery storage

BatteryBatterySelf-discharge,batteryChargingcapacity,battery

Keep the battery pack between 0°C / 32°F and 30°C / 86°F. The lower the temperature at which th e batteries are stored, the lower the rate of self-discharge.

If you will be storing batteries for a longer period (longer than two months), the battery charge level should be approx. 30 %. To prevent exhaustive discharge which would permanently damage the battery, check the level of charge of the battery at regular intervals.

To be able to make use of the optimal charging capacity of the batteries, the battery should be completely discharged and then fully recharged.

If you do not use the batteries for long periods, remove them from the notebook. Never store the batteries in the device.

Removing and installing the battery

Only use

rechargeable batteries approved by Fujitsu Technology

Solutio

ns for your notebook.

Never us

e force when ﬁtting or removing a battery.

Make su

re that no foreign bodies get into the battery connections.

Never s

tore a battery for l onger periods in the discharged state. This

can ma

ke it impossible to recharge.

30 Fujitsu

Working with the notebook

Removing the battery

► Prepare for removal, see chapter "Preparing to remove components", Page 61.

► Disengage the release button (1). ► Slide the release button in the direction of the arrow (2). ► Remove the battery from the battery compartment (3).

Installing the battery

► Position the battery at the edge. ► Push the battery into the battery slot until you feel it lock into place (1). ► Closethereleasebutton(2). ► Complete the removal, see chapter "

Finishing co mponent removal", Page 66.

Fujitsu 31

Working with the noteboo k

Module

ModulebayModules

The design of your note book enables the ﬂexible use of notebook batteries and drives. The following modules can be operated in the module bay of your notebook:

• Second battery

• Second hard disk drive

• Optical drive

• Empty plug-in unit (save weight)

Only use modules designed for your notebook.

Do not use force when installing or removing the module.

Make sure that no foreign objects enter the module bay.

You can swap modules during operation. This means you do not need to switch off the notebook.

Log off the module via the corresponding symbol in the task bar.

The module can now be removed without any further actions being necessary.

Removing a module

ModuleDriveWeight S

aver

► Slide the release mechanism (1) in the direction of the arrow and hold. ► Pull the module (2 ) out of the module bay.

32 Fujitsu

Working with the notebook

Installing a module

► Place the module in

to the module bay so that the contacts enter ﬁrst.

► Push the module into the module bay until you feel it locking into place.

Optical drive

Opticaldrive

This product co

ntains a light emitting diode, classiﬁcation according to IEC 60825

1:2007: LASER

CLASS 1, and must therefore not be opened.

Handling data carrie rs

Handling

Observe the

following guidelines when handling data carriers:

•Avoidtouc

hing the surface of a data carrier. Only handle data carriers by their edges.

• Always store data c arriers in their cases. This will protect the data carrier against being covered in dust, scratched or damaged in any other way.

•Protecty

our data carriers against dust, mechanical vibrations and direct sunlight.

• Avoid storing a data carrier in areas subject to high temperatures or humidity.

You ma y u

se both 8 cm / 3.15 inch and 12 cm / 4.7 inch data carriers in the optical drive.

When us

ing a data carrier of lesser quality, vibrations and reading errors may occur.

Fujitsu 33

Working with the noteboo k

CD/DVD indicator

CD/DVDindicator

The CD/DVD indicator ﬂashes when a data carrier is inserted. The indicator goes out when the drive is ready for re ading. The indicator lights up when the drive is being accessed. You m ay only remove the data carrier when the indicator is unlit.

If the CD/DVD indicator does not go out after a data carrier has been inserted, but instead continues to ﬂash, this means that the drive cannot access the data carrier.

Either the data carrier is damaged or dirty or you are using a data carrier that the drive cannot read.

Inserting or removing a data carrier

InsertingRemoving

The notebook must be switched on.

► Push the insert/eject button (1).



The drive tray will open.

► Gently pull the drive tray (2) completely out.

► Place the da ta carrier in the drive tray with

the printed side facing upwards.

► Remove a data carrier that has

been inserted.

► Push in the drive tray until you

feel it lock into place.

34 Fujitsu

Working with the notebook

Manual removal (emergency removal)

CD/DVD:ManualremovalofdatacarrierEmergencyremovalofdata carrier

In the event of a power failure or damage to the drive, you can remove the data carrier manually.

► Switch your notebook off. ► Push a pen or a piece of wire (such as a

paperclip) ﬁrmly into the opening (1).



The drive tray is ejected. You can now pull the drive tray (2) out of the drive.

Removing and ﬁtting the dust removal cover (ventilation slot cover)

In order to ensure optimum cooling of the components in your notebook, you should periodically clean the ventilation slot of the heatsink.

This ensures optimum fan performance. You can achieve the best cleaning results with a small hand-held vacuum cleaner.

If necessary, you can also use a dry brush to release dust from the ventilation slots.

Do not use any cleaning liquids! Ensure that no liquid enters the device.

To avoid overheating of the device, do not remove the ventilation slot cover when the device is switched on.

► Prepare for

removal, see chapter "

Preparing to remove components", Page 61.

Fujitsu 35

Working with the noteboo k

► Press and hold the lock of the ventilation

slot cover (1) and remove it from its slot (2).

► Clean the dust chamber.

► Insert the ventilation slot cover into the

slot (1) at an angle as shown, and ensure that you feel it click into place.

► Complete the removal, see chapter

Finishing component removal", Page 66.

36 Fujitsu

Working with the notebook

Using the power-management features

PowerPowerBattery

The notebook uses less power when the available power-managemen t features are used. You will then be able to work longer when using the battery before having to recharge it.

Power efﬁciency is increased and environmental pollution reduced. By choosing the best power options, you can make signiﬁcant savings and at the same time help protect the environment.

When you close the LCD screen, depending on the setting in Window s, the notebook automatically enters a power saving mode.

We recommend the following settings:

Function On external power On battery power

Turn off monitor After 10 minutes After 5 minutes

Turn off hard disk(s) After 15 minutes After 10 minutes

Energy saving (S3) After 20 minutes After 15 minutes

Hibernate mode (S

After 1 hour After 30 minutes

► Select the power ma

nagement functions in your Control Panel.

► Select the Screen Saver in your Control Panel.

► Right-click on the desktop. Activate the s creen saver by clicking on Personalize – Change

Screen Saver.

If you need further information about an option, you can get help with most settings by pressing

to open the Microsoft Help.

When the notebook is in power-saving mode, the following must be remembered:

During power saving mode, open ﬁles are held in the main memory orinaswapﬁle on the hard disk.

Never turn off your notebook while it is in a power saving mode. If the built-in battery is nearly empty, close the open ﬁles and do not go into po wer saving mode.

If you do not intend to use your notebook for a long period of time:

► Exit power saving mode if necessary via the mouse or keyb oard or by switching on the

notebook.

► Close all opened program s and completely shut down the notebook.

Fujitsu 37

Working with the noteboo k

Memory cards

Slot

Your noteb ook is equip ped with an integrated m e mory card reader.

Observe the manufacturer’s instructions when handling the memory cards.

Memorycard

Supported formats

Your notebook supports the following formats:

• Secure Digital (SD

card)

•SDHC

•SDXC

Inserting the memory card

► Carefully slide the memory card into t he

slot. The label should be facing upward. Do not apply excessive force, as otherwise the delicate contact surfaces could be damaged.

Memorycard



Depending on the particular type used, the memory card may protrude slightly from the slot.

Removing the me mory card

Memorycard

In order to protect your data, always follow the correct procedure for removing the card (see the documentation for your operating system).

► On devices with card locking: Press

on the storage card (1).

Memorycard



The storage card is released and can now be removed.

► Pull the storage card out of the slot (2).

38 Fujitsu

Working with the notebook

Loudspeakers and microphones

MicrophoneLoudspeaker sBassloudspeaker(subwoofer)Volumec ontrol

Information on the exact position of the speakers and microphone can be found in "

Ports and operating elements", Page 9.

Please refer to chapte r "

Key combinations", Page 24 for information on setting the volume

and also enabling/disabling the loudspeakers using key combinations.

If you attach an external microphone, the built-in microphone is disabled.

When you connect headphones or external speakers, the built-in speakers are disabled.

Information on connect ing headphones and a m icrophone can be found in "

Connecting ext ernal devices", Page 55.

SIM card

A SIM Card (Subscriber Identity M od ule) is a chip card which is inserted in a mobile telephone or notebook to enable access to a mobile radio network in conjunction with an installed UMTS module.

Follow the instructions supplied by the provider of the SIM card.

The SIM card slot is located in the battery compartment and can only be accessed when the battery is removed.

Inserting a SIM card

► Prepare for insertion of the SIM card, see chapter "Preparing to remove components", Page 61.

► Pull the SIM card slider tray from the slot (1). ► Put the SIM card (a) into the SIM card

slider tray, as shown in the illustration on the s lider tray.

► Push the SIM card slider tray back

into the slot (2).

► Complete the insertion process, see chapter "

Finishing component removal", Page 66.

Fujitsu 39

Working with the noteboo k

Removing a SIM card

► Prepare for removal of the SIM card, see chapter "Preparing to remove components", Page 61.

► Pull the SIM card slider tray from the slot (1). ► Remove the SIM card (a) from the

SIM card slider tray.

► Push the SIM card slider tray back

into the slot (2).

► Complete the removal, see chapter "

Finishing co mponent removal", Page 66.

Wireless LAN/Bluetooth/UMTS/LTE radio components

The installation of radio components not approved by Fujitsu Technology Solutions will invalidate the certiﬁcations issued for this device.

Switching the wireless components on and off

► Press the button to start the WirelessSelector.



The radio component indicator will be illuminated when one or more radio components is switched on.

If you switch off the radio components, the wireless LAN antenna and the Bluetooth and UMTS/LTE module will also be switched off.

You can enable and disable the installed radio components individually

using the WirelessSelector programme

Pay attention to the additional safety notes for devices with radio components provided in the "Safety/Regulations" manual.

Details on using Wireless LAN can be found in the online help system included in the Wireless LAN software.

You ca n ﬁnd more information on how to use Bluetooth on the CD you received with your Bluetooth software.

You can obtain more information on UMTS/LTE from your service provider.

40 Fujitsu

Working with the notebook

Setting up WLAN acc ess

• Requirement: A WLAN must be available and you must have the corresponding access information.

Information on conﬁguring the WLAN access can be found in the documentation for your operating system.

Access via UMTS/LTE

You can purchase the accessories for UMTS/LTE reception from your retailer or your Fujitsu Technology Solutions dealer.

If you have ordered a UMTS/LTE module, your device will already be prepared when you receive it.

You will ﬁnd information on establishing the connection with the UMTS/LTE network in the documentation for the hardware y ou plan to use.

Your device can con

nect with the Internet via UMT S/LTE. To do this, use one

of the following ty

pes of connection:

• USB dongle a USB stick with your mobile phone provider’s SIM card

• a mobile end-dev

ice (e.g. mobile phone) with Bluetooth connection

• a mobile end-device (e.g. mobile phone) with data cable

Ethernet and LAN

EthernetLAN

The internal

network module of your notebook supports Ethernet LAN. You can use it to

establish a

connection to a local network (LAN = Local Area Network).

► Connect the

network cable to the LAN

port of the n

otebook (1).

► Connect the network cable to your

network connection (2).

Your network administrator can help you to conﬁgure and use the LAN connections.

The network cable is not included in the delivery scope. This type of cable can be obtained from a specialist dealer.

Fujitsu 41

Working with the noteboo k

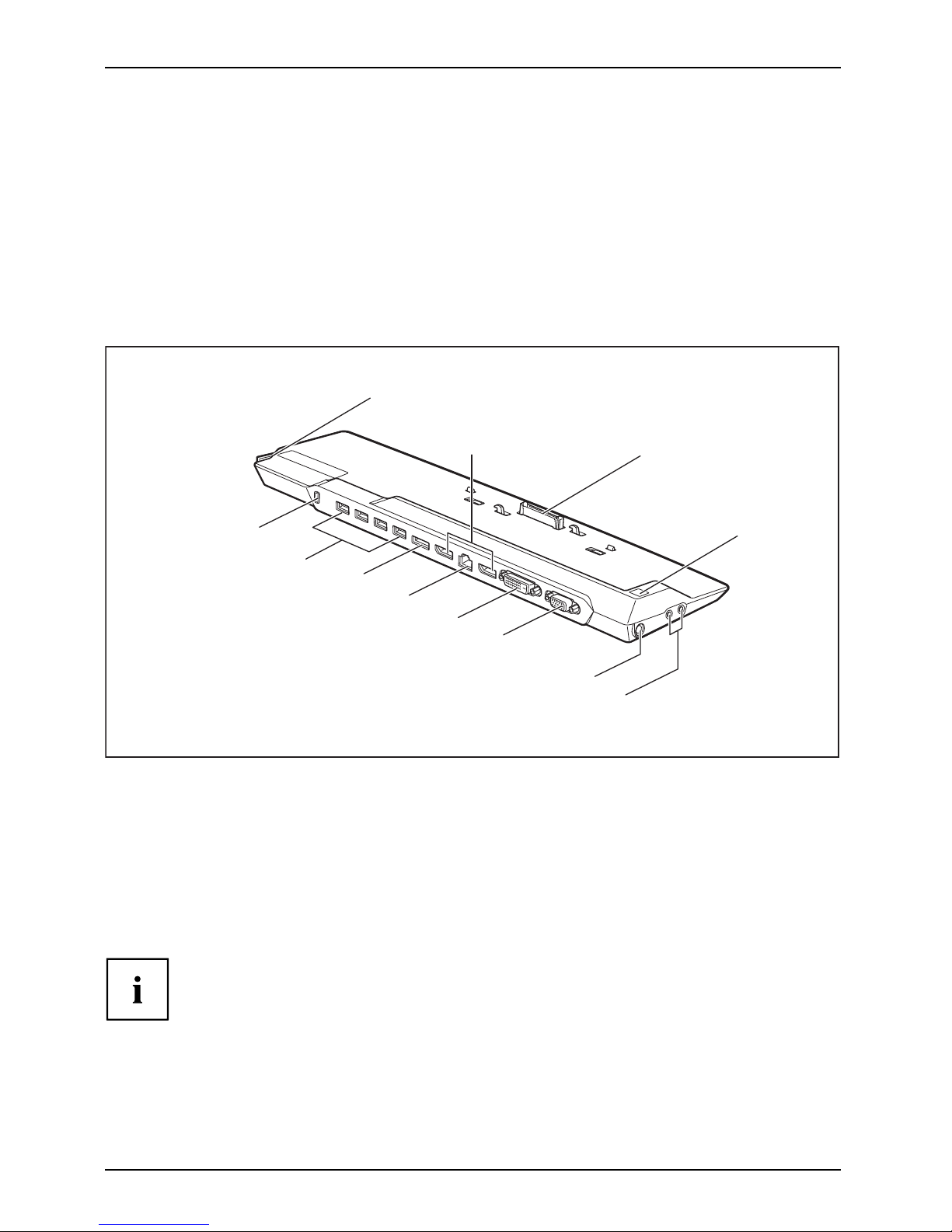

Your Port Replicator (optional)

Your Port Replicator is a device that enables you to quickly connect your notebook to your peripherals, such as a monitor, printer etc.

The features offered by the Port Replicator include standard ports for monitor, audio, mouse and keyboard.

You need only dock the notebook in order to use your peripheral devices.

Ports on the Port Replic

ator

1 = Security Lock device 2 = USB ports (USB 3.0) 3=e-SATAport 4 = LAN port 5 = DisplayPort 6 = DVI-D monitor port 7=VGAport

8 = DC input connector (DC IN) 9 = Microphone and headphone ports 10 = ON / OFF switch 11 = Connector on the Port Replicator for

the docking port on the underside of the notebook

12 = Release lever

DVI port and DisplayPort cannot be used at the same time.

42 Fujitsu

Working with the notebook

Connecting the notebook to the Port Replicator

If you connect the notebook to the Port Replicator during operation, problems can occur. We recommend that you switch off the notebook beforehand.

The mains adapter must be connected to the Port Replicator when the notebook is connected to the Port Replicator.

We recommend that the notebook is not operated with the LC D monitor closed when the notebook is conne cted to the Port Replicator. The resulting overheating can cause reduced performance and increased activity of the integrated fan.

PortReplicator

► Switch the notebook off. ► Remove the power plug of the mains adapter from th e mains socket. ► Disconnect the mains adapter cable from the DC socket (DC IN) of the notebook.

► Position the notebook so that it is in line with the back edge of the Port Replicator. ► Push the notebook onto the Port Replicator in the direction of the arrow

(1) un til you notice it engage.

Fujitsu 43

Working with the noteboo k

Connecting the mains adapter to the Port Replicator

► Connect the power cable to the

mains adapter (1).

► Plug the pow er cable into the mains

socket (2).

► Connect the mains adapter cable to the DC

jack (DC IN) of the Port Replicator (3).

When the notebook is connected to a Port Replicator, the operating system creates a hardware proﬁle for the "Docked" mode. In this proﬁle, for example, the setting is saved as to which monitor was last used for output. This proﬁle will be loaded, as soon as the notebook is connected to a Port Replicator of the same type.

Switching on the notebook via the port replicator

► Press the ON/OFF switch on the port

replicator to switch the notebook on.



The power-on indicator of the Port Replicator lights up.

Switchin

g off notebook via Port Replicator

► Close all applications and shut down your operating system (please refer

to the manual for the operating system).

If the notebook cannot be shut down properly, press the ON/OFF button on the Port Replicator for approx. four seconds. The notebook will switch off. Any unsaved data may however be lost.

44 Fujitsu

Working with the notebook

Disconnecting the notebook from the Port Replicator

Problems may occur if the notebook is removed from the Port Replicator during operation. We recommend that the notebook is switched off or that the appropriate undocking function pro vided by the operating system is executed.

► Switch the notebook off.

► Pull the release lever (1). ► Lift up the notebook (2).

Fujitsu 45

Security functions

Securityfunctions

Your notebook has several security features that you can use to secure your system from unauthorised access.

This chapter explains how to use each function, and what the beneﬁ ts are.

Please remember that in some cases, for example, forgetting your password, you may be locked out and unable to access your data. Therefore, please note the following information:

• Make regular backups to external data carriers such as external hard drives, CDs, DVDs or Blu-ray Discs.

• Some security functio

ns need you to choose passwords. Make a note

of the passwords and ke

ep them in a safe place.

If you forget your passwords you will need to contact the our Service Desk. Deletion or resetting of passwords is not covered by your warranty and a charge will be made for assistance.

Conﬁguring the palm vein sensor

palmveinsensorpalmveins ensor

Whether or not your device has a palm vein s ensor depends on the device conﬁguration you have ordere d.

The palm vein sensor can record an image of the palm veins. With additional software, this image can be processed and used instead of a password.

► You must insta ll the software in order to be

able to use the palm vein sensor (1).

46 Fujitsu

Security functions

Conﬁguring the ﬁngerprint sensor

FingerprintsensorFingerprintsensor

Whether or not your device has a ﬁngerprint sensor depends on the device conﬁguration you have ordered.

The ﬁngerprint sensor can record an image of a ﬁngerprint. With additional ﬁngerprint software, this image can be processed and used instead of a password.

► You must install the ﬁngerprint software

in order to be able to use the ﬁngerprint sensor (1).

Using the Security Lock

Your device comes with a Security Lock mechanism for the Kensington Lock Cable. Yo u can use the Kensington Lock Cable, a sturdy steel cable, to help protect your notebook from theft. The Kensington Lock Cable is available as an accessory.

Fujitsu recommends the use of a combination lock.

► Fit the Kensington Lock Cab le to the

mechanism on your notebook.

UsingtheKensingtonLockCableSecurityLockMechanicalbackupAnti-theftprotection

Attach another Kensington Lock Cable to your Port Replicator to protect your Port Replicator from theft as well.

Fujitsu 47

Security functions

Conﬁguring password protection inB IOS Setup Utility

Before using the various options for password protection in the BIOS Set up utility

to increase data security, please observe the following:

Make a note of the passwords and keep them in a safe pla ce. If you forget your supervisor HDD p assword you will not be able to access your notebook. Passwords are not covered by your warranty and a charge will be made for assistance.

Passwordprotection

Your password can be up to

eight characters long and contain letters and numbers.

No distinction is made be

tween u ppercase and lowercase.

Password protection for the hard disk

Passwordprotection:

The had disk password prevents unauthorised access to the hard disk drives and is checked internally each time the system is booted. The condition for this is that you have assigned at least the superviso r HDD password.

Activating hard disk protection

► Call up the BIOS Setup and select the Security menu.



If you have not assigned BIOS passwords yet, deﬁne the supervisor and the user HDD password now, if desired (see "

Security functions", Page 46).

► Mark the Hard Disk Security ﬁeld and press the Enter key. ► In the Drive0 area mark the Set Master Password ﬁeld and press the Enter key.



Enter new Password then ap pears and you are asked to enter a password.

► Enter the password and press the Enter key.



Conﬁrm new Password requires you to conﬁrm the password.

► Enter the password again and press the Enter key.



Setup Notice: Changes have been saved is displayed to conﬁrm that the

new password has been saved.

► To assign the password for the second hard disk (Drive1), go to the Drive1 area and

select the ﬁeld Set Master Password, then proceed in exactly the same way as for setting up the password for the ﬁrst hard disk (Drive0).



The ﬁeld Password Entry on Boot is set to Enabled by default. You can exit the BIOS Setup once you have ﬁnished changing the settings.

► From the Exit menu, choose the option Exit Saving Changes. ► Press the Enter key and select Yes.



The notebook reboots and your hard disk is no w protected with a password. The system will ask you to enter the password when the notebook is restarted again.

48 Fujitsu

Security functions

Deactivating hard disk protection

To cancel a password without setting a new one, proceed as follows:

► Call up the BIOS Setup and select the Security menu. ► Mark the Hard Disk Security ﬁeld and press the Enter key. ► In the D rive0 area mark the Set Master Password ﬁeld and press the Enter key.



You will be initially requested to enter the old password by the Enter current Password prompt. You will then be requested to enter a new password by the Enter new Password prompt.

► After entering the password, press the Enter key three times.

► From the Exit menu, choose the option Exit Saving Changes. ► Press th e Enter key and select Yes.



The notebook reboots, and password protection for the hard disk is cancelled.

► To cancel the password for the s econd hard disk (Drive1), go to the Drive1 area

and select the ﬁeld Set Master Password, then proceed in exactly the same way as for cancelling the password for the ﬁrst hard disk (Drive0).

Password protection f or booting of the operating system

With the supervis

or HDD password you have set in the BIOS Setup Utility (see

section ), you can

also prevent booting of the operating system.

Operatingsystem

Activating system protection

► Start the BIOS S etup Utility and go to the Security menu.

Operatingsy

stem

► Select the PasswordonBootoption and press the Enter key. ► Select the desired option (Disabled, First Boot or Every Boot) and press the Enter key ► Select the Save Changes & Exit option under Exit.



The notebook will reboot. You will be prompted to enter your password (the supervisor HDD password).

Deactivating system protection

► Start the BIOS S etup Utility and go to the Security menu.

Operati

ngsystem

► Select the PasswordonBootoption and press the Enter key. ► Select the Disabled option and press t he Enter key.



If you do not want to change any other settings, you can exit BIOS Setup Utility.

► Select the Save Changes & Exit option under Exit.



The notebook will reboot. The system is no longer password-protected.

Fujitsu 49

Security functions

Password protection for the hard disk

Passwordprotection:

Activating hard disk prot

ection

► Call up the BIOS Setup and select the Security menu.



If you have not assigned

BIOS passwords yet, deﬁne the supervisor and the user HDD

password now, if desire

d (see "

Security functions", Page 46).

► Mark the Hard Disk Security ﬁeld and press the Enter key. ► In the Drive0 area mark

the Set Master Password ﬁeld and press the Enter key.



Enter new Password then ap pears and you are asked to enter a password.

► Enter the password a

nd press the Enter key.



Conﬁrm new Password requires you to conﬁrm the password.

► Enter the password

again and press the En ter key.



Setup Notice: Changes have been saved is displayed to conﬁrm that the

new password has been saved.

► To assign the pas

sword for the second hard disk (Drive1), go to the Drive1 area and

select the ﬁeld S

et Master Password, then proceed in exactly the same way as for

setting up the p

assword for the ﬁrst hard disk (Drive0).



The ﬁeld Password Entry on Boot is set to Enabled by default. You can exit the BIOS Setup once you have ﬁnished changing the settings.

► From the Exit m

enu, choose the option Exit Saving Changes.

► Press the Enter key and select Yes.



The notebook

reboots and your hard disk is now protected with a password. The system

will ask you

to enter the password when the notebook is restarted again.

Deactivating hard disk protection

To cancel a password without setting a new one, proceed as follows:

► Call up the BIOS Setup and select the Security menu. ► Mark the Hard Disk Security ﬁeld and press the Enter key. ► In the Drive0 area mark the Set Master Password ﬁeld and press the Enter key.



You will be initially requested to enter the old password by the Enter current Password prompt. You will then be requested to enter a new password by the Enter new Password prompt.

► After entering the password, press the Enter key three times.

► From the Exit menu, choose the option Exit Saving Changes. ► Press the Enter key and select Yes.



The notebook reboots, and password protection for the hard disk is cancelled.

► To cancel the password for the second hard disk (Drive1), go to the Drive1 area

and select the ﬁeld Set Master Password, then proceed in exactly the same way as for cancelling the password for the ﬁrst hard disk (Drive0).

50 Fujitsu

Security functions

Boot from Removable Media

With this BIOS feature, you can manage/control unauthorised booting of an operating system from external media (e.g. USB stick, USB CD-ROM drive etc.) We recommend that you conﬁgure the hard disk as the ﬁrst boot medium in order to prevent access to your system by boot CDs and bootable media.

The condition for this BIOS feature is that you have assigned at least the supe rvisor HDD password.

► Call up the BIOS Setup and select the Security menu. ► Highlight the Boot from Remo vable Media ﬁeld and press the Enter key. ► Select the entry All (if you want everyone to be allowed to boot) or Supervisor Only (if you

only want the supervisor to be au thorised to do this) and press the Enter key.



If you do not want to change any other settings you can exit the BIOS Setup.

► From the Exit menu, choose the option Exit Saving Changes. ► Press th e Enter key and select Yes.



The notebook will restart and the settings will be adopted.

Owner Information (device-dependent)

The BIOS feature Owner Information enables you to enter up to 80 characters of text

which is displayed in the bottom left corner of the screen before the operating system boots up. You could use this feature for example to put your name and telephone number on the notebook in case it is lost or stolen.

Requirements:

• You have been assigned at least the supervisor HDD password.

•IntheBOOT menu, the Boot time diagno s tic screen option is set to enabled.

► Call up the BIOS Setup and select the Security menu. ► Highlight the Owner Information ﬁeld and pre ss the Enter key. ► Add the text you would like to enter under Set Owner Information.



Setup Notice: Changes have been saved is displaye d to conﬁrm that the text has been saved.

► From the Exit menu, choose the option Exit Saving Changes. ► Press th e Enter key and select Yes.



The notebook will restart and the Owner Information will be adopted.

Fujitsu 51

Security functions

Virus Warning (device-dependent)

This ﬁeld checks the boot sectors of the hard disk drive to see if any changes have been made since the previous system start-up. If the boot sector has been changed since the previous system start-up (e.g. new operating system or virus attack), a warning is displayed on the screen. The warning will stay on the screen until you acknowledge the cha nges by

clicking on Conﬁrm or until you set the Virus Warning function to Disabled.

If the boot sectors have been changed and the reason for this is unknown, a programme for ﬁnding c omputer viruses should be loaded .

Such a change is not only caused b y viruses, but also by the boot manager.

This function does not replace proper anti-virus software.

No supervisor HDD password is required to set it up.

► Call up the BIOS Setup and select the Security menu. ► Highlight the Virus Warning ﬁeld and press the Enter key. ► Select Enabled to activate the Virus Warning function. ► From the Exit menu, choose the option Exit Saving Changes. ► Press the Enter key and select Yes.



The notebook will restart and the settings will be adopted.

52 Fujitsu

Security functions

SmartCard reader

Securityfunctions,Securityfunctions

SmartCards are not supplied as standard equipment. You can use all SmartCa rds that comply with the ISO standard 7816-1, -2 or -3. These SmartCards are available from various manufacturers.

With the appropriate software you can use your SmartCard as an a ltern ative to password protection, but also as a digital signature, for encrypting your e-mails or for home banking.

We recommend that you always use tw o SmartCards. Always keep one of the SmartCards in a safe place if you are carrying the other SmartCard with you.

In order to be ab le to take advantage of all the security features of your notebook, you will need a CardOS SmartCard from Fujitsu Technology Solutions.

The SmartCard can only be used with a PIN, offering maximum protection even if you lose the SmartCard. In order to maximise your security, the CardOS SmartCard is disabled if three incorrect attem pts are made to enter the PIN.

When you use the CardOS SmartCard for the ﬁrst time, you will either need to enter the preset PIN " 12345678" or the PIN given to you by your systems administrator.

Inserting the SmartCard

Do not use force when inserting and removing the SmartCard.

Make sure that foreign objects do not fall into the SmartCard reader.

► Slide the Smar

tCard into the SmartCard

reader with th

e chip downwards and

towards the fr

ont.

Fujitsu 53

Security functions

Trusted Platform Module (TPM) (device-dependent)

TPMTrustedPlatformModule

To use the TPM, you must activate the TPM in the BIOS Setup before the softwar e

is installed. The condition for this is that you have assigned at least the supervisor HDD password (see "

Security functions", Page 46). ).

Enabling TPM

• Requirement: You have assigned a supervisor HDD password, see "Security fun ctions", Page 46. ► Call up the BIOS Se tup an

d select the Security menu.

► Mark the TPM Security Chip Se ttin g ﬁeld and press the Enter key. ► Select Enabled to acti

vate the TPM.



Once you have activated the TPM the Clear Security Chip option appears. Select Clear Securit

y Chip to delete the holder in the TPM. By clicking on Enabled,

all secret keys (e.g

. SRK - Stora ge Root Keys, AIK - Attestation Identity Keys

etc.) generated by

applications are deleted.

Please note that yo

u will then no longer be able to access the data you have

encrypted with th

e keys based on that holder.

► Select the Exit Sa

ving Changes option in the Exit menu.

► Press the Enter key and select Yes.



The notebook wil

l restart, and TPM will be enabled after the reboot.

Disabling TPM

• Requirement: You have assigned a supervisor HDD password, see "Security functions", Page 46.

► Call up the BIOS Setup and select the Security menu. ► Mark the TPM Security Chip Se ttin g ﬁeld and press the Enter key. ► Select Disabled to deactivate the TPM. ► From the Exit menu, choose the option Exit Saving Changes. ► Press the Enter key and select Yes.



Your notebook will now restart and TPM will be disabled.

54 Fujitsu

Connecting external devices

Always refer to the safety information provided in "Important notes", Page 12 before connecting or disconnecting a ny devices to or from your notebook.

Always read the documentation supplied with the device you wish to connect.

Never connect or disconnect cables during a thunderstorm.

Never pull at a cable when disconnecting it. Always grasp the plug.

Follow the steps below in order, when connecting or disconnecting devices to your notebook:

With some devices such as USB devices, it is not necessary to switch off the notebook and the device before connecting/disconnecting. For more information about wh ether or not devices need to be switched off, please refer to the documentation supplied with the external device.

Some of the external devices require special drivers (see the operating system and external device documentation).

Connecting devices to the notebook

1. Turn off your notebook and all external devices.

2. Unplug your not

ebook and all devices from the mains sockets.

3. Connect the cables for your external devices following the instructions.

4. Plug all power

cables into the mains sockets.

DevicesPeripheralde

vices

Disconnecting devices from the notebook

1. Turn off your notebook and all external devices.

2. Unplug your

notebook and all devices from the mains sockets.

3. Disconnect the cables for y our external devices following the instructions.

DevicesPeripheraldevices

Fujitsu 55

Connecting external devices

Connecting an external monitor

An analogue monitor is connected to the analogue VGA m onitor port, a digital monitor to the DisplayPort or to the DVI-D monitor port (see overview below). Monitor output is limited to a maximum of two monitors at any one time (see "

Key combinations", Page 24, section "Toggle output monitor").

MonitorVGAconnectionsocketMonitorportMonitorport

Digital DisplayPort (on the device and on the optional Port Replicator)

Analogue VGA monitor port (on the device and on the optional Port Replicator)

Digital DVI-D monitor port (on the optional Port Replicator only)

► Switch off the notebook and the external monitor. ► Plug the data cable of the external monitor into the monitor port. ► First switch on the external monitor and then the notebook.

You can also switch between the external monitor and the LCD monitor of the notebook, see chapter "

Key combinations", Page 24.

You can display the same p icture on the external monitor and the notebook LCD monitor simultaneously.

56 Fujitsu

Connecting external devices

Connecting USB devices

USBports

On the USB ports, you can connect external devices that also have a USB port (e.g. a DVD drive, a printer, a scanner or a modem).

USB devices are hot-pluggable. This means you can connect and disconnect devices while your operating system is running.

USB 1.x has a maximum data transfer rate of 12 Mbit/s.

USB 2.0 has a data transfer rate of up to 480 Mbit/s.

USB 3.0 has a data trans

fer rate of up to 5 Gbit/s .

Additional informati

on can b e found in the documentation for the USB devices.

► Connect the data cable to the

external device.

► Connect the data cable to a USB

port of the notebook.

Device drivers

USB devices will be automatically recognised and installed by your operating system.

Fujitsu 57

Connecting external devices

Connecting an external SATA hard disk (eSATA) (Port Replicator only)

The notebook itself does not have an eSATA port. The optional Port Replicator available for your notebook provides this port.

An external SATA hard disk can be connected at the eSATA port. This allows you to expand the internal hard disk capacity as you wish.

The length of the eSATA cab le must not exceed 2 metres. Consult a specialist dealer for advice on which eSATA data cable is suitable for your external eSATA hard disk. Ma ke sure that the h ard disk has its own external power supply.

The data transfer rate is up to 2,400 Mbit/s.

eSATA

► Connect th e data cable to the external

device.

► Connect the data cable to the eSATA port.

Device drivers

The eSATA hard disk is auto m atically recognised by your operating system and installed.

You will ﬁnd more information in the documentation for the external SATA hard disk and the operating system.

Safe removal of eSATA and USB devices

Always cor

rectly remove the device according to the rules described below,

to ensure

that none of your data is lost.

► Left-click on the symbol to remove hardware safely. ► Select t

he device you wish to shut down and remove.

► Press the "Enter" key.



Wait fo

r the dialogue box which tells you that it is now safe to remove the device.

58 Fujitsu

Connecting external devices

Connecting external audio devices

Microphone port/Line In

Audiodevices,connectingAudioportsMicrophone,connecti ng

The microphone port/Line In allows you to connect an external microphone, a MiniDisc player, MP3 player, CD player or a tape deck to your notebook.

► Connect the audio cable to the

external device.

► Connect the audio cable t

o the microphone

port/Line In of the note

book.

Headphone port

Connectingaudio

devices

AudioportsConnectingheadp

hones

You can connect headphones or external loudspeakers to your notebook via the headphone port.

► Connect the audio cable to the

external device.

► Connect the audio cable to the headphon e

port of the notebook.



The internal loudspeakers are disabled.

If you purchase a cable from a retailer, please note the following information:

The headphone port on your not ebook is a "3.5 mm jack socket".

If you want to connect headphones or a speaker you will need a "3.5 mm jack plug".

Fujitsu 59

Removing and installing components

during servicing

Removing and installing compo

nents

during servicing

Only qualiﬁed technicians should repair your notebook. Unauthorised opening or incorrect repair may greatly endanger the user (electric shock, ﬁre risk) and will invalidate your warranty.

Components

Servicing

After consulting the Hotline/Service Desk, you may remove and install the components described in this chapter y ourself.

If you remove and install components without consulting the Hotline/Service Desk, then the warranty of your notebook will be voided.

Notes on installing and removing boards and components

• Switch the notebook off and pull the power plug out of the mains socket.

• Always remove the battery.

• Take care when you use the locking mechanisms on the ba ttery and any other component.

• Never use sharp objects such as screwdrivers, scissors or knives as leverage to remove covers.

NotesBoardESD

Boards with electrostatic sensitive devices (ESD) are marked with the label shown.

When handling boards ﬁtted with ESDs, you must always observe the following points:

• You must always discharge static build up (e.g. by touching a grounded object) before working.

• The e quipment and tools you use must be free of static charges.

• Remove the power plug from the mains supply before inserting or removing boards containing ESDs.

• Always hold bo ards with ESDs by their edges.

• Never touch pins or conductors on boards ﬁtted with ESDs.

60 Fujitsu

Removing and installing c omponents

during servicing

Preparing to remove components

If you are going to remove or change system components, prepare for the removal as follows:

Please observe the safety information in chapter "Important notes", Page 12.

Remove the power plug from the mains outlet !

► Switch the device off.

The device must not be in energy-saving mode !

► Close the LCD screen. ► Remove all the cables

from the device.

► Turn the device over and place it on a stable, ﬂat and clean surface. If necessary, lay an

anti-slip cloth on this surface to prevent th e device from being scratched.

► Remove the battery

(see "

Removing the battery", Page 31).

Installing and removing me mory expansion

MemorymoduleMainmemoryRemovingmemorySystemexpansionSystemexpansi

If you are asked by the Hotline/Service Desk to remove and install the memo ry expansion yourself, proceed as follows:

Please observe the safety information in chapter "Important notes", Page 12.

When installing/removing memory modules, the battery must be removed from the notebook and the notebook must not be connected to the power supply, see "

Preparing to remove components", Page 61.

Only use memory expansion modules that have been approved for your notebook (see "

Technical data", Page 77).

Never use force when installing or removing a memory extension.

Make sure that foreign objects do not fall into the memory extension compartment.

You must open the service compartment t o remove or install a memory module. On some devices, opening the compartment may expose other components. These components should be removed and replaced only by authorised s pecia lists. Therefore, be sure to observe the following:

Individual components can become very hot during operation. Therefore, we recommend that you wait one hour after switching off the notebook before removing or installing memory modules. Otherwise, there is a risk of suffering burns!

As some comp onents are exposed that are sensitive to static electricity, please take note of chapter "

Notes on installing and removing boards and components" , Page 60.

Fujitsu 61

Removing and installing components

during servicing

Removing a cover

► Open the cover and lift the cover off the notebook (1).

Removing memory modules

► Carefully push the two mounting

clips outwards (1).

MemoryexpansionMemorymodule



The memory m odule snaps upwards (2).

► Pull the memory module out of its slot

in the direction of the arrow (3).

Installing a memory module

► Insert the memory module with the contacts

and the recess (a) facing the slot (1).

MemoryexpansionMemorymodule

► Carefully push the memory module

downwards until you feel it click into place (2).

62 Fujitsu

Removing and installing c omponents

during servicing

Attaching the cover

► Place the cover in the correct slot (1).

Fujitsu 63

Removing and installing components

during servicing

Removing and installing the har

ddisk

Removing a cover

► Remove the battery (see Chapter "Removing the battery", Page 31).

► Remove the screws (1).

Keep the screws in a safe place. If you are removing more than one component at the same time, st ore the screws for the individual components separately from each other. If you install the wrong screws, components may be damaged.

► Lift the cov

er off the notebook (2).

64 Fujitsu

Removing and installing c omponents

during servicing

Removing a hard disk

► Remove the hard disk from the hard disk compartment (1).

Installing a ha

rd disk

► Plac

e the hard disk into the hard disk compartment (1).

Fujitsu 65

Removing and installing components

during servicing

Attaching the cover

► Place the cover in the correct mounting position (1).

If you remove more than one component at the same time, keep the screws for the individual components separately from each other and make sure that you use the correct screws. If you install the wrong screws, components may be damaged.

► Tighten the screws (2). ► Insert the battery (see Chapter "

Installing the battery", Page 31).

Finishing component removal

After you have removed or changed the system components as you required, please prepare your device for operation again as follows:

► Install the battery again (see "

Installing the battery", Page 31).

► Turn the notebook the right way up again and place it on a ﬂat surface. ► Reconnect the cables that you disconnected before.

66 Fujitsu

Settings in BIOS Setup Utility

BIOSSetupUtilitySystemsettings,BIOSSetupUtilityConﬁguration,BIOSSetupUtilitySetupSystemc onﬁgurationHardwareconﬁguration

The BIOS Setup Utility allows you to set the system functions and the hardware

conﬁguration for the notebook.

When it is delivered, the noteb ook is set t o fact o ry default settin gs. You can

change these settings in BIOS Setup Utility. Any changes you make take effect as soon as you save and exit the BIOS Setup Utility.

The BIOS Setup Utility program contains the following menus:

About

Displays information relating to the BIOS, processo r and notebook

System

Advanced system settings

Advanced

Conﬁguration of va

rious hardw are components, such as mouse, keyboard,

processor

Security

Password settings and security functions

Boot

Conﬁguration of the start-up sequence

Exit

Exits the BIOS Setup Uti lity

Starting the B IOS Setup Utility

► Reboot the device (switch off/on or reboot the operating system).

BIOSSetupUtili



The following or a similar display appears on the screen at start-up:

<F2> BIOS Setup <F12> Boot Menu

► Press the function key

► If a password has been assigned, enter the password and press the Enter key.

If you have forgotten the password, contact your system administrator or contact our customer service c entre.

The BI

OS Setup Utility starts.

Operating BIOS Setup Utility

BIOSSetupUtility

Press the

key to display help on the ope ration of the BIOS S etup Utility. The description

of the individual settings is shown in the right-hand window of the BIOS Setup Utility.

With the

key you can load the default s ettings of the BIOS Setup Utility.

► Use the cu rsor keys

←

→

to select the menu you wish to access to make changes.



The menu is displayed on the screen.

► Select the option you want to change with the cursor keys

↑

or↓.

► Press the Enter key. ► Press the

ESC

key to exit the selected menu.

► For future reference, make a note of the changes you have made (for example, in this manu al).

Fujitsu 67

Settings in BIOS Setup Utility

Exiting BIOS Setup Utility

BIOSSetupUtility

You need to select the desired option in the Exit menu and activate it by pressing the Enter key:

Exit Saving Changes - save ch

anges and exit BIOS Setup Utility

► To save the current menu settings and exit the BIOS Setup Utility, select Exit Saving Changes and Yes.



The note book is rebooted

and the new settings come into effect.

Exit Discarding Changes – Discard changes and exit BIOS Setup Utility

► To discard the changes, select Exit Discarding Changes and Yes.



The settings in place when BIOS Setup Utility was called remain effective. BIOS Setup Utility is terminated and the notebook is rebooted.

Load Setup Defaul

ts – Copy Standard Entries

► To copy the standard entries for all menus of the BIOS Setup Utility,

choose Load Setup Defaults and Yes.

Discard Changes – Discard changes without exiting the BIOS Setup Utility

► To discard the changes you have made, select Discard Changes and Yes.



The settings in place when BIOS Setup Utility was called remain effective. You can now make additional settings in the BIOS Setup Utility.

► IfyouwanttoexitBIOS Setu p Utilitywith these settings, select Exit Saving Changes and Yes.

Save Chan

ges - save changes without exiting

the BIOS Setup Utility

► To save the changes, select Save Changes and Yes.



The changes are saved. You can now make additional settings in the BIOS Setup Utility.

► If you want to exit BIOS Setup Utility with these settings, choose Exit Saving Changes and Yes.

Save Changes and Power Off

► To save the changes and switch off your device, select Save Changes and Power Off and Yes.



The changes are saved. Your device is shut down.

68 Fujitsu

Troubleshooting and tips

TroubleshootingTipsFaultTroubleshooting

Follow the safety notes in the "Safety/Regulations" manual when connecting or disconnecting cables.

If a fault occurs, try to correct it as described. If you fail to correct the problem, proceed as follows:

► Make a note of the steps and the circumstances that led to the fault. Also

make a note of any error messages displayed.

► Switch the notebook off. ► Please contact the Hotline/Service Desk.

You c a n ﬁnd t he telephone numbers in the service desk list. Please have the following information ready when you call:

• The model name and serial number of the notebook. The serial number is located on a sticker on the unde rside of the notebook.

• Notes of any messages that appear on the screen and information on acoustic signals.

• Any changes you have made to the hardware or software since receiving the no tebook.

• Any changes you have made to the BIOS Setup settings since receiving the notebook.

• Your system conﬁguration and all peripheral devices connected to your system.

• Your sales contract.

Our notebooks

have been designed primarily with mobile applications in mind. This

means that con

siderable effort has been made to optimise components and equipment

in terms of we

ight, space and energy requirements. Depend ing on the particular

conﬁguratio

n you have purchased, it is possible that functionality may be slightly reduced

compared to a

desktop PC if you are running processor-intensive gaming software, e.g.

games with i

ntensive 3D graphics. Updating your hardware with drivers which have not

been appro

ved by Fujitsu Technology Solutions may result in performance losses, data

losses or m

alfunction of the eq u ipm ent. A list of approved drivers and current BIOS

versions c

an be downloaded from: "

http://support.ts.fujitsu.com/Download/Index.asp"

Help if pr

oblems occur

Should you encounter a problem with your computer that you cannot resolve yourself:

► Note the ID number of your device. The ID number is found on the type rating

plate on the back or underside of the casing.

► For further clariﬁcation of the problem, contact the Service Desk for your country (see the

Service Desk list or visit the Internet at

http://support.ts.fujitsu.com/conta ct/servicedesk/ServiceDeskNumber_Int.asp"). When you

do this, please have ready the ID number and serial numb er of your system.

Fujitsu 69

Troubleshooting and tips

Restoring the hard disk content

s under Windows

Harddisk:Operatingsystem,restoring

You can use the "Windows Recovery CD" (optionally available) and the "Drivers & Utilities CD/DVD" to reinstall the operating system.

The instructions are provided on the case of the Recovery CD.

During the reinstall process your personal ﬁles and any installed programs will be deleted. We advise you to backup your ﬁles to an external hard drive, or CD / DVD disk before you start.

► Switch the notebook on.



The following display br

ieﬂy appears on the screen during start-up:

<ESC>Diagnostic screen <F12>Boot Menu <F2>BIOS Setup

► When this message appears, press the function key

F12

► Insert the "Windows R

ecovery CD" into the optical drive.

► Select CD-ROM and press the Enter key.

► Follow the instruct

ions on the screen.

After the installation you m ust install all the drivers again. Some installed hardware components will not be correctly supported until this has been done.

► Insert the "Drivers & Utilities" CD/DVD into the optical drive. The CD start s automatically.

► Click on the Desk U

pdate button.

► Select Automatic driver installation (E xp ress) and click on Start installation.

► Follow the inst

ructions on the screen.

► Restart your notebook when the driver installation is completed.

The notebook’s date or time is incorrect

SummertimeTime,daylightsavingsTime no tcorrectTimenotc orrectIncorre ctdate/timeDateisincorrectBufferbattery,load

Cause Troubleshooting

Time and date are incorrect. ► With the BIOS-Setup-Utility, you can set the

date and time in the main menu.

If the time

and date are still set incorrectly after

switching

on the notebook.

► Please contact your sales outlet or our

Hotline/Service Desk.

The notebook’s LCD screen remains blank

LCDscr

een

LCDscr

eenistoodark

Cause Troubleshooting

Monitor is switched off.

► Press a key or touch the touchpad.

External monitor or television set conn ecte d. ► Press the key combination to switch the

screen output, see "

Key combinations",

Page 24.

70 Fujitsu

Troubleshooting and tips

The LCD screen is difﬁcult to read

LCDscreenLCDscreen

Cause Troubleshooting

Reﬂected glare ► Turn the notebook or alter the tilt of the LCD

screen.

► Increase the brightness of the screen.

The external monitor rem

ains blank

Monitor

Cause Troubleshooting

Monitor is switched off. ► Switch the external monitor on.

Power saving has been activated (monitor is blank).

► Press any key to continue.

Brightness is set to dark.

► Adjust the brightne

ss of the monitor.

Screen output is set to the notebook’s LCD screen

► Press the key combi

nationtoswitchthe

screen output, see

Key combinations",

Page 24.

The external moni

tor’s power cable or data

cable is not conn

ected properly.

► Switch off the external monitor and the

notebook.

► Check whether the power cable is plugged

properly into the external m onitor and into the power socket.

► Check whether the data cable is properly

connected to the notebook and the external monitor (if it is plugged in with a connector).

► Switch on the external monitor and the

notebook.

The external monitor is blank or the image is unstable

ScreenMonitor

Cause Troubleshooting

The wrong external monitor has been selected or the wrong screen resolution has been set for the application program.

► Terminate the application program in

Windows by pressing

Alt

.Ifthe fault persists after closing the program, use the key comb ination for switching the screen output (see "

Key combinations", Page 24)to

switch over to the notebook’s LCD screen. Change the following setting:

► Set the screen resolution: Set th e screen

resolution as described in the documentation for your operating system.

► Select monitor: Select monitor 1 or 2 as

described in the documentation for your operating system.

Fujitsu 71

Troubleshooting and tips

The notebook cannot be started

Notebook

Cause Troubleshooting

The battery is not installed co

rrectly.

► Check whether the battery is installed

correctly in its compartment.

► Switch the notebook on.

The battery is dead.

► Charge the battery.

► Insert a charged battery.

► Connect the mains adapter to the

notebook.

The power adapter is not connected correctly.

► Check whether the mains adapter is

connected correctly to the notebo ok.

► Switch the notebook on.

The notebook stops working

NotebookE nergysavingmode

Cause Troubleshooting

Notebook is in energy saving mode. ► Leave energy saving mode.

An application programme has caused the malfunction.

► Close the application program or restart

the notebook (by restarting the operating system or switching the device off and back on again).

The battery is dead.

► Charge the battery.

► Insert a charged battery.

► Connect the mains adapter to the

notebook.

72 Fujitsu

Troubleshooting and tips

The printer does not print

Printerdoesnotprint

Cause Troubleshooting

The printer is not switche d on. ► Make sure that the printer is sw

itched

on and ready for operation (ref

er to the

documentation supplied with t

he printer).

The printer is not connected c

orrectly.

► Check that the data cable connecting

the noteb ook to the printer is properly connected.

The printer driver is faulty or not correctly installed, or it is the wrong printer driver.

► Check that the data cable connecting

the noteb ook to the printer is properly connected.

► Check whether the correct printer driver is

loaded (refer to the printer documentation).

The radio connectio

n to a network does not work

Theradioconnecti

ontoanetworkdoes notwork

Cause Troubleshooting

The wireless compo

nent is disabled.

► Switch the radio component on (see

Switching the wireless components on and

off", Page 40).

The wireless component is enabled. Despite this, the wireless connection to a network does not work.

► Check whether the radio connection is

switched on via the software.

► Further information on using the radio

component can be found in t he help ﬁles.

SmartCard re

ader is not recognised

Cause

Troubleshooting

Chip card inserted incorrectly.

► Make sure yo

u have inserted your

SmartCard i

nto the SmartCard reader with

the chip fa

cing upwards.

► Check whether the SmartCard you are using

is supported. Your SmartCard must comply with the ISO standard 7816-1, -2, -3 and -4.

SmartCard PIN forgotten

Cause

Troubl

eshooting

PIN forgotten ► If you work in a network, contact your

system administrator, who can unlock your Tablet PC with a supervisor PIN.

Fujitsu 73

Troubleshooting and tips

User and/or supervisor SmartCard lost

Cause

Troubleshooting

User and/o r supervisor SmartCard lost ► If you have lost your User SmartCard, you

can continue working with the Supervisor SmartCard and initialise a new User SmartCard or deactivate the SystemLock function.

► If you have lost the Supervisor SmartCard,

you can continue working, but you n o longer have all your rights and can no longer initialise a Supervisor SmartCard.

► If you have lost both SmartCards, you can

no longer boot your system. Please contact our Service Desk. You must provide proof of ownership for the device. Then the Service Deskwillreferyoutoourservicepartner, who will unlock your device (for a charge).

SmartCard lost

Cause

Troubleshooting

SmartCard lost ► If you work in a network, contact your

system administrator, who can boot your Tablet PC with a Supervisor SmartCard.

Acoustic warnings

Acousticer

rormessages

Errors

Cause

Troubleshooting

A beep sound

s every few seconds.

The battery

is almost ﬂat.

► Charge the b

attery.

74 Fujitsu

Troubleshooting and tips

Error messages on the screen

Errormessagesonthes creenErrormessage:

This section describes the error messages g enerat ed by the BIOS Setup. Error messages displayed by the operating system or programmes are described in the relevant documentation.

If the error message appears repeatedly, despite troubleshooting measures, please contact the place of purchase or our customer service centre.

Error message/cause Resolution

CMOS battery bad

If the error message occurs repeatedly, the buffer battery in the notebook is ﬂat.

► Contact your sales outlet

or our customer

service centre.

System CMOS checksum bad - default conﬁguration used

The system conﬁguration information is incorrect.

► Switch the notebook of

► Switch the notebook on. ► Press the function k

to access the

BIOS Setup.

► In the BIOS Setup, select the Exit menu. ► Select the entry Lo

ad Setup Defaults.

► Select OK and press the Enter key.

Extended memory failed at offset: xxxx Failing Bits: zzzz zzzz

When testing the extended memory an error has resulted at the address xxxx.

► Check whether the additional memory

module has been inserted correctly.

Failure Fixed Disk n

The settings of the hard disk drive are incorrect.

► Start the BIOS Setup (Primary Master

submenu) and select the correct settings.

Keyboard controller error

► Switch the notebook off with the ON/OFF

switch.

► Wait 3 - 5 seconds and switch on the

notebook again.

Keyboard error

If you are using an external keyboard:

► Check the connection and reboot the

notebook.

nn Stuck key

► Make sure that no key is pressed.

Operating system not found

► Check

in the BIOS Setup whether your hard

disk h

as been set co rrectly.

► Make sure that the o p e rating system is

installed on the corresponding drive.

Press <F1> to resume, <F2> to SE TUP

This error message appe ars if an error occurs during th e self-test before starting the operating system.

► Press the

function key to start the

operating system.

► Press the function key

to access the

BIOS Setup.

Fujitsu 75

Troubleshooting and tips

Error message/cause Resolution

Previous boot incomplete - Default conﬁguration used Due to an error during the previous system

boot, default values were used for certain settings. Check the settings in the BIOS S et up.

► Press the

function key when prom

pted

to do so.

Real time clock error

► Contact your sales outlet or

our customer

service centre.

nnnnK Shadow RAM failed a

t offset: xxxx Failing

Bits: zzzz

► Contact your sales outlet or our customer

service centre.

System battery is dead - Replace and run SETUP

► Contact your sales outlet or our customer

service centre.

System cache error - Cache disabled

► Contact your sales out

let or our customer

service centre.

System timer error

► Contact your sales outlet or our customer

service centre.

76 Fujitsu

Technical data

Notebook

Technicaldata

Processor

Intel Core i5 Processor or Intel Core i7 Processor

Main memory

DualCore systems

• max. 16 Gbyte DDR3L-SO-DIMM-1600 MHz

• 2 slots that accept 4 or 8 Gb

yte modules

QuadCore systems

• max. 32 Gbyte DDR3L-SO-DIMM-1600 MHz

• 4 slots that accept 4 or 8

Gbyte modules

Possible modules

• Second battery

• Second hard disk drive

• Optical drive (Blu-Ray BDXL, DVD Super Multi DL)

• Weight Saver

Electrical data

Safety regulations complied with

CE, CE!, EN60601-1-2, EN55024, EN301489 / EN300328 / EN301893, UL NoA / CB, EN50371, RoHS

Protection class II

Maximum power consumption (notebook switched on with battery charging)

150 W

LCD monitor

Display diagonal

15.6 inch/39.62 cm TFT FHD (1920 x 10 80), 16 million colours

Display adapter

Chip nVIDIA Q uadro K2100M, Quadro K1100M, Quadro K510M

Video memory (VRAM) K2100M, K1100M: 2 Gbyte GDDR5

K510M: 1 Gbyte

Audio

Sound chip Realtek ALC3232 / A LC 282-CG (HDAudio)

Dimensions

Width x depth x height (without/with rubber feet)

380 mm x 257 mm x 24.8-31.9 mm (w/o bump) / 35.0 mm (with rubber feet)

Weight with Weight Saver

about 2.75 kg

Input devices

Keyboard 102 keys

Touchpad 1 touchpad, 3 touchpad keys

TouchStick (optional) 1 TouchStick

Slots

Memory card slot

SD Card, SDHC, SDXC

SIM card slot

Fujitsu 77

Technical data

Ports

VGA monitor port

15-pin socket

Display port 20-pin socket

LAN port RJ45 socket

Microphone port/L ine In

3.5 mm mono mini-jack

Headphones port/Line Out

3.5 mm stereo mini jack

USB port 2 x USB 3.0, 1 x USB 3.0 Anytime USB charge, 1 x USB 2.0

Docking port 1 x

Ambient condition s

Environment class 3K2

DIN IEC 721

Mechanical class 7M2

DIN IEC 721

Temperature Operation 5 ℃ ... 35 ℃

Transportation

-15 ℃ ... 60 ℃

Rechargeable battery

You can ﬁnd information on the batteries used in your device on the Internet at "

http://www.fujitsu.com/fts/support/".

6-cell rechargeable battery

Rated voltage 10.8 V

Rated capacity 72 Wh

Mains adapt

er 150W

Technicaldata

Rated voltage

100 V to 240 V

(automatic)

Max. rated

current

7.89 A

An additional mains adapter or power cable can be ordered at any time.

78 Fujitsu

Manufacturer’s notes

Disposal and recycling

Notes

You can ﬁnd information on this subject on your notebook or on our website ("

http://www.fujitsu.com/fts/about/fts/environment-care/").

Declarations of Conformity

Declarationofconformity

The "Declarations of Co

nformity" for the device can be found on the Internet at:

http://globalsp. ts

.fujitsu.com/sites/certiﬁcates/default.aspx".

Fujitsu Technology So

lutions hereby declares that your device is in compliance with the

essential requireme

nts and other relevant provisions of Directive 1999/5/EC.

CE marking

CEmarking

CE marking for devices with radio component

This device, in the version delivered, complies with the requirements of Directive 2009/125/EC on "Ecodesign" as well as the requirements of R&TTE Directive 1 99/5/EC of the European Parliament and Council dated 9 March 1999 governing radio and telecommunications terminal equipment and mutual recognition of conformity.

CE nnnn (!) ; nnnn: numeric number and alert mark (!) see label on product.

Further information and declarations of conformity The CE declaration for the product c an be viewed at the following website: "

http://globalsp. ts.fujitsu.com/sites/certiﬁcates".

This equipment can be used in the following countries:

Belgium Bulgaria Denmark

Germany

Estonia Finland France

Greece

UK Ireland Iceland Italy

Latvia Liechtenstein Lithuania Luxembourg

Malta The Netherlands Norway Austria

Poland Portugal Rumania

Sweden

Switzerland Slovakia Slovenia Spain

Czech Republic

Hungary

Cyprus Croatia

Turkey

Contact the corresponding government ofﬁce in the respective country for c urrent information on possible operating restrictions. If your country is not included in the list, then please contact the corresponding supervisory authority as to whether the use of this product is permitted in your country.

Fujitsu 79

Manufacturer’s notes

Regulatory notices

If there is no FCC logo and also no FCC ID on the device then this device is not approved by the Federal Communications Commission (FCC) of the USA. Although it is not explicitly forbidden to travel in the US trading area carrying this device, to avoid trouble at customs clearance, Fujitsu Technology So lutions GmbH recommends not to bring this device into the US trading area.

Regulatory information f

or notebooks without radio device

Regulatoryinformation

NOTICE:

Changes or modiﬁcations not expressly approved by Fujitsu Technology Solutions could void this user’s authority to operate the equipment.

Notice to Users of Radios and Television

These limits are designed to p rovid e reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tu rning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the sep

aration b etween the equipment and receiver.

• Connect the equipment into an outlet that is on a different circuit than the receiver.

• Consult the dea

ler or an experienced radio/TV technician for help.

Notice to Users of the US Telephone Network

Your notebook may be supplied with an internal modem which complies with P art 68 of the FCC rules. On this notebook is a label that contains the FCC Registration Number and the Ringer Equivalence Number (REN) for this equipment among other information. If requested, the user must provide their telephone company w ith the following information:

1. The telephone number to which the notebook is connected.

2. The Ringer

Equivalence Number (REN) for this equipment.

3. The equipment requires a standard modular jack type USOC RJ-11C which is FCC Part 68 compliant.

4. The FCC Re

gistration Num ber.

This equipment is designed to be connected to the telephone network or pre m ises wiring using a standard modular jack type USOC RJ-11C which is FCC Part 68 compliant and a line cord between the modem and the telephone network with a minimum of 26AWG.

The REN is used to determine the number of device s that you may connect to your telephone line and still have all of those devices ring when your number is called. Too many devices on one line may result in failure to ring in response to an incoming call. In most, but not all, areas the sum of the RENs of all of the devices should not exceed ﬁve (5). To be certain of the number of devices you may connect to your line, as determined by the RENs, contact your local telephone company. If this equipment causes harm to the telephone network, your telephone company may discontinue your service temporarily. If possible, they will notify you in advance. If advance notice is not practical they will notify you as soon as possible. You will also be advised of your right to ﬁle a complaint with the FCC.

80 Fujitsu

Manufacturer’s notes

This fax modem also complies with fax branding requirements per FCC Part 68.

Your telephone company will probably ask you to disconnect this equipment from the telephone network until the problem is corrected and you are sure that the equipment is not malfunctioning. This equipment may not be used on coin-operated telephones provided by your telephone company. Co nnection to party lines is subject to state tariffs. Contact your state’s public utility commission, public service commission or corporation commission for more information.

This equipment includes auto matic dialing capability. When programming and/or making test calls to emergency numbers:

• Remain on the line and brieﬂy explain to the dispatcher the reason for the call.

• Perform such activities in off-peak hours, such as early morning or late evening. FCC rules prohibit the use of non-hearing aid compatible telephones in the

following locations or ap plications:

• All public or semi-public coin-operated or credit card telephones.

• Elevators, highways, tunnels (automobile, subway, railroad or pedestrian) where a person with impaired hearing might be isolated in an emergency.

• Places where telephones are speci ﬁcally installed to alert emergency authorities such as ﬁre, police or medical assistance personnel.

• Hospital rooms, residential health care facilities, convalescent homes and prisons.

• Hotel, motel or apartment lobbies.

• Stores where telephones are used by patrons to order merchandise.

• Public transportation terminals where telephones are used to call taxis or to reserve lodging or rental cars.

• In hotel and motel rooms as at least ten percent of the rooms must contain hearing aid-compatible telephones or jacks for plug-in hearing aid compatible telephones which will b e provided to hearing impaired customers on request.

DOC (Industry CANADA) notices

DOC(INDUSTRYCANADA)NOTICES

Notice to Us

ers of Radios and Television

This Class

B digital apparatus meets all requirements of Canadian Interference-Causing Equipment

Regulatio

ns.

CET appare

il numérique de la class B respecte toutes les exigence du Réglement

sur le mat

érial brouilleur d u Canada.

Notice to

Users of the C anadian Telephone Network

NOTICE:

This eq

uipment meets the applicable Industry Canada Terminal Equipment Technical

Speciﬁ

cations. This is conﬁrmed by the registration number. The abbreviation, IC, before

the reg

istration number signiﬁes that registration was performed based on a Declaration of

Confor

mity indicating that Industry Canada technical speciﬁcations were met. It does not

imply

that Industry Canada approved the equipment. Before connecting this equipment to

atele

phone line the user s hou ld ensure that it is permissible to connect this equipment to

the lo

cal telecommunication facilities. The user should be aware that compliance with the

cert

iﬁcation standards does no t prevent service degradation in some situations.

Repa

irs to telecommunication equipment should be made by a Canadian authorised

mai

ntenance facility. Any repairs or alterations not expressly approved by Fujitsu or

Fujitsu 81

Manufacturer’s notes

any equipment failures may give the telecommunication company cause to request the user to disconnect the equipment from the telephone line.

NOTICE:

The Ringer Equivalence Number (REN) for this terminal equipment is 0.0. The REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed ﬁve.

CAUTION:

For safety, users should ensure that the electrical ground of the power utility, the telephone lines and the metallic water pipes are connected together. Users should NOT attempt to make such connections themselves but should contact the appropriate electric inspection auth ority or electrician. This may be particularly important in rural area s.

Avis Aux Utilisateu

rs Du Réseau Téléphonique Canadien

AVIS : Le présent mat

ériel est conforme aux spéciﬁcations techniques d’Industrie Canada

applicables au mat

ériel terminal. C ette conformité est conﬁrmée par le numéro d’enregistrement.

Le sigle IC, placé d

evant le numéro d’enregistrement, signiﬁe que l’enregistrement s’est effectué

conformément à une

déclaration de conformité et indique que les spéciﬁcations techniques

d’Industrie Cana

da ont été respectées. Il n’implique pas qu’Industrie Canada a appro uvé le matériel.

Avant de connecte

r cet équipement à une ligne téléphonique, l’utilisateur doit vériﬁer

s’il est permis d

e connecter cet équipement aux installations de télécommunications

locales. L’uti

lisateur est averti que même la conformité aux normes de certiﬁcation ne

peut dans certa

ins cas empêcher la dégradation du service.

Les réparatio

ns de l’équipement de télécommunications doivent être effectuées par un service de

maintenance a

gréé au Canada. Toute réparation ou modiﬁcation, qui n’est pas expressément

approuvée par

Fujitsu, ou toute défaillance de l’équipement peut entraîner la compagnie de

télécommuni

cations à exiger que l’utilisateur déconnecte l’équipement de la ligne téléphonique.

AVIS : L’indi

ce d’équivalence de la sonnerie (IES) du présent matériel est de 0.0. L’IES

assigné à ch

aque dispositif terminal indique le nombre maximal de terminaux qui peuvent

être raccor

dés à une interface téléphonique. La terminaison d’une interface peut co nsister

en une comb

inaison quelconque de dispositifs, à la seule condition qu e la somme d’indices

d’équival

ence de la sonnerie de tous les dispositifs n’excède pas 5.

AVERTISS

EMENT:

Pour assu

rer la sécurité, les utilisateurs doivent vériﬁer que la prise de terre du service

d’élect

ricité, les lignes télphoniques et les conduites d’eau métalliques sont connectées

ensembl

e. Les utilisateurs N E doivent PAS tenter d’établir ces connexions eu x-mêmes,

mais do

ivent contacter les services d’inspection d’installations électriques appropriés

ou un él

ectricien. Ceci peut être particulièrement importa nt en régions rurales.

UL Notice

This unit requires an AC adapter to operate. O nly use a UL Listed Class 2 adapter. The correct output rating is indicated on the AC adapter label. Refer to the illustration below for the correct AC Adapter output polarity:

82 Fujitsu

Manufacturer’s notes

CAUTION:

To reduce the risk of ﬁre, use only 26AWG or larger telecommunications line cord.

For Authorized R ep air Technicians Only

CAUTION:

For continued protection against risk of ﬁre, replace only with the same type and rating fuse.

WARNING:

Danger of explosion if Lithium (CMOS) battery is incorrectly replaced. Replace only with the same or e quivalent type recommended by the manufacturer.

Dispose of used b atteries according to the manufacturer’s instructions.

FCC regulatory information for notebooks with radio device

Regulatoryinformation

Federal Communications Commission statement

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of this device.

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can rad iate radio frequency energy. If not installed an d used in accordance with the instructions, it may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the distance between the eq uipment and the receiver.

3. Connect the equipment to an outlet on a circuit different from the one the receiver is connected to.

4. Consult the dealer or an experienced radio/TV technician for help.

Please note the following regulatory information related to the optional radio device.

FCC Radio Frequency Exposure statement

This radio device has been evaluated under FCC Bulletin OET 65C and found compliant with the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing R F

Fujitsu 83

Manufacturer’s notes

Exposure from radio frequency devices. The radiated output power of this radio device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation is minimized. When using this device, a certain separation distance between antenna and nearby p ersons must be maintained to ensure RF exposure compliance. In order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm (8 inches).

Regulatory No tes and Statements Radio device, health and authorisation for use

Radio-frequency electromagnetic energy is emitted from the wireless devices. The energy levels of these emissions, however, are far much less than the electromagnetic energy emissions from wireless devices such as mobile pho nes. Radio devices are safe for use by consumers because they operate within the guidelines found in radio frequency safety standards and recommendations.

The use of the radio devices may be restricted in some situations or environments, such as:

• on board an airplane, or

• in an explosive environment, or

• in situations where the interference risk to other devices or services is perceived or identiﬁed as harmful.

In cases in which the policy regarding use of radio devices in speciﬁc environments is not clear (e.g., airports, hospitals, chemical/oil/gas industrial plants, private buildings), obtain authorization to use these devices prior to operat ing the equipment.

Regulatory Information/Disclaimers

Installation and use of this radio device must be in strict accordance with the instructions included in the user documentation provided with t he product. Any changes or modiﬁcations made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipmen t. The manufacturer is not responsible for any radio or television interference cause d by unau thorized modiﬁcation of this device, or the substitution or attachment of connecting cables and equipment other than those speciﬁed by the manufacturer. It is the respon sibility of the user to correct any interference caused by such unauthorized modiﬁcation, substitution or attachment. The manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failure to comply with these guidelines.

Export restrictions

This product or software contains encryption c ode which may not be exported or transferred from the US or Canada without an approved US Department of Commerce export license. This device complies with Pa rt 15 of FCC Rules, as well as ICES 003 B / NMB 003 B. Operation is subject to the following two conditions:

(1) this device may not cause harmful interfere nce, and

(2) this device must accept any interference received, including interference that may cause undesirable operation.

Modiﬁcations not expressly autho rised by Fujitsu Technology Solutions may invalidate the user’s right to operate this equipment.

84 Fujitsu

Index

Acoustic error messages 74 Alt + Tab 25 Anti-theft protection 47 Application keys 26 Audio devices, connecting 59 Audio ports 59

Back tab 25 Backspace 23 Bass loudspeaker (subwoofer) 39 Battery

battery life 30 caring for and maintaining 30 charge level 30, 37 charging 30 self-discharge 30

storage 30 Battery status meter 30 BIOS Setup Utility

calling 67

exiting 68

operating 67

settings 67 Bluetooth, safety notes 12 Board 60 Buffer battery, load 70 Buttons 22

Caps Lock 23

indicator 20 CD/DVD indicator 20, 34 CD/DVD:

manual emergency removal 35 CE marking 79 Charging capacity, battery 30 Cleaning 14 Components

installing / removing 60 Conﬁguration, BIOS Setup Utility 67 Connecting audio devices 59 Connecting headphones 59 Crystal View display

cleaning 14 Ctrl+Alt+Del 25 Cursor control keys 23 Cursor keys 23

Date is incorrect 70 Declaration of co nformity 79 Device

setting up 16

Devices

connecting 55

disconnecting 55 DOC (INDUSTRY CANADA) NOTICES 81 Drive

Removing 32

Emergency removal of data carrier 35 Energy

energy saving 13 Energy saving 13 Energy saving mode

leaving 72 Enter 23 Enter key 23 Error message:

on the screen 75 Error messages on the screen 75 Errors

Acoustic warnings 74 ESD 60 Ethernet LAN 41

Fault

correction 69 Fingerprint sensor 47

conﬁgure 47 First-time s etup 15 Fn key 23 Fn+F10 25 Fn+F2 24 Fn+F3 24 Fn+F4 24 Fn+F6 25 Fn+F7 25 Fn+F8 25 Fn+F9 25

Getting started 15

Fujitsu 85

Index

Handling

data carriers 33

Hard disk:

restoring the contents 70

Hardware conﬁguration 67

Important notes 12 Incorrect date/time 70 Indicator

Caps Lock 20 CD/DVD 20 Num Lock 20 Power-on indicator 19 Scroll Lock 20

Inserting

a data carrier 34

Key combinations 24 Keyboard 22

cleaning 14

keyboard backlight

Activate 24 Deactivate 24

LCD screen

cleaning 14 decrease brightness 25 difﬁcult to read 71 notes 28 reﬂected glare 71

remains blank 70 LCD screen is to o dark 70 Life, battery 3 0 Line feed 23 Loudspeakers 39

switch off 24

switch on 24

Main memory

see Adding memory 61 Mains adapter

connecting 16

setting up 16 Manual removal of data carrier 35 Mechanical backup 47 Memory card

handling 38 inserting 38 removing 38

Memory expansion

installing 62 removing 62

Memory module

important notes 61 installing 62

removing 62 Microphone 39 Microphone, connecting 59 Mobile operation 13 Module

Removing 32 Module bay 32 Modules 32 Monitor

connecting 56

drifting display 71

remains blank 71 Monitor port

see VGA connection socket 56

Notebook

before you travel 13

cannot be started 72

cleaning 14

stops working 72

switching off 21

transporting 13–14

using 18 Notebook, operation 18 Notes 12

boards 60

cleaning 14

disposal / recycling 79

energy saving 13

LCD s creen 28

Safety 12

transport 13 Num Lock

indicator 20, 24 Numeric keypad 22

see Separate numeric keypad 24

Operating system

activating system protection 49

cancel system protection 49

protecting with password 49

86 Fujitsu

Index

Operating system, restoring 70 Optical drive 33

Packaging 15 palm vein sensor 46

conﬁgure 46 Password protection 48 Password protection:

hard disk 48, 50 Peripheral devices

connecting 55

disconnecting 55 Port Replicator

Connecting a notebook 43 Power

power consumption 37

power-management features 37 Power-on indicator 19 Preparing for operation 16 Printer does not print 73

Radio component:

safety notes 12 Rechargeable battery 30

see Battery 30 Regulatory information

notebooks with radio device 83

Notebooks without radio device 80 Removing

a data carrier 34 Removing memory

see Adding memory 61 Return 23

Safety notes 12 Screen

no screen display 71 Screen brightness

decrease 25

increase 25 Scroll Lock

indicator 20 Security functions 46

SystemLock 53 Security functions,

SmartCard 53 Security Lock 47 Selecting a location 16 Self-discharge, battery 30

Separate numeric keypad 24 Servicing 60 Setup

see BIOS Setup Utility 67 Shift 23 Shift + Tab 25 Shift key 23 Slot

Memory cards 38 Status indicator panel 18 Summer time 7 0 Switching on

the notebook 21 Switchingonfortheﬁrst time 17 System conﬁguration 6 7 System expansion 61

see Adding memory 61 System settings, BIOS Setup Utility 67

Tab key 23 Technical data

Mains adapter 78

notebook 77 The radio conn ection to a network does

not work 73 Time not correct 70 Time, daylight savings 70 Tips 69 Toggle output screen 25 Touchpad 24, 27

buttons 27

cleaning 14

executing commands 27

moving the pointer 27

selectinganitem 27

switch off 24 Touchpad buttons 24 TPM 54 Transport

Transport damage 15 Transportation 13–14 Travel, notebook 13 Troubleshooting 69 Trusted Platform Module 54

USB ports 57 Using the Kensington Lock Cable 47

VGA connection socket 56

Fujitsu 87

Index

Volume

decrease 25 increase 25

Volume control 39

Webcam 29

Weight Saver

Removing 32 Windows key 23 Wireless LAN:

safety notes 12

88 Fujitsu
