Operating Manual - English
PRIMERGY BX400 S1
Blade Server
System Unit Operating Manual
December 2012
Comments… Suggestions… Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Feel free to send us your comments by e-mail to
manuals@ts.fujitsu.com.
Certified documentation
according to DIN EN ISO 9001:2008
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2008.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademarks
Copyright © 2012 Fujitsu Technology Solutions GmbH.
All rights reserved.Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trade names and/or trademarks of their respective
manufacturers.
– The contents of this manual may be revised without prior notice.
– Fujitsu assumes no liability for damages to third party copyrights or other rights arising from
the use of any information in this manual.
– No part of this manual may be reproduced in any form without the prior written permission
of Fujitsu.
Microsoft, Windows, Windows Server, and Hyper V are trademarks or registered trademarks of
Microsoft Corporation in the USA and other countries.
Intel and Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries
in the USA and other countries.
Before reading this manual
For your safety
This manual contains important information for safely and correctly using this
product.
Carefully read the manual before using this product. Pay particular attention to
the accompanying manual "Safety Notes and Regulations" and ensure these
safety notes are understood before using the product. Keep this manual and the
manual "Safety Notes and Regulations" in a safe place for easy reference while
using this product.
Radio interference
This product is a "Class A" ITE (Information Technology Equipment). In a
domestic environment this product may cause radio interference, in which case
the user may be required to take appropriate measures. VCCI-A
Aluminum electrolytic capacitors
The aluminum electrolytic capacitors used in the product's printed circuit board
assemblies and in the mouse and keyboard are limited-life components. Use of
these components beyond their operating life may result in electrolyte leakage
or depletion, potentially causing emission of foul odor or smoke.
As a guideline, in a normal office environment (25°C) operating life is not
expected to be reached within the maintenance support period (5 years).
However, operating life may be reached more quickly if, for example, the
product is used in a hot environment. The customer shall bear the cost of
replacing replaceable components which have exceeded their operating life.
Note that these are only guidelines, and do not constitute a guarantee of
trouble-free operation during the maintenance support period.
High safety use
This product has been designed and manufactured to be used in commercial
and/or industrial areas as a server.
When used as visual display workplace, it must not be placed in the direct field
of view to avoid incommoding reflections (applies only to TX server systems).
The device has not been designed or manufactured for uses which demand an
extremely high level of safety and carry a direct and serious risk of life or body
if such safety cannot be assured.
BX400 S1 Operating Manual
These uses include control of nuclear reactions in nuclear power plants,
automatic airplane flight control, air traffic control, traffic control in mass
transport systems, medical devices for life support, and missile guidance
control in weapons systems (hereafter, "high safety use"). Customers should
not use this product for high safety use unless measures are in place for
ensuring the level of safety demanded of such use. Please consult the sales
staff of Fujitsu if intending to use this product for high safety use.
Measures against momentary voltage drop
This product may be affected by a momentary voltage drop in the power supply
caused by lightning. To prevent a momentary voltage drop, use of an AC
uninterruptible power supply is recommended.
(This notice follows the guidelines of Voltage Dip Immunity of Personal
Computer issued by JEITA, the Japan Electronics and Information Technology
Industries Association.)
Technology controlled by the Foreign Exchange and Foreign Trade
Control Law of Japan
Documents produced by Fujitsu may contain technology controlled by the
Foreign Exchange and Foreign Trade Control Law of Japan. Documents which
contain such technology should not be exported from Japan or transferred to
non-residents of Japan without first obtaining authorization in accordance with
the above law.
Harmonic Current Standards
This product conforms to harmonic current standard JIS C 61000-3-2.
Only for the Japanese market:
About SATA hard disk drives
The SATA version of this server supports hard disk drives with SATA / BC-SATA
storage interfaces. Please note that the usage and operation conditions differ
depending on the type of hard disk drive used.
Please refer to the following internet address for further information on the
usage and operation conditions of each available type of hard disk drive:
http://jp.fujitsu.com/platform/server/primergy/harddisk/
Operating Manual BX400 S1
Only for the Japanese market:
I Although described in this manual, some sections do not apply to the
Japanese market. These options and routines include:
– CSS (Customer Self Service)
BX400 S1 Operating Manual
Operating Manual BX400 S1
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.1 Concept and target groups for this manual . . . . . . . . . 11
1.2 Documentation overview . . . . . . . . . . . . . . . . . . . 12
1.3 Performance features . . . . . . . . . . . . . . . . . . . . . 13
1.4 Notational conventions . . . . . . . . . . . . . . . . . . . . 24
1.5 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . 25
2 Installation steps, overview . . . . . . . . . . . . . . . . . . 29
3 Important notes . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . 31
3.2 CE conformity . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.3 Transporting the system unit . . . . . . . . . . . . . . . . . 39
3.4 Notes on installation into the rack . . . . . . . . . . . . . . 40
3.5 Environmental protection . . . . . . . . . . . . . . . . . . . 41
4 Installing the hardware . . . . . . . . . . . . . . . . . . . . . 43
4.1 Installation procedure . . . . . . . . . . . . . . . . . . . . . 44
4.2 Unpacking the system unit . . . . . . . . . . . . . . . . . . 44
4.3 Setting up the floorstand model . . . . . . . . . . . . . . . . 45
4.4 Installing/removing the system unit . . . . . . . . . . . . . . 46

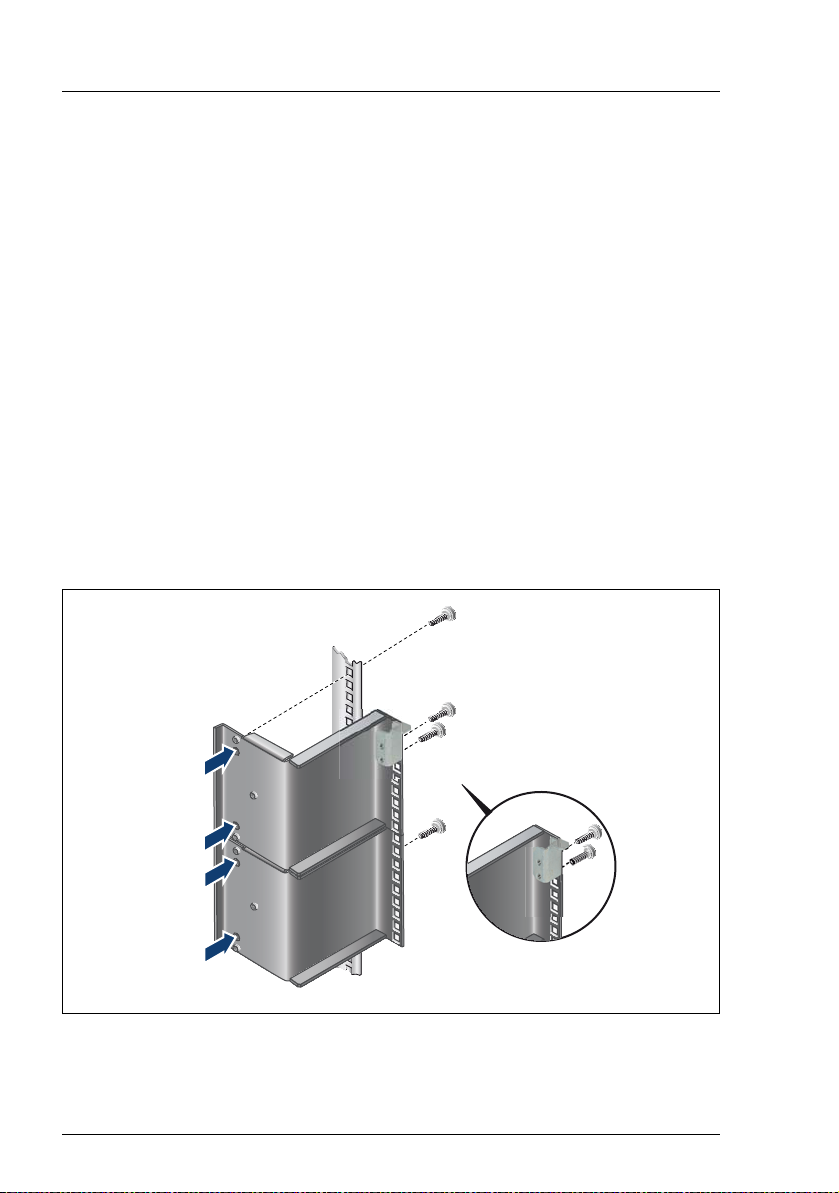

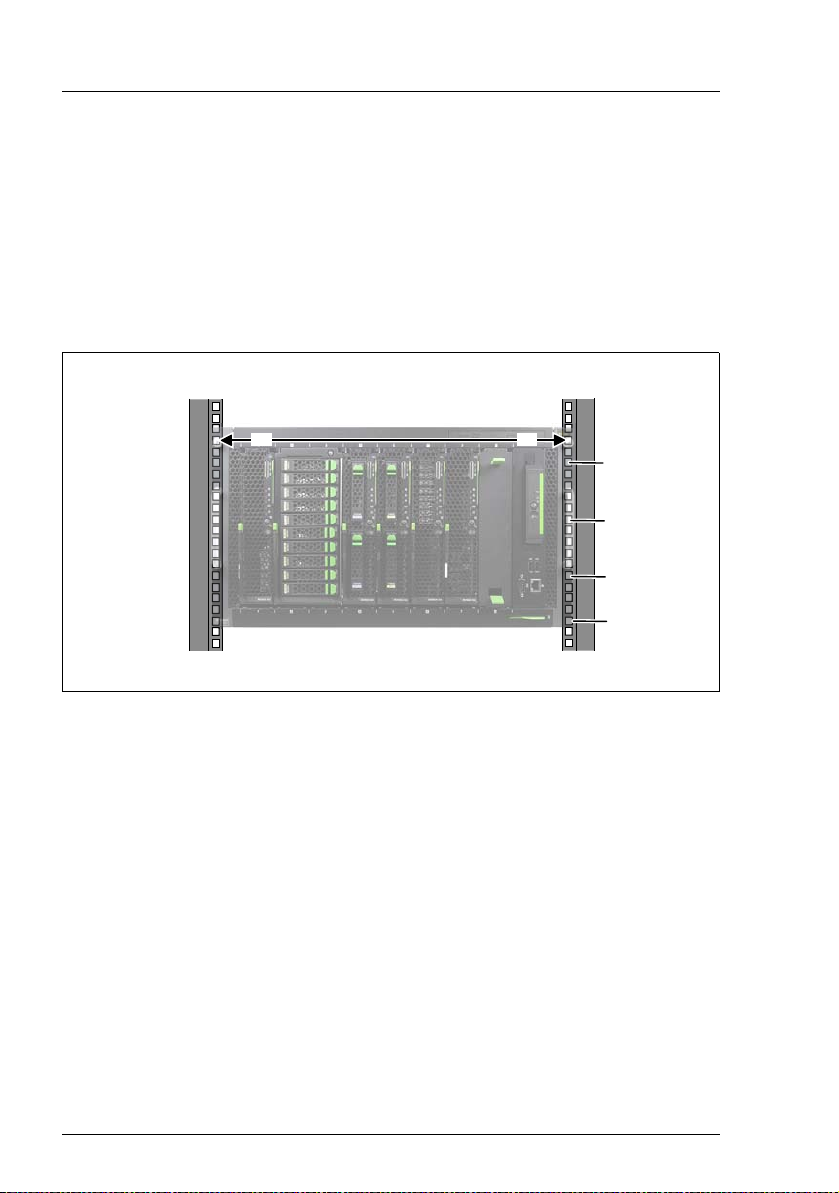

4.4.1 Installation in the rack . . . . . . . . . . . . . . . . . . . . . . 48

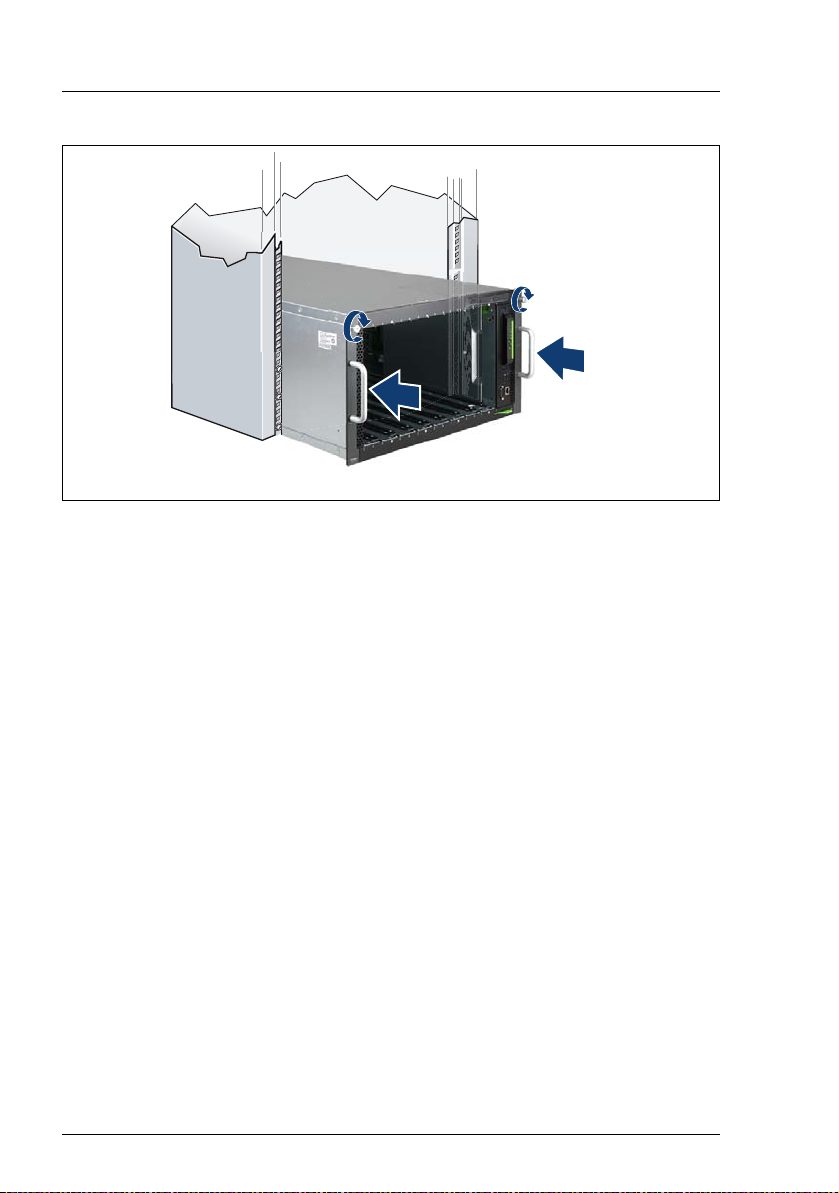

4.4.2 Installing/removing the system unit . . . . . . . . . . . . . . . 50
4.5 Connecting devices to the system unit . . . . . . . . . . . . 53
4.5.1 Cable routing . . . . . . . . . . . . . . . . . . . . . . . . . . 55
4.6 Connecting the system unit to the mains . . . . . . . . . . 55
4.6.1 Using cable ties . . . . . . . . . . . . . . . . . . . . . . . . . 57
BX400 S1 Operating Manual
Contents
4.7 Instructions for connecting/disconnecting cables . . . . . . 58
5 Installation and operation . . . . . . . . . . . . . . . . . . . . 59
5.1 Control and display elements . . . . . . . . . . . . . . . . . 59
5.1.1 Front of system . . . . . . . . . . . . . . . . . . . . . . . . . . 59
5.1.1.1 Control elements . . . . . . . . . . . . . . . . . . . . . . . 62
5.1.1.2 LEDs on the control panel . . . . . . . . . . . . . . . . . . . 62
5.1.1.3 System ID card . . . . . . . . . . . . . . . . . . . . . . . . 64
5.1.2 Back of system . . . . . . . . . . . . . . . . . . . . . . . . . . 65

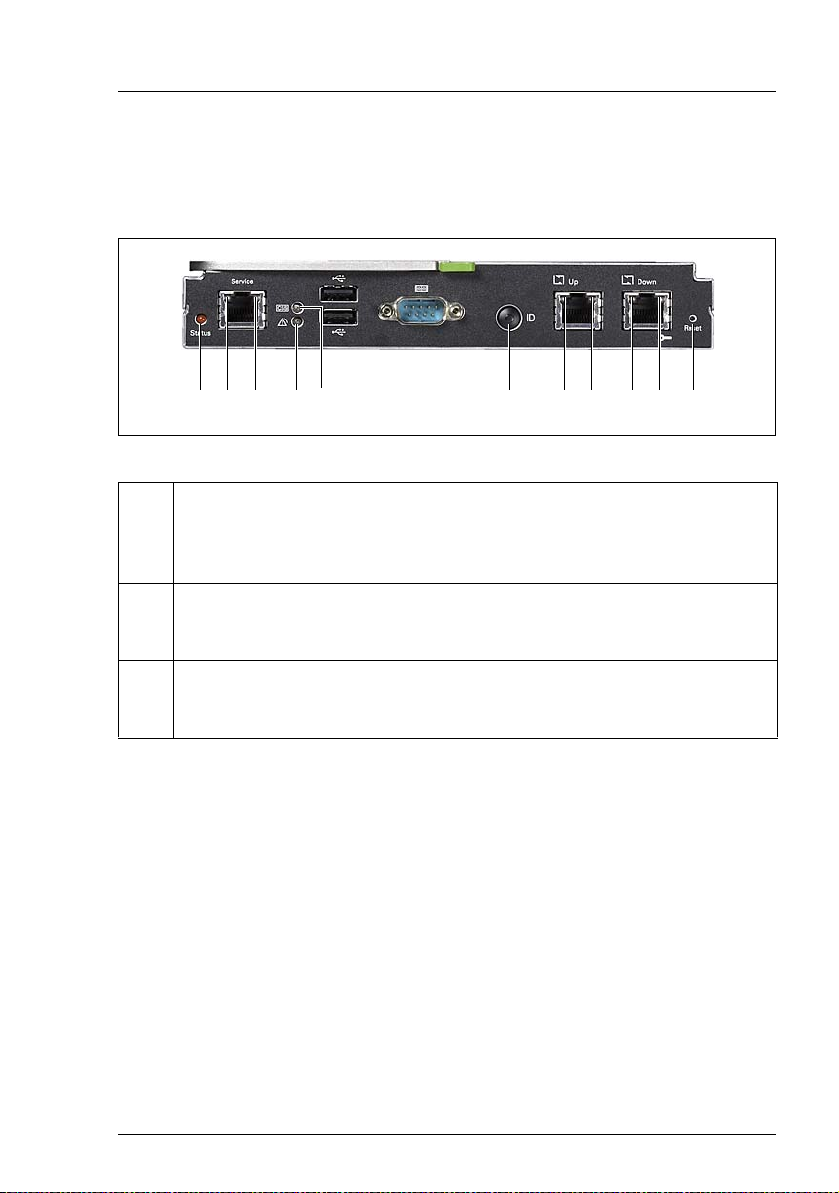

5.1.2.1 Control and display elements on the management blade . . . 65
5.1.2.2 Indicator on the hot-plug power supply units . . . . . . . . . 68
5.1.2.3 Indicators on the hot-plug fan modules . . . . . . . . . . . . 69
5.2 Switching the system unit on/off . . . . . . . . . . . . . . . . 70
5.3 Configuring management blades . . . . . . . . . . . . . . . . 72
5.4 Cleaning the system unit . . . . . . . . . . . . . . . . . . . . 77
6 Property and data protection . . . . . . . . . . . . . . . . . . 79
7 Troubleshooting and tips . . . . . . . . . . . . . . . . . . . . 81
7.1 System power indicator does not light up . . . . . . . . . . . 81
7.2 Front or back error LED flashes orange . . . . . . . . . . . . 82
7.3 System switches itself off . . . . . . . . . . . . . . . . . . . . 83
8 Hot-plug components . . . . . . . . . . . . . . . . . . . . . . 85
8.1 Server blades and storage blades . . . . . . . . . . . . . . . 86
8.2 Connection blades . . . . . . . . . . . . . . . . . . . . . . . 92
8.2.1 Connection Blade GbE Switch/IBP 36/12 (SB11A) . . . . . . . . 93
8.2.2 Connection Blade GbE Switch/IBP 36/8+2 (SB11) . . . . . . . . 95
8.2.2.1 Connection blade stacking . . . . . . . . . . . . . . . . . . 98
8.2.3 Connection Blade GbE Switch/IBP 18/6 (SB6) . . . . . . . . . . 99
8.2.4 Connection Blade 10 GbE Switch/IBP 18/8 . . . . . . . . . . . 101
8.2.5 Connection Blade Ethernet Pass Thru 10Gb 18/18 . . . . . . 103
8.2.6 Connection Blade 8Gb FC Switch 18/8 . . . . . . . . . . . . . 106
Operating Manual BX400 S1
Contents
8.2.7 Connection Blade 8Gb FC Pass Thru 18/18 . . . . . . . . . . 108
8.2.8 Connection Blade DCB SW 10Gb 18/6+6 . . . . . . . . . . . . 110
8.2.9 Connection Blade FEX B22F 10Gb (Cisco) . . . . . . . . . . . 113
8.2.10 Connection Blade Infiniband Switch 40 Gb 18/18 . . . . . . . 115
8.2.11 Connection Blade Infiniband Switch 56 Gb 18/18 FDR . . . . . 117
8.2.12 Connection Blade SAS Switch 6 Gb 18/6 . . . . . . . . . . . . 119
8.2.13 Fitting rules for connection blades . . . . . . . . . . . . . . . . 120
8.2.14 Port assignment of the connection blades . . . . . . . . . . . . 123
8.2.15 Installing a connection blade . . . . . . . . . . . . . . . . . . 125
8.3 Management blades . . . . . . . . . . . . . . . . . . . . . . 131
8.4 Hot-plug power supply units . . . . . . . . . . . . . . . . . 132
8.4.1 Replacing the power supply unit . . . . . . . . . . . . . . . . . 134
8.5 Hot-plug fan modules . . . . . . . . . . . . . . . . . . . . . 136
BX400 S1 Operating Manual
Contents
Operating Manual BX400 S1
1 Introduction
The PRIMERGY BX400 S1 blade server is a highly compact, energy-saving
and scalable server system for installation in a 19-inch rack or as a floorstand
model. The BX400 S1 system unit offers 8 slots for a mixture of server blades
and storage blades (therein a maximum of 4 single-slot storage-blades
respectively 2 double-slot storage blades).
With its advanced infrastructure modules, the BX400 S1 system unit offers the
server blades a high level of connectivity and availability. These include hot-plug
connection blades, redundant management blades and power supply units, the
server management of the PRIMERGY ServerView suite, Prefailure Detection
and Analyzing (PDA), and Automatic Server Reconfiguration and Restart
(ASR&R).
Security functions in the BIOS-setup of the server blades and on the system
boards protect the data on the blade server from manipulation. Additional
security is provided by the lockable rack door.
The BX400 S1 system unit occupies 6 height units (HU) in the rack.
1.1 Concept and target groups for this manual
This operating manual describes how to install, set up and operate your system
unit.
This operating manual is intended for those responsible for installing the
hardware and ensuring that the system runs smoothly. It contains all the
information you need to put your PRIMERGY BX400 S1 system unit into
operation.
To understand the various expansion options, you will need to be familiar with
the fields of hardware and data transmission and you will require a basic
knowledge of the underlying operating system.
BX400 S1 Operating Manual 11
Introduction
1.2 Documentation overview
More information on your PRIMERGY BX400 S1 system unit can be found in
the following documents:
– "Quick Start Hardware - PRIMERGY BX400 S1" leaflet
" はじめにお読みく ださい -PRIMERGY BX400 S1" for the Japanese market
(only included as a printed copy)
– "Safety Notes and Regulations" manual
" 安全上のご注意 " for the Japanese market
– "Warranty" manual
" 保証書 " for the Japanese market
– "ServerView Suite Local Service Concept - LSC" manual
– "Returning used devices" manual and "Service Desk" leaflet
" サポー ト ＆サービ ス " for the Japanese market
– "PRIMERGY BX400 S1 System Unit Operating Manual"
– "PRIMERGY BX400 S1 System Unit Options Guide"
I PRIMERGY manuals are available in PDF format on the
ServerView Suite DVD 2. The ServerView Suite DVD 2 is part of the
ServerView Suite supplied with every server.
If you no longer have the ServerView Suite DVDs, you can obtain the
relevant current versions using the order number U15000-C289 (the
order number for the Japanese market: please refer to the configurator
of the server http://jp.fujitsu.com/platform/server/primergy/system/).
The PDF files of the manuals can also be downloaded free of charge
from the Internet. The overview page showing the online documentation
available on the Internet can be found using the URL (for EMEA market):
http://manuals.ts.fujitsu.com. The PRIMERGY server documentation can
be accessed using the Industry standard servers navigation option.
For the Japanese market:
Please refer to the following URL for the latest product manuals:
http://jp.fujitsu.com/platform/server/primergy/manual/
Before using the product, please check for additional information that
may be available under the following URL:
http://jp.fujitsu.com/platform/server/primergy/products/note/
12 Operating Manual BX400 S1
Introduction
Further sources of information
Further information is provided:
– The Deployment Manager manual (only relevant for cloning server blades)
– Documentation on the server blades and storage blades
– The manual "PRIMERGY BX400 Blade Server Systems ServerView
Management Blade S1 User Interface Description"
1.3 Performance features
Customer Self Service (CSS)
The Fujitsu Technology Solutions Customer Self Service (CSS) concept
enables you to identify and replace the affected component yourself in the case
of certain error scenarios.
In the CSS concept, you can replace the following components yourself in the
event of an error:
– Hot-plug hard disk drives
– Hot-plug power supply units
– Memory modules
– System fan
– Expansion cards
For information on replacing these components, see chapter "Hot-plug
components" on page 85.
CSS indicators on the control panel and on the back of the PRIMERGY server
provide you with information if a CSS event arises (for more information on the
behavior of these indicators, see chapter "Installation and operation" on
page 59 and the "ServerView Suite Local Service Concept - LSC" manual on
the ServerView Suite DVD 2).

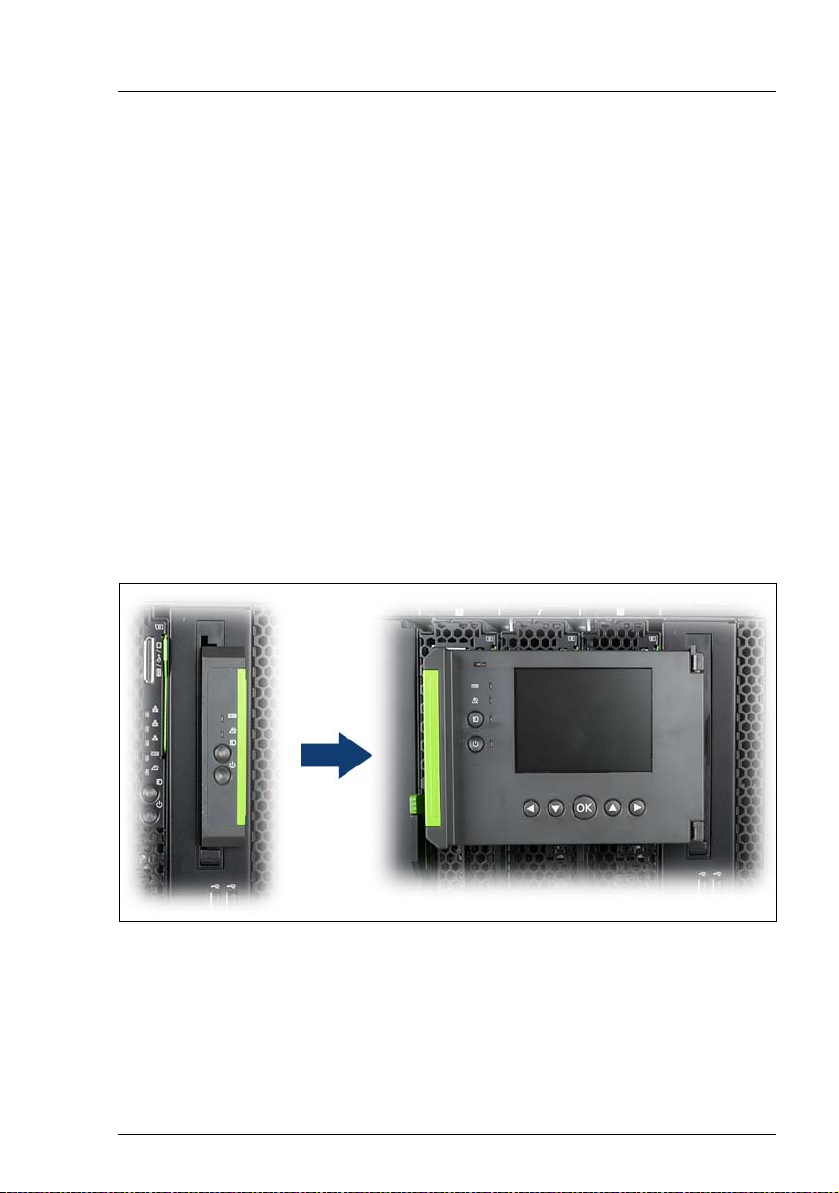

Your system unit can fitted with a ServerView Local Service Display for Blade,
which enables you to identify the type of component affected by the error
directly on the server (for more information, see the "PRIMERGY
ServerView Suite Local Service Concept - LSC" manual on the PRIMERGY
ServerView Suite DVD 2).
In addition, CSS errors are displayed in the ServerView Operations Manager the server management software from Fujitsu Technology Solutions.
BX400 S1 Operating Manual 13
Introduction
In the event of errors, the ServerView Operations Manager refers you directly
to the affected component and its order information in the Illustrated Spares
catalog of the server in question. (This feature is not available for the Japanese
market.)
Server performance

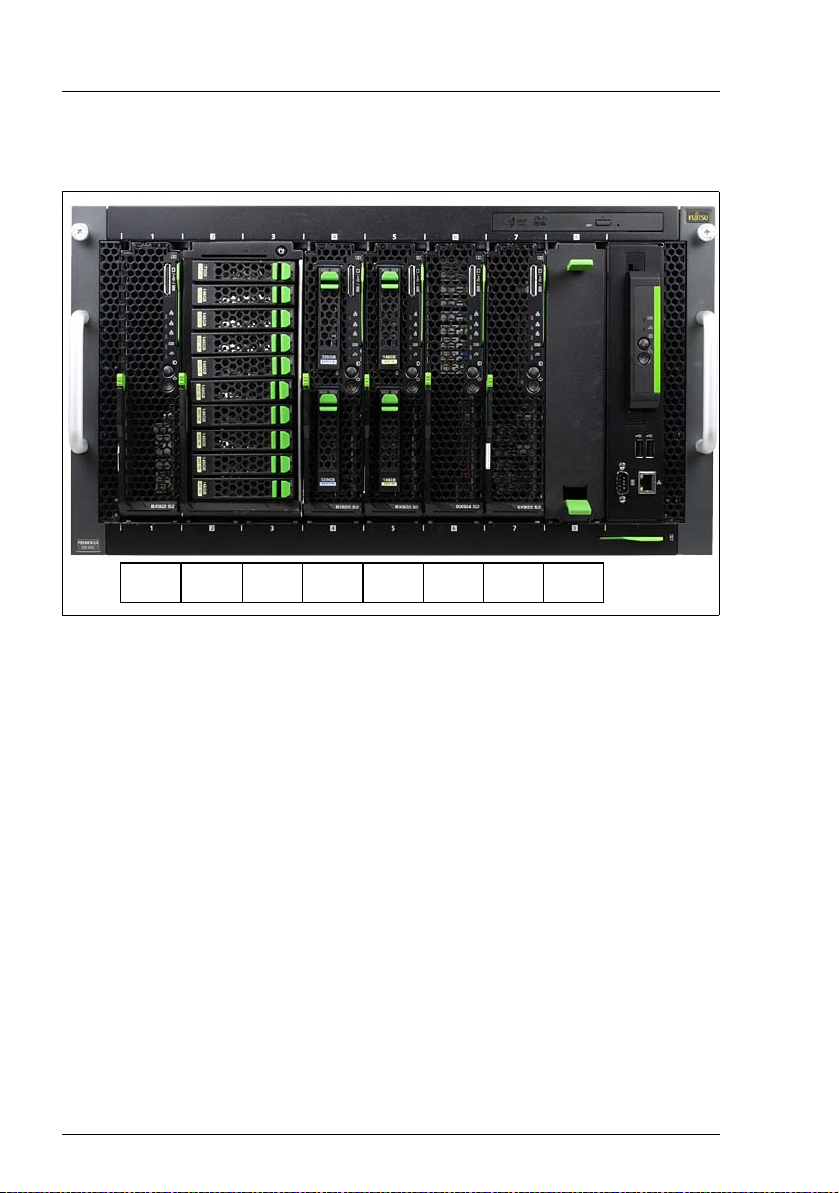

The system unit has 8 slots for server blades. Four server blade slots can be
fitted with single-slot storage blades (or two slots with double-slot storage
blades) which provide additional storage capacity for the neighboring server

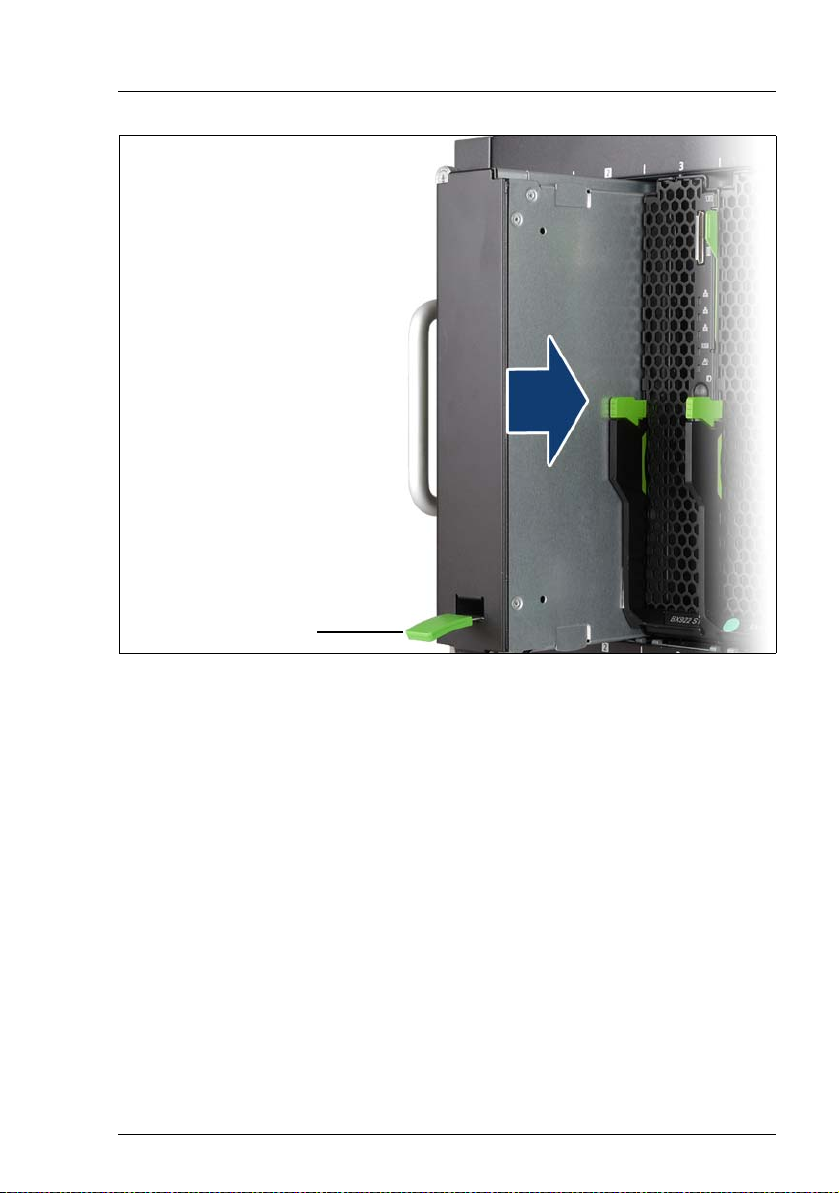

blades. For information on installing and removing server blades and storage
blades, see section "Server blades and storage blades" on page 86. For further
information on the server blades and storage blades, see the relevant operating
manuals.
Connection blades
The PRIMERGY BX400 S1 system unit has four slots for connection blades on
the back. These provide the installed server blades with connections to the
Ethernet LAN as well as to SAN environments and Infiniband environments.
The following connection blades are availabe for the BX400 S1 system unit:
Ethernet connection blades
Connection Blade GbE Switch/IBP 36/12 (SB11A)
36 internal 1-Gbit/s ports to the server blades
8 external 1-Gbit/s ports through RJ45 connections
4 external 1-Gbit/s ports through SFP modules
Installable in all connection blade slots
I This connection can be used as a layer-2 switch or an Intelligent
Blade Panel (IBP).
1 Gb Ethernet connection blades in slots CB2 (fabric 2) and
CB3/4 (fabric 3) only support server blades that are fitted with
an 1 Gb Ethernet mezzanine card.
14 Operating Manual BX400 S1

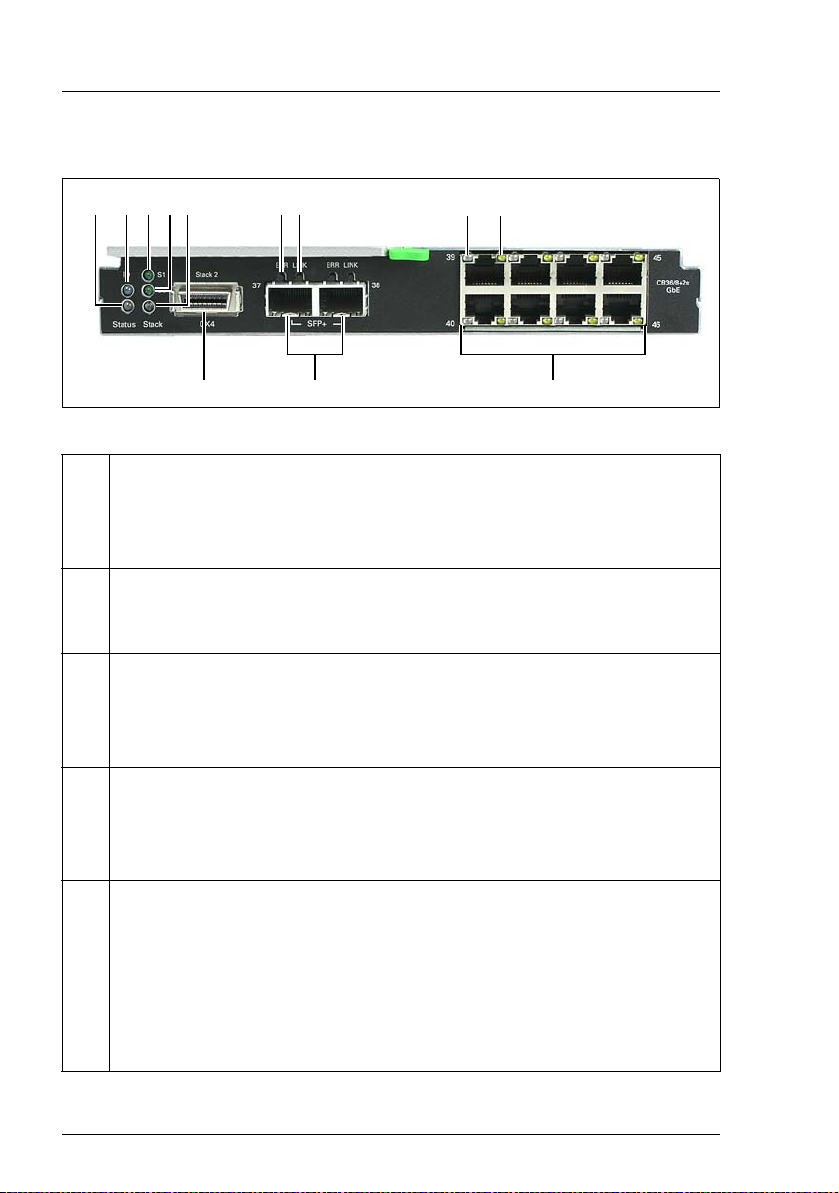

Connection Blade GbE Switch/IBP 36/8+2 (SB11)
36 internal 1-Gbit/s ports to the server blades
8 external 1-Gbit/s ports through RJ45 connections
2 external 10-Gbit/s ports through SFP+ modules via fiber-optic or
copper cable
1 internal stacking port to the midplane of the BX400 S1 system unit
1 external stacking port through a CX4 connection
Installable in all connection blade slots
I This connection blade can be used as a layer-2 switch or an
Intelligent Blade Panel (IBP).
The stacking ports allow up to 4 SB11 connection blades to be
switched together to form a so-called stack, see "Connection
blade stacking" on page 98.
1 Gb Ethernet connection blades in slots CB2 (fabric 2) and
CB3/4 (fabric 3) only support server blades that are fitted with
an 1 Gb Ethernet mezzanine card.
Introduction

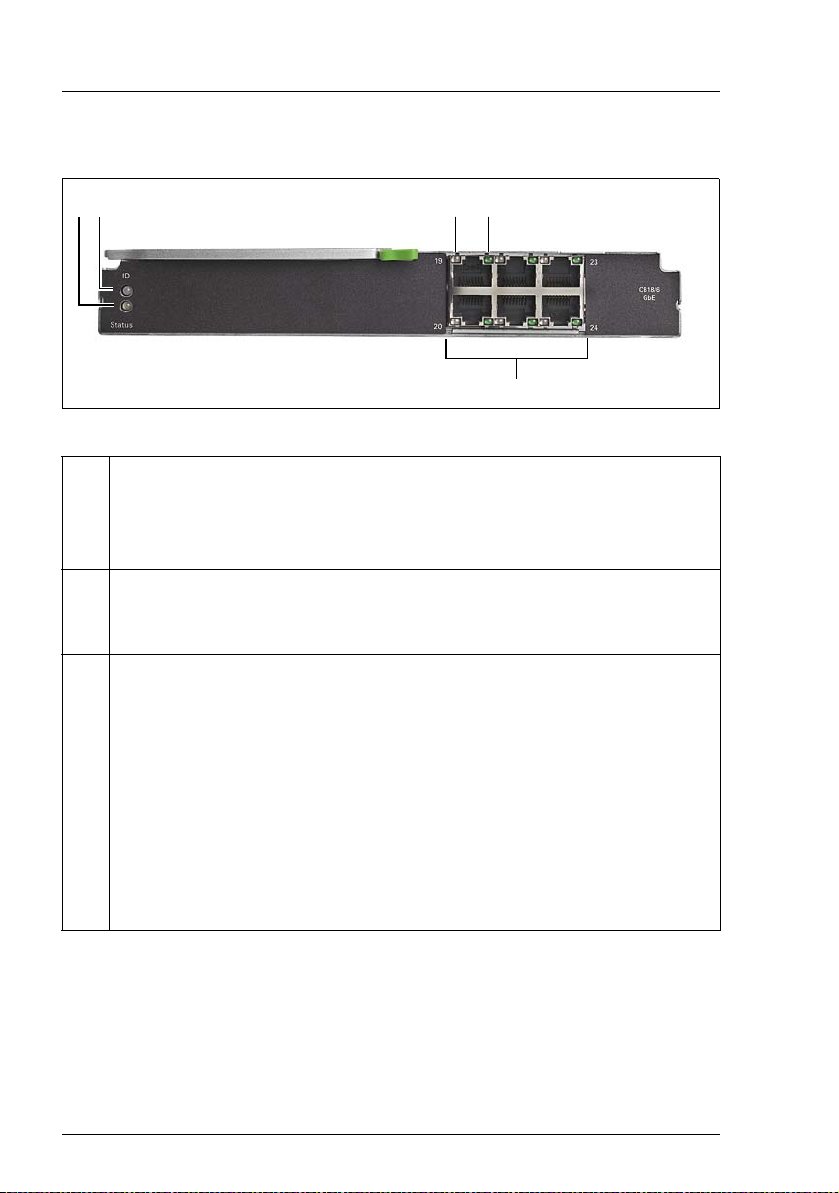

Connection Blade GbE Switch/IBP 18/6 (SB6)
18 internal 1-Gbit/s ports to the server blades
6 external 1-Gbit/s ports through RJ45 connections
Installable in all connection blade slots
I This connection blade can be used as a layer-2 switch or an
Intelligent Blade Panel (IBP).
1 Gb Ethernet connection blades in slots CB2 (fabric 2) and
CB3/4 (fabric 3) only support server blades that are fitted with
an 1 Gb Ethernet mezzanine card.
BX400 S1 Operating Manual 15
Introduction
Connection Blade 10 GbE Switch/IBP 18/8
18 internal 10-Gbit/s ports to the server blades
8 external 10-Gbit ports through SFP+ modules or active twinax cables
(copper)
Installable in all connection blade slots
I This connection blade can be used as a layer-2 switch or an
Intelligent Blade Panel (IBP).
10 Gb Ethernet connection blades in slots CB2 (fabric 2) and
CB3/4 (fabric 3) only support server blades that are fitted with
corresponding 10 Gb or 1 Gb Ethernet mezzanine cards or
10 Gb CNA mezzanine cards.
For more information, see the operating manuals for the
relevant server blades and the manual "PRIMERGY 10GbE
Connection Blade 18/8 User Guide" and " スイッチブレード
10Gbps 18/8 取扱説明書 "(for the Japanese market).
16 Operating Manual BX400 S1
Connection Blade Ethernet Pass Thru 10Gb 18/18
18 internal 1/10-Gbit/s ports to the server blades
18 external uplink ports at 10 Gbit/s and 1 Gbit/s link speed through
SFP+/SFP modules
Installable in all connection blade slots
I 10 Gb Ethernet Pass Thru connection blades in slots CB2
(fabric 2) and CB3/4 (fabric 3) only support server blades that
are fitted with 1Gb or 10 Gb Ethernet mezzanine cards or 10Gb
CNA mezzanine cards.
If the connection blade is installed in one of the slots CB 1 or CB
2, 16 ports are available. If the connection blade is installed in
one of the slots CB 3 or CB 4, 8 ports are available (see also
"Port assignment" on page 105).
The 18 internal ports are divided into 6 groups. Each port group
is associated with three server blade slots. The ports within a
single group must use the same link protocol with either 10
Gbit/s or 1 Gbit/s link speed. Default link speed is 10 Gbit/s.
The management blade web interface allows the user to modify
the link speed configuration for each port group, see the
management blade online help.
Introduction
BX400 S1 Operating Manual 17
Introduction
Fibre Channel connection blades
I Fibre Channel connection blades only support server blades that are
fitted with a Fibre Channel mezzanine card.
Connection Blade 8Gb FC Switch 18/8 (Brocade BR5450)
18 internal 8-Gbit/s ports to the server blades
8 external ports through 8-Gb SFP+ modules or 4-Gb SFP modules
Installable in slots CB3/4 (fabric 3)
This connection blade is available in three license variants:
– Brocade 5450 with 14-port license
– Brocade 5450 with 26-port license
– Brocade 5450 with 26 port license and performance bundle
As the operating system for the 8 Gb FC Switch Connection Blade
18/8, the complete functional scope of Brocade Fabric OS, the shared
software platform for Brocade Fibre Channel switches, is available.
The FC switch blade is administered via Fabric Watch and Advanced Web
To ol s from Brocade.
Connection Blade 8Gb FC Pass Thru18/18
18 internal 8-Gbit/s ports to the server blades
18 external ports through 8-Gb SFP+ modules or 4-Gb SFP modules
Installable in slots CB3/4 (fabric 3)
18 Operating Manual BX400 S1
10 Gb Ethernet / DCB connection blades
Connection Blade DCB SW 10Gb 18/6+6
18 internal 10-Gbit/s ports to the server blades
6 external 10-Gbit/s Data Center Bridging (DCB) capable ports through
Brocade branded SFP+ modules or SFP+ Twinax cables
6 external FC ports through 8-Gb SFP+ modules or 4-Gb SFP modules
Installable in all connection blade slots
I The connection blade DCB SW 10Gb 18/6+6 in slots CB2
(fabric 2) and CB3/4 (fabric 3) only supports server blades that
are fitted with one of the following mezzanine cards:
– 10 Gbit CNA mezzanine card (MC-CNA102E)
– 10 Gbit CNA mezzanine card (MC-CNA112E)
– 10 Gbit Ethernet mezzanine card
Connection Blade FEX B22F 10Gb (Cisco)
16 internal 10-Gbit/s ports to the server blades
8 external 10-Gbit/s Ethernet ports for connection to the parent Cisco
Nexus 5000 Series Switch through Cisco branded copper Twinax
cables, Fabric Extender Transceivers (FET), or other standard 10
Gigabit Ethernet optics such as 10Gbase-SR, 10Gbase-LR, and
10Gbase-ER
Installable in all connection blade slots
I The connection blade FEX B22F 10Gb (Cisco) in slots CB2
(fabric 2) and CB3/4 (fabric 3) only supports server blades that
are fitted with one of the following mezzanine cards:
Introduction
– 10 Gbit CNA mezzanine card (MC-CNA112E)
– 10 Gbit Ethernet mezzanine card
BX400 S1 Operating Manual 19
Introduction
Infiniband connection blades
Connection Blade Infiniband Switch 40 Gb 18/18
18 internal 40-Gbit/s ports to the server blades
18 external 40-Gbit/s Infiniband connections through QSFP modules
Installable in slots CB3/4 (fabric 3), see figure "Connection blade slots"
on page 120
I Connection Blades Infiniband Switch 40 Gb 18/18 only support
server blades that are fitted with an 40 Gb Infiniband mezzanine
card (PY IB CX2 Mezz Card 40Gb 2 Port).
Connection Blade Infiniband Switch 56 Gb 18/18 FDR
18 internal 56-Gbit/s ports to the server blades
18 external 56-Gbit/s Infiniband connections through QSFP modules
1 external debug port through USB connector
Installable in slots CB3/4 (fabric 3), see figure "Connection blade slots"
on page 120
I Connection Blades Infiniband Switch 56 Gb 18/18 FDR only
support server blades that are fitted with a 56 Gb Infiniband
mezzanine card (PY IB CX3 Mezz Card 56Gb 2 Port).
SAS connection blade
I The SAS connection blade allows connection of multiple targets such as
SX980 S1 and SX980 S2 storage blade and initiators. SAS connection
blades only support server blades that are fitted with a SAS HBA
mezzanine card or SAS RAID mezzanine card.
Connection Blade SAS Switch 6 Gb 18/6
18 internal 6-Gbit/s ports to the server blades
6 external 6-Gbit/s SAS connectors
Installable in slot CB3/4 (fabric 3)
20 Operating Manual BX400 S1
Introduction
The connection blades aresupport hot-swapping. By installing two connection
blades in two adjacent slots (not possible with Infiniband connection blades),
you can provide redundant network connections for the server blades (for
details, see section "Connection blades" on page 92).
Management blade
The system unit has slots for two redundant, hot-swap management blades with
an integrated management solution for complete remote administration of the
system. The base configuration of the system unit contains one management
blade (for details, see section "Management blades" on page 131).
Power supply
The system unit has four installation bays for hot-plug power supply units which
automatically set themselves to a voltage in the range of 100 - 120 V / 200 - 240
V. The base configuration includes one power supply unit. As an option, you can
set up a redundant power supply with up to three additional power supply units.
If a power supply unit fails, the redundant configuration assures continued
operation. The defective power supply unit can be replaced during operation
(for further details see section "Hot-plug power supply units" on page 132).
Cooling
Cooling of the system is ensured by two fans in each power supply unit and by
the fan modules. Each of the fan units contains 2 fans. The fan modules have
the same aspect ratio as the power supply units. Empty power supply
installation bays must be fitted with fan modules. The configuration is redundant
and offers hot-swap functionality (for more information, see "Hot-plug power
supply units" on page 132).
High level of availability and failure protection
ASR&R (Automatic Server Reconfiguration and Restart) restarts the system in
the event of an error and automatically "hides" the defective system
components.
The PDA (Prefailure Detection and Analyzing) technology from Fujitsu
Technology Solutions analyzes and monitors all components that are critical for
system reliability.
The hot-swap components provide additional failure protection. Failure
protection for the entire system is ensured by four redundant hot-swap power
supply units as well as redundant hot-swap fans.
BX400 S1 Operating Manual 21
Introduction
Server management
Server management is implemented using the ServerView Operations Manager
supplied and the PDA (Prefailure Detection and Analysis) technology from
Fujitsu. PDA reports the threat of a system error or overload at an early stage,
allowing preventive measures to be taken.
The ServerView Operations Manager enables the management of all
PRIMERGY servers in the network via a central console. The ServerView
Operations Manager supports the following functions:
● Round-the-clock monitoring, regardless of server status
● High-performance, graphical console bypass (AVR) protected by
HTTPS/SSL (128 bit)
● Remote storage via USB
● Remote power on
● Temperature monitoring of the CPU and the surrounding area
● Detailed status and error reports for processors and main memory
● Watchdog timer for Automatic Server Reconfiguration and Restart (ASR&R)
in the event that memory modules or processors fail
● Power monitoring
● End-of-life monitoring of fans with prompt notification before failure
● Watchdog timer for monitoring the operating system with ASR&R
Further information on the ServerView Operations Manager is provided in the
associated documentation.
Service and support
PRIMERGY servers are easy to maintain and modular, thus enabling quick and
simple maintenance.
The handles and locks (touch points) on the various hot pluggable components
are colored green to ensure simple and immediate recognition.
In order to prevent the components from being damaged by incorrect handling
when they are being installed and removed, the areas of all components that
can be touched without damaging them are also marked green.
22 Operating Manual BX400 S1
Introduction
The redundant management blades and the optional remote test and
diagnostics system ServerView Remote Management allows the PRIMERGY
BX400 S1 blade servers to be serviced from a remote system. This enables
remote diagnosis for system analysis, remote configuration and remote restart
should the operating system or hardware fail.
BX400 S1 Operating Manual 23
Introduction
1.4 Notational conventions
The following notational conventions are used in this manual:
Text in italics indicates commands or menu items.
"Quotation marks" indicate names of chapters and terms that are being
emphasized.
Ê describes activities that must be performed in the order
shown.
V CAUTION! pay particular attention to texts marked with this symbol.
Failure to observe this warning may endanger your life,
destroy the system or lead to the loss of data.
I indicates additional information, notes and tips.
24 Operating Manual BX400 S1
Introduction
1.5 Technical data
Electrical data (hot-plug power supply unit)
Rated voltage range 100 - 120 V / 200 - 240 V
Frequency 50 Hz-60 Hz
Max. rated current 45 A (100 - 120 V) /
22.5 A (200 - 240 V)
Effective power 1785 W (240 V) 1200 W (100 V)
Apparent power 1821 VA (240 V) 1265 VA (100 V)
Heat dissipation 6426 kJ/h (with 1785 W) 4320 kJ/h
(with 1200 W)
Main power fuse 16 A
Protection class I
Compliance with regulations and standards
Product safety and
ergonomics
Electromagnetic
compatibility
interference
emissions
Harmonic current EN 61000-3-2
Flicker EN 61000-3-3
interference
immunity
to EU directives Electromagnetic compatibility 2004/108/EC
Mechanical
environmental
conditions
BX400 S1 Operating Manual 25
IEC 60950-1 / EN 60950-1, UL/CSA 60950-1 (all
second edition is acquired)
CNS 14336 / GB 4943 / EN 50371
GB 17625
EN 55022 class A
EN 55024, EN 300386
EN 60721-3-3; class 3M2
Introduction
Certification
Product safety
Global CB
Europe ENEC
Germany GS, CE
USA/Canada CSA
US
/ CSA
Japan VCCI
China/Taiwan BSMI
Mechanical specifications
Width 445 mm
Depth 785 mm
Height 267 mm or 6 HU
Weight
Max. 98 kg (depending on the configuration).
C
26 Operating Manual BX400 S1
Ambient conditions
Introduction
Environment class 3K2
Environment class 2K2
EN 60721 / IEC 721 Part 3-3
EN 60721 / IEC 721 Part 3-2
Temperature:
Operation (3K2) 10 ºC .... 35 ºC
Transport (2K2) -20 °C .... 60 °C
Humidity 10% ... 85% (non condensing)
Condensation during operation must be avoided!
Noise level
Sound power level L
(ISO 9296) < 6.1 B (standby)
WAd
< 7.4 B (operation)
Sound pressure level at adjacent workstation
L
(ISO 9296)
pAm
< 45.4 dB (standby)
< 61.5 dB (operation)
Noise level (low noise mode)
Sound power level L
(ISO 9296) < 6.1 B (standby)
WAd
< 6.2 B (operation)
Sound pressure level at adjacent workstation
(ISO 9296)
L
pAm
< 44 dB (standby)
< 45 dB (operation)
BX400 S1 Operating Manual 27
Introduction
28 Operating Manual BX400 S1
2 Installation steps, overview
This chapter provides an overview of the installation steps for your BX400 S1
system unit. Links take you to sections where you can find more detailed
information about the respective steps:
Ê First read the chapter "Important notes" from page 31, particularly the
section "Safety instructions".
Ê Unpack the system, check the delivery for damage sustained during
transport and make sure it corresponds to the specifications in the delivery
note (see section 4.2 on page 44).
Ê Set up the floorstand model (see section "Setting up the floorstand model"

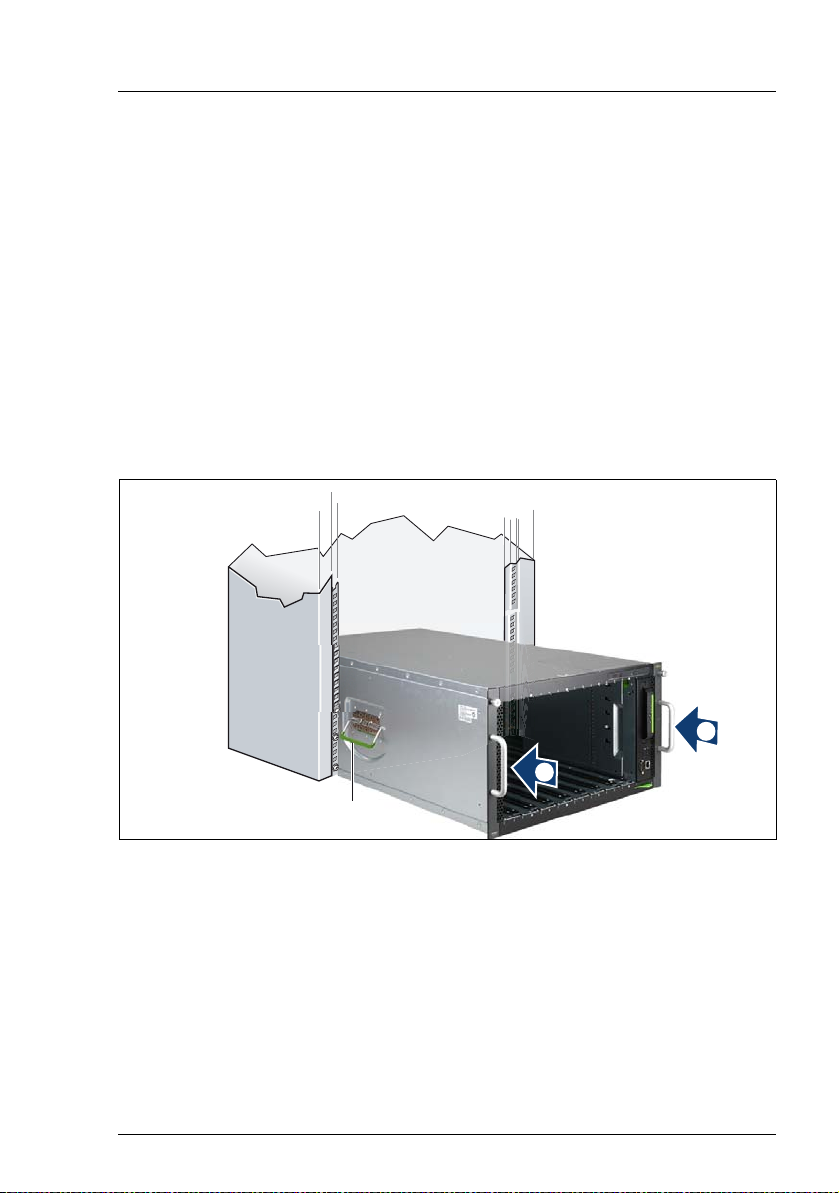

on page 45) or install the rack model in the rack (see section
"Installing/removing the system unit" on page 46).
Ê Connect the cables (see 4.5 on page 53). Please also read the section
"Instructions for connecting/disconnecting cables" on page 58.
Ê Connect the system to the mains (see 4.6 on page 55).
Ê Familiarize yourself with the control and display elements on the front and
back of the system unit (see chapter 5 starting on page 59).
Ê Install the server blades and storage blades in the slots on the front of the
system unit (see section 8.1 on page 86).
Ê Install the connection blades in the slots on the back of the system unit (see
section 8.2 on page 92).
Ê Configure the management blades (see section 5.3 on page 72) so that you
can carry out all further administration of the system unit via LAN.
Ê Install the required operating systems and applications on the server blades.
For information see the relevant operating manuals.
BX400 S1 Operating Manual 29
Installation steps, overview
30 Operating Manual BX400 S1
3 Important notes
This chapter provides safety instructions which you must observe when
handling your system.
3.1 Safety instructions
I The following safety instructions are also provided in the manual "Safety
Notes and Regulations" or " 安全上のご注意 ".
This device meets the relevant safety regulations for IT equipment. If you have
any questions about whether you can install the server in the intended
environment, please contact your sales outlet or our customer service team.
V CAUTION!
● The actions described in this manual shall be performed by technical
specialists. A technical specialist is a person who is trained to install
the server including hardware and software.
● Repairs to the device that do not relate to CSS failures shall be
performed by service personnel. Please note that unauthorized
interference with the system will void the warranty and exempt the
manufacturer from all liability.
● Any failure to observe the guidelines in this manual, and any improper
repairs could expose the user to risks (electric shock, energy
hazards, fire hazards) or damage the equipment.
● Before installing/removing internal options to/from the system unit,
turn off the system unit, all peripheral devices, and any other
connected devices. Also unplug all power cords from the power
outlet. Failure to do so can cause electric shock.
BX400 S1 Operating Manual 31
Important notes
Before starting up
V CAUTION!
● During installation and before operating the device, observe the
instructions on environmental conditions for your device (see
"Ambient conditions" on page 27).
● If the system unit has been moved from a cold environment,
condensation may form both inside and on the outside of the
machine.
Wait until the system unit has acclimatized to room temperature and
is absolutely dry before starting it up. Material damage may be
caused to the system unit if this requirement is not met.
● Only transport the system unit in the original packaging or in
packaging that protects it from impacts and jolts.
For the Japanese market, transporting the device in its original
packaging does not apply.
Installation and operation
V CAUTION!
● The device may only be operated in a maximum ambient temperature
of 35 °C.
● If the device is integrated in an installation that receives power from
an industrial (public) power supply network with the IEC309
connector, the (public) power supply protection must comply with the
requirements for the non-industrial (public) power supply networks for
the type B connector.
● The device automatically adjusts to a mains voltage in the range of
100 - 120 V / 200 - 240 V. Make sure that the local mains voltage is
neither above nor below these limits.
● This device must only be connected to properly grounded power
outlets or to the insulated sockets of the rack's internal power supply
using safety-tested power cables.
● Make sure that the device is connected to a protective contact socket
that is close by the device.
32 Operating Manual BX400 S1
Important notes
V CAUTION!
● Make sure that the power sockets on the device or the grounded
mains outlets are freely accessible.
● The On/Off button or the main power switch (if there is one) does not
disconnect the device from the mains voltage. To completely
disconnect it, you must remove all the power plugs from the power
outlets.
● Always connect the device and the attached peripherals to the same
power circuit. Otherwise you run the risk of losing data if, for example,
a power outage occurs and the server is still running but the
peripheral device (e.g. a storage subsystem) has failed.
● Data cables must be adequately shielded to avoid interference.
● For the LAN wiring, the requirements according to standards
EN 50173 and EN 50174-1/2 apply. The minimum requirement is the
use of a protected LAN cable of category 5 for 10/100-Mbit/s
Ethernet, and/or of category 5e for Gigabit Ethernet. The
requirements of the specification ISO/IEC 11801 must also be taken
into account.
● Route the cables in such a way that they do not form a potential
hazard (tripping) and cannot be damaged. When connecting the
device, refer to the relevant notes in the operating manual.
● Do not connect or disconnect any data transmission cables during a
thunderstorm (lightning hazard).
● Make sure that no objects (such as bracelets or paper clips) or liquids
get inside the device (risk of electric shock or short circuit.
● In emergencies (e.g. damaged casing, control elements or power
cable, penetration of liquids or foreign bodies), switch off the device
immediately, unplug it from the grounded power outlets, and contact
your customer service center.
BX400 S1 Operating Manual 33
Important notes
V CAUTION!
● Proper operation of the device (in accordance with IEC 60950-
1/EN 60950-1) is only ensured if the casing is fully assembled and the
rear covers for the installation bays are in place (electric shock,
cooling, fire protection, interference suppression).
● Install only system extensions that satisfy the requirements and rules
governing safety, electromagnetic compatibility, and
telecommunications terminal equipment. If you install other
extensions, you may damage the system or violate these safety
regulations. Information on which system extensions are suitable can
be obtained from the customer service center or your sales outlet.
● The components marked with a warning label (e.g. lightning symbol)
should only be opened, removed or exchanged by authorized,
qualified personnel. Exception: You may exchange hot-plug power
supply units and CSS components.
● If you cause a defect on the device by installing or exchanging system
extensions, the warranty will be invalidated.
● You may only set the resolutions and refresh rates specified in the
operating manual for your monitor. Otherwise, you may damage the
monitor. If you are in any doubt, contact your sales outlet or customer
service center.
34 Operating Manual BX400 S1
Important notes
Working with CDs/DVDs/BDs and optical drives
When working with devices with optical drives, these instructions must be
followed.
V CAUTION!
● Only use CDs/DVDs/BDs that are in perfect condition, in order to
prevent data loss, equipment damage and injury.
● Check each CD/DVD/BD for damage, cracks, breakages etc. before
inserting it in the drive.
Note that any additional labels applied may change the mechanical
properties of a CD/DVD/BD and cause imbalance.
Damaged and imbalanced CDs/DVDs/BDs can break at high drive
speeds (data loss).
Under certain circumstances, sharp CD/DVD/BD fragments can
pierce the cover of the optical drive (equipment damage) and can fly
out of the device (danger of injury, particularly to uncovered body
parts such as the face or neck).
● High humidity and airborne dust levels are to be avoided. Electric
shocks and/or server failures may be caused by liquids such as
water, or metallic items, such as paper clips, entering a drive.
● Shocks and vibrations are also to be avoided.
● Do not insert any objects other than the specified CDs/DVDs/BDs.
● Do not pull on, press hard, or otherwise handle the CD/DVD/BD tray
roughly.
● Do not disassemble the optical drive.
● Before use, clean the optical disk tray using a soft, dry cloth.
● As a precaution, remove disks from the optical drive when the drive
is not to be used for a long time. Keep the optical disk tray closed to
prevent foreign matter, such as dust, from entering the optical drive.
● Hold CDs/DVDs/BDs by their edges to avoid contact with the disk
surface.
BX400 S1 Operating Manual 35
Important notes
● Do not contaminate the CD/DVD/BD surface with fingerprints, oil,
dust, etc. If dirty, clean with a soft, dry cloth, wiping from the center to
the edge. Do not use benzene, thinners, water, record sprays,
antistatic agents, or silicone-impregnated cloth.
● Be careful not to damage the CD/DVD/BD surface.
● Keep the CDs/DVDs/BDs away from heat sources.
● Do not bend or place heavy objects on CDs/DVDs/BDs.
● Do not write with ballpoint pen or pencil on the label (printed) side.
● Do not attach stickers or similar to the label side. Doing so may cause
rotational eccentricity and abnormal vibrations.
● When a CD/DVD/BD is moved from a cold place to a warm place,
moisture condensation on the CD/DVD/BD surface can cause data
read errors. In this case, wipe the CD/DVD/BD with a soft, dry cloth
then let it air dry. Do not dry the CD/DVD/BD using devices such as a
hair dryer.
● To avoid dust, damage, and deformation, keep the CD/DVD/BD in its
case whenever it is not in use.
● Do not store CDs/DVDs/BDs at high temperatures. Areas exposed to
prolonged direct sunlight or near heating appliances are to be
avoided.
I You can prevent damage from the optical drive and the CDs/DVDs/BDs,
as well as premature wear of the disks, by observing the following
suggestions:
– Only insert disks in the drive when needed and remove them after
use.
– Store the disks in suitable sleeves.
– Protect the disks from exposure to heat and direct sunlight.
Laser information
The optical drive complies with IEC 60825-1 laser class 1.
V CAUTION!
The optical drive contains a light-emitting diode (LED), which under
certain circumstances produces a laser beam stronger than laser
class 1. Looking directly at this beam is dangerous.
Never remove parts of the optical drive casing!
36 Operating Manual BX400 S1
Important notes
Batteries
V CAUTION!
● Incorrect replacement of batteries may result in a risk of explosion.
The batteries may only be replaced with identical batteries or with a
type recommended by the manufacturer (see the Technical Manual
of the server blade).
● Do not throw batteries into the trash can. They can be returned free
of charge to the manufacturer, dealer or an authorized agent for
recycling or disposal.
● The battery must be disposed of in accordance with local regulations
concerning special waste.
● Replace the lithium battery in the server blade in accordance with the
instructions in the Technical Manual of the server blade.
● All batteries containing pollutants are marked with a symbol (a
crossed-out garbage can). They are also marked with the chemical
symbol for the heavy metal that causes them to be categorized as
containing pollutants:
Cd Cadmium
Hg Mercury
Pb Lead
BX400 S1 Operating Manual 37
Important notes
Modules with Electrostatic-Sensitive Devices
Modules with electrostatic-sensitive devices are identified by the following
sticker:
Figure 1: ESD label
When you handle components fitted with ESDs, you must always observe the
following points:
● Switch off the system and remove the power plugs from the power outlets
before installing or removing components with ESDs.
● You must always discharge static build-up (e.g. by touching a grounded
object) before working with such components.
● Any devices or tools that are used must be free of electrostatic charge.
● Wear a suitable grounding cable that connects you to the external chassis
of the system unit.
● Always hold components with ESDs at the edges or at the points marked
green (touch points).
● Do not touch any connectors or conduction paths on an ESD.
● Place all the components on a pad which is free of electrostatic charge.
I For a detailed description of how to handle ESD components, see the
relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).
Other important information:
● During cleaning, observe the instructions in section "Cleaning the system
unit" on page 77.
38 Operating Manual BX400 S1
Important notes
● Keep this operating manual and the other documentation (such as the
technical manual, documentation DVD) close to the device. All
documentation must be included if the equipment is passed on to a third
party.
3.2 CE conformity
The system complies with the requirements of the EC directives
2004/108/EC regarding "Electromagnetic Compatibility" and
2006/95/EC "Low Voltage Directive". This is indicated by the CE
marking (CE = Communauté Européenne).
3.3 Transporting the system unit
V CAUTION!
● Only transport the system unit in its original packaging or in suitable
packaging which protects it from knocks and jolts.
For the Japanese market, transporting the device in its original
packaging does not apply.
Only unpack the system unit at the place where you want to set it up.
● Ask someone for help with carrying the system unit. Because the
PRIMERGY BX400 S1 system unit is large and heavy, at least two
people are needed.
● Before lifting the system unit, remove all server blades, storage
blades, connection blades, management blades, all power supply
units, fan units and dummy modules to reduce the weight.
● Only lift or carry the system unit by the handles on the long sides.
● Never lift or carry the system unit by the handles on the front or back.
BX400 S1 Operating Manual 39
Important notes

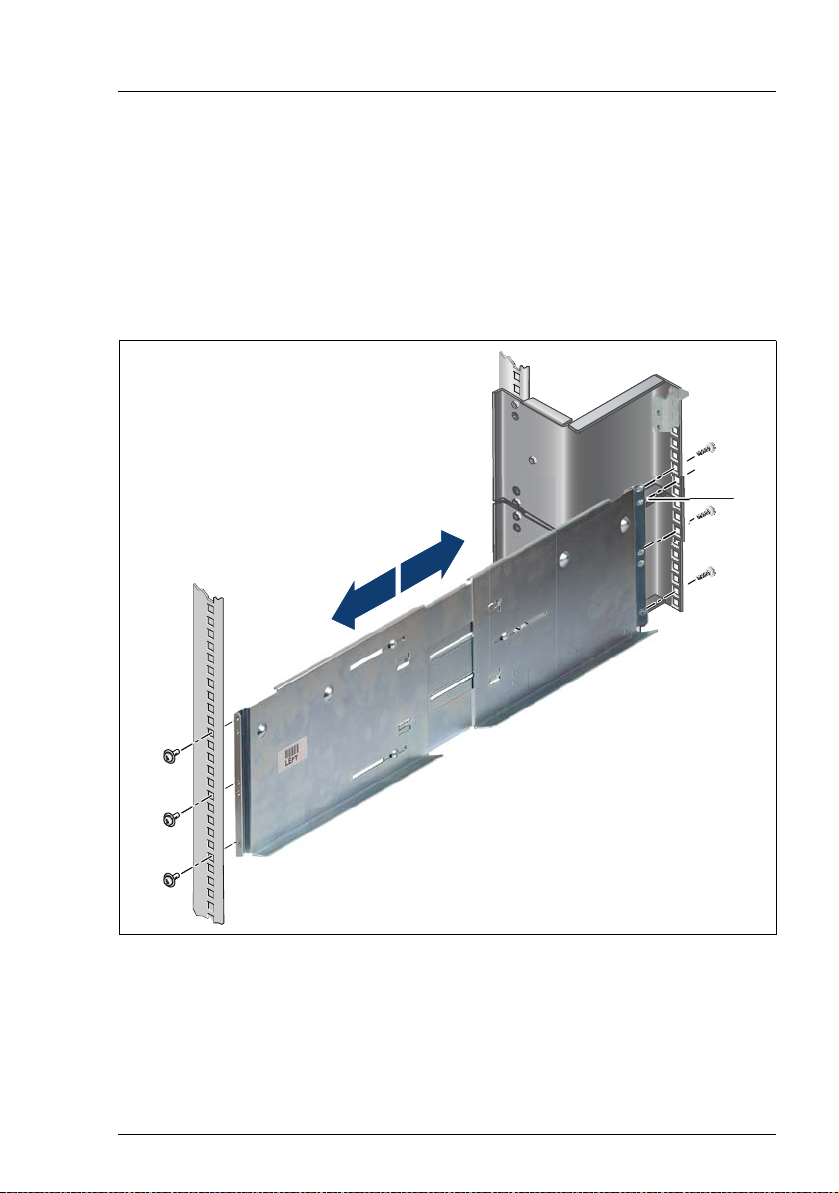

3.4 Notes on installation into the rack
V CAUTION!
● For safety reasons, at least two people are required to install the
system unit in the rack because of its weight and size.
(For the Japanese market, please refer to " 安全上のご注意 ".)
● Before lifting the system unit, remove all server blades, storage
blades, connection blades, management blades, all power supply
units, fan units and dummy modules to reduce the weight.
● To lift or carry the system unit, always use the handles on the long
sides.
● Never lift or carry the system unit by the handles on the front or back
of the unit.
● For safety reasons, no more than one unit may be removed from the
rack at any one time during installation or maintenance work.
● Make sure that the anti-tilt plate is correctly mounted when you set up
the rack.
● The rack may tip over if more than one unit is removed at the same
time.
● Before connecting or disconnecting cables, read the notes in the
chapter "Important Notes" in the technical manual for the relevant
rack. The technical manual for the rack is supplied with the rack.
● The rack must be connected to the mains by an authorized specialist
(electrician).
● If the server system is integrated in a rack installation that receives
power from an industrial (public) power supply network with the
IEC309 connector, the (public) power supply protection must comply
with the requirements for the non-industrial (public) power supply
networks for the type A connector.
● The power supply for the rack should be distributed over the three
phases of a three-phase mains connection.
40 Operating Manual BX400 S1
Important notes
3.5 Environmental protection
Environmentally-friendly product design and development
This product has been designed in accordance with the Fujitsu standard for
"environmentally friendly product design and development". This means that
key factors such as durability, selection and labeling of materials, emissions,
packaging, ease of dismantling and recycling have been taken into account.
This saves resources and thus reduces the harm done to the environment.
Further information can be found at:
– http://ts.fujitsu.com/products/standard_servers/index.html (for the EMEA market)
– http://jp.fujitsu.com/platform/server/primergy/concept/ (for the Japanese
market)
Energy-saving information
Devices that do not need to be constantly switched on should be switched off
until they are needed as well as during long breaks and after completion of work.
Packaging information
This packaging information doesn’t apply to the Japanese market.
Do not throw away the packaging. You may need it later for transporting the
system. If possible, the equipment should only be transported in its original
packaging.
Information on handling consumables
Please dispose of printer consumables and batteries in accordance with the
applicable national regulations.
In accordance with EU directives, batteries must not be disposed of with
unsorted domestic waste. They can be returned free of charge to the
manufacturer, dealer or an authorized agent for recycling or disposal.
All batteries containing pollutants are marked with a symbol (a crossed-out
garbage can). They are also marked with the chemical symbol for the heavy
metal that causes them to be categorized as containing pollutants:
Cd Cadmium
Hg Mercury
Pb Lead
BX400 S1 Operating Manual 41
Important notes
Labels on plastic casing parts
Please avoid sticking your own labels on plastic parts wherever possible, since
this makes it difficult to recycle them.
Returns, recycling and disposal
Please handle returns, recycling and disposal in accordance with local
regulations.
The device must not be disposed of with domestic waste. This
device is labeled in compliance with European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
This directive sets the framework for returning and recycling used
equipment and is valid across the EU. When returning your used
device, please use the return and collection systems available to
you. Further information can be found at
http://ts.fujitsu.com/recycling.
Details regarding the return and recycling of devices and consumables within
Europe can also be found in the "Returning used devices" manual, via your local
Fujitsu branch or from our recycling center in Paderborn:
Fujitsu Technology Solutions
Recycling Center
D-33106 Paderborn
Tel. +49 5251 525 1410
Fax +49 5251 525 32 1410
42 Operating Manual BX400 S1
4 Installing the hardware
V CAUTION!
● Follow the safety instructions in chapter "Important notes" on
page 31.
● The system unit must not be exposed to extreme environmental
conditions (see "Ambient conditions" on page 27). Protect the system
unit from dust, humidity and heat.
● The system unit must be acclimatized to its operating environment for
the time specified in the table before you operate it.
Temperature difference (°C) (hours)
53
10 5
15 7
20 8
25 9
30 10
Table 1: Acclimatization times
In the table "Acclimatization times", temperature difference refers to
the difference between the temperature of the operating environment
and the temperature to which the system unit was previously exposed
(outside, transport or storage temperature).
BX400 S1 Operating Manual 43
Installing the hardware
4.1 Installation procedure
The following installation steps are described in detail in the following sections
of this chapter:
● Unpacking the system unit (see "Unpacking the system unit" on page 44).
● Installing the system unit in the rack (see "Installing/removing the system
unit" on page 46 and configuration diagram on the order lists) or setting up
the floorstand model (see section "Setting up the floorstand model" on
page 45).
● Connecting the cables of the system unit (see 4.5 on page 53). Please also
read the section "Instructions for connecting/disconnecting cables" on
page 58.
● Connecting the system unit to the mains (see "Connecting the system unit
to the mains" on page 55).
4.2 Unpacking the system unit
V CAUTION!
Follow the safety instructions in chapter "Important notes" on page 31.
The system unit must always be lifted or carried by at least two people.
(For the Japanese market, please refer to " 安全上のご注意 ".)
Do not unpack the system unit until it is at its installation location.
Ê Transport the system unit to the place where you want to set it up.
Ê Unpack all individual parts.
Keep the original packaging in case you want to transport the system unit
again (applies only to EMEA market).
Ê Check the delivery for any damage during transport.
Ê Check whether the items delivered match the details on the delivery note.
The product name and serial number of the product can be found on the ID card
(see section 5.1.1.3 on page 64).
Ê Notify your supplier immediately should you discover that the items
delivered do not correspond to the delivery note.
44 Operating Manual BX400 S1
Installing the hardware
4.3 Setting up the floorstand model
I If you are not installing a PRIMERGY BX400 S1 system unit floorstand
model, skip this section and continue reading at section
"Installing/removing the system unit" on page 46.
V CAUTION!
Follow the safety instructions in chapter "Important notes" on page 31.
Ê Transport the system unit to the place where you want to set it up.
Ê Unpack the system unit (see section "Unpacking the system unit" on
page 44).
Ê Set up the system unit.
V CAUTION!
– The device must be protected from direct sunlight.
– The essential minimum clearance for servicing must be
maintained.
– Access to the rear of the system unit must be assured so that
other devices (e.g. memory subsystems) can be connected.
– A clearance of at least 200 mm must be maintained in front of and
behind the system to ensure proper ventilation.
– The mains plug must be accessible easily and safely.
Ê Lock the casters.
Ê Wire the system unit. Read the information in section "Connecting devices
to the system unit" on page 53 and section "Instructions for
connecting/disconnecting cables" on page 58.
Ê Connect the system to the mains (see section "Connecting the system unit
to the mains" on page 55).
BX400 S1 Operating Manual 45
Installing the hardware
4.4 Installing/removing the system unit
V CAUTION!
At least two people are needed to lift the system unit. (For the Japanese
market, please refer to " 安全上のご注意 ".)
For configurations below 32 kg:
At least two people are needed to lift the system
unit.
For configurations below 55 kg:
At least three people are needed to lift the
system unit.
For configurations above 55 kg:
At least four people are needed to lift the system
unit.
Additionally, a lifter is required in the following cases:
– The system unit weighs more than 50 kg.
– The system unit weighs more than 21 kg and is to be installed above
the height of 25 U.
When using a lifter, this install/removal procedure needs to be carried out
by maintenance personnel.
The rack may tip over if more than one unit is removed at the same time.
46 Operating Manual BX400 S1
Installing the hardware
Please observe the safety information and notes on rack mounting in
chapter "Important notes" on page 31.
Fujitsu rack systems
The rack systems from Fujitsu support the installation of PRIMERGY servers:
– PRIMECENTER rack
– PRIMECENTER M1 rack
– DataCenter rack
– 19-inch standard rack (for the Japanese market)
– 19-inch slimline rack (for the Japanese market)
I For information on mounting the system unit in the rack please refer to
the mounting instructions provided in this section. Further information
you find in the manual of your rack system.
For the Japanese market, please refer also to the "Rack system structure
guide.
I Online documentation for rack installation can be found on:
http://manuals.ts.fujitsu.com/index.php?id=5406-5605-5606
(for the EMEA market)
http://jp.fujitsu.com/platform/server/primergy/manual/peri_rack.html
(for the Japanese market).
To accommodate the ventilation concept and ensure proper ventilation, any
unused areas in the rack must be sealed using dummy covers.
The power is supplied via the multiple socket outlets fitted in the rack (for the
EMEA market).
The main features of Fujitsu rack systems are as follows:
– support systems having a linear alignment feature to ensure that they can
be adjusted to different rack depths
Asymmetrical PRIMECENTER Rack and DataCenter Rack provide an
enhanced cable management in the lateral rack area.
3rd party racks
I Installation in most current rack systems from other manufacturers
(3rd party racks) is also supported. For details please contact your sales
representative.
BX400 S1 Operating Manual 47
Installing the hardware
4.4.1 Installation in the rack
For installation in a PRIMECENTER/DataCenter rack, the following parts are
required:
– Two 3-HU Support brackets (for the EMEA market)
– Two carrier rails (mounted)
– Two holding-down clamps
I General information regarding system unit installation in the rack is
included in the technical manual for the appropriate rack.
When mounting the left carrier rail in the PRIMECENTER/DataCenter rack, the
supplied support bracket must first be mounted on the rear left support upright
flush with the bottom edge of the device.
Ê Read the installation guide in the technical manual for the corresponding
rack.
Ê Mark the position of the bottom edge of the system unit on the support
uprights.
0
0
/
/
/
Figure 2: Attaching the support brackets
48 Operating Manual BX400 S1
Installing the hardware
Ê Position the support brackets at the relevant height on the rear left support
upright (place knob in the corresponding hole) and secure them using four
centering screws (1).
Ê Fasten the holding-down clamp at the upper end of the support bracket
using two centering screws (2).
Ê Fasten the second holding-down clamp at the same height as the first one
to the rear left support upright using two centering screws.
/
0
1
Figure 3: Attaching the left carrier rail
Ê Position the carrier rail in the support bracket (insert knob) - see (1).
I For the Japanese market:
There is no support bracket. Please position the support system
directly on the support upright.
BX400 S1 Operating Manual 49
Installing the hardware
Ê Fasten the carrier rail at the lower end of the support bracket using three
centering screws (2).
Ê Position the carrier rail in the front left support upright.
Ê Fasten the carrier rail to the front support upright (3) using three M5 screws
including plugwashers.
Ê Repeat the operation for the right carrier rail. This rail does not require a
support bracket.
17 17
15
10
5
1
Figure 4: Position of the cage nuts
Ê Fit the cage nuts for securing the system unit in the corresponding catches
on the right and left support uprights.
4.4.2 Installing/removing the system unit
V CAUTION!
● Because the PRIMERGY BX400 S1 system unit is large and
heavy, at least two people are needed to safely mount it in the
rack or remove it from the rack.
● Please observe the safety information and notes on rack installation
in the chapter "Important notes" on page 40.
50 Operating Manual BX400 S1
Installing the hardware
● Before lifting the system unit, remove all server blades, storage
blades, connection blades, management blades, all power supply
units, fan units and dummy modules to reduce the weight.
● Only lift or carry the system unit by the handles on the long sides.
● Never lift or carry the system unit by the handles on the front or back.
Ê Make a note of the positions of the individual server blades and storage
blades, the connection blades, power supply units and fan modules in the
system unit for reinstallation.
Ê Remove all server blades, storage blades, connection blades, management
blades, all power supply units, fan units and dummy modules from the
system unit. For assembly instructions see chapter "Hot-plug components"
on page 85.
0
0
/
Figure 5: Placing the system unit on the rack rails
Ê Lift the back end of the system unit onto the carrier rails in the rack.
Ê Fold in the two carrying handles (1).
Ê Push the system unit into the rack (2).
BX400 S1 Operating Manual 51
Installing the hardware
Figure 6: Installing the system unit
Ê Push the system unit into the rack as far as it will go.
Ê Fasten the system unit to the rack using the two knurled screws.
Ê Reinstall the server blades, storage blades, connection blades and
management blades, power supply units, fan units and dummy modules in
their old bays, see "Installing/removing the system unit" on page 46. For
assembly instructions see chapter "Hot-plug components" on page 85.
V CAUTION!
Incorrect fitting of the system unit may lead to serious errors.
Removing the system unit
V CAUTION!
● Make a note of the positions of the individual server blades, storage
blades, connection blades, power supply units and fan modules in the
system unit for reinstallation.
To remove the system unit, follow the installation instructions in reverse.
52 Operating Manual BX400 S1
Installing the hardware
4.5 Connecting devices to the system unit
On the back of the system unit are the ports for the network connection and the
administration of the blade server.
Ports on the back of the system unit
/01 23
MMB 1
CB 1
CB 3
Figure 7: Ports for external devices (rack version)
CB 1 -4 Slots for connection blades. For information on the ports of the connection
blades, see "Connection blades" on page 92.
MMB 1,2 The management blades have the following ports
1 Service LAN port (as a point-to-point connection, for system unit
administration only, no access to server blades and connection blades)
2 USB ports for backing up and restoring the MMB configuration and for
access to logging information
3 Serial port for a local management console
4,5 Management LAN ports for blade server management (including server
blades and connection blades)
MMB 2
CB 2
CB 4
I The service LAN port (pos. 1 in figure 7), the management LAN ports for
blade server management (pos. 4 and 5 in figure 7) and the
management LAN port of the FSIOM (pos. 3 in figure 8) must be in
different LAN subnetworks.
BX400 S1 Operating Manual 53
Installing the hardware
It is recommended to operate the management blade user interface in a
separate broadcast domain for the server management.
Ê Connect the data cables according to the system configuration you require.
Connectors on the front of the system unit
/
0
1
Figure 8: Connectors for external devices on the Front-Side I/O Module (FSIOM)
1 USB connectors to connect external devices to the server blades,
controlled by the management blade
2 Serial connector for a local management console
3 LAN connector for blade server management (including server blades
and connection blades)
For information on the front side connectors of the server blades for local
administration, see the operating manuals for the relevant server blades.
54 Operating Manual BX400 S1
Installing the hardware
4.5.1 Cable routing
The cables are routed along the support uprights of the rack.
4.6 Connecting the system unit to the mains
The system unit has four bays for hot-swap power supply units. In the base
configuration, it is fitted with one power supply unit.
V CAUTION!
● Read the information on determining how many power supply units
are required (see "Hot-plug power supply units" on page 132).
● The power supply units automatically adjust to a mains voltage
between 100 - 120 V / 200 - 240 V. The system unit may only be
used if the local mains voltage is within the voltage range of the
system.
● The 1600 W power supply units may only be connected to 16 A
power outlets, a UPS, a 32 A power distribution unit, or CEE sockets.
When ordering the system unit, you must specify which socket type
is available at the installation location, so that the cables with the
appropriate C19 connectors can be supplied.
– For the Japanese market:
The 1600W power supply units may only be connected to NEMA
L6-15, IEC 60320-C20, or NEMA 5-15 sockets.
● Always connect the cable first to the power supply unit and then to the
mains.
Ê First connect the insulated C19 connector of the power cable to the power
supply units of the system unit, and then plug the connector into the UPS,
power distribution unit or an external socket. The system can be configured
to support *True AC redundancy or non-AC redundancy.
I True AC redundancy is recommended for systems used for critical
business applications. This will result in the system to continue operation
during a power failure as the redundant part of the subsystem is plugged
into a separate AC source [e.g. uninterruptable power supply (UPS)).
I Refer to tables below for maximum DC loading for both AC redundant
and AC non redundant configurations.
BX400 S1 Operating Manual 55
Installing the hardware
Installation requirements for AC redundant configurations
The AC redundant configuration is with two PSUs plugged into a main AC
source and two other PSUs plugged into a separate AC source (e.g. UPS).
PSU configuration Max. DC loading DC redundancy
2 + 1 4800 W Yes
2 + 2 6400 W Yes
Table 2: Maximum DC loading requirements
Installation requirements for non AC redundant configurations
For systems not requiring AC redundancy, the power supply can be installed
with up to 4 PSUs. The PSUs can be connected to a single or multiple AC
sources.
PSU configuration Max. DC loading DC redundancy
2 3200 W No
2 + 1 4800 W Yes
2 + 2 6400 W Yes
Table 3: Maximum DC loading requirements
56 Operating Manual BX400 S1
Installing the hardware
4.6.1 Using cable ties
If you wish, you can secure the power cable with a cable tie to prevent the C19
connector from being pulled out of the system unit accidentally. The cable tie is
included in the accessories pack that is delivered together with the system unit.
/
Figure 9: Using cable ties
Ê Route the cable through the loop of the cable tie.
Ê Pull the cable tie tight to secure the power cable.
The insulated connector cannot now be disconnected from the server
accidentally.
I You can undo the cable tie by bending back the zip strip at the fastening
point (1).
BX400 S1 Operating Manual 57
Installing the hardware
4.7 Instructions for connecting/disconnecting cables
V CAUTION!
Please make sure you read the documentation for the devices before
you try to connect them.
Do not connect or disconnect any data transmission cables during a
thunderstorm.
Always pull cables out by the plug.
When connecting and disconnecting the cables, observe the following
order.
Connecting cables
Ê Switch off all the relevant devices.
Ê Unplug the power plugs of all affected devices from the power outlets or CEE
sockets.
Ê Connect all cables to the system unit and the peripherals. Secure the
connectors of the data cables (e.g. by tightening the screws).
Ê Plug all data transmission cables into the sockets provided for the data or
telecommunication networks.
Ê Plug all the power plugs into the power outlets or CEE sockets.
Disconnecting cables
Ê Switch off all the relevant devices.
Ê Unplug the power plugs of all affected devices from the power outlets or CEE
sockets.
Ê Pull all data transmission cables out of the sockets provided for the data or
telecommunication networks.
Ê Undo the screws on the connectors and pull the relevant cables out of the
system unit and peripherals.
58 Operating Manual BX400 S1
5 Installation and operation
V CAUTION!
Follow the safety instructions in the chapter "Important notes" on
page 31.
5.1 Control and display elements
5.1.1 Front of system
The BX400 S1 system unit has an option for a fold-out ServerView Local
Service Display for Blade on the front. It is controlled by the management blade
and is used for local diagnostics and administration of the blade server. It is also
used for the initial configuration of the management blades, see "Configuring
management blades" on page 72.

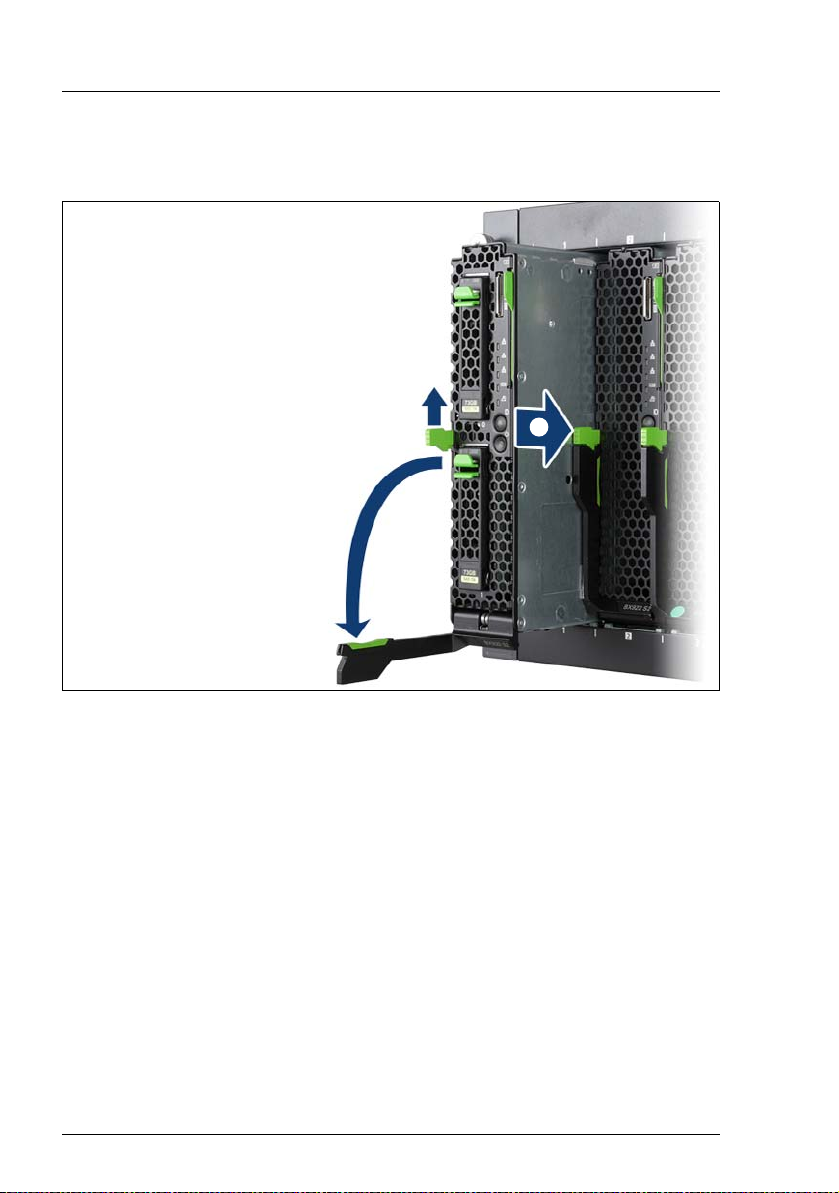

Figure 10: ServerView Local Service Display for Blade (rack version)
The most important control and display elements can also be found on the front
of the ServerView Local Service Display for Blade. This means they are also
available when it is folded away.
I The control and display elements of the server blades and storage
blades are described in the relevant operating manuals.
BX400 S1 Operating Manual 59
Installation and operation

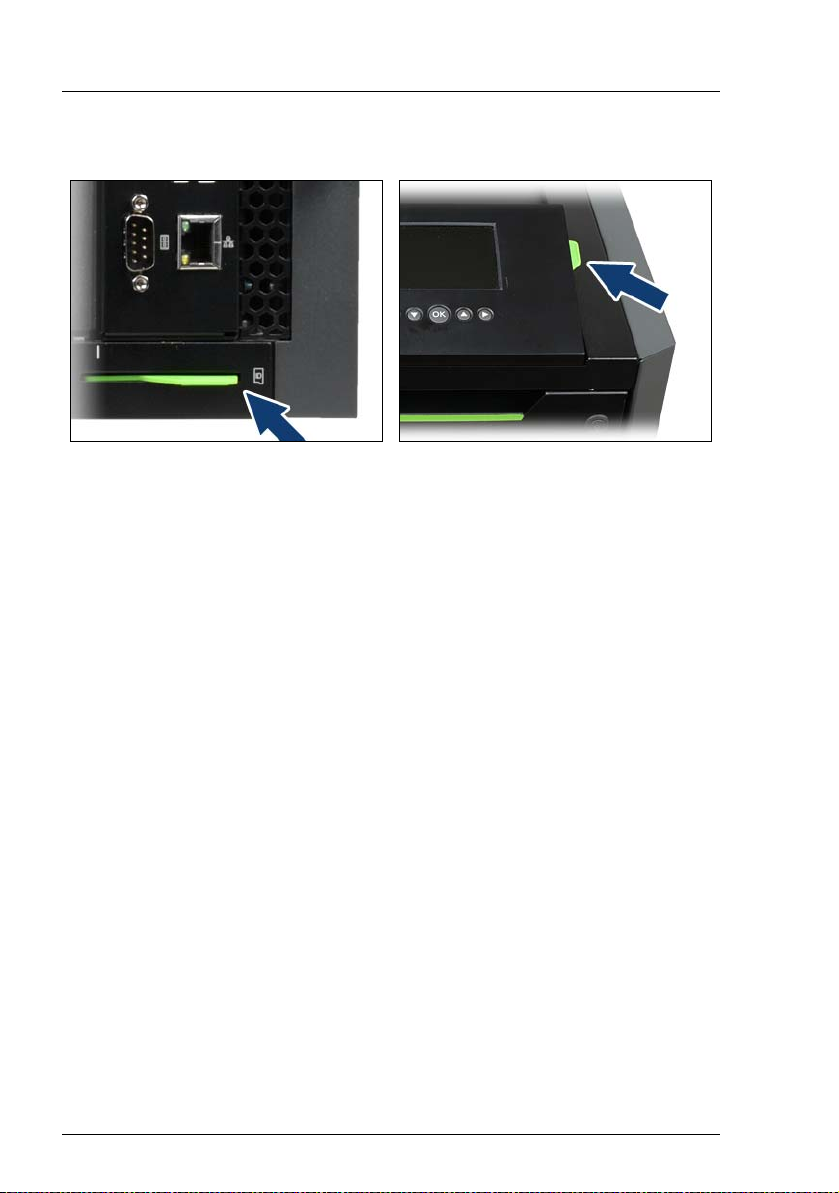

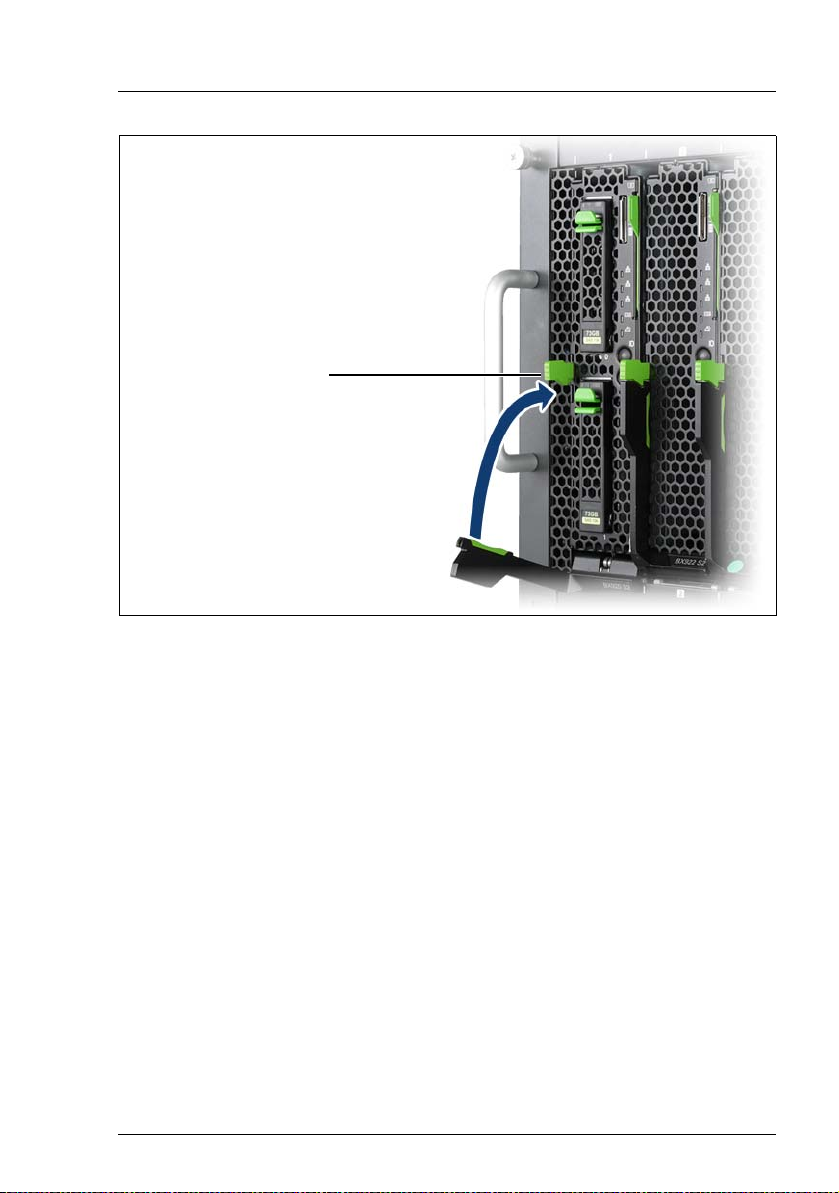

Figure 11: Locking the ServerView Local Service Display for Blade (rack version)
V CAUTION!
Press the touch point (see arrow) of the ServerView Local Service
Display for Blade before you push it back into the frame of the system
unit.
Figure 12: ServerView Local Service Display for Blade (floorstand version)
At the BX400 S1 system unit floorstand version, the ServerView Local Service
Display for Blade is placed on top of the system unit.
60 Operating Manual BX400 S1
Installation and operation
12 34 56 7
Figure 13: Control and display elements on the front of the ServerView Local Service Display
for Blade
1 CSS indicator 5 power-on indicator
2 Global Error indicator 6 ID indicator
3 ID button 7 Navigation buttons for the
4 On/Off button
BX400 S1 Operating Manual 61
LocalView menu system
Installation and operation
5.1.1.1 Control elements
On/Off button
When the system is switched off, it can be switched on again by
pressing the On/Off button.
When the system is operating, pressing the On/Off button will
switch off the system.
V CAUTION!
Risk of loss of data!
I The On/Off button does not disconnect the server from the
mains voltage. To disconnect from the mains completely,
remove the power plug(s).
ID ID button
Lights up (blue) on the front and on the rear of the system unit when
the ID button is pressed. The two ID indicators are synchronized.
Navigation buttons for the LocalView menu system
With the buttons , , and you select a function. Pressing
the button executes the selected function.
5.1.1.2 LEDs on the control panel
Power indicator (two-color)
Lights up green when the system unit is switched on.
Lights up orange when the system unit is switched OFF, but mains
voltage is present (standby mode).
62 Operating Manual BX400 S1
Global Error indicator (orange)
– Lights up orange if a prefailure event has been detected that
!
CSS CSS indicator (yellow)
requires (precautionary) service intervention.
– Flashes orange if an error was detected that requires service
intervention.
– Does not light up if there is no critical event.
If the event is still acute after a power cycle, the indicator is activated
after the restart.
The indicator also lights up in standby mode.
You can find more details on the indicated errors in the System
Event Log (SEL), in the Management Blade Web interface, on the
ServerView Local Service Panel, on the ServerView Local Service
Display, in the ServerView Operations Manager or via the
iRMC S2/S3's Web interface.
– Lights up yellow if a prefailure event was detected for a CSS
component that you can fix yourself (for reasons of
precaution) with the CSS concept.
– Flashes yellow if an error was detected that you can fix
yourself with the CSS concept.
– Does not light up when the system is OK.
Installation and operation
If the event is still acute after a power cycle, the indicator is
activated after the restart.
The indicator also lights up in standby mode.
For more information on the CSS concept, see "Customer Self
Service (CSS)" on page 13.
ID ID indicator (blue):
Glows blue when the system was selected by pressing the ID
button. Pressing the button again deactivates the LED.
The ID indicator can also be activated via the management blade
web interface and via the ServerView Operations Manager and its
status reported to the ServerView Operations Manager and the
iRMC S2/S3.
BX400 S1 Operating Manual 63
Installation and operation
5.1.1.3 System ID card
Rack model Floorstand model
Figure 14: System ID card location
The ID card contains various system information, such as the product
name,serial number, order number (in the Japanese market, only the product
name, the serial number).
64 Operating Manual BX400 S1
Installation and operation
5.1.2 Back of system
5.1.2.1 Control and display elements on the management blade
12 3 45 6 78 91011
Figure 15: Control and display elements on the management blade
1 Status indicator (yellow)
Lights up when the management blade is active (master)
Is not lit when the management blade is not active (slave)
Blinks when the management blade is defective.
2 LAN link indicators (service LAN port)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
3 LAN activity indicators (service LAN port)
Flashes yellow for a LAN transfer is in progress.
Does not light up if no LAN transfer.
BX400 S1 Operating Manual 65
Installation and operation
4 Global Error indicator (orange)
– Lights up orange if a prefailure event has been detected that
requires (precautionary) service intervention.
– Flashes orange if an error was detected that requires service
intervention.
– Does not light up if there is no critical event.
If the event is still acute after a power cycle, the indicator is activated
after the restart.
The indicator also lights up in standby mode.
You can find more details on the indicated errors in the System Event
Log (SEL), in the Management Blade Web interface, on the ServerView
Local Service Panel, on the ServerView Local Service Display, in the
ServerView Operations Manager or via the iRMC S2/S3's Web
interface.
5 CSS indicator (yellow)
– Lights up yellow if a prefailure event was detected for a CSS
component that you can fix yourself (for reasons of precaution) with
the CSS concept.
– Flashes yellow if an error was detected that you can fix yourself
with the CSS concept.
– Does not light up when the system is OK.
If the event is still acute after a power cycle, the indicator is activated
after the restart.
The indicator also lights up in standby mode.
For more information on the CSS concept, see "Customer Self Service
(CSS)" on page 13.
6 Identification (ID) button with ID LED (blue)
ID indicators on the front and rear of the server light up when the ID
button is pressed. The two ID indicators are synchronized. To
deactivate, press the button again.
The ID indicator can also be activated via the management blade web
interface and via the ServerView Operations Manager and its status
reported to the ServerView Operations Manager.
66 Operating Manual BX400 S1
Installation and operation
7, 9 LAN link indicators (Management LAN ports)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
8, 10 LAN activity indicators (Management LAN ports)
Flashes yellow when a LAN transfer is in progress.
Does not light up if no LAN transfer.
11 Reset button
BX400 S1 Operating Manual 67
Installation and operation
5.1.2.2 Indicator on the hot-plug power supply units
1

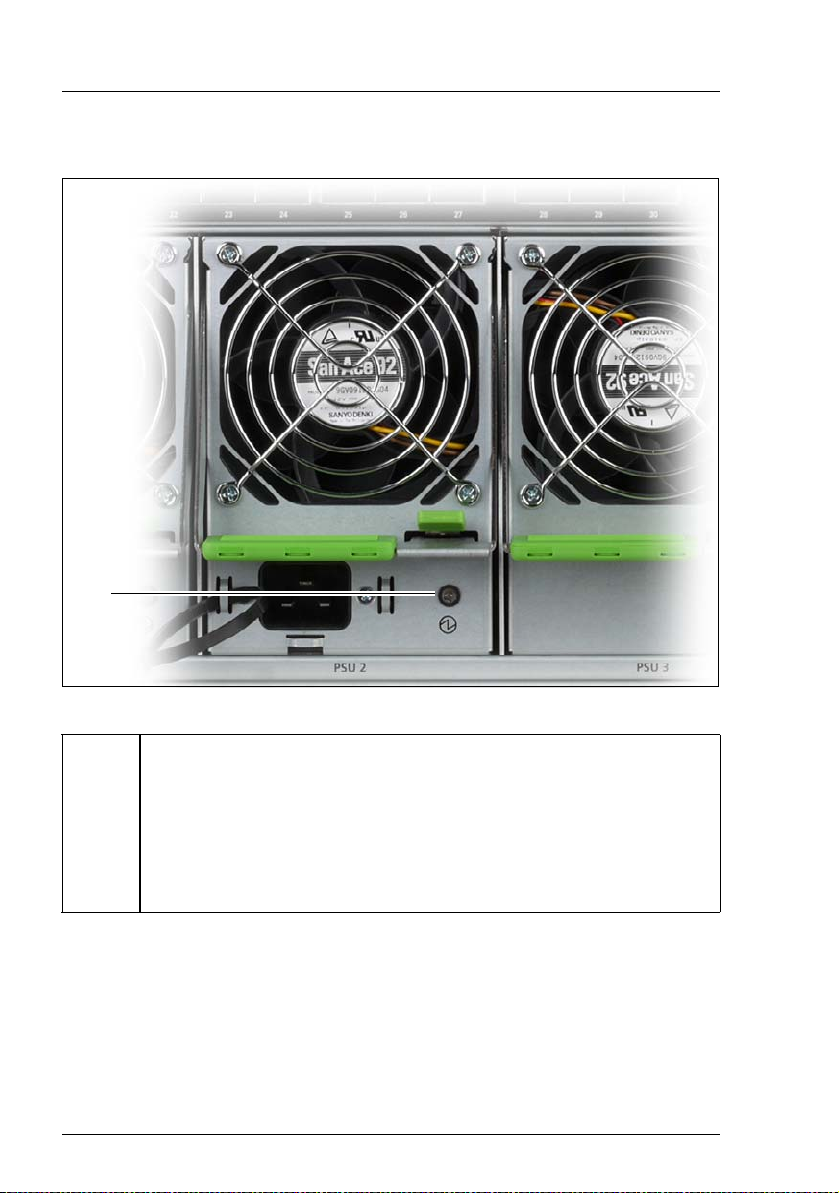

Figure 16: Indicator on the hot-plug power supply unit
1 Mains power indicator (two-color)
Flashes green when the system unit is switched off but still
connected to the mains (standby mode).
Lights up green when the system unit is switched on and is working
properly.
Lights up yellow when a prospective error has been detected in the
power supply unit but the latter is still active.*
* The following events are detected as predictable errors:
The temperature is very high.
The power consumption is very high.
The current strength is very high.
68 Operating Manual BX400 S1
5.1.2.3 Indicators on the hot-plug fan modules
1
Installation and operation

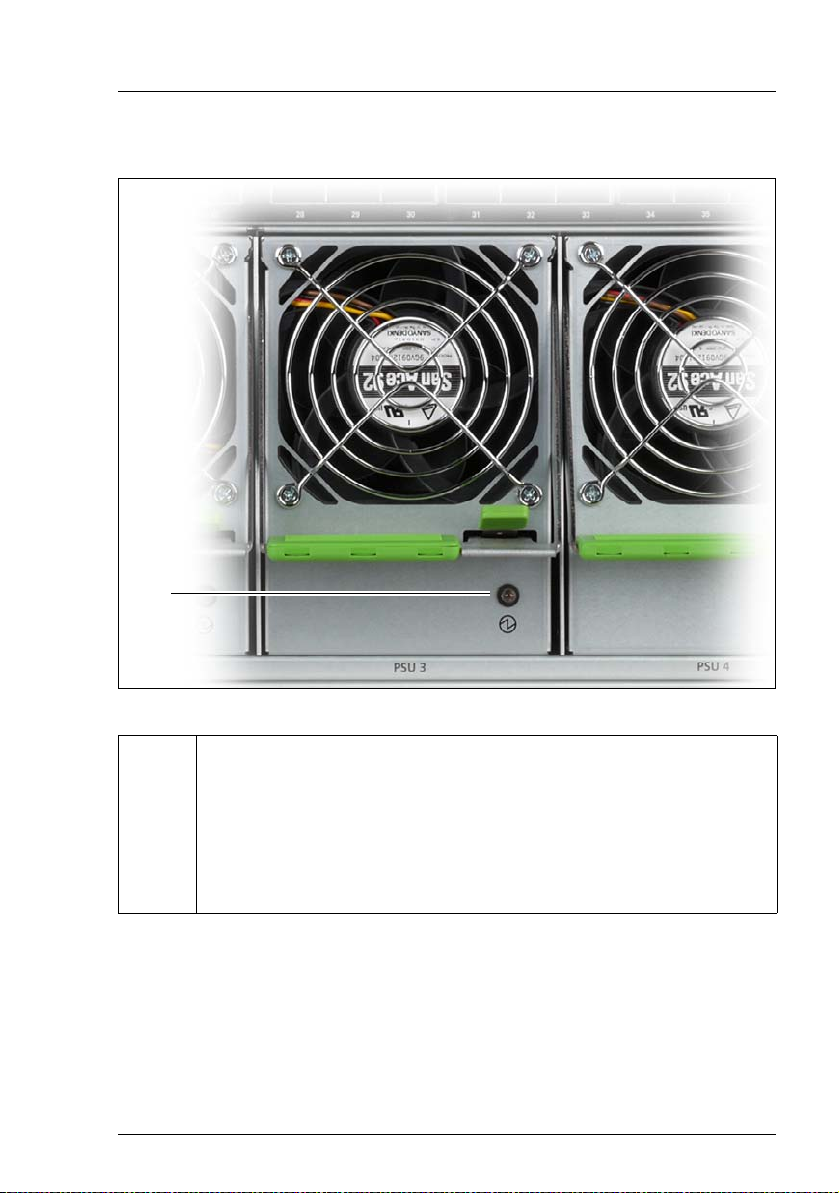

Figure 17: Indicators on the hot-plug fan module
1 Power indicator (two-color)
Flashes green when the system unit is switched off but still
connected to the mains (standby mode).
Lights up green when the system unit is switched on and the fan
module is working properly.
Lights up yellow when a prospective error has been detected in the
fan module but the latter is still active.
BX400 S1 Operating Manual 69
Installation and operation
5.2 Switching the system unit on/off
V CAUTION!
● If you switch on the system unit and the connected monitor only
shows flickering stripes, switch it off immediately (see chapter
"Troubleshooting and tips" on page 81).
● The On/Off button does not disconnect the device from the mains. To
fully disconnect it from the mains, you must unplug the plugs from the
sockets.
● Turn the system unit on when the temperature is in its operating
environment range (10–35°C). For details on the operating
environment, refer to "Safety Precautions". When operating the
device outside of this operating environment, the server may operate
improperly, damage data etc. Furthermore, Fujitsu cannot be held
responsible for any related damage,malfunction, or loss of data, etc.
● Be sure to wait for 10 seconds or more after shutdown before turning
the system unit on.
● Before switching the system unit on using the On/Off button, the
PRIMERGY BX400 S1 system unit must be connected to the power
supply for at least a minute.
Switching on the system unit
Ê Press the On/Off button on the system unit (position 4 in figure 13 on
page 61) for 2 seconds. Depending on the BIOS setting, the individual
server blades will also be switched on. This is done in sequence according
to the numbering of the server blade slots (see figure 19 on page 86.)
Ê If necessary, switch on the required server blades
The system unit is switched on and the activated server blades perform a
system test and boot the operating system.
Switching off the system unit
The system unit is up and running (server blades are also switched on).
Ê To properly shut down all server blades, press the On/Off button on the
front of the system unit (position 4 in figure 13 on page 61) for 4 seconds. All
server blades will then be shut down.
70 Operating Manual BX400 S1
Installation and operation
Ê To immediately shut down all server blades, press the On/Off button on
the front of the system unit (position 4 in figure 13 on page 61) for 10
seconds. All server blades are switched off immediately.
Other ways to shut down the system unit
– Web interface of the management blade
You can also switch off the system unit and the individual server blades via
the Web interface of the management blade (see manual "PRIMERGY
BX400 Blade Server Systems ServerView Management Blade S1 User
Interface Description").
– After power failure
After a power failure, the system unit will switch itself on again automatically,
and the server blades which were running prior to the power failure are
automatically started up again according to the BIOS setting.
I How to switch server blades on/off is described in the relevant operating
manuals.
BX400 S1 Operating Manual 71
Installation and operation
5.3 Configuring management blades
The two redundant management blades form the central interface for
administration of the system unit and all components therein. This section
explains how to do the initial configuration of the management blades.
For more information on administration of the blade server, see the manual
"PRIMERGY BX400 Blade Server Systems ServerView Management Blade S1
User Interface Description").
Initial configuration with the Base Configuration Wizard
Ê Make sure that the hardware installation of the system unit as described in
chapter "Installing the hardware" on page 43.
Ê Press the On/Off button on the ServerView Local Service Display for Blade
(position 4 in figure 13 on page 61) to switch on the system unit.
The management blade boots and the ServerView Local Service Display for
Blade shows the start menu of the Base Configuration Wizard.

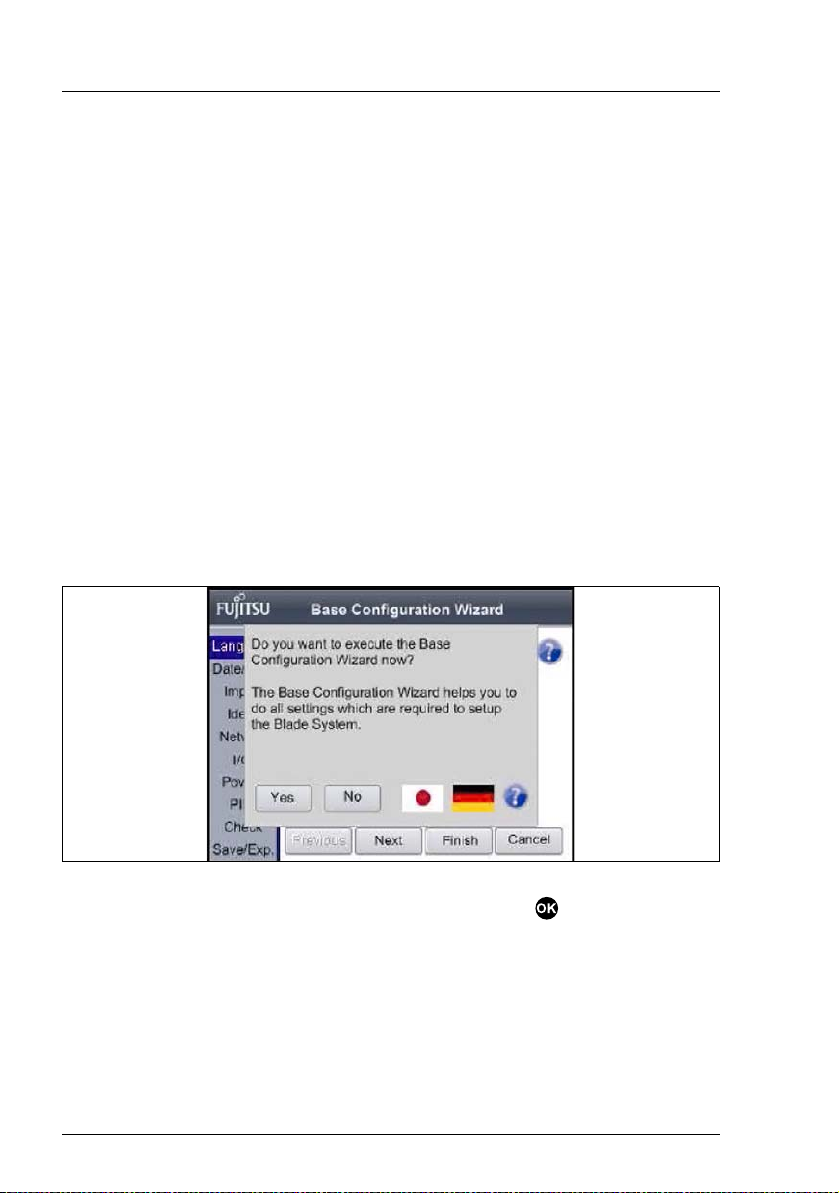

Figure 18: Base Configuration Wizard start menu
Ê Select YES with the nagivation buttons and press the button to start the
wizard.
The NO button closes the Base Configuration Wizard, and the Health Status
Overview menu is displayed.
72 Operating Manual BX400 S1
Installation and operation
The wizard guides you step by step through the menus, in which you make the
necessary settings for putting the blade server into operation. You operate the
wizard with the Previous, Next, and Cancel buttons. The Finish button closes it.
However, you cannot close the wizard until you have defined the following
default settings:
– Language
– Date/Time
– Identification
– Network
Language Defines the language for the menu (English, German or
Japanese)
Date/Time Contains the time and the time zone and activates/deactivates
summer time.
Import If you have activated this option you can import the following
parameters:
– Language
– Identification
– Network
– PIN
– Power
Click Next and specify the path and file name of the configuration
file on the USB storage medium.
Ident. Contains details of:
– System Name
– Rack Name
– System Contact
– System Location
BX400 S1 Operating Manual 73
Installation and operation
Network If DHCP is activated (default), the obtained network data is
displayed. Otherwise you can specify the network data manually:
– IP Address
– Subnet Mask
– Gateway
IPv4 settings
– IPv4 enable
– Obtain IP address from DHCP
– Obtain DNS address from DHCP
– DNS server 1
– DNS server 2
IPv6 settings
– IPv6 enable
– Obtain IP address from DHCP
– Obtain DNS configuration from DHCP
– DNS server 1
– DNS server 2
I/O Contains basic configuration settings for the Front-Side I/O
Module (FSIOM) and the connection blades:
FSIOM settings
– Select server blades for using USB port and DVD drive
Connection blade settings (management port IPv4):
If DHCP is activated (default), the obtained network data is
displayed. Otherwise you can specify the network data manually:
– IP Address
– Subnet Mask
– Gateway
Connection blade settings (management port IPv6):
– IPv6 enabled (OFF)
– DHCP enabled (OFF)
74 Operating Manual BX400 S1
Installation and operation
Power Contains power management settings
Power settings (1) (Default values are highlighted):
– Consumption mode (No Consumption Control / Enforced
Max. Limit / Low Noise Operation / Minimum Power Cons. /
Scheduled Cons. Mode)
– PSU control enabled
– PSU redundancy (No Redundancy / PSU Redundancy /
Phase Redundancy)
– PSU Dynamic Mode enable (ON / OFF)
Power settings (2):
– Maximum Power Limit (value of "Minimum Power Limit" as
printed in the same menu)
Power settings (3):
– PSU/Phase Assignment (Unassigned)
– Phase Limit (no value)
PIN Contains a four-digit PIN as password protection for the
ServerView Local Service Display for Blade
Default values:
– PIN enabled (OFF)
– PIN (0000)
Check Ekeying Check: This is a function which allows you to query the
compatibility of the modules before startup, and then activate,
partially activate or deactivate the module depending on the
result. For example, you would not activate modules whose
operating voltages or power consumption are not compatible with
the system.
This test begins automatically after switch-on or after a hardware
replacement. If errors are found, you can find out more about
them via the Details button. Replace the defective hardware
component and repeat the test.
Save Clicking the Save button saves and applies the settings in the
management blade.
With the Previous button you can go back and change
parameters. You save the changed configuration with the Save
button.
BX400 S1 Operating Manual 75
Installation and operation
Export Deploy / export settings
Deploy Settings
Stored settings can be transferred to another system in the
rack. In the next menu you can specify which configuration
data you want to copy onto which other systems in the
rack.
Export Settings
Stored settings can be saved on a USB storage medium.
In the next menu you can specify which configuration data
you want to save to the USB storage medium.
76 Operating Manual BX400 S1
Installation and operation
5.4 Cleaning the system unit
V CAUTION!
To clean the system unit, first switch it off and unplug the power plug(s)
from the grounded power outlet(s).
The housing interior of the system unit should only be cleaned by
authorized, qualified personnel.
Do not use abrasive powder or detergents which dissolve plastic to clean
the housing exterior.
Make sure that no liquid gets inside the device and that the ventilation
slits on the system unit remain open.
Clean the keyboard and the mouse with a disinfecting cloth.
You may clean the housing surface of the system unit with a dry cloth. If it is very
dirty you can use a damp cloth that has been dipped in water with a mild
detergent and well wrung out.
BX400 S1 Operating Manual 77
Installation and operation
78 Operating Manual BX400 S1
6 Property and data protection
The blade server is protected against unauthorized access by the lockable rack
door.
To protect the system and data internally against unauthorized access, you can
activate the security functions of the management blade. For more information,
see the manual "PRIMERGY BX400 Blade Server Systems ServerView
Management Blade S1 User Interface Description".
Further security options can be set in the BIOS setups and in the operating
systems of the server blades. For information on these, see the BIOS Setup
Utility Reference manuals for the server blades.
BX400 S1 Operating Manual 79
Property and data protection
80 Operating Manual BX400 S1
7 Troubleshooting and tips
V CAUTION!
Follow the safety instructions in the chapter "Important notes" on
page 31.
If a fault occurs, try to correct it as described:
– in this chapter,
– in the chapters for the installed components,
– in the documentation for the connected devices,
– in the help systems of the individual programs used.
If you do not manage to correct the problem, proceed as follows:
Ê Make a note of the steps you have taken and the situation in which the fault
occurred. Also make a note of the error messages displayed.
Ê Switch off the defective server blade or the system.
Ê Contact customer service.
7.1 System power indicator does not light up
The system's power indicator (see figure 15 on page 65) does not light up after
you have switched on your system:
Power cable not connected correctly
Ê Make sure that the power cable is correctly connected to the system's power
supply units and to the socket strip of the rack (see section "Connecting the
system unit to the mains" on page 55).
Power supply overloaded
Ê Unplug the power cables from the insulated sockets of the power supply
units.
Ê Wait a few seconds and then plug the power cables back into the sockets.
Ê Switch on your system.
BX400 S1 Operating Manual 81
Troubleshooting and tips
7.2 Front or back error LED flashes orange
If the front or back ID/error LED is flashing orange (see section "Control and
display elements" on page 59), one of the following errors may have occurred:
One of the power supply units has failed
The status LED of the power supply unit is not lit and/or the error LED of the
power supply unit flashes green if, for example, one of the following errors has
occurred in the power supply unit (see also figure "Indicator on the hot-plug
power supply unit" on page 68):
– General failure (warning or shutdown due to fan no. 1)
– Temperature exceeded (one of the fans in the power supply unit is not
working properly)
– Overcurrent
– Overvoltage or undervoltage
– The power supply unit is reaching the end of its life or its ambient thresholds
are being exceeded.
Ê Check the status of the power supply unit and/or the fan-failure LEDs to
identify the defective module and replace it (see section "Replacing the
power supply unit" on page 134).
One of the fans in the fan module has failed
Although the system can still be used if one of the fans in the fan module fails,
you should:
Ê Replace the defective fan module as soon as possible (see section "Hot-
plug fan modules" on page 136).
A switch blade has failed
The error LED of the switch blade lights up when a general error occurs.
Ê Check the error LEDs of the switch blades to find out which blade has failed.
Ê If the switch blade is still being shown as defective, replace it (see section
"Installing a connection blade" on page 125).
82 Operating Manual BX400 S1
Troubleshooting and tips
7.3 System switches itself off
Server Management has detected an error
Ê Check the error list of System Event Log in ServerView Operations Manager
or in the management blade web interface, and attempt to eliminate the
error.
BX400 S1 Operating Manual 83
Troubleshooting and tips
84 Operating Manual BX400 S1
8 Hot-plug components
This chapter explains how to handle the hot-plug components within the
Customer-Self-Service (CSS) concept and how to make hardware changes to
your system unit in general (e.g. adding or replacing hot-plug power supply units
or hot-plug fan modules).
I Further information on the CSS concept is provided in the "Customer
Self Service (CSS)" manual on the ServerView Suite DVD 2.
Expansions and upgrades may only be carried out by authorized
specialist personnel. These operations are described in the Options
Guide.
BX400 S1 Operating Manual 85
Hot-plug components
8.1 Server blades and storage blades
/135
Figure 19: Numbering of the server blade slots
The PRIMERGYBX400 S1 system unit has 8 slots on the front for
server blades. Please refer to the relevant storage blade operating manuals for
the fitting rules of storage blades.
Different models and configurations of server blades can be combined in the
system unit.
86 Operating Manual BX400 S1
Hot-plug components
Installing a server blade
V CAUTION!
● Make sure you observe the safety notes and the information on
handling electrostatic-sensitive devices in the section "Modules with
Electrostatic-Sensitive Devices" on page 38.
● Beware of the energy hazard at the midplane contacts. A short circuit
on these contacts may damage the system.
● The server blade boots automatically after installation in the
system unit.
When you install a server blade in an active system unit, the server
blade automatically performs a Power-On Self-Test (POST) and then
switches itself off.
If the system unit is switched off when you install the server blade, the
automatic POST is performed immediately after you switch on the
system unit.
● Any unused server blade slots must be fitted with dummy modules to
comply with electromagnetic compatibility (EMC) regulations and to
ensure sufficient cooling of the system components.
BX400 S1 Operating Manual 87
Hot-plug components
The following describes how to install a BX920 S2 server blade. Storage blades
are installed in the same way.
/
1
0
Figure 20: Installing the BX920 S2 server blade
Ê Undo the locking mechanism of the release lever (1).
Ê Open the release lever (2).
Ê Push the server blade as far as possible into the empty slot (3).
88 Operating Manual BX400 S1
/
Figure 21: Locking the BX920 S2 server blade
Hot-plug components
Ê Push the release lever up until it clicks into place under the locking lever (1).
Removal is carried out in reverse order.
BX400 S1 Operating Manual 89
Hot-plug components
Installing a dummy server blade module
Any unused server blade slots must be fitted with dummy modules to comply
with EMC regulations for the system and to ensure sufficient cooling of the
components.
/
Figure 22: Dummy server blade module
The handle (1) is movable and acts as a release lever. It must be at the bottom
when you install the dummy module in the system unit (see figure 23 on
page 91).
90 Operating Manual BX400 S1
/
Figure 23: Installing a dummy server blade module
Hot-plug components
Ê Push the dummy server blade into the empty slot until it clicks into place.
Removing a dummy server blade module
Ê Push up the release lever (1) and pull the dummy module out of the slot by
its handle.
BX400 S1 Operating Manual 91
Hot-plug components
8.2 Connection blades
The PRIMERGY BX400 S1 system unit has 4 slots on the back for connection
blades for connecting the server blades to LAN and SAN networks and
Infinband environments.
This section deals with the connection blades available for your BX400 S1
system unit. It describes their most important features, the external ports, the
assignment of the internal ports to the server blades, and how to install and
remove connection blades in/from the system unit.
How to configure and operate the connection blades is explained in separate
manuals.
The following connection blades are available:
– Connection Blade GbE Switch/IBP 36/12 (SB11A)
– Connection Blade GbE Switch/IBP 36/8+2 (SB11)
– Connection Blade GbE Switch/IBP 18/6 (SB6)
– Connection Blade 10 GbE Switch/IBP 18/8
– Connection Blade Ethernet Pass Thru 10Gb 18/18
– Connection Blade 8Gb FC Switch 18/8
– Connection Blade 8Gb FC Pass Thru 18/18
– Connection Blade DCB SW 10Gb 18/6+6
– Connection Blade FEX B22F 10Gb (Cisco)
– Connection Blade Infiniband Switch 40 Gb 18/18
– Connection Blade Infiniband Switch 56 Gb 18/18 FDR
– Connection Blade SAS Switch 6 Gb 18/6
I For the latest information on optional products provided for the BX400 S1
system unit see the configurator of the system unit:
http://ts.fujitsu.com/products/standard_servers/index.html
(for the EMEA market)
http://jp.fujitsu.com/platform/server/primergy/system/
(for the Japanese market)
I Please refer to the connection blades manuals for other connection
blades.
92 Operating Manual BX400 S1
Hot-plug components
8.2.1 Connection Blade GbE Switch/IBP 36/12 (SB11A)
The Connection Blade GbE Switch/IBP 36/12 can be used as a layer-2 switch
or an Intelligent Blade Panel (IBP). It provides the following connections:
– 36 internal 1-Gbit ports to the server blades
– 8 external 1-Gbit ports through RJ45 connections
– 4 external 1-Gbit ports through SFP modules for Ethernet ports via fiber-
optic or copper cable
This connection blade can be used in all connection blade slots, see figure
"Connection blade slots" on page 120.
If the connection blade is installed in one of the slots CB 2, CB 3 or CB 4, the
server blades must have corresponding GbE mezzanine cards. For more
information, see the operating manuals for the relevant server blades.
Ports and LEDs
34 5 6
12
Figure 24: Connection Blade GbE Switch/IBP 36/12
BX400 S1 Operating Manual 93
AB
Hot-plug components
1 ID indicator (blue)
Lit: ID LED was activated via the management blade
Dark: Normal operation
2 Status indicator (green/orange)
Lights up green: Power is supplied to the connection blade
Lights up
orange:
Dark: Power is not supplied to the connection blade
A 1-Gbit Ethernet ports for SFP modules for connection of fiber-optic or copper
cables (each with two integrated status LEDs)
3 (ERR) Error indicator (orange)
Dark: No SFP transceiver error
Lit: SFP transceiver error
Flashes: SFP module not supported
4 (LINK) LAN connection indicator (green)
Lit: LAN connection available
Flashes: LAN connection active
Dark: LAN connection unavailable or deactivated
B 1-Gbit Ethernet ports (RJ45 with two integrated LAN status LEDs each)
5 LAN transfer rate (green/orange)
Lights up
orange:
Lights up green: LAN transfer rate 100 Mbit/s
Dark: LAN transfer rate 10 Mbit/s
6 LAN connection indicator (green)
Lit: LAN connection available
Flashes: LAN connection active
Dark: LAN connection unavailable or deactivated
Switch error
LAN transfer rate 1 Gbit/s
94 Operating Manual BX400 S1
Hot-plug components
8.2.2 Connection Blade GbE Switch/IBP 36/8+2 (SB11)
The Connection Blade GbE Switch/IBP 36/8+2 can be used as a layer-2 switch
or an Intelligent Blade Panel (IBP). It provides the following connections:
– 36 internal 1-Gbit ports to the server blades
– 8 external 1-Gbit ports through RJ45 connections
– 2 external 10-Gbit ports through SFP+ modules for Ethernet connections via
fiber-optic or copper cable
– 1 internal stacking port to the midplane of the BX400 S1 system unit
– 1 external stacking port through a CX4 connection
The stacking ports allow up to 4 SB11 connection blades to be switched
together to form a so-called stack, see "Connection blade stacking" on
page 98.
This connection blade can be used in all connection blade slots, see figure
"Connection blade slots" on page 120.
If the connection blade is installed in one of the slots CB 2, CB 3 or CB 4, the
server blades must have corresponding GbE mezzanine cards. For more
information, see the operating manuals for the relevant server blades.
BX400 S1 Operating Manual 95
Hot-plug components
Ports and LEDs
12345 67 89
AB C
Figure 25: Connection Blade GbE Switch/IBP 36/12
1 Status indicator (green/orange)
Lights up green: Power is supplied to the connection blade
Flashes orange: Connection blade error
Dark: Power is not supplied to the connection blade
2 ID indicator (blue)
Lit: ID LED was activated via the management blade
Dark: Normal operation
3 Stacking port 1 (internal) (green)
Lit: Stacking port 1 is available
Flashes green: Stacking port 1 is active
Dark: Stacking port 1 is not available
4 Stacking port 2 (external) (green)
Lit: Stacking port 2 is available
Flashes green: Stacking port 2 is active
Dark: Stacking port 2 is not available
5 Stacking (green/orange)
Lights up
yellow:
Flashes yellow: Connection blade cannot perform role of master
Lights up green: Connection blade is stack slave
Flashes green: Master selection process is active
Dark: Connection blade does not belong to a stack
Connection blade is stack master
96 Operating Manual BX400 S1
Hot-plug components
A HiGig/HiGig+ connection (CX4) for stacking, see "Connection blade stacking" on
page 98
B 10-Gbit Ethernet ports for SFP+ modules for connecting fiber-optic or copper
cables (with two integrated status LEDs each)
6 (ERR) Error indicator (orange)
Dark: No SFP+ transceiver error
Lit: SFP+ transceiver error
Flashes: SFP+ module not supported
7 (LINK) LAN connection indicator (green)
Lit: SFP+ transceiver connection available
Flashes: SFP+ transceiver connection active
Dark: SFP+ transceiver connection not available or
C 1-Gbit Ethernet ports (RJ45 with two integrated LAN status LEDs each)
5 LAN transfer rate (green/orange)
Lights up
orange:
Lights up green: LAN transfer rate 100 Mbit/s
Dark: LAN transfer rate 10 Mbit/s
6 LAN connection indicator (green)
Lit: LAN connection available
Flashes: LAN connection active
Dark: LAN connection unavailable or deactivated
deactivated.
LAN transfer rate 1 Gbit/s
BX400 S1 Operating Manual 97
Hot-plug components
8.2.2.1 Connection blade stacking
Up to 4 Connection Blades GbE Switch/IBP 36/8+2 can be operated together
to form a so-called stack. One of the connection blades takes on the role of the
master. This connection blade is used to administer all modules of the stack. All
modules of a stack act as one connection blade. In this way, connection blade
stacking offers a large number of ports with minimum administrative effort.
The connections within a stack are established through the stacking ports of the
connection blades. The internal stacking ports to the midplane of the system
unit are each used to connect two connection blades that are installed in the
same fabric, i.e. in two adjacent slots. Connection blades in different fabrics are
connected through the external ports using CX4 cables.

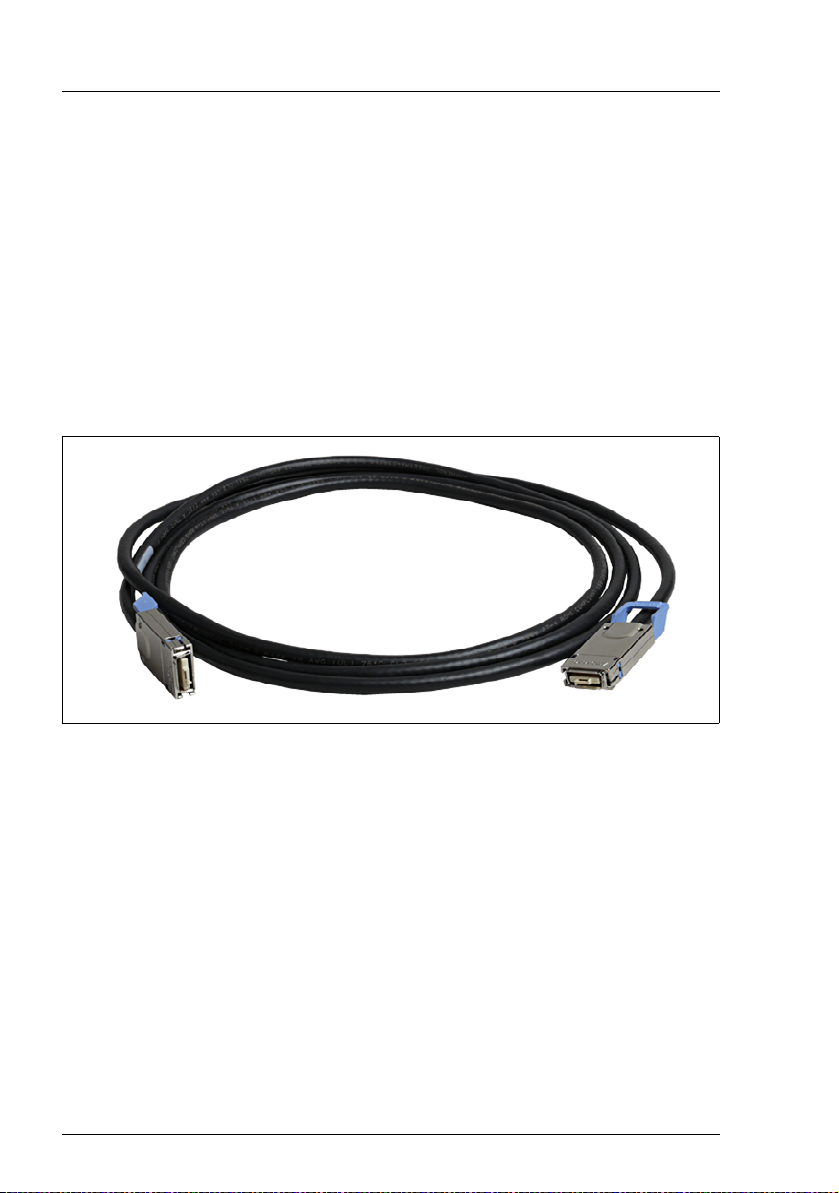

Figure 26: CX4 cable
The stacking connections within a stack must form a circuit. Connection blade
stacks can be formed within a system unit, across several system units of a rack
or across several system units in different racks.
Further information
You determine which connection blade takes on the master role through the
sequence and the intervals at which the connection blades are booted and
connected with each other. For more detailed information and additional
possible configurations, see the manuals "PRIMERGY BX900 Blade Server
Systems – Ethernet Connection Blade Module IBP Version – User’s Guide",
"PRIMERGY BX900 Blade Server Systems – Ethernet Connection Blade
Module Switch Version – User’s Guide" and " スイッチブレード（10Gbps 18/8）
取扱説明書 " (for the Japanese market).
98 Operating Manual BX400 S1
Hot-plug components
8.2.3 Connection Blade GbE Switch/IBP 18/6 (SB6)
The Connection Blade GbE Switch/IBP 18/6 can be used as a layer-2 switch or
an Intelligent Blade Panel (IBP). It provides the following connections:
– 18 internal 1-Gbit ports to the server blades
– 6 external 1-Gbit ports through RJ45 connections
This connection blade can be used in all connection blade slots, see figure
"Connection blade slots" on page 120.
If the connection blade is installed in one of the slots CB 2, CB 3 or CB 4, the
server blades must have corresponding GbE mezzanine cards. For more
information, see the operating manuals for the relevant server blades.
BX400 S1 Operating Manual 99
Hot-plug components
Ports and LEDs
12 3 4
A
Figure 27: Connection Blade GbE Switch/IBP 18/6
1 Status indicator (green/orange)
Lights up green: Power is supplied to the connection blade
Flashes orange: Connection blade failure
Dark: Power is not supplied to the connection blade
2 ID indicator (blue)
Lit: ID LED was activated via the management blade
Dark: Normal operation
A 1-Gbit Ethernet ports (RJ45 with two integrated LAN status LEDs each)
3 LAN transfer rate (green/orange)
Lights up
orange:
Lights up green: LAN transfer rate 100 Mbit/s
Dark: LAN transfer rate 10 Mbit/s
4 LAN connection indicator (green)
Lit: LAN connection available
Flashes: LAN connection active
Dark: LAN connection unavailable or deactivated
LAN transfer rate 1 Gbit/s
100 Operating Manual BX400 S1
