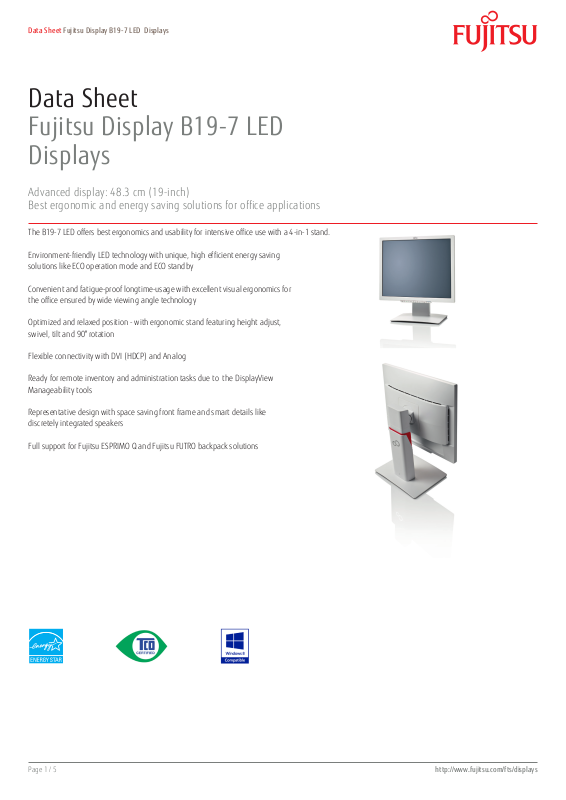

Data Sheet Fujitsu Display B19-7 LED Displays
Data Sheet
Fujitsu Display B19-7 LED
Displays
Advanced display: 48.3 cm (19-inch)
Best ergonomic and energy saving solutions for office applications
The B19-7 LED offers best ergonomics and usability for intensive ofce use with a 4-in-1 stand.
Environment-friendly LED technology with unique, high efcient energy saving
solutions like ECO operation mode and ECO standby
Convenient and fatigue-proof longtime-usage with excellent visual ergonomics for
the ofce ensured by wide viewing angle technology
Optimized and relaxed position - with ergonomic stand featuring height adjust,
swivel, tilt and 90° rotation
Flexible connectivity with DVI (HDCP) and Analog
Ready for remote inventory and administration tasks due to the DisplayView
Manageability tools
Representative design with space saving front frame and smart details like
discretely integrated speakers
Full support for Fujitsu ESPRIMO Q and Fujitsu FUTRO backpack solutions
Page 1 / 5 http://www.fujitsu.com/fts/displays
Data Sheet Fujitsu Display B19-7 LED Displays
Technical details
Special features
Wide viewing angle technology, 4-in-1 Stand, Eco button for Eco mode and 3-coloured Eco status LED, Pivot,
DisplayView™ IT Suite, 24/7 usage
Ergonomic stand
Stand 4-in-1 Stand
Height adjust range 130 mm
Picture height over desk (min) 45 mm
Rotation to portrait 90°
Tilt angle -5° / +35°
Swivel angle 340°
Picture performance
Panel and backlit IPS/LED
Screen Surface Treatment Anti-glare, 3H hard coating
Contrast - typical 1000:1
Contrast - advanced 2,000,000:1
Response time gray to gray typical 8 ms
Viewing angle (h/v) - typical 178°/178° CR10:1
Color performance 16.7 million colors (Hi-FRC)
Brightness - typical 250 cd/m2
Size and resolution
Aspect ratio 5:4
Diagonal Size 48.3 cm (19-inch)
Resolution (native) 1280 x 1024 pixel (recommended)
Resolution (interpolated) 1024 x 768 pixel, 800 x 600 pixel, 720 x 400 pixel, 640 x 480 pixel
Picture size 375 x 300 mm
Pixel Pitch 0.293 mm
Frequencies
Horizontal 30 - 82 kHz
Vertical 56 - 76 Hz
Frequencies - bandwidth 165 Mhz
Connectivity
DVI 1 x DVI (HDCP)
VGA/D-SUB 1 x D-SUB
Audio signal output 3.5 mm stereo phone jack for head phone
Audio signal input 3.5 mm stereo phone jack
Audio sound output 2 x 1.5 W
Ease-of-use menu
Languages Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Russian,
Spanish, Swedish, Turkish, Japanese, Chinese simply, Chinese traditional
Brightness / Contrast Brightness, Contrast, Black level, Auto level
Color sRGB, 6500K, 7500K, 9300K, Native, Custom Color (R,G,B)
Image adjust Clock, Phase, H-Position, V-Position
Audio Mute, Volume
Information Model name, S/N, Resolution/mode, Signal input
Setup Input select, Language, DDC-CI, OSD-Timeout, Factory recall
Power consumption (typical)
Soft switch off 0.27 W
Power save mode 0.27 W
Operating with EPA settings 14.6 W
Operating maximum brightness 17 W
Page 2 / 5 http://www.fujitsu.com/fts/displays
Data Sheet Fujitsu Display B19-7 LED Displays
Power supply display integrated
Power notes without sound;
Electrical values
Rated voltage range 100 V - 240 V
Rated frequency range 50 Hz - 60 Hz
Protection class 1
Compliance
Europe CE certication according to EC Directive 2004/108/EEC, EN 60950, RoHS, WEEE, IT-Eco-Declaration, Nordic Swan in
progress
Model DY19-7
Germany TÜV GS
Russia EAC
USA/Canada FCC Class B, cUL
Japan VCCI
South Korea KC (planned)
Argentina TÜV-S
Taiwan BSMI (planned)
China CCC (planned)
Saudi Arabia SASO
Global TCO Displays 6.0, ENERGY STAR® 6.0, EPEAT® in progress (dedicated regions), ISO9241-307 (Pixel fault class I)
Compliance link http://globalsp.ts.fujitsu.com/sites/certicates
Quality and Reliability
MTBF (demonstrated) 70000 h
Dimensions / Weight / Environmental
Dimension without stand (W x D x H) 414 x 64 x 349 mm
16.30 x 2.52 x 13.74 inch
Dimension with stand (W x D x H) 414 x 209 x 370 mm
16.30 x 8.23 x 14.57 inch
Weight (packed) 7.2 kg
15.9 lbs
Weight (unpacked) 5.48 kg
12.1 lbs
Weight (Monitor only) 2.85 kg
6.3 lbs
Operating ambient temperature 5 - 35 °C
Miscellaneous
Miscellaneous VESA DDC/ CI, Flat Display Mounting Interface VESA MIS-D 100 C, Kensington lock prepared
Color Marble grey
Package content
Display delivered accessories DVI-D Data cable 1.8 m, D-SUB Data cable 1.8 m , Audio cable 1.8 m, Power cable for wall socket (Euro-Schuko-Type
CEE7) 1.8 m, Quickstart yer, Utility CD, Warranty booklet, Safety booklet
Display delivered accessories notes Data cables and audio cable detachable on display
Order information
Order Code S26361-K1471-V140
Country specic order code BDL:K1471V140-UK - with UK power cable, mandatory for Arabian countries
BDL:K1471V140-CHN - with China power cable and CEL, mandatory for China
BDL:K1471V140-ID - with Import label, mandatory for Indonesia
BDL:K1471V140-INT - W/o power cable, mandatory for countries where import with EU cable is not allowed
EAN Code 4051554619824
Warranty
Standard Warranty 3 years (depending on country)
Service level Collect & Return Service (depending on country specic requirements) (depending on country)
Warranty Terms & Conditions http://support.ts.fujitsu.com/warranty
Page 3 / 5 http://www.fujitsu.com/fts/displays
Data Sheet Fujitsu Display B19-7 LED Displays
Warranty
Spare Parts availability 5 years after end of product life
Service Weblink http://www.fujitsu.com/fts/services/support
