ROOM AIR CONDITIONER
CEILING WALL TYPE
KEEP THIS OPERATION MANUAL
FOR FUTURE REFERENCE
FUJITSU GENERAL LIMITED
OPERATING MANUAL
Indoor Unit
AWT14RB
AWT18AB
AWT18RB
AWT24AB
AWT24RB
AWT30AB
AWT30RB
Outdoor Unit
AOT14R
AOT18A
AOT18R
AOT24A
AOT24R
AOT30A
AOT30R
P/N9369307010
1
CONTENTS
● Do not attempt to install this air conditioner by yourself.
● This unit contains no user-serviceable parts. Always consult authorized service per-
sonnel for repairs.
● When moving, consult authorized service personnel for disconnection and installation of the unit.
● Do not become over-exposed to cold air by staying in the direct path of the air flow of
the air conditioner for extended periods of time.
● Do not insert fingers or objects into the outlet port or intake grilles.
● Do not start and stop air conditioner operation by turning off the electrical breaker or
disconnecting the power supply plug and so on.
● Take care not to damage the power supply cord.
● In the event of a malfunction (burning smell, etc.), immediately stop operation, turn
off the electrical breaker or disconnect the power supply plug, and consult authorized
service personnel.
● Provide occasional ventilation during use.
● Do not direct air flow at fireplaces or heating apparatus.
● Do not climb on, or place objects on, the air conditioner.
● Do not hang objects from the indoor unit.
● Do not set flower vases or water containers on top of air conditioners.
● Do not expose the air conditioner directly to water.
● Do not operate the air conditioner with wet hands.
● Do not pull power supply cord.
● Turn off power source when not using the unit for extended periods.
● Always turn off the electrical breaker or disconnect the power supply plug whenever
cleaning the air conditioner or the air filter.
● Connection valves become hot during Heating; handle with care.
● Check the condition of the installation stand for damage.
● Do not place animals or plants in the direct path of the air flow.
● Do not drink the water drained from the air conditioner.
● Do not use in applications involving the storage of foods, plants or animals, precision
equipment, or art works.
● Do not apply any heavy pressure to radiator fins.
● Operate only with air filters installed.
● Do not block or cover the intake grille and outlet port.
● Ensure that any electronic equipment is at least one metre away from either the in-
door or outdoor units.
● Avoid installing the air conditioner near a fireplace or other heating apparatus.
● When installing the indoor and outdoor unit, take precautions to prevent access to
infants.
● Do not use inflammable gases near the air conditioner.
SAFETY PRECAUTIONS
CAUTION!
DANGER!
● Before using the appliance, read these “PRECAUTIONS” thoroughly and operate in the correct way.
● The instructions in this section all relate to safety; be sure to maintain save operating conditions.
● “DANGER”, “WARNING” and “CAUTION” have the following meanings in these instructions:
WARNING!
CAUTION!
This mark indicates procedures which, if improperly performed, are most likely to
result in the death of or serious injury to the user or service personnel.
This mark indicates procedures which, if improperly performed, might lead to the
death or serious injury of the user.
This mark indicates procedures which, if improperly performed, might possibly result
in personal harm to the user, or damage to property.
DANGER!
SAFETY PRECAUTIONS .......................................... 1
FEATURES AND FUNCTIONS ................................. 2
NAME OF PARTS ...................................................... 3
PREPARATION .......................................................... 5
OPERATION .............................................................. 6
TIMER OPERATION .................................................. 8
SLEEP TIMER OPERATION ...................................... 9
MANUAL AUTO OPERATION ............................... 9

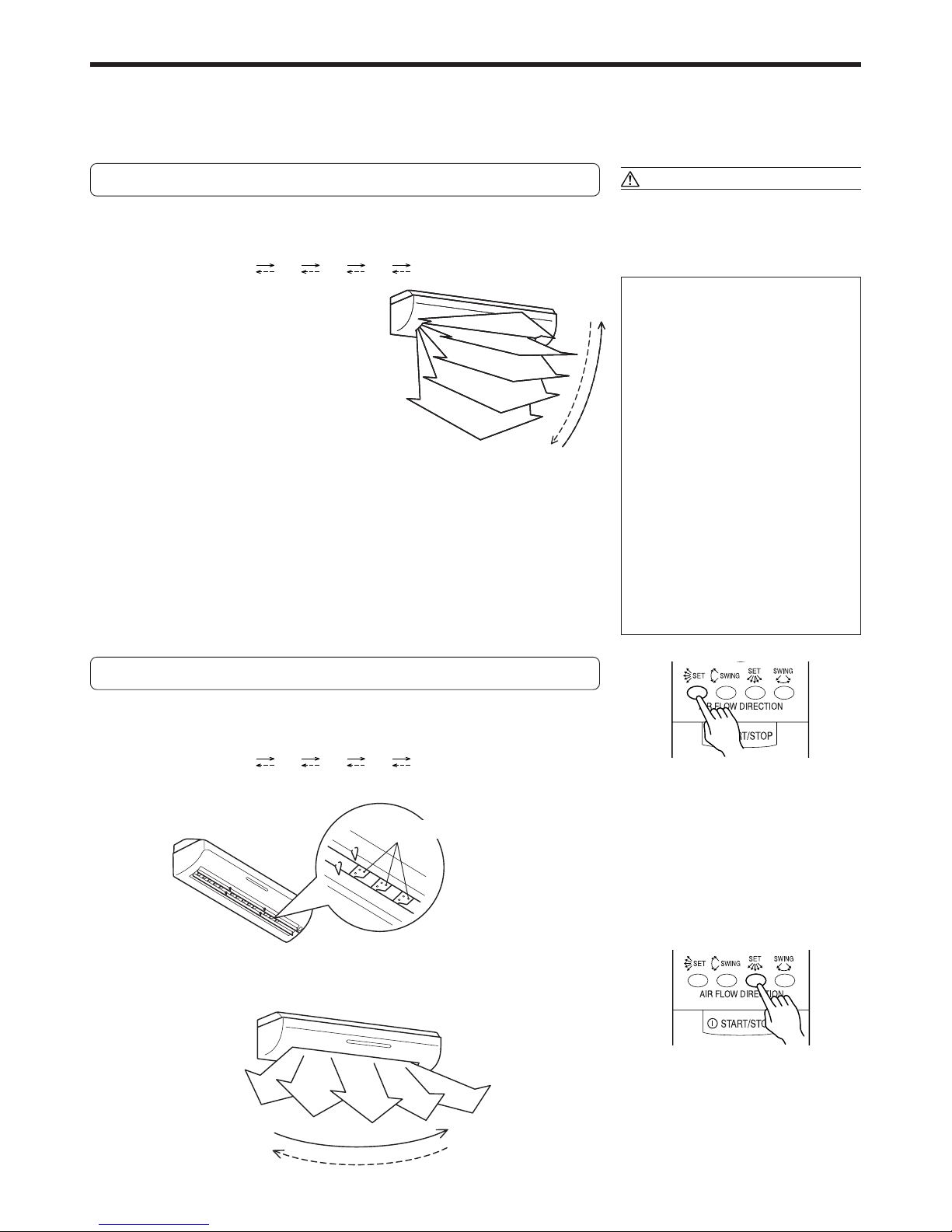

ADJUSTING THE DIRECTION OF
AIR CIRCULATION ............................................... 10
SWING OPERATION ............................................ 11
CLEANING AND CARE ........................................ 12
TROUBLESHOOTING .......................................... 13
OPERATING TIPS................................................. 14
2
FEATURES AND FUNCTIONS
AUTOMATIC OPERATION
● COOLING MODEL
Merely press the START/STOP button, and the unit will
begin automatic operation in the Cooling or Dry mode as
appropriate, in accordance with the thermostat setting
and the actual temperature of the room.
● HEAT & COOL MODEL (REVERSE CYCLE)
Merely press the START/STOP button, and the unit will
begin automatic operation in either the Heating, Cooling
or Monitor modes as appropriate, in accordance with the
thermostat setting and the actual temperature of the
room.
SLEEP TIMER
● COOLING MODEL
When the SLEEP timer button is pressed during Cooling
or Dry mode, the thermostat setting is gradually raised
during the period of operation. When the set time is
reached, the unit automatically turns off.
● HEAT & COOL MODEL (REVERSE CYCLE)
When the SLEEP timer button is pressed during Heating
mode, the air conditioner’s thermostat setting is gradually lowered during the period of operation; during Cooling or Dry mode, the thermostat setting is gradually raised
during the period of operation. When the set time is
reached, the unit automatically turns off.
WIRELESS REMOTE CONTROL UNIT
The WIRELESS REMOTE CONTROL UNIT allows convenient
control of air conditioner operation.
OMNI-DIRECTIONAL AIR FLOW
(SWING OPERATION)
Three-dimensional control over air direction swing is possible through dual use of both an UP/DOWN air direction swing
and RIGHT/LEFT air direction swing. Since UP/DOWN air
direction flaps operate automatically according to the operating mode of the unit, it is possible to set air direction based
on the operating mode.
REMOVABLE INTAKE FILTER
The indoor unit’s INTAKE FILTER can be removed for easy
cleaning and maintenance.
MILDEW-RESISTANT FILTER
The INTAKE FILTER has been treated to resist mildew growth,
thus allowing cleaner use and easier care.
AIR CLEANING FILTER (Optional)
The optional air cleaning filter uses an electrostatic principle to clean the air of fine particulate matter such as tobacco
smoke and plant pollen.
3
F
D
E
Fig. 2
Fig. 3
Fig. 4
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
NAME OF PARTS
Fig. 5
Fig. 6
Fig. 1
Fig. 8
Fig. 7
0
1
4
9
A
B
3
76 5 8
2
C
F
D
E
F
D
E
4
Fig. 1 Indoor Unit
1 Operating Control Panel (Fig. 2)
2 MANUAL AUTO button
3 Remote Control Signal Receiver
4 Indicator Lamps (Fig. 3)
5 OPERATION Indicator Lamp
(green ......COOL, DRY, FAN)
(red .......... *HEAT)
6 TIMER Indicator Lamp (yellow)
7 SWING Indicator Lamp (orange)
(VERTICAL SWING)
8 SWING Indicator Lamp (orange)
(HORIZONTAL SWING)
● If the TIMER indicator lamp flashes when
the timer is operating, it indicates that a
fault has occurred with the timer setting
(See page 15 Auto Restart).
9 Intake Filter (Fig. 4)
; UP/DOWN Air Direction Flaps
A RIGHT/LEFT Air Direction Louvers
(behind UP/DOWN Air Direction Flaps)
B Drain Hose
C Air Cleaning Filter (optional)
Fig. 5 Outdoor Unit
D Intake Port
E Outlet Port
F Pipe Unit
Fig. 6 Remote Control Unit
G SLEEP button
H MASTER CONTROL button
I SET TEMP./SET TIME buttons ( )
J Signal Transmitter
K TIMER button
L FAN CONTROL button
M START/STOP button
N AIR FLOW DIRECTION
VERTICAL SET button
O AIR FLOW DIRECTION
VERTICAL SWING button
P AIR FLOW DIRECTION
HORIZONTAL SET button
Q AIR FLOW DIRECTION
HORIZONTAL SWING button
Rear side (Fig. 7)
R TIME ADJUST button
S ACL button
(located inside battery compartment)
T TEST RUN button
● This button is used when installing the air
conditioner and should not be used under
normal conditions as it will cause the air
conditioner’s thermostat function to oper-
ate incorrectly.
● If this button is pressed during normal operation, the unit will switch to test operation mode, and the indoor unit’s OPERATION indicator lamp and TIMER indicator
lamp will begin to flash simultaneously.
● To stop the test operation mode, either
press the TEST RUN button once again, or
press the START/STOP button to stop the
air conditioner.
U Remote Control Unit Display (Fig. 8)
V Transmit Indicator
W Clock Display
X Operating Mode Display
Y Timer Mode Display
Z Fan Speed Display
[ Temperature Set Display
\ Timer Set Indicator
] Temperature Set Indicator
5
PREPARATION
CAUTION!
● Take care to prevent infants from
accidentally swallowing batteries.
● When not using the remote control unit
for an extended period, remove the
batteries to avoid possible leakage and
damage to the unit.
● If leaking battery fluid comes in contact
with your skin, eyes, or mouth, immediately wash with copious amounts of
water, and consult your physician.
● Dead batteries should be removed
quickly and disposed of properly, either
by placing in a public battery collection
receptacle, or by returning to appropriate authority.
● Do not attempt to recharge dry batteries.
Never mix new and used batteries, or
batteries of different types.
Batteries should last about one year
under normal use. If the remote control
unit’s operating range becomes appreciably reduced, replace the batteries and
press the ACL button with the tip of a
ballpoint pen or other small object.
Load Batteries (R03/LR03
××
××
× 2)
1
Press and slide the battery compartment lid on the reverse side to open it.
Slide in the direction of the arrow while pressing the mark.
2
Insert batteries.
Be sure to align the battery polarities ( ) correctly.
3
Close the battery compartment lid.
Set the Current time
1
Press the TIME ADJUST button (Fig. 7 R).
Use the tip of a ball-point pen or other small object to press the button.
2
Use the ( ) SET TIME buttons (Fig. 6 I) to adjust
the clock to the current time.
button: Press to advance the time.
button: Press to reverse the time.
(Each time the buttons are pressed, the time will be advanced/reversed in
one-minute increments; hold the buttons depressed to change the time
quickly in ten-minute increments.)
3
Press the TIME ADJUST button again.
This completes the time setting and starts the clock.
To Use the Remote Control Unit
● The remote control unit must be pointed at signal receiver (Fig. 1 3) to operate
correctly.
● Operating range: About 7 meters.
● When a signal is properly received by the air conditioner, a beeping sound will
be heard.
● If no beep is heard, press the remote control unit button again.
Remote Control Unit Holder
3 To remove the Remote
Control Unit (when use at
hand).
1 Mount the Holder. 2 Set the Remote Control Unit.
Screws
Insert
Press in
Slide up
Pull out
6
Example: When set to COOL
Example: When set to 26 °C
Example: When set to AUTO
To Select Mode Operation
1
Press the START/STOP button (Fig. 6 M).
The indoor unit’s OPERATION indicator lamp (green or red) (Fig. 3 5) will light.
The air conditioner will start operating.
2
Press the MASTER CONTROL button (Fig. 6 H) to select the desired mode.
Each time the button is pressed, the mode will change in the following
order:
AUTO COOL DRY
*HEAT FAN
About three seconds later, the entire display will reappear.
To Set the Thermostat
Press the SET TEMP. buttons (Fig. 6 I).
button: Press to raise the thermostat setting.
button: Press to lower the thermostat setting.
●Thermostat setting range:
AUTO .................................. 18 to 30 °C
* Heating ............................... 16 to 30 °C
Cooling/Dry ........................ 18 to 30 °C
The thermostat cannot be used to set room temperature during the FAN mode (the
temperature will not appear on the remote control unit’s display).
About three seconds later, the entire display will reappear.
The thermostat setting should be considered a standard value, and may differ
somewhat from the actual room temperature.
To Set the Fan Speed
Press the FAN CONTROL button (Fig. 6 L).
Each time the button is pressed, the fan speed changes in the following order:
AUTO HIGH MED LOW
About three seconds later, the entire display will reappear.
When set to AUTO:
* Heating : Fan operates so as to optimally circulate warmed air.
However, the fan will operate at very low speed when the temperature
of the air issued from the indoor unit is low.
Cooling : As the room temperature approaches that of the thermostat setting,
the fan speed becomes slower.
Fan : The fan alternately turns on and off; when on, the fan runs at the low
fan speed.
The fan will operate at a very low setting during Monitor operation
and at the start of the Heating mode.
OPERATION
t
ss
s
t
s
sss
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
To Stop Operation
Press the START/STOP button.
The OPERATION indicator lamp (green or red) (Fig. 3 5) will go out.
7
About Mode Operation
AUTO:
COOLING MODEL
● When the room temperature is 2 °C higher
than the set temperature, the mode will
switch between Cooling and Drying.
● During Drying mode operation, FAN set-
ting is switched to LOW gentle cooling
effect, and the room fan may stop rotating temporarily .
● If the mode automatically selected by the
unit is not what you wish, see page 6 and
select one of the mode operation (COOL,
DRY, FAN).
AUTO (* AUTO CHANGEOVER):
HEAT & COOL MODEL (Reverse cycle)
● When AUTO CHANGEOVER operation is selected, the air conditioner selects the
appropriate operation mode (Cooling or Heating) in response to your room’s
temperature.
● When AUTO CHANGEOVER operation first selected, the fan will operate at very
low speed for about one minute, during which time the unit detects the room
conditions and selects the proper operating mode.
● When the air conditioner has adjusted your room’s temperature to near the ther-
mostat setting, it will begin monitor operation. In the monitor operation mode,
the fan will operate at low speed. If the room temperature subsequently changes,
the air conditioner will once again select the appropriate operation (Heating, Cooling) to adjust the temperature to the value set in the thermostat. (The monitor
operation range is ±2 °C relative to the thermostat setting.)
● If the mode automatically selected by the unit is not what you wish, see page 6
and select one of the mode operation (HEAT, COOL, DRY, FAN).
*Heating:
● Use to warm your room.
● When Heating mode is selected, the air conditioner will operate at very low fan
speed for about 3 to 5 minutes, after which it will switch to the selected fan setting. This period of time is provided to allow the indoor unit to warm up before
begin full operation.
● When the room temperature is very low, frost may form on the outside unit, and
its performance may be reduced. In order to remove such frost, the unit will
automatically enter the defrost cycle from time to time. During Automatic Defrosting operation, the OPERATION indicator lamp (red) will flash, and the heat
operation will be interrupted.
Cooling:
● Use to cool your room.
Dry:
● Use for gently cooling while dehumidifying your room.
● You cannot heat the room during Dry mode.
● During Dry mode, the unit will operate at low speed; in order to adjust room
humidity, the indoor unit’s fan may stop from time to time. Also, the fan may
operate at very low speed when detecting room humidity.
● Then fan speed cannot be changed manually when Dry mode has been selected.
Fan:
● Use to circulate the air throughout your room.
OPERATION
Setting temperature
Thermostat control
Dry Operation
Cooling Operation
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
* During Heating mode:
Set the thermostat to a temperature setting that is higher than the current room
temperature. The Heating mode will not
operate if the thermostat is set lower than
the actual room temperature.
During Cooling/Dry mode:
Set the thermostat to a temperature setting that is lower than the current room
temperature. The Cooling and Dry modes
will not operate if the thermostat is set
higher than the actual room temperature
(in Cooling mode, the fan alone will operate).
During Fan mode:
You can not use the unit to heat and cool
your room.
2 °C
8
To Use the ON timer or OFF timer
1
Press the START/STOP button (Fig. 6 M)
(if the unit is already operating, proceed to step 2).
The indoor unit’s OPERATION indicator lamp (green or red) (Fig. 3 5) will light.
2
Press the TIMER button (Fig. 6 K) to select the OFF
timer or ON timer operation.
Each time the button is pressed the timer function changes in the following order:
RESET OFF ON
PROGRAM(OFF → ON, OFF ← ON)
The indoor unit’s TIMER indicator lamp (yellow) (Fig. 3 6) will light.
3
Use the SET TIME buttons (Fig. 6 I) to adjust the desired OFF time or ON time.
Set the time while the time display is flashing (the flashing will continue
for about five seconds).
button: Press to advance the time.
button: Press to reverse the time.
About five seconds later, the entire display will reappear.
To Use the PROGRAM timer
1
Press the START/STOP button (Fig. 6 M)
(if the unit is already operating, proceed to step 2).
The indoor unit’s OPERATION indicator lamp (green or red) (Fig. 3 5) will
light.
2
Set the desired times for OFF timer and ON timer.
See the section “To Use the ON timer or OFF timer” to set the desired
mode and times.
About three seconds later, the entire display will reappear.
The indoor unit’s TIMER indicator lamp (yellow) (Fig. 3 6) will light.
3
Press the TIMER button (Fig. 6 K) to select the PROGRAM timer operation (either OFF → ON or OFF ← ON
will display).
The display will alternately show “OFF timer” and “ON timer”, then change
to show the time setting for the operation to occur first.
● The PROGRAM timer will begin operation. (If the ON timer has been
selected to operate first, the unit will stop operating at this point.)
About five seconds later, the entire display will reappear.
TIMER OPERATION
sss
t
Before using the timer function, be sure that the Remote Control Unit is set to the correct current time (See page 5).
To Cancel the Timer
Use the TIMER button to select “TIMER
RESET”.
The air conditioner will return to normal
operation.
To Change the Timer Settings
Perform steps 2 and 3.
To Stop Air Conditioner Operation
while the Timer is Operating
Press the START/STOP button.
To Change Operating Conditions
If you wish to change the operating
conditions (Mode, Fan Speed, Thermostat
Setting), after making the timer setting,
wait until the entire display reappears, then
press the appropriate buttons to change
the operating condition desired.
To Cancel the Timer
Use the TIMER button to select “TIMER
RESET”.
The air conditioner will return to normal
operation.
To Change the Timer Settings
1.
Follow the instructions given in the section
“To Use the ON Timer or OFF Timer” to select the timer setting you wish to change.
2. Press the TIMER button to select either
OFF → ON or OFF ← ON.
To Stop Air Conditioner Operation
while the Timer is Operating
Press the START/STOP button.
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Thermostat Setting),
after making the timer setting, wait until
the entire display reappears, then press the
appropriate buttons to change the operating condition desired.
About the PROGRAM timer
● The PROGRAM timer allows you to integrate OFF timer
and ON timer operations in a single sequence. The sequence can involve one transition from OFF timer to ON
timer, or from ON timer to OFF timer, within a twentyfour hour period.
● The first timer function to operate will be the one set nearest to the current time. The order of operation is indicated by the arrow in the remote control unit’s display
(OFF → ON, or OFF ← ON).
● One example of PROGRAM timer use might be to have
the air conditioner automatically stop (OFF timer) after
you go to sleep, then start (ON timer) automatically in
the morning before you rise.
About the ON timer
● The timer function is designed to bring your room to a
comfortable temperature by the set time; as a result, the
unit automatically begins operation before the set time
so that the room reaches the desired temperature by the
time set on the timer (“Nice-Morning Timer”).
● The hotter it is in summer, or the colder it is in winter, the
earlier that operation will begin.
* During Heating Operation .......from 45 to 10 minutes be-
fore set time.
During Cooling/Dry Operation ... from 20 to 10 minutes be-
fore set time.
During Fan Operation .............. at the set time.
9
SLEEP TIMER OPERATION
To Use the SLEEP timer
While the air conditioner is operating or stopped, press the
SLEEP button (Fig. 6 G).
Both the indoor unit’s OPERATION indicator lamp (green or red) (Fig. 3 5) and the
TIMER indicator lamp (yellow) (Fig. 3 6) will light.
To Change the Timer Settings
Press the SLEEP button (Fig. 6 G) once again and set the time
using the SET TIME buttons (Fig. 6 I).
Set the time while the Timer Mode Display is flashing (the flashing will continue for
about five seconds).
button: Press to advance the time.
button: Press to reverse the time.
About five seconds later, the entire display will reappear.

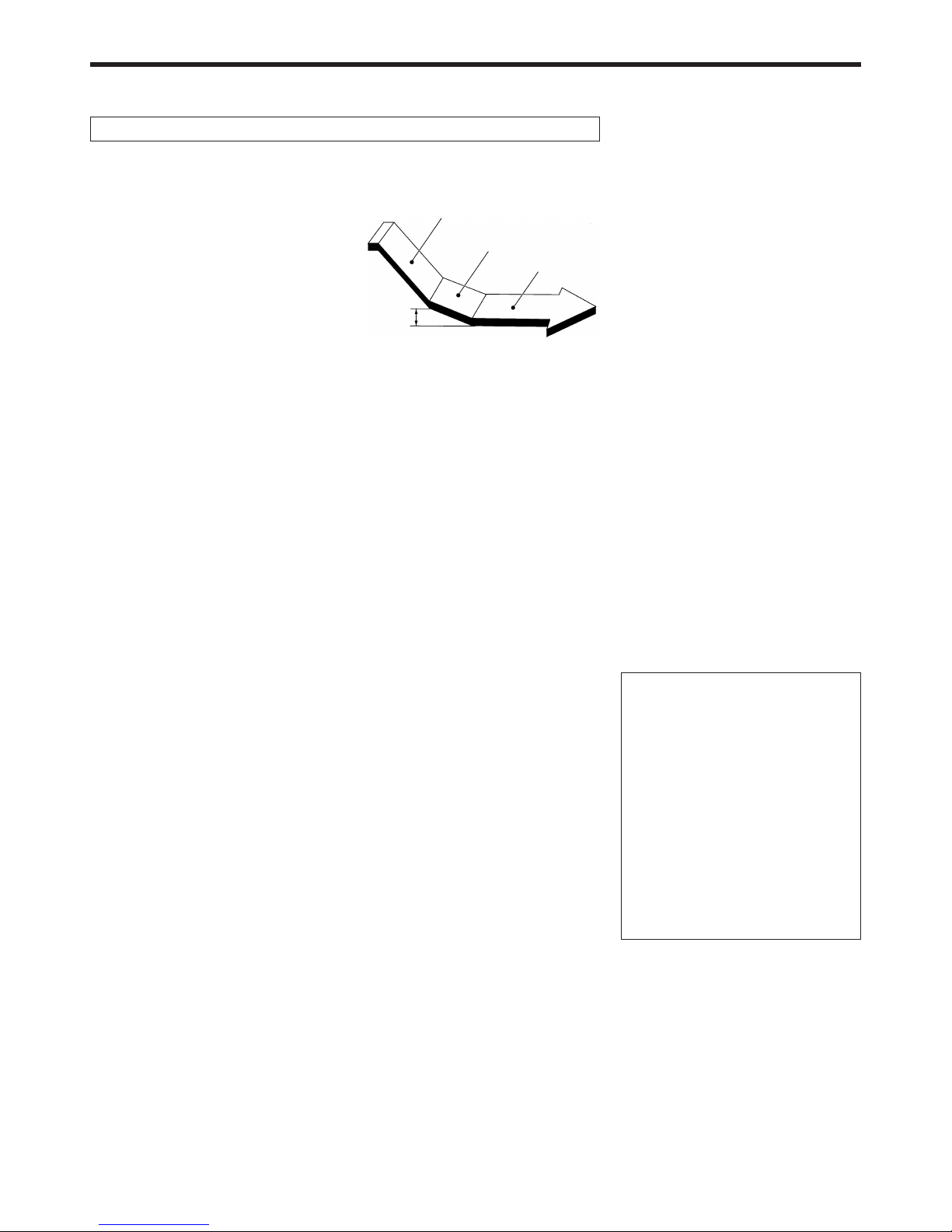

About the SLEEP timer
To prevent excessive warming or cooling during sleep, the SLEEP timer function automatically modifies the thermostat setting
in accordance with the time setting. When the set time has elapsed, the air conditioner completely stops.
During Heating operation (HEAT & COOL MODEL (Reverse
cycle) only):
When the SLEEP timer is set, the thermostat setting is
automatically lowered 1 °C every thirty minutes. When the
thermostat has been lowered a total of 4 °C, the thermostat
setting at that time is maintained until the set time has elapsed,
at which time the air conditioner automatically turns off.
SLEEP timer setting
During Cooling/Dry operation:
When the SLEEP timer is set, the thermostat setting is automatically raised 1 °C every sixty minutes. When the thermostat has been raised a total of 2 °C, the thermostat setting at
that time is maintained until the set time has elapsed, at which
time the air conditioner automatically turns off.
SLEEP timer setting
2 °C
3 °C
4 °C
30
minutes
1 °C
1 hour
1 hour
30 minutes
Set time
Set time
1 °C
2 °C
Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped.
To Cancel the Timer:
Use the TIMER button to select “TIMER
RESET”.
The air conditioner will return to normal
operation.
To Stop the Air Conditioner During
Timer Operation:
Press the START/STOP button.
MANUAL AUTO OPERATION
Use the MANUAL AUTO operation in the event the remote control unit is lost or otherwise unavailable.
How To Use the Main Unit Controls
Press the MANUAL AUTO button (Fig. 2 2) on the main unit
control panel.
To stop operation, press the MANUAL AUTO button once again.
● When the air conditioner is operated
with the controls on the Main unit, it
will operate under the same mode as
the AUTO mode selected on the remote control unit (see page 7).
● The fan speed selected will be “AUTO”
and the thermostat setting will be
23 °C.
CAUTION!
Do not press the MANUAL AUTO button with
wet hands or pointed objects, otherwise an
electric shock or malfunction may occur.
1 hour
10
1
2
3
4
5
ADJUSTING THE DIRECTION OF AIR CIRCULATION
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
Vertical (up-down) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION VERTICAL SET
button. Horizontal (right-left) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION
HORIZONTAL SET button.
DANGER!
Never place fingers or foreign objects inside
the outlet ports, since the internal fan operates at high speed and could cause personal
injury.
● Always use the remote control unit’s
AIR FLOW DIRECTION button to adjust
the UP/DOWN air direction flaps or
RIGHT/LEFT air direction louvers. Attempting to move them manually
could result in improper operation; in
this case, stop operation and restart.
The louvers should begin to operate
properly again.
● During use of the Cooling and Dry
modes, do not set the UP/DOWN air
direction flaps in the range 4 to 5 for
long periods of time, since water vapor
may condense near the outlet port and
drops of water may drip from the air
conditioner.
● When used in a room with infants, children, elderly or sick persons, the air
direction and room temperature
should be considered carefully when
making settings.
Example: When set to vertical air direc-
tion
Example: When set to horizontal air di-
rection
Vertical Air Direction Adjustment
Press the AIR FLOW DIRECTION VERTICAL SET button (Fig. 6 N).
Each time the button is pressed, the air direction range will change as follows:
1
2 3 4 5
Types of Air flow Direction Setting:
1,2,3 : During Cooling/Dry mode
1,2,3,4,5 : * During Heating mode
The remote control unit’s display does
not change.
Fig. 9
● Use the air direction adjustments within the ranges shown above.
● The vertical airflow direction is set automatically as shown, in accordance with
the type of operation selected.
During Cooling/Dry mode : Horizontal flow 1
* During Heating mode : Downward flow 5
● During AUTO mode operation, for the first minute after beginning operation,
airflow will be horizontal 1; the air direction cannot be adjusted during this period.
Horizontal Air Direction Adjustment
Press the AIR FLOW DIRECTION HORIZONTAL SET button (Fig. 6 P).
Each time the button is pressed, the air direction range will change as follows:
1
2 3 4 5
The remote control unit’s display does
not change.
● Use the air direction adjustments within the ranges shown above.
Fig. 10
RIGHT/LEFT air direction louvers
1
2
3
4
5
11
SWING OPERATION
Begin air conditioner operation before performing this procedure.
To select Vertical airflow SWING Operation
Press the AIR FLOW DIRECTION VERTICAL SWING button
(Fig. 6 O).
The SWING indicator lamp (VERTICAL SWING) (Fig. 3 7) will light.
In this mode, the UP/DOWN air direction flaps will swing automatically to direct the
air flow both up and down.
To Stop Vertical airflow SWING Operation
Press the AIR FLOW DIRECTION VERTICAL SWING button
(Fig. 6 O)once again.
The SWING indicator lamp (VERTICAL SWING) (Fig. 3 7) will go out.
Airflow direction will return to the setting before swing was begun.
About Swing Operation
● The range of swing is relative to the currently set airflow
direction.
Air direction range (See page 10, Fig. 9)
● If the swing range is not as desired, use the remote control unit’s AIR FLOW DIRECTION VERTICAL SET button to
change the range of swing.
● The SWING operation may stop temporarily when the air
conditioner’s fan is not operating, or when operating at
very low speeds.
● During use of the Cooling and Dry modes, do not set the
air UP/DOWN direction flaps, in the range 4 to 5 for long
periods of time, since water vapor may condense near
the outlet port and drops of water may drip from the air
conditioner.
To select Horizontal airflow SWING Operation
Press the AIR FLOW DIRECTION HORIZONTAL SWING button
(Fig. 6 Q).
The SWING indicator lamp (HORIZONTAL SWING) (Fig. 3 8) will light.
In this mode, the RIGHT/LEFT air direction louvers will swing automatically to direct
the airflow both right and left.
To Stop Horizontal airflow SWING Operation
Press the AIR FLOW DIRECTION HORIZONTAL SWING button
(Fig. 6 Q) once again.
The SWING indicator lamp (HORIZONTAL SWING) (Fig. 3 8) will go out.
Airflow direction will return to the setting before swing was begun.
Air flow direction set
1
2
3
4
5
Range of swing
1 to 3
1 to 3
2 to 4
3 to 5
1 to 5 (All range)
About Swing Operation
● If the swing range is not as desired, use the remote control unit’s AIR FLOW DIRECTION HORIZONTAL SET but-
ton to change the range of swing.
● The SWING operation may stop temporarily when the air
conditioner’s fan is not operating, or when operating at
very low speeds.
● The range of swing is relative to the currently set airflow
direction.
Air flow direction set
1
2
3
4
5
Range of swing
1 to 5 (All range)
1 to 3
2 to 4
3 to 5
1 to 5 (All range)
Air direction range (See page 10, Fig. 10)
12
● Before cleaning the air conditioner, be sure to turn it off and disconnect the power supply.
● Turn off the electrical breaker.
● Be sure the intake filter (Fig. 1 9) is installed securely.
● When removing and replacing the intake filters, be sure not to touch the heat exchanger, as
personal injury may result.
CLEANING AND CARE
Cleaning the Intake Filters
1. Remove the intake filters.
1 Place fingers in grids on the front of the intake filters
and lift up.
2 Hold the intake filters level and pull them out.
2. Clean the intake filters.
Remove the dust from the intake filters by vacuuming or
washing them. After washing, allow the intake filters to
dry thoroughly in an area protected from sunlight.
● Dust can be cleaned from the intake filters either with a
vacuum cleaner, or by washing the filters in a solution of
mild detergent and warm water. If you wash the filters,
be sure to allow them to dry thoroughly in a shady place
before reinstalling.
● If dirt is allowed to accumulate on the intake filters, air
flow will be reduced, lowering operating efficiency and
increasing noise.
● During periods of normal use, the intake filters should be
cleaned every five weeks.
3. Install the intake filters.
Hang the edge of the intake filter on the body. Using this
as a support point, push forward to secure as shown in
the illustration.
When using the optional Air Cleaning Filter
● Install the optional air cleaning filter set as instructed (installation instructions are furnished with the air cleaning filter set).
● When used for extended periods, the unit may accumulate dirt inside, reducing its performance. We recommend that the
unit be inspected regularly, in addition to your own cleaning and care. For more information, consult authorized service
personnel.
● When cleaning the unit’s body, do not use water hotter than 40 °C, harsh abrasive cleansers, or volatile agents like
benzene or thinner.
● Do not expose the unit body to liquid insecticides or hairsprays.
● When shutting down the unit for one month or more, first allow the fan mode to operate continuously for about one-half
day to allow internal parts to dry thoroughly.
Intake filters
CAUTION!
13
TROUBLESHOOTING
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical breaker or disconnect the power supply plug, and consult authorized service personnel.
Merely turning off the unit’s power switch will not completely disconnect the unit from the power
source. Always be sure to turn off the electrical breaker or disconnect the power supply plug to
ensure that power is completely off.
Before requesting service, perform the following checks:
WARNING!
Symptom
Doesn’t operate immediately:
Noise is heard:
Smells:
Mist or steam are
emitted:
Airflow is weak or stops:
Water is produced from
the outdoor unit:
Problem
● If the unit is stopped and then immediately started again, the compressor will not operate for about 3 minutes, in order to prevent
fuse blowouts.
● Whenever the electrical breaker is turned off then on again or the
power supply plug is disconnected and then reconnected, the protection circuit will operate for about 3 minutes, preventing unit
operation during that period.
● During operation and immediately after stopping the unit, the
sound of water flowing in the air conditioner’s piping may be
heard. Also, noise may be particularly noticeable for about 2 to 3
minutes after starting operation (sound of coolant flowing).
● During operation, a slight squeaking sound may be heard. This is
the result of minute expansion and contraction of the front cover
due to temperature changes.
*● During Heating operation, a sizzling sound may be heard occa-
sional. This sound is produced by the Automatic Defrosting operation.
● Some smell may be emitted from the indoor unit. This smell is
the result of room smells (furniture, tobacco, etc.) which have
been taken into the air conditioner.
● During Cooling or Dry operation, a thin mist may be seen emitted
from the indoor unit. This results from the sudden Cooling of
room air by the air emitted from the air conditioner, resulting in
condensation and misting.
*● During Heating operation, the outdoor unit’s fan may stop, and
steam may be seen rising from the unit. This is due to Automatic
Defrosting operation.
*● When Heating operation is started, fan speed is temporarily very
low, to allow internal parts to warm up.
*● During Heating operation, if the room temperature rises above
the thermostat setting, the outdoor unit will stop, and the indoor
unit will operate at very low fan speed. If you wish to warm the
room further, set the thermostat for a higher setting.
*● During Heating operation, the unit will temporarily stop opera-
tion (between 7 and 15 minutes) as the Automatic Defrosting mode
operates. During Automatic Defrosting operation, the OPERATION
indicator lamp will flash.
● The fan may operate at very low speed during Dry operation or
when the unit is monitoring the room’s temperature.
● In the monitor AUTO operation, the fan will operate at very low
speed.
*● During Heating operation, water may be produced from the out-
door unit due to Automatic Defrosting operation.
See Page
—
—
14
—
—
14
—
14
6
6
14
NORMAL
FUNCTION
14
Operation and Performance
TROUBLESHOOTING
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
Symptom
Doesn’t operate at all:
Poor Cooling
(or *Heating)
performance:
The unit operates
differently from the
remote control unit’s
setting:
See Page
—
8 to 9
—
5
CHECK ONCE
MORE
Items to check
● Has there been a power failure?
● Has a fuse blown out, or a circuit breaker been tripped?
● Is the timer operating?
● Is the air filter dirty?
● Are the air conditioner’s intake filter or outlet port blocked?
● Did you adjust the room temperature settings (thermostat) cor-
rectly?
● Is there a window or door open?
● In the case of Cooling operation, is a window allowing bright sun-
light to enter? (Close the curtains.)
● In the case of Cooling operation, are there heating apparatus and
computers inside the room, or are there too many people in the
room?
● Are the remote control unit’s batteries dead?
● Are the remote control unit’s batteries loaded properly?
If the problem persists after performing these checks, or if you notice burning smells, or the TIMER indicator lamp (Fig.3 6)
flashes, immediately stop operation, disconnect the power supply, and consult authorized service personnel.
OPERATING TIPS
*Heating Performance
● This air conditioner operates on the heat-pump principle,
absorbing heat from outdoor air and transferring that heat
indoors. As a result, the operating performance is reduced
as outdoor air temperature drops. If you feel that insufficient heating performance is being produced, we recommend you use this air conditioner in conjunction with
another kind of heating appliance.
● Heat-pump air conditioners heat your entire room by
recirculating air throughout the room, with the result that
some time may be required after first starting the air conditioner until the room is heated.
*Microcomputer-controlled Automatic Defrosting
When using the Heating mode under conditions of low
outdoor air temperature high humidity, frost may form on
the outdoor unit, resulting in reduced operating performance.
In order to prevent this kind of reduced performance, this
unit is equipped with a Microcomputer-controlled Automatic
Defrosting function. If frost forms, the air conditioner will
temporarily stop, and the defrosting circuit will operate
briefly (for about 7 to 15 minutes).
During Automatic Defrosting operation, the OPERATION
indicator lamp (red) will flash.
*
When Indoor and Outdoor Temperatures are High
When both indoor and outdoor temperatures are high during use of the heating mode, the outdoor unit’s fan may stop
at times.
*Low Ambient Cooling
When the outdoor temperature drops, the outdoor unit’s fans
may switch to Low Speed.
15
OPERATING TIPS
Temperature and Humidity Range
COOLING/DRY MODE
COOLING MODELS
HEAT & COOL
MODELS
(Reverse Cycle)
● If the air conditioner is used under higher temperature conditioner than those listed, the built-in protection circuit may
operate to prevent internal circuit damage. Also, during Cooling and Dry modes, if the unit is used under conditions of
lower temperature than those listed above, the heat-exchanger may freeze, leading to water leakage and other damage.
● Do not use this unit for any purposes other than the Cooling, (*)Heating, Dehumidifying, and air-circulation of rooms in
ordinary dwellings.
Humidity
About 80 % or less
If the unit is used for long periods under high-humidity
conditions, condensation
may form on the surface of
the indoor unit, and drip onto
the floor or other objects underneath.
● Should the power supply to the air conditioner be interrupted by a power failure, the air conditioner will restart
automatically in the previously selected mode once the
power is restored.
● Should a power failure occur during TIMER operation,
the timer will be reset and the unit will begin (or stop)
operating under the new timer setting. In this event, the
TIMER indicator lamp (yellow) will flash (see page 4).
● Use of other electrical appliances (electric shaver, etc.) or
nearby use of a wireless radio transmitter may cause the
air conditioner to malfunction. In this event, temporarily
disconnect the power supply, reconnect it, and then use
the remote control unit to resume operation.
AUTO Restart
In Event of Power Interruption
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
Temperature
About 18 to 32 °C
Outdoor
Temperature
About 21 to 43 °C
About 0 to 43 °C
About 21 to 43 °C
About 0 to 43 °C
Outdoor
Unit
AOT18A
AOT24A
AOT30A
AOT14R
AOT18R
AOT24R
AOT30R
Indoor
HEAT & COOL
MODELS
(Reverse Cycle)
Outdoor
Temperature
About 0 to 24 °C
About – 5 to 24 °C
Outdoor
Unit
AOT14R
AOT18R
AOT24R
AOT30R
Indoor
Temperature
About 30 °C or less
*HEATING MODE
Loading...
