AIR CONDITIONER
R410A
REFRIGERANT
This Air Conditioner contains
and operates with refrigerant R410A.
THIS PRODUCT MUST ONLY BE INSTALLED OR SERVICED
BY QUALIFIED PERSONNEL.
Refer to Commonwealth, State, Territory and local legislation,
regulations, codes, installation & operation manuals, before
the installation, maintenance and/or service of this product.
Wall Mounted Type
HEAT & COOL MODEL
(REVERSE CYCLE)
Indoor Unit
ASTG18LF
OPERATING MANUAL
ASTG24LF
ASTG30LF
ASTG34LF
KEEP THIS OPERATION MANUAL FOR FUTURE REFERENCE
FUJITSU GENERAL LIMITED
9315345387_OM_EN.indb 19315345387_OM_EN.indb 1 12/2/2010 8:44:25 AM12/2/2010 8:44:25 AM
P/N9315345387
CONTENTS
SAFETY PRECAUTIONS ......................................En-1
FEATURES AND FUNCTIONS .............................En-2
NAME OF PARTS .................................................En-3
PREPARATION .....................................................En-5
OPERATION ..........................................................En-6
TIMER OPERATION .............................................En-8
SLEEP TIMER OPERATION .................................En-9
ADJUSTING THE DIRECTION OF
AIR CIRCULATION ............................................ En-10
SWING OPERATION ..........................................En-11
ECONOMY OPERATION .................................... En-11
10 °C HEAT OPERATION ...................................En-12
MANUAL AUTO OPERATION .............................En-12

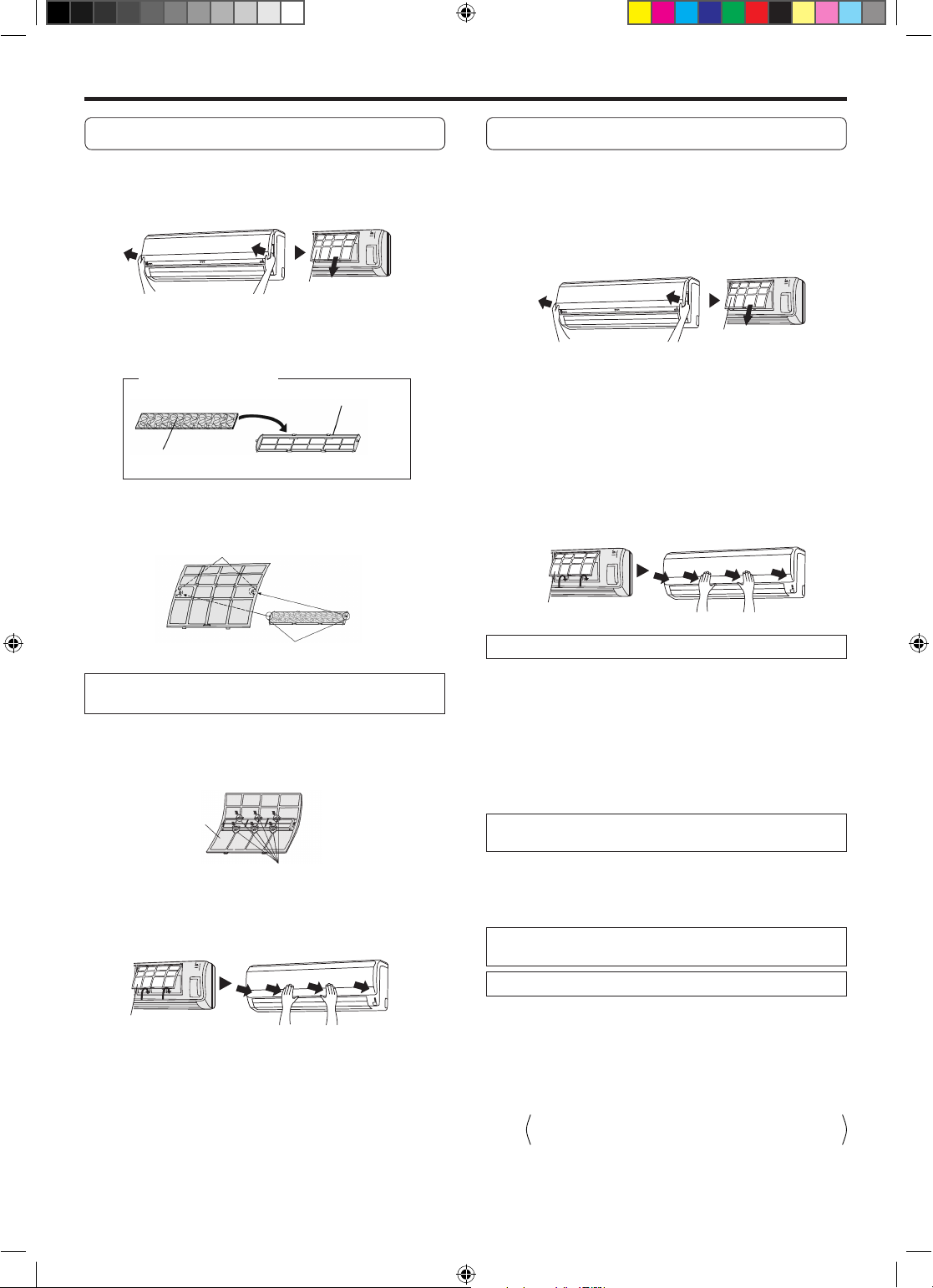

CLEANING AND CARE .......................................En-13

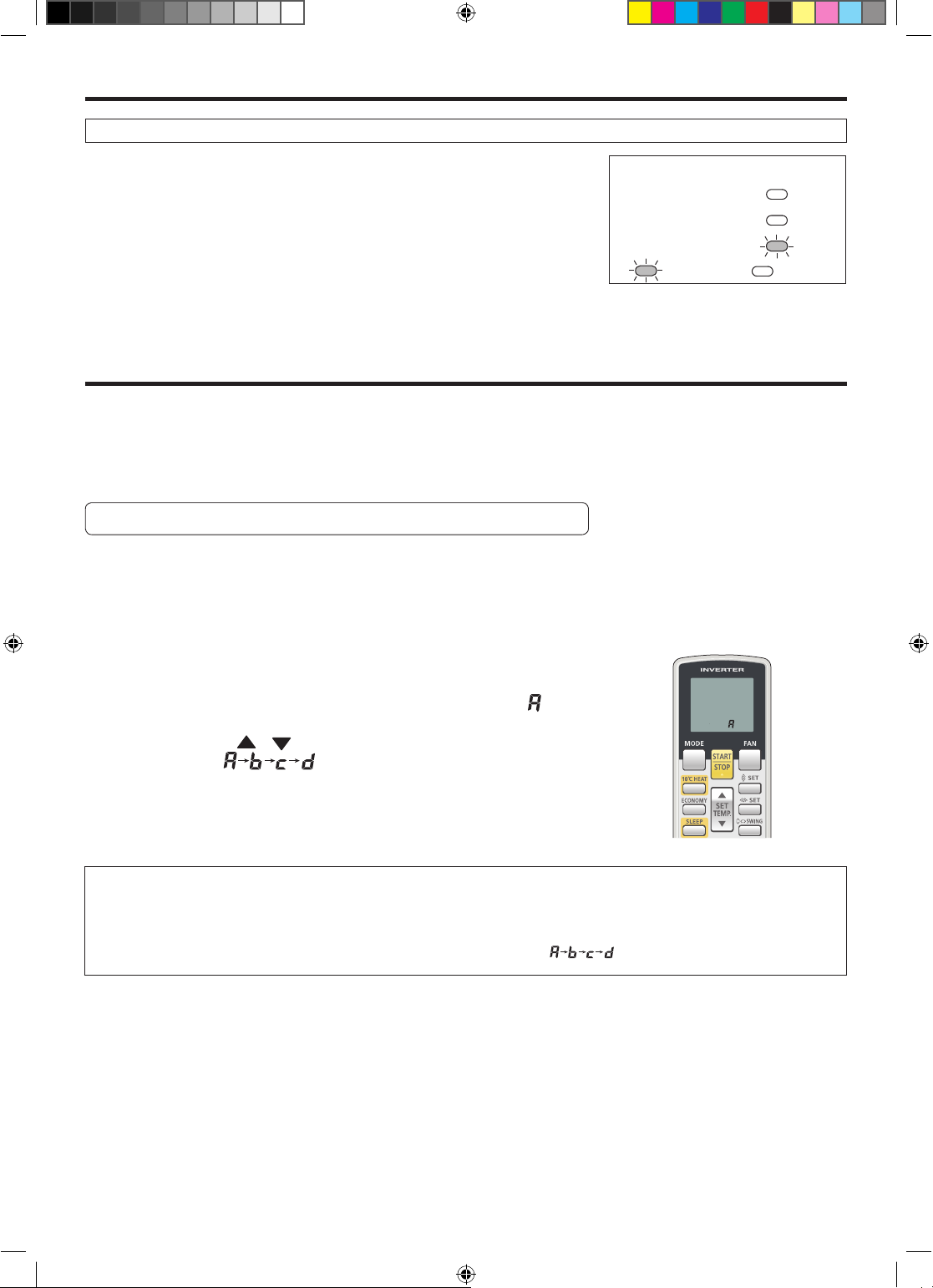

SELECTING THE REMOTE CONTROLLER
SIGNAL CODE ....................................................En-15
TROUBLESHOOTING ........................................En-16
OPERATING TIPS ...............................................En-17
SAFETY PRECAUTIONS
Before using the appliance, read these “PRECAUTIONS” thoroughly and operate in the correct way.
●
The instructions in this section all relate to safety; be sure to maintain safe operating conditions.
●
“DANGER, “WARNING” and “CAUTION” have the following meanings in these instructions:
●
DANGER!
WARNING!
CAUTION!
DANGER!
This mark indicates procedures which, if improperly performed, are most likely to
result in the death or serious injury to the user or service personnel.
This mark indicates procedures which, if improperly performed, might lead to the
death or serious injury of the user or service personnel.
This mark indicates procedures which, if improperly performed, might possibly result
in personal harm to the user, or damage to property.
Do not attempt to install this air conditioner by yourself.
●
This air conditioner contains no user-serviceable parts. Always consult authorized service personnel for repairs.
●
When moving, consult authorized service personnel for disconnection and installation of the air conditioner.
●
Do not become excessively chilled by staying for many hours in the direct cooling airfl ow.
●
Do not insert fi ngers or objects into the outlet port or intake grille.
●
Do not start and stop air conditioner operation by disconnecting the power supply cord.
●
Take care not to damage the power supply cord.
●
In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the breaker, and
●
consult authorized service personnel.
In the event of the refrigerant leakage, be sure to keep it away from fi re or any fl ammables. (consult an
●
authorized service personnel)
If the power supply cord of this appliance is damaged, it should only be replaced by the authorized service
●
personal, since special purpose tools and specifi ed cord are required.
En-1
CAUTION!
Provide occasional ventilation during use.
●
Do not direct airfl ow at fi replaces or heating apparatus.
●
Do not climb on, or place objects on, the air conditioner.
●
Do not hang objects from the indoor unit.
●
Do not set fl ower vases or water containers on top of air conditioners.
●
Do not expose the air conditioner directly to water.
●
Do not operate the air conditioner with wet hands.
●
Do not pull power supply cord.
●
Turn off power supply when not using the indoor unit for extended periods.
●
Check the condition of the installation stand for damage.
●
Do not place animals or plants in the direct path of the airfl ow.
●
Do not drink the water drained from the air conditioner.
●
Do not use in applications involving the storage of foods, plants or animals, precision equipment, or art
●
works.
Connection valves become hot during Heating; handle with care.
●
Do not apply any heavy pressure to radiator fi ns.
●
Operate only with air fi lters installed.
●
Do not block or cover the intake grille and outlet port.
●
Ensure that any electronic equipment is at least 1 m away from either the indoor or outdoor units.
●
Avoid installing the air conditioner near a fi replace or other heating apparatus.
●
When installing the indoor and outdoor unit, take precautions to prevent access to infants.
●
Do not use infl ammable gases near the air conditioner.
●
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
●
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
9315345387_OM_EN.indb 19315345387_OM_EN.indb 1 12/2/2010 8:44:33 AM12/2/2010 8:44:33 AM
FEATURES AND FUNCTIONSFEATURES AND FUNCTIONS
■ Energy saving and Comfortable function
INVERTER
At the start of operation, large amount of power is used to
bring the room quickly to the desired temperature. Afterwards,
the unit automatically switches to a low power setting for economic and comfortable operation.
ECONOMY OPERATION
When ECONOMY operation mode is operated, the room temperature will be little higher than the set-temp under cooling
mode and lower than set-temp under heating mode. Therefore,
the ECONOMY mode is able to save more energy than other
normal mode.
HORIZONTAL AIRFLOW: COOLING/
DOWNWARD AIRFLOW: HEATING
For cooling, use horizontal airflow so the cool air does not
blow directly on the occupants in the room. For heating, use
downward airfl ow to send powerful, warm air to the fl oor and
create a comfortable environment.
OMNI-DIRECTIONAL AIR FLOW
(SWING OPERATION)
3-dimensional control over air direction swing is possible through
dual use of both an UP/DOWN air direction swing and RIGHT/
LEFT air direction swing. Since UP/DOWN air direction fl aps op-
erate automatically according to the operating mode of the unit,
it is possible to set air direction based on the operating mode.
SUPER QUIET OPERATION
When the FAN button is used to select QUIET, the indoor unit
begins super quiet operation; the indoor unit’s airflow is reduced to produce quieter operation.
AUTO CHANGEOVER
The operation mode (cooling, dry, heating) is switched automatically to maintain the set temperature, and the temperature
is kept constant at all times.
10°C HEAT OPERATION
The room temperature can be maintained at 10°C so as to
prevent the room temperature from falling too far.
■ Convenient function
■ Clean function
REMOVABLE INTAKE GRILLE
The indoor unit’s intake grille can be removed for easy cleaning and maintenance.
MILDEW-RESISTANT FILTER
The AIR FILTER has been treated to resist mildew growth,thus
allowing cleaner use and easier care.
POLYPHENOL CATECHIN AIR CLEANING FILTER
The polyphenol catechin air cleaning fi lter uses static electric-
ity to clean fi ne particles and dust in the air such as tobacco
smoke and plant pollen that are too small to see. The filter
contains catechin, which is highly effective against various
bacteria by suppressing the growth of the bacteria adsorbed to
the fi lter. Note that when the air cleaning fi lter is installed, the
amount of air produced decreases, causing a slight decrease
in the indoor unit’s performance.
NEGATIVE AIR IONS DEODORIZING FILTER
It comprises pottery super micro particles which can produce
negative air ions having the effect of deodorizing and can absorb and remit the peculiar smell at home.
■ Remote controller
WIRELESS REMOTE CONTROLLER
The wireless remote controller allows convenient control of air
conditioner operation.
WIRED REMOTE CONTROLLER (OPTION)
The optional wired remote controller can be used. When you
use remote controller, there are following different points as
compared with using wireless remote controller.
[The additional functions for wired ones]
• Weekly timer
• Temperature set back timer
And you can use both wired and wireless remote controller simultaneously. (But function is limited)
When the restricted functions on the remote controller are
used, beeping sound will be heard, OPERATION, TIMER and
the 3rd lamp of the indoor unit will fl ash.
[The restricted functions for wireless ones]
• 10°C HEAT OPERATION
• TIMER (ON timer, OFF timer and Program timer)
• SLEEP TIMER
PROGRAM TIMER
The program timer allows you to integrate OFF timer and ON timer
operations in a single sequence. The sequence can involve 1 transition from OFF timer to ON timer, or from ON timer to OFF timer,
within a 24 hour period.
SLEEP TIMER
When the SLEEP timer button is pressed during heating mode,
the air conditioner’s thermostat setting is gradually lowered during the period of operation; during cooling or dry mode, the thermostat setting is gradually raised during the period of operation.
When the set time is reached, the unit automatically turns off.
En-2
9315345387_OM_EN.indb 29315345387_OM_EN.indb 2 12/2/2010 8:44:34 AM12/2/2010 8:44:34 AM
NAME OF PARTS
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
To facilitate explanation, the accompanying
illustration has been drawn to show all possible
indicators; in actual operation, however, the display
will only show those indicators appropriate to the
current operation.
En-3
9315345387_OM_EN.indb 39315345387_OM_EN.indb 3 12/2/2010 8:44:34 AM12/2/2010 8:44:34 AM
Fig. 1 Indoor Unit
Operating Control Panel (Fig. 2)
1
MANUAL AUTO button
2
When the MANUAL AUTO button is pressed
●
in for more than 10 seconds, the forced
cooling operation will start.
●
The forced cooling operation is used at the
time of installation.
Only for authorized service personnel's use.
When the forced cooling operation starts by
●
any chance, press the START/STOP button
to stop the operation.
Please press the button at FILTER INDICA-
●
TOR RESET.
Indicator (Fig. 3)
3
Remote Control Signal Receiver
4
OPERATION Indicator Lamp (green)
5
TIMER Indicator Lamp (orange)
6
If the TIMER indicator lamp flashes when
●
the timer is operating, it indicates that a fault
has occurred with the timer setting (See
Page 18 Auto Restart).
ECONOMY Indicator Lamp (green)
7
ECONOMY indicator lamp lights when
●
ECONOMY OPERATION and 10 °C HEAT
OPERATION are operating.
INTAKE GRILLE (Fig.4)
8
Front Panel
9
Air Filter
0
Airfl ow Direction Louver
A
Power Diffuser
B
Right-Left Louver
C
(behind Airfl ow Direction Louver)
Drain Hose
D
Air Cleaning Filter
E
Fig. 5 Remote Controller
Signal Transmitter
F
MODE button
G
10 °C HEAT button
H
ECONOMY button
I
SLEEP button
J
TIMER MODE button
K
FAN button
L
START/STOP button
M
SET button (Vertical)
N
SET button (Horizontal)
O
SWING button
P
SET TEMP. button (
Q
TIMER SET ( / ) button
R
CLOCK ADJUST button
S
TEST RUN button
T
This button is used when installing the air
●
conditioner, and should not be used under
normal conditions, as it will cause the indoor
unit’s thermostat function to operate incorrectly.
If this button is pressed during normal op-
●
eration, the indoor unit will switch to test operation mode, and the Indoor Unit’s OPERATION Indicator Lamp and TIMER Indicator
Lamp will begin to fl ash simultaneously.
To stop the test operation mode, press the
●
START/STOP button to stop the air conditioner.
RESET button
U
Remote Controller Display (Fig.6)
V
Temperature SET Display
W
Operation Mode Display
X
SLEEP TIMER Display
Y
Transmit Indicator
Z
Fan Speed Display
[
SWING Display
\
T imer Mode Display
]
Clock Display
^
/ )
En-4
9315345387_OM_EN.indb 49315345387_OM_EN.indb 4 12/2/2010 8:44:35 AM12/2/2010 8:44:35 AM
PREPARATION
Turn on the Power
Turn on the circuit breaker
1
Load Batteries (AAA/R03/LR03 2)
Press and slide the battery compartment lid on the
1
reverse side to open it.
Slide in the direction of the arrow while pressing the mark.
Insert batteries.
2
Be sure to align the battery polarities ( ) correctly.
Close the battery compartment lid.
3
Set the Current time
Press the CLOCK ADJUST button (Fig. 5 S).
1
Use the tip of a ball-point pen or other small object to press the button.
CAUTION!
Take care to prevent infants from acciden-
●
tally swallowing batteries.
When not using the Remote Controller for
●
an extended period, remove the batteries to
avoid possible leakage and damage to the
unit.
If leaking battery fl uid comes in contact
●
with your skin, eyes, or mouth, immediately
wash with copious amounts of water, and
consult your physician.
Dead batteries should be removed imme-
●
diately and disposed of properly, either in a
battery collection receptacle or to the appropriate authority.
Do not attem pt to recharge dry batteries.
●
Never mix new and used batteries, or
batteries of different types.
Batteries should last about 1 year under
normal use. If the Remote Controller’s
operating range becomes appreciably
reduced, replace the batteries and press
the RESET button with the tip of a ballpoint pen or other small object.
Use the TIMER SET ( / ) buttons (Fig. 5 R) to
2
adjust the clock to the current time.
button: Press to advance the time.
(Each time the buttons are pressed, the time will be advanced/reversed in 1
3
This completes the time setting and starts the clock.
button: Press to reverse the time.
minute increments; hold the buttons depressed to change the time quickly in
10 minute increments.)
Press the CLOCK ADJUST button (Fig. 5 S) again.
To Use the Remote Controller
The Remote Controller must be pointed at signal receiver (Fig.3 4) to operate correctly.
●
Operating Range: About 7 m.
●
When a signal is properly received by the air conditioner, a beeping sound will be
●
heard.
If no beep is heard, press the Remote Controller button again.
●
Remote Controller Holder
Insert
Press in
Screws
Slide up
Pull out
Mount the Holder.2 Set the Remote Controller.
1
To remove the Remote Con-
3
troller (when use at hand).
En-5
9315345387_OM_EN.indb 59315345387_OM_EN.indb 5 12/2/2010 8:44:35 AM12/2/2010 8:44:35 AM

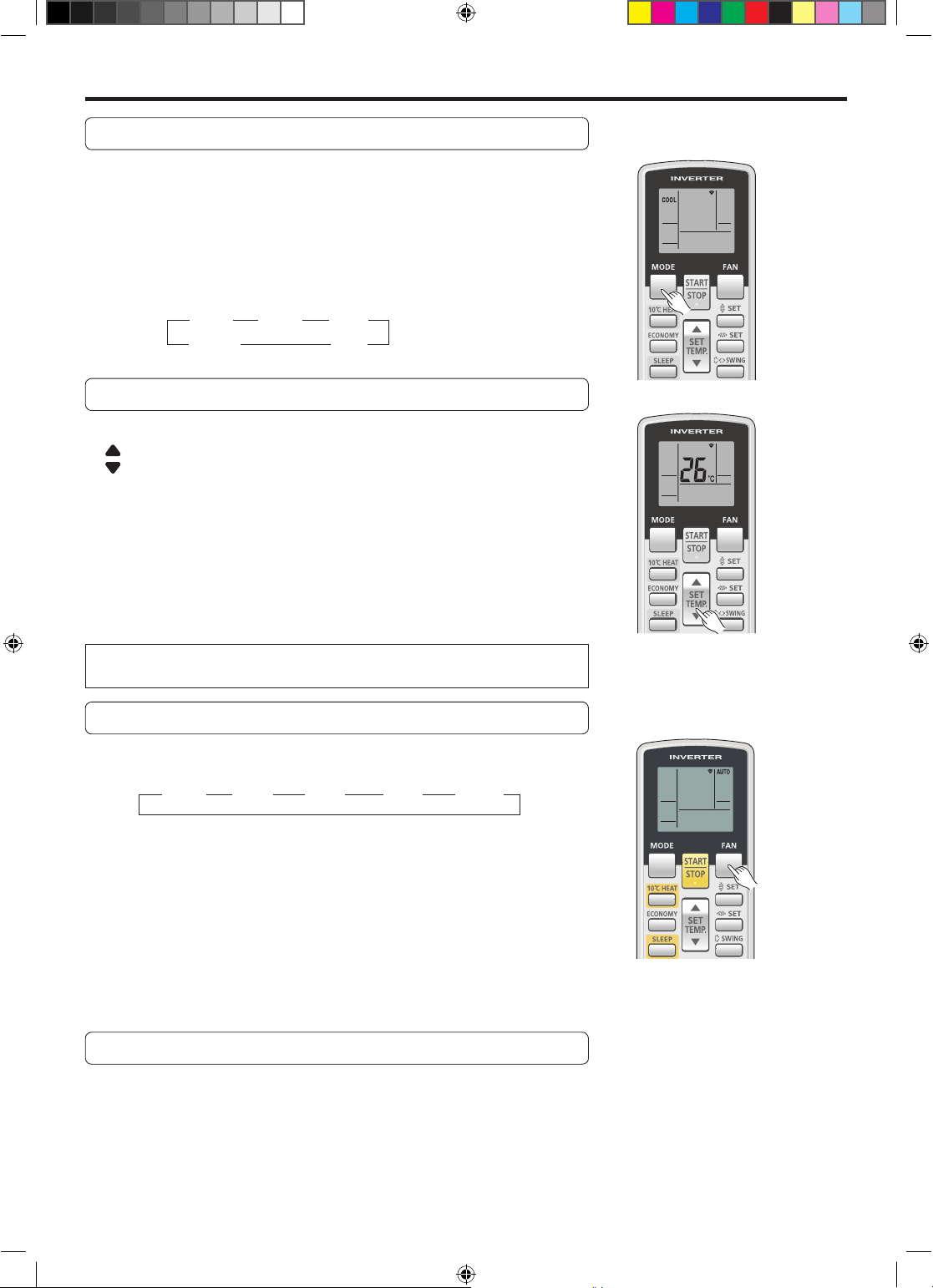

OPERATION
To Select Mode Operation
Press the START/STOP button (Fig.5 M).
1
The indoor unit’s OPERATION Indicator Lamp (green) (Fig. 3 5) will light.
The air conditioner will start operating.
Press the MODE button (Fig.5 G) to select the de-
2
sired mode.
Each time the button is pressed, the mode will change in the following order.
About 3 seconds later, the entire display will reappear.
To Set the Thermostat
Press the SET TEMP. button (Fig. 5 Q).
button: Press to raise the thermostat setting.
button: Press to lower the thermostat setting.
Thermostat setting range:
●
AUTO ....................................18 - 30 °C
Heating ..................................16 - 30 °C
Cooling/Dry ...........................18 - 30 °C
The thermostat cannot be used to set room temperature during the FAN mode (the temperature will not appear on the Remote Controller’s Display).
▲
AUTO COOL DRY
HEAT FAN
▲
▲
▲
▲
Example: When set to COOL.
About 3 seconds later, the entire display will reappear.
The thermostat setting should be considered a standard value, and may differ
somewhat from the actual room temperature.
To Set the Fan Speed
Press the FAN button (Fig. 5 L).
Each time the button is pressed, the fan speed changes in the following order:
About 3 seconds later, the entire display will reappear.
When set to AUTO:
Heating : Fan operates so as to optimally circulate warmed air.
However, the fan will operate at very low speed when the temperature of
Cooling : As the room temperature approaches that of the thermostat setting, the
Fan : The fan runs at the low fan speed.
The fan will operate at a very low setting during Monitor operation and at the start of
the Heating mode.
▲
AUTO HIGH MED LOW QUIET
the air issued from the indoor unit is low.
fan speed becomes slower.
▲
▲
▲
▲
SUPER QUIET Operation
When set to Quiet:
SUPER QUIET operation begins. The indoor unit’s airfl ow will be reduced for quieter
operation.
SUPER QUIET operation cannot be used during Dry mode. (The same is true when
●
dry mode is selected during AUTO mode operation.)
During SUPER QUIET operation, Heating and Cooling performance will be reduced
●
somewhat. If the room does not warm up/ cool down when using SUPER QUIET
Operation, please adjust the air conditioner’s Fan Speed.
Example: When set to 26 °C.
Example: When set to AUTO.
En-6
9315345387_OM_EN.indb 69315345387_OM_EN.indb 6 12/2/2010 8:44:36 AM12/2/2010 8:44:36 AM
OPERATION
To Stop Operation
Press the START/STOP button (Fig. 5 M).
The OPERATION Indicator Lamp (green) (Fig.3 5) will go out.
About AUTO CHANGEOVER Operation
AUTO: ● When AUTO CHANGEOVER operation fi rst selected, the fan will operate
If the difference between thermostat setting and actual room temperature
If the difference between thermostat setting and actual room temperature
If the difference between thermostat setting and actual room temperature
●
at very low speed for about a few minutes, during which time the unit detects the room conditions and selects the proper operating mode.
is more than +2 °C Cooling or dry operation
is within ±2 °C Determined by outdoor temperature
is more than –2 °C Heating operation
When the air conditioner has adjusted your room’s temperature to near
●
the thermostat setting, it will begin monitor operation. In the monitor operation mode, the fan will operate at low speed. If the room temperature
subsequently changes, the air conditioner will once again select the appropriate operation (Heating, Cooling) to adjust the temperature to the
value set in the thermostat.
If the mode automatically selected by the unit is not what you wish, select
one of the mode operation (HEAT, COOL, DRY, FAN).
About Mode Operation
Heating: ● Use to warm your room.
●
Cooling: ● Use to cool your room.
Dry:
Fan:
When Heating mode is selected, the air conditioner will operate at very
●
low fan speed for about 3 to 5 minutes, after which it will switch to the selected fan setting. This period of time is provided to allow the indoor unit
to warm up before begin full operation.
When the outdoor temperature is very low, frost may form on the outside
●
unit, and its performance may be reduced. In order to remove such frost,
the unit will automatically enter the defrost cycle from time to time. During
Automatic Defrosting operation, the OPERATION Indicator Lamp (green)
(Fig.3 5) will fl ash, and the heat operation will be interrupted.
After the start of heating operation, it takes some time before the room
gets warmer.
Use for gently cooling while dehumidifying your room.
●
You cannot heat the room during Dry mode.
●
During Dry mode, the unit will operate at low speed; in order to adjust
●
room humidity, the indoor unit’s fan may stop from time to time. Also, the
fan may operate at very low speed when adjusting room humidity.
The fan speed cannot be changed manually when Dry mode has been
●
selected.
Use to circulate the air throughout your room.
●
During Heating mode:
Set the thermostat to a temperature setting
that is higher than the current room temperature. The Heating mode will not operate if the thermostat is set lower than the
actual room temperature.
During Cooling/Dry mode:
Set the thermostat to a temperature setting
that is lower than the current room temperature. The Cooling and Dry modes will
not operate if the thermostat is set higher
than the actual room temperature (in Cooling mode, the fan alone will operate).
During Fan mode:
You can not use the unit to heat and cool
your room.
En-7
9315345387_OM_EN.indb 79315345387_OM_EN.indb 7 12/2/2010 8:44:40 AM12/2/2010 8:44:40 AM
TIMER OPERATION
Before using the timer function, be sure that the Remote Controller is set to the correct current time (☞ P.5).
To Use the ON timer or OFF timer
Press the START/STOP button (Fig. 5 M)
1
(if the unit is already operating, proceed to step 2).
The indoor unit’s OPERATION Indicator Lamp (green) (Fig. 3 5) will light.
Press the TIMER MODE button (Fig. 5 K) to select the
2
OFF timer or ON timer operation.
Each time the button is pressed the timer function changes in the following
order:
The indoor unit’s TIMER Indicator Lamp (orange) (Fig. 3 6) will light.
Use the TIMER SET buttons (Fig. 5 R) to adjust the
3
desired OFF time or ON time.
Set the time while the time display is fl ashing (the fl ashing will continue for
about 5 seconds).
button: Press to advance the time.
button: Press to reverse the time.
About 5 seconds later, the entire display will reappear.
▲
CANCEL OFF ON
PROGRAM (OFF ON, OFF ON)
▲
▲
▲
To Use the Program timer
Press the START/STOP button (Fig. 5 M).
1
(if the unit is already operating, proceed to step 2).
The indoor unit’s OPERATION Indicator Lamp (green) (Fig.3 5) will light.
Set the desired times for OFF timer and ON timer.
2
See the section “To Use the ON timer or OFF timer” to set the desired mode
and times.
About 3 seconds later, the entire display will reappear.
The indoor unit’s TIMER Indicator Lamp (orange) (Fig.3 6) will light.
Press the TIMER MODE button (Fig. 5 K) to select the
3
PROGRAM timer operation (OFF
ON or OFF ON
will display).
The display will alternately show “OFF timer” and “ON timer”, then change to
show the time setting for the operation to occur fi rst.
●
The program timer will begin operation. (If the ON timer has been selected
to operate fi rst, the unit will stop operating at this point.)
About 5 seconds later, the entire display will reappear.
About the Program timer
●
The program timer allows you to integrate OFF timer and ON timer operations in a
single sequence. The sequence can involve 1 transition from OFF timer to ON timer,
or from ON timer to OFF timer, within a 24 hour period.
●
The fi rst timer function to operate will be the 1 set nearest to the current time. The
order of operation is indicated by the arrow in the Remote Controller’s Display
(OFF ON, or OFF ON).
●
One example of Program timer use might be to have the air conditioner automati-
cally stop (OFF timer) after you go to sleep, then start (ON timer) automatically in the
morning before you arise.
To Cancel the Timer
Use the TIMER MODE button to select
“CANCEL”.
The air conditioner will return to normal
operation.
To Change the Timer Settings
Perform steps 2 and 3.
To Stop Air Conditioner Operation while
the Timer is Operating
Press the START/STOP button.
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Thermostat Setting,
SUPER QUIET mode), after making the timer
setting wait until the entire display reappears,
then press the appropriate buttons to change
the operating condition desired.
To Cancel the Timer
Use the TIMER MODE button to select
“CANCEL”.
The air conditioner will return to normal
operation.
To Change the Timer Settings
Follow the instructions given in the section
1.
“To Use the ON Timer or OFF Timer” to select
the timer setting you wish to change.
2. Press the TIMER MODE button to select
either OFF
To Stop Air Conditioner Operation
while the Timer is Operating
Press the START/STOP button.
To Change Operating Conditions
If you wish to change operating conditions
(Mode, Fan Speed, Thermostat Setting,
SUPER QUIET mode), after making the timer
setting wait until the entire display reappears,
then press the appropriate buttons to change
the operating condition desired.
ON or OFF ON.
En-8
9315345387_OM_EN.indb 89315345387_OM_EN.indb 8 12/2/2010 8:44:40 AM12/2/2010 8:44:40 AM
SLEEP TIMER OPERATION
Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped.
To Use the SLEEP Timer
While the air conditioner is operating or stopped, press the
SLEEP button (Fig. 5 J).
The indoor unit’s OPERATION Indicator Lamp (green) (Fig. 3 5) lights and the TIMER
Indicator Lamp (orange) (Fig. 3 6) light.
To Change the Timer Settings
Press the SLEEP button (Fig. 5 J) once again and set the
time using the TIMER SET ( / ) buttons (Fig. 5 R).
Set the time while the Timer Mode Display is fl ashing (the fl ashing will continue about 5
seconds).
button: Press to advance the time.
button: Press to reverse the time.
About 5 seconds later, the entire display will reappear.
About the SLEEP Timer
To prevent excessive warming or cooling during sleep, the SLEEP timer function automatically modifi es the thermostat setting in ac-
cordance with the set time setting. When the set time has elapsed, the air conditioner completely stops.
To Cancel the Timer:
Use the TIMER MODE button to select
“CANCEL”.
The air conditioner will return to normal
operation.
To Stop the Air Conditioner During
Timer Operation:
Press the START/STOP button.
During Heating operation:
When the SLEEP timer is set, the thermostat setting is
automatically lowered 1 °C every 30 minutes. When the thermostat has been lowered a total of 4 °C, the thermostat setting at
that time is maintained until the set time has elapsed, at which
time the air conditioner automatically turns off.
SLEEP timer setting
Set temp.
30
minutes
1 hour
1 °C
1 hour
30 minutes
2 °C
Set time
3 °C
4 °C
During Cooling/Dry operation:
When the SLEEP timer is set, the thermostat setting is automatically raised 1 °C every 1 hour. When the thermostat has been
raised a total of 2 °C, the thermostat setting at that time is maintained until the set time has elapsed, at which time the air conditioner automatically turns off.
SLEEP timer setting
Set time
1 hour
Set temp.
1 °C
2 °C
En-9
9315345387_OM_EN.indb 99315345387_OM_EN.indb 9 12/2/2010 8:44:41 AM12/2/2010 8:44:41 AM
ADJUSTING THE DIRECTION OF AIR CIRCULATION
1
2
3
4
5
6
Adjust the up, down, left, and right AIR directions with the AIR DIRECTION buttons on the Remote Controller.
●
Use the AIR DIRECTION buttons after the Indoor Unit has started operating and the airfl ow-direction louvers have stopped
●
moving.
Vertical Air Direction Adjustment
Press the SET button (Vertical) (Fig. 5 N).
Each time the button is pressed, the air direction range will change as follows:
2 3 4 5
1
Types of Airfl ow Direction Setting:
1,2,3,4,5,6
: During Heating/Cooling/Dry modes
The Remote Controller’s display does
not change.
Use the air direction adjustments within the ranges shown above.
●
The vertical airfl ow direction is set automatically as shown, in accordance with the
●
type of operation selected.
During Cooling/Dry mode : Horizontal fl ow 1
During Heating mode : Downward fl ow
During AUTO mode operation, for the fi rst a few minutes after beginning operation,
●
5
airfl ow will be horizontal 1; the air direction cannot be adjusted during this period.
Direction
●
2
1
Only the direction of the Airflow Direction Louver changes; the direction of the
Power Diffuser does not change.
The airfl ow direction setting will temporarily become 1 when the temperature of the
airfl ow is low at the start of the Heating mode.
After beginning of AUTO/HEAT mode operated and automatic defrosting operation
●
time (see page 16), the airfl ow will be horizontal 1.
However, the Airflow Direction cannot be adjusted at beginning AUTO operation
mode.
6
DANGER!
Never place fi ngers or foreign objects inside
●
the outlet ports, since the internal fan operates at high speed and could cause personal injury.
Always use the Remote Controller’s
●
SET button to adjust the vertical airfl ow
louvers. Attempting to move them manually could result in improper operation;
in this case, stop operation and restart.
The louvers should begin to operate
properly again.
During use of the Cooling and Dry
●
modes, do not set the Airfl ow Direction
Louvers in the Heating range (4 - 6)
for long periods of time, since water vapour may condense near the outlet louvers and drops of water may drip from
the air conditioner. During the Cooling
and Dry modes, if the Airfl ow Direction
Louvers are left in the heating range for
more than 20 minutes, they will automatically return to position 3.
When used in a room with infants, chil-
●
dren, elderly or sick persons, the air
direction and room temperature should
be considered carefully when making
settings.
Horizontal Air Direction Adjustment
Press the SET button (Horizontal) (Fig. 5 O).
Each time the button is pressed, the air direction range will change as follows:
●
2 3 4
1
The remote controller’s
display does not change.
1
2
9315345387_OM_EN.indb 109315345387_OM_EN.indb 10 12/2/2010 8:44:41 AM12/2/2010 8:44:41 AM
5
5
4
3
En-10
SWING OPERATION
Begin air conditioner operation before performing this procedure.
To select SWING Operation
Press the SWING button (Fig. 5 P).
The SWING Display (Fig. 6 \) will light.
Each time the SWING button is pressed, the swing operation will change in the
following order.
Up/down swing operation Left/right swing operation
Swing operation stops Up/down/left/right swing operation
To stop SWING Operation
Press the SWING button and select STOP.
Airfl ow direction will return to the setting before swing was begun.
About Swing Operation
Up/down swing: Swing operation begins using the following
●
range according to the current airfl ow direction.
Airfl ow direction is 1–4 (for cooling, dry).
With the upper airfl ow-direction louver in the horizon-
tal position, the lower airfl ow-direction louver moves
(swings) to direct airfl ow to a wide area.
Airfl ow direction is 3–6 (for heating).
With the airfl ow-direction louvers set for downward or
straight down airfl ow, airfl ow is directly mainly at the
fl oor.
Left/right swing: The airfl ow-direction louvers move (swing)
●
in the left/right airfl ow direction.
Up/down/left/right swing: The airfl ow-direction louvers move
●
(swing) in both the up/down and left/right airfl ow directions.
The SWING operation may stop temporarily when the air
●
conditioner’s fan is not operating, or when operating at very
low speeds.
If the SET button (Vertical) is pressed during the up/down
●
swing operation, the up/down swing operation will stop and
if the SET button (Horizontal) is pressed during the left/right
swing operation, the left/right swing operation will stop.
ECONOMY OPERATION
Begin Air Conditioner operation before performing this procedure.
To Use the ECONOMY Operation
Press the ECONOMY button (Fig.5 I).
The ECONOMY Indicator Lamp (green) (Fig. 3 7) will light.
ECONOMY operation begins.
To Stop the ECONOMY Operation
Press the ECONOMY button (Fig.5 I) again.
The ECONOMY Indicator Lamp (green) (Fig. 3 7) will go out.
Normal operation begins.
About ECONOMY Operation
When ECONOMY operation mode is operated, the room temperature will be little higher than the set-temp under cooling mode
●
and lower than set-temp under heating mode. Therefore, the ECONOMY mode is able to save more energy than other normal
mode.
In case of single-type, at the maximum output, ECONOMY Operation is approximately 70% of normal air conditioner operation
●
for cooling and heating.
In case of multi-type air conditioner, the ECONOMY operation mode is only available for the set indoor unit.
●
If the room is not cooled (or heated) well during ECONOMY operation, select normal operation.
●
During the monitor period in the AUTO mode, the air conditioner operation will not change to ECONOMY operation even if
●
ECONOMY operation is selected by pressing the ECONOMY operation button.
● Indicator Lamp
OPERATION
TIMER
ECONOMY
: Lighting : OFF
En-11
9315345387_OM_EN.indb 119315345387_OM_EN.indb 11 12/2/2010 8:44:41 AM12/2/2010 8:44:41 AM
10 °C HEAT OPERATION
To use 10 °C HEAT OPERATION
Press the 10 °C HEAT button (Fig.5 H)
The OPERATION indicator lamp (green) (Fig. 3 5) will go out, and the ECONOMY
indicator lamp (green) (Fig. 3 7) will light.
To stop 10 °C HEAT OPERATION
While 10 °C HEAT OPERATION is in
progress, only the following
operation can be used.
• SET button (Vertical)
• SET button (Horizontal)
● Indicator Lamp
Press the START/STOP button (Fig.5 M)
Then the OPERATION stops and the ECONOMY indicator lamp (green) (Fig. 3 7) will
go out.
About the 10 °C HEAT Operation
• The Heating mode will not operate if the room temperature is high enough.
• The room temperature can be maintained at 10 °C by pressing the 10 °C HEAT button
(Fig.5 H) so as to prevent the room temperature from falling too far.
• In case of multi-type air conditioner, if other indoor unit is used for heating, the temperature of the room where the “10 °C HEAT” function is applied will rise. When using
the “10 °C HEAT” function, we recommend all indoor units should be run under the
“10 °C HEAT” mode
: Lighting : OFF
MANUAL AUTO OPERATION
Use the MANUAL AUTO operation in the event the Remote Controller is lost or otherwise unavailable.
OPERATION
TIMER
ECONOMY
How To Use the Main Unit Controls
Press the MANUAL AUTO button (Fig. 2 2) more than
3 seconds and less than 10 seconds on the main unit control
panel.
To stop operation, press the MANUAL AUTO button (Fig. 2 2) once again.
(Controls are located inside the intake grille)
When the air conditioner is operated
●
with the controls on the MANUAL AUTO
button, it will operate under the same
mode as the AUTO mode selected on
the Remote Controller (see page 7).
The fan speed selected will be “AUTO”
●
and the thermostat setting will be standard. (24
°C
)
En-12
9315345387_OM_EN.indb 129315345387_OM_EN.indb 12 12/2/2010 8:44:42 AM12/2/2010 8:44:42 AM
1
2
1
2
CLEANING AND CARE
Before cleaning the air conditioner, be sure to turn it off and disconnect the Power Supply Cord.
CAUTION!
●
Be sure the Intake Grille (Fig. 1 8) is installed securely.
●
When removing and replacing the air fi lters, be sure not to touch the heat exchanger, as personal
●
injury may result.
Cleaning the Intake Grille
1. Remove the Intake Grille.
1
Place your fi ngers at both lower ends of the grille panel,
and lift forward; if the grille seems to catch partway
through its movement, continue lifting upward to remove.
2
Pull past the intermediate catch and open the Intake
Grille wide so that it become horizontal.
Intake Grille
2
1
2
1
Mounting shaft
Knob
2. Clean with water.
Remove dust with a vacuum cleaner; wipe the unit with
warm water, then dry with a clean, soft cloth.
3. Replace the Intake Grille.
Pull the knobs all the way.
1
Hold the grille horizontal and set the left and right
2
mounting shafts into the bearings at the top of the panel.
3
Press the place where the arrow on the diagram indi-
cates and close the Intake Grille.
Intake Grille
Mounting shaft
Knob
Bearing
Cleaning the Air Filter
1. Open the Intake Grille, and remove the
air fi lter.
Lift up the air fi lter’s handle, disconnect the 2 lower tabs,
and pull out.
Air fi lter handle
Hooks (2 places)
2. Remove dust with a vacuum cleaner or
by washing.
After washing, allow to dry thoroughly in a shaded place.
3.
Replace the Air Filter and close the Intake
Grille.
Align the sides of the air fi lter with the panel, and push
1
in fully, making sure the 2 lower tabs are returned properly to their holes in the panel.
Close the Intake Grille.
2
(For purposes of example, the illustration shows the unit without Intake Grille installed.)
Dust can be cleaned from the air fi lter either with a vacuum
●
cleaner, or by washing the fi lter in a solution of mild deter-
gent and warm water. If you wash the fi lter, be sure to allow
it to dry thoroughly in a shady place before reinstalling.
If dirt is allowed to accumulate on the air fi lter, airfl ow will be
●
reduced, lowering operating effi ciency and increasing noise.
During periods of normal use, the Air Filters should be
●
cleaned every 2 weeks.
Don’t operate the air conditioner with being opened the
●
intake grille.
Hooks (2 places)
When used for extended periods, the unit may accumulate dirt inside, reducing its performance. We recommend that the unit
●
be inspected regularly, in addition to your own cleaning and care. For more information, consult authorized service personnel.
When cleaning the unit’s body, do not use water hotter than 40 °C, harsh abrasive cleansers, or volatile agents like benzene or
●
thinner.
Do not expose the unit body to liquid insecticides or hairsprays.
●
When shutting down the unit for 1 month or more, fi rst allow the fan mode to operate continuously for half a day to allow inter-
●
nal parts to dry thoroughly.
En-13
9315345387_OM_EN.indb 139315345387_OM_EN.indb 13 12/2/2010 8:44:42 AM12/2/2010 8:44:42 AM
CLEANING AND CARE
Air Cleaning Filter Installation
1. Open the Intake Grille and remove the Air
fi lters.
Air Filter (Right & Left)
2. Install the Air cleaning fi lter set (set of 2).
1
Set the air cleaning fi lter into the air cleaning fi lter frame.
Air cleaning fi lter set
Air cleaning fi lter frame
Air cleaning fi lter
2
Engage the latch at both ends of the filter with the 2
hooks at the rear of the air cleaning fi lter frame.
Hook (2 places at the rear)
Replacing dirty Air cleaning fi lters
Replace fi lters with the following components (purchased sep-
arately).
POLYPHENOL CATECHIN AIR CLEANING FILTER : UTR-FA13-1
●
Negative air ions deodorizing fi lter: UTR-FA13-2
●
1. Open the Intake Grille and remove the Air
fi lters.
Air Filter (Right & Left)
2. Replace them by 2 new Air cleaning
fi lters.
Remove the old air cleaning fi lters in reverse order of
1
their installation.
Install in the same way as for installation of the air
2
cleaning fi lter set.
3. Install the 2 Air filters and close the
Intake Grille.
Air Filter (Right & Left)
Latch (2 places)
Take care that the air cleaning fi lter does not project beyond
the frame.
Engage the 6 fi xing locations at the top and bottom of
3
the air cleaning fi lter frame with the hooks of the air fi l-
ter.
Rear of the fi lter
Fixing location, hook (6 places)
3. Install the 2 Air filters and close the
Intake Grille.
Air Filter (Right & Left)
When air cleaning fi lters are used, the effect will increased
●
by setting the fan speed to “High”.
In regard to the Air Cleaning Filters
POLYPHENOL CATECHIN AIR CLEANING FILTER
The Air Cleaning Filters are disposable fi lters. (They can not
●
be washed and reused.)
For storage of the Air Cleaning Filters, use the filters as
●
soon as possible after the package has been opened.
(The air cleaning effect decreases when the fi lters are left in
the opened package)
Generally, the filters should be exchanged about every
●
3 months.
Please buy dedicated air cleaning fi lters (UTR-FA13-1) (Sold
separately) to exchange the used dirty air cleaning fi lters.
[Negative air ions deodorizing fi lter (1 sheet) — light blue]
The fi lters should be exchanged about every 3 years so as
●
to maintain the deodorizing effect.
Filter frame is not a one-off product.
●
Please buy dedicated deodorizing fi lter (UTR-FA13-2) (Sold
separately) when exchanging the fi lters.
(1 sheet)
Maintenance of Deodorizing Filters
In order to maintain the deodorizing effect, please clean the
fi lter in the follow way once 3 months.
1
Remove the deodorizing fi lter.
2
Clean with water and dry in the air.
1) Flush the fi lters with high-pressure hot water until the
surface of the fi lters are covered with water. Please
fl ush with diluent neutral detergent.
Never wash by reaming or rubbing, otherwise it
will damage the deodorizing effect.
2) Rinse with water fl ow.
3) Dry in shade.
3
Reinstall the deodorizing fi lter.
En-14
9315345387_OM_EN.indb 149315345387_OM_EN.indb 14 12/2/2010 8:44:42 AM12/2/2010 8:44:42 AM
CLEANING AND CARE
Filter Indicator Reset (The special setting)
• Can be used if set correctly during installation.
Please consult authorized serviceman when using this function.
• It lights on when it is time to clean the air fi lters.
Clean the fi lter referring to “CLEANING AND CARE”.
After cleaning, press the MANUAL AUTO button (Fig. 2 2) for 2 seconds or less on
the indoor unit.
● Indicator Lamp
OPERATION
TIMER
ECONOMY
: Flashing : OFF
SELECTING THE REMOTE CONTROLLER SIGNAL CODE
When two or more air conditioners are installed in a room and the Remote Controller is operating an air conditioner other than the
one you wish to set, change the signal code of the Remote Controller to operate only the air conditioner you wish to set (4 selections
possible).
When two or more air conditioners are installed in a room, please contact your retailer to set the individual air conditioner signal
codes.
Selecting the Remote Controller Signal Code
Use the following steps to select the signal code of the Remote Controller. (Note that
the air conditioner cannot receive a signal code if the air conditioner has not been set
for the signal code.)
Press the START/STOP button until only the clock is
1
displayed on the Remote Controller display.
Press the MODE button for at least five seconds to
2
display the current signal code (initially set to
Press the ( / ) buttons to change the signal code
3
between . Match the code on the display
).
to the air conditioner signal code.
Press the MODE button again to return to the clock
4
display. The signal code will be changed.
● If no buttons are pressed within 30 seconds after the signal code is displayed, the system returns to the original clock display. In this case,
start again from step 1.
● The air conditioner signal code is set to A prior to shipment. Contact your retailer to change the signal code.
● The Remote Controller resets to signal code A when the batteries in the Remote Controller are replaced. If you use a signal code other than
signal code A, reset the signal code after replacing the batteries.
If you do not know the air conditioner signal code setting, try each of the signal codes ( ) until you fi nd the code which operates the
air conditioner.
En-15
9315345387_OM_EN.indb 159315345387_OM_EN.indb 15 12/2/2010 8:44:43 AM12/2/2010 8:44:43 AM
TROUBLESHOOTING
WARNING!
Before requesting service, perform the following checks:
NORMAL
FUNCTION
Doesn’t operate immediately:
Noise is heard:
Smells:
Mist or steam is
emitted:
Airfl ow is weak or stops:
Water is produced from the
outdoor unit:
In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical
breaker and consult authorized service personnel.
Merely turning off the unit’s power switch will not completely disconnect the unit from the power
source. Always be sure to turn off the electrical breaker to ensure that power is completely off.
Symptom Problem See Page
If the indoor unit is stopped and then immediately started
●
Whenever the electrical breaker is turned off then on again
●
During operation or immediately after stopping the unit, the
●
During operation, a slight squeaking sound may be heard.
●
During Heating operation, a sizzling sound may be heard oc-
●
Some smell may be emitted from the indoor unit. This smell
●
During Cooling or Dry operation, a thin mist may be seen
●
During Heating operation, the outdoor unit’s fan may stop,
●
When Heating operation is started, fan speed is temporarily
●
During H eating operation, if the roo m tempe rature rises
●
Durin g Heating o peration, the indoor unit will temporarily
●
During Dry mode, the indoor unit will operate at low speed;
●
During SUPER QUIET operation, the fan will operate at very
●
In the monitor of AUTO operation, the fan will operate at very
●
In case of Multi-type unit, if multiple units are operated in
●
●
again, the compressor will not operate for about 3 minutes, in
order to prevent fuse blowouts.
the protection circuit will operate for about 3 minutes, preventing unit operation during that period.
sound of water fl owing in the air conditioner’s piping may be
heard. Also, noise may be particularly noticeable for about
2 to 3 minutes after star ting operation (sound of refrigerant
fl owing).
This is the result of minute expansion and contraction of the
front panel due to temperature changes.
casional. This sound is produced by the Automatic Defrosting
operation.
is the result of room smells (furniture, tobacco, etc.) which
have been taken into the indoor unit.
emitted from the indoor unit. This results from the sudden
Cooling of room air by the cool air emitted from the indoor
unit, resulting in condensation and misting.
and steam may be seen rising from the unit. This is due to
Automatic Defrosting operation.
very low, to allow internal parts to warm up.
above the thermostat setting, the outdoor unit will stop, and
the indoor unit will operate at very low fan speed. If you wish
to warm the room fur ther, set the thermostat for a higher setting.
stop operation (Max. 15 minutes) as the Automatic Defrosting
mode operates. During Automatic Defrosting operation, the
OPERATION Indicator Lamp will fl ash.
in order to adjust room humidity, the indoor unit’s fan may
stop from time to time. Also, the fan may operate at very low
speed when adjusting room humidity.
low speed.
low speed.
different operation modes as shown below, the units operated afterward will stop and the OPERATION indicator lamp
(green) will fl ash.
Heating mode and cooling mode (or dry mode)
Heating mode and fan mode
During Heating operation, water may be produced from the
outdoor unit due to Automatic Defrosting operation.
—
—
17
—
—
17
—
17
7
6
7
18
17
En-16
9315345387_OM_EN.indb 169315345387_OM_EN.indb 16 12/2/2010 8:44:44 AM12/2/2010 8:44:44 AM
TROUBLESHOOTING
Symptom Problem See Page
CHECK ONCE
MORE
If the problem persists after performing these checks, or if you notice burning smells, or the OPERATION Indicator Lamp (Fig. 3 5)
and the TIMER Indicator Lamp (Fig. 3 6) fl ashes and ECONOMY Indicator Lamp (Fig.3 7) fl ashes fast, immediately stop operation,
turn off the electrical breaker and consult authorized service personnel.
Doesn’t operate at all:
Poor Cooling (or Heating)
performance:
The unit operates
differently from the Remote
Controller’s setting:
Has the circuit breaker been turn off?
●
Has there been a power failure?
●
Has a fuse blown out, or a circuit breaker been tripped?
●
Is the timer operating? 8 - 9
●
Is the Air Filter dirty?
●
Are the air conditioner’s intake grille or outlet por t blocked?
●
Did you adjust the room temperature settings (thermostat)
●
correctly?
Is there a window or door open?
●
In the case of Cooling operation, is a window allowing bright
●
sunlight to enter? (Close the curtains.)
In the case of Cooling operation, are there heating apparatus
●
and computers inside the room, or are there too many people
in the room?
Is the unit set for SUPER QUIET operation? 6
●
Are the Remote Controller’s batteries dead?
●
Are the Remote Controller’s batteries loaded properly?
●
—
—
5
OPERATING TIPS
Operation and Performance
Heating Performance
This air conditioner operates on the heat-pump principle,
●
absorbing heat from outdoor air and transferring that heat
to indoor unit. As a result, the operating performance is
reduced as outdoor air temperature drops. If you feel that
insufficient heating performance is being produced, we
recommend you use this air conditioner in conjunction with
another kind of heating appliance.
Heat-pump air conditioners heat your entire room by recir-
●
culating air throughout the room, with the result that some
time may be required after fi rst starting the air conditioner
until the room is heated.
Microcomputer-controlled Automatic Defrosting
When using the Heating mode under conditions of low out-
●
door temperature and high humidity, frost may form on the
outdoor unit, resulting in reduced operating performance.
In order to prevent this kind of reduced performance, this
air conditioner is equipped with a Microcomputer-controlled
Automatic Defrosting function. If frost forms, the air conditioner will temporarily stop, and the defrosting circuit will
operate briefl y (Max. 15 minutes).
During Automatic Defrosting operation, the OPERATION
Indicator Lamp (green) will fl ash.
After heating operation stops, if frost forms on the outdoor
●
unit, the unit will start Automatic Defrosting operation. At
this time, the outdoor unit will automatically stop after operating for a few minutes.
En-17
9315345387_OM_EN.indb 179315345387_OM_EN.indb 17 12/2/2010 8:44:44 AM12/2/2010 8:44:44 AM
OPERATING TIPS
AUTO Restart
In Event of Power Interruption
If a power interruption occurs during TIMER operation, the
The power supply to the air conditioner is stopped by a
●
power interruption. The air conditioner will then restart automatically in its previous mode when the power is restored.
Multi-type Air conditioner
This indoor unit can be connected to a multi-type outdoor unit depending on model. The multi-type air conditioner allows multiple indoor units to be operated in multiple locations. The indoor units may be operated simultaneously, in accordance with their respective
output.
Simultaneous Use of Multiple Units
● When using a multi-type air conditioner, the multiple indoor
units can be operated simultaneously, but when two or
more indoor units of the same group are operated simultaneously, the heating and cooling effi ciency will be less
than when a single indoor unit is used alone. Accordingly,
when you wish to use more than 1 indoor unit for cooling
at the same time, the use should be concentrated at night
and other times when less output is required. In the same
way, when multiple units are used simultaneously for heating, it is recommended that they be used in conjunction
with other auxiliary space heaters, as required.
● Seasonal and outdoor temperature conditions, the structure of the rooms and the number of persons present may
also result in differences of operating effi ciency. We rec-
ommend that you try various operating patterns in order to
confi rm the level of heating and cooling output provided by
your units, and use the units in the way that best matches
your family’s lifestyle.
● If you discover that one or more units delivers a low level
of cooling or heating during simultaneous operation, we
recommend that you stop simultaneous operation of the
multiple units.
● Operation cannot be done in the following different operating modes.
If the indoor unit is instructed to do an operating mode that
it cannot perform, the OPERATION indicator lamp (green)
on the indoor unit will fl ash (1 second on, 1 second off)
and the unit will go into the standby mode.
Heating mode and cooling mode (or dry mode)
Heating mode and fan mode
●
timer will be reset and the indoor unit will begin (or stop) operation at the new time setting. In the event that this kind of
timer fault occurs, the TIMER Indicator Lamp will fl ash (see
Page. 3).
Use of other electrical appliances (electric shaver, etc.) or
●
nearby use of a wireless radio transmitter may cause the air
conditioner to malfunction. In this event, temporarily turn off
the circuit breaker, turn it on and then use the Remote Controller to resume operation.
Operation can be done in the following different operating
●
modes.
Cooling mode and dry mode
Cooling mode and fan mode
Dry mode and fan mode
The operating mode (heating mode or cooling (dry) mode)
●
of the outdoor unit will be determined by the operating
mode of the indoor unit that was operated fi rst. If the in-
door unit was started in fan mode, the operating mode of
the outdoor unit will not be determined.
For example, if indoor unit (A) was started in fan mode
and then indoor unit (B) was then operated in heating
mode, indoor unit (A) would temporarily start operation
in fan mode but when indoor unit (B) started operating in
heating mode, the OPERATION indicator lamp (green) for
indoor unit (A) would begin to fl ash (1 second on, 1 sec-
ond off) and it would go into standby mode. Indoor unit (B)
would continue to operate in heating mode.
Notice
During use of the heating mode, the outdoor unit will occa-
●
sionally commence the defrost operation for brief periods.
During the defrosting operation, if the user sets the indoor
unit for heating again, the defrosting mode will continue,
and the heating operation will begin after completion of
defrosting, with the result that some time may be required
before warm air is emitted.
During use of the heating mode, the top of the indoor unit
●
may become warm, but this is due to the fact that coolant is circulated through the indoor unit even when it is
stopped; it is not a malfunction.
En-18
9315345387_OM_EN.indb 189315345387_OM_EN.indb 18 12/2/2010 8:44:45 AM12/2/2010 8:44:45 AM
9315345387_OM_EN.indb 29315345387_OM_EN.indb 2 12/2/2010 8:44:33 AM12/2/2010 8:44:33 AM
Loading...
