OPERATING MANUAL
Contents
AIR CONDITIONER
Wall Mounted Type
ASTG30KMTB
ASTG34KMTB
Before using this product, read these instructions thoroughly. Also, keep this manual for future reference,
together with the installation manuals for the indoor and outdoor units.
Safety Precautions
To prevent personal injury, injury to others, or property damage, read this section carefully before you use this product, and be sure to comply to the
following safety precautions.
Safety Precautions ...............................................................
Indoor Unit Overview and Operations .................................. 3
Remote Controller Overview and Operations ....................... 4

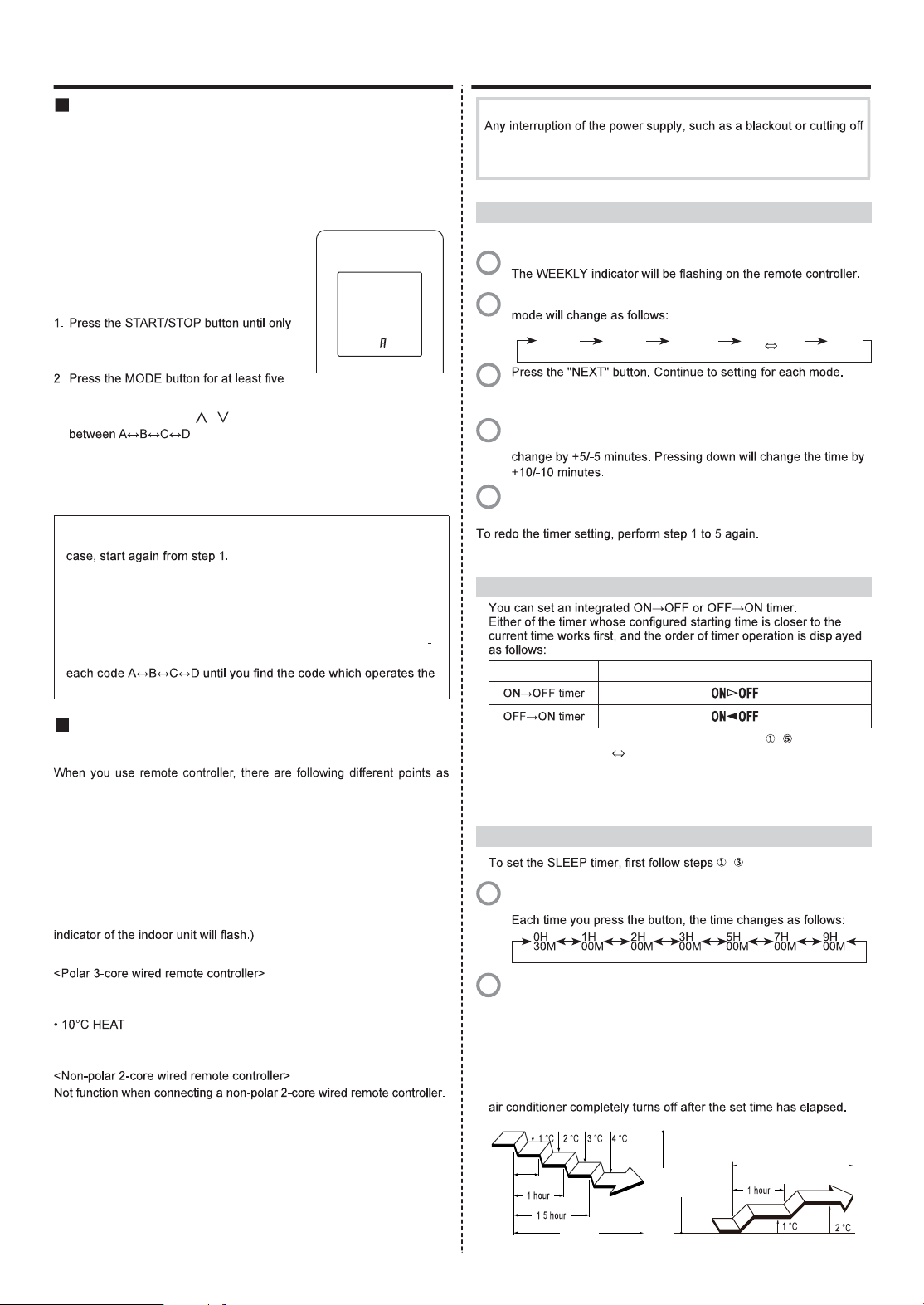

Timer Operation....................................................................
Human Sensor (Energy Saving) ...........................................
Demand Response and Indoor Unit Operation ....................
General Informations on Operation ......................................
Cleaning and Care..............................................................

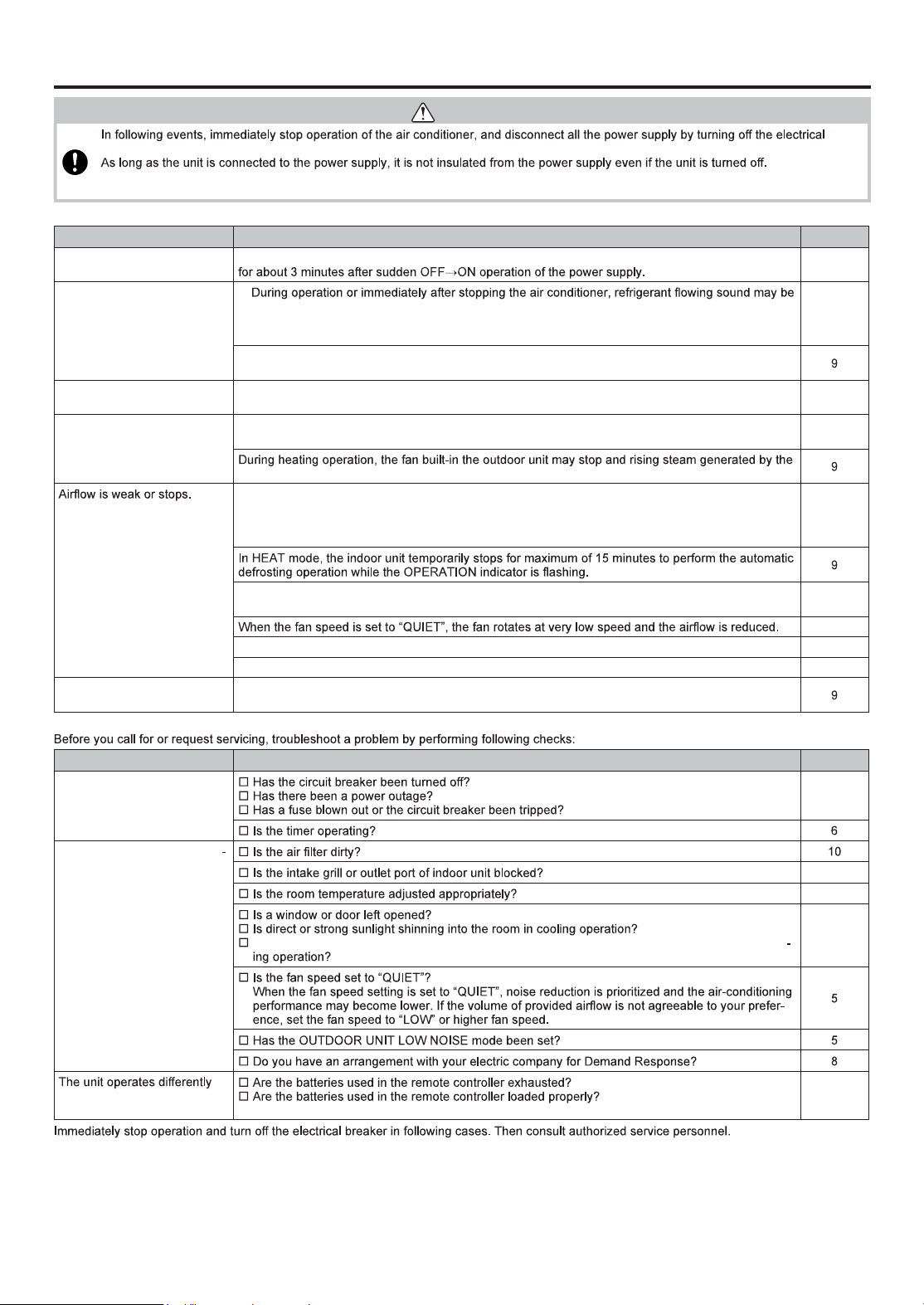

Troubleshooting ..................................................................
WARNING CAUTION
This mark warns of death or serious injury. This mark warns of injury or damage to property.
This mark denotes an action that is PROHIBITED.
• Explanation of symbols displayed on the indoor unit or outdoor unit.
WARNING
CAUTION
CAUTION
CAUTION
• The appliance, outlet and inlet shall be installed, operated
30 type
34 type
2
•
consult authorized service personnel for repairing, installation,
and relocation of this product.
Improper installation or handling will cause leakage, electric
• In the event of a malfunction such as burning smell,
immediately stop operation of the air conditioner, and
breaker or disconnecting the power plug. Then consult
authorized service personnel.
• Take care not to damage the power supply cable.
If the supply cord is damaged, it must be replaced by the
in order to avoid a hazard.
This symbol shows that the Operation Manual should be read carefully.
This symbol shows that a service personnel should be handling this equipment with reference to the Installation Manual.
This symbol shows that information is available such as the Operating Manual or Installation Manual.
2
.
M (kg)
m2)
M (kg)
m2)
WARNING
This mark denotes an action that is COMPULSORY.
• In the event of refrigerant leakage, be sure to keep away
personnel.
• If you see lightning or hear thunder, there might be a lightning
strike.
by using the remote controller, and do not touch this product
or the power source during thunderstorm.
• The appliance shall be stored in a room without continuously
operating gas appliance or an operating electric heater).
•
• Be aware that refrigerants may not contain an odour.
• The appliance shall be stored so as to prevent mechanical
damage from occurring.
• Disposing of the product shall be done properly, in
compliance with national or regional regulations.
• During transportation or relocation of the indoor unit, pipes
shall be covered with the wall hook bracket for protection.
Do not move the appliance by holding the indoor unit pipes.
(The stress applied to the pipe joints may cause the
(continued)
En-1
Safety Precautions (continued)
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
•
factory or area containing a large amount of splashed oil or
steam such as a kitchen.
• Do not start or stop the operation of this product by turning
• Provide occasional ventilation during use.
•
•
away from either the indoor unit or outdoor unit.
•
extended periods.
• After long period of use, check whether the installation stand
does not deteriorate to prevent the unit from falling down.
•
carefully considered when you use this product in a room
with infants, children, elderly or sick persons.
•
• Do not block or cover the intake grille and the outlet port.
•
• Do not climb on, place objects on, or hang objects from this
product.
WARNING
•
•
many hours.
•
or inlet port.
• Do not operate with wet hands.
• Do not use means to accelerate the defrosting process or to
clean the appliance, other than those recommended by the
manufacturer.
• Do not pierce or burn.
CAUTION
• Do not place any other electrical products or household
belongings under this product.
Dripping condensation from this product might get them wet,
and may cause damage or malfunction of your property.
• Do not expose this product directly to water.
• Do not use this product for preservation of food, plants,
animals, precision equipment, art work, or other objects. This
may cause quality deterioration of those items.
•
• Do not drink the drainage from the air conditioner.
• Do not pull the power supply cable.
•
product to avoid personal injury when you install or maintain
the unit.
Indoor unit accessories
Remote
controller
Batteries Filter holders
Remote controller
holder
Tapping screws
Battery (R03/LR03/AAA × 2) loading and remote controller preparation
5 Press "CLOCK ADJUST" button to start clock setting.
6 Set the day of the week by pressing "SELECT" button (Monday
to Sunday). *By pressing the "TEMP.
7
8
Set the time by pressing "SELECT" button.
Pressing or changes the value by the minute.
Pressing down on or
( / )
" buttons, the time
Remote controller holder installation
Slide up
Screws
Take care to prevent infants and young children from acciden
tally swallowing the batteries.
• Do not attempt to recharge dry batteries.
• Do not use dry batteries that has been recharged.
9 To complete, press the "SEND" button close to the indoor unit.
Settings may not be properly sent if pressed from a distance.
Notes:
•
•
•
• If the remote control range noticeably shortens, replace the batter
Insert
WARNING
CAUTION
En-2
OPERATING MANUAL
AIR CONDITIONER Wall Mounted Type
1 Intake grille
Before starting operation, make sure that the intake grille has been
function or performance of the product.
2 "MANUAL AUTO" button
Use when the remote controller is lost or there is a malfunction.
Status Action Mode or operation
In operation Press. Stop
Stopping AUTO
(Only for servicing.*)
on the remote controller.
Forced cooling
)" button
3 Wireless LAN control indicator and buttons
For details, refer to the setting manual of the Wireless LAN control.
NOTES:
•
4 Front panel
5 Human Sensor
Used for Energy Saving Program. Controls temperature setting by
detecting people in the room.
6
Each time you press "Vertical SET" button on the remote controller,
COOL or DRY mode HEAT mode
2
1
14
13
12
11
ECONOMY indicator (green)
10
TIMER indicator (orange)
11
Lights in TIMER operation, and blinks slowly when the timer setting
error is detected.
3
4
5
6
7
8
9
10
* *
1 2 3
• Do not adjust by hand.
• At the beginning of AUTO or HEAT mode, they may stay on position
•
or DRY mode, the louver will automatically return to position 3.
•
condensation to form, and the drops may damage your property.
4
65
7
Each time you press the "Horizontal SET" button on the remote
5
4
1
3
2
5 4
1
*
3
2
8 Drain hose
9
CAUTION
For appropriate signal transmission between remote controller and
indoor unit, keep the signal receiver away from the following items
Direct sunlight or other strong lights
12 OPERATION indicator (green)
Lights in normal operation, and blinks slowly in Automatic defrosting
operation.
Blinks during Demand Response operation. For details, refer to page
13
14
verter type ones, the signal may not be transmitted properly. In
such a case, consult the store of purchase.
OPERATING MANUAL
En-3
•
Place remote controller at where will not be exposed to
direct sunlight or excessive heat.
Remove batteries if the product is not going to be used for
an extended period.
Exhausted batteries must be removed immediately, and
be disposed according to the local laws and regulations of
your region.
CAUTION
•
or mouth, immediately rinse with plenty of clean water, and
consult your physician.
• Obstacles such as a curtain or wall between the remote
signal transmission.
• Do not apply strong shocks to the remote controller.
• Do not pour water on the remote controller.
1 "Start/Stop ( )" button
2 "MODE" button
Switches operation mode in following order.
AUTO COOL DRY FAN HEAT
Notes in HEAT mode:
• At the beginning of the operation, the indoor unit operates at very
to the selected fan speed.
• Automatic defrosting operation overrides the heating operation when
necessary.
3 "TEMP. (temperature)" buttons
Sets the desired temperature.
In COOL or DRY mode, the temperature needs to be set lower than
the current room temperature. In HEAT mode, the temperature needs
to be set higher than the current room temperature.
Otherwise, corresponding operation mode may not start.
Temperature setting range
AUTO/COOL/DRY
HEAT
Notes: Temperature control is not available in FAN mode.
4 Remote controller display
In this section, all the possible indicators are displayed for description.
In actual operation, the display is linked with the button operation, and
only shows the necessary indicators for each setting.
En-4
OPERATING MANUAL
5 "POWERFUL" button
Activates the POWERFUL operation.
cool down or warm up the room.
When activated, the indoor unit will emit 2 short beeps.
• Adjusted room temperature reaches the set temperature in COOL,
DRY, or HEAT mode.
• 20 minutes have passed after the POWERFUL operation mode has
been set.
Even in situations above, the POWERFUL operation will not
Notes:
•
• This operation cannot be performed simultaneously with ECONOMY
operation.
• POWERFUL operation will override the OUTDOOR UNIT LOW
NOISE, ENERGY SAVING functions. Both functions, if set, will start
6 "10 °C HEAT" button
indoor unit emits 2 short beeps and the ECONOMY indicator (green)
will turn on.
)" button. The Economy indicator
Notes:
•
can be adjusted by using the "Vertical SET" button.
• HEAT mode will not be performed if the room temperature is warm
enough.
(continued)
AIR CONDITIONER Wall Mounted Type
654
4
7 Signal transmitter
Aim at the signal receiver of the indoor unit properly.
• Signal transmit indicator on the remote controller display shows
that the signal from the remote controller is being transmitted.
•
• You will hear a beep if the transmitted signal has been sent properly.
If there is no beep, press the button on the remote controller again.
8 "FAN" button
Controls the fan speed.
(AUTO) (HIGH) (MED) (LOW) (QUIET)
• When AUTO is selected, the fan speed is automatically adjusted
according to the operation mode.
9 "SWING" button
Sets the automatic swing operation. Each time the "SWING" button is
pressed, the operation will change.
Up/down Left/right Up/down/left/right Stop swing
• The Left/right swing operation will follow the direction as shown on
•
COOL, DRY, or FAN
mode
1 2 3 3
Notes:
• SWING operation may stop temporarily when the indoor unit fan is
rotating at very low speed or is stopped.
• 4 or 3
starting the swing operation.
10 "Vertical SET" button
Notes:
•
direction.
11 "Horizontal SET" button
Notes:
•
direction.
"WEEKLY timer" button
12
per day, each day of the week.
"SLEEP timer" button
13
Activates the SLEEP timer that helps you to fall asleep comfortably
with gradual temperature control.
14
"ON/OFF timer" button
Activates the ON/OFF timer.
"NEXT" button
15
Used for adjusting the timer setting.
"BACK" button
16
Used for adjusting the timer setting.
HEAT or FAN mode
See page 3
See page 3
17 "RESET" button
When you press the "RESET" button, press it gently by using the tip
of a ballpoint pen or other small object in correct direction as shown in
RESET
18
TEST RUN button
Only used for the initial test in the unit installation.
Do not press this button under normal use because it will cause
incorrect operation.
• During the test run, the OPERATION indicator and the TIMER
indicator blink simultaneously.
• To quit the test run that is started unintentionally, you need to turn
19 "CLOCK ADJUST" button
Used for adjusting the clock.
See page 2
20 "SEND" button
Used for sending the timer/clock setting.
21 "TIMER SETTING" button
Used to enter the timer setting mode.
22 "SELECT" button
Used for adjusting the clock or timer.
23
"OUTDOOR UNIT LOW NOISE" button
Starts or stops OUTDOOR UNIT LOW NOISE operation that lowers
noise generated from the outdoor unit by cutting down the rotation
number of the compressor, and suppressing the fan speed.
Once the operation is set, the setting is preserved until you press this
button again to stop the operation, even if the indoor unit operation is
stopped.
OUTDOOR UNIT LOW NOISE mode.
Notes:
• This operation cannot be performed simultaneously with FAN, DRY
24
Starts or stops ECONOMY operation that saves more electricity
than other operation modes by changing the set temperature to a
moderate setting.
By pressing the "ECONOMY" button, the ECONOMY indicator on the
indoor unit turns on.
• In COOL or DRY mode, the room temperature will be adjusted a few
• In HEAT mode, the room temperature will be adjusted a few
Notes:
• In COOL, HEAT, or DRY mode, the maximum output of this
• This operation cannot be performed during temperature monitoring
25
Activates or deactivates the energy saving program.
* The Energy Saving program is ON at the time of purchase.
on the remote controller display shows that the unit is in
and POWERFUL operation modes.
"ECONOMY" button
degrees higher than the set temperature.
degrees lower than the set temperature.
by AUTO mode.
"SENSOR" button (ENERGY SAVING PROGRAM)
each function.
OPERATING MANUAL
En-5
Timer Operation
Remote controller custom code setting
When two or more air conditioners are installed in a room and the
remote controller is operating an air conditioner other than the one you
wish to set, change the custom code of the remote controller to operate
only the air conditioner you wish to set (4 selections possible).
When two or more air conditioners are installed in a room, please
contact your retailer to set the individual air conditioner custom codes.
Use the following steps to select the custom
code of the remote controller.
(Note that the air conditioner cannot receive
a signal if the air conditioner has not been set
for the matching custom code.)
the clock is displayed on the remote
controller display.
seconds to display the current custom code (initially set to A).
3. Press the SET TEMP. ( / ) button to change the custom code
Match the code on the display to the air conditioner custom code.
4. Press the MODE button again to return to the clock display. The
custom code will be changed.
• If no buttons are pressed within 30 seconds after the custom code
is displayed, the system returns to the original clock display. In this
• The air conditioner custom code is set to A prior to shipment.
Contact our authorized service personnel to change the custom code.
• Depending on the remote controller, the custom code may return to
custom code A when the batteries are replaced. In this case, if you
use a code other than A, reset the code af ter replacing the batter
ies. If you do not know the air conditioner custom code setting, try
air conditioner.
Note for timer settings:
of a circuit breaker, makes the set internal clock go wrong.
In such a case, the TIMER indicator on the indoor unit blinks, and
you need to readjust the setting.
ON timer or OFF timer
You can set the ON timer or OFF timer with the following steps.
Press the "TIMER SETTING" button to start the setting.
1
Press the "SELECT" button to choose the desired mode. The
2
WEEKLY
ON/OFF
(ON)
ON/OFF
(OFF)
ON/OFF
(ON OFF)
SLEEP
(OFF)
3
* To cancel timer setting during the setting process, press the
"TIMER SETTING" button again.
Adjust the time by pressing the "SELECT" button while the clock
4
indicator is blinking. Each time you press the button, the time will
Press the "SEND" button.
5
To cancel the ON/OFF timer, press the "ON/OFF" button while the ON/
OFF indicator is on. (Erases the indicator)
Program timer (combined use of the ON timer and the OFF timer)
Timer Indicator on remote controller display
Wired Remote Controller (Option)
The optional wired
compared with using wireless remote controller.
[The additional functions for wired remote controller]
• Temperature set back timer
And, you can use wired and wireless remote controller together.
However, you must change some restricted functions of wireless remote
controller to invalid.
If restricted function is valid, remote controller cannot use correctly.
(beeping sound will be heard, OPERATION, TIMER and the ECONOMY
[The restricted functions for wireless remote controller]
• Outdoor unit low noise
• Energy saving
• Powerful
• Timer operation
remote
controller can be used.
To set the program timer, conduct the same steps ~ for the ON/
OFF timer. (Select ON OFF in Step 2)
Notes:
• If you change the setting value for the timer after the program timer
is set, the counting down of the timer will be reset at that moment.
• Time setting for each combination should be within a span of 24 hours
SLEEP timer
~ for the ON/OFF timer.
Adjust the time by pressing the "SELECT" button while the clock
4
indicator is blinking.
(30 min.)
Press the "SEND" button.
5
To cancel the SLEEP timer, press the "SLEEP" button while the
SLEEP indicator is on. (Erases the indicator)
To help you to fall asleep comfortably and prevent excessive warming
or cooling in sleep, the SLEEP timer controls the temperature setting
automatically in accordance with the set time shown as follows. The
In HEAT mode
30 min.
Set
temperature
In COOL or DRY mode
Set time
hours
.
En-6
OPERATING MANUAL
Set time
(continued)
Timer Operation (continued)
AIR CONDITIONER Wall Mounted Type
WEEKLY timer
ON and OFF timer can be combined, and up to 4 reservations (program
Before setting the program, please set the week and time of the air
If the week and time are not set, the weekly timer will not operate
correctly at the set time.
Please refer to "remote controller preparation" (page 2).
Monday to
Friday
Saturday
Sunday
Program
Wake up
Program
ON ON ON ON
Example of WEEKLY timer 2
You can specify a given temperature in the ON setting in WEEKLY
timer.
Program
ON
ON
Program
Program
Leave for work
OFF
ON
OFF
No timer settings
Program
OFF
Program
Program
ON
Come back home
Program
OFF
ON
Program
OFF
Go to sleep
Program
OFF
Program
ON
To set the WEEKLY timer, first follow steps ~
for the ON/OFF timer.
Select the program number and the day using the "SELECT"
4
button.
Program
Program
Using the "SELECT" button select the operation mode (ON timer,
5
OFF timer, or without a timer).
Program Monday
Program Monday
To operate without a timer
the next setting.
Program Tuesday Program Sunday
Program Saturday Program Sunday
4
* You can set the temperature for AUTO, COOL, and DRY modes within
Notes:
Operations modes other than the temperature setting will be the
set.
If you set the ON timer and OFF timer on the same time, the air
conditioner will run the ON timer. If two ON timer are set at the
same time, the air conditioner will run in the order of the program
number.
If there is a power interruption, such as due to a power outage
during the WEEKLY timer setting or a circuit breaker cutting out,
(See page 2 "remote controller preparation".)
You cannot use the WEEKLY timer together with the other timers.
If you want to run the product on WEEKLY timer after using the ON/
OFF Timer, Program Timer, or SLEEP Timer while the WEEKLY
timer is running, you need to activate the WEEKLY timer again.
Press the "SELECT" button to set the desired ON time or OFF
6
time.
If you selected OFF in step
4
the next setting.
2. Press the "SEND" button.
Press the "SELECT" button to set the temperature.
7
To complete the setting, press the "SEND" button.
8
If you want to can cel the setting midway, plea se press the
"TIMER SETT ING" button instead of pre ssi ng the "SEND"
button.
Notes:
settings, press the "BACK" button to return to the previous step.
If you do so when far from the main unit, the signal may not get
timer mode, then use the "SELECT" button to browse through the
WEEKLY timer settings in the order shown in step 4.
while the WEEKLY indicator is on. (Erases the indicator)
OPERATING MANUAL
En-7
To prevent waste of electricity, this function controls the temperature
setting when no one is occupying the room. Energy Saving program is
on at the time of purchase.
To activate the Energy Saving program, press the "SENSOR"
1
button.
display.
To deactivate the Energy Saving program, press the "SENSOR"
2
button again.
display.
will no longer be shown on the remote controller
About the ENERGY SAVING Operation
If no one enters the room for approximately 20 minutes, the set
temperature will be automatically controlled.
(When someone comes back into the room, the human sensor will
detect this, and automatically revert to the original settings.)
Operation
mode
COOL/DRY
HEAT
AUTO
timer will be prioritized.
set temperature will not be changed.
(if there is no one in the room for a while)
The set temperature will be increased by a maximum of
The set temperature will be decreased by a maximum
This runs the ENERGY SAVING function automatically
for the selected mode (Cooling/ Heating/ Drying).
Operating details
7 m
ENERGY SAVING function may not work when the room temperature is
as when immediately after starting the operation.
90°
50° 50°
About the HUMAN SENSOR
7 m
Details about detection with the human sensor
The human sensor detects whether there are people in the room
by looking for movement by people in the room.
Notice
Since the human sensor detects infrared light given out by
people, there may be cases where this detection is incorrect.
Situations in which the sensor will detect no people in the
room, omeone there
tween people’s body temperature is small.
(Such as during the summer when the temperature is 30 C
or higher.)
When there is someone in the room, but they do not move
for a long period of time.
When someone is hidden behind a sofa, other furniture,
glass, or in similar situations.
When someone is wearing extremely thick clothing and has
their back facing the sensor.
Situations in which the sensor will incorrectly detect people
in th ere is no one there
When there is a dog or a cat moving around in the room.
When the wind is making curtains or plants move.
ances such as oscillating electric fans operating.
Demand Response and Indoor Unit Operation
This product is designed to be compatible with Air Conditioning Demand
Response program.
To utilize the function, you need a separate arrangement with your
electricity supplier. Please check availability in the place of use.
When your electricity supplier activates one of the following 3 Demand
Response (DR) modes, the air conditioner switches over to the
appropriate operation, and the OPERATION indicator (green) on the
indoor unit blinks to inform you the unit has entered the DR mode.
OPERATION indicator
(indoor unit)
AUTO/COOL/HEAT/DRY/FAN operations
ON (4 seconds)
OFF (4 seconds)
DR mode Description of operation in this mode
DR mode 2
DR mode 3
When the unit enters the DR mode, it performs moderate operation so
function by changing the temperature setting using the remote controller
Note: Stopping the operation of the air conditioner by using the remote
controller or by OFF timer are valid in DR mode.
If the timer operation is interfered by an interruption of power
supply such as a blackout and the power supply is resumed, no
indication of the DR mode is performed.
Powerful operation is performed within the operable range of the
DR mode.
previously performed before entering the DR mode.
check whether they are activating any of the DR mode described above.
If the air conditioner is under demand controlling, consult the issues with
your electricity supplier.
If they are not demand controlling the air conditioner, refer to your
warranty card for the contact details of Fujitsu General (AUST.) PTY
The air conditioner continues to cool or heat during
the Demand Response event, but the electrical energy
consumed by the air conditioner in a half hour period
would be consumed if operating at the rated capacity in
a half hour period.
The air conditioner continues to cool or heat during
the Demand Response event, but the electrical energy
consumed by the air conditioner in a half hour period
would be consumed if operating at the rated capacity in
a half hour period.
s the function, it will perform the operation that was
sugeneral.com.au
En-8
OPERATING MANUAL
General Informations on Operation
AIR CONDITIONER Wall Mounted Type
Automatic defrosting operation
When outdoor temperature is very low with high humidity, frost
may form on the outdoor unit during the heating operation, and
it could reduce the operating performance of the product.
defrost function is equipped in this air conditioner.
If frost forms, the air conditioner will temporarily stop, and
OPERATION indicator on the indoor unit blinks during this
operation.
If frost forms on the outdoor unit after the heating operation, the
outdoor unit will stop automatically after it operates for a few
minutes. Then the automatic defrosting operation starts.
Auto-restart function
In event of power interruption such as a blackout, the air
conditioner stops once. But it restarts automatically and
performs previous operation when the power supply is resumed.
If any power interruption occurs after the timer is set, counting
down of the timer will be reset.
After the power supply is resumed, the TIMER indicator on the
indoor unit blinks to notify you that there has been a timer fault.
In such a case, reset the timer for your opportune time.
Use of other electrical appliances such as an electric shaver or
nearby use of a wireless radio transmitter may cause the malfunction
of the air conditioner.
Then turn it on again, and resume operation by using the remote
controller.
Heating performance
absorbing heat from air outdoors and transferring that heat
to the indoor unit. As a result, the operating performance is
reduced as outdoor air temperature drops. If you feel that the
this air conditioner in conjunction with other kinds of heating
appliance.
Wired remote controller (option)
The optional wired remote controller can be used.
as compared with using wireless remote controller.
[The additional functions for wired remote controller]
• Temperature set back timer
And you can use both wired and wireless remote controller
simultaneously. (But function is limited.)
When the restricted functions on the remote controller are used,
beeping sound will be heard, OPERATION, TIMER and the
[The restricted functions for wireless remote controller]
• Outdoor unit low noise
• Energy saving
•
• Powerful
• Timer operation
Temperature and Humidity Range
COOL/DRY Indoor temperature
Indoor humidity
HEAT Indoor temperature
If the unit is used under higher temperature conditions than those noted here, the automatic protection circuit may operate, interrupting the operation.
If the unit is used under lower temperature conditions than those noted here, the heat exchanger may freeze, causing water leakage or other mal
function.
Do not use the air conditioner for any purpose other than room cooling/dry, room heating or fan.
For the permissible ranges of temperature and humidity for the outdoor unit, refer to the outdoor unit installation manual.
If the air conditioner is used continuously for many
hours, water may condense on the surface and drip.
OPERATING MANUAL
En-9
Cleaning and Care
CAUTION
•
• Before starting operation, make sure that the intake grille has been shut completely. Incomplete closing of the intake grille might have an
•
• Do not expose the indoor unit to liquid insecticides or hair sprays.
Daily care
•
• Do not use scouring cleanser, volatile solvents such as benzene or
thinner.
• Wipe the unit gently by using soft cloth.
Cleaning the intake grille
Open the intake grille in direction of the arrow a. While gently
1
pressing the left and right mounting shafts of the intake grille
outward b, remove the intake grille in direction of the arrow c.
1
pull out.
Hooks (2 places)
Remove dust with a vacuum cleaner or by washing.
2
After washing, allow to dry thoroughly in a shaded place.
3
making sure the two lower tabs are returned properly to their
holes in the panel.
Wash the intake grille gently with water or wipe it gently with a
2
soft cloth moisten with warm water.
Then wipe it with a dry and soft cloth.
While holding the grille horizontal, set the left and right mounting
3
shafts into the pillow blocks at the top of the panel d. To latch
each shaft properly, insert the shaft until it snaps.
Then close the intake grille e.
Press 4 places on the intake grille to close it completely.
4
Hooks (2 places)
(2) Close the intake grille.
•
shady place before reinstalling.
•
•
two weeks.
• Do not operate the air conditioner with the intake grille open.
En-10
OPERATING MANUAL

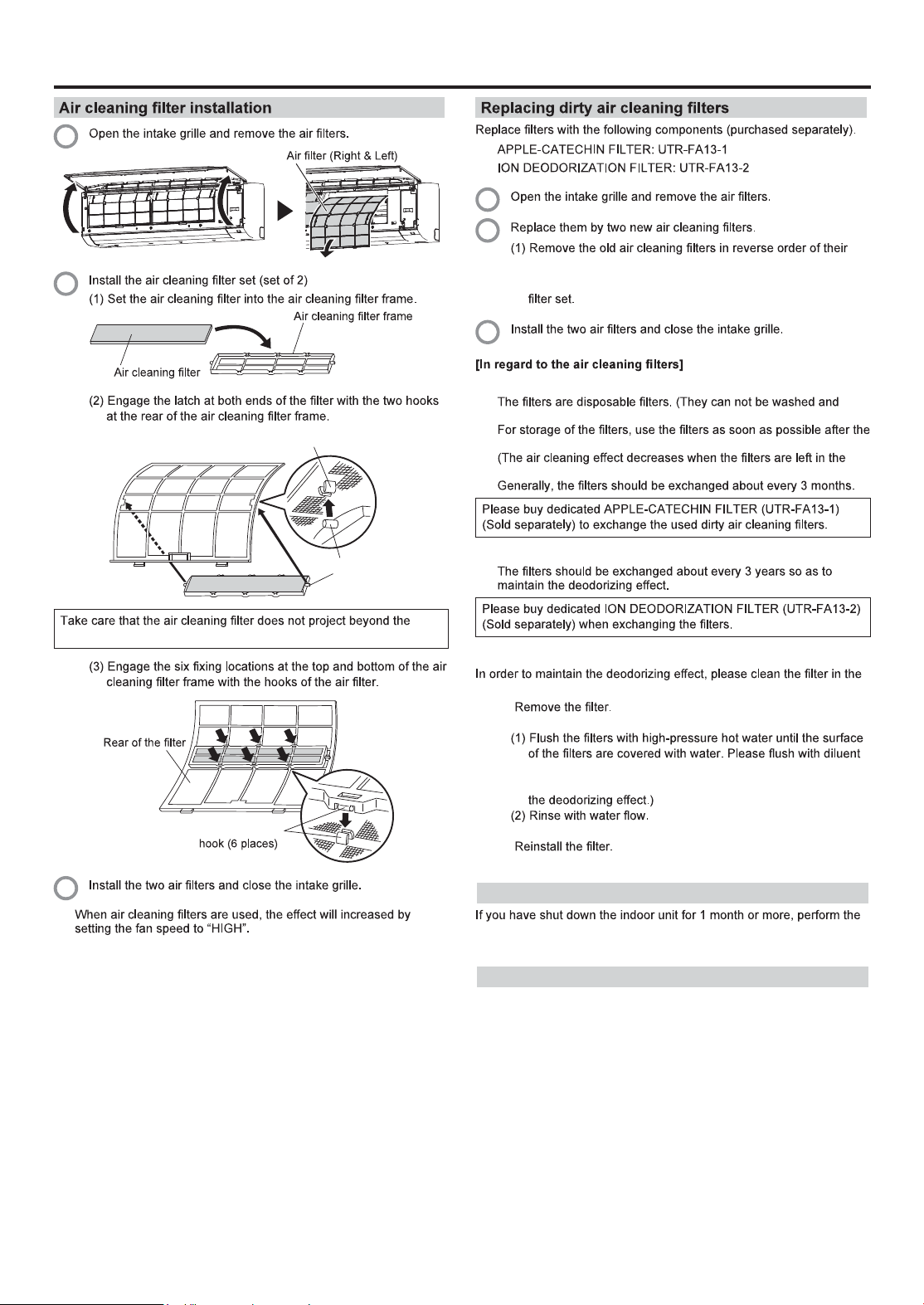

Cleaning and Care (continued)
AIR CONDITIONER Wall Mounted Type
1
•
•
1
2
installation.
2
.
(2) Install in the same way as for installation of the air cleaning
3
APPLE-CATECHIN FILTER (1 sheet)
•
reused.)
Hook (2 places at the rear)
Latch (2 places)
•
package has been opened.
opened package)
•
ION DEODORIZATION FILTER (1 sheet) - light blue
•
frame.
3
•
Fixing location,
[Maintenance of ION DEODORIZATION FILTER]
following way every 3 months.
1.
2. Clean with water and dry in the air.
neutral detergent.
(Never wash by reaming or rubbing, otherwise it will damage
(3) Dry in shade.
3.
After extended non-use of the unit
FAN operation for half a day to dry the internal parts throughly before
you perform normal operation.
Additional inspection
After long period of use, accumulated dust inside the indoor unit may
reduce the product performance even if you have maintained the unit
with instructed daily care or cleaning procedures written in this manual.
In such a case, a product inspection is recommended.
For more information, consult authorized service personnel.
OPERATING MANUAL
En-11
Troubleshooting
WARNING
breaker or disconnecting the power plug. Then consult your dealer or authorized service personnel.
• Unit smells of something burning or emits smoke
• Water leaks from the unit
Following symptoms do not indicate product malfunction, but they are normal functions or characteristics of this product.
Symptom Cause See page
Operation is delayed after
restart.
Noise is heard. •
Smell coming from the unit. Various smells generated from interior textile, furniture, or cigarette smoke absorbed into the air
Mist or steam is emitted from
the unit.
To prevent blowout of the fuse, the compressor will not operate while the protection circuit is working
heard. Also it may be particularly noticeable for 2–3 minutes after starting operation.
• During the operation, a slight squeaking sound produced by the minute expansion and contraction
of the front panel caused by temperature change may be heard.
During heating operation, a sizzling sound produced by the automatic defrosting operation may be
heard.
conditioner may be emitted.
In COOL or DRY mode, a thin mist generated by condensation formed with sudden cooling process
may be emitted.
automatic defrosting operation may be seen.
• Immediately after the heating operation is started, the fan speed stays very low temporarily to warm
up the internal parts of the unit.
• In HEAT mode, the outdoor unit stops and the indoor unit operates at very low fan speed if the
room temperature rises above the set temperature.
–
–
–
–
–
In DRY mode, the indoor unit operates at low fan speed to adjust the room humidity, and may stop
from time to time.
In COOL mode, the indoor unit fan may stop from time to time when the outdoor unit is stopped. 4
When monitoring operation is performed in AUTO mode, the fan rotates at very low speed. –
Outdoor unit emits water. During heating operation, the outdoor unit may emit water generated by the automatic defrosting
operation.
Symptom Diagnostic See page
Does not operate at all.
Poor cooling or heating perfor
mance.
Are there other heating apparatus or computers operating, or too many people in the room in cool
–
–
–
–
4
–
from the remote controller
setting.
• The problem persists even if you perform these checks or diagnostics.
• The OPERATION indicator and TIMER indicator blink while the ECONOMY indicator is blinking fast.
NOTES:
• For any troubleshooting related to the wireless LAN control, refer to the setting manual for wireless LAN control or the mobile app installed in your
smartphone or tablet PC.
En-12
OPERATING MANUAL
2
Loading...
