R32
REFRIGERANT
This Air Conditioner contains and
operates with refrigerant R32.
THIS PRODUCT MUST ONLY BE INSTALLED OR SERVICED
BY QUALIFIED PERSONNEL.
Refer to Commonwealth, State, Territory and local legislation,
regulations, codes, installation & operation manuals, before
the installation, maintenance or service of this product.
OPERATING MANUAL
AIR CONDITIONER
Wall Mounted Type
MODEL:
* Please write down the model name.
(Refer to the rating label.)
PART No. 9387602043
Before using this product, read these instructions
thoroughly. Also, keep this manual for future
reference, together with the installation manuals for
the indoor and outdoor units.
Contents
1. SAFETY PRECAUTIONS .......................................... 1
2. PREPARATION ......................................................... 2
3. NAME OF PARTS ..................................................... 3
3.1. Indoor unit ........................................................ 3
3.2. Remote controller ............................................. 3
4. BASIC OPERATIONS ............................................... 5
5. AIRFLOW SETTINGS ............................................... 5
5.1. Fan speed setting ............................................. 5
5.2. Airow direction setting .................................... 5
6. TIMER OPERATIONS ............................................... 5
6.1. Weekly timer ..................................................... 6
6.2. On timer or Off timer ......................................... 6
6.3. Program timer ................................................... 6
6.4. Sleep timer ...................................................... 6
7. ENERGY SAVING OPERATIONS ............................ 7
7.1. Economy operation .......................................... 7
7.2. Human sensor for energy saving ..................... 7
7.3. Fan control for energy saving ........................... 7
7.4. Demand Response ........................................... 7
8. OTHER OPERATIONS ............................................. 8
8.1. Powerful operation ........................................... 8
8.2. Outdoor Unit Low Noise operation ................... 8
8.3. 10 °C Heat operation ........................................ 8
9. SETTINGS ON INSTALLATION ................................ 8
9.1. Remote controller custom code setting ............ 8
10. CLEANING AND CARE ............................................. 9
11. GENERAL INFORMATION ..................................... 10
12. OPTIONAL PARTS ................................................. 11
12.1. Wired remote controller .................................. 11
12.2. Wireless LAN control ...................................... 11
13. TROUBLESHOOTING ............................................ 13
1. SAFETY PRECAUTIONS
To prevent personal injury or property damage, read this section
carefully before you use this product, and be sure to comply
with the following safety precautions.
Incorrect operation due to failure to follow the instructions may
cause harm or damage, the seriousness of which is classied
as follows:
WARNING
This mark warns of death or serious injury.
CAUTION
This mark warns of injury or damage to property.
This mark denotes an action that is PROHIBITED.
This mark denotes an action that is COMPULSORY.
Explanation of symbols displayed on the indoor unit or outdoor unit.
WARNING
This symbol shows that this product uses a
ammable refrigerant. If the refrigerant is leaked and
exposed to an external ignition source, there is a risk
of re.
CAUTION
This symbol shows that the operating manual should
be read carefully.
CAUTION
This symbol shows that a service personnel should
be handling this equipment with reference to the
installation manual.
CAUTION
This symbol shows that information is available such
as the operating manual or installation manual.
WARNING
• This product contains no user-serviceable parts.
Always consult authorized service personnel for
repairing, installation, and relocation of this product.
Improper installation or handling will cause leakage,
electric shock, or re.
• In the event of a malfunction such as burning smell,
immediately stop operation of the air conditioner, and
disconnect all the power supply by turning off the
electrical breaker or disconnecting the power plug.
Then consult authorized service personnel.
• Take care not to damage the power supply cable.
If it is damaged, it should be replaced only by
authorized service personnel in order to avoid a
hazard.
• In the event of refrigerant leakage, be sure to keep
away from re or any ammables, and consult
authorized service personnel.
• In the event of a thunder storm or any prior sign
of a lightning strike, turn off the air conditioner via
the remote controller, and refrain from touching the
product or the power source to prevent any electrical
hazards.
• This product shall be stored in a room without
continuously operating ignition sources (for example:
open ames, an operating gas appliance or an
operating electric heater).
• This product shall be stored in a well-ventilated area.
• Be aware that refrigerants may not contain an odour.
• This product shall be stored so as to prevent
mechanical damage from occurring.
• Disposing of the product shall be done properly, in
compliance with national or regional regulations.
• During transportation or relocation of the indoor unit,
pipes shall be covered with the wall hook bracket for
protection.
Do not move this product by holding the indoor unit pipes.
(The stress applied to the pipe joints may cause the
ammable gas to leak during operation).
• This product is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of this product by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with this
product.
• Dispose of the packing materials safely. Tear and
dispose of the plastic packing bags so that children
cannot play with them. There is danger of suffocation
if children play with the original plastic bags.
• Do not install the unit in area lled with mineral oil
such as a factory or area containing a large amount of
splashed oil or steam such as a kitchen.
En-1
WARNING
5
7
6
4
8
1
2
3
()
()
• Do not start or stop the operation of this product by
inserting or pulling out the power plug, or by turning
on or off the circuit breaker.
• Do not use ammable gases near this product.
• Do not expose yourself directly to the cooling airow
for many hours.
• Do not insert your ngers or any other objects into
outlet port or inlet port.
• Do not operate with wet hands.
• Do not use means to accelerate the defrosting
process or to clean this product, other than those
recommended by the manufacturer.
• Do not pierce or burn.
CAUTION
• Provide occasional ventilation during use.
• Always operate this product with air lters installed.
• Ensure that any electronic equipment is at least 1 m
(40 in) away from this product.
• Disconnect all the power supply when not using this
product for extended periods.
• After a long period of use, ensure to get the mounting
of the indoor unit checked to prevent this product from
falling down.
• The airow direction and the room temperature should
be carefully considered when you use this product in a
room with infants, children, elderly or sick persons.
• Keep the surroundings of the outdoor unit clean and
tidy, and do not place items around it. Any objects
blocking or entering from the outlet ports may cause
product malfunction.
• Do not direct the airow at replaces or heating apparatus.
• Do not block or cover the intake grille and the outlet port.
• Do not apply any heavy pressure to radiator ns.
• Do not climb on, place objects on, or hang objects
from this product.
• Do not place any other electrical products or
household belongings under this product. Dripping
condensation from this product might get them wet,
and may cause damage or malfunction of your
property.
• Do not expose this product directly to water.
• Do not use this product for preservation of food, plants,
animals, precision equipment, art work, or other objects.
This may cause quality deterioration of those items.
• Do not expose animals or plants to the direct airow.
• Do not drink the drainage from the air conditioner.
• Do not pull the power supply cable.
• Do not touch the aluminum ns of heat exchanger
built-in this product to avoid personal injury when you
maintain the unit.
• Do not stand on unstable steps when operating or
cleaning this product. It may overturn and can cause
injury.
This product contains uorinated greenhouse gases.
2. PREPARATION
WARNING
• Take care to prevent infants and young children from
accidentally swallowing the batteries.
CAUTION
• If leaking battery uid comes in contact with your skin,
eyes, or mouth, immediately rinse with plenty of clean
water, and consult your physician.
• Exhausted batteries must be removed immediately,
and be disposed according to the local laws and
regulations of your region.
• Do not attempt to recharge dry batteries.
• Do not use dry batteries that has been recharged.
Indoor unit accessories
Please check that the following accessories are included.
Remote controller Remote controller
Batteries Air cleaning lters Filter holders
holder
Remote controller holder installation
Screws
Insert
Battery loading and remote controller preparation
(R03/LR03/AAA x 2)
1~3. Put batteries as shown in the gure above.
4. Press
5. Press
to start clock setting.
to set day of the week (Monday to
Sunday).
* By pressing , the time indicator can be changed
from a 24-hour to a 12-hour clock.
6. Press
7. Press
Press the buttons to change the clock by a minute.
Press down the buttons to change the clock by 10 minutes.
8. Press
Be close to the indoor unit. If you press the button from a
distance, settings may not be properly sent.
NOTES:
• Use specied type of batteries only.
• Do not mix different types or new and used batteries together.
• Batteries can be used about 1 year in ordinary use.
• If the remote control range noticeably shortens, replace the
batteries, and press
to continue.
to set the clock.
to complete the setting.
as shown in page 4.
Tapping screws
321
Slide up
En-2
3. NAME OF PARTS
CAUTION
For appropriate signal transmission between the remote
controller and the indoor unit, keep the signal receiver
away from the following items:
- Direct sunlight or other strong lights
- Flat-panel television screen
In rooms with instantaneous uorescent lights, such as
inverter type ones, the signal may not be transmitted
properly. In such a case, consult the store of purchase.
3.2. Remote controller
When you use the optional remote controller, the appearance
and the operation procedure may differ.
For details, please refer to the operating manual of each remote
controller.
: The setting must be done while the setting screen is displayed
for each function.
: The button is controllable only when the air conditioner is
operating.
: The instruction is relating to the wireless LAN control (optional).
3.1. Indoor unit
: The instruction is relating to the wireless LAN control (optional).
For Manual Auto operation
Intake grille
Knob
Horizontal airow
direction louvers
(Refer to page 5.)
*1) Before starting operation, make sure that the intake grille is closed
completely. Incomplete closing may affect the proper function or
performance of the product.

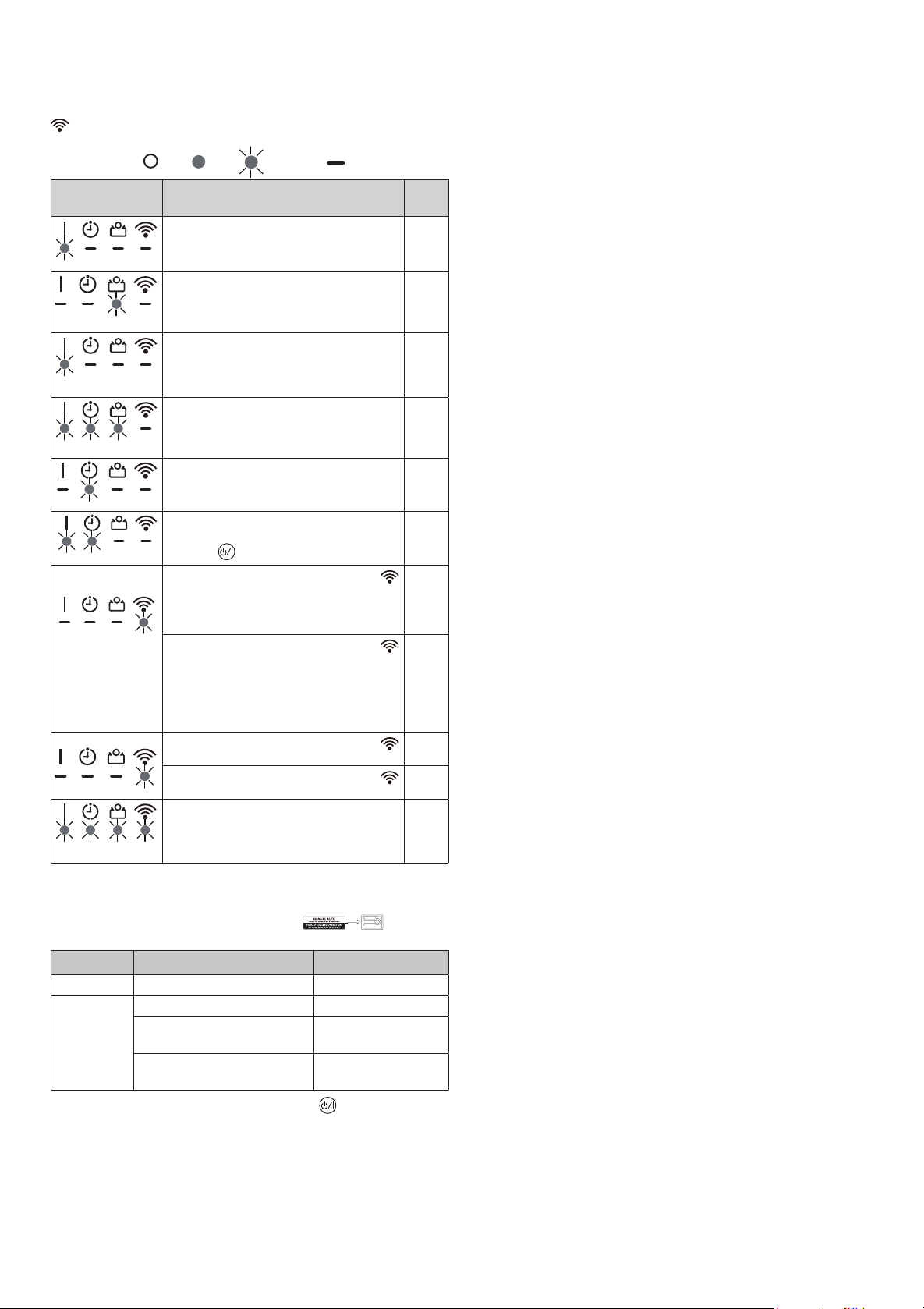

*2) Indicator lamps light in the following conditions.
*1)
Air lter
Air cleaning
lter
Indicator lamps
Remote controller
signal receiver
Name
Operation Green Normal operation
Color Operation or condition
*2)
and Filter indicator reset
(Refer to page 14.)
W-LAN adapter slot
Front panel
Rating label
Drain hose
Human sensor
(Refer to page 7.)
Signal transmitter
Aim at the signal receiver of the indoor unit properly.
• Operating range is approximately 7 m.
] will appear when the signal is transmitted.
• [
• The indoor unit will emit a beep when it receive the signal
properly. If there is no beep, press the button again.
Remote controller display
In this section, all the possible indicators are displayed for description.
In actual operation, the display is linked with the button operation, and
only shows the necessary indicators for each setting.
For Basic operations ..................... Refer to page 5.
Starts or stops the air conditioner operation.
Changes the operation mode.
Adjusts the setting temperature.
For 10 °C Heat operation .............. Refer to page 8.
Activates the 10 °C Heat operation.
Timer Orange Timer operation
Economy Green Economy operation
10 °C HEAT operation
W-LAN Orange Wireless LAN control is
active.
En-3
For Energy saving operations ...... Refer to page 7.
Activates or deactivates the Economy
operation.
Activates or deactivates the Energy saving
program that uses the human sensor
.
For Outdoor Unit Low Noise operation
... Refer to page 8.
Activates or deactivates the Outdoor Unit Low
Noise operation.
Do not press this button in normal use.
It starts the test run (for use by authorized service personnel only).
NOTES: If the test run starts unintentionally, press
run.
to quit the test
CAUTION
• To prevent malfunction or damage of the remote
controller:
- Place remote controller at where will not be
exposed to direct sunlight or excessive heat.
- Remove batteries if the product is not going to be
used for an extended period.
• Obstacles such as a curtain or wall between the
remote controller and the indoor unit may affect the
appropriate signal transmission.
• Do not apply strong shocks to the remote controller.
• Do not pour water on the remote controller.
For Powerful operation ................. Refer to page 8.
Activates or deactivates the Powerful
operation.
For Airow settings ....................... Refer to page 5.
Controls the fan speed.
Sets the automatic Swing operation.
Controls the vertical airow direction.
For Timer operations ..................... Refer to page 5.
Activates or deactivates the Weekly timer.
Activates or deactivates the On timer, Off
timer, or Program timer.
Activates or deactivates the Sleep timer.
Starts the timer setting.
Sends the timer or clock setting to the indoor
unit.
By pressed down, enters the wireless LAN
setting mode. (Refer to page 12.)
Forwards the timer or clock setting to the
next step.
Returns the timer or clock setting to the
previous step.
By pressed down, activates or deactivates
the wireless LAN control. (Refer to page
12.)
Adjusts the value of the timer or clock
settings.
Starts the clock setting.
After replacing batteries
Press this button as shown in the following gure.
Use a tip of a ballpoint pen or other small object.
RESET
En-4
()
[]
[]
[]
1
2
3
4
5
6
4. BASIC OPERATIONS
■3 steps to start operation
1. Press
2. Press
The operation mode changes as follows.
3. Press
The temperature changes by 0.5 °C increments.
Auto/Cooling/Dry 18.0 - 30.0 °C
Heating 16.0 - 30.0 °C
NOTES:
• In the Cooling or Dry mode, set the temperature lower than the
current room temperature.
• In the Heating mode,
- set the temperature higher than the current room temperature.
- at the beginning of the operation, the indoor unit fan rotates at very
low speed for 3-5 minutes.
- the Automatic defrosting operation overrides the Heating operation
when necessary.
• In the Fan mode, temperature control is not available.
to start or stop the operation.
to select the operation mode.
AUTO COOL DRY FAN HEAT
to set the desired temperature.
Temperature setting range
■Temperature unit switching
1. Press
2. Press down
The current temperature unit will be displayed. (Factory setting: °C)
3. Press
4. Press
If you do not press the button for 30 seconds, the displayed
temperature unit will be set.
until only the clock is displayed.
for more than 5 seconds.
to switch the temperature unit. (°C ⇔°F)
to nish the setting.
5. AIRFLOW SETTINGS
5.1. Fan speed setting
Press to control the fan speed.
The fan speed changes as follows.
■Airow direction range
Vertical airow direction
Change by
Swing operation by
Cooling, Dry 1 4
Heating 3 6
Fan * 1 4 or 3 6
* the Swing operation range depends on the airow direction set before
the Swing operation.
NOTES:
• Do not adjust the airow direction louvers by hand.
• In the Auto or Heating mode, the airow direction stay position 1 for
a while from the start of the operation.
• In the Cooling or Dry mode, position 1-3 is recommended to prevent
condensation drips damaging your property. If position 4-6 keeps for
30 minutes or more in these modes, the airow direction changes to
position 3 automatically.
• When using the mobile app (optional wireless LAN control is
necessary), the vertical airow can be selected from 4 positions.
1⇄2⇄3⇄4⇄5⇄6
6. TIMER OPERATIONS
NOTES: When [
and timer again. This blinking shows that the internal clock go
wrong due to an interruption of the power supply. (Refer to
page 10.)
■Timer setting procedure
Before setting the timer, please adjust the clock. (Refer to "remote
controller preparation").
1. Press
2. Press
The timer operation will change as follows:
] indicator on the indoor unit blinks, set the clock
.
on the remote controller display will blink.
to choose timer operation.
Weekly timer
On timer
Off timer
Enables you to set operation
schedules up to 4 setting for each
day of the week.
Starts the operation at your desired
time.
Stops the operation at your desired
time.
(Auto) (High) (Med) (Low) (Quiet)
When
condition.
To increase the air cleaning effect, set the fan speed to High.
is selected, the fan speed depends on the operating
5.2. Airow direction setting
For details of the airow ranges, refer to "Airow direction
range".
■Vertical airow direction setting
Press to adjust the vertical airow direction.
■Horizontal airow direction setting
CAUTION
Before you adjust the horizontal airow direction, make
sure that the vertical airow direction louver has been
stopped completely.
Adjust two knobs by hand.
■Swing operation setting
Press to start/stop the Swing operation.
NOTES: The Swing operation may stop temporarily when the indoor
unit fan is rotating at very low speed or is stopped.
En-5
Operates as the combination of the
On timer and Off timer.
Supports your comfortable sleep
by moderating the air conditioner
operation gradually.
3. Press
Program timer
Sleep timer
.
4. Set each timer operation.
For details, refer to the following instructions of each timer setting.
5. Press
Be close to the indoor unit.
• To cancel the timer setting during the procedure, press
again.
to complete the timer setting.
6.1. Weekly timer
()
()
()
()
()
()
()
9H
7H
5H
3H
2H
1H
0H
■Setting details
1. Select Weekly timer in step 2 of "Timer setting procedure".
2. Press
day of the week.
Selected program number (1~4) and the day of the week will blink.
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
3. Press
.
4. Press
(Without a timer)
5. Press
* When you chose "Without a timer" in step 4, the setting display will
return to step 1.
.
6. Press
7. Press
* When you chose "Off timer" in step 4, the setting display will return
to step 1.
.
8. Press
Temperature setting range
Auto, Cooling,
or Dry mode:
Heating mode: 10.0 or 16.0-30.0 °C
9. Press
The setting display will return to step 1.
.
10. Press
Be close to the indoor unit.
NOTES: [
• If you want to return the previous step, press .
• To check the schedule, use
timer settings in step 1.
To nish checking, press
• To deactivate the Weekly timer, press
shown on the remote controller display.
The indicator will disappear.
NOTES:
• The operation modes will be the same as the mode at the last time
operation was stopped, so Cooling → Heating → Cooling → Heating
type of operations cannot be set automatically.
• If you set the On timer and Off timer on the same time, the On timer
will work.
• If two On timers are set on the same time, the air conditioner will run
in the order of the program number.
• You cannot the Weekly timer and the other timers simultaneously.
If you use the On/Off timer, the Program timer, or the Sleep timer
while the Weekly timer is activated, the Weekly timer will be
deactivated.
In such a case, activate the Weekly timer after the other timer
nishes.
• If the wired remote controller (optional) is connected, this function is
restricted.
] indicator on the indoor unit will not turn on even if the
setting is complete.
to select the program number and the
Program number
Day of the week
to choose the timer operation.
(On timer) (Off timer)
to set on time or off time.
to set the temperature.
18.0-30.0 °C
*Even if you set to 10.0, 16.0-17.5 °C, the air
conditioner will run at 18.0 °C.
to complete the setting.
to browse the Weekly
while is
.
■Examples of Weekly timer
Example 1
7:00 9:00 11:00 17:00 23:00
Monday
Friday
Saturday (No timer settings)
Sunday Program 1Program 2Program 3Program
Example 2: You can specify temperature settings using the On timer in
the Weekly timer.
7:00 9:00 17:00 23:00
Program 1 Program 2 Program 3 Program 4
On On On On
28 °C 26 °C 27 °C 28 °C
Program 1Program
to
On Off On Off
26 °C 28 °C
Wake up Leave for
(On) (On) (On) (On)
2
work
Off Off Off Off
Program 3Program
Come back
home
4
Go to
sleep
4
6.2. On timer or Off timer
1. Select On timer or Off timer in step 2 of "Timer setting
procedure".
2. Press
Pressing the button: The time will change by +5/-5 minutes.
Pressing down the button: The time will change by +10/-10 minutes.
• To deactivate the On/Off timer, press
shown on the remote controller display.
The indicator will disappear.
to set on time or off time.
while is
6.3. Program timer
1. Set On timer and Off timer. (Refer to "6.2. On timer or Off
timer).
2. Select Program timer in step 2 of "Timer setting procedure".
The timer whose setting time is closer to the current time works rst.
The order of the timer operation is displayed as follows:
Timer Indicator on the remote controller display
On→Off timer
Off→On timer
NOTES: You can set the Program timer only within a span of 24 hours.
6.4. Sleep timer
1. Select Sleep timer in step 2 of "Timer setting procedure".
2. Press
stops.
Each time you press the button, the time changes as follows:
30M
(30 min.)
• To deactivate the Sleep timer, press while is shown
on the remote controller display.
The indicator will disappear.
During the Sleep timer operation, the setting temperature changes as
the following gure.
30 min.
After the set time has elapsed, the air conditioner operation turns off.
00M
In Heating mode
1 °C 2 °C 3 °C 4 °C
1 hour
1.5 hour
Set time
to set the time until the operation
00M
00M
Set
temperature
00M
In Cooling or Dry mode
00M
Set time
1 hour
1 °C
00M
hours
2 °C
En-6
7. ENERGY SAVING OPERATIONS
7.1. Economy operation
It saves more electricity than other operation modes by changing the set
temperature to a moderate setting.
Press to activate/deactivate the Economy
operation.
[ ] indicator on the indoor unit will turn on.
Operation
mode
Cooling/Dry Few degrees higher than the set temperature
Heating Few degrees lower than the set temperature
NOTES:
• In the Cooling, Heating, or Dry mode, the maximum output of this
operation is approximately 70 % of usual operation.
• This operation cannot be performed during the temperature
monitoring by the Auto mode.
7.2. Human sensor for energy saving
• Do not use this function when there are only infants,
children, elderly, or sick persons in the room.
Room temperature
WARNING
Detection range of Human sensor
Side view Top view
6 m
6 m
NOTES: Since Human sensor detects infrared light given out by people,
the detection may be incorrect in the following situations.
Situations in which the sensor may detect no one in the room,
even when there is someone there:
• When the room temperature is high and the difference with people’s
body temperature is small. (Such as when the temperature is 30˚C
or higher in summer.)
• When someone in the room do not move for a long time.
• When someone is hidden behind a sofa, other furniture, glass, or in
similar situations.
• When someone is wearing extremely thick clothing and turn their
backs on the sensor.
Situations in which the sensor may detect people in the room, even
when there is no one there
• When there is a dog or a cat moving around in the room.
• When wind is moving curtains or plants.
• When heating units, humidiers, or electric appliances such as
oscillating electric fans are operating.
90°
50° 50°
7.3. Fan control for energy saving
CAUTION
• Do not use this function in server rooms or other
places where there is no one in the room.
• Do not place large objects near the human sensor.
Also keep heating units outside the sensor’s detection
area.
When no one is in the room, the air conditioner operates moderately to
prevent waste of electricity.
(This function is activated at the time of purchase.)
To change the setting, press .
While the Energy Saving program is activated, on the
remote controller display will turn on.
NOTES:
• The following operations will override the Energy Saving program.
- Sleep timer operation
- 10 ˚C Heat operation
• The Energy Saving program may not work when the room
temperature is very different from the set temperature, such as
when immediately after starting the operation.
■Details on Energy Saving program
Human sensor on the indoor unit detects movement of people.
If there is no one in the room for approximately 20 minutes, the
temperature will be adjusted moderately.
When someone comes back into the room, the air conditioner revert to
the original settings.
Operation
mode
Cooling/Dry Higher than the set temperature (Max. +2˚C)
Heating Lower than the set temperature (Max. -4˚C)
Auto
Depending on the operating mode (Cooling/ Heating/
Dry).
Room temperature
(When there is no one there)
In the Cooling operation, when the room
temperature reaches the set temperature, the
indoor unit fan rotates intermittently to save
power. (This function is deactivated at the time of
purchase.)
To change the setting, use the following
steps;
1. Press
until only the clock is displayed on the remote
controller display.
2. Press down
The current Fan Control status ( ) is displayed.
3. Press
deactivated (
4. Press
The display will return to the original screen.
NOTES: If you do not press any buttons for 30 seconds after
to send the setting to the indoor unit.
displayed,
step 2.
for more than 5 seconds.
to switch between activated ( ) or
).
is
will turn off. In this case, repeat the setting from
7.4. Demand Response
This product is designed to be compatible with Air Conditioning Demand
Response program.
To utilize the function, you need a separate arrangement with your
electricity supplier. Please check availability in the place of use.
When your electricity supplier activates one of the following 3 Demand
Response (DR) modes, the air conditioner switches over to the
appropriate operation.
During the DR mode, [
Blinking pattern and the intervals are as follows:
Operation mode Indicator lamp blinking pattern
Auto/Cooling/Heating/Dry/Fan
] indicator on the indoor unit will blink.
On Blinks (2 times)
En-7
10˚C Heat operation
When the DR mode nishes, the air conditioner returns to the operation
set before entering the DR mode.
Off Blinks (2 times)
■Details on Demand Response mode
DR mode Description of operation in this mode
DR mode 1 Compressor off.
Electrical energy consumption in 30 minutes:
DR mode 2
DR mode 3
NOTES:
• During the DR mode, the cooling or heating performance may be
reduced.
• During the DR mode, only the following operations are valid.
- Turning off the operation by
- Off timer operation
• The Powerful operation is performed within the operable range of
the DR mode.
• During the DR mode, the Filter sign will not display.
• Timer setting error indicator will be prioritized over the DR mode
indicator.
If you have operational issues:
(1) Contact your electricity supplier to check whether they are activating
the DR mode.
(2) Is the air conditioner under the Demand controlling?
Yes
No • Contact Fujitsu General (AUST.) PTY LIMITED. (Refer to
50 % or less
(compared with rated energy consumption)
Electrical energy consumption in 30 minutes:
75 % or less
(compared with rated energy consumption)
Contact your electricity supplier.
your warranty card.)
or
• Visit our website (www.fujitsugeneral.com.au).
8. OTHER OPERATIONS
8.1. Powerful operation
In the Powerful operation, the air conditioner will operate at maximum
power and strong airow to cool down or warm up the room quickly.
Press to activate/deactivate the Powerful operation.
When activated, the indoor unit will emit 2 short beeps.
When deactivated, the indoor unit will emit 1 short beep.
The Powerful operation will be turned off automatically in the following
situations:
• The Powerful operation runs for a certain amount of time and the
room temperature reaches the set temperature in the Cooling, Dry,
or Heating mode.
• 20 minutes after the Powerful operation has started.
NOTES:
• The airow direction and the fan speed are controlled automatically.
• The Powerful operation cannot be performed simultaneously with
Economy operation.
• The Powerful operation overrides the following operations. If
the following operations are set, they will start after the Powerful
operation nishes.
- Outdoor Unit Low Noise operation
- Energy Saving program
• If the wired remote controller (optional) is connected, this function is
restricted.
8.2. Outdoor Unit Low Noise operation
While the Outdoor Unit Low Noise operation is activated,
on the remote controller is displayed.
The setting is preserved even if the air conditioner is turned off.
NOTES:
• This operation cannot be performed simultaneously with the Fan
mode, Dry mode, and Powerful operation.
• If the wired remote controller (optional) is connected, this function is
restricted.
8.3. 10 °C Heat operation
10 °C Heat operation maintains the room temperature at 10 °C so as to
prevent the room temperature to drop too low.
Press to activate the 10 °C Heat operation.
The indoor unit will emit 1 short beep and [ ] indicator on the
indoor unit will turn on.
Press to turn off the air conditioner.
[ ] indicator will turn off.
NOTES:
• During the 10 °C Heat operation, only
• When the room temperature is warm enough, this operation will not
perform.
• If the wired remote controller (optional) is connected, this function is
restricted.
is valid
.
9. SETTINGS ON INSTALLATION
9.1. Remote controller custom code setting
By setting custom code of indoor unit and remote controller, you can
specify the air conditioner which the remote controller controls.
When two or more air conditioners are in the room and you wish to
operate them separately, set the custom code (4 selections possible).
NOTES: If custom codes is different between the indoor unit and the
How to set the remote controller custom code
1. Press
2. Press down
3. Press
4. Press
remote controller, the indoor unit cannot receive a signal from
the remote controller.
until only the clock is displayed on the remote
controller display.
for more than 5
seconds.
The current custom code will be
displayed (initially set to A).
to change the
custom code between A↔B↔C↔D.
* Match the custom code on the display
to the air conditioner custom code.
again.
The custom code will be set.
The display will return to the clock
display.
• To change the air conditioner custom code, contact an authorized
service personnel (initially set to A).
• If you do not press any buttons for 30 seconds after the custom
code is displayed, the display returns to the clock display. In this
case, repeat the setting from step 2.
• Depending on the remote controller, the custom code may return
to A when replacing the batteries. In this case, reset the custom
code as necessary. If you do not know the air conditioner custom
code, try each code until you nd the code which operates the air
conditioner.
The Outdoor Unit Low Noise operation lowers noise from the outdoor
unit. During this operation, the rotation number of the compressor
decreases and the outdoor unit fan rotates slowly.
Press to activate/deactivate the Outdoor Unit Low
Noise operation.
En-8
10. CLEANING AND CARE
CAUTION
• Before cleaning this product, be sure to turn it off and
disconnect all the power supply.
• Before starting operation, make sure that the intake
grille has been shut completely. Incomplete closing
of the intake grille might have an effect on the proper
working or performance of the air conditioner.
• If the lter cleaning involves high-place work, please
consult the authorized service personnel.
• Do not touch the aluminum ns of heat exchanger
built-in the indoor unit to avoid personal injury when
you maintain the unit.
• Do not expose the indoor unit to liquid insecticides or
hair sprays.
• Do not stand on slippery, uneven or unstable surfaces
when you maintain the unit.
Air cleaning lters
(Apple catechin lter, Ion deodorization lter)
2. Remove the air lters.
Lift up the air lters' handle, disconnect the two lower tabs, and pull
out.
Air lter handle
Tabs (2 places)
3. Remove the dust in either of the following ways.
• Cleaning with vacuum cleaner.
• Washing with mild detergent and warm water. After washing, dry the
air lters thoroughly in shade.
4. Replace the air lters.
Align the sides of the air lter with the panel, and push in fully.
Make sure to the two lower tabs are returned to their holes in the
indoor unit properly.
5. Close the intake grille.
Press 4 places on the intake grille to close it completely.
Intake grille
Indoor unit body
Air lters
The frequency of the cleaning is as shown in the following table.
What to do Frequency
Cleaning indoor unit body When you notice
Cleaning air lter Every 2 weeks
Cleaning Ion deodorization lter Every 3 months
Replacing Apple-catechin lter
(Model name: UTR-FA16)
Replacing Ion deodorization lter
(Model name: UTR-FA16-2)
* The air cleaning lters are sold separately. When you replace them,
please contact the store of purchase.
Every 3 years
Cleaning indoor unit body
NOTES:
• Do not use water hotter than 40 °C.
• Do not use scouring cleanser, volatile solvents such as benzene or
thinner.
1. Wipe the indoor unit body gently with a soft cloth moisten
with warm water.
2. Wipe the indoor unit body gently with a dry and soft cloth.
Cleaning air lter
1. Open the intake grille until it snaps.
NOTES: If dirt accumulates on the air lter, airow will be reduced,
operating efciency will lower, and the noise will increase.
Cleaning Ion deodorization lter and
Replacing Apple-catechin lter
1. Remove the air lters. Refer to steps 1 ~ 2 of "Cleaning air
lter".
2. Remove the air cleaning lters from the air cleaning lter
holder.
Air cleaning lter
Air cleaning lter frame
3. Flush the Ion deodorization lter (light blue) with highpressure hot water until the surface of the lters are covered
with water.
4. Wash the Ion deodorization lter with diluent neutral
detergent.
Do not ream or rub, otherwise the deodorizing effect may decrease.
5. Rinse the Ion deodorization lter with water ow.
6. Dry the Ion deodorization lter in shade.
7. Remove the Apple-catechin lter (light green) from the air
cleaning lter holder.
8. Set the new or washed air cleaning lters into the air
cleaning lter frames.
NOTES: Use the Apple-catechin lter as soon as possible after opening
the package. The air cleaning effect decreases when the lters
are left in the opened package.
En-9
9. Install the air cleaning lter holders to the air lters.
Engage the 4 hooks at the rear of the air cleaning lter frame with
the latch at both ends of the air lter.
* Take care that the air cleaning lter does not project beyond the
frame.
NOTES: Take care that the air cleaning lter does not project
beyond the frame.
Hook (4 places at the rear)
Latch (4 places)
10. Replace the air lters and close the intake grille. Refer to
steps 4 ~ 5 of "Cleaning air lter".
Replacing Ion deodorization lter
1. Remove the air lters. Refer to steps 1 ~ 2 of "Cleaning air
lter".
2. Remove the Ion deodorization lter (light blue) from the air
cleaning lter holder.
3. Install the new Ion deodorizing lter.
Removing and installing intake grille
■Removing intake grille
1. Open the intake grille until it snaps.
2. Pull the mounting shafts while keeping the intake grille in a
horizontal position.
After extended non-use of the unit
If you have shut down the indoor unit for 1 month or more, perform the
Fan mode operation for half a day to dry the internal parts thoroughly
before the normal operation.
Additional inspection
After long period of use, accumulated dust inside the indoor unit may
reduce the performance even if you have maintained the unit properly.
In such a case, a product inspection is recommended.
For more information, consult authorized service personnel.
Filter indicator reset (Special setting)
This function can be used if set correctly during installation. Please
consult authorized service personnel in order to use this function.
Clean the air lter when the indicator lamp show the
following:
Indicator lamp Blinking pattern
After cleaning, reset the lter indicator by pushing
indoor unit for 2 seconds or less.
Blinks 3 times, at intervals of 21 seconds
on the
11. GENERAL INFORMATION
■Heating performance
This air conditioner operates on the heat-pump principle, absorbing
heat from air outdoors and transferring that heat to the indoor unit. As a
result, the operating performance is reduced as outdoor air temperature
drops.
If you feel that the heating performance is insufcient, we recommend
you to use this air conditioner in conjunction with other kinds of heating
appliance.
■Installing intake grille
1. While holding the intake grille horizontal, set the left and
right mounting shafts into the pillow blocks at the top of the
front panel.
Insert the shaft until it snaps to latch each shaft properly.
2. Close the intake grille.
3. Press 4 places on the intake grille to close it completely.
■Automatic defrosting operation
When outdoor temperature is very low with high humidity, frost may
form on the outdoor unit during the heating operation, and it could
reduce the operating performance of the product.
For frost protection, a microcomputer-controlled automatic defrost
function is equipped in this air conditioner.
If frost forms, the air conditioner will temporarily stop, and defrost circuit
will operate briey (maximum of 15 minutes.)
[
] indicator on the indoor unit blinks during this operation.
If frost forms on the outdoor unit after the Heating operation, the outdoor
unit will stop automatically after it operates for a few minutes. Then the
Automatic defrosting operation starts.
■Auto-restart function
In event of power interruption such as a blackout, the air conditioner
stops once. But it restarts automatically and performs previous operation
when the power supply is resumed.
If any power interruption occurs after the timer is set, counting down of
the timer will be reset.
After the power supply is resumed, [
blinks to notify you that there has been a timer fault. In such a case,
reset the clock and timer settings.
] indicator on the indoor unit
■Malfunctions caused by other electrical
devices
Use of other electrical appliances such as an electric shaver or nearby
use of a wireless radio transmitter may cause the malfunction of the air
conditioner.
If you encounter such a malfunction, turn off the circuit breaker once.
Then turn it on again, and resume operation by using the remote
controller.
En-10
Wireless LAN label
Connection port
MAC:
SSID :AP-WF-
PIN:
■Indoor unit temperature and humidity range
Permissible ranges of temperature and humidity are as follows:
Indoor temperature Cooling/Dry [°C] 18 to 32
Heating [°C] 16 to 30
Indoor humidity [%] 80 or less *
*1) If the air conditioner is used continuously for many hours, water may
condense on the surface and drip.
• If the unit is operated under the conditions except the permissible
temperature range, the air conditioner operation may stop because
of the automatic protection circuit working.
• Depending on the operating conditions, the heat exchanger may
freeze, causing water leakage or other malfunction (in the Cooling
or Dry mode).
1)
■Other information
• Do not use the air conditioner for any purpose other than room
cooling/dry, room heating or fan.
• For the permissible ranges of temperature and humidity for the
outdoor unit, refer to the outdoor unit installation manual.
12. OPTIONAL PARTS
12.1. Wired remote controller
The optional wired remote controller can be used.
You can use wired and wireless remote controller together.
However, some functions of the wireless remote controller are restricted.
If you set the restricted functions, beeping sound will be heard, [
[ ], and [ ] indicator on the indoor unit will blink.
<Restricted functions for wireless remote controller>
When using together with wired remote controller (2-wired type)
• Weekly timer operation
• Powerful operation
• Outdoor Unit Low Noise operation
• 10 °C Heat operation
You can use wired remote controller and wireless LAN control
(optional).
However, some operations from the mobile app are restricted.
Group control
One remote controller can control up to 16 air conditioners. All of the air
conditioners will be operated with the same settings.
You cannot use group control and wireless LAN control together.
], [ ],
Setting to use wireless LAN control
Step 1. Application software installation
1. Open “Google Play” or “App Store” depending on the type
of your smartphone or tablet PC.
2. Search for “FGLair”.
3. Install the application software (mobile app) following the
instructions on your screen.
Step 2. User registration
1. Open the installed mobile app.
2. Register the user (with either a smartphone or tablet PC)
by following the instructions in the create an account
section of the mobile app.
Step 3. Installing W-LAN adapter
CAUTION
• Be sure to turn off the power supply of the air
conditioner when installing or removing this product
to avoid the risk of electric shock.
• Do not put ngers, sticks etc. in the connection part of
this product and the connection slot of the indoor unit.
Otherwise, electric shock or damage to the product
may occur.
• Do not standing on an unstable platform when
installing or removing this product to avoid injury.
1. Be sure to turn air conditioner off and to disconnect all the
power supply.
2. Open the intake grille.
3. Open the W-LAN adapter cover until it snaps.
12.2. Wireless LAN control
The optional wireless LAN control can be used.
For how to operate the mobile app, refer to the operating manual of the
mobile app.
Write down the SSID and the PIN code to the following table.
Information on W-LAN adapter
SSID
PIN
Google Play is a registered trademark of Google Inc.
App store is a service mark of Apple Inc., registered in the U.S. and
other countries.
En-11
4. Plug the W-LAN adapter into the connection slot of the
indoor unit in the direction as shown in the gure.
Label side
5. Close the W-LAN adapter cover and the intake grille.
Step 4. Air conditioner registration (pairing of W-LAN
adapter)
NOTES:
• Before starting this setting, reconnect the power supply of the air
conditioner and wait for 60 seconds or more.
• Check that the smartphone or tablet PC is linked to the wireless
router you are connecting the air conditioner. The setting will not
work if it is not connected to the same wireless router.
• To control 2 or more air conditioners with the same smartphone or
tablet PC, repeat the setup of the chosen mode.
Register the air conditioner by following the instructions in
the online manual on FUJITSU GENERAL web site.
www.fujitsu-general.com/global/support/
This operating manual describes only the setting procedure of the
remote controller.
<How to access the online manual>
1. Sign in to the mobile app.
2. Open the side menu of the mobile app then tap [Help].
3. Tap [WLAN Support].
When the registration is completed, [ ] indicator on the indoor unit
will turn on.
For reference
<Manal mode>
Setting procedure of the remote controller
NOTES:
1. Press
If you do not press any buttons of the remote controller for 60
seconds, the remote controller display will return to the original
display.
until only the clock is displayed
on the remote controller display.
2. Press down
on the remote controller
for more than 5 seconds.
will be displayed on the remote controller
display.
3. Press
4. Select
.
using on the remote
controller.
5. Press
The indoor unit enters Manual mode and [ ]
indicator on the indoor unit will blink.
NOTES: If the registration is not be nished in several minutes,
<Button mode>
Setting procedure of the remote controller:
NOTES:
1. Press
.
Manual mode is canceled and [
In this case, please repeat the remote controller setting.
If you do not press any buttons of the remote controller for 60
seconds, the remote controller display will return to the original
display.
] indicator turns off.
until only the clock is displayed
on the remote controller display.
2. Press down
on the remote controller
for more than 5 seconds.
will be displayed on the remote controller
display.
3. Press
4. Select
.
using on the remote
controller.
5. Press
The indoor unit enters Button mode and [ ]
indicator on the indoor unit will blink (on/off =
1sec/1sec).
When the W-LAN adapter nd a connectable W-LAN access point,
the blinking will become slowly (on/off = 2sec/0.5sec).
NOTES: If the connection to W-LAN access point is not be nished
.
in several minutes, Button mode is canceled and
turns off.
In this case, please repeat the remote controller setting.
Temporary deactivation of wireless LAN
NOTES: If you do not press any buttons of the remote controller for 60
1. Press
2. Press down
3. Select
4. Press
* If you want to activate wireless LAN again, select in step 2.
seconds, the remote controller display will return to the original
display.
until only the clock is displayed on
the remote controller display.
on the remote controller
for more than 5 seconds.
will be displayed on the remote controller
display.
using on the remote
controller. *
.
[ ] indicator on the indoor unit will turn off.
Initialization (reset)
Initialize (reset) this product in the following situations:
• Changing the wireless router
• Disposing this product
• Transferring this product to a third party
Unregister the air conditioner
Unregister the air conditioner by using the mobile app. (Refer to the
operating manual of the mobile app for details.)
Initialization of the W-LAN adapter
NOTES: If you do not press any buttons of the remote controller for 60
To continue use
If you or third party wishes to continue use of the product, follow the
procedures in “Air conditioner registration (pairing of W-LAN adapter)”
to reconnect to a different wireless router.
NOTES: Wireless LAN setup is not possible if the previous owner did
seconds, the remote controller display will return to the original
display.
1. Press
until only the clock is displayed
on the remote controller display.
2. Press down
on the remote controller
for more than 5 seconds.
will be displayed on the remote controller
display.
3. Select
using on the remote
controller.
4. Press
5. Press
[ ] indicator on the indoor unit will turn off after blinking fast.
.
on the remote controller display will blink.
.
not unregister or initialize this product. In this case, please
contact your authorized service personnel.
En-12
13. TROUBLESHOOTING
WARNING
In the following events, immediately stop operation of
the air conditioner, and disconnect all the power supply
by turning off the electrical breaker or disconnecting
the power plug. Then consult your dealer or authorized
service personnel.
As long as the unit is connected to the power supply, it
is not insulated from the power supply even if the unit is
turned off.
• Unit smells of something burning or emits smoke
• Water leaks from the unit
Does not operate at all.
□ Has there been a power outage?
In this case, the unit restarts automatically after the power supply
is resumed. (Refer to page 10.)
□ Has the circuit breaker been turned off?
⇒ Turn on the circuit breaker.
□ Has a fuse blown out or the circuit breaker been tripped?
⇒ Replace the fuse or reset the circuit breaker.
□ Is the timer operating?
⇒ To check or deactivate the timer setting, refer to page 5.
Poor cooling or heating performance.
□ Is the unit operating under the conditions except the permissible
temperature range?
In this case, the air conditioner may stop because of the automatic
protection circuit working.
□ Do you have an arrangement with your electric company for
Demand Response?
In this case, the air conditioning performance may become lower
or the operation may stop. (Refer to page 7.)
□ Is the air lter dirty?
⇒ Clean the air lter. (Refer to page 9.)
□ Is the intake grille or outlet port of indoor unit blocked?
⇒ Remove the obstructions.
□ Is the room temperature adjusted appropriately?
⇒ To change the temperature setting, refer to page 5.
□ Is a window or door left opened?
⇒ Close the window or the door.
□ Is the fan speed set to Quiet?
⇒ To change the fan speed, refer to page 5.
□ Has the Outdoor Unit Low Noise operation been set?
⇒ To stop the Outdoor Unit Low Noise operation, refer to page
8.
□ <In the Cooling mode> Is direct or strong sunlight shining into the
room?
⇒ Close the curtains.
□ <In the Cooling mode> Are there other heating apparatus or com-
puters operating, or too many people in the room?
⇒ Turn the heating apparatus or computers off, or set the
temperature lower. (Refer to page 5.)
Airow is weak or stops.
□ Is the fan speed set to Quiet?
⇒ To change the fan speed, refer to page 5.
□ Has the Fan Control for Energy Saving set? In this case, the
indoor unit fan may stop temporarily while the Cooling operation.
⇒ To cancel the Fan control for energy saving, refer to page 7.
□ <In the Heating mode> Have you just started the operation?
In this case, the fan rotates at very low speed temporarily to warm
up the internal parts of the unit.
□ <In the Heating mode> Is the room temperature higher than the
set temperature?
In this case, the outdoor unit stops and the indoor unit fan rotates
at very low speed.
□ <In the Heating mode> Is [
In this case, the Automatic defrosting operation is working. The indoor unit stops for maximum of 15 minutes. (Refer to page 10.)
□ <In the Dry mode> The indoor unit operates at low fan speed to
adjust the room humidity, and may stop from time to time.
□ <In the Auto mode> While the monitoring operation, the fan
rotates at very low speed.
Noise is heard.
□ Is the unit operating, or immediate after stopping operation?
In this case, refrigerant owing sound may be heard. It may be
particularly noticeable for 2-3 minutes after starting operation.
□ Do you hear a slight squeaking sound during the operation?
This sound is produced by the minute expansion and contraction
of the front panel caused by temperature change.
□ <In the Heating mode> Do you hear a sizzling sound?
This sound is produced by the Automatic defrosting operation.
(Refer to page 10.)
Smell coming from the unit.
□ The air conditioner may absorb various smells generated from
interior textile, furniture, or cigarette smoke. These smells may be
emitted during the operation.
Mist or steam is emitted from the unit.
□ <In the Cooling or Dry mode> A thin mist may be generated by
condensation formed with sudden cooling process.
□ <In the Heating mode> Is [
In this case, steam may rise from the outdoor unit because of the
Automatic defrosting operation.(Refer to page 10.)
Outdoor unit emits water.
□ <In the Heating mode> The outdoor unit may emit water gener-
ated by the Automatic defrosting operation. (Refer to page 10.)
The unit operates differently from the remote controller setting.
□ Do you have an arrangement with your electric company for
Demand Response?
In this case, the air conditioning performance may become lower
or the operation may stop. (Refer to page 7.)
□ Are the batteries in the remote controller exhausted?
⇒ Replace the batteries.
Operation is delayed after restart.
□ Has the power supply turned from Off to On suddenly?
In this case, the compressor will not operate for about 3 minutes
to prevent a blowout of the fuse.
] indicator blinking?
] indicator on the indoor unit blinking?
En-13
Immediately stop operation and turn off the electrical breaker in
following cases. Then consult authorized service personnel.
• The problem persists even if you perform these checks or
diagnostics.
• On the indoor unit, [
NOTES: For any troubleshooting related to the W-LAN control, refer
to the setting manual for W-LAN adapter or the mobile app
installed in your smartphone or tablet PC.
] and [ ] blink while [ ] is blinking fast.
■State of indicator lamps
: The instruction is relating to the wireless LAN control
(optional).
Lighting pattern: Off, On, Blinking, Any state
State Causes and solutions
Automatic defrosting operation
Please wait until nishing the defrosting
⇒
(maximum of 15 minutes).
Filter indicator
Clean the air lter and reset the lter
⇒
(3 times)
(Twice)
(Fast)
(Slow)
sign.
Demand response operation
Error code display
Consult authorized service personnel.
⇒
Timer setting error because of Auto restart
Reset the clock and timer settings.
⇒
Test run operation (for authorized
personnel only)
Press
⇒
The power to the wireless router is
not on.
Check that the power to the wireless
⇒
router is on.
There is a possibility that the W-LAN
adapter is not properly connected to
the wireless router.
Disconnect the power supply to the air
⇒
conditioner (via breaker or plug), and
then re-connect.
The software of the W-LAN adapter
is being updated.
During the air conditioner registration
(pairing of W-LAN adapter)
Restricted function
to quit the test run.
See
page
10
10
7
-
10
3
-
11
-
12
11
■Manual Auto operation and Filter indicator
reset
You can operate the air conditioner with on the
indoor unit.
Status Length of pressing down Mode or operation
In operation More than 3 seconds Stop
Stopping 2 seconds or less Filter indicator reset
More than 3 seconds and
less than 10 seconds
More than 10 seconds
(Only for servicing.*)
*:To stop the forced cooling, press this button or
controller.
Auto
Forced cooling
on the remote
En-14
Loading...
