INTRODUCING…NEW 2009 LENSES

HD Series 2/3"

ZA12x4.5B RM/RD

PL Mount Cine Zoom

(more models to be released late 2009)

Videoconferencing 2/3"

ZA12x4.5B MD

ZA12x4.5BE MD

HD Series 2/3"

ZA17x7.6B RM/RD

HDTV Field

XA50x9.5BE SM

18-85mm T2.0

ZA17x7.6B MD

ZA17x7.6BE MD

(photos not yet available)

ZA22x7.6B MD

ZA22x7.6BE MD

TABLE OF CONTENTS

HD & SD ENG Features . . . . . . . . . . . . . . . . . . 4–5

HD & SD Studio/Field Features . . . . . . . . . . . . . . 6

PL Mount Cine Lenses . . . . . . . . . . . . . . . . . . . . . . 7

24p/HD Digital Cine Lenses . . . . . . . . . . . . . . . 8–9

PF Lenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–12

Lenses for 1/3" HD Cameras . . . . . . . . . . . . . . . . 13

Lenses for 1/2" HD Cameras . . . . . . . . . . . . . . . . 14

HDTV ENG Select Series Lenses . . . . . . . . . 15–16

HDTV ENG Premier Series Lenses . . . . . . . . 17–20

HDTV Studio Lenses . . . . . . . . . . . . . . . . . . . . . . . 21

HDTV Field Lenses . . . . . . . . . . . . . . . . . . . . . 22–24

SDTV ENG/EFP Professional Lenses . . . . . . . . . . . 25

HDTV Videoconferencing Lenses . . . . . . . . . . . . . 26

SDTV Videoconferencing Lenses . . . . . . . . . . . . . 27

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 28–38

Pan & Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39–41

Not every product shown in this guide is available worldwide.

Prefix

A 2/3" FORMAT
Ah 2/3" FORMAT
S 1/2" FORMAT
T 1/3" FORMAT
HA/XA/HAs 2/3" FORMAT
ZA 2/3" FORMAT
HAc 2/3" FORMAT
HAe 2/3" FORMAT
HAeF 2/3" FORMAT
HS/HSs/XS 1/2" FORMAT
HTs/ Th 1/3" FORMAT
HK PL MOUNT LENSES

(ENG)

(EFP)

(ENG)

(ENG)

(High Definition)

(High Definition)

(High Definition, Cine Compact Zoom)

(High Definition, Cine Super Zoom)

(High Definition, Cine Super Prime)

(High Definition)

(High Definition)

Suffix

MD Motor Drive
RM Manual Focus Servo Zoom
ZM Manual Focus Servo Zoom with Quick Frame
RD Full Servo (ENG Style)
ZD Full Servo with Quick Frame
SM Manual /Servo Module Interchangeable

Example

X

23

HA

HD 2/3" Format

Zoom Ratio

Features, specifications and availability subject to change without notice.
Not responsible for typographical errors or omissions.

7. 6 E



Focal Length
at Wide End

Letter indicates Camera Manufacturer

and Correlates to Flange Focal Distance

DE

Extender

R M

Manual Focus Servo Zoom

Extender and

Ratio Converter

3

HD & SD ENG FEATURES

DIGIPOWER

In order to enhance the newest optical design technology,
Fujinon has developed the digital servo control system

DIGI POWER offering advanced performance of its zoom

lenses. In addition to improved specification and performance
the utilization of digital circuitry in our DIGI POWER
product line has made many new features available that
were virtually impossible in the past. DIGI POWER lenses
provide for vastly improved accuracy and repeatability over
previous designs and enable custom control parameters to be
memorized for individual camera operator’s preferences. An
optional 16 bit processor for zoom, focus and iris is available for
applications requiring a high degree of accuracy.

QUICKZOOM speed is 0.6 sec. / 0.7 sec.* from end to end.
QUICKZOOM provides a rapid zoom movement to the

telephoto position to check focus by the simple push of a
button. Releasing the button returns the lens to the
previously selected zoom position. Furthermore, by setting
the switch, QUICKZOOM can be performed remotely from
zoom rate demand units.

0.6 sec. : Studio and Field lens

*

0.7 sec. : ENG/EFP lens

Frame your shot. Press Q-Z button. Lens zooms back

1234

Lens automatically

zooms in.

Check focus and

release Q-Z button.

to original frame

in full focus.

QUICKZOOM solves the problem of having to reframe a

shot after checking focus. This exclusive feature is a
standard component on all of DIGI POWER lenses.

Utilizing the QUICKZOOM function can be an extremely

time saving and productive production tool, by allowing a
quick check if focus after a framed shot has been established.
Simply press the Q-Z button and the lens zooms in tight at
maximum speed, check focus and release the Q-Z button. The
lens zooms out to the pre-selected shot automatically. No
more guess work as to what the framed shot was prior to
checking focus.

ONE SHOT PRESET

Zoom and focus can be preset and
memorized in advance at a selected
position. One touch of the switch during
shooting will instantly return to the
memorized position for time saving
production.

4

HD & SD ENG FEATURES

ZOOM MODE SELECT

A zoom mode switch provides the option
to change the zoom response from “nor­mal” to more sensitive on the wide or
telephoto side. With the 3-zoom mode
(10-zoom mode on ENG/EFP) the user
can select the most suitable fine touch.
These zooming mode settings are ideal
when switching between productions such
as drama and sports.

ZOOM LIMIT

The zoom limit function can be used in the
servo operational mode. By using this
function, the zoom movement toward
both the wide side and the telephoto side
can be limited. An override switch quickly
returns the lens to normal mode.

Standard on: DIGI POWER Studio and Field lens,
DIGIPOWER ENG / EFP lens

AUTO-CRUISING ZOOM

Pressing the C-Z button while zooming
will fix the zoom speed at the existing
rate. Pressing the seesaw switch a second
time slightly will return the zoom speed to
normal.

Standard on: DIGI POWER Studio and Field lens,
DIGIPOWER ENG / EFP lens

ZOOM MAXIMUM SPEED
ADJUSTMENT

The maximum zooming speed obtained
when pressing the seesaw switch to the
end can be adjusted.

16 BIT ACCURACY FOR
REMOTE CONTROL

Remote control of zoom, focus and iris for all

DIGI POWER lenses is possible via 13 bit

serial digital connection. Optional 16 bit
processing is available for more accurate
positioning in virtual studios and other
applications.

ACCESSORY COMPATIBILITY

Analog control accessories can be used
with the DIGI POWER lens. (Some
functions may be limited.)

5

F-No. hold indicator

Zoom limit indicator

Zoom limit switch

F-No. hold switch

Intercom select
switch

One shot
preset switch

One shot preset switch

Focus preset release switch

One shot preset
indicator

One shot
preset indicator

Extender
select switch

Aspect ratio
indicator

Zoom limit control knob
(wide side)

Zoom limit control knob
(tele side)

Preset mode
select switch

Zoom speed
control knob

Zoom mode
select switch

HD & SD STUDIO/FIELD FEATURES

ONE SHOT PRESET

Zoom and focus can be preset and memorized in advance at
a selected position. One touch of the switch during shooting
will instantly return
to the memorized
position for time
saving production.

ZOOM MODE
SELECT

A zoom mode
switch provides the
option to change
the zoom response from “normal” to
more sensitive on the wide or telephoto
side. With the 3-zoom mode (10-zoom
mode on ENG/EFP) the user can select
the most suitable fine touch. These
zooming mode settings are ideal when
switching between productions such as
drama and sports.

Position set knob

20-PIN

Speed control knob

Remote macro control unit

EA-3A-10A

of these lenses while adding a unique look to the production.

Standard on DigiPower Field lenses and HA27x6.5.

ADVANCED BACK FOCUS:
REMOTE MACRO AND

Macro

FOCUS FADER

ON/OFF

This system allows macro shoot-

switch

ing as close as 0.3m (0.05m on
HA27x6.5) from the object.
Focus fades are also possible at
the wide side of the zoom range
with the use of a simple remote
control unit. Focus fader
enhances the creative possibilities

AUTOMATIC COMPENSATION OF FOCUS BREATHING

When focusing is operated, the angular field of view
normally changes, which creates an effect similar to zoom­ing. This is called focus breathing. This compensation mech­anism enables the
angular field of view
to remain constant
by synchronizing the
zoom movement to

ZOOM SPEED MAX 0.6 sec

the focus movement,
thus reducing image
size change when
focusing.

SYSTEM

Fujinon has developed a self-diagnostic system to provide
immediate analysis of the lens electronic systems. This
system, called “FIND” is available as option for all DIGI

POWER lenses. Installing software for DIGI POWER in

your PC allows a graphical user interface for lens history
and diagnostic functions.

6

32bit
RISC
CPU

RS232C

FIND

SYSTEM

DIGITAL ESM

CPU 13bit

CURRENT

CABLE

EFZ-11C

10 bit

DRIVE
UNIT

IRIS

DIGITAL EPD

W/ FOCUS & ZOOM

PRESET 3-MODE

CURVE SELECT

CPU

RS485

CPU

DIGITAL ERD

W/ FOCUS & ZOOM PRESET

QUICK ZOOM 3-MODE

CURVE SELECT

FOR FILM AND DIGITAL CINEMATOGRAPHY

144.3 mm

352 mm

New Fujinon PL Series zoom lenses are designed for
current and emerging 35mm motion picture Film and
Digital Cinematography cameras, with useful focal
ranges, fast T stops, and exceptional optical perfor­mance. Familiar marks and gear placement, comparable
physical size and weight, and consistent image quality in
four focal range choices enable fast and efficient produc­tion without compromise. With focal length coverage
from 14.5mm to 400mm, Fujinon’s new PL Series open
new opportunities for creative Cinematic expression.

18-85mm / T2.0

LENS 18-85mm (HK4.7 x 18-F)

Application 35mm Film and Digital Cinema Camera
Focal Length 18 ~ 85 mm
Zoom Ratio 4.7x
Maximum Relative Aperture F1.9 (18 ~ 85 mm)
T-No. T2.0
Iris Range T2 – T16 / Closed

Image Format

Flange Focal Length
(in air)

Close Focus Limit
(from image plane)

Field Angle

Object at Close Focus

Mount PL Mount
Weight 5.5 kg / 12.1 lbs

24.0 x 13.5 mm (ø 27.5 mm)
Aspect ratio / 16:9

52mm (Adjustable Range ±0.2mm)

0.82 m / 2.7 ft

18 mm 67°23'
85 mm 16°04'

18 mm 658 x 369 mm
85 mm 139 x 78 mm

Available End of 2009:

(Specifications subject to change)

14.5-45mm / T 2.0 24-180mm / T2.6

75-400mm / T2.8

7

E SERIES CINE ZOOM LENSES FOR 2/3" HD

Fujinon’s premiere lens series for 2/3 HD format Digital Cine­matography. Four zoom and nine prime lenses, designed to meet the
highest quality requirements of big screen, green screen, commercial
production, scripted feature and broadcast productions.
E Series are the fastest in the class, designed for top performance
wide open, enabling maximum depth-of-field control. No breathing,
no ramping, familiar focal ranges, and
top optical performance places the
E Series in a league of its own.

LENS 5-15mm T 1.6 10-100mm T 1.8

Model Number
Zoom Ratio 3X 10X
T-No. T1.6 T 1.8
Close Focus from Image Plane 0.56 m / 1.84 f t 0.94 m / 3.08 ft
Object at Close Focus
16:9 Aspect Ratio
Angular Field of View
16:9 Aspect Ratio
Focus Rotation 280° 280°
Zoom Rotation 160° 160°
Diameter x Length
Weight 5 kg / 11 lbs 5.8 kg / 12.76 lbs

LENS 6-30mm T 1.8 9.5-114mm T 1.6

Model Number
Zoom Ratio 5X 12X
T-No. T 1.8 T1.6
Close Focus from Image Plane 0.56 m / 1.84 ft 1.2 m / 3.94 ft
Object at Close Focus
16:9 Aspect Ratio
Angular Field of View
16:9 Aspect Ratio
Focus Rotation 280° 280°
Zoom Rotation 160° 160°
Diameter x Length
Weight 4.7 kg 10.34 lbs 10 kg / 22 lbs

HAe3x5 HAe10x10

5 mm 541x304 mm 10 mm 633x356 mm
15 mm 178x100 mm 100 mm 65x37 mm
5 mm 87°36'x 56°39' 10 mm 51°14'x 30°10'
15 mm 35°27' x20°22' 100 mm 5°29'x 3°05'

ø 128 x 287 mm ø 128 x 302 mm

HAe5x6 HAe12x9.5

6 mm 458x 257 mm 9.5 mm 861x484 mm
30 mm 92x 51 mm 114 mm 72x40 mm
6 mm 77° 16' x48°23' 9.5 mm 53°34' x 31°41'
30 mm 18°1 0'x 10°16' 114 mm 4°49'x 2°43'

ø 128 x 277 mm ø 156 x 433.5 mm

C SERIES CINE ZOOM LENSES FOR 2/3" HD

Fujinon’s compact zoom lenses for 2/3” HD format Digital Cine­matography. Three high performance lenses in this class, more com­pact than the E Series in size and weight, yet with generous zoom
ranges and stunning images. The C Series are especially effective
when a portable, versatile, cost effective Cine-style zoom is required.
The 7.3-110mm,T 2.0, is the workhorse of the series, has a 15x
range without ramping or breathing. C Series stands for Compact...
not compromise.

LENS 4.5-59mm T 2-2.9 7.3-110mm T 2.0 7.6-137mm T 1.9-2.6

Model Number HAc13x4.5 HAc15x7.3 HAc18x7.6
Zoom Ratio 13X 15X 18X
Close Focus From Image Plane

T-No.

Object at Close Focus 4.5 mm 757x425 mm 7.3 mm 1222x 687 mm 7.6 mm 738x415 mm
16:9 Aspect Ratio 59 mm 56x 31 mm 110 mm 79x 44 mm 137 mm 41x23 mm

Angular Field of View 4.5 mm 93°38'x 61°50' 7.3 mm 66°36'x40°32' 7.6 mm 64°30'x39°03'
16:9 Aspect Ratio 59 mm 9°18'x 5°14' 110 mm 5°00'x 2°48' 137 mm 4°01'x 2°15'

Focus Rotation 280° 280° 280°
Diameter x Length ø 95 x 238.5 mm ø 110 x 287.3 mm ø 85 x 204 mm
Weight 1.7 kg / 3.74 lbs 2.9 kg / 6.38 lbs 1.6 kg / 3.52 lbs

8

0.59 m / 1.92 ft 1.18 m / 3.87 ft .87 m / 2.85 ft
T2 (4.5 ~ 39.2 mm) T 2 (7.3 ~ 110 mm) T 1.9 (7.6 ~ 105 mm)

T2.9 (59 mm) T2.6 (137 mm)

E SERIES CINE PRIME LENSES FOR 2/3" HD

LENS 5mm T 1.7 8mm T 1.5 10mm T 1.5

Model Number HAeF5 HAeF8 HAeF10
Close Focus From Image Plane 0.5 m / 1.64 ft 0.4 m / 1.31 ft 0.5 m / 1.64 ft
T-No. T1.7 T1.5 T1.5
Object at Close Focus

16:9 Aspect Ratio
Angular Field of View

16:9 Aspect Ratio
Filter Size — M86x1 M86x1
Focus Rotation 280° 280° 280°
Diameter x Length ø 95 x 180.5 mm ø 95 x 144 mm ø 95 x 144 mm
Weight 2.2 kg / 4.84 lbs 1.6 kg / 3.52 lbs 1.62 kg / 3.56 lbs

LENS 12mm T 1.5 16mm T 1.5 20mm T 1.5

Model Number HAeF12 HAeF16 HAeF20
Close Focus From Image Plane 0.4 m / 1.31 ft 0.4 m / 1.31 ft 0.45 m / 1.48 ft
T-No. T1.5 T 1.5 T 1.5
Object at Close Focus

16:9 Aspect Ratio
Angular Field of View

16:9 Aspect Ratio
Filter Size M86x1 M86x1 M86x1
Focus Rotation 280° 280° 280°
Diameter x Length ø 95 x 144 mm ø 95 x 144 mm ø 95 x 144 mm
Weight 1.65 kg / 3.63 lbs 1.6 kg / 3.52 lbs 1.6 kg / 3.52 lbs

591 x 332 mm 288 x 162 mm 335 x 188 mm

87°36' x 56°39' 61°52' x 37°14' 51°14' x 30°10'

220 x 124 mm 175 x 98 mm 165 x 93 mm

43°34' x 25°19' 33°22' x 19°07' 26°58' x 15°21'

LENS 34mm T 1.5 40mm T 1.5 54mm T 1.6

Model Number HAeF34 HAeF40 HAeF54
Close Focus From Image Plane 0.4 m / 1.31 ft 0.5 m / 1.64 ft 0.6 m / 1.97 ft
T-No. T1.5 T1.5 T1.6
Object at Close Focus

16:9 Aspect Ratio
Angular Field of View

16:9 Aspect Ratio
Filter Size M86x1 M86x1 M86x1
Focus Rotation 280° 280° 280°
Diameter x Length ø 95 x 144 mm ø 95 x 144 mm ø 95 x 144 mm
Weight 1.65 kg / 3.63 lbs 1.65 kg / 3.63 lbs 1.65 kg / 3.63 lbs

83 x 47 mm 99 x 56 mm 92 x 52 mm

16°03' x 9°04' 13°40' x 7°42' 10°09' x 5°43'

1.4X RANGE EXTENDER

HAeE14-1

E Series 1.4x Tele-Extender increases
focal range of zooms and primes by

1.4x, with a minimal 1 stop loss.

For 2/3" HD

9

PRECISION FOCUS LENSES

PF-BUILT-IN LENSES

Fujinon’s Precision Focus Assist
enables camera operators the
ability to ensure fast accurate
focusing of high definition images
under varying conditions. The PF
system is the first to incorporate
Fujinon’s patented system which
utilizes a unique contrast method of

achieving precise focus.

FEATURES AND FUNCTIONS

Contrast focusing method

The Precision Focus System adopts a contrast method that
utilizes differences in optical path length. It can instantly
focus the image without searching for focus and can maintain
precise focus even when following moving objects.

CCD A and CCD B
are built into the lens
barrel to detect the
focusing conditions
and are positioned
at equal distances
before and after the
camera image form­ing plane.

CAN BE MOUNTED
ON ANY 2/3” CAMERA

The PF function is built into the lens and can be operational
with the lens mounted on a 2/3” camera with no additional
settings or optional devices. Camera software provides
additional viewfinder information on some cameras.

FOCUS MODE SELECTION

The momentary mode provides for PF function only when
pressing the button or the continuous mode may be selected
for continuous PF function. These two modes of operation
provide precise focusing according to the shooting situation,
whether a still or moving image.

FOCUS AREA SETTING

When the PF lens is mounted on a
camera, a focus area is shown on
the viewfinder. The size and the
position of the focus area can be
changed at the camera operator’s
discretion. This function allows
greater flexibility in the selection
of the focus area depending on the
type of production.

10

Focus Lens Group

Master Lens

Group for PF

A

B

CCD for Camera

The image-forming

plane of the camera

CCD for PF

CCD A for PF

CCD B for PF

Master Lens Group

Focus on the nearside (+)

Contrast

Motor Drive-unit

Motor Drive-unit

Motor Drive-unit

CCD B for PFCCD A for PF

Focus Lens Group

Focus Lens Group

Focus Lens Group

Move to infinity side

Stop

Move to nearside

Position equal to the image
plane of the camera.

Position equal to the image
plane of the camera.

Position equal to the

image plane of the camera.

Position equal to the image
plane of the camera.

CCD B for PFCCD A for PF

CCD B for PFCCD A for PF

Contrast

Contrast

Best focus (O)

Focus on the infinity side (-)

Zoom Lens Group

A half mirror located behind the iris
directs light to CCD A and CCD B.
The CCD's are spaced optically at
equal distance to the image plane of
the camera and are used to measure
image contrast.

Contrast value of CCD B is lower than
CCD A.

Focus on the nearside.
Lens focus will move toward infinity.

Contrast value of CCD A and CCD B is
equal.

Optimum focus

Contrast value of CCD A is lower than
CCD B.

Focus on the infinity side.
Lens focus will move toward the
nearside.

PRECISION FOCUS LENSES

Fujinon’s exclusive Precision Focus Assist is now in the
fourth generation and features improved focusing
response, lower light loss and reduced size. The PF system
is the only focusing system that can maintain focus at any
zoom position from the narrowest to the widest angle.

USER FRIENDLY
PF CONTROLLER

The new focus controller for
Fujinon’s exclusive Precision
Focus Assist provides operators
with a simple to use yet powerful
tool to maintain precise focus in
the most demanding production
situations. The familiar manual
type focus controller has been
adapted to encompass all of the
precise servo features of the PF
lens.

11

PRECISION FOCUS LENSES

HA13x4.5BRD
HA22x7.3BRD

LENS HA13x4.5BRD HA22x7.3BRD

Zoom Ratio / Format 13X / 2/3" 22X / 2/3"
Focal Length 4.5 to 59 mm 7.3 to 161 mm
Maximum Relative 1:1.8 (4.5 ~ 41 mm) 1:1.9 (7.3 ~ 113 mm)
Aperture 1:2.6 (59 mm) 1:2.7 (161 mm)
Maximum Photometric 1:2.3 (4.5 ~ 41 mm) 1:2.3 (7.3 ~ 113 mm)
Aperture T-No. 1:3.3 (59 mm) 1:3.3 (161 mm)
Angular Field of View
16:9 Aspect Ratio
M.O.D. from Image Plane 0.60 m 1.19 m
M.O.D. from Front of Lens 0.30 m 0.85 m
Object Dimensions
at M.O.D.
Dia ø x Length (w/o Hood) ø95 x 256.1 mm ø110 x 300.2 mm
Weight (w/o Hood) 2.7 kg 3.9 kg
Features Inner Focus, Zoom Limit Inner Focus, Zoom Limit

HA27x6.5BE SM

Zoom Ratio / Format 27X / 2/3"
Focal Length 6.5 ~ 180 mm

Maximum Relative 1:1.5 (6.5 ~ 123 mm)
Aperture 1:2.2 (180 mm)
Maximum Photometric 1:1.8 (7.2 ~ 149 mm)
Aperture T-No. 1:2.6 (158 mm)
Angular Field of View
(Hor. x Vert. in °)
16:9 Aspect Ratio

M.O.D. from Image Plane 1.23 m
M.O.D. from Front of Lens 0.6 m
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
16:9 Aspect Ratio
Size (HxWxL) 228 x 231 x 588 mm
Weight (w/o Hood) 21.5 kg

4.5 mm 93° 38’ x 61° 50’ 7.3 mm 66° 36’ x 40° 32’
59 mm 9° 18’ x 5° 14’ 161 mm 3° 25’ x 1° 55’

4.5 mm 757 x 425 mm 7.3 mm 1222 x 687 mm
59 mm 55 x 31 mm 161 mm 55 x 31 mm

Extender

(2X) 13 ~ 360 mm

6.5 mm 72° 50’ x 45° 02’
180 mm 3° 03’ x 1° 43’

(2X) 13 mm 40° 30’ x 23° 25’

360 mm 1° 32’ x 0° 51’

6.5 mm 1053 x 592 mm
180 mm 39 x 22 mm

(2X) 13 mm 527 x 296 mm

360 mm 20 x 11 mm

XA88x8.8BE SM
XA101x8.9BE SM

LENS XA88x8.8BE SM XA101x8.9BE SM

Zoom Ratio / Format 88X / 2/3" 101X / 2/3"
Focal Length 8.8 ~ 777 mm 8.9 ~ 900 mm

Maximum Relative 1:1.7 (8.8 ~ 348 mm) 1:1.7 (8.9 ~ 291 mm)
Aperture 1:3.8 (777 mm) 1:4.7 (900 mm)
Maximum Photometric 1:1.9 (8.8 ~ 348 mm) 1:2.1 (8.9 ~ 291 mm)
Aperture T-No. 1:4.2 (777 mm) 1:5.8 (900 mm)
Angular Field of View
(Hor. x Vert. in °)
16:9 Aspect Ratio

M.O.D. from Image Plane 3.56 m 3.65 m
M.O.D. from Front of Lens 2.9 m 2.9 m
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
16:9 Aspect Ratio
Size (HxWxL) 265 x 270 x 625 mm 265 x 270 x 720 mm
Weight (w/o Hood) 26 kg 24.7 kg

12

Extender

(2X) 17.6 ~ 1554 mm (2X) 17.8 ~ 1800 mm

8.8 mm 57° 10’ x 34° 03’
777 mm 0° 42’ x 0° 24’

(2X) 17.6 mm 30° 29’ x 17° 25’

1554 mm 0° 21’ x 0° 12’

8.8 mm 3029 x 1703 mm
777 mm 34 x 19 mm

(2X) 17.6 mm 1515 x 851 mm

1554 mm 17 x 10 mm

PF accessories shown on page 28.

(2X) 17.8 mm 30° 09’ x 17° 13’

(2X) 17.8 mm 1433 x 805 mm

8.9 mm 56° 38’ x 33° 42’
900 mm 0° 37’ x 0° 21’

1800 mm 0° 18’ x 0° 10’

8.9 mm 2865 x 1610 mm
900 mm 28 x 16 mm

1800 mm 14 x 8 mm

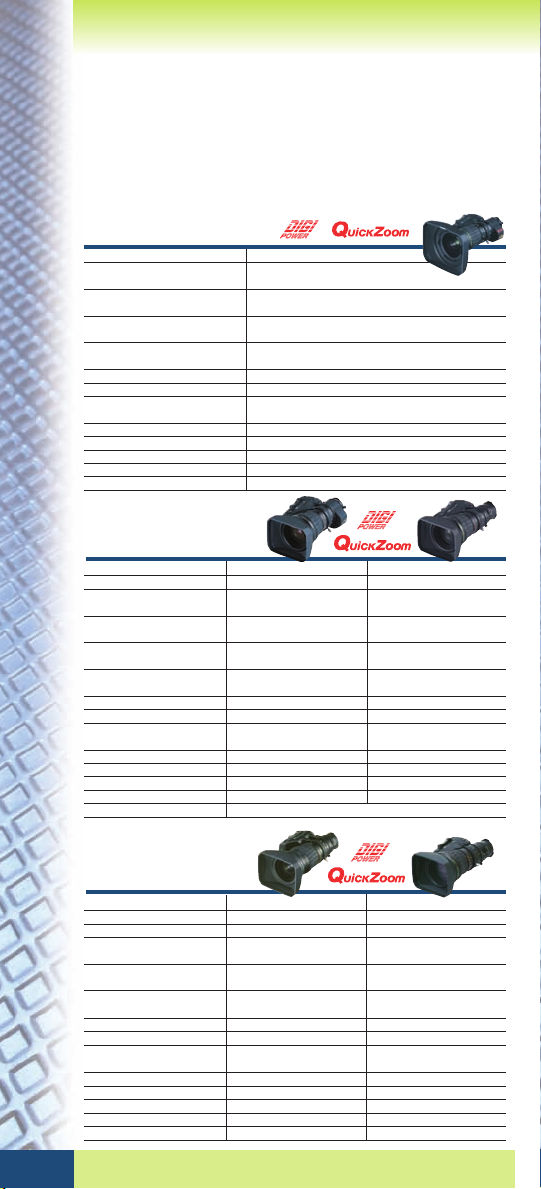

LENSES FOR 1/3" HD CAMERAS

Maximize the performance of your 1/3 inch HD Camcorder
with Fujinon’s new Th13x3.5BRM wide angle lens and the
HTs18x4.2BRM high performance standard lens. Both feature
minimal chromatic aberration, high contrast and Fujinon’s
exclusive Digi Power servo with Quick Zoom, One Shot preset,
Cruise Zoom, zoom limit and zoom speed adjust.

Th17x5BRM is an economically priced lens featuring high

zoom range, close focusing and exceptional optical quality.

Th13x3.5BRM

Zoom Ratio / Format 13X / 1/3"
Focal Length 3.5 to 46 mm
Maximum Relative Aperture 1:1.4 (3.5 ~ 43 mm)
Angular Field of View
16:9 Aspect Ratio
M.O.D. from Image Plane 0.66 m
M.O.D. from Front of Lens 0.40 m
Object Dimensions
at M.O.D.
Filter Size ø 82 mm P=0.75
Dia ø x Length (w/o Hood) ø85 x 228 mm
Weight (w/o Hood) 1.68 kg
Features Inner Focus

Th17x5BRM

Zoom Ratio / Format 17X / 1/3"
Focal Length 5 to 85 mm
Maximum Relative Aperture 1:1.4 (5 ~ 85 mm)
Angular Field of View
16:9 Aspect Ratio
M.O.D. from Image Plane 1.11 m
M.O.D. from Front of Lens 0.90 m
Object Dimensions
at M.O.D.
Filter Size ø 82 mm P=0.75
Dia ø x Length (w/o Hood) ø85 x 185.5 mm
Weight (w/o Hood) 1.25 kg
Features Inner Focus

Accessories for Th13x3.5BRM and Th17x5BRM shown on page 31.

3.5 mm 72° 32’ x 45° 34’
46 mm 6° 30’ x 3° 40’

3.5 mm 660 x 371 mm
46 mm 53 x 30 mm

5 mm 55° 13’ x 32° 46’
85 mm 3° 31’ x 1° 59’

5 mm 872 x 490 mm
85 mm 51 x 29 mm

HTs18x4.2BRM
HTs18x4.2BERM

LENS HTs18x4.2BRM HTs18x4.2BERM

Zoom Ratio / Format 18X / 1/3" 18X / 1/3"
Focal Length 4.2 to 76 mm 4.2 to 76 mm

Maximum Relative 1:1.4 (4.2 ~ 76 mm) 1:1.4 (4.2 ~ 76 mm)
Aperture (2X) 1:2.8 (152 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 0.83 m 0.84 m
M.O.D. from Front of Lens 0.60 m 0.60 m
Object Dimensions
at M.O.D.
Filter Size ø 82 mm P=0.75 ø 82 mm P=0.75
Dia ø x Length (w/o Hood) ø85 x 207 mm ø85 x 206.6 mm
Weight (w/o Hood) 1.53 kg 1.58 kg
Options 16 Bit Encoder 16 Bit Encoder
Features Inner Focus / Quick Zoom / Zoom Limit

Extender

4.2 mm 63° 49’ x 39° 35’
76 mm 4° 00’ x 2° 13’

4.2 mm 768 x 409 mm
76 mm 40 x 23 mm

Accessories for HTs18x4.2BRM shown on pages 29 & 30.

(2X) 8.4 to 152 mm

4.2 mm 63° 49’ x 39° 35’
76 mm 3° 56’ x 2° 13’

(2X) 8.4 mm 34° 35’ x 19° 51’

152 mm 1° 52’ x 1° 6’

5.5 mm 741 x 417 mm
100 mm 43 x 24 mm

13

LENSES FOR 1/2" HD CAMERAS

The introduction of HD cameras utilizing the 1/2 inch imager
brought on the need for high quality 1/2 inch HD lenses for News
and Production applications. Fujinon offers a complete line includ­ing the HS16x4.6BERM that combines wide angle and a 16 X
zoom range and the HS18x5.5BERM/BERD. Both feature an
integral 2x extender. The HSs18x5.5BRM/BRD standard lens,
wide angle XS13x3.3BRM and the economical XS17x5.5 round
out the complete line. All lenses utilize Fujinon’s exclusive
DigiPower servo system for precise control over zoom functions.

HS16x4.6BERM

Zoom Ratio / Format 16X / 1/2"
Focal Length 4.6 to 74 mm

Maximum Relative 1:1.4 (4.6 ~ 47 mm)
Aperture 1:2.2 (74 mm)
Maximum Photometric 1:1.5 (4.6 ~ 47 mm)
Aperture T-No. 1:2.4 (74 mm)
Angular Field of View 4.6 mm 74° 18’ x 46° 09’
16:9 Aspect Ratio 74 mm 5° 24’ x 3° 02’
M.O.D. from Image Plane 0.68 m
M.O.D. from Front of Lens 0.40 m
Object Dimensions 4.6 mm 710 x 399 mm
at M.O.D. 74 mm 44 x 25 mm
Filter Size ø 107 mm P=1 (In Hood)
Dia ø x Length (w/o Hood) ø95 x 240 mm
Weight (w/o Hood) 1.98 kg
Options 16 Bit Encoder
Features Inner Focus / Quick Zoom / Zoom Limit

Extender

(2X) 9.2 to 148 mm

HS18x5.5BERM/RD
HSs18x5.5B RM/RD

LENS HS18x5.5BERM /RD* HSs18x5.5B RM/RD*

Zoom Ratio / Format 18X / 1/2" 18X / 1/2"
Focal Length 5.5 to 100 mm 5.5 to 100 mm

Maximum Relative 1:1.4 (5.5 ~ 78 mm) 1:1.4 (5.5 ~ 77 mm)
Aperture 1:1.8 (100 mm) 1:1.8 (100 mm)
Maximum Photometric 1:1.5 (5.5 ~ 78 mm) 1:1.5 (5.5 ~ 77 mm)
Aperture T-No. 1:1.9 (100 mm) 1:1.9 (100 mm)
Angular Field of View
16:9 Aspect Ratio
M.O.D. from Image Plane 0.84 m 0.84 m
M.O.D. from Front of Lens 0.60 m 0.60 m
Object Dimensions
at M.O.D.
Filter Size ø 82 mm P=0.75 ø 82 mm P=0.75
Dia ø x Length (w/o Hood) ø85 x 206.6 mm ø85 x 206.6 mm
Weight (w/o Hood) 1.58 kg (RM) / 1.65 kg (RD) 1.53 kg (RM) / 1.60 kg (RD)
Options 16 Bit Encoder 16 Bit Encoder
Features Inner Focus / Quick Zoom / Zoom Limit

*RD contain servos for zoom and focus.

XS13x3.3BRM
XS17x5.5BRM

LENS XS13x3.3BRM XS17x5.5BRM

Zoom Ratio / Format 13X / 1/2" 17X / 1/2"
Focal Length 3.3 to 43 mm 5.5 to 94 mm
Maximum Relative 1:1.4 (3.3 ~ 32 mm) 1:1.4 (5.5 ~ 77 mm)
Aperture 1:1.9 (43 mm) 1:1.7 (94 mm)
Maximum Photometric 1:1.5 (3.3 ~ 32 mm) 1:1.5 (5.5 ~ 77 mm)
Aperture T-No. 1:2.1 (43 mm) 1:1.8 (94 mm)
Angular Field of View
16:9 Aspect Ratio
M.O.D. from Image Plane 0.58 m 0.84 m
M.O.D. from Front of Lens 0.30 m 0.60 m
Object Dimensions
at M.O.D.
Filter Size
Dia ø x Length (w/o Hood) ø95 x 240.5 mm ø85 x 206.6 mm
Weight (w/o Hood) 1.93 kg 1.53 kg
Options 16 Bit Encoder 16 Bit Encoder
Features Inner Focus Inner Focus

14

*

*

(2X) 11 to 200 mm

Extender

5.5 mm 64° 43’ x 39° 14’
100 mm 4° 00’ x 2° 15’

5.5 mm 741 x 417 mm
100 mm 41 x 23 mm

3.3 mm 93° 07’ x 61° 25’
43 mm 9° 16’ x 5° 13’

3.3 mm 752 x 406 mm
43 mm 58 x 31 mm

ø 127 mm P=0.75 (In Hood) ø 82 mm P=0.75 (On Barrel)

Accessories for above lenses shown on pages 29, 30 & 32.

5.5 mm 64° 43’ x 39° 14’
100 mm 4° 00’ x 2° 15’

5.5 mm 741 x 417 mm
100 mm 43 x 24 mm

5.5 mm 64° 43’ x 39° 14’
94 mm 4° 15’ x 2° 23’

5.5 mm 741 x 417 mm
94 mm 41 x 23 mm

HD Series

Fujinon’s Select Series is designed to meet the performance
needs of the next generation of cost-effective HD cameras.
Fujinon worked closely with all major camera manufacturers to
engineer true HD lenses that are designed specifically to enhance
the performance of lower cost HDTV cameras.

New for 2009 is the addition of the ZA12X4.5B RM/RD and
the ZA17X7.6B RM/RD without 2x range extenders. The "RD"
versions feature servo zoom and focus for full remote control.
These lenses are ideally suited for studio applications where the
use of an extender is not necessary.

ZA12x4.5B RM/RD*

Zoom Ratio / Format 12X / 2/3"
Focal Length 4.5 to 54 mm
Maximum Relative 1:1.8 (4.5 ~ 41 mm)
Aperture 1:2.4 (59 mm)
Maximum Photometric 1:1.9 (4.5 ~ 41 mm)
Aperture T-No. 1:2.6 (59 mm)
Angular Field of View
16:9 Aspect Ratio
M.O.D. from Image Plane 0.59 m
M.O.D. from Front of Lens 0.3 m
Object Dimensions
at M.O.D.
Filter Size ø 127 mm P=0.75 (In Hood)
Dia ø x Length (w/o Hood) ø95 x 237.5 mm
Weight (w/o Hood) 1.83 kg (RM) / 1.9 kg (RD)*
Options 16 Bit Encoder / Videoconferencing
Features Inner Focus / Zoom Limit / Quick Zoom

*RD contain servos for zoom and focus.

4.5 mm 93° 38’ x 61° 50’
54 mm 10° 09’ x 5° 43’

4.5 mm 757 x 425 mm
54 mm 59 x 33 mm

ZA12x4.5BE RM/RD*

Zoom Ratio / Format 12X / 2/3"
Focal Length 4.5 to 54 mm

Maximum Relative 1:1.8 (4.5 ~ 41 mm)
Aperture 1:2.4 (59 mm)
Maximum Photometric 1:1.9 (4.5 ~ 41 mm)
Aperture T-No. 1:2.6 (59 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 0.59 m
M.O.D. from Front of Lens 0.3 m
Object Dimensions
at M.O.D.

Filter Size ø 127 mm P=0.75 (In Hood)
Dia ø x Length (w/o Hood) ø95 x 237.5 mm
Weight (w/o Hood) 1.93 kg (ERM) / 2.0 kg (ERD)*
Options 16 Bit Encoder / Videoconferencing
Features Inner Focus / Zoom Limit / Quick Zoom

*RD contain servos for zoom and focus.

Extender

(2X) 9 to 108 mm

4.5 mm 93° 38’ x 61° 50’
54 mm 10° 09’ x 5° 43’

(2X) 9 mm 56° 06’ x 33° 20’

108 mm 5° 05’ x 2° 52’

4.5 mm 757 x 425 mm
54 mm 59 x 33 mm

(2X) 9 mm 373 x 210 mm

108 mm 31 x 17 mm

Accessories for above lenses shown on pages 29, 30 & 32.

15

HD Series

ZA17x7.6B RM/RD*
ZA17x7.6BE RM/RD*

LENS ZA17x7.6B RM/RD* ZA17x7.6BE RM/RD*

Zoom Ratio / Format 17X / 2/3" 17X / 2/3"
Focal Length 7.6 to 130 mm 7.6 to 130 mm

Maximum Relative 1:1.8 (7.6 ~ 102 mm) 1:1.8 (7.6 ~ 102 mm)
Aperture 1:2.3 (130 mm) 1:2.3 (130 mm)
Maximum Photometric 1:1.9 (7.6 ~ 102 mm) 1:1.9 (7.6 ~ 102 mm)
Aperture T-No. 1:2.5 (130 mm) 1:2.5 (130 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 0.84 m 0.84 m
M.O.D. from Front of Lens 0.6 m 0.6 m
Object Dimensions
at M.O.D.

Filter Size
Dia ø x Length (w/o Hood) ø 85 x 203 mm ø 85 x 203 mm
Weight (w/o Hood) 1.43 kg (RM) / 1.5 kg (RD)* 1.53 kg (ERM) / 1.6 kg (ERD)*
Options 16 Bit Encoder / Videoconf. 16 Bit Encoder / Videoconf.
Features Inner Focus / Zoom Limit Inner Focus / Zoom Limit

*RD contain servos for zoom and focus.

ERM version with extender

Extender

7.6 mm 64° 30’ x 39° 03’
130 mm 4° 13’ x 2° 23’

(2X)

7.6 mm 696 x 392 mm
130 mm 43 x 24 mm

(2X)

ø 82 mm P=0.75 (On Barrel) ø 82 mm P=0.75 (On Barrel)

Quick Zoom Quick Zoom

(2X) 15.2 to 260 mm

7.6 mm 64° 30’ x 39° 03’
130 mm 4° 13’ x 2° 23’

15.2 mm 35° 01’ x 20° 07’
260 mm 2° 07’ x 1° 11’

7.6 mm 696 x 392 mm
130 mm 43 x 24 mm

15.2 mm 362 x 204 mm
260 mm 21 x 12 mm

ZA22x7.6BE RM/RD*

Zoom Ratio / Format 22X / 2/3"
Focal Length 7.6 to 167 mm

Maximum Relative 1:1.8 (7.6 ~ 120 mm)
Aperture 1:2.5 (167 mm)
Maximum Photometric 1:1.9 (7.6 ~ 120 mm)
Aperture T-No. 1:2.6 (167 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 1.07 m
M.O.D. from Front of Lens 0.8 m
Object Dimensions
at M.O.D.

Filter Size

Dia ø x Length (w/o Hood) ø100 x 222.6 mm
Weight (w/o Hood) 1.75 kg (ERM) / 1.82 kg (ERD)*
Options 16 Bit Encoder / Videoconferencing
Features Inner Focus / Zoom Limit / Quick Zoom

*RD contain servos for zoom and focus.

16

Extender

Accessories for above lenses shown on pages 29, 30 & 32.

(2X) 15.2 to 334 mm

7.6 mm 64° 30’ x 39° 03’
167 mm 3° 17’ x 1° 51’

(2X) 15.2 mm 35° 01’ x 20° 07’

334 mm 1° 39’ x 0° 55’

7.6 mm 915 x 514 mm
167 mm 43 x 24 mm

(2X) 15.2 mm 473 x 266 mm

334 mm 22 x 12 mm
ø 95 mm P=1.0 (On Barrel)
ø 107 mm P=1.0 (In Hood)

HD Series

Fujinon’s Premier Series lenses are designed to complement
and enhance the quality of the worlds most advanced 2/3 inch
HDTV cameras.

Great consideration in the design and development of these
high-end HD lenses has been taken to incorporate the highest
optical and mechanical specifications while ensuring
unmatched performance in the most rugged of production
environments.

HA13x4.5BE RM/RD*

Zoom Ratio / Format 13X / 2/3"
Focal Length 4.5 to 59 mm

Maximum Relative 1:1.8 (4.5 ~ 41 mm)
Aperture 1:2.6 (59 mm)
Maximum Photometric 1:2.0 (4.5 ~ 41 mm)
Aperture T-No. 1:2.9 (59 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 0.59 m
M.O.D. from Front of Lens 0.3 m
Object Dimensions
at M.O.D.

Filter Size ø 127 mm P=0.75 (In Hood)
Dia ø x Length (w/o Hood) ø95 x 238.5 mm
Weight (w/o Hood) 1.98 kg (RM) / 2.05 kg (RD)*
Options Ratio Converter / 16 Bit Encoder
Features Inner Focus / Zoom Limit / Quick Zoom

*RD contain servos for zoom and focus.

Extender

(2X) 9 to 118 mm

4.5 mm 93° 38’ x 61° 50’
59 mm 9° 18’ x 5° 14’

(2X) 9 mm 56° 06’ x 33° 20’

118 mm 4° 39’ x 2° 37’

4.5 mm 757 x 420 mm
59 mm 55 x 31 mm

(2X) 9 mm 373 x 210 mm

118 mm 28 x 16 mm

HA16x6.3BE RM/RD*

Zoom Ratio / Format 16X / 2/3"
Focal Length 6.3 to 101 mm

Maximum Relative 1:1.8 (6.3 ~ 63 mm)
Aperture 1:2.9 (101 mm)
Maximum Photometric 1:1.9 (6.3 ~ 63 mm)
Aperture T-No. 1:3.1 (101 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 0.69 m
M.O.D. from Front of Lens 0.4 m
Object Dimensions
at M.O.D.

Filter Size ø 107 mm P=1 (In Hood)
Dia ø x Length (w/o Hood) ø95 x 238.5 mm
Weight (w/o Hood) 1.98 kg / 2.05 kg*
Options 16 Bit Encoder
Features Inner Focus / Zoom Limit / Quick Zoom

*RD contain servos for zoom and focus.

Extender

(2X) 12.6 to 202 mm

6.3 mm 74° 33’ x 46° 19’
101 mm 4° 00’ x 3° 03’

(2X) 12.6 mm 41° 40’ x 24° 09’

202 mm 2° 43’ x 1° 32’

6.3 mm 712 x 400 mm
101 mm 45 x 25 mm

(2X) 12.6 mm 356 x 200 mm

202 mm 22 x 13 mm

Accessories for above lenses shown on pages 29, 30 & 32.

17

HD Series

HA18x7.6BE RM/RD*

Zoom Ratio / Format 18X / 2/3"
Focal Length 7.6 to 137 mm

Maximum Relative 1:1.8 (7.6 ~ 103 mm)
Aperture 1:2.4 (137 mm)
Maximum Photometric 1:1.9 (7.6 ~ 105 mm)
Aperture T-No. 1:2.6 (137 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 0.87 m
M.O.D. from Front of Lens 0.6 m
Object Dimensions
at M.O.D.

Filter Size ø 82 mm P=0.75 (On Barrel)
Dia ø x Length (w/o Hood) ø85 x 204 mm
Weight (w/o Hood) 1.58 kg / 1.65 kg*
Options Ratio Converter / 16 Bit Encoder
Features Inner Focus / Zoom Limit / Quick Zoom

Extender

(2X) 15.2 to 274 mm

7.6 mm 64° 30’ x 39° 03’
137 mm 4° 01’ x 2° 15’

(2X) 15.2 mm 35° 01’ x 20° 07’

274 mm 2° 00’ x 1° 08’

7.6 mm 738 x 415 mm
137 mm 41 x 23 mm

(2X) 15.2 mm 362 x 204 mm

274 mm 21 x 12 mm

HAs18x7.6B RM/RD*

Zoom Ratio / Format 18X / 2/3"
Focal Length 7.6 to 137 mm
Maximum Relative 1:1.8 (7.6 ~ 103 mm)
Aperture 1:2.4 (137 mm)
Angular Field of View
16:9 Aspect Ratio
M.O.D. from Image Plane 0.84 m
M.O.D. from Front of Lens 0.6 m
Object Dimensions
at M.O.D.
Filter Size ø 82 mm P=0.75 (On Barrel)
Dia ø x Length (w/o Hood) ø85 x 204 mm
Weight (w/o Hood) 1.26 kg / 1.33 kg*
Options 16 Bit Encoder
Features Inner Focus / Zoom Limit / Quick Zoom

7.6 mm 64° 30’ x 39° 03’
137 mm 4° 01’ x 2° 15’

7.6 mm 738 x 415 mm
137 mm 41 x 23 mm

HA23x7.6BE RM/RD*

Zoom Ratio / Format 23X / 2/3"
Focal Length 7.6 to 175 mm

Maximum Relative 1:1.8 (7.6 ~ 122 mm)
Aperture 1:2.65 (175 mm)
Maximum Photometric 1:1.9 (7.6 ~ 122 mm)
Aperture T-No. 1:2.8 (175 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 1.07m
M.O.D. from Front of Lens 0.8m
Object Dimensions
at M.O.D.

Filter Size ø 95m P=1 (On Barrel) / ø 107m P=1 (In Hood)
Dia ø x Length (w/o Hood) ø100 x 223.6 mm
Weight (w/o Hood) 1.88 kg (RM) / 1.95 kg (RD)
Options Ratio Converter / 16 Bit Encoder
Features Inner Focus / Zoom Limit / Quick Zoom

*RD contain servos for zoom and focus.

18

Extender

(2X) 15.2 to 350 mm

7.6 mm 64° 30’ x 39° 03’
175 mm 3° 08’ x 1° 46’

(2X) 15.2 mm 35° 01’ x 20° 07’

350 mm 1° 34’ x 0° 53’

7.6 mm 915 x 514 mm
175 mm 41 x 23 mm

(2X) 15.2 mm 473 x 266 mm

350 mm 21 x 12 mm

Accessories for above lenses shown on pages 29, 30 & 32.

HD Series

HA22x7.3BE RM/RD*

Zoom Ratio / Format 22X / 2/3"
Focal Length 7.3 to 161 mm

Maximum Relative 1:1.9 (7.3 ~ 113 mm)
Aperture 1:2.7 (161 mm)
Maximum Photometric 1:2.0 (7.3 ~ 113 mm)
Aperture T-No. 1:2.9 (161 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 1.18 m
M.O.D. from Front of Lens 0.85 m
Object Dimensions
at M.O.D.

Filter Size ø 127 mm P=0.75 (On Hood)
Dia ø x Length (w/o Hood) ø110 x 287.3 mm
Weight (w/o Hood) 3.15 kg / 3.22 kg*
Options Ratio Converter / 16 Bit Encoder
Features Inner Focus / Quick Zoom / Zoom Limit

Extender

(2X) 14.6 to 322 mm

7.3 mm 66° 36’ x 40° 32’
161 mm 3° 25’ x 1° 55’

(2X) 14.6 mm 36° 22’ x 20° 55’

322 mm 1° 42’ x 0° 58’

7.3 mm 1222 x 687 mm
161 mm 55 x 31 mm

(2X) 14.6 mm 609 x 342 mm

322 mm 28 x 16 mm

HA25x11.5BE RD*

Zoom Ratio / Format 25X / 2/3"
Focal Length 11.5 to 288 mm

Maximum Relative 1:2.0 (11.5 ~ 206 mm)
Aperture 1:2.8 (288 mm)
Maximum Photometric 1:2.1 (11.5 ~ 206 mm)
Aperture T-No. 1:2.9 (288 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 2.51 m
M.O.D. from Front of Lens 2.2 m
Object Dimensions
at M.O.D.

Filter Size ø 107m P=1 (On Barrel)
Dia ø x Length (w/o Hood) ø110 x 265 mm
Weight (w/o Hood) 2.8 kg
Features Inner Focus/ Quick Zoom / Inner Focus

Extender

(2X) 23 to 576 mm

11.5 mm 45° 16’ x 26° 23’
288 mm 1° 54’ x 1° 04’

(2X) 23 mm 23° 33’ x 13° 22’

576 mm 0° 57’ x 0° 32’

11.5 mm 1740 x 978 mm
288 mm 70 x 39 mm

(2X) 23 mm 870 x 489 mm

576 mm 35 x 20 mm

HA25x16.5BE RD*

Zoom Ratio / Format 25X / 2/3"
Focal Length 16.5 to 413 mm

Maximum Relative 1:2.8 (16.5 ~ 289mm)
Aperture 1:4.0 (413 mm)
Maximum Photometric 1:2.9 (16.5 ~ 289 mm)
Aperture T-No. 1:4.2 (413 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 2.52 m
M.O.D. from Front of Lens 2.2 m
Object Dimensions
at M.O.D.

Filter Size ø 107m P=1 (On Barrel)
Dia ø x Length (w/o Hood) ø110 x 278 mm
Weight (w/o Hood) 2.9 kg
Features Quick Zoom / Zoom Limit

*RD contain servos for zoom and focus.

Extender

(2X) 33 to 826 mm

16.5 mm 32° 25’ x 18° 33’
413 mm 1° 20’ x 0° 45’

(2X) 33 mm 16° 32’ x 9° 20’

826 mm 0° 40’ x 0° 22’

16.5 mm 1213 x 682 mm
413 mm 49 x 27 mm

(2X) 33 mm 606 x 341 mm

826 mm 24 x 14 mm

Accessories for above lenses shown on pages 29 & 30.

19

HD Series

HA42x9.7BE RD

Zoom Ratio / Format 42X / 2/3"
Focal Length 9.7 ~ 410 mm

Maximum Relative 1:2.0 (9.7 ~ 225 mm)
Aperture 1:3.7 (410 mm)
Maximum Photometric 1:2.2 (9.7 ~ 225 mm)
Aperture T-No. 1:4.0 (410 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 3.18 m
M.O.D. from Front of Lens 2.8 m
Object Dimensions
at M.O.D.

Filter Size ø 127 mm P=0.75 (On Barrel)
Dia ø x Length (w/o Hood) ø130 x 338.5 mm
Weight (w/o Hood) 5.3 kg
Options Built In OS-TECH
Features Inner Focus / Zoom Limit / Built In OS-TECH / Quick Zoom

Extender

(2X) 19.4 ~ 820 mm

9.7 mm 52° 37’ x 31° 03’
410 mm 1° 20’ x 0° 45’

(2X) 19.4 mm 27° 46’ x 15° 49’

820 mm 0° 40’ x 0° 23’

9.7 mm 2619 x 1472 mm
410 mm 64 x 36 mm

(2X) 19.4 mm 1339 x 753 mm

820 mm 33 x 19 mm

HA42x13.5BE RD

Zoom Ratio / Format 42X / 2/3"
Focal Length 13.5 ~ 570 mm

Maximum Relative 1:2.8 (13.5 ~ 307 mm)
Aperture 1:5.2 (570 mm)
Maximum Photometric 1:3.0 (13.5 ~ 307 mm)
Aperture T-No. 1:5.6 (570 mm)
Angular Field of View
16:9 Aspect Ratio

M.O.D. from Image Plane 3.2 m
M.O.D. from Front of Lens 2.8 m
Object Dimensions
at M.O.D.

Filter Size ø 127 mm P=0.75 (On Bar rel)
Dia ø x Length (w/o Hood) ø130 x 358.5 mm
Weight (w/o Hood) 5.4 kg
Options Built In OS-TECH
Features Inner Focus / Zoom Limit / Built In OS-TECH / Quick Zoom

*RD contain servos for zoom and focus.

Extender

(2X) 27 ~ 1140 mm

13.5 mm 39° 07’ x 22° 35’
570 mm 0° 58’ x 0° 33’

(2X) 27 mm 20° 08’ x 11° 24’

1140 mm 0° 29’ x 0° 16’

13.5 mm 1888 x 1061 mm
570 mm 45 x 25 mm

(2X) 27 mm 944 x 530 mm

1140 mm 22 x 13 mm

The HA42x9.7 and HA42x13.5 are equipped with Fujinon’s
built-in optical stabilization technology (OS-TECH). This feature
optically compensates for image vibration as shown below.

1. Without vibration

Object side

20

Compensating optics

Anti-vibration

device

2. With vibration 3. After compensation

plane

Vibrated


Accessories for above lenses shown on pages 29 & 30.

Moving direction of
the compensating optics

Compensated
light ray

HDTV STUDIO LENSES

Studio lenses are essential for applications requiring the
ultimate in control and optical quality. The Compact
XA22x7BES studio lens featuring sharp images and quite
precise servo zoom and focus in a compact package is designed
for mounting to 2/3 inch ENG style cameras.

XA22x7BES
HA22x7.2BE SM

LENS XA22x7BES HA22x7.2BE SM

Zoom Ratio / Format 22X / 2/3" 22X / 2/3"
Focal Length 7.0 ~ 154 mm 7.2 ~ 158 mm

Maximum Relative 1:1.8 (7 ~ 116 mm) 1:1.7 (7.2 ~ 149 mm)
Aperture 1:2.4 (154 mm) 1:1.8 (158 mm)
Maximum Photometric 1:2.2 (7 ~ 116 mm) 1:1.9 (7.2 ~ 149 mm)
Aperture T-No. 1:2.9 (154 mm) 1:2.0 (158 mm)
Angular Field of View
(Hor. x Vert. in °)
16:9 Aspect Ratio

M.O.D. from Image Plane 1.17 m 1.20 m
M.O.D. from Front of Lens 0.8 m 0.6 m
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
16:9 Aspect Ratio
Filter Size ø 127m P=0.75 –
Size (HxWxL) 179 x 187 x 340 mm 228 x 231 x 543 mm
Weight 6.6 kg 19.5 kg
Options FIND / 16 Bit Encoder Ratio Converter / FIND
Features Auto Compensation Floating System /

Extender

(2X) 14 ~ 308 mm (2X) 14.4 ~ 316 mm

7.0 mm 68° 49’ x 42° 07’
154 mm 3° 34’ x 2° 00’

(2X) 14 mm 37° 49’ x 21° 48’

308 mm 1° 47’ x 1° 0’

7.0 mm 1197 x 673 mm
154 mm 54 x 31 mm

(2X) 14 mm 599 x 337 mm

308 mm 27 x 15 mm

of Focus Breathing Auto Compensation

7.2 mm 67° 20’ x 41° 03’
158 mm 3° 29’ x 1° 57’

(2X) 14.4 mm 36° 50’ x 21° 12’

316 mm 1° 44’ x 0° 59’

7.2 mm 1047 x 589 mm
158 mm 48 x 27 mm

(2X) 14.4 mm 524 x 294 mm

316 mm 24 x 13 mm

of Focus Breathing

HA27x6.5BE SM

Zoom Ratio / Format 27X / 2/3"
Focal Length 6.5 ~ 180 mm

Maximum Relative 1:1.5 (6.5 ~ 123 mm)
Aperture 1:2.2 (180 mm)
Maximum Photometric 1:1.6 (6.5 ~ 123 mm)
Aperture T-No. 1:2.4 (180 mm)
Angular Field of View
(Hor. x Vert. in °)
16:9 Aspect Ratio

M.O.D. from Image Plane 1.18 m
M.O.D. from Front of Lens 0.6 m
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
16:9 Aspect Ratio
Size ( HxWxL) 233 x 231 x 537 mm
Weight (w/o Hood) 19.7 kg
Options Ratio Converter / FIND
Features Advanced Back Focus / Remote Macro

Accessories for HA22x7.2BESM and HA27x6.5BESM shown on page 36 & 37.

Extender

(2X) 13 ~ 360 mm

6.5 mm 72° 50’ x 45° 02’
180 mm 3° 03’ x 1° 43’

(2X) 13 mm 40° 30’ x 23° 25’

360 mm 1° 32’ x 0° 51’

6.5 mm 1053 x 592 mm
180 mm 39 x 22 mm

(2X) 13 mm 527 x 296 mm

360 mm 20 x 11 mm

Focus Fader / Auto Compensation of Focus Breathing
Dust Proof & Anti Fogging

Accessories for XA22x7BES shown on page 38.

21

HDTV FIELD LENSES

New for 2009 is the XA50X9.5BESM featuring an integral
camera/lens adaptor for easy mounting to most ENG style

XA50x9.5BE SM

Zoom Ratio / Format 50X / 2/3"
Focal Length 9.5 ~ 475 mm

Maximum Relative 1:1.7 (9.5 ~ 311 mm)
Aperture 1:2.6 (475 mm)
Maximum Photometric 1:1.9 (9.5 ~ 311 mm)
Aperture T-No. 1:2.9 (475 mm)
Angular Field of View
(Hor. x Vert. in °)
4:3 Aspect Ratio

Angular Field of View
(Hor. x Vert. in °)
16:9 Aspect Ratio

M.O.D. from Image Plane 3.6 m
M.O.D. from Front of Lens 3.0 m
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
4:3 Aspect Ratio
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
16:9 Aspect Ratio
Size (HxWxL) 343 x 272 x 838 mm
Weight 20.5 kg
Options —
Features Built-In Supporter

cameras. The new XA50X9.5BESM is ideal for
smaller sports trucks, houses of worship, corporate
events and other budget conscious applications
requiring a high quality telephoto lens.

Extender

(2X) 19 ~ 950 mm

9.5 mm 49° 42’ x 38° 19’
475 mm 1° 04’ x 0° 48’

(2X) 19 mm 26° 05’ x 19° 42’

950 mm 0° 32’ x 0° 24’

9.5 mm 53° 34’ x 31° 41’
475 mm 1° 09’ x 0° 39’

(2X) 19 mm 28° 20’ x 16° 09’

950 mm 0° 35’ x 0° 20’

9.5 mm 2573 x 1930 mm
475 mm 51 x 39 mm

(2X) 19 mm 1287 x 965 mm

950 mm 26 x 19 mm

9.5 mm 2800 x 1575 mm
475 mm 56 x 31 mm

(2X) 19 mm 1400 x 787 mm

950 mm 28 x 16 mm

Dust Proof & Anti Fogging

XA66x9.3BE SM

Zoom Ratio / Format 66X / 2/3"
Focal Length 9.3 ~ 615 mm

Maximum Relative 1:1.7 (9.3 ~ 325 mm)
Aperture 1:3.2 (615 mm)
Maximum Photometric 1:1.8 (9.3 ~ 325 mm)
Aperture T-No. 1:3.4 (615 mm)
Angular Field of View
(Hor. x Vert. in °)
4:3 Aspect Ratio

Angular Field of View
(Hor. x Vert. in °)
16:9 Aspect Ratio

M.O.D. from Image Plane 3.37m
M.O.D. from Front of Lens 2.7 m
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
4:3 Aspect Ratio
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
16:9 Aspect Ratio
Size (HxWxL) 265 x 270 x 634 mm
Weight 21.5 kg
Options Ratio Converter / FIND
Features Advanced Back Focus / Remote Macro

22

Extender

Accessories for above lenses shown on pages 36 & 37.

(2X) 18.6 ~ 1230 mm

9.3 mm 50° 38’ x 39° 04’
615 mm 0° 49’ x 0° 37’

(2X) 18.6 mm 29° 37’ x 20° 07’

1230 mm 0° 25’ x 0° 18’

9.3 mm 54° 33’ x 32° 19’
615 mm 0° 54’ x 0° 30’

(2X) 18.6 mm 28° 55’ x 16° 29’

1350 mm 0° 27’ x 0° 15’

9.3 mm 2346 x 1760 mm
615 mm 36 x 27 mm

(2X) 18.6 mm 1173 x 880 mm

1230 mm 18 x 13 mm

9.3 mm 2558 x 1438 mm
615 mm 39 x 22 mm

(2X) 18.6 mm 1279 x 719 mm

1230 mm 19 x 11 mm

Focus Fader / Dust Proof & Anti Fogging

HDTV FIELD LENSES

XA72x9.3BE SM

Zoom Ratio / Format 72X / 2/3"
Focal Length 9.3 ~ 675 mm

Maximum Relative 1:1.7 (9.3 ~ 328 mm)
Aperture 1:3.5 (675 mm)
Maximum Photometric 1:1.8 (9.3 ~ 328 mm)
Aperture T-No. 1:3.7 (675 mm)
Angular Field of View
(Hor. x Vert. in °)
4:3 Aspect Ratio

Angular Field of View
(Hor. x Vert. in °)
16:9 Aspect Ratio

M.O.D. from Image Plane 3.37 m
M.O.D. from Front of Lens 2.7 m
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
4:3 Aspect Ratio
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
16:9 Aspect Ratio
Size (HxWxL) 265 x 270 x 634 mm
Weight 21 kg
Options Ratio Converter/ FIND
Features Advanced Back Focus / Remote Macro

Extender

(2X) 18.6 ~ 1350 mm

9.3 mm 50° 38’ x 39° 04’
675 mm 0° 45’ x 0° 34’

(2X) 18.6 mm 26° 37’ x 20° 07’

1350 mm 0° 22’ x 0° 17’

9.3 mm 54° 33’ x 32° 19’
675 mm 0° 49’ x 0° 27’

(2X) 18.6 mm 28° 55’ x 16° 29’

1350 mm 0° 24’ x 0° 14’

9.3 mm 2346 x 1760 mm
675 mm 33 x 24 mm

(2X) 18.6 mm 1173 x 880 mm

1350 mm 16 x 12 mm

9.3 mm 2558 x 1438 mm
675 mm 36 x 20 mm

(2X) 18.6 mm 1279 x 719 mm

1350 mm 18 x 10 mm

Focus Fader / Dust Proof & Anti Fogging

XA76x9.3BE SM

Zoom Ratio / Format 76X / 2/3"
Focal Length 9.3 ~ 710 mm

Maximum Relative 1:1.7 (9.3 ~ 334 mm)
Aperture 1:3.6 (710 mm)
Maximum Photometric 1:1.8 (9.3 ~ 334 mm)
Aperture T-No. 1:3.8 (710 mm)
Angular Field of View
(Hor. x Vert. in °)
4:3 Aspect Ratio

Angular Field of View
(Hor. x Vert. in °)
16:9 Aspect Ratio

M.O.D. from Image Plane 3.37 m
M.O.D. from Front of Lens 2.7 m
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
4:3 Aspect Ratio
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
16:9 Aspect Ratio
Size (HxWxL) 265 x 270 x 634 mm
Weight 21.8 kg
Options Ratio Converter/ FIND
Features Advanced Back Focus / Remote Macro

Extender

(2X) 18.6 ~ 1420 mm

9.3 mm 50° 38’ x 39° 04’
710 mm 0° 43’ x 0° 32’

(2X) 18.6 mm 26° 37’ x 20° 07’

1420 mm 0° 21’ x 0° 16’

9.3 mm 54° 33’ x 32° 19’
710 mm 0° 46’ x 0° 26’

(2X) 18.6 mm 28° 55’ x 16° 29’

1420 mm 0° 23’ x 0° 13’

9.3 mm 2347 x 1760 mm
710 mm 31 x 23 mm

(2X) 18.6 mm 1173 x 880 mm

1420 mm 15 x 12 mm

9.3 mm 2558 x 1438 mm
710 mm 34 x 19 mm

(2X) 18.6 mm 1279 x 719 mm

1420 mm 17 x 9 mm

Focus Fader / Dust Proof & Anti Fogging
Built-In OS-TECH

Accessories for above lenses shown on pages 36 & 37.

23

HDTV FIELD LENSES

XA88x 8.8BE SM
XA88x 12.5BE SM

LENS XA88X8.8BE SM XA88X12.5BE SM

Zoom Ratio / Format 88X / 2/3" 88X / 2/3"
Focal Length 8.8 ~ 777 mm 12.5 ~ 1100 mm

Maximum Relative 1:1.7 (8.8 ~ 348 mm) 1:2.3 (12.5 ~ 477 mm)
Aperture 1:3.8 (777 mm) 1:5.3 (1100 mm)
Maximum Photometric 1:1.8 (8.8 ~ 348 mm) 1:2.4 (12.5 ~ 477 mm)
Aperture T-No. 1:3.6 (777 mm) 1:5.6 (1100 mm)
Angular Field of View
(Hor. x Vert. in °)
4:3 Aspect Ratio

Angular Field of View
(Hor. x Vert. in °)
16:9 Aspect Ratio

M.O.D. from Image Plane 3.51 m 3.53 m
M.O.D. from Front of Lens 2.9 m 2.9 m (12.5-200mm)
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
4:3 Aspect Ratio
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
16:9 Aspect Ratio
Size (HxWxL) 265 x 270 x 575 mm 265 x 270 x 593 mm
Weight 24.0 kg 24.5 kg
Options Ratio Converter / FIND
Features Advanced Back Focus / Remote Macro / Focus Fader

Extender

(2X)17.6 ~ 1554 mm (2X) 25 ~ 2200 mm

8.8 mm 53° 08’ x 41° 07’
777 mm 0° 39’ x 0° 29’

(2X) 17.6 mm 28° 04’ x 21° 14’

1554 mm 0° 19’ x 0° 15’

8.8 mm 52° 10’ x 34° 03’
777 mm 0° 42’ x 0° 24’

(2X) 17.6 mm 30° 29’ x 17° 25’

1554 mm 0° 21’ x 0° 12’

8.8 mm 2726 x 2044 mm
777 mm 31 x 23 mm

(2X) 17.6 mm 1363 x 1022 mm

1554 mm 15 x 12 mm

8.8 mm 2971 x 1670 mm
777 mm 34 x 19 mm

(2X) 17.6 mm 1485 x 835 mm

1554 mm 17 x 9 mm

Built-In OS-TECH / Dust Proof & Anti Fogging

12.5 mm 38° 47’ x 29° 35’
1100 mm 0° 28’ x 0° 21’

(2X) 25 mm 19° 58’ x 15° 02’

2200 mm 0° 14’ x 0° 10’

12.5 mm 41° 58’ x 24° 20’
1100 mm 0° 30’ x 0° 17’

(2X) 25 mm 21° 43’ x 12° 18’

2200 mm 0° 15’ x 0° 08’

12.5 mm 1919 x 1439 mm
1100 mm 22 x 16 mm

(2X) 25 mm 959 x 720 mm

2200 mm 11 x 8 mm

12.5 mm 2091 x 1175 mm
1100 mm 24 x 13 mm

(2X) 25 mm 1046 x 588 mm

2200 mm 12 x 7 mm

XA101x 8.9BE SM

Zoom Ratio / Format 101X / 2/3"
Focal Length 8.9 ~ 900 mm

Maximum Relative 1:1.7 (8.9 ~ 291 mm)
Aperture 1:4.7 (900 mm)
Maximum Photometric 1:1.8 (8.9 ~ 291 mm)
Aperture T-No. 1:5.0 (900 mm)
Angular Field of View
(Hor. x Vert. in °)
4:3 Aspect Ratio

Angular Field of View
(Hor. x Vert. in °)
16:9 Aspect Ratio

M.O.D. from Image Plane 3.59 m
M.O.D. from Front of Lens 2.9 m
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
4:3 Aspect Ratio
Object Dimensions
at M.O.D.
(Hor. x Vert. in mm)
16:9 Aspect Ratio
Size (HxWxL) 265 x 270 x 660 mm
Weight 22.9 kg
Options Ratio Converter / FIND
Features Advanced Back Focus / Remote Macro / Focus Fader

24

Extender

(2X) 17.8 ~ 1800 mm

8.9 mm 52° 37’ x 40° 41’
900 mm 0° 34’ x 0° 25’

(2X) 17.8 mm 27° 46’ x 21° 00’

1800 mm 0° 17’ x 0° 13’

8.9 mm 56° 38’ x 33° 42’
900 mm 0° 37’ x 0° 21’

(2X) 17.8 mm 30° 09’ x 17° 13’

1800 mm 0° 18’ x 0° 10’

8.9 mm 2629 x 1972 mm
900 mm 26 x 20 mm

(2X) 17.8 mm 1315 x 986 mm

1800 mm 13 x 10 mm

8.9 mm 2865 x 1610 mm
900 mm 28 x 16 mm

(2X) 17.8 mm 1433 x 805 mm

1800 mm 14 x 8 mm

Built-In OS-TECH / Dust Proof & Anti Fogging

Accessories for above lenses shown on pages 36 & 37.

SDTV ENG/EFP PROFESSIONAL LENSES

Fujinon’s Professional grade lenses offer high optical quality and a
range of focal lengths for every professional production application.

Wide-angle lenses have become increasingly popular for profes­sional videographers and Fujinon’s 13x series has set the pace with
the widest angle of 6.3mm (2/3”). The optional 2x-range extender
adds additional versatility with a maximum focal length of 164mm.

The 20x series features the longest focal
length and is available with optional
2x-range extender for telephoto shots.

A13x6.3B / S13x4.6B RM/ERM*

LENS A13x6.3B RM/ERM* S13x4.6B RM/ERM*

Zoom Ratio / Format 13X / 2/3" 13X / 1/2"
Focal Length 6.3 to 82 mm 4.6 to 60 mm

Maximum Relative F2 (to 61 mm) F1.5 (to 45 mm)
Aperture F2.7 (at 82 mm) F2.0 (at 60 mm)
Angular Field
of View
(Hor. x Vert. in °)

M.O.D. from Image Plane
Object Area
at M.O.D

Filter Size (on Barrel) ø 82 mm P=0.75 ø 82 mm P=0.75
Weight 1.68 kg 1.68 kg

Features Inner Focus Inner Focus

A17x9B / S17x6.6B RM

LENS A17x9B RM S17x6.6B RM

Zoom Ratio / Format 17X / 2/3" 17X / 1/2"
Focal Length 9 to 155 mm 6.6 to 114 mm
Maximum Relative F1.9 (to 115 mm) F1.5 (to 90 mm)
Aperture F2.6 (at 155 mm) F1.9 (at 114 mm)
Angular Field of View
(Hor. x Vert. in °)
M.O.D. from Image Plane
Object Area
at M.O.D (at Tele)
Filter Size (on Barrel) ø 82 mm P=0.75 ø 82 mm P=0.75
Weight w/o hood 1.25 kg 1.25 kg
Features Inner Focus Inner Focus

Extender

(2X) 12.6 to 164 mm (2X) 9.2 to 120 mm

6.3 mm 69° 52’ x 55° 18’ 4.6 mm 69° 39’ x 55° 06’
82 mm 6° 09’ x 4° 37’ 60 mm 6° 06’ x 4° 35’

(2X) 12.6 mm 38° 30’ x 29° 21’ (2X) 9.2 mm 38° 21’x 29° 15’

164 mm 3° 04’ x 2° 18’ 120 mm 3° 03’ x 2° 17’

0.4 m 0.4 m

(at Wide)

(at Tele)

(at Wide)

(at Tele)

6.3 mm 617mm x 463mm 4.6 mm 633mm x 475mm
82 mm 47mm x 36mm 60 mm 49mm x 37mm

(2X) 12.6 mm 309mm x 231mm (2X) 9.2 mm 315mm x 236mm

164 mm 24mm x 18mm 120 mm 24mm x 18mm

RM

ERM

1.78 kg 1.78 kg

*ERM version with extender

9mm 52° 06’ x 40° 16’ 6.6mm 51° 44’ x 39° 58’
155mm 3° 15’ x 2° 26’ 114mm 3° 13’ x 2° 25’

(at Wide)

0.9m 0.9m
9mm 815mm x 611mm 6.6mm 808mm x 606mm
155mm 47mm x 36mm 114mm 47mm x 35mm

A20x8.6B / S20x6.4B RM/ERM*

LENS A20x8.6B RM/ERM* S20x6.4B RM/ERM*

Zoom Ratio / Format 20X / 2/3" 20X / 1/2"
Focal Length 8.6 to 172 mm 6.4 to 128 mm

Maximum Relative F1.8 (to 115 mm) F1.4 (to 90 mm)
Aperture F2.7 (at 172 mm) F2.0 (at 128 mm)
Angular Field
of View
(Hor. x Vert. in °)

M.O.D. from Image Plane
Object Area
at M.O.D

Filter Size ø 82 mm P=0.75 ø 82 mm P=0.75
Weight 1.4 kg 1.4 kg

Features Inner Focus Inner Focus

Extender

(2X) 17.2 to 344 mm (2X) 12.8 to 256 mm

8.6 mm 54° 11’ x 41° 59’ 6.4 mm 53° 08’ x 41° 07’
172 mm 2° 56’ x 2° 12’ 128 mm 2° 52’ x 2° 09’

(2X) 17.2 mm 28° 42’ x 21° 43’ (2X) 12.8 mm 28° 04’ x 21° 14’

344 mm 1° 28’ x 1° 06’ 256 mm 1° 26’ x 1° 04’

0.9 m 0.9 m

(at Wide)

(at Tele)

(at Wide)

(at Tele)

ERM

8.6 mm 866mm x 650mm 6.4 mm 846mm x 635mm
172 mm 43mm x 33mm 128 mm 42mm x 32mm

(2X) 17.2 mm 433mm x 325mm (2X) 12.8 mm 423mm x 317mm

344 mm 21mm x 16mm 256 mm 21mm x 16mm

RM

1.5 kg 1.5 kg

*ERM version with extender

Accessories for above lenses shown on pages 31 & 33.

25

HDTV VIDEOCONFERENCING LENSES

Fujinon’s HD lenses for videoconferencing and other
remote control applications open new markets for
HDTV. New for 2009 is the addition of the ZA12x4.5B
MD, ZA17x7.6B MD and the ZA22x7.6B MD.

ZA12x4.5B MD
ZA12x4.5BE MD

LENS ZA12x4.5B MD ZA12x4.5BE MD

Zoom Ratio / Format 12X / 2/3" 12X / 2/3"
Focal Length 4.5 to 54 mm 4.5 to 54 mm

Maximum Relative 1:1.8 (4.5 ~ 41 mm) 1:1.8 (4.5 ~ 41 mm)
Aperture 1:2.4 (59 mm) 1:2.4 (59 mm)
Angular Field of View
16:9 Aspect Ratio
M.O.D. from Image Plane 0.59 m 0.59 m
Object Dimensions
at M.O.D.
Filter Size
Weight (w/o Hood) 1.9 kg 2.0 kg

ZA17x7.6B MD
ZA17x7.6BE MD

LENS ZA17x7.6B MD ZA17x7.6BE MD

Zoom Ratio / Format 17X / 2/3" 17X / 2/3"
Focal Length 7.6 to 130 mm 7.6 to 130 mm

Maximum Relative 1:1.8 (7.6 ~ 102 mm) 1:1.8 (7.6 ~ 102 mm)
Aperture 1:2.3 (130 mm) 1:2.3 (130 mm)
Angular Field of View
16:9 Aspect Ratio
M.O.D. from Image Plane 0.84 m 0.84 m
Object Dimensions
at M.O.D.
Filter Size
Weight (w/o Hood) 1.5 kg 1.6 kg

ZA22x7.6B MD
ZA22x7.6BE MD

LENS ZA22x7.6B MD ZA22x7.6BE MD

Zoom Ratio / Format 22X / 2/3" 22X / 2/3"
Focal Length 7.6 to 167 mm 7.6 to 167 mm

Maximum Relative 1:1.8 (7.6 ~ 120 mm) 1:1.8 (7.6 ~ 120 mm)
Aperture 1:2.5 (167 mm) 1:2.5 (167 mm)
Angular Field of View
16:9 Aspect Ratio
M.O.D. from Image Plane 1.07 m 1.07 m
Object Dimensions
at M.O.D.
Filter Size
Weight (w/o Hood) 1.72 kg 1.82 kg

Refer to full size charts on pages 15-16 for more information for all above lenses.

HAs18x7.6B MD
HSs18x5.5B MD

LENS HAs18x7.6B MD* HSs18x5.5B MD

Zoom Ratio / Format 18X / 2/3" 18X / 1/2"
Focal Length
Maximum Relative 1.8 (to 103 mm) 1.4 (to 77 mm)
Aperture 2.4 (at 137 mm) 1.8 (at 100 mm)
Angular Field of View
(Hor. x Vert. in °)
M.O.D. from Image Plane 0.84 m 0.84 m
M.O.D. from Front of Lens 0.6 m 0.6 m
Object Area (at Wide)
at M.O.D. (at Tele)
Filter Size ø 82 x 0.75 ø 82 x 0.75
Weight w/o hood 1.55 kg 1.55 kg

*Optional Accessory Configuration SS-33A for model HAs18x7.6B MD only
Refer to pg. 34 for Standard Videoconferencing Accessories.

26

Extender (2X) 9 to 108 mm

4.5 mm 9 3° 38’ x 61° 50’
54 mm 10° 09’ x 5° 43’

4.5 mm 757 x 425 mm
54 mm 59 x 33 mm
ø 127 mm P=0.75 (In Hood

Extender (2X) 15.2 to 260 mm

7.6 mm 64° 30’ x 39° 03’
130 mm 4° 13’ x 2° 23’

7.6 mm 696 x 392 mm
130 mm 43 x 24 mm
ø 82 mm P=0.75 (On Barrel) ø 82 mm P=0.75 (On Barrel)

Extender (2X) 15.2 to 334 mm

7.6 mm 64° 30’ x 39° 03’
167 mm 3° 17’ x 1° 51’

7.6 mm 915 x 514 mm
167 mm 43 x 24 mm
ø 95 mm P=1.0

(On Barrel)

*EMD version with extender

7.6 mm ~ 137 mm 5.5 mm ~ 100 mm

7.6 mm 64° 30' x 39° 03' 5.5 mm 64° 43' x 39° 14'
137 mm 4° 01' x 2° 15' 100 mm 4° 00' x 2° 15'

7.6 mm 738 x 415 mm 5.5 mm 741 x 417 mm
137 mm 41 x 23 mm 100 mm 43 x 24 mm

Accessories for above lenses shown on page 34.

(2X) 9 mm 56° 06’ x 33° 20’

(2X) 9 mm 373 x 210 mm

)

(2X) 15.2 mm 35° 01’ x 20° 07’

260 mm 2° 07’ x 1° 11’

(2X) 15.2 mm 362 x 204 mm

260 mm 21 x 12 mm

(2X) 15.2 mm 35° 01’ x 20° 07’

334 mm 1° 39’ x 0° 55’

(2X) 15.2 mm 473 x 266 mm

334 mm 22 x 12 mm
ø 95 mm P=1.0

108 mm 5° 05’ x 2° 52’

108 mm 31 x 17 mm

ø 127 mm P=0.75 (In Hood)

(On Barrel)

.

SDTV VIDEOCONFERENCING LENSES

Fujinon’s complete line of remote control lenses is ideal
for everything from graphics stands and videoconferencing
to tower cams. A wide array of accessories including wide
and telephoto converters, filters and remote controllers
are available.

◊

A13x6.3B MD/EMD
S13x4.6B MD/EMD

LENS A13x6.3B MD/EMD* S13x4.6B MD/EMD*

Zoom Ratio / Format 13X / 2/3" 13X / 1/2"
Focal Length 6.3 to 82 mm 4.6 to 60 mm

Maximum Relative F2 (to 61 mm) F1.5 (to 45 mm)
Aperture F2.7 (at 82 mm) F2.0 (at 60 mm)
Angular Field
of View
(Hor. x Vert. in °)

M.O.D. from Front of Lens
Object Area
at M.O.D

Filter Size (on Barrel) ø 82 mm P=0.75 ø 82 mm P=0.75
Weight 1.73 kg 1.73 kg

Features Inner Focus Inner Focus

Extender

(at Wide)

(at Tele)

(at Wide)

(at Tele)

RM

ERM

*EMD version with extender

A20x8.6B M D
S20x 6.4B MD

LENS A20x8.6B MD S20x6.4B MD

Zoom Ratio / Format 20X / 2/3" 20X / 1/2"
Focal Length
Maximum Relative 1.8 (to 115 mm) 1.4 (to 90 mm)
Aperture 2.7 (at 172 mm) 2.0 (at 128 mm)
Angular Field of View
(Hor. x Vert. in °)
M.O.D. from Front of Lens 0.9 m 0.9 m
Object Area (at Wide)
at M.O.D. (at Tele)
Filter Size ø 82 x 0.75 ø 82 x 0.75
Weight 1.45 kg 1.45 kg
Features Inner Focus Inner Focus

*

◊

*

(2X) 12.6 to 164 mm (2X) 9.2 to 120 mm

6.3mm 69° 52’ x 55° 18’ 4.6mm 69° 39’ x 55° 06’
82mm 6° 09’ x 4° 37’ 60mm 6° 06’ x 4° 35’

(2X) 12.6mm 38° 30’ x 29° 21’ (2X) 9.2 mm 38° 21’x 29° 15’

164mm 3° 04’ x 2° 18’ 120 mm 3° 03’ x 2° 17’

0.4 m 0.4 m

6.3mm 617mm x 463mm 4.6 mm 633mm x 475mm
82mm 47mm x 36mm 60 mm 49mm x 37mm

(2X) 12.6mm 309mm x 231mm (2X) 9.2 mm 315mm x 236mm

164mm 24mm x 18mm 120 mm 24mm x 18mm

1.83 kg 1.83 kg

8.6 mm ~ 172 mm 6.4 mm ~ 128 mm

8.6 mm 54° 11' x 41° 59' 6.4 mm 53° 08' x 41° 07'
172 mm 2° 56' x 2° 12' 128 mm 2° 52' x 2° 09'

8.6 mm 866 x 650 mm 6.4 mm 846 x 635 mm
172 mm 43 x 33 mm 128 mm 42 x 32 mm

A20x8.6BE MD
S20x6.4BE MD

LENS A20x8.6BE MD

Zoom Ratio / Format 20X / 2/3" 20X / 1/2"
Focal Length 8.6 to 172 mm 6.4 to 128 mm
w/ Built-in Extender (2X) 17.2 to 344 mm (2X) 12.8 to 256 mm
Maximum Relative F1.8 (to 115 mm) F1.4 (to 90 mm)
Aperture F2.7 (at 172 mm) F2.0 (at 128 mm)
Angular Field
of View
(Hor. x Vert. in °)

M.O.D. from Front of Lens
Object Area
at M.O.D

Filter Size ø 82 mm P=0.75 ø 82 mm P=0.75
Weight 1.55 kg 1.55 kg
Features Inner Focus Inner Focus

◊

◊

◊

8.6mm 54° 11’ x 41° 59’ 6.4mm 53° 08’ x 41° 07’
172mm 2° 56’ x 2° 12’ 128mm 2° 52’ x 2° 09’

(2X) 17.2mm 28° 42’ x 21° 43’ (2X) 12.8mm 28° 04’ x 21° 14’

344mm 1° 28’ x 1° 06’ 256mm 1° 26’ x 1° 04’

0.9 m 0.9 m

(at Wide)

(at Tele)

(at Wide)

(at Tele)

8.6mm 866mm x 650mm 6.4mm 846mm x 635mm
172mm 43mm x 33mm 128mm 42mm x 32mm

(2X) 17.2mm 433mm x 325mm (2X) 12.8mm 423mm x 317mm

344mm 21mm x 16mm 256mm 21mm x 16mm

S20x6.4BE MD

◊

◊ For remote application of extender, the ECU motorized extender unit is required.

Accessories for above lenses shown on page 34.

27

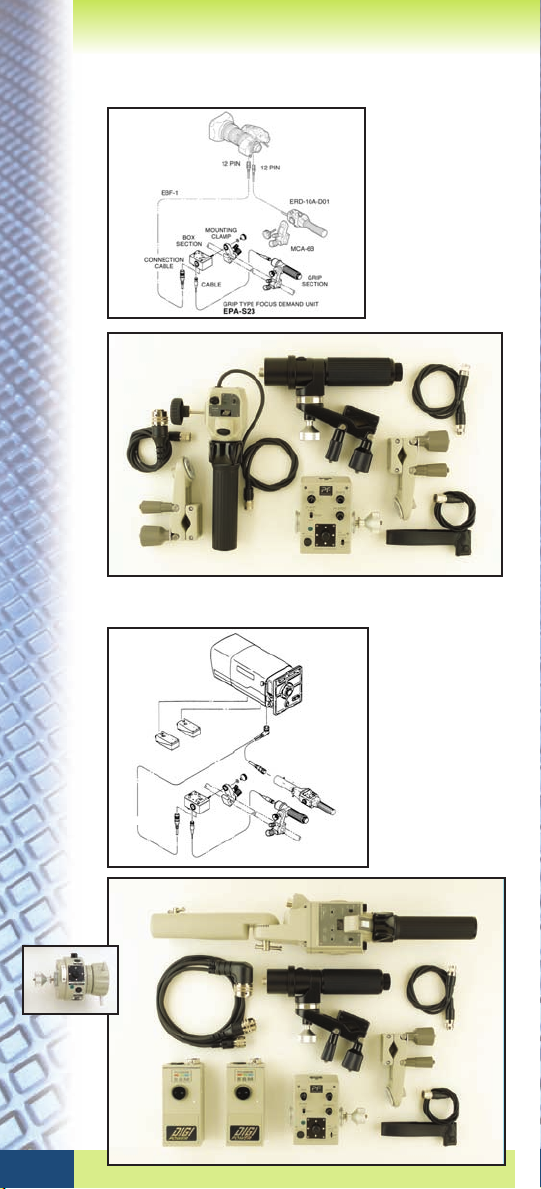

ACCESSORIES: HD PF CONTROLS ENG/EFP

SS-13PF Servo Focus/Servo Zoom

For use with PF ENG lenses.

A.

B.

C.

E.

SS-21PF Servo Focus/Servo Zoom

For use with PF EFP lenses

LENS

SERVO
MODULE

ESM-D51B

CONNECTION CABLE

BOX SECTION

SERVO MODULE

ESM-

D51B/
D52B

MOUNTING CLAMP

CABLE

A.

CONNECTION
CABLE

EFZ-11E

GRIP TYPE FOCUS POSITION
DEMAND UNIT

EPA-S23

ERD-5A-D01

GRIP SECTION

A. ERD-10A-D01

Digi Zoom Demand

B. EBF-1

Focus Cable

C. MCA-6B

Mounting Clamp

D. EPA-S23 (Part of Kit)

Focus Grip Section

E. EPA-S23 (Part of Kit)

Focus Box Section

F. EPA-S23 (Part of Kit)

Focus Connection Cable

G. PF-19A-02A

PF Action Switch

F.D.

C.

G.

A. ERD-5A-D01

Digi Zoom Demand

B. EFZ-11E

Focus/Zoom Cable

C. ESM-D51B

Servo Module

D. EPA-S23 (Part of Kit)

Focus Grip Section

E. EPA-S23 (Part of Kit)

Focus Box Section

F. EPA-S23 (Part of Kit)

Focus Connection Cable

G. MCA-6B

Mounting Clamp

H. PF-19A-02A

PF Action Switch

EPD-4A-

S13E Digi

PF Focus

Demand also

available.

28

B.

F.

D.

G.

C.

H.

E.

ACCESSORIES: HD & SD ENG/EFP

9 PIN CONNECTOR
SA-206-A-005

THREE-MODE FINE
FOCUS

By shifting the sensitivity from
the wide side to the telephoto
side of the focus range, this
control provides more precise
focusing
for studio
or sports
productions.

INFINITY

CONVENTIONAL
TYPE

ROTATING CONTROL ANGLEMOD

SERIAL DIGITAL
REMOTE CONTROL
BY PC

Remote control of zoom, focus
and iris for Digipower lenses is
possible via serial digital link,
providing accurate positioning
for virtual studio and other
applications requiring digital

precision.

DIGI ZOOM DEMAND*

VTR

Switch

Thumb

Ring

Zoom Speed

Control Knob

One Shot

Preset

Indicator

One Shot

Preset Switch

ERD-10A-D01

*New Digital features only available on ERM/ERD-M/S.

Control Select

Quickzoom

Switch

Focus/Iris

Control Knob

Focus/Iris

Switch

Return
Switch

Reverse

Switch

Quickzoom

Switch

A. CFC-990

Flex Cable

B. FMM-3B/6B

Manual Module

C. ZMM-6

Manual Module
D. EBF-1 Focus Cable
E. MCA-6
F. ERD-20A-A02

Zoom Demand
G. FSP-13G

Focus Positional

Module
H. EPD-4A-E02
I. CZH-14

Focus Handle
J. CFH-11

Focus Handle
K. MCA-7

Mounting Clamp

EPD-21A-A02

L.

Focus Demand
M. ERD-10A-D01

Zoom Demand
N. ALH-117C-01A

Support for

HA36x /A36x

HA42x

Note: ERD-20A-A02 (F) and EPD-20A-A02 (L) replace the ERD-T22 and EPD-2CA.

A.

F.

I. J.

K.

D.

B.

C.

G.

L.

N.

E.

H.

M.

29

ACCESSORIES: HD & SD ENG/EFP

FMM-6B
FMM-3B

12 PIN

ERD-10A-D01

MCA-7 MCA-6B

CFH-11

CFC-12-990

FMM-6B
FMM-3B

CFC-12-990

MCA-7 MCA-7

CZH-14

CFH-11

CFC-12-990

ZMM-6

FMM-6B
FMM-3B

12 PIN

ERD-20A-A02

MCA-7MCA-7

CFH-11

CFC-12-990

3 PIN

FSP-13G

12 PIN

ERD-20A-A02

MCA-7

EPD-21A-A02

MCA-7

12 PIN

12 PIN

ERD-20A-A02

MCA-7 MCA-7

EPD-21A-A02

12 PIN

12 PIN

ERD-10A-D01

MCA-6BMCA-6B

EPD-4A-E02

EBF-1

FSP-13G

EBF-1

12 PIN

3 PIN

ERD-10A-D01

EPD-4A-E02

MCA-6B MCA-6B

12 PIN

12 PIN

ERD-10A-D01

ESB-6A-D12

SE-210A-R15

MCA-6B

MCA-6B

EEC-13

DIGI POWER REAR CONTROL KITS

MS-11D Manual Focus/Servo Zoom

For use with RM/ZM type lenses.

** FMM-6B

FMM-3C

SS-11D Servo Focus/Servo Zoom

For use with RM/ZM type lenses.

SS-13D Servo Focus/Servo Zoom

For use with RD/ZD type lenses.

SS-14S Servo Focus/Servo Zoom

For use with RD/ZD type lenses.

STANDARD REAR CONTROL KITS

MS-11 Manual Focus/Servo Zoom SS-11 Servo Focus/Servo Zoom

** FMM-6B

FMM-3C

SS-13A Servo Focus/Servo Zoom

For use with ERD type lenses.

Not available on HA42x, HA36x and A36

MM-11 Manual Focus/Manual Zoom

Not available on HA42x, HA36x and A36x

** FMM-6B

FMM-3C

*Specify camera type

**FMM-3C for use on HA42x and HA25x

MOUNTING SYSTEM

Fujinon has replaced the “cone”
shaped mounting system with the
“tooth” system. The cone type may
still be ordered as a special order.

30

New Style

MCA-7

Old Style

MCA-1A

(Discontinued)

ACCESSORIES: HD & SD ENG/EFP

PROFESSIONAL REAR CONTROL KITS

MS-01 Manual Focus/Servo Zoom

Focus
Manual
Module
FMM-6B/
FMM-8

Flexible Cable
CFC-12-990

8-PIN

Focus Grip
CFH-3

MM-01 Manual Focus/Manual Zoom

Not available on S16x7.3

ZMM-6

CFC-12-990

CFH-3

FMM-6B

CFH-12-990

CZH-14

MCA-7

*Specify camera type.

A.

B.

D.

F.

G.

H.

Zoom Rate Demand Unit
SRD-92B

SS-01 Servo Focus/Servo Zoom

Not available on S16x7.3

Focus Servo
Module
FSM-30B

6-PIN

Focus Servo
Demand Unit
FSD-11

C.

E.

I.

3-PIN

8-PIN

Zoom Rate
Demand Unit
SRD-92B

A. CFC-990

Flex Cable

B. FMM-6B/FMM-8*

Focus Manual
Module

C. ZMM-6

Zoom Manual
Module

D. SRD-92B

Zoom Demand

E. FSM-30B

Focus Servo
Module

F. MCA-7

Mounting Clamp

G. FSD-11

Focus Demand

H. CZH-14

Zoom Handle

I. CFH-3

Focus Handle

*FMM-8 for use with S16x7.3

31

ACCESSORIES: HD ENG/EFP

LENS CONVERTERS

Wide Converter

(WCV)

Tele Converter

(TCV)

HD/ENG LENS CONVERTERS

Model Type ø Size Converter* Mag. Focal

HS16x4.6 TELE 95 mm TCV-H95 1.5x 74.0111.0 0.90 1.00

HS18x5.5/ TELE 85 mm TCV-H85 1.5x 100.0
HSs18x5.5

HA16x6.3 TELE 95 mm TCV-H955 1.5x 101.0

HA18x7.6E/ TELE 85 mm TCV-H85 1.5x 137.0
HAs18x7.6

HA22x7.3E TELE 110 mm TCV-H110 1.5x 161.0

HA23x7.6E TELE 100 mm TCV-H100 1.5x 175.0

XS17x5.5 TELE 85 mm TCV-H85 1.5x 94.0

ZA17x7.6 TELE 85 mm TCV-H85 1.5x 130.0

ZA22x7.6 TELE 100 mm TCV-H100 1.5x 167.0

WIDE 95 mm WCV-H95 0.8x 4.6

WIDE 85 mm WCV-H85 0.8x 5.5

WIDE 85 mm WAT-H85 0.7x 5.5

FISHEYE 85 mm F-ATH85 0.57x 5.5

WIDE 95 mm WCV-H95 0.8x 6.3

WIDE 85 mm WCV-H85 0.8x 7.6

WIDE 85 mm WAT-H85 0.7x 7.6

FISHEYE 85 mm F-ATH85 0.57x – – 0.36

WIDE 100 mm WCV-H100 0.8x 7.6

WIDE 100 mm WAT-H100 0.7x 7.6

FISHEYE 100 mm F-ATH100 0.57x 7.6

WIDE 85 mm WCV-H85 0.8x 5.5

WIDE 85 mm WAT-H85 0.7x 5.5

FISHEYE 85 mm F-ATH85 0.57x 5.5

WIDE 85 mm WCV-H85 0.8x 7.6

WIDE 85 mm WAT-H85 0.7x 7.6

FISHEYE 85 mm F-ATH85 0.57x 7.6

WIDE 100 mm WCV-H100 0.8x 7.6

WIDE 100 mm WAT-H100 0.7x 7.6

FISHEYE 100 mm F-ATH100 0.57x 7.6

*TCV/WCV are zoom thru type **ø 95mm P-1 screw on type
Wide attachement and fisheye attachment can be used at WIDE END.
Number of M.O.D. is at wide end.

WIDE CONVERTER

Converted

Length (mm)

TELE CONVERTER

M.O.D. Weight

(m) (kg)



3.9 0.29 1.00



150.0 1.35 1.10



4.4 0.38 1.05



3.9 0.29 0.36



3.1 0.19 0.36



152.0 0.90 1.00



5.4 0.29 1.00



205.5 1.35 1.10



6.1 0.38 1.05



5.3 – 0.36



242.0 1.90 1.10



262.5 1.80 1.00



6.1 0.51 1.05



5.3 0.39 0.53



4.3 0.26 0.63



141.0 1.35 1.10



4.4 0.38 1.05



3.8 0.29 0.36



3.1 0.19 0.36



195.0 1.35 1.10



6.1 0.38 1.05



5.3 0.29 0.36



4.3 0.19 0.36



250.5 1.80 1.00



6.1 0.51 1.05



5.3 0.39 0.53



4.3 0.26 0.63

32

FISH-EYE ATTACHMENT

FILTER

RATIO

CONVERTER

WIDE ATTACHMENT

ZOOM LENS

2X EXTENDER

ACCESSORIES: SD ENG/EFP

Wide Attachment

(WAT)

Fish-Eye Attachment

(F–AT)

BROADCAST LENS CONVERTERS

Model Type ø Size Converter* Mag. Focal

Converted

Length (mm)

A18x7.6 TELE 85 mm TCV-85C 1.6x 137.0219.0 1.54 1.15

ERM/ERD WIDE 85 mm WCV-85C/-L85 0.8x 7.6

WIDE 85 mm WAT-85C 0.7x 7.6

FISHEYE 85 mm F-AT85C

RATIO 82 mm RCV-82SC 0.82x 7.60

A23x7.6 TELE 100 mm TCV-10C 1.6x 175.0

ERM/ERD WIDE 100 mm WCV-100D 0.8x 7.60

WIDE 100 mm WAT-100C 0.7x 7.60

FISHEYE 100 mm F-ATH100C 0.55x 7.60

Approx. 0.55x

M.O.D. Weigh t

(m) (kg)



6.1 0.38 1.09/0.57



5.3 – 0.55

– – 0.62



6.20 0.40 0.25



280.0 2.05 1.06



6.10 0.51 1.09



5.30 0.39 0.00



4.20 0.24 0.55

PROFESSIONAL LENS CONVERTERS

Model Type ø Size Converter Mag. Focal

Converted

Length (mm)

A13x6.3 TELE 85 mm TCV-85C 1.6x 82.0131.2 1.02 1.15

RM/ERM WIDE 85 mm WCV-85C 0.8x 6.3

A20x8.6 TELE 85 mm TCV-85C 1.6x 172.0

RM/ERM WIDE 85 mm WCV-85C/-L85 0.8x 8.6

S13x4.6 TELE 85 mm TCV-85C 1.6x 60.0

RM/ERM WIDE 85 mm WCV-85C 0.8x 4.6

S17x6.6 TELE 85 mm TCV-85C 1.6x 114

RM WIDE 85 mm WCV-85C 0.8x 6.6

S20x6.4 TELE 85 mm TCV-85C 1.6x 128.0

RM/ERM WIDE 85 mm WCV-85C/-L85 0.8x 6.4

*TCV/WCV are zoom thru type **ø 95mm P-1 screw on type
Wide attachement and fisheye attachment can be used at WIDE END.
Number of M.O.D. is at wide end.

WIDE 85 mm WAT-85C 0.7x 6.3

WIDE 85 mm WAT-85C 0.7x 8.6

FISHEYE 85 mm F-AT85C

RATIO 82 mm RCV-82SC 0.82x 8.6

WIDE 85 mm WAT-85C 0.7x 4.6

WIDE 85 mm WAT-85C 0.7x 6.6

FISHEYE 85 mm F-AT85C

WIDE 85 mm WAT-85C 0.7x 6.4

FISHEYE 85 mm F-AT85C

Approx. 0.55x

Approx. 0.55x

Approx. 0.55x

M.O.D. Weight

(m) (kg)



5.0 0.26 1.09



4.4 – 0.55



275.2 2.30 1.15



6.9 0.58 1.09/.57



6.0 – 0.55

– – 0.62



7.1 0.61 0.25



96.0 1.02 1.03



3.7 0.26 1.09



3.2 – 0.55



182.4 2.30 1.15



5.3 0.58 1.09



4.6 – 0.55

– – 0.62



204.8 2.30 1.15



5.1 0.58 1.09/.57



4.5 – 0.55

– – 0.62

33

RMD-10

ECM-25F
ECM-50F
ECM-100F

Extension cables

To camera

RMD-20

RMD-30

ACCESSORIES: VIDEOCONFERENCING

LENS CONTROLLERS

RMD-10

Fujinon’s lens controllers all feature
control of zoom, focus, and iris. The
RMD-10 provides basic control of all
functions, while the RMD-20 features a

RMD-20

rocker-type zoom control. The RMD-30
provides for up to eight preset zoom and
focus positions. Accessory cables up to
100 m are available.

RMD-30

WIDE/TELE ADAPTERS

Fujinon’s wide and tele converters
attach easily to the front barrel of
the lens to achieve greater wide or
tele focal ranges. The 1.6X telecon­verter increases the overall range 1.6 times, while the 0.8X
wide converter reduces the standard focal length by a factor of

0.8X. Rear-mounted 2X range extenders are available with and
without back focus adjustment.

ELECTRICAL INTERFACE OF 12-PIN
CONNECTOR FOR REMOTE CONTROL BOX

1. Focus Mode Select Signal

2. Zoom Mode Select Signal

3. OV (Ground)

4. Iris Local/Camera
Select Signal

5. Iris Control Signal

6. +12 V Out

7. Signal Com.
(Reference) +5v

8. Focus Control Signal

9. Zoom Control Signal

10. Iris Mode Select Signal

11. +V Out (7.5v)

12. -V Out (2.5v)

SS-33A OPTIONAL ACCESSORY CONFIGURATION

Uses Standard ENG Accessories (For model HAs18x7.6B MD only)

34

6PIN

Cable

MCA-7

EPD-21A-A02

12PIN

CONNECTOR
CONVERSION UNIT

EA-18A-01A

12PIN

ERD-20A-A02

MCA-7

ACCESSORIES: HD & SD FIELD

Fujinon’s anti-vibration system optically compensates for image
vibration resulting in stable images even at extreme focal lengths.
Three types of OS-TECH systems are available: two external anti­vibration adapters, TS for box-type lenses and TS-P for
barrel-type lenses, and an internal type for box-type lenses.

Image After-Shaking Reduced to a Minimum

The after-shaking phenomenon of images moving after the
pan/tilt operation is stopped is characteristic of an anti-vibration
device. Fujinon’s exclusive algorithm system has reduced the
phenomenon to a minimum for a natural-feeling operation.

TS-18A

Type TS and TS-P Adapt to Existing Lenses

OS-TECH adapters can be quickly attached between most

Fujinon lenses and the camera to provide the anti-vibration
function. A single adapter provides stabilization for any adaptable
lens. In addition to stabilization, the adapter increases the lens
magnification by 1.25 times making extreme close-up shots
possible with shorter focal length lenses.

The XA101X

with internal

OS-TECH.

Amount of Compensation

At Telephoto End with 2X Extender

TS-P58A



Approx. 20% of Image Height

Vertical and Horizontal or Vertical Only

The EA-12A-05BA stabilizer controller provides for H or V
and H+V plus on/off in a compact controller. This new control
includes an LED to indicate on/off in the view finder.

The Principal of Anti-vibration Device “Optical Stabilized Technology”

1. Without vibration

Compensating optics

Object side

Anti-vibration

device

2. With vibration 3. After compensation

plane

Vibrated


EA-12A-05BA

Stabilizer Control

with viewfinder

indication

Moving direction of
the compensating optics

Compensated
light ray

Model TS-P58A TS-XXA*

Stabilization System Optical Shif t Optical Shift
Magnification of Focal Length 1.25 1.25
Mount Bayonet Mount (2/3 in. B-type) Bracket
Direction of Compensation Vertical/Horizontal or Vertical Only Vertical/Horizontal or Vertical Only
Frequency of Compensation Approx. 1 to 10 Hz Approx. 1 to 10 Hz
Anti-vibration Range Approx. 20% of Vertical at Screen Approx. 20% of Vertical at Screen

Power Consumption

Dimensions (L x W x H) 58 x 120 x 150 mm 277 x 260 x 47.5 mm
Mass 0.84kg 3.2kg
Adaptable Lenses

*For external type only. Specify camera model when ordering.

ZA12x4.5B, ZA17x7.6B, ZA22x7.6B, HA13x4.5B,
HA16x6.3B, HS16x4.6B, HAs18x7.6B, HSs18x5.5B,

HA18x7.6B, HA23x7.6B, HA22x7.8B, HA22x7.3B,

HA25x16.5B, HA25x11.5B, HA36x10.5B,

HA42x9.7B, HA42x13.5B, A13x4.5B, A18x7.6B,

A23x7.6B, A22x7.8B, A36x10.5B, A36x14.5B,

DC12V, 4.2W DC12V, 6W
(from camera) (with battery or from camera)

XA101x, XA88x, XA87x, XA72x,

XA66x, Ah80x, Ah70x,

Ah66x, Ah60x, Ah55x

A42x9.7B, A42x13.5B

35

ACCESSORIES: HD & SD STUDIO/FIELD

Studio Lens System

LENS

STUDIO

CAMERA

BUILT UP SYSTEM

A.

B.

E.

F.

C.

D.

I.

H.

J.

DIGI ZOOM DEMAND

Quick Zoom

Mode Select SW

Connector

HR10A-10R-10S

Hirose

Return Switch

1& 2

Zoom Limit

Torque

Control Lever

Switch

Intercom Connector

Reverse

Switch

Intercom

Select SW

RM 12BR-7P

F. No. Hold

Field Lens System

OS-TECH

OS-TECH
Control Unit
EA-12A-05BA

K.

G.

Switch

One Shot

Preset SW

L.

Hirose

Module Select

Ratio Indicator

LENS

ELH-112A-XXA

EA-12A-02B

M.

N.

Servo

Switch

Aspect

Extender

Select Switch

12 PIN

STUDIO CAMERA

BUILT UP SYSTEM

PORTABLE CAMERA

A. EPD-4A-E02

Focus Demand

B. ESZ-12

Zoom Demand Cable

C. ESL-1C

Shot Box Cable

D. ESF-1C

Focus Shot Box Cable

E. BFC-36

Flex Cable

F. BZH-2A

Zoom Handle

G. MCA-6B

Mounting Clamp

H. EFZ-11E

Focus/Zoom Cable

I. ELZ-11D

Zoom Demand Cable

J. ERD-5A-D01

Zoom Rate Demand

K. ESM-D51B/D52B

Servo Module

L. BFH-1A

Focus Grip

M. EMM-51B

Manual Module

N. ESB-6A-E12

Shot Box

EPA-22
Not shown - see below

SERVOS

Digital servos provide

precise control of zoom
and focus for the
most demanding
productions.

THREE-MODE
FINE FOCUS

By shifting the sensitivity
from the wide side to the
telephoto side of the focus
range, this control
provides more
precise focusing
for studio or
sports productions.

36

ELH*

Fujinon’s convenient ELH
bracket allows studio/field
lenses to be used
with hand-held type
cameras.

*Additional power
may be required
for servos.

EPA-22

A unique servo
focus demand
with the look
and feel of a
manual control.

ACCESSORIES: HD & SD STUDIO/FIELD

DIGITAL LENS CONFIGURATION

MS-21A
Manual Focus/Servo Zoom

For XA50X Model Only

FOCUS GRIP

BFH-1A

MANUAL
MODULE

EMM-51B

SERVO
MODULE

ESM-D51B

FLEXIBLE CABLE

BFC-36

MOUNTING CLAMP

MCA-6B

DIGITAL LENS CONFIGURATION

MM-21
Manual Focus/Manual Zoom

LENS

FOCUS GRIP

BFH-1A

MANUAL
MODULE

EMM-51B

FLEXIBLE
CABLE

BFC-36

ZOOM HANDLE

BZH-2A

RANGE
SELECTOR

ERS-51B

MANUAL
MODULE

EMM-51B

FLEXIBLE CABLE

BFC-36

MS-22D (w/Shot Box)
Manual Focus/Servo Zoom

LENS

MS-21D
Manual Focus/Servo Zoom

MANUAL
MODULE

EMM-51B

FLEXIBLE CABLE

BFC-36

FOCUS GRIP

BFH-1A

SS-21D
Servo Zoom/Servo Focus

LENS

ZOOM RATE
DEMAND UNIT

ERD-10A-D11

SERVO MODULE

ESM-D51B/
D52B

MOUNTING CLAMP

MCA-6B

LENS

CONNECTION CABLE

ELZ-11D

ERD-5A-D01

ZOOM RATE
DEMAND UNIT

ERD-5A-D11

LENS

MANUAL
MODULE

EMM-51B

FLEXIBLE CABLE

BFC-36

FOCUS GRIP

BFH-1A

SERVO
MODULE

ESM-D51B/
D52B

TAKE
CONTROL UNIT

EA-11A-D01

CONNECTION
CABLE

ESL-1C

SHOT BOX

ESB-6A-DO1

CONNECTION
CABLE

ESZ-12

SS-22D (w/Shot Box)
Servo Focus/Servo Zoom

LENS

SERVO
MODULE

ESM-D51B

FOCUS POSITION
DEMAND UNIT

EPD-4A-E02

MOUNTING
CLAMP

MCA-6B

SERVO
MODULE

ESM­D51B/
D52B

TAKE
CONTROL UNIT

EA-11A-D01

CONNECTION
CABLE

ESL-1C

SHOT BOX

ESB-6A-DO1

CONNECTION
CABLE

ESZ-12

ZOOM RATE
DEMAND UNIT

ERD-5A-D01

ZOOM RATE
DEMAND UNIT

ERD-5A-D01

CONNECTION
CABLE

ESF-1C

SERVO
MODULE

ESM-D51B

MOUNTING CLAMP

MCA-6B

SERVO MODULE

ESM-D51B/
D52B

FOCUS
POSITION
DEMAND UNIT

EPD-4A-E02

MOUNTING CLAMP

MCA-6B

CONNECTION CABLE

EFZ-11E

ERD-5A-D01

ZOOM RATE
DEMAND UNIT

ERD-5A-D11

SS-23D
(Shot Box w/Focus Demand)

LENS

SERVO

MODULE
SERVO
MODULE

ESM-D51B

SHOT BOX

ESB-6A-E12

MOUNTING CLAMP

MCA-6B

CONNECTION CABLE

ESZ-11

ESM-D51B/

D52B

MOUNTING CLAMP

MCA-6B

CONNECTION CABLE

ESL-1C

ERD-5A-D01

ZOOM RATE
DEMAND UNIT

ERD-5A-D11

37

ACCESSORIES: XA22x7 BES

XA22x7BES ACCESSORY OPTIONS

Studio
Controls

LENS

Full Digital
Production
Controls

CONNECTION CABLE

EBF-1

LENS

CONNECTION CABLE

EBZ-23

FOCUS POSITION
DEMAND UNIT

MOUNTING
CLAMP

MCA-7

MOUNTING
CLAMP

MCA-7

EPD-21A-02A

ZOOM RATE
DEMAND UNIT

ERD-10A-D05A

MOUNTING
CLAMP

MCA-6B

MOUNTING
CLAMP

MCA-7

DIGI ZOOM/ANALOG FOCUS

Studio Controls

A.

C.

B.

A. MCA-7

Mounting Clamp

B. EPD-21A-02A

A.

Focus Demand

DIGI ZOOM/DIGI FOCUS

Full Digital Production Controls

A.

B.

C.

E.

FOCUS POSITION
DEMAND UNIT

EPD-4A-E02

ZOOM RATE
DEMAND UNIT

ERD-10A-D05A

C. ERD-10A-DO5A

Zoom Demand

D.

ZOOM RATE
DEMAND UNIT

ERD-5A-D01

38

A. EPD-4A-EO2

Digi Focus Demand

B. MCA-6B

Mounting Clamp

A.

B.

A. ERD-5A-DO1

Digi Zoom Demand

B. MCA-6B

Mounting Clamp

C. EBF-1

Focus Cable

D. ERD-10A-DO5A

Digi Zoom Demand

C.

C. EPD-4A-EO2

Digi Focus Demand

D. EBZ-23

Zoom Cable

E. MCA-7

Mounting
Clamp

D.

E.

E. EBF-1

Focus Cable

PAN & TILT

PAN & TILT
HEAD SPECIFICATIONS

MODEL CPT-70F-02A CPT-70D-02A** EPT-7G-H2A

Pan Range 300° 270° 300°
Pan Speed 25° / Sec. 9° / Sec. 25° / Sec.
Tilt Speed 20° / Sec. 9° / Sec. 20° / Sec.
Tilt Range +/- 95° +/- 95° +/- 95°
Stopping Accuracy +/- 5 ' +/- 15 ' +/- 10 '
Lens Type MD MD MD
Acoustic Noise NC40db NC40db NC40db
Load Capacity 4 kg / 8.8 lbs. 10 kg / 22 lbs. 4 kg / 8.8 lbs.
Power Consumption DC 15V / 10W (max) DC 15V / 10W (max) DC 15V / 30W (max)
Operating Temperature -10° C ~ +50° C -10° C ~ +50° C 0° C ~ +45° C
Power Source

(ESC-103K-04A)

Drive System DC Servo DC Servo DC Servo
Weight 2.3 kg / 5.06 lbs. 7 kg / 15.4 lbs. 2.3 kg / 5.06 lbs.
Dimensions WxDxH (mm) 130 x 102 x 222 233 x 277 x 226 130 x 102 x 222
Max. Cable Length* 1350 m / 4430 ft. 1350 m / 4430 ft. 1350 m / 4430 ft.

* Max. cable length varies depending on multi-head controller options (see S2BA1/S2-CA1 on pg. 40)
** EOP-102J-60B not available on CPT-70D-02A

PAN & TILT
CONTROLLERS

Operation
Pan / Tilt
Zoom
Focus
Iris
Shot Memory
Back-up
Qty of Head Control
Auxiliary Input

Power Source
Power Consumption
Camera Control

Weight

15V DC 15V DC 15V DC

EOP-102J-30E EOP-102J-60B EOP-102J-70B

RS-485 via twisted pair cable – E-connector/ RS-232 via DB-9 connector

32 32 per head 32 per head

Reservable for more than 5 years (Lithium battery)

144

Variable-speed joystick
Variable-speed rocker switch
Variable-speed potentiometer

Close, open, auto, remote

2 auxiliary relay contacts for controlling

accessory equipment at the pan and tilt head

120 VAC via 12 VDC adapter (included)

5 W

Camera On/Off

Shutter Speed

Gain Adjust, Color Bar

Auto White, Auto Black

Approximately 0.8 kg

A.

B.

C.

A. EOP-102J-30E
B. EOP-102J-60B
C. EOP-102J-70B
D. ESC-103K-04A
E. PS-470A-01A
F. UTB-219A-03A
G. CLH-8B

F.

G.

H.

E.

J.

D.

H. UTB-219A-02A/04A
I. UHD-344A-XXX
J. Communication Cable

Between EOP & ESC
K. UHC-335J-XXX
L. MX-462E-01A
M. MX-462E-02A

Q.

P.

I.

K.

N. FTA-C10D
O. FPA-C10D
P. CMA-200A-01A
Q. FHTA-10 Tripod

Adapter

R. FH-10–High Hat

Mount

R.

O.

N.

L.

M.

39

PAN & TILT PAN & TILT

EOP-102J-70B

Head Select (1–4)

(Available on

EOP-102J-60B/70B)

Page Button

Page x 8 shot

= 32 preset

4 pin E-conn

RS-485

DB9(M)

RS-232

12V DC

External P/S

Supplied

Preset Buttons

32 Preset

(4 page x 8 shot)

Aux.

1 & 2

2 Ch

Alternate

Zoom

Control

Memo

Button

CPT-70F/70D CONFIGURATIONS

S1-BA1
Single-Head Control System

S2-BA1
Multi-Head
Control
System

Focus

Control

Auto/Manual

Pan/Tilt
Control

Iris Control

S2-CA1
Multi-Head
Control
System

w/ Camera
Control Function

40 41

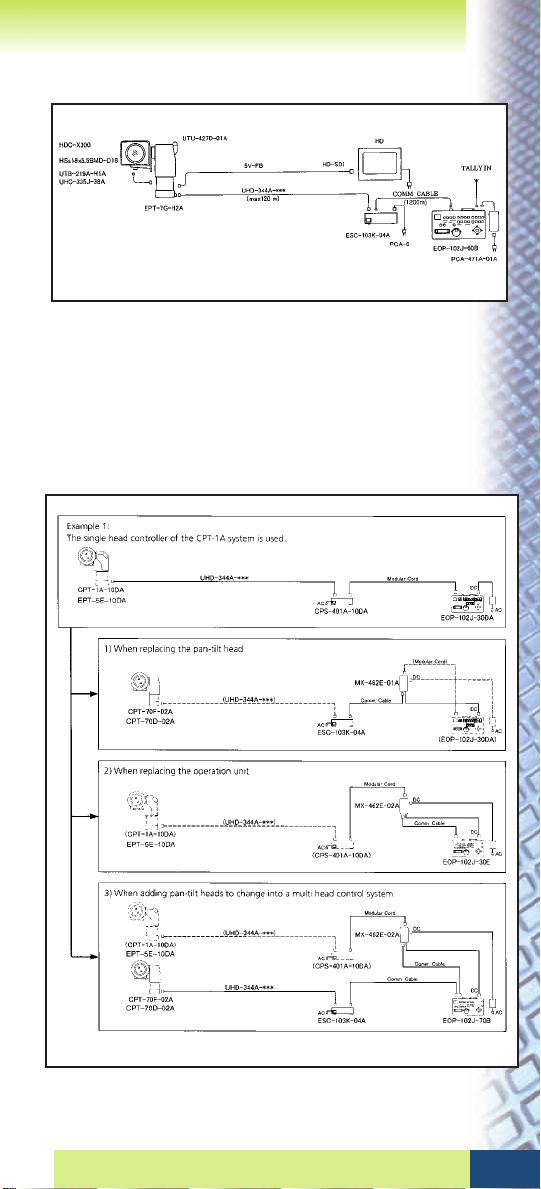

EPT-7G-H2A CONFIGURATIONS

COMPATIBILITY WITH EXISTING SYSTEMS

Compatibility with existing CPT-1A and EPT-5E systems
is possible by the utilization of certain adaptors. The
diagrams below depict some common configuration
scenarios.

Broadcast & Communications Products Division

FUJINON HEADQUARTERS:

NEW JERSEY – SALES & SERVICE CENTER

10 High Point Drive, Wayne, NJ 07470-7434
[phone] FAX: [phone]
E-mail: [e-mail]

www.fujinon.com

SOUTH EAST:

FLORIDA – SALES

4101 No. 48th Terrace, Hollywood, FL 33021
[phone] FAX: [phone]
E-mail: [e-mail]

GEORGIA – SALES

12296 S. Main Street, Box 152, Trenton, GA 30752
[phone] FAX: [phone]
E-mail: [e-mail]

GEORGIA – SERVICE CENTER

1231 Collier Road, Suite G, Atlanta, GA 30318
[phone] FAX: [phone]
E-mail: [e-mail]

LATIN AMERICA:

FLORIDA – SALES

2900 N.W. 112th Avenue, Suite 1, Miami, FL 33172
[phone] FAX: [phone]
E-mail: [e-mail] or [e-mail]

MIDWEST:

ILLINOIS – SALES

655 Deerfield Road
Ste. 100, #206, Deerfield, IL 60015-3241
[phone] FAX: [phone]
E-mail: [e-mail]

SOUTH CENTRAL:

TEXAS – SALES & SERVICE CENTER

4951 Airport Parkway
Ste. 802-A, Addison, TX 75001-6617
[phone] FAX: [phone]
E-mail: [e-mail]

WEST:

CALIFORNIA – SALES & SERVICE CENTER

W. Bay Business Park, 2621 Manhattan Beach Blvd.
Redondo Beach, CA 90278-1604
[phone] FAX: [phone]
E-mail: [e-mail]

WASHINGTON – SALES

P.O. Box 36, Mercer Island, WA 98040
[phone]
E-mail: [e-mail]

CANADA:

ONTARIO – SALES

16715 Yonge Street, Unit #12, Suite 203
Newmarket, ON, L3X 1X4, Canada
[phone] FAX: [phone]
E-mail: [e-mail]

FUJINON CORPORATION:

JAPAN

1-324 Uetake, Kita-Ku, Saitama City
Saitama 331-9624 Japan
Phone: [phone] FAX: [phone]
E-mail: [e-mail]

www.fujinon.co.jp

www.fujinon.com

Printed in the USA 4/2009-5M
