Fujifilm X-T30 II User guide

Download
Page 1

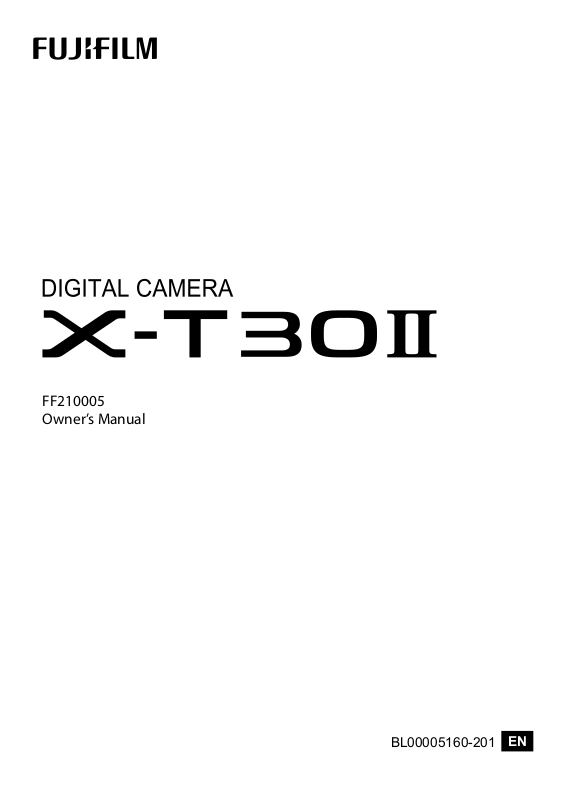

FF210005 Owner’s Manual
BL00005160-201
EN
Page 2

Introduction

Thank you for your purchase of this product. Be sure that you have read this manual and understood its contents be­fore using the camera. Keep the manual where it will be read by all who use the product.

For the Latest Information

The latest versions of the manuals are available from:
http://fujifilm-dsc.com/en/manual/
The site can be accessed not only from your computer but also from smartphones and tablets. It also contains information on the software license.
For information on  rmware updates, visit:
https://fujifilm-x.com/support/download/firmware/cameras/
ii
Page 3
Chapter Index
P
Menu List
1 Before You Begin
2 First Steps
3 Basic Photography and Playback
4 Movie Recording and Playback
5 Taking Photographs
6 The Shooting Menus
7 Playback and the Playback Menu
8 The Setup Menus
9 Shortcuts
iv
1
27
41
47
53
103
183
209
245
10 Peripherals and Optional Accessories
11 Connections
12 Technical Notes
261
279
295
iii
Page 4

Menu List

1⁄
2⁄
3⁄
1⁄
2⁄
3⁄
Camera menu options are listed below.

Shooting Menus

Adjust settings when shooting photos or movies.
Menu List
See page 103 for details.
N
Photo Menus
Items marked with both x and F icons are available in both the still
N
photography and movie shooting menus. Changes to these items in either menu also apply to the item in the remaining menu.
H IMAGE QUALITY SETTING
IMAGE SIZE 104 IMAGE QUALITY 105 RAW RECORDING 106 FILM SIMULATION 106
1⁄
MONOCHROMATIC COLOR GRAIN EFFECT 108 COLOR CHROME EFFECT 108 COLOR CHROME FX BLUE 109 WHITE BALANCE 109 DYNAMIC RANGE 113 D RANGE PRIORITY TONE CURVE 114
2⁄
COLOR 115 SHARPNESS 115 HIGH ISO NR 115 CLARITY 116 LONG EXPOSURE NR 116 LENS MODULATION OPTIMIZER 116 COLOR SPACE 117 PIXEL MAPPING 117
3⁄
SELECT CUSTOM SETTING 118 EDIT/SAVE CUSTOM SETTING 118 AUTO UPDATE CUSTOM SETTING 122 xF MOUNT ADAPTOR SETTING
iv
P
G AF/MF SETTING
FOCUS AREA 126 AF MODE 126 AF-C CUSTOM SETTINGS STORE AF MODE BY ORIENTATION 131
1⁄
AF POINT DISPLAY yz
108
NUMBER OF FOCUS POINTS 131 PRE-AF 132 xF AF ILLUMINATOR FACE/EYE DETECTION SETTING 133 AF+MF 135
114
MF ASSIST 136 FOCUS CHECK 136
2⁄
INTERLOCK SPOT AE & FOCUS AREA 137
xF INSTANT AF SETTING xF DEPTH-OF-FIELD SCALE
RELEASE/FOCUS PRIORITY 138 xF AF RANGE LIMITER
3⁄
xF TOUCH SCREEN MODE
123
P
127
131
132
137 137
138 139
Page 5
Menu List
1⁄
2⁄
A SHOOTING SETTING
SCENE POSITION 141 DRIVE SETTING 141 HDR 142 SPORTS FINDER MODE 144
1⁄
PRE-SHOT sJ SELF-TIMER 145 SAVE SELF-TIMER SETTING 145 SELF-TIMER LAMP 146 INTERVAL TIMER SHOOTING 146 INTERVAL TIMER SHOOTING
EXPOSURE SMOOTHING PHOTOMETRY 147 SHUTTER TYPE 148
2⁄
FLICKER REDUCTION 149 IS MODE 150 ISO 150
WIRELESS COMMUNICATION
xF
P
F FLASH SETTING
FLASH FUNCTION SETTING 152 RED EYE REMOVAL 152 TTL-LOCK MODE 153 LED LIGHT SETTING 153 COMMANDER SETTING 154
144
CH SETTING 154
B MOVIE SETTING
MOVIE MODE 155 FILE FORMAT 155 FULL HD HIGH SPEED REC 155
147
F IS MODE AUDIO SETTING 156 MIC/REMOTE RELEASE 157
151
P
Menu List
P
155
v
Page 6
Movie Menus
1⁄
2⁄
3⁄
1⁄
2⁄
Items marked with both x and F icons are available in both the still
N
photography and movie shooting menus. Changes to these items in either menu also apply to the item in the remaining menu.
Menu List
B MOVIE SETTING
1⁄
2⁄
3⁄
P
MOVIE MODE 158 FILE FORMAT FULL HD HIGH SPEED REC FIX MOVIE CROP MAGNIFICATION F-Log RECORDING 4K MOVIE OUTPUT FULL HD MOVIE OUTPUT HDMI OUTPUT INFO DISPLAY 4K HDMI STANDBY QUALITY HDMI REC CONTROL
F PHOTOMETRY F IS MODE F ISO
ZEBRA SETTING ZEBRA LEVEL MOVIE OPTIMIZED CONTROL oL TALLY LIGHT
WIRELESS COMMUNICATION
xF
159 160 161 161 162 162 163 163 163 163 164 164 165 165 165 166 166
H IMAGE QUALITY SETTING
F FILM SIMULATION F MONOCHROMATIC COLOR F WHITE BALANCE F DYNAMIC RANGE
1⁄
F TONE CURVE F COLOR F SHARPNESS F HIGH ISO NR
V INTERFRAME NR
2⁄
F
PERIPHERAL LIGHT CORRECTION
xF MOUNT ADAPTOR SETTING
P
167 167 167 168 168 168 169 169 169 170 170
vi
Page 7
Menu List
1⁄
2⁄
G AF/MF SETTING
F FOCUS AREA F AF MODE F AF-C CUSTOM SETTING
xF AF ILLUMINATOR
1⁄
F FACE/EYE DETECTION SETTING F MF ASSIST F FOCUS CHECK
xF INSTANT AF SETTING xF DEPTH-OF-FIELD SCALE xF AF RANGE LIMITER
2⁄
xF TOUCH SCREEN MODE FOCUS CHECK LOCK 177
P
P AUDIO SETTING
INTERNAL MIC LEVEL ADJUSTMENT 178
171
EXTERNAL MIC LEVEL ADJUSTMENT 178
171
MIC JACK SETTING 179
172
MIC LEVEL LIMITER 179
172
WIND FILTER 179
173
LOW CUT FILTER 179
173
HEADPHONES VOLUME 179
174
MIC/REMOTE RELEASE 180
174 174
Q TIME CODE SETTING
174
TIME CODE DISPLAY 181
175
START TIME SETTING 181 COUNT UP SETTING 181 DROP FRAME 182 HDMI TIME CODE OUTPUT 182
P
Menu List
P
vii
Page 8

The Playback Menu

1⁄
2⁄
3⁄
Adjust playback settings.
See page 189 for details.
N
C PLAY BACK MENU
Menu List
RAW CONVERSION 189 ERASE 192 CROP 194 RESIZE 195
1⁄
PROTECT 196 IMAGE ROTATE 197 RED EYE REMOVAL 198 VOICE MEMO SETTING 199
P
C PLAY BACK MENU
RATING 200 IMAGE TRANSFER ORDER 201
WIRELESS COMMUNICATION
xF SLIDE SHOW
2⁄
PHOTOBOOK ASSIST 203 PC AUTO SAVE PRINT ORDER (DPOF) 205 instax PRINTER PRINT 206
3⁄ DISP ASPECT 207
P
202 202
204
viii
Page 9

Setup Menus

1⁄
2⁄
1⁄
2⁄
3⁄
Adjust basic camera settings.
See page 209 for details.
N
D USER SETTING
FORMAT 210 DATE/TIME 211 TIME DIFFERENCE 211 Q a
1⁄
x MY MENU SETTING F MY MENU SETTING SENSOR CLEANING 213 SOUND & FLASH 213 RESET 214
2⁄
REGULATORY 214
D SOUND SETTING
AF BEEP VOL. 215 SELF-TIMER BEEP VOL. 215 OPERATION VOL. 216 SHUTTER VOLUME 216 SHUTTER SOUND 216 PLAYBACK VOLUME 216
P
D SCREEN SETTING
VIEW MODE SETTING 217 EVF BRIGHTNESS 217 EVF COLOR 217 EVF COLOR ADJUSTMENT 218
212
1⁄
LCD BRIGHTNESS 218
212
LCD COLOR 218
212
LCD COLOR ADJUSTMENT 218 IMAGE DISP. 219 AUTOROTATE DISPLAYS 219 PREVIEW EXP./WB IN MANUAL MODE NATURAL LIVE VIEW 220
P
F-Log VIEW ASSIST 221
2⁄
FRAMING GUIDELINE 221 AUTOROTATE PB 222 FOCUS SCALE UNITS 222 APERTURE UNIT FOR CINEMA LENS DISP. CUSTOM SETTING 222 LARGE INDICATORS MODE(EVF) 223 LARGE INDICATORS MODE(LCD) 223 LARGE INDICATORS DISP. SETTING 224
3⁄
INFORMATION CONTRAST ADJ. x Q MENU BACKGROUND F Q MENU BACKGROUND
Menu List
P
220
222
224 225 225
Menu List
ix
Page 10
1⁄
2⁄
Menu List
D BUTTON/DIAL SETTING
FOCUS LEVER SETTING 226 x EDIT/SAVE QUICK MENU F EDIT/SAVE QUICK MENU
Menu List
COMMAND DIAL SETTING 228
FUNCTION (Fn) SETTING 227
1⁄
SHUTTER AF 229 SHUTTER AE 229 SHOOT WITHOUT LENS 230 SHOOT WITHOUT CARD 230 FOCUS RING 230 FOCUS RING OPERATION AE/AF-LOCK MODE 231
2⁄
AWB-LOCK MODE APERTURE RING SETTING (A) APERTURE SETTING TOUCH SCREEN SETTING 232
D POWER MANAGEMENT
AUTO POWER OFF 234 PERFORMANCE BOOST SETTING 235
D SAVE DATA SETTING
FRAME NO. 236 SAVE ORG IMAGE 237 EDIT FILE NAME 237 SELECT FOLDER 238 COPYRIGHT INFO 238
P
D CONNECTION SETTING
Bluetooth SETTINGS 239 PC AUTO SAVE
227
instax PRINTER CONNECTION SETTING
227
CONNECTION MODE 242 USB POWER SUPPLY SETTING 243 GENERAL SETTINGS 244 INFORMATION 244 RESET WIRELESS SETTING 244
230
231 231 232
P
235
P
P
240 241
x
Page 11
Table of Contents
Before You Begin 1
P
Introduction ....................................................................................................ii
For the Latest Information ................................................................................... ii
Menu List .........................................................................................................iv
Shooting Menus ........................................................................................................iv
The Playback Menu ...............................................................................................viii
Setup Menus ...............................................................................................................ix
Supplied Accessories .............................................................................xxiii
About This Manual ..................................................................................xxiv
Symbols and Conventions .............................................................................xxiv
Terminology ............................................................................................................xxiv
Before You Begin 1
1
Parts of the Camera ......................................................................................2
The Focus Stick (Focus Lever) .............................................................................4
The Shutter Speed Dial .......................................................................................... 4
The Drive Dial ...............................................................................................................5
The Exposure Compensation Dial ...................................................................5
The Auto Mode Selector Lever ..........................................................................6
The Command Dials ................................................................................................ 7
The Indicator Lamp .................................................................................................. 8
The LCD Monitor ........................................................................................................9
Focusing the View nder........................................................................................9
Camera Displays..........................................................................................10
The Electronic View nder .................................................................................. 10
The LCD Monitor ..................................................................................................... 12
Adjusting Display Brightness ...........................................................................14
Display Rotation ......................................................................................................14
Choosing a Display Mode ................................................................................. 14
The DISP/BACK Button ........................................................................................ 16
Customizing the Standard Display .............................................................. 17
Using the Menus ......................................................................................... 19
The Menus ..................................................................................................................19
Selecting a Menu Tab ........................................................................................... 20
xi
Page 12
Touch Screen Mode ................................................................................... 21
First Steps 27
Basic Photography and Playback 41
Movie Recording and Playback 47
Taking Photographs 53
Shooting Touch Controls ................................................................................... 21
Playback Touch Controls ....................................................................................25
First Steps 27
2
Attaching the Strap ...................................................................................28
Attaching a Lens ......................................................................................... 29
Inserting the Battery and a Memory Card ......................................... 30
Compatible Memory Cards .............................................................................. 32
Charging the Battery ................................................................................. 33
Turning the Camera On and O ............................................................ 35
Checking the Battery Level ..................................................................... 36
Basic Setup.................................................................................................... 37
Choosing a Di erent Language ....................................................................39
Changing the Time and Date ..........................................................................39
Basic Photography and Playback 41
3
Taking Photographs .................................................................................. 42
Viewing Pictures .........................................................................................44
Deleting Pictures ........................................................................................45
Movie Recording and Playback 47
4
Recording Movies ....................................................................................... 48
Adjusting Movie Settings ..................................................................................50
Viewing Movies ........................................................................................... 51
Taking Photographs 53
5
Choosing a Shooting Mode .................................................................... 54
Mode P: Program AE ............................................................................................. 54
Mode S: Shutter-Priority AE .............................................................................. 56
Mode A: Aperture-Priority AE ..........................................................................59
Mode M: Manual Exposure ...............................................................................60
Auto Mode .................................................................................................................. 61
Autofocus ...................................................................................................... 64
Focus Mode ................................................................................................................65
Autofocus Options (AF Mode) ........................................................................67
Focus-Point Selection .......................................................................................... 69
xii
Page 13
Table of Contents
The Shooting Menus 103
Manual Focus ............................................................................................... 73
Checking Focus........................................................................................................75
Exposure Compensation .........................................................................77
C (Custom) .................................................................................................................. 78
Sensitivity ...................................................................................................... 79
AUTO...............................................................................................................................80
Metering ........................................................................................................ 81
Focus/Exposure Lock ................................................................................82
Other Controls ..........................................................................................................83
Bracketing ..................................................................................................... 84
O AE BKT .................................................................................................................... 85
W ISO BKT .................................................................................................................. 85
X FILM SIMULATION BKT ................................................................................85
V WHITE BALANCE BKT.................................................................................... 86
Y DYNAMIC RANGE BKT .................................................................................86
Z FOCUS BKT ......................................................................................................... 87
Continuous Shooting (Burst Mode) ..................................................... 89
Panoramas .................................................................................................... 91
Multiple Exposures ....................................................................................94
Advanced Filters ......................................................................................... 96
Advanced Filter Options ..................................................................................... 97
Flash Photography ..................................................................................... 98
Flash Settings ......................................................................................................... 100
The Shooting Menus 103
6
IMAGE QUALITY SETTING (Still Photography) ................................104
IMAGE SIZE ............................................................................................................... 104
IMAGE QUALITY .................................................................................................... 105
RAW RECORDING ................................................................................................. 106
FILM SIMULATION ................................................................................................ 106
MONOCHROMATIC COLOR ........................................................................... 108
GRAIN EFFECT ........................................................................................................ 108
COLOR CHROME EFFECT ................................................................................ 108
COLOR CHROME FX BLUE ............................................................................... 109
WHITE BALANCE ................................................................................................... 109
xiii
Page 14
DYNAMIC RANGE ................................................................................................. 113
D RANGE PRIORITY.............................................................................................. 114
TONE CURVE ........................................................................................................... 114
COLOR.........................................................................................................................115
SHARPNESS .............................................................................................................. 115
HIGH ISO NR ............................................................................................................ 115
CLARITY ...................................................................................................................... 116
LONG EXPOSURE NR .......................................................................................... 116
LENS MODULATION OPTIMIZER ................................................................. 116
COLOR SPACE ......................................................................................................... 117
PIXEL MAPPING ..................................................................................................... 117
SELECT CUSTOM SETTING ............................................................................. 118
EDIT/SAVE CUSTOM SETTING ....................................................................... 118
AUTO UPDATE CUSTOM SETTING ............................................................. 122
xF MOUNT ADAPTOR SETTING ............................................................ 123
AF/MF SETTING (Still Photography) ...................................................126
FOCUS AREA ........................................................................................................... 126
AF MODE ................................................................................................................... 126
AF-C CUSTOM SETTINGS ................................................................................ 127
STORE AF MODE BY ORIENTATION ............................................................ 131
AF POINT DISPLAY yz ................................................................................ 131
NUMBER OF FOCUS POINTS ......................................................................... 131
PRE-AF......................................................................................................................... 132
xF AF ILLUMINATOR .................................................................................... 132
FACE/EYE DETECTION SETTING .................................................................. 133
AF+MF ........................................................................................................................ 135
MF ASSIST ................................................................................................................. 136
FOCUS CHECK ........................................................................................................ 136
INTERLOCK SPOT AE & FOCUS AREA ....................................................... 137
xF INSTANT AF SETTING ........................................................................... 137
xF DEPTH-OF-FIELD SCALE .................................................................... 137
RELEASE/FOCUS PRIORITY ............................................................................. 138
xF AF RANGE LIMITER ................................................................................ 138
xF TOUCH SCREEN MODE ....................................................................... 139
xiv
Page 15
Table of Contents
SHOOTING SETTING (Still Photography) ..........................................141
SCENE POSITION ..................................................................................................141
DRIVE SETTING ...................................................................................................... 141
HDR .............................................................................................................................. 142
SPORTS FINDER MODE ..................................................................................... 144
PRE-SHOT sJ .................................................................................................... 144
SELF-TIMER ............................................................................................................... 145
SAVE SELF-TIMER SETTING .............................................................................145
SELF-TIMER LAMP ................................................................................................ 146
INTERVAL TIMER SHOOTING .......................................................................... 146
INTERVAL TIMER SHOOTING EXPOSURE SMOOTHING ................. 147
PHOTOMETRY ........................................................................................................ 147
SHUTTER TYPE .......................................................................................................148
FLICKER REDUCTION ......................................................................................... 149
IS MODE ..................................................................................................................... 150
ISO ................................................................................................................................. 150
xF WIRELESS COMMUNICATION ......................................................... 151
FLASH SETTING (Still Photography) ...................................................152
FLASH FUNCTION SETTING ........................................................................... 152
RED EYE REMOVAL .............................................................................................. 152
TTL-LOCK MODE ................................................................................................... 153
LED LIGHT SETTING ............................................................................................ 153
COMMANDER SETTING .................................................................................... 154
CH SETTING ............................................................................................................. 154
MOVIE SETTING (Still Photography) ..................................................155
MOVIE MODE.......................................................................................................... 155
FILE FORMAT ........................................................................................................... 155
FULL HD HIGH SPEED REC ............................................................................. 155
F IS MODE .............................................................................................................. 155
AUDIO SETTING ....................................................................................................156
MIC/REMOTE RELEASE ...................................................................................... 157
MOVIE SETTING (Movie Recording) ...................................................158
MOVIE MODE.......................................................................................................... 158
FILE FORMAT ........................................................................................................... 159
FULL HD HIGH SPEED REC ............................................................................. 160
xv
Page 16
FIX MOVIE CROP MAGNIFICATION ............................................................ 161
F-Log RECORDING ............................................................................................... 161
4K MOVIE OUTPUT .............................................................................................. 162
FULL HD MOVIE OUTPUT ................................................................................ 162
HDMI OUTPUT INFO DISPLAY ...................................................................... 163
4K HDMI STANDBY QUALITY ......................................................................... 163
HDMI REC CONTROL.......................................................................................... 163
F PHOTOMETRY ................................................................................................. 163
F IS MODE .............................................................................................................. 164
F ISO .......................................................................................................................... 164
ZEBRA SETTING ..................................................................................................... 165
ZEBRA LEVEL ........................................................................................................... 165
MOVIE OPTIMIZED CONTROL oL ......................................................... 165
TALLY LIGHT ............................................................................................................. 166
xF WIRELESS COMMUNICATION ......................................................... 166
IMAGE QUALITY SETTING (Movie Recording) ................................167
F FILM SIMULATION ........................................................................................ 167
F MONOCHROMATIC COLOR .................................................................... 167
F WHITE BALANCE ............................................................................................ 167
F DYNAMIC RANGE.......................................................................................... 168
F TONE CURVE .................................................................................................... 168
F COLOR ................................................................................................................. 168
F SHARPNESS ...................................................................................................... 169
F HIGH ISO NR ..................................................................................................... 169
V INTERFRAME NR........................................................................................... 169
F PERIPHERAL LIGHT CORRECTION ....................................................... 170
xF MOUNT ADAPTOR SETTING ............................................................ 170
AF/MF SETTING (Movie Recording) ...................................................171
F FOCUS AREA .................................................................................................... 171
F AF MODE ........................................................................................................... 171
F AF-C CUSTOM SETTING ............................................................................ 172
xF AF ILLUMINATOR .................................................................................... 172
F FACE/EYE DETECTION SETTING ........................................................... 173
F MF ASSIST .......................................................................................................... 173
F FOCUS CHECK ................................................................................................ 174
xvi
Page 17
Table of Contents
Playback and the Playback Menu 183
xF INSTANT AF SETTING ........................................................................... 174
xF DEPTH-OF-FIELD SCALE .................................................................... 174
xF AF RANGE LIMITER ................................................................................ 174
xF TOUCH SCREEN MODE ....................................................................... 175
FOCUS CHECK LOCK .......................................................................................... 177
AUDIO SETTING (Movie Recording) ...................................................178
INTERNAL MIC LEVEL ADJUSTMENT ........................................................ 178
EXTERNAL MIC LEVEL ADJUSTMENT ....................................................... 178
MIC JACK SETTING ..............................................................................................179
MIC LEVEL LIMITER .............................................................................................. 179
WIND FILTER ............................................................................................................ 179
LOW CUT FILTER ...................................................................................................179
HEADPHONES VOLUME ................................................................................... 179
MIC/REMOTE RELEASE ...................................................................................... 180
TIME CODE SETTING (Movie Recording) ..........................................181
TIME CODE DISPLAY ........................................................................................... 181
START TIME SETTING .......................................................................................... 181
COUNT UP SETTING ...........................................................................................181
DROP FRAME .......................................................................................................... 182
HDMI TIME CODE OUTPUT ............................................................................ 182
Playback and the Playback Menu 183
7
The Playback Display ...............................................................................184
The DISP/BACK Button ..................................................................................... 185
Viewing Pictures .......................................................................................187
Playback Zoom ...................................................................................................... 188
Multi-Frame Playback ........................................................................................ 188
The Playback Menu ..................................................................................189
RAW CONVERSION .............................................................................................. 189
ERASE .......................................................................................................................... 192
CROP ............................................................................................................................ 194
RESIZE ......................................................................................................................... 195
PROTECT .................................................................................................................... 196
IMAGE ROTATE ....................................................................................................... 197
RED EYE REMOVAL .............................................................................................. 198
xvii
Page 18
VOICE MEMO SETTING .....................................................................................199
The Setup Menus 209
RATING ........................................................................................................................ 200
IMAGE TRANSFER ORDER ................................................................................ 201
xF WIRELESS COMMUNICATION ......................................................... 202
SLIDE SHOW ............................................................................................................ 202
PHOTOBOOK ASSIST .......................................................................................... 203
PC AUTO SAVE ....................................................................................................... 204
PRINT ORDER (DPOF) ......................................................................................... 205
instax PRINTER PRINT ......................................................................................... 206
DISP ASPECT ...........................................................................................................207
The Setup Menus 209
8
USER SETTING ............................................................................................210
FORMAT ..................................................................................................................... 210
DATE/TIME ................................................................................................................ 211
TIME DIFFERENCE ................................................................................................ 211
Qa ......................................................................................................... 212
x MY MENU SETTING .....................................................................................212
F MY MENU SETTING ...................................................................................... 212
SENSOR CLEANING ............................................................................................. 213
SOUND & FLASH ................................................................................................... 213
RESET ........................................................................................................................... 214
REGULATORY .......................................................................................................... 214
SOUND SETTING .......................................................................................215
AF BEEP VOL. ........................................................................................................... 215
SELF-TIMER BEEP VOL. ....................................................................................... 215
OPERATION VOL. ................................................................................................... 216
SHUTTER VOLUME ............................................................................................... 216
SHUTTER SOUND ................................................................................................. 216
PLAYBACK VOLUME ............................................................................................ 216
SCREEN SETTING.......................................................................................217
VIEW MODE SETTING ........................................................................................ 217
EVF BRIGHTNESS................................................................................................... 217
EVF COLOR ............................................................................................................... 217
EVF COLOR ADJUSTMENT .............................................................................. 218
xviii
Page 19
Table of Contents
LCD BRIGHTNESS..................................................................................................218
LCD COLOR .............................................................................................................. 218
LCD COLOR ADJUSTMENT .............................................................................218
IMAGE DISP. .............................................................................................................. 219
AUTOROTATE DISPLAYS ...................................................................................219
PREVIEW EXP./WB IN MANUAL MODE ..................................................... 220
NATURAL LIVE VIEW ............................................................................................ 220
F-Log VIEW ASSIST............................................................................................... 221
FRAMING GUIDELINE ......................................................................................... 221
AUTOROTATE PB ................................................................................................... 222
FOCUS SCALE UNITS .......................................................................................... 222
APERTURE UNIT FOR CINEMA LENS ......................................................... 222
DISP. CUSTOM SETTING.................................................................................... 222
LARGE INDICATORS MODE(EVF) ................................................................. 223
LARGE INDICATORS MODE(LCD) ................................................................ 223
LARGE INDICATORS DISP. SETTING ............................................................ 224
INFORMATION CONTRAST ADJ. ..................................................................224
x Q MENU BACKGROUND ........................................................................... 225
F Q MENU BACKGROUND ........................................................................... 225
BUTTON/DIAL SETTING ..........................................................................226
FOCUS LEVER SETTING ..................................................................................... 226
x EDIT/SAVE QUICK MENU .......................................................................... 227
F EDIT/SAVE QUICK MENU .......................................................................... 227
FUNCTION (Fn) SETTING ................................................................................. 227
COMMAND DIAL SETTING ............................................................................. 228
SHUTTER AF ............................................................................................................229
SHUTTER AE ............................................................................................................229
SHOOT WITHOUT LENS .................................................................................... 230
SHOOT WITHOUT CARD ..................................................................................230
FOCUS RING ............................................................................................................ 230
FOCUS RING OPERATION ................................................................................ 230
AE/AF-LOCK MODE ............................................................................................. 231
AWB-LOCK MODE ................................................................................................ 231
APERTURE RING SETTING (A) ........................................................................ 231
APERTURE SETTING ............................................................................................ 232
TOUCH SCREEN SETTING ................................................................................ 232
xix
Page 20
POWER MANAGEMENT ..........................................................................234
Shortcuts 245
AUTO POWER OFF ............................................................................................... 234
PERFORMANCE ..................................................................................................... 235
BOOST SETTING .................................................................................................... 235
SAVE DATA SETTING ................................................................................236
FRAME NO. ............................................................................................................... 236
SAVE ORG IMAGE ................................................................................................. 237
EDIT FILE NAME ..................................................................................................... 237
SELECT FOLDER ....................................................................................................238
COPYRIGHT INFO ................................................................................................. 238
CONNECTION SETTING ..........................................................................239
Bluetooth SETTINGS........................................................................................... 239
PC AUTO SAVE ....................................................................................................... 240
instax PRINTER CONNECTION SETTING ................................................. 241
CONNECTION MODE ......................................................................................... 242
USB POWER SUPPLY SETTING ......................................................................243
GENERAL SETTINGS ............................................................................................ 244
INFORMATION ........................................................................................................ 244
RESET WIRELESS SETTING ............................................................................... 244
Shortcuts 245
9
Shortcut Options ......................................................................................246
MY MENU ....................................................................................................247
MY MENU SETTING ............................................................................................. 247
The Quick Menu ........................................................................................249
The Quick Menu Display ................................................................................. 249
Viewing and Changing Settings................................................................. 251
Editing the Quick Menu ................................................................................... 252
Function Controls .....................................................................................255
The Function Buttons ........................................................................................ 255
Touch-Function Gestures ............................................................................... 258
xx
Page 21
Table of Contents
Peripherals and Optional Accessories 261
Connections 279
Peripherals and Optional Accessories 261
10
Lenses ...........................................................................................................262
Lens Parts .................................................................................................................. 262
Removing Lens Caps ......................................................................................... 263
Attaching Lens Hoods ...................................................................................... 263
Lenses with Aperture Rings ..........................................................................264
Lenses with No Aperture Rings ..................................................................265
Lenses with O.I.S. Switches ............................................................................ 265
Manual Focus Lenses ........................................................................................ 266
Lens Care ................................................................................................................... 267
External Flash Units .................................................................................268
Using an External Flash .................................................................................... 269
SYNC TERMINAL .................................................................................................... 270
SHOE MOUNT FLASH ........................................................................................ 271
COMMANDER(OPTICAL) ..................................................................................274
Connections 279
11
HDMI Output..............................................................................................280
Connecting to HDMI Devices ...................................................................... 280
Shooting .................................................................................................................... 281
Playback ..................................................................................................................... 281
Wireless Connections (Bluetooth®, Wireless LAN/Wi-Fi) ............282
Smartphones and Tablets: FUJIFILM Camera Remote .................. 282
Copying Pictures to a Computer: PC AutoSave ................................ 284
Connecting via USB .................................................................................285
Connecting to Computers ............................................................................. 285
Copying Pictures from a Memory Card to a Computer ............... 288
Using Your Camera as a Webcam (FUJIFILM X Webcam) ...........288
Tethered Movie Recording ............................................................................ 289
Converting RAW Images (FUJIFILM X RAW STUDIO) ..................... 289
Backing up and Restoring Camera Settings
(FUJIFILM X Acquire) ....................................................................................... 289
Connecting to Smartphones .......................................................................290
instax SHARE Printers ..............................................................................293
Establishing a Connection ............................................................................. 293
Printing Pictures....................................................................................................294
xxi
Page 22
Table of Contents
Technical Notes 295
Technical Notes 295
12
Accessories from Fuji lm .......................................................................296
Software for Use with Your Camera ...................................................298
FUJIFILM Camera Remote .............................................................................. 298
FUJIFILM PC AutoSave ...................................................................................... 298
RAW FILE CONVERTER EX powered by SILKYPIX .............................. 298
Capture One Express Fuji lm .......................................................................298
Capture One Pro Fuji lm ................................................................................. 299
FUJIFILM X Acquire ............................................................................................. 299
FUJIFILM X RAW STUDIO ................................................................................. 299
FUJIFILM X Webcam .......................................................................................... 299
For Your Safety ...........................................................................................300
Product Care ...............................................................................................311
Cleaning the Image Sensor ...................................................................312
Firmware Updates ....................................................................................313
Checking the Firmware Version .................................................................. 313
Troubleshooting .......................................................................................314
Warning Messages and Displays .........................................................323
Memory Card Capacity ...........................................................................327
Speci cations .............................................................................................328
xxii
Page 23

Supplied Accessories

The following are included with the camera:
NP-W126S rechargeable battery
•
Body cap (comes attached to camera)
•
USB cable (approx. 0.6 m/2 ft.)
•
Shoulder strap
•
Basic Manual
•
The battery is not charged at shipment. Charge the battery before use
O
(P 33).
• If you purchased a lens kit, check that a lens is included.
N
For information on compatible computer software, see “Software for
•
Use with Your Camera” (P 298).
xxiii
Page 24

About This Manual

This manual contains instructions for your FUJIFILM X-T30II digital camera. Be sure you have read and understood its contents before proceeding.

Symbols and Conventions

The following symbols are used in this manual:
Information that should be read to prevent damage to the
O
product.
Additional information that may be helpful when using the
N
product.
Pages on which related information may be found.
P
Menus and other text in the displays are shown in bold. Illustrations are for explanatory purposes only; drawings may be simpli ed, while photographs are not necessarily taken with the model of camera described in this manual.

Terminology

The optional SD, SDHC, and SDXC memory cards the camera uses to store pictures are referred to as “memory cards”. The elec­tronic view nder may be referred to as the “EVF” and the LCD monitor as the “LCD”. Smartphones and tablets are referred to as “smartphones”.
xxiv
Page 25

Before You Begin

1
Page 26

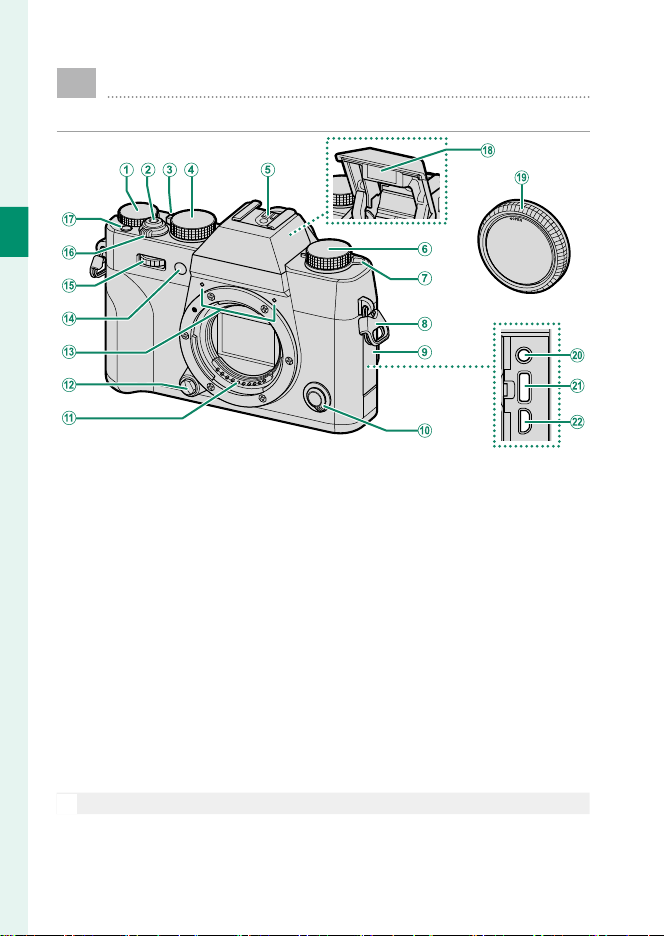

Parts of the Camera

The parts of the camera are listed below.
1
Before You Begin
Exposure compensation dial .................. 5, 77
A
Shutter button .................................................43
B
Auto mode selector lever ................................ 6
C
Shutter speed dial
D
.................................................4, 54, 56, 59, 60
Hot shoe .........................................................269
E
Drive dial .............................................................5
F
N(fl ash pop-up) lever ...................................98
G
Strap clip............................................................28
H
Connector cover
I
Focus mode selector ......................................65
J
Lens signal contacts
K
Lens release button ........................................29
L
V Use an HDMI cable no more than 1.5m (4.9ft.) long.
O
Microphone ............................................ 49, 178
M
AF-assist illuminator................................... 132
N
Self-timer lamp ............................................ 145
Tally light ........................................................ 166
Front command dial ................................ 7,228
O
ON/OFF switch .................................................35
P
Fn1 button .....................................................255
Q
Flash ...................................................................98
R
Body cap ............................................................29
S
Microphone/remote release connector
T
(⌀2.5mm) .....................................49, 58, 157
USB connector (Type-C) ..................... 33, 285
U
HDMI Micro connector (Type D) .............280
V
2
Page 27

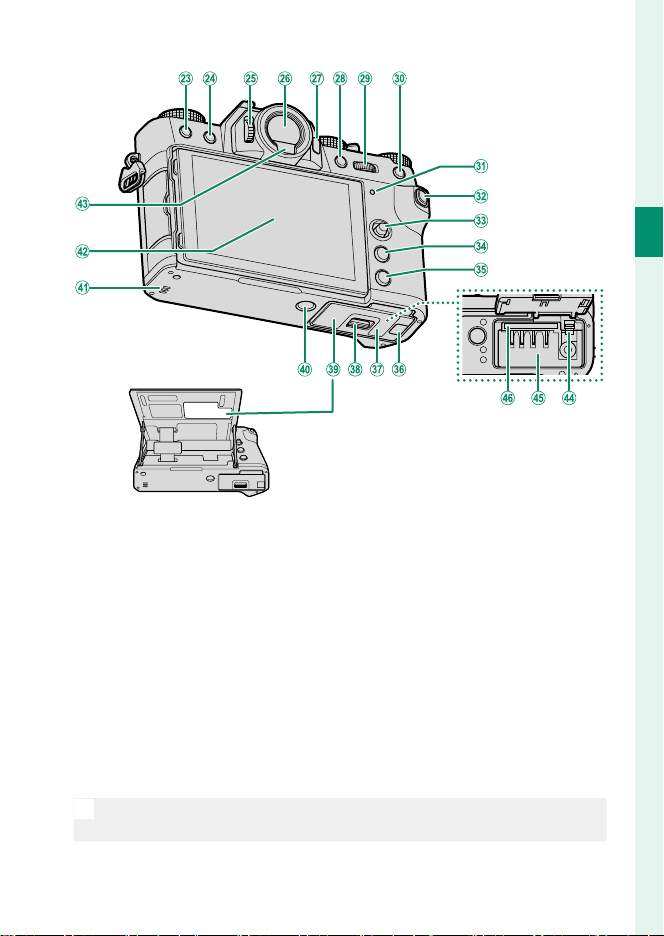

Parts of the Camera
1
Before You Begin
b(delete) button ...........................................45
W
a(playback) button ...................................44
X

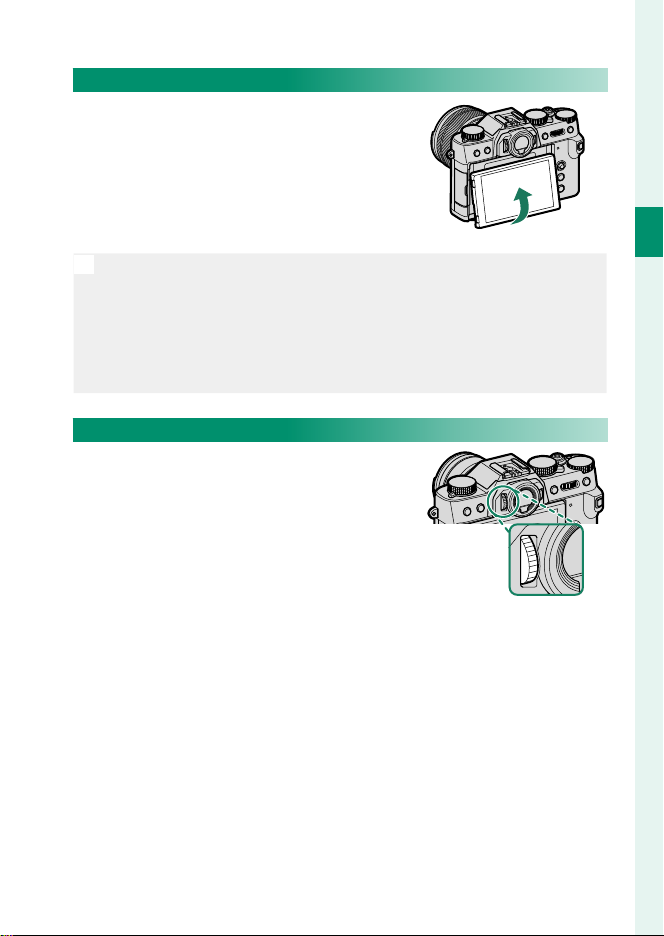

Diopter adjustment control ........................... 9
Y
Electronic viewfi nder (E VF)
Z
.....................................................10, 14, 16, 21
VIEW MODE button .........................................14
a
AE-L (exposure lock) button ............... 83, 255
b
Rear command dial ................................7, 187
c
AF-L (focus lock) button ...................... 83, 255
d
Indicator lamp ................................................... 8
e
Tally light ........................................................ 166
Q (quick menu) button ............................... 249
f
Focus stick (focus lever)...................4, 70, 226
g
MENU/OK button .............................................19
h
m
Do not remove the serial number plate, which provides the CMIITID,
O
DISP (display)/BACK button ............... 16, 185
i
Cable channel cover for DC coupler ....... 296
j
Battery-chamber cover .................................30
k
Battery-chamber cover latch ......................30
l
Serial number plate......................... see below
m
Tripod mount
n
Speaker .................................................... 51, 216
o
LCD monitor ............................9, 12, 14, 16, 22
p
Touch screen ........................21, 139, 175, 232
Eye sensor ..........................................................15
q
Battery latch .....................................................31
r
Battery chamber .............................................30
s
Memory card slot ............................................30
t
serial number, and other important information.
3
Page 28

The Focus Stick (Focus Lever)

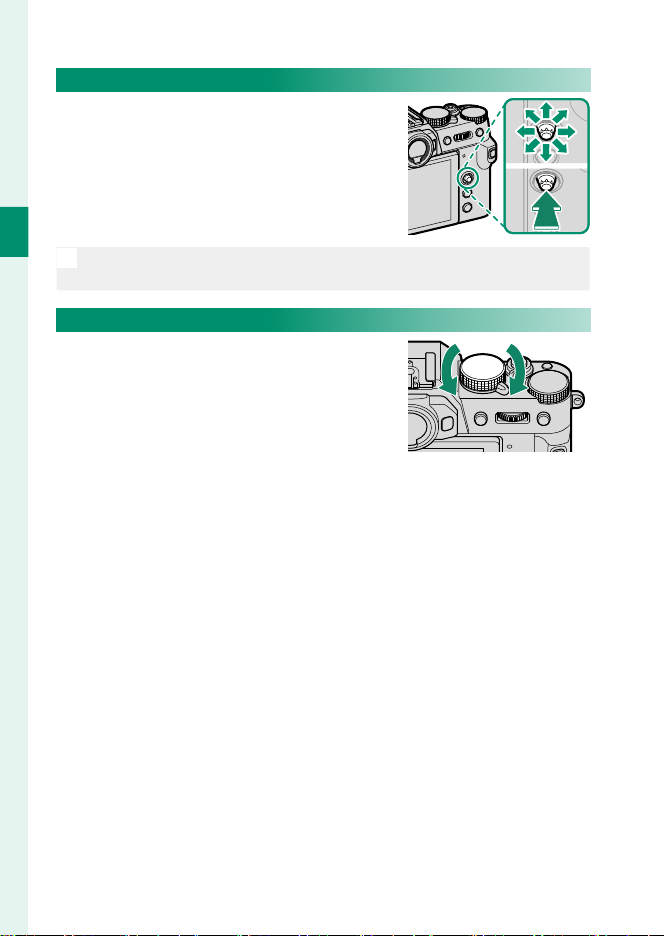

Tilt or press the focus stick to select the fo­cus area. The focus stick can also be used to navigate the menus.
1
Before You Begin
Use D BUTTON/DIAL SETTING> FOCUS LEVER SETTING to choose
N
the role played by the focus stick (P 226).

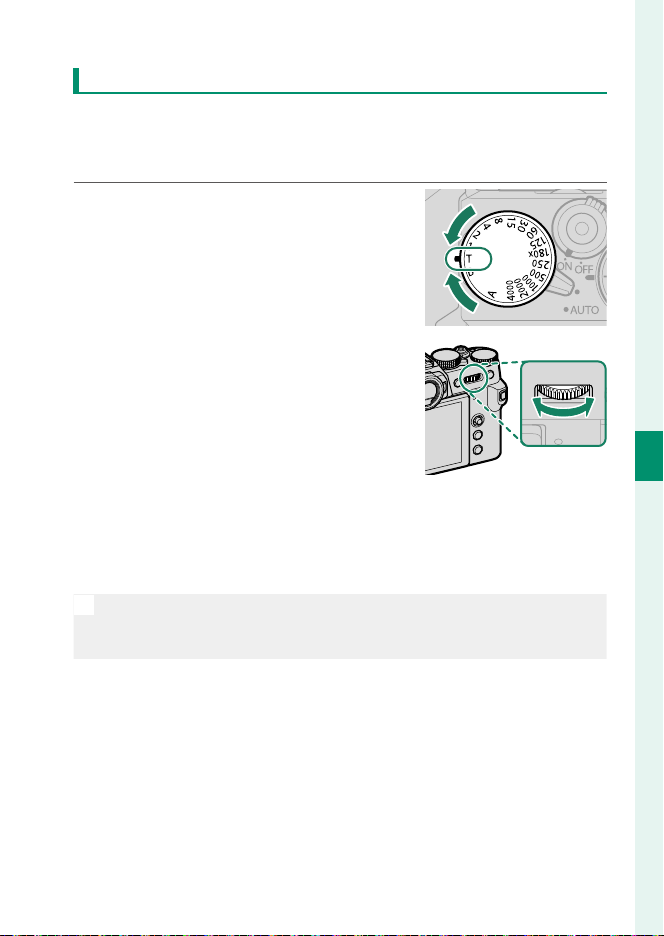

The Shutter Speed Dial

The shutter speed dial is used to choose the shutter speed.
4
Page 29

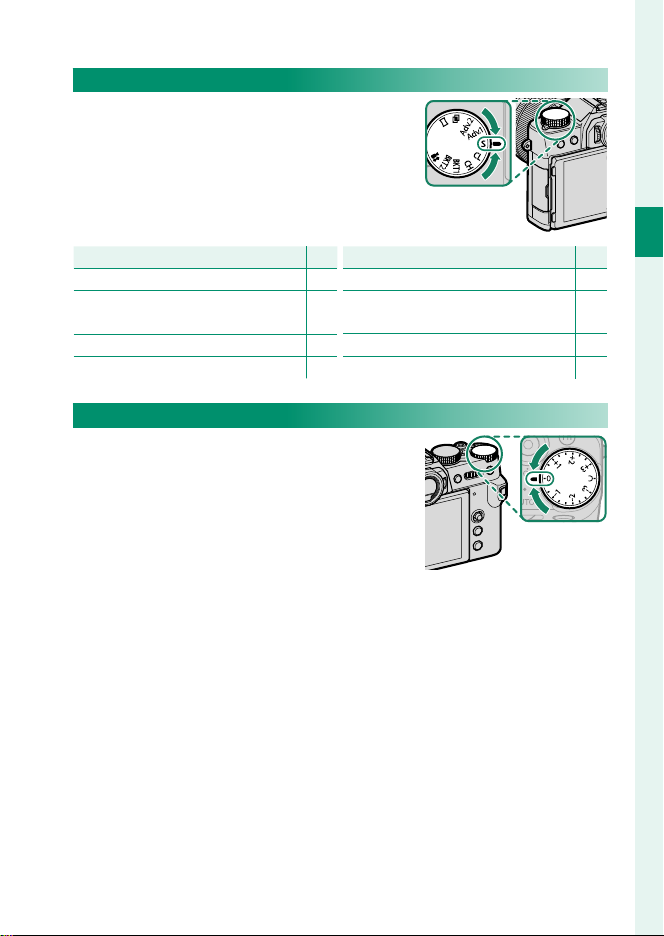

The Drive Dial

Mode
P
F
BKT1 BKT2
CH CL
Mode
P
S Adv.1 Adv.2
j
u
Rotate the dial to choose from the follow­ing the drive modes.
Mode
Movie 48
F
BKT1
Bracketing 84
BKT2
CH High-speed burst 89 CL Low-speed burst 89
P
S Single frame 42 Adv.1
Advanced fi lter 96
Adv.2
Multiple exposure 94
j
Panorama 91
u

The Exposure Compensation Dial

Rotate the dial to choose an exposure compensation amount.
Parts of the Camera
Mode
P
1
Before You Begin
5
Page 30

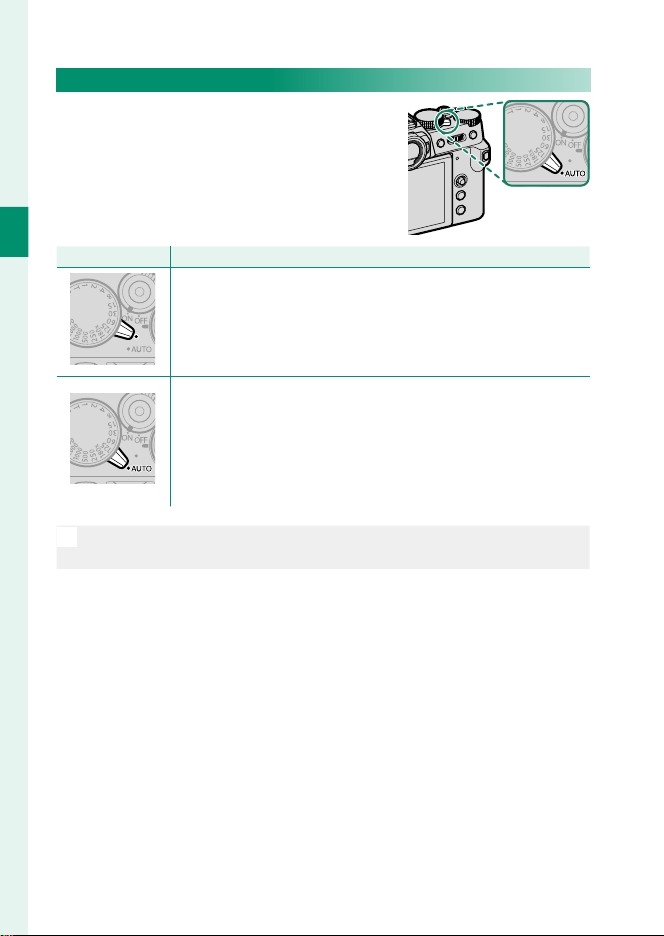

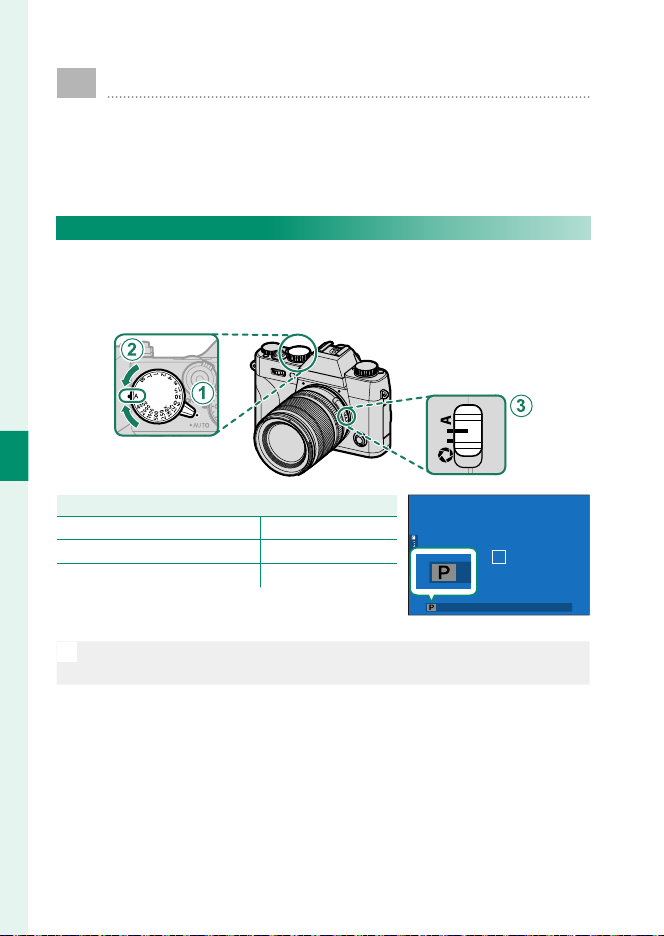

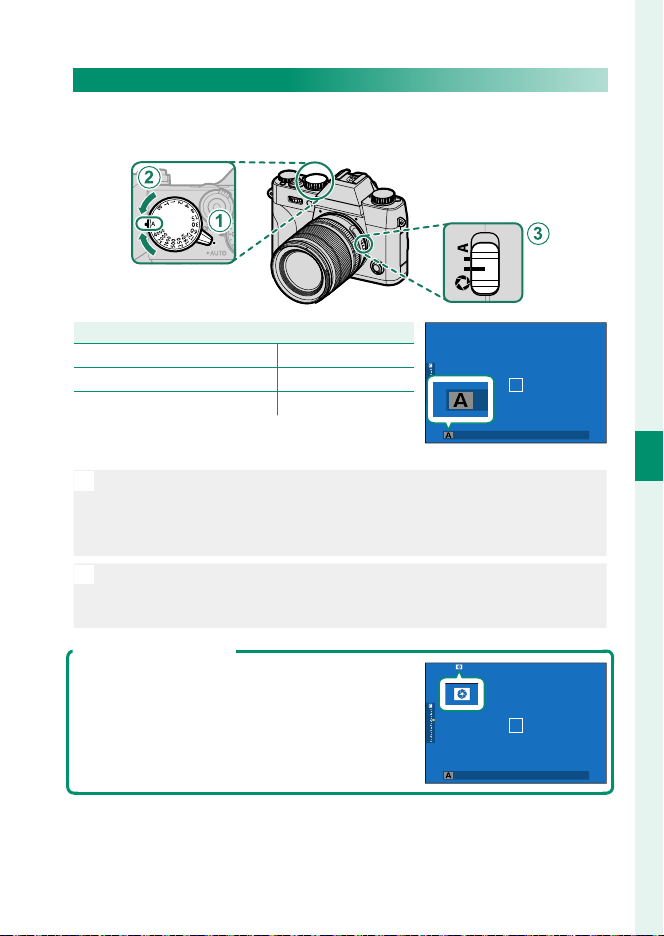

The Auto Mode Selector Lever

Position
Mode
Switch between auto and manual modes.
1
Position
Before You Begin
Select from P (program AE), S (shutter-priority AE), A (aper­ture-priority AE), and M (manual) modes (P 54, 56, 59,
60). Adjust shutter speed and aperture using program shift (mode P) or set shutter speed and/or aperture manually (modes S, A, and M). Auto mode. The camera adjusts settings automatically accord­ing to the option selected by rotating the front command dial. Choose from modes suited to specifi c subject types, or select AUTO to let the camera automatically match the mode to the subject (P 61). Scene selection is not available in drive modes Adv.1, Adv.2, j, and u.
Restrictions may apply to camera settings depending on the mode
N
and shooting conditions.
Mode
6
Page 31
Parts of the Camera
Rotate
Press

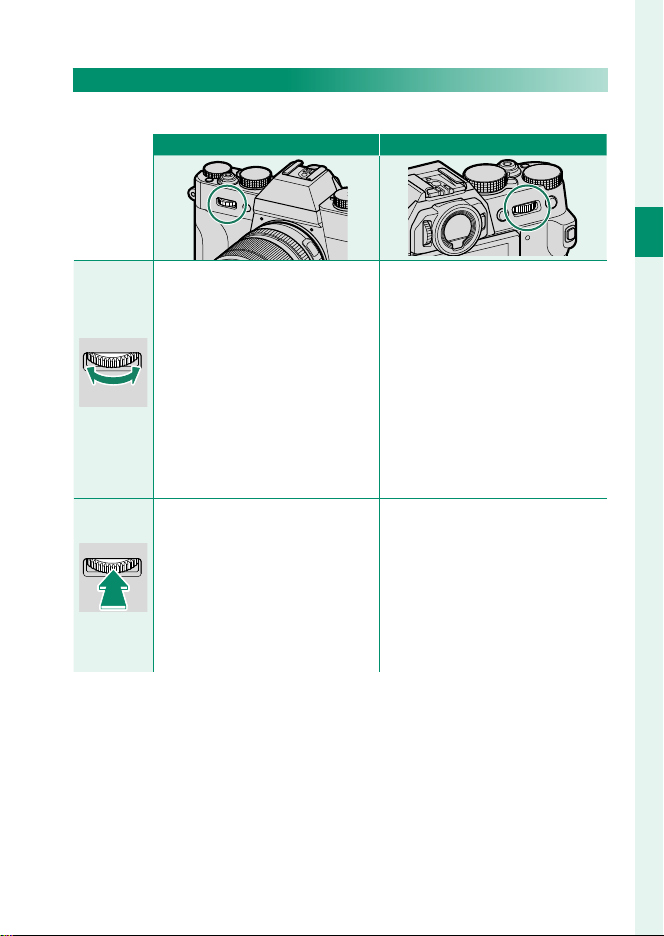

The Command Dials

Rotate or press the command dials to:
Front command dial Rear command dial
Select menu tabs or page
•
through menus Adjust aperture
•
Choose a scene (auto mode)
•
Adjust exposure compensation
•
Adjust sensitivity
•
View other pictures during
Press
•
playback
Switch back and forth between
•
aperture and exposure compen-
2, 5
sation Press and hold to choose the op-
•
tion selected for D BUTTON/
DIAL SETTING> COMMAND DIAL SETTING in the D(setup)
menu
Rotate
1 Aperture set to A (auto) and lens equipped with aperture ring or COMMAND selected for
D BUTTON/DIAL SETTING> APERTURE RING SETTING (A). 2 Can be changed using D BUTTON/DIAL SETTING> COMMAND DIAL SETTING. 3 Available only if FOCUS CHECK is assigned to a function button. 4 Exposure compensation dial rotated to C. 5 Can be used to switch back and forth between aperture, sensitivity, and exposure com-
pensation when exposure compensation dial is rotated to C.
1, 2
2
Highlight menu items
•
Choose the desired combina-
•
tion of shutter speed and aper­ture (program shift)
4
Choose a shutter speed
•
Adjust settings in the quick menu
•
Choose the size of the focus frame
•
Zoom in or out in full frame play-
•
back Zoom in or out in multi-frame
•
playback Zoom in on the active focus point
•
Press and hold to choose the
•
manual focus mode focus display Zoom in on the active focus
•
point during playback
2
1
Before You Begin
3
3
7
Page 32

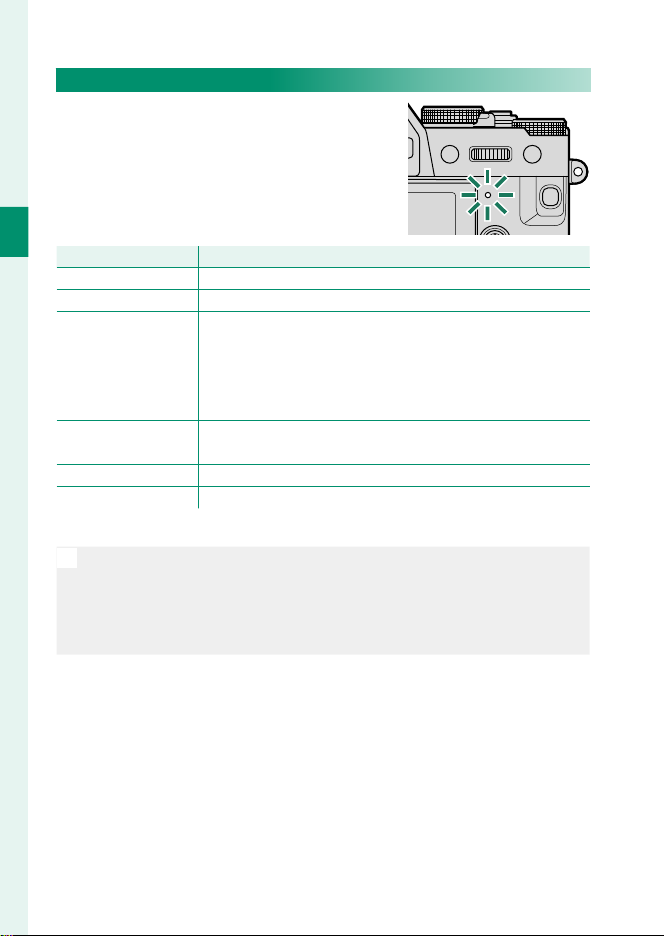

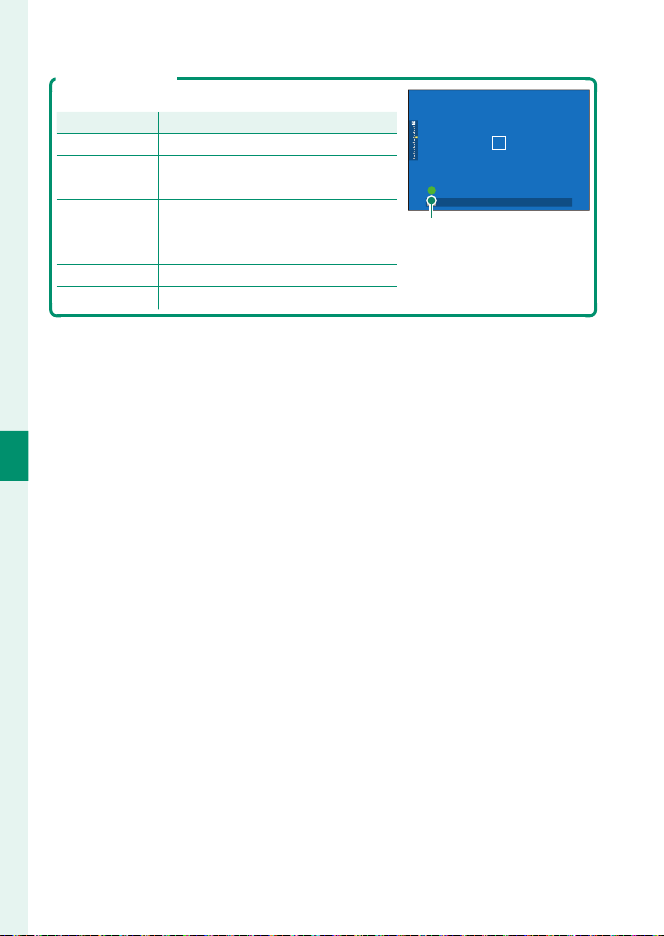

The Indicator Lamp

Indicator lamp
Camera status
Camera status is shown by the indicator lamp.
1
Indicator lamp
Before You Begin
Glows green Focus locked.
Blinks green Focus or slow shutter speed warning. Pictures can be taken.
Camera on: Recording pictures, or picture displayed for con-
•
Blinks green and
orange
Glows orange
Blinks orange Flash charging; fl ash will not fi re when picture is taken.
Blinks red Lens or memory error.
* Displayed only if pictures are selected for upload.
• Warnings may also appear in the display.
N
The indicator lamp remains o while your eye is to the view nder.
•
The B MOVIE SETTING> TALLY LIGHT option can be used to
•
choose the lamp (indicator or AF-assist) that lights during movie re­cording and whether the lamp blinks or remains steady.
fi rmation after being taken with option other than OFF selected for D SCREEN SET-UP> IMAGE DISP. (addi- tional pictures can be taken). Camera o : Uploading pictures to a smartphone or tablet.
•
Recording pictures. No additional pictures can be taken at this time.
Camera status
*
8
Page 33
Parts of the Camera

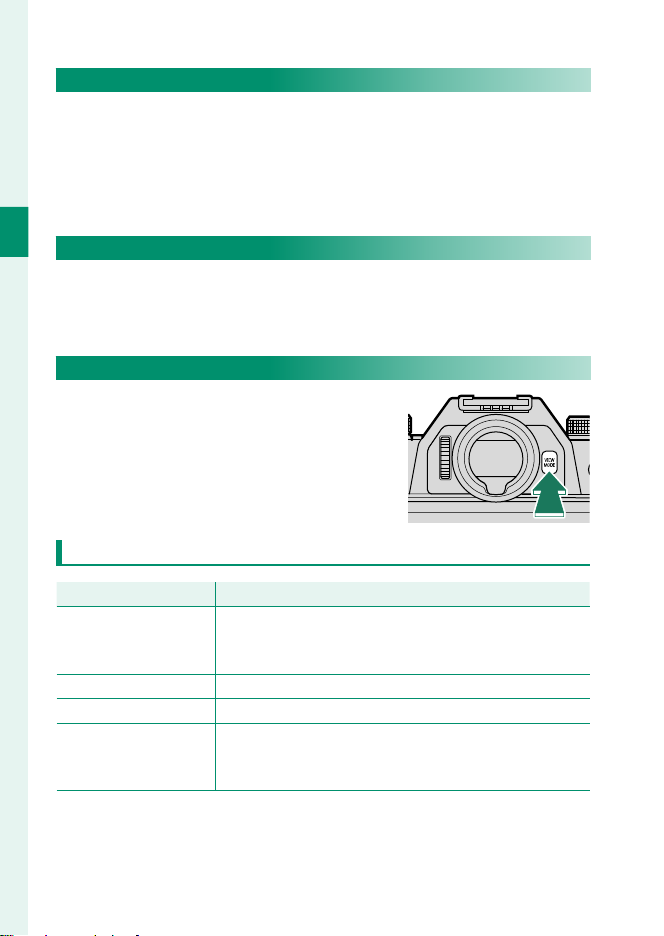

The LCD Monitor

The LCD monitor can be tilted for eas­ier viewing, but be careful not to touch the wires or trap  ngers or other objects behind the monitor. Touching the wires could cause camera malfunction.

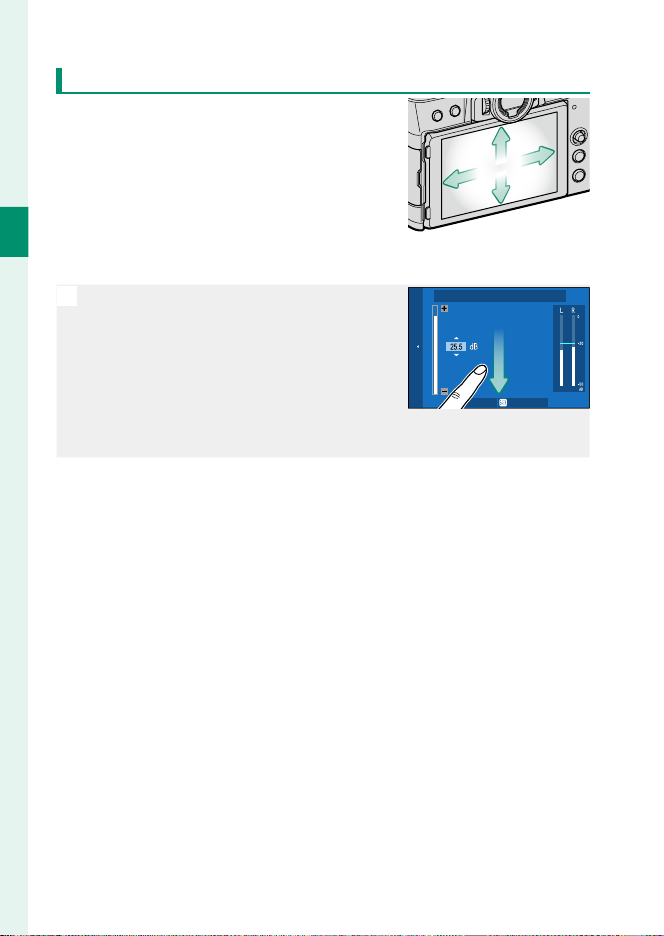

The LCD monitor also functions as a touch screen that can be used for:
N
Touch photography (P 22)
•
Focus area selection (P 21)
•
Function selection (P 24)
•
Movie optimized control oL (P 23)
•
Playback (P 25)
•
Focusing the View nder
If the indicators displayed in the view­ nder are blurred, put your eye to the view nder and rotate the diopter adjust­ment control until the display is in sharp focus.
1
Before You Begin
9
Page 34

Camera Displays

This section lists the indicators that may be displayed during shooting.
For illustrative purposes, displays are shown with all indicators lit.
O

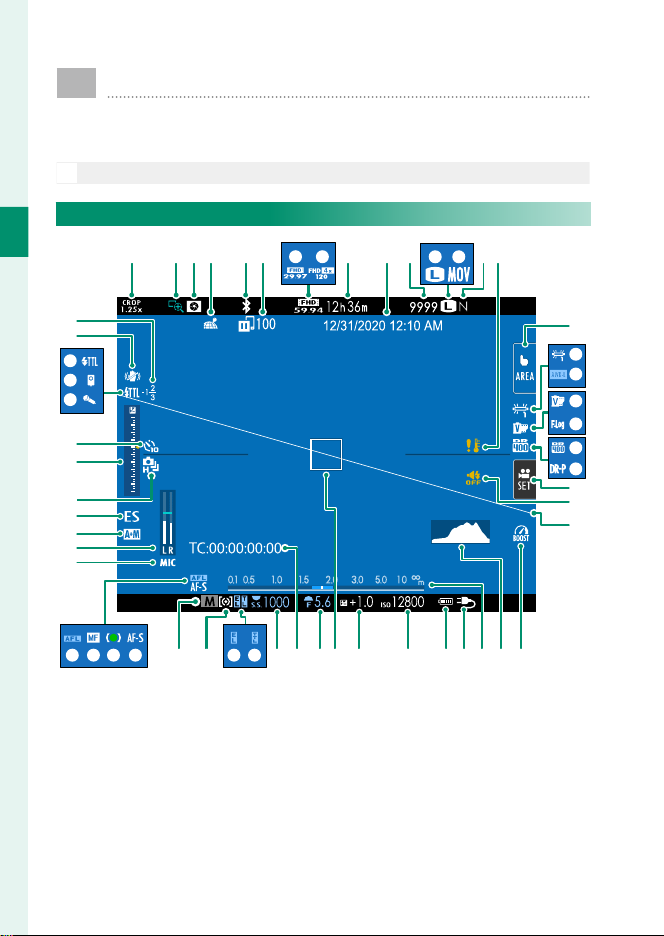

The Electronic View nder
1
Before You Begin
GA B C E F JI K NOD H
LM
3 2
1 0 z
y x
w
5
5
4
4
3
3
2
2
1
1
0
0
-1
-1
-2
-2
-3
-3
-4
-4
-5
-5
v u
t s
n m h fg e d c a Zbkl ij
opqr
P
Q R
S T U V
W X
Y
10
Page 35
Camera Displays
Crop factor ..................................................... 144
A
Focus check ............................................76, 136
B
Depth-of-fi eld preview ........................... 59, 75
C
Location data download status ..... 244, 282
D
Bluetooth ON/OFF ....................................... 239
E
Image transfer status ........................239, 282
F
Movie mode ........................................... 48, 158
G
Full HD high-speed recording .................. 160
H
Recording time available/
I
elapsed recording time ..............................48
Date and time ..................................37, 39, 211
J
Number of available frames
K
Image size ...................................................... 104
L
File format ...................................................... 159
M
Image quality................................................ 105
N
Temperature warning ................................326
O
Touch screen mode ..................... 21, 139, 175
P
White balance ..............................................109
Q
AWB lock ........................................................231
R
Film simulation ............................................106
S
F-Log recording ............................................ 161
T
Dynamic range ............................................113
U
D-range priority ...........................................114
V
Movie optimized control ..............................23
W
Sound and fl ash indicator ........................213
X
Virtual horizon .................................................18
Y
Boost mode ...................................................235
Z
Histogram .........................................................18
a
Distance indicator
b
1 Shows “9999” if there is space for over 9999 frames. 2 Not displayed when ON is selected for D SCREEN SET-UP> LARGE INDICATORS
MODE(EVF).
1
................... 327
2
........................................75
Power supply ....................................................34
c
Battery level ......................................................36
d
Sensitivity ..........................................................79
e
Exposure compensation ...............................77
f
Focus frame ...............................................69, 82
g
Aperture ............................................... 55, 59, 60
h
Time code ....................................................... 181
i
Shutter speed .....................................55, 56, 60
j
TTL lock ..................................................153, 257
k
AE lock ...................................................... 83, 231
l
Metering ............................................................81
m
Shooting mode ...............................................54
n
Focus mode
o
Focus indicator
p
Manual focus indicator
q
AF lock ...................................................... 83, 231
r
Mic jack setting ............................................179
s
Recording level
t
AF+MF indicator
u
Shutter type ................................................... 148
v
Continuous mode ...........................................89
w
Exposure indicator ................................... 60, 77
x
Self-timer indicator .....................................145
y
Microphone ......................................................49
z
Remote release ................................................58
0
Flash (TTL) mode .........................................271
1
IS mode
2
Flash compensation ................................... 271
3
2
....................................................65
2
..............................................66
2
.......................65, 73
2
........................................... 178
2
....................................... 135
2
......................................................... 150
1
Before You Begin
11
Page 36

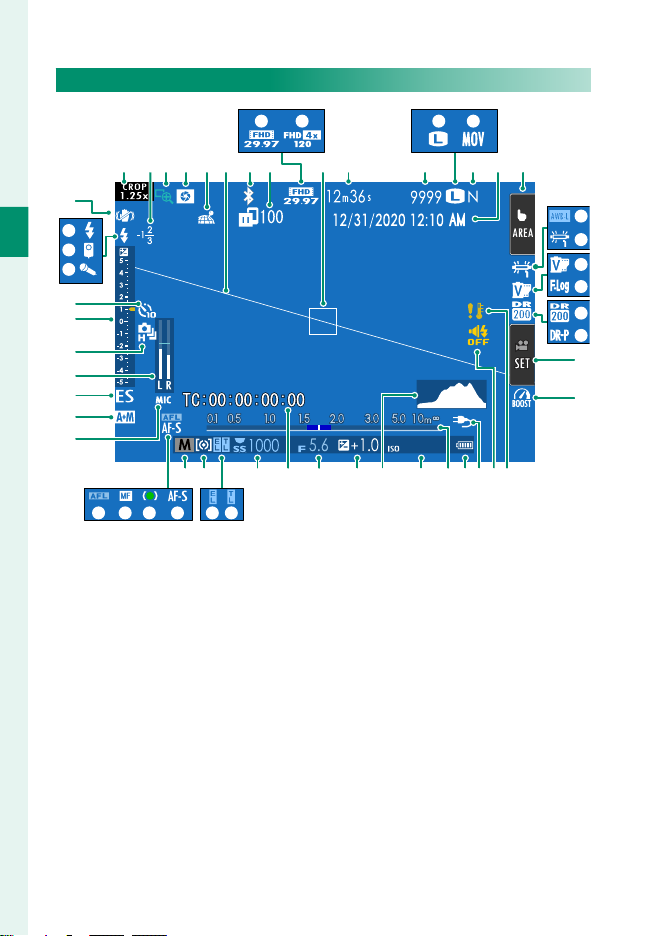

The LCD Monitor

I J N O
A BC E F G H K L M P Q R
3
2
1
1
Before You Begin
0
z
y
x w
v u t
D
S T
U V
W X
Y
Z
12800
abde cfghijkno
lmpqrs
12
Page 37
Camera Displays
Crop factor ..................................................... 144
A
Flash compensation ................................... 271
B
Focus check ............................................76, 136
C
Depth-of-fi eld preview ........................... 59, 75
D
Location data download status ..... 244, 282
E
Virtual horizon .................................................18
F
Bluetooth ON/OFF ....................................... 239
G
Image transfer status ........................239, 282
H
Movie mode ........................................... 48, 158
I
Full HD high-speed recording .................. 160
J
Focus frame ...............................................69, 82
K
Recording time available/
L
elapsed recording time ..............................48
Number of available frames
M
Image size ...................................................... 104
N
File format ...................................................... 159
O
Image quality................................................ 105
P
Date and time ..................................37, 39, 211
Q
Touch screen mode
R
AWB lock ........................................................231
S
White balance ..............................................109
T
Film simulation ............................................106
U
F-Log recording ............................................ 161
V
Dynamic range ............................................113
W
D-range priority ...........................................114
X
Movie optimized control ..............................23
Y
Boost mode ...................................................235
Z
Temperature warning ................................326
a
Sound and fl ash indicator ........................213
b
1 Shows “9999” if there is space for over 9999 frames. 2 Not displayed when ON is selected for D SCREEN SET-UP> LARGE INDICATORS
MODE(LCD). 3 Camera functions can also be accessed via touch controls.
1
................... 327
3
...................21, 139, 175
Power supply ....................................................34
c
Battery level ......................................................36
d
Distance indicator
e
Sensitivity ..........................................................79
f
Histogram .........................................................18
g
Exposure compensation ...............................77
h
Aperture ............................................... 55, 59, 60
i
Time code ....................................................... 181
j
Shutter speed .....................................55, 56, 60
k
TTL lock ..................................................153, 257
l
AE lock ...................................................... 83, 231
m
Metering ............................................................81
n
Shooting mode ...............................................54
o
Focus mode
p
Focus indicator
q
Manual focus indicator
r
AF lock ...................................................... 83, 231
s
Mic jack setting ............................................179
t
AF+MF indicator
u
Shutter type ................................................... 148
v
Recording level
w
Continuous mode ...........................................89
x
Exposure indicator ................................... 60, 77
y
Self-timer indicator .....................................145
z
Microphone ......................................................49
0
Remote release ................................................58
1
Flash (TTL) mode .........................................271
2
IS mode
3
2
........................................75
2
....................................................65
2
..............................................66
2
.......................65, 73
2
....................................... 135
2
........................................... 178
2
......................................................... 150
1
Before You Begin
13
Page 38

Adjusting Display Brightness

Option
Description
EE EYE SENSOR
LCD ONLY EVF ONLY
EVF ONLY +
The brightness and saturation of the view nder and LCD monitor can be adjusted using the items in the D SCREEN SET-UP menu. Choose EVF BRIGHTNESS or EVF COLOR to adjust view nder brightness or saturation, LCD BRIGHTNESS or LCD COLOR to do the same for the LCD monitor.
1

Display Rotation

Before You Begin
When ON is selected for D SCREEN SET-UP> AUTOROTATE DISPLAYS, the indicators in the view nder and LCD monitor au­tomatically rotate to match camera orientation.

Choosing a Display Mode

Press the VIEW MODE button to cycle through the following display modes. You can choose separate display modes for shooting and playback.
SHOOTING
Option
Putting your eye to the viewfi nder turns the viewfi nder
EYE SENSOR
LCD ONLY LCD monitor on, viewfi nder off . EVF ONLY Viewfi nder on, LCD monitor off .
EVF ONLY + EE
on and the LCD monitor off ; taking your eye away turns the viewfi nder off and LCD monitor on.
Putting your eye to the viewfi nder turns the viewfi nder on; taking it away turns the viewfi nder off . The LCD mon­itor remains off .
14
Description
Page 39

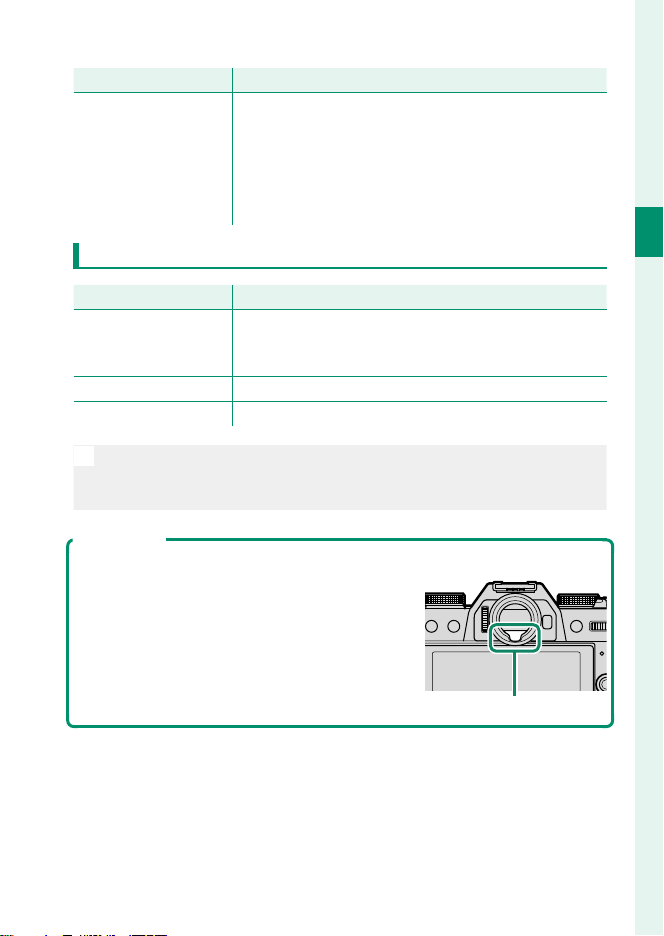

Camera Displays
Option
Description
EE EYE SENSOR +
LCDIMAGE DISP.
Option
Description
EE EYE SENSOR
LCD ONLY EVF ONLY
Option
EYE SENSOR +
LCDIMAGE DISP.
Putting your eye to the viewfi nder during shooting turns the viewfi nder on, but the LCD monitor is used for the display of images once you remove your eye from the viewfi nder after shooting. The options selected for D SCREEN SET-UP> IMAGE DISP. apply to display in the LCD monitor.
Description
PLAYBACK
Option
Putting your eye to the viewfi nder turns the viewfi nder
EYE SENSOR
LCD ONLY LCD monitor on, viewfi nder off . EVF ONLY Viewfi nder on, LCD monitor off .
Displays modes for the EVF and LCD monitor can also be selected us-
N
ing D SCREEN SET-UP> VIEW MODE SETTING in the setup menu (P 217).
The Eye Sensor
The eye sensor may respond to objects other than your eye or to light shining directly on the sensor.
on and the LCD monitor off ; taking your eye away turns the viewfi nder off and LCD monitor on.
Description
1
Before You Begin
Eye sensor
15
Page 40

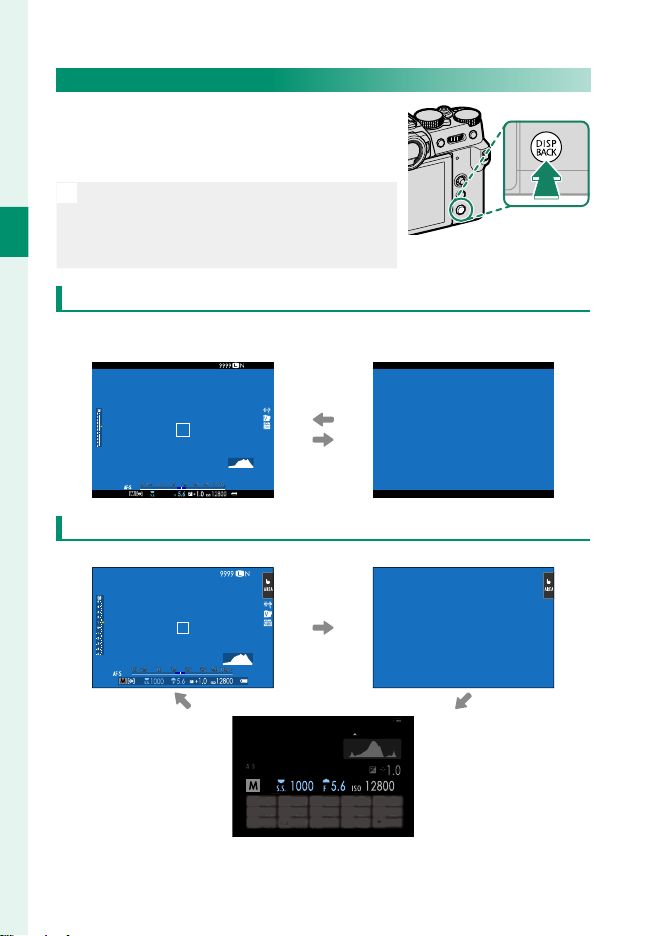

The DISP/BACK Button

The DISP/BACK button controls the display of indicators in the view nder and LCD monitor.
Indicators for the EVF and LCD must be
N
selected separately. To choose the EVF dis-
1
Before You Begin
play, place your eye to the view nder while using the DISP/BACK button.
Viewfi nder (EVF)
Standard indicators
1000
LCD Monitor
Standard indicators No indicators
Full screen
(no indicators)
16
Info display (still photography only)
Page 41
Camera Displays
Item
Default
Item
Default

Customizing the Standard Display

To choose the items shown in the standard indicator display:
Display standard indicators.
1
Use the DISP/BACK button to display standard indicators.
Select DISP. CUSTOM SETTING.
2
Select D SCREEN SET-UP> DISP. CUSTOM SETTING in the setup menu.
Choose items.
3
Highlight items and press MENU/OK to select or deselect.
Item
FRAMING GUIDELINE ELECTRONIC LEVEL FOCUS FRAME AF DISTANCE INDICATOR MF DISTANCE INDICATOR HISTOGRAM LIVE VIEW HIGHLIGHT ALERT SHOOTING MODE APERTURE/S-SPEED/ISO INFORMATION BACKGROUND Expo. Comp. (Digit) Expo. Comp. (Scale) FOCUS MODE PHOTOMETRY SHUTTER TYPE FLASH
Default
R R
R
R
R
R R
R R R
R
R R R R R
Item
CONTINUOUS MODE DUAL IS MODE TOUCH SCREEN MODE WHITE BALANCE FILM SIMULATION DYNAMIC RANGE BOOST MODE FRAMES REMAINING IMAGE SIZE/QUALITY MOVIE MODE & REC. TIME IMAGE TRANSFER ORDER MIC LEVEL GUIDANCE MESSAGE BATTERY LEVEL FRAMING OUTLINE
Default
1
Before You Begin
R R R R R R R R R R R R R R
R
Press DISP/BACK to save changes.
4
Press DISP/BACK as needed to exit the menus and return to the
5
shooting display.
17
Page 42

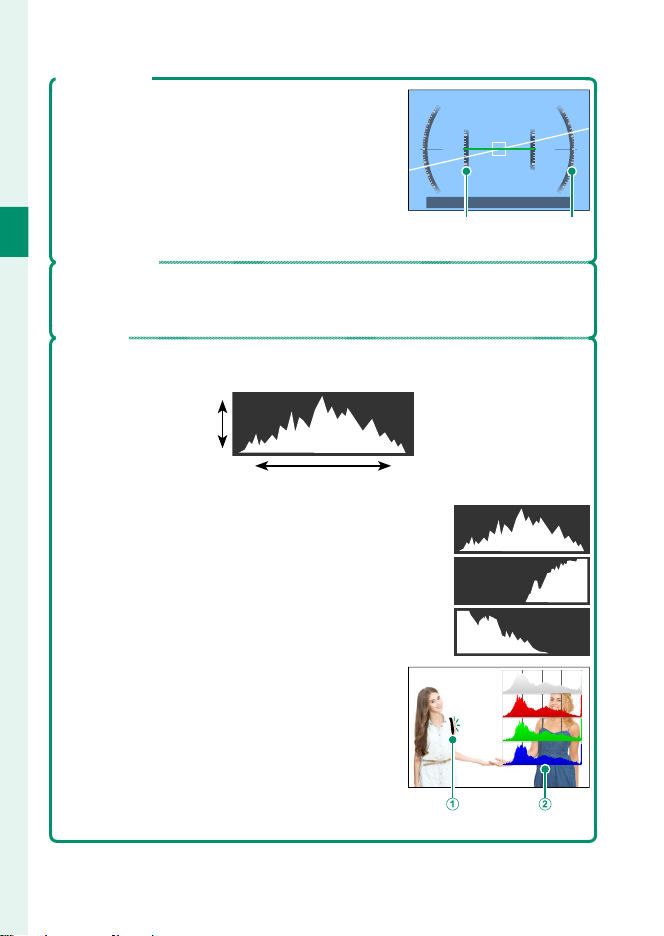

Camera Displays
Virtual Horizon
Selecting ELECTRONIC LEVEL displays a virtu- al horizon. The camera is level when the two lines overlap. Note that the virtual horizon may not be displayed if the camera lens is pointed up or down. For a 3D display (shown), press the function button to which ELECTRONIC LEVEL is assigned (P 255).
1
Before You Begin
Framing Outline
Enable FRAMING OUTLINE to make the borders of the frame easier to see against dark backgrounds.
Histograms
Histograms show the distribution of tones in the image. Brightness is shown by the horizontal axis, the number of pixels by the vertical axis.
Number of pixels
Pitch Roll
Shadows Highlights
Optimal exposure: Pixels are distributed in an even curve
•
throughout the tone range.
Overexposed: Pixels are clustered on the right side of
•
the graph.
Underexposed: Pixels are clustered on the left side of
•
the graph.
To view separate RGB histograms and a dis­play showing areas of the frame that will be overexposed at current settings superimposed on the view through the lens, press the func­tion button to which HISTOGRAM is assigned (P 255).
Overexposed areas blink
A
RGB histograms
B
Pixel brightness
18
Page 43

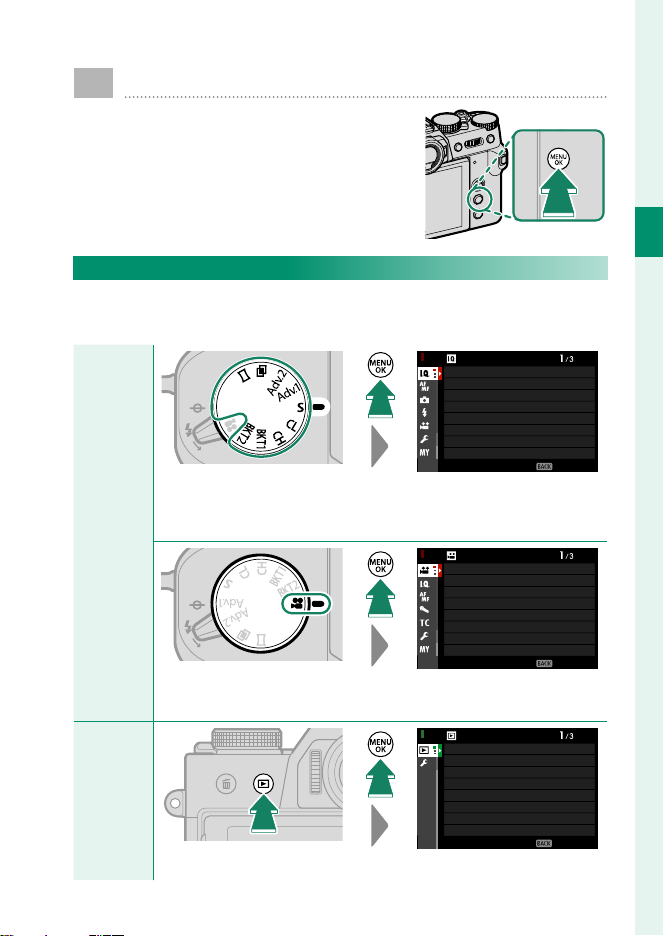

Using the Menus

Shooting
Playback
To display the menus, press MENU/OK.

The Menus

Di erent menus are displayed during still photography, movie recording, and playback.
IMAGE QUALITY SETTING
IMAGE SIZE IMAGE QUALITY RAW RECORDING FILM SIMULATION MONOCHROMATIC COLOR GRAIN EFFECT COLOR CHROME EFFECT
Shooting
Playback
Still photography: Drive
dial rotated to position
other than F (movie)
Movie recording: Drive dial
rotated to F (movie)
During playback
COLOR CHROME FX BLUE
MOVIE SETTING
MOVIE MODE FILE FORMAT FULL HD HIGH SPEED REC FIX MOVIE CROP MAGNIFICATION F-Log RECORDING 4K MOVIE OUTPUT FULL HD MOVIE OUTPUT HDMI OUTPUT INFO DISPLAY
PLAY BACK MENU
RAW CONVERSION ERASE CROP RESIZE PROTECT IMAGE ROTATE RED EYE REMOVAL VOICE MEMO SETTING
EXIT
EXIT
EXIT
1
Before You Begin
19
Page 44

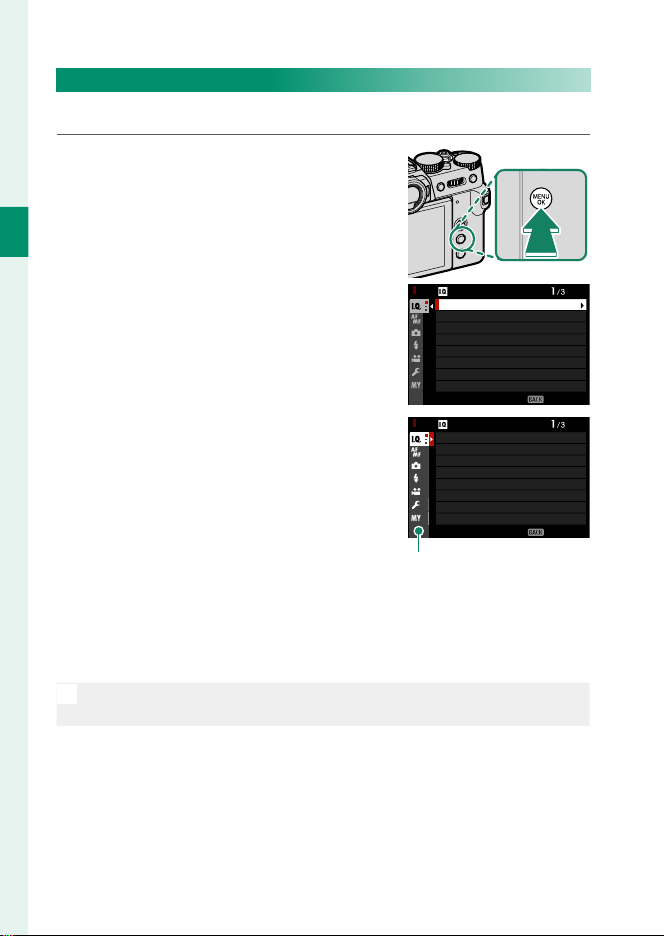

Selecting a Menu Tab

To navigate the menus:
Press MENU/OK to display the menus.
1
1
Before You Begin
Press the focus stick (focus lever)
2
left to highlight the tab for the cur­rent menu.
Press the focus stick up or down to highlight the tab contain-
3
ing the desired item.
IMAGE QUALITY SETTING
IMAGE SIZE
IMAGE QUALITY RAW RECORDING FILM SIMULATION MONOCHROMATIC COLOR GRAIN EFFECT COLOR CHROME EFFECT COLOR CHROME FX BLUE
IMAGE QUALITY SETTING
IMAGE SIZE IMAGE QUALITY RAW RECORDING FILM SIMULATION MONOCHROMATIC COLOR GRAIN EFFECT COLOR CHROME EFFECT COLOR CHROME FX BLUE
Ta b
Using the Menus
EXIT
EXIT
Press the focus stick right to place the cursor in the menu.
4
Use the front command dial to select menu tabs or page through
N
menus and the rear command dial to highlight menu items.
20
Page 45

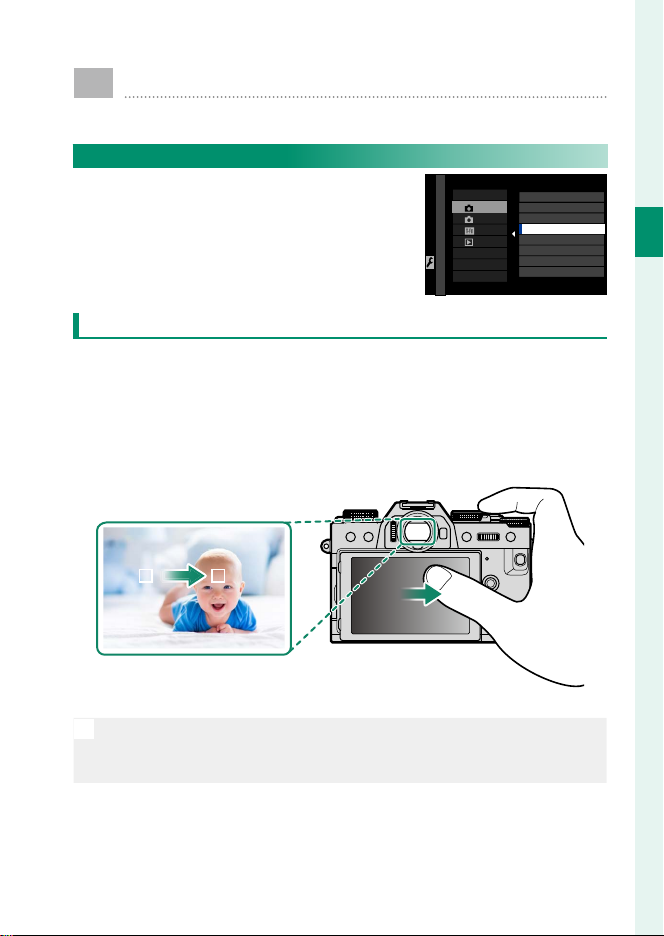

Touch Screen Mode

The LCD monitor also functions as a touch screen.

Shooting Touch Controls

To enable touch controls, select ON for
D BUTTON/DIAL SETTING> TOUCH SCREEN SETTING> x TOUCH SCREEN SETTING.
EVF
The LCD monitor can be used to select the focus area while pic­tures are being framed in the electronic view nder (EVF). Use
D BUTTON/DIAL SETTING> TOUCH SCREEN SETTING> EVF TOUCH SCREEN AREA SETTINGS to choose the area of the mon-
itor employed for touch controls.
TOUCH SCREEN SETTINGS
TOUCH SCREEN SETTING
DOUBLE TAP SETTING
ON
TOUCH FUNCTION
OFF
TOUCH SCREEN SETTING
EVF TOUCH SCREEN AREA SETTINGS
1
Before You Begin
When FACE DETECTION ON is selected for G AF/MF SETTING>
N
FACE/EYE DETECTION SETTING, you can choose the face used for focus.
21
Page 46

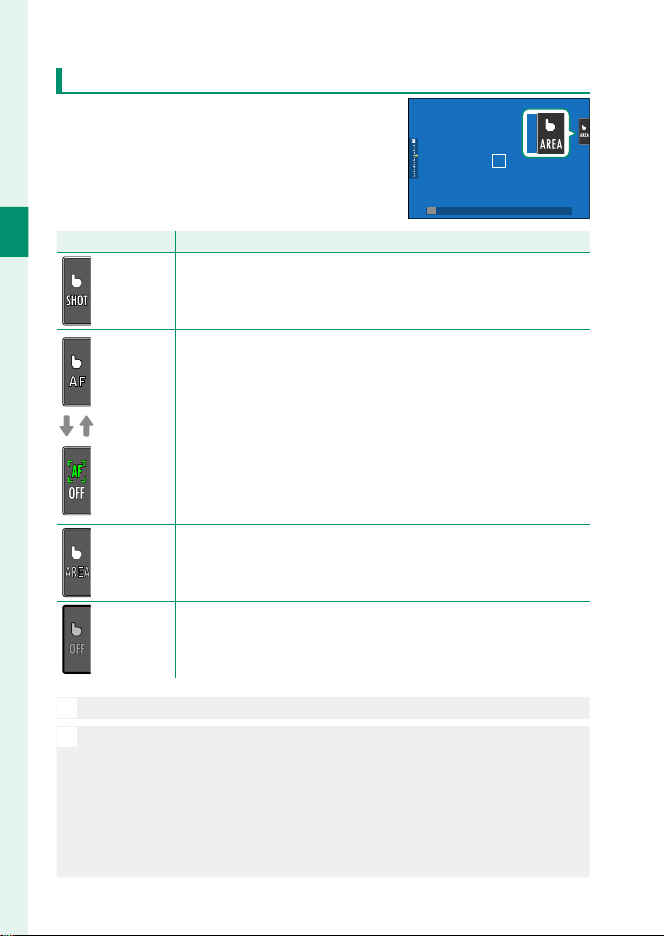

LCD Monitor
Mode
Description
TOUCH SHOOTING
AREA
OFF
The operation performed can be selected by tapping the touch screen mode indica­tor in the display. Touch controls can be used for the following operations:
1
Before You Begin
Mode
TOUCH SHOOTING
AF
AFOFF
AREA
OFF
Di erent touch controls are used during focus zoom (P 140).
O
To disable touch controls and hide the touch screen mode indica-
•
N
tor, select OFF for DBUTTON/DIAL SETTING> TOUCH SCREEN SETTING> x TOUCH SCREEN SETTING.
Touch control settings can be adjusted using G AF/MF SETTING>
•
xF TOUCH SCREEN MODE. For information on the touch controls available during movie recording, see “Movie Recording (xF TOUCH SCREEN MODE; P 175)”.
Tap your subject in the display to focus and release the shutter. In burst mode, pictures will be taken while you keep your fi nger on the display.
In focus mode S (AF-S), the camera focuses when you tap your
•
subject in the display. Focus locks at the current distance until you tap the AFOFF icon. In focus mode C (AF-C), the camera initiates focus when you
•
tap your subject display. The camera will continue to adjust focus for changes in the distance to the subject until you tap the AFOFF icon. In manual focus mode (MF), you can tap the display to focus
•
on the selected subject using autofocus.
Tap to select a point for focus or zoom. The focus frame will move to the selected point.
Touch controls disabled.
Description
22
Page 47

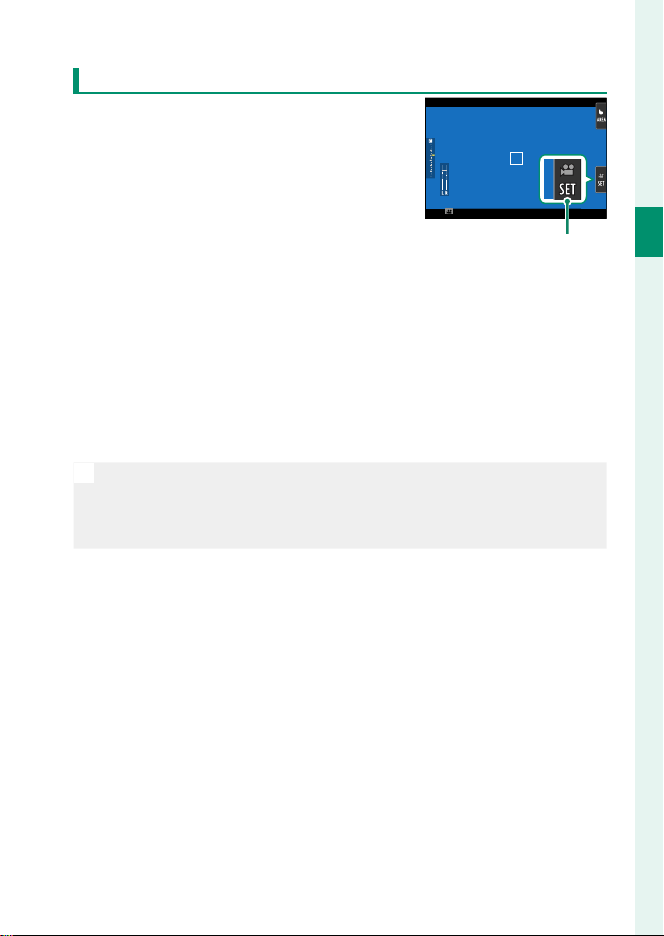

Touch Screen Mode
MOVIE OPTIMIZED CONTROL oL
Selecting ON for B MOVIE SETTING> MOVIE OPTIMIZED CONTROLoL or
tapping the movie-optimized mode but­ton in the shooting display optimizes the command dials and touch controls for movie recording. This can be used to pre­vent camera sounds being recorded with movie footage.
SHUTTER SPEED
•
APERTURE
•
EXPOSURE COMPENSATION
•
ISO
•
INTERNAL MIC LEVEL
•
ADJUSTMENT/EXTERNAL MIC LEVEL ADJUSTMENT
Enabling movie-optimized controls disables the aperture ring.
•
N
When movie-optimized control is enabled, the movie-optimized
•
mode button can be used to change shooting settings or disable movie-optimized control.
WIND FILTER
•
HEADPHONES VOLUME
•
F FILM SIMULATION
•
F WHITE BALANCE
•
Movie-optimized
mode button
1
Before You Begin
23
Page 48
Touch Function
Functions can be assigned to the follow­ing  ick gestures in much the same way as function buttons (P 258):
Flick up: T-Fn 1
•
Flick left: T-Fn 2
•
Flick right: T-Fn 3
•
1
Flick down: T-Fn4
•
Before You Begin
In some cases, touch-function  ick ges-
•
N
tures display a menu; tap to select the desired option. Touch-function gestures are disabled by
•
default. To enable touch-function ges­tures, select ON for DBUTTON/DIAL SETTING> TOUCH SCREEN SETTING> c TOUCH FUNCTION.
INTERNAL MIC LEVEL ADJUSTMENT
SET CANCEL
24
Page 49
Touch Screen Mode

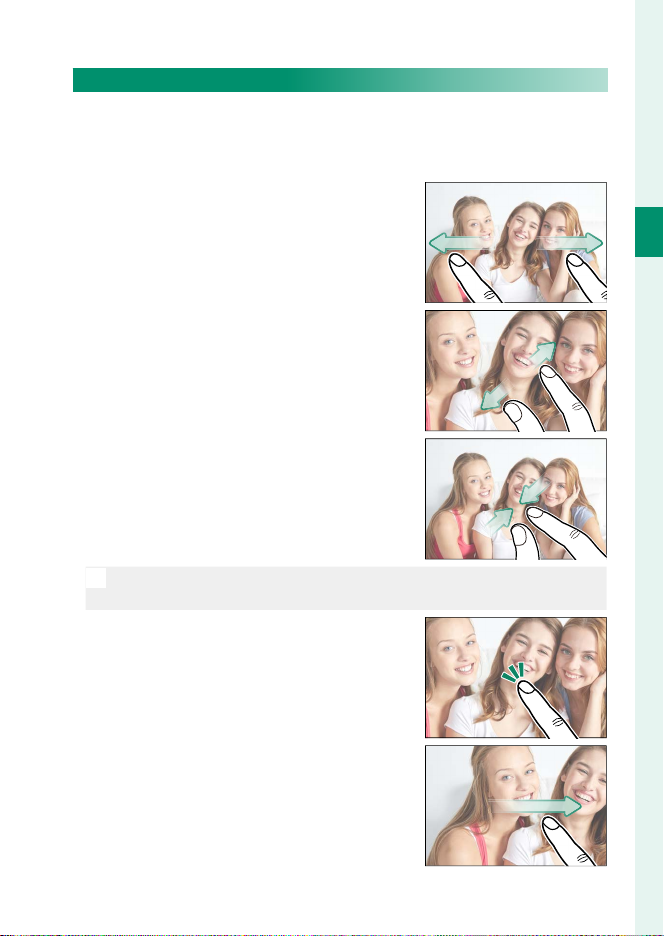

Playback Touch Controls

When ON is selected for D BUTTON/DIAL SET TING > TOUCH SCREEN SETTING> a TOUCH SCREEN SETTING, touch controls
can be used for the following playback operations:
Swipe: Swipe a  nger across the display
•
to view other images.
Pinch-out: Place two  ngers on the dis-
•
play and spread them apart to zoom in.
Pinch-in: Place two  ngers on the display
•
and slide them together to zoom out.
Pictures can be zoomed out until the entire image is visible but no
N
further.
Double-tap: Tap the display twice to zoom
•
in on the focus point.
1
Before You Begin
Drag: View other areas of the image
•
during playback zoom.
25
Page 50
MEMO
26
Page 51

First Steps

27
Page 52

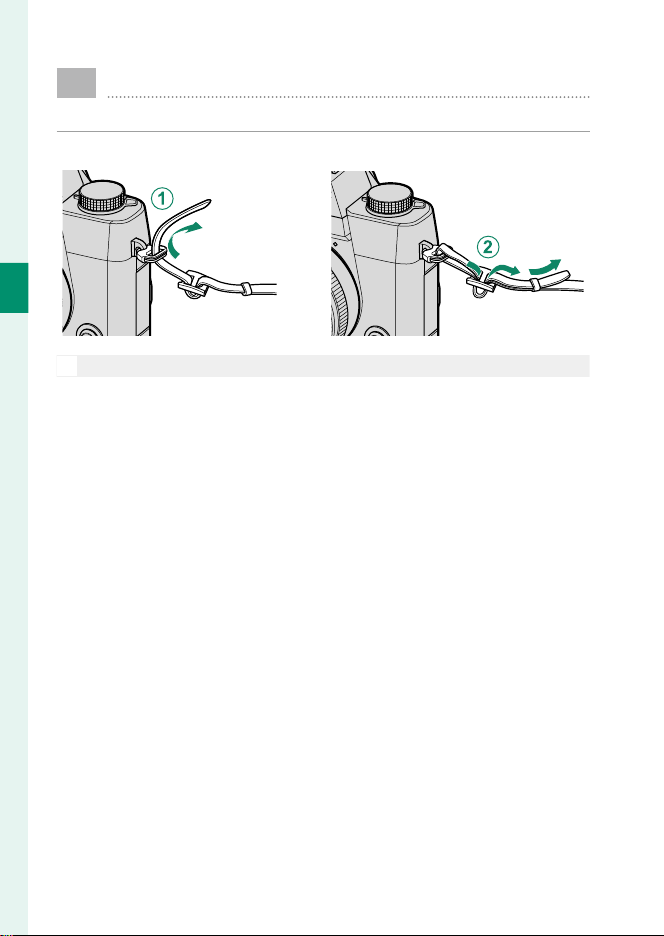

Attaching the Strap

Attach the strap.
Attach the strap to the two strap clips as shown below.
2
First Steps
To avoid dropping the camera, be sure the strap is correctly secured.
O
28
Page 53

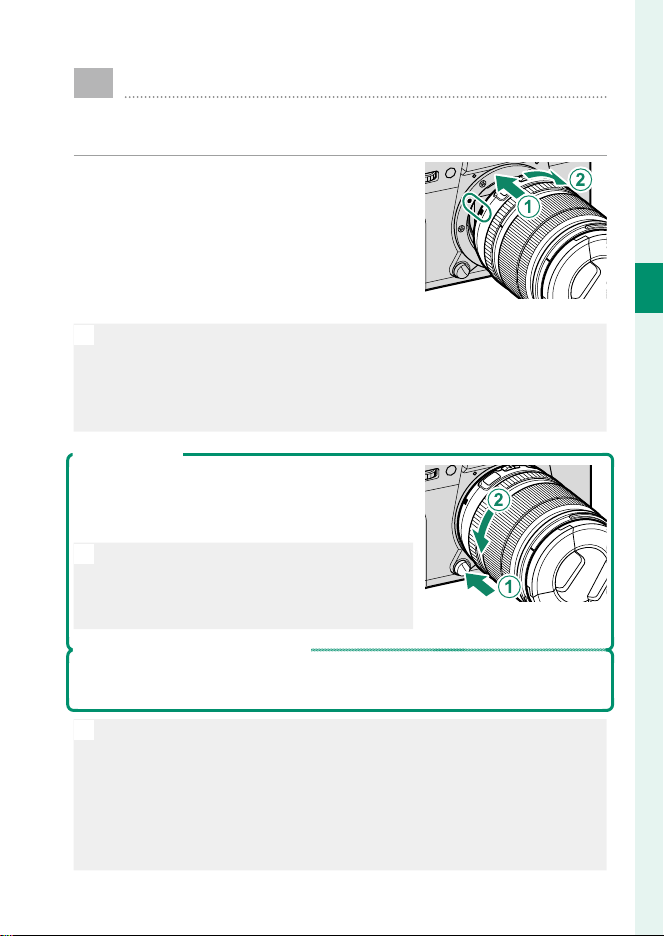

Attaching a Lens

The camera can be used with lenses for the FUJIFILM X-mount.
Remove the body cap from the camera and the rear cap from the lens. Place the lens on mount, keeping the marks on the lens and camera aligned ( and then rotate the lens until it clicks into place (B).
When attaching lenses, ensure that dust or other foreign matter does
•
O
not enter the camera. Be careful not to touch the camera’s internal parts.
•
Rotate the lens until it clicks securely into place.
•
Do not press the lens release button while attaching the lens.
•
Removing Lenses
To remove the lens, turn the camera o , then press the lens release button (A) and rotate the lens as shown (B).
To prevent dust accumulating on the lens
O
or inside the camera, replace the lens caps and camera body cap when the lens is not attached.
Lenses and Other Optional Accessories
The camera can be used with lenses and accessories for the FUJIFILM X-mount.
A
),
2
First Steps
Observe the following precautions when attaching or removing (ex-
O
changing) lenses.
Check that the lenses are free of dust and other foreign matter.
•
Do not change lenses in direct sunlight or under another bright light
•
source. Light focused into the interior of the camera could cause it to malfunction. Attach the lens caps before exchanging lenses.
•
29
Page 54
First Steps

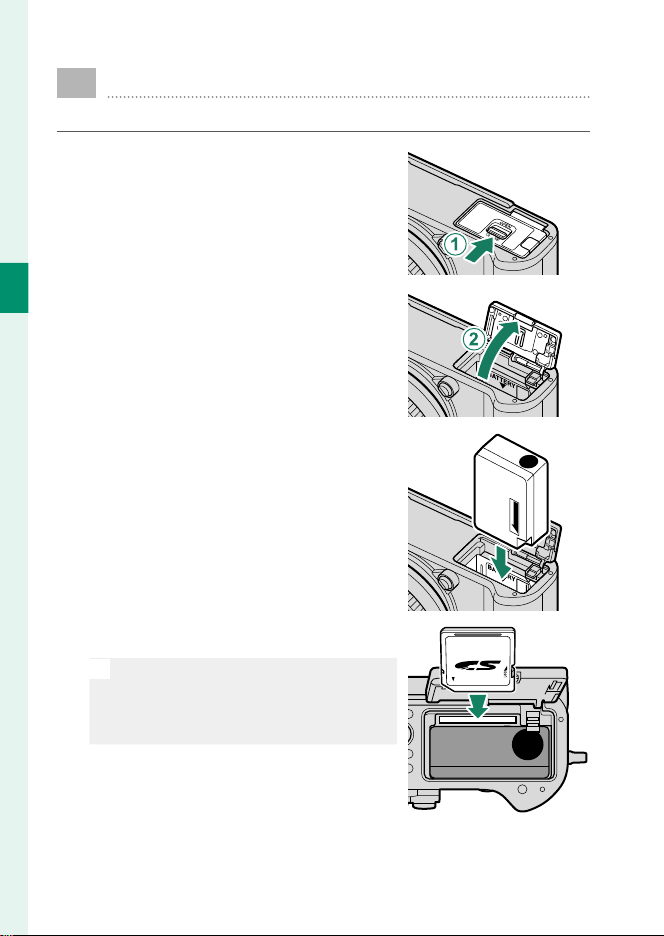

Inserting the Battery and a Memory Card

Insert the battery and memory card as described below.
Slide the battery-chamber latch as
1
shown and open the battery-chamber cover.
2
Insert the battery.
2
Using the battery to keep the bat­tery latch pressed to one side, in­sert the battery contacts  rst in the direction shown by the arrow.
Insert the memory card.
3
The optional SD, SDHC, and SDXC
N
memory cards the camera uses to store pictures are referred to as “mem­ory cards”.
Close the battery-chamber cover and slide the battery-cham-
4
ber cover latch closed.
30
Page 55
Inserting the Battery and a Memory Card

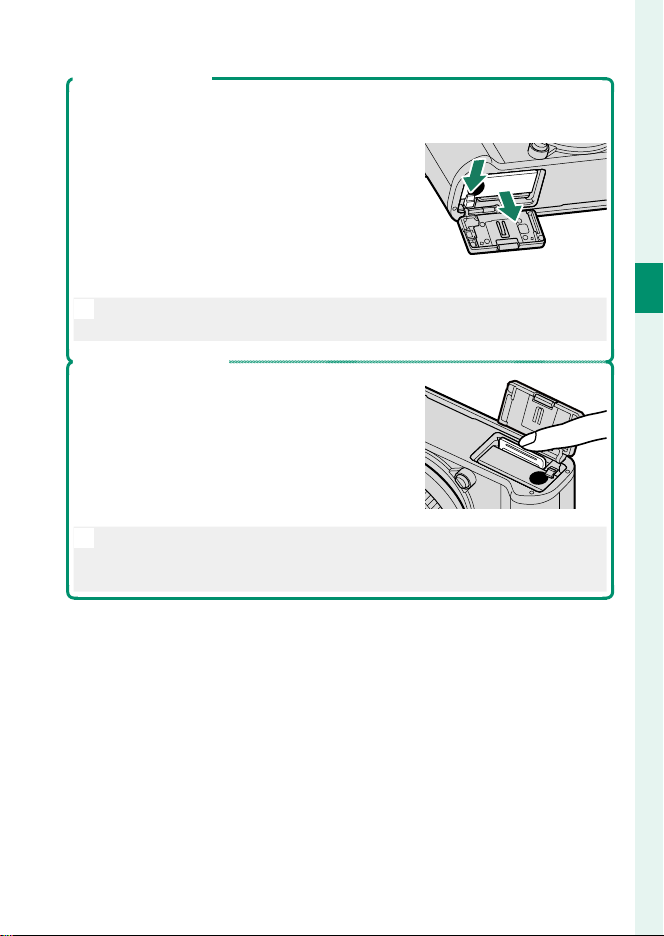

Removing the Battery
Before removing the battery or memory card, turn the camera o and open the battery-chamber cover.
To remove the battery, press the battery latch to the side, and slide the battery out of the camera as shown.
The battery may become hot when used in high-temperature environ-
O
ments. Observe caution when removing the battery.
Removing Memory Cards
To remove the memory card, press it in and re­lease it slowly. The card can then be removed by hand.
• Press the center of the card when ejecting it.
O
When a memory card is removed, the card could be ejected too
•
quickly. Use your  nger to hold it and gently release the card.
2
First Steps
31
Page 56
Inserting the Battery and a Memory Card

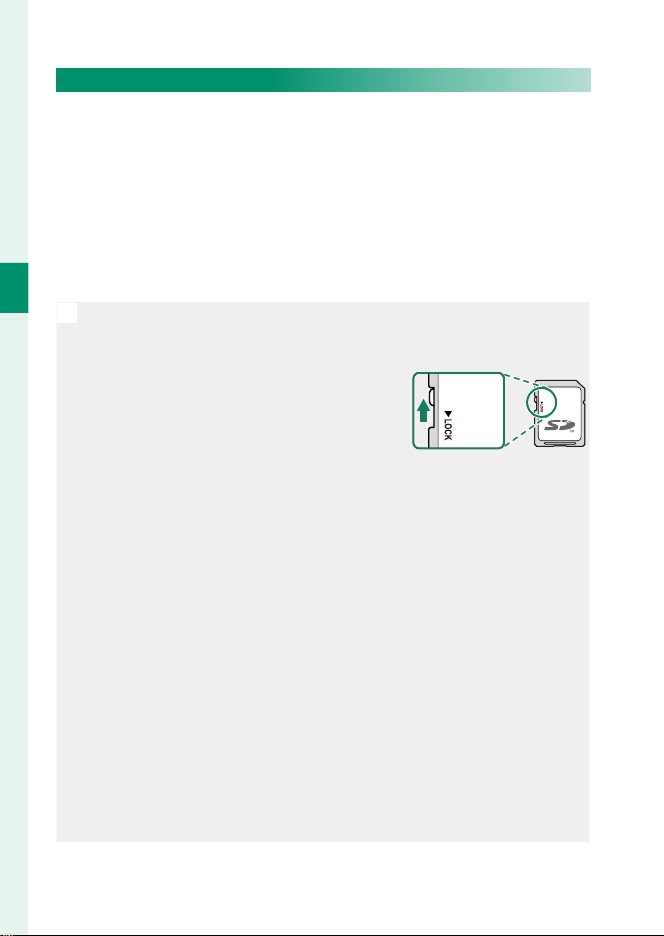

Compatible Memory Cards

The camera can be used with SD, SDHC, and SDXC memory
•
cards. The camera supports UHS-I memory cards.
•
To record movies, use cards with a UHS speed class of 3 or better
•
or a video speed class of V30 or better. A list of supported memory cards is available on the Fuji lm
•
website. For details, visit:
https://fujifilm-x.com/support/compatibility/cameras/
2
First Steps
• Do not turn the camera o or remove the memory card while the memo-
O
ry card is being formatted or data are being recorded to or deleted from the card. Failure to observe this precaution could damage the card.
Memory cards can be locked, making it
•
impossible to format the card or to record or delete images. Before inserting a mem­ory card, slide the write-protect switch to the unlocked position. Memory cards are small and can be swallowed; keep out of reach of
•
children. If a child swallows a memory card, seek medical assistance immediately. miniSD or microSD adapters that are larger or smaller than memory
•
cards may not eject normally; if the card does not eject, take the cam­era to an authorized service representative. Do not forcibly remove the card. Do not a x labels or other objects to memory cards. Peeling labels
•
can cause camera malfunction. Movie recording may be interrupted with some types of memory card.
•
Formatting a memory card in the camera creates a folder in which
•
pictures are stored. Do not rename or delete this folder or use a com­puter or other device to edit, delete, or rename image  les. Always use the camera to delete pictures; before editing or renaming  les, copy them to a computer and edit or rename the copies, not the originals. Renaming the  les on the camera can cause problems during playback.
.
32
Page 57

Charging the Battery

The battery is not charged at shipment. Charge the battery before use.
• An NP-W126S rechargeable battery is supplied with the camera.
O
Turn the camera o for charging.
•
The camera can be charged via USB. USB charging is available
•
with computers with a manufacturer-approved operating sys­tem and USB interface.
Leave the computer on during charging.
• The battery will not charge while the camera is on.
O

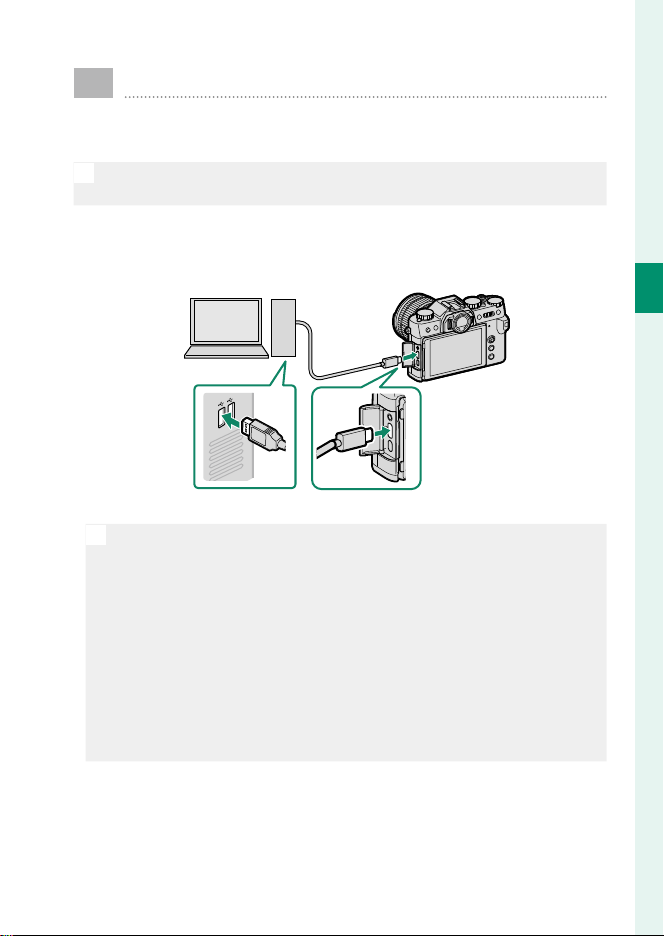

Connect the supplied USB cable.
•
Connect the camera directly to the computer; do not use a USB hub
•
or keyboard. Charging stops if the computer enters sleep mode. To resume
•
charging, activate the computer and disconnect and reconnect the USB cable. Charging may not be supported depending on the model of com-
•
puter, computer settings, and the computer’s current state. The battery takes about 5 hours to charge with a charging input of
•
5 V/500 mA.
2
First Steps
To charge the battery from a household AC power outlet, use a
•
BC-W126S battery charger (available separately).
33
Page 58
Charge Status
Indicator lamp
Battery status
The indicator lamp shows battery charge status as follows:
Charging the Battery
First Steps
Indicator lamp
On Battery charging. Off Charging complete.
Blinks Charging error.
Do not a x labels or other objects to the battery. Failure to observe
•
O
2
this precaution could make it impossible to remove the battery from the camera. Do not short the battery terminals. The battery could overheat.
•
Read the cautions in “The Battery and Power Supply”.
•
Use only genuine Fuji lm rechargeable batteries designated for use
•
in this camera. Failure to observe this precaution could result in prod­uct malfunction. Do not remove the labels from the battery or attempt to split or peel
•
the outer casing. The battery gradually loses its charge when not in use. Charge the
•
battery one or two days before use. If the battery fails to hold a charge, it has reached the end of its
•
charging life and must be replaced. Remove dirt from the battery terminals with a clean, dry cloth. Failure
•
to observe this precaution could prevent the battery from charging. Note that charging times increase at low or high temperatures.
•
If the camera is turned on during charging,
•
N
charging will end and the USB connection will instead be used to power the camera. The battery level will begin to gradually decline (P 243). The camera will display a “power supply” icon when powered via USB.
•
Battery status
34
Page 59
Turning the Camera On and O
Use the ON/OFF switch to turn the camera on and o .
Slide the switch to ON to turn the camera on, or to OFF to turn the camera o .
Fingerprints and other marks on the lens or view nder can a ect pic-
O
tures or the view through the view nder. Keep the lens and view nder clean.
Pressing the a button during shooting starts playback.
•
N
Press the shutter button halfway to return to shooting mode.
•
The camera will turn o automatically if no operations are performed
•
for the length of time selected for D POWER MANAGEMENT> AUTO POWER OFF. To reactivate the camera after it has turned o automatically, press the shutter button halfway or turn the ON/OFF switch to OFF and then back to ON.
2
First Steps
35
Page 60

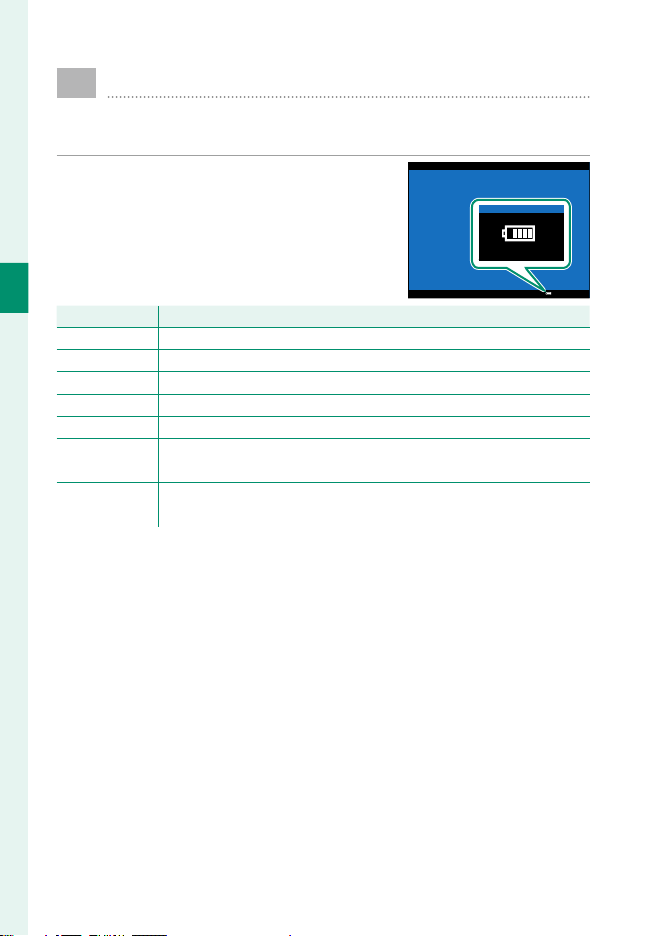

Checking the Battery Level

Indicator
Description
After turning the camera on, check the battery level in the display.
Battery level is shown as follows:
2
First Steps
Indicator
e f g h i i
(red)
j
(blinks red)
Battery partially discharged. Battery about 80% full. Battery about 60% full. Battery about 40% full. Battery about 20% full.
Low battery. Charge as soon as possible.
Battery exhausted. Turn camera off and recharge battery.
Description
36
Page 61

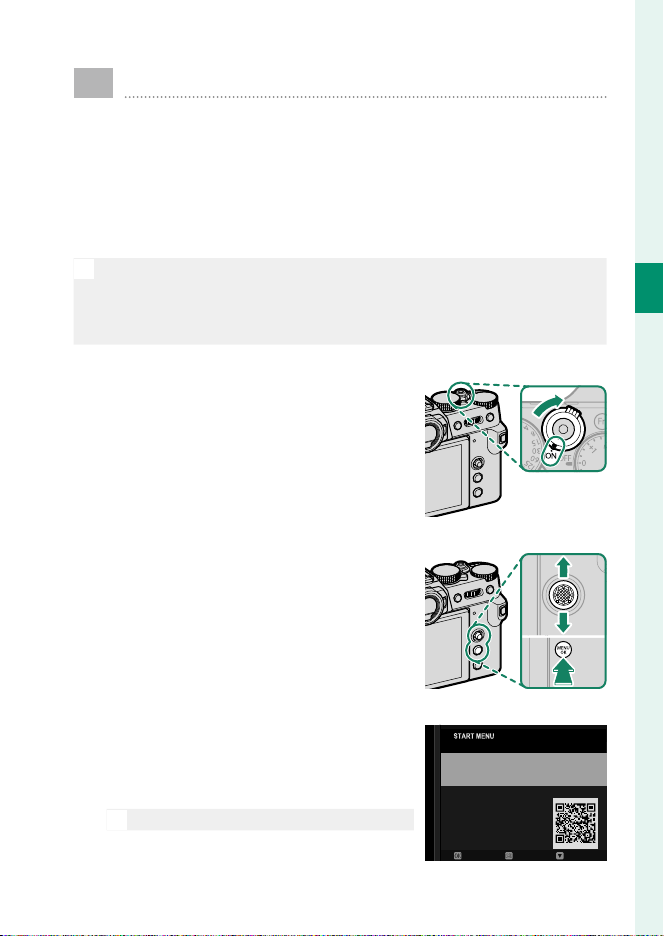

Basic Setup

When you turn the camera on for the  rst time, you can choose a language and set the camera clock. At default settings, you can also pair the camera with a smartphone or tablet so that you can later synchronize the clocks or download pictures. Follow the steps below when turning the camera on for the  rst time.
If you intend to pair the camera with a smartphone or tablet, install and
N
launch the latest version of the FUJIFILM Camera Remote App on the smart device before proceeding. For more information, visit:
http://app.fujifilm-dsc.com/en/camera_remote/
Turn the camera on.
1
A language-selection dialog will be displayed.
Choose a language.
2
Highlight a language and press
MENU/OK.
2
First Steps
Pair the camera with the smartphone or tablet.
3
Press MENU/OK to pair the camera with a smartphone or tablet running the FUJIFILM Camera Remote app.
To skip pairing, press DISP/BACK.
N
PAIRING REGISTRATION
PAIR WITH SMARTPHONE?
IMAGES CAN BE EASILY TRANSFERRED TO SMARTPHONE BY PAIRING
SCAN QR CODE OR SEARCH FOR "FUJIFILM Camera Remote" APP ON THE WEB
SKIP HELPSET
37
Page 62

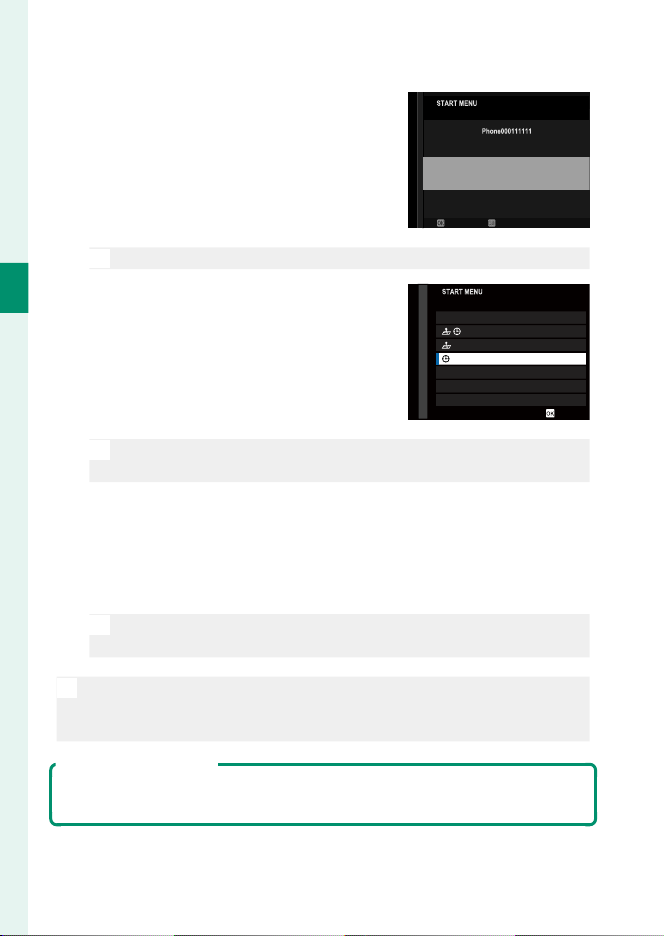

First Steps
Check the time.
4
When pairing is complete, you will be prompted to set the camera clock to the time reported by the smartphone or tablet. Check that the time is cor-
PAIRING REGISTRATION
PAIRING COMPLETE
12/31/2020 12:10 AM
SET DATE/TIME FROM SMARTPHONE?
rect.
CANCELSET
To set the clock manually, press DISP/BACK (P 39).
N
2
Synchronize the camera settings with
5
the settings confi gured on your smart­phone or tablet.
The option selected can be changed at any time using
N
SMARTPHONE SYNC. SETTING
LOCATION&TIME
LOCATION
TIME
OFF
SET
D CONNECTION SETTING> Bluetooth SETTINGS.
Set the clock.
6
Press MENU/OK to set the camera clock to the time reported by the smartphone or tablet and exit to shooting mode.
Format the memory card (P 210).
7
Format memory cards before  rst use, and be sure to reformat all
O
memory cards after using them in a computer or other device.
If the battery is removed for an extended period, the camera clock will
N
be reset and the language-selection dialog will be displayed when the camera is turned on.
Skipping the Current Step
If you skip a step, a con rmation dialog will be displayed; select NO to avoid repeating any steps you skipped the next time the camera is turned on.
38
Page 63
Choosing a Di erent Language
To change the language:
Display language options.
1
Select D USER SETTING> Qa.
Choose a language.
2
Highlight the desired option and press MENU/OK.
Basic Setup

Changing the Time and Date

To set the camera clock:
Display DATE/TIME options.
1
Select D USER SETTING> DATE/TIME.
Set the clock.
2
Press the focus stick (focus lever) left or right to highlight the year, month, day, hour, or minute and press up or down to change. Press MENU/OK to set the clock.
2
First Steps
39
Page 64
MEMO
40
Page 65
Basic Photography and
Playback
41
Page 66
3
Basic Photography and Playback

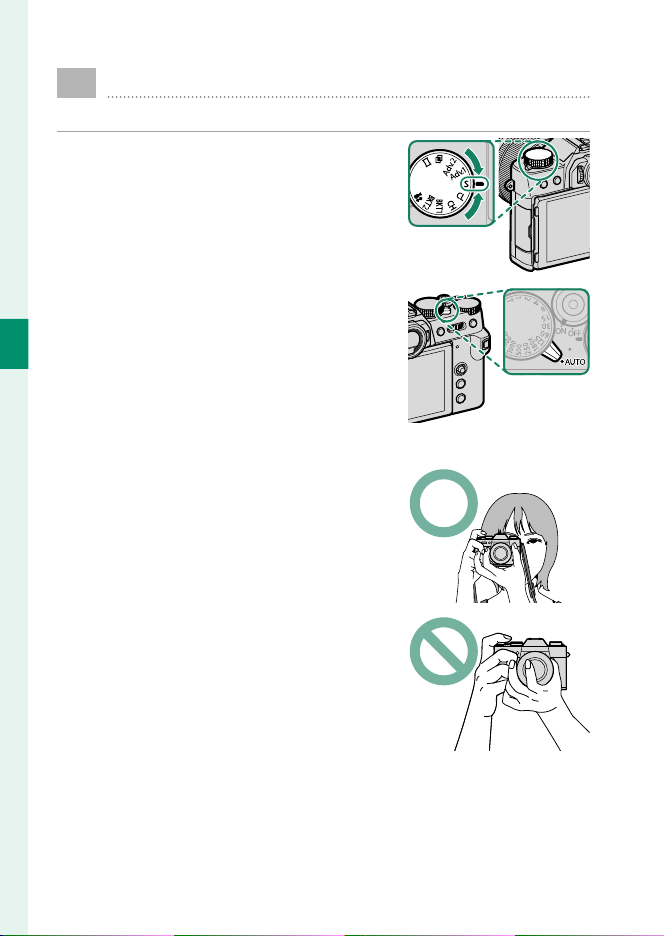

Taking Photographs

This section explains basic photography.
Rotate the drive dial to S (single
1
frame).
Rotate the auto mode selector
2
lever to w.
Ready the camera.
3
Hold the camera steady with both
•
hands—shaking or unsteady hands can blur your shots.
To prevent pictures that are out of
•
focus or too dark (underexposed), keep your  ngers and other objects away from the lens and AF-assist il­luminator.
42
Page 67

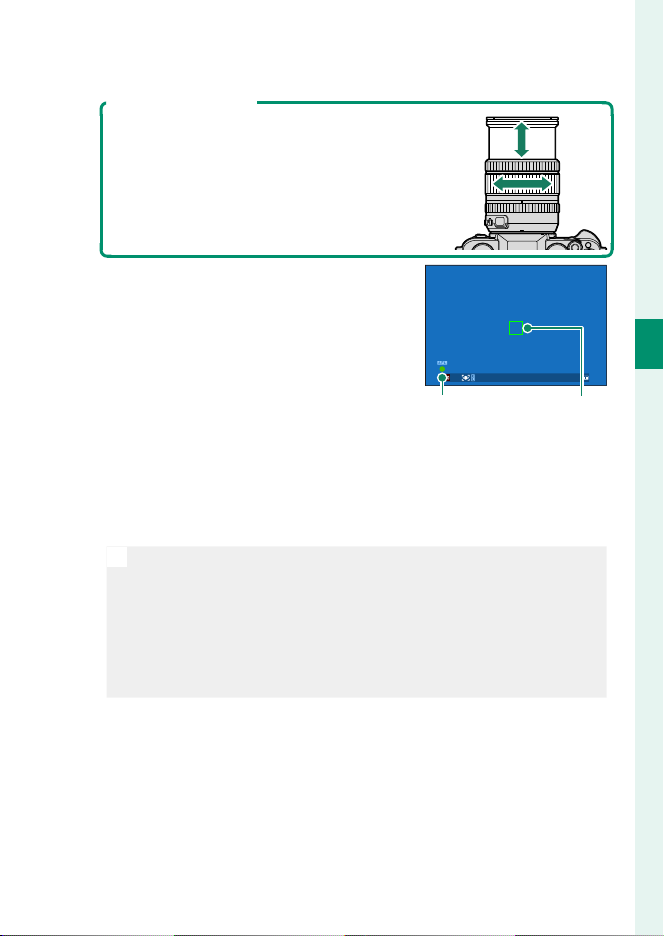

Frame the picture.
4
Lenses with Zoom Rings
Use the zoom ring to frame the picture in the display. Rotate the ring left to zoom out, right to zoom in.
Press the shutter button halfway to
5
set focus and exposure.
Taking Photographs
3
Basic Photography and Playback
Focus indicator
If the camera is able to focus, it will beep twice and focus frame
•
and focus indicator will glow green. If the camera is unable to focus, the focus frame will turn red, s
•
will be displayed, and the focus indicator will blink white.
If the subject is poorly lit, the AF-assist illuminator may light to
•
N
assist the focus operation. Focus and exposure will lock when the shutter button is pressed
•
halfway. Focus and exposure remain locked while the button is kept in this position (AF/AE lock). The camera will focus on subjects at any distance in the macro
•
and standard focus ranges for the lens.
Smoothly press the shutter button the rest of the way down
6
to take the picture.
Focus
frame
43
Page 68

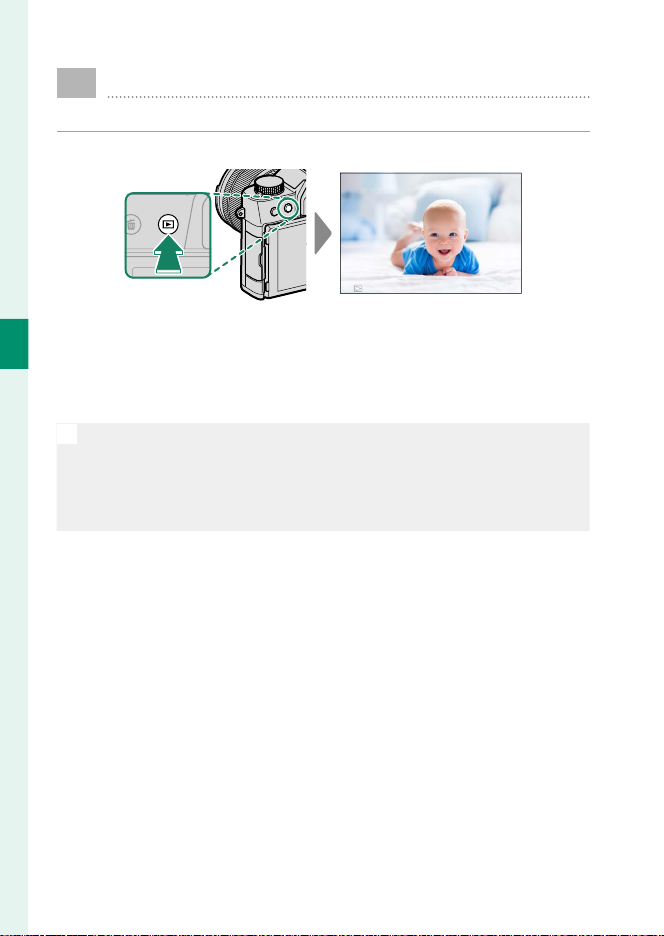

Viewing Pictures

Pictures can be viewed in the view nder or LCD monitor.
To view pictures full frame, press a.
100-0001
Press the focus stick (focus lever) left to page through pictures in
3
reverse order. Press it right to page through pictures in the order
Basic Photography and Playback
recorded. Keep the stick pressed to scroll rapidly to the desired frame.
• You can also page through pictures using the front command dial or
N
swipe gestures. Pictures taken using other cameras are marked with a m (“gift im-
•
age”) icon to warn that they may not display correctly and that play­back zoom may not be available.
44
Page 69

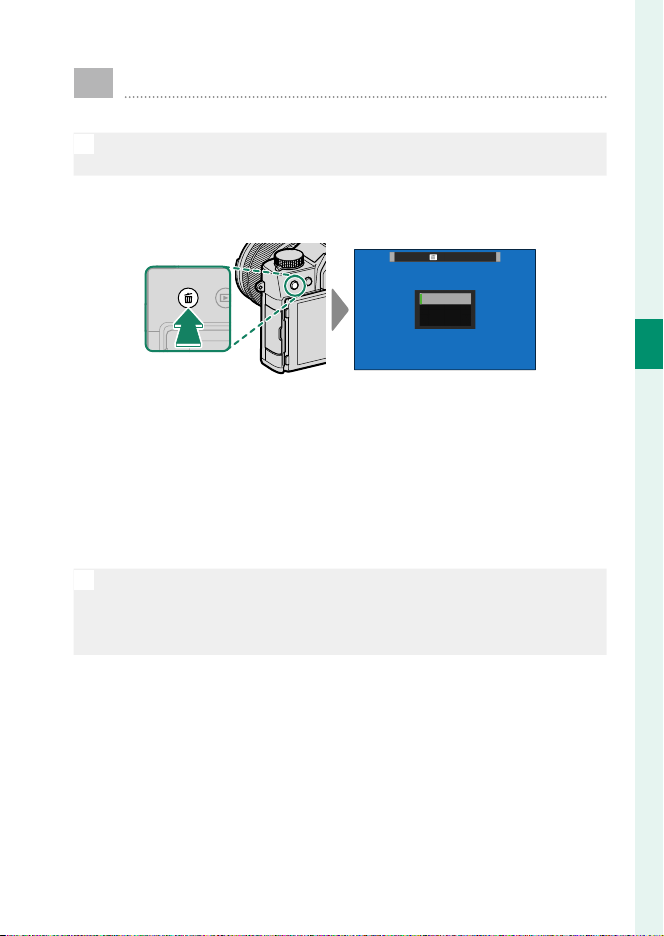

Deleting Pictures

Use the b (delete) button to delete pictures.
Deleted pictures cannot be recovered. Protect important pictures or
O
copy them to a computer or other storage device before proceeding.
With a picture displayed full frame, press the b button and
1
select FRAME.
ERASE
FRAME
SELECTED FRAMES
ALL FRAMES
Choose a picture and press MENU/OK to delete it.
2
The picture will be deleted when the MENU/OK button is
•
pressed; a con rmation dialog is not displayed. Be careful not to accidentally delete pictures you wish to keep. Additional pictures can be deleted using the MENU/OK but-
•
ton. Display the desired pictures and press MENU/OK to de­lete them one by one.
• Protected pictures cannot be deleted. Remove protection from any
N
pictures you wish to delete (P 196). Pictures can also be deleted from the menus using the C PLAY BACK
•
MENU> ERASE option (P 192).
3
Basic Photography and Playback
45
Page 70
MEMO
46
Page 71
Movie Recording and
Playback
47
Page 72
4
Movie Recording and Playback

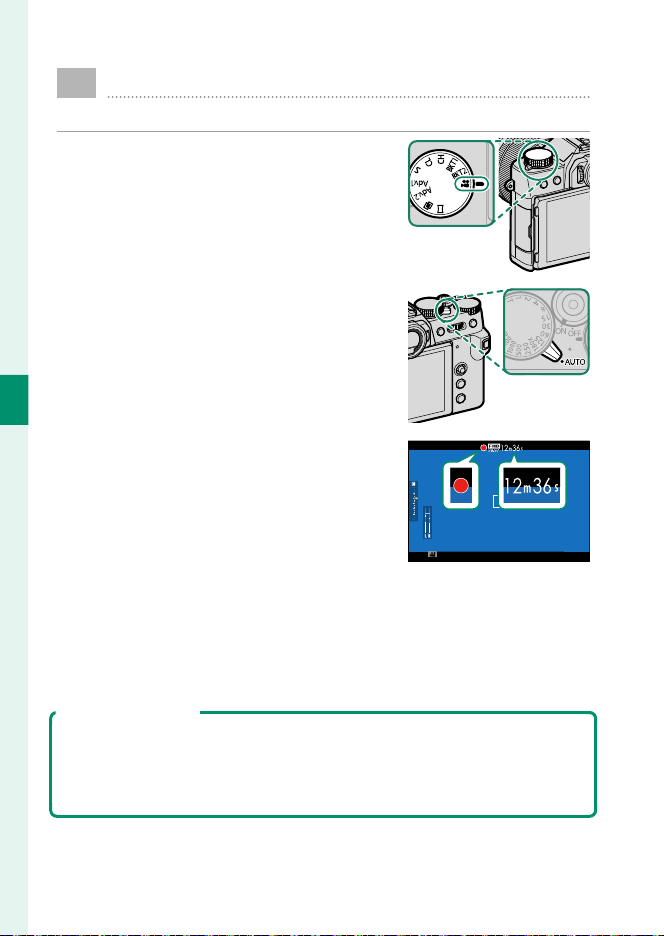

Recording Movies

Record movies with sound.
Rotate the drive dial to F (movie).
1
Rotate the auto mode selector
2
lever to w.
Press the shutter button to start re-
3
cording.
A recording indicator (V) is dis-
•
played while recording is in prog­ress. The display shows the elapsed re-
•
cording time.
Press the button again to end recording.
4
Recording ends automatically when the movie reaches 29minutes 59seconds or the memory card is full.
Temperature Warnings
The camera automatically turns o to protect itself when its temperature or the temperature of the battery rises. If a temperature warning is displayed, image noise may increase. Turn the camera o and wait for it to cool before turning it on again (P 326).
48
Page 73

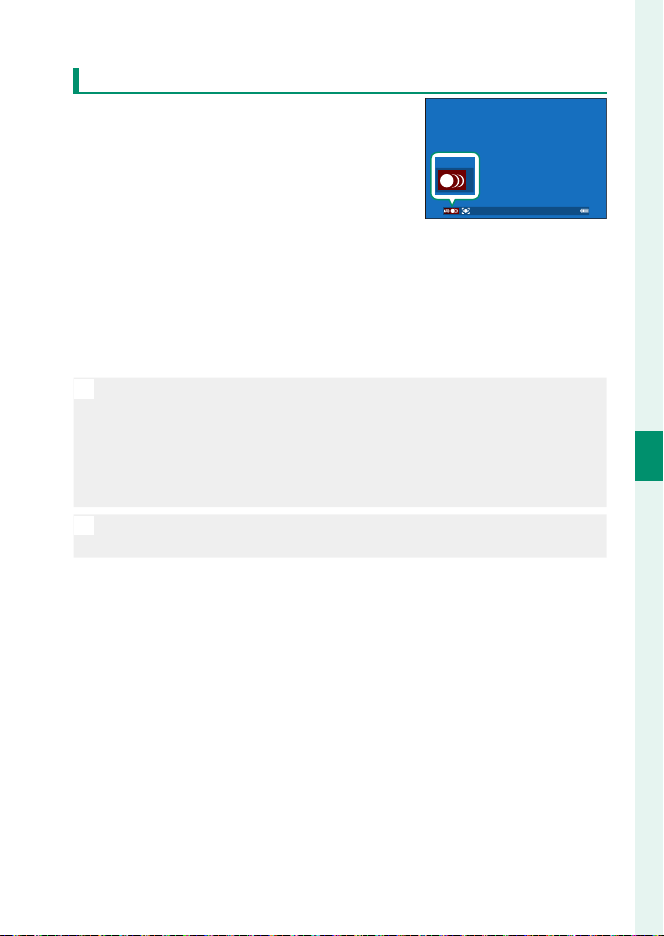

Recording Movies

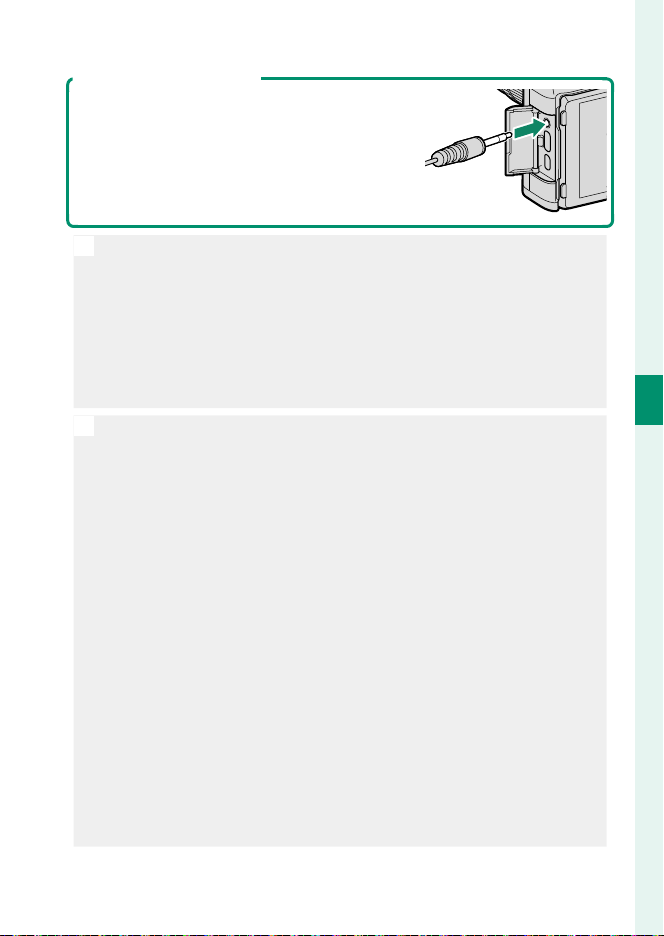

Using an External Microphone
Sound can be recorded with external micro­phones that connect using jacks 2.5mm in di­ameter; microphones that require plug-in pow­er cannot be used. See the microphone manual for details.
• Use a memory card with a UHS speed class of 3 or better when re-
O
cording movies. Sound is recorded via the built-in microphone or an optional external
•
microphone. Do not cover the microphone during recording. Note that the microphone may pick up lens noise and other sounds
•
made by the camera during recording. Vertical or horizontal streaks may appear in movies containing very
•
bright subjects. This is normal and does not indicate a malfunction.
The indicator lamp lights while recording is in progress (the B MOVIE
•
N
SETTING> TALLY LIGHT option can be used to choose the lamp— indicator or AF-assist—that lights during movie recording and whether the lamp blinks or remains steady). In the case of zoom lenses, zoom can be adjusted during recording
•
using the zoom ring (if available). If the lens is equipped with an aperture mode switch, select the ap-
•
erture mode before beginning recording. If an option other than A is selected, shutter speed and aperture can be adjusted while recording is in progress. While recording is in progress, you can:
•
Adjust sensitivity
-
Use the VIEW MODE button and the eye sensor to switch between
-
the EVF and LCD monitor displays
Refocus using any of the following methods:
-
• Press the shutter button halfway
• Press a function button to which AF-ON is assigned
• Use touch screen controls
Display a histogram or arti cial horizon by pressing the button to
-
which HISTOGRAM or ELECTRONIC LEVEL has been assigned
4
Movie Recording and Playback
49
Page 74
Recording Movies
• Exposure compensation can be adjusted during recording, but only
N
by a maximum of ±2 EV. Recording may be unavailable at some settings, while in other cases
•
settings may not apply during recording. To choose the focus area for movie recording, select G AF/MF
•
SETTING> F FOCUS AREA and use the focus stick (focus lever) and rear command dial (P 69).

Adjusting Movie Settings

Movie settings can be adjusted from the movie menus or using the B MOVIE SETTING item in the photo menus (P 19).
Use the B MOVIE SETTING item in the photo menus to quickly
•
adjust settings when recording movies via a button to which MOVIE RECORDING RELEASE has been assigned (P 155). The movie menus contain options for use when recording
•
4
movies via the shutter button while the drive dial is rotated to
Movie Recording and Playback
F(movie) (P 158).
Changes made using the B MOVIE SETTING item in the photo menus
O
also apply to the movie menus. Changes made in one set of menus automatically apply in the other.
Depth of Field
To soften backgrounds, set aperture as wide as possible. Aperture can be adjusted manually at settings other than A.
50
Page 75

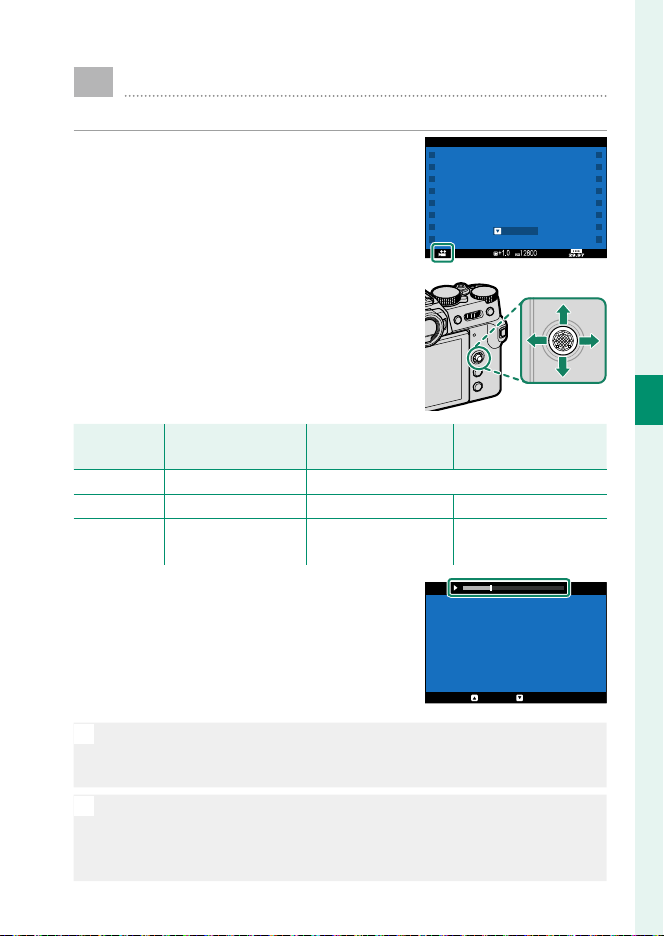

Viewing Movies

Focus stick
(focus lever)
Full-frame playback
Playback in progress
((xx)
Playback paused (
View movies on the camera.
In full-frame playback, movies are iden­ti ed by a W icon. Press the focus stick (focus lever) down to start movie play­back.
The following operations can be per­formed while a movie is displayed.
Focus stick
(focus lever)
Up — End playback
Down Start playback Pause playback Start/resume playback
Left/right View other pictures Adjust speed
Full-frame playback
Playback in progress
)
Progress is shown in the display during playback.
PLAYPLAY
Playback paused (yy))
Single frame rewind/
advance
4
Movie Recording and Playback
29m59s
PAUSESTOP
• Do not cover the speaker during playback.
O
Sound is not played back if OFF is selected for D USER SETTING>
•
SOUND & FLASH.
Press MENU/OK to pause playback and display volume controls. Press
N
the focus stick (focus lever) up or down to adjust the volume; press MENU/OK again to resume playback. Volume can also be adjusted using D SOUND SET-UP> PLAYBACK VOLUME.
51
Page 76
Viewing Movies

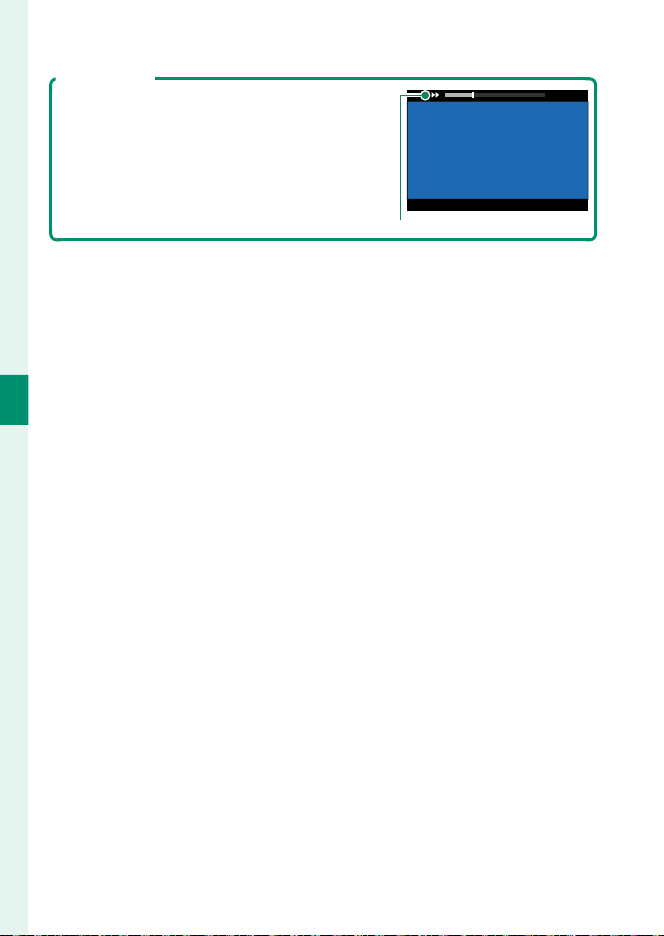

Playback Speed
Press the focus stick (focus lever) left or right to adjust playback speed during playback. Speed is shown by the number of arrows (M or N).
4
Movie Recording and Playback
29m59s
Arrows
52
Page 77

Taking Photographs

53
Page 78

Choosing a Shooting Mode

Setting
Modes P, S, A, and M can be selected via adjustments to shutter speed and/or aperture. In auto mode, you can let the camera adjust settings to suit the scene (AUTO) or choose the scene yourself.

Mode P: Program AE

Let the camera choose shutter speed and aperture for optimal exposure. Other values that produce the same exposure can be selected with program shift.
5
Taking Photographs
Setting
Auto mode selector lever
A
Shutter speed A (auto)
B
Aperture A (auto)
C
Con rm that P appears in the display.
If the subject is outside the metering range of the camera, the shutter
O
speed and aperture displays will show “– – –”.
v
54
Page 79
Choosing a Shooting Mode

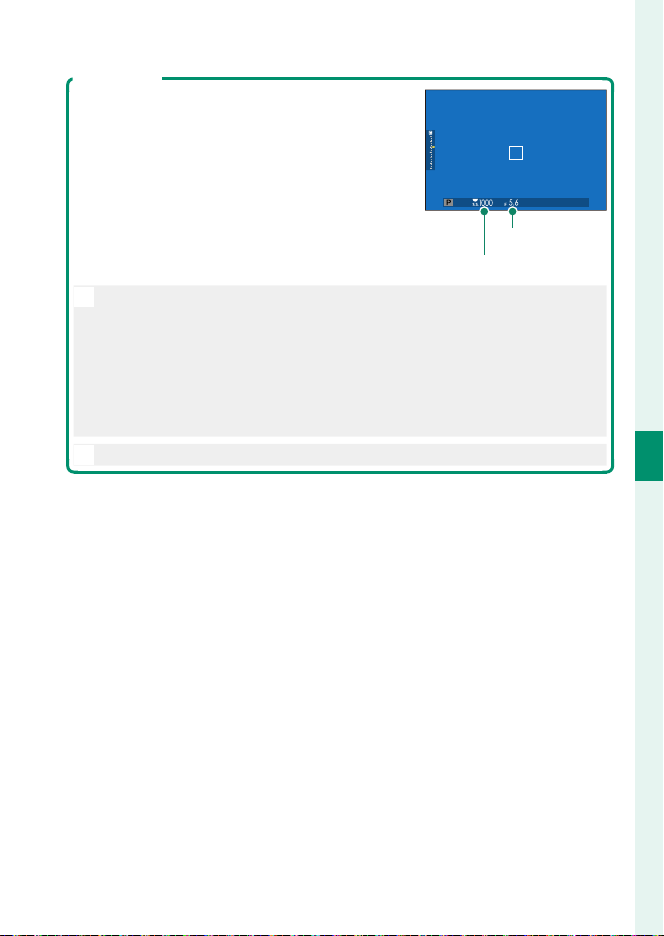

Program Shift
If desired, you can rotate the rear command dial to select other combinations of shutter speed and aperture without altering exposure (pro­gram shift).
Aperture
Shutter speed
Program shift is not available in any of the following circumstances:
O
With  ash units that support TTL auto
•
When a  ash mode other than D is selected for F FLASH
•
SETTING > FLASH FUNCTION SETTING When an auto option is selected for H IMAGE QUALITY SETTING>
•
DYNAMIC RANGE
In movie mode
•
To cancel program shift, turn the camera o .
N
5
Taking Photographs
55
Page 80

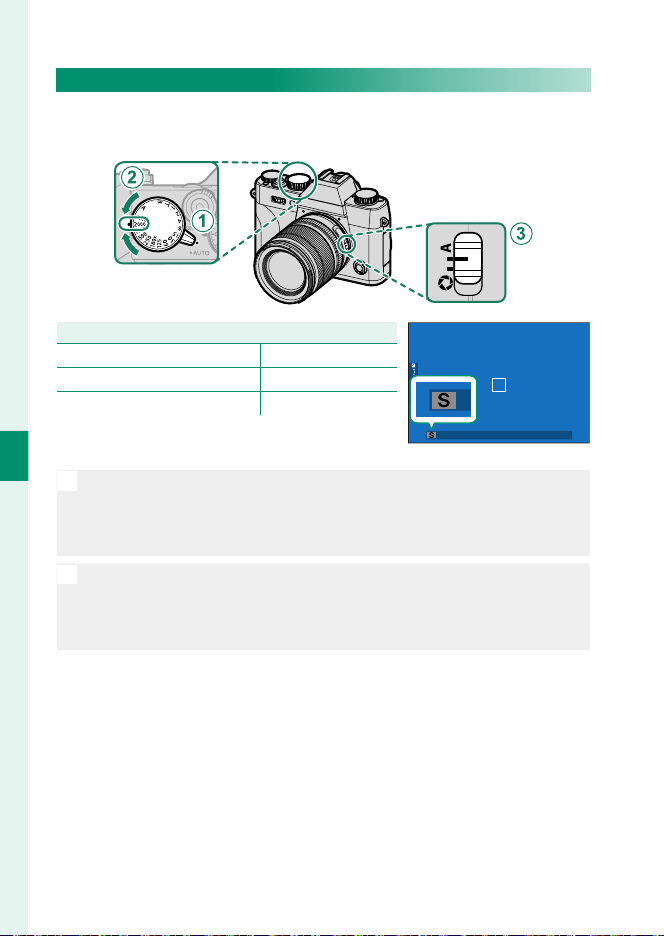

Mode S: Shutter-Priority AE

Setting
Choose a shutter speed and let the camera adjust aperture for optimal exposure.
Setting
Auto mode selector lever
A
Shutter speed User-selected
B
Aperture A (auto)
C
Con rm that S appears in the display.
v
5
Taking Photographs
If the correct exposure cannot be achieved at the selected shutter
•
O
speed, aperture will be displayed in red. If the subject is outside the metering range of the camera, the aper-
•
ture display will show “– – –”.
At settings other than 180X, shutter speed can also be adjusted in
•
N
increments of ⁄EV by rotating the rear command dial. Shutter speed can be adjusted while the shutter button is pressed
•
halfway.
56
Page 81
Choosing a Shooting Mode
Time (T)
Rotate the shutter speed dial to T (time) to choose slow shutter speeds for long time-exposures. Use of a tripod is recommended to prevent the camera moving during the exposure.
Rotate the shutter speed dial to T.
1
Rotate the rear command dial to
2
choose a shutter speed.
Press the shutter button all the way down to take a picture
3
at the selected shutter speed. At speeds of 1 s or slower, a count-down timer will be displayed while the exposure is in progress.
To reduce “noise” (mottling) in long time-exposures, select ON for
N
H IMAGE QUALITY SETTING> LONG EXPOSURE NR. Note that this
may increase the time needed to record images after shooting.
5
Taking Photographs
57
Page 82

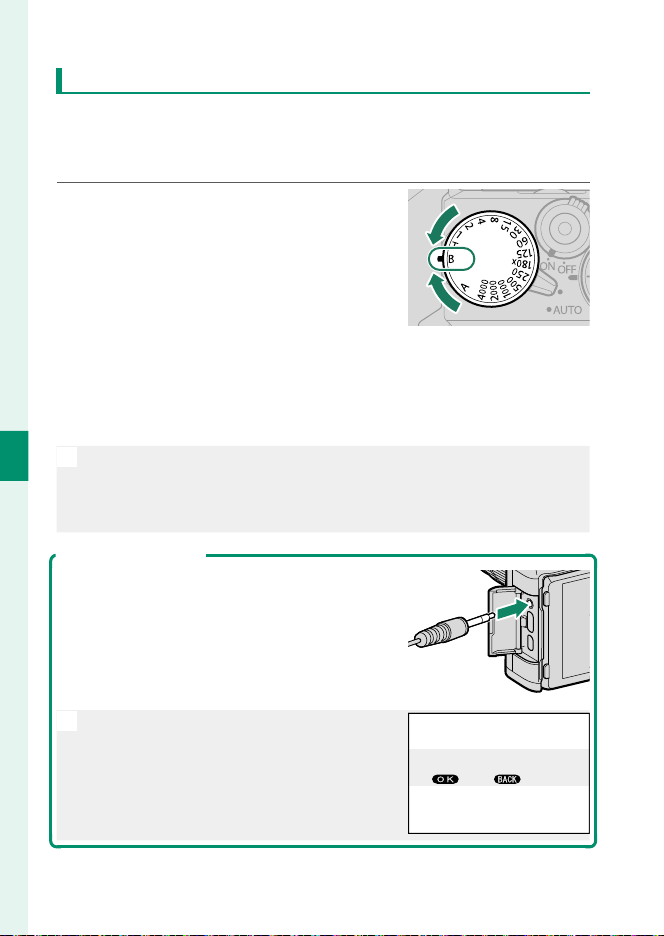

Bulb (B)
Select a shutter speed of B (bulb) for long time-exposures in which you open and close the shutter manually. Use of a tripod is recom­mended to prevent the camera moving during the exposure.
Rotate the shutter speed dial to B.
1
Press the shutter button all the way down. The shutter will
2
remain open for up to 60 minutes while the shutter button is pressed; the display shows the time elapsed since the ex­posure started.
• Selecting an aperture of A  xes shutter speed at 30 s.
5
N
To reduce “noise” (mottling) in long time-exposures, select ON for
Taking Photographs
•
H IMAGE QUALITY SETTING> LONG EXPOSURE NR. Note that this may increase the time needed to record images after shooting.
Using a Remote Release
A remote release can be used for long time-ex­posures. When using an optional RR-100 remote release or an electronic release from third-party suppliers, connect it to the camera’s remote re­lease connector.
A con rmation dialog will be displayed
N
when a remote release is connected; press
MENU/OK and select n REMOTE for MIC/ REMOTE RELEASE.
58
CHECK MIC/REMOTE RELEASE SETTING
SET
SKIP
Page 83
Choosing a Shooting Mode
Setting

Mode A: Aperture-Priority AE

Choose an aperture and let the camera adjust shutter speed for optimal exposure.
Setting
Auto mode selector lever
A
Shutter speed A (auto)
B
Aperture
C
v
Z (user-selected)
Con rm that A appears in the display.
If the correct exposure cannot be achieved at the selected aperture,
•
O
shutter speed will be displayed in red. If the subject is outside the metering range of the camera, the shutter
•
speed display will show “– – –”.
Rotate the lens aperture ring to adjust aperture.
•
N
Aperture can be adjusted even while the shutter button is pressed
•
halfway.
Previewing Depth of Field
When PREVIEW DEPTH OF FIELD is assigned to a function button, pressing the button dis­plays a L icon and stops aperture down to the selected setting, allowing depth of  eld to be previewed in the display (P 255).
5
Taking Photographs
59
Page 84

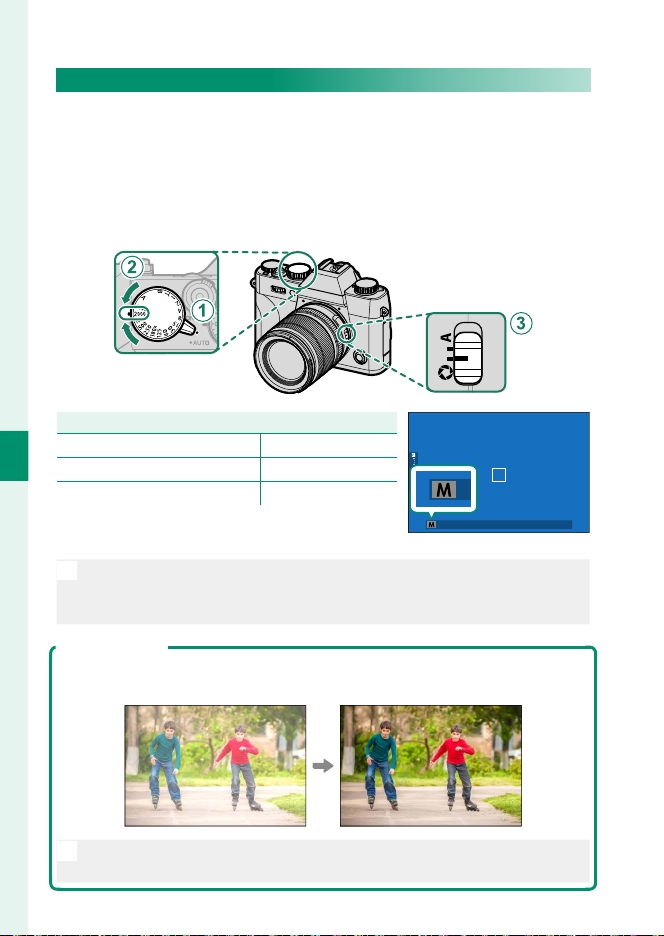

Mode M: Manual Exposure

Setting
In manual mode, the user controls both shutter speed and aperture. Shots can be deliberately overexposed (brighter) or underexposed (darker), opening the door for a variety of individual creative ex­pression. The amount the picture would be under- or over-exposed at current settings is shown by the exposure indicator; adjust shut­ter speed and aperture until the desired exposure is reached.
Setting
5
Taking Photographs
Auto mode selector lever
A
Shutter speed User-selected
B
Aperture
C
v
Z (user-selected)
Con rm that M appears in the display.
Rotate the lens aperture ring to adjust aperture.
•
N
At settings other than 180X, shutter speed can also be adjusted in
•
increments of ⁄EV by rotating the rear command dial.
Exposure Preview
To preview exposure in the LCD monitor, select PREVIEW EXP./WB for D SCREEN SET-UP> PREVIEW EXP./WB IN MANUAL MODE.
Select an option other than PREVIEW EXP./WB when using the  ash or on
N
other occasions on which exposure may change when the picture is taken.
60
Page 85
Choosing a Shooting Mode
Setting

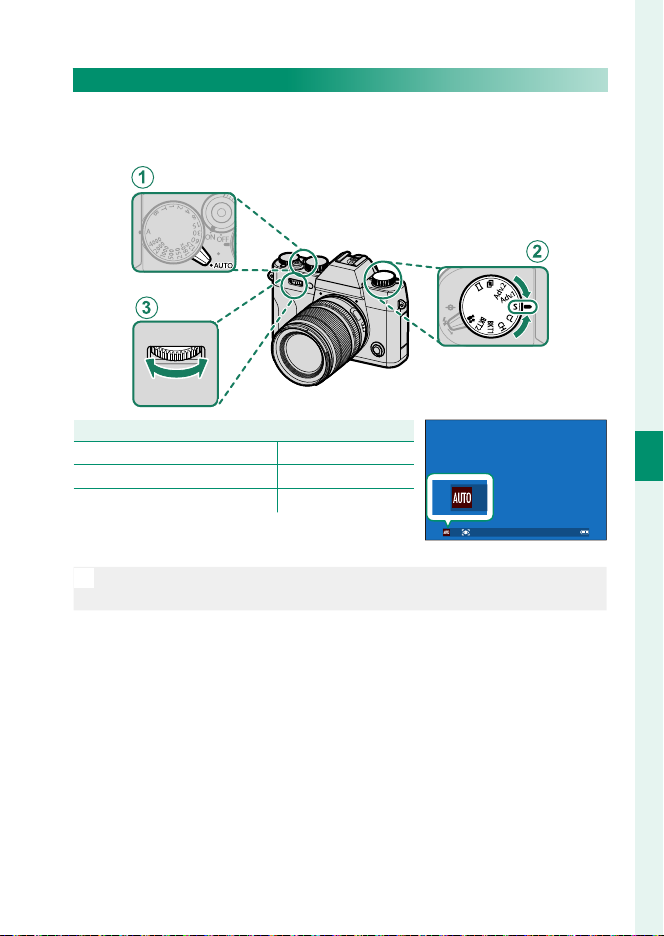

Auto Mode

To take pictures in auto mode, rotate the auto mode selector lever to w and rotate the front command dial to choose a scene.
Setting
Auto mode selector lever
A
Drive dial S (single frame)
B
Front command dial Scene selection
C
w
Con rm that AUTO appears in the display.
You can also choose a scene using the ASHOOTING SETTING>
N
SCENE POSITION item in the shooting menu.
5
Taking Photographs
61
Page 86
Choose from the following options:
Mode
Description
AUTO
h
PORTRAIT
Z
PORTRAIT ENHANCER
M
LANDSCAPE
N
SPORT
O
NIGHT
H
NIGHT (TRIPOD)
p
FIREWORKS
Q
SUNSET
R
SNOW
s
BEACH
f
UNDERWATER
U
PARTY
V
FLOWER
W
TEXT
Mode
The camera automatically optimizes settings to suit the scene (P 63). Choose for portraits. Processes portraits to give the subject a smooth, natu­ral-looking complexion. Choose for daylight shots of buildings and landscapes. Choose when photographing moving subjects. Choose for poorly lit twilight or night scenes. Choose this mode for slow shutter speeds when shoot­ing at night. Slow shutter speeds are used to capture the expanding burst of light from a fi rework. Choose this mode to record the vivid colors in sunrises and sunsets. Choose for crisp, clear shots that capture the brightness of scenes dominated by shining white snow. Choose for crisp, clear shots that capture the brightness of sunlit beaches. Reduces the blue cast typically associated with under­water lighting. Capture indoor background lighting under low-light conditions. Eff ective for taking more vivid shots of fl owers. Take clear pictures of text or drawings in print.
5
Taking Photographs
AUTO
PORTRAIT
h
PORTRAIT ENHANCER
Z
LANDSCAPE
M
SPORT
N
NIGHT
O
NIGHT (TRIPOD)
H
FIREWORKS
p
SUNSET
Q
SNOW
R
BEACH
s
UNDERWATER
f
PAR TY
U
FLOWER
V
TEXT
W
Description
Scene selection is available only when the drive dial is set to S, CH(high-
N
speed burst), or CL (low-speed burst).
62
Page 87
Choosing a Shooting Mode
AUTO
If AUTO is chosen via scene selection, the scene chosen by the camera will be shown by an icon in the display.
C
: LANDSCAPE
d : NIGHT h : NIGHT (TRIPOD) e : MACRO
Q : SUNSET
x : SKY
The mode selected may vary with the subject, and the camera may
•
O
select di erent scenes for the same subject depending on shooting conditions. If the mode and subject do not match, select a scene manually. The additional processing time required in some scene modes may
•
increase save times.
No icon will be displayed if the camera is unable to determine the type
N
of scene.
y : GREENERY
h : PORTRAIT
g : BACKLIT PORTRAIT c
: MOVING OBJECT
a : PORTRAIT&MOTION b : BACKLIT PORTRAIT&MOTION
5
Taking Photographs
63
Page 88
5
Taking Photographs

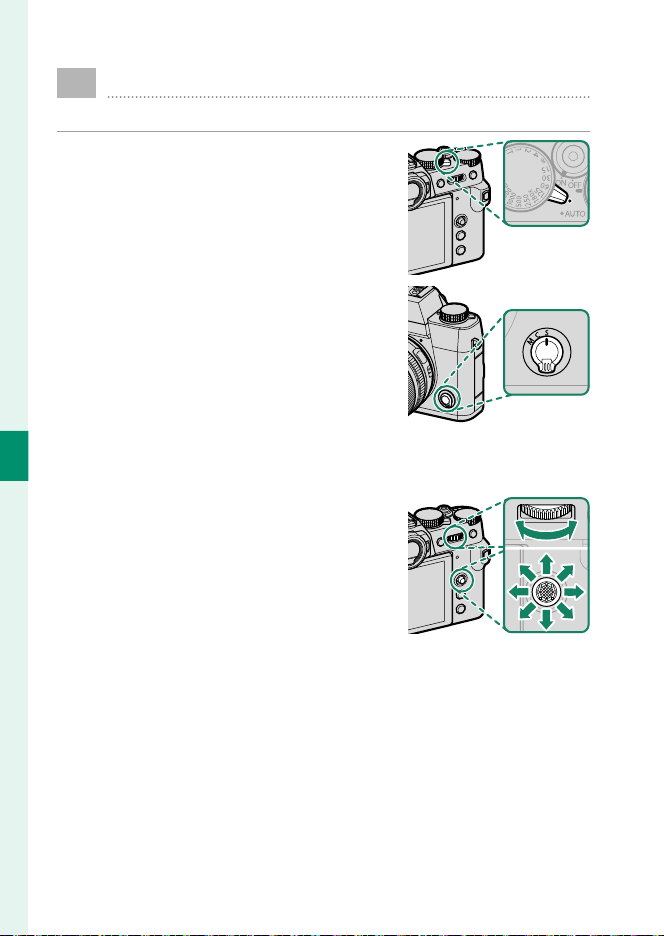

Autofocus

Take pictures using autofocus.
Rotate the auto mode selector lever
1
to v (P 6).
Rotate the focus mode selector to S
2
or C (P 65).
Use G AF/MF SETTING> AF MODE to choose an AF mode
3
(P 67).
Select G AF/MF SETTING> FOCUS
4
AREA and choose the position and size of the focus frame (P 69).
Take pictures.
5
64
Page 89
Autofocus
Mode
Description

Focus Mode

Use the focus mode selector to choose how the camera focuses.
Choose from the following options:
Mode
Single AF: Focus locks while the shutter button is pressed halfway.
S
(AF-S)
(AF-C)
(manual)
• Regardless of the option selected, manual focus will be used when
N
Choose for stationary subjects. Continuous AF: Focus is continually adjusted to refl ect changes in the
C
distance to the subject while the shutter button is pressed halfway. Use for subjects that are in motion. Manual: Focus manually using the lens focus ring. Choose for manual
M
control of focus or in situations in which the camera is unable to focus using autofocus (P 73).
the lens is in manual focus mode. If ON is selected for G AF/MF SETTING> PRE-AF, focus will be ad-
•
justed continuously in modes S and C even when the shutter button is not pressed.
Description
5
Taking Photographs
65
Page 90
The Focus Indicator
Focus indicator
Focus status
Focus status is shown by the focus indicator.
Focus indicator
( ) Camera focusing.
z (lights green)
(z) (lights green)
A (blinks white)
j
Subject in focus; focus locked (focus mode S). Subject in focus (focus mode C). Focus is automatically adjusted for changes in distance to subject. Camera unable to focus. Manual focus (focus mode M).
Focus status
5
Taking Photographs
Focus indicator
66
Page 91
Autofocus
Focus Mode S (AF-S)
Option
Description
Sample image

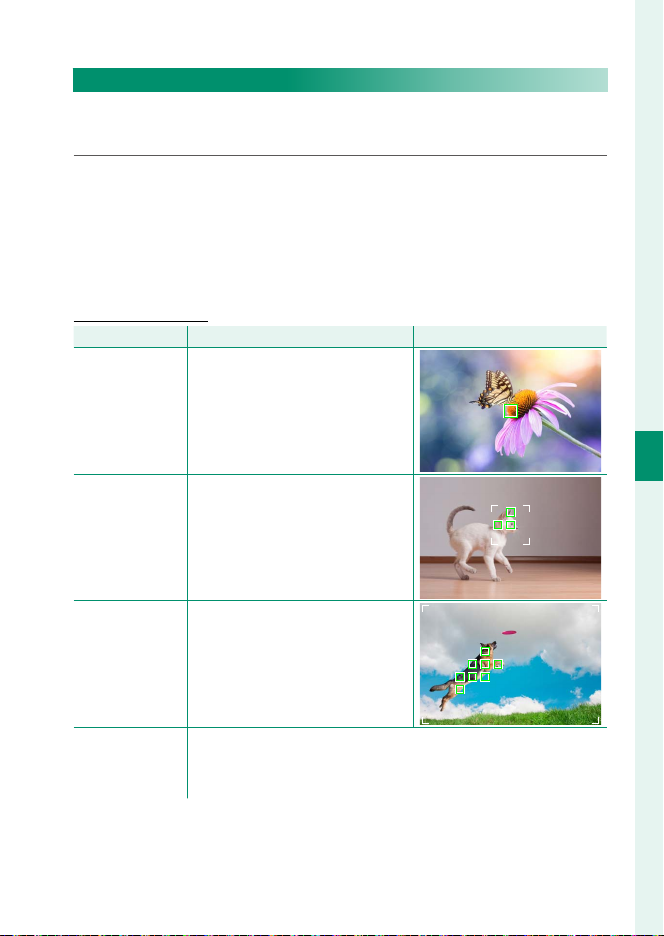

Autofocus Options (AF Mode)

Focus can be adapted to a variety of subjects by changing the combination of settings selected for focus and AF modes.
Press MENU/OK and go to the shooting menu.
1
Select G AF/MF SETTING> AF MODE.
2
Choose an AF mode.
3
How the camera focuses depends on the focus mode.
Focus Mode S (AF-S)
Option
Description
Sample image
r
SINGLE POINT
y
ZONE
z
WIDE
j
ALL
Camera focuses on subject in selected focus point. Use for pin­point focus on selected subject.
Camera focuses on subject in se­lected focus zone. Focus zones in­clude multiple focus points, mak­ing it easier to focus on subjects in motion.
Camera focuses automatically on high-contrast subjects; display shows areas in focus.
Rotate the rear command dial in the focus-point selection dis­play (P 70, 71) to cycle through AF modes in the following order: r SINGLE POINT, y ZONE, and z WIDE.
67
5
Taking Photographs
Page 92

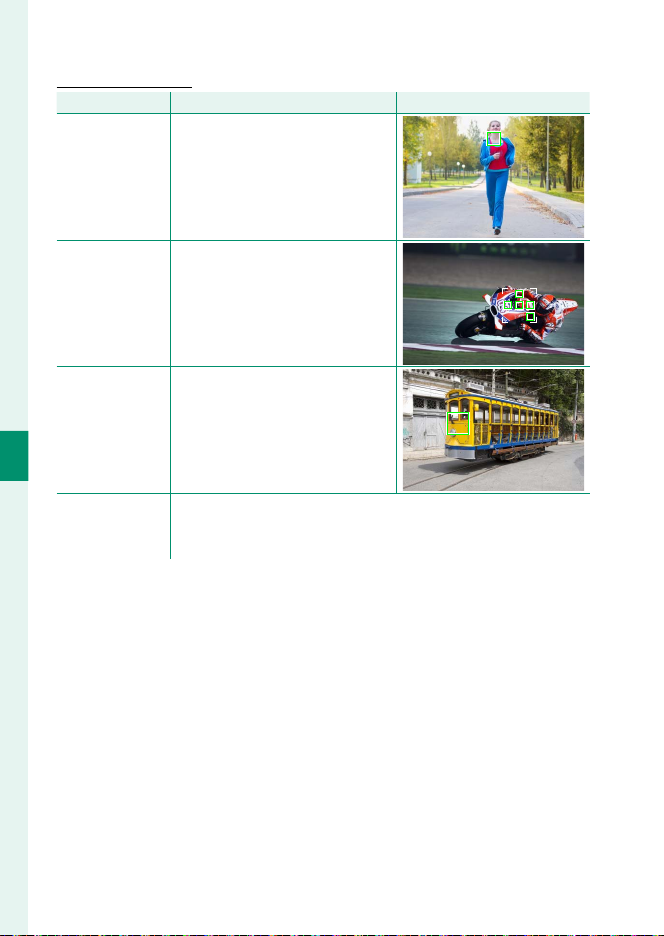

Focus Mode C (AF-C)
Focus Mode C (AF-C)
Option
Description
Sample image
Option
Description
Sample image
5
Taking Photographs
r
SINGLE POINT
y
ZONE
z
TRACKING
j
ALL
Focus tracks subject at selected fo­cus point. Use for subjects moving toward or away from camera.
Focus tracks subject in selected fo­cus zone. Use for subjects that are moving fairly predictably.
Focus tracks subjects moving through wide area of frame.
Rotate the rear command dial in the focus-point selection dis­play (P 70, 71) to cycle through AF modes in the following order: r SINGLE POINT, y ZONE, and z TRACKING.
68
Page 93

Focus-Point Selection

Choose a focus point for autofocus.
Viewing the Focus-Point Display
Press MENU/OK and go to the shooting menu.
1
Select G AF/MF SETTING> FOCUS AREA to view the fo-
2
cus-point display.
Use the focus stick (focus lever) and rear command dial to
3
choose a focus area.
The focus point can also be selected using touch controls (P 21).
N
Autofocus
5
Taking Photographs
69
Page 94

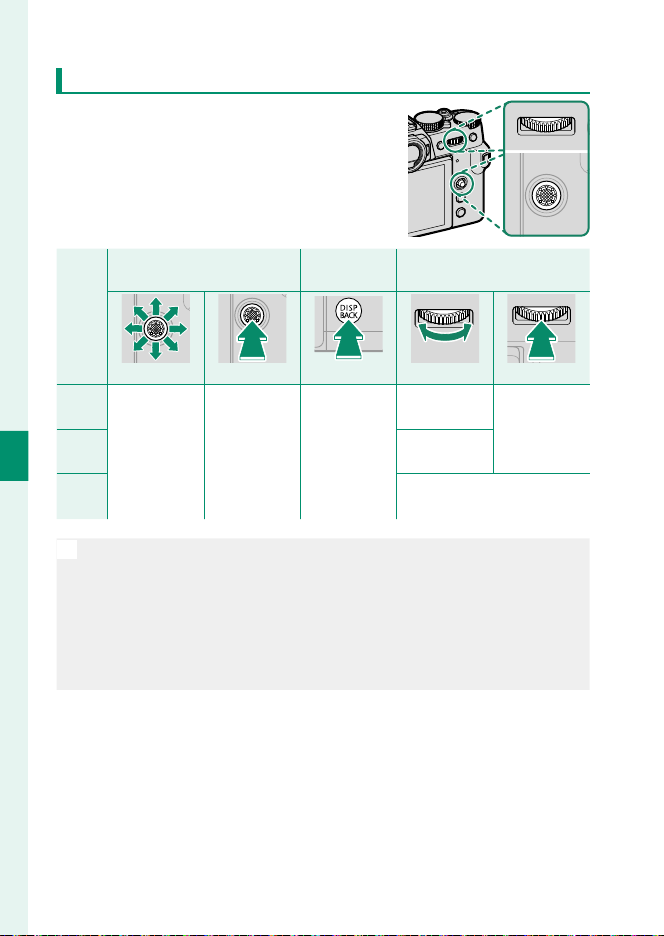

Selecting a Focus Point
AF
mode
Focus stick
DISP/BACK
button
Rear command dial
Tilt
Press
Rotate
Press
r
y
z
Use the focus stick (focus lever) to choose the focus point and the rear command dial to choose the size of the focus frame. The procedure varies with the option se­lected for AF mode.
DISP/BACK
button
AF
mode
Focus stick
Rear command dial
5
Taking Photographs
Tilt
r
Select focus
y
N
z
point
Manual focus-point selection is not available when z WIDE/TRACK-
•
ING is selected in focus mode S. If j ALL is selected for AF mode, you can rotate the rear command
•
dial in the focus-point selection display to cycle through AF modes in the following order: r SINGLE POINT (6 frame sizes), y ZONE (3 frame sizes), and either z WIDE (focus mode S) or z TRACKING (focus mode C).
Press
Select
highlighted
focus point
Select center
focus point
Rotate
Choose from 6 frame sizes Choose from 3 frame sizes
—
70
Press
Restore
original size
Page 95
Autofocus
AF mode
rr SINGLE POINT
yy ZONE
zz WIDE/TRACKING

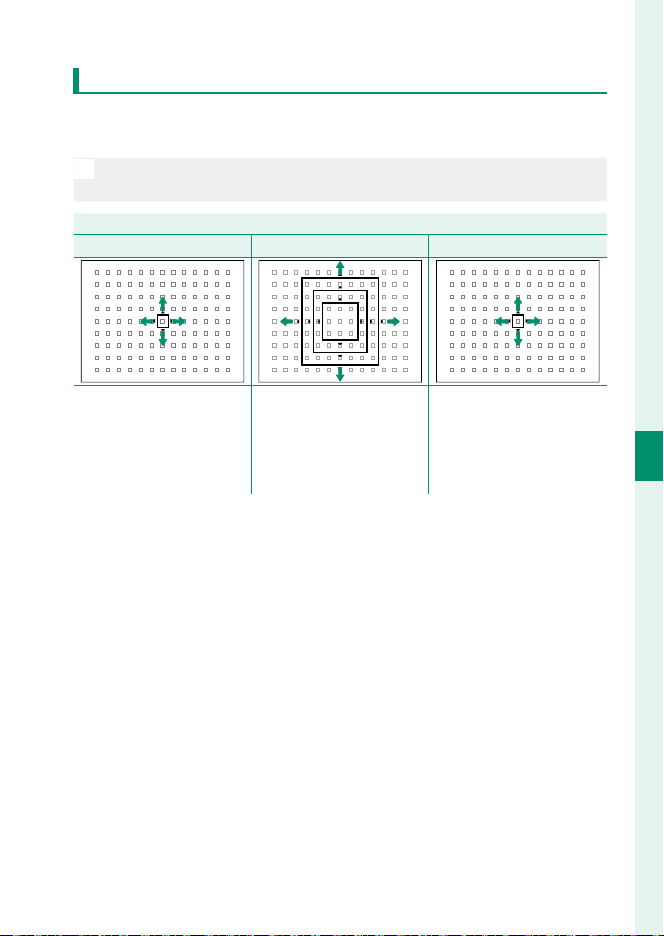

The Focus-Point Display
The focus-point display varies with the option selected for AF mode.
Focus frames are shown by small squares (), focus zones by the large
N
squares.
AF mode
SINGLE POINT
ZONE
WIDE/TRACKING
Number of points avail­able can be selected using
G AF/MF SETTING> NUMBER OF FOCUS POINTS.
Choose from zones with 7 × 7, 5 × 5, or 3 × 3 focus points.
Position focus frame over subject you want to track using continuous AF.
5
Taking Photographs
71
Page 96

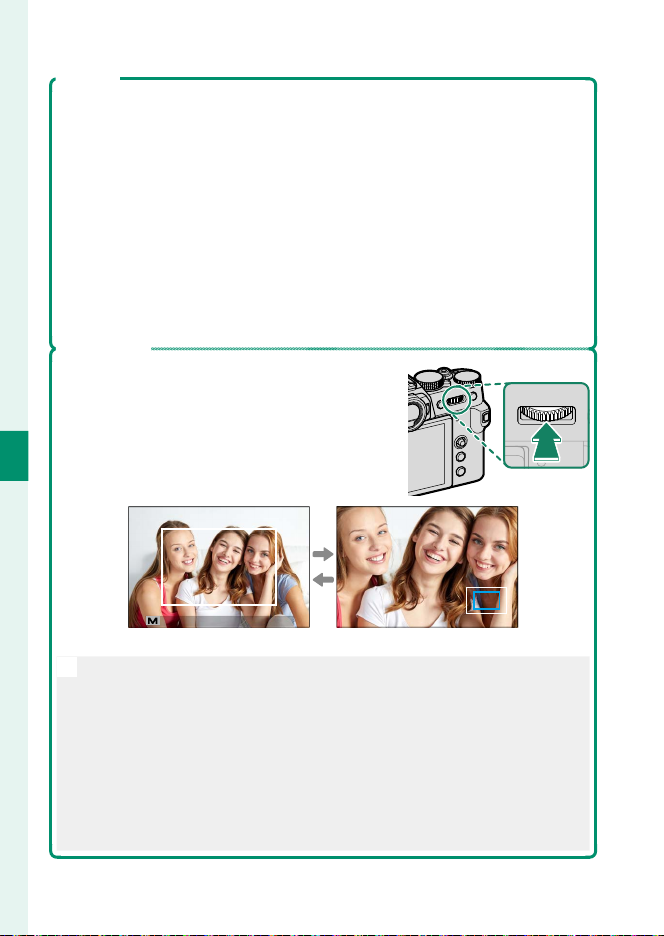

Autofocus
Although the camera boasts a high-precision autofocus system, it may be unable to focus on the subjects listed below.
Very shiny subjects such as mirrors or car bodies.
•
Subjects photographed through a window or other re ective object.
•
Dark subjects and subjects that absorb rather than re ect light, such as
•
hair or fur. Insubstantial subjects, such as smoke or  ame.
•
Subjects that show little contrast with the background.
•
Subjects positioned in front of or behind a high-contrast object that is
•
also in the focus frame (for example, a subject photographed against a backdrop of highly contrasting elements).
Checking Focus
To zoom in on the current focus area for precise focus, press the center of the rear command dial. Use the focus stick (focus lever) to choose another focus area. Press the center of the rear command dial again to cancel zoom.
5
Taking Photographs
Autofocus
Normal display Focus zoom
• In focus mode S, zoom can be adjusted by rotating the rear command dial.
N
The focus stick can be used to select the focus area while zoom is in e ect.
•
In focus mode S, select SINGLE POINT for G AF/MF SETTING> AF
•
MODE. Focus zoom is not available in focus mode C or when G AF/MF
•
SETTING> PRE-AF is on. Use D BUTTON/DIAL SETTING> FUNCTION (Fn) SETTING to
•
change the function performed by the center of the rear command dial. You can also assign its default function to other controls (P 255).
72
Page 97

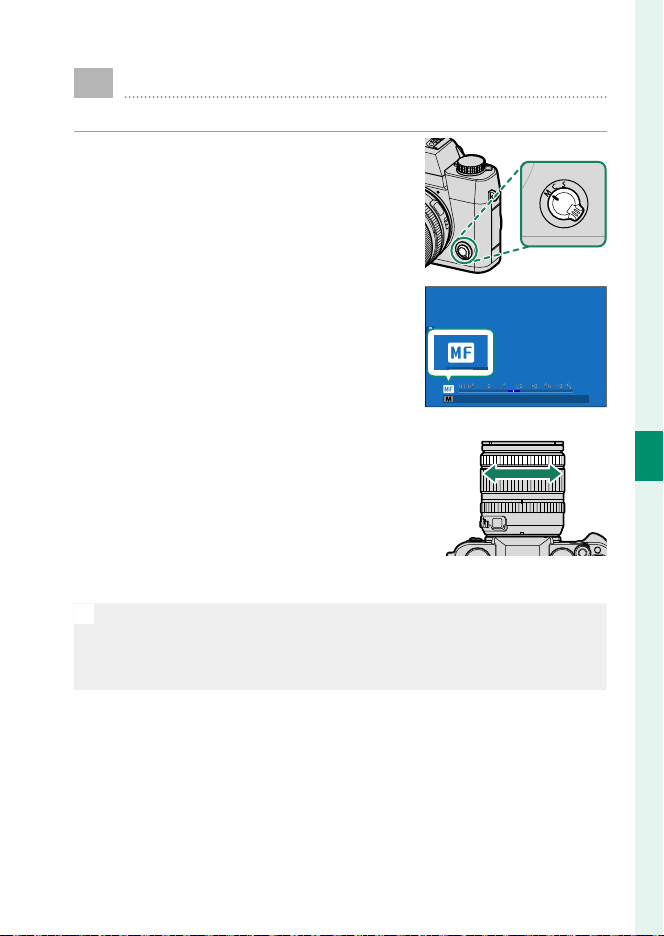

Manual Focus

Adjust focus manually.
Rotate the focus mode selector to M.
1
j will appear in the display.
Focus manually using the lens focus
2
ring. Rotate the ring left to reduce the focus distance, right to increase.
A
Take pictures.
3
Use D BUTTON/DIAL SETTING> FOCUS RING to reverse the direc-
•
N
tion of rotation of the focus ring. Regardless of the option selected, manual focus will be used when
•
the lens is in manual focus mode.
5
Taking Photographs
73
Page 98
Quick Focus
To use autofocus to focus on the subject in the selected focus area, press
•
the button to which focus lock or AF-ON has been assigned (the size of the focus area can be chosen with the rear command dial). In manual focus mode, you can use this feature to quickly focus on a cho-
•
sen subject using either single or continuous AF according to the option chosen for G AF/MF SETTING> xF INSTANT AF SETTING.
5
Taking Photographs
74
Page 99
Manual Focus

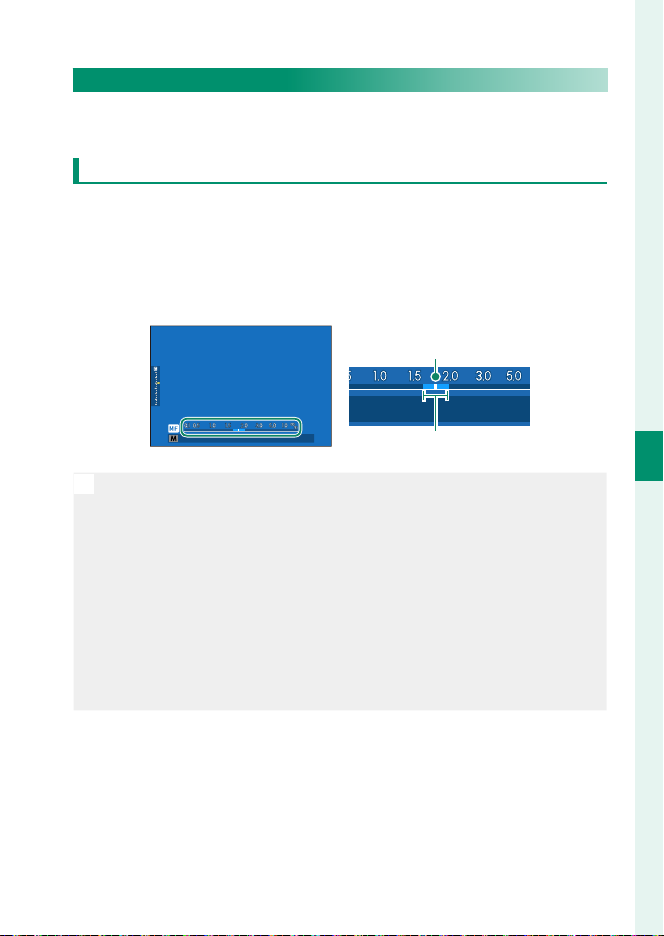

Checking Focus

A variety of options are available for checking focus in manual focus mode.
The Manual Focus Indicator
The white line indicates the distance to the subject in the fo­cus area (in meters or feet according to the option selected for D SCREEN SET-UP> FOCUS SCALE UNITS in the setup menu), the blue bar the depth of  eld, or in other words the distance in front of and behind the subject that appears to be in focus.
Focus distance
(white line)
Depth of  eld
If both AF DISTANCE INDICATOR and MF DISTANCE INDICATOR
•
N
are selected in the D SCREEN SET-UP> DISP. CUSTOM SETTING list, the manual focus indicator can also be viewed using the depth­of- eld indicator in the standard display. Use the DISP/BACK button to display standard indicators. Use the G AF/MF SETTING> xFDEPTH-OF-FIELD SCALE option
•
to choose how depth of  eld is displayed. Choose FILM FORMAT BASIS to help you make practical assessments of depth of  eld for pictures that will be viewed as prints and the like, PIXEL BASIS to help you assess depth of  eld for pictures that will be viewed at high resolutions on computers or other electronic displays.
5
Taking Photographs
75
Page 100

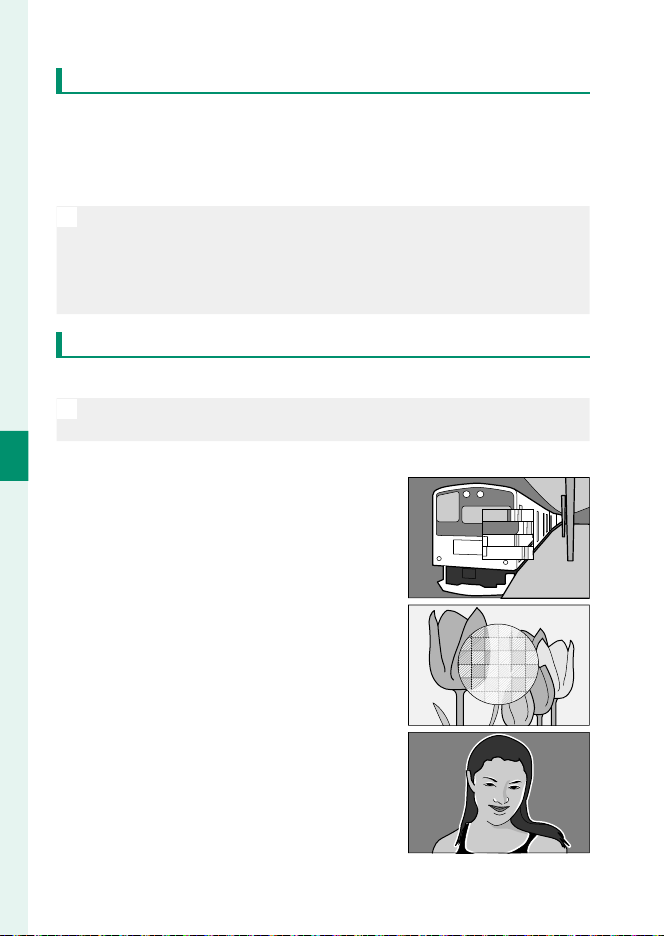

Manual Focus
Focus Zoom
If ON is selected for GAF/MF SETTING> FOCUS CHECK, the camera will automatically zoom in on the selected focus area when the focus ring is rotated (P 69). to exit zoom.
Use the focus stick (focus lever) to choose another focus area.
•
N
If STANDARD or FOCUS PEAK HIGHLIGHT is selected for GAF/MF
•
SETTING> MF ASSIST, zoom can be adjusted by rotating the rear command dial. Zoom cannot be adjusted when DIGITAL SPLIT IMAGE or DIGITAL MICROPRISM is selected.
MF Assist
Use GAF/MF SETTING> MF ASSIST to choose a focus check option.
The MF ASSIST menu can be displayed by pressing and holding the
N
center of the rear command dial.
5
The following options are available:
Taking Photographs
DIGITAL SPLIT IMAGE: Displays a split image
•
in the center of the frame. Frame the subject in the split-image area and ro­tate the focus ring until the four parts of the split image are correctly aligned.
DIGITAL MICROPRISM: A grid pattern that
•
emphasizes blur is displayed when the subject is out of focus, disappearing to be replaced by a sharp image when the subject is in focus.
FOCUS PEAK HIGHLIGHT: Highlights high-con-
•
trast outlines. Rotate the focus ring until the subject is highlighted.
Press the center of the rear command dial
76
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
