fujifilm gfx100 SPECIFICATION

Download

Page 1

SPECIFICATION COMPARIS ON

SYSTEM BROCHURE

Approx. 1,400g (includin g EVF, battery ×2 and memory card)

144. 0mm

163.6 mm

]

Approx. 1,3 20g

EVF

(includin g battery ×2 and memory card)

Approx. 1,155g (excluding ac cessories,

H / Including E VF

H / Excludin g

battery and memory card)

[

[W]

156. 2mm

Number of ef fective pixels 102 million pixels

Image sens or

File forma t

Number of recorded pixels

Sensitivity

Image Stabilizer

Continuous shooting CH Approx. 5.0fps, CL Approx. 2.0fps

AF Ty pe Intellige nt Hybrid AF ( TTL contra st AF / TTL pha se detection AF )

LCD monitor 3.2 inc h, Aspect Ratio 4:3 , Approx. 2.36 milli on dots

Sub LCD mon itor

Rear sub mon itor

Movie file format

Movie recording [DCI 4K / 4K] 29.97p / 25 p / 24p / 23.98p,

Wireless transmitter

Bluetooth

Digital interface

Other interface

Power supply

Batter y life for still imag es

USB power s upply Suppor t USB PD*3 (Power D elivery) power s ource to supply or rap idly recharge bat tery

*1 based on C IPA standard. Pi tch / yaw shake only. *2 Wh en GF63mmF2 .8 R WR lens mounted. * 3 USB PD Rev2.0 v er1.3

43.8mm×3 2.9mm Bayer array w ith primary colo r filter

JPEG ( Exif Ver.2.3) RAW : 14bit / 16bi t RAW (RA F original format) 8-bit /16- bit(10-bit outp ut in 16bit file) TIF F (In-camera R aw Conversion Onl y)

[L] <4:3> 11648×8736 [M] <4:3> 8256×6192 [S] <4:3> 4000×3000

Standa rd Output AUTO 1/AUTO2/AU TO3 (up to ISO1280 0) / ISO100~12800 (1/3 s tep) Exten ded Output ISO 50 / 25600 / 51200 / 1024 00

Image sens or shift mechanism w ith 5-axis com pensation 5.5 sto ps*

Tilt-Type (Three Direction), Touch Screen Color LCD Monitor

1.80 inch, Asp ect Ratio 4:3, 303 ×230-dot Mon ochrome LCD Moni tor

2.05 inch, A spect Ratio 4:1, 256×6 4-dot Monochr ome OLED Monit or

MOV (M PEG-4 AVC / H.2 64, HEVC / H.2 65, Audio : Linear P CM / Stereo sound 24 bit / 48KHz sampling)

[Full HD] 59 .94p / 50p / 29.97p / 2 5p / 24p / 23.98p

IEEE802.11a/b/g/n/ac (standard wireless protocol)

Bluetooth Ver. 4.2 (Bluetooth low energy)

USB Type-C（USB3.2 Gen1×1）

ø3.5mm, s tereo mini connecto r (Microphone) ø3.5mm, stereo mini connector (Headphone) ø2.5mm, Remote Release Connector DC IN 15V Con necter *Compat ible with AC-15V (Optio nal) Only Hot shoe Synchronized terninal

NP-T125 (×2) Li- ion battery ( included)

Approx. 800 frames.*

(2 batter ys installed, A uto power save ON)

D / Excludin g EVF] 75 .1mm

[

D / Including E VF] 102.9 mm

(Minimum Depth : 48.9mm)

1*2

GF X100 MEMOR Y CARD C APACIT Y AND IMA GE QUALITY / SIZ E

Still Image

Uncompressed RAW

Lossless compressed RAW

Compressed RAW*

L (4:3 / SUPE R FINE) 120 260

L (4:3 / FINE )

L (4:3 / NORM AL)

SDHC / S DXC memory card 8G B

70 140

100 220

190

300

SDHC / S DXC memory card 16G B

390

630

Approx. 9 20g (includin g EVF, battery and memory card)

94.2mm

113. 8mm

]

Approx. 8 25g

EVF

(including battery and memory card)

Approx. 740 g (excluding ac cessories,

H / Including E VF

H / Excludin g

battery and memory card)

[

[D]

[W]

147. 5m m

51.4 million pixels 51.4 million pixels

43.8mm×3 2.9mm Bayer array w ith primary colo r filter

JPEG ( Exif Ver.2.3) RAW : 14bit R AW (RAF or iginal format), R AW+JPEG 8-bit TI FF (In-cam era Raw Conversio n Only)

[L] <4:3> 8256×6192 [S] <4:3> 4000×3000

Standa rd Output AUTO 1/AUTO2/AU TO3 (up to ISO1280 0) / ISO100~12800 (1/3 s tep) Exten ded Output ISO 50 / 25600 / 51200 / 1024 00

Suppor ted with OIS ty pe lenses

Approx. 3.0fps Approx. 3.0fps

3.2 inch, A spect Ratio 4:3, Ap prox. 2.36 million d ots Tilt-Type (Three Direction), Touch Screen Color LCD Monitor

1.28 inch, Asp ect Ratio 1:1, 128×128-dot Monochr ome LCD Monitor

MOV (M PEG-4 AVC / H.2 64, Audio : Linear P CM / Stereo sound 4 8KHz samplin g)

[Full HD] 29 .97p / 25p / 24p / 23.98p [HD] 2 9.97p / 25p / 24p / 23.98p

IEEE 8 02.11b/g/n (stan dard wireless prot ocol)

USB3 .0 (High-Spee d) / micro USB ter minal

NP-T125 Li-ion battery (included)

Approx. 400 frames.*2 (Auto po wer save ON)

4K 3840×2160px 400Mbps

Full HD 1920×108 0px 200Mbps

*4 Please u se your cameras and le nses with the lates t version of firmwar e. If the firmware is not t he latest version, c ompatibility wi ll not be provided. *5 For reco rding movies, use a SD m emory card with U HS Speed Class 3 or hig her. *6 For rec ording movies in 400 Mbps, use a SD memor y card with Video S peed Class 60 or high er. *7 Recor ding movies in 400M bps can be done with D CI4K / 4K 29.97p / 25p / 24 p / 23.98p.

91.4mm

(Minimum Depth : 41.6mm)

43.8mm×3 2.9mm Bayer array w ith primary colo r filter

JPEG ( Exif Ver.2.3) RAW : 14bit R AW (RAF or iginal format), R AW+JPEG 8-bit TI FF (In-cam era Raw Conversio n Only)

[L] <4:3> 8256×6192 [S] <4:3> 4000×3000

Standa rd Output AUTO 1/AUTO2/AU TO3 (up to ISO1280 0) / ISO100~12800 (1/3 s tep) Exten ded Output ISO 50 / 25600 / 51200 / 1024 00

Suppor ted with OIS ty pe lenses

TTL C ontrast AFTTL C ontrast AF

3.2 inch, A spect Ratio 4:3, Ap prox. 2.36 million d ots Tilt-Type (Two Direction), Touch Screen Color LCD Monitor

MOV (M PEG-4 AVC / H.2 64, Audio : Linear P CM / Stereo sound 4 8KHz samplin g)

[Full HD] 29 .97p / 25p / 24p / 23.98p [HD] 2 9.97p / 25p / 24p / 23.98p

IEEE 8 02.11b/g/n (stan dard wireless prot ocol)

Bluetooth Ver. 4.2 (Bluetooth low energy)

USB Type- C (USB3.1 Gen1)

HDMI Mi cro connector ( Type D)HDMI output HDMI Mi cro connector ( Type D) HDMI Mi cro connector ( Type D)

ø2.5mm, Rem ote Release / Stere o Mini Connector ( Microphone) DC IN 15V Con necter *Compat ible with AC-15V (Optio nal) Only Hot Shoe Synchronized Terninal

NP-T125 Li-ion battery (included)

Approx. 400 frames.*

SDHC / S DXC memory card 8G B SDHC / S DXC memory card 16G BMovie*5 *6 *

2min. 4min.

4min. 10min.

[W]

160.7m m

(Auto po wer save ON)

Approx. 7 75g (including battery and memory card) Approx. 6 90g (excluding ac cessories,

96.5mm

] H

battery and memory card)

[

[D]

66.4mm

(Minimum Depth: 46.0mm)

more info

https://fujifilm-x.com/gfx100/

To ensure correct usage, read owner's manual carefully before using your equipment.

All photos, illustrations, drawings and other image s in this brochure a re intend ed for illustrative purposes only.

SDXC logo is a t radema rk. All ot her trad emarks a re the pro pert y of their re spect ive hold ers.

Speci ﬁcatio ns are subj ect to cha nge with out noti ce For more information, please visit our website

Page 2

PÅL LAUKLI

GFX100 GF11 0mmF2 R L M WR 1/60 s F16 ISO100

01 02

PÅL LAUKLI

GFX100 GF11 0mmF2 R L M WR 1/125s F22 ISO100

Page 3

MICHAEL CLARK

GFX100 GF32 -64mmF4 R LM WR 1/1600s F5

03 04

ISO1250

Page 4

PRESERVE FOR THE FUTURE

The GFX, FUJIFILM's mirrorless digital camera system, has achieved the highest level of image quality in the world of professional photography. The system continues its evolution...

CONTENT

05 06

PAGE

07 09 11 13 15 17 21 25 29 31 33 3719

SENSO R / PROCES SOR / MOUN T STABILIZATION FINDER / M ONITOR FOCUS ING / CONT I NUOUS SHO OTINGBODY COLOR / I MAGE SE TTING MOVIE RECORDING VARIOUS FUNCTIONS GF LENS ACCESSORY SYSTEM SPECIFICATIONWORKFLOW

The GFX100 uses large CMOS sensor with over 100 million pixels which makes this the highest class resolution mirrorless digital camera ever produced. The GFX100, is the coming together of FUJIFILM's unique blend of imaging and optical technologies and heralds the future of photography for the years to come.

Page 5

Magnes ium Allo y Body

Dust-Resistant / Weather-Resistant

TOUGHNESS

Tough Body

The camera body is made of mag nesium alloy, making it lightweight and ver y robust. The in ner frame directly couples the sensor and IBIS un it with lens and lens mount to provide complete rigidity from the lens to the sensor. The engagement area between the front and rear panels has been maximized to achieve ultimate durability against external force.

Body Magnesium A lloy

Rear F rame

Front Frame

Sensor /IBIS/Mount + Inner Fr ame

DUST-RESISTANT / WEATHER-RESISTANT

Body Resistance

The camera body is weather sealed at 95 points (including the electronic viewfi nder) helping it withst and ext reme conditions of dust, moisture and low temperat ures. This means that the camera can comfor tably handle a wide variet y of shooti ng situations, be it shooting stills or video. This means the GFX100 is perfectly suited to being used in a studio but also outdoors in harsher environments.

Operating Condition Temperatu re -10°C - 40°C / Hum idity 10 - 8 0% (No conde nsation) Dust-resistant Weather-resistant S ealing parts of body 76 / EVF 19

95 Se aling Par ts

VERTICAL GRIP

Horizontal and Vertical Body Operation

The GFX100 camera body has a built in vertical grip, it is the fi rst FUJIFI LM camera to have this integrated grip design. This allows the camera to be thin ner and lighter than before while st ill housing a large sensor, shutter mechanism, IBIS and two batteries. This balanced design of the camera allows the user to instantly switch from landscape to portrait orientation.

Dimensi ons Includin g EVF 156.2mm (W ) × 163.6m m (H) × 102.9 mm (D) (Minimum Depth : 48 .9mm) Excluding E VF 156.2mm (W) × 14 4.0mm (H) × 7 5.1mm (D) (Minimum Depth : 48 .9mm) Weight Approx. 1,400g (in cluding EVF, b attery x2 and memory card) App rox. 1,32 0g (including battery x 2 and memory card) App rox. 1,155 g (excluding ac cessories , battery and memory c ard)

BODY SURFACE

Texture and Operability

The magnesium alloy body, whilst light weight and highly robust, is coated with prem ium colors and textures. The design and handling have been optimized based on feedback from professional photographers working in the fields of landscape, commercial and fashion portrait photography. The body has been designed dow n to the last detail, including the size and layout of buttons, dial designs, mater ials, and sounds.

Custom izable Fn b uttons Hor izontal 8 buttons Vertical 7 buttons

Touch fun ction 4 d irection

07 08

BODY

Page 6

FUJIF ILM G Mount

X-Proc essor 4102 M egapixel s Large CMOS S ensor

SENSOR

100MP+ Large CMOS sensor

The GFX Series' use of a large CMOS sensor (43.8×

32.9mm) has paved t he way for ultra high image resolution. The GFX100 delivers smooth gradation and image sharpness with the high resolution sensor. This is made possible thanks to FUJIFILM's exper tise i n mediu m format which has been gained since the days of film cameras. Experience the astonishi ng creative potential possible with the 100MP+ sensor.

Number of eﬀectiv e pixels 102 Million P ixels Image sensor 43.8mm×32.9mm Bayer array with Primar y Color Fi lter

N o Optical L ow-Pass F ilter

Number of Recorded Pixels [L] <4: 3> 11648 ×8376 Sensit ivity [Sta ndard Output] A UTO1/AU TO2/AU TO3 (up to I SO12800) /

ISO10 0~12800 (1/ 3 step) [Extended Output] ISO5 0 / 25600 / 51200 / 102400

Format size compa rison

43.8×32.9mm

35mm FORMAT [FULL F RAME]

36.0×24.0mm

APS- C FORM AT

23.5×15.6mm

PROCESSOR

Image Processing Engine

The GFX100 uses the X-Processor 4, FUJIFILM's latest image processing engine to quickly optimize the data from the high resolution image sensor. Despite the massive amount of data involved, the processor handles it at a speed. You can also apply the Film Simulation modes to 100MP+ image data to achieve FUJIFILM's un ique styles of color and tone reproduction.

Startu p time 0.4sec. Maximum continuous shooting spe ed 5.0fps* EVF refresh r ate Approx . 85fps*

*1 W hen using the mech anical sh utter in CH mode. *2 Wh en using the BOO ST mode w ith FR AME RAT E PRIORI TY.

MOUNT

FUJIFILM G Mount

The G Mount, was designed to accommodate GF lenses with 100MP+ sensors in mind. Taking maximum advantage of the mirrorless system, the G Mou nt has a short f lange focal distance which contributes to the camera's compact for m and mirrors GF lenses' design and advanced performance. When combined with a large CMOS sensor, the system prevents peripheral light fall- off to achieve stunning edge to edge sharpness.

Electronic Contact 12 pins Sensor Cleaning Ultra Sonic Vibration

Flange Back Distance

Ext ernal Mount Di ameter

Mount Di ameter

Minimum B ack Focus

76.5mm

65.0mm

16.7mm

26.7m m

FORMAT / ASPECT

Image Format, Size and Aspect

The GFX100 allows users to capture images in var ious formats and image qualit ies. This includes uncompressed / lossless compressed RAW and JPEG formats of varying image sizes, aspect ratios and compression ratios. Its in camera RAW processing gives the option of saving 8bit or 10bit color depth images as 8bit or 16bit TIFF f iles. When using a 35mm format lens via a mount adapter, the camera can record images in a 36.0mmx24.0mm frame at the center (60.8M) as JPEG or TIFF (in camera RAW processing) formats.

Electronic Contact Exif Ver.2. 3 RAW 14-bit / 1 6-bit RAW (R AF original format) RAW+J PEG TIFF 8-bit /1 6-bit (10-bi t output sa ve as 16-bi t)

* In-camera R aw Conver sion Only

4:3

[ L ] 11648× 8736 [M] 8256 ×6192 [ S ] 4000 ×3000

3:2

[ L ] 11648× 7768 [M] 8256 ×5504 [ S ] 4000 ×2664

5:4

[ L ] 10928× 8736 [M] 7744 ×6192 [ S ] 3 744 ×3000

7:6

[ L ] 10192× 8736 [M] 7232× 6192 [ S ] 3504× 3000

35mm F ORMAT

[ L ] 9552× 6368

1:1

[ L ] 8736× 8736 [M] 6192 ×6192 [ S ] 2992 × 2992

(3:2)

Actual size

09 10

SENSO R / PROCESSO R / MOUNT

16:9

[ L ] 11648× 6552 [M] 8256 × 4640 [ S ] 4000 ×2248

65:24

[ L ] 11648× 4304 [M] 8256 ×3048

[ S ] 4000 × 1480

Page 7

Grip

IBIS UnitFocal Plane S hutter

SHUTTER

Focal Plane Shutter

The GFX focal plane shut ter is specifically designed for large CMOS sensor, mirrorless digital cameras. With a durability performance of over 150,000 shutter actuations*1, it combines an electronic front curtain shutter with an exceptionally quiet mechanical shut ter which has a maximum speed of 1/4000sec. The shut ter system has been redesigned for the GFX100 to support the new large CMOS sensor with continuous shooting of up to 5.0fps. You can select from three types of shutters, including an electronic shutter, according to your shooting conditions.

Mechanical Shutter

P mode : 4sec. t o 1/4000se c. A mode: 30sec. to 1/4000sec . S/M mode: 60min. to 1/4000s ec. Bulb mo de: up to 60 min.

Electronic Shutter*

P mode : 4sec. t o 1/1600 0sec. A mo de: 30sec. to 1/16 000sec. S/M mode: 60min. to 1/160 00sec. Bulb mode: up t o 60min.

Electr onic Front Curtain Shut ter*

P mode : 4sec. t o 1/4000se c. A mode: 30sec. to 1/4000sec . S/M mode: 60min. to 1/4000s ec. Bulb mo de: up to 60 min.

Mechanical + Electronic Shutter*

P mode : 4sec. t o 1/1600 0sec. A mo de: 30sec. to 1/16 000sec. S/M mode: 60min. to 1/160 00sec. Bulb mode: up t o 60min.

Electr onic Front Curtain Shut ter + Elect ronic Shutt er*

P mode : 4sec. t o 1/1600 0sec. A mo de: 30sec. to 1/16 000sec. S/M mode: 60min. to 1/160 00sec. Bulb mode: up t o 60min.

Synchr onized shutt er speed f or ﬂash

1/1 25sec. or slower

*1 A ccordin g to F ujiﬁlm i nternal testing . *2 The E lectron ic Shut ter may not be suitabl e for fast- moving objects or hand- held sho oting. F lash can not be used. *3 Wh en using the elec tronic front -curtain shutter, the cont inuous s hooting speed su pports CL only, and us ing a hig h-speed shutt er, the shut ter swit ches to mechanic al shutt er. (Faster than 1/ 1250s ec. to 1 /4000se c.)

2*3

IMAGE STABILIZATION

In Body Image Stabilization

The GFX100 is a first m irrorless digital camera equipped with an in-body image stabilization (IBIS) mechanism for a large CMOS sensor in GFX series. It provides precision control for the high definition images produced by the camera's large size CMOS sensor, which is approx. 1.7 times t he size of a 35mm for mat sensor. This feature revolutionizes the large CMOS sensor camera system, unleashing its advanced per formance with greater flexibilit y in a wider variety of shooting conditions.

Speciﬁcation t hree axis acceleromet er, three axis gyro sensor, dedicated dual proces sor

Image s tabilizer me chanism Ima ge sensor s hift mechani sm with 5- axis compensation

Compens ation Eﬀec t 5.5 s tops*

*4 Bas ed on CIP A standar d. Pitch / yaw sh ake only. With GF 63mmF2 .8 R WR l ens moun ted.

SHOCK ABSORBER

Shock Absorption Mechanism for the Shutter

The GFX100's shutter has a shock absorption mechanism ideal for landscape photography, studio shooting and commercial photography, all of which are unforgiving to even the slightest of camera shakes. The shutter unit is suspended at the top, bottom, right and left and is able to absorb subtle shakes caused when the mechanical shutter is used. It also enables quicker shutter response, which is useful in a variety of shooting sit uations.

Suspe nded at t he top, b ottom, r ight and l eft side of the sh utter

GRIP

Ergonomic Grip

The in body image stabilization (IBIS) and the shutter's shock absorbing structure are complemented by the grip design, which is shaped to provide added stabilit y for hand held shooting in various conditions. It allows you to hold the camera fi rm and there is a better balance even when a large lens is mounted, so that you can focus on the composition of your shake free images.

11 12

STABILIZ ATION

Page 8

Electronic View Finder

Main L CD Moni tor

Sub L CD Monit or

Rear Sub Monit or

ELECTRONIC VIEW FINDER

High Magniﬁcation and High Deﬁnition Electronic Viewﬁnder

The GFX100 comes with a detachable 5.76M dot EVF with approx. 100% coverage. Resolut ion priority, frame rate priority and A F priority ca n be selected in boost mode for live view depending on the subject.

Finder

0.5 in ch Approx. 5.76 million dots OLED Color Vie wﬁnder Cover age of View ing Area vs. Capturi ng Area: A pprox. 100 %

Eyepoin t Approx . 23mm (fr om the Rear End of the Camera's Eye piece) Diopter Adjustment -4 - +2m Magniﬁcation

0.86× with 50mm Lens (35mm Equivalent) at inﬁnity and Diopter set to -1.0m

Diagonal Angle of V iew Appr ox. 41° (Hor izontal A ngle of View : Approx . 33°) EVF Brightness AUTO / -7 - +5 (50 - 800cd/m EVF Color -5 - +5 EVF Color Adjus tment [R] -5 - +5 [B] -5 - + 5 Others Built-In E ye Sensor

EVF TILTING ADAPTER

Optional

EVF-TL1

Atta ch the opt ional EV F Tilti ng Adapte r EVF-TL1 betwe en the camer a body and the EVF w ill enable vertica l tilt (0°-90° / 5 steps) and horiz ontal rotatio n (±45°). This allow s you to shoot from waist level or aid s shooting in portrait orientation.

-1

)

REAR SUB MONITOR

Rear Customizable Information Monitor

The rear panel feat ures a sub monitor, which can be configured to display various data previously displayed on the main LCD monitor. Mini mizing the amount of data that has to be displayed on the main LCD monitor makes it easy to check the overall framing and concent rate on the composition. You can choose to display the exposu re compensation gauge and histogram on the sub monitor to enable exposure adjustment whilst checking the exposure level.

SUB MONITOR

Multi function Monitor

The top panel features a clear, 1.8-inch B/W sub LCD mon itor that displays the main shooting settings such as shut ter speed, aperture, ISO sensitivity and exposure compensation, as well as function icons, remaini ng number of frames (stills) and remaining f ilming time (video). This display can be configured according to what infor mation you want to be displayed. When you switch bet ween stills and video modes, all the settings shown on this sub monitor also change accordingly, ensu ring that all relevant data is available at hand.

MAIN MONITOR

3.2inch Tilting LCD Screen

The rear panel feat ures the main 3.2-inch 2.36 million dot LCD monitor that has 100% coverage and tilts in three directions, 90 degrees upward, 45 degrees downward and 60 degrees to the right. The use of capacitive touchscreen panel allows easier shooting in high and low angles, which can be difficult when using the EV F.

Monitor

3.2 in ch, Aspect Ratio 4:3 , Approx. 2,360K-dot Tilt-Type, Touch Screen Color LCD Monitor (Approx. 100% Cover age)

-1

Size 2.05 inch Number of dots 2 56×64-dot Type Monochr ome OLED Monitor Aspect Ratio 4:1

Size 1.80 inch Number of dots 303× 230-dot Type Monochr ome LCD Monitor Aspec t Ratio 4:3

Tilting Direction Three directions LCD B rightness -5 - +5 (3 0 - 800cd/ m

)

LCD Color -5 - +5 LCD C olor Adjustm ent [R] -5 - +5 [B] -5 - +5

Menu Setting Information 1 , Information 2, Scale, Histogram

Information 1 Information 2

Information (Still) Information (Movie)

F2.8

HistogramScale

Dials

Histogram

13 14

FINDER / M ONITOR

Page 9

Medium Format Film

FILM SIMULATION

FUJIFILM's Original Color Reproduction

As a manufactu rer of cameras and photographic films for many years, FUJI FILM has developed the Film Simulation modes to digitally replicate the look of film. The GFX100 allows users reproduce these colors and tones, despite its large image resolution, adding an artistic flair to images with exceptional quality.

/ Stan dard

/ Viv id

/ Sof t

CLASSIC CHROME

PRO Neg. Hi

PRO Neg. Std

Standar d mode fo r general use that faithfully r eproduces colors just as yo u remember t hem.

A com bination of high sat uration and natural colors, t his option reproduces vivid colo rs ideal fo r landscape s.

Combining a soft eﬀect with high saturation, this opt ion deliver s radiant s kin tones a nd smooth gr adation.

Delive ring subtle colors and beautif ully muted tones, this simulati on is remini scent of vi ntage rever sal ﬁlm.

Produc e portrait s with sharp cont rast eve n in ﬂat light. This option delive rs prefera ble natural s kin tones .

Reprodu ces accura te, natural skin to nes in por traits sh ot under controlled light.

MONOCHROME

SEPIA

/ CINEM A

Soft co lor and rich shad ow tone suitab le for a movie ﬁ lm look.

Premium monochro me mode delivers ﬁne tex ture, de ep blacks and smoother tones.

General use m onochrome mode that oﬀers three ﬁlter options (Ye, R and G), just like ACROS.

Adds a warm t one acros s the fra me for a sepia look . When applied to a retro subject, it creates a nostalgic look.

IMAGE SETTINGS

Eﬀects

The GFX100 offers additional photog raphic effects includi ng the "Grain Effect" for replicating the graininess of analogue photos, the "Color Chrome Effect" for adding deeper tonal gradation to a subject matter with highly saturated colors, and the "Smooth Skin Effect," a new function developed for the GFX100 for smoothing the skin tones for use in portrait photography.

GRAIN EFFECT OFF / W eak / Strong COLOR CHROME EFF ECT OFF / Weak / S trong SMOOT H SKIN EF FECT OF F / Weak / Strong

GRAI N EFFE CT: OFF GRAIN EFFEC T: Strong

WHITE BALANCE

White Balance Adjustment

You can choose the white balance setting from Auto, Custom, Color Temperat ure and Preset. The white balance can be fine tuned in the WB Shift feature with RB color coordinates. In the Custom mode, which measures the ambient light to determine white balance, you can also adjust size and location settings and register th ree presets.

Mode Automatic S cene Recogn ition Color Temperature Selection 2500K - 10000K Custom Cus tom 1~3 Size / Area S electable Prese t Daylight, Shade, Fluo rescent L ight (Daylight), F luorescent Light (Warm

Whit e), Fluoresc ent Light (Cool White), Incande scent Light, Underwater

2500K 5000K

PRO Neg. Std

15 16

COLOR / IM AGE SET TING

COLOR CHROME E FFECT: OFF COLOR CHROME E FFECT: Strong

White Balance Shift

Page 10

Movie Mode

Headphone Connector

USB- C Port

4K HD MI Outpu t

MOVIE RECORDING

4K Movie / 10bit Color Depth

The full potential of the large CMOS sensor in the GFX can be seen when shooting both stills and video. The combination of the latest sensor and the "X-Processor 4" enables support for 4K/30P video. The camera's sensor, which is larger than that of most cinema cameras, produces a shallow depth of field, enhanced tonal gradient in 10-bit output, and g reater ISO sensitivity. The for mat size produces video footage with more det ailed textures while reproducing th ree dimensional definitions. You are able to capture the at mosphere of the scene unli ke anything before. All the Film Simulation modes can be applied to video as well, including "Eterna," which replicates the look of FUJIFILM's cinema film of the same name. Furthermore, the camera supports the digital cinema aspect rat io (17:9), compression codecs such as H.265 and H.264, and a bit rate of up to 400Mbps.

Movie Compression

DCI4K 17:9

(4096 × 2160)

4K 16: 9

(3840 × 216 0)

FHD 17 :9

(2048 ×1080)

FHD 16 :9

(1920 ×1080)

*1 C odec and bit rate will be c hanged d epends on the rec order. * 2 Canno t choos e slowe r shutte r speed t han fra me rate.

AII-Intra

Long-GOP

Uncompressed (HDMI Ou tput)

AII-Intra

Long-GOP

Uncompressed (HDMI Ou tput)

Frame rateSetti ng (Size) Codec / YUV / Bit depth

29.97p 25.00p

24.00p 23.98p

29.97p 25.00p

24.00p 23.98p

29.97p 25.00p

24.00p 23.98p

59.94p 50.00p

29.97p 25.00p

24.00p 23.98p

59.94p 50.00p

29.97p 25.00p

24.00p 23.98p

59.94p 50.00p

29.97p 25.00p

24.00p 23.98p

H.265 (HEVC) / 4:2:0 / 10bit H.26 4 / 4:2: 0 / 8bit

*1 / 4: 2:2 / 10 bit

H.265 (HEVC) / 4:2:0 / 10bit H.26 4 / 4:2: 0 / 8bit

*1 / 4: 2:2 / 10 bit

Bit ra te

400Mbps

400Mbps 200Mbps 100Mbps

200Mbps

200Mbps 100Mbps 50Mbps

Shutter Speed

1/4000~1/4sec.

1/4000~1/24sec.*

1/4000~1/4sec.

1/4000~1/24sec.*

1/4000~1/4sec.

MOVIE FORMAT

Movie Recording

With its large CMOS sensor, the GFX100 demonst rates its appeal in video recording. It uses full sensor width to record video in 4K digital cinema format in the aspect rat ios of 16:9 / 17:9. The sensor area used is greater than that of most cinema cameras that suppor t a large for mat sensor. You can use GF lenses and adaptors to achieve a var iety of videographic expressions that only large

OUTPUT

Simultaneous Output to HDMI and SD card

The high speed processing engine, X-Processor 4, can read and output condensed video data, feeding 4K/30P 4:2:2 10bit data to the HDMI port and recording 4K/30P 4:2:0 10bit data to an SD card (when H.265 is selected) up to 400Mbps* etc. The processor's enhanced capability means video footage can be viewed on the camera's LCD screen as well as on an external monitor whilst you film, while feeding uncompressed d ata st raight to a recorder.

. You can also choose All-Intra*4 / Long-GOP,

COLOR GRADING

F-Log / HLG Support

The GFX100 is capable of recording F-Log, characterized by a gamma curve with a wide dynamic range, and capturing video in H LG (Hybr id Log Gamma), one of the formats defined in the ITU-R BT.2100 inter national standards. Coupled with color information attained in 10-bit color depth, the camera records premium quality footage faithfully depicting scenes even with a large bright ness range or subjects with high color saturation.

sensors can deliver, and record them in high resolution 4K video.

43.8×23.2mm

DCI4K

35mm F ORMAT [FU LL FRAM E ] DCI4 K

SUPER 35mm FOR MAT

43.8×32.9mm

Actual size

*3 A vailable a t 4K/2 9.97P, 25P, 24 P or 23. 98P. Require s an SD c ard with the vide o speed c lass of V 60 or abo ve to r ecord a t the bi t rate of 400Mb ps. *4 Availab le at 4K /29.9 7P, 25P, 24P, 23 .98P, and FHD/ 59.94P, 50 P, 29.97P, 25P, 24 P, 23.98P w hen H.26 5/HEV C is se lected. N ot compa tible wit h H.264 .

17 18

MOVIE RECORDING

Page 11

FOCUS MODES

Six AF Modes and AF-C Customization

FACE DETECTION / EYE DETECTION

Face/Eye Tracking and Auto Focus

The GFX100 has six AF modes that cater for all types of subject movement. The A F-S locks focus while the AF-C focuses continuously on a moving subject. These can be combined with focus area options, namely "Single Point," "Zone" and "Wide / Tracking." You can also keep six custom settings for AF-C to adjust “Tracking Sensitivity”, “Speed Tracking Sensitivity” and “Zone Area Switching” according to the characteristics of subject movement.

AF Modes

AF-S + Single Po int For ca pturing subje cts using a speciﬁc A F point AF-S + Zone F or capturing subjects a cross a la rge AF are a AF-S + Wide F or automatic ally capturing a subject a cross the frame AF-C + Single Po int For c ontinuous spo t-focusing AF-C + Zone F or tracking a subject within a sel ected area AF-C + Tracking For continu ously track ing a subject across t he frame

AF-C Custom Setting

SET 1 Multi pur pose SET 2 Ignoring obstacles SET 3 Accelerating / dec elerating

subjects

SET 4 Subjects that suddenly come into the frame

SET 5 Erratic ally moving SET 6 Custom

Using the new sensor in conjunction with the X-Processor 4, gives an advanced level of face tracking perfor mance. The photog rapher has the ability to identify and capture even easier than before, difficult subjects like a person inside profile. In the Eye AF mode, you can even specify which of the subject's eyes you want the camera to prioritize. This is particularly useful in portrait ure, which commands focusing accuracy with a ver y shallow depth of field. The touchscreen panel or Focus Lever can be used to select which of a crowd of faces detected you want the camera to track, focus and adjust exposure to.

Face / Eye D etection S etting ON (EYE OFF, EY E AUTO, RIGHT E YE PRI ORITY, LEF T EYE PRIORIT Y) / OF F

Face Select Touch Panel / Function (F n) setting

RUSSEL ORD

GFX100 GF25 0mmF4 R LM OIS WR + G F1.4X TC WR 1/1600s F5.6 ISO200

AUTO FOCUS

Phase Detection AF System

The GFX100 is the first GFX that featu res a phase detection AF system on large CMOS sensor. The GFX100 has phase detect ion pixels across the entire sensor and using the X-Processor 4 engine coupled with the latest AF algorithm, is able to focus on a subject at high speed with accuracy even when the subject is away from the center of the frame or in low light.

FEATHER TOUCH SHUTTER

Leaf Spring Switch Shutter

The GFX100 is equipped with a feather touch shutter button that responds to delicate shutter release actions. The button reacts to the subtlest movements of the f inger when gripping the camera body firmly in both port rait and landscape orientations. The use of the electronic front curtain shutter minimizes release time lag to give even greater conf idence in shutter operation.

CONTINUOUS SHOOTING

Burst mode

Continuous shooting is available in two frame rates, i.e. high speed burst at 5.0fps (CH) and low speed burst at

2.0fps, which can be checked in Live View*. When the AF-C is selected, the GFX100 combi nes it with various phase detection A F modes and face detection to shoot in bursts while tracking and focusing on a moving subject.

CH App rox. 5.0fp s (JPEG: 4 1 Frames L ossless compression RAW: 14 Frames Uncompr essed RA W: 13 Fram es) CL App rox. 2.0f ps (JPEG: E ndless Lo ssless co mpression RAW: 20 F rames Uncompr essed RA W: 15 Fram es)

*Whe n Using t he Elect ronic Sh utter CH continuo us shoot ing speed drops t o approx . 2.9fp s. *Elec tronic F ront Cur tain Shut ter supp ort CL on ly. *Reco rdable fr ame depe nds on re cording m edia. *Spee d of cont inuous s hooting d epends on shooting environ ment and shooting frames.

19 20

FOCUS ING / CONTI NUOUS SHO OTING

Page 12

EXPOSURE MODE

Switch P / S / A / M Mode

BRACKETING

Six Types of Bracketing

PHOTOMETRY

Four Metering Modes

SENSITIVITY

ISO Sensitivity

The shooting mode button (Fn2) on the top panel allows you to switch between "Program (P)" and "Shut ter Speed Priority (S)" (when the aperture is set to Auto) and between "Aperture Prior ity (A)" and "Manual (M)" (when the aperture is set to Manual). These selections can be assigned to a function button of your choice in Function (Fn) Setting.

Shoot ing mode b utton

DRIVE MODE DIAL

Still / Multi / Movie mode switch

Rotate the Drive Mode Dial to switch bet ween the Still, Multi and Video modes. Selecting the Still or Video mode restores the respective settings so that you can start shooting as soon as you switch, without having to adjust settings. The Drive Button allows you to adjust burst speed and video frame rate. The Dial Lock Release Button prevents any accidental use.

Six types of bracketing are available to capture multiple frames at different settings with a si ngle press of the shutter release. This function works with both JPEG and RAW formats.

AE Br acketing F rames: -2, -3, +3, +2, ±9, ±7, ±5, ±3

1/3E V - ±3EV, 1 /3EV st ep

Film S imulation Brac keting An y 3 Types of Film Simulatio n Selectable Dynamic Range Bracketing 100% · 200 % · 400% ISO S ensitivity Bracketing ±1/3E V / ±2/3E V / ±1EV White Balance Brac keting ±1 / ±2 / ±3 Focus Bracketing Interval, Number of sho ts, 10 st ep

AE Br acketing

0EV

+3EV

CUSTOMISABLE CONTROL

Buttons / Menu Customization

Numerous function (Fn) buttons are provided on the camera body allowing you to assign your preferred settings for easier operation. The 16 items shown in t he Q (Quick) menu and C1

- C7 can also be reconfigured to i nstantly access your favorite Film Simulation modes or image qualit y settings. T he camera also supports "My Menu," where your most frequently-used items can be stored.

The GFX100 offers four metering modes: mult i meter ing, spot metering, average metering and center-weighted metering. When using the spot metering mode, the selected focus area is also used for metering. T he options allow you to adjust metering according to the surrounding environment or your subject matter.

Multi Calculates exposure b ased on anal ysis of the whole fram e Spot Takes a mete r reading f rom an area occupying appr ox. 2% o f the frame Average Sets e xposure ba sed on the average bri ghtness of the entire frame Centre Weighted Take s a meter r eading mainly f rom the cent er of the fr ame

CONNECTIVITY

Wireless Communication and Pairing

Install the f ree application "FUJIFILM Camera Remote" on your smartphone or tablet device to shoot via Live View and transfer your camera images to your device. The camera can also be paired with your device via Bluetooth to automatically t ransfer images. Using the app you can also update the camera f irmware directly.

The standard ISO sensitivity range is ISO100-12800, with extended sensitivities of ISO50, ISO25600, ISO51200 and ISO102400. RAW format is supported at all ISO settings. The AUTO function allows you to set t he standard ISO, low shutter speed limit and upper ISO limit, and configure AUTO 1 - 3 settings according to shooti ng conditions.

Still Standar d Output A UTO1 / AUTO2 / AUTO3 (up to ISO12 800) / ISO1 00 to 1280 0

(1/3 step)

Exte nded Output ISO50 / 25600 / 5 1200 / 1024 00 Movie Standar d Output A UTO (up to ISO1280 0) / IS O100 to 1 2800 (1/3 step) Exte nded Output ISO25600

INTERVAL / SELF TIMER

Time-lapse shooting

Sample unique shooting styles including fixed point photography, time lapse and self timer images with controls over shooting interval, total number of frames and shutter delay. The Self Timer function can be set at 2 sec. or 10 sec. The former is par ticularly useful for situations when you want to minimize camera shake, such as long exposures.

Shootin g Interval 1sec. - 24 hours Number of Frames 1 - 999 +

∞

Shutte r Delay In 0min. - 24 ho urs

INFORMATION DISPLAY

3D Electronic Level / Histogram

The elect ronic level uses a 3D system which is highly effective for architecture or landscape photography, when the accuracy of horizontal and ver tical lines is crucial. Four ty pes of histogram can be displayed: RGB and brightness, each with or without highlight warnings.

-1

-2

-3

-4

-5

10 1.0 1600

-1

-2

-3

-4

-5

5.6 1.0 500

BATTERY MANAGEMENT

Battery Age

Check the age of the batteries in the camera. Battery age is expressed as a number between 0 (youngest) and 4 (oldest).

Enabletodownload:http://app.fujiﬁlm -dsc.com/

EXIF / VOICE MEMO

Use the touchscreen panel to enter "Author" and "Copyright" to your file's EXIF data.

Voice Memo Function

Record your voice for up to 30 seconds to make notes about the images you are shooting to keep track of your shoots.

STANDBY MODE

Shooting Standby Mode

In standby mode, all displays except the Sub LCD Monitor and Rear Sub Monitor t ur n off to save power when the camera is not in use. Choose the length of time your camera will wait before entering standby mode: 5min., 2min., 1min., 30sec., or 15sec.

Standby Mode 5 min, 2min, 1mi n, 30sec., or 15sec .

USB CHARGE

Powering the Camera or Recharging via the USB

The GFX100 can be powered and recharged via the USB-C port, enabling extended shooting and removing any worr ies about run ning out of power. While traveli ng to a shoot or when on an outdoor shoot, you can use a USB PD(Power Deliver y) power source which can power the camera or rapidly recharge the battery. If you use device with over 30W delivery, you can charge two batteries simultaneously and quickly.

USB P D Rev2. 0 ver1.3

21 22

VARIOUS FUNCTIONS

Page 13

JAN GONZALES

GFX100 GF12 0mmF4 R L M OIS WR Ma cro 1/125s F5 ISO100

23 24

ERIC MARO

GFX100 GF11 0mmF2 R L M WR 1/125s F11 ISO100

Page 14

FEEL THE DETAIL

The GFX100 is complimented by an expansive range

of lenses and accessories to maximize your workflow.

When mounted on the GFX100, the GF Series of lenses,

capture detail only a large CMOS sensor can see.

You have a sense of dynamic presence,

3D definition and atmosphere unlike any other format.

In addition to GF lenses, the GFX camera system can deliver

the full performance potential of classic lenses

built for medium format or large format cameras.

25 26

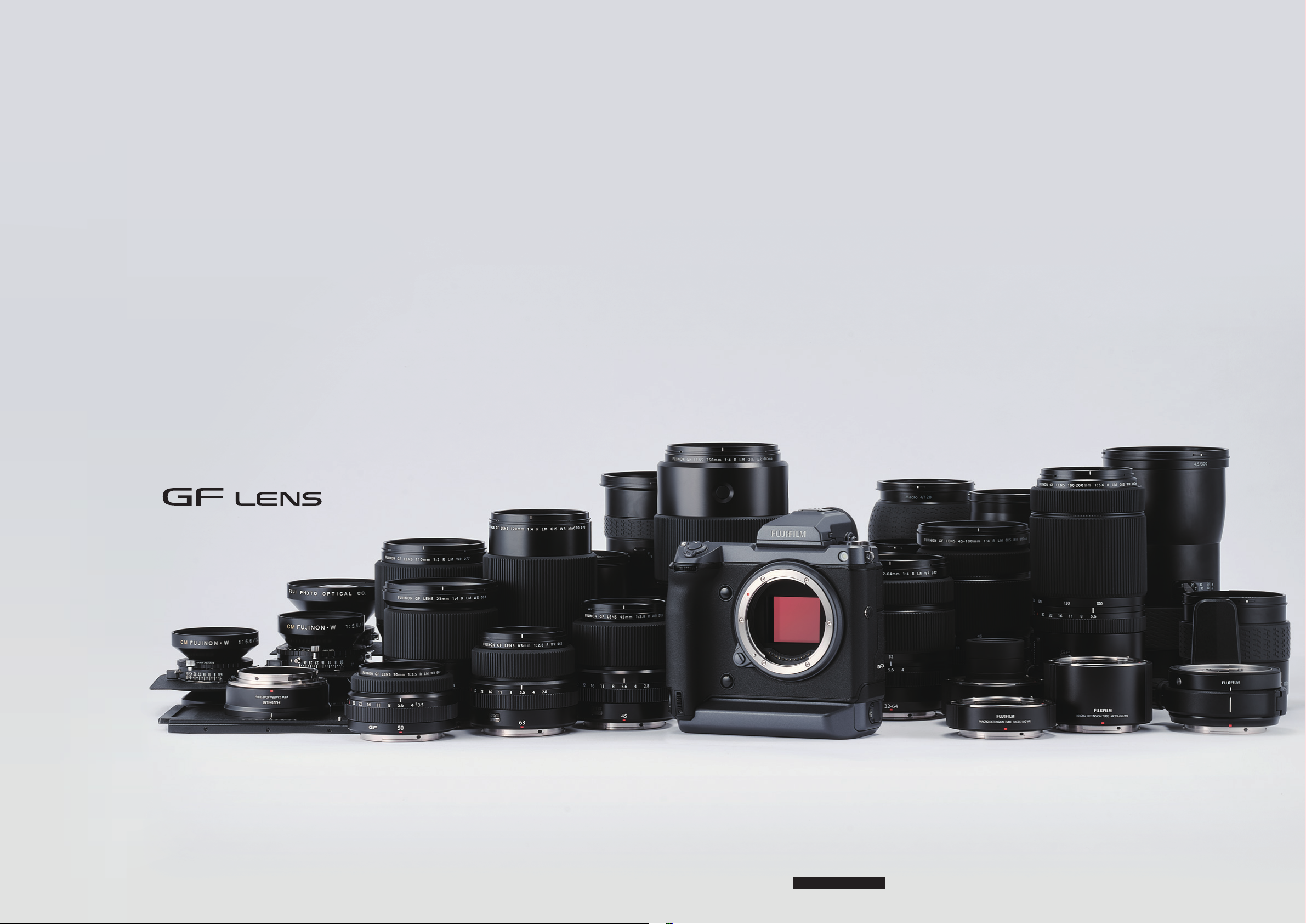

GF LENS

Page 15

GF LENS

prime lens

Super ED Lens

ED Le ns

Asphe rical Lens

Lens conﬁguration

Focal length

(35mm format eq uivalent)

Angle of view Max. aperture Min. aperture Apert ure control Number of blades

Step s ize Focus range Max. magniﬁcation Dimensions

*distan ce from camera le ns mount ﬂange

Weight

*exclud ing caps, hoods and Tripod co llar foot

Filter size

GF23mmF4 R LM WR

15 elem ents in 12 groups

(includ es 2 asph erical, 3 ED and 1 super ED elements)

f=23mm

(18mm)

99.9° F4 F32 9 (round ed diaphragm o pening) 1/3E V (19 step s) 38cm -

∞

0.09x approx. ø89.8mm×103mm

approx . 845g

82mm

GF30mmF 3.5 R WR

13 elem ents in 10 groups

(includ es 2 asph erical an d 2 ED el ements)

f=30mm

(24mm)

84.7 ° F3.5 F32 9 (round ed diaphragm o pening) 1/3E V (20 ste ps) 32cm -

∞

0.15x approx. ø84mm×99. 4mm

approx . 510g

58mm

11 ele ments in 8 groups

(includ es 1 asph erical an d 2 ED el ements)

f=45mm

(36mm)

62.6° F2.8 F32 9 (round ed diaphragm o pening) 1/3E V (22 st eps) 45cm -

∞

0.14x approx. ø84mm×8 8mm

approx . 490g

62mm

zoom lens

GF50mmF3.5 R LM WRGF45mmF2.8 R WR

9 eleme nts in 6 gr oups

(includ es 1 asph erical el ement)

f=50mm

(40mm)

57. 4° F3.5 F32 9 (round ed diaphragm o pening) 1/3E V (20 ste ps)

0.55 m -

∞

0.1x approx. ø84mm×48mm

approx. 335g

62mm

GF63mmF2.8 R WR GF110mmF2 R LM WR

10 elem ents in 8 gr oups

(includ es 1 ED e lement)

f=63mm

(50mm)

46.9° F2.8 F32 9 (round ed diaphragm o pening) 1/3E V (22 st eps)

0.5m -

∞

0.17x approx. ø84mm×71mm

approx . 405g

62mm

14 ele ments in 9 g roups

(includ es 4 ED e lements)

f=110mm

(87mm)

27.9 ° F2 F22 9 (round ed diaphragm o pening) 1/3E V (22 st eps)

0.9m -

∞

0.16x approx. ø94.3mm×125 .5mm

approx . 1,010g

77mm

teleconverter

GF120mmF4 R LM OIS WR Macro GF1.4X TC WR

Lens conﬁguration

Focal length

(35mm format eq uivalent)

Angle of view Max. aperture Min. aperture Apert ure control Number of blades

Step s ize Focus range Max. magniﬁcation Dimensions

*distan ce from camera le ns mount ﬂange

Weight

*exclud ing caps, hoods and Tripod co llar foot

Filter size

27 28

14 ele ments in 9 g roups

(includ es 3 ED e lements)

f=120 mm

(95mm)

25.7 ° F4 F32 9 (round ed diaphragm o pening) 1/3E V (19 step s) 45cm -

∞

0.5x approx. ø89.2mm×152. 5mm

approx . 980g

72mm

GF250mmF4 R LM OIS WR GF32-64mmF4 R LM WR

16 elem ents in 10 g roups

(includ es 2 ED a nd 1 super ED eleme nts)

f=250mm

(198mm)

12.5° F4 F32 9 (round ed diaphragm o pening) 1/3E V (19 step s)

1.4m -

∞

0.22x approx. ø108mm×203 .5mm

approx . 1,425g

82mm

14 ele ments in 11 groups

(includ es 3 asph erical, 1 ED and 1 super ED elements)

f=32-64mm

(25-5 1mm)

81°-46. 3° F4 F32 9 (round ed diaphragm o pening) 1/3E V (19 step s) [Wide] 0. 5m -

[Telephoto] 0.6m -

∞ /

0.12x [T] approx. ø92.6mm ×116mm (Wi de) / 145. 5mm (Telephoto)

approx . 875g

77mm

∞

GF45-100mmF4 R LM OIS WR

16 elem ents in 12 groups

(includ es 3 asph erical, 1 ED and 1 superED elements)

f=45-100mm

(36-79mm)

62.6°-30.6° F4 F32 9 (round ed diaphragm o pening) 1/3E V (19 step s) [Wide] 0. 65m -

0.13x [T] approx. ø93mm×1 44.5mm (Wide) / 174. 5mm (Telephot o)

approx. 1,005g

82mm

GF LENS

[Telephoto] 0.82m -

∞ /

GF100-200mmF5.6 R LM OIS WR

20 elem ents in 13 groups

(includ es 1 asph erical an d 2 super ED elemen ts)

f=100-200mm

(79-15 8mm)

30.6°-15.6° F5.6 F32 9 (round ed diaphragm o pening) 1/3E V (16 step s)

∞

[Wide] 0. 6m -

[Telephoto] 1.2m -

∞ /

∞

0.2x [W] approx. ø89.5mm×183mm

approx . 1,050g

67mm

7 eleme nts 3 group s

1.4x that of origi nal lens

1 additi onal stop 1 additi onal stop

Appro x. same as th at of original le ns

1.4x that of origi nal lens approx. ø82× 26.7mm

approx . 400g

Page 16

Cable Protect or

EF-60

DC IN 15V C onnecter

FLASH SHOOTING

EF-60 / EF-W1

A compact and high-power shoe mou nt flash, which suppor ts radio-controlled wireless remote t riggering when combined with the Wireless Commander EF-W1.

Max. G uide No.

The Co verage (zoom)

Bounce Position Color Temperature FP (High Speed Sync)

emmission Expo sure Contro l,

Flashin g method EV compensation Manual mode

Repeati ng ﬂash Charging

Wirele ss remote function

Optical communication function

Power Source Exte rnal Power S ource Dimension Weight

*1 N AS (Niss in Air Sy stem) is a regist ered tra demark of Nissin J apan Ltd. *2 N issin A ir10s is a product of Nissin Digital

Optional

approx . 60 (ISO 100·m) When focal lengt h coverage is set to 200mm i n 35mm fo rmat

24mm - 200mm (in 35mm for mat) 16mm (in 35mm fo rmat) when using built-i n diﬀuser

Up: 90 °, Do wn: 0°, Lef t: 180°, Ri ght: 180° approx . 5,300K (at full ﬂas h) Compatible

TTL , Manual c ontrol

+/-2EV in incremen ts of 1/ 3 of EV 1/1 - 1/25 6 with 1/ 3EV ste p selection (ﬂashing)

1/1 - 1 /32 with 1/3EV step (FP(H SS) emissio n)

Recyclin g Time (Full ﬂashing, fully charge d) approx. 3 sec. (NiMH battery)

No. of ﬂ ashes (Full ﬂ ashing, full y charged) appr ox. 170 t imes (NiMH batt ery) Communic ation metho d : 2.4 GHz NAS *

Action mode : R emote (T TL, Manual , OFF) Compati ble master device : FUJIFILM EF-W1, Nissin A ir10s* Communic ation Channel : Compatible w ith channel 1 t o 8 of wirele ss commander Remote Group : A, B, C

Communic ation metho d : Optical pulse met hod Compati ble master device : FUJIFILM EF-X500 Action mode : R emote (T TL, Manual , OFF) Communic ation Channel : Compatibl e with chann el 1 to 4 of master ﬂash Remote group : A , B, C

4 × AA ba tteris (NiMH battery, Alkaline bat tery)

approx . 97mm (H) × 73mm (W) × 113mm (D) approx . 300g (wt hout batter y)

EF-X500

Hot-shoe mount flash EF-X500 enables flash photography at high shutter speeds or using multible units in sync.

Max. G uide No.

The Co verage (zoom)

Bounce Position Color Temperature FP (High Speed Sync)

emmission Expo sure Contro l,

Flashin g method EV compensation Manual mode

Repeati ng ﬂash Charging

Wirele ss remote function

Optical communication function

Power Source Exte rnal Power S ource Dimension Weight

Optional

approx . 50 (ISO 100·m) When focal lengt h coverage is set to 105mm in 35mm f ormat

24mm - 105mm（in 35 mm format 20mm ( in 35mm f ormat) when using built- in wide pan el

Up: 90 °, Do wn: 10°, Lef t: 135°, Right: 180° approx . 5,600K (at ful l ﬂash) Compatible

TTL , Manual, Repeating (man ual)

+/-5EV in increm ents of 1 /3 of E V 1/1〜1/51 2 with 1 /3EV st ep selectio n (ﬂashing)

Combinin g low values with FP ma y result in output excee ding value se lected 1/4〜1/51 2 with 1 /3EV st ep selectio n (ﬂashing) Recyclin g Time (Full ﬂashing, f ully charged) approx. 2. 5 sec. (NiMH battery)

No. of ﬂ ashes (Full ﬂ ashing, full y charged) appr ox. 170 t imes (NiMH batt ery) Communic ation metho d :

Action mode : Compati ble master device : Communic ation Channe l : Remote Group :

Communic ation metho d : Optical pulse met hod Compati ble master device : Action mode : M aster (T TL, Manual , Repeating , OFF) Remote (TTL, Manual, Re peating, OF F) Communic ation Channel : Compatibl e with chann el 1 to 4 of master ﬂash Remote group : A , B, C

4 × AA ba tteris (NiMH battery, Alkaline bat tery) Compatible with optional EF-BP1 approx . 124.0mm (H) × 67.2 mm (W) × 107.3mm (D) approx . 380g (w thout batte ry)

MOUNT ADAPTER

H MOUNT ADAPTER G

Enables compatibility with H Mount lenses, includi ng SUPER EBC FUJINON HC lenses for GX645AF (discontinued), to be at tached to the G Mount. It suppor ts lens shutter operations and apert ure priorit y AE. Focusing is manual only, but the mou nt features

）

electronic contacts to generate and record lens cor rection data for individual lenses. A detachable tripod collar foot is included.

Compati ble Lens H M ount Lens Expo sure Mode A perture Pr iority AE (A ) and Manual Shutte r Select Cam era Body Fo cal Plane Shut ter /

Leaf Sh utter in Len s

Focus Mode Manual F ocus Only Operati on Parts F n button (Shut ter Select),

Mount Relea se Lever, Detachable Tripod c ollar foot

Optional

VIEW CAMERA ADAPTER

VIEW CAMERA ADAPTER G

Allows you to use a 4x5 view camera on the G Mount i n conjunction wit h old large format FUJINON lenses. This allows you to take advantage of a view camera's characteristic tilt and shift functions while usi ng the focal-plane shutter i n the camera body.

Compati ble Body Inte rnational Sta ndard 4×5 Ca mera* Operati on Parts ±20mm Hor izontal Shif t Slider (5.0m m step) Mount Ro tatable 0° / 90° / 180° / 270°

*Depen ding on bod y shape, t his adapt er may not be attach ed.

Optional

TERMINAL

Interface for External Connections

Th e GFX100 's terminal for external connections features a USB-C port for high speed image transfer, a micro-HDMI port to connect to an external monitor, a microphone input, a headphone jack and a remote shutter release connect ion. The camera can be powered and charged by connecting an AC power adapter (optional) to the power plug input connector or a USB Power Delivery device to the USB-C port. T he camera comes with a cable protector for holding cables in place.

Digital Interface U SB Type-C (USB 3.2 Gen1 ×1) HDMI Out put HDMI Micro Connector ( Type D) DC IN 1 5V Connect er

*C ompatible with AC-15V (Optio nal) Only

Remote Release Conn ector ø2.5mm

*Conne ctable with Remo te Release RR-10 0 (Optional)

Microphone Connector ø3.5mm , Stereo Mini Connector Headphone Connector ø3.5mm , Stereo Mini Connector Others Hot Shoe, Synchr onized Terninal

29 30

ACCESSORY

Page 17

Computer

Fujino n Large Format Lens

WORKFLOW

Software Support

You can set up a photographic workflow including tethering, RAW processing preview, RAW development and image checking by installing compatible software to your computer. This can be achieved using FUJIFILM's own software as well as traditional photo processing applications. Tethered shooting can be achieved by connecting the camera to your computer with a USB cable or setting up a WiFi connection via wireless devices. The IEEE802.11ac has been added to a list of supported wireless protocols to enable data transfer on a 5GHz network.

CAPTURE ONE PRO / CAPTURE ONE PRO FUJIFILM

Captu re One Pro FUJI FILM is a photographic workflow application*1 specif ically designed for the GFX and X Series cameras and utilizing the diverse and powerf ul editing functions of Capture One Pro. It is available for purchase f rom Capt ure One website. The software offers a cataloging function to manage your individual images or sessions of shooting, whilst enabling fast and precise control throughout your workflow from tethered shooting to RAW processing. The Capture Pilot function lets you view and check images you have taken wirelessly on a tablet device, etc.

Optional

FUJIFILM X ACQUIRE

*2 Av ailable as a free do wnload fr om the FU JIFILM website .

Free Do wnload

FUJIFILM TETHER SHOOTING PLUG-IN PRO + ADOBE® PHOTOSHOP® LIGHTROOM® CLASSIC CC

Optional

FUJIFILM X RAW STUDIO

Free Do wnload

This unique R AW development software from FUJI FILM connects a computer installed with X RAW STUDIO and camera via USB cable. The processor in the camera can be used to process RAW files, including large batches of images, without any limitations or delays from your computer. Offering an optimized environment for the GFX100, you can get complete image quality including tone, color reproduction, and Film Simulations.

*3 Av ailable as free dow nload fr om the FU JIFILM w ebsite

CAPTURE ONE EXPRESS FUJIFILM

Free Do wnload

This software suppor ts RAW conversion of files from the GFX and X Series range of cameras* a unique cataloguing for mat to manage pict ures, enabling fast processing of individual images regardless of the quantity or size. FUJIFILM's unique Film Simulation modes can be applied during RAW conversion so that you can add an art istic f lai r or traditional film look and feel. This RAW conversion software is available as a free download from Capture One website.

*4 Avail able as fr ee downlo ad from t he Captur e One web site. *5 Se e Capture One webs ite for de tails of s upporte d cameras .

. The soft ware uses

*1 S ee Captur e One web site for d etails of compatibl e camera s.

31 32

WORKFLOW

Page 18

SYSTEM

GFX System

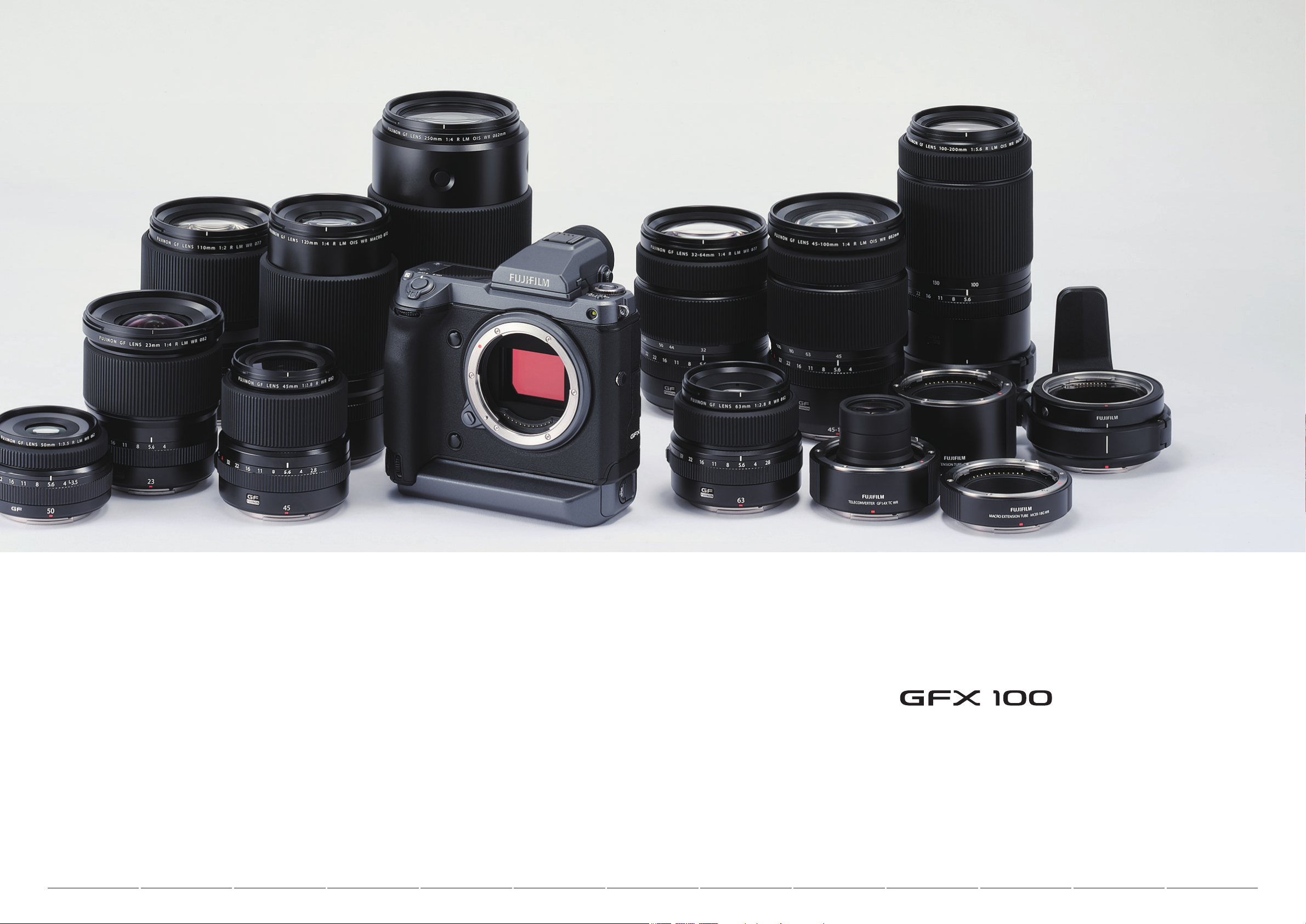

The GFX100 is the flagship large CMOS sensor mirrorless digital camera from FUJIFILM. The camera system is fully capable of exceeding the needs of professional photographers and videographers in a variety of shooting situations.

CLIP O N FLAS H

EF-X5 00

And mor e

EVF TILT ADA PTER

EV F-TL1

*See FUJIFIL M websit e for det ail inform ation

https://fujiﬁlm.jp/personal/digitalcamera/gfx /

PROT ECTOR F ILTER

PRF-62 PRF-82

And mor e

INTERCHANGEABLE LENS

GF32- 64mmF4 R LM WR

GF63mmF2.8 R WR

And mor e

Refer t o P27 - 2 8

STEREO MICROPHONE

MIC-ST1

EVF

Included Included

HOT S HOE COVE R

CABLE PROTECTOR

Included

EC-GFX

EC-X H W

EYE CUP

Included

EC-X T S

EC-X T M

EC-X T L

REMOTE RELE ASE

RR-1 00

And mor e

TELECONVERTER

GF1.4X TC WR

MACR O EXTE NSION TUB E

MCEX-18G WR

MCEX-45G WR

MOUNT ADAPTER

H MOUNT A DAPTER G

BAT TERY CHA RGER

(4 types of plugs included )

BC -T125

BATTE RY

NP-T 125

SHOULD ER STR AP

IncludedIncludedIncluded

VIEW CAMERA ADAPT ER

VIEW CA MERA AD APTER G

AC PO WER ADA PTER

AC-15V

33 34

SYSTEM

Page 19

VICTOR LIU

GFX100 GF23 mmF4 R LM W R 1/4s F11 ISO100

35 36

Page 20

SPECIF ICATION SHE ET

Model name FUJIFILM GFX100

102 million pixelsNumber of e ffect ive pixels

43.8mm× 32.9mm B ayer array w ith primar y color filterImage sens or

Ultra Sonic VibrationSensor Cleaning System

Storag e media

File form at JPEG: E xif Ver.2.3)*

Number of r ecorded pi xels

Sensitivity

Expos ure compensation

Image Stabilizer

Shutter speed

Electr onic Fron t Curta in

Shutter* Mechani cal + Elect ronic

Shutter* Electronic Front Curtain Shutter

+ Electronic Shutter*

Synchronized shutter speed for flas h

Continuous shooting

Auto bracketing

Focus

AF fram e selecti on

White balance

Flash modes *When EF-X500

is set

Viewfinder

Touch Screen Mode

Shooting Mode

SD Card (-2 GB) / SD HC Card ( -32GB ) / SDXC Car d (-512GB) U HS-I / U HS-II / Video S peed Cla ss V90 *

RAW: 14bit / 16 bit RAW ( RAF original f ormat) RAW+ JPEG: 8 -bit /16- bit (10-bi t output in 16 bit file) TIF F: In-ca mera Raw Co nversio n Only

[L] <4:3> 11648× 8736 <3: 2> 11648×776 8 <16:9> 11648×6 552 <1:1> 8736×873 6 <65:24> 11648×4 304 <5:4> 10 928×873 6 <7:6> 10192×873 6 [M] <4:3> 8 256×6192 < 3:2> 8256×550 4 <16:9> 8256×464 0 <1:1> 6192×6192 <65: 24> 8256×30 48 <5:4> 7744×6192 <7:6> 7232 ×6192 [S] <4:3> 4 000×3 000 <3:2> 40 00×26 64 <16:9> 4000× 2248 <1:1> 2992× 2992 < 65:24> 40 00×1480 <5:4> 3 744×3000 <7:6> 3 504×3000

FUJIFILM G mountLens Mount

AUTO1/A UTO2 /AUTO3 (up to IS O12800 ) / ISO100~1280 0 (1/3 step)Still Ima ge Stand ard Output

ISO5 0 / 2560 0 / 51200 / 10240 0Still Ima ge Exte nded Output

AUTO / I SO20 0~12800Movie St andard O utput

ISO25600 E xtended Output

TTL 2 56-zone m etering, M ulti / Spot / A verage / Ce nter Weighte dExposure control

P (Prog ram AE ) / A (Ape rture Pr iorit y AE) / S ( Shutt er Speed Pr iorit y AE) / M ( Manual Exposu re)Exposure mode

-5.0E V - +5.0EV 1/3E V stepStill Image

-2.0E V - +2.0EV 1/ 3EV st epMovie

Image sensor shift mechanism with 5-axis compensationMechanism

5.5 stop s (based o n CIPA st andard ). Pitch/ yaw shake on ly. With GF 63mmF2.8 R WR len s mounted.Compensation Effect

Focal Pl ane Shut terShutter type

P mode: 4se c. to 1/400 0sec. A mo de: 30se c. to 1/400 0sec. S/ M mode: 60min. to 1/40 00sec. Bulb mode: u p to 60min.Mechanical Shutter

P mode: 4se c. to 1/1600 0sec. A mode: 30s ec. to 1/1600 0sec. S/M mod e: 60min. to 1/ 16000 sec. Bulb mo de: up to 60 min.Electronic Shutter*

P mode: 4se c. to 1/400 0sec. A mo de: 30se c. to 1/400 0sec. S/ M mode: 60min. to 1/40 00sec. Bulb mode: u p to 60min.

P mode: 4se c. to 1/1600 0sec. A mode: 30s ec. to 1/1600 0sec. S/M mod e: 60min. to 1/ 16000 sec. Bulb mo de: up to 60 min.

3 *4

1/4000 sec.-1/4sec*. *Ca nnot choo se slower shu tter sp eed than fr amerate wi th LongG OP recor ding.Movie

1/125sec. or s lower

CH Appr ox. 5.0f ps (JPE G: 41 Frames C ompress ed RAW: 15 Fra mes*5 Lossless compression RAW: 14 Frames Uncompressed RAW: 13 Frames) CL Appr ox. 2.0f ps (JPE G: Endles s Compres sed RAW : 41 Frames* *When U sing the El ectroni c Shutte r CH cont inuous sho oting spee d drops to ap prox. 2.9 fps. *E lectron ic Front Cu rtain S hutter su pport C L only. *Recordable frame depends on recording media. *Speed of continuous shooting depends on shooting environment and shooting frames.

AE Brac keting ( Frames: -2, -3 , +3, +2, ±9, ±7, ±5, ±3 S tep: 1/3E V, 2/3E V, 1EV, 4/3 EV、5/3EV、2EV、7/3 EV、8/3E V、3EV ) Film Simula tion brac keting (A ny 3 types of film simul ation sele ctable) Dynamic R ange Bra cketing (10 0%, 200 %, 400%) ISO sen sitivit y Bracketing (±1/3E V, ±2/3 EV, ±1EV) White Ba lance Bra cketing (±1, ±2, ±3 ) Focus Br acketing ( AUTO, MAN UAL )*

Single A F / Continu ous AF / M FMode

Intellig ent Hybr id AF ( TTL c ontras t AF / TT L phase detectio n AF)Type

Single po int AF: E VF / LCD : 13×9 / 25×17 (Changeab le size of AF f rame) Zone AF : 3×3 / 5×5 / 7×7 from 117 areas on 13×9 grid Wide/ Tracking A F: (up to 18 area) *AF-S: W ide / AF -C: Trackin g All

Automat ic Scene re cogniti on / Custom1-3 / C olor tempe rature sel ection ( 2500 K~10000K ) / Preset: F ine, Shad e, Fluores cent light ( Dayligh t), Fluore scent ligh t (War m White), Fluorescent light (Cool White), Incandescent light, Underwater

10sec. / 2se c.Self-timer

Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing)Interval timer Shooting

1ST CUR TAIN / 2N D CURTAIN / AU TO FP(HS S)SYNC. MODE

TTL ( TTL AU TO (P mod e) / STAND ARD / S LOW SY NC.) / MA NUAL / MULT I / OFFFLASH MODE

Yes (Dedicated TTL Flash compat ible)Hot shoe

0.5 inch A pprox. 5.76 mil lion dots O LED C olor View finder Coverage of V iewing Area vs. Ca pturing A rea: App rox. 100% Eyepoin t: Approx . 23mm (fr om the Rear E nd of the Ca mera's Eyepi ece) Diop ter Adjust ment: -4 - +2m Magnifi cation: 0. 86× with 5 0mm Lens ( 35mm Equi valent) at i nfinity a nd Diopte r set to -1.0m Diagona l Angle of Vi ew: Appr ox. 41° (Hori zontal A ngle of View : Approx . 33°) Built-I n Eye Senso r

3.2 inch, A spect R atio 4:3, Ap prox. 2.3 6 million dot s Tilt-Type( Three Directio n), Touch Scree n Color LC D Monito r (Appr ox. 100% Co verage)LCD monitor

Touch AF, Focus A rea, OF F Double Tap ON /OFF Sett ing Touch Function ON/OFF Setting

Swipe, Zoom, Pinch-in / Pinch-out, Double-tap, Drag (ON/OFF Selectable)Playback Mode

1.80 inch, As pect Rat io 4:3, 303× 230- dot Mono chrome LC D Monito rSub LCD mo nitor

2.05 inch, A spect Ratio 4:1, 256×6 4-dot M onochrom e OLED M onitorRear sub monitor

Movie recording

File format

Movie compression

File size / Fr ame rate / Recording time

Film Simula tion mode

MOV (M PEG- 4 AVC / H.26 4, HEVC / H.26 5, Audio : Linear PC M / Stereo s ound 24bit / 4 8KH z sampling)

All Intr a / Long-G OP *All Intra c an be used w ith follow ing sett ings. DCI4 K / 4K 29.97p / 2 5p / 24p / 23.9 8p 400 Mbps Full HD( 2048 ×1080) / Full H D (1920×1080 ) 59.94p / 5 0p / 29.97p / 25p / 24p / 23. 98p 200M bps

[DCI 4K (40 96×2160 )] 29.97p / 25 p / 24p / 23.98 p 400 Mbps / 20 0Mbps / 10 0Mbps up t o Approx . 60min. [4K (38 40×2160)] 29.9 7p / 25p / 24p / 23.9 8p 400 Mbps / 200Mbp s / 100Mbp s up to Appr ox. 60min. [Full H D (204 8×1080)] 29. 97p / 25p / 24p / 23. 98p 20 0Mbps / 10 0Mbps / 5 0Mbps u p to Approx . 80min. [Full H D (1920×1080 )] 29.97p / 25 p / 24p / 23.98 p 200M bps / 100M bps / 50M bps up to A pprox. 80 min. * For reco rding movi es, use a SD me mory ca rd with UH S Speed Class 3 or hig her. * For reco rding movi es in 400 Mbps, us e a SD memor y card with Video S peed Clas s 60 or highe r. * Record ing movies in 4 00Mbps can be do ne with DC I4K / 4K 29.97p / 25p / 24p / 2 3.98p.

18 modes ( PRO VIA / S tandar d, Velvia / Vi vid, AS TIA / S oft, Cla ssic Chro me, PRO Ne g.Hi, PR O Neg.S td, Class ic Neg*5, ETE RNA / C INEM A, E TER NA BL EACH B YPAS S*5, Black&White, Black&White+Ye Filter, Black&White+R Filter, Black&White+Gfilter, Sepia, ACROS, ACROS+Ye Filter, ACROS+R Filter, ACROS+G Filter)

-9 - +9 *Wh en ACRO S or Black &White is s elected.B & W ADJ. ( Warm/Cool )

Grain Effect

Roughne ss: STR ONG, W EAK, OFF S ize: LA RGE, SMAL L*

STRONG, WEAK, OFFColor Ch rome Eff ect

STRONG, WEAK, OFFColor Ch rome Blue*

STRONG, WEAK, OFFSmooth Skin Effect

Dynamic range setting

Photography functions

Movie functions

Playback functions S witch slot, RAW conversion, Erase, Erase selected frames, Simultaneous delete(R aw Slot1/JPG Slot2), Crop, Resize, Protect, Image rotate, Red eye removal,

Wireless transmitter

Standard

Encryption

AUTO、 100％、 200％、 400％

D range pri ority, Hi ghlight ton e, Shadow to ne, Color, Sha rpness, N oise reduction, L ong exposu re NR, Le ns Modula tion Opti mizer, Color sp ace, Pixel ma pping, Select c ustom set ting, Edit/S ave custom s etting , AF-C cu stom set ting, St ore AF mod e by orient ation, A F point disp lay, Pre-A F, AF Illuminato r, Face/E ye detect ion AF, AF+M F, MF assist( Digita l Split Imag e, Digita l Micropr ism, Focu s peak highli ght), Foc us check, I nterlo ck spot AE & f ocus area , Instant A F setting (A F-S/A F-C), Depth- of-field sc ale, Relea se/F ocus prio rity, Touch sc reen mode, F licker red uction, M ount adap ter sett ing, 35mm F ormat Mo de, Red eye rem oval, RG B Histogr am, Highligh t alert, E lectron ic level, Pre view depth o f field, A E lock, A F lock, A F-ON , AWB lock , Multiple exposur e

Interframe NR, F-Log/HLG/ RAW recording* 4K HDM I standby qualit y, HDMI rec c ontrol, Z ebra set ting, Zebr a level, Aud io setti ng, Time co de setti ng, Tally light, M ovie silen t control

, Peripher al light co rrectio n, Movie A F mode, 4K m ovie outp ut, Full HD m ovie outp ut, HDM I output info displa y,

Voice memo s etting, C opy, Photobook ass ist, Mult i-frame pl ayback (w ith micro th umbnail) , Favorite s/Ra ting, RG B histogra m, Highligh t alert

IEEE802.11a/b/g/n/ac (standard wireless protocol)

WEP／WPA／WPA 2 mixed mode

InfrastructureAccess mode

Bluetooth

Bluetooth Ver. 4.2(Bluetooth low energy)Standartds

2402 - 2480MHz(Center frequency)Operating frequency

Lossless compression RAW: 20 Frames Uncompressed RAW: 15 Frames)

Wireless function

Other functions Exif Pr int, Date /Time , Time dif ference, 3 5 Languag es, My menu se tting, S ensor cle aning, Bat tery ag e, Regulato ry, Sound se t-up, EV F brightn ess, EV F color, EVF color ad justment ,

Terminal

Digital interface

Geotagging, Image transfer (Individual image/Selected multiple images), View & Obtain Images, instax Printer Print, Pairing registration, Delete pairing registration, Bluetooth ON/O FF setting, Aut o image tran sfer, Smart phone Sy nc. Set ting, Wire less com. f requency s etting

LCD brig htness, L CD color, LC D color adju stment, I mage disp, A uto rotat e displays, P review exp. /WB in manual mo de, Natur al live view, Fr aming guid eline, Auto r otate PB , Focus sc ale units , Dual displ ay settin g, Disp. cus tom sett ing, Larg e indicato rs mode( EVF/LC D), Large in dicator s disp. set ting, Info rmation c ontras t adj. Sub mon itor set ting, Rear sub mo nitor set ting, Sub m onitor bac kground co lor, Rear sub mo nitor brig htness, F ocus lever s etting, E dit/ Save Quic k menu, Func tion( Fn) sett ing, Comma nd dial set ting, Shutt er AF, Shutte r AE, Sho ot witho ut lens, Sho ot witho ut card, F ocus ring, F ocus ring o peratio n, AE /AF-L ock mode, AW B-Lock mode, E xpo. Co mp. butto n settin g, Touch screen s etting , Lock, Au to power of f, Perfo rmance, Sh ooting st and by mode , Auto powe r save, Frame N o., Save org image, Edit f ile name, Car d slot set ting, Sel ect slot, Select Folder and Create Folder, Copyright Info

USB Type-C（US B3. 2 Gen1x1）

HDMI Mi cro conne ctor ( Type D)HDMI output

Others

Power supply

Batte ry life for still imag es*

capture*

movie capture*

ø3.5mm, stereo mini connector ( Microphone) ø3.5mm, stereo mini connector (Headphone) ø2.5mm, Remote Release Connector DC IN 15V Co nnecter * Compat ible with AC -15V (Option al) Only Hot shoe Synchronized terninal

NP-T125 (×2) Li-ion battery (included)

Approx . 800 fra mes When G F63mm F2.8 R WR i s set. (2 bat terys installe d, Auto pow er save ON )

[4K] A pprox. 100min. [F ull HD] Ap prox. 150mi n. *Face d etectio n is set to OF FActual b atter y life of movie

[4K] A pprox. 170min. [Full H D] Approx. 240min . *Face de tection i s set to OFFContin uance bat tery life of

Suppor t USB PD(Pow er Deliver y) power source to su pply or rap idly recha rge batt ery (U SB PD Rev2.0 ver 1.3)USB powe r supply

Dimensions

Weight

-1

Operating environment

[ Including EVF] 156. 2mm (W ) × 163.6mm (H) × 102 .9mm (D ) / 6.15in. (W ) × 6.44in. ( H) × 4.05in. (D) ( Minimum Depth : 48 .9mm / 1.93in.) [Exc luding EV F] 156.2mm (W ) × 144.0mm (H) × 7 5.1mm (D) / 6.15in. (W ) × 5.67in. ( H) × 2.96in. (D ) (Minimu m Depth : 48 .9mm / 1.93in .)

Approx . 1,400g / 49. 4oz. (inc luding E VF, batter y x2 and mem ory card ) Approx. 1,320g / 4 6.6oz. ( including b atter y x2 and mem ory car d) Approx . 1,155g / 40 .7oz. (excluding ac cessor ies, batt ery and me mory ca rd)

-10°C - 40°C (+14°F - +104°F)Operating Temperature

10% - 80% (no c ondensat ion)Operating Humidity

Approx. 0.4sec. *FUJIFIL M ResearchStar ting up per iod

Accessories included

*1 Please s ee the FUJIF ILM website to chec k memory card compa tibility. *2 Exif 2 .3 is a digital camera fi le format that contai ns a variety of shoot ing information for op timal printing. *3 The Ele ctronic Shutter m ay not be suitable for fa st-moving objects o r handheld shooting. F lash can not be used. *4 When using the e lectronic front cur tain shutter, the co ntinuous shooting s upports CL only an d using high speed shut ter, the shutter switc hes to mechanical shu tter. (Faster than 1/ 1250sec . to 1/4000sec.) *5 Please u se your cameras and lens es with the latest ver sion of firmware. If th e firmware is not the late st version, compatib ility will not be provi ded. *6 Approx imate number of frames o r movie recording time t hat can be taken with a f ully-charged base d on CIPA Standard .

Li-ion ba tterie s NP-T125 (x2 ), Batter y charge r BC-T125, Plug ad apter, Interc hangeabl e electro nic viewf inder E VF-G FX 2, Body ca p, Metal st rap clips ( x2), Clip at tachin g tool, Protect ive cover s (x2), Sh oulder st rap, Cabl e protect or, Hot shoe cov er (Bo dy/E VF), C onnector cover ( EVF ), Sync terminal c over, Owner's m anual

37 38

SPECIFICATION
