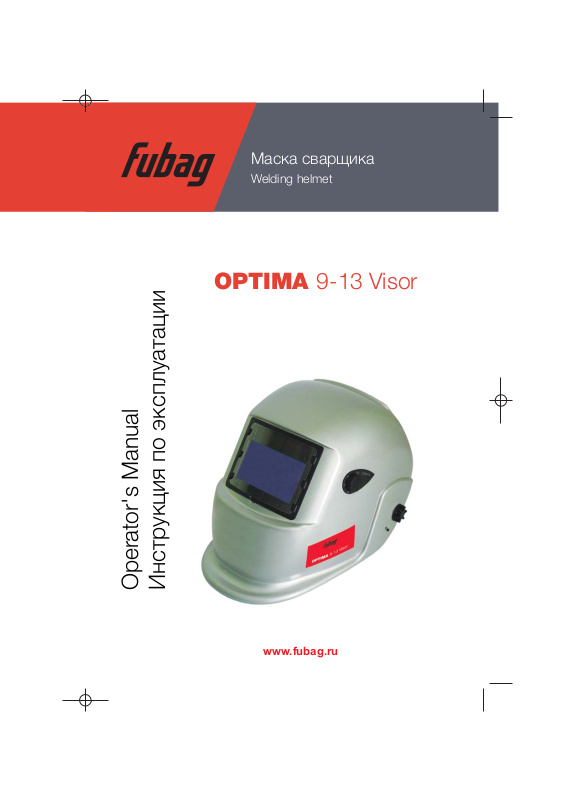

OPTIMA 9-13 Visor

Operator's Manual

Инструкция по эксплуатации

www.fubag.ru

Omperator's anual

www.fubag.ru

WARNING! BEFORE USING THE WELDING READ THE INSTRUCTION MANUAL CAREFULLY!

qualified specialists after proper reading of this manual.

The detailed description, safety rules and all required information necessary for proper operation and maintenance of FUBAG welding are provided below. Keep this instruction manual by

and refer to it any doubts concerning safety operation, maintenance, storage, and

helmet handling of FUBAG welding .

Safety perationo

- This Auto-Darkening filter Welding Helmet is not suitable for laser welding & xyacetylene elding/ .

w cutting processes This kind of filter is not suitable if the arc is flickering or heated. In this case it should be

tested before use. This Auto-Darkening filter Welding Helmet is not suitable for the protection against

explosive devices or corrosive liquids. Standard protective plates should be installed on the inner and outer surfaces of the filter.

Improper To be activated, the photocell should be subjected to direct sunlight for 20-30 minutes before use. Never place this Helmet and Auto-darkening filter on a hot surface.

Never open or tamper with the Auto-Darkening Filter.

This Auto-darkening filter welding helmet will not protect against severe impact hazards.

This helmet will not protect against explosive devices or corrosive liquids.

Should this helmet not darken upon striking an arc, stop welding immediately and contact

your supervisor or your dealer. Don't immerse the filter in water.

Don't use any solvents on filters' screen or helmet components.

- Operating temperature

Storing temperature: - 20°C ~ + 70°C (-40 F ~ 158°F).

Protect filter from contacting with liquid and dirt.

Clean filters' surfaces regularly; do not use strong cleaning solutions. Always keep sensors

and solar cells clean using a clean lint-free tissue/cloth. Regularly replace the cracked/scratched/pitted front cover lens.

Never try to open the filter cartridge.

in case of

helmet

use of the protective plates is risky and leads to nonrepairable damages.

Operation of the welding helmet is allowed only for trained and

helmet the

: - 5°C ~ + 55°C ( 23°F ~ 131°F ).

HELMET

--1

Omperator's anual

www.fubag.ru

2. Technical pecificationss

Viewing Area 98 х 55 mm Size of Cartridge 110 х 90 х 9 mm UV/IR Protection Up To Shade DIN16 at all time s Light State DIN 4 Variable Shade DIN 9-13 Power Supply Solar cells with built-in battery Power On/Off Fully Automatic Sensitivity Adjustable, External Switching Time:

- Light to Dark

- Dark to Light Sensors 4 Operating Temperature -5OС to +55OС Storing Temperature -20OС to +70OС Helmet Material High-impact resistant plastic / Polyamide (Nylon) Weight 0,5 kg

The manufacturer reserves the right to.change the manual's content or function without preliminary notification ofthe users

3. D

escription

0,000033 sec.

0,25 - 0,8 sec.

This Auto-Darkening filter Welding Helmet is designed to protect the eyes and face from sparks, spatter, and harmful radiation under normal welding conditions. Auto-darkening filter automatically changes from a light state to a dark state when an arc is struck, and it returns to the light state when welding stops. Auto-Darkening filter Welding Helmet comes ready for . The only thing you need to do

operation before your welding is to adjust the position of the headband and select the correct shade number for your application.

This model is designed & equipped with a special turnover (up & down) headband mechanism.

When welder turns over the helmet to head, the headband mechanism

top of the lowers the helmet's gravity center. This, in turn, helps the headband to be coincided with the center of a welder's head The design of welding helmet greatly the fatigue of welder's head (& neck) and make

reduces s a

welder feel more comfortable while working.

At the moment , it automatically changes filter screen from clear to dark in only

- when welding starts 0,000033

- WELDING/GRINDING can be selective.

Outside sensitivity adjuster can make the operators .

- feel more comfortable while working

At the moment , the filter screen automatically changes from dark to light state

- when welding stops according to your pre-set delay time.

- The helmet utilizes high performance solar cells power supply and has 2 built-in 3V lithium batteries as power back-up. Battery can be replaced. And the battery life is raised to a new limit. Under normal welding conditions, users can expect a battery has a lifetimeofmorethan6years

Variable shade from DIN9 to DIN13 is adjusted the turn of a shade knob (shade variable).

-by

--2

Omperator's anual

www.fubag.ru

- the

Sensitivity degree adjustment (Sensitivity inside knob) depends on:

- high low

ambient light: before welding set the sentivity parameter to " ”, then set it to " " and

wait till the filter becomes light;

- high LOW

welding process: for TIG process with low current is should be set to « ».

position is used for the most applications.

-s

The ultra high performance of UV/IR Auto-Darkening filters provide full protection for the user's

eye & face a against UV/IR radiation during the entire welding process, even in the light state. The UV/IR protection level is up to Shade16 (DIN) at all times. It makes welders feel comfortable working

while

4. Preparation

Check the front cover lens to make sure that clean, and that no dirt cover the two sensors on

the front of filter cartridge. Also check the front/inside cover lens and the front lens retaining frame to make sure that they are secure.

Inspect all operating parts before use for signs of wear or damage. Any scratched, cracked, or

pitted parts should be replaced immediately before using again to avoid severe personal injury.

Check for light tightness before each use.

Before operating, please make sure if the function-setting switch set the suitable location

WELDING GRINDING, or not.

Select the shade number you require the turn of a shade knob. Finally, be sure that the shade

number is the correct setting for your application.

Adjust headband sothat the helmet is seated as low as possible on the head and close to your

face.Adjust helmet's angle when in the lowered position by turning the adjustable limitation washer.

Activate the photocell by subjecting to direct sunlight for 20-30 minutes before use.

WARNING!

- This Auto-Darkening filter Welding Helmet is designed to protect the eyes and face from sparks,

spatter, and harmful radiation under normal welding conditions only. Be careful with protective plates they are fragile.

This product does not protect against the risk of severe injury, caused by small pieces of grinding

wheel, stone or other grinding tools, explosives or aggressive liquids etc. Should the risk of such injuries exist, safetyprecautions should be taken.

Do not use any tools or other sharp to remove from the filter or from the

- objects any particles

helmet.

Such actions may cause damage to the helmet, resulting in the helmet misoperation and possible

injuries.

The headband may cause allergic reaction .

- in people prone to allergies

the

the necessary

it is s

--3

Omperator's anual

www.fubag.ru

5. Shade guide

The shade number can be set manually between DIN 9-13. Check the Shade Guide Table to determine the proper shade number for your application. Select a shade number by turning the shade knob until the arrow points to the required setting.

ARC CURRENT, A

WELDING PROCESS

MMA

MIG (heavy)

MIG (light)

TIG

MAG/CO

SAW

PAC

PAW

6. Adjusting

For your safety and to insure that your Auto-Darkening filter Welding Helmet operates correctly, please read the thoroughly and consult a qualified specialist before use.Operator's Manual

1 Adjusting thefit of thehelmet.

- The overall circumference of the headband can be made larger or smaller by rotating the knob on the back of the headband. (See adjustment "Y" in fig.1) This can be done

e ing

whil wearing the helmet allow just the right tension to be

. This way the helmet is kept firmly on the head without

set being too tight

TOP

- If the headband is riding too high or too low on your head adjust the strap which passes over the top of your head. To do this release the end of the band by pushing the locking pip out of the hole in the band. two ends further or closer apart

Adjust the width of the band by sliding

and push the locking pip

through the nearest hole (See adjustment "W" in fig.1).

- Test the fit of the headband by lifting up and closing down the helmet a few times. f the headband moves re-

I when tilted,

adjust it until it is stable.

Fig.1

--4
