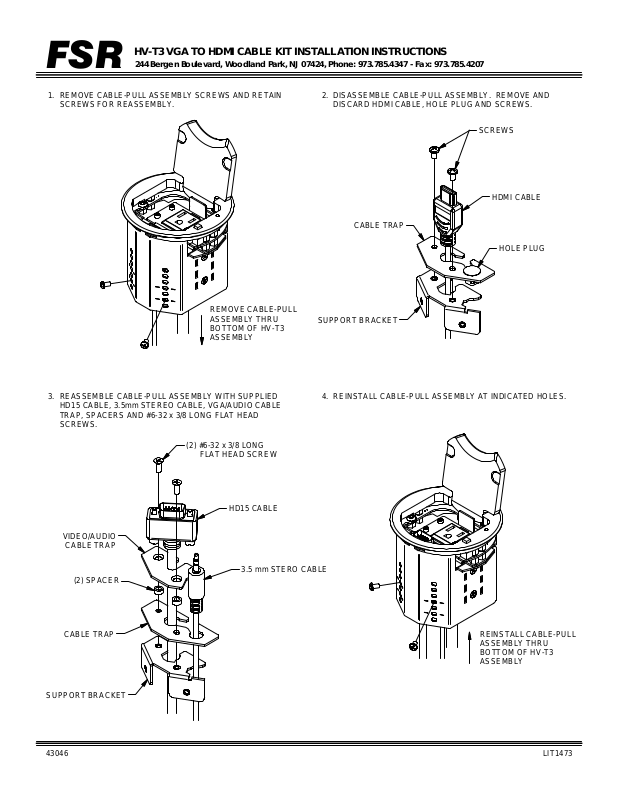

HV-T3 VGA TO HDMI CABLE KIT INSTALLATION INSTRUCTIONS

244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: [phone] - Fax: [phone]

1.

REMOVE CABLE-PULL ASSEMBLY SCREWS AND RETAIN
SCREWS FOR REASSEMBLY.

REMOVE CABLE-PULL
ASSEMBLY THRU
BOTTOM OF HV-T3
ASSEMBLY

2.

DISASSEMBLE CABLE-PULL ASSEMBLY. REMOVE AND
DISCARD HDMI CABLE, HOLE PLUG AND SCREWS.

CABLE TRAP

SUPPORT BRACKET

SCREWS

HDMI CABLE

HOLE PLUG

3.

REASSEMBLE CABLE-PULL ASSEMBLY WITH SUPPLIED
HD15 CABLE, 3.5mm STEREO CABLE, VGA/AUDIO CABLE
TRAP, SPACERS AND #6-32 x 3/8 LONG FLAT HEAD
SCREWS.

(2) #6-32 x 3/8 LONG
FLAT HEAD SCREW

HD15 CABLE

VIDEO/AUDIO

CABLE TRAP

3.5 mm STERO CABLE

(2) SPACER

CABLE TRAP

4.

REINSTALL CABLE-PULL ASSEMBLY AT INDICATED HOLES.

REINSTALL CABLE-PULL
ASSEMBLY THRU
BOTTOM OF HV-T3
ASSEMBLY

SUPPORT BRACKET

43046 LIT1473

FSR

HV-T6 VGA TO HDMI CABLE KIT INSTALLATION INSTRUCTIONS

244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: [phone] - Fax: [phone]

1.

REMOVE CABLE-PULL ASSEMBLY SCREWS AND RETAIN
SCREWS FOR REASSEMBLY.

2.

DETERMINE WHICH HDMI CABLE WILL BE REMOVED AND
WHICH AUDIO HOLE WILL BE USED, AND DISASSEMBLE
CABLE-PULL ASSEMBLY. RETAIN CABLE BUSHING AND
DISCARD HOLE PLUG. ONE OR BOTH CABLE-PULL
PANELS MAY NEED TO BE REMOVED.

(6) SCREW

(2) CABLE-PULL

PANEL

(2) HOLE PLUG

CABLE-PULL

PANEL MOUNT

(4) HDMI CABLE

3.

REASSEMBLE CABLE-PULL ASSEMBLY WITH SUPPLIED
HD15 CABLE, 3.5mm STEREO CABLE AND BUSHING.

HD15 CABLE

3.5mm STEREO CABLE

BUSHING

(6) SCREW

REMOVE CABLE-PULL
ASSEMBLY THRU
BOTTOM OF HV-T6
ASSEMBLY

(2) CABLE-PULL
PANEL

4.

REINSTALL CABLE-PULL ASSEMBLY AT INDICATED HOLES.

CABLE-PULL

PANEL MOUNT

43046 LIT1473

REINSTALL CABLE­PULL ASSEMBLY THRU
BOTTOM OF HV-T6
ASSEMBLY
