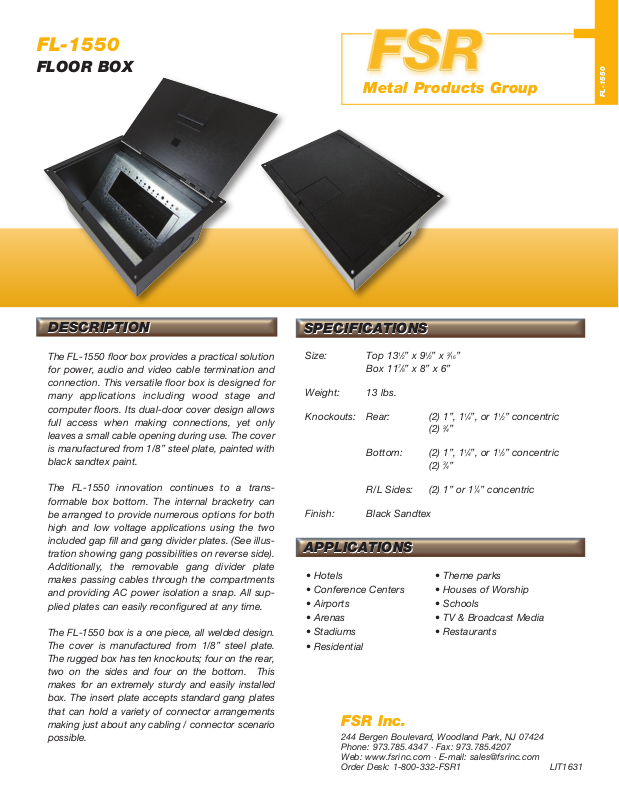

Page 1
FL-1550
FLOOR BOX
DESCRIPTION
DESCRIPTION
The FL-1550 floor box provides a practical solution
for power, audio and video cable termination and
connection. This versatile floor box is designed for
many applications including wood stage and
computer floors. Its dual-door cover design allows
full access when making connections, yet only
leaves a small cable opening during use. The cover
is manufactured from 1/8” steel plate, painted with
black sandtex paint.
Metal Products Group
SPECIFICATIONS
SPECIFICATIONS
Size: Top 131⁄2” x 91⁄2” x 3⁄16”
Box 117⁄8” x 8” x 6”
Weight: 13 lbs.
1
Knockouts: Rear: (2) 1”, 1
(2)
Bottom: (2) 1”, 11⁄4”, or 11⁄2” concentric
(2) 3⁄4”
⁄4”, or 11⁄2” concentric
3
⁄4”
FL-1550
The FL-1550 innovation continues to a transformable box bottom. The internal bracketry can
be arranged to provide numerous options for both
high and low voltage applications using the two
included gap fill and gang divider plates. (See illustration showing gang possibilities on reverse side).
Additionally, the removable gang divider plate
makes passing cables through the compartments
and providing AC power isolation a snap. All supplied plates can easily reconfigured at any time.
The FL-1550 box is a one piece, all welded design.
The cover is manufactured from 1/8” steel plate.
The rugged box has ten knockouts; four on the rear,
two on the sides and four on the bottom. This
makes for an extremely sturdy and easily installed
box. The insert plate accepts standard gang plates
that can hold a variety of connector arrangements
making just about any cabling / connector scenario
possible.
R/L Sides: (2) 1” or 1
Finish: Black Sandtex
APPLICATIONS
APPLICATIONS
• Hotels
• Conference Centers
• Airports
• Arenas
• Stadiums
• Residential
• Theme parks
• Houses of Worship
• Schools
• TV & Broadcast Media
• Restaurants
FSR Inc.
244 Bergen Boulevard, Woodland Park, NJ 07424
Phone: 973.785.4347 · Fax: 973.785.4207
Web: www.fsrinc.com · E-mail: [email protected]
Order Desk: 1-800-332-FSR1 LIT1631
1
⁄4” concentric
Page 2
FL-1550
MADE IN
THE USA
2.19 4.502.75 2.00 2.75 2.19
11.87
13.50
.82 .82 5.88
6.00
.75
2.00
8.00
.75
9.50
45°
2.00
.96
5.46
.18 RABBET DEPTH
FLOOR COVERING
THICKNESS
1.50
7.88
CONNECTOR
ACCESS
OPENING
2.89 CABLE
PASS THRU
OPENING
.81
.81
4.61
2.54
4.61
11.75
.88 .88
8.92
2.91
KO
C
L
KO
C
L
KO
C
L
KO
C
L
KO
C
L
KO
C
L
KO
C
L
KO
C
L
CABLE PASS
THRU
OPENING
(4) 3/4"
KNOCKOUT
(4) 1"/1-1/4"/1-1/2"
KNOCKOUT
(2) 1 & 1-1/4"
KNOCKOUT
CONNECTOR ACCESS
OPENING
(4) COUNTERSINK
SIZED FOR #8
FLAT
HEAD SCREW
NOTE: MAXIMUM DEPTH FOR GANG-MOUNTED COMPONENTS -
2-3/8"
OPTIONAL DIVIDER
OPTIONAL DIVIDER OPTIONAL DIVIDER
OPTIONAL DIVIDER
GANG MOUNTING BRACKET GANG MOUNTING BRACKET
GANG
MOUNTING
BRACKET
GANG MOUNTING BRACKET GANG MOUNTING BRACKET GANG MOUNTING BRACKET
(2) DIVIDER HOLDER
(NO DIVIDER USED)
(2) DIVIDER HOLDER
DIVIDER HOLDER
COVER PLATE DIVIDER HOLDER DIVIDER HOLDER
3-GANG / 1-GANG CONFIGURATION
1-GANG / 2-GANG CONFIGURATION 1-GANG / 3-GANG CONFIGURATION 2-GANG / 2-GANG CONFIGURATION
4-GANG CONFIGURATION
INSTALLED
ELECTRONIC
COMPONENT
DIMENSIONS
DIMENSIONS
GANG MOUNTING BRACKET CONFIGURATIONS
GANG MOUNTING BRACKET CONFIGURATIONS
Decora Wall Plates shown as reference and are not included.
FSR Inc.
244 Bergen Boulevard, Woodland Park, NJ 07424
Phone: 973.785.4347 · Fax: 973.785.4207
Web: www.fsrinc.com · E-mail: [email protected] LIT1631
Specifications are subject to change without notice.
